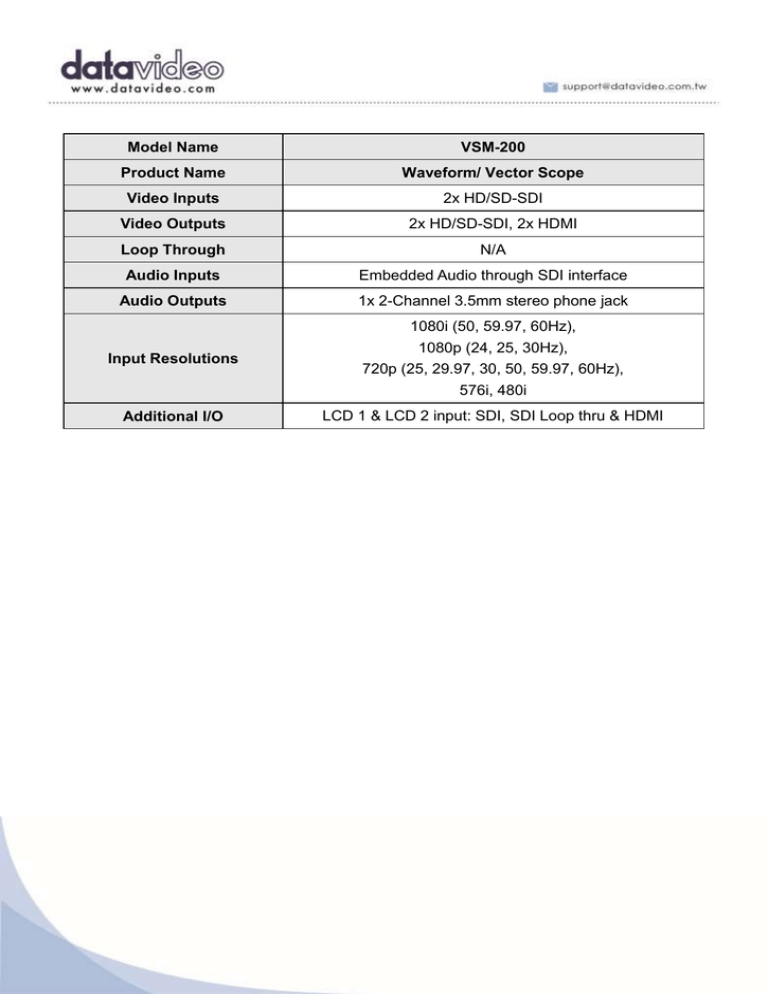

DataVideo VSM-200 Specification

DataVideo VSM-200 Specification
Model Name
VSM-200
Product Name
Waveform/ Vector Scope
Video Inputs
2x HD/SD-SDI
Video Outputs
2x HD/SD-SDI, 2x HDMI
Loop Through
N/A
Audio Inputs
Embedded Audio through SDI interface
Audio Outputs
1x 2-Channel 3.5mm stereo phone jack
1080i (50, 59.97, 60Hz),
Input Resolutions
1080p (24, 25, 30Hz),
720p (25, 29.97, 30, 50, 59.97, 60Hz),
576i, 480i
Additional I/O
LCD 1 & LCD 2 input: SDI, SDI Loop thru & HDMI
