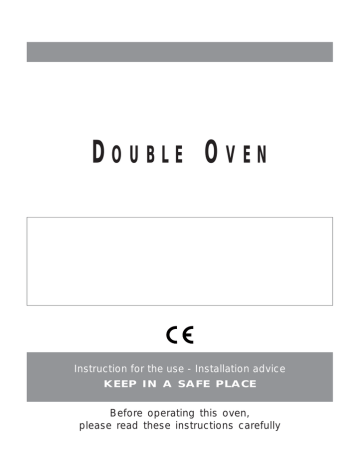

DOUBLE OVEN
Instruction for the use - Installation advice
KEEP IN A SAFE PLACE
Before operating this oven,
please read these instructions carefully
Dear Customer,
Thank you for having purchased and given your preference to our
product.
The safety precautions and recommendations within this booklet are
for your own safety and that of others. They will also provide a means
by which to make full use of the features offered by your appliance.
Please preserve this booklet carefully. It may be useful in future,
either to yourself or to others in the event that doubts should arise
relating to its operation.
This appliance must be used only for the task it has explicitly been
designed for, that is for cooking foodstuffs. Any other form of usage
is to be considered as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the event of damage
caused by improper, incorrect or illogical use of the appliance.
2
DECLARATION OF CE CONFORMITY
• This double oven has been designed to be used only for cooking. Any other use
(such as heating a room) is improper and dangerous.
• This double oven has been designed, constructed, and marketed in compliance with:
- safety requirements of EU Directive “Low voltage” 2006/95/EC
- safety requirements of EU Directive “EMC” 89/336/EEC;
- requirements of EU Directive 93/68/EEC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN
ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority differentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.
3
BEFORE USING FOR THE FIRST TIME
■
■
■
■
■
Read the instructions carefully before installing and using the appliance.
After unpacking the appliance, check that it is not damaged. In case of doubt,
do not use the appliance and contact your supplier or a qualified engineer.
Remove all the packing materials (i.e. plastic bags, polystyrene foam, etc.) and
do not leave it around within easy reach of children, as these may cause serious
injuries. The packaging materials are recyclable.
Do not attempt to modify the technical characteristics of the appliance, as it
may become dangerous to use.
The appliance should be installed and all the electrical connections made by a
qualified engineer in compliance with local regulations in force and following the
manufacturer's instructions.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR USE OF ELECTRICAL
APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamental rules. In particular:
■ Never touch the appliance with wet hands or feet;
■ do not operate the appliance barefooted;
■ do not allow children or disabled people to use the appliance without your supervision.
The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or unreasonable use of the appliance.
USING THE DOUBLE OVEN FOR THE FIRST TIME
You are advised to carry out the following operations:
■ Furnish the interior of the oven as described under the heading “Cleaning and
maintenance”
■ Switch the empty oven ON for about two hours to eliminate traces of grease
and smell from the components.
■ Let the oven cool down, switch off, then clean the inside of the oven with a
cloth soaked in water and neutral detergent and dry thoroughly.
4
IMPORTANT SAFEGUARDS & RECOMMENDATIONS
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
Do not carry out any cleaning or maintenance without first disconnecting the
appliance from the electrical supply.
During and after use of the double oven, certain parts will become very hot. Do
not touch hot parts.
After use always ensure that the controls are in the “0” OFF position.
Household appliances are not intended to be played with by children.
Keep children away from the double oven during use.
Children, or persons with a disability which limits their ability to use the appliance,
should have a responsible person to instruct them in its use. The instructor
should be satisfied that they can use the appliance without danger to themselves
or their surroundings.
WARNING
When correctly installed, your product meets all safety requirements laid down
for this type of product category. However special care should be taken around
the rear or the underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges, that may cause
injury.
Fire Risk! Do not store inflammable materials inside the ovens.
Always use oven gloves when removing the shelves and food trays from the
oven whilst hot.
Clean the ovens regularly and do not allow fat or oils to build up in the oven
base or trays. Remove spillages as soon as they occur.
Do not line the oven walls with aluminium foil. Do not place baking trays or the
drip tray on the base of the oven chamber.
Always stand back from the oven when opening the oven door to allow steam
and hot air to escape before removing the food.
Do not hang towels, dishcloths or other items on the cooker or its handle – as
this could be a fire hazard.
Make sure that electrical cords connecting other appliances in the proximity
cannot become entrapped in the oven doors.
Before disposing of an unwanted appliance, it is recommended that it is made
inoperative and that all potentially hazardous parts are made harmless.
Important: This appliance has been designed for domestic use only. The
appliance is NOT suitable for use within a semi-commercial, commercial or
communal environment.
Safe food handling: leave food in the oven for as short a time as possible
before and after cooking. This is to avoid contamination by organisms which
may cause food poisoning. Take particular care during warmer weather.
5
C O N T R O L PA N E L
1
TOP OVEN CONTROLS
Top oven temperature
indicator lamp
Top oven power on
indicator lamp
FUNCTION
TEMPERATURE
0
50
75
100
125
225
150
200
TOP OVEN
175
TOP OVEN
A
Fig. 1.1
Cooking functions knob
Temperature knob
A1
A2
TYPES OF THERMOSTAT
A3
50
50
50
100
100
MAX
250
100
250
225
200
6
150
200
150
150
200
Depending on the models
the thermostat could be
of type A1 (50 to 225°C)
or type A2 (50 to 250°C)
or type A3 (50 to MAX).
BOTTOM MAIN OVEN CONTROLS
Clock / Programmer display
Temperature display
Functions display
FUNCTION
TEMPERATURE
0
50
75
100
125
225
TOP OVEN
150
200
175
TOP OVEN
Fig. 1.2
ON/OFF selection
Temperature and programmer
functions regulation,
Childlock selection
Oven functions selection
Programmer functions
selection
NB: Your appliance has been fitted with a cooling fan to achieve optimum efficiency
of the controls and to ensure lower surface temperatures are maintained.
When the top oven is operating the cooling fan motor is always ON.
When only the bottom main oven is operating the cooling fan motor switches ON/OFF
depending on temperature.
Depending on cooking temperatures and times, the cooling fan may run on even after
appliance oven has been switched off. The duration of this time is dependent on previous cooking temperature and duration.
7
TOP OVEN
2
N ATURAL C ONVENTION E LECTRIC O VEN
GENERAL FEATURES
This oven features 2 different thermostatic control functions to satisfy all
cooking requirements, provided by 3
heating elements:
• Upper element,
• Lower element,
• Grill element,
700 W
1000 W
2000 W
NOTE:
When using for the first time, you are
advised to operate the oven at maximum temperature (thermostat knob on
the maximum position) for approximately
one hour in the
mode and for another 15 minutes in the
mode in order
to eliminate any traces of grease from
the electrical elements.
Depending on the models the
thermostat could have different
graphics:
• 50 to 225 or
• 50 to 250 or
• 50 to MAX.
OPERATING PRINCIPLES
Heating and cooking in the conventional
oven are obtained:
a. by natural convection
The heat is produced by the upper
and lower heating elements.
b. by radiation
The heat is radiated by the infrared
grill element.
WARNING:
The door is hot, use the handle.
Keep children away.
During use the appliance becomes
hot. Care should be taken to avoid
touching heating elements inside
the oven.
Attention: The oven door becomes
very hot during operation.
Keep children away.
FUNCTION
TEMPERATURE
0
50
75
100
125
225
TOP OVEN
8
150
200
175
Fig. 2.1
TOP OVEN
Fig. 2.2
THERMOSTAT KNOB (fig. 2.1)
To turn on the heating elements of the oven, set function selector knob to the required
position and the thermostat knob to the desired temperature.
To set the temperature, turn the thermostat control knob indicator mark to the required
temperature.
The elements will turn on or off automatically which is determined by the thermostat.
The operation of the heating elements is signalled by a light placed on the control
panel.
FUNCTION SELECTOR KNOB (fig. 2.2)
Rotate the knob clockwise to set the oven to one of the following functions:
OVEN LAMP
By turning the function selector knob to this setting, the oven light will illuminate in the
oven cavity.
The oven light will operate on all selected functions.
TRADITIONAL CONVECTION COOKING
The upper and lower heating elements are switched on.
The heat is diffused by natural convection and the temperature must be regulated
between 50°C and the maximum position with the thermostat knob.
It is necessary to preheat the oven before introducing the foods to be cooked.
Recommended for:
For foods which require the same cooking temperature both internally and externally,
i. e. roasts, spare ribs, meringue, etc.
GRILLING
The infra-red heating element is switched on. The heat is diffused by radiation.
Use with the oven door closed and the thermostat knob must be regulated between
50°C and 225°C maximum.
For correct use see chapter “USE OF THE GRILL”.
Recommended for:
Intense grilling, browning, cooking au gratin and toasting etc.
It is recommended that you do not grill for longer than 30 minutes at any one time.
Attention: the oven door becomes very hot during operation.
Keep children away.
9
COOKING ADVICE
OVEN COOKING
Before introducing the food, preheat the oven to the desired temperature.
For a correct preheating operation, it is advisable to remove the tray from the oven and
introduce it together with the food, when the oven has reached the desired temperature.
Check the cooking time and turn off the oven 5 minutes before the theoretical time to
recuperate the stored heat.
USE OF THE GRILL
Leave to warm up for approximately 5 minutes with the door closed.
Place the food inside positioning the rack as near as possible to the grill.
Insert the drip pan under the rack to collect the cooking juices.
Always grill with the oven door closed.
Grill with the oven door closed and for no longer than 30 minutes at any one time.
Attention: the oven door becomes very hot during operation.
Keep children away.
10
BOTTOM MAIN OVEN
3
F ULL E LECTRONIC M ULTIFUNCTION O VEN
GENERAL FEATURES
This multifunction electronic oven has 4
heating elements which allow you to
choose between 9 cooking programmes:
IMPORTANT
Do not touch the hot heating elements inside the oven cavity.
•
•
•
•
Attention: the oven door becomes
very hot during operation. Use the
handle. Keep children away.
Lower element
Upper element
Grill element
Circular element
1300
1000
2000
2200
W
W
W
W
NOTE:
Before using your new oven, it is necessary to condition your oven.
Heat the oven on maximum for 60 minutes in the position
and
(for
another 60 minutes) to eliminate possible traces of grease on the heating elements.
Then heat the oven for another 15 minutes in the grill position
as
explained in the chapters VENTILATED
GRILL COOKING and GRILLING AND
“AU GRATIN”.
GREASE FILTER (some models only)
• A special screen is provided at the
back of the oven to catch grease particles, mainly when meat is being
roasted (see page 39).
• When baking pastry etc. this filter
should be removed.
• Always clean the filter after cooking as
any solid residues on it might adversely affect the oven performance.
“TOUCH-CONTROL” KEYS
The “touch-control” keys shall be operated by the fingers (just by touching the key).
When using touch controls it is best to use the ball of your finger rather than the tip.
Fig. 3.1
11
OPERATING PRINCIPLES
Heating and cooking in the FULL ELECTRONIC MULTIFUNCTION oven are obtained in
the following ways:
a. by normal convection
The heat is produced by the upper and lower heating elements.
b. by semi-forced convection from the bottom
The heat produced by the lower heating element is distributed throughout the oven
by the fan.
c. by radiation
The heat is radiated by the infrared grill element.
d. by double radiation
The heat is radiated by the infrared grill and the top heating elements.
e. by radiation and ventilation
The radiated heat from the infrared grill element is distributed throughout the oven
by the fan.
f. by semi-forced convection from the bottom and back
The heat produced by the lower and circular heating elements is distributed throughout the oven by the fan.
g. by forced convection
The air inside the oven is warmed by a circular heating element at the back of the
oven. Hot air is then moved around the oven by a fan near the heating element.
Food can be placed inside a cold oven because it heats up quickly. The heat is
evenly distributed throughout the oven allowing for different dishes to be cooked
simultaneously.
h. by semi-forced convection
The heat produced by the upper and lower heating elements is distributed throughout
the oven by the fan.
i. by ventilation
1. “dEF” food is defrosted by using the fan only.
2. By using “dEF” and setting the temperature (from 40° to 100°C maximum) the
lower heating element is activated and this function can be used to keep food
warm (for a limited amount of time).
l. by fast pre-heating (BOOSTER)
This special program allows (by a combination of the heating elements) a fast preheating of the oven cavity.
12
U SING T HE M AIN O VEN E LECTRONIC D ISPLAY
DIGITS
SYMBOL
- Oven switched on: Time of day
and selected function (alternating)
- Oven switched off: Time of day
Lit = minute minder in operation
Flashing = countdown completed
by the minute minder
SYMBOL
SYMBOL
Lit = operation of heating
elements (cooking functions)
Flashing = semi-automatic or
automatic cooking completed
Lit = semi-automatic or automatic
cooking programmed
Flashing = semi-automatic or automatic
cooking completed
Fig. 3.2
SYMBOL
SYMBOL
ON/OFF
Programmer functions - Progressive selection
(each time the key is touched)
OVEN SWITCHED OFF
1st
Timer
1st
Timer
2 nd
Oven light
options
2 nd
Duration of a
cooking program
3 rd
Automatic
switch off
options
3 rd
Stop time of a
cooking program
4 th
Setting time
of day
SYMBOL
To increase the numbers
on the display
Time of day and
selected function
(alternating)
NORMAL STATUS
Time of day
NORMAL
STATUS
SYMBOL
To decrease the
numbers on the
display or to set the
alarm sound
OVEN SWITCHED ON
13
ELECTRONIC CONTROLLER FEATURES
It
•
•
•
•
•
•
•
•
performs the following functions:
24 hours clock with illuminated display.
Timer (minute minder: up to 600 minutes - 10 hours).
Programme for semi-automatic oven cooking (up to 600 minutes - 10 hours - of
cooking time).
Programme for automatic oven cooking (up to 600 minutes - 10 hours - of cooking
time).
Automatic switch off.
“Childlock” safety (deactivation of the controller selections).
Oven functions and temperature selection.
Each setting is automatically processed about 4 seconds after the last selection.
IMPORTANT NOTE: The first time the oven is used or after a power failure the clock
is automatically set to 12:00 (“12:00” appears on the clock/programmer display).
WARNING: The oven can be used but it is preferable to set the time of the day.
SETTING TIME OF DAY
The controller is provided with an electronic clock with illuminated figures showing the
hour and minutes.
IMPORTANT: The ti me of day can be set only when the oven is turned off (“standby” condition).
To set the time:
• Select “hour” on the clock/programmer display by using the key “
”.
• While the hour is flashing touch “
” and “
” keys to set the time.
14
TURNING THE OVEN ON AND OFF
To turn the oven ON:
• Touch the key “
” and hold until “On” appears on the clock/programmer display.
• You can now operate your oven. The time of the day appears on the clock/programmer display (followed by the programme number “Pr01, Pr02, ...”).
To turn the oven OFF:
• Touch the key “
” and hold until “OFF” appears on the clock/programmer display.
• The oven is turned off (“stand-by” condition) and the time of the day appears on the
clock/programmer display.
• 3 beeps indicate that the oven has been turned off.
To select the volume of the beeps, touch the “
” key when the oven is turned off
(”stand-by” condition) .
WARNING - IMPORTANT NOTE
Do not turn the oven off if you have set it for automatic or semi-automatic cooking. This operation will cancel the programmed cooking.
Only the timer (minute minder) operates in the “stand-by” condition.
OVEN AUTOMATIC SWITCH OFF
• If you do not use your oven within 3 minutes, it automatically switches back to standby.
• When the oven is operating a cooking function it automatically switches back to
stand-by after 10 hours.
• It is possible to remove the automatic switch off feature by selecting “A_SO” (by
using the key “
”with the oven switched off) on the clock/programmer display and
then touching the “
” or “
” key to set “OFF”.
To reactivate the automatic switch off feature repeat the same procedure and set to
“On”.
It is factory setted for “A_SO - On” (automatic switch off ON) and this option is also
automatically activated after a power failure.
15
CHILDLOCK SAFETY
To activate the Childlock option touch the “
” and “
” keys simultaneously and
hold until the clock/programmer display shows “n--0” and then “On”.
Then the time of the day appears again (followed by the selected programme number
“Pr01, Pr02, ...” when the oven is ON). The temperature display shows “
”.
When the Childlock option has been selected it is only possible to turn off the oven
(stand-by mode) and operate the timer (minute minder).
In this setting it is not possible to change the oven cooking programme (cooking function, temperature) and the time selected for a semi-automatic or automatic cooking: if
touching the relative keys “n--0” appears on the central display.
If the oven is turned off (stand-by mode) it is only possible to operate the timer.
To deactivate the “Childlock” option touch the “
” and “
” keys simultaneously
and hold until the clock/programmer display shows “n--0” and then “OFF”.
Then the time of the day appears again (followed by the selected programme number
“Pr01, Pr02, ...” when the oven is ON). On the temperature display the “
” symbol
goes out.
IMPORTANT: If the oven has been switched OFF (stand-by mode) with the
Childlock option selected it is possible to turn ON the oven only after having deactivated the Childlock.
Fig. 3.3
16
USING THE TIMER (MINUTE MINDER)
You can use the timer at any time, even when the oven is not in use or switched off
(stand-by mode). The timer does not turn the oven off. Remember to turn off the oven
manually. The timer can be set for up to 600 minutes (10 hours).
To set the timer:
• Select “bELL” on the clock/programmer display by using the key “
” and then,
with “---’” flashing on the central display, touch “
” and “
” keys
and set the time in minutes.
• To reset the time touch the “
” or “
” key.
• Then the time of the day appears again on the clock/programmer display (followed
by the selected programme number “Pr01, Pr02, ...” when the oven is ON) and the
countdown starts immediately.
• To check the countdown select “bELL” on the clock/programmer display by using
the key “
”; the time is indicated (for a few seconds) in minutes.
• When the time is up, the timer will beep. Touch any key (except the “
” key) to
turn it off.
NOTE:
The timer also operates if the oven, after selection, is turned OFF (stand-by mode).
The timer can also be set in the stand-by mode (OFF).
17
U SING
S ELECTING
M AIN O VEN
C OOKING F UNCTIONS
THE
THE
Clock/
Programmer
display
Functions
display
setting
Oven cooking function
When selection a cooking function
the relative programme number and
the symbol are activated.
setting
Fig. 3.4
18
Set oven function key
Decreasing
Set oven function key
Increasing
U SING THE M AIN O VEN
SELECTING THE TEMPERATURE
Cooking temperature
All cooking functions start to operate with a pre-set temperature which can be modified, at
any time, by touching the relative “+” and “–” keys positioned below the temperature display.
“Celsius degrees” symbol
The symbol is lit when the temperature is displayed.
Childlock symbol
When the symbol is permanently lit the Childlock option is activated.
Set oven temperature key
Decreasing
Set oven temperature key
Increasing
Fig. 3.5
19
USING THE OVEN - COOKING FUNCTIONS
Turn on the oven as indicated in the “TURNING THE OVEN ON AND OFF” chapter.
Select the oven function and temperature as indicated in the previous pages.
IMPORTANT: the cooking function and temperature can be modified at any time
during the normal, semi-automatic or automatic cooking.
Please remember to set the Childlock option in the presence of children.
OVEN LAMP
When the oven is turned ON the oven light comes on and the relative symbol is lit in
the functions display. The clock/programmer display reads the time of the day and
alternates with “Pr01”.
The oven light remains on in all cooking modes. The lamp is automatically switched
off about three minutes after competing the pre-heating time. During automatic cooking,
the lamp is switched off before the oven starts to operate.
By pressing any key (not “
”) the lamp is lit for about one minute.
Oven light automatic swich off.
It is possible to deactivate/activate this option (only when the oven is in the “standby” OFF mode):
• select “bulb” on the clock/programmer display by using the key “
”;
• touch “
” or “
” key to select “on” (for automatic switch off) or “off” (for oven
lamp always on).
Automatic switch off “bulb ON” has been set by the factory and this option is automatically activated after a power failure.
TRADITIONAL CONVECTION COOKING
The upper and lower heating elements are switched on.
The heat is diffused by natural convection and the temperature must be set between
50 and 250°C.
The pre-heating temperature is set at 200°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
For foods which require the same cooking temperature both internally and externally,
i.e. roasts, spare ribs, meringue, etc.
20
FAN LOWER HEAT
The lower heating element and the fan motor are switched on.
The heat coming from the bottom is diffused by forced convection and the temperature
must be set between 50 and 250°C.
The pre-heating temperature is set at 190°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
This mode is particularly suitable to complete cooking of dishes that require higher
temperature at the bottom.
GRILLING
The infrared heating element is switched on.
The heat is diffused by radiation.
Use with the oven door closed and the temperature between 50 and 225°C maximum.
The pre-heating temperature is set at 225°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
Intense grilling action for browning, crisping, “au gratin”, toasting, etc.
For correct use see the “USE OF THE GRILL AND TURBO GRILL” chapter.
The external parts of the oven become hot during operation.
Keep children well out of reach.
TURBO GRILL
In this position the upper heating element and the grill element are switched on simultaneously. Heat is radiated over the entire surface area of the grill.
Use with the oven door closed and the temperature between 50 and 225°C maximum.
The pre-heating temperature is set at 225°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
Intense grilling action for browning, crisping, “au gratin”, toasting, etc.
For correct use see the “USE OF THE GRILL AND TURBO GRILL” chapter.
The external parts of the oven become hot during operation.
Keep children well out of reach.
21
VENTILATED GRILL COOKING
The infrared heating element and the fan are switched on.
The heat is mainly diffused by radiation and distributed by the fan throughout the oven.
Use with the oven door closed and the temperature between 50 and 200°C maximum.
The pre-heating temperature is set at 200°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
For fast browning and saut_ing , i. e. veal steak, steak, hamburger, etc.
For correct use see the “GRILLING AND AU GRATIN” chapter.
The external parts of the oven become hot during operation.
Keep children well out of reach.
HOT AIR COOKING WITH LOWER HEAT
This mode combines the lower heating element, the circular heating element and the
fan. The food is cooked by forced air circulation with additional heat from the bottom
of the oven. The temperature can be set between 50 and 250°C.
The pre-heating temperature is set at 210°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
This cooking mode is ideal for large joints of meat and large quantities of food that call
for uniform cooking inside and out, e.g. roasts, turkey, chicken, cakes, etc.
HOT AIR COOKING
The circular heating element and the fan are switched on.
The heat is diffused by forced convection and the temperature can be set between 50
and 250°C.
The pre-heating temperature is set at 175°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
For foods that must be well done on the outside and tender or rare on the inside, i.
e. lasagna, lamb, roast beef, whole fish, etc.
22
CONVECTION COOKING WITH FAN
The upper and lower heating elements and the fan are switched on. The heat from the
top and the bottom is diffused by fan convection. The temperature can be set between
50 and 250°C.
The pre-heating temperature is set at 175°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
For foods of large volume and quantity which require the same internal and external
degree of cooking; e.g. rolled roasts, turkey, legs, cakes, etc.
DEFROSTING FROZEN FOODS
OR
FOOD WARMING
The fan only switches on and the temperature display shows “dEF”.
It is possible to operate also the lower heating element (this function operates as a
food warmer) by regulating the temperature as indicated in the “SELECTING THE TEMPERATURE” chapter, from 40°C to maximum 100°C (the temperature display shows
the temperature).
Recommended for:
To rapidly defrost frozen food; 1 kilogram requires about one hour. The defrosting times
vary according to the quantity and type of food to be defrosted.
To keep hot cooked food at serving temperature.
23
SPECIAL “BOOSTER” PROGRAMME
This special programme allow a fast pre-heating of the cavity by a combination of the
heating elements.
VERY IMPORTANT NOTE: This special programme
must be operated without food inside the oven cavity.
Introduce the food to be cooked only at the end of the
BOOSTER programme.
It is not possible to activate this option:
• If a semi-automatic or automatic cooking has been
programmed.
• For the OVEN LAMP, GRILLING, TURBO GRILL and
VENTILATED GRILL COOKING functions.
• For the DEFROSTING FROZEN FOODS OR FOOD
WARMING function.
Fig. 3.6
To set the BOOSTER:
• Select the cooking function.
• Set the oven temperature.
• Touch the “
” and “
” keys simultaneously.
• With “b__r flashing on the clock/programmer display confirm the BOOSTER option
by touching the “
” key. If this key is not touched within 10 seconds this programme
will not be activated.
During the BOOSTER program:
• The functions display shows the selected function.
• The clock/programmer display alternates between the selected programme number
“Pr01, Pr02, ...” and “b__r”.
• The selected temperature can be modified at any time.
• It is not possible to change the selected function which will start at the end of the
BOOSTER programme. If the selected function is changed the BOOSTER programme
is automatically deactivated.
• It is not possible to select the programmer functions (timer, duration of a cooking
program, stop time of a cooking programme).
When the pre-heating temperature has been reached, three beeps will sound.
When the BOOSTER programme has been deactivated, another three beeps will sound
(“b__r” no more shown on the clock/programmer display).
24
To cancel the BOOSTER programme at any time before completing the fast pre-heating:
• Touch the “
” or “
”" key (or simultaneously). The oven will proceed automatically
to the selected cooking function.
NOTE: during the BOOSTER programme the key “
” is not active.
USING THE OVEN MANUALLY
Turn the oven ON as indicated in the “TURNING THE OVEN ON AND OFF” chapter.
Operate the oven manually by selecting the oven function and temperature as indicated
in the “SELECTING THE COOKING FUNCTIONS” and “SELECTING THE TEMPERATURE” chapters. The oven will start to operate about four seconds after your last selection.
If “AUTO” symbol is shown on the clock/programmer display (semi-automatic or automatic cooking selected), then you need to cancel the preset automatic cooking as indicated in the “CANCELLING A SET PROGRAMME” chapter.
Turn OFF the oven as indicated in the “TURNING THE OVEN ON AND OFF” chapter.
CANCELLING A SET PROGRAMME
To cancel a set programme (“AUTO” symbol activated on the programmer display):
• Select “dur” on the programmer display by touching the key “
” and then touch
“
” or “
” key. You should read “000'” on the clock/programmer display.
• A set programme is also cancelled when the oven is switched OFF in the “stand-by”
mode. At the next power up the oven is not programmed.
IMPORTANT: If the oven is ON, remember to switch it off manually otherwise it
does not stop operating in the set mode.
25
USING THE OVEN AUTOMATICALLY
Use automatic cooking to automatically turn the oven on, cook, and then turn the oven
off.
1. Check the clock shows the correct time.
2. Select the function and temperature. The oven will come on.
3. Decide how long the food will take to cook, allowing time for pre-heating if necessary.
4. Select “dur” (duration) on the clock/programmer display by using the “
” key and
then, with “---’” flashing on the central display, touch “
” or “
” keys to
set the time in minutes (maximum 600 minutes - 10 hours). To reset the cooking
time touch the “
” or “
” key.
5. Decide the time you would like the oven to turn off; select “End” on the
clock/programmer display by using the “
” key and then, with the time flashing
on the central display, touch the “
” or “
” keys to set the end of cooking
time (hour and minutes).
If there is time to wait before cooking starts, “AUTO” will show in the clock /programmer
display and the oven will switch off but is now set for automatic cooking.
If you are already at home to turn the oven on and only want the oven to turn off
automatically, start cooking as normal, then follow step 4 or step 5 to set a time to
stop the oven.
When automatic cooking starts, “
” will be displayed and the oven will turn on.
• To see the remaining cook time, follow step 4 up to display “dur” (duration).
• To see the set stop time, follow step 5 up to display “End”.
• To cancel automatic or semi-automatic cooking at any time see chapter “CANCELLING A SET PROGRAMME”.
When the stop time is reached the timer will beep, “AUTO” and “
” will flash:
• Touch any key to stop the beeping.
• The oven will turn off on the “OVEN LIGHT” function.
• Turn OFF the oven as indicated in the “TURNING THE OVEN ON AND OFF” chapter.
Attention: after a power failure any automatic or semi-automatic programme is
cancelled. Turn off the oven manually.
During an automatic or semi-automatic cooking programme it is possible to
change the cooking function and the temperature at any time.
26
COOKING ADVICE
STERILISATION
Sterilisation of foods to be conserved, in full and hermetically sealed jars, is done in
the following way:
a.
b.
c.
d.
Set the function
.
Set the temperature at 185 °C and preheat the oven.
Fill the grill pan with hot water.
Set the jars into the grill pan making sure they do not touch each other and the
door and set the temperature at 135 °C.
When sterilization has begun, that is, when the contents of the jars start to bubble,
turn off the oven and let cool.
REHEAT FOOD
Set the
function and the temperature at 150° C.
Bread becomes fragrant again if wet with a few drops of water and put into the oven
for about 10 minutes.
COOKING DIFFERENT DISHES AT THE SAME TIME
By setting the
or
functions the ventilated oven allows you to cook different
types of food at the same time.
Fish, cakes and meat can be cooked together without the smells and flavours mixing.
Please ensure that:
• The cooking temperatures must be as close as possible with a maximum difference
of 20°-25°C between the different foods.
• Different dishes must be placed in the oven at different times according to the cooking
time required for each one. This type of cooking obviously provides a considerable
saving on time and energy.
ROASTING
To obtain classical roasting, please remember:
• that it is advisable to maintain a temperature between 180 and 200 °C.
• that the cooking time depends on the quantity and the type of foods.
27
USE OF THE GRILL AND TURBO GRILL
Choose
or
function and set the temperature between 50 and 225°C maximum.
Preheat for approximately 5 minutes with the door closed.
Put the grill pan as close to the grill as possible.
Always grill with the oven door closed.
Do not grill for longer than 30 minutes at any one time.
Attention: the oven door becomes very hot during operation. Keep children away.
GRILLING AND “AU GRATIN”
Grilling may be done by selecting the function
because the hot air completely
envelops the food that is to be cooked.
Set the temperature between 50 and 200°C maximum and after having preheated the
oven, simply place the food on the grid.
Close the door and let the oven operate until grilling is done.
Adding a few dabs of butter before the end of the cooking time gives the golden “au
gratin” effect.
Always grill with the oven door closed.
Do not grill for longer than 30 minutes at any one time.
Attention: the oven door becomes very hot during operation. Keep children away.
28
4
CLEANING
AND
MAINTENANCE
GENERAL ADVICE
Important:
Before any operation of cleaning and maintenance disconnect the appliance from
the electrical supply.
It is advisable to clean when the appliance is cold and especially for cleaning the enamelled parts.
Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.
Avoid using cleaning products with a chlorine or acidic base.
WARNING
When correctly installed, your product meets all safety requirements laid down for
this type of product category. However special care should be taken around the
rear or the underneath of the appliance as these areas are not designed or intended to be touched and may contain sharp or rough edges, that may cause injury.
INSIDE OF OVEN
The oven should always be cleaned after use when it has cooled down.
The cavity should be cleaned using a mild detergent solution and warm water.
Suitable proprietary chemical cleaners may be used after first consulting with the manufacturers recommendations and testing a small sample of the oven cavity.
Abrasive cleaning agents or scouring pads/cloths should not be used on the cavity
surface.
NOTE: The manufacturers of this appliance will accept no responsibility for damage
caused by chemical or abrasive cleaning.
Let the oven cool down and pay special attention no to touch the hot heating
elements inside the oven cavity.
Do not use a steam cleaner
because the moisture can get into
the appliance thus make it unsafe.
Do not store flammable material in
the ovens.
29
ENAMELLED PARTS
All the enamelled parts must be cleaned with a sponge and soapy water only or other
non-abrasive products.
Dry preferably with a microfibre or soft cloth.
STAINLESS STEEL SURFACES (MODELS WITHOUT ANTI-FINGERPRINT TREATMENT),
ALUMINIUM PARTS AND PAINTED OR SILK-SCREEN PRINTED SURFACES
Clean using an appropriate product. Always dry thoroughly.
IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion. You are advised to use a soft cloth and neutral soap.
STAINLESS STEEL SURFACES WITH ANTI-FINGERPRINT TREATMENT
(SOME MODELS ONLY)
CAUTION: The stainless steel front surfaces used in some ovens are protected with a
Special Lacquer to reduce finger-print marks.
To avoid damaging this lacquer, do not clean the stainless steel with abrasive cleaners or abrasive cloths or scouring pads.
ONLY SOAP/WARM WATER MUST BE USED TO CLEAN THE STAINLESS STEEL
SURFACES.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven
door glass since they can scratch the surface, which may result in shattering
of the glass.
30
OVEN FITTING OUT
MODELS WITH EMBOSSED CAVITY
The oven shelves are provided with a security block to prevent accidental extraction.
They must be inserted operating as per figure 4.1a - 4.1b.
To pull them out operate in the inverse order.
TOP OVEN
BOTTOM MAIN OVEN
Fig. 4.1a
Fig. 4.1b
31
MODELS WITH WIRE RACKS
• Assemble the wire racks to the oven walls using the 2 screws (Fig. 4.2a - 4.2b).
In the models with catalytic panels interpose the catalytic panels “A” with the arrow
up (fig. 4.2a - 4.2b).
Models with side lamp on the bottom cavity: The catalytic panel with the hole for
the side oven lamp must be positioned on the left oven wall. DO NOT INTERPOSE
THE CATALYTIC PANEL WITHOUT THE HOLE ON THE LEFT OVEN WALL.
• Slide in, on the guides, the shelf and the tray (fig. 4.3a - 4.3b).
The shelf must be fitted so that the safety catch, which stops it sliding out, faces
the inside of the oven.
• To dismantle, operate in reverse order.
TOP OVEN
BOTTOM MAIN OVEN
A
A
32
HOLE FOR SIDE
LIGHT (SOME
MODELS ONLY)
Fig. 4.2a
Fig. 4.2b
Fig. 4.3a
Fig. 4.3b
MODELS WITH TILTING GRILL AND WIRE RACKS
• TOP OVEN: See chapters “MODELS WITH WIRE RACKS” at page 32 and
“MODELS WITH TILTING GRILL ON THE TOP OVEN at page 38.
• BOTTOM OVEN: Operate as follows:
– Assemble the wire racks on the oven walls using the 2 screws (fig. 4.4). In the models
with catalytic panels interpose the catalytic panels “A” with the arrow up (fig. 4.4).
Models with side lamp on the bottom cavity: The catalytic panel with the hole for
the side oven lamp must be positioned on the left oven wall. DO NOT INTERPOSE
THE CATALYTIC PANEL WITHOUT THE HOLE ON THE LEFT OVEN WALL.
– Slide in, on the guides, the shelf and the tray (fig. 4.5).
The rack must be fitted so that the safety catch, which stops it sliding out, faces
the inside of the oven.
To dismantle, operate as follows:
– Unscrewing the fixing screws and slide off the wire racks and the catalytic liners (if
supplied) to the oven wall as in fig. 4.4.
The grill is secured to the rear wall of the oven on a hinge system that allows
it to be lowered to allow proper access when cleaning the oven ceiling (fig. 4.6).
BOTTOM MAIN OVEN ONLY
Fig. 4.5
A
HOLE FOR SIDE LIGHT
(SOME MODELS ONLY)
A
Fig. 4.4
SIDE LIGHT
(SOME MODELS ONLY)
Fig. 4.6
33
TELESCOPIC SLIDING SHELF SUPPORTS (SUPPLIED WITH SOME MODELS ONLY)
The telescopic sliding shelf supports make it safer and easier to insert and remove the
oven shelves and trays. They stop when they are pulled out to the maximum position.
Important! When fitting the sliding shelf supports, make sure that you fit:
– The slides to the top wire of a rack. They do not fit on the lower wire.
– The slides so that they run out towards the oven door.
– Both sides of each pair of shelf slides.
– Both sides on the same level.
– Models with tilting grill on the bottom cavity. Note: you cannot fit the sliding shelf
supports to the top shelf position.
To fix the sliding shelf support onto the side racks:
– Screw the side rack onto the oven wall (Figs. 4.2a - 4.2b - 4.4).
– Fit the sliding shelf support onto the top wire of a rack and press (Figs. 4.7 - 4.8).
You will hear a click as the safety locks clip over the wire.
Left
Right
Left
Right
Fig. 4.7
34
Fig. 4.8
To remove the telescopic sliding shelf supports:
– Remove the side racks by unscrewing the fixing screws (Figs. 4.9 - 4.10).
– Lay down the telescopic sliding shelf support and side racks, with the telescopic sliding shelf support underneath.
– Find the safety locks. These are the tabs that clip over the wire of the side rack
(arrow 1 in Fig. 4.11).
– Pull the safety locks away from the wire to release the wire (arrow 2 in Fig. 4.11).
Fig. 4.10
Fig. 4.9
1
2
1
Fig. 4.11
35
MODELS WITH SLIDING SHELVES
– Assemble the sliding shelves on the oven wall as in Fig. 4.12a - 4.12b.
In the models with catalytic panels interpose the catalytic panels “A” with the arrow
up (fig. 4.12a - 4.12b).
Models with side lamp on the bottom cavity: The catalytic panel with the hole for
the side oven lamp must be positioned on the left oven wall. DO NOT INTERPOSE
THE CATALYTIC PANEL WITHOUT THE HOLE ON THE LEFT OVEN WALL.
The sliding shelves facilitate the insertion and removal of shelves during cooking; they
stop when pulled out to the maximum position. These shelves support all accessory
trays and are dishwasher safe.
– Position the shelf and tray as per fig. 4.13a - 4.13b.
– To dismantle, operate in reverse order.
TOP OVEN
A
BOTTOM MAIN OVEN
A
A
36
Fig. 4.12a
Fig. 4.12b
Fig. 4.13a
Fig. 4.13b
HOLE FOR SIDE
LIGHT (SOME
MODELS ONLY)
A
MODELS WITH TILTING GRILL AND SLIDING SHELVES
• TOP OVEN: See chapters “MODELS WITH SLIDING SHELVES” at page 36 and
“MODELS WITH TILTING GRILL ON THE TOP OVEN at page 38.
• BOTTOM OVEN: Operate as follows:
– Assemble the sliding shelves on the oven walls using the 2 screws (fig. 4.14).
In the models with catalytic panels interpose the catalytic panels “A” with the arrow
up (fig. 4.14).
Models with side lamp on the bottom cavity: The catalytic panel with the hole for
the side oven lamp must be positioned on the left oven wall. DO NOT INTERPOSE
THE CATALYTIC PANEL WITHOUT THE HOLE ON THE LEFT OVEN WALL.
– Position the shelf and tray on the sliding shelves (fig. 4.15).
To dismantle, operate as follows:
– Unscrewing the fixing screws and slide off the sliding shelves and the catalytic liners
(if supplied) to the oven wall as in fig. 4.14.
The grill is secured to the rear wall of the oven on a hinge system that allows
it to be lowered to allow proper access when cleaning the oven ceiling (fig. 4.16).
BOTTOM MAIN OVEN ONLY
Fig. 4.15
A
HOLE FOR SIDE LIGHT
(SOME MODELS ONLY)
A
Fig. 4.14
SIDE LIGHT
(SOME MODELS ONLY)
Fig. 4.16
37
MODELS WITH TILTING GRILL ON THE TOP OVEN
(fig. 4.17a)
– The grill is secured to the rear wall of the oven on a hinge system that allows it to
be lowered to allow proper access when cleaning the oven ceiling (fig. 4.17a).
– In the front the grill is secured to the ceiling by a hook A.
Unlocking the tilting grill (fig. 4.17b)
Locking the tilting grill (fig. 4.17c)
1. Open the hook A.
2. Gently pull down the grill as shown
in the figure 4.17a.
1. Gently lift up the grill.
2. Close the hook A on the grill bar.
A
2
A
1
1
Fig. 4.17b
Fig. 4.17c
A
Fig. 4.17a
38
2
ADVICE FOR USE AND MAINTENANCE OF CATALYTIC PANELS
(some models only)
The catalytic panels are covered with special microporous enamel which absorbs and
does away with oil and fat splashes during normal baking over 200°C.
If, after cooking very fatty foods, the panels remain dirty, operate the oven “idling” on
max temperature for about 30 minutes.
These panels do not require to be cleaned, however it is advised to periodically remove
them from the oven (at least the side panels) and to wash them with tepid soapy water
and then wipe off with a soft cloth.
DO NOT CLEAN OR WASH THEM WITH ABRASIVE PRODUCTS OR WITH PRODUCTS CONTAINING ACIDS OR ALKALIS.
The side panels are reversible and when the catalytic microporous enamel degrades,
they can be turned to the other side.
GREASE FILTER - SOME MODELS ONLY (bottom oven only)
• Slide in the grease filter on the back of the oven as in fig. 4.18.
• Clean the filter after any cooking!
The grease filter can be removed for cleaning and should be washed regularly in hot
soapy water (fig. 4.18).
• Always dry the filter properly before fitting it back into the oven.
Fig. 4.18
39
REPLACING THE OVEN LAMP
WARNING: Ensure the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
• Let the oven cavity and the heating elements to cool down;
• Switch off the electrical supply;
TOP RIGHT LAMP:
• Remove the protective cover C (fig. 4.19);
• Unscrew and replace the bulb B with a new one suitable for high temperatures (300°C)
having the following specifications: 230-240V 50 Hz, E14 and same power (check
watt power as stamped in the bulb itself) of the replaced bulb.
• Refit the protective cover;
LEFT LAMP (BOTTOM CAVITY OF SOME MODELS ONLY):
• Remove the left wire rack (and the side catalytic panel for the models with side catalytic panels) by unscrewing the fixing screws.
• Press down from the top the protective cover A (fig. 4.19) and remove it by rotating
on the lower side. IMPORTANT: never use screwdrivers or other utensils to remove
the cover A. This could damage the enamel of the oven or the lampholder.
Operate only by hands.
• Unscrew and replace the bulb B with a new one suitable for high temperatures (300°C)
having the following specifications: 230-240V 50 Hz, E14 and same power (check
watt power as stamped in the bulb itself) of the replaced bulb.
• Refit the protective cover A operating in reverse order. ATTENTION: the notch in the
inner edge of the cover must be oriented toward the lamp.
• Assemble the left wire rack (and the side catalytic panel with the arrow up for the
models with side catalytic panels).
Note: Oven bulb replacement is not covered by your guarantee.
1
A
2
B
A
40
Fig. 4.19
A
B
C
REMOVING THE OVEN
DOORS
The oven doors can easily be removed
as follows:
– Open the door to the full extent (fig.
4.20a).
– Open the lever A completely on the
left and right hinges (fig. 4.20b).
Fig. 4.20a
A
– Hold the door as shown in fig. 4.20.
B
– Gently close the door (fig. 4.20c) until
left and right hinge levers A are
hooked to part B of the door (fig.
4.20b)
– Withdraw the hinge hooks from their
location following arrow C (fig. 4.20d).
Fig. 4.20b
– Rest the door on a soft surface.
– To replace the door, repeat the above
steps in reverse order.
Fig. 4.20c
C
Fig. 4.20
Fig. 4.20d
41
MODELS WITH
REMOVABLE INNER
PANE OF GLASS
REMOVING THE INNER PANE
To clean the inner pane of the oven
doors on both sides operate as follows:
Fig. 4.21
A
– Open the door to the full extent (fig.
4.21).
– Open the lever A completely on the left
and right hinges (fig. 4.22).
– Gently close the door (fig. 4.23) until left
and right hinge levers A are hooked to
part B of the door (fig. 4.22).
B
– Top oven door only: Remove the seal
G by unhooking the no. 3 fixing hooks
(fig. 4.24).
Fig. 4.22
– Gently pull out the inner pane of glass
(Fig. 4.25).
– Clean the glass with an appropriate
cleaner. Dry thoroughly, and place on
a soft surface.
– Now you can also clean the inside of
the outer glass.
Fig. 4.23
G
42
Fig. 4.24
Fig. 4.25
REASSEMBLING THE INNER PANE
To reassemble the inner pane of the
oven doors operate as follows:
– Make sure the door is locked open
(see Fig. 4.23).
– Check the correct positioning of the
no. 4 (four) silicon rubbers D (fig. 4.26).
– Check that you are holding the pane
the correct way. You should be able to
read the wording on it as it faces you.
– Insert the inner pane in the left E and
right F side guides (fig. 4.27) and gently let it slide up to the retainers H (fig.
4.28).
– Top oven door only: Reassemble the
seal G in the correct way (fig. 4.29) by
hooking the no. 3 fixing hooks in the
proper holes (fig. 4.30).
– Open completely the oven door and
close the lever A on the left and right
hinges (fig. 4.31).
D
Fig. 4.26
E
F
Fig. 4.27
The top oven
door has a
sealed gasket
in the top part.
H
Fig. 4.28
It is normal the opened gap between the
top edge of the inner pane and the sealed
gasket. This allows the cooling air
circulation.
The bottom
oven door has
not a sealed
gasket in the
top part.
Fig. 4.29
G
A
Fig. 4.30
Fig. 4.31
43
MODELS WITH
REMOVABLE INNER AND
MIDDLE PANES OF GLASS
(BOTTOM MAIN OVEN FOR
SOME MODELS ONLY)
The oven door is fitted with no. 3 panes:
- no. 1 outside;
- no. 1 inner;
- no. 1 in the middle.
Fig. 4.32
A
B
Fig. 4.33
To clean all panes on both sides it is necessary to remove the inner and the middle
panes as follows:
REMOVING THE MIDDLE AND INNER PANES
OF GLASS
1. Lock the door open:
• Fully open the oven door (fig. 4.32).
• Fully open the lever A on the left
and right hinges. (fig. 4.33).
• Gently close the door (fig. 4.34) until
the left and right hinges are hooked
to part B of the door (fig. 4.33).
2. Remove the inner pane:
• Gently pull out the inner pane of
glass (fig. 4.35).
• Clean the glass with an appropriate
cleaner. Dry thoroughly, and place
on a soft surface.
Fig. 4.34
Fig. 4.35
44
3. Remove the middle pane:
• Gently unlock the middle pane of
glass from the bottom clamps by
moving it as in fig. 4.37.
• Gently lift the bottom edge of the
pane (arrow 1 in fig. 4.38) and
remove it by pulling it out from the
top clamps (arrow 2 in fig. 4.38).
• Clean the glass with an appropriate
cleaner. Dry thoroughly, and place
on a soft surface.
Fig. 4.36
Now you can also clean the inside of the
outer glass.
Fig. 4.37
1
2
Fig. 4.38
45
REPLACING THE MIDDLE AND INNER
PANES OF GLASS
M
Fig. 4.39
1
1
Fig. 4.40
Fig. 4.41
46
2
1. Make sure the door is locked open
(see fig. 4.34).
2. Replace the middle pane:
• Check that the four rubber pads are
in place (M in fig. 4.39).
• Check that you are holding the pane
the correct way. You should be able
to read the wording on it as it faces
you.
• Gently insert the top edge of the
pane into the top clamps (arrow 1
in fig. 4.40), then lower the pane
and insert the bottom edge into the
bottom clamps (arrow 2 in fig. 4.40);
and then slide the pane into
position (fig. 4.41).
3. Replace the inner pane:
• Check that the four rubber pads are
in place (D in fig. 4.42).
• Check that you are holding the pane
the correct way. You should be able
to read the wording on it as it faces
you.
• Insert the pane in the left E and
right F slide guides (fig. 4.43), and
gently slide it to the retainers H (Fig.
4.44).
D
Fig. 4.42
4. Unlock the oven door by opening it
completely and closing the lever A on
the left and right hinges (fig. 4.45).
E
F
Fig. 4.43
H
Fig. 4.44
A
The bottom
oven door has
not a sealed
gasket in the
top part.
Fig. 4.45
47
DO’S AND DO NOT’S
✓ Do always grill with the oven door closed.
✓ Do always remove the detachable handles when using the grill pan.
✓ Do read the user instructions carefully before using the double oven for the first
time.
✓ Do allow the double oven to heat for one and a half hours, before using for the first
time, in order to burn off any protective oils.
✓ Do clean your double oven regularly.
✓ Do remove spills as soon as they occur.
✓ Do always use oven gloves when removing food shelves and trays from the ovens.
✓ Do not allow children near the double oven when in use.
✓ Do not allow fat or oils to build up in the oven trays, grill pan or oven base.
✓ Do not place cooking utensils or plates directly onto the oven base.
✓ Do not grill food containing fat without using the grid.
✓ Do not cover the grilling grid with aluminium-foil.
✓ Do not use the oven tray for roasting.
✓ Do not clean the oven without first turning off the electricity supply and allow to
cool.
✓ Do not place hot enamel parts in water. Leave them to cool first.
✓ Do not allow vinegar, coffee, milk, saltwater, lemon or tomato juice to remain in contact with enamel parts.
✓ Do not use abrasive cleaners or powders that will scratch the surface of the enamel.
✓ Do not attempt to repair the internal workings of your oven.
✓ Do not grill with the oven door open as damage to the front panel and control knobs
will result.
✓ Do not line the oven walls with aluminium foil. Do not place baking trays or the drip
tray on the base of the oven chambers.
48
FOR YOUR SAFETY
The product should only be used for its intended purpose which is for the cooking of
domestic foodstuffs.
Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified personnel.
49
ADVICE
FOR THE
INSTALLER
IMPORTANT
• Appliance installation and maintenance must only be carried out by QUALIFIED TECHNICIANS and in compliance with the local safety standards.
Failure to observe this rule will invalidate the warranty.
• Always unplug the appliance before carrying out any maintenance operations or
repairs.
• The walls surrounding the oven must be made of heat-resistant material.
• Taking care NOT to lift the oven by the door handle.
50
I N S TA L L AT I O N
5
IMPORTANT
• The appliance should be installed by a QUALIFIED
INSTALLATION TECHNICIAN.
The appliance must be installed in compliance with regulations in force.
You need the following housing area to fit your oven correctly.
The double oven is designed to fit into a cabinet of 600 mm width.
The double oven can be built in the kitchen units, but you must ensure that it is properly
ventilated.
In the diagram the appliance is ventilated by means of the space in the top of the
kitchen cabinet.
Lift the appliance into position onto the shelf, taking care NOT to lift it by the door handles.
If you open the oven doors, you will see some screw holes.
The oven should then be secured to the housing by fitting screws into these holes.
Remember the housing should not be free standing but be secured to the wall and/or
adjacent fittings.
Adjust the hinges of furniture door adjacent to the double oven to allow a 5 - 7 mm
gap between the furniture door and the oven frame.
Housing
Height
888
877
Width
595
560
Depth
564
555 min.
WARNING
• We would point out that the adhesive
which bonds the plastic laminate to the
furniture must withstand temperatures not
less than 150° C to avoid delamination.
• The appliance must be housed in heat
resistant units.
• The walls of the units must be capable
of resisting temperatures of 75 °C
above room temperature.
WARNING
When correctly installed, your product
meets all safety requirements laid down
for this type of product category.
However special care should be taken
around the rear or the underneath of the
appliance as these areas are not
designed or intended to be touched and
may contain sharp or rough edges, that
may cause injury.
50
560
536
877
Oven
888
Dimensions (mm)
5
n.
mi
55
4
56
595
Fig. 5.1
51
OVEN DOOR
LOWER TRIM
AIR FLOW
Fig. 5.2
IMPORTANT:
To avoid damage to the lower trim please note the following instructions.
The lower trim is designed to allow for good air circulation and the correct opening of
the oven door.
To ensure the trim is not damaged due to the appliance being placed on the floor, the
appliance should be suitably supported as in above illustrations.
After installation the appliance door should be slowly opened to ensure no damage has
occurred.
No responsibility for lower trim damage will be accepted if these instructions have
52 not been followed.
6
ELECTRICAL SECTION
Before effecting any intervention
on the electrical parts the appliance must be disconnected from
the network.
GENERAL
• The connection to the electrical network must be carried out by qualified
personnel and must be according to
existing norms.
• The appliance must be connected to
the electrical network verifying above
all that the voltage corresponds to the
value indicated on the specifications
plate and that the cables section of
the electrical plant can bear the load
which is also indicated on the plate.
• The appliance can be connected
directly to the mains placing an
omnipolar switch with minimum opening between the contacts of 3 mm
between the appliance and the mains.
• The power supply cable must not
touch the hot parts and must be positioned so that it does not exceed
75°C at any point.
FEEDER CABLE SECTION
Type HO5RR-F or H05VV-F
230 V
~
(**) –
Connection to wall-mounting
distribution panel.
3 x 2,5 mm2 (**)
IMPORTANT: this double oven
must be connected to a suitable
double pole control unit adjacent
to the oven.
NO DIVERSITY CAN BE APPLIED
TO THIS CONTROL UNIT.
• Once the appliance has been
installed, the switch must always be
accessible.
• If the power supply cable is damaged
it must be substituted by a suitable
cable.
The connection of the appliance to
the grounding unit is mandatory.
The manufacturer declines every
responsability for any inconvenience resulting from the inobservance of this condition.
53
CONNECTING THE DOUBLE OVEN MAINS CABLE
–
–
–
–
Unscrew the screw A securing the cover plate B behind the oven (fig. 6.1).
Remove the cover plate B.
Remove the screws C from the cable clamp (fig. 6.2).
Insert the mains cable (type H05RR-F or H05VV-F - 3x2,5 mm2 section) into the
cable protector P.
– Connect the phase and earth cables to the mains terminal connection block D.
EARTH
N
NEUTRAL
L
LIVE
– Refit the cable clamp so that it clamps the outer sleeving of the cable, and screw
the screws C.
– Refit the cover plate B and fix it with the screw A.
B
L
Brown (Live)
A
N
D
Blue (Neutral)
P
Green & Yellow
(Earth)
C
Fig. 6.1
WARNING: This appliance must be earthed
54
Fig. 6.2
55
Descriptions and illustrations in this booklet are given as simply indicative.
The manufacturer reserves the right, considering the characteristics of the models described here, at any time and
without notice, to make eventual necessary modifications for their construction or for commercial needs.
Cod. 1103099 - ß3
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
