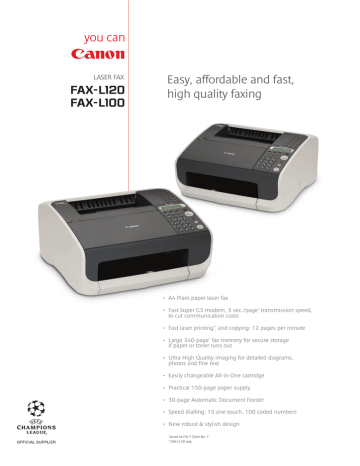

Easy, affordable and fast, high quality faxing

Easy, affordable and fast, high quality faxing
LASER FAX
Easy, affordable and fast,
high quality faxing
• A4 Plain paper laser fax
• Fast Super G3 modem, 3 sec./page* transmission speed,
to cut communication costs
• Fast laser printing** and copying: 12 pages per minute
• Large 340-page* fax memory for secure storage
if paper or toner runs out
• Ultra High Quality imaging for detailed diagrams,
photos and fine text
• Easily changeable All-in-One cartridge
• Practical 150-page paper supply
• 30-page Automatic Document Feeder
• Speed dialling: 15 one-touch, 100 coded numbers
• New robust & stylish design
*
**
based on ITU-T Chart No. 1
FAX-L120 only
OFF
ON
Canon’s unique UHQ
technology ensures
exceptional quality
when sending photos,
fine text or illustrations
ULTRA HIGH QUALITY FAXING
EASILY CHANGEABLE ALL-IN-ONE CARTRIDGE
When you’re transmitting detailed documents, such as diagrams or
photos combined with text, Canon’s unique UHQ (Ultra High Quality)
technology ensures a perfect finish every time. The half-tone reproduction,
in 64 shades of grey, gives extra depth and clarity to images.
Simply replace the All-in-One cartridge, containing
toner and all essential parts, and your fax is as
good as new. There’s no mess, no hassles - just
continuous high quality output at all times.
Specifications FAX-L120 / FAX-L100
FAX UNIT TYPE
Type
Compatibility
Applicable line
Modem speed
Print technology
FAX SCANNING FEATURES
Automatic document feeder
Document size
Scanning speed
Fax resolution
Image processing system
Halftone
Print speed
FAX PRINTING FEATURES
Print resolution
Smoothing
Paper capacity
Print cartridge
Cartridge yield
Page collated print
Toner save mode
Auto image reduction on reception
TRANSMISSION AND
RECEPTIONFEATURES
Transmission speed
Compression method
Direct transmission
Memory transmission
Fax memory
Dual access
Error correction mode (ECM)
Delayed transmission
Sequential broadcast
Polling transmission
Polling reception
Sub-address transmission
Relay broadcasting command
SECURITY AND
MANAGEMENT FEATURES
Direct mail prevention
Confidential transmission
Reports
FAX-L120: Standalone facsimile with printer function
FAX-L100: Standalone facsimile
Group 3
PSTN/PABX
33.6 Kbps (Super G3)
Laser beam printing
30 sheets
Width: 210 mm (max.), 148 mm (min.)
Approx. 3.5 sec per page
Standard, Fine, Superfine
UHQ (Ultra High Quality)
64 shades of grey
12 pages per minute
600 x 600 dpi
Yes
150 sheets Auto Sheet Feeder
FX-10 All-in-One cartridge
Approx. 2000 pages (based on 5% coverage)
Yes (Face down print)
Yes
Yes
3 seconds per page with 33.6 Kbps modem
(based on ITU-T Chart No.1)
MH, MR, MMR
Yes
Yes
340 pages (based on ITU-T Chart No.1)
Yes
Yes
Yes (max. 50 locations)
Yes (max. 131 locations)
Yes (Memory)
Yes
Yes
Yes (by sub address)
Yes
Yes (by sub address)
Transmission header
Reception footer
TELEPHONY FEATURES
One touch dials
Coded dials
Group dials
Redial
Dial search
FAX/TEL auto switch
Answering machine Hook-up
Extension Telephone Hook-up
Remote reception
On Hook key
Telephone handset
Activity Report, TX Result Report, RX Result Report, Memory Data
List, Memory Image Print, One-Touch/Coded/Group Dial List,
Machine Status List, Lost Report
Yes
Yes
15 locations
100 locations
Max. 15x50 locations
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Option
COPIER FEATURES
Copy resolution
Copy speed (Mono)
Multiple copy
Reduction/Enlargement
300 x 300 dpi (Memory copy)
12 pages per minute
Up to 99 copies
Yes (Zoom 50%-200% )
PC RELATED FEATURES
(FAX-L120 ONLY)
PC interface
Printer function
Printer driver
Applicable OS
Print speed
Print resolution
Smoothing
USB
Yes
Canon FAX-L120 Printer Driver for Windows
Windows 98, Me, 2000, XP
12 pages per minute
600 x 600 dpi
Yes
GENERAL FEATURES
Dimensions without trays
Installation space
(including trays & handset)
Weight
Power consumption
400 x 386 x 221 mm (W x D x H)
484 x 580 x 326 mm (W x D x H)
Approx. 9 kg
Approx. 9W (standby), Approx. 700W (max.)
Print speeds may vary with computer system specifications and content of document printed.
Some images are simulated for clarity of reproduction. All data is based on Canon's standard testing methods.
This leaflet and the specifications of the product have been developed prior to the date of product launch.
Final specifications are subject to change without notice. TM and ®: All company and/or product names are trademarks
and/or registered trademarks of their respective manufacturers in their markets and/or countries
*
* for FAX-L120 only
