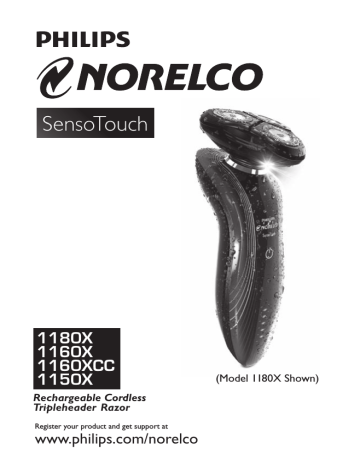

1180X
1160X
1160XCC
1150X
Rechargeable Cordless
Tripleheader Razor
Register your product and get support at
www.philips.com/norelco
(Model 1180X Shown)
2
1180X/1160X/1160XCC/1150X
ENGLISH 4
Congratulations on your purchase and
welcome to Philips Norelco!
To fully benefit from the support that Philips
Norelco offers, register your product at
www.philips.com/norelco
4
ENGLISH
IMPORTANT SAFETY
INSTRUCTIONS
When using an electric appliance, basic precautions should always
be followed, including the following:
Read all instructions before using this appliance.
DANGER
To reduce the risk of electric shock:
1. Do not reach for a corded Jet Clean System/charging stand that
has fallen into water. Unplug immediately.
2. Charging stand is not for immersion or for use in shower.
3. Do not use an extension cord with this appliance.
4. Do not place or store a Jet Clean System/charging stand where
it can fall or be pulled into a tub or sink. Do not place or drop
a Jet Clean System/charging stand into water or other liquid.
5. Always unplug this Jet Clean System/charging stand from the
electrical outlet immediately after use, except when razor is
(re)charging.
6. Unplug and remove power supply cord from Jet Clean System/
charging stand before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury
to persons:
1. Close supervision is necessary when this razor/Jet Clean System/
charging stand is used by, on, or near children or invalids.
2. Use this razor/Jet Clean System/charging stand for its intended
household use as described in this manual. Do not use
attachments or a cleaning solution not recommended by Philips
Electronics North America Corporation.
3. Never operate this razor/Jet Clean System/charging stand if
it has a damaged cord or charging plug, if it is not working
properly, if it has been dropped or damaged, or dropped into
ENGLISH
5
water while plugged in. For assistance call 1-800-243-3050.
4. Keep the razor, Jet Clean System, charging stand, cord and
charging plug away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not clean, charge or plug in razor/Jet Clean System
outdoors or operate where aerosol (spray) products are being
used or where oxygen is being administered.
7. Do not use this razor with a damaged or broken comb, as
facial injury may occur.
8. Always put razor in Jet Clean System/charging stand first,
attach cord to Jet Clean System/charging stand, then plug
into outlet. Be certain plug is inserted firmly into Jet Clean
System/charging stand, up to mark indicated on plug. To
disconnect, turn Jet Clean System/charging stand off then
remove charging plug from outlet.
9. Never put the razor/Jet Clean System/charging stand in direct
sunlight or store at a temperature above 140°F.
10. Keep the Jet Clean System, charging stand and cord dry at all
times. Do not handle with wet hands. Do not store in a damp
environment.
11. To prevent possible damage to the cord, do not wrap cord
around the razor or Jet Clean System/charging stand.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a transformer. Do not
cut off the power plug to replace it with another plug, as this will
cause a hazardous condition.
• Only use power plug supplied with the razor.
• Only use Jet Clean System supplied with the razor.
6
ENGLISH
ENGLISH
Table of Contents
45 - DAY MONEY-BACK GUARANTEE
To enjoy the closest and most comfortable shave from your new Philips Norelco
Men’s Razor, the razor should be used exclusively for 3 weeks. This allows your
hair and skin enough time to adapt to the Philips Norelco Shaving System. If, after
that period of time, you are not fully satisfied with your Philips Norelco Men’s
Razor, send the product back along with dated sales receipt and we’ll refund you
the full purchase price. The razor must be shipped prepaid by insured mail,
insurance prepaid, and have the original sales receipt, indicating purchase price and the date of purchase, enclosed. We cannot be responsible for lost mail. The razor must be postmarked no later than 45 days from
the date of purchase. Philips Norelco reserves the right to verify the purchase
price of the razor and limit refunds not to exceed suggested retail price.
To obtain money-back guarantee return authorization form, call 1-800-243-3050
for assistance. Please allow 4-6 weeks for delivery of check.
Features ...................................................... 8-11
Multi-Level Display ................................12-14
Charge Meter .........................................14-15
Before First Use ........................................... 15
Charging ...................................................16-18
Recharging ..................................................... 18
Quick Charge ............................................... 18
Put It To The Test & Shaving Tips .............. 19
How to Shave
With An Electric Razor ........................19-21
Trimming ..................................................21-23
Travel Lock ..............................................23-24
Cleaning....................................................24-35
Replacing the Shaving Unit ........................ 35
Maintenance ............................................35-36
Storage............................................................ 36
Assistance ...................................................... 37
Battery Removal ....................................37-38
Accessories ................................................... 38
Warranty........................................................ 39
7
8
ENGLISH
ENGLISH
Features
Click-On Precision
Trimmer
GyroFlex 2D
Contour-Following System
Automatic Worldwide
Voltage 100V to 240V AC
Shaving Unit
• Hair Chamber
captures
shaven hair
Cleaning Brush
Storage Pouch
(1180X/1160X/1160XXCC)
SkinGlide System
Charging Stand
Protective
RazorHead Cap
Model 1180X
Rechargeable 1-hour Full
Charge for up to 50 min.
Electronic
On/Off
Button
(1180X/1160X/1160XCC)
or 40 min. (1150X) of
cordless shaving time
Travel Lock
Model 1160X
Model 1160XCC
Quick Charge
Multi-Level
Display
• Shows remaining
power level in
batteries
Cordless - To shave
without a cord
Full 2-Year Warranty
(1180X only)
• Battery Charge,
Full & Low
Indicators
9
45-Day Money-Back
Guarantee
How the Unique Philips Norelco
Lift and Cut
Shaving System Makes Close Comfortable:
Model 1150X
Groove channels
beard closer to
cutting system
Lifter raises hair
Slots to cut long
hairs
Holes to cut short
hairs even closer
ENGLISH
10
11
Features
Jet Clean System
(1160XCC)
Razor Holder
Cleaning
Solution
Low
Indicator
Light
Cleaning
Indicator
Light
Drying
Indicator
Light
Cleaning
Solution
Canister
Release
Buttons
ON/OFF
Button
Removable Cleaning
Solution Canister
12
ENGLISH
ENGLISH
Multi-Level Display
◗ Remove any sticker or protective foil from
the display before using razor.
◗ Depending on the razor model, there are 3
different types of displays:
C
Display for Model 1180X
C
Display for Models 1160X and 1160XCC
13
-Quick charge: When the razor contains enough
energy for one shave, the bottom charging light
blinks white.
1160X, 1160XCC and 1150X
C Models
-As soon as you connect the power cord to
an electrical outlet, the battery symbol will blink
during charging.
-Quick charge: When the razor contains enough
energy for one shave, the plug symbol and battery
symbol stops blinking alternately and only the
battery symbol blinks.
NOTE:The displays of models 1160X, 1160XCC
and 1150X look different, but work the same way.
C
Display for Model 1150X
The display provides the following
information:
◗ Charging Indicator
1180X
C Model
-As soon as you connect the power cord to
an electrical outlet, the display goes on and the
bottom charging light blinks. As charging continues,
more and more lights will blink to indicate what
level the battery has been charged.
◗ Full Charge Indicator
1180X
C Model
-When the battery has been fully charged, all
charging lights light up continuously. After
approximately 30 minutes the display
automatically switches off again.
1060X, 1160XCC and 1150X
C Models
-When the battery has been fully charged,
the battery symbol lights up continuously.
After approximately 30 minutes the display
automatically switches off again.
NOTE:The displays of models 1160X, 1160XCC
and 1150X look different, but work the same way.
14
ENGLISH
ENGLISH
◗ Remaining Battery Capacity
◗ Initially your razor may need to go through
2 or 3 full charge/recharge cycles before
remaining battery capacity indicators begin
to display your accurate battery power left.
1180X
C Model
-The remaining battery capacity is indicated by
the number of charging lights that are on.
C
Before First Use
◗ Low Battery Indicator
Model 1180X
-When the battery is almost empty (5 or less
shaving minutes left), the bottom charging light
blinks orange. When you turn the razor OFF the
bottom charging light continues to blink for a few
seconds.
1160X, 1160XCC and 1150X
C Models
-When the battery is almost empty (5 or less
shaving minutes left), the plug symbol blinks.
When you turn the razor OFF the plug symbol
blinks for a few seconds.
NOTE:The displays of models 1160X, 1160XCC
and 1150X look different, but work the same way.
Charge Meter (1180X)
◗ Charge Meter monitors amount of remaining
battery power available. Remaining battery
capacity is based on the amount of power
consumed shaving per minute and is
dependent upon your skin and beard type,
whether you use pre-shave lotion, and how
often the trimmer is used.
15
◗ Charge the razor before you start using
it (see ‘Charging’). Make sure the razor is
switched off before you start charging it.
◗ Remove any sticker or protective foil from
the Display before using razor.
Important
◗ Only use the power cord and charging stand
or Jet Clean System (model 1160XCC only)
provided to charge the razor.
◗ The power plug transforms 100-240V AC to
less than 24V DC.
Travel Lock
The razor is equipped with a travel lock function.
You can use the travel lock function when you are
going to store the razor for a longer period or if
you are going to take the razor with you when
traveling. See ‘Travel Lock’ section for instructions
on how to use this function.
16
ENGLISH
ENGLISH
Charging
◗ Charging, recharging or storing at
temperatures below 40ºF or higher than 95ºF
adversely affects lifetime of batteries.
◗ Always unplug this charging stand/Jet Clean
System from the electrical outlet immediately
after use, except when razor is (re)charging.
You can store the razor in the charging stand
or Jet Clean System (1160XCC only).
◗ Charging or recharging requires one full hour.
◗ A fully charged razor has a shaving time of
up to 50 minutes (models 1180X, 1160X and
1160XCC) or 40 minutes (model 1150X).
◗ You may recharge when the bottom charging
light blinks orange (model 1180X) or the plug
symbol blinks (models 1160X, 1160XCC and
1150X).
◗ Do not charge razor in a pouch.
2
C
1
Connect the small plug of cord to charging
stand. Connect the power plug into any
100V to 240V AC outlet. Use only the
power cord provided.
◗ An adaptor plug may be necessary for power
cord usage in some foreign countries. Use
an attachment plug adaptor of the proper
configuration for the power outlet.
The power cord will automatically convert to
work on 100V to 240V AC systems.
2
Place razor in stand in an upright position
(1). Press the razor tightly into the holder
making sure the charging contacts on each
side of the razor fit into the holder (2).
3
The display on the razor will indicate razor
is charging.
4
Charging requires one full hour. A fully
charged razor has a cordless shaving
time of up to 50 minutes (models 1180X,
1160X and 1160XCC) or 40 minutes
(model 1150X).
1
Charging Razor with Jet Clean
System (1160XCC)
1
Connect the small plug to the Jet Clean
System. Connect the charging plug into
any 100V to 240V AC outlet. Use only the
charging plug provided.
The razor holder automatically moves up to the
highest position.
Charging in the Charging Stand
C
17
C
C
2
Remove protective razor head cap from
razor.
NOTE: The razor cannot be placed in the Jet
Clean System when the trimmer or protective
razor head cap is placed on the razor.
3
Place the razor head side down in the
razor holder with the display facing the
front of the Jet Clean System.
18
ENGLISH
C
ENGLISH
4
Press the razor tightly into the holder to
lock it into place.
5
The display on the razor will indicate razor
is charging.
6
Charging requires one full hour. A fully
charged razor has a cordless shaving
time of up to 50 minutes (Models 1180X,
1160X and 1160XCC) or 40 minutes
(Model 1150X).
Put It To The Test & Shaving Tips
◗ 21 Day Trial and Conversion Process. It is a fact
that your skin and beard need time to adjust to
a new shaving system.
◗ Use your new razor exclusively for 3 weeks to
fully enjoy the closeness of a Philips Norelco
shave.
◗ At first you may not get as close a shave as you
expect, or your face may even become slightly
irritated. This is normal since your beard and
skin will need time to adjust. Invest 3 weeks
and you’ll soon experience the full joy of your
new razor.
◗ Stick with it! If you alternate shaving methods
during the adjustment period, it may make it
more difficult to adapt to the Philips Norelco
shaving system.
◗ If you are still not convinced after 21 days,
Philips Norelco will refund you the full
purchase price as long as the request is
received within 45 days of purchase.
Recharging
1
Recharging requires one full hour.
Recharge when the bottom charging light
blinks orange (model 1180X) or the plug
symbol blinks (models 1160X, 1160XCC
and 1150X).
Always unplug charging stand/Jet Clean System
from the electrical outlet immediately after use,
except when razor is (re)charging.
Quick Charge
When batteries are totally depleted, recharging
the razor for approximately 3-5 minutes gives
enough energy for a 3-minute cordless shave.
19
How To Shave With An Electric Razor
C ◗ This symbol on the razor indicates that the
razor can be used in the bath or shower.
◗ Make sure the charging stand/Jet Clean
System does not get wet or near water.
◗ Shaving with a clean face gives the best results.
◗ Use this razor for its intended household use
as described in this manual.
20
ENGLISH
C
ENGLISH
Shaving
2
Apply shaving foam to your skin.
Turn razor ON by pressing the on/off
button once. Shave against the direction
of beard growth using both straight and
circular movements.
The razor display will light up briefly (model
1180X only).
3
Rinse the shaving unit under the tap
to ensure that the shaving unit glides
smoothly over your skin.
4
Press the on/off button once to switch on
the razor.
1
2
Stretch your skin with your free hand so
blades can lift and cut whiskers. Gently
press razor to skin so the floating heads
can follow the contours of your face.
DO NOT press too hard. Too much
pressure can pinch the skin into the combs.
Turn razor OFF by pressing the on/off
button once.
The display lights up for a few seconds and then
shows the remaining battery capacity (Model
1180X only).
Move the shaving heads in circular
movements over your skin.
NOTE: Rinse the razor under the tap regularly to
ensure that it continues to glide smoothly over
your skin.
5
Dry your face and thoroughly clean
the razor after each use (see chapter
‘Cleaning’).
NOTE: Make sure you rinse all foam off the razor.
6
3
C
21
4
Clean the razor after each use (see
chapter ‘Cleaning’).
5
Put the Protective Razor Head Cap on the
razor to protect razor heads.
Wet Shaving
You can also use the razor on a wet face with
shaving foam.
1
Apply some water to your skin.
C
7
Put the Protective Razor Head Cap on the
razor to protect heads.
Trimming
To Groom Sideburns and Moustache:
1 Pull the shaving unit straight off the razor.
C NOTE:
Do not turn the shaving unit while you
pull it off the razor.
22
ENGLISH
C
ENGLISH
2
C 10
Insert the raised notch of the trimmer into
the slot in the top of the razor (1). Press the
trimmer down to attach it to the razor (2).
You will hear a ‘click’.
3 Turn razor ON.
The display lights up for a few seconds (Model
1180X only).
Put the Protective Razor Head Cap on the
razor.
Travel Lock
4
Hold trimmer to exact hairline desired.
Move trimmer downward with gentle
pressure.
If you are going to store the razor for a longer
time period or if traveling, it is possible to lock
the razor. The travel lock prevents the razor from
being switched on by accident.
5
Trim beard, moustache or sideburns using
the trimmer.
Activating the travel lock
6 Turn razor OFF when finished.
The display lights up for a few seconds and then
shows the remaining battery capacity (Model
1180X only).
7
Thoroughly clean the trimmer after using
(see ‘Cleaning’).
8 Pull the trimmer straight off the razor.
C NOTE:
Do not turn the trimming unit while you
pull it off the razor.
C
23
9
Insert the raised notch of the shaving unit
into the slot in the top of the razor (1).
Press the shaving unit down to attach it to
the razor (2).You will hear a ‘click’.
3 sec
C
1
Press the ON/OFF button for 3 seconds.
◗ Model 1180X only, the top charging light
blinks, then the second charging light and so
on.
◗ The lock symbol appears on the display.
NOTE: The displays of models 1180X, 1160X,
1160XCC and 1150X look different, but show
the same symbol.
C
2
The travel lock has now been activated.
Deactivating the travel lock
1
Press the ON/OFF button for 3 seconds.
24
ENGLISH
ENGLISH
2
The lock symbol goes out and the razor
turns ON to indicate that the razor has been
unlocked.The razor is now ready for use.
◗ Regular cleaning guarantees better shaving
results.
◗ While rinsing razor heads, water may drip
out of the base of razor. This is a normal
occurrence.
BThe razor unlocks automatically when charging in
the charging stand or Jet Clean System.
1
Always turn razor OFF, remove from
charging stand/Jet Clean System before
cleaning.
2
Rinse the shaving unit by running under
hot water for a few minutes.
Cleaning
◗ Always clean your razor after each use.
◗ Regular cleaning guarantees better shaving
results.
◗ Never clean, remove or replace shaving unit
while motor is on.
◗ Do not apply pressure to combs. Do not
touch razor heads with hard objects as this
may dent or damage precision-made slotted
combs.
◗ Do not use razor if combs are damaged or
broken. Facial injury may occur.
◗ Do not use abrasives, scourers or aggresive
liquids such as gasoline or acetone to clean
the razor or Jet Clean System.
C
F
C
BE CAREFUL TO TEST WATER FIRST SO AS
NOT TO BURN OR SCALD HANDS.
C
3
Pull the shaving head holder off the
bottom part of the shaving unit and rinse
under hot water for 30 seconds.
4
Carefully shake off excess water and let
the shaving unit air dry.
NOTE: Do not wipe or dry the shaving unit
with a towel or tissue. This could damage the
shaving heads.
Cleaning the Shaving Unit
The razor heads may be quickly cleaned after
each use by rinsing with hot water. Water
from the tap should be on a hot setting, BUT
BE CAREFUL TO TEST WATER FIRST SO AS
NOT TO BURN OR SCALD HANDS.
25
C
5
Push the shaving head holder back onto
the bottom of the shaving unit.
6
You may also clean the shaving unit and
hair chamber without water by using the
supplied brush.
26
ENGLISH
ENGLISH
Cleaning the Shaving Unit in the Jet
Clean System (1160XCC)
CAUTION: Keep cleaning solution out of
reach of children. Do not take internally. Avoid
contact with eyes. In case of eye contact,
thoroughly flush with cold water. If irritation
persists, get medical attention.
Important
◗ Only use this razor, charging stand, Jet Clean
System and HQ200 cleaning solution provided
to charge or clean razor.
◗ Other Philips Norelco razors DO NOT work
with this Jet Clean System.
◗ Empty the cleaning solution canister and
thoroughly rinse the canister clean with warm
water every 2 weeks.
◗ The Jet Clean System thoroughly cleans but
does not disinfect your razor, therefore, do not
share razor with others.
◗ The charging plug converts 100-240V AC to
less than 24V DC.
◗ Place the Jet Clean System on a flat, stable and
fluid-resistant surface to avoid any leakage. Be
careful not to tip or move the Jet Clean System
if it is filled with the cleaning solution.
◗ To avoid evaporation, do not expose cleaning
solution to direct sunlight.
◗ Remove the protective razor head cap from
the razor before charging or cleaning the
razor in the Jet Clean System.
◗ Use this appliance for its intended household
use as described in this manual.
1
C
C
27
Place the Jet Clean System on a flat, level
surface.
Simultaneously press the buttons located
on both sides of the Jet Clean System
(1) and lift the appliance off the Jet Clean
canister (2).
Always remove appliance from canister by lifting
straight up. Do not tilt Jet Clean System.
2
3
Unscrew the lid on the Jet Clean Solution
bottle (Model HQ200) provided with the
razor. Remove the airtight seal by lifting up
the tabs on the seal.
4
Pour the Jet Clean Solution into the canister
up to a level between the two lines located
inside the canister.
NOTE: ONLY USE PHILIPS NORELCO JET
CLEAN SOLUTION (MODEL HQ200) WITH
THE JET CLEAN SYSTEM. ANY OTHER
SOLUTION MAY CAUSE DAMAGE TO YOUR
RAZOR.
C ◗ When the cleaning solution level drops below
the minimum level, the ‘cleaning chamber
empty’ symbol will blink and the razor holder
will move to the starting position.
◗ If you clean your razor every day, you should
clean and refill the canister approximately every
15 days.
28
ENGLISH
C
ENGLISH
5
Carefully lower the appliance back onto
the Jet Clean canister making sure the
release buttons snap back into place.
When the canister is filled with cleaning solution,
do not move appliance to prevent leakage.
C
4
C
5
Jet Cleaning the Razor
◗ If the razor does not contain enough power
for one (1) shave, the Jet Clean Cleaning
System may not work properly. Charge the
razor in the Jet Clean System before using the
Jet Clean System to clean your razor.
◗ If you use the razor with shaving foam, quickly
rinse under hot water before cleaning in the
Jet Clean System.
C
1
Connect the small plug to the Jet Clean
System. Connect the charging plug into
any 100V to 240V AC outlet. Use only the
charging plug provided.
2.
Place the Jet Clean System on a flat, level
surface. Fill the canister with cleaning
solution (see ‘Preparing Jet Clean System
For Use’).
3
Remove protective razor head cap from
razor.
C
C
C
29
Place the razor head side down in the
razor holder with the display facing the
front of the Jet Clean System.
Press the razor tightly into the holder of
the Jet Clean System to lock into cleaning
cycle position.
The display on the razor will indicate razor is
charging.
6
Press the ON/OFF button to start the
cleaning cycle.
The system begins the automatic cleaning
program.
7
The cleaning light starts to blink and the
razor is automatically lowered into the
cleaning solution.
The razor stops charging while it is being cleaned.
◗ During the first phase of the cleaning cycle,
the razor will automatically turn on and off
several times while the razor holder lowers
and raises the razor’s position in the cleaning
solution, removing all debris. The cleaning
light will blink continuously throughout the
cleaning program.
◗ During the second phase of the cleaning cycle,
the razor holder moves the razor to the
drying position and the drying light will blink.
This phase will take approximately 2 hours.
30
ENGLISH
ENGLISH
The razor will stay in one position until the
end of the drying program.
◗ Do not press the ON/OFF button while the
cleaning cycle is running. If this does occur, the
cleaning cycle will stop and the razor holder
will automatically move to the starting
position. The cleaning cycle can be re-started
by pressing the ON/OFF button once.
◗ If the power plug is disconnected before the
cleaning cycle is complete, the razor holder will
remain in its current position. Reconnect the
plug into the outlet or Jet Clean System and the
razor holder will automatically move to the
highest position. The cleaning cycle can be
re-started by pressing the ON/OFF button
once.
C
NOTE: If the cleaning solution level drops below
the minimum level during the cleaning cycle, the
‘cleaning chamber empty’ symbol will blink and
razor holder returns the razor to the starting
position, stopping the cleaning cycle. Unplug Jet
Clean System from the outlet, remove razor and
refill canister (see “Preparing Jet Clean System
for Use”).
8
When the entire cleaning cycle is complete
and the razor is hygienically clean, the
razor will be raised to the starting position
and the display on the razor will turn on
indicating that the razor is (re)charging.
C
9
31
Pull the razor forward and lift razor from
Jet Clean System.
◗ If the razor needs to be recharged, you can
simply leave it in the Jet Clean System after
cleaning and the razor will automatically
recharge. The display on the razor will indicate
the razor is recharging.
◗ You may store your razor in the Jet Clean
System. Unplug from the outlet when
charging/cleaning is complete.
Extra-thorough cleaning method
Do not mix up the cutters and combs as the
shaving performance may be adversely affected
for several weeks before optimal shaving
performance is restored.
1
Turn razor OFF.
C
2
Pull the shaving head holder off the
bottom part of the shaving unit.
C
3
Slide the green retaining frame in the
direction of the arrows indicated on the
retaining frame.
32
ENGLISH
C
C
C
ENGLISH
4
C 10
Lift the retaining frame out of the shaving
head holder.
C 11
5 Remove the cutter from the comb.
Do not clean more than one cutter and comb
at a time, since they are all matching sets. If you
accidentally put a cutter in the wrong comb, it
may take several weeks before optimal shaving
performance is restored.
6
C 12
Clean the cutter with the cleaning brush
supplied.
33
Place the retaining frame back onto the
shaving head holder.
Slide the retaining frame back into place
(‘click’).
Reattach the shaving head holder to the
bottom part of the shaving unit.
Cleaning the Trimmer
C
7
Clean the inside of the comb.
Clean the trimmer after each use.
C
C
8
9
After cleaning, place the cutter back into
the comb with the cutter legs pointing
downwards.
Repeat the process for the other two
cutters and combs.
F
C
1
Turn razor ON with trimmer attached to
razor.
2
Rinse the trimmer under hot water. BUT
BE CAREFUL TO TEST WATER FIRST SO
AS NOT TO BURN OR SCALD HANDS.
3
Remove trimmer from razor and allow to
air dry.
Tip: For optional trimmer performance, lubricate
the trimmer teeth with one drop of mineral oil
every 6 months.
34
ENGLISH
ENGLISH
Cleaning the Jet Clean Canister
(1160XCC)
For optimal performance of the Jet Clean
System, it is recommended that you empty the
cleaning solution canister and thoroughly rinse
the canister clean every 2 weeks.
1
C
C
Place the Jet Clean System on a flat, level
surface.
2
Simultaneously press the buttons located
on both sides of the Jet Clean System
(1) and lift the appliance off the Jet Clean
canister (2).
Always remove appliance from canister by lifting
straight up. Do not tilt Jet Clean System.
3
Discard any remaining cleaning solution in
the canister.
The cleaning solution can be safely poured down
the sink as there are no harmful ingredients.
C
4
Simply rinse the canister with warm water.
Wipe the canister with a towel or tissue
to remove excess water.
C
5
Pour the Jet Clean Solution into the
canister up to a level between the two
lines located inside the canister.
C
6
35
Carefully lower the Jet Clean System
over the canister making sure the release
buttons snap back into position.
Replacing the Shaving Unit
◗ Replace the shaving unit once a year for
optimal shaving results.
◗ Replace damaged or worn razor heads with
model RQ11 Philips Norelco razor heads only.
◗ The individual shaving heads (cutters and
combs) are NOT replaceable. Only the onepiece shaving unit can be replaced.
This razor/charging stand/Jet Clean System has no
other user-serviceable parts. For assistance call
1-800-243-3050.
Maintenance
◗ Always remove razor from the charging stand/
Jet Clean System before cleaning appliance.
◗ Unplug the charging stand/Jet Clean System
after charging/recharging or cleaning razor.
The charging stand/Jet Clean System and razor
may be wiped clean using a damp cloth.
◗ Water from the tap should be on a warm
setting to clean any washable parts.
36
ENGLISH
ENGLISH
Note: DO NOT place or clean any parts of the
charging stand/Jet Clean System in a dishwasher.
Storage
C
◗ The razor can be placed in the charging stand/
Jet Clean System for safe storage. Remove the
plug from outlet as soon as the razor is fully
charged or cleaned.
◗ If appliance will not be used for an extended
period of time, it is recommended that the
cleaning solution in the Jet Clean canister be
emptied out before storing.
◗ Be sure razor is turned off. Remove cord from
outlet and charging stand or Jet Clean System
before storing in a safe, dry location where
it will not be crushed, banged, or subject to
damage.
◗ Do not wrap cord around razor/charging
stand or Jet Clean System when storing.
◗ Store cord in a safe location where it will not
be cut or damaged.
◗ Do not keep charging stand or Jet Clean
System permanently plugged into outlet.
◗ Do not place or store charging stand/Jet
Clean System where it can fall or be pulled
into a tub or sink, water or other liquid while
plugged in.
◗ If storing razor in the charging stand, put
the Protective Razor Head Cap on razor to
protect heads.
37
Assistance
◗ For assistance, visit our website:
www.philips.com/support or call
1-800-243-3050.
◗ Information is available 24 hours a day,
7 days a week.
Battery Removal
Philips Norelco razor contains a
C ◗ This
rechargeable Lithium-Ion battery
which must be disposed of properly.
◗ Battery should only be removed when
razor is to be discarded.
◗ For assistance, visit our website,
www.philips.com/support or call toll free:
1-800-243-3050.
1
Turn razor ON.
2
Allow razor to run until the battery is
empty/depleted.
3
Turn razor OFF.
4
Use a screwdriver to remove the back
panel of the razor.
5
Remove the rechargeable battery.
6
Do not attempt to replace battery.
Insulate battery ends by covering with tape
and/or place battery in a small plastic bag.
38
ENGLISH
ENGLISH
7
Discard your razor. Do not attempt to
plug electrical cord into the outlet or
recharge the razor after the battery has
been removed.
8
Contact your local town or city officials
for battery disposal information or call
1-800-8-BATTERY or www.rbrc.com for
battery drop-off locations.
Accessories
◗ Replacement Shaving Unit
Model RQ11 - For maximum razor
performance, replace your Philips Norelco
razor heads once a year.
◗ Shaving Head Cleaning Spray
HQ110 - Philips Norelco Shaving Head
Cleaning Spray
◗ Cleaning Solution
HQ200 - Philips Norelco Jet Clean Solution,
10 fl. oz. /300 ml.
◗ Philips Norelco Razor Accessories may be
purchased at a store near you, or on our
website www.philips.com/store
FULL TWO YEAR WARRANTY
Philips Electronics North America Corporation warrants each new Philips Norelco Product,
Models 1180X/1160X/1160XCC/1150X (except cutters and combs) against defects in
materials or workmanship for a period of two years from the date of purchase, and agrees
to repair or replace any defective product without charge.
IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse,
lack of reasonable care, the affixing of any attachment not provided with the product or loss
of parts or subjecting the product to any but the specified voltage.* Use of unauthorized
replacement parts will void this warranty.
PHILIPS ELECTRONICS NORTH AMERICA CORPORATION WILL NOT PAY
FOR WARRANTY SERVICE PERFORMED BY A NON-AUTHORIZED REPAIR
SERVICE AND WILL NOT REIMBURSE THE CONSUMER FOR DAMAGE RESULTING FROM WARRANTY SERVICE PERFORMED BY A NON-AUTHORIZED
REPAIR SERVICE. NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
In order to obtain warranty service, simply go to www.philips.com/norelco or call
1-800-243-3050 for assistance. It is suggested that for your protection you return shipments of
product by insured mail, insurance prepaid. Damage occurring during shipment is not covered
by this warranty.
NOTE: No other warranty, written or oral, is authorized by Philips Electronics North America
Corporation.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion and limitations may not apply to you.
* Read enclosed instructions carefully.
Manufactured for:
Philips Consumer Lifestyle
A Division of Philips Electronics North America Corporation
P.O.Box 10313, Stamford, CT 06904
This symbol on the product’s nameplate means it is
listed by Underwriters’ Laboratories, Inc.
Norelco, Tripleheader, Lift and Cut, and
North America Co rporation.
are Registered Trademarks of Philips Electronics
is a Trademark of Philips Electronics North America Corporation.
PHILIPS is a Registered Trademark of Koninklijke Philips Electronics N.V.
© 2010 Philips Electronics North America Corporation. All Rights Reserved.
39
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
