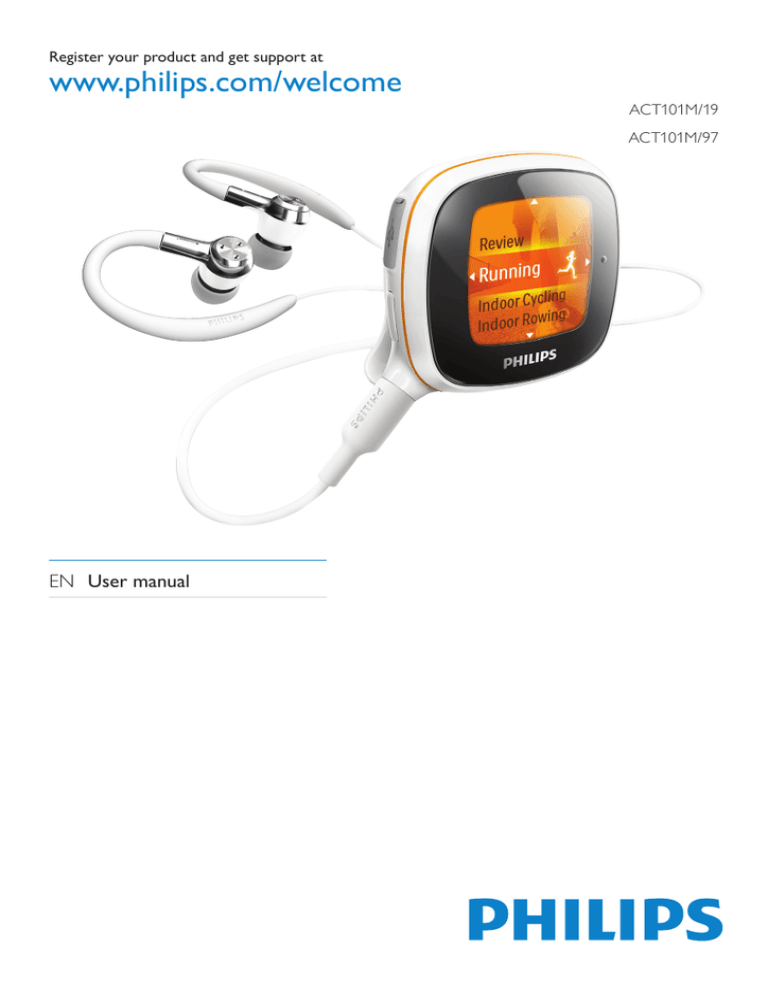

Register your product and get support at
www.philips.com/welcome
ACT101M/19
ACT101M/97
EN User manual
1 Important safety information
5
5
6
2 Your new Activa
8
8
9
9
General maintenance
Recycling the product
Controls
Home screen
Workout screen
To change music/radio station
during workout
To drive your pace with
TempoMusic
To change the type of music
during workout
Fitness device
Set up your personal profile
Wear Activa properly
3 Get started
Charge power
Connect headphones
Use the headphones
Turn on/off Activa
Auto power-off
First-time setup
On PC: Install Philips Songbird and
applications
Set the fitness device
4 Move
Set workout goals
Set a long-term goal
Set a goal for each exercise
Personalize the workout
Music during workout
Use TempoMusic
Listen to radio
Record the workout
To listen to a voice report/boost
song during workout
10
10
10
10
11
11
13
13
13
13
14
14
14
14
15
17
17
17
18
18
19
19
20
21
21
English
Contents
To change settings during
workout
To set a boost song
Calibrate the workout
Use previous exercise
Use current exercise
Review the workout
Review the workout on Activa
Review the workout on PC
21
21
22
22
22
23
23
23
5 Build your library for Activa
Browse your music library
Import music into Philips Songbird
Collect music files in Philips
Songbird
Create a playlist
Remove music files from the
Songbird library
Fetch album artwork
Smart loading
Sync between Philips Songbird and
Activa
Sync after a workout
Sync after music/profile updating
Other functions on Philips Songbird
Get content from online sources
Edit and show metadata
6 Play
26
26
27
28
28
29
29
30
31
31
31
32
32
32
34
34
34
34
34
35
35
35
35
36
36
36
36
Play music
Find music
Play music
Delete a song/artist/album
Play pictures
Play pictures in slideshow
Play FM radio
Tune to radio stations
Store preset stations
Sound recording
Make recordings
Play recordings
EN
3
7 Settings
37
37
37
37
38
38
38
38
38
39
39
39
40
40
8 Technical data
41
41
9 Troubleshooting
42
Settings of fitness device
Play mode
Sound settings
Sleep timer
Display settings
Theme
Brightness
Screensaver
Date and time
Slideshow settings
Select the language
About the device
Restore factory settings
System requirements
4
EN
General maintenance
Caution
•• To avoid damage or malfunction:
•• Do not expose the product to excessive heat
caused by heating equipment or direct sunlight.
•• Do not drop the product or allow objects to
fall on your player.
•• Do not allow the product to be submerged
in water. Do not expose headphone socket
or battery compartment to water, as water
entering the set may cause major damage.
•• Active mobile phones in the vicinity may cause
interference.
•• Back up your files. Ensure that you retain the
original files you have downloaded to your
device. Philips is not responsible for any loss of
data if the product becomes damaged or not
readable / legible.
•• Manage (transfer, delete, etc.) your music files
only with the supplied music software to avoid
problems.
•• Do not use any cleaning agents containing
alcohol, ammonia, benzene, or abrasives as
these may harm the product.
About operating and storage temperatures
•
Operate in a place where temperature is
always between 0 and 35ºC (32 to 95ºF)
•
Store in a place where temperature is
always between -20 and 45ºC (-4 to
113ºF).
•
Battery life may be shortened in low
temperature conditions.
Replacement parts/accessories:
Visit www.philips.com/support to order
replacement parts/accessories.
Hearing Safety
English
1 Important safety
information
Listen at a moderate volume:
Using headphones at a high volume can impair
your hearing. This product can produce sounds
in decibel ranges that may cause hearing loss for
a normal person, even for exposure less than
a minute. The higher decibel ranges are offered
for those that may have already experienced
some hearing loss.
Sound can be deceiving. Over time your hearing
‘comfort level’ adapts to higher volumes of
sound. So after prolonged listening, what sounds
‘normal’ can actually be loud and harmful to
your hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.
Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally
‘safe’ levels, can also cause hearing loss.
Be sure to use your equipment reasonably and
take appropriate breaks.
Be sure to observe the following guidelines
when using your headphones.
Listen at reasonable volumes for reasonable
periods of time.
Be careful not to adjust the volume as your
hearing adapts.
Do not turn up the volume so high that you
can’t hear what’s around you.
EN
5
You should use caution or temporarily
discontinue use in potentially hazardous
situations.
Copying or distributing unauthorized content
may violate copyright laws in various countries
including yours.
Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.;
;it may create a traffic hazard and is illegal in
many areas.
Compliance with copyright laws remains your
responsibility.
Modifications
Modifications not authorized by the
manufacturer may void user’s authority to
operate the product.
Copyright information
All other brands and product names are
trademarks of their respective companies or
organizations.
Unauthorized duplication of any recordings
whether downloaded from the Internet or
made from audio CDs is a violation of copyright
laws and international treaties.
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offense.
This equipment should not be used for such
purposes.
The Windows Media and the Windows logo are
registered trademarks of Microsoft Corporation
in the United States and/or other countries.
Be responsible! Respect copyrights.
Philips respects the intellectual property of
others, and we ask our users to do the same.
Multimedia content on the internet may have
been created and/or distributed without the
original copyright owner’s authorization.
6
EN
Data logging
Philips is committed to improving the quality
of your product and enhancing the Philips user
experience. To understand the usage profile of
this device, this device logs some info / data to
the non-volatile memory region of the device.
These data are used to identify and detect
any failures or problems you as a user may
experience while using the device. The data
stored, for example, will be the duration of
playback in music mode, duration of playback
in turner mode, how many times battery low
was encountered, etc. The data stored do not
reveal the content or media used on the device
or the source of downloads. The data stored on
the device are retrieved and used ONLY if the
user returns the device to the Philips service
center and ONLY to simplify error detection
and prevention. The data stored shall be made
available to user on user’s first request.
Recycling the product
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Caution
a
b
c
d
e
f
g
h
i
j
English
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
•• Removal of the built-in battery invalidates
the warranty and may destroy the product.
The following instructions are disposal
instructions at the end of product life.
Your product contains a built-in rechargeable
battery covered by the European Directive
2006/66/EC, which cannot be disposed of
with normal household waste.
To safeguard the functionality and safety of
your product, take your product to an official
collection point or service centre where a
professional can remove or replace the
battery as shown:
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Notice for the European Union
This product complies with the radio interference
requirements of the European Union.
 
EN
7
2 Your new Activa
d
c
e
f
Move
b
a
i
h
g
5
Controls
1
2
3
Press and hold to turn on or off the
unit.
6
Press, and then, press
unlock keys .
LCD screen
7
to lock/
USB port for power charging and
data transfer
Lift the cover to insert the supplied
USB cable.
RESET
Press the hole by using the tip of a
ball pen when the screen does not
respond to the pressing of keys.
4
8
EN
8
9
, , ,
Press to navigate through menus.
Confirm selection
VOLUME
Press repeatedly, or press and hold
to reach the desired volume level.
BOOST
Press to select options available on
current menu.
On Workout screen, press to listen
to voice feedback; press and hold to
listen to the preset boost song.
MIC
microphone for voice recording
3.5mm headphone jack
Workout screen
From Home screen, select
enter [Move] menus:
English
Home screen
, and you can
Record and calibrate your
workout.
Move
Workout screen
Workout screen appears when workout
recording starts.
On Workout screen, you can see your workout
progress.
340
kcal
Settings
•
From Home screen, you can access
desired functional menus by pressing
the navigation keys , , and .
•
To go back to previous screens,
press repeatedly; or, press and hold .
•
Press the navigation keys / / / to
select functions:
/
Press repeatedly to display the
calories burnt, time used, and
distance covered;
Press to pause/resume/stop
workout recording;
Press to change sports.
Press repeatedly to skip songs if
you listen to music;
Press repeatedly to select a
preset station if you listen to
radio.
EN
9
To change the type of music during
workout
•
BOOST
Press to listen to the voice report
(e.g. calories burnt, time used);
Press and hold BOOST to start
the boost song that you selected
in Philips Songbird.
Press > [Change music] > to
change music type: [TempoMusic],
[No music], [Now playing], [Shuffle],
or [Radio].
Tip
•• To switch between music and radio, press and
hold to switch between music and radio
during workout (e.g. you can switch to music,
if there is too much interference on the radio).
Tip
•• You can motivate yourself by starting the
boost song. To set your favorite song as
boost song, use the supplied PC software
(see ‘To listen to a voice report/boost song
during workout’ on page 21) Philips Songbird.
To change music/radio station during
workout
If you are listening to music (including
TempoMusic)
•
Press
repeatedly to skip songs.
If you are listening to radio
•
Press to switch to the next preset
radio station.
To drive your pace with TempoMusic
•
Press and hold / to force
TempoMusic to match a faster
or slower pace.
Tip
•• With [TempoMusic], suitable songs that match
your pace can be selected automatically from
the music library of Activa. By selecting a faster
or slower tempo, you can set a new pace to
drive your workout.
10
EN
Fitness device
As a fitness device, Activa allows you to
easily measure your workout progress.
During workout, you can choose to listen to
the progress report that is displayed on the
screen, preset encouragement, music, radio,
or preset boost song.
For accurate measurement, do the following
before you use the fitness device:
•
Set up your personal profile in Activa.
•
For current workout on Activa, select
the desired sport, measurement option
on Activa, and then, wear Activa in the
position as recommended in the display
of Activa.
Tip
•• For different sports, measurement options and
wearing positions may vary on Activa.
•
Calibrate the fitness device to your pace.
Set up your personal profile
On the supplied PC software Philips Songbird
and applications, enter your personal
information as prompted. For meaningful
measurement and calculation, accurate profile
information is important.
Set up your personal profile
•
Wear Activa in the position as recommended
in the display:
during the first-time setup
(see ‘On PC: Install Philips
Songbird and applications’
on page 14).
To update your weight information
(e.g. once a month)
•
on Activa, go to > [Move] >
[User profile] > [Weight].
•
or, on Philips Songbird, go to
[Activa Center] > [Workouts].
Wear Activa properly
If worn properly, the fitness device can detect
and measure your movement correctly.
Wear Activa on the arm, waist, or thigh as
displayed on Activa.
EN
11
English
Select one of the available measurement
options:
1
On Activa, plug the headphones to use
the clip easily.
•
2
By using the clip, wear Activa on the
waist.
•
12
If necessary, use the pouch to
protect Activa from scratches.
Insert Activa into the pouch before
you plug the headphones.
EN
Or, as shown, use the clip to wear
Activa on the supplied arm/thigh
band.
Charge power
•
As shown, connect Activa to a PC,
or a USB power adapter (not supplied)
by using the supplied USB cable.
By using the headphones, you can listen to
music, FM radio, and voice reports during
workout. The headphones also work as
antennas when you play FM radio.
English
3 Get started
Use the headphones
With the ear hooks, cable cinch, and cable
clip, the supplied headphones provide
convenience for your workout.
•
Try the ear buds of different sizes
(large, medium, small) to find the
ones that suit you best;
L
M
S
•
If necessary, adjust the cable cinch
for the secure fit during workout;
scrolls during power charging.
appears when power charging is completed.
Connect headphones
Connect the supplied headphones to Activa.
Tip
•• The cable cinch also helps you manage the
headphones cables when you store the
headphones. By pushing up the cable cinch,
you can keep the cables from getting too much
intertwined.
EN
13
•
To keep the cable from swinging,
pass the cable inside your shirt, or
use the cable clip to fix the cable to
your clothes as shown.
First-time setup
On PC: Install Philips Songbird and
applications
On your PC, install the supplied software
Philips Songbirdand applications.
Turn on/off Activa
•
Press and hold
on or off.
until the device is turned
Philips Songbird and applications can help you
set and adjust your workout goals, and review
your workout history.
With Philips Songbird and applications, you
can also transfer music for your workout on
Activa.
1
2
Auto power-off
3
Activa can turn off automatically 20 minutes
later, if
4
14
•
no activity happens on Activa, and
•
no workout is ongoing on Activa.
EN
Connect Activa to a PC by using the
supplied USB cable.
On the PC, find Activa under
[My Computer] or [Computer].
In Activa, double click setup.exe to start
installation.
Follow the screen instruction to complete
installation.
Tip
English
•• As add-ons to Philips Songbird, the
applications are added to Philips Songbird
after installation.
Set the fitness device
On the fitness device, select your desired
language, and then, set the device for current
exercise.
1
2
From Home screen, go to
Select the desired sports: [Running],
[Rowing],[Indoor cycling], [Outdoor
cycling] or [Freestyle].
•
3
4
Select [Freestyle], if you plan to start
an exercise other than the listed
ones, e.g. aerobics, dancing.
Set a goal for this exercise:
•
To skip the step of goal setting,
select [Open ended].
•
Select [Calories], [Time], or
[Distance] (for running only).
Select [TempoMusic] to listen to music
that matches your pace automatically. Or,
select another type of music.
•
5
.
[TempoMusic] is unavailable if you
have selected [Freestyle] as the
sport.
To start recording:
AWear Activa properly in the position
as displayed on the screen;
BPress to start warm-up;
CPress again.
»» Exercise/calorie measurement
starts.
EN
15
6
To stop recording, press , and then,
select [Finish].
Tip
•• Keep the resistance level on Activa the same
or close to the settings on your gym machine,
if you have selected [Rowing] or [Indoor
cycling] as the sport.
Note
•• For the [Freestyle] sport, the calorie values
are based on your movement, and for
reference only.
16
EN
On the PC software Philips Songbird:
English
4 Move
Activa allows you to measure, monitor, and
motivate you for your workout.
The supplied software Philips Songbird helps
you set and review your workout goals.
During the workout, you can
•
Get voice feedback on your progress;
•
Get [TempoMusic] select and play
from your library the music that
matches your pace;
•
Get the accompaniment of music or
radio;
•
Get encouragement as desired.
1
2
Click [My goals].
In the pop-up window, select one of four
options:
•
[Easy start]: Goals self-adaptable
to your workout. Select the option
if you are uncertain about which
calorie goal to start with;
•
[Regular exercise]: Set how many
times you target to exercise each
week;
•
[Calories]: Set the calories you
target to burn over a period of time;
•
[Distance] (for running only): Set the
distance you target to cover over a
period of time.
•
After achieving your goal, you can
choose to extend goal, or set a new
goal.
After the workout, you can
•
Review the workout by sports;
•
Review the progress in achieving
goals;
•
Adjust your workout goals;
•
Review your workout history over a
period of time.
Set workout goals
When setting workout goals, you can
•
On the PC, set a long-term goal
(e.g. for two weeks, for one month); and
•
On the device (Activa), set a target
before each exercise.
Set a long-term goal
The supplied software Philips Songbird helps
you set long-term goals and review your
workout statistics over a period of time
(e.g. calories burnt, frequency of exercises).
3
Connect Activa to your PC.
»» The data is synchronized to Activa
automatically.
Tip
•• Ensure that you have launched Philips
Songbird when synchronizing data from
a PC to Activa.
EN
17
Set a goal for each exercise
Personalize the workout
On the device (Activa), set a target before
each exercise. By setting a target for each
exercise, you split the long-term goal into
tasks that can be implemented exercise by
exercise.
During workout, you can get voice reports
on your progress, and voice encouragement
(praise or push) at different stages. As
desired, Activa can play the voice report/
encouragement automatically or manually;
You can also turn off the voice report/
encouragement.
1
2
3
From Home screen, go to
.
Select the desired sports.
Select one of the criteria to set a target:
[Calories], [Time], or [Distance]
(for running only).
APress / , or press and hold /
to select a value (e.g. 400 Kcal,
30 minutes, 40 Km);
BPress to confirm.
To skip the step of goal setting,
•
Select [Open ended].
To compete against yourself,
18
•
Select the same sport and time
duration as the exercise you want
to compete against (your last, your
best, or a session you select).
•
Select [Compete against yourself].
»» You can get a voice report on
your performance (this exercise
vs. your last, your best, or a session
you select).
EN
To select the options,
OnPhilips Songbird, go to[My profile]:
> [Move]:
Tip
Voice reports
•• Voice encouragement: Make voice recordings
During workout, voice reports can play
automatically or when you press the
BOOST button.
By default, you can automatically get the voice
reports on the calories burnt and distance
covered, when reaching 25%, 50%, 75%, 90%
and 100% of the goal or time.
To set what the voice report tells,
1
2
From Home screen, go to
[Audio feedback].
> [Move] >
Select one or more items that you want
the voice report to cover/not to cover:
[Praise/Push]: Help you get back to the
regular pace when your current pace is
too fast or slow compared to the regular
pace.
3
[Calories]/[Distance](when
available)/[Time]/[Compare with
previous exercise]: Remind you of the
progress during workout.
Press
to turn on/off the item.
To set when the voice report plays,
•
From Home screen, go to >
[Move] > [Feedback frequency] .
Select an option: [No automatic
feedback], [On milestons].
Trainer voice
•
To change the trainer voice in voice
reports, go to > [Move] > [Preferred
trainer voice].
that can be played as encouragements during
workout. Such praise and push voices can be
yours, your friends’, or your partners’ (e.g.
a surprising praise during workout).From
Home screen, go to > [Move] > [Personal
encouragements].In [Record encouragement],
select [Praise] or [Push]. Record voices as
praise or push.
Music during workout
During workout, you can play music or radio as
accompaniment; or play tempo-based music.
Use TempoMusic
With [TempoMusic], you can have music in
the library automatically selected and played
to your pace.
Set TempoMusic during first-time setup
TempoMusic comes from two steps: With
the supplied PC software Philips Songbird,
you have your PC music library analyzed and
transferred (entirely or in part) to Activa;
on Activa, you select TempoMusic to have
music automatically selected and played to
your pace.
During the first-time setup, the whole music
library on the PC is scanned; Songs are
automatically sorted by tempo, type, and
other categories. The scanning process takes
time, depending on the library size. Next time
you launch Philips Songbird, the scanning
starts automatically for updates.
EN
19
English
On Activa, go to
Always keep Philips Songbirdrunning until
the TempoMusic analysis is completed.
To check the status of TempoMusic analysis,
click[Activa Center]onPhilips Songbird.
With Philips Songbird, such song information
is transferred to Activa together with the
songs.
Note
•• To use TempoMusic properly, always transfer
your PC music library to Activa through Philips
Songbird.
Listen to radio
During workout, you can listen to up to
20 preset FM radio stations. Use the
headphones as antenna.
1
2
3
After you set a goal for the exercise,
select [Radio].
»» A list of preset FM stations appears.
Select the desired station.
During workout, press repeatedly to
switch between preset stations.
Tip
•• To store preset stations on Activa, see.
20
EN
1
English
Record the workout
Wear Activa properly in the position as
displayed on the screen.
“22 minutes,
350 kcal,
You are doing
great!”
Tip
•• Voice reports are unavailable if a boost song
is playing.
To change settings during workout
•
Press
to pause;
To resume, select [Continue];
To stop, select [Finish].
»» Workout results appear after four
minutes of relaxation exercises.
To change sports and continue calorie
counting, select [Change activity];
To adapt to the changed resistance level on
the gym machine (for rowing and cycling
only), select [Resistance level];
To change the music type, select [Change
music].
2
Press
to start recording.
To listen to a voice report/boost song
during workout
•
Press BOOST to listen to a voice report
on the workout progress.
•
Press and hold BOOST to play a boost
song.
To set a boost song
You can motivate yourself by starting the
boost song.
Set the desired song as boost song
You can set the desired song as boost song on
the supplied PC software Philips Songbird.
EN
21
OnPhilips Songbird
1
2
3
4
Go to [My profile].
Under [Boost song], click the edit button.
Click the desired option. Click [OK] to
confirm.
Click [Save].
»» The selected boost song is
synchronized to Activa.
»» Click [Cancel] to cancel the selection.
Calibrate the workout
On Activa, workout data, such as distance and
calories burnt, are based on step count, step
length, and some other factors that may vary
from one to others.
For accurate measurement, calibrate the fitness
device to yourself.
Use previous exercise
You can use a previous exercise for calibration,
if you know the actual distance covered (for
a running session), or calories burnt (for a
rowing or cycling session).
1
2
3
From Home screen, go to >
[Calibrate] > [Use previous workout].
Select an workout entry.
In the text box of distance/calories, enter
the actual number.
Use current exercise
1
2
22
EN
From Home screen, go to . >
[Calibrate] > [Workout and calibration].
Select an activity (sports). If necessary,
press to ensure that you have selected
the specific sport for calibration.
•
For running: Enter a distance to cover;
•
For indoor rowing or indoor cycling:
Enter a time duration (more than five
minutes recommended).
4
Press when you start the activity at a
usual pace.
»» At the end of the distance/time
duration, the recording stops.
For running, the exercise results and
calibration report are displayed.
»» For cycling or rowing, enter the
resistance level during the exercise.
»» Calibration is done.
Tip
•• You can also calibrate the workout after you
have covered a known distance. When the
exercise result is displayed, press BOOST >
[Use exercise as calibration], and then enter
the actual distance.
1
2
On the PC, launch Philips Songbird.
Connect Activa to the PC by using the
supplied USB cable.
»» The workout data on Activa is
automatically transferred to the PC.
Review exercises
With Philips Songbird, you can review
exercises by time period, speed, makeup
of sports, calories burnt, or workout time.
1
2
3
Click [Workouts] to review exercises.
To select time period, click [Day], or
[Week].
To view the speed and contribution of
each sport, click [Last session].
•
Review the workout
You can review the workout on Activa, or
on PC by using Philips Songbird for more
information.
English
3
Press / to switch between
different sports, days, or weeks.
In the week view, exercises can be sorted in
graphs by calories or workout time.
Review the workout on Activa
On Activa, you can review the workout over
the past week, or past 10 exercises.
To review the workout over the past week
•
From Home screen, go to >
[Review] > [This week review].
To review the past 10 exercises
•
From Home screen, go to >
[Review] > [Exercise history].
Review the workout on PC
By using the supplied software Philips
Songbird on PC, you can review both
exercises and goals.
Before the review, synchronize the PC with
your workout data on Activa.
EN
23
Review weight changes
To update weight information
By transferring the weight data to Philips
Songbird, you can also view weight changes
on PC.
•
To update weights on Philips
Songbird, enter your current weight
in the text box as shown.
•
To edit weights on Activa, go to >
[Move] > [User profile] > [Weight].
Tip
•• To learn your accurate calorie expenditure,
update your weight information regularly
(e.g. once a month).
Note
•• Always keep the weight information consistent
in Philips Songbird and Activa.
•• To do so, synchronize Philips Songbird with
Activa: Launch Philips Songbird on the PC;
Plug Activa into the USB port of the PC.
•• After the synchronization, the last data you
entered are used as your latest information on
Philips Songbird and Activa.
Review goals
•
24
EN
As shown, click the sport/weight
button to switch between the views
of workout and weight changes.
By transferring your workout data to Philips
Songbird on PC, you can view the status of
goal fulfillment. Accordingly, adjust your goals.
•
To view the status of goals, go to
[My goals].
EN
25
English
5 Build your
library for
Activa
On your PC, launch Philips Songbird. You can
manage your device that contains workout data,
music, and audio files.
Browse your music library
Philips Songbird is structured as follows:
a
With Philips Songbird, you can
•
Collect all music, workout data and
downloads in one place;
•
Edit song information;
•
Generate tempo-based playlist for your
workout;
•
Transfer music/audio files from PC to
Activa;
•
Transfer workout profiles from PC to
Activa;
•
Synchronize the PC with workout data
from Activa;
•
Review workout progress.
b
c
26
EN
2
b Source selection pane: Click to select a
source of contents; Click / to show or
hide the sub-sources.
•
[Library]: Philips Songbird media
library;
•
[Activa Center]: Philips Songbird
workout data library that is
synchronized to/from Activa;
•
Activa connected to the PC;
•
Other add-ons.
To import music,
•
go to [File] > [Import Media] to
select the desired folders on PC.
»» Music files are added under
[Library].
•
or, go to [File] > [Import a playlist] to
select the desired playlists on PC.
»» Music files are added under
[Playlists].
English
a Player pane: Click the buttons to play
music in Philips Songbird media library.
Import media from iTunes
c Contents pane: View contents in current
source of contents.
Import music into Philips
Songbird
On your PC, you can import music/audio files
into Philips Songbird.
1
Launch Philips Songbird, with Activa
disconnected from the PC.
1
2
3
4
On Philips Songbird, go to [Tools] >
[Options...] (Windows)
Select [Media Importer], and then the
[iTunes Importer] tab.
Verify your library location and options.
Click the [Import Library] button next to
the library location.
»» The software imports the iTunes
library into Philips Songbird.
EN
27
Collect music files in Philips
Songbird
You may wish to have all music files
automatically added to your library when you
copy them to a folder. Creating a central music
folder is recommended. In Philips Songbird, set
the central music folder as the watch folder.
Each time you launch Philips Songbird, songs
are added to/removed from Philips Songbird as
they are on the central music folder.
Create a central music folder
On the PC, create a central music folder to
save all music for example, D:\Songbird music.
Set the watch folder
In Philips Songbird, set the watch folder as
follows:
1
2
3
4
Select [Tools] > [Options].
In [Options], select [Media Importer].
Then, select the [Watch Folders] tab.
In [Watch Folders], tick the checkbox as
shown.
Click [Browse], and select the central
music folder (e.g.D:\Songbird music) as
the watch folder.
»» In Philips Songbird, songs are added
or removed as they are in the central
music folder.
Manage music centrally
To manage music in Philips Songbird,
•
Launch Philips Songbird, with Activa
disconnected from the PC. Click [Library].
Create a playlist
By creating a playlist, you can manage and sync
your favorites songs easily.
28
EN
Tip
English
•• To drag and drop multiple songs at the same
time, hold down the Ctrl button when you
click on selections.
Remove music files from the Songbird
library
1
2
Right click on a music file. Select [Remove].
Confirm as prompted.
»» The selected file is removed from
the library and from all playlists. (By
default, the file is only “removed”, not
“deleted”. The music file still exists in its
original location on the computer or
computer network.)
Tip
•• To select multiple files, hold down the
1
2
3
4
Ctrl button when you click on selections.
Click [New Playlist] to create a new
playlist.
»» A new playlist is created, with the
playlist name to be edited.
Name new playlist as desired (e.g. “My
workout playlist’).
Click [Music] under [Library] to show the
music library on the PC.
•• To select multiple consecutive files, hold down
the Shift button when you click on the first
and last selections.
Fetch album artwork
Choose from these options to fetch the
artwork for your albums:
•
On the Philips Songbird toolbar, select
[Tools] > [Get Album Artwork].
»» If no titles are selected, artwork is
fetched for all titles in the library.
•
Right-Click on selected titles.
»» Artwork is fetched for all selected titles.
Drag and drop songs from the music
library to playlist.
EN
29
Smart loading
[SmartLoad (smart loading)] allows you to
easily and quickly load your Activa with a lot
of workout music.
With [SmartLoad (smart loading)], your PC
music library is scanned, and the relevant
songs are automatically selected and
transferred to Activa.
4
Click [Sync] to start the synchronization
from the PC to Activa.
Select settings for smart loading
With the smart loading from the PC to Activa,
you can
•
Select what size the loaded music
library occupies on Activa;
•
Select what similarities the loaded
songs have.
Tip
•• [SmartLoad (smart loading)] can adapt to your
taste based on your selection of the song you
like: by priority, [SmartLoad (smart loading)]
searches for and load music that have musical
similarities to the song you selected.
1
2
3
30
On Philips Songbird, connect Activa to
the PC by using the supplied USB cable.
As shown, click your Activa.
In [Music] > [Sync settings], tick the
check box next to [SmartLoad (smart
loading)].
EN
2
3
As shown, click the drop-down button
next to [SmartLoad (smart loading)].
Sync after music/profile updating
Select the desired size.
To synchronize Philips Songbird and Activa
after you update music or your profiles (e.g.
weight information),
To select the similarities, click the edit
button to see the song list. Select the
song that you want the loaded songs to
be similar to.
1
2
English
1
On the PC, launch Philips Songbird.
Connect Activa to the PC by using the
supplied USB cable.
Sync between Philips
Songbird and Activa
With Philips Songbird, you can sync your
workout data/profiles and music on the
PC and Activa.
Sync after a workout
To synchronize your PC with workout data
from Activa,
1
2
On the PC, launch Philips Songbird.
Connect Activa to the PC by using the
supplied USB cable.
»» The workout data on Activa is
automatically transferred to the PC.
3
4
On Philips Songbird, click your Activa as
shown.
Click on [Sync] on the top right corner of
the panel.
»» The playlists, profiles and other data
are synchronized automatically on
Philips Songbird and Activa.
»» [SmartLoad (smart loading)] works if
selected.
EN
31
To sync music manually
To manually drag and drop songs from Philips
Songbirdto Activa,
Other functions on Philips
Songbird
On Philips Songbird, you can use other
functions to manage the music library.
Get content from online sources
You can purchase content from online sources
such as the following:
•
7-digital
Check the specifications of your Activa to see
what services are available to you.
Edit and show metadata
On Philips Songbird, metadata provides
information about media files, such as song
name, artist, and album name.
1
2
3
You can edit the metadata and select what
metadata to show on Philips Songbird.
On Philips Songbird, click your Activa.
Edit metadata
On the top right corner of the panel, tick
the check box next to [Manually Manage
Device].
Click [Library] > [Music]. Drag and drop
desired songs from the library to your
Activa.
1
2
32
EN
In [Library] > [Music], select a song.
Right click on the song to select [View
Metadata].
»» A metadata table appears for you to
edit the information.
English
Show metadata
1
2
In [Library] > [Music], right click on the
bar of metadata titles.
»» A list of metadata titles appears.
Click on the title that you want to show
on the metadata bar.
EN
33
6 Play
3
When not recording workout, you can play
music/audio files, pictures, and FM radio on
Activa. You can also use Activa for voice/ FM
radio recording.
From Home screen, select , and you can enter
Play menus:
During playback,
•
Press to pause and resume
playback.
•
To go to the previous menu, press
(corresponding to
on the screen).
»» Play screen returns a few seconds
later.
Play music/audio files on Activa.
Play pictures on Activa.
Tune to radio stations.
Record radio programs.
Play recordings on Activa;
Record voices.
Play music
To select a music file on the play screen
Find music
•
On Activa, music/audio files are organized in:
[All songs]: songs sorted by song name;
[Artists]: albums sorted by artist name;
1
2
From Home screen, select
Press , and
folder or song.
> [Music].
to select the desired
Play music
1
2
34
Select the desired music folder or file.
Press to start playback.
»» On the playback screen, you can see
the file information and playback status.
EN
on the
To rewind or fast forward within current
song
•
[Albums]: albums sorted by album name;
[Genres]: songs sorted by genre, e.g. rock,
jazz, classical.
Repeatedly press and
(corresponding to
and
screen).
On the playback screen, press and
hold and .
Delete a song/artist/album
1
2
In > [Music], select a song, or an
album, or an artist. Press .
Press BOOST, and then, select [Delete].
»» Current song is deleted from Activa.
»» Or, all files under current album are
deleted from Activa.
»» Or, all albums under current artist are
deleted from Activa.
Play FM radio
You can play .JPEG and .BMP files on Activa.
1
2
3
4
5
Ensure that you have transferred .JPEG
and .BMP files to Activa.
Note
•• Always plug in the supplied headphones when
tuning to radio stations. The headphones
double as antenna. For better reception, move
the headphone cable in different directions.
From Home screen, go to > [Pictures]
> [All pictures] or [Albums].
Press , to select a picture.
»» Thumbnail of the picture appears.
To play the picture in full screen, press .
Press , to select the previous or next
picture.
Tune to radio stations
Auto tune
1
Play pictures in slideshow
When in slideshow, pictures in current folder
play one by one.
1
2
3
4
From Home screen, go to > [Pictures]
> [All pictures] or [Albums].
Press ,
to select a picture/album.
To start playing in slideshow, press
BOOST, and then, select [Start
slideshow].
»» Slideshow starts from the selected
picture, or the first picture in the
album.
During playback,
•
Press , to select previous or next
pictures, if necessary.
•
Press BOOST > [Slideshow
settings] to select play options:
[Time
selects play time for each slide.
per slide]
To play slides one by one
manually, select [Manual advance].
[Repeat] plays all slides repeatedly, if
activated.
[Shuffle] plays all slides in random order, if
activated.
English
Play pictures
2
3
From Home screen, go to
[FM radio].
>
•
The last played station starts to play.
•
The first time you tune to the radio,
auto tune starts automatically.
•
Up to 20 available stations are
stored as presets.
Press / repeatedly to select a preset
station. Press to start play.
To restart auto tune, press BOOST >
[Auto tune] on the radio play screen.
»» Up to 20 available stations are stored
to replace the old presets.
Tip
•• When moving to a new place (e.g. a new
city or country), restart auto tune for better
reception.
Manual tune
Use Manual tune to tune to a desired
frequency or station.
1
2
From Home screen, go to >
[FM radio]. Press .
»» The last played station starts to play.
On the radio play screen, press BOOST
> [Manual tuning] to tune to a preset
station.
EN
35
3
Press and hold or .
»» You tune to the next available station
from current frequency.
»» For fine tuning, press
repeatedly.
3
4
or
On Activa , you can store up to 20 preset
stations.
3
Tune to a desired radio station.
On the radio play screen, press
the station as a preset.
to store
To save the station to a desired location,
select the location in the list of preset
stations. Press .
Sound recording
1
2
3
4
5
With Activa, you can record:
•
Voice through the built-in microphone;
•
Or, radio programs when playing the
radio on Activa.
Voice recording
2
From Home screen, go to >
[Recordings] > [Start voice recording].
Ensure that the microphone is close to
the sound source to be recorded.
MIC
To stop recording, press (corresponding
to ).
»» The recording is saved in mono .WAV
format to [Recordings] > [Recordings
library] > [Voice].
Radio recording
Make recordings
1
to start/pause/resume recording.
»» A file name is assigned automatically
and sequentially.
Store preset stations
1
2
Press
Tune to a desired radio station
(see ‘Tune to radio stations’ on page 35).
On the radio play screen, press BOOST
> [Start FM radio recording].
»» Radio recording starts.
Press
to pause/resume recording.
To stop recording, press .
To save the recording, select [Yes] as
prompted.
»» The recording is saved in mono .WAV
format to [Recordings] > [Recordings
library] > [FM radio].
»» A file name is assigned automatically
and sequentially.
Play recordings
1
2
3
From Home screen, go to >
[Recordings] > [Recordings library].
Go to [Voice] or [FM radio] to select the
desired voice or radio recording.
Press
to start/pause/resume play.
To delete all recordings
•
During play, press
[Delete all].
and select
To delete current recording
•
36
EN
During play, press BOOST and select
[Delete].
Settings of fitness device
In > [Move], select settings for the fitness
device.
[User profile] Set up/update your personal
profile.
On the supplied PC software
Philips Songbird, you can
set up your personal profile,
and synchronize the data to
Activa (including [Weight],
[Height], [Birth date],
[Gender]).
On Activa, update your
weight information in
[Weight] regularly (e.g. once
a month).
[Audio
Select what the voice
feedback]
report tells: [Praise/Push],
[Calories], [Distance] (when
available), and/or [Compare
with previous exercise].
[Feedback
Set when the voice report
frequency]
plays: [No automatic
feedback], or [On
milestons].
[Personal
Make voice recordings
encourthat can be played as
agements]
encouragements during
workout.
In [Record encouragement],
record voices as praise or
push.
[Preferred
Select an option: [Female],
trainer voice] [Male], [Drill sergeant
(Female)], [Dril;l sergeant
(Male)],
[Units]
Select the unit for
measurement: [Metric],
or [Imperial].
Play mode
1
From Home screen, go to
> [Play mode].
•
2
> [Device]
Or, on the music play screen,
press BOOST > [Play mode].
Press , , and
option:
to select the desired
[Repeat] [Repeat 1]
[Repeat all]
[Shuffle] [On]
repeats current
song.
repeats all songs in
current folder.
plays all songs in
current folder in
random order.
If both [Repeat all] and [Shuffle]are
activated,
•
All songs in current folder are
repeatedly in random order.
Note
•• [Shuffle] is unavailable if [Repeat 1]is activated.
Sound settings
1
From Home screen, select
> [Sound settings].
•
2
> [Device]
Or, on the play screen, press
BOOST, and then, select [Sound
settings].
Press , , and
option:
to select the desired
EN
37
English
7 Settings
[FullSound] Restore the sonic details that
music compression loses (e.g.
MP3, WMA).
[Equalizer] Define sound settings as
desired.
[Volume
Set a maximum volume level for
limit]
the device. In this way, you can
always keep the volume within
a level safe enough to your
hearing.
Press / to set the volume
limit.
Screensaver
Sleep timer
To select the power-saving mode
With the sleep timer, you can have Activa
turned off automatically after a certain time
duration.
1
2
From Home screen, go to
[Device] > [Sleep timer].
>
The screen enters the idle mode, if no new
action is taken on Activa. To personalize the
idle screen, do one of the following:
•
For power saving purpose, have the idle
screen turned off automatically after the
pre-defined time duration.
•
Or, you can show the selected
screensaver on the screen.
If you have selected the power-saving mode,
the idle screen is turned off automatically after
the pre-defined time duration.
1
2
3
Select the desired time duration.
»» After the selected time duration,
the device is turned off automatically.
From Home screen, select > [Device]
> [Display settings] > [Screensaver].
In [Screensaver], select [Off].
To select the desired time duration,
go to > [Device] > [Display settings]
> [Backlight timer].
»» After the selected time duration, the
idle screen is turned off automatically.
Tip
Display settings
Theme
To select a theme
•
From Home screen, go to > [Device]
> [Display settings] > [Theme].
Brightness
To adjust the brightness
•
From Home screen, go to > [Device]
> [Display settings] > [Brightness].
38
EN
•• For power-saving purpose, always select a low
value.
To exit the power-saving mode
•
Press any key.
If you have selected a screensaver, the
screensaver appears on the idle screen
after the pre-defined time duration.
To select a screensaver
1
2
From Home screen, select > [Device]
> [Display settings] > [Screensaver].
In [Screensaver], press / and
select an option:
to
[Digital clock]
shows the CD cover
of current album, if
available.
shows time in digits.
To exit the screensaver
•
Press any key.
Date and time
By setting the clock, you can have Activa
correctly record your workout date and time.
You can also set the digital clock as screensaver.
To set the clock
1
2
Go to
> [Device] > [Date and time].
In [Date and time], press / to select an
option; press to return to the previous
screen.
•
In [Time zone]: select the time zone
where you are located;
•
In [Set time format]: select a 12-hour
or 24-hour clock;
•
In [Set time]: press / repeatedly,
or press and hold / to enter
desired digits; press to select the
position of entries;
•
In [Set date format]: select a date
format;
•
In [Set date]: press / repeatedly,
or press and hold / to enter
desired digits; press to select the
position of entries;
Slideshow settings
•
From Home screen, go to
> [Slideshow settings].
> [Device]
Or, on the picture play screen, press BOOST >
[Slideshow settings].
[Time per slide] selects play time for each
slide.
To play slides one by one
manually, select [Manual
advance].
[Repeat]
plays all slides repeatedly, if
activated.
[Play order]
[Random]: plays all slides in
random order, if activated.
[Date]: plays all slides in the
chronological order by file
creation date.
[Filename]: plays all slides
in the alphabetical order by
file name.
Select the language
You can change the language selection after the
first time setup.
1
2
From Home screen, go to
> [Language].
Press , , and
language.
> [Device]
to select the desired
EN
39
English
[Album art]
About the device
From Home screen, go to > [Device] >
[Information]. You can learn the following
information about the device:
[Firmware
version:]
current firmware version.
Always check the firmware
version when updating
firmware from the support
website.
[Model:]
model number
[CTN]
Full product name. Always
check the full product name
when updating firmware
from the support website.
[Support site:] web site that provides
support for the device
Restore factory settings
You can restore Activa to factory settings.
1
2
From Home screen, go to
> [Reset].
> [Device]
As prompted, press , , and to
restore factory settings.
»» All settings on Activa are restored to
factory settings.
»» Files transferred to Activa are retained.
40
EN
Power
Playtime on internal battery: Up to 20 hours
in workout mode (music + monitoring)
Rechargeable: Yes, via USB
Software
Device manager: to restore and upgrade
Philips Songbird
Connectivity
Headphone: 3.5 mm
USB: High speed USB 2.0
Sound
Equalizer customizable
Equalizer settings: Funk, Hip Hop, Jazz, Rock,
Techno, Classical
Sound Enhancement: FullSound
System requirements
•
Windows® XP / Vista / 7
•
Internet connection
•
CD-ROM drive
•
USB port
English
8 Technical data
Audio playback
Compression format:
MP3, WAV, WMA, AAC
ID3 Tag support:
Song title, artist, album
Audio capturing
Built-in microphone: mono
Voice recording: MP3
Tuner/Reception/Transmission
Tuner bands: FM
Station presets: 20
RDS: Station Name
Still picture display
Picture Compression Format: JPEG
Slide show
Storage media
Mass storage class compliant
Music memory capacity, MP3: Up 50h
(with 128kbps MP3 songs)
Picture/Display
Backlight
Type: LCD
Diagonal screen size (inch): 1.44 inch
Resolution: 128 x 128 - 65k colors
EN
41
9 Troubleshooting
The screen does not respond when I press
the key.
••
Press , and then  to unlock the keys,
if necessary;
••
Charge the battery, if necessary;
••
If the steps above do not work, reset the
device. To do so, press the RESET hole
by using the tip of a ball pen or other tool.
RESET
I cannot find the file that I stored on Activa.
The file may be in a format unsupported
on Activa. For more information about the
compatible formats on Activa, see ‘Technical
data’ on page 41.
The fitness device cannot measure my
exercise accurately.
••
Ensure that you wear Activa properly.
The fitness device can detect and count
your movement. Wear the device
properly in the position as suggested on
the screen.
••
Calibrate the fitness device to yourself
(see ‘Calibrate the workout’ on page 22).
I cannot tune to a preset station.
••
The station may be out of service.
Select another preset station.
••
When moving to a new place (e.g. a new
city or country), restart auto tune for
better reception.
 
42
EN
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
ACT101M_19_97_EN_ActivaWK1012.5
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
