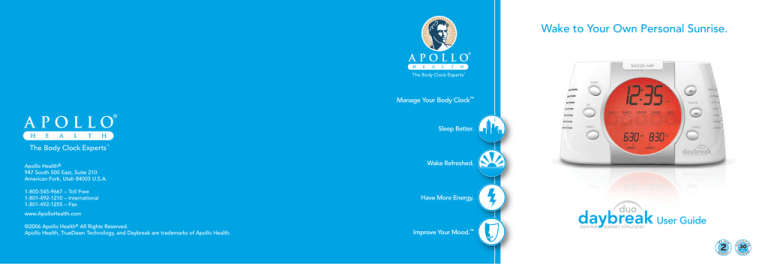

Philips DayBreak Duo User guide

Philips DayBreak Duo User guide
Wake to Your Own Personal Sunrise.
Manage Your Body Clock™
Sleep Better.
Apollo Health®
947 South 500 East, Suite 210
American Fork, Utah 84003 U.S.A.
1-800-545-9667 – Toll Free
1-801-492-1210 – International
1-801-492-1255 – Fax
Wake Refreshed.
Have More Energy.
www.ApolloHealth.com
©2006 Apollo Health® All Rights Reserved.
Apollo Health, TrueDawn Technology, and Daybreak are trademarks of Apollo Health.
User Guide
Improve Your Mood.™
Safety Tips
Observe these safety instructions to avoid potential hazards that could result in personal
injuries or damage to your Daybreak.
Contents:
Introduction ........................................................ 4
• Never connect your Daybreak to a fluorescent, compact fluorescent, low-voltage
halogen lamp, or any lamp with a transformer or ballast. Use incandescent or
line-voltage halogen lamps only, up to 200W.
TrueDawn™ Technology ...................................... 5
• Do not connect any non-lamp devices to the Daybreak. The Daybreak is engineered to
work with incandescent lamps only.
Button Layout ..................................................... 8
• Never use damaged or worn cords or plugs—this could result in electric shock, burns,
and/or fire.
Setting Up Your Daybreak .................................. 9
Contents
Read These Safety Guidelines Before Using Your Daybreak®
Display Layout .................................................... 7
Using Your Daybreak ........................................ 12
• Don’t place objects on top of the power cords or the Daybreak.
• When unplugging the Daybreak or a connected lamp, grasp the plug directly to avoid
damaging the cord. Never pull on the power cord to remove a plug from the socket.
Frequently Asked Questions ............................ 23
Service and Repair............................................ 26
• Avoid spilling liquid into any part of the device. Never expose your Daybreak to water
or rain. The Daybreak is approved for indoor use only.
3
Introduction
Visit www.ApolloHealth.com now to:
• Register your Daybreak
• Learn more about your Daybreak and TrueDawn technology
Don’t have Internet access? Be sure to fill out your warranty card located inside the box and mail it to
Apollo Health.
Visit the FAQ section of this guide for tips that will help you get the most from your Daybreak.
TrueDawn™ Technology—A Better Way to Wake Up
For eons, our bodies have adapted to sunrise and sunset to know when to wake up and when to sleep. In
fact, a master body clock in the brain’s hypothalamus uses these signals to regulate our sleep/wake cycles.
When our sleep/wake cycles are working properly, we gradually fall asleep, and slowly wake up. However,
modern lifestyles force us to alter our sleep/wake cycles and we miss these important cues. We struggle to
wake up and our sleep suffers.
Your body clock regulates this complicated process by cycling through different hormones and signals
that induce sleep or wakefulness. This cycle is a gradual process—which is why you can’t turn sleep off or
on. Alarm clocks disrupt this cycle, making it more difficult to feel awake in the morning or sleep well at
night. Instead of allowing our bodies to cycle through the last stages of sleep to consciousness, our alarm
clocks abruptly jar us awake, interrupting the final stages of sleep. This causes a condition known as
sleep latency and is why you struggle to get out of bed and get going. Sleep latency can last into the day
and hurts your ability to get a restful sleep at night.
TrueDawn™ Technology
Thank you for purchasing the Daybreak™ Duo from Apollo Health®, the Body Clock Experts™. Your
Daybreak is designed using Apollo’s exclusive TrueDawn™ technology, which accurately simulates
a summer sunrise just before you need to wake up. Your sleep cycle ends properly, and you awaken
refreshed and ready to start the day.
Our bodies need signals like light and darkness to know when to be alert or when to go to sleep.
Gradually increasing light—like sunrise—draws us out of sleep like nature intended. This scientific
process, called sunrise simulation, allows your sleep stages to completely cycle, so you awaken
refreshed—without sleep latency.
4
5
WAKE 1 CLOCK TIME
Sleep Latency
Natural Sunrise: Natural Sunrise increases very
slowly at first, allowing a gradual awakening.
5:30AM
6
MAIN CLOCK DISPLAY
TOUCH SCREEN BUTTON PANEL
Standard alarm clock: Alarm clocks disrupt the
last stages of sleep, increasing sleep latency and
delaying alertness.
Alertness
TrueDawn™ Technology
Just like sunrise, TrueDawn follows a sigmoidal light curve—the right type of increasing intensity—
which signals the body clock without causing premature awakening. Other “dawn simulators” employ
an inexpensive linear ramp-up, which can cause premature awakening and is ineffective at regulating the
body clock. When you use your Daybreak, you’ll awaken much easier than ever before with more energy
to start the day.
Display Layout
Display Layout
TrueDawn technology wakens you exactly as nature intended by gradually increasing light just like a
summer sunrise. This signals your body to complete its sleep cycle so you awaken when you need to,
feeling refreshed and ready to start the day. TrueDawn synchronizes your sleep/wake cycle—helping you
wake and sleep better.
6:00AM
6:30AM
7:00AM
7:30AM
WAKE 1 SETTING ICONS
WAKE 2 CLOCK TIME
WAKE 2 SETTING ICONS
TrueDawn™ Sunrise Clock: The Daybreak’s
TrueDawnTM technology matches sunrise, allowing
your sleep cycle to finish. You awaken gradually
without sleep latency.
7
Button Layout
Setting Up Your Daybreak
Top view
Your Daybreak package includes these items:
1
LAMP : Manual lamp brightness control
2
DISPLAY : Sets display brightness
3
SNOOZE/NAP : Delays alarm/sunrise for
9 minutes or begins a nap
5
1
LAMP
4
AM/FM : Switches radio band
5
RADIO : Turns radio on or off
AM / FM
4
2
3
7
8
9
SUNSET : Begins a sunset simulation at bedtime
11 WAKE 2 : Sets wake mode for Wake 2 time
8
9
SUNSET
7
SET
VOLUME
10
WAKE 1 : Sets wake mode for Wake 1 time
10 VOLUME – : Decreases radio volume
• User guide
• Warranty card
A 9V battery provides power to enable your Daybreak to retain its settings and continue to keep time
during power outages or if the device needs to be unplugged and moved to another location. However,
your Daybreak’s features—including the display—will not operate on battery power only. A fresh battery
will provide backup power for at least 24 hours. To install the supplied 9V battery into the Daybreak:
2 Remove the cover and retrieve the battery connector from the compartment.
SNOOZE / NAP
6
SET : Sets clock, wake times, and
sunrise/sunset durations
VOLUME + : Increases radio volume
• 9V battery
1 Using a screwdriver, loosen the screw on the rear battery compartment cover.
Front view
6
• AC power cord
Installing the Backup Battery
RADIO
DISPLAY
• Daybreak Duo device
8
WAKE 1
WAKE 2
Setting Up Your Daybreak
Button Layout
11
3 Firmly connect the supplied 9V battery. The battery should snap into the connector. Place the
battery into the compartment, connector side first.
4 Replace the cover and tighten the screw. Do not over-tighten. If you
find that the cover does not fit properly, check that the battery is
firmly snapped into the connector.
NOTE: To ensure proper operation, you should replace the 9V backup
battery every three years, or after a power outage of more than 24 hours.
9
Setting Up Your Daybreak
Positioning Your Daybreak and Connecting Your Lamp
Your Daybreak is designed to control a connected lamp to provide a precise sunrise simulation, waking
you up naturally. For proper operation of your Daybreak, you need to supply a compatible lamp.
NOTE: Your lamp must plug directly into the Daybreak. Do not plug extension cords or power strips
into the Daybreak lamp socket.
• Use an incandescent or line-voltage halogen lamp only, up to 200W.
1 Place your Daybreak indoors on a flat, sturdy surface away from water.
• DO NOT connect fluorescent lamps, compact fluorescent bulbs, low-voltage halogen lamps, or any
lamp with a transformer or ballast. Doing so will void your Daybreak warranty and may damage your
Daybreak and the lamp.
2 For best results, position your Daybreak so that you can reach the buttons and see the display at eye
level while lying down in bed.
• Touch-activated lamps are not compatible with the Daybreak and will not operate properly when
connected.
4 Plug your lamp into the socket on the back of the Daybreak.
• 3-way lamps can be connected to the Daybreak, but you should verify that the lamp remains switched
on to the highest intensity setting to ensure proper operation with the Daybreak.
Choosing a Light Bulb for Your Lamp
3 Connect the AC power cord to the Daybreak and then plug the cord into a wall power outlet.
Setting Your Daybreak
Choosing a Lamp
5 Switch on your lamp. Then, press the LAMP button on the Daybreak to confirm that your lamp
is switched on properly. By pressing LAMP repeatedly, you should be able to cycle through three
intensity settings and the off position. If your lamp does not turn on, disconnect the lamp from the
Daybreak and plug it in directly to a power outlet to determine if it is functioning properly.
• For best results, use a 100W incandescent bulb in a lamp that will light up the entire room. If you
find that you awaken too early, you can try a lower wattage bulb.
• Special blue-enhanced light bulbs are ideal for sunrise simulation. These bulbs have neodymium added
to the glass to enhance the color. They are more expensive, but generally last longer than standard
incandescent bulbs. However, if you don’t have a neodymium bulb, a standard one will work fine.
10
11
Using Your Daybreak
Setting the Wake Times
Setting the Clock
The Daybreak Duo allows you to set two distinct wake times. This flexibility means that you and your
sleep partner can each set separate wake times, or you can use one wake time for weekdays and another
for the weekend.
1 Press SET.
1 Press SET.
2 Press the TIME touch screen button. The current clock time will flash.
2 Press the WAKE 1 or WAKE 2 touch screen button. The current wake time will flash.
3 Press the HOUR and/or MIN touch screen buttons to adjust the clock time.
Optionally, press the 12/24 touch screen button to switch the clock between 12- and 24-hour
time display.
4 When finished, press the ENTER touch screen button or wait 10 seconds. A double beep will confirm
the set clock time.
1
SNOOZE / NA
SUNSET
12
2
3
4
3 Press the HOUR and/or MIN touch screen buttons to adjust the wake time.
4 Press the ENTER touch screen button when finished or wait 10 seconds. A double beep will confirm
the set wake time.
1
SNOOZE / NA
2
3
Using your Daybreak
Using your Daybreak
4
SUNSET
SET
SET
WAKE 1
WAKE 1
13
Using Your Daybreak
The Daybreak Duo has six wake modes available for
each wake time, shown in the diagram to the right.
• Press the WAKE 1 or WAKE 2 button to select the
desired wake mode for that wake time.
Setting the Sunrise or Sunset Duration Time
Combinations
SUNSET
Sunrise
Chime
Radio
Off
1)
2)
VOLUME
SET
3)
4)
WAKE 1
WAKE 2
5)
1 Press SET.
2 Press the SUNRISE or SUNSET touch screen button. The current duration time in minutes will flash.
OR
3 Press the
1 Press SET.
1
2 Press the WAKE 1 or WAKE 2 touch screen button. The
current wake time will flash.
NOTE: If the Wake 1 and Wake 2 modes are both set to
perform a sunrise simulation, and the sunrise times overlap,
then only the first wake time’s sunrise simulation will occur. For
example, suppose the sunrise duration is 30 minutes, Wake 1 is
set for 7:00 a.m. with sunrise, and Wake 2 is set for 7:20 a.m.
with sunrise and radio. In this example, only the Wake 1 time’s
sunrise simulation will start (at 6:30 a.m.). Since the Wake 2
mode also includes the radio, the Daybreak will still turn on the
radio at 7:20 a.m.
The Daybreak is set from the factory to provide a 30 minute sunrise and sunset. The sunrise and sunset
duration times can each be changed in 15 minute increments ranging from 15 to 120 minutes.
6)
SNOOZE / NA
SUNSET
or
touch screen button to adjust the duration.
4 Press the ENTER touch screen button when finished or wait 10 seconds. A double beep will confirm
the set duration time.
SET
3 Press the MODE touch screen button to select the desired
wake mode.
14
SNOOZE / NAP
Using Your Daybreak
Setting the Wake Mode
WAKE 1
1
SNOOZE / NA
2
3
4
SUNSET
2
3
SET
WAKE 1
15
Using Your Daybreak
Sunset Simulation
• During your sunrise or when the Daybreak reaches your wake time, press the SNOOZE/NAP button
to reset the sunrise and silence the radio or alarm for 9 minutes. Repeat as desired. The word
SNOOZE will appear on the display and the number of minutes remaining will count down. At any
time during the 9-minute snooze, pressing the SNOOZE/NAP button will reset the snooze to
9 minutes.
• If the Wake mode includes a sunrise simulation, the lamp will turn off at the beginning of the snooze
and gradually increase to full intensity over the 9-minute snooze period.
• To turn off the backup alarm sound without snoozing, press any button except SNOOZE/NAP.
When you are ready to go to bed, use the Daybreak’s sunset simulation and allow the gradually
diminishing light to lull you to sleep.
1 Press SUNSET. The lamp will turn on at full intensity and the sunset simulation will automatically
begin to count down.
2 If you find that you are more sleepy than usual, you may press the touch screen button to
manually advance the sunset. Each time you press the button, the sunset will advance by one minute.
3 If you want to end the simulation early and turn off your lamp completely, press LAMP.
Using Your Daybreak
Snoozing or Silencing the Backup Alarm
SNOOZE / NAP
1
SUNSET
SNOOZE / NAP
2
3
SUNSET
SET
VOLUME
SET
LAMP
WAKE 1
16
WAKE 2
WAKE 1
RADIO
DISPLAY
AM / FM
17
Using Your Daybreak
Napping
1
1 Press and hold SUNSET for 3 seconds. The unit will begin
the demonstration with a one minute sunrise simulation
and then continue with a one minute sunset. The
demonstration will repeat until stopped.
SNOOZE / NAP
The Nap feature allows you to quickly set an alarm at any time of day, from 10 minutes up to a full hour.
1 Press SNOOZE/NAP. The word NAP will appear on the display. The last nap duration flashes.
SET
2 Press the
LAMP
WAKE 1
touch screen buttons to adjust the nap duration.
3 Press ENTER or wait 10 seconds for the nap timer to begin. The display shows the number of
minutes remaining.
Manual Lamp Operation
4 When the nap timer has finished, the backup alarm will sound. To turn off the alarm, press the
SNOOZE/NAP button.
You can use the Daybreak to turn your lamp on and off for
reading or other illumination needs. Your lamp’s ON/OFF switch
must always remain in the ON position.
2
1
1
2
SNOOZE / NAP
3
SUNSET
LAMP
DISPLAY
SET
2 Press the or touch screen buttons to fine tune your
desired lamp intensity.
or
DISPLAY
2 Press LAMP to end the demonstration.
1 Press the LAMP button to cycle through four lamp
intensity settings: Dim, Medium, Bright, and Off.
While the lamp is on, the word INTENSITY will appear
on the display.
2
SUNSET
Using Your Daybreak
Activating a Demonstration Simulation
WAKE 1
VOLUME
WAKE 2
3 After 10 seconds without pressing any buttons, pressing the
LAMP button once will turn off the lamp.
18
19
Using Your Daybreak
1, 2
3
Using Radio Station Presets
/ NAP
You can store up to three preset stations for each band.
1 Press RADIO. The radio touch screen controls appear
and the radio sets to the last station that was tuned.
VOLUME
1 Tune the radio to the desired band and station frequency.
RADIO
WAKE 2
AM / FM
2 Press AM/FM to change the radio band.
3 Press the + or – button to adjust the radio speaker volume.
2 To save the station, press and hold the desired preset number touch screen button until a double
beep confirms your setting.
4 To turn off the radio, press RADIO.
3 To select a previously saved preset, press the desired preset number touch screen button.
1
Manual Radio Station Tuning
2
3
Using Your Daybreak
Turning the Radio ON/OFF
Press the or touch screen buttons to select the desired
station frequency.
Automatic Radio Station Tuning
1 Press and hold the or
you hear a single beep.
touch screen button until
2 Release the button. The radio will scan in the desired
direction until it locates a strong station signal.
Adjusting the Display Brightness
1
2
The Daybreak display has two intensity levels. Eight hours before your first wake time, the Daybreak
will automatically change to the dim setting to ensure that your sleep is not disturbed by the display
brightness. Once your Daybreak reaches the wake time, the display will automatically change back to the
brighter setting.
• To manually change the intensity level, press DISPLAY.
20
21
Using Your Daybreak
FAQ
Changing Faceplates
Your Daybreak has a removable faceplate that surrounds the display and SNOOZE/NAP
button. To allow you to customize the look of your Daybreak to match your tastes and decor,
additional faceplates in a variety of colors and finishes are available from Apollo Health. Visit www.
ApolloHealth.com for more information.
• To remove your faceplate, lift and pull the bottom section of the faceplate out and away from the
front of the Daybreak. Then, lift the faceplate up until it is removed completely.
• To replace the faceplate, put the top end in place first, then grasp the bottom of the faceplate and pull
down until it locks in place.
Frequently Asked Questions
How do I know the right sunrise duration for me?
Your Daybreak is factory-set for a 30 minute sunrise, but you can change the duration in 15-minute increments
from 15 to 120 minutes. Your correct sunrise duration depends on your lamp brightness and the latitude at
which you live. It may take some trial and error to find your ideal setting. Here is some information to help:
• Ideally, you want to awaken about 5 to 15 minutes before you have to get out of bed. You should
linger in bed for a while, as if you were on vacation or enjoying a weekend. This step is important in
helping your body transition from sleep to wake time, and one of the reasons why it is so disturbing
to wake up to a blaring alarm that forces you to jump out of bed.
• The closer you are to the poles, the more your body will be accustomed to a longer sunrise. For
example, at the equator a natural sunrise occurs in about fifteen minutes, but an Alaskan/Canadian
sunrise can last up to two hours. Try to match what your body is already accustomed to.
• A longer sunrise is generally more effective at resetting your circadian rhythm and starting your
wake cycles.
• If you find yourself awakening too early, use a lamp that is less bright, shorten your sunrise duration,
and/or set your wake time a few minutes later to compensate.
22
23
FAQ
FAQ
What should I do if the light doesn’t wake me up?
Should I use a special type of incandescent bulb with my Daybreak?
When you first start using the Daybreak, consider using the backup alarm or radio as part of your wake
mode settings. Be sure you are using a lamp that provides sufficient brightness to light up your entire room.
Also, many people find that increasing the duration of the sunrise helps them wake up at the right time.
You can buy blue-enhanced light bulbs that have neodymium added to the glass. These bulbs can be quite
expensive, but are generally higher quality (longer-lasting) and do a better job of color rendering. The
color difference between a standard bulb and a blue-enhanced bulb may have an effect on your results,
but studies have not been done to prove this. Most dawn simulation studies that have been done with
household lamps used 100W standard bulbs. You should consider using a neodymium bulb with your
Daybreak.
What type of lamp should I use?
You should use a lamp that provides enough brightness and diffusion to light up your whole room.
Reading lamps or other focused lamps tend to light up one spot only, and you may be facing away from
that spot at the time when your body needs to start waking up.
What bulb wattage is best?
Your room layout and lamp shade can affect the amount of light that reaches you while in bed, but on
average, a 100W bulb will provide the best results with dawn simulation.
24
Why can’t I use fluorescent lamps with the Daybreak?
Most fluorescent lamps are not dimmable because of limitations in the electronic circuitry that powers
them. While some specialized fluorescent lamps are dimmable, they cannot be used simulate a sunrise
accurately because their lowest intensity is about 20% of full power. An effective sunrise simulation starts
from nearly imperceptible levels of light and then slowly ramps up. This scenario is impossible with
current fluorescent technology.
25
Service and Repair
Service and Repair
Your Daybreak needs no regular service except for an occasional dusting or cleaning of the outside of
the enclosure. Dust with a soft, non-abrasive cloth. A damp cloth—wet with water or a mild window
cleaner—may be used to wipe surfaces. Be sure to unplug the Daybreak before cleaning. Do not spray
directly with any fluids or immerse in water.
Please refer to your warranty card for specific information about warranty duration, coverage, and limits
of liability.
If you have a question about the operation of your Daybreak, please visit www.ApolloHealth.com for
troubleshooting help and answers to frequently asked questions.
To contact our customer service department, please email [email protected], or call
toll-free 800-545-9667.
26
27
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
