Sony CMT-FX250 User Guide Manual

Sony CMT-FX250 User Guide Manual

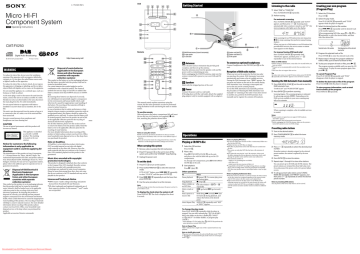

Unit
Getting Started
Listening to the radio
1 Select “DAB” or “TUNER FM.”
Press TUNER/BAND  repeatedly.
2 Perform tuning.
For automatic scanning
Press TUNING MODE  repeatedly until “AUTO”
appears, and then press +/ . Scanning stops
automatically when a station is tuned in, and “ST” (for
stereo programs only) lights up in the display.
If the scanning for an FM station does not stop, press
  to stop scanning, then perform manual tuning
(below).
When you tune in a DAB station or an FM station that
provides RDS services, the service name or station
name appears on the display.
Remote
To reduce the risk of fire, do not cover the ventilation
opening of the apparatus with newspapers, tablecloths,
curtains, etc. Do not place the naked flame sources such
as lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do not expose
this apparatus to dripping or splashing, and do not place
objects filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space, such as a
bookcase or built-in cabinet.
As the main plug is used to disconnect the unit from the
mains, connect the unit to an easily accessible AC outlet.
Should you notice an abnormality in the unit, disconnect
the main plug from the AC outlet immediately.
Do not expose batteries or apparatus with batteryinstalled to excessive heat such as sunshine, fire or the
like.
The unit is not disconnected from the mains as long as it
is connected to the AC outlet, even if the unit itself has
been turned off.
Excessive sound pressure from earphones and
headphones can cause hearing loss.
CAUTION
The use of optical instruments with this product will
increase eye hazard.
This appliance is classified
as a CLASS 1 LASER
product. This marking
is located on the rear
exterior.
Notice for customers: the following
information is only applicable to
equipment sold in countries applying EU
directives.
The manufacturer of this product is Sony Corporation,
1-7-1 Konan Minato-ku, Tokyo, 108-0075 Japan. The
Authorized Representative for EMC and product safety is
Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Germany. For any service or guarantee matters,
please refer to the addresses given in separate service or
guarantee documents.
Disposal of Old Electrical &
Electronic Equipment
(Applicable in the European
Union and other European
countries with separate
collection systems)
This symbol on the product or on its packaging indicates
that this product shall not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and human
health, which could otherwise be caused by inappropriate
waste handling of this product. The recycling of materials
will help to conserve natural resources. For more detailed
information about recycling of this product, please
contact your local Civic Office, your household waste
disposal service or the shop where you purchased the
product.
Applicable accessories: Remote commander
This symbol on the battery or on the packaging indicates
that the battery provided with this product shall not be
treated as household waste.
On certain batteries this symbol might be used in
combination with a chemical symbol. The chemical
symbols for mercury (Hg) or lead (Pb) are added if the
battery contains more than 0.0005% mercury or 0.004%
lead.
By ensuring these batteries are disposed of correctly,
you will help prevent potentially negative consequences
for the environment and human health which could
otherwise be caused by inappropriate waste handling of
the battery. The recycling of the materials will help to
conserve natural resources.
In case of products that for safety, performance or data
integrity reasons require a permanent connection with an
incorporated battery, this battery should be replaced by
qualified service staff only. To ensure that the battery will
be treated properly, hand over the product at end-of-life
to the applicable collection point for the recycling of
electrical and electronic equipment.
For all other batteries, please view the section on how
to remove the battery from the product safely. Hand the
battery over to the applicable collection point for the
recycling of waste batteries.
For more detailed information about recycling of this
product or battery, please contact your local Civic Office,
your household waste disposal service or the shop where
you purchased the product.
Note on DualDiscs
A DualDisc is a two sided disc product which mates
DVD recorded material on one side with digital
audio material on the other side. However, since the
audio material side does not conform to the Compact
Disc (CD) standard, playback on this product is not
guaranteed.
Music discs encoded with copyright
protection technologies
This product is designed to playback discs that conform
to the Compact Disc (CD) standard. Recently, various
music discs encoded with copyright protection
technologies are marketed by some record companies.
Please be aware that among those discs, there are some
that do not conform to the CD standard and may not be
playable by this product.
MPEG Layer-3 audio coding technology and patents
licensed from Fraunhofer IIS and Thomson.
All other trademarks and registered trademarks are of
their respective holders. In this manual, TM and marks
are not specified.
®
 Antennas
To connect an optional headphones
 Speakers
Insert only the stripped portion of the cord.
 Power
Connect the power cord to a wall outlet.
If the plug does not fit the wall outlet, detach the supplied
plug adaptor (only for models equipped with an adaptor).
Reception of DAB radio station
When you turn on the system for the first time after
you purchase the system, DAB Automatic Scan starts
automatically and creates a list of available services.
During the DAB Automatic Scan, “” appears. Do
not press any button on the unit or the remote during
DAB Automatic Scan. Scanning is interrupted and
service list may not be created properly.
To run the DAB Automatic Scan manually, perform
the procedure of “Running the DAB Automatic Scan
manually” in “Listening to the radio.” If you have moved
to another area, perform the DAB Automatic Scan
manually and re-register the contents of broadcasts.
For manual tuning (FM band only)
Press TUNING MODE  repeatedly until
“MANUAL” appears, and then press +/ 
repeatedly to tune in the desired station.
Notes on DAB stations
Slide and remove the battery compartment lid, and insert
the two R6 (size AA) batteries (not supplied),  side
first, matching the polarities shown below.
With normal use, the batteries should last for about six months.
Do not mix an old battery with a new one or mix different types of
batteries.
If you do not use the remote for a long period of time, remove the
batteries to avoid damage from battery leakage and corrosion.
Running the DAB Automatic Scan manually
1 Press DAB INITIAL SCAN  on the unit to start the
DAB Automatic Scan.
“DAB SCAN” and “PUSH ENTER” appear.
2 Press ENTER  to perform scanning.
Scanning begins. The scanning progress is indicated
by advancing asterisks (). Depending on the
DAB services available in your area, scanning may
take a few minutes.
When carrying this system
1 Remove a disc to protect the CD mechanism.
2 Press  (power)  on the unit to turn off the
system and confirm that “STANDBY” stops flashing.
3 Unplug the power cord.
To set the clock
1 Press   to turn on the system.
2 Press CLOCK/TIMER SET  to select the clock set
mode.
If “PLAY SET” flashes, press /  repeatedly
to select “CLOCK,” and then press ENTER .
3 Press /  repeatedly to set the hour, then
4 Use the same procedure to set the minutes.
Note
The clock settings are lost when you disconnect the power cord or if a
power failure occurs.
To display the clock when the system is off
Press DISPLAY . The clock is displayed for about
8 seconds.
1 Tune in the desired station.
2 Press TUNER MEMORY  to select the tuner
memory mode.
Notes on playing MP3 discs
1 Select the CD function.
Press CD .
2 Place a disc.
Press  PUSH OPEN/CLOSE  on the unit,
and place a disc with the label side up on the CD
compartment.
To close the CD compartment, press  PUSH OPEN/
CLOSE  on the unit.
3 Start playback.
Press  (play) .
Other operations
To
Pause playback
Stop playback
Select a folder on
an MP3 disc
Select a track or
file
Find a point in a
track or file
Select Repeat Play
Press
 (pause) . To resume play, press
the button again.
 (stop) .
(select folder) + /

repeatedly.
 (go back)/ (go forward)
.
Hold down  (rewind)/ (fast
forward)  during playback, and
release the button at the desired
point.
REPEAT  repeatedly until “REP”
or “REP1” appears.
To change the play mode
Press PLAY MODE  repeatedly while the player is
stopped. You can select normal play (“ ” for all MP3
files in the folder on the disc), shuffle play (“SHUF”
or “ SHUF*” for folder shuffle), or program play
(“PGM”).
(SHUF) Play performs the
Note on Repeat Play
“REP1” indicates that a single track or file is repeated until you stop
playback.
Note on shuffle play mode
When you turn off the system, the selected shuffle play mode (“SHUF”
or “
SHUF”) is cleared and the play mode returns to normal play
mode (“
”).
Do not save other types of tracks or files, or unnecessary folders on a
disc that has MP3 files.
Folders that have no MP3 files are skipped.
MP3 files are played back in the order that they are recorded onto
the disc.
The system can only play MP3 files that have a file extension of
“.mp3”.
Even when file name has the “.mp3” file extension, if the actual
file differs, playing this file may generate a loud noise which could
damage the speaker system and the system may malfunction.
The maximum number of:
folders is 255 (including the root folder).
MP3 files is 512.
folder levels (the tree structure of files) is 8.
Compatibility with all MP3 encoding/writing software, recording
device, and recording media cannot be guaranteed. Incompatible
MP3 discs may produce noise or interrupted audio or may not play
at all.
Notes on playing multisession discs
If the first session on the disc is a CD-DA session, the other sessions
on the disc cannot be recognized regardless of the session format;
only CD-DA tracks in the first session can be played back.
If the session format for the first session is CD-ROM and the
following sessions are recorded in the same format, the system will
continue to play back MP3 files accordingly in multiple sessions
until the system encounters another session recorded in a different
format.
3 Select the desired track or file number.
Press /  repeatedly until the desired track
or file number appears.
When programming MP3 files, press
+ /

 repeatedly to select the desired folder, and then
select the desired file.
Selected track or file number
Total playing time of the selected
track or file
4 Program the selected track or file.
Press ENTER  to enter the selected track or file.
5 Repeat steps 3 through 4 to program additional
tracks or files, up to a total of 25 tracks or files.
To cancel Program Play
To reduce static noise on a weak FM stereo station, press FM MODE
 repeatedly until “MONO” appears to turn off stereo reception.
If your country or region does not support DAB broadcast,
“NO SERV” appears.
This procedure clears all previously stored presets.
Before unplugging the DAB/FM antenna, make sure the system is
turned off to preserve your own DAB settings.
Playing a CD/MP3 disc
Press PLAY MODE  repeatedly until “PGM”
appears while the player is stopped.
Tip
Notes
Operations
Press CD .
2 Select the play mode.
6 To play your program of tracks or files, press  .
Presetting radio stations
Notes on using the remote
1 Select the CD function.
When tuning in a DAB station, it may take a few seconds before you
hear any sound.
Primary service is automatically received when secondary service
ends.
This tuner does not support data services.
When scanning is complete, a list of available services
is created.
To use the remote
*When playing a CD-DA (audio) disc,
same operation as normal (SHUF) Play.
Downloaded From DvDPlayer-Manual.com Sherwood Manuals
Connect headphones to the PHONES jack  on the
unit.
This manual mainly explains operations using the
remote, but the same operations can also be performed
using the buttons on the unit having the same or similar
names.
press ENTER .
License and Trademark Notice
 Speaker cord (Red/)
 Speaker cord (Black/)
 To left speaker
Find a location and an orientation that provide good
reception, and then set up the antenna.
Keep the antennas away from the speaker cords and the
power cord to avoid picking up noise.
Before unplugging the DAB/FM antenna, make sure the
system is turned off to preserve your own DAB and FM
settings.
Disposal of waste batteries
(applicable in the European
Union and other European
countries with separate
collection systems)
WARNING
 DAB/FM lead antenna (Extend it horizontally.)
 To right speaker
 To wall outlet
Creating your own program
(Program Play)
3 Press +/  repeatedly to select the desired preset
number.
If another station is already assigned to the selected
preset number, the station is replaced by the new
station.
4 Press ENTER  to store the station.
5 Repeat steps 1 through 4 to store other stations.
You can preset up to 20 DAB and 20 FM stations. The
preset stations are retained for about half a day even
if you disconnect the power cord or if a power failure
occurs.
6 To call up a preset radio station, press TUNING
MODE  repeatedly until “PRESET” appears, and
then press +/  repeatedly to select the desired
preset number.
Note on presetting DAB stations
You can preset a DAB service only when it can be received.
The program remains available until you open the CD
compartment. To play the same program again, then
press  .
Press PLAY MODE  repeatedly until “PGM”
disappears while the player is stopped.
To delete the last track or file of the program
Press CLEAR  while the player is stopped.
To view program information, such as total
track number of the program
Press DISPLAY  repeatedly.
Using optional audio components
Using the timers
1 Prepare the sound source.
The system offers two timer functions. If you use both
timers, the Sleep Timer has priority.
Connect additional audio component to the AUDIO
IN jack  on the unit using an audio analog cord
(not supplied).
2 Turn down the volume.
Press VOLUME  .
3 Select the AUDIO IN function.
Press AUDIO IN .
4 Start playback.
Start playback of the connected component and adjust
the volume.
Note
The system may enter standby mode automatically if the volume
level of the connected component is too low. Adjust the component’s
volume accordingly. See “To turn off the automatic standby function.”
Sleep Timer:
You can fall asleep to music. This function works even if
the clock is not set.
Press SLEEP  repeatedly. If you select “AUTO,” the
system automatically turns off after the current disc stops,
or within 100 minutes.
Play Timer:
You can wake up to CD or DAB/FM reception at a preset
time.
Make sure you have set the clock.
1 Prepare the sound source.
Prepare the sound source, and then press VOLUME
+/  to adjust the volume.
To start from a specific CD track or audio file, create
your own program.
Adjusting the sound
2 Select the timer set mode.
To
Adjust the volume
Generate a more
dynamic sound
(Dynamic Sound
Generator X-tra)
Set the sound
effect
3 Set the play timer.
Press
VOLUME +/ .
DSGX  on the unit.
Press CLOCK/TIMER SET .
Press /  repeatedly to select “PLAY SET,”
then press ENTER .
4 Set the time to start playback.
EQ .
Press /  repeatedly to set the time, then
press ENTER .
5 Use the same procedure as in step 4 to set the time
to stop playback.
6 Select the sound source.
Changing the display
To
Change
information on
the display*
Check the clock
when the system
is off
Press
DISPLAY  repeatedly when the
system is on.
DISPLAY  when the system is off.
The clock is displayed for 8 seconds.
*For example, you can view CD/MP3 disc information, such as;
track or file number during normal play.
track or file name (“ ”) during normal play.
artist name (“ ”) during normal play.
album or folder name (“
”) during normal play.
total playing time and total number of tracks on the CD-DA
disc (only when normal play mode is selected and the player is
stopped).
total number of folders (albums) on the MP3 disc (only when
normal play mode is selected and the player is stopped).
volume label if it exists on the MP3 disc.
You can also view DAB station information such as the service
name, channel label, preset number, DLS (Dynamic Label Segment),
or ensemble label.
Notes on the display information
Characters that cannot be displayed appear as “_”.
The following are not displayed;
total playing time for an MP3 disc.
remaining playing time for an MP3 file.
The following are not displayed correctly;
elapsed playing time of an MP3 file encoded using VBR (variable
bit rate).
folder and file names that do not follow either the ISO9660
Level 1, Level 2 or Joliet in the expansion format.
The following are displayed;
remaining playing time for a track.
ID3 tag information for MP3 files when ID3 version 1 and
version 2 tags are used (ID3 version 2 tag information display has
priority when both ID3 version 1 and version 2 tags are used for a
single MP3 file).
up to 32 characters of ID3 tag information using uppercase letters
(A to Z), numbers (0 to 9), and symbols (˝ $ % ’ ( ) * + , – . / < = >
@ [ \ ] _ ` { | } ! ? ^ ~).
up to 8 characters of service name, up to 128 characters of DLS
(Dynamic Label Segment) and up to 16 characters of ensemble
label using uppercase letters (A to Z), numbers (0 to 9), and
symbols (˝ $ % ’ ( ) * + , – . / < = > @ [ \ ] _ ` { | } ! ? ^ ~).
Press /  repeatedly until the desired sound
source appears, then press ENTER .
7 Turn off the system.
Press  . The system turns on 15 seconds before
the preset time.
If the system is on at the preset time, the Play Timer
will not play. Do not operate the system from the time
the system turns on until the playback starts.
Troubleshooting
1 Make sure the power cord and speaker cords are
correctly and firmly connected.
2 Find your problem in the checklist below, and take
the indicated corrective action.
If the issue persists, contact your nearest Sony dealer.
If “PROTECT” appears on the display
Immediately unplug the power cord, and check the
following items after “PROTECT” disappears.
Are the + and  speaker cords short-circuited?
Is anything blocking the ventilation holes of the
system?
After you have checked these above items and found
to be all right, reconnect the power cord, and turn on
the system. If the issue persists, contact your nearest
Sony dealer.
General
The system does not turn on.
Is the power cord plugged in?
The system has entered standby mode
unexpectedly.
This is not a malfunction. The system enters standby
mode automatically in about 30 minutes when there is
no operation or audio signal output. See “To turn off
the automatic standby function.”
The clock setting or the Play Timer operation
has been cancelled unexpectedly.
If about a minute elapses with no operation, the clock
setting or Play Timer setting is cancelled automatically.
Perform the operation again from the beginning.
There is no sound.
To check the setting
Are the + and  speaker cords short-circuited?
Are you using only the supplied speakers?
Is anything blocking the ventilation holes of the system?
The specified station may have temporarily stopped
broadcast.
1 Press CLOCK/TIMER SELECT .
2 Press /  repeatedly to select “PLAY SEL,”
Sound comes from one channel, or the left and
right volumes are unbalanced.
and then press ENTER .
To cancel the timer
Repeat the same procedure as above until “OFF” appears
in step 2, and then press ENTER .
To change the setting
Start over from step 1.
Tip
The Play Timer setting remains as long as the setting is not cancelled
manually.
Place the speakers as symmetrically as possible.
Connect only the supplied speakers.
Severe hum or noise.
Move the system away from sources of noise.
Connect the system to a different wall outlet.
Install a noise filter (available separately) to the power
cord.
The remote does not function.
Remove any obstacles between the remote and the
remote sensor  on the unit, and position the unit
away from fluorescent lights.
Point the remote at the system’s sensor.
Move the remote closer to the system.
Severe hum or noise, or stations cannot be
received. (“ST” flashes on the display.)
Connect the antenna properly.
Find a location and an orientation that provide good
reception, and then set up the antenna again.
Keep the antennas away from the speaker cords and the
power cord to avoid picking up noise.
Turn off nearby electrical equipment.
DAB radio station is not received properly.
Check all antenna connections, then perform the DAB
Automatic Scan procedure (see “Reception of DAB
radio station”).
The current DAB service may not be available. Press
+/  to select a different service.
If you have moved to another area, some services/
frequencies may have changed and you may not be able
to tune into your usual broadcast.
Perform the DAB Automatic Scan procedure to
re-register the contents of broadcasts. (Performing this
procedure clears all previously stored presets.)
To improve tuner reception
Turn off CD player power by using the system’s power
management function. By default, CD player power is
turned on.
Use buttons on the unit to turn off the CD player power.
1 Press FUNCTION  repeatedly to select the CD
function.
2 Press   to turn off the system.
3 After “STANDBY” stops flashing, press DISPLAY 
to display the clock and then press   while
holding down  , until “CD POWER OFF” appears.
With CD player power turned off, access time is
increased. To turn on CD player power, repeat the
procedure until “CD POWER ON” appears.
To reset the system to factory settings
If the system still does not operate properly, reset the
system to factory settings.
Use buttons on the unit to reset the unit to its factory
default settings.
1 Disconnect and reconnect the power cord, and then
turn on the system.
2 While holding down FUNCTION  and DAB INITIAL
SCAN , press  .
All user-configured settings, such as preset radio
stations, timer, and the clock, are deleted.
To turn off the automatic standby function
This system is equipped with an automatic standby
function. With this function, the system enters standby
mode automatically in about 30 minutes when there is no
operation or audio signal output.
By default, the automatic standby function is turned on.
Use buttons on the unit to turn off the automatic standby
function.
CD/MP3 player
Hold down   while the system is on, until
“AUTO. STBY OFF” appears.
To turn on the function, repeat the procedure until
“AUTO. STBY ON” appears.
The sound skips, or the disc will not play.
Notes
Wipe the disc clean, and replace it.
Move the system to a location away from vibration (for
example, on top of a stable stand).
Move the speakers away from the system, or place them
on separate stands. At high volume, speaker vibration
may cause the sound to skip.
Play does not start from the first track.
Return to Normal Play by pressing PLAY MODE 
repeatedly until both “PGM” and “SHUF” disappear.
Starting playback takes more time than usual.
The following discs can increase the time it takes to
start playback;
a disc recorded with a complicated tree structure.
a disc recorded in multisession mode.
a disc that has not been finalized (a disc to which data
can be added).
a disc that has many folders.
Downloaded From DvDPlayer-Manual.com Sherwood Manuals
Tuner
“AUTO STANDBY” lights up in the display when the automatic
standby function is turned on.
The automatic standby function is invalid for the tuner functions
(DAB/FM), even when “AUTO STANDBY” lights up in the display.
The system may not enter standby mode automatically in the
following cases;
when an audio signal is detected.
during playback of audio tracks or files.
while the preset Play Timer or Sleep Timer is in process.
Messages
FULL : You tried to program more than 25 tracks or files
(steps).
NO DISC : There is no disc in the player, or you have
loaded a disc that cannot be played.
NoPRESET (DAB only) : There is no stored preset
station.
NO SERV (DAB only) : There is no supported DAB
broadcast in your country or region.
NO STEP : All of the programmed tracks have been
erased.
No TEXT (DAB only) : There is no text information in
the received service.
NOT USED : You tried to perform a specific operation
under conditions where that operation is prohibited.
OVER : You have reached the end of the disc while
pressing   during playback or pause.
PUSH SELECT : You tried to set the clock or timer during
timer operation.
PUSH STOP : You pressed PLAY MODE  during
playback.
SET CLOCK : You tried to select the timer when the clock
is not set.
SET TIMER : You tried to select the timer when the Play
Timer is not set.
TIME NG : The Play Timer start and end times are set to
the same time.
Precautions
Discs that this system CAN play
Audio CD
CD-R/CD-RW (audio data/MP3 files)
Discs that this system CANNOT play
CD-ROM
CD-R/CD-RW other than those recorded in music CD
format or MP3 format conforming to ISO9660 Level
1/Level 2, Joliet
CD-R/CD-RW recorded in multisession that have not
ended by “closing the session”
CD-R/CD-RW of poor recording quality, CD-R/
CD‑RW that have scratches or are dirty, or CD-R/CDRW recorded with an incompatible recording device
CD-R/CD-RW which is finalized incorrectly
Discs containing files other than MPEG 1 Audio
Layer‑3 (MP3) files
Discs of non-standard shape (for example, heart,
square, star)
Discs that have adhesive tape, paper, or sticker attached
to them
Rental or used discs with attached seals where the glue
extends beyond the seal
Discs that have labels printed using ink that feels tacky
when touched
Notes on discs
Before playing, wipe the disc with a cleaning cloth from
the center out to the edge.
Do not clean discs with solvents, such as benzine,
thinner, or commercially available cleaners or antistatic spray intended for vinyl LPs.
Do not expose discs to direct sunlight or heat sources
such as hot air ducts, nor leave it in a car parked in
direct sunlight.
On safety
Completely disconnect the power cord (mains lead)
from the wall outlet (mains) if it is not going to be used
for an extended period of time. When unplugging the
unit, always grip the plug. Never pull the cord itself.
Should any solid object or liquid get into the system,
unplug the system, and have it checked by qualified
personnel before operating it again.
The AC power cord can be changed only by a qualified
service facility.
On placement
Do not place the system in an inclined position or in
locations that are extremely hot, cold, dusty, dirty, or
humid or lacking adequate ventilation, or subject to
vibration, direct sunlight or a bright light.
Be careful when placing the unit or speakers on
surfaces that have been specially treated (for example,
with wax, oil, polish) as staining or discoloration of the
surface may result.
If the system is brought directly from a cold to a warm
location or is placed in a very damp room, moisture
may condense on the lens inside the CD player, and
cause the system to malfunction. In this situation,
remove the disc, and leave the system turned on for
about an hour until the moisture evaporates.
On heat buildup
Heat buildup on the unit during operation is normal
and is not cause for alarm.
Do not touch the cabinet if it has been used
continuously at a high volume because the cabinet may
have become hot.
Do not obstruct the ventilation holes.
On the speaker system
This speaker system is not magnetically shielded, and
the picture on nearby TV sets may become magnetically
distorted. In this situation, turn off the TV, wait 15 to
30 minutes, and turn it back on.
If there is no improvement, move the speakers far away
from the TV.
Cleaning the cabinet
Clean this system with a soft cloth slightly moistened
with a mild detergent solution. Do not use any type of
abrasive pads, scouring powder, or solvents, such as
thinner, benzine, or alcohol.
Specifications
Main unit
Amplifier section
DIN power output (rated): 4 watts + 4 watts (4 ohms at 1 kHz, DIN)
Continuous RMS power output (reference): 5 watts + 5 watts (4 ohms at
1 kHz, 10% THD)
Music power output (reference): 9 watts + 9 watts
Input
AUDIO IN (stereo mini jack): Sensitivity 550 mV, impedance 50 kilohms
Outputs
PHONES (stereo mini jack): Accepts headphones with an impedance of
8 ohms or more
SPEAKERS: Accepts impedance of 4 ohms
CD player section
System: Compact disc and digital audio system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6µW
*This output is the value measurement at a distance of 200mm from the
objective lens surface on the Optical Pick-up Block with 7mm aperture.
Frequency response: 20 Hz  20 kHz
Signal-to-noise ratio: More than 90 dB
Dynamic range: More than 90 dB
Tuner section
FM stereo, DAB/FM superheterodyne tuner
Antenna: DAB/FM lead antenna
DAB tuner section:
Frequency range*
Band-III: 174.928 (5A) MHz  239.200 (13F) MHz
* For details, see “DAB frequency table” below.
DAB frequency table (Band-III)
Frequency
Label
Frequency
Label
174.928 MHz
5A
209.936 MHz
10A
176.640 MHz
5B
211.648 MHz
10B
178.352 MHz
5C
213.360 MHz
10C
180.064 MHz
5D
215.072 MHz
10D
181.936 MHz
6A
216.928 MHz
11A
183.648 MHz
6B
218.640 MHz
11B
185.360 MHz
6C
220.352 MHz
11C
187.072 MHz
6D
222.064 MHz
11D
188.928 MHz
7A
223.936 MHz
12A
190.640 MHz
7B
225.648 MHz
12B
192.352 MHz
7C
227.360 MHz
12C
194.064 MHz
7D
229.072 MHz
12D
195.936 MHz
8A
230.784 MHz
13A
197.648 MHz
8B
232.496 MHz
13B
199.360 MHz
8C
234.208 MHz
13C
201.072 MHz
8D
235.776 MHz
13D
202.928 MHz
9A
237.488 MHz
13E
204.640 MHz
9B
239.200 MHz
13F
206.352 MHz
9C
208.064 MHz
9D
FM tuner section:
Tuning range: 87.5 MHz  108.0 MHz (50 kHz step)
Intermediate frequency: 2.048 MHz
Speaker
Speaker system: Full range, 8 cm dia., cone type
Rated impedance: 4 ohms
Dimensions (W/H/D): Approx. 148 mm × 240 mm × 127 mm
Mass: Approx. 1.23 kg net per speaker
General
Power requirements: AC 230 V, 50/60 Hz
Power consumption: 18 watts
Dimensions (W/H/D) (excl. speakers):
Approx. 158 mm × 240 mm × 225.5 mm
Mass (excl. speakers): Approx. 2.2 kg
Supplied accessories: Remote Commander (1), DAB/FM lead antenna (1)
Design and specifications are subject to change without notice.
Standby power consumption: 0.5 W
Halogenated flame retardants are not used in the certain printed
wiring boards.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
