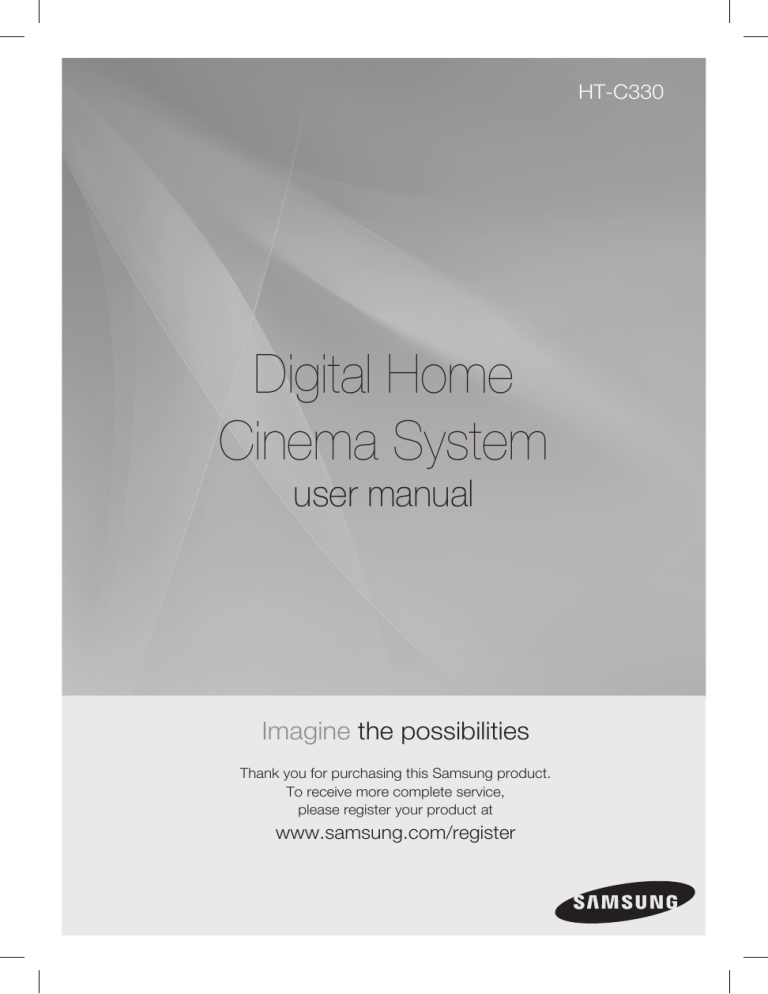

Digital Home

Cinema System user manual

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at www.samsung.com/register

HT-C330

Safety Information

Safety Warnings

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

CAUTION : TO PREVENT ELECTRIC

SHOCK, MATCH WIDE BLADE OF PLUG TO

WIDE SLOT, FULLY INSERT.

This symbol indicates important instructions accompanying the product.

WARNING

~

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

~

~

~

~

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

This apparatus shall always be connected to a AC outlet with a protective grounding connection.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CLASS 1

KLASSE 1

LASER PRODUCT

LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LÁSER CLASE 1

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS

1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION

~

INVISIBLELASERRADIATIONWHENOPENAND

INTERLOCKSDEFEATED,AVOIDEXPOSURETOBEAM.

English English

English

Precautions

~

~

~

~

~

~

~

~

~

~

~

~

~

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your product.

Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm).

Do not place the product on amplifiers or other equipment which may become hot.

Make sure the ventilation slots are not covered.

Do not stack anything on top of the product.

Before moving the product, ensure the Disc Insert Hole is empty.

In order to disconnect the product completely from the power supply, remove the AC plug from the wall outlet, especially when left unused for a long period of time.

During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the product.

Do not expose the product to direct sunlight or other heat sources. This could lead to overheating and malfunction of the product.

Protect the product from moisture, and excess heat or equipment creating strong magnetic or electric fields (i.e. speakers.).

Disconnect the power cable from the AC supply if the product malfunctions.

Your product is not intended for industrial use. Use of this product is for personal use only.

Condensation may occur if your product or disc has been stored in cold temperatures. If transporting the product during the winter, wait approximately 2 hours until the product has reached room temperature before using.

The batteries used with this product contain chemicals that are harmful to the environment.

Do not dispose of batteries in the general household trash.

Accessories

Check for the supplied accessories below.

POWER

DISC MENU FUNCTION

TITLE

P L

1

REPEAT

4

INFO

7

TV CH V MUTE

VOL

0

DSP / EQ MO / ST

2

CD RIPPING

5

3

DIMMER

6

MIC VOL +

8 9

TOOLS

DVD RECEIVER

TUNING V

SELECT

SAMSUNG

TV

Video Cable FM Antenna

User's Manual Remote Control/Batteries (AAA size)

English

Safety Information

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause skipping.

Be especially careful not to scratch discs when handling them.

Holding discs

~

~

~

Do not touch the playback side of the disc.

Hold the disc by the edges so that fingerprints will not get on the surface.

Do not stick paper or tape on the disc.

Disc Storage

~

~

~

Do not keep in direct sunlight

Keep in a cool ventilated area

Keep in a clean Protection jacket.

Store vertically.

`

`

NOTE

Do not allow the discs to become contaminated with dirt.

Do not load cracked or scratched discs.

Handling and Storing Discs

If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

~

When cleaning, wipe gently from the inside to the outside of the disc

`

NOTE

Condensation may form if warm air comes into contact with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on.

Licence

~

~

~

~

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

DivX Certified® to play DivX ® video

Dolby and the double-D symbol are registered trademarks of Dolby

Laboratories.

“Pat. 7,295,673; 7,460,688; 7,519,274”

Copyright

© 2010 Samsung Electronics Co., Ltd. All rights reserved.

Copy Protection

~

~

Many DVD discs are encoded with copy protection. Because of this, you should only connect your product directly to your TV, not to a

VCR. Connecting to a VCR results in a distorted picture from copyprotected DVD discs.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi

Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

English English

English

Contents

SAfety InformAtIon

2

2 Safety Warnings

3 Precautions

3 Accessories

4 Cautions on Handling and Storing Discs

4 Licence

4 Copyright

4 Copy Protection

GettInG StArteD

7

ConneCtIonS

15

SetuP

21

7 Icons that will be used in manual

7 Disc Types and Characteristics

11 Description

11 Front Panel

12 Rear Panel

13 Remote control

15 Connecting the Speakers

17 Connecting the Video Out to your TV

18 P.SCAN(progre ssive scan) function

19 Connecting the FM Antenna

20 Connecting Audio from External Components

21 Before Starting (Initial Setting)

21 Setting the Setup menu

22 Display

22 TV Aspect

22 Audio

22 Speaker Setting

24

24

DRC (Dynamic Range Compression)

AV-SYNC

24 System

24 Initial Setting

24 DivX(R) Registration

24 Language

24 Security

24

24

Parental Rating

Change Password

24 Support

24 Product Information

English

Contents

BASIC funCtIonS

25

25 Disc Playback

25 Audio CD(CD-DA)/MP3/WMA Playback

26 JPEG File Playback

26 Using the Playback Function

31 Sound Mode

32 Listening to Radio

32 Connecting Microphone

ADvAnCeD funCtIonS

33

otHer InformAtIon

34

33 USB Function

33 CD Ripping

34 Troubleshooting

35 Country code list

36 Specifications

~

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

English English

English

Getting Started

Icons that will be used in manual

Make sure to check the following terms before reading the user manual.

Icon Term

DVD

B

CD

A

MP3

G

JPEG

D

DivX

!

CAUTION

NOTE

Shortcut

Key

Definition

This involves a function available with DVD-Video or

DVD±R/±RW discs that have been recorded and finalised in Video Mode.

This involves a function available with a data CD

(CD DA, CD-R/-RW).

This involves a function available with CD-R/-RW discs.

This involves a function available with CD-R/-RW discs.

This involves a function available with MPEG4 discs.

(DVD±R/±RW, CD-R/-RW)

This involves a case where a function does not operate or settings may be cancelled.

This involves tips or instructions on the page that help each function operate.

This function provides direct and easy access pressing the button on the remote control.

Disc types and Characteristics

Region Code

The product and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

Disc Type

Region

Code

1

Area

The U.S., U.S. territories and

Canada

2

Europe, Japan, the Middle East,

Egypt, South Africa, Greenland

3

Taiwan, Korea, the Philippines,

Indonesia, Hong Kong

DVD-VIDEO

4

Mexico, South America, Central

America, Australia, New Zealand,

Pacific Islands, Caribbean

5

Russia, Eastern Europe, India, most of Africa, North Korea,

Mongolia

6

China

English

Getting Started

Disc types that can be played

Disc Types &

Mark (Logo)

DVD-VIDEO

Recorded

Signals

Disc

Size

Max. Playing Time

VIDEO

12 cm

8 cm

12 cm

Approx. 240 min.

(single-sided)

Approx. 480 min.

(double-sided)

Approx. 80 min.

(single-sided)

Approx. 160 min.

(double-sided)

74 min.

AUDIO

AUDIO-CD

8 cm 20 min.

DivX

AUDIO

+

VIDEO

12 cm

8 cm

-

-

Do not use the following types of discs!

~

~

LD, CD-G, CD-I, CD-ROM, DVD-ROM and

DVD-RAM discs cannot be played on this product.

If such discs are played, a <WRONG DISC

FORMAT> message appears on the TV screen.

DVD discs purchased abroad may not play on this product.

If such discs are played, a <Wrong Region. Please check Disc.> message appears on the TV screen.

Disc Types And Disc Format

This product does not support Secure (DRM) Media files.

CD-R Discs

~

Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the

~

condition of the disc.

Use a 650MB/74 minute CD-R disc.

Do not use CD-R discs over 700MB/80 minutes as they may not be played back.

~

~

Some CD-RW (Rewritable) media, may not be playable.

Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.

CD-R MP3 Discs

~

Only CD-R discs with MP3 files in ISO 9660 or

Joliet format can be played.

~

MP3 file names should contain no blank spaces or special characters (. / = +).

~

Use discs recorded with a compression/ decompression data rate greater than 128Kbps.

~

Only files with the ".mp3" and ".MP3" extensions can be played.

~

Only a consecutively written multisession disc can be played. If there is a blank segment in the

Multisession disc, the disc can be played only up to the blank segment.

~

If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

~

For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.

~

A maximum of 500 tracks can be played per CD.

~

A maximum of 300 folders can be played per CD.

CD-R JPEG Discs

~

Only files with the "jpg" extensions can be played.

~

If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

~

Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

~

JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

~

Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.

~

A maximum of 999 images can be stored on a folder.

~

When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

~

Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

English English

English

DVD±R/±RW, CD-R/RW Discs

~

Software updates for incompatible formats are not supported.

(Example : QPEL, GMC, resolutions higher than

800 x 600 pixels, etc.)

~

If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.

DivX (Digital internet video express)

DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time.

MPEG4 is used for video encoding and MP3 for audio encoding, enabling to watch a movie at near DVD-quality video and audio.

Supported Formats (DivX)

This product only supports the following media formats.

If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.

Supported Video Formats

~

Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not play.

USB Host Specification

USB Host Specification

• Supports USB 1.1 or USB 2.0 compliant devices.

• Supports devices connected using the USB A type cable.

• Supports UMS (USB Mass Storage Device) V1.0 compliant devices.

• Supports devices with drives formatted in the

FAT(FAT, FAT16, FAT32)file system.

Non-compliance

• Does not support a device that requires installing a separate driver on a PC (Windows).

• Does not support connection to a USB hub.

• A USB device that is connected using a USB extension cable may not be recognized.

• A USB device requiring a separate power source needs to be connected to the product with the separate power connection.

Format Supported Versions

AVI

WMV

DivX3.11~DivX5.1, XviD

V1/V2/V3/V7

Operational Limitations

• If the connected device has multiple drives (or partitions) installed, only one drive (or partition) can be connected.

• A device supporting USB 1.1 alone may cause a difference in the picture quality, depending on the device.

Supported Audio Formats

Format Bit Rate

Sampling

Frequency

MP3

WMA

AC3

80~320kbps

56~128kbps

128~384kbps

44.1khz

44.1/48khz

~

~

~

Aspect Ratio : Although the default DivX resolution is

640x480 pixels, this product supports up to

720x480 pixels. TV screen resolutions higher than

800 will not be supported.

When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.

Sections with a high frame rate might not be played while playing a DivX file.

English

Getting Started

USB Devices that can be used with the product

~

USB Storage Device, MP3 Player, Digital Camera

~

Removable HDD

- Removable HDDs equipped with less than 160

Gbytes are supported. Removable HDDs equipped with 160Gbytes or more may not be recognized, depending on the device.

- If the connected device does not work due to insufficient power supply, you can use a separate power cable to supply power so that it can work properly. The connector of the USB cable may differ, depending on the manufacturer of the USB device.

~

USB card Reader: One slot USB card reader and

Multi slot USB card reader.

- The USB card reader may not be supported, depending on the manufacturer.

- If you install multiple memory devices into a multi card reader, you may experience problems.

~

~

~

Some MP3 players, when connected to this product, may not operate depending on the sector size of their file system.

The USB host function is not supported if a product that transfers media files by its manufacturer specific program is connected.

Does not operate with Janus enabled MTP (Media

Transfer Protocol) devices.

Supported file Formats

Format

Still


Music Movie

File name

File extension

JPG

JPG

.JPEG

MP3

.MP3

WMA

.WMA

WMV

.WMV

DivX

.AVI

Bit rate –

80~320 kbps

56~128 kbps

4Mbps 4Mbps

Version – – V8

Pixel

Sampling

Frequency

640x480

– –

44.1kHz

44.1kHz

V1,V2,

V3,V7

DivX3.11~

DivX5.1,

XviD

720x480

44.1KHz~ 48KHz

~

~

CBI (Control/Bulk/Interrupt) is not supported.

Digital Cameras that use PTP protocol or require additional program installation when connected to a

PC are not supported.

A device using NTFS file system is not supported.

~

(The system supports only the FAT file system and will not play a movie larger than 1 GB in USB mode.)

10

English English

11

10

English

Front Panel

1

Description

2

MIC 1 MIC 2

3 4 5 6 7 8 9 10 11 12

1

DISC TRAY

2

DISPLAY

3

REMOTE CONTROL SENSOR

4

OPEN/CLOSE BUTTON ( )

5

FUNCTION BUTTON ( )

6

TUNING DOWN & SKIP BUTTON ( )

7

STOP BUTTON ( )

8

PLAY/PAUSE BUTTON ( )

9

TUNING UP & SKIP BUTTON ( )

10

VOLUME CONTROL BUTTON ( , )

11

POWER BUTTON ( )

12

USB PORT

13

MIC 1,2 jack

MIC 1 MIC 2

13

Insert disc here.

Displays the playing status, time, etc.

Detects signals from the remote control.

Opens and closes the disc tray.

The mode switches as follows :

DVD/CD

D.IN

AUX

USB

FM.

Goes back to the previous title/chapter/track.

Tunes down the FM frequency band.

Stops disc playback.

Plays a disc or pauses playback.

Goes to the next title/chapter/track.

Tunes up the FM frequency band.

Volume adjustment.

Turns the product on and off.

Connect here and play fi les from external USB storage devices such as

MP3 players, USB fl ash memory, etc.

Connect up to two microphones.

English

11

Getting Started

Rear Panel

1 2

DIGITAL

AUDIO IN

OPTICAL

3 4 5 6

VIDEO

OUT

AUX IN

COMPONENT

OUT

FM ANT.

1

2

5.1 CHANNEL SPEAKER OUTPUT

CONNECTORS

EXTERNAL DIGITAL OPTICAL IN JACK

(DIGITAL AUDIO IN)

3

AUX IN JACKS

4

VIDEO OUT JACK

5

COMPONENT VIDEO OUTPUT JACKS

6

FM ANTENA

JACK

Connect the front, Centre,surround speakers and subwoofer.

Use this to connect external equipment capable of digital output.

Connect to the 2CH Analogue output of an external device (such as a VCR).

Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.

Connect a TV with Component video inputs to these jacks.

Connect the FM antenna.

1

English English

1

1

English

Tour of the Remote Control

remote control

Turn the product on and off.

Allow access to common functions of the product such as the Photo List.

Press numeric button to operate options.

or

4. REPEAT button : Allows you to repeat a title, chapter, track or disc.

5. CD RIPPING button : Press to rip a CD.

6. DIMMER button : Adjust the brightness of Display.

7. INFO button

8,9. MIC -,+ button : Adjust the MIC volume.

Adjust the volume down.

Press to skip backwards.

/Change channels down.

Press to stop/play a disc.

POWER

DISC MENU

TITLE

FUNCTION

TV SOURCE

A B

P.SCAN

C

TUNER

MEMORY

D

P L DSP / EQ MO / ST

1 2 3

REPEAT CD RIPPING DIMMER

4 5 6

INFO

MIC VOL +

7 8 9

VOL ECHO

0

VOL

TV CH V MUTE

Press this to move to the home menu.

Select on-screen menu items and change menu value.

Used to change the audio/subtitle language, angle etc.

Press to select the DVD receiver mode.

TOOLS

DVD RECEIVER

TUNING V

SELECT

SAMSUNG

TV

Press to check the disc/title menu.

This is mode selection button.

or

Press to select TV's video mode.

Press to preset FM stations.

Press numeric button to operate options.

or

0. ECHO : Adjust the echo level of the microphone.

1. PLII button : Select the desired Dolby Pro

Logic II audio mode,P.Bass or

MP3 enhancement function.

2. DSP/EQ button : Select the desired DSP/

EQ audio mode.

3. MO/ST button : Press to listen in Mono/

Stereo in the FM mode

Adjust the volume up.

Cut off the sound temporarily.

Press to skip forwards /Change channels up.

Press to pause a disc.

Press to search backwards or forwards.

Return to the previous menu.

Exit the menu.

Press to select TV.

Installing batteries in the Remote Control

* Battery size: AAA

`

`

`

`

NOTE

Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).

Always replace both batteries at the same time.

Do not expose the batteries to heat or flame.

The remote control can be used up to approximately 7 meters in a straight line.

English

1

Getting Started

Setting the Remote Control

You can control certain functions of your TV with this remote control.

When operating a TV with the remote control

1.

2.

3.

4.

Press the TV button to set the remote control to

TV mode.

Press the POWER button to turn on the TV.

While holding down the

POWER

button, enter the code corresponding to your brand of TV.

~

If there is more than one code listed for your

TV in the table, enter one at a time to determine which code works.

~

Example : For a Samsung TV

While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.

If the TV turns off, the setting is complete.

~

You can use the TV POWER, VOLUME,

CHANNEL, and Numeric buttons (0~9).

`

`

NOTE

The remote control may not work or some operations may not be possible with some brands of TVs.

The remote control will work on a Samsung TV by default.

TV Brand Code List

Brand

Admiral

(M.Wards)

A Mark

Anam

AOC

Bell & Howell

(M.Wards)

Brocsonic

Candle

Cetronic

Citizen

Cinema

Classic

Concerto

Contec

Coronado

Craig

Croslex

Crown

Curtis Mates

CXC

Daewoo

Daytron

Dynasty

Emerson

Fisher

Funai

Futuretech

General

Electric (GE)

Hall Mark

Hitachi

Inkel

JC Penny

JVC

KTV

KEC

KMC

LG (Goldstar)

Luxman

LXI (Sears)

Magnavox

Marantz

Matsui

MGA

Mitsubishi/

MGA

Code

56, 57, 58

01, 15

01, 02, 03, 04, 05, 06,

07, 08, 09, 10, 11,

12, 13, 14

01, 18, 40, 48

57, 58, 81

59, 60

18

03

03, 18, 25

18

46

15

97

03

03, 05, 61, 82, 83, 84

62

03

59, 61, 63

03

02, 03, 04, 15, 16, 17, 18,

19, 20, 21, 22, 23, 24, 25,

26, 27, 28, 29, 30, 32, 34,

35, 36, 48, 59, 90

40

03

03, 15, 40, 46, 59, 61,

64, 82, 83, 84, 85

19, 65

03

03

06, 40, 56, 59, 66,

67, 68

40

15, 18, 50, 59, 69

45

56, 59, 67, 86

70

59, 61, 87, 88

03, 15, 40

15

01, 15, 16, 17, 37, 38,

39, 40, 41, 42, 43, 44

18

19, 54, 56, 59, 60, 62,

63, 65, 71

15, 17, 18, 48, 54, 59,

60, 62, 72, 89

40, 54

54

18, 40

18, 40, 59, 60, 75

Scott

Sears

Sharp

Signature

2000

(M.Wards)

Sony

Soundesign

Spectricon

SSS

Sylvania

Symphonic

Tatung

Techwood

Teknika

TMK

Toshiba

Vidtech

Videch

Wards

Yamaha

York

Yupiteru

Zenith

Zonda

Dongyang

Brand

MTC

NEC

Nikei

Onking

Onwa

Panasonic

Penney

Philco

Philips

Pioneer

Portland

Proton

Quasar

Radio Shack

RCA/

Proscan

Realistic

Sampo

Samsung

Sanyo

Code

18

18, 19, 20, 40, 59, 60

03

03

03

06, 07, 08, 09, 54, 66,

67, 73, 74

18

03, 15, 17, 18, 48, 54,

59, 62, 69, 90

15, 17, 18, 40, 48,

54, 62, 72

63, 66, 80, 91

15, 18, 59

40

06, 66, 67

17, 48, 56, 60, 61, 75

18, 59, 67, 76, 77, 78,

92, 93, 94

03, 19

40

00, 15, 16, 17, 40, 43, 46,

47, 48, 49,

19, 61, 65

03, 40, 60, 61

15, 18, 19

15, 57, 64

57, 58

50, 51, 52, 53, 55

03, 40

01

18

18, 40, 48, 54, 59,

60, 62

61, 95, 96

06

18

03, 15, 18, 25

18, 40

19, 57, 63, 71

18

59, 60, 69

15, 17, 18, 40, 48,

54, 60, 64

18

40

03

58, 79

01

03, 54

1

English English

1

1

English

Connections

This section involves various methods of connecting the product to other external components.

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connecting the Speakers

SW

Position of the product

Place it on a stand or cabinet shelf, or under the

TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.

Example : For 32" TV's 2~2.4m

For 55" TV's 3.5~4m

Front Speakers ei

Centre Speaker f

Rear Speakers hj

Subwoofer g

Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the centre speaker or place them slightly in front of the centre speakers.

It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.

Place these speakers to the side of your listening position.

If there isn't enough room, place these speakers so they face each other. Place them about 60 to

90cm above your ear, facing slightly downward.

*

Unlike the front and centre speakers, the rear speakers are used to handle mainly sound effects and sound will not come from them all the time.

The position of the subwoofer is not so critical. Place it anywhere you like.

`

`

!

`

CAUTION

Do not let children play with or near the speakers. They could get hurt if the speaker falls.

When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct.

Keep the subwoofer out of the reach of children so as to prevent them from inserting their hands or alien substances into the duct (hole) of the subwoofer.

`

Do not hang the subwoofer on the wall through the duct (hole).

NOTE

`

If you place a speaker near your TV set, screen colour may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set.

English

1

Connections

Speaker Components

Connecting the Speakers

(L) (R)

FRONT

(L) (R)

REAR CENTRE

SUBWOOFER SPEAKERCABLE

Connecting The Speakers

1.

2.

3.

Press down the terminal tab on the back of the speaker.

Insert the black wire into the black terminal (–) and the red wire into the red terminal (+), and then release the tab.

Connect the connecting plugs to the back of the product by matching the colours of the speaker plugs to the speaker jacks.

Black

Red

HT-C330

Front Speaker (R)

Rear Speaker (R)

Centre Speaker

OPTICAL

Front Speaker (L)

FM ANT .

HDMI OUT

AUX IN

COMPONENT

OUT

Rear Speaker (L)

Subwoofer

1

English English

1

1

English

DIGITAL

AUDIO IN

OPTICAL

Connecting the video out to your tv

Choose one of the two methods for connecting to a TV.

METHOD 2 (supplied)

VIDEO

OUT

COMPONENT

OUT

Green

Blue

Red

METHOD 1

METHOD 1 : Component Video

If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from the COMPONENT OUT (Pr, Pb and Y) jacks on the back of the product to the Component Video Input jacks on your TV.

METHOD 2 : Composite Video

Connect the supplied Video cable from the

VIDEO OUT

jack on the back of the product to the VIDEO IN jack on your TV.

`

`

`

NOTE

This product operates in Interlace scan mode 480i(576i) for component/composite output.

After making the video connection, set the Video input source on your TV to match the corresponding Video output mode on your product.

See your TV owner's manual for more information on how to select the TV's Video Input source.

Turn the your product on before searching the TV source.

!

`

CAUTION

Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television.

English

1

Connections

P.SCAn(ProGre SSIve SCAn) funCtIon

Unlike regular Interlace Scan, in which two fi elds of picture information alternate to create the entire picture

(odd scan lines, then even scan lines), Progressive Scan uses one fi eld of information (all lines displayed in one pass) to create a clear and detailed picture without visible scan lines.

1.

2.

Press STOP button.

~

If playing a disc, press the

STOP

button twice so that

“STOP”

, appears on the display.

~

~

Press and hold P.SCAN

button on the remote control for over 5 seconds.

~

Pressing and holding the button for over 5 seconds will select

"P.SCAN" and "I.SCAN" alternately.

When you select P.SCAN,

"P.SCAN"

will appear on the display.

To set P.Scan mode for DivX discs, press the P.SCAN

button on the remote control for more than 5 seconds with no disc in the unit (

“NO DISC"

on the display), then load the DivX disc and play.

What is Progressive (or Non-Interlaced) Scanning?

Interlaced Scan

(1 FRAME =

2 FIELDS)

Progressive Scan

(FULL FRAME)

In interlaced-scan video, a frame consists of two interlaced fields (odd and even), where each field contains every other horizontal line in the frame.

The odd field of alternating lines is displayed first, and then the even field is displayed to fill in the alternating gaps left by the odd field to form a single frame.

One frame, displayed every 1/30th of a second, contains two interlaced fields, thus a total of 60 fields are displayed every one second.

The interlaced scanning method is intended for capturing a still object.

The progressive scanning method scans one full frame of video consecutively down the screen, line by line.An entire image is drawn at one time, as opposed to the interlaced scanning process by which a video image is drawn in a series of passes.

The progressive scanning method is desirable for dealing with moving objects.

`

NOTE

Depending on the capabilities of your TV, this function may not work.

1

English English

1

1

English

Connecting the fm Antenna

FM Antenna (supplied)

DIGITAL

AUDIO IN

OPTICAL

VIDEO

OUT

FM ANT .

COMPONENT

OUT

1.

2.

Connect the FM antenna supplied to the FM Antenna jack.

Slowly move the antenna wire around until you fi nd a location where reception is good, then fasten it to a wall or other rigid surface.

`

NOTE

This product does not receive AM broadcasts.

English

1

Connections

Connecting Audio from external Components

Optical Cable

(not supplied)

DIGITAL

AUDIO IN

OPTICAL

VIDEO

OUT

White

AUX IN

COMPONENT

OUT

Audio Cable

(not supplied)

If the external analogue component has only one Audio

Out, connect either left or right.

Red

Set-Top Box

OPTICAL

VCR

AUX

AUX : Connecting an External Analogue Component

Analogue signal components such as a VCR.

1.

Connect AUX IN (Audio) on the back of the product to the Audio Out of the external Analogue component.

~

Be sure to match the colours of the connecting jacks.

Press the FUNCTION button to select AUX input.

2.

~

The mode switches as follows :

DVD/CD

D.IN

AUX

USB

FM.

`

NOTE

You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the

VCR to this product.

OPTICAL : Connecting an External Digital Component

Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).

1.

2.

Connect the DIGITAL AUDIO IN external digital component.

( OPTICAL

Press the FUNCTION button to select D.IN

.

~

The mode switches as follows :

DVD/CD

D.IN

AUX

USB

FM.

) on the back of the product to the Digital Output of the

0

English English

1

0

English

Setup

Before Starting (Initial Setting)

1.

Press the POWER button when it is plugged in

TV for the fi rst time.

Initial Setting screen will be displayed.

POWER

DISC MENU

TITLE

A B C

TUNER MEMORY

D

P L DSP / EQ MO / ST

1 2 3

REPEAT CD RIPPING DIMMER

4 5 6

INFO

7 8

VOL

0

9

The access step may differ depending on the selected menu. The GUI (Graphical User Interface) in this manual may differ, depending on the fi rmware version.

Initial setting > On-Screen Language

Select a language for the on-screen displays.

English

Korean

Dutch

French

German

Italian

Move Select Return

1

2

3

4

2.

3.

4.

5.

Press the ▲▼ buttons to select the desired language, then press the ENTER button.

Press the ENTER button to select Start button.

Press the ▲▼ buttons to select desired TV Aspect, then press the

ENTER

button.

Press the ENTER button to select Start button.

`

`

NOTE

If you want to move to the previous screen, press the

RETURN button.

Once you select a menu language, you can change it by pressing the STOP (

@

) button on the remote control for more than 5 seconds with no disc inserted.

`

When the Initial Setting screen does not appear, refer to the Initial Setting. (see page 24)

DVD RECEIVER

1 MENU BUTTON : Display the home menu.

2

3

ENTER / DIRECTION BUTTON

Move the cursor and select an item.

Select the currently selected item.

Confi rm the setting.

RETURN BUTTON : Return to the previous setup menu.

4 EXIT BUTTON : Exit the setup menu.

Settings

Selecting the Video Format

Each country has a different video format standard.

You can select the video format either NTSC or PAL.

Press and hold the Number 7 button on the remote control for over 5 seconds while the product is urned off.

~

~

"NTSC" or "PAL" will appear on the display. At this time, press the Number 7 button to select either

"NTSC" or "PAL".

The video format of the disc must be the same as he video format of your TV.

Function DVD/CD

1.

2.

3.

4.

5.

6.

Press the POWER button.

Press the

_+

buttons to select

Settings

, then press the ENTER button.

Press the

$%

buttons to select the desired menu, then press the ENTER button.

Press the

$%

buttons to select the desired submenu, then press the ENTER button.

Press the

$%

buttons to select the desired item, then press the ENTER button.

Press the EXIT button to exit the setup menu.

English

1

Setup

Display

You can configure various display options such as the TV Aspect, Resolution, etc.

TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting.

~

4:3 Pan-Scan

Select when you want to see the 16:9 video supplied by the DVD without the black bars on top and bottom, even though you have a TV with a 4:3 ratio screen(extreme left and right portion of the movie picture will be cut off).

~

4:3 Letter Box

Select when you want to see the total

16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

~

16:9 Wide

You can view the full 16:9 picture on your widescreen TV.

Settings

Speaker Setting

Speaker Size

Sound Edit

Delay Time

Test Tone : OFF

Move

Select Return

Select Return

~

~

~

For the Front speakers, the mode is set to Small.

For the Subwoofer, the mode is set to Present.

For the Centre and Rear speakers, you can switch the mode to Small or None.

- Small : Select this when using the speakers.

- None : Select this when no speaker is connected.

`

NOTE

The speaker mode may vary depending on the Dolby

Pro Logic and Stereo settings.

Sound Edit

You can adjust the balance and level for each speaker.

NOTE

`

`

If a DVD is in the 4:3 ratio, you cannot view it in the wide screen.

Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the

TV aspect ratio setting.

Audio

Speaker Setting

Speaker Size

You can set the Speaker Size of the Center and Rear

Speakers, as well as Test Tone in this mode.

Settings

Front Bal.

Rear Bal.

Center Level

Rear Level

SW Level

Sound Edit dB L dB L

R

R dB dB dB dB dB

Change

Move

Select Return

Select Return

Press the

$%

buttons to select and adjust the desired speaker.

Press the

_+

buttons to adjust the settings.

Adjusting Front/Rear Speaker Balance

`

`

You can select between 0 and -6.

The volume decreases as you move closer to –6.

Adjusting Centre/Rear/Subwoofer Speaker Level

`

The volume level can be adjusted in steps from

+6dB to –6dB.

`

The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

English English

English

Delay Time

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the Centre and Rear speakers.

You can also set the Test Tone in this mode.

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same.

Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the Center and Rear Speakers.

Setting the Centre Speaker

If the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as 0ms.

Otherwise, change the setting according to the table.

Distance between

Df and Dc

0.00m 0.34m 0.68m 1.06m 1.40m 1.76m

Delay

Time

00 ms 01 ms 02 ms 03 ms 04 ms 05 ms

Settings

Delay Time

Front

Center

Rear

Subwoofer

Test Tone

: 00mSEC

: 10mSEC

: OFF

Setting the Rear Speaker

If the distance of Dc is equal to or longer than the distance of Dr in the figure, set the mode as 0ms.

Otherwise, change the setting according to the table.

Distance between

Dr and Dc

0.00m 1.06m 2.11m 3.16m 3.62m 5.29m

Delay

Time

00 ms 03 ms 06 ms 09 ms 12 ms 15 ms

Change

Move

Select Return

Select Return

`

`

NOTE

The Delay Time menu will be activated only when the

5.1 channel source is played.

You can not set Centre and Rear in this mode when their Speaker Size is set to None.

`

`

`

NOTE

With PL II (Dolby Pro Logic II), the delay time may be different for each mode.

With AC-3, the delay time can be set between 00 and 15mSEC.

The Centre channel is only adjustable on 5.1 channel discs.

Test Tone

Ideal Centre

Speaker placement

Settings

Speaker Setting

Speaker Size

Sound Edit

Delay Time

Test Tone : On

Place all speakers within this circle.

Df: The distance from Front Speaker

Dc: The distance from Centre Speaker

Dr: The distance from Rear Speaker

Ideal Rear

Speaker placement

Move

Select Return

Select Return

Use the Test Tone feature to check the speaker connections.

~

Press the

_+

buttons to select ON .

~

The test tone will be sent to Front Left

Center

Front Right

Rear Right

Rear Left

Subwoofer in order.

To stop the test tone, press the ENTER button.

English

Setup

DRC (Dynamic Range Compression)

This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

~

You can select either off, 2/8, 4/8, 6/8, Full.

AV-SYNC

Video and audio sync may not match with digital TV.

If this occurs, adjust the audio delay time to match the video

~

You can set the audio delay time between 0 mSec and 300 mSec. Set it to the optimal status.

Security

The Parental Lock function works in conjunction with

DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches.

There are up to 8 rating levels on a disc.

Parental Rating

Select the rating level you want to set.

A larger number indicates that the program is intended for adult use only. For example, if you select up to Level

6, discs that contain Level 7, 8 will not play.

Enter the password and then press the ENTER button.

- The password is set to "7890" by default.

- Once the setup is complete, you will be taken to the previous screen.

System

Initial Setting

Change Password

By using the Initial Setting, you can set the language and

TV aspect.

DivX(R) Registration

View DivX(R) VOD Registration Code to purchase and play DivX(R) VOD content.

Select Change and enter the 4-digit password to set the parental lock using the number buttons on the remote control.

Settings

Display

Audio

System

Laguage

Security

Support

Perental

Password

: Off

: Change

Language

You can select the language you prefer for onscreen menu, disc menu, etc.

OSD

Language

Disc Menu

Select the language for the on-screen displays.

Select the language for the disc menu displays.

Audio Select the language for disc audio.

Subtitle Select the language for disc subtitles.

Move Select Return

If you forgot your password

1.

2.

Remove the disc.

Press and hold the

STOP

(

@

) button on the remote control for 5 seconds or more. All settings will revert to the factory settings.

To select a language that does not appear in the menu, select OTHERS in the Disc Menu, Audio and

Subtitle, and enter the language code of your country (see page 35).

a

You cannot select OTHERS in the OSD Language menu.

`

NOTE

The selected language will only appear if it is supported on the disc.

English

Support

Product Information

Product information such as Model code, Software

Version, etc. is provided.

English

English

Basic Functions

Disc Playback

1.

2.

3.

Press the

OPEN/CLOSE

(

^

) button.

Place a disc gently into the tray with the disc's label facing up.

Press the OPEN/CLOSE (

^

) button to close the disc tray.

`

NOTE

Resume function: When you stop disc play, the product remembers where you stopped, so when you press PLAY button again, it will pick up where you left off. (This function works only with

DVDs.)

Press the STOP button twice during playback to disable the Resume function.

`

If no buttons are pressed on the product or remote control for more than 3 minutes when the product is in Pause mode, it will change to STOP mode.

`

The initial screen may appear different, depending on the content of the disc.

`

Pirated discs will not play in this product because they violate the CSS(Content Scrambling System: a copy protection system) recommendations.

will appear when an invalid button is pressed.

Audio CD(CD-DA)/mP3/WmA Playback

Track01

1/17

BA

0:15 / 3:59

Function DVD/CD Repeat Play Mode

1.

2.

Insert an Audio CD(CD-DA) or an MP3 Disc into the disc tray.

~

~

For an Audio CD, the first track will be played automatically.

- Press the

[]

buttons to move to the previous/next track.

For the MP3/WMA disc, press the

_+

buttons to select Music , then press the

ENTER button.

- Press the

$%_+

buttons to select a desired file and press the ENTER button.

- Press the

()

buttons to move to the previous/next pages.

Press the STOP (

@

) button to stop playback.

TV Screen Saver/Power Saving Function

~

~

If the product is left in the stop mode for more than 5 minutes without being used, a screen saver will appear on your TV.

If the product is left in the screen saver mode for more than 25 minutes, the power will automatically turn off (Automatic Power-Off

Function).

`

`

NOTE

Some MP3/WMA-CDs may not play, depending on the recording mode.

Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.

`

`

WMA-DRM files, DTS CD cannot be played.

When MP3/WMA/CD playing, number key doesn't work.

English

Basic Functions

JPeG file Playback

Images captured with a digital camera or camcorder, or

JPEG files on a PC can be stored on a CD and then played back with this product.

1.

2.

Insert a JPEG disc on the disc tray.

Press the

_+

buttons to select Photo , and then press the ENTER button.

3.

4.

Press the

$%

buttons to select the folder you want to play, and then press the ENTER button.

Press the ▲▼ buttons to select the photo you want to play, and then press the ENTER button.

~

~

~

The selected file will play and slide show will start.

To stop slide show, press the

PAUSE

(

#

) button.

You can view the previous/next fi le by pressing the ◄,► buttons during the slideshow mode.

../ PICTURES

JPEG 1

JPEG 2

JPEG 3

642 X 352 2010/01/01

Function DVD/CD Pages Return

using the Playback function

Forward/Reverse Search

B D A

Press the

()

buttons for Search Function.

(

1

(

2

(

3

(

4

)

1

)

2

)

3

)

4

`

NOTE

During the fast playback of the CD, sound is only heard at 1 and 2 step speed.

`

No sound is heard during the fast playback of the

DVD/DivX.

Skipping Scenes/Songs

B A D

Press the

[]

buttons.

~

Each time the button is pressed during playback, the previous or next chapter, track or directory

(file) will be played.

~

You cannot skip chapters consecutively.

Slow Motion Play

D

Press the

PAUSE

(

#

) button and then

)

button for

Slow Motion play.

Rotate Function

G

Press the GREEN(B) or YELLOW(C) button during the

PAUSE mode.

~

~

GREEN(B)

Button: Rotate 90° counterclockwise.

YELLOW(C) Button: Rotate 90° clockwise.

`

NOTE

The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG files and 2048 x 1536 (or 3.0

MPixel) for progressive image files.

English

*

1

*

2

*

3

D

*

1

*

2

*

3

`

`

NOTE

No sound is heard during slow playback.

Reverse slow playback does not work.

English

English

Step Motion Play

D

Press the PAUSE button repeatedly.

~

The picture moves forward one frame each time the button is pressed during playback.

NOTE

`

No sound is heard during step motion playback.

5 Minute Skip function

D

During playback, press the

_

,

+

button.

~

~

Playback skips 5 minutes forward whenever you press the

+

button.

Playback skips 5 minutes backward whenever you press the

_

button.

`

NOTE

You can operate this function only on the DivX.

Using the Title Menu

For DVDs containing multiple titles, you can view the title of each movie.

1.

POWER

During playback, press the

TITLE button on the remote control.

2.

DISC MENU

TITLE

Press the

$%_+

buttons to make the desired selection, then press the

ENTER button.

A

P L

B

DSP / EQ

C

TUNER

MEMORY

D

MO / ST

1 2 3

`

NOTE

REPEAT CD RIPPING DIMMER

4 vary and this menu may not be available.

5 6

MIC VOL +

7 8 9

VOL

ECHO

0

VOL

TV CH V MUTE

Using the Disc Menu

TOOLS

DVD RECEIVER

TUNING V

SELECT

SAMSUNG

TV

You can view the menus for the audio language, subtitle language, profile, etc.

1.

the DISC MENU button on the remote control.

DISC MENU

TITLE

2.

Press the

$%_+

buttons to make

P L

B the desired selection, then press the

ENTER button.

1

DSP / EQ

2

C

3

D

MO / ST

`

NOTE

REPEAT CD RIPPING DIMMER

4 5 6

Depending on the disc, menu setup items may

7 8

VOL

ECHO

0

9

VOL

TV CH V MUTE

English

TOOLS

DVD RECEIVER

TUNING V

SELECT

SAMSUNG

TV

Basic Functions

Repeat Playback A-B Repeat Playback

B A D B

You can repeatedly play back a designated section of a DVD or CD.

DVD/DivX Repeat

You can repeat the title, chapter or the section(A-B

Repeat) of the DVD/DivX.

1.

2.

3.

Repeat OFF

POWER

1.

2.

During the DVD disc or CD playback, press the

REPEAT

button on the remote control.

For DVD, press the

$%

buttons to select A.

For CD press the

REPEAT

button repeatedly until appears.

DISC MENU

TITLE

3.

Press the ENTER button at the point where you want repeat play to start (A).

During DVD/DivX playback, press the

REPEAT

button on the remote control.

Press the

$%

buttons to select a desired repeat mode, then press the

ENTER button.

A

P L

INFO

B

DSP / EQ

C

4.

1 2 3

REPEAT

4

CD RIPPING

5.

5

Press the

MO / ST

ENTER

button at the point where you want repeat play to stop (B).

To return to normal playback,

6

$%

buttons to select to OFF.

For CD, press the REPEAT button to select to .

7 8 9

VOL ECHO

0

`

Press the ▲▼ buttons to select OFF to return to normal play, then press the ENTER button.

The A-B Repeat function does not operate with

DivX, MP3 or JPEG discs.

Z

Title

Chapter

A -

Off

D

Track

Dir (Directory)

Disc

Off

CD/MP3 Repeat

1.

REPEAT button repeatedly to select the repeat mode you want.

DVD RECEIVER

TUNING V

B

; ; ; ;

(Normal

;

Repeat Track

;

Repeat All

;

Random

;

Repeat Section A-B)

SELECT

SAMSUNG

A

; ; ;

;

(Normal

;

Repeat Track

;

Repeat Dir

;

Repeat All

;

Random)

TV

English English

English

POWER

DISC MENU

TITLE

A B C

TUNER

MEMORY

D

P L DSP / EQ MO / ST

1 2 3

Displaying Disc Information

REPEAT

4

CD RIPPING

5

DIMMER

6

03/04

001/001

0:00:21

KO 1/2

EN 02/02

1/1

Change Select

INFO

7

VOL

TV CH V

D

MUTE

MIC VOL +

8

ECHO

0

9

`

Audio ( ): Refers to the fi lm's soundtrack language. A DVD Disc can contain up to 8 audio languages.

Subtitle ( ): Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD Disc can contain up to

32 subtitle languages.

Angle ( ): When a DVD contains multiple angles of a particular scene, you can use the Angle function.

1.

2.

3.

4.

During playback, press the TOOLS button on the remote control.

TOOLS

Press the

$%

buttons to select the desired item.

DVD RECEIVER

Press the

_+

buttons to make the desired setup change and then press the

ENTER button.

- You may use the number buttons of the remote control to control some items.

TUNING V

SELECT

SAMSUNG

To make Disc information disappear, press the

TOOLS button again.

1.

2.

3.

`

`

`

NOTE

If you are playing contents from the tools menu, some functions may not be enabled depending on the disc.

You can also select, Dolby Digital or Pro Logic, depending on the disc.

Some tools menus may differ depending on discs and fi les.

Selecting the Audio Language

`

TV

NOTE

DTS AUDIO doesn't support.

D

Press the TOOLS button.

Press the

$%

buttons to select AUDIO ( ) display.

Press the

_+

buttons or numeric buttons to select the desired audio language.

~

Depending on the number of languages on a

DVD disc, a different audio language is selected each time the button is pressed.

TOOLS menu

`

`

`

Title ( ) : To access the desired title when there is more than one in the disc.

For example, if there is more than one movie on a DVD, each movie will be identifi ed as a Title.

Chapter ( ) : Most DVD discs are recorded in chapters so that you can quickly fi nd a specifi c chapter.

Playing time ( ) : Allows playback of the fi lm from a desired time. You must enter the starting time as a reference.

The time search function does not operate on some discs.

English

Basic Functions

Selecting the Subtitle Language Angle Function

1.

2.

3.

D

Press the TOOLS button.

Press the

$%

buttons to select

SUBTITLE

( ) display.

Press the

_+

buttons or numeric buttons to select the desired subtitle language.

~

Depending on the number of languages on a

DVD disc, a different subtitle language is selected each time the button is pressed.

This function allows you to view the same scene in different angles.

1.

2.

3.

Press the TOOLS button.

Press the

$%

buttons to select ANGLE ( display.

Press the

_+

buttons or numeric buttons to select the desired angle.

)

`

`

NOTE

Depending on the disc, the Subtitle and Audio

Language functions may not be available.

On the DivX file format, the subtitle languages may be represented by only numbers.

`

NOTE

The Angle function works only with discs on which multiple angles have been recorded.

Caption Function

D

~

You must have some experience with video extraction and editing in order to use this feature properly.

~

~

~

To use the caption function, save the caption file

(*.smi) in the same file name as that of the DivX media file (*.avi) within the same folder.

Example. Root Samsung_007CD1.avi

Samsung_007CD1.smi

Up to 60 alphanumeric characters or 30 East

Asian characters (2 byte characters such as

Korean and Chinese) for the file name.

The subtitle of DivX files are *.smi, *.sub, *.srt over

148 kbyte is not supported.

0

English English

1

0

English

Sound mode

DSP (Digital Signal Processor)/EQ

~

~

DSP (Digital Signal Processor) : DSP modes have

POWER environments.

TITLE

EQ : You can select ROCK, POP, or CLASSIC etc. to optimize the sound for the genre of music you are playing.

D

P L DSP / EQ MO / ST

1 2 3

Press the DSP/EQ button.

REPEAT CD RIPPING DIMMER

4 5 6

POPS,

JAZZ,

ROCK

INFO

MIC VOL +

7 8 9 depending on the genre of music you're listening to.

0

VOL

STUDIO

CLUB

HALL

MUTE studio.

Simulates the sound of a dance club with a throbbing bass beat.

Provides a clear vocal as if listening in a concert hall.

MOVIE

CHURCH

PASS

Provides the feeling of a movie cinema.

Provides the feeling of being in a grand church.

TOOLS

DVD RECEIVER

TUNING V

Select this for normal listening.

SELECT

SAMSUNG

TV

POWER

Dolby Pro Logic II Mode

DISC MENU

TITLE

You can select the desired Dolby Pro Logic II audio mode, P.Bass or MP3 Enhancement function.

B

Press the

MUSIC

C D

P L DSP / EQ MO / ST

1 2 3

PL II button.

REPEAT CD RIPPING DIMMER

4 5 6

INFO

MIC VOL +

7 experience sound effects as if you are listening to the actual performance.

8

ECHO

0

9

VOL

CINEMA

Adds realism to the movie soundtrack.

MUTE

PROLOG

MATRIX

STEREO

MP3ENH

POWER

BASS ON

POWER

BASS

OFF

You will experience a realistic multichannel effect while using just the front left and right speakers.

You will hear multi-channel surround sound.

Select this to listen to sound from the front left and right speakers and the subwoofer only.

TOOLS

TUNING V

You can upscale your MP3 level sound (24 kHz,8bit) to CD level sound (44.1 kHz, 16bit).

The MP3 Enhancement function is only available MP3 file.

SELECT

SAMSUNG

This function stresses low tones providing thudding sound effects.

POWER BASS is turned off.

TV

`

NOTE

When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks

(L and R) on the product. If you connect to only

`

`

one of the inputs (L or R), you cannot listen to surround sound.

The Pro Logic II function is only available in

Stereo mode.

The P.BASS function is only available with

2 channel LPCM sources such as MP3, Divx, CD and WMA.

English

1

Basic Functions

Listening to radio

Using buttons on the Remote Control

1.

2.

Press the FUNCTION button to select FM .

Tune in to the desired station.

~

Automatic Tuning 1

: When the

[ ]

buttons is pressed, a preset broadcast station is selected

~

~

Automatic Tuning 2 : Press and hold the

TUNING (

,

,

.

) buttons to automatically search for active broadcasting stations.

Manual Tuning : Press the TUNING (

,

,

.

) buttons to increase or decrease the frequency incrementally.

Using buttons on the product

Presetting Stations

Example : Presetting FM 89.10 in the memory

1.

2.

3.

4.

5.

6.

Press the

Press the

<89.10>.

FUNCTION

TUNING (

,

,

POWER

.

FM

) buttons to select

.

Press the TUNER MEMORY button.

~

P L

C D

MO / ST

Press the

[ ]

1 2 3 number.

~

You can select between 1 and 15 presets.

Press the TUNER MEMORY button again.

~

Press the

7

VOL

8

0

9

VOL

~

REPEAT CD RIPPING DIMMER

4 5 6 station is stored in memory.

To preset another station, repeat steps 2 to 5.

~

To tune in to a preset station, press the

[ ]

buttons on the remote control to select a channel.

1.

2.

Press the FUNCTION ( ) button to select

FM

.

Select a broadcast station.

~

Automatic Tuning 1 : Press the STOP (

@

button to select PRESET and then press the

[ ]

buttons to select the preset station.

)

~

~

Automatic Tuning 2 : Press the STOP (

@

) button to select MANUAL and then press and hold the

[ ]

buttons to automatically search the band.

Manual Tuning : Press the

STOP (

@

) button to select MANUAL

and then press the

[ ]

buttons to tune in to a lower or higher frequency.

POWER

DISC MENU

TITLE

~

~

Setting Mono/Stereo

A

Press the MO/ST button.

P L

B

DSP / EQ

C D

MO / ST

Each time the button is pressed, the sound switches between

MONO

.

STEREO interference-free broadcast.

4

In a poor reception area, select

7

and

5

MONO

8

3

DIMMER

6

for a clear,

9

VOL

ECHO

0

VOL

TV CH V

MUTE

POWER

Connecting microphone

DISC MENU

TITLE

You can enjoy the feeling of a karaoke bar in the comfort of your home.

TOOLS

A B C

Watch the video and sing along the lyrics displayed

D

MO / ST

POWER

1 2 3

SELECT

SAMSUNG

FUNCTION DIMMER

TV SOURCE

1.

2.

the front panel.

Press the ECHO

A

4

INFO

7

button to adjust

TITLE

5

MIC VOL +

8

MEMORY

C

ECHO

D

MO / ST

6

9

VOL

1

REPEAT

2

MUTE

CD RIPPING

0

3

DIMMER

4 5 6

3.

Press the

MIC VOL

button to adjust the voice volume of the microphone.

VOL

MIC VOL +

8

ECHO

0

9

VOL

TV CH V MUTE

TOOLS

DVD RECEIVER

TUNING V

SELECT

SAMSUNG

TV

English

TOOLS

DVD RECEIVER

TUNING V

SELECT

SAMSUNG

TV

TOOLS

DVD RECEIVER

TUNING V

SELECT

SAMSUNG

TV

English

English

uSB function CD ripping

POWER

Playing Media Files using the

USB Host Feature

You can enjoy media fi les such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 5.1 channel sound by connecting the storage device to the USB port of the product.

1.

2.

3.

Connect the USB device to the USB port on the front panel of the product.

Press the FUNCTION button to select USB.

~

USB

appears on the display screen and then disappears.

Press the

_+

buttons to select Videos , Music or Photo .

- Select a fi le to play.

Safe USB Removal

To prevent damage to the memory stored in the

USB device, perform safe removal before disconnecting the USB cable.

~

~

Press the YELLOW(C) button.

- REMOVE will appear on the display.

Remove the USB cable.

`

NOTE

To listen to your music fi les with 5.1 channel sound, you must set the Dolby Pro Logic II mode to Matrix. (See page 31)

`

Remove the USB cable from the USB port slowly. Otherwise, it may cause damage to the

USB port.

1.

2.

3.

Converts audio sound of the CD into a MP3 fi le

4.

C D

P L MO / ST

1 2 3

Press the CD RIPPING button.

~

REPEAT

To start ripping the current track, press the CD RIPPING button on

7

CD RIPPING

5

8

DIMMER

MIC VOL +

6

9

~

ECHO

0

CD

RIPPING button on the remote control.

-"FULL CD RIPPING" appears on the display and ripping starts.

VOL

Press the STOP (

@

) button to stop ripping.

~

When the CD ripping is done, a directory named "RIPPING" will be created in the USB device and the ripped fi le will be saved in a format of "SAM-XXXX”.MP3".

`

NOTE

`

`

`

`

`

`

`

`

disconnect the USB device after the system stops playing the

CD completely.

SAMSUNG

If you disconnect the USB connection during the CD ripping, the system will turn off and you will not be able to delete the ripped fi le.

If you connect the USB device to the system while it is playing a CD, the system stops temporarily and will play again.

DTS-CDs cannot be ripped.

If the ripping duration is less than 5 seconds, a ripping fi le may not be created.

CD ripping works only if the USB device or the HDD is formatted in the FAT fi le system. (The NTFS fi le system is not supported.)

For a list of compliant devices, refer to the specifi cation of the

USB host.

The ripping is performed at a normal speed of x3. The ripping time may be longer with some USB devices.

While the system is ripping a CD, the audio sound will not be output.

Do not put touch or move the system while it is ripping a CD.

TV

English

troubleshooting

Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the product, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Centre.

Symptom

I cannot eject the disc.

Playback does not start.

Check/Remedy

• Is the power cord plugged securely into the outlet?

• Turn off the power and then turn it back on.

• Check the region number of the DVD.

DVD discs purchased from abroad may not be playable.

• CD-ROMs and DVD-ROMs cannot be played on this product .

• Make sure that the rating level is correct.

• Are you using a deformed disc or a disc with scratches on the surface?

• Wipe the disc clean.

Playback does not start immediately when the

Play/Pause button is pressed.

Sound is not produced.

• No sound is heard during fast playback, slow playback, and step motion playback.

• Are the speakers connected properly? Is the speaker setup correctly customized?

• Is the disc severely damaged?

Sound can be heard only from a few speakers and not all 6.

Dolby Digital 5.1 CH Surround

Sound is not produced.

• On certain DVD discs, sound is output from the front speakers only.

• Check if the speakers are connected properly.

• Adjust the volume.

• When listening to a CD, radio or TV, sound is output to the front speakers only.

Select "PROLOG" by pressing PL II (Dolby Pro Logic II) on the remote control to use all six speakers.

• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.

• Is the audio language correctly set to Dolby Digital 5.1-CH in the information display?

The remote control does not work.

• Is the remote control being operated within its operation range of angle and distance?

• Are the batteries drained?

• Have you selected the mode (DVD RECEIVER/TV) functions of the remote control (DVD RECEIVER/TV) correctly?

• Disc is rotating but no picture is produced.

• Picture quality is poor and picture is shaking.

• Is the TV power on?

• Are the video cables connected properly?

• Is the disc dirty or damaged?

• A poorly manufactured disc may not be playable.

Audio language and subtitles do not work.

• Audio language and subtitles will not work if the disc does not contain them.

The Disc/Title menu screen does not appear even when the Disc/Title function is selected.

Aspect ratio cannot be changed.

• Are you using a disc that does not contain menus?

• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN

SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.

English English

English

Symptom

• The product is not working.

(Example: The power goes out or the front panel key doesn't work or a strange noise is heard.)

• The product is not working normally.

The rating level password has been forgotten.

Can't receive radio broadcast.

Check/Remedy

• Press and hold the STOP (

@

) button on the remote control for longer than

5 seconds with no disc (reset function).

Using the RESET function will erase all stored settings.

Do not use this unless necessary.

• While “NO DISC” message appears on the display of the product, press and hold the remote control's

STOP

(

@

) button for longer than 5 seconds. “

INIT

” appears on the display and all settings will return to the default values.

And then press the

POWER

button.

Using the RESET function will erase all stored settings.

Do not use this unless necessary.

• Is the antenna connected properly?

• If the antenna's input signal is weak, install an external FM antenna in an area with good reception.

Country code list

Enter the appropriate code number for OTHERS in the Disc Menu, Audio and Subtitle. (See page 24).

Code

1027

1028

1032

1039

1044

1045

1051

1052 Azerbaijani

1053 Bashkir

1057 Byelorussian

1059

1060

1069

1066

1067

1070

1079

1093

1097

Bulgarian

Bihari

Bislama

Bengali;

Bangla

Tibetan

Breton

Catalan

Corsican

Czech

1103

1105

1109

Welsh

Danish

German

Language

Afar

Abkhazian

Afrikaans

Amharic

Arabic

Assamese

Aymara

1130 Bhutani

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Language

Greek

English

Esperanto

Spanish

Estonian

Basque

Persian

Finnish

Fiji

Faeroese

French

Frisian

Irish

Scots Gaelic

1194

1196

1203

1209

1217

1226

1229

1233

1235

1165

1166

1171

1174

1181

1183

1186

Code

1142

1144

1145

1149

1150

1151

1157

1301

1305

1307

1311

1313

1326

1327

1332

1334

1269

1283

1287

1297

1298

1299

1300

Code

1239

1245

1248

1253

1254

1257

1261

Language

Interlingue

Inupiak

Indonesian

Icelandic

Italian

Hebrew

Japanese

Yiddish

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Canada

Korean

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laothian

Lithuanian

Latvian,

Lettish

1357

1358

1363

1365

1369

1376

1379

Code

1345

1347

1349

1350

1352

1353

1356

Language

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay

Maltese

Burmese

Nauru

Nepali

Dutch

Norwegian

1393

1403

1408

1417

1428

Occitan

(Afan) Oromo

Oriya

Punjabi

Polish

1435 Pashto, Pushto 1516

1436

1463

1481

Portuguese

Quechua

Rhaeto-

Romance

1517

1521

1525

1511

1512

1513

1514

1515

Code

1482

1483

1489

1491

1495

1498

1501

Language

Kirundi

Romanian

Russian

Kinyarwanda

Sanskrit

Sindhi

Sangro

1502 Serbo-Croatian 1538

1503

1505

1506

1507

1508

Singhalese

Slovak

Slovenian

Samoan

Shona

1539

1540

1543

1557

1564

1509 Somali 1572

Code

1527

1528

1529

1531

1532

1534

1535

Albanian

Serbian

Siswati

Sesotho

Sundanese

Swedish

Swahili

Tamil

Tegulu

1581

1587

1613

1632

1665

1684

1697

English

Turkish

Tsonga

Tatar

Twi

Ukrainian

Urdu

Uzbek

Language

Tajik

Thai

Tigrinya

Turkmen

Tagalog

Setswana

Tonga

Vietnamese

Volapuk

Wolof

Xhosa

Yoruba

Chinese

Zulu

General

FM Tuner

Disc

Video Output

Amplifier

Speaker

Weight

Dimensions

Operating Temperature Range

Operating Humidity Range

Signal/noise ratio

Usable sensitivity

Total harmonic distortion

DVD (Digital Versatile Disc)

CD : 12 cm (COMPACT DISC)

CD : 8cm (COMPACT DISC)

Composite Video

Component Video

Front speaker output

Centre speaker output

Rear speaker output

Subwoofer output

Frequency range

S/N Ratio

Channel separation

Input sensitivity

Speaker system

Impedance

Frequency range

Output sound pressure level

Rated input

Maximum input

Dimensions (W x H x D)

Weights

Specifications

2.6 Kg

430.0 (W) x 60.0 (H) x 290.0 (D) mm

+5°C~+35°C

10 % to 75 %

70 dB

10 dB

0.5 %

Reading Speed : 3.49 ~ 4.06 m/sec.

Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.

Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 74 min.

Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 20 min.

480i(576i)

1 channel : 1.0 Vp-p (75

Ω

load)

480i(576i)

Y : 1.0 Vp-p (75

Ω load)

Pr : 0.70 Vp-p (75 Ω load)

Pb : 0.70 Vp-p (75

Ω

load)

55W x 2(3 Ω )

55W(3 Ω )

55W x 2(3

Ω

)

55W(3

Ω

)

20Hz~20KHz

70dB

60dB

(AUX)400mV

Front/Rear

3 Ω

140Hz~20KHz

86dB/W/M

5.1ch speaker system

Centre

3 Ω

140Hz~20KHz

86dB/W/M

55W

110W

55W

110W

Front/Rear : 84 x 104.5 x 68.5 mm

Centre : 84 x 104.5 x 68.5 mm

Subwoofer : 155 x 350 x 285 mm

Front/Rear : 0.4 Kg, Centre : 0.4 Kg

Subwoofer : 3.8 Kg

Subwoofer

3 Ω

40Hz~160Hz

88dB/W/M

55W

110W

*: Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

- Design and specifications are subject to change without prior notice.

- For the power supply and Power Consumption, refer to the label attached to the product.

English

English

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Area

`

North America

Canada

Mexico

Contact Center

Web Site

1-800-SAMSUNG (726-7864) www.samsung.com

01-800-SAMSUNG (726-7864) www.samsung.com

1-800-SAMSUNG (726-7864) www.samsung.com

U.S.A

`

Latin America

Argentine

Brazil

0800-333-3733

0800-124-421

4004-0000 www.samsung.com

www.samsung.com

Chile

Nicaragua

Honduras

800-SAMSUNG (726-7864)

00-1800-5077267

800-7919267 www.samsung.com

www.samsung.com

www.samsung.com

Costa Rica

Ecuador

El Salvador

Guatemala

0-800-507-7267

1-800-10-7267

800-6225

1-800-299-0013

Jamaica

Panama

1-800-234-7267

800-7267

Puerto Rico 1-800-682-3180

Rep. Dominica 1-800-751-2676

Trinidad &

Tobago

Venezuela

Colombia

`

Europe www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

1-800-SAMSUNG (726-7864) www.samsung.com

0-800-100-5303

01-8000112112 www.samsung.com

www.samsung.com

Austria

0810 - SAMSUNG

(7267864, € 0.07/min) www.samsung.com

Belgium 02-201-24-18 www.samsung.com/ be (Dutch) www.samsung.com/ be_fr (French)

Czech

Denmark

Finland

France

Germany

800 - SAMSUNG

(800-726786)

70 70 19 70

030 - 6227 515

01 48 63 00 00

01805 - SAMSUNG

(726-7864 € 0,14/Min) www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

Hungary

Italia

Luxemburg

Netherlands

Norway

Poland

Portugal

Slovakia

Spain

Sweden

U.k

Eire

06-80-SAMSUNG (726-7864) www.samsung.com

800-SAMSUNG (726-7864) www.samsung.com

261 03 710 www.samsung.com

0900-SAMSUNG

(0900-7267864) (€ 0,10/Min) www.samsung.com

815-56 480

0 801 1SAMSUNG (172678)

022-607-93-33 www.samsung.com

www.samsung.com

80820-SAMSUNG (726-7864) www.samsung.com

0800-SAMSUNG (726-7864) www.samsung.com

902 - 1 - SAMSUNG

(902 172 678) www.samsung.com

0771 726 7864 (SAMSUNG) www.samsung.com

0845 SAMSUNG (7267864) www.samsung.com

0818 717100 www.samsung.com

Area

Switzerland

Lithuania

Latvia

Estonia

`

CIS

Russia

Georgia

Armenia

Azerbaijan kazakhstan

Uzbekistan kyrgyzstan

Tadjikistan

Contact Center

0848 - SAMSUNG (7267864,

CHF 0.08/min)

8-800-77777

8000-7267

800-7267

Web Site www.samsung.com/ch www.samsung.com/ ch_fr/ (French) www.samsung.com

www.samsung.com

www.samsung.com

Ukraine

8-800-555-55-55

8-800-555-555

0-800-05-555

088-55-55-555

8-10-800-500-55-500

8-10-800-500-55-500

00-800-500-55-500

8-10-800-500-55-500

0-800-502-000 www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.ua www.samsung.com/ ua_ru

Belarus

Moldova

`

Asia Pacific

Australia

New Zealand

China

810-800-500-55-500

00-800-500-55-500

1300 362 603 www.samsung.com

0800 SAMSUNG (0800 726 786) www.samsung.com

400-810-5858

010-6475 1880 www.samsung.com

Hong kong

India

Indonesia

Japan

Malaysia

Philippines

(852) 3698-4698 www.samsung.com/ hk www.samsung.com/ hk_en/

3030 8282

1800 110011

1800 3000 8282

1800 266 8282

0800-112-8888

021-5699-7777 www.samsung.com

www.samsung.com

0120-327-527

1800-88-9999 www.samsung.com

www.samsung.com

1-800-10-SAMSUNG

(726-7864)

1-800-3-SAMSUNG

(726-7864)

1-800-8-SAMSUNG

(726-7864)

02-5805777 www.samsung.com

1800-SAMSUNG (726-7864) www.samsung.com

Singapore

Thailand

1800-29-3232

02-689-3232

Taiwan

Vietnam

0800-329-999

1 800 588 889

`

Middle East & Africa

Turkey 444 77 11

South Africa

U.A.E

Bahrain

Jordan www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

0860-SAMSUNG (726-7864) www.samsung.com

800-SAMSUNG (726-7864) www.samsung.com

8000-4726

800-22273

AH68-02254K

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
