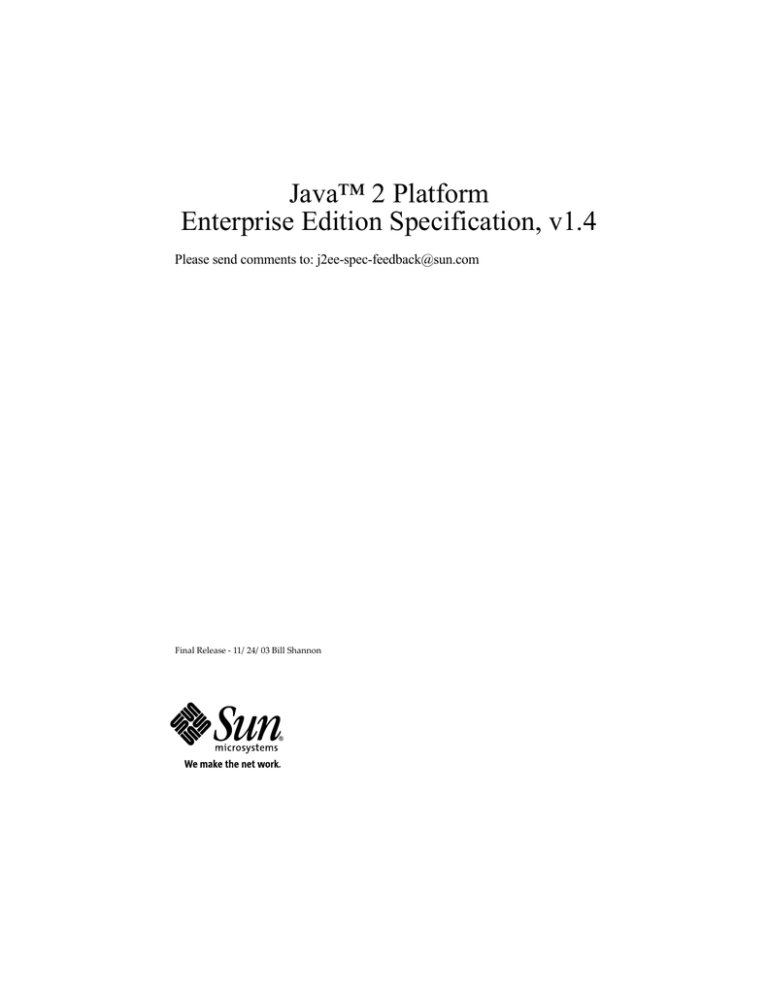

Java™ 2 Platform Enterprise Edition Specification

Java™ 2 Platform Enterprise Edition Specification

Java™ 2 Platform

Enterprise Edition Specification, v1.4

Please send comments to: [email protected]

Final Release - 11/24/03 Bill Shannon

ii

Java™ 2 Platform, Enterprise Edition (J2EE™) Specification ("Specification")

Version: 1.4

Status: Final Release

Release: November 24, 2003

Copyright 2003 Sun Microsystems, Inc.

4150 Network Circle, Santa Clara, California 95054, U.S.A.

All rights reserved.

NOTICE; LIMITED LICENSE GRANTS

Sun Microsystems, Inc. ("Sun") hereby grants you a fully-paid, non-exclusive, non-transferable, worldwide, limited license (without the right to sublicense), under the Sun’s applicable intellectual property rights to view, download, use and reproduce the Specification only for the purpose of internal evaluation, which shall be understood to include developing applications intended to run on an implementation of the Specification provided that such applications do not themselves implement any portion(s) of the Specification.

Sun also grants you a perpetual, non-exclusive, worldwide, fully paid-up, royalty free, limited license (without the right to sublicense) under any applicable copyrights or patent rights it may have in the Specification to create and/or distribute an Independent Implementation of the Specification that: (i) fully implements the

Spec(s) including all its required interfaces and functionality; (ii) does not modify, subset, superset or otherwise extend the Licensor Name Space, or include any public or protected packages, classes, Java interfaces, fields or methods within the Licensor Name Space other than those required/authorized by the Specification or Specifications being implemented; and (iii) passes the TCK (including satisfying the requirements of the applicable TCK Users Guide) for such Specification. The foregoing license is expressly conditioned on your not acting outside its scope. No license is granted hereunder for any other purpose.

You need not include limitations (i)-(iii) from the previous paragraph or any other particular "pass through" requirements in any license You grant concerning the use of your Independent Implementation or products derived from it. However, except with respect to implementations of the Specification (and products derived from them) that satisfy limitations (i)-(iii) from the previous paragraph, You may neither: (a) grant or otherwise pass through to your licensees any licenses under Sun’s applicable intellectual property rights; nor (b) authorize your licensees to make any claims concerning their implementation’s compliance with the Spec in question.

For the purposes of this Agreement: "Independent Implementation" shall mean an implementation of the

Specification that neither derives from any of Sun’s source code or binary code materials nor, except with an appropriate and separate license from Sun, includes any of Sun’s source code or binary code materials; and

"Licensor Name Space" shall mean the public class or interface declarations whose names begin with "java",

"javax", "com.sun" or their equivalents in any subsequent naming convention adopted by Sun through the

Java Community Process, or any recognized successors or replacements thereof.

This Agreement will terminate immediately without notice from Sun if you fail to comply with any material provision of or act outside the scope of the licenses granted above.

TRADEMARKS

No right, title, or interest in or to any trademarks, service marks, or trade names of Sun or Sun’s licensors is granted hereunder. Sun, Sun Microsystems, the Sun logo, Java, Jini, J2EE, JavaServer Pages, Enterprise JavaBeans, Java Compatible, JDK, JDBC, JavaBeans, JavaMail, Write Once, Run Anywhere, and Java Naming and Directory Interface are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.

DISCLAIMER OF WARRANTIES

iii

iv

THE SPECIFICATION IS PROVIDED "AS IS". SUN MAKES NO REPRESENTATIONS OR WARRAN-

TIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT, THAT

THE CONTENTS OF THE SPECIFICATION ARE SUITABLE FOR ANY PURPOSE OR THAT ANY

PRACTICE OR IMPLEMENTATION OF SUCH CONTENTS WILL NOT INFRINGE ANY THIRD

PARTY PATENTS, COPYRIGHTS, TRADE SECRETS OR OTHER RIGHTS. This document does not represent any commitment to release or implement any portion of the Specification in any product.

THE SPECIFICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL

ERRORS. CHANGES ARE PERIODICALLY ADDED TO THE INFORMATION THEREIN; THESE

CHANGES WILL BE INCORPORATED INTO NEW VERSIONS OF THE SPECIFICATION, IF ANY.

SUN MAY MAKE IMPROVEMENTS AND/OR CHANGES TO THE PRODUCT(S) AND/OR THE

PROGRAM(S) DESCRIBED IN THE SPECIFICATION AT ANY TIME. Any use of such changes in the

Specification will be governed by the then-current license for the applicable version of the Specification.

LIMITATION OF LIABILITY

TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL SUN OR ITS LICENSORS BE

LIABLE FOR ANY DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUE, PROFITS

OR DATA, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAM-

AGES, HOWEVER CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY, ARISING OUT

OF OR RELATED TO ANY FURNISHING, PRACTICING, MODIFYING OR ANY USE OF THE

SPECIFICATION, EVEN IF SUN AND/OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSI-

BILITY OF SUCH DAMAGES.

You will indemnify, hold harmless, and defend Sun and its licensors from any claims arising or resulting from: (i) your use of the Specification; (ii) the use or distribution of your Java application, applet and/or clean room implementation; and/or (iii) any claims that later versions or releases of any Specification furnished to you are incompatible with the Specification provided to you under this license.

RESTRICTED RIGHTS LEGEND

U.S. Government: If this Specification is being acquired by or on behalf of the U.S. Government or by a U.S.

Government prime contractor or subcontractor (at any tier), then the Government’s rights in the Specification and accompanying documentation shall be only as set forth in this license; this is in accordance with 48

C.F.R. 227.7201 through 227.7202-4 (for Department of Defense (DoD) acquisitions) and with 48 C.F.R.

2.101 and 12.212 (for non-DoD acquisitions).

REPORT

You may wish to report any ambiguities, inconsistencies or inaccuracies you may find in connection with your use of the Specification ("Feedback"). To the extent that you provide Sun with any Feedback, you hereby: (i) agree that such Feedback is provided on a non-proprietary and non-confidential basis, and (ii) grant Sun a perpetual, non-exclusive, worldwide, fully paid-up, irrevocable license, with the right to sublicense through multiple levels of sublicensees, to incorporate, disclose, and use without limitation the Feedback for any purpose related to the Specification and future versions, implementations, and test suites thereof.

(LFI#135810/Form ID#011801)

Contents

Java™ 2 Platform

Enterprise Edition Specification, v1.4 . . . . . . . . . . . . . . . . . i

J2EE.1

Introduction

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

J2EE.1.1

Acknowledgements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

J2EE.1.2

Acknowledgements for Version 1.3 . . . . . . . . . . . . . . . . . . . . . . 2

J2EE.1.3

Acknowledgements for Version 1.4 . . . . . . . . . . . . . . . . . . . . . . 3

J2EE.2

Platform Overview

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

J2EE.2.1

Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

J2EE.2.2

Application Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

J2EE.2.2.1

J2EE Server Support for Application Components . . . . 7

J2EE.2.3

Containers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

J2EE.2.3.1

Container Requirements . . . . . . . . . . . . . . . . . . . . . . . . 8

J2EE.2.3.2

J2EE Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

J2EE.2.4

Resource Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

J2EE.2.5

Database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

J2EE.2.6

J2EE Standard Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

J2EE.2.6.1

HTTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

J2EE.2.6.2

HTTPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

J2EE.2.6.3

Java™ Transaction API (JTA) . . . . . . . . . . . . . . . . . . 10

J2EE.2.6.4

RMI-IIOP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

J2EE.2.6.5

Java IDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

J2EE.2.6.6

JDBC™ API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

J2EE.2.6.7

Java™ Message Service (JMS) . . . . . . . . . . . . . . . . . . 11

J2EE.2.6.8

Java Naming and Directory Interface™ (JNDI) . . . . . 11

J2EE.2.6.9

JavaMail™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

v

vi

J2EE.2.6.10 JavaBeans™ Activation Framework (JAF). . . . . . . . . 11

J2EE.2.6.11 Java™ API for XML Parsing (JAXP). . . . . . . . . . . . . 11

J2EE.2.6.12 J2EE™ Connector Architecture . . . . . . . . . . . . . . . . . 12

J2EE.2.6.13 Security Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

J2EE.2.6.14 Web Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

J2EE.2.6.15 Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

J2EE.2.6.16 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

J2EE.2.7

Interoperability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

J2EE.2.8

Flexibility of Product Requirements . . . . . . . . . . . . . . . . . . . . 15

J2EE.2.9

J2EE Product Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

J2EE.2.10 Platform Roles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

J2EE.2.10.1 J2EE Product Provider . . . . . . . . . . . . . . . . . . . . . . . . 16

J2EE.2.10.2 Application Component Provider . . . . . . . . . . . . . . . . 17

J2EE.2.10.3 Application Assembler . . . . . . . . . . . . . . . . . . . . . . . . 17

J2EE.2.10.4 Deployer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

J2EE.2.10.5 System Administrator . . . . . . . . . . . . . . . . . . . . . . . . . 18

J2EE.2.10.6 Tool Provider. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

J2EE.2.10.7 System Component Provider. . . . . . . . . . . . . . . . . . . . 18

J2EE.2.11 Platform Contracts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

J2EE.2.11.1 J2EE APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

J2EE.2.11.2 J2EE Service Provider Interfaces (SPIs) . . . . . . . . . . . 19

J2EE.2.11.3 Network Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

J2EE.2.11.4 Deployment Descriptors . . . . . . . . . . . . . . . . . . . . . . . 19

J2EE.2.12 Changes in J2EE 1.3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

J2EE.2.13 Changes in J2EE 1.4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

J2EE.3

Security

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

J2EE.3.1

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

J2EE.3.2

A Simple Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

J2EE.3.3

Security Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

J2EE.3.3.1

Goals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

J2EE.3.3.2

Non Goals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

J2EE.3.3.3

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

J2EE.3.3.4

Container Based Security . . . . . . . . . . . . . . . . . . . . . . 30

J2EE.3.3.5

Distributed Security. . . . . . . . . . . . . . . . . . . . . . . . . . . 31

J2EE.3.3.6

Authorization Model . . . . . . . . . . . . . . . . . . . . . . . . . . 32

J2EE.3.3.7

HTTP Login Gateways . . . . . . . . . . . . . . . . . . . . . . . . 33

J2EE.3.3.8

User Authentication. . . . . . . . . . . . . . . . . . . . . . . . . . . 33

J2EE.3.3.9

Lazy Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . 36

J2EE.3.4

User Authentication Requirements. . . . . . . . . . . . . . . . . . . . . . 36

J2EE.3.4.1

Login Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

J2EE.3.4.2

Required Login Mechanisms. . . . . . . . . . . . . . . . . . . . 37

J2EE.3.4.3

Unauthenticated Users . . . . . . . . . . . . . . . . . . . . . . . . . 38

J2EE.3.4.4

Application Client User Authentication . . . . . . . . . . . 38

J2EE.3.4.5

Resource Authentication Requirements . . . . . . . . . . . 39

J2EE.3.5

Authorization Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

J2EE.3.5.1

Code Authorization . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

J2EE.3.5.2

Caller Authorization . . . . . . . . . . . . . . . . . . . . . . . . . . 41

J2EE.3.5.3

Propagated Caller Identities. . . . . . . . . . . . . . . . . . . . . 41

J2EE.3.5.4

Run As Identities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

J2EE.3.6

Deployment Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

J2EE.3.7

Future Directions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

J2EE.3.7.1

Auditing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

J2EE.3.7.2

Instance-based Access Control . . . . . . . . . . . . . . . . . . 43

J2EE.3.7.3

User Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

J2EE.4

Transaction Management

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

45

J2EE.4.1

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

J2EE.4.2

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

J2EE.4.2.1

Web Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

J2EE.4.2.2

Transactions in Web Component Life Cycles . . . . . . . 48

J2EE.4.2.3

Transactions and Threads . . . . . . . . . . . . . . . . . . . . . . 49

J2EE.4.2.4

Enterprise JavaBeans™ Components . . . . . . . . . . . . . 49

J2EE.4.2.5

Application Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

J2EE.4.2.6

Applet Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

J2EE.4.2.7

Transactional JDBC™ Technology Support . . . . . . . . 50

J2EE.4.2.8

Transactional JMS Support . . . . . . . . . . . . . . . . . . . . . 50

J2EE.4.2.9

Transactional Resource Adapter (Connector) Support 51

J2EE.4.3

Transaction Interoperability . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

J2EE.4.3.1

Multiple J2EE Platform Interoperability . . . . . . . . . . . 51

J2EE.4.3.2

Support for Transactional Resource Managers . . . . . . 51

J2EE.4.4

Local Transaction Optimization . . . . . . . . . . . . . . . . . . . . . . . . 52

J2EE.4.4.1

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

J2EE.4.4.2

A Possible Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

J2EE.4.5

Connection Sharing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

J2EE.4.6

JDBC and JMS Deployment Issues . . . . . . . . . . . . . . . . . . . . . 54

J2EE.4.7

Two-Phase Commit Support. . . . . . . . . . . . . . . . . . . . . . . . . . . 54

J2EE.4.8

System Administration Tools . . . . . . . . . . . . . . . . . . . . . . . . . . 55

vii

viii

J2EE.5

Naming

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

57

J2EE.5.1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

J2EE.5.1.1

Chapter Organization . . . . . . . . . . . . . . . . . . . . . . . . . 57

J2EE.5.1.2

Required Access to the JNDI Naming Environment. . 58

J2EE.5.2

Java Naming and Directory Interface™ (JNDI) Naming Context

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

J2EE.5.2.1

Application Component Provider’s Responsibilities . 60

J2EE.5.2.2

Application Assembler’s Responsibilities. . . . . . . . . . 63

J2EE.5.2.3

Deployer’s Responsibilities. . . . . . . . . . . . . . . . . . . . . 63

J2EE.5.2.4

J2EE Product Provider’s Responsibilities . . . . . . . . . . 63

J2EE.5.3

Enterprise JavaBeans™ (EJB) References. . . . . . . . . . . . . . . . 64

J2EE.5.3.1

Application Component Provider’s Responsibilities . 64

J2EE.5.3.2

Application Assembler’s Responsibilities. . . . . . . . . . 67

J2EE.5.3.3

Deployer’s Responsibilities. . . . . . . . . . . . . . . . . . . . . 68

J2EE.5.3.4

J2EE Product Provider’s Responsibilities . . . . . . . . . . 69

J2EE.5.4

Resource Manager Connection Factory References. . . . . . . . . 69

J2EE.5.4.1

Application Component Provider’s Responsibilities . 70

J2EE.5.4.2

Deployer’s Responsibilities. . . . . . . . . . . . . . . . . . . . . 74

J2EE.5.4.3

J2EE Product Provider’s Responsibilities . . . . . . . . . . 74

J2EE.5.4.4

System Administrator’s Responsibilities . . . . . . . . . . 76

J2EE.5.5

Resource Environment References. . . . . . . . . . . . . . . . . . . . . . 76

J2EE.5.5.1

Application Component Provider’s Responsibilities . 76

J2EE.5.5.2

Deployer’s Responsibilities. . . . . . . . . . . . . . . . . . . . . 77

J2EE.5.5.3

J2EE Product Provider’s Responsibilities . . . . . . . . . . 78

J2EE.5.6

Message Destination References . . . . . . . . . . . . . . . . . . . . . . . 78

J2EE.5.6.1

Application Component Provider’s Responsibilities . 78

J2EE.5.6.2

Application Assembler’s Responsibilities. . . . . . . . . . 80

J2EE.5.6.3

Deployer’s Responsibilities. . . . . . . . . . . . . . . . . . . . . 82

J2EE.5.6.4

J2EE Product Provider’s Responsibilities . . . . . . . . . . 82

J2EE.5.7

UserTransaction References . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

J2EE.5.7.1

Application Component Provider’s Responsibilities . 83

J2EE.5.7.2

Deployer’s Responsibilities. . . . . . . . . . . . . . . . . . . . . 83

J2EE.5.7.3

J2EE Product Provider’s Responsibilities . . . . . . . . . . 83

J2EE.5.7.4

System Administrator’s Responsibilities . . . . . . . . . . 84

J2EE.5.8

ORB References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

J2EE.5.8.1

Application Component Provider’s Responsibilities . 84

J2EE.5.8.2

Deployer’s Responsibilities. . . . . . . . . . . . . . . . . . . . . 84

J2EE.5.8.3

J2EE Product Provider’s Responsibilities . . . . . . . . . . 84

J2EE.5.8.4

System Administrator’s Responsibilities . . . . . . . . . . 84

J2EE.6

Application Programming Interface

. . . . . . . . . . . . . . . . . . .

85

J2EE.6.1

Required APIs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

J2EE.6.1.1

Java Compatible APIs . . . . . . . . . . . . . . . . . . . . . . . . . 85

J2EE.6.1.2

Java Optional Packages . . . . . . . . . . . . . . . . . . . . . . . . 86

J2EE.6.2

Java 2 Platform, Standard Edition (J2SE) Requirements . . . . . 87

J2EE.6.2.1

Programming Restrictions . . . . . . . . . . . . . . . . . . . . . . 87

J2EE.6.2.2

The J2EE Security Permissions Set. . . . . . . . . . . . . . . 88

J2EE.6.2.3

Listing of the J2EE Security Permissions Set . . . . . . . 89

J2EE.6.2.4

Additional Requirements . . . . . . . . . . . . . . . . . . . . . . . 90

J2EE.6.3

Enterprise JavaBeans™ (EJB) 2.1 Requirements. . . . . . . . . . 101

J2EE.6.4

Servlet 2.4 Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

J2EE.6.5

JavaServer Pages™ (JSP) 2.0 Requirements . . . . . . . . . . . . . 103

J2EE.6.6

Java™ Message Service (JMS) 1.1 Requirements . . . . . . . . . 103

J2EE.6.7

Java™ Transaction API (JTA) 1.0 Requirements . . . . . . . . . 104

J2EE.6.8

JavaMail™ 1.3 Requirements. . . . . . . . . . . . . . . . . . . . . . . . . 104

J2EE.6.9

JavaBeans™ Activation Framework 1.0 Requirements . . . . . 106

J2EE.6.10 Java™ API for XML Processing (JAXP) 1.2 Requirements . 106

J2EE.6.11 J2EE™ Connector Architecture 1.5 Requirements . . . . . . . . 107

J2EE.6.12 Web Services for J2EE 1.1 Requirements . . . . . . . . . . . . . . . 107

J2EE.6.13 Java™ API for XML-based RPC (JAX-RPC) 1.1 Requirements

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

J2EE.6.14 SOAP with Attachments API for Java™ (SAAJ) 1.2 . . . . . . 108

J2EE.6.15 Java™ API for XML Registries (JAXR) 1.0 Requirements . 108

J2EE.6.16 Java™ 2 Platform, Enterprise Edition Management API 1.0 Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

J2EE.6.17 Java™ Management Extensions (JMX) 1.2 Requirements . . 109

J2EE.6.18 Java™ 2 Platform, Enterprise Edition Deployment API 1.1 Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

J2EE.6.19 Java™ Authorization Service Provider Contract for Containers

(JACC) 1.0 Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

J2EE.7

Interoperability

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

111

J2EE.7.1

Introduction to Interoperability. . . . . . . . . . . . . . . . . . . . . . . . 111

J2EE.7.2

Interoperability Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

J2EE.7.2.1

Internet and Web Protocols . . . . . . . . . . . . . . . . . . . . 112

J2EE.7.2.2

OMG Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

J2EE.7.2.3

Java Technology Protocols . . . . . . . . . . . . . . . . . . . . 114

ix

x

J2EE.7.2.4

Data Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

J2EE.8

Application Assembly and Deployment

. . . . . . . . . . . . . . .

117

J2EE.8.1

Application Development Life Cycle. . . . . . . . . . . . . . . . . . . 118

J2EE.8.1.1

Component Creation . . . . . . . . . . . . . . . . . . . . . . . . . 119

J2EE.8.1.2

Application Assembly . . . . . . . . . . . . . . . . . . . . . . . . 120

J2EE.8.1.3

Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

J2EE.8.2

Optional Package Support . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

J2EE.8.3

Application Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

J2EE.8.3.1

Assembling a J2EE Application . . . . . . . . . . . . . . . . 124

J2EE.8.3.2

Adding and Removing Modules . . . . . . . . . . . . . . . . 126

J2EE.8.4

Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

J2EE.8.4.1

Deploying a Stand-Alone J2EE Module . . . . . . . . . . 128

J2EE.8.4.2

Deploying a J2EE Application . . . . . . . . . . . . . . . . . 129

J2EE.8.4.3

Deploying an Optional Package . . . . . . . . . . . . . . . . 130

J2EE.8.5

J2EE Application XML Schema . . . . . . . . . . . . . . . . . . . . . . 130

J2EE.8.6

Common J2EE XML Schema Definitions . . . . . . . . . . . . . . . 138

J2EE.9

Application Clients

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

175

J2EE.9.1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

J2EE.9.2

Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

J2EE.9.3

Transactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

J2EE.9.4

Naming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

J2EE.9.5

Application Programming Interfaces . . . . . . . . . . . . . . . . . . . 177

J2EE.9.6

Packaging and Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . 177

J2EE.9.7

J2EE Application Client XML Schema . . . . . . . . . . . . . . . . . 178

J2EE.10

Service Provider Interface

. . . . . . . . . . . . . . . . . . . . . . . . . . .

187

J2EE.11

Future Directions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

189

J2EE.11.1 XML Data Binding API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

J2EE.11.2 JNLP (Java™ Web Start) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

J2EE.11.3 J2EE SPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

J2EE.11.4 JDBC RowSets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

J2EE.11.5 Security APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

J2EE.11.6 SQLJ Part 0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Appendix J2EE.A: Previous Version DTDs . . . . . . . . . . . . . . . . . . . .193

J2EE.A.1 J2EE:application 1.3 XML DTD . . . . . . . . . . . . . . . . . . . . . . 193

J2EE.A.2 J2EE:application 1.2 XML DTD . . . . . . . . . . . . . . . . . . . . . . 199

J2EE.A.3 J2EE:application-client 1.3 XML DTD . . . . . . . . . . . . . . . . . 204

J2EE.A.4 J2EE:application-client 1.2 XML DTD . . . . . . . . . . . . . . . . . 213

Appendix J2EE.B: Revision History . . . . . . . . . . . . . . . . . . . . . . . . . 221

J2EE.B.1 Changes in Expert Draft 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 221

J2EE.B.1.1

Additional Requirements . . . . . . . . . . . . . . . . . . . . . . 221

J2EE.B.1.2

Removed Requirements. . . . . . . . . . . . . . . . . . . . . . . 222

J2EE.B.1.3

Editorial Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

J2EE.B.2 Changes in Expert Draft 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

J2EE.B.2.1

Additional Requirements . . . . . . . . . . . . . . . . . . . . . . 222

J2EE.B.2.2

Removed Requirements. . . . . . . . . . . . . . . . . . . . . . . 223

J2EE.B.2.3

Editorial Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . 223

J2EE.B.3 Changes in Community Draft . . . . . . . . . . . . . . . . . . . . . . . . . 224

J2EE.B.3.1

Additional Requirements . . . . . . . . . . . . . . . . . . . . . . 224

J2EE.B.3.2

Removed Requirements. . . . . . . . . . . . . . . . . . . . . . . 224

J2EE.B.3.3

Editorial Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . 224

J2EE.B.4 Changes in Public Draft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224

J2EE.B.4.1

Additional Requirements . . . . . . . . . . . . . . . . . . . . . . 224

J2EE.B.4.2

Removed Requirements. . . . . . . . . . . . . . . . . . . . . . . 225

J2EE.B.4.3

Editorial Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

J2EE.B.5 Changes in Proposed Final Draft . . . . . . . . . . . . . . . . . . . . . . 225

J2EE.B.5.1

Additional Requirements . . . . . . . . . . . . . . . . . . . . . . 225

J2EE.B.5.2

Removed Requirements. . . . . . . . . . . . . . . . . . . . . . . 226

J2EE.B.5.3

Editorial Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . 226

J2EE.B.6 Changes in Proposed Final Draft 2 . . . . . . . . . . . . . . . . . . . . . 226

J2EE.B.6.1

Additional Requirements . . . . . . . . . . . . . . . . . . . . . . 226

J2EE.B.6.2

Removed Requirements. . . . . . . . . . . . . . . . . . . . . . . 226

J2EE.B.6.3

Editorial Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . 226

J2EE.B.7 Changes in Proposed Final Draft 3 . . . . . . . . . . . . . . . . . . . . . 227

J2EE.B.7.1

Additional Requirements . . . . . . . . . . . . . . . . . . . . . . 227

J2EE.B.7.2

Removed Requirements. . . . . . . . . . . . . . . . . . . . . . . 227

J2EE.B.7.3

Editorial Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

J2EE.B.8 Changes in Final Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

J2EE.B.8.1

Additional Requirements . . . . . . . . . . . . . . . . . . . . . . 227

J2EE.B.8.2

Removed Requirements. . . . . . . . . . . . . . . . . . . . . . . 227

J2EE.B.8.3

Editorial Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

Appendix J2EE.C: Related Documents . . . . . . . . . . . . . . . . . . . . . . . 229

xi

xii

C H A P T E R

J2EE.1

Introduction

E

nterprises today need to extend their reach, reduce their costs, and lower the response times of their services to customers, employees, and suppliers.

Typically, applications that provide these services must combine existing enterprise information systems (EISs) with new business functions that deliver services to a broad range of users. The services need to be:

Highly available, to meet the needs of today’s global business environment.

Secure, to protect the privacy of users and the integrity of the enterprise.

Reliable and scalable, to ensure that business transactions are accurately and promptly processed.

In most cases, enterprise services are implemented as multitier applications.

The middle tiers integrate existing EISs with the business functions and data of the new service. Maturing web technologies are used to provide first tier users with easy access to business complexities, and eliminate or drastically reduce user administration and training.

The Java™ 2 Platform, Enterprise Edition (J2EE™) reduces the cost and complexity of developing multitier, enterprise services. J2EE applications can be rapidly deployed and easily enhanced as the enterprise responds to competitive pressures.

J2EE achieves these benefits by defining a standard architecture with the following elements:

J2EE Platform - A standard platform for hosting J2EE applications.

J2EE Compatibility Test Suite - A suite of compatibility tests for verifying that a J2EE platform product complies with the J2EE platform standard.

1

2

INTRODUCTION

J2EE Reference Implementation - A reference implementation for prototyping J2EE applications and for providing an operational definition of the

J2EE platform.

J2EE BluePrints - A set of best practices for developing multitier, thin-client services.

This document is the J2EE platform specification. It sets out the requirements that a J2EE platform product must meet.

J2EE.1.1

Acknowledgements

This specification is the work of many people. Vlada Matena wrote the first draft as well as the Transaction Management and Naming chapters. Sekhar Vajjhala, Kevin

Osborn, and Ron Monzillo wrote the Security chapter. Hans Hrasna wrote the

Application Assembly and Deployment chapter. Seth White wrote the JDBC API requirements. Jim Inscore, Eric Jendrock, and Beth Stearns provided editorial assistance. Shel Finkelstein, Mark Hapner, Danny Coward, Tom Kincaid, and Tony

Ng provided feedback on many drafts. And of course this specification was formed and molded based on conversations with and review feedback from our many industry partners.

J2EE.1.2

Acknowledgements for Version 1.3

Version 1.3 of this specification grew out of discussions with our partners during the creation of version 1.2, as well as meetings with those partners subsequent to the final release of version 1.2. Version 1.3 was created under the Java Community

Process as JSR-058. The JSR-058 Expert Group included representatives from the following companies and organizations: Allaire, BEA Systems, Bluestone Software,

Borland, Bull S.A., Exoffice, Fujitsu Limited, GemStone Systems, Inc., IBM, Inline

Software, IONA Technologies, iPlanet, jGuru.com, Orion Application Server,

Persistence, POET Software, SilverStream, Sun, and Sybase. In addition, most of the people who helped with the previous version continued to help with this version, along with Jon Ellis and Ram Jeyaraman. Alfred Towell provided significant editorial assistance with this version.

Acknowledgements for Version 1.4

J2EE.1.3

Acknowledgements for Version 1.4

Version 1.4 of this specification was created under the Java Community Process as

JSR-151. The JSR-151 Expert Group included the following members: Larry W.

Allen (SilverStream Software), Karl Avedal (Individual), Charlton Barreto

(Borland Software Corporation), Edward Cobb (BEA), Alan Davies (SeeBeyond

Technology Corporation), Sreeram Duvvuru (iPlanet), B.J. Fesq (Individual),

Mark Field (Macromedia), Mark Hapner (Sun Microsystems, Inc.), Pierce Hickey

(IONA), Hemant Khandelwal (Pramati Technologies), Jim Knutson (IBM), Elika

S. Kohen (Individual), Ramesh Loganathan (Pramati Technologies), Jasen Minton

(Oracle Corporation), Jeff Mischkinsky (Oracle Corporation), Richard Monson-

Haefel (Individual), Sean Neville (Macromedia), Bill Shannon (Sun Microsystems,

Inc.), Simon Tuffs (Lutris Technologies), Jeffrey Wang (Persistence Software,

Inc.), and Ingo Zenz (SAP AG). My colleagues at Sun provided invaluable assistance: Umit Yalcinalp converted the deployment descriptors to XML Schema;

Tony Ng and Sanjeev Krishnan helped with transaction requirements; Jonathan

Bruce helped with JDBC requirements; Suzette Pelouch, Eric Jendrock, and Ian

Evans provided editorial assistance. Thanks also to all the external reviewers, including Jeff Estefan (Adecco Technical Services).

3

4

INTRODUCTION

C H A P T E R

J2EE.2

Platform Overview

T

his chapter provides an overview of the Java™ 2 Platform, Enterprise Edition

(J2EE™).

J2EE.2.1

Architecture

The required relationships of architectural elements of the J2EE platform are shown

in Figure J2EE.2-1. Note that this figure shows the logical relationships of the

elements; it is not meant to imply a physical partitioning of the elements into separate machines, processes, address spaces, or virtual machines.

The Containers, denoted by the separate rectangles, are J2EE runtime environments that provide required services to the application components represented in the upper half of the rectangle. The services provided are denoted by the boxes in the lower half of the rectangle. For example, the Application

Client Container provides Java Message Service (JMS) APIs to Application

Clients, as well as the other services represented. All these services are explained

below. See Section J2EE.2.6, “J2EE Standard Services”.

The arrows represent required access to other parts of the J2EE platform. The

Application Client Container provides Application Clients with direct access to the J2EE required Database through the Java API for connectivity with database systems, the JDBC

TM

API. Similar access to databases is provided to JSP pages and servlets by the Web Container, and to enterprise beans by the EJB Container.

As indicated the APIs of the Java

TM

2 Platform, Standard Edition (J2SE

TM

), are supported by J2SE runtime environments for each type of application component.

5

6

PLATFORM OVERVIEW

Applet Container

Applet

HTTP

SSL

Web Container

JSP

Servlet

EJB Container

EJB

J2SE

HTTP

SSL

JAX-

RPC

SAAJ

Mgmt

JMX

J2SE

Java

Mail

JAF

JAX-

RPC

SAAJ

Mgmt

JMX

J2SE

Java

Mail

JAF

Application Client

Container

Application

Client

JAX-

RPC

SAAJ

Mgmt

JMX

J2SE

Database

New in J2EE 1.4

Figure J2EE.2-1

J2EE Architecture Diagram

The following sections describe the J2EE Platform requirements for each kind of J2EE platform element.

J2EE.2.2

Application Components

The J2EE runtime environment defines four application component types that a

J2EE product must support:

• Application clients are Java programming language programs that are typically

GUI programs that execute on a desktop computer. Application clients offer a user experience similar to that of native applications, and have access to all of the facilities of the J2EE middle tier.

• Applets are GUI components that typically execute in a web browser, but can execute in a variety of other applications or devices that support the applet programming model. Applets can be used to provide a powerful user interface for J2EE applications. (Simple HTML pages can also be used to provide a more limited user interface for J2EE applications.)

Application Components

• Servlets, JSP pages, filters, and web event listeners typically execute in a web container and may respond to HTTP requests from web clients. Servlets, JSP pages, and filters may be used to generate HTML pages that are an application’s user interface. They may also be used to generate XML or other format data that is consumed by other application components. A special kind of servlet provides support for web services using the SOAP/HTTP protocol.

Servlets, pages created with the JavaServer Pages™ technology, web filters, and web event listeners are referred to collectively in this specification as

“web components.” Web applications are composed of web components and other data such as HTML pages. Web components execute in a web container.

A web server includes a web container and other protocol support, security support, and so on, as required by J2EE specifications.

• Enterprise JavaBeans™ (EJB) components execute in a managed environment that supports transactions. Enterprise beans typically contain the business logic for a J2EE application. Enterprise beans may directly provide web services using the SOAP/HTTP protocol.

7

J2EE.2.2.1

J2EE Server Support for Application Components

The J2EE servers provide deployment, management, and execution support for conforming application components. Application components can be divided into three categories according to their dependence on a J2EE server:

• Components that are deployed, managed, and executed on a J2EE server.

These components include web components and Enterprise JavaBeans components. See the separate specifications for these components.

• Components that are deployed and managed on a J2EE server, but are loaded to and executed on a client machine. These components include web resources such as HTML pages and applets embedded in HTML pages.

• Components whose deployment and management is not completely defined by this specification. Application Clients fall into this category. Future versions of this specification may more fully define deployment and management of

Application Clients. See Chapter J2EE.9, “Application Clients” for a descrip-

tion of Application Clients.

8

PLATFORM OVERVIEW

J2EE.2.3

Containers

Containers provide the runtime support for J2EE application components.

Containers provide a federated view of the underlying J2EE APIs to the application components. J2EE application components never interact directly with other J2EE application components. They use the protocols and methods of the container for interacting with each other and with platform services. Interposing a container between the application components and the J2EE services allows the container to transparently inject the services defined by the components’ deployment descriptors, such as declarative transaction management, security checks, resource pooling, and state management.

A typical J2EE product will provide a container for each application component type: application client container, applet container, web component container, and enterprise bean container.

J2EE.2.3.1

Container Requirements

This specification requires that containers provide a Java Compatible™ runtime environment, as defined by the Java 2 Platform, Standard Edition, v1.4 specification

(J2SE). The applet container may use the Java Plugin product to provide this environment, or it may provide it natively. The use of applet containers providing

JDK™ 1.1 APIs is outside the scope of this specification.

The container tools must understand the file formats for the packaging of application components for deployment.

The containers are implemented by a J2EE Product Provider. See the

description of the Product Provider role in Section J2EE.2.10.1, “J2EE Product

Provider“.

This specification defines a set of standard services that each J2EE product must support. These standard services are described below. The J2EE containers provide the APIs that application components use to access these services. This specification also describes standard ways to extend J2EE services with connectors to other non-J2EE application systems, such as mainframe systems and ERP systems.

J2EE.2.3.2

J2EE Servers

Underlying a J2EE container is the server of which it is a part. A J2EE Product

Provider typically implements the J2EE server-side functionality using an existing transaction processing infrastructure in combination with Java 2 Platform, Standard

Resource Adapters

Edition (J2SE) technology. The J2EE client functionality is typically built on J2SE technology.

9

J2EE.2.4

Resource Adapters

A resource adapter is a system-level software component that implements network connectivity to an external resource manager. A resource adapter can extend the functionality of the J2EE platform either by implementing one of the J2EE standard service APIs (such as a JDBC™ driver), or by defining and implementing a resource adapter for a connector to an external application system. Resource adpaters interface with the J2EE platform through the J2EE service provider interfaces (J2EE

SPI). A resource adpater that uses the J2EE SPIs to attach to the J2EE platform will be able to work with all J2EE products.

J2EE.2.5

Database

The J2EE platform requires a database, accessible through the JDBC API, for the storage of business data. The database is accessible from web components, enterprise beans, and application client components. The database need not be accessible from applets.

J2EE.2.6

J2EE Standard Services

The J2EE standard services include the following (specified in more detail later in this document). Some of these standard services are actually provided by J2SE.

J2EE.2.6.1

HTTP

The HTTP client-side API is defined by the java.net

package. The HTTP serverside API is defined by the servlet and JSP interfaces.

J2EE.2.6.2

HTTPS

Use of the HTTP protocol over the SSL protocol is supported by the same client and server APIs as HTTP.

10

PLATFORM OVERVIEW

J2EE.2.6.3

Java™ Transaction API (JTA)

The Java Transaction API consists of two parts:

• An application-level demarcation interface that is used by the container and application components to demarcate transaction boundaries.

• An interface between the transaction manager and a resource manager used at the J2EE SPI level (in a future release).

J2EE.2.6.4

RMI-IIOP

The RMI-IIOP subsystem is composed of APIs that allow for the use of RMI-style programming that is independent of the underlying protocol, as well as an implementation of those APIs that supports both the J2SE native RMI protocol

(JRMP) and the CORBA IIOP protocol. J2EE applications can use RMI-IIOP, with

IIOP protocol support, to access CORBA services that are compatible with the RMI programming restrictions (see the RMI-IIOP spec for details). Such CORBA services would typically be defined by components that live outside of a J2EE product, usually in a legacy system. Only J2EE application clients are required to be able to define their own CORBA services directly, using the RMI-IIOP APIs.

Typically such CORBA objects would be used for callbacks when accessing other

CORBA objects.

J2EE applications are required to use the RMI-IIOP APIs (specifically the narrow method of javax.rmi.PortableRemoteObject

) when accessing Enterprise

JavaBeans components, as described in the EJB specification. This allows enterprise beans to be protocol independent. In addition, J2EE products must be capable of exporting enterprise beans using the IIOP protocol, and accessing enterprise beans using the IIOP protocol, as specified in the EJB specification.

The ability to use the IIOP protocol is required to enable interoperability between

J2EE products, however a J2EE product may also use other protocols.

J2EE.2.6.5

Java IDL

Java IDL allows J2EE application components to invoke external CORBA objects using the IIOP protocol. These CORBA objects may be written in any language and typically live outside a J2EE product. J2EE applications may use Java IDL to act as clients of CORBA services, but only J2EE application clients are required to be allowed to use Java IDL directly to present CORBA services themselves.

J2EE Standard Services

J2EE.2.6.6

JDBC™ API

The JDBC API is the API for connectivity with relational database systems. The

JDBC API has two parts: an application-level interface used by the application components to access a database, and a service provider interface to attach a JDBC driver to the J2EE platform. Support for the service provider interface is not required in J2EE products.

11

J2EE.2.6.7

Java™ Message Service (JMS)

The Java Message Service is a standard API for messaging that supports reliable point-to-point messaging as well as the publish-subscribe model. This specification requires a JMS provider that implements both point-to-point messaging as well as publish-subscribe messaging.

J2EE.2.6.8

Java Naming and Directory Interface™ (JNDI)

The JNDI API is the standard API for naming and directory access. The JNDI API has two parts: an application-level interface used by the application components to access naming and directory services and a service provider interface to attach a provider of a naming and directory service.

J2EE.2.6.9

JavaMail™

Many Internet applications require the ability to send email notifications, so the

J2EE platform includes the JavaMail API along with a JavaMail service provider that allows an application component to send Internet mail. The JavaMail API has two parts: an application-level interface used by the application components to send mail, and a service provider interface used at the J2EE SPI level.

J2EE.2.6.10

JavaBeans™ Activation Framework (JAF)

The JAF API provides a framework for handling data in different MIME types, originating in different formats and locations. The JavaMail API makes use of the

JAF API, so it must be included as well.

J2EE.2.6.11

Java™ API for XML Parsing (JAXP)

JAXP provides support for the industry standard SAX and DOM APIs for parsing

XML documents, as well as support for XSLT transform engines.

12

PLATFORM OVERVIEW

J2EE.2.6.12

J2EE™ Connector Architecture

The Connector architecture is a J2EE SPI that allows resource adapters that support access to Enterprise Information Systems to be plugged in to any J2EE product. The

Connector architecture defines a standard set of system-level contracts between a

J2EE server and a resource adapter. The standard contracts include:

• A connection management contract that lets a J2EE server pool connections to an underlying EIS, and lets application components connect to an EIS. This leads to a scalable application environment that can support a large number of clients requiring access to EIS systems.

• A transaction management contract between the transaction manager and an

EIS that supports transactional access to EIS resource managers. This contract lets a J2EE server use a transaction manager to manage transactions across multiple resource managers. This contract also supports transactions that are managed internal to an EIS resource manager without the necessity of involving an external transaction manager.

• A security contract that enables secure access to an EIS. This contract provides support for a secure application environment, which reduces security threats to the EIS and protects valuable information resources managed by the

EIS.

• A thread management contract that allows a resource adapter to delegate work to other threads and allows the application server to manage a pool of threads.

The resource adapter can control the security context and transaction context used by the worker thread.

• A contract that allows a resource adapter to deliver messages to message driven beans independent of the specific messaging style, messaging semantics, and messaging infrastructure used to deliver messages. This contract also serves as the standard message provider pluggability contract that allows a message provider to be plugged into any J2EE server via a resource adapter.

• A contract that allows a resource adapter to propagate an imported transaction context to the J2EE server such that its interactions with the server and any application components are part of the imported transaction. This contract preserves the ACID (atomicity, consistency, isolation, durability) properties of the imported transaction.

• An optional contract providing a generic command interface between an application program and a resource adapter.

J2EE Standard Services

J2EE.2.6.13

Security Services

The Java™ Authentication and Authorization Service (JAAS) enables services to authenticate and enforce access controls upon users. It implements a Java technology version of the standard Plugable Authentication Module (PAM) framework, and extends the access control architecture of the Java 2 Platform in a compatible fashion to support user-based authorization. The Java™ Authorization

Service Provider Contract for Containers (JACC) defines a contract between a J2EE application server and an authroization service provider, allowing custom authorization service providers to be plugged into any J2EE product.

13

J2EE.2.6.14

Web Services

J2EE provides full support for both clients of web services as well as web service endpoints. Several Java technologies work together to provide support for web services. The Java API for XML-based RPC (JAX-RPC) provides support for web service calls using the SOAP/HTTP protocol. JAX-RPC defines the mapping between Java classes and XML as used in SOAP RPC calls. The SOAP with

Attachments API for Java (SAAJ) provides support for manipulating low level

SOAP messages. The Web Services for J2EE specification fully defines the deployment of web service clients and web service endpoints in J2EE, as well as the implementation of web service endpoints using enterprise beans. The Java API for

XML Registries (JAXR) provides client access to XML registry servers.

J2EE.2.6.15

Management

The Java 2 Platform, Enterprise Edition Management Specification defines APIs for managing J2EE servers using a special management enterprise bean. The Java™

Management Extensions (JMX) API is also used to provide some management support.

J2EE.2.6.16

Deployment

The Java 2 Platform, Enterprise Edition Deployment Specification defines a contract between deployment tools and J2EE products. The J2EE products provide plug-in components that run in the deployment tool and allow the deployment tool to deploy

14

PLATFORM OVERVIEW

applications into the J2EE product. The deployment tool provides services used by these plug-in components.

JRMP

IIOP

HTTP

SSL

IIOP

JRMP

HTTP

SSL

SOAP

HTTP

IIOP

HTTP

SSL

JRMP

SOAP

HTTP

Applet

Container

Web

Container

EJB

Container

Application

Client

Container

EJB / IIOP / SSL

Database

J2EE Platform

JRMP IIOP

SOAP

HTTP

HTTP

SSL

Figure J2EE.2-2

J2EE Interoperability

J2EE.2.7

Interoperability

Many of the APIs described above provide interoperability with components that are not a part of the J2EE platform, such as external web or CORBA services.

Figure J2EE.2-2 illustrates the interoperability facilities of the J2EE platform.

(The directions of the arrows indicate the client/server relationships of the components.)

Flexibility of Product Requirements

J2EE.2.8

Flexibility of Product Requirements

This specification doesn’t require that a J2EE product be implemented by a single program, a single server, or even a single machine. In general, this specification doesn’t describe the partitioning of services or functions between machines, servers, or processes. As long as the requirements in this specification are met, J2EE Product

Providers can partition the functionality however they see fit. A J2EE product must be able to deploy application components that execute with the semantics described by this specification.

A typical low end J2EE product will support applets using the Java Plugin in one of the popular browsers, application clients each in their own Java virtual machine, and will provide a single server that supports both web components and enterprise beans. A high end J2EE product might split the server components into multiple servers, each of which can be distributed and load-balanced across a collection of machines. This specification does not prescribe or preclude any of these configurations.

A wide variety of J2EE product configurations and implementations, all of which meet the requirements of this specification, are possible. A portable J2EE application will function correctly when successfully deployed in any of these products.

15

J2EE.2.9

J2EE Product Extensions

This specification describes a minimum set of facilities that all J2EE products must provide. Most J2EE products will provide facilities beyond the minimum required by this specification. This specification includes only a few limits to the ability of a product to provide extensions. In particular, it includes the same restrictions as J2SE on extensions to Java APIs. A J2EE product may not add classes to the Java programming language packages included in this specification, and may not add methods or otherwise alter the signatures of the specified classes.

However, many other extensions are allowed. A J2EE product may provide additional Java APIs, either other Java optional packages or other (appropriately named) packages. A J2EE product may include support for additional protocols or services not specified here. A J2EE product may support applications written in other languages, or may support connectivity to other platforms or applications.

Of course, portable applications will not make use of any platform extensions.

Applications that do make use of facilities not required by this specification will be less portable. Depending on the facility used, the loss of portability may be minor or it may be significant. The document Designing Enterprise Applications

16

PLATFORM OVERVIEW

with the Java 2 Platform, Enterprise Edition supplies information to help application developers construct portable applications, and contains advice on how best to manage the use of non-portable code when the use of such facilities is necessary.

We expect J2EE products to vary widely and compete vigorously on various aspects of quality of service. Products will provide different levels of performance, scalability, robustness, availably, and security. In some cases this specification requires minimum levels of service. Future versions of this specification may allow applications to describe their requirements in these areas.

J2EE.2.10

Platform Roles

This section describes typical Java 2 Platform, Enterprise Edition roles. In an actual instance, an organization may divide role functionality differently to match that organization’s application development and deployment workflow.

The roles are described in greater detail in later sections of this specification.

Relevant subsets of these roles are described in the EJB, JSP, and servlet specifications included herein as parts of the J2EE specification.

J2EE.2.10.1

J2EE Product Provider

A J2EE Product Provider is the implementor and supplier of a J2EE product that includes the component containers, J2EE platform APIs, and other features defined in this specification. A J2EE Product Provider is typically an operating system vendor, database system vendor, application server vendor, or a web server vendor.

A J2EE Product Provider must make available the J2EE APIs to the application components through containers. A Product Provider frequently bases their implementation on an existing infrastructure.

A J2EE Product Provider must provide the mapping of the application components to the network protocols as specified by this specification. A J2EE product is free to implement interfaces that are not specified by this specification in an implementation-specific way.

A J2EE Product Provider must provide application deployment and

management tools. Deployment tools enable a Deployer (see Section J2EE.2.10.4,

“Deployer”) to deploy application components on the J2EE product. Management

tools allow a System Administrator (see Section J2EE.2.10.5, “System

Administrator”) to manage the J2EE product and the applications deployed on the

J2EE product. The form of these tools is not prescribed by this specification.

Platform Roles

J2EE.2.10.2

Application Component Provider

There are multiple roles for Application Component Providers, including HTML document designers, document programmers, and enterprise bean developers. These roles use tools to produce J2EE applications and components.

17

J2EE.2.10.3

Application Assembler

The Application Assembler takes a set of components developed by Application

Component Providers and assembles them into a complete J2EE application delivered in the form of an Enterprise Archive (

.ear

) file. The Application

Assembler will generally use GUI tools provided by either a Platform Provider or

Tool Provider. The Application Assembler is responsible for providing assembly instructions describing external dependencies of the application that the Deployer must resolve in the deployment process.

J2EE.2.10.4

Deployer

The Deployer is responsible for deploying application clients, web applications, and

Enterprise JavaBeans components into a specific operational environment. The

Deployer uses tools supplied by the J2EE Product Provider to carry out deployment tasks. Deployment is typically a three-stage process:

1. During Installation the Deployer moves application media to the server, generates the additional container-specific classes and interfaces that enable the container to manage the application components at runtime, and installs application components, and additional classes and interfaces, into the appropriate

J2EE containers.

2. During Configuration, external dependencies declared by the Application

Component Provider are resolved and application assembly instructions defined by the Application Assembler are followed. For example, the Deployer is responsible for mapping security roles defined by the Application Assembler onto user groups and accounts that exist in the target operational environment.

3. Finally, the Deployer starts up Execution of the newly installed and configured application.

In some cases, a specially qualified Deployer may customize the business logic of the application’s components at deployment time. For example, using tools provided with a J2EE product, the Deployer may provide simple application

18

PLATFORM OVERVIEW

code that wraps an enterprise bean’s business methods, or customizes the appearance of a JSP page.

The Deployer’s output is web applications, enterprise beans, applets, and application clients that have been customized for the target operational environment and are deployed in a specific J2EE container.

J2EE.2.10.5

System Administrator

The System Administrator is responsible for the configuration and administration of the enterprise’s computing and networking infrastructure. The System

Administrator is also responsible for overseeing the runtime well-being of the deployed J2EE applications. The System Administrator typically uses runtime monitoring and management tools provided by the J2EE Product Provider to accomplish these tasks.

J2EE.2.10.6

Tool Provider

A Tool Provider provides tools used for the development and packaging of application components. A variety of tools are anticipated, corresponding to the types of application components supported by the J2EE platform. Platform independent tools can be used for all phases of development through the deployment of an application and the management and monitoring of an application server.

J2EE.2.10.7

System Component Provider

A varienty of system level components may be provided by System Component

Providers. The Connector Architecture defines the primary APIs used to provide resource adapters of many types. These resource adapters may connect to existing enterprise information systems of many types, including databases and messaging systems. Another type of system component is an authorization policy provider as defined by the Java Authorization Service Provider Contract for Containers specification.

J2EE.2.11

Platform Contracts

This section describes the Java 2 Platform, Enterprise Edition contracts that must be fulfilled by the J2EE Product Provider.

Platform Contracts

J2EE.2.11.1

J2EE APIs

The J2EE APIs define the contract between the J2EE application components and the J2EE platform. The contract specifies both the runtime and deployment interfaces.

The J2EE Product Provider must implement the J2EE APIs in a way that supports the semantics and policies described in this specification. The

Application Component Provider provides components that conform to these

APIs and policies.

J2EE.2.11.2

J2EE Service Provider Interfaces (SPIs)

The J2EE Service Provider Interfaces (SPIs) define the contract between the J2EE platform and service providers that may be plugged into a J2EE product. The

Connector APIs define service provider interfaces for integrating resource adapters with a J2EE application server. Resource adapter components implementing the

Connector APIs are called Connectors. The J2EE Authorization APIs define service provider interfaces for integrating security authorization mechanisms with a J2EE application server.

The J2EE Product Provider must implement the J2EE SPIs in a way that supports the semantics and policies described in this specification. A provider of

Service Provider components (for example, a Connector Provider) should provide components that conform to these SPIs and policies.

19

J2EE.2.11.3

Network Protocols

This specification defines the mapping of application components to industrystandard network protocols. The mapping allows client access to the application components from systems that have not installed J2EE product technology. See

Chapter J2EE.7, “Interoperability” for details on the network protocol support

required for interoperability.

The J2EE Product Provider is required to publish the installed application components on the industry-standard protocols. This specification defines the mapping of servlets and JSP pages to the HTTP and HTTPS protocols, and the mapping of EJB components to IIOP and SOAP protocols.

J2EE.2.11.4

Deployment Descriptors

Deployment descriptors are used to communicate the needs of application components to the Deployer. The deployment descriptor is a contract between the

20

PLATFORM OVERVIEW

Application Component Provider or Assembler and the Deployer. The Application

Component Provider or Assembler is required to specify the application component’s external resource requirements, security requirements, environment parameters, and so forth in the component’s deployment descriptor. The J2EE

Product Provider is required to provide a deployment tool that interprets the J2EE deployment descriptors and allows the Deployer to map the application component’s requirements to the capabilities of a specific J2EE product and environment.

J2EE.2.12

Changes in J2EE 1.3

The J2EE 1.3 specification extends the J2EE platform with additional enterprise integration facilities. The Connector API supports integration with external enterprise information systems. A JMS provider is now required. The JAXP API provides support for processing XML documents. The JAAS API provides security support for the Connector API. The EJB specification now requires support for interoperability using the IIOP protocol.

Significant changes have been made to the EJB specification. The EJB specification has a new container-managed persistence model, support for message driven beans, and support for local enterprise beans.

Other existing J2EE APIs have been updated as well. See the individual API specifications for details. Finally, J2EE 1.3 requires support for J2SE 1.3.

J2EE.2.13

Changes in J2EE 1.4

The primary focus of J2EE 1.4 is support for web services. The JAX-RPC and

SAAJ APIs provide the basic web services interoperability support. The Web

Services for J2EE specification describes the packaging and deployment requirements for J2EE applications that provide and use web services. The EJB specification was also extended to support implementing web services using stateless session beans. The JAXR API supports access to registries and repositories.

Several other APIs have been added to J2EE 1.4. The J2EE Management and

J2EE Deployment APIs enable enhanced tool support for J2EE products. The

JMX API supports the J2EE Management API. The J2EE Authorization Contract for Containers provides an SPI for security providers.

Many of the existing J2EE APIs have been enhanced in J2EE 1.4. J2EE 1.4

builds on J2SE 1.4. The JSP specification has been enhanced to simplify the

Changes in J2EE 1.4

development of web applications. The Connector API now supports integration with asynchronous messaging systems, including the ability to plug in JMS providers.

Changes in this J2EE platform specification include support for deploying class libraries independently of any application and the conversion of deployment descriptor DTDs to XML Schemas.

Other J2EE APIs have been enhanced as well. For additional details, see each of the referenced specifications.

21

22

PLATFORM OVERVIEW

C H A P T E R

J2EE.3

Security

T

his chapter describes the security requirements for the Java™ 2 Platform,

Enterprise Edition (J2EE) that must be satisfied by J2EE products.

In addition to the J2EE requirements, each J2EE Product Provider will determine the level of security and security assurances that will be provided by their implementation.

J2EE.3.1

Introduction

Almost every enterprise has security requirements and specific mechanisms and infrastructure to meet them. Sensitive resources that can be accessed by many users, or that often traverse unprotected open networks (such as the Internet) need to be protected.

Although the quality assurances and implementation details may vary, they all share some of the following characteristics:

Authentication: The means by which communicating entities (for example, client and server) prove to one another that they are acting on behalf of specific identities that are authorized for access.

Access control for resources: The means by which interactions with resources are limited to collections of users or programs for the purpose of enforcing integrity, confidentiality, or availability constraints.

Data integrity: The means used to prove that information has not been modified by a third party (some entity other than the source of the information).

For example, a recipient of data sent over an open network must be able to detect and discard messages that were modified after they were sent.

23

24

SECURITY

Confidentiality or Data Privacy: The means used to ensure that information is made available only to users who are authorized to access it.

Non-repudiation: The means used to prove that a user performed some action such that the user cannot reasonably deny having done so.

Auditing: The means used to capture a tamper-resistant record of security related events for the purpose of being able to evaluate the effectiveness of security policies and mechanisms.

This chapter specifies how J2EE platform requirements address security requirements, and identifies requirements that may be addressed by J2EE Product

Providers. Finally, issues being considered for future versions of this specification

are briefly mentioned in Section J2EE.3.7, “Future Directions”.

J2EE.3.2

A Simple Example

The security behavior of a J2EE environment may be better understood by examining what happens in a simple application with a web client, a JSP user interface, and enterprise bean business logic. (The example is not meant to specify requirements.)

In this example, the web client relies on the web server to act as its authentication proxy by collecting user authentication data from the client and using it to establish an authenticated session.

Step 1: Initial Request

The web client requests the main application URL, shown in Figure J2EE.3-

1.

Web Server

Web Client

Request access to protected resource

Figure J2EE.3-1

Initial Request

Since the client has not yet authenticated itself to the application environment, the server responsible for delivering the web portion of the application (hereafter referred to as “web server”) detects this and invokes the appropriate authentication mechanism for this resource.

Step 2: Initial Authentication

A Simple Example

The web server returns a form that the web client uses to collect authentication data (for example, username and password) from the user. The web client forwards the authentication data to the web server, where it is validated by the

web server, as shown in Figure J2EE.3-2.

Web Server

Web Client

Form credential

Authentication data

25

Figure J2EE.3-2

Initial Authentication

The validation mechanism may be local to the server, or it may leverage the underlying security services. On the basis of the validation, the web server sets a credential for the user.

Step 3: URL Authorization

The credential is used for future determinations of whether the user is authorized to access restricted resources it may request. The web server consults the security policy (derived from the deployment descriptor) associated with the web resource to determine the security roles that are permitted access to the resource. The web container then tests the user’s credential against each

role to determine if it can map the user to the role. Figure J2EE.3-3 shows

this process.

Web Server

Web Client

Request access to protected resource credential

JSP/servlet

Object

Session

Context

Figure J2EE.3-3

URL Authorization

The web server’s evaluation stops with an “is authorized” outcome when the web server is able to map the user to a role. A “not authorized” outcome is reached if the web server is unable to map the user to any of the permitted roles.

26

SECURITY

Step 4: Fulfilling the Original Request

If the user is authorized, the web server returns the result of the original URL-

request, as shown in Figure J2EE.3-4.

Web Server

Web Client

Result of request credential

JSP/Servlet

Object

Post to business logic

Session

Context

Figure J2EE.3-4

Fulfilling the Original Request

In our example, the response URL of a JSP page is returned, enabling the user to post form data that needs to be handled by the business logic component of the application.

Step 5: Invoking Enterprise Bean Business Methods

The JSP page performs the remote method call to the enterprise bean, using the user’s credential to establish a secure association between the JSP page

and the enterprise bean (as shown in Figure J2EE.3-5). The association is

implemented as two related security contexts, one in the web server and one in the EJB container.

Credential used to establish security association

Web Server EJB Container

Web Client credential

JSP/servlet

Object remote call

EJB

Session

Context

Security

Context

Security

Context

Figure J2EE.3-5

Invoking an Enterprise Bean Business Method

The EJB container is responsible for enforcing access control on the enterprise bean method. It consults the security policy (derived from the deployment descriptor) associated with the enterprise bean to determine the security roles that are permitted access to the method. For each role, the EJB container uses the security context associated with the call to determine if it can map the caller to the role.

Security Architecture

The container’s evaluation stops with an “is authorized” outcome when the container is able to map the caller’s credential to a role. A “not authorized” outcome is reached if the container is unable to map the caller to any of the permitted roles. A “not authorized” result causes an exception to be thrown by the container, and propagated back to the calling JSP page.

If the call “is authorized”, the container dispatches control to the enterprise bean method. The result of the bean’s execution of the call is returned to the JSP, and ultimately to the user by the web server and the web client.

27

J2EE.3.3

Security Architecture

This section describes the J2EE security architecture on which the security requirements defined by this specification are based.

J2EE.3.3.1

Goals

The following are goals for the J2EE security architecture:

1. Portability: The J2EE security architecture must support the Write Once, Run

Anywhere™ application property.

2. Transparency: Application Component Providers should not have to know anything about security to write an application.

3. Isolation: The J2EE platform should be able to perform authentication and access control according to instructions established by the Deployer using deployment attributes, and managed by the System Administrator.

Note that divorcing the application from responsibility for security ensures greater portability of J2EE applications.

4. Extensibility: The use of platform services by security aware-applications must not compromise application portability.

This specification provides APIs in the component programming model for interacting with container/server security information. Applications that restrict their interactions to the provided APIs will retain portability.

5. Flexibility: The security mechanisms and declarations used by applications under this specification should not impose a particular security policy, but facilitate the implementation of security policies specific to the particular J2EE installation or application.

6. Abstraction: An application component’s security requirements will be logi-

28

SECURITY

cally specified using deployment descriptors. Deployment descriptors will specify how security roles and access requirements are to be mapped into environment-specific security roles, users, and policies. A Deployer may choose to modify the security properties in ways consistent with the deployment environment. The deployment descriptor should document which security properties can be modified and which cannot.

7. Independence: Required security behaviors and deployment contracts should be implementable using a variety of popular security technologies.

8. Compatibility testing: The J2EE security requirements architecture must be expressed in a manner that allows for an unambiguous determination of whether or not an implementation is compatible.

9. Secure interoperability: Application components executing in a J2EE product must be able to invoke services provided in a J2EE product from a different vendor, whether with the same or a different security policy. The services may be provided by web components or enterprise beans.

J2EE.3.3.2

Non Goals

The following are not goals for the J2EE security architecture:

1. This specification does not dictate a specific security policy. Security policies for applications and for enterprise information systems vary for many reasons unconnected with this specification. Product Providers can provide the technology needed to implement and administer desired security policies while adhering to the requirements of this specification.

2. This specification does not mandate a specific security technology, such as

Kerberos, PK, NIS+, or NTLM.

3. This specification does not require that the J2EE security behaviors be universally implementable using any or all security technologies.

4. This specification does not provide any warranty or assurance of the effective security of a J2EE product.

J2EE.3.3.3

Terminology

This section introduces the terminology that is used to describe the security requirements of the J2EE platform.

Principal

Security Architecture

A principal is an entity that can be authenticated by an authentication protocol in a security service that is deployed in an enterprise. A principal is identified using a principal name and authenticated using authentication data. The content and format of the principal name and the authentication data can vary depending upon the authentication protocol.

Security Policy Domain

A security policy domain, also referred to as a security domain, is a scope over which a common security policy is defined and enforced by the security administrator of the security service.

A security policy domain is also sometimes referred to as a realm. This specification uses the security policy domain, or security domain, terminology.

Security Technology Domain

A security technology domain is the scope over which the same security mechanism (for example Kerberos) is used to enforce a security policy.

A single security technology domain may include multiple security policy domains, for example.

Security Attributes

A set of security attributes is associated with every principal. The security attributes have many uses (for example, access to protected resources and auditing of users). Security attributes can be associated with a principal by an authentication protocol and/or by the J2EE Product Provider.

The J2EE platform does not specify what security attributes are associated with a principal.

Credential

A credential contains or references information (security attributes) used to authenticate a principal for J2EE product services. A principal acquires a credential upon authentication, or from another principal that allows its credential to be used (delegation).

This specification does not specify the contents or the format of a credential.

The contents and format of a credential can vary widely.

29

30

SECURITY

J2EE.3.3.4

Container Based Security

Security for components is provided by their containers in order to achieve the goals for security specified above in a J2EE environment. A container provides two kinds of security (discussed in the following sections):

• Declarative security

• Programmatic security

J2EE.3.3.4.1

Declarative Security

Declarative security refers to the means of expressing an application’s security structure, including security roles, access control, and authentication requirements in a form external to the application. The deployment descriptor is the primary vehicle for declarative security in the J2EE platform.

A deployment descriptor is a contract between an Application Component

Provider and a Deployer or Application Assembler. It can be used by an application programmer to represent an application’s security related environmental requirements. A deployment descriptor can be associated with groups of components.

A Deployer maps the deployment descriptor’s representation of the application’s security policy to a security structure specific to the particular environment. A Deployer uses a deployment tool to process the deployment descriptor.

At runtime, the container uses the security policy security structure derived from the deployment descriptor and configured by the Deployer to enforce

authorization (see Section J2EE.3.3.6, “Authorization Model”).

J2EE.3.3.4.2

Programmatic Security

Programmatic security refers to security decisions made by security aware applications. Programmatic security is useful when declarative security alone is not sufficient to express the security model of the application. The API for programmatic security required by this specification consists of two methods of the

EJB

EJBContext

interface and two methods of the servlet

HttpServletRequest interface:

Security Architecture

• isCallerInRole (EJBContext)

• getCallerPrincipal (EJBContext)

• isUserInRole (HttpServletRequest)

• getUserPrincipal (HttpServletRequest)

These methods allow components to make business logic decisions based on the security role of the caller or remote user. For example they allow the component to determine the principal name of the caller or remote user to use as a database key. (Note that the form and content of principal names will vary widely between products and enterprises, and portable components will not depend on the actual contents of a principal name. Due to principal name mapping, the same logical principal may have different names in different containers, although usually it will be possible to configure a single product to use consistent principal names. In particular, if a principal name is used as a key into a database table, and that database table is accessed from multiple components, containers, or products, the same logical principal may map to different entries in the database.)

31

J2EE.3.3.5

Distributed Security

Some Product Providers may produce J2EE products in which the containers for various component types are distributed. In a distributed environment, communication between J2EE components can be subject to security attacks (for example, data modification and replay attacks).

Such threats can be countered by using a secure association to secure communications. A secure association is shared security state information that establishes the basis of a secure communication between components.

Establishing a secure association could involve several steps, such as:

1. Authenticating the target principal to the client and/or authenticating the client to the target principal.

2. Negotiating a quality of protection, such as confidentiality or integrity.

3. Setting up a security context for the association between the components.

Since a container provides security in J2EE, secure associations for a component are typically established by a container. Secure associations for web access are specified here. Secure associations for access to enterprise beans are described in the EJB specification.

Product Providers may allow for control over the quality of protection or other aspects of secure association at deployment time. Applications can specify their

32

SECURITY

requirements for access to web resources using elements in their deployment descriptor.

This specification does not define mechanisms that an Application

Component Provider can use to communicate requirements for secure associations with an enterprise bean.

J2EE.3.3.6

Authorization Model

The J2EE authorization model is based on the concept of security roles. A security role is a logical grouping of users that is defined by an Application Component

Provider or Assembler. A Deployer maps roles to security identities (for example principals, and groups) in the operational environment. Security roles are used with both declarative security and programmatic security.

Declarative authorization can be used to control access to an enterprise bean method and is specified in the enterprise bean deployment descriptor. An enterprise bean method can be associated with a method-permission element in the deployment descriptor. The method-permission element contains a list of methods that can be accessed by a given security role. If the calling principal is in one of the security roles allowed access to a method, the principal is allowed to execute the method. Conversely, if the calling principal is in none of the roles, the caller is not allowed to execute the method. Access to web resources can be protected in a similar manner.

Security roles are used in the EJBContext method isCallerInRole and the

HttpServletRequest method isUserInRole . Each method returns true if the calling principal is in the specified security role.

J2EE.3.3.6.1

Role Mapping

Enforcement of security constraints on web resources or enterprise beans, whether programmatic or declarative, depends upon determination of whether the principal associated with an incoming request is in a given security role. A container makes this determination based on the security attributes of the calling principal. For example,

1. A Deployer may have mapped a security role to a user group in the operational environment. In this case, the user group of the calling principal is retrieved from its security attributes. The principal is in the security role if the principal’s user group matches a user group to which the security role has been mapped.

2. A Deployer may have mapped a security role to a principal name in a security policy domain. In this case, the principal name of the calling principal is re-

Security Architecture

trieved from its security attributes. If this principal name is the same as a principal name to which the security role was mapped, the calling principal is in the security role.

The source of security attributes may vary across implementations of the

J2EE platform. Security attributes may be transmitted in the calling principal’s credential or in the security context. In other cases, security attributes may be retrieved from a trusted third party, such as a directory service or a security service.

33

J2EE.3.3.7

HTTP Login Gateways

Secure interoperability between enterprise beans in different security policy domains is addressed in the EJB specification. In addition, a component may choose to log in to a foreign server via HTTP. An application component can be configured to use SSL mutual authentication for security when accessing a remote resource using HTTP. Applications using HTTP in this way may choose to use XML or some other structured format, rather than HTML.

We call the use of HTTP with SSL mutual authentication to access a remote service an HTTP Login Gateway. Requirements in this area are specified in

Section J2EE.3.3.8.1, “Authentication by Web Clients.”

J2EE.3.3.8

User Authentication

User authentication is the process by which a user proves his or her identity to the system. This authenticated identity is then used to perform authorization decisions for accessing J2EE application components. An end user can authenticate using either of the two supported client types:

• Web client

• Application client

J2EE.3.3.8.1

Authentication by Web Clients

It is required that a web client be able to authenticate a user to a web server using any of the following mechanisms. The Deployer or System Administrator determines which method to apply to an application or to a group of applications.

• HTTP Basic Authentication

HTTP Basic Authentication is the authentication mechanism supported by the

34

SECURITY

HTTP protocol. This mechanism is based on a username and password. A web server requests a web client to authenticate the user. As part of the request, the web server passes the realm in which the user is to be authenticated. The web client obtains the username and the password from the user and transmits them to the web server. The web server then authenticates the user in the specified realm (referred to as HTTP Realm in this document).

HTTP Basic Authentication is not secure. Passwords are sent in simple base64 encoding. The target server is not authenticated. Additional protection can be applied to overcome these weaknesses. The password may be protected by applying security at the transport layer (for example HTTPS) or at the network layer (for example, IPSEC or VPN).

Despite its limitations, the HTTP Basic Authentication mechanism is included in this specification because it is widely used in form based applications.

• HTTPS Client Authentication

End user authentication using HTTPS (HTTP over SSL) is a strong authentication mechanism. This mechanism requires the user to possess a Public Key

Certificate (PKC). Currently, a PKC is rarely used by end users on the Internet. However, it is useful for e-commerce applications and also for a singlesignon from within the browser. For these reasons, it is a required feature of the J2EE platform.

• Form Based Authentication

The look and feel of a login screen cannot be varied using the web browser’s built-in authentication mechanisms. This specification introduces the ability to package standard HTML or servlet/JSP based forms for logging in, allowing customization of the user interface. The form based authentication mechanism introduced by this specification is described in the servlet specification.

HTTP Digest Authentication is not widely supported by web browsers and hence is not required.

A web client can employ a web server as its authentication proxy. In this case, a client’s credential is established in the server, where it may be used by the server for various purposes: to perform authorization decisions, to act as the client in calls to enterprise beans, or to negotiate secure associations with resources.

Current web browsers commonly rely on proxy authentication.

Security Architecture

J2EE.3.3.8.2

Web Single Signon

HTTP is a stateless protocol. However, many web applications need support for sessions that can maintain state across multiple requests from a client. Therefore, it is desirable to:

1. Make login mechanisms and policies a property of the environment the web application is deployed in.

2. Be able to use the same login session to represent a user to all the applications that they access.

3. Require re-authentication of users only when a security policy domain boundary has been crossed.

Credentials that are acquired through a web login process are associated with a session. The container uses the credentials to establish a security context for the session. The container uses the security context to determine authorization for access to web resources and for the establishment of secure associations with other components (including enterprise beans).

J2EE.3.3.8.3

Login Session

In the J2EE platform, login session support is provided by a web container. When a user successfully authenticates with a web server, the container establishes a login session context for the user. The login session contains the credentials associated with the user.

1

J2EE.3.3.8.4

Authentication by Application Clients

Application clients (described in detail in Chapter J2EE.9, “Application Clients) are

client programs that may interact with enterprise beans directly (that is without the help of a web browser and without traversing a web server. Application clients may also access web resources.

Application clients, like the other J2EE application component types, execute in a managed environment that is provided by an appropriate container.

35

1.

While the client is stateless with respect to authentication, the client requires that the server act as its proxy and maintain its login context. A reference to the login session state is made available to the client through cookies or URL re-writing. If SSL mutual authentication is used as the authentication protocol, the client can manage its own authentication context, and need not depend on references to the login session state.

36

SECURITY

Application clients are expected to have access to a graphical display and input device, and are expected to communicate with a human user.

Application clients are used to authenticate end users to the J2EE platform, when the users access protected web resources or enterprise beans.

J2EE.3.3.9

Lazy Authentication

There is a cost associated with authentication. For example, an authentication process may require exchanging multiple messages across the network. Therefore, it is desirable to use lazy authentication, that is perform authentication only when it is needed. With lazy authentication, a user is not required to authenticate until there is a request to access a protected resource.

Lazy authentication can be used with first-tier clients (applets, application clients) when they request access to protected resources that require authentication. At that point the user can be asked to provide appropriate authentication data. If a user is successfully authenticated, the user is allowed to access the resource.

J2EE.3.4

User Authentication Requirements

The J2EE Product Provider must meet the following requirements concerning user authentication.

J2EE.3.4.1

Login Sessions

All J2EE web servers must maintain a login session for each web user. It must be possible for a login session to span more than one application, allowing a user to log in once and access multiple applications. The required login session support is described in the servlet specification. This requirement of a session for each web user supports single signon.

Applications can remain independent of the details of implementing the security and maintenance of login information. The J2EE Product Provider has the flexibility to choose authentication mechanisms independent of the applications secured by these mechanisms.

Lazy authentication must be supported by web servers for protected web resources. When authentication is required, one of the three required login mechanisms listed in the next section may be used.

User Authentication Requirements

J2EE.3.4.2

Required Login Mechanisms

All J2EE products are required to support three login mechanisms: HTTP basic authentication, SSL mutual authentication, and form-based login. An application is not required to use any of these mechanisms, but they are required to be available for any application’s use.

J2EE.3.4.2.1

HTTP Basic Authentication

All J2EE products are required to support HTTP basic authentication (RFC2068).

Platform Providers are also required to support basic authentication over SSL.

J2EE.3.4.2.2

SSL Mutual Authentication

SSL 3.0

2

and the means to perform mutual (client and server) certificate based authentication are required by this specification.

All J2EE products must support the following cipher suites to ensure interoperable authentication with clients:

• TLS_RSA_WITH_RC4_128_MD5

• SSL_RSA_WITH_RC4_128_MD5

• TLS_DHE_DSS_WITH_3DES_EDE_CBC_SHA

• SSL_DHE_DSS_WITH_3DES_EDE_CBC_SHA

• TLS_RSA_EXPORT_WITH_RC4_40_MD5

• SSL_RSA_EXPORT_WITH_RC4_40_MD5

• TLS_DHE_DSS_EXPORT_WITH_DES40_CBC_SHA

• SSL_DHE_DSS_EXPORT_WITH_DES40_CBC_SHA

These cipher suites are supported by the major web browsers and meet the

U.S. government export restrictions.

J2EE.3.4.2.3

Form Based Login

The web application deployment descriptor contains an element that causes a J2EE product to associate an HTML form resource (perhaps dynamically generated) with the web application. If the Deployer chooses this form of authentication (over HTTP basic, or SSL certificate based authentication), this form must be used as the user interface for login to the application.

The form based login mechanism and web application deployment descriptors are described in the servlet specification.

37

2.

The SSL 3.0 specification is available at: http://home.netscape.com/ eng/ssl3

38

SECURITY

J2EE.3.4.3

Unauthenticated Users

Web containers are required to support access to web resources by clients that have not authenticated themselves to the container. This is the common mode of access to web resources on the Internet.

A web container reports that no user has been authenticated by returning null from the

HttpServletRequest

method getUserPrincipal

. This is different than the corresponding result for EJB containers. The EJB specification requires that the

EJBContext

method getCallerPrincipal

always return a valid

Principal object. The method can never return null

.

Components running in a web container must be able to call enterprise beans even when no user has been authenticated in the web container. When a call is made in such a case from a component in a web container to an enterprise bean, a

J2EE product must provide a principal for use in the call.

A J2EE product may provide a principal for use by unauthenticated callers using many approaches, including, but not limited to:

• Always use a single distinguished principal.

• Use a different distinguished principal per server, or per session, or per application.

• Allow the deployer or system administrator to choose which principal to use through the Run As capability of the web and enterprise bean containers.

This specification does not specify how a J2EE product should choose a principal to represent unauthenticated users, although future versions of this specification may add requirements in this area. Note that the EJB specification does include requirements in this area when using the EJB interoperability protocol. Applications are encouraged to use the Run As capability in cases where the web component may be unauthenticated and needs to call EJB components.

J2EE.3.4.4

Application Client User Authentication

The application client container must provide authentication of application users to satisfy the authentication and authorization constraints enforced by the enterprise bean containers and web containers. The techniques used may vary with the implementation of the application client container, and are beyond the control of the application. The application client container may integrate with a J2EE product’s authentication system, to provide a single signon capability, or the container may authenticate the user when the application is started. The container may delay

User Authentication Requirements

authentication until there is a request to access a protected resource or enterprise bean.

The container will provide an appropriate user interface for interactions with the user to gather authentication data. In addition, an application client may provide a class that implements the javax.security.auth.callback.CallbackHandler

interface and specify the class

name in its deployment descriptor (see Section J2EE.9.7, “J2EE Application

Client XML Schema” for details). The Deployer may override the callback

handler specified by the application and require use of the container’s default authentication user interface instead.

If use of a callback handler has been configured by the Deployer, the application client container must instantiate an object of this class and use it for all authentication interactions with the user. The application’s callback handler must support all the

Callback

objects specified in the javax.security.auth.callback

package.

Application clients execute in an environment controlled by a J2SE security

manager and are subject to the security permissions defined in Section J2EE.6.2,

“Java 2 Platform, Standard Edition (J2SE) Requirements.” Although this

specification does not define the relationship between the operating system identity associated with a running application client and the authenticated user identity, support for single signon requires that the J2EE product be able to relate these identities. Additional application client requirements are described in

Chapter J2EE.9.7 of this specification.

39

J2EE.3.4.5

Resource Authentication Requirements

Resources within an enterprise are often deployed in security policy domains different from the security policy domain of the application component. The wide variance of authentication mechanisms used to authenticate the caller to resources leads to the requirement that a J2EE product provide the means to authenticate in the security policy domain of the resource.

A Product Provider must support both of the following:

1. Configured Identity. A J2EE container must be able to authenticate for access to the resource using a principal and authentication data specified by a Deployer at deployment time.The authentication must not depend in any way on data provided by the application components. Providing for the confidential storage of the authentication information is the responsibility of the Product Provider.

2. Programmatic Authentication. The J2EE product must provide for specifi-

40

SECURITY

cation of the principal and authentication data for a resource by the application component at runtime using appropriate APIs. The application may obtain the principal and authentication data through a variety of mechanisms, including receiving them as parameters, obtaining them from the component’s environment, and so forth.

In addition, the following techniques are recommended but not required by this specification:

3. Principal Mapping. A resource can have a principal and attributes that are determined by a mapping from the identity and security attributes of the requesting principal. In this case, a resource principal is not based on inheritance of the identity or security attributes from a requesting principal, but gets its identity and security attributes based on the mapping.

4. Caller Impersonation. A resource principal acts on behalf of a requesting principal. Acting on behalf of a caller principal requires delegation of the caller’s identity and credentials to the underlying resource manager. In some scenarios, a requesting principal can be a delegate of an initiating principal and the resource principal is transitively impersonating an initiating principal.

The support for principal delegation is typically specific to a security mechanism. For example, Kerberos supports a mechanism for the delegation of authentication. (Refer to the Kerberos v5 specification for more details.)

5. Credentials Mapping. This technique may be used when an application server and an EIS support different authentication domains. For example: a. The initiating principal may have been authenticated and have public key certificate-based credentials.

b. The security environment for the resource manager may be configured with the Kerberos authentication service.

The application server is configured to map the public key certificate-based credentials associated with the initiating principal to the Kerberos credentials.

Additional information on resource authentication requirements can be found in the Connector specification.

Authorization Requirements

J2EE.3.5

Authorization Requirements

To support the authorization models described in this chapter, the following requirements are imposed on J2EE products.

J2EE.3.5.1

Code Authorization

A J2EE product may restrict the use of certain J2SE classes and methods to secure and ensure proper operation of the system. The minimum set of permissions that a

J2EE product is required to grant to a J2EE application is defined in

Section J2EE.6.2, “Java 2 Platform, Standard Edition (J2SE) Requirements.” All

J2EE products must be capable of deploying application components with exactly these permissions.

A J2EE Product Provider may choose to enable selective access to resources using the Java 2 protection model. The mechanism used is J2EE product dependent.

A future version of the J2EE deployment descriptor definition (see

Chapter J2EE.8, “Application Assembly and Deployment”) may make it possible

to express additional permissions that a component needs for access.

41

J2EE.3.5.2

Caller Authorization

A J2EE product must enforce the access control rules specified at deployment time

(see Section J2EE.3.6, “Deployment Requirements”) and more fully described in

the EJB and servlet specifications.

J2EE.3.5.3

Propagated Caller Identities.

It must be possible to configure a J2EE product so that a propagated caller identity is used in all authorization decisions. With this configuration, for all calls to all enterprise beans from a single application within a single J2EE product, the principal name returned by the

EJBContext

method getCallerPrincipal

must be the same as that returned by the first enterprise bean in the call chain. If the first enterprise bean in the call chain is called by a servlet or JSP page, the principal name must be the same as that returned by the

HttpServletRequest

method getUserPrincipal

in the calling servlet or JSP page. (However, if the

HttpServletRequest method getUserPrincipal returns null

, the principal used in calls to enterprise beans is not specified by this specification, although it must still be possible to configure enterprise beans to be callable by such components.)

42

SECURITY

Note that this does not require delegation of credentials, only identification of the caller. A single principal must be the principal used in authorization decisions for access to all enterprise beans in the call chain. The requirements in this section apply only when a J2EE product has been configured to propagate caller identity.

J2EE.3.5.4

Run As Identities

J2EE products must also support the Run As capability that allows the Application

Component Provider and the Deployer to specify an identity under which an enterprise bean or web component must run. In this case it is the Run As identity that is propagated to subsequent EJB components, rather than the original caller identity.

Note that this specification doesn’t specify any relationship between the Run

As identity and any underlying operating system identity that may be used to access system resources such as files. However, the Java Authorization Contract for Containers specification does specify the relationship between the Run As identity and the access control context used by the J2SE security manager.

J2EE.3.6

Deployment Requirements

All J2EE products must implement the access control semantics described in the

EJB, JSP, and servlet specifications, and provide a means of mapping the deployment descriptor security roles to the actual roles exposed by a J2EE product.

While most J2EE products will allow the Deployer to customize the role mappings and change the assignment of roles to methods, all J2EE products must support the ability to deploy applications and components using exactly the mappings and assignments specified in their deployment descriptors.

As described in the EJB specification and the servlet specification, a J2EE product must provide a deployment tool or tools capable of assigning the security roles in deployment descriptors to the entities that are used to determine role membership at authorization time.

Application developers will need to specify (in the application’s deployment descriptors) the security requirements of an application in which some components may be accessed by unauthenticated users as well as authenticated

users (as described above in Section J2EE.3.4.3, “Unauthenticated Users”).

Applications express their security requirements in terms of security roles, which the Deployer maps to users (principals) in the operational environment at deployment time. An application might define a role representing all authenticated

Future Directions

and unauthenticated users and configure some enterprise bean methods to be accessible by this role.

To support such usage, this specification requires that it be possible to map an application defined security role to the universal set of application principals independent of authentication.

43

J2EE.3.7

Future Directions

J2EE.3.7.1

Auditing

This specification does not specify requirements for the auditing of security relevant events, nor APIs for application components to generate audit records. A future version of this specification may include such a specification for products that choose to provide auditing.

J2EE.3.7.2

Instance-based Access Control

Some applications need to control access to their data based on the content of the data, rather than simply the type of the data. We refer to this as “instance-based” rather than “class-based” access control. We hope to address this in a future release.

J2EE.3.7.3

User Registration

Web-based internet applications often need to manage a set of customers dynamically, allowing users to register themselves as new customers. This scenario was widely discussed in the servlet expert group (JSR-53) but we were unable to achieve consensus on the appropriate solution. We had to abandon this work for

J2EE 1.3, and were not able to address it for J2EE 1.4, but hope to pursue it further in a future release.

44

SECURITY

C H A P T E R

J2EE.4

Transaction Management

T

his chapter describes the required Java™ 2 Platform, Enterprise Edition (J2EE) transaction management and runtime environment.

Product Providers must transparently support transactions that involve multiple components and transactional resources within a single J2EE product, as described in this chapter. This requirement must be met regardless of whether the

J2EE product is implemented as a single process, multiple processes on the same network node, or multiple processes on multiple network nodes.

The following components are considered transactional resources and must behave as specified here:

• JDBC connections

• JMS sessions

• Resource adapter connections for resource adapters specifying the

XATransaction transaction level

J2EE.4.1

Overview

A J2EE Product Provider must support a transactional application comprised of combinations of servlets or JSP pages accessing multiple enterprise beans within a single transaction. Each component may also acquire one or more connections to access one or more transactional resource managers.

For example, in Figure J2EE.4-1, the call tree starts from a servlet or JSP

page accessing multiple enterprise beans, which in turn may access other enterprise beans. The components access resource managers via connections.

45

46

TRANSACTION MANAGEMENT

connection

Client

EJBean

1a

:

JSP/ servlet connection

EJBean

1b

connection connections

EJBean

2a

:

EJBean

2b

:

connection connection

EJBean

2c

:

EJBean

2d

connection

Figure J2EE.4-1

Servlets/JSP Pages Accessing Enterprise Beans

The Application Component Provider specifies, using a combination of programmatic and declarative transaction demarcation APIs, how the platform must manage transactions on behalf of the application.

For example, the application may require that all the components in Figure

J2EE.4-1 access resources as part of a single transaction. The Platform Provider

must provide the transaction capabilities to support such a scenario.

This specification does not define how the components and the resources are partitioned or distributed within a single J2EE product. In order to achieve the transactional semantics required by the application, the J2EE Product Provider is free to execute the application components sharing a transaction in the same Java virtual machine, or distribute them across multiple virtual machines.

The rest of this chapter describes the transactional requirements for a J2EE product in more detail.

Requirements

J2EE.4.2

Requirements

This section defines the transaction support requirements of J2EE Products that must be supported by Product Providers.

J2EE.4.2.1

Web Components

Servlets and JSP pages demarcate a transaction using the javax.transaction.UserTransaction

interface which is defined in the JTA specification. They may access multiple resource managers and invoke multiple enterprise beans within a single transaction. The specified transaction context is automatically propagated to the enterprise beans and transactional resource managers. The result of the propagation may be subject to the enterprise bean transaction attributes (for example, a bean may be required to use Container

Managed Transactions).

Servlet filters and web application event listeners must not demarcate transactions using the javax.transaction.UserTransaction

interface. Servlet filters may use transactional resources in a local transaction mode within their doFilter

methods but should not use any transactional resources in the methods of any objects used to wrap the request or response objects.

J2EE.4.2.1.1

Transaction Requirements

The J2EE platform must meet the following requirements:

• The J2EE platform must provide an object implementing the javax.transaction.UserTransaction

interface to all web components. The platform must publish the

UserTransaction object in the Java™ Naming and

Directory Interface (JNDI) name space available to web components under the name java:comp/UserTransaction

.

• If a web component invokes an enterprise bean from a thread associated with a JTA transaction, the J2EE platform must propagate the transaction context with the enterprise bean invocation. Whether the target enterprise bean will be invoked in this transaction context or not is determined by the rules defined in the EJB specification.

Note that this transaction propagation requirement applies only to invocations of enterprise beans in the same J2EE product instance

1

as the invoking component. Invocations of enterprise beans in another J2EE product instance (for example, using the EJB interoperability protocol) need not propagate the transaction context. See the EJB specification for details.

47

48

TRANSACTION MANAGEMENT

• If a web component accesses a transactional resource manager from a thread associated with a JTA transaction, the J2EE platform must ensure that the resource access is included as part of the JTA transaction.

• If a web component creates a thread, the J2EE platform must ensure that the newly created thread is not associated with any JTA transaction.

J2EE.4.2.1.2

Transaction Non-Requirements

The Product Provider is not required to support the importing of a transaction context from a client to a web component.

The Product Provider is not required to support transaction context propagation via an HTTP request across web components. The HTTP protocol does not support such transaction context propagation. When a web component associated with a transaction makes an HTTP request to another web component, the transaction context is not propagated to the target servlet or page.

However, when a web component is invoked through the

RequestDispatcher interface, any active transaction context must be propagated to the called servlet or JSP page.

J2EE.4.2.2

Transactions in Web Component Life Cycles

Transactions may not span web requests from a client. A web component starts a transaction in the service method of a servlet (or, for a JSP page, the service method of the equivalent JSP page Implementation Class) and it must be completed before the service method returns. Returning from the service method with an active transaction context is an error. The web container is required to detect this error and abort the transaction.

1.

A product instance corresponds to a single installation of a J2EE product.

A single product instance might use multiple operating system processes, or might support multiple host machines as part of a distributed container. In contrast, it might be possible to run multiple instances of a product on a single host machine, or possibly even in a single Java virtual machine, for example, as part of a virtual hosting solution. The transaction propagation requirement applies within a single product instance and is independent of the number of Java virtual machines, operating system processes, or host machines used by the product instance.

Requirements

J2EE.4.2.3

Transactions and Threads

There are many subtle and complex interactions between the use of transactional resources and threads. To ensure correct operation, web components should obey the following guidelines, and the web container must support at least these usages.

• JTA transactions should be started and completed in the thread in which the service method is called. Additional threads that are created for any purpose should not attempt to start JTA transactions.

• Transactional resources may be acquired and released by a thread other than the service

method thread, but should not be shared between threads.

• Transactional resource objects (for example, JDBC

Connection

objects) should not be stored in static fields. Such objects can only be associated with one transaction at a time. Storing them in static fields would make it easy to erroneously share them between threads in different transactions.

• Web components implementing

SingleThreadModel

may store top-level transactional resource objects in class instance fields. A top-level object is one acquired directly from a container managed connection factory object (for example, a JDBC

Connection

acquired from a JDBC

ConnectionFactory

), as opposed to other objects acquired from these top-level objects (for example, a

JDBC

Statement

acquired from a JDBC

Connection

). The web container ensures that requests to a

SingleThreadModel servlet are serialized and thus only one thread and one transaction will be able to use the object at a time, and that the top-level object will be enlisted in any new transaction started by the component.

• In web components not implementing

SingleThreadModel

, transactional resource objects should not be stored in class instance fields, and should be acquired and released within the same invocation of the service

method.

• Web components that are called by other web components (using the forward or include

methods) should not store transactional resource objects in class instance fields.

• Enterprise beans may be invoked from any thread used by a web component.

Transaction context propagation requirements are described above and in the

EJB specification.

49

J2EE.4.2.4

Enterprise JavaBeans™ Components

The J2EE Product Provider must provide support for transactions as defined in the

EJB specification.

50

TRANSACTION MANAGEMENT

J2EE.4.2.5

Application Clients

The J2EE Product Provider is not required to provide transaction management support for application clients.

J2EE.4.2.6

Applet Clients

The J2EE Product Provider is not required to provide transaction management support for applets.

J2EE.4.2.7

Transactional JDBC™ Technology Support

A J2EE product must support a JDBC technology database as a transactional resource manager. The platform must enable transactional JDBC API access from web components and enterprise beans.

It must be possible to access the JDBC technology database from multiple application components within a single transaction. For example, a servlet may wish to start a transaction, access a database, invoke an enterprise bean that accesses the same database as part of the same transaction, and, finally, commit the transaction.

A J2EE product must provide a transaction manager that is capable of coordinating two-phase commit operations across multiple XA-capable JDBC databases. If a JDBC driver supports the Java Transaction API’s XA interfaces (in the javax.transaction.xa

package), then the J2EE product must be capable of using the XA interfaces provided by the JDBC driver to accomplish two-phase commit operations. The J2EE product may discover the XA capabilities of JDBC drivers through product-specific means, although normally such JDBC drivers would be delivered as resource adapters using the Connector API.

J2EE.4.2.8

Transactional JMS Support

A J2EE product must support a JMS provider as a transactional resource manager.

The platform must enable transactional JMS access from servlets, JSP pages, and enterprise beans.

It must be possible to access the JMS provider from multiple application components within a single transaction. For example, a servlet may wish to start a transaction, send a JMS message, invoke an enterprise bean that also sends a JMS message as part of the same transaction, and, finally, commit the transaction.

Transaction Interoperability

J2EE.4.2.9

Transactional Resource Adapter (Connector) Support

A J2EE product must support resource adapters that use

XATransaction

mode as transactional resource managers. The platform must enable transactional access to the resource adapter from servlets, JSP pages, and enterprise beans.

It must be possible to access the resource adapter from multiple application components within a single transaction. For example, a servlet may wish to start a transaction, access the resource adapter, invoke an enterprise bean that also accesses the resource adapter as part of the same transaction, and, finally, commit the transaction.

51

J2EE.4.3

Transaction Interoperability

J2EE.4.3.1

Multiple J2EE Platform Interoperability

This specification does not require the Product Provider to implement any particular protocol for transaction interoperability across multiple J2EE products. J2EE compatibility requires neither interoperability among identical J2EE products from the same Product Provider, nor among heterogeneous J2EE products from multiple

Product Providers.

We recommend that J2EE Product Providers use the IIOP transaction propagation protocol defined by OMG and described in the OTS specification

(and implemented by the Java Transaction Service), for transaction interoperability when using the EJB interoperability protocol based on RMI-IIOP.

We plan to require the IIOP transaction propagation protocol as the EJB server transaction interoperability protocol in a future release of this specification.

J2EE.4.3.2

Support for Transactional Resource Managers

This specification requires all J2EE products to support the javax.transaction.xa.XAResource

interface, as specified in the Connector specification. This specification also requires all J2EE products to support the javax.transaction.xa.XAResource

interface for performing two-phase commit operations on JDBC drivers that support the JTA XA APIs. This specification does not require that JDBC drivers or JMS providers use the javax.transaction.xa.XAResource

interface, although they may use this interface and in all cases they must meet the transactional resource manager requirements described in this chapter. In particular, it must be possible to combine operations on one or more JDBC databases, one or more JMS sessions, one or more enterprise

52

TRANSACTION MANAGEMENT

beans, and multiple resource adapters supporting the

XATransaction

mode in a single JTA transaction.

J2EE.4.4

Local Transaction Optimization

J2EE.4.4.1

Requirements

If a transaction uses a single resource manager, performance may be improved by using a resource manager specific local optimization. A local transaction is typically more efficient than a global transaction and provides better performance. Local optimization is not available for transactions that are imported from a different container.

Containers may choose to provide local transaction optimization, but are not required to do so. Local transaction optimization must be transparent to a J2EE application.

The following section describes a possible mechanism for local transaction optimization by containers.

J2EE.4.4.2

A Possible Design

This section illustrates how the previously described requirements might be implemented.

When the first connection to a resource manager is established as part of the transaction, a resource manager specific local transaction is started on the connection. Any subsequent connection acquired as part of the transaction that can share the local transaction on the first connection is allowed to share the local transaction.

A global transaction is started lazily under the following conditions:

• When a subsequent connection cannot share the resource manager local transaction on the first connection, or if it uses a different resource manager.

• When a transaction is exported to a different container.

After the lazy start of a global transaction, any subsequent connection acquired may either share the local transaction on the first connection, or be part of the global transaction, depending on the resource manager it accesses.

When a transaction completion (commit or rollback) is attempted, there are two possibilities:

Connection Sharing

• If only a single resource manager had been accessed as part of the transaction, the transaction is completed using the resource manager specific local transaction mechanism.

• If a global transaction had been started, the transaction is completed treating the resource manager local transaction as a last resource in the global 2-phase commit protocol, that is using the last resource 2-phase commit optimization.

53

J2EE.4.5

Connection Sharing

When multiple connections acquired by a J2EE application use the same resource manager, containers may choose to provide connection sharing within the same transaction scope. Sharing connections typically results in efficient usage of resources and better performance. Containers are required to provide connection sharing in certain situations; see the Connector specification for details..

Connections to resource managers acquired by J2EE applications are considered potentially shared or shareable. A J2EE application component that intends to use a connection in an unshareable way must provide deployment information to that effect, to prevent the connection from being shared by the container. Examples of when this may be needed include situations with changed security attributes, isolation levels, character settings, and localization configuration. Containers must not attempt to share connections that are marked unshareable. If a connection is not marked unshareable, it must be transparent to the application whether the connection is actually shared or not.

J2EE application components may use the optional deployment descriptor element res-sharing-scope

to indicate whether a connection to a resource manager is shareable or unshareable. Containers must assume connections to be

shareable if no deployment hint is provided. Section J2EE.9.7, “J2EE Application

Client XML Schema”, the EJB specification, and the servlet specification provide

descriptions of the deployment descriptor element.

J2EE application components may cache connection objects and reuse them across multiple transactions. Containers that provide connection sharing must transparently switch such cached connection objects (at dispatch time) to point to an appropriate shared connection with the correct transaction scope. Refer to the

Connector specification for a detailed description of connection sharing.

54

TRANSACTION MANAGEMENT

J2EE.4.6

JDBC and JMS Deployment Issues

The JDBC transaction requirements in Section J2EE.4.2.7, “Transactional JDBC™

Technology Support” and the JMS transaction requirements in Section J2EE.4.2.8,

“Transactional JMS Support” may impose some restrictions on a Deployer’s

configuration of an application’s JDBC and JMS resources. J2EE Product Providers may impose the restrictions described in this section to meet these requirements.

If the deployer configures a non-XA-capable JDBC resource manager in a transaction, then a J2EE Product Provider may restrict all JDBC access within that transaction to that non-XA-capable JDBC resource manager. Otherwise, a J2EE

Product Provider must support use of multiple XA-capable JDBC resource managers wthin a transaction. In addition, a J2EE Product Provider may restrict the security configuration of all JDBC connections within a transaction to a single user identity. A J2EE Product Provider is not required to support transactions where more than one JDBC identity is used. Specifically, this means that transactions that require the use of more than one JDBC security identity (which can be done explicitly via component provided user name and password) may not be portable.

A J2EE Product Provider may make the same restrictions as above, resulting in a transaction being restricted to a single JMS resource manager and user identity.

In addition, when both a JDBC resource manager and a JMS resource manager are used in the same transaction, a J2EE Product Provider may restrict both to a pairing that allows their combination to deliver the full transactional semantics required by the application, and may restrict the security identity of both to a single identity. To fully support such usage, portable applications that wish to include JDBC and JMS access in a single global transaction must not mark the corresponding transactional resources as “unshareable”.

Although these restrictions are allowed, it is recommended that J2EE Product

Providers support JDBC and JMS resource managers that provide full two-phase commit functionality and, as a result, do not impose these restrictions.

J2EE.4.7

Two-Phase Commit Support

A J2EE product must support the use of multiple XA-capable resource adapters in a single transaction. To support such a scenario, full two-phase commit support is required. A JMS provider may be provided as an XA-capable resource adapter. In such a case, it must be possible to include JMS operations in the same global transaction as other resource adapters. While JDBC drivers are not required to be

System Administration Tools

XA-capable, a JDBC driver may be delivered as an XA-capable resource adapter. In such a case, it must be possible to include JDBC operations in the same global

transaction as other XA-capable resource adapters. See also Section J2EE.4.2.7,

“Transactional JDBC™ Technology Support.”

55

J2EE.4.8

System Administration Tools

Although there are no compatibility requirements for system administration capabilities, the J2EE Product Provider will typically include tools that allow the

System Administrator to perform the following tasks:

• Integrate transactional resource managers with the platform.

• Configure the transaction management parts of the platform.

• Monitor transactions at runtime.

• Receive notifications of abnormal transaction processing conditions (such as abnormally high number of transaction rollbacks).

56

TRANSACTION MANAGEMENT

C H A P T E R

J2EE.5

Naming

T

his chapter describes the naming system requirements for the Java™ 2 Platform,

Enterprise Edition (J2EE). These requirements are based on features defined in the

JNDI specification.

Note – This chapter is largely derived from the EJB specification chapter,

“Enterprise bean environment.”

J2EE.5.1

Overview

The naming requirements for the J2EE platform address the following two issues:

• The Application Assembler and Deployer should be able to customize the behavior of an application’s business logic without accessing the application’s source code. Typically this will involve specification of parameter values, connection to external resources, and so on.

• Applications must be able to access resources and external information in their operational environment without knowledge of how the external information is named and organized in that environment.

J2EE.5.1.1

Chapter Organization

The following sections contain the J2EE platform solutions to the above issues:

• Section J2EE.5.2, “Java Naming and Directory Interface™ (JNDI) Naming

Context” defines the interfaces that specify and access the application compo-

nent’s naming environment. The section illustrates the use of the application

57

58

NAMING

component’s naming environment for generic customization of the application component’s business logic.

• Section J2EE.5.3, “Enterprise JavaBeans™ (EJB) References” defines the in-

terfaces for obtaining the home interface of an enterprise bean using an EJB reference. An EJB reference is a special entry in the application component’s environment.

• Section J2EE.5.4, “Resource Manager Connection Factory References” de-

fines the interfaces for obtaining a resource manager connection factory using a resource manager connection factory reference. A resource manager connection factory reference is a special entry in the application component’s environment.

• Section J2EE.5.5, “Resource Environment References” defines the interfaces

for obtaining an administered object that is associated with a resource (e.g., a

JMS destination) using a resource environment reference. A resource environment reference is a special entry in the application component’s environment.

• Section J2EE.5.6, “Message Destination References” defines the interfaces

for declaring and using message destination references.

• Section J2EE.5.7, “UserTransaction References” describes the use by eligible

application components of references to a

UserTransaction object in the component’s environment to start, commit, and abort transactions.

• Section J2EE.5.8, “ORB References” describes the use by eligible application

components of references to a CORBA

ORB object in the component’s environment.

J2EE.5.1.2

Required Access to the JNDI Naming Environment

J2EE application clients, enterprise beans, and web components are required to have access to a JNDI naming environment. The containers for these application component types are required to provide the naming environment support described here.

Deployment descriptors are the main vehicle for conveying access information to the Application Assembler and Deployer about application components’ requirements for customization of business logic and access to external information. The deployment descriptor entries described here are present in identical form in the deployment descriptor schemas for each of these application component types. See the corresponding specification of each application component type for the details.

Java Naming and Directory Interface™ (JNDI) Naming Context

J2EE.5.2

Java Naming and Directory Interface™ (JNDI)

Naming Context

The application component’s naming environment is a mechanism that allows customization of the application component’s business logic during deployment or assembly. Use of the application component’s environment allows the application component to be customized without the need to access or change the application component’s source code.

The container implements the application component’s environment, and provides it to the application component instance as a JNDI naming context. The application component’s environment is used as follows:

1. The application component’s business methods access the environment using the JNDI interfaces. The Application Component Provider declares in the deployment descriptor all the environment entries that the application component expects to be provided in its environment at runtime.

2. The container provides an implementation of the JNDI naming context that stores the application component environment. The container also provides the tools that allow the Deployer to create and manage the environment of each application component.

3. The Deployer uses the tools provided by the container to initialize the environment entries that are declared in the application component’s deployment descriptor. The Deployer can set and modify the values of the environment entries.

4. The container makes the environment naming context available to the application component instances at runtime. The application component’s instances use the JNDI interfaces to obtain the values of the environment entries.

Each application component defines its own set of environment entries. All instances of an application component within the same container share the same environment entries. Application component instances are not allowed to modify the environment at runtime.

In general, lookups of objects in the JNDI java:

namespace are required to return a new instance of the requested object every time. Exceptions are allowed for the following:

59

60

NAMING

• The container knows the object is immutable (for example, objects of type java.lang.String

), or knows that the application can’t change the state of the object.

• The object is defined to be a singleton, such that only one instance of the object may exist in the JVM.

• The name used for the lookup is defined to return an instance of the object that might be shared. The name java:comp/ORB

is such a name.

In these cases, a shared instance of the object may be returned. In all other cases, a new instance of the requested object must be returned on each lookup.

Note that, in the case of resource adapter connection objects, it is the resource adapter’s

ManagedConnectionFactory implementation that is responsible for satisfying this requirement.

Note – Terminology warning: The application component’s “environment” should not be confused with the “environment properties” defined in the JNDI documentation. The JNDI environment properties are used to initialize and configure the JNDI naming context itself. The application component’s environment is accessed through a JNDI naming context for direct use by the application component.

The following subsections describe the responsibilities of each J2EE Role.

J2EE.5.2.1

Application Component Provider’s Responsibilities

This section describes the Application Component Provider’s view of the application component’s environment, and defines his or her responsibilities. It does so in two sections, the first describing the API for accessing environment entries, and the second describing syntax for declaring the environment entries.

J2EE.5.2.1.1

Access to Application Component’s Environment

An application component instance locates the environment naming context using the JNDI interfaces. An instance creates a javax.naming.InitialContext

object by using the constructor with no arguments, and looks up the naming environment via the InitialContext under the name java:comp/env . The application component’s environment entries are stored directly in the environment naming context, or in its direct or indirect subcontexts.

Java Naming and Directory Interface™ (JNDI) Naming Context

Environment entries have the Java programming language type declared by the Application Component Provider in the deployment descriptor.

The following code example illustrates how an application component accesses its environment entries.

public void setTaxInfo(int numberOfExemptions,...) throws InvalidNumberOfExemptionsException {

...

// Obtain the application component’s

// environment naming context.

Context initCtx = new InitialContext();

Context myEnv = (Context)initCtx.lookup(“java:comp/env”);

// Obtain the maximum number of tax exemptions

// configured by the Deployer.

Integer max = (Integer)myEnv.lookup(“maxExemptions”);

// Obtain the minimum number of tax exemptions

// configured by the Deployer.

Integer min = (Integer)myEnv.lookup(“minExemptions”);

// Use the environment entries to

// customize business logic.

if (numberOfExemptions > max.intValue() || numberOfExemptions < min.intValue()) throw new InvalidNumberOfExemptionsException();

}

// Get some more environment entries. These environment

// entries are stored in subcontexts.

String val1 = (String)myEnv.lookup(“foo/name1”);

Boolean val2 = (Boolean)myEnv.lookup(“foo/bar/name2”);

// The application component can also

// lookup using full pathnames.

Integer val3 = (Integer)initCtx.lookup(“java:comp/env/name3”);

Integer val4 =

(Integer)initCtx.lookup(“java:comp/env/foo/name4”);

...

J2EE.5.2.1.2

Declaration of Environment Entries

The Application Component Provider must declare all the environment entries accessed from the application component’s code. The environment entries are

61

62

NAMING

declared using the env-entry elements in the deployment descriptor. Each enventry

element describes a single environment entry. The env-entry

element consists of an optional description of the environment entry, the environment entry name relative to the java:comp/env

context, the expected Java programming language type of the environment entry value (the type of the object returned from the JNDI lookup

method), and an optional environment entry value.

An environment entry is scoped to the application component whose declaration contains the env-entry

element. This means that the environment entry is not accessible from other application components at runtime, and that other application components may define env-entry

elements with the same enventry-name

without causing a name conflict.

The environment entry values may be one of the following Java types:

String

,

Character

,

Byte

,

Short

,

Integer

,

Long

,

Boolean

,

Double

, and

Float

.

If the Application Component Provider provides a value for an environment entry using the env-entry-value

element, the value can be changed later by the

Application Assembler or Deployer. The value must be a string that is valid for the constructor of the specified type that takes a single

String

parameter, or in the case of

Character

, a single character.

The following example is the declaration of environment entries used by the application component whose code was illustrated in the previous subsection.

...

<env-entry>

<description>

The maximum number of tax exemptions allowed to be set.

</description>

<env-entry-name>maxExemptions</env-entry-name>

<env-entry-type>java.lang.Integer</env-entry-type>

<env-entry-value>15</env-entry-value>

</env-entry>

<env-entry>

<description>

The minimum number of tax exemptions allowed to be set.

</description>

<env-entry-name>minExemptions</env-entry-name>

<env-entry-type>java.lang.Integer</env-entry-type>

<env-entry-value>1</env-entry-value>

</env-entry>

<env-entry>

<env-entry-name>foo/name1</env-entry-name>

Java Naming and Directory Interface™ (JNDI) Naming Context

<env-entry-type>java.lang.String</env-entry-type>

<env-entry-value>value1</env-entry-value>

</env-entry>

<env-entry>

<env-entry-name>foo/bar/name2</env-entry-name>

<env-entry-type>java.lang.Boolean</env-entry-type>

<env-entry-value>true</env-entry-value>

</env-entry>

<env-entry>

<description>Some description.</description>

<env-entry-name>name3</env-entry-name>

<env-entry-type>java.lang.Integer</env-entry-type>

</env-entry>

<env-entry>

<env-entry-name>foo/name4</env-entry-name>

<env-entry-type>java.lang.Integer</env-entry-type>

<env-entry-value>10</env-entry-value>

</env-entry>

...

J2EE.5.2.2

Application Assembler’s Responsibilities

The Application Assembler is allowed to modify the values of the environment entries set by the Application Component Provider, and is allowed to set the values of those environment entries for which the Application Component Provider has not specified any initial values.

J2EE.5.2.3

Deployer’s Responsibilities

The Deployer must ensure that all the environment entries declared by an application component are set to meaningful values.

The Deployer can modify the values of the environment entries that have been previously set by the Application Component Provider and/or Application

Assembler, and must set the values of those environment entries for which no value has been specified.

The description

elements provided by the Application Component Provider or Application Assembler help the Deployer with this task.

J2EE.5.2.4

J2EE Product Provider’s Responsibilities

The J2EE Product Provider has the following responsibilities:

63

64

NAMING

• Provide a deployment tool that allows the Deployer to set and modify the values of the application component’s environment entries.

• Implement the java:comp/env environment naming context, and provide it to the application component instances at runtime. The naming context must include all the environment entries declared by the Application Component Provider, with their values supplied in the deployment descriptor or set by the

Deployer. The environment naming context must allow the Deployer to create subcontexts if they are needed by an application component.

• The container must ensure that the application component instances have only read access to their environment variables. The container must throw the javax.naming.OperationNotSupportedException

from all the methods of the javax.naming.Context

interface that modify the environment naming context and its subcontexts.

J2EE.5.3

Enterprise JavaBeans™ (EJB) References

This section describes the programming and deployment descriptor interfaces that allow the Application Component Provider to refer to the homes of enterprise beans using “logical” names called EJB references. The EJB references are special entries in the application component’s naming environment. The Deployer binds the EJB references to the enterprise bean’s homes in the target operational environment.

The deployment descriptor also allows the Application Assembler to link an

EJB reference declared in one application component to an enterprise bean contained in an ejb-jar file in the same J2EE application. The link is an instruction to the tools used by the Deployer describing the binding of the EJB reference to the home of the specified target enterprise bean.

J2EE.5.3.1

Application Component Provider’s Responsibilities

This subsection describes the Application Component Provider’s view and responsibilities with respect to EJB references. It does so in two sections, the first describing the API for accessing EJB references, and the second describing the syntax for declaring the EJB references.

J2EE.5.3.1.1

Programming Interfaces for EJB References

The Application Component Provider must use EJB references to locate the home interfaces of enterprise bean as follows.

Enterprise JavaBeans™ (EJB) References

• Assign an entry in the application component’s environment to the reference.

(See subsection 5.3.1.2 for information on how EJB references are declared in

the deployment descriptor.)

• This specification recommends, but does not require, that all references to enterprise beans be organized in the ejb

subcontext of the application component’s environment (that is, in the java:comp/env/ejb

JNDI context).

• Look up the home interface of the referenced enterprise bean in the application component’s environment using JNDI.

The following example illustrates how an application component uses an EJB reference to locate the home interface of an enterprise bean.

public void changePhoneNumber(...) {

...

// Obtain the default initial JNDI context.

Context initCtx = new InitialContext();

// Look up the home interface of the EmployeeRecord

// enterprise bean in the environment.

Object result = initCtx.lookup("java:comp/env/ejb/EmplRecord");

// Convert the result to the proper type.

EmployeeRecordHome emplRecordHome = (EmployeeRecordHome) javax.rmi.PortableRemoteObject.narrow(result,

EmployeeRecordHome.class);

...

}

In the example, the Application Component Provider assigned the environment entry ejb/EmplRecord as the EJB reference name to refer to the home of an enterprise bean.

J2EE.5.3.1.2

Declaration of EJB References

Although the EJB reference is an entry in the application component’s environment, the Application Component Provider must not use a env-entry

element to declare it. Instead, the Application Component Provider must declare all the EJB references using the ejb-ref elements of the deployment descriptor. This allows the consumer of the application component’s JAR file (the Application Assembler or Deployer) to discover all the EJB references used by the application component.

Each ejb-ref

element describes the interface requirements that the referencing application component has for the referenced enterprise bean. The

65

66

NAMING

ejb-ref element contains an optional description

element and the mandatory ejb-ref-name

, ejb-ref-type

, home

, and remote elements.

The ejb-ref-name

element specifies the EJB reference name. Its value is the environment entry name used in the application component code. The ejb-reftype element specifies the expected type of the enterprise bean. Its value must be either

Entity or

Session

. The home and remote elements specify the expected Java programming language types of the referenced enterprise bean’s home and remote interfaces.

An EJB reference is scoped to the application component whose declaration contains the ejb-ref element. This means that the EJB reference is not accessible from other application components at runtime, and that other application components may define ejb-ref

elements with the same ejb-ref-name

without causing a name conflict.

The following example illustrates the declaration of EJB references in the deployment descriptor.

...

<ejb-ref>

<description>

This is a reference to the entity bean that encapsulates access to employee records.

</description>

<ejb-ref-name>ejb/EmplRecord</ejb-ref-name>

<ejb-ref-type>Entity</ejb-ref-type>

<home>com.wombat.empl.EmployeeRecordHome</home>

<remote>com.wombat.empl.EmployeeRecord</remote>

</ejb-ref>

<ejb-ref>

<ejb-ref-name>ejb/Payroll</ejb-ref-name>

<ejb-ref-type>Entity</ejb-ref-type>

<home>com.aardvark.payroll.PayrollHome</home>

<remote>com.aardvark.payroll.Payroll</remote>

</ejb-ref>

<ejb-ref>

<ejb-ref-name>ejb/PensionPlan</ejb-ref-name>

<ejb-ref-type>Session</ejb-ref-type>

<home>com.wombat.empl.PensionPlanHome</home>

<remote>com.wombat.empl.PensionPlan</remote>

</ejb-ref>

...

Enterprise JavaBeans™ (EJB) References

J2EE.5.3.2

Application Assembler’s Responsibilities

The Application Assembler can use the ejb-link

element in the deployment descriptor to link an EJB reference to a target enterprise bean.

The Application Assembler specifies the link to an enterprise bean as follows:

• The Application Assembler uses the optional ejb-link element of the ejb-ref element of the referencing application component. The value of the ejb-link element is the name of the target enterprise bean. (It is the name defined in the ejb-name element of the target enterprise bean.) The target enterprise bean can be in any ejb-jar file in the same J2EE application as the referencing application component.

• Alternatively, to avoid the need to rename enterprise beans to have unique names within an entire J2EE application, the Application Assembler may use the following syntax in the ejb-link

element of the referencing application component. The Application Assembler specifies the path name of the ejb-jar file containing the referenced enterprise bean and appends the ejb-name of the target bean separated from the path name by “

#

”. The path name is relative to the referencing application component JAR file. In this manner, multiple beans with the same ejb-name

may be uniquely identified when the Application Assembler cannot change ejb-names.

• The Application Assembler must ensure that the target enterprise bean is typecompatible with the declared EJB reference. This means that the target enterprise bean must be of the type indicated in the ejb-ref-type element, and that the home and remote interfaces of the target enterprise bean must be Java typecompatible with the interfaces declared in the EJB reference.

The following example illustrates the use of the ejb-link

element in the deployment descriptor. The enterprise bean reference should be satisfied by the bean named

EmployeeRecord

. The

EmployeeRecord

enterprise bean may be packaged in the same module as the component making this reference, or it may be packaged in another module within the same J2EE application as the component making this reference.

...

<ejb-ref>

<description>

This is a reference to the entity bean that encapsulates access to employee records. It has been linked to the entity bean named

EmployeeRecord in this application.

67

68

NAMING

</description>

<ejb-ref-name>ejb/EmplRecord</ejb-ref-name>

<ejb-ref-type>Entity</ejb-ref-type>

<home>com.wombat.empl.EmployeeRecordHome</home>

<remote>com.wombat.empl.EmployeeRecord</remote>

<ejb-link>EmployeeRecord</ejb-link>

</ejb-ref>

...

The following example illustrates using the ejb-link

element to indicate an enterprise bean reference to the

ProductEJB

enterprise bean that is in the same

J2EE application unit but in a different ejb-jar file.

...

<ejb-ref>

<description>

This is a reference to the entity bean that encapsulates access to a product. It has been linked to the entity bean named

ProductEJB in the product.jar file in this application.

</description>

<ejb-ref-name>ejb/Product</ejb-ref-name>

<ejb-ref-type>Entity</ejb-ref-type>

<home>com.acme.products.ProductHome</home>

<remote>com.acme.products.Product</remote>

<ejb-link>../products/product.jar#ProductEJB</ejb-link>

</ejb-ref>

...

J2EE.5.3.3

Deployer’s Responsibilities

The Deployer is responsible for the following:

• The Deployer must ensure that all the declared EJB references are bound to the homes of enterprise beans that exist in the operational environment. The Deployer may use, for example, the JNDI

LinkRef

mechanism to create a symbolic link to the actual JNDI name of the target enterprise bean’s home.

• The Deployer must ensure that the target enterprise bean is type-compatible with the types declared for the EJB reference. This means that the target enterprise bean must be of the type indicated in the ejb-ref-type

element, and that the home and remote interfaces of the target enterprise bean must be Java

Resource Manager Connection Factory References

type-compatible with the home and remote interfaces declared in the EJB reference.

• If an EJB reference declaration includes the ejb-link

element, the Deployer should bind the enterprise bean reference to the home of the enterprise bean specified as the link’s target.

69

J2EE.5.3.4

J2EE Product Provider’s Responsibilities

The J2EE Product Provider must provide the deployment tools that allow the

Deployer to perform the tasks described in the previous subsection. The deployment tools provided by the J2EE Product Provider must be able to process the information supplied in the ejb-ref

elements in the deployment descriptor.

At the minimum, the tools must be able to:

• Preserve the application assembly information in the ejb-link elements by binding an EJB reference to the home interface of the specified target enterprise bean.

• Inform the Deployer of any unresolved EJB references, and allow him or her to resolve an EJB reference by binding it to a specified compatible target enterprise bean.

J2EE.5.4

Resource Manager Connection Factory References

A resource manager connection factory is an object that is used to create connections to a resource manager. For example, an object that implements the javax.sql.DataSource

interface is a resource manager connection factory for java.sql.Connection

objects that implement connections to a database management system.

This section describes the application component programming and deployment descriptor interfaces that allow the application component code to refer to resource factories using logical names called resource manager connection factory references. The resource manager connection factory references are special entries in the application component’s environment. The

Deployer binds the resource manager connection factory references to the actual resource manager connection factories that exist in the target operational environment. Because these resource manager connection factories allow the

Container to affect resource management, the connections acquired through the resource manager connection factory references are called managed resources (for

70

NAMING

example, these resource manager connection factories allow the Container to implement connection pooling and automatic enlistment of the connection with a transaction).

Resource manager connection factory objects accessed through the naming environment are only valid within the component instance that performed the lookup. See the individual component specifications for additional restrictions that may apply.

J2EE.5.4.1

Application Component Provider’s Responsibilities

This subsection describes the Application Component Provider’s view of locating resource factories and defines his or her responsibilities. It does so in two sections, the first describing the API for accessing resource manager connection factory references, and the second describing the syntax for declaring the factory references.

J2EE.5.4.1.1

Programming Interfaces for Resource Manager Connection

Factory References

The Application Component Provider must use resource manager connection factory references to obtain connections to resources as follows.

• Assign an entry in the application component’s naming environment to the re-

source manager connection factory reference. (See subsection 5.4.1.2 for in-

formation on how resource manager connection factory references are declared in the deployment descriptor.)

• This specification recommends, but does not require, that all resource manager connection factory references be organized in the subcontexts of the application component’s environment, using a different subcontext for each resource manager type. For example, all JDBC™ DataSource references should be declared in the java:comp/env/jdbc

subcontext, all JMS connection factories in the java:comp/env/jms

subcontext, all JavaMail connection factories in the java:comp/env/mail

subcontext, and all URL connection factories in the java:comp/env/url

subcontext.

• Lookup the resource manager connection factory object in the application component’s environment using the JNDI interface.

• Invoke the appropriate method on the resource manager connection factory object to obtain a connection to the resource. The factory method is specific to the resource type. It is possible to obtain multiple connections by calling the factory object multiple times.

Resource Manager Connection Factory References

The Application Component Provider can control the shareability of the connections acquired from the resource manager connection factory. By default, connections to a resource manager are shareable across other application components in the application that use the same resource in the same transaction context. The Application Component Provider can specify that connections obtained from a resource manager connection factory reference are not shareable by specifying the value of the res-sharing-scope deployment descriptor element to be

Unshareable

. The sharing of connections to a resource manager allows the container to optimize the use of connections and enables the container’s use of local transaction optimizations.

The Application Component Provider has two choices with respect to dealing with associating a principal with the resource manager access:

• Allow the Deployer to set up principal mapping or resource manager sign on information. In this case, the application component code invokes a resource manager connection factory method that has no security-related parameters.

• Sign on to the resource from the application component code. In this case, the application component invokes the appropriate resource manager connection factory method that takes the sign on information as method parameters.

The Application Component Provider uses the res-auth

deployment descriptor element to indicate which of the two resource authentication approaches is used.

We expect that the first form (that is letting the Deployer set up the resource sign on information) will be the approach used by most application components.

The following code sample illustrates obtaining a JDBC connection.

public void changePhoneNumber(...) {

...

// obtain the initial JNDI context

Context initCtx = new InitialContext();

// perform JNDI lookup to obtain resource manager

// connection factory javax.sql.DataSource ds = (javax.sql.DataSource) initCtx.lookup("java:comp/env/jdbc/EmployeeAppDB");

// Invoke factory to obtain a resource. The security

// principal for the resource is not given, and

// therefore it will be configured by the Deployer.

71

72

NAMING

} java.sql.Connection con = ds.getConnection();

...

J2EE.5.4.1.2

Declaration of Resource Manager Connection Factory

References in Deployment Descriptor

Although a resource manager connection factory reference is an entry in the application component’s environment, the Application Component Provider must not use an env-entry

element to declare it.

Instead, the Application Component Provider must declare all the resource manager connection factory references in the deployment descriptor using the resource-ref elements. This allows the consumer of the application component’s

JAR file (the Application Assembler or Deployer) to discover all the resource manager connection factory references used by an application component.

Each resource-ref element describes a single resource manager connection factory reference. The resource-ref element consists of the description element, the mandatory res-ref-name , res-type , and res-auth elements, and the optional res-sharing-scope element. The res-ref-name element contains the name of the environment entry used in the application component’s code. The name of the environment entry is relative to the java:comp/env context (for example, the name should be jdbc/EmployeeAppDB rather than java:comp/env/ jdbc/EmployeeAppDB ). The res-type element contains the Java programming language type of the resource manager connection factory that the application component code expects. The res-auth element indicates whether the application component code performs resource sign on programmatically, or whether the container signs on to the resource based on the principal mapping information supplied by the Deployer. The Application Component Provider indicates the sign on responsibility by setting the value of the res-auth element to

Application or

Container

. The res-sharing-scope

element indicates whether connections to the resource manager obtained through the given resource manager connection factory reference can be shared or whether connections are unshareable. The value of the res-sharing-scope

element is

Shareable

or

Unshareable

. If the res-sharing-scope

element is not specified, connections are assumed to be shareable.

A resource manager connection factory reference is scoped to the application component whose declaration contains the resource-ref

element. This means that the resource manager connection factory reference is not accessible from other application components at runtime, and that other application components

Resource Manager Connection Factory References

may define resource-ref

elements with the same res-ref-name

without causing a name conflict.

The type declaration allows the Deployer to identify the type of the resource manager connection factory.

Note that the indicated type is the Java programming language type of the resource manager connection factory, not the type of the connection.

The following example is the declaration of resource references used by the application component illustrated in the previous subsection.

...

<resource-ref>

<description>

A data source for the database in which the EmployeeService enterprise bean will record a log of all transactions.

</description>

<res-ref-name>jdbc/EmployeeAppDB</res-ref-name>

<res-type>javax.sql.DataSource</res-type>

<res-auth>Container</res-auth>

<res-sharing-scope>Shareable</res-sharing-scope>

</resource-ref>

J2EE.5.4.1.3

Standard Resource Manager Connection Factory Types

The Application Component Provider must use the javax.sql.DataSource

resource manager connection factory type for obtaining JDBC API connections.

The Application Component Provider must use the javax.jms.QueueConnectionFactory

, the javax.jms.TopicConnectionFactory

, or the javax.jms.ConnectionFactory

for obtaining JMS connections.

The Application Component Provider must use the javax.mail.Session

resource manager connection factory type for obtaining JavaMail API connections.

The Application Component Provider must use the java.net.URL

resource manager connection factory type for obtaining URL connections.

It is recommended that the Application Component Provider name JDBC API data sources in the java:comp/env/jdbc subcontext, all JMS connection factories in the java:comp/env/jms

subcontext, all JavaMail API connection factories in the java:comp/env/mail

subcontext, and all URL connection factories in the java:comp/env/url

subcontext.

73

74

NAMING

The J2EE Connector Architecture allows an application component to use the

API described in this section to obtain resource objects that provide access to additional back-end systems.

J2EE.5.4.2

Deployer’s Responsibilities

The Deployer uses deployment tools to bind the resource manager connection factory references to the actual resource factories configured in the target operational environment.

The Deployer must perform the following tasks for each resource manager connection factory reference declared in the deployment descriptor:

• Bind the resource manager connection factory reference to a resource manager connection factory that exists in the operational environment. The Deployer may use, for example, the JNDI

LinkRef mechanism to create a symbolic link to the actual JNDI name of the resource manager connection factory. The resource manager connection factory type must be compatible with the type declared in the res-type

element.

• Provide any additional configuration information that the resource manager needs for opening and managing the resource. The configuration mechanism is resource manager specific, and is beyond the scope of this specification.

• If the value of the res-auth element is

Container

, the Deployer is responsible for configuring the sign on information for the resource manager. This is performed in a manner specific to the container and resource manager; it is beyond the scope of this specification.

For example, if principals must be mapped from the security domain and principal realm used at the application component level to the security domain and principal realm of the resource manager, the Deployer or System Administrator must define the mapping. The mapping is performed in a manner specific to the container and resource manager; it is beyond the scope of this specification.

J2EE.5.4.3

J2EE Product Provider’s Responsibilities

The J2EE Product Provider is responsible for the following:

Resource Manager Connection Factory References

• Provide the deployment tools that allow the Deployer to perform the tasks described in the previous subsection.

• Provide the implementation of the resource manager connection factory classes that are required by this specification.

• If the Application Component Provider set the res-auth of a resource reference to

Application

, the container must allow the application component to perform explicit programmatic sign on using the resource manager’s API.

• If the Application Component Provider sets the res-sharing-scope

of a resource manager connection factory reference to

Unshareable

, the container must not attempt to share the connections obtained from the resource manager connection factory reference

1

.

• The container must provide tools that allow the Deployer to set up resource sign on information for the resource manager references whose res-auth

element is set to

Container

. The minimum requirement is that the Deployer must be able to specify the username/password information for each resource manager connection factory reference declared by the application component, and the container must be able to use the username/password combination for user authentication when obtaining a connection by invoking the resource manager connection factory.

Although not required by this specification, we expect that containers will support some form of a single sign on mechanism that spans the application server and the resource managers. The container will allow the Deployer to set up the resources such that the principal can be propagated (directly or through principal mapping) to a resource manager, if required by the application.

While not required by this specification, most J2EE products will provide the following features:

• A tool to allow the System Administrator to add, remove, and configure a resource manager for the J2EE Server.

• A mechanism to pool resources for the application components and otherwise manage the use of resources by the container. The pooling must be transparent to the application components.

75

1.

Connections obtained from the same resource manager connection factory through a different resource manager connection factory reference many be shareable.

76

NAMING

J2EE.5.4.4

System Administrator’s Responsibilities

The System Administrator is typically responsible for the following:

• Add, remove, and configure resource managers in the J2EE Server environment.

In some scenarios, these tasks can be performed by the Deployer.

J2EE.5.5

Resource Environment References

This section describes the programming and deployment descriptor interfaces that allow the Application Component Provider to refer to administered objects that are associated with a resource (for example, a Connector CCI

InteractionSpec instance) by using “logical” names called resource environment references. The resource environment references are special entries in the application component’s environment. The Deployer binds the resource environment references to administered objects in the target operational environment.

J2EE.5.5.1

Application Component Provider’s Responsibilities

This subsection describes the Application Component Provider’s view and responsibilities with respect to resource environment references.

J2EE.5.5.1.1

Resource Environment Reference Programming Interfaces

The Application Component Provider is required to use resource environment references to locate administered objects that are associated with resources as follows.

• Assign an entry in the application component’s environment to the reference.

(See subsection 5.5.1.2 for information on how resource environment refer-

ences are declared in the deployment descriptor.)

• This specification recommends, but does not require, that all resource environment references be organized in the appropriate subcontext of the component’s environment for the resource type.

• Look up the administered object in the application component’s environment using JNDI.

Resource Environment References

J2EE.5.5.1.2

Declaration of Resource Environment References in

Deployment Descriptor

Although the resource environment reference is an entry in the application component’s environment, the Application Component Provider must not use a env-entry element to declare it. Instead, the Application Component Provider must declare all references to administered objects associated with resources using the resource-env-ref

elements of the deployment descriptor. This allows the application component’s JAR file consumer to discover all the resource environment references used by the application component.

Each resource-env-ref

element describes the requirements that the referencing application component has for the referenced administered object.

The resource-env-ref element contains an optional description element and the mandatory resource-env-ref-name and resource-env-ref-type elements.

The resource-env-ref-name

element specifies the resource environment reference name. Its value is the environment entry name used in the application component code. The name of the resource environment reference is relative to the java:comp/env

context. The resource-env-ref-type element specifies the expected type of the referenced object.

A resource environment reference is scoped to the application component whose declaration contains the resource-env-ref

element. This means that the resource environment reference is not accessible to other application components at runtime, and that other application components may define resource-env-ref elements with the same resource-env-ref-name

without causing a name conflict.

77

J2EE.5.5.2

Deployer’s Responsibilities

The Deployer is responsible for the following:

• The Deployer must ensure that all the declared resource environment references are bound to administered objects that exist in the operational environment.

The Deployer may use, for example, the JNDI

LinkRef mechanism to create a symbolic link to the actual JNDI name of the target object.

• The Deployer must ensure that the target object is type-compatible with the type declared for the resource environment reference. This means that the target object must be of the type indicated in the resource-env-ref-type

element.

78

NAMING

J2EE.5.5.3

J2EE Product Provider’s Responsibilities

The J2EE Product Provider must provide the deployment tools that allow the

Deployer to perform the tasks described in the previous subsection. The deployment tools provided by the J2EE Product Provider must be able to process the information supplied in the resource-env-ref

elements in the deployment descriptor.

At the minimum, the tools must be able to inform the Deployer of any unresolved resource environment references, and allow him or her to resolve a resource environment reference by binding it to a specified compatible target object in the environment.

J2EE.5.6

Message Destination References

This section describes the programming and deployment descriptor interfaces that allow the Application Component Provider to refer to message destination objects by using “logical” names called message destination references. Message destination references are special entries in the application component’s environment. The Deployer binds the message destination references to administered message destinations in the target operational environment.

J2EE.5.6.1

Application Component Provider’s Responsibilities

This subsection describes the Application Component Provider’s view and responsibilities with respect to message destination references.

J2EE.5.6.1.1

Message Destination Reference Programming Interfaces

The Application Component Provider uses message destination references to locate message destinations, as follows.

• Assign an entry in the application component’s environment to the reference.

(See subsection 5.6.1.2 for information on how message destination references

are declared in the deployment descriptor.)

• This specification recommends, but does not require, that all message destination references be organized in the appropriate subcontext of the component’s environment for the resource type (for example, in the java:comp/env/jms

JNDI context for JMS Destinations).

• Look up the administered object in the application component’s environment

Message Destination References

using JNDI.

The following example illustrates how an application component uses a message destination reference to locate a JMS Destination.

// Obtain the default initial JNDI context.

Context initCtx = new InitialContext();

// Look up the JMS StockQueue in the environment.

Object result = initCtx.lookup("java:comp/env/jms/StockQueue");

// Convert the result to the proper type.

javax.jms.Queue queue = (javax.jms.Queue)result;

In the example, the Application Component Provider assigned the environment entry jms/StockQueue

as the message destination reference name to refer to a JMS queue.

J2EE.5.6.1.2

Declaration of Message Destination References in Deployment

Descriptor

Although the message destination reference is an entry in the application component’s environment, the Application Component Provider must not use a env-entry

element to declare it. Instead, the Application Component Provider should declare all references to message destinations using the messagedestination-ref

elements of the deployment descriptor. This allows the application component’s JAR file consumer to discover all the message destination references used by the application component.

Each message-destination-ref

element describes the requirements that the referencing application component has for the referenced destination. The message-destination-ref element contains an optional description element and the mandatory message-destination-ref-name

, message-destination-type

, and message-destination-usage elements.

The message-destination-ref-name

element specifies the message destination reference name. Its value is the environment entry name used in the application component code. The name of the message destination reference is relative to the java:comp/env

context (for example, the name should be jms/

StockQueue

rather than java:comp/env/jms/StockQueue

). The messagedestination-type element specifies the expected type of the referenced destination. For example, in the case of a JMS Destination, its value might be javax.jms.Queue

.

The message-destination-usage element specifies whether

79

80

NAMING

messages are consumed from the message destination, produced for the destination, or both.

A message destination reference is scoped to the application component whose declaration contains the message-destination-ref

element. This means that the message destination reference is not accessible to other application components at runtime, and that other application components may define message-destination-ref

elements with the same message-destination-refname

without causing a name conflict.

The following example illustrates the declaration of message destination references in the deployment descriptor.

...

<message-destination-ref>

<description>

This is a reference to a JMS queue used in the processing of Stock info

</description>

<message-destination-ref-name> jms/StockInfo

</message-destination-ref-name>

<message-destination-type> javax.jms.Queue

</message-destination-type>

<message-destination-usage>

Produces

</message-destination-usage>

</message-destination-ref>

...

J2EE.5.6.2

Application Assembler’s Responsibilities

By means of linking message consumers and producers to one or more common logical destinations specified in the enterprise bean deployment descriptor, the

Application Assembler can specify the flow of messages within an application. The

Application Assembler uses the message-destination element in an ejb-jar file, the message-destination-link

element of the message-destination-ref

element, and the message-destination-link

element of an ejb-jar’s message-driven element to link message destination references to a common logical destination.

The Application Assembler specifies the link between message consumers and producers as follows:

Message Destination References

• The Application Assembler uses the message-destination

element in an ejbjar deployment descriptor to specify a logical message destination within the application. The message-destination

element defines a messagedestination-name

, which is used for the purpose of linking.

• The Application Assembler uses the message-destination-link

element of the message-destination-ref

element of an application component that produces messages to link it to the target destination. The value of the messagedestination-link element is the name of the target destination, as defined in the message-destination-name

element of the message-destination

element. The message-destination

element can be in any EJB module in the same J2EE application as the referencing component. The Application Assembler uses the message-destination-usage

element of the messagedestination-ref

element to indicate that the referencing application component produces messages to the referenced destination.

• If the consumer of messages from the common destination is a message-driven bean, the Application Assembler uses the message-destination-link

element of the message-driven

element to reference the logical destination. If the Application Assembler links a message-driven bean to its source destination, he or she should use the message-destination-type

element of the message-driven

element to specify the expected destination type. Otherwise, the Application Assembler uses the message-destination-link

element of the message-destination-ref

element of the application component that consumes messages to link to the common destination. In the latter case, the

Application Assembler uses the message-destination-usage

element of the message-destination-ref element to indicate that the application component consumes messages from the referenced destination.

• To avoid the need to rename message destinations to have unique names within an entire J2EE application, the Application Assembler may use the following syntax in the message-destination-link

element of the referencing application component. The Application Assembler specifies the path name of the ejb-jar file containing the referenced message destination and appends the message-destination-name

of the target destination separated from the path name by #. The path name is relative to the referencing application component JAR file. In this manner, multiple destinations with the same messagedestination-name

may be uniquely identified.

• When linking message destinations, the Application Assembler must ensure that the consumers and producers for the destination require a message destination of the same or compatible type, as determined by the messaging system.

81

82

NAMING

J2EE.5.6.3

Deployer’s Responsibilities

The Deployer is responsible for the following:

• The Deployer must ensure that all the declared message destination references are bound to administered objects that exist in the operational environment.

The Deployer may use, for example, the JNDI

LinkRef mechanism to create a symbolic link to the actual JNDI name of the target object.

• The Deployer must ensure that the target object is type-compatible with the type declared for the message destination reference. This means that the target object must be of the type indicated in the message-destination-type

element.

• The Deployer must observe the message destination links specified by the Application Assembler.

J2EE.5.6.4

J2EE Product Provider’s Responsibilities

The J2EE Product Provider must provide the deployment tools that allow the

Deployer to perform the tasks described in the previous subsection. The deployment tools provided by the J2EE Product Provider must be able to process the information supplied in the message-destination-ref elements in the deployment descriptor.

At the minimum, the tools must be able to inform the Deployer of any unresolved message destination references, and allow him or her to resolve a message destination reference by binding it to a specified compatible target object in the environment.

J2EE.5.7

UserTransaction References

Certain J2EE application component types are allowed to use the JTA

UserTransaction

interface to start, commit, and abort transactions. Such application components can find an appropriate object implementing the

UserTransaction

interface by looking up the JNDI name java:comp/

UserTransaction

. The container is only required to provide the java:comp/

UserTransaction

name for those components that can validly make use of it. Any such reference to a

UserTransaction

object is only valid within the component instance that performed the lookup. See the individual component definitions for further information.

UserTransaction References

The following example illustrates how an application component acquires and uses a

UserTransaction

object.

public void updateData(...) {

...

// Context initCtx = new InitialContext();

// Look up the UserTransaction object.

UserTransaction tx = (UserTransaction)initCtx.lookup(

"java:comp/UserTransaction");

// Start a transaction.

tx.begin();

...

// Perform transactional operations on data.

...

// Commit the transaction.

tx.commit();

...

}

83

J2EE.5.7.1

Application Component Provider’s Responsibilities

The Application Component Provider is responsible for using the defined name to look up the

UserTransaction

object.

Only some application component types are required to have access to a

UserTransaction

object; see Table J2EE.6-1 in this specification and the EJB

specification for details.

J2EE.5.7.2

Deployer’s Responsibilities

The Deployer has no specific responsibilities associated with the UserTransaction object.

J2EE.5.7.3

J2EE Product Provider’s Responsibilities

The J2EE Product Provider is responsible for providing an appropriate

UserTransaction

object as required by this specification.

84

J2EE.5.7.4

System Administrator’s Responsibilities

The System Administrator has no specific responsibilities associated with the

UserTransaction

object.

NAMING

J2EE.5.8

ORB References

Some J2EE applications will need to make use of the CORBA ORB to perform certain operations. Such applications can find an appropriate object implementing the

ORB

interface by looking up the JNDI name java:comp/ORB

. The container is required to provide the java:comp/ORB

name for all components except applets.

Any such reference to a

ORB

object is only valid within the component instance that performed the lookup.

J2EE.5.8.1

Application Component Provider’s Responsibilities

The Application Component Provider is responsible for using the defined name to look up the ORB object.

J2EE.5.8.2

Deployer’s Responsibilities

The Deployer has no specific responsibilities associated with the

ORB

object.

J2EE.5.8.3

J2EE Product Provider’s Responsibilities

The J2EE Product Provider is responsible for providing an appropriate ORB object as required by this specification.

J2EE.5.8.4

System Administrator’s Responsibilities

The System Administrator has no specific responsibilities associated with the

ORB object.

C H A P T E R

J2EE.6

Application Programming

Interface

T

his Chapter describes API requirements for the Java™ 2 Platform, Enterprise

Edition (J2EE). J2EE requires the provision of a number of APIs for use by J2EE applications, starting with the core Java APIs and including several Java optional packages

1

.

J2EE.6.1

Required APIs

J2EE application components execute in runtime environments provided by the containers that are a part of the J2EE platform. The J2EE platform supports four types of containers corresponding to J2EE application component types: application client containers, applet containers, web containers for servlets and JSP pages, and enterprise bean containers.

J2EE.6.1.1

Java Compatible APIs

The containers provide all application components with the Java 2 Platform,

Standard Edition, v1.4 (J2SE) APIs, which include the following enterprise APIs:

1.

Note that “optional packages” were previously called “standard extensions”. The packages described here are optional relative to J2SE, but re-

quired for J2EE.

85

86

APPLICATION PROGRAMMING INTERFACE

• Java IDL API

• JDBC API

• RMI-IIOP API

• JNDI API

• JAXP API

• JAAS API

In particular, the applet execution environment must be J2SE 1.4 compatible.

Since typical browsers don’t yet provide such support, J2EE products may make use of the Java Plugin to provide the required applet execution environment. Use of the Java Plugin is not required, but is one method of meeting the requirement to provide a J2SE 1.4 compatible applet execution environment.

Note that the version of the JDBC API that is included in J2SE includes the

JDBC Extension API that was previously a separate API. Both the JDBC Core

API and the JDBC Extension API are now part of J2SE, and thus continue to be part of J2EE as well.

The specifications for the J2SE APIs are available at http://java.sun.com/ j2se/1.4/docs/

.

J2EE.6.1.2

Java Optional Packages

The J2EE platform also requires a number of Java optional packages. Table

J2EE.6-1 indicates the required optional packages with their required versions.

Table J2EE.6-1

J2EE

-Required Java Optional Packages

Optional Package

EJB 2.1

Servlet 2.4

JSP 2.0

JMS 1.1

JTA 1.0

JavaMail 1.3

JAF 1.0

JAXP 1.2

App Client Applet

Y

Y

Y

N

Y

Y a

N

N

N

N

N

N

N

N

N

N

Web

Y

Y

Y

Y

Y

Y b

Y

Y

EJB

Y

Y

Y

Y

N

Y

Y

N

Java 2 Platform, Standard Edition (J2SE) Requirements

Table J2EE.6-1

J2EE

-Required Java Optional Packages

Optional Package App Client Applet

Connector 1.5

Web Services 1.1

JAX-RPC 1.1

SAAJ 1.2

JAXR 1.0

Y

J2EE Management 1.0

Y

JMX 1.2

J2EE Deployment 1.1

c

Y

N

Y

Y

N

Y

N

N

N

N

N

N

N

N

JACC 1.0

a.

b.

c.

N N

Client APIs only.

Client APIs only.

See section J2EE.6.18 on page 109 for details.

Web

Y

N

Y

Y

Y

Y

Y

Y

Y

EJB

Y

N

Y

Y

Y

Y

Y

Y

Y

All classes and interfaces required by the specifications for the APIs must be provided by the J2EE containers. In some cases, a J2EE product is not required to provide objects that implement interfaces intended to be implemented by an application server, nevertheless, the definitions of such interfaces must be included in the J2EE platform.

87

J2EE.6.2

Java 2 Platform, Standard Edition (J2SE)

Requirements

J2EE.6.2.1

Programming Restrictions

The J2EE programming model divides responsibilities between Application

Component Providers and J2EE Product Providers: Application Component

Providers focus on writing business logic and the J2EE Product Providers focus on providing a managed system infrastructure in which the application components can be deployed.

This division leads to a restriction on the functionality that application components can contain. If application components contain the same functionality

88

APPLICATION PROGRAMMING INTERFACE

provided by J2EE system infrastructure, there are clashes and mis-management of the functionality.

For example, if enterprise beans were allowed to manage threads, the J2EE platform could not manage the life cycle of the enterprise beans, and it could not properly manage transactions.

Since we do not want to subset the J2SE platform, and we want J2EE Product

Providers to be able to use J2SE products without modification in the J2EE platform, we use the J2SE security permissions mechanism to express the programming restrictions imposed on Application Component Providers.

In this section, we specify the J2SE security permissions that the J2EE

Product Provider must provide for each application component type. We call these permissions the J2EE security permissions set. The J2EE security permissions set is a required part of the J2EE API contract. To ensure the integrity of J2EE containers, all J2EE containers must install a security manager and must prevent applications from replacing or overriding the security manager.

J2EE.6.2.2

The J2EE Security Permissions Set

The J2EE security permissions set defines the minimum set of permissions that application components can expect. All J2EE products must be capable of deploying application components that require the set of permissions described here. The Product Provider must ensure that the application components do not use functions that conflict with the J2EE security permission set.

The exact set of security permissions for application components in use at a particular installation is a matter of policy outside the scope of this specification.

Some J2EE products will allow the set of permissions available to a component to be configurable, providing some components with more or fewer permissions than those described here. A future version of this specification will allow these security requirements to be specified in the deployment descriptor for application components. At the present time, application components that need permissions not in this minimal set should describe their requirements in their documentation.

Note that it may not be possible to deploy applications that require more than this minimal set on some J2EE products.

The J2SE security permissions are fully described in http://java.sun.com/ j2se/1.4/docs/guide/security/permissions.html

.

Java 2 Platform, Standard Edition (J2SE) Requirements

J2EE.6.2.3

Listing of the J2EE Security Permissions Set

Table J2EE.6-2 lists the J2EE security permissions set. This is the typical set of

permissions that components of each type should expect to have.

Table J2EE.6-2 J2EE Security Permissions Set

Security Permissions

Application Clients java.awt.AWTPermission

java.awt.AWTPermission

java.awt.AWTPermission

Target Action

java.lang.RuntimePermission

java.lang.RuntimePermission

java.lang.RuntimePermission

java.net.SocketPermission

java.net.SocketPermission

java.io.FilePermission

java.util.PropertyPermission

Applet Clients java.net.SocketPermission

java.util.PropertyPermission

Web Components java.lang.RuntimePermission

java.lang.RuntimePermission

java.net.SocketPermission

java.io.FilePermission

java.util.PropertyPermission

EJB Components java.lang.RuntimePermission

accessClipboard accessEventQueue showWindowWithout

WarningBanner exitVM loadLibrary queuePrintJob

* localhost:1024-

*

*

codebase limited

*

* loadLibrary queuePrintJob

* queuePrintJob connect accept,listen read,write read connect read connect read,write read

89

90

APPLICATION PROGRAMMING INTERFACE

Table J2EE.6-2 J2EE Security Permissions Set

Security Permissions

java.net.SocketPermission

java.util.PropertyPermission

Target

*

*

Action

connect read

Note that an operating system that hosts a J2EE product may impose additional security restrictions of its own that must be taken into account. For instance, the user identity under which a servlet executes is not likely to have permission to read and write all files.

J2EE.6.2.4

Additional Requirements

J2EE.6.2.4.1

Networking

The J2SE platform includes a pluggable mechanism for supporting multiple URL protocols through the java.net.URLStreamHandler

class and the java.net.URLStreamHandlerFactory

interface.

The following URL protocols must be supported:

file:

Only reading from a file

URL need be supported. That is, the corresponding

URLConnection

object’s getOutputStream

method may fail with an

UnknownServiceException

. File access is restricted according to the permissions described above.

http: Version 1.1 of the HTTP protocol must be supported An http URL must support both input and output.

https

: SSL version 3.0 and TLS version 1.0 must be supported by https

URL objects. Both input and output must be supported.

The J2SE platform also includes a mechanism for converting a URL’s byte stream to an appropriate object, using the java.net.ContentHandler

class and java.net.ContentHandlerFactory

interface. A

ContentHandler object can convert a MIME byte stream to an object.

ContentHandler

objects are typically accessed indirectly using the getContent

method of

URL

and

URLConnection

.

Java 2 Platform, Standard Edition (J2SE) Requirements

When accessing data of the following MIME types using the getContent

method, objects of the corresponding Java type listed in Table J2EE.6-3 must be

returned.

Table J2EE.6-3 Java Type of Objects Returned When Using the getContent Method

MIME Type

image/gif image/jpeg

Java Type

java.awt.Image

java.awt.Image

Many environments will use HTTP proxies rather than connecting directly to

HTTP servers. If HTTP proxies are being used in the local environment, the

HTTP support in the J2SE platform should be configured to use the proxy appropriately. Application components must not be required to configure proxy support in order to use an http

URL.

Most enterprise environments will include a firewall that limits access from the internal network (intranet) to the public Internet, and vice versa. It is typical for access using the HTTP protocol to pass through such firewalls, perhaps by using proxy servers. It is not typical that general TCP/IP traffic, including RMI-

JRMP, and RMI-IIOP, can pass through firewalls.

These considerations have implications on the use of various protocols to communicate between application components. This specification requires that

HTTP access through firewalls be possible where local policy allows. Some J2EE products may provide support for tunneling other communication through firewalls, but this is neither specified nor required.

J2EE.6.2.4.2

AWT

AWT provides the ability to read binary image data and convert it into a java.awt.image

object, using the createImage methods in java.awt.Toolkit

. The

AWT Toolkit must support binary data in the GIF and JPEG formats.

J2EE.6.2.4.3

JDBC™ API

The JDBC API, which is part of the J2SE platform, allows for access to a wide range of data storage systems. The J2SE platform, however, does not require that a system meeting the Java Compatible™ quality standards provide a database that is accessible through the JDBC API.

91

92

APPLICATION PROGRAMMING INTERFACE

To allow for the development of portable applications, the J2EE specification does require that such a database be available and accessible from a J2EE product through the JDBC API. Such a database must be accessible from web components, enterprise beans, and application clients, but need not be accessible from applets. In addition, the driver for the database must meet the JDBC

Compatible requirements in the JDBC specification.

J2EE applications should not attempt to load JDBC drivers directly. Instead, they should use the technique recommended in the JDBC specification and perform a JNDI lookup to locate a

DataSource

object. The JNDI name of the

DataSource

object should be chosen as described in Section J2EE.5.4, “Resource

Manager Connection Factory References.” The J2EE platform must be able to

supply a

DataSource

that does not require the application to supply any authentication information when obtaining a database connection. In the usual case, applications typically will supply a user name and password when connecting to the database.

When a JDBC API connection is used in an enterprise bean, the transaction characteristics will typically be controlled by the container. The component should not attempt to change the transaction characteristics of the connection, commit the transaction, roll back the transaction, or set autocommit mode.

Attempts to make changes that are incompatible with the current transaction context may result in a

SQLException

being thrown. The EJB specification contains the precise rules for enterprise beans.

Note that similar restrictions apply when a component creates a transaction using the JTA

UserTransaction

interface. The component should not attempt operations on the JDBC

Connection

object that would conflict with the transaction context.

Drivers supporting the JDBC API in a J2EE environment must meet the

JDBC 3.0 API Compliance requirements as specified in the JDBC specification and must meet a number of additional requirements in their implementation of

JDBC APIs, as described below:

• Drivers are required to provide accurate and complete metadata through the

Connection.getMetaData

method. J2EE applications should examine the

DatabaseMetaData

object and adapt their behavior to the capabilities of the current database. How this information is used to create portable applications that are independent of the underlying database vendor and driver is beyond the scope of this specification.

• Drivers must support stored procedures. The

DatabaseMetaData

method supportsStoredProcedures

must return true

. The driver must also support

Java 2 Platform, Standard Edition (J2SE) Requirements

the full JDBC API escape syntax for calling stored procedures with the following methods on the

Statement

,

PreparedStatement

, and

CallableStatement

classes:

■ executeUpdate

■ executeQuery

Support for calling stored procedures using the method execute

on the

Statement

,

PreparedStatement

, and

CallableStatement

interfaces is not required because some databases don’t support returning more than a single

ResultSet

from a stored procedure.

• Drivers must support all of the

CallableStatement

methods that apply to

SQL92 types, including the following:

■ getBigDecimal

■ getBoolean

■ getByte

■ getBytes

■ getDate

■ getDouble

■ getFloat

■ getInt

■ getLong

■ getObject

■ getShort

■ getString

■ getTime

■ getTimestamp

■ registerOutParameter

■ wasNull

Support for the new

BLOB

,

CLOB

,

ARRAY

,

REF

,

STRUCT

, and

JAVA_OBJECT

types is not required. All parameter types (

IN

,

OUT

, and

INOUT

) must be supported.

93

94

APPLICATION PROGRAMMING INTERFACE

• Drivers must support all of the

PreparedStatement

methods that apply to

SQL92 types, including the following:

■ setAsciiStream

■ setBigDecimal

■ setBinaryStream

■ setBoolean

■ setByte

■ setBytes

■ setCharacterStream

■ setDate

■ setDouble

■ setFloat

■ setInt

■ setLong

■ setNull

■ setObject

■ setShort

■ setString

■ setTime

■ setTimestamp

Support for the new BLOB , CLOB , ARRAY , REF , STRUCT , and JAVA_OBJECT types is not required. Support for the PreparedStatement method getMetaData is not required. This method must throw an

SQLException if it is not supported. Support for the

PreparedStatement

method getParameterMetaData

is required.

• Full support for batch updates is required. This implies support for the following methods on the

Statement

,

PreparedStatement

, and

CallableStatement classes:

■ addBatch

■ clearBatch

■ executeBatch

Drivers are free to implement these methods any way they choose (including a

Java 2 Platform, Standard Edition (J2SE) Requirements

non-batching implementation) as long as the semantics are correct.

• Drivers must support the

ResultSet

type

TYPE_FORWARD_ONLY

, with a concurrency of

CONCUR_READ_ONLY

. Support for other

ResultSet

types

TYPE_SCROLL_INSENSITIVE

and

TYPE_SCROLL_SENSITIVE

, and concurrency

CONCUR_UPDATABLE

, is not required.

• A driver must provide full support for

DatabaseMetaData

and

ResultSetMetaData

. This implies that all of the methods in the

DatabaseMetaData

interface must be implemented and must behave as specified in the JDBC specification. None of the methods in

DatabaseMetaData and

ResultSetMetaData

may throw an exception because they are not implemented.

• The JDBC API core specification requires that JDBC compliant drivers provide support for the SQL92, Transitional Level,

DROP TABLE

command, full support for the

CASCADE

and

RESTRICT

options is required. As many popular databases do not support

DROP TABLE as specified in the SQL92 specification, the following clarification is required.

A JDBC compliant driver is required to support the

DROP TABLE

command as specified by the SQL92, Transitional Level. However, support for the

CASCADE and

RESTRICT

options of

DROP TABLE

is optional. In addition, the behavior of

DROP TABLE

is implementation defined when there are views or integrity constraints defined that reference the table that is being dropped.

• A driver must support the

Statement

escape syntax for the following functions as specified by the JDBC specification:

CONCAT

SUBSTRING

LOCATE (two argument version only)

LENGTH

ABS

SQRT

MOD

The JDBC API includes APIs for row sets, connection naming via JNDI, connection pooling, and distributed transaction support. The connection pooling and distributed transaction features are intended for use by JDBC drivers to coordinate with an application server. J2EE products are not required to support the application server facilities described by these APIs, although they may prove useful.

95

96

APPLICATION PROGRAMMING INTERFACE

The Connector architecture defines an SPI that essentially extends the functionality of the JDBC SPI with additional security functionality, and a full packaging and deployment functionality for resource adapters. A future version of this specification may require support for deploying JDBC drivers as resource adapters using the Connector architecture.

The JDBC 3.0 specification is available at http://java.sun.com/products/ jdbc/download.html

.

J2EE.6.2.4.4

Java IDL

Java IDL allows applications to access any CORBA object, written in any language, using the standard IIOP protocol. The J2EE security restrictions typically prevent all application component types except application clients from creating and exporting a CORBA object, but all J2EE application component types can be clients of

CORBA objects.

A J2EE product must support Java IDL as defined by chapters 1 - 8, 13, and

15 of the CORBA 2.3.1 specification, available at http://www.omg.org/cgi-bin/ doc?formal/99-10-07 , and the IDL To Java Language Mapping Specification, available at http://www.omg.org/cgi-bin/doc?ptc/2000-01-08 .

The IIOP protocol supports the ability to multiplex calls over a single connection. All J2EE products must support requests from clients that multiplex calls on a connection to either Java IDL server objects or RMI-IIOP server objects

(such as enterprise beans). The server must allow replies to be sent in any order, to avoid deadlocks where one call would be blocked waiting for another call to complete. J2EE clients are not required to multiplex calls, although such support is highly recommended.

J2EE applications need to use an instance of org.omg.CORBA.ORB

to perform many Java IDL and RMI-IIOP operations. The default ORB returned by a call to

ORB.init(new String[0], null)

must be usable for such purposes; an application need not be aware of the implementation classes used for the ORB and

RMI-IIOP support.

In addition, for performance reasons it is often advantageous to share an ORB instance among components in an application. To support such usage, all web, enterprise bean, and application client containers are required to provide an ORB instance in the JNDI namespace under the name java:comp/ORB

. The container is allowed, but not required, to share this instance between components. The container may also use this ORB instance itself. To support isolation between applications, an ORB instance should not be shared between components in different applications. To allow this ORB instance to be safely shared between

Java 2 Platform, Standard Edition (J2SE) Requirements

components, portable components must restrict their usage of certain ORB APIs and functionality:

• Do not call the ORB shutdown

method.

• Do not call the org.omg.CORBA_2_3.ORB

methods register_value_factory and unregister_value_factory

with an id

used by the container.

A J2EE product must provide a COSNaming service to support the EJB interoperability requirements. It must be possible to access this COSNaming service using the Java IDL COSNaming APIs. Applications with appropriate privileges must be able to lookup objects in the COSNaming service.

COSNaming is defined in the Interoperable Naming Service specification, available at http://www.omg.org/cgi-bin/doc?formal/2000-06-19

.

J2EE.6.2.4.5

RMI-JRMP

JRMP is the Java technology-specific Remote Method Invocation (RMI) protocol.

The J2EE security restrictions typically prevent all application component types except application clients from creating and exporting an RMI object, but all J2EE application component types can be clients of RMI objects.

J2EE.6.2.4.6

RMI-IIOP

RMI-IIOP allows objects defined using RMI style interfaces to be accessed using the IIOP protocol. It must be possible to make any enterprise bean accessible via

RMI-IIOP. Some J2EE products will simply make all enterprise beans always (and only) accessible via RMI-IIOP; other products might control this via an administrative or deployment action. These and other approaches are allowed, provided that any enterprise bean (or by extension, all enterprise beans) can be made accessible using RMI-IIOP.

All components accessing enterprise beans must use the narrow method of the javax.rmi.PortableRemoteObject

class, as described in the EJB specification.

Because enterprise beans may be deployed using other RMI protocols, portable applications must not depend on the characteristics of RMI-IIOP objects (for example, the use of the

Stub and

Tie base classes) beyond what is specified in the

EJB specification.

The J2EE security restrictions typically prevent all application component types, except application clients, from creating and exporting an RMI-IIOP object. All J2EE application component types can be clients of RMI-IIOP objects.

J2EE applications should also use JNDI to lookup non-EJB RMI-IIOP objects.

97

98

APPLICATION PROGRAMMING INTERFACE

The JNDI names used for such non-EJB RMI-IIOP objects should be configured at deployment time using the standard environment entries mechanism (see

Section J2EE.5.2, “Java Naming and Directory Interface™ (JNDI) Naming

Context”). The application should fetch a name from JNDI using an environment

entry, and use the name to lookup the RMI-IIOP object. Typically such names will be configured to be names in the COSNaming name service.

This specification does not provide a portable way for applications to bind objects to names in a name service. Some products may support use of JNDI and

COSNaming for binding objects, but this is not required. Portable J2EE application clients can create non-EJB RMI-IIOP server objects for use as callback objects, or to pass in calls to other RMI-IIOP objects.

Note that while RMI-IIOP doesn’t specify how to propagate the current security context or transaction context, the EJB interoperability specification does define such context propagation. This specification only requires that the propagation of context information as defined in the EJB specification be supported in the use of RMI-IIOP to access enterprise beans. The propagation of context information is not required in the uses of RMI-IIOP to access objects other than enterprise beans.

The RMI-IIOP specification describes how portable

Stub

and

Tie

classes can be created. A J2EE application that defines or uses RMI-IIOP objects other than enterprise beans must include such portable

Stub

and

Tie

classes in the application package.

Stub and

Tie objects for enterprise beans, however, must not be included with the application: they will be generated, if needed, by the J2EE product at deployment time or at run time.

RMI-IIOP is defined by chapters 5, 6, 13, 15, and section 10.6.2 of the

CORBA 2.3.1 specification, available at http://www.omg.org/cgi-bin/ doc?formal/99-10-07

, and by the Java™ Language To IDL Mapping

Specification, available at http://www.omg.org/cgi-bin/doc?ptc/2000-01-06

.

J2EE.6.2.4.7

JNDI

A J2EE product must be able to make the following types of objects available in the application’s JNDI namespace:

EJBHome

objects, JTA

UserTransaction

objects,

JDBC API

DataSource objects, JMS

ConnectionFactory and

Destination objects,

JavaMail

Session

objects,

URL

objects, resource manager

ConnectionFactory objects (as specified in the Connector specification),

ORB

objects, and other Java

language objects as described in Chapter J2EE.5, “Naming.” The JNDI

implementation in a J2EE product must be capable of supporting all of these uses in a single application component using a single JNDI

InitialContext

. Application components will generally create a JNDI

InitialContext

using the default

Java 2 Platform, Standard Edition (J2SE) Requirements

constructor with no arguments. The application component may then perform lookups on that

InitialContext

to find objects as specified above.

The names used to perform lookups for J2EE objects are application dependent. The application component’s deployment descriptor is used to list the names and types of objects expected. The Deployer configures the JNDI namespace to make appropriate components available. The JNDI names used to lookup such objects must be in the JNDI java:

namespace. See Chapter J2EE.5,

“Naming” for details.

Two particular names are defined by this specification. For all application components that have access to the JTA

UserTransaction

interface, the appropriate

UserTransaction

object can be found using the name java:comp/

UserTransaction

. In all containers except the applet container, application components may lookup a CORBA

ORB

instance using the name java:comp/ORB

.

The name used to lookup a particular J2EE object may be different in different application components. In general, JNDI names can not be meaningfully passed as arguments in remote calls from one application component to another remote component (for example, in a call to an enterprise bean).

The JNDI java:

namespace is commonly implemented as symbolic links to other naming systems. Different underlying naming services may be used to store different kinds of objects, or even different instances of objects. It is up to a J2EE product to provide the necessary JNDI service providers for accessing the various objects defined in this specification.

This specification requires that the J2EE platform provide the ability to perform lookup operations as described above. Different JNDI service providers may provide different capabilities, for instance, some service providers may provide only read-only access to the data in the name service.

All J2EE products must provide a COSNaming name service to meet the EJB interoperability requirements. In addition, a COSNaming JNDI service provider must be available through the web, EJB, and application client containers. It will also typically be available in the applet container, but this is not required.

A COSNaming JNDI service provider is a part of the J2SE 1.4 SDK and JRE from Sun, but is not a required component of the J2SE specification. The

COSNaming JNDI service provider specification is available at http:// java.sun.com/j2se/1.4/docs/guide/jndi/jndi-cos.html

.

See Chapter J2EE.5, “Naming” for the complete naming requirements for the

J2EE platform. The JNDI specification is available at http://java.sun.com/ products/jndi/docs.html

.

99

100

APPLICATION PROGRAMMING INTERFACE

J2EE.6.2.4.8

Context Class Loader

This specification requires that J2EE containers provide a per thread context class loader for the use of system or library classes in dynamicly loading classes provided by the application. The EJB specification requires that all EJB client containers provide a per thread context class loader for dynamicly loading system value classes. The per thread context class loader is accessed using the

Thread

method getContextClassLoader

.

The classes used by an application will typically be loaded by a hierarchy of class loaders. There may be a top level application class loader, an extension class loader, and so on, down to a system class loader. The top level application class loader delegates to the lower class loaders as needed. Classes loaded by lower class loaders, such as portable EJB system value classes, need to be able to discover the top level application class loader used to dynamicly load application classes.

We require that containers provide a per thread context class loader that can be used to load top level application classes as described above.

J2EE.6.2.4.9

JAXP API

J2SE 1.4 includes the JAXP 1.1 API. The JAXP 1.2 API does not add any new Java

APIs, but defines new properties that must be supported by the XML parsers to enable support for validation against XML Schemas. J2EE 1.4 requires support for

JAXP 1.2.

J2EE.6.2.4.10 Java™ Authentication and Authorization Service (JAAS)

Requirements

All EJB containers and all web containers must support the use of the JAAS APIs as specified in the Connector specification. All application client containers must

support use of the JAAS APIs as specified in Chapter J2EE.9, “Application Clients.”

The JAAS specification is available at http://java.sun.com/products/jaas

.

J2EE.6.2.4.11 Logging API Requirements

The Logging API provides classes and interfaces in the java.util.logging

package that are the Java™ 2 platform’s core logging facilities. This specification does not require any additional support for logging. A J2EE application typically will not have the

LoggingPermission

necessary to control the logging configuration, but may use the logging API to produce log records. A future version of this specification may require that the J2EE containers use the logging API to log certain events.

Enterprise JavaBeans™ (EJB) 2.1 Requirements

J2EE.6.2.4.12 Preferences API Requirements

The Preferences API in the java.util.prefs

package allows applications to store and retrieve user and system preference and configuration data. A J2EE application typically will not have the

RuntimePermission("preferences")

necessary to use the Preferences API. This specification does not define any relationship between the principal used by a J2EE application and the user preferences tree defined by the

Preferences API. A future version of this specification may define the use of the

Preferences API by J2EE applications.

101

J2EE.6.3

Enterprise JavaBeans™ (EJB) 2.1 Requirements

This specification requires that a J2EE product provide support for enterprise beans as specified in the EJB 2.1 specification. The EJB specification is available at http://java.sun.com/products/ejb/docs.html

.

This specification does not impose any additional requirements at this time.

Note that the EJB specification includes the specification of the EJB interoperability protocol based on RMI-IIOP. All containers that support EJB clients must be capable of using the EJB interoperability protocol to invoke enterprise beans. All EJB containers must support the invocation of enterprise beans using the EJB interoperability protocol. A J2EE product may also support other protocols for the invocation of enterprise beans.

A J2EE product may support multiple object systems (for example, RMI-

IIOP and RMI-JRMP). It may not always be possible to pass object references from one object system to objects in another object system. However, when an enterprise bean is using the RMI-IIOP protocol, it must be possible to pass object references for RMI-IIOP or Java IDL objects as arguments to methods on such an enterprise bean, and to return such object references as return values of a method on such an enterprise bean. In addition, it must be possible to pass a reference to an RMI-IIOP-based enterprise bean’s Home or Remote interface to a method on an RMI-IIOP or Java IDL object, or to return such an enterprise bean object reference as a return value from such an RMI-IIOP or Java IDL object.

The EJB container and the web container are both required to support access to local enterprise beans. No support is provided for access to local enterprise beans from the application client container or the applet container.

102

APPLICATION PROGRAMMING INTERFACE

J2EE.6.4

Servlet 2.4 Requirements

The servlet specification defines the packaging and deployment of web applications, whether standalone or as part of a J2EE application. The servlet specification also addresses security, both standalone and within the J2EE platform. These optional components of the servlet specification are requirements of the J2EE platform.

The servlet specification includes additional requirements for web containers that are part of a J2EE product and a J2EE product must meet these requirements as well.

The servlet specification defines distributable web applications. To support

J2EE applications that are distributable, this specification adds the following requirements.

Web containers must support J2EE distributable web applications placing objects of any of the following types into a javax.servlet.http.HttpSession

object using the setAttribute

or putValue

methods:

• j ava.io.Serializable

• javax.ejb.EJBObject

• javax.ejb.EJBHome

• javax.ejb.EJBLocalObject

• javax.ejb.EJBLocalHome

• javax.transaction.UserTransaction

• a javax.naming.Context

object for the java:comp/env context

Web containers may support objects of other types as well. Web containers must throw a java.lang.IllegalArgumentException

if an object that is not one of the above types, or another type supported by the container, is passed to the setAttribute

or putValue

methods of an

HttpSession

object corresponding to a

J2EE distributable session. This exception indicates to the programmer that the web container does not support moving the object between VMs. A web container that supports multi-VM operation must ensure that, when a session is moved from one VM to another, all objects of supported types are accurately recreated on the target VM.

The servlet specification defines access to local enterprise beans as an optional feature. This specification requires that all J2EE products provide support for access to local enterprise beans from the web container.

The servlet specification is available at http://java.sun.com/products/ servlet

.

JavaServer Pages™ (JSP) 2.0 Requirements

J2EE.6.5

JavaServer Pages™ (JSP) 2.0 Requirements

The JSP specification depends on and builds on the servlet framework. A J2EE product must support the entire JSP specification.

The JSP specification is available at http://java.sun.com/products/jsp

.

J2EE.6.6

Java™ Message Service (JMS) 1.1 Requirements

A Java Message Service provider must be included in a J2EE product. The JMS implementation must provide support for both JMS point-to-point and publish/ subscribe messaging, and thus must make those facilities available using the

ConnectionFactory

and

Destination

APIs.

The JMS specification defines several interfaces intended for integration with an application server. A J2EE product need not provide objects that implement these interfaces, and portable J2EE applications must not use the following interfaces:

• j avax.jms.ServerSession

• javax.jms.ServerSessionPool

• javax.jms.ConnectionConsumer

• all javax.jms

XA interfaces

The following methods may only be used by application components executing in the application client container:

• javax.jms.Session

method setMessageListener

• javax.jms.Session

method getMessageListener

• javax.jms.Session

method run

• javax.jms.QueueConnection

method createConnectionConsumer

• javax.jms.TopicConnection

method createConnectionConsumer

• javax.jms.TopicConnection

method createDurableConnectionConsumer

• javax.jms.MessageConsumer

method getMessageListener

• javax.jms.MessageConsumer

method setMessageListener

• javax.jms.Connection

method setExceptionListener

• javax.jms.Connection

method stop

• javax.jms.Connection

method setClientID

103

104

APPLICATION PROGRAMMING INTERFACE

A J2EE container may throw a

JMSException

(if allowed by the method) if the application component violates these restrictions.

Application components in the web and EJB containers must not attempt to create more than one active (not closed)

Session

object per connection. An attempt to use the

Connection

object’s createSession

method when an active

Session

object exists for that connection should be prohibited by the container.

The container may throw a

JMSException

if the application component violates this restriction. Application client containers must support the creation of multiple sessions for each connection.

The JMS specification is available at http://java.sun.com/products/jms.

J2EE.6.7

Java™ Transaction API (JTA) 1.0 Requirements

JTA defines the

UserTransaction

interface that is used by applications to start, and commit or abort transactions. Enterprise beans are expected to get

UserTransaction objects through the

EJBContext

’s

getUserTransaction

method. Other application components get a

UserTransaction

object through a JNDI lookup using the name java:comp/UserTransaction

.

JTA also defines a number of interfaces that are used by an application server to communicate with a transaction manager, and for a transaction manager to interact with a resource manager. These interfaces must be supported as described in the Connector specification. In addition, support for other transaction facilities may be provided transparently to the application by a J2EE product.

The latest JTA 1.0 specification is version 1.0.1B and is available at http:// java.sun.com/products/jta

.

J2EE.6.8

JavaMail™ 1.3 Requirements

The JavaMail API allows for access to email messages contained in message stores, and for the creation and sending of email messages using a message transport.

Specific support is included for Internet standard MIME messages. Access to message stores and transports is through protocol providers supporting specific store and transport protocols. The JavaMail API specification does not require any specific protocol providers, but the JavaMail reference implementation includes an

IMAP message store provider and an SMTP message transport provider.

Configuration of the JavaMail API is typically done by setting properties in a

Properties

object that is used to create a javax.mail.Session

object using a static factory method. To allow the J2EE platform to configure and manage

JavaMail™ 1.3 Requirements

JavaMail API sessions, an application component that uses the JavaMail API should request a

Session object using JNDI, and should list its need for a

Session object in its deployment descriptor using a resource-ref

element. A JavaMail

API

Session

object should be considered a resource factory, as described in

Section J2EE.5.4, “Resource Manager Connection Factory References.” This

specification requires that the J2EE platform support javax.mail.Session

objects as resource factories, as described in that section.

The J2EE platform requires that a message transport be provided that is capable of handling addresses of type javax.mail.internet.InternetAddress

and messages of type javax.mail.internet.MimeMessage

. The default message transport must be properly configured to send such messages using the send method of the javax.mail.Transport

class. Any authentication needed by the default transport must be handled without need for the application to provide a javax.mail.Authenticator

or to explicitly connect to the transport and supply authentication information.

This specification does not require that a J2EE product support any message store protocols.

Note that the JavaMail API creates threads to deliver notifications of

Store

,

Folder

, and

Transport

events. The use of these notification facilities may be limited by the restrictions on the use of threads in various containers. In EJB containers, for instance, it is typically not possible to create threads.

The JavaMail API uses the JavaBeans Activation Framework API to support various MIME data types. The JavaMail API must include javax.activation.DataContentHandlers

for the following MIME data types,

corresponding to the Java programming language type indicated in Table J2EE.6-

4.

Table J2EE.6-4 JavaMail API MIME Data Type to Java Type

Mappings

Mime Type

text/plain multipart/* message/rfc822

Java Type

java.lang.String

javax.mail.internet.MimeMultipart

javax.mail.internet.MimeMessage

The JavaMail API specification is available at http://java.sun.com/ products/javamail

.

105

106

APPLICATION PROGRAMMING INTERFACE

J2EE.6.9

JavaBeans™ Activation Framework 1.0

Requirements

The JavaBeans Activation Framework integrates support for MIME data types into the Java platform. MIME byte streams can be converted to and from Java programming language objects, using javax.activation.DataContentHandler

objects. JavaBeans components can be specified for operating on MIME data, such as viewing or editing the data. The JavaBeans Activation Framework also provides a mechanism to map filename extensions to MIME types.

The JavaBeans Activation Framework is used by the JavaMail API to handle the data included in email message. Typical J2EE applications will not need to use the JavaBeans Activation Framework directly, although applications making sophisticated use of email may need it.

This specification requires that a J2EE product provide only the

DataContentHandlers specified above for the JavaMail API. This includes requirement of a javax.activation.MimetypesFileTypeMap

that supports the

mappings listed in Table J2EE.6-5.

Table J2EE.6-5 Filename Extension to MIME Type Mappings

MIME Type

text/html text/plain image/gif image/jpeg

Filename Extensions

html htm txt text gif GIF jpeg jpg jpe JPG

The JavaBeans Activation Framework 1.0 specification is available at http:// java.sun.com/beans/glasgow/jaf.html

.

J2EE.6.10

Java™ API for XML Processing (JAXP) 1.2

Requirements

JAXP includes the industry standard SAX and DOM APIs, as well as a pluggability

API that allows SAX and DOM parsers and XSLT transform engines to be plugged into the framework, and allows applications to find parsers that support the features needed by the application.

All J2EE products must meet the JAXP conformance requirements and must provide at least one SAX 2 parser, at least one DOM 2 parser, and at least one

J2EE™ Connector Architecture 1.5 Requirements

XSLT transform engine. There must be a SAX parser or parsers that support all combinations of validation modes and namespace support. There must be a DOM parser or parsers that support all combinations of validation modes and namespace support. All SAX and DOM parsers must support validation using either DTDs or

XML Schemas, as described in the JAXP 1.2 specification.

The JAXP specification is available at http://java.sun.com/xml/jaxp

.

107

J2EE.6.11

J2EE™ Connector Architecture 1.5 Requirements

All EJB containers and all web containers must support the full set of Connector

APIs. All such containers must support Resource Adapters that use any of the specified transaction capabilities. The J2EE deployment tools must support deployment of Resource Adapters, as defined in the Connector specification, and must support the deployment of applications that use Resource Adapters.

The Connector specification is available at http://java.sun.com/j2ee/ connector/

.

J2EE.6.12

Web Services for J2EE 1.1 Requirements

The Web Services for J2EE specification defines the capabilities a J2EE application server must support for deployment of web service endpoints. A complete deployment model is defined, including several new deployment descriptors. All

J2EE products must support the deployment and execution of web services as specified by the Web Services for J2EE 1.1 specification (JSR-109).

The Web Services for J2EE specification is available at http://jcp.org/en/ jsr/detail?id=109

and http://jcp.org/en/jsr/detail?id=921

.

J2EE.6.13

Java™ API for XML-based RPC (JAX-RPC) 1.1

Requirements

The JAX-RPC specification defines client APIs for accessing web services as well as techniques for implementing web service endpoints. The Web Services for J2EE specification describes the deployment of JAX-RPC-based services and clients. The

EJB and servlet specifications also describe aspects of such deployment. It must be possible to deploy JAX-RPC-based applications using any of these deployment models.

108

APPLICATION PROGRAMMING INTERFACE

The JAX-RPC specification describes the support for message handlers that can process message requests and responses. In general, these message handlers execute in the same container and with the same privileges and execution context as the JAX-RPC client or endpoint component with which they are associated.

These message handlers have access to the same JNDI java:comp/env namespace as their associated component. Custom serializers and deserializers, if supported, are treated in the same way as message handlers.

The JAX-RPC specification is available at http://java.sun.com/xml/ jaxrpc

.

J2EE.6.14

SOAP with Attachments API for Java™ (SAAJ) 1.2

The SAAJ API is used to manipulate SOAP messages. The SAAJ API is used by the

JAX-RPC API to represent XML fragments and to access the entire SOAP message in a JAX-RPC message handler. As described in the SAAJ specification, implementations of the

SOAPConnectionFactory

method newInstance

may, and typically will, throw an exception indicating that this functionality is not implemented.

The SAAJ specification is available at http://java.sun.com/xml/saaj

.

J2EE.6.15

Java™ API for XML Registries (JAXR) 1.0

Requirements

The JAXR specification defines APIs for client access to XML-based registries such as ebXML registries and UDDI registries. J2EE products must include a JAXR registry provider that meets at least the JAXR level 0 requirements, as well as a registry implementation that can be accessed using that provider.

The JAXR specification is available at http://java.sun.com/xml/jaxr

.

J2EE.6.16

Java™ 2 Platform, Enterprise Edition Management

API 1.0 Requirements

The J2EE Management API provides APIs for management tools to query a J2EE application server to determine its current status, applications deployed, and so on.

All J2EE products must support this API as described in its specification.

The J2EE Management API specification is available at http://jcp.org/ jsr/detail/77.jsp

.

Java™ Management Extensions (JMX) 1.2 Requirements

J2EE.6.17

Java™ Management Extensions (JMX) 1.2

Requirements

The JMX API is used by the J2EE Management API to provide some of the required support for management of a J2EE product. The only JMX support required is specified in the J2EE Management specification. In particular, applications will not typically have the security permissions required to access or create MBean servers. Future versions of this specification may require more complete support for JMX.

The JMX specification is available at http://java.sun.com/products/

JavaManagement/

.

J2EE.6.18

Java™ 2 Platform, Enterprise Edition Deployment

API 1.1 Requirements

The J2EE Deployment API defines the interfaces between the runtime environment of a deployment tool and plug-in components provided by a J2EE application server. These plug-in components execute in the deployment tool and implement the

J2EE product-specific deployment mechanisms. All J2EE products are required to supply these plug-in components for use in tools from other vendors.

Note that the J2EE Deployment specification does not define new APIs for direct use by J2EE applications. However, it would be possible to create a J2EE application that acts as a deployment tool and provides the runtime environment required by the J2EE Deployment specification.

The J2EE Deployment API specification is available at http:// java.sun.com/j2ee/tools/deployment

.

J2EE.6.19

Java™ Authorization Service Provider Contract for

Containers (JACC) 1.0 Requirements

The JACC specification defines a contract between a J2EE application server and an authorization policy provider. All J2EE application containers, web containers, and enterprise bean containers are required to support this contract.

The JACC specification can be found at http://jcp.org/jsr/detail/

115.jsp

.

109

110

APPLICATION PROGRAMMING INTERFACE

C H A P T E R

J2EE.7

Interoperability

This chapter describes the interoperability requirements for the Java™ 2 Platform,

Enterprise Edition (J2EE).

J2EE.7.1

Introduction to Interoperability

The J2EE platform will be used by enterprise environments that support clients of many different types. The enterprise environments will add new services to existing

Enterprise Information Systems (EISs). They will be using various hardware platforms and applications written in various languages.

In particular, the J2EE platform in enterprise environments may be used in enterprise environments to bring together any of the following kinds of applications:

• applications written in such languages as C++ and Visual Basic.

• applications running on a personal computer platform, or Unix® workstation.

• standalone Java technology-based applications that are not directly supported by the J2EE platform.

It is the interoperability requirements of the J2EE platform, set out in this chapter, that make it possible for it to provide indirect support for various types of clients, different hardware platforms, and a multitude of software applications.

The interoperability features of the J2EE platform permit the underlying disparate systems to work together seamlessly, while hiding much of the complexity required to join these pieces together.

The interoperability requirements for the current J2EE platform release allow:

111

112

INTEROPERABILITY

• J2EE applications to connect to legacy systems using CORBA or low-level socket interfaces.

• J2EE applications to connect to other J2EE applications across multiple J2EE products, whether from different Product Providers or from the same Provider, and multiple J2EE platforms.

In this version of the specification, interoperability between J2EE applications running in different platforms is accomplished through the HTTP protocol, possibly using SSL, or the EJB interoperability protocol based on IIOP.

J2EE.7.2

Interoperability Protocols

This specification requires that a J2EE product support a standard set of protocols and formats to ensure interoperability between J2EE applications and with other applications that also implement these protocols and formats. The specification requires support for the following groups of protocols and formats:

• Internet and web protocols

• OMG protocols

• Java technology protocols

• Data formats

Most of these protocols and formats are supported by J2SE and by the underlying operating system.

J2EE.7.2.1

Internet and Web Protocols

Standards based Internet protocols are the means by which different pieces of the platform communicate. The J2EE platform requires support for the following

Internet protocols:

• TCP/IP protocol family—This is the core component of Internet communication. TCP/IP and UDP/IP are the standard transport protocols for the Internet.

TCP/IP is supported by J2SE and the underlying operating system.

• HTTP 1.1—This is the core protocol of web communication. As with TCP/IP,

HTTP 1.1 is supported by J2SE and the underlying operating system. A J2EE web container must be capable of advertising its HTTP services on the standard HTTP port, port 80.

Interoperability Protocols

• SSL 3.0, TLS 1.0—SSL 3.0 (Secure Socket Layer) represents the security layer for Web communication. It is available indirectly when using the https

URL as opposed to the http

URL. A J2EE web container must be capable of advertising its HTTPS service on the standard HTTPS port, port 443. SSL 3.0

and TLS 1.0 are also required as part of the EJB interoperability protocol in the EJB specification.

• SOAP 1.1—SOAP is a presentation layer protocol for the exchange of XML messages. Support for SOAP layered on HTTP is required, as described in the

JAX-RPC specification.

• WS-I Basic Profile 1.0—The WS-I Basic Profile describes interoperability requirements for the use of SOAP 1.1 and is required by the JAX-RPC specification.

113

J2EE.7.2.2

OMG Protocols

This specification requires the J2EE platform to support the following Object

Management Group (OMG) based protocols:

• IIOP (Internet Inter-ORB Protocol)—Supported by Java IDL and RMI-IIOP in

J2SE. Java IDL provides standards-based interoperability and connectivity through the Common Object Request Broker Architecture (CORBA). CORBA specifies the Object Request Broker (ORB) which allows applications to communicate with each other regardless of location. This interoperability is delivered through IIOP, and is typically found in an intranet setting. IIOP can be used as an RMI protocol using the RMI-IIOP technology. IIOP is defined in

Chapters 13 and 15 of the CORBA 2.3.1 specification, available at http:// cgi.omg.org/cgi-bin/doc?formal/99-10-07

.

• EJB interoperability protocol—The EJB interoperability protocol is based on

IIOP (GIOP 1.2) and the CSIv2 CORBA Secure Interoperability specification. The EJB interoperability protocol is defined in the EJB specification.

• CORBA Interoperable Naming Service protocol—The COSNaming-based

INS protocol is an IIOP-based protocol for accessing a name service. The EJB interoperability protocol requires the use of the INS protocol for lookup of EJB objects using the JNDI API. In addition, it must be possible to use the Java IDL

COSNaming API to access the INS name service. All J2EE products must provide a name service that meets the requirements of the Interoperable Naming

Service specification, available at http://cgi.omg.org/cgi-bin/ doc?formal/2000-06-19

. This name service may be provided as a separate name server or as a protocol bridge or gateway to another name service. Either

114

INTEROPERABILITY

approach is consistent with this specification.

J2EE.7.2.3

Java Technology Protocols

This specification requires the J2EE platform to support the JRMP protocol, which is the Java technology-specific Remote Method Invocation (RMI) protocol. JRMP is a required component of J2SE and is one of two required RMI protocols. (IIOP is the other required RMI protocol, see above.)

JRMP is a distributed object model for the Java programming language.

Distributed systems, running in different address spaces and often on different hosts, must be able to communicate with each other. JRMP permits program-level objects in different address spaces to invoke remote objects using the semantics of the Java programming language object model.

Complete information on the JRMP specification can be found at http:// java.sun.com/j2se/1.4/docs/guide/rmi .

J2EE.7.2.4

Data Formats

In addition to the protocols that allow communication between components, this specification requires J2EE platform support for a number of data formats. These formats provide the definition for data exchanged between components.

The following data formats must be supported:

• XML 1.0—The XML format can be used to construct documents, RPC messages, etc. The JAXP API provides support for processing XML format data.

The JAX-RPC API provides support for XML RPC messages, as well as a mapping between Java classes and XML.

• HTML 3.2—This represents the minimum web browser standard document format. While not directly supported by J2EE APIs, J2EE web clients must be able to display HTML 3.2 documents.

• Image file formats—The J2EE platform must support both GIF and JPEG images. Support for these formats is provided by the java.awt.image

APIs (see the URL: http://java.sun.com/j2se/1.4/docs/api/java/awt/image/ package-summary.html

) and by J2EE web clients.

• JAR files—JAR (Java Archive) files are the standard packaging format for

Java technology-based application components, including the ejb-jar specialized format, the Web application archive (WAR) format, the Resource Adapter archive (RAR), and the J2EE enterprise application archive (EAR) format.

JAR is a platform-independent file format that permits many files to be aggre-

Interoperability Protocols

gated into one file. This allows multiple Java components to be bundled into one JAR file and downloaded to a browser in a single HTTP transaction. JAR file formats are supported by the java.util.jar

and java.util.zip

packages. For complete information on the JAR specification, see http:// java.sun.com/j2se/1.4/docs/guide/jar

.

• Class file format—The class file format is specified in the Java Virtual Machine specification. Each class file contains one Java programming language type—either a class or an interface—and consists of a stream of 8-bit bytes.

For complete information on the class file format, see http://java.sun.com/ docs/books/vmspec

.

115

116

INTEROPERABILITY

C H A P T E R

J2EE.8

Application Assembly and

Deployment

This chapter specifies Java™ 2 Platform, Enterprise Edition (J2EE) requirements for assembling, packaging, and deploying a J2EE application. The main goal of these requirements is to provide scalable and modular application assembly, and portable deployment of J2EE applications into any J2EE product.

J2EE applications are composed of one or more J2EE components and one

J2EE application deployment descriptor. The deployment descriptor lists the application’s components as modules. A J2EE module represents the basic unit of composition of a J2EE application. J2EE modules consist of one or more J2EE components and one module level deployment descriptor. The flexibility and extensibility of the J2EE component model facilitates the packaging and deployment of J2EE components as individual components, component libraries, or J2EE applications.

Figure J2EE.8-1 shows the composition model for J2EE deployment units

and includes the optional use of alternate deployment descriptors by the application package to preserve any digital signatures of the original J2EE modules.

117

118

APPLICATION ASSEMBLY AND DEPLOYMENT

Components J2EE

Modules

EJB

EJB

EJB module

1

DD

EJB

WEB

WEB

Web app module

2

DD

J2EE Application

APP

DD application client module

3

DD

1

DD

2

DD

3

DD

4

DD

DD

1

DD

2

DD

3

DD

4

Deployment

Tool

Resource

Adapter module

4

DD add/delete ingredients deploy standalone modules

Figure J2EE.8-1

J2EE Deployment

J2EE.8.1

Application Development Life Cycle

The development life cycle of a J2EE application begins with the creation of discrete J2EE components. These components are then packaged with a module level deployment descriptor to create a J2EE module. J2EE modules can be deployed as stand-alone units or can be assembled with a J2EE application deployment descriptor and deployed as a J2EE application.

Figure J2EE.8-2 shows the life cycle of a J2EE application.

Application Development Life Cycle

Creation

Created by

Component

Provider

J2EE Module

Assembly

Assembled and

Augmented by

Application

Assembler

J2EE APP

Deployment

Processed by

Deployer deploy

J2EE Container/Server

Enterprise

Components

Figure J2EE.8-2

J2EE Application Life Cycle

J2EE.8.1.1

Component Creation

The EJB, servlet, application client, and Connector specifications include the XML

Schema definition of the associated module level deployment descriptors and component packaging architecture required to produce J2EE modules. (The

application client specification is found in Chapter J2EE.9 of this document.)

A J2EE module is a collection of one or more J2EE components of the same component type (web, EJB, application client, or Connector) with one module deployment descriptor of that type. Any number of components of the same container type can be packaged together with a single J2EE deployment descriptor appropriate to that container type to produce a J2EE module.

• A J2EE module represents the basic unit of composition of a J2EE application.

In some cases a single J2EE module (not necessarily packaged into a J2EE application package) will contain an entire application. In other cases an application will be composed of multiple J2EE modules.

• The deployment descriptor for a J2EE module contains declarative data required to deploy the components in the module. The deployment descriptor for a J2EE module also contains assembly instructions that describe how the components are composed into an application.

119

120

APPLICATION ASSEMBLY AND DEPLOYMENT

• An individual J2EE module can be deployed as a stand-alone J2EE module without an application level deployment descriptor and represents a valid

J2EE application.

• J2EE modules may express dependencies on libraries as described below in

Section J2EE.8.2, “Optional Package Support.”

J2EE.8.1.2

Application Assembly

A J2EE application may consist of one or more J2EE modules and one J2EE application deployment descriptor. A J2EE application is packaged using the Java

Archive (JAR) file format into a file with a

.ear

(Enterprise ARchive) filename extension. A minimal J2EE application package will only contain J2EE modules and the application deployment descriptor. A J2EE application package may also include libraries referenced by J2EE modules (using the

Class-Path

mechanism

described below in Section J2EE.8.2, “Optional Package Support”), help files, and

documentation to aid the deployer.

The deployment of a portable J2EE application should not depend on any entities that may be contained in the package other than those defined by this specification. Deployment of a portable J2EE application must be possible using only the application deployment descriptor and the J2EE modules (and their dependent libraries) and descriptors listed in it.

The J2EE application deployment descriptor represents the top level view of a

J2EE application’s contents. The J2EE application deployment descriptor is

specified by an XML schema or document type definition (see Section J2EE.8.5,

“J2EE Application XML Schema”).

In certain cases, a J2EE application will need customization before it can be deployed into the enterprise. New J2EE modules may be added to the application.

Existing modules may be removed from the application. Some J2EE modules may need custom content created, changed, or replaced. For example, an application consumer may need to use an HTML editor to add company graphics to a template login page that was provided with a J2EE web application.

J2EE.8.1.3

Deployment

During the deployment phase of an application’s life cycle, the application is installed on the J2EE platform and then is configured and integrated into the existing infrastructure. Each J2EE module listed in the application deployment descriptor must be deployed according to the requirements of the specification for the respective J2EE module type. Each module listed must be installed in the

Optional Package Support

appropriate container type and the environment properties of each module must be set appropriately in the target container to reflect the values declared by the deployment descriptor element for each component.

121

J2EE.8.2

Optional Package Support

J2EE products are required to support the use of bundled and installed optional packages as specified in the Extension Mechanism Architecture and Optional

Package Versioning specifications (available at http://java.sun.com/j2se/1.4/ docs/guide/extensions

) and the JAR File Specification (available at http:// java.sun.com/j2se/1.4/docs/guide/jar/jar.html

). Using this mechanism a

J2EE JAR file can reference utility classes or other shared classes or resources packaged in a separate

.jar

file that is included in the same J2EE application package, or that has been previously installed in the J2EE containers.

A JAR format file (such as a

.jar

file,

.war

file, or

.rar

file) can reference a

.jar

file by naming the referenced

.jar

file in a

Class-Path

header in the referencing JAR file’s Manifest file. The referenced

.jar

file is named using a

URL relative to the URL of the referencing JAR file. The Manifest file is named

META-INF/MANIFEST.MF

in the JAR file. The

Class-Path

entry in the Manifest file is of the form

Class-Path: list-of-jar-files-separated-by-spaces

The J2EE deployment tools must process all such referenced files when processing a J2EE module. Any deployment descriptors in referenced .jar

files are ignored when processing the referencing .jar

file. The deployment tool must install the .jar

files in a way that preserves the relative references between the files. Typically this is done by installing the .jar

files into a directory hierarchy that matches the original application directory hierarchy. All referenced .jar

files must appear in the logical class path of the referencing JAR files at runtime.

Only JAR format files containing class files or resources to be loaded directly by a standard ClassLoader should be the target of a Class-Path reference; such files are always named with a .jar

extension. Top level JAR files that are processed by a deployment tool should not contain Class-Path entries; such entries would, by definition, reference other files external to the deployment unit.

A deployment tool is not required to process such external references.

JAR format files of all types may contain an Extension-List attribute in their

Manifest file, indicating a dependency on an installed optional package. The JAR

File Specification defines the semantics of such attributes for use by applets; this

122

APPLICATION ASSEMBLY AND DEPLOYMENT

specification requires support for such attributes for all component types and corresponding JAR format files. The deployment tool is required to check such dependency information and reject the deployment of any component for which the dependency can not be met. Portable applications should not assume that any installed optional packages will be available to a component unless the component’s

JAR format file, or one of the containing JAR format files, expresses a dependency on the optional package using the

Extension-List

and related attributes. The referenced optional packages must be made available to all components contained within the referencing file, including any components contained within other JAR format files within the referencing file. For example, if a

.ear

file references an installed optional package, the optional package must be made available to all components in all

.war

files, EJB

.jar

files, application

.jar

files, and resource adapter

.rar

files within the

.ear

file.

A J2EE product is not required to support downloading of optional packages

(using the

<extension>-Implementation-URL

header) at deployment time or runtime. A J2EE product is also not required to support more than a single version of an installed optional package at once. A J2EE product is not required to limit access to installed optional packages to only those for which the application has expressed a dependency; the application may be given access to more installed optional packages than it has requested. In all of these cases, such support is highly recommended and may be required in a future version of this specification.

In particular, we recommend that a J2EE product support multiple versions of an installed optional pacakge, and only allow applications to access the installed optional packages for which they have expressed a dependency.

If an application includes a bundled version of an optional package, and the same optional package exists as an installed optional package, the instance of the optional package bundled with the application should be used in preference to any installed version of the optional package. This allows an application to bundle exactly the version of an optional package it requires without being influenced by any installed optional packages. Note that if the optional package is also a required component of the J2EE platform version on which the application is being deployed, the platform version may take precedence.

In addition to allowing access to referenced classes, as described above, any resources contained in the referenced JAR files must also be accessible using the

Class

and

ClassLoader getResource

methods, as allowed by the security permissions of the application. An application will typically have the security permissions required to access resources in any of the JAR files packaged with the application.

Optional Package Support

The following example illustrates a simple use of the bundled optional package mechanism to reference a library of utility classes that are shared between enterprise beans in two separate ejb-jar files.

app1.ear:

META-INF/application.xml

ejb1.jar

ejb2.jar

util.jar

Class-Path: util.jar

Class-Path: util.jar

The next example illustrates a more complex use of the

Class-Path mechanism. In this example the Developer has chosen to package the enterprise bean client view classes in a separate JAR file and reference that JAR file from the other JAR files that need those classes. Those classes are needed both by ejb2.jar

, packaged in the same application as ejb1.jar

, and by ejb3.jar

and servlet1.jar

, packaged in a different application. Those classes are also needed by ejb1.jar

itself because they define the remote interface of the enterprise beans in ejb1.jar

, and the developer has chosen the by reference model of making these classes available, as described in the EJB spec. The deployment descriptor for ejb1.jar

names the client view JAR file in the ejb-client-jar

element.

The

Class-Path

mechanism must be used by components in app3.ear

to reference the client view JAR file that corresponds to the enterprise beans packaged in ejb1.jar

of app2.ear

. These enterprise beans are referenced by enterprise beans in ejb3.jar

and by the servlets packaged in webapp.war

.

app2.ear:

META-INF/application.xml

ejb1.jar

Class-Path: ejb1_client.jar

deployment descriptor contains:

<ejb-client-jar>ejb1_client.jar</ejb-client-jar> ejb1_client.jar

ejb2.jar

Class-Path: ejb1_client.jar

app3.ear:

META-INF/application.xml

ejb1_client.jar

ejb3.jar

webapp.war

Class-Path: ejb1_client.jar

Class-Path: ejb1_client.jar

WEB-INF/web.xml

WEB-INF/lib/servlet1.jar

123

124

APPLICATION ASSEMBLY AND DEPLOYMENT

The following example illustrates a simple use of the installed optional package mechanism to reference a library of utility classes that is installed separately.

app1.ear:

META-INF/application.xml

ejb1.jar:

META-INF/MANIFEST.MF:

Extension-List: util util-Extension-Name: com/example/util util-Extension-Specification-Version: 1.4

META-INF/ejb-jar.xml

util.jar:

META-INF/MANIFEST.MF:

Extension-Name: com/example/util

Specification-Title: example.com’s util package

Specification-Version: 1.4

Specification-Vendor: example.com

Implementation-Version: build96

J2EE.8.3

Application Assembly

This section specifies the sequence of steps that are typically followed when composing a J2EE application.

J2EE.8.3.1

Assembling a J2EE Application

1. Select the J2EE modules that will be used by the application.

2. Create an application directory structure.

The directory structure of an application is arbitrary. The structure should be designed around the requirements of the contained components.

3. Reconcile J2EE module deployment descriptors.

The deployment descriptors for the J2EE modules must be edited to link internally satisfied dependencies and eliminate any redundant security role names.

An optional element alt-dd

(described in Section J2EE.8.5, “J2EE Application XML Schema”) may be used when it is desirable to preserve the original

deployment descriptor. The element alt-dd specifies an alternate deployment

Application Assembly

descriptor to use at deployment time. The edited copy of the deployment descriptor file may be saved in the application directory tree in a location determined by the Application Assembler. If the alt-dd

element is not present, the Deployer must read the deployment descriptor directly from the

JAR.

a. Link the internally satisfied dependencies of all components in every module contained in the application. For each component dependency, there must only be one corresponding component that fulfills that dependency in the scope of the application.

i. For each ejb-link

, there must be only one matching ejb-name

in the

scope of the entire application (see Section J2EE.5.3, “Enterprise

JavaBeans™ (EJB) References”).

ii. Dependencies that are not linked to internal components must be handled by the Deployer as external dependencies that must be met by resources previously installed on the platform. External dependencies must be linked to the resources on the platform during deployment.

b. Synchronize security role-names across the application. Rename unique role-names with redundant meaning to a common name. Rename rolenames with common names but different meanings to unique names.

Descriptions of role-names that are used by many components of the application can be included in the application-level deployment descriptor.

c. Assign a context root for each web module included in the J2EE application. The context root is a relative name in the web namespace for the application. Each web module must be given a distinct and nonoverlapping name for its context root. The web modules will be assigned a complete name in the namespace of the web server at deployment time. If there is only one web module in the J2EE application, the context root may be the empty string. See the servlet specification for detailed requirements of context root naming.

d. Make sure that each component in the application properly describes any dependencies it may have on other components in the application. A J2EE application should not assume that all components in the application will be available on the class path of the application at run time. Each component might be loaded into a separate class loader with a separate namespace. If the classes in a JAR file depend on classes in another JAR file, the first JAR file should reference the second JAR file using the

125

126

APPLICATION ASSEMBLY AND DEPLOYMENT

Class-Path

mechanism. A notable exception to this rule is JAR files located in the

WEB-INF/lib

directory of a web application. All such JAR files are included in the class path of the web application at runtime; explicit references to them using the

Class-Path

mechanism are not needed.

e. There must be only one version of each class in an application. If one component depends on one version of an optional package, and another component depends on another version, it may not be possible to deploy an application containing both components. A J2EE application should not assume that each component is loaded in a separate class loader and has a separate namespace. All components in a single application may be loaded in a single class loader and share a single namespace. Note, however, that it must be possible to deploy an application such that all components of the application are in a namespace (or namespaces) separate from that of other applications. Typically, this will be the normal method of deployment.

4. Create an XML deployment descriptor for the application.

The deployment descriptor must be named application.xml

and must reside in the top level of the META-INF directory of the application .ear

file. The deployment descriptor must be a valid XML document according to the XML schema for a J2EE:application XML document. (Alternatively, the deployment descriptor may meet the requirements of previous versions of J2EE. Or, a deployment descriptor as defined by the Enterprise Web Services specification may be used.)

5. Package the application.

a. Place the J2EE modules and the deployment descriptor in the appropriate directories.

b. Package the application directory hierarchy in a file using the JAR file format. The file should be named with a

.ear

filename extension.

J2EE.8.3.2

Adding and Removing Modules

After the application is created, J2EE modules may be added or removed before deployment. When adding or removing a module the following steps must be performed:

1. Decide on a location in the application package for the new module. Optionally create new directories in the application package hierarchy to contain any

Deployment

J2EE modules that are being added to the application.

2. Copy the new J2EE modules to the desired location in the application package.

The packaged modules are inserted directly in the desired location; the modules are not unpackaged.

3. Edit the deployment descriptors for the J2EE modules to link the dependencies which are internally satisfied by the J2EE modules included in the application.

4. Edit the J2EE application deployment descriptor to meet the content requirements of the J2EE platform and the validity requirements of the

J2EE:application

XML DTD or schema.

127

J2EE.8.4

Deployment

The J2EE platform supports three types of deployment units:

• Stand-alone J2EE modules.

• J2EE applications, consisting of one or more J2EE modules. A J2EE application must include one J2EE application deployment descriptor.

• Class libraries packaged as

.jar

files according to the Extension Mechanism

Architecture. These class libraries then become installed optional packages.

Any J2EE product must be able to accept a J2EE application delivered as a

.ear

file or a stand-alone J2EE module delivered as a

.jar

,

.war

, or

.rar

file (as appropriate to its type). If the application is delivered as a

.ear

, an enterprise bean module devliered as a

.jar

file, or a web application delivered as a

.war

file, the deployment tool must be able to deploy the application such that the Java classes in the application are in a separate namespace from classes in other Java applications. Typically this will require the use of a separate class loader for each application. Standalone resource adapters delivered in

.rar

files and standalone class libraries delivered in

.jar

files that become installed optional packages will of necessity appear in the class namespaces of applications that use them, and may appear in the class namespace of any application depending on the level of isolation supported by the J2EE product.

In all cases, the deployment of a J2EE application must be complete before the container delivers requests to any of the application’s components. When an application is started, the container must deliver requests to enterprise bean components immediately. Containers must deliver requests to web components and resource adapters only after initialization of the component has completed.

128

APPLICATION ASSEMBLY AND DEPLOYMENT

The J2EE Deployment API describes how a product-independent deployment tool accepts plugins for a specific J2EE product, and how the tool and those plugins cooperate to deploy J2EE applications. The requirements in this specification that refer to a deployment tool are meant to refer to the combination of any vendor-provided product-independent deployment tool and the vendorspecific deployment plugin for this tool, as well as any other vendor-specific deployment tools provided with the J2EE product.

Typically a deployment tool will copy the deployed application or module to a product-specific location, along with the configuration settings and customizations specified by the Deployer. In some cases a deployment tool might include Application Assembly functionality as well, allowing the Deployer to construct, modify, or customize the application before deployment. Still, it must be possible to deploy a J2EE application, module, or optional package without modifying the original files or artifacts that the Deployer specified to the deployment tool.

The deployment tools for J2EE containers must validate the deployment descriptors against the J2EE deployment descriptor schemas or DTDs that correspond to the deployment descriptors being processed. The appropriate schema or DTD is chosen by analyzing the deployment descriptor to determine which version it claims to conform to. Validation errors must cause an error to be reported to the Deployer. The deployment tool may allow the Deployer to correct the error and continue deployment.

J2EE.8.4.1

Deploying a Stand-Alone J2EE Module

This section specifies the requirements for deploying a stand-alone J2EE module.

1. The deployment tool must first read the J2EE module deployment descriptor from the package. See the component specifications for the required location and name of the deployment descriptor for each component type.

2. The deployment tool must deploy all of the components listed in the J2EE module deployment descriptor according to the deployment requirements of the respective J2EE component specification. If the module is a type that contains JAR format files (for example, web and Connector modules), all classes in

.jar

files within the module referenced from other JAR files within the module using the

Class-Path manifest header must be included in the deployment. If the module, or any JAR format files within the module, declares a dependency on an installed optional package, that dependency must be satisfied.

Deployment

3. The deployment tool must allow the Deployer to configure the container to reflect the values of all the properties declared by the deployment descriptor element for each component.

4. The deployment tool must allow the Deployer to deploy the same module multiple times, as multiple independent applications, possibly with different configurations. For example, the enterprise beans in an ejb-jar file might be deployed multiple times under different JNDI names and with different configurations of their resources.

129

J2EE.8.4.2

Deploying a J2EE Application

This section specifies the requirements for deploying a J2EE application.

1. The deployment tool must first read the J2EE application deployment descriptor from the application

.ear

file (

META-INF/application.xml

).

2. The deployment tool must open each of the J2EE modules listed in the J2EE application deployment descriptor and read the J2EE module deployment descriptor from the package. See the Enterprise JavaBeans, servlet, J2EE Connector and application client specifications for the required location and name of the deployment descriptor for each component type. (The application client

specification is Chapter J2EE.9, “Application Clients”.)

3. The deployment tool must install all of the components described by each module deployment descriptor into the appropriate container according to the deployment requirements of the respective J2EE component specification. All classes in

.jar

files referenced from other JAR files using the

Class-Path manifest header must be included in the deployment. If the

.ear

file, or any

JAR format files within the

.ear

file, declares a dependency on an installed optional package, that dependency must be satisfied.

4. The deployment tool must allow the Deployer to configure the container to reflect the values of all the properties declared by the deployment descriptor element for each component.

5. The deployment tool must allow the Deployer to deploy the same J2EE application multiple times, as multiple independent applications, possibly with different configurations. For example, the enterprise beans in an ejb-jar file might be deployed multiple times under different JNDI names and with different configurations of their resources.

6. When presenting security role descriptions to the Deployer, the deployment tool must use the descriptions in the J2EE application deployment descriptor

130

APPLICATION ASSEMBLY AND DEPLOYMENT

rather than the descriptions in any module deployment descriptors for security roles with the same name. However, for security roles that appear in a module deployment descriptor but do not appear in the application deployment descriptor, the deployment tool must use the description provided in the module deployment descriptor.

J2EE.8.4.3

Deploying an Optional Package

This section specifies the requirements for deploying an optional package.

1. The deployment tool must record the extension name and version information from the manifest file of the optional package JAR file. The deployment tool must make the optional package available to other J2EE deployment units that request it according to the version matching rules described in the Optional

Package Versioning specification. Note that the optional package itself may include dependencies on other optional packages and these dependencies must also be satisfied.

2. The deployment tool must make the optional package available with at least the same security permissions as any application or module that uses it. The optional package may be installed with the full security permissions of the container.

3. Not all optional packages will be deployable on all J2EE products at all times.

Optional packages that conflict with the operation of the J2EE product may not be deployable. For example, an attempt to deploy an older version of an optional package that has subsequently been included in the J2EE platform specification may be rejected. Similarly, deployment of an optional package that is also used in the implementation of the J2EE product may be rejected. Deployment of an optional package that is in active use by an application may be rejected.

J2EE.8.5

J2EE Application XML Schema

This section provides the XML Schema for the J2EE application deployment descriptor. The XML grammar for a J2EE application deployment descriptor is defined by the

J2EE:application schema. The granularity of composition for J2EE application assembly is the J2EE module. A

J2EE:application

deployment descriptor contains a name and description for the application and the URI of a UI icon for the application, as well a list of the J2EE modules that comprise the

J2EE Application XML Schema

application. The content of the XML elements is in general case sensitive. This means, for example, that

<role-name>Manager</role-name> is a different role than

<role-name>manager</role-name>

.

All valid J2EE application deployment descriptors must conform to the XML

Schema definition below, or the DTD definition from a previous version of this

specification. (See Appendix J2EE.A, “Previous Version DTDs.”) The

deployment descriptor must be named

META-INF/application.xml

in the

.ear

file. Note that this name is case-sensitive.

Figure J2EE.8-3 shows a graphic representation of the structure of the J2EE

application XML Schema.

131 description* display-name+ icon* application module+ security-role* small-icon?

large-icon?

connector | ejb* | java | web alt-dd?

description* role-name web-uri context-root?

Figure J2EE.8-3

J2EE Application XML Schema Structure

The XML Schema that follows defines the XML grammar for a J2EE application deployment descriptor.

<?xml version="1.0" encoding="UTF-8"?>

<xsd:schema xmlns="http://www.w3.org/2001/XMLSchema"

targetNamespace="http://java.sun.com/xml/ns/j2ee"

xmlns:j2ee="http://java.sun.com/xml/ns/j2ee"

xmlns:xsd="http://www.w3.org/2001/XMLSchema"

elementFormDefault="qualified"

attributeFormDefault="unqualified"

version="1.4">

<xsd:annotation>

<xsd:documentation>

132

APPLICATION ASSEMBLY AND DEPLOYMENT

@(#)application_1_4.xsds 1.13 02/11/03

</xsd:documentation>

</xsd:annotation>

<xsd:annotation>

<xsd:documentation>

This is the XML Schema for the application 1.4 deployment

descriptor. The deployment descriptor must be named

"META-INF/application.xml" in the application’s ear file.

All application deployment descriptors must indicate

the application schema by using the J2EE namespace:

http://java.sun.com/xml/ns/j2ee

and indicate the version of the schema by

using the version element as shown below:

<application xmlns="http://java.sun.com/xml/ns/j2ee"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee

http://java.sun.com/xml/ns/j2ee/application_1_4.xsd"

version="1.4">

...

</application>

The instance documents may indicate the published version of

the schema using the xsi:schemaLocation attribute for J2EE

namespace with the following location:

http://java.sun.com/xml/ns/j2ee/application_1_4.xsd

</xsd:documentation>

</xsd:annotation>

<xsd:annotation>

<xsd:documentation>

The following conventions apply to all J2EE

deployment descriptor elements unless indicated otherwise.

- In elements that specify a pathname to a file within the

same JAR file, relative filenames (i.e., those not

starting with "/") are considered relative to the root of

J2EE Application XML Schema

the JAR file’s namespace. Absolute filenames (i.e., those

starting with "/") also specify names in the root of the

JAR file’s namespace. In general, relative names are

preferred. The exception is .war files where absolute

names are preferred for consistency with the Servlet API.

</xsd:documentation>

</xsd:annotation>

<xsd:include schemaLocation="j2ee_1_4.xsd"/>

<!-- **************************************************** -->

<xsd:element name="application" type="j2ee:applicationType">

<xsd:annotation>

<xsd:documentation>

The application element is the root element of a J2EE

application deployment descriptor.

</xsd:documentation>

</xsd:annotation>

<xsd:unique name="context-root-uniqueness">

<xsd:annotation>

<xsd:documentation>

The context-root element content must be unique

in the ear.

</xsd:documentation>

</xsd:annotation>

<xsd:selector xpath="j2ee:module/j2ee:web"/>

<xsd:field xpath="j2ee:context-root"/>

</xsd:unique>

<xsd:unique name="security-role-uniqueness">

<xsd:annotation>

<xsd:documentation>

The security-role-name element content

must be unique in the ear.

133

134

APPLICATION ASSEMBLY AND DEPLOYMENT

</xsd:documentation>

</xsd:annotation>

<xsd:selector xpath="j2ee:security-role"/>

<xsd:field xpath="j2ee:role-name"/>

</xsd:unique>

</xsd:element>

<!-- **************************************************** -->

<xsd:complexType name="applicationType">

<xsd:annotation>

<xsd:documentation>

The applicationType defines the structure of the

application.

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:group ref="j2ee:descriptionGroup"/>

<xsd:element name="module"

type="j2ee:moduleType"

maxOccurs="unbounded">

<xsd:annotation>

<xsd:documentation>

The application deployment descriptor must have one

module element for each J2EE module in the

application package. A module element is defined

by moduleType definition.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element name="security-role"

type="j2ee:security-roleType"

minOccurs="0"

maxOccurs="unbounded"/>

</xsd:sequence>

<xsd:attribute name="version"

type="j2ee:dewey-versionType"

J2EE Application XML Schema

fixed="1.4"

use="required">

<xsd:annotation>

<xsd:documentation>

The required value for the version is 1.4.

</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="moduleType">

<xsd:annotation>

<xsd:documentation>

The moduleType defines a single J2EE module and contains a

connector, ejb, java, or web element, which indicates the

module type and contains a path to the module file, and an

optional alt-dd element, which specifies an optional URI to

the post-assembly version of the deployment descriptor.

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:choice>

<xsd:element name="connector"

type="j2ee:pathType">

<xsd:annotation>

<xsd:documentation>

The connector element specifies the URI of a

resource adapter archive file, relative to the

top level of the application package.

</xsd:documentation>

</xsd:annotation>

135

136

APPLICATION ASSEMBLY AND DEPLOYMENT

</xsd:element>

<xsd:element name="ejb"

type="j2ee:pathType">

<xsd:annotation>

<xsd:documentation>

The ejb element specifies the URI of an ejb-jar,

relative to the top level of the application

package.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element name="java"

type="j2ee:pathType">

<xsd:annotation>

<xsd:documentation>

The java element specifies the URI of a java

application client module, relative to the top

level of the application package.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element name="web"

type="j2ee:webType"/>

</xsd:choice>

<xsd:element name="alt-dd"

type="j2ee:pathType"

minOccurs="0">

<xsd:annotation>

<xsd:documentation>

The alt-dd element specifies an optional URI to the

post-assembly version of the deployment descriptor

file for a particular J2EE module. The URI must

specify the full pathname of the deployment

descriptor file relative to the application’s root

directory. If alt-dd is not specified, the deployer

J2EE Application XML Schema

must read the deployment descriptor from the default

location and file name required by the respective

component specification.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="webType">

<xsd:annotation>

<xsd:documentation>

The webType defines the web-uri and context-root of

a web application module.

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="web-uri"

type="j2ee:pathType">

<xsd:annotation>

<xsd:documentation>

The web-uri element specifies the URI of a web

application file, relative to the top level of the

application package.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element name="context-root"

type="j2ee:string">

<xsd:annotation>

<xsd:documentation>

137

138

APPLICATION ASSEMBLY AND DEPLOYMENT

The context-root element specifies the context root

of a web application.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

</xsd:schema>

J2EE.8.6

Common J2EE XML Schema Definitions

The following XML Schema defines types that are used by many other J2EE deployment descriptor schemas, both in this specification and in other specifications.

<?xml version="1.0" encoding="UTF-8"?>

<xsd:schema

targetNamespace="http://java.sun.com/xml/ns/j2ee"

xmlns:j2ee="http://java.sun.com/xml/ns/j2ee"

xmlns:xsd="http://www.w3.org/2001/XMLSchema"

elementFormDefault="qualified"

attributeFormDefault="unqualified"

version="1.4">

<xsd:annotation>

<xsd:documentation>

@(#)j2ee_1_4.xsds 1.43 03/09/16

</xsd:documentation>

</xsd:annotation>

<xsd:annotation>

<xsd:documentation>

The following definitions that appear in the common shareable schema(s) of J2EE deployment descriptors should be interpreted with respect to the context they are included:

Common J2EE XML Schema Definitions

Deployment Component may indicate one of the following:

j2ee application;

application client;

web application;

enterprise bean;

resource adapter;

Deployment File may indicate one of the following:

ear file;

war file;

jar file;

rar file;

</xsd:documentation>

</xsd:annotation>

<xsd:import namespace="http://www.w3.org/XML/1998/namespace"

schemaLocation="http://www.w3.org/2001/xml.xsd"/>

<xsd:include schemaLocation=

"http://www.ibm.com/webservices/xsd/ j2ee_web_services_client_1_1.xsd"/>

<!-- **************************************************** -->

<xsd:group name="descriptionGroup">

<xsd:annotation>

<xsd:documentation>

This group keeps the usage of the contained description related

elements consistent across J2EE deployment descriptors.

All elements may occur multiple times with different languages,

to support localization of the content.

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="description"

type="j2ee:descriptionType"

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="display-name"

type="j2ee:display-nameType"

139

140

APPLICATION ASSEMBLY AND DEPLOYMENT

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="icon"

type="j2ee:iconType"

minOccurs="0"

maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:group>

<!-- **************************************************** -->

<xsd:complexType name="descriptionType">

<xsd:annotation>

<xsd:documentation>

The description type is used by a description element to

provide text describing the parent element. The elements

that use this type should include any information that the

Deployment Component’s Deployment File file producer wants

to provide to the consumer of the Deployment Component’s

Deployment File (i.e., to the Deployer). Typically, the

tools used by such a Deployment File consumer will display

the description when processing the parent element that

contains the description.

The lang attribute defines the language that the description is provided in. The default value is "en" (English).

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="j2ee:xsdStringType">

<xsd:attribute ref="xml:lang"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:simpleType name="dewey-versionType">

<xsd:annotation>

<xsd:documentation>

This type defines a dewey decimal which is used

Common J2EE XML Schema Definitions

to describe versions of documents.

</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:decimal">

<xsd:whiteSpace value="collapse"/>

</xsd:restriction>

</xsd:simpleType>

<!-- **************************************************** -->

<xsd:complexType name="display-nameType">

<xsd:annotation>

<xsd:documentation>

The display-name type contains a short name that is intended

to be displayed by tools. It is used by display-name

elements. The display name need not be unique.

Example:

...

<display-name xml:lang="en">Employee Self Service</displayname>

The value of the xml:lang attribute is "en" (English) by default.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="j2ee:string">

<xsd:attribute ref="xml:lang"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="ejb-linkType">

<xsd:annotation>

<xsd:documentation>

The ejb-linkType is used by ejb-link

141

142

APPLICATION ASSEMBLY AND DEPLOYMENT elements in the ejb-ref or ejb-local-ref elements to specify

that an EJB reference is linked to enterprise bean.

The value of the ejb-link element must be the ejb-name of an enterprise bean in the same ejb-jar file or in another ejb-jar

file in the same J2EE application unit.

Alternatively, the name in the ejb-link element may be composed of a path name specifying the ejb-jar containing the

referenced enterprise bean with the ejb-name of the target

bean appended and separated from the path name by "#". The

path name is relative to the Deployment File containing

Deployment Component that is referencing the enterprise

bean. This allows multiple enterprise beans with the same

ejb-name to be uniquely identified.

Examples:

<ejb-link>EmployeeRecord</ejb-link>

<ejb-link>../products/product.jar#ProductEJB</ejb-link>

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="ejb-local-refType">

<xsd:annotation>

<xsd:documentation>

The ejb-local-refType is used by ejb-local-ref elements for

the declaration of a reference to an enterprise bean’s local

home. The declaration consists of:

- an optional description

- the EJB reference name used in the code of the Deployment

Component that’s referencing the enterprise bean

- the expected type of the referenced enterprise bean

- the expected local home and local interfaces of the

Common J2EE XML Schema Definitions

referenced enterprise bean

- optional ejb-link information, used to specify the

referenced enterprise bean

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="description"

type="j2ee:descriptionType"

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="ejb-ref-name"

type="j2ee:ejb-ref-nameType"/>

<xsd:element name="ejb-ref-type"

type="j2ee:ejb-ref-typeType"/>

<xsd:element name="local-home"

type="j2ee:local-homeType"/>

<xsd:element name="local"

type="j2ee:localType"/>

<xsd:element name="ejb-link"

type="j2ee:ejb-linkType"

minOccurs="0"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="ejb-ref-nameType">

<xsd:annotation>

<xsd:documentation>

The ejb-ref-name element contains the name of an EJB

reference. The EJB reference is an entry in the

Deployment Component’s environment and is relative to the

java:comp/env context. The name must be unique within the

Deployment Component.

It is recommended that name is prefixed with "ejb/".

Example:

<ejb-ref-name>ejb/Payroll</ejb-ref-name>

143

144

APPLICATION ASSEMBLY AND DEPLOYMENT

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:jndi-nameType"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="ejb-ref-typeType">

<xsd:annotation>

<xsd:documentation>

The ejb-ref-typeType contains the expected type of the

referenced enterprise bean.

The ejb-ref-type designates a value

that must be one of the following:

Entity

Session

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string">

<xsd:enumeration value="Entity"/>

<xsd:enumeration value="Session"/>

</xsd:restriction>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="ejb-refType">

<xsd:annotation>

<xsd:documentation>

The ejb-refType is used by ejb-ref elements for the

declaration of a reference to an enterprise bean’s home. The

declaration consists of:

- an optional description

Common J2EE XML Schema Definitions

- the EJB reference name used in the code of the Deployment Component that’s referencing the enterprise

bean

- the expected type of the referenced enterprise bean

- the expected home and remote interfaces of the referenced

enterprise bean

- optional ejb-link information, used to specify the

referenced enterprise bean

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="description"

type="j2ee:descriptionType"

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="ejb-ref-name"

type="j2ee:ejb-ref-nameType"/>

<xsd:element name="ejb-ref-type"

type="j2ee:ejb-ref-typeType"/>

<xsd:element name="home"

type="j2ee:homeType"/>

<xsd:element name="remote"

type="j2ee:remoteType"/>

<xsd:element name="ejb-link"

type="j2ee:ejb-linkType"

minOccurs="0"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="emptyType">

<xsd:annotation>

<xsd:documentation>

This type is used to designate an empty

element when used.

</xsd:documentation>

</xsd:annotation>

145

146

APPLICATION ASSEMBLY AND DEPLOYMENT

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="env-entry-type-valuesType">

<xsd:annotation>

<xsd:documentation>

This type contains the fully-qualified Java type of the

environment entry value that is expected by the

application’s code.

The following are the legal values of env-entry-type-valuesType:

java.lang.Boolean

java.lang.Byte

java.lang.Character

java.lang.String

java.lang.Short

java.lang.Integer

java.lang.Long

java.lang.Float

java.lang.Double

Example:

<env-entry-type>java.lang.Boolean</env-entry-type>

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string">

<xsd:enumeration value="java.lang.Boolean"/>

<xsd:enumeration value="java.lang.Byte"/>

<xsd:enumeration value="java.lang.Character"/>

<xsd:enumeration value="java.lang.String"/>

<xsd:enumeration value="java.lang.Short"/>

<xsd:enumeration value="java.lang.Integer"/>

<xsd:enumeration value="java.lang.Long"/>

<xsd:enumeration value="java.lang.Float"/>

<xsd:enumeration value="java.lang.Double"/>

</xsd:restriction>

Common J2EE XML Schema Definitions

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="env-entryType">

<xsd:annotation>

<xsd:documentation>

The env-entryType is used to declare an application’s

environment entry. The declaration consists of an optional

description, the name of the environment entry, and an

optional value. If a value is not specified, one must be

supplied during deployment.

It is used by env-entry elements.

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="description"

type="j2ee:descriptionType"

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="env-entry-name"

type="j2ee:jndi-nameType">

<xsd:annotation>

<xsd:documentation>

The env-entry-name element contains the name of a

Deployment Component’s environment entry. The name

is a JNDI name relative to the java:comp/env

context. The name must be unique within a

Deployment Component. The uniqueness

constraints must be defined within the declared

context.

Example:

<env-entry-name>minAmount</env-entry-name>

</xsd:documentation>

</xsd:annotation>

147

148

APPLICATION ASSEMBLY AND DEPLOYMENT

</xsd:element>

<xsd:element name="env-entry-type"

type="j2ee:env-entry-type-valuesType"/>

<xsd:element name="env-entry-value"

type="j2ee:xsdStringType"

minOccurs="0">

<xsd:annotation>

<xsd:documentation>

The env-entry-value designates the value of a

Deployment Component’s environment entry. The value

must be a String that is valid for the

constructor of the specified type that takes a

single String parameter, or for java.lang.Character,

a single character.

Example:

<env-entry-value>100.00</env-entry-value>

</xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="fully-qualified-classType">

<xsd:annotation>

<xsd:documentation>

The elements that use this type designate the name of a

Java class or interface. The name is in the form of a

"binary name", as defined in the JLS. This is the form

of name used in Class.forName(). Tools that need the

canonical name (the name used in source code) will need

to convert this binary name to the canonical name.

</xsd:documentation>

</xsd:annotation>

Common J2EE XML Schema Definitions

<xsd:simpleContent>

<xsd:restriction base="j2ee:string"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="generic-booleanType">

<xsd:annotation>

<xsd:documentation>

This type defines four different values which can designate

boolean values. This includes values yes and no which are

not designated by xsd:boolean

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string">

<xsd:enumeration value="true"/>

<xsd:enumeration value="false"/>

<xsd:enumeration value="yes"/>

<xsd:enumeration value="no"/>

</xsd:restriction>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="homeType">

<xsd:annotation>

<xsd:documentation>

The homeType defines the fully-qualified name of

an enterprise bean’s home interface.

Example:

<home>com.aardvark.payroll.PayrollHome</home>

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

149

150

APPLICATION ASSEMBLY AND DEPLOYMENT

<xsd:restriction base="j2ee:fully-qualified-classType"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="iconType">

<xsd:annotation>

<xsd:documentation>

The icon type contains small-icon and large-icon elements

that specify the file names for small and large GIF or

JPEG icon images used to represent the parent element in a

GUI tool.

The xml:lang attribute defines the language that the

icon file names are provided in. Its value is "en" (English)

by default.

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="small-icon" type="j2ee:pathType"

minOccurs="0">

<xsd:annotation>

<xsd:documentation>

The small-icon element contains the name of a file

containing a small (16 x 16) icon image. The file

name is a relative path within the Deployment

Component’s Deployment File.

The image may be either in the JPEG or GIF format.

The icon can be used by tools.

Example:

<small-icon>employee-service-icon16x16.jpg</small-icon>

</xsd:documentation>

</xsd:annotation>

</xsd:element>

Common J2EE XML Schema Definitions

<xsd:element name="large-icon" type="j2ee:pathType"

minOccurs="0">

<xsd:annotation>

<xsd:documentation>

The large-icon element contains the name of a file

containing a large

(32 x 32) icon image. The file name is a relative

path within the Deployment Component’s Deployment

File.

The image may be either in the JPEG or GIF format.

The icon can be used by tools.

Example:

<large-icon>employee-service-icon32x32.jpg</large-icon>

</xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:sequence>

<xsd:attribute ref="xml:lang"/>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="java-identifierType">

<xsd:annotation>

<xsd:documentation>

The java-identifierType defines a Java identifier.

The users of this type should further verify that

the content does not contain Java reserved keywords.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string">

<xsd:pattern value="($|_|p{L})(p{L}|p{Nd}|_|$)*"/>

</xsd:restriction>

151

152

APPLICATION ASSEMBLY AND DEPLOYMENT

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="java-typeType">

<xsd:annotation>

<xsd:documentation>

This is a generic type that designates a Java primitive

type or a fully qualified name of a Java interface/type,

or an array of such types.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string">

<xsd:pattern value="[^p{Z}]*"/>

</xsd:restriction>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="jndi-nameType">

<xsd:annotation>

<xsd:documentation>

The jndi-nameType type designates a JNDI name in the

Deployment Component’s environment and is relative to the

java:comp/env context. A JNDI name must be unique within the

Deployment Component.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:group name="jndiEnvironmentRefsGroup">

Common J2EE XML Schema Definitions

<xsd:annotation>

<xsd:documentation>

This group keeps the usage of the contained JNDI environment reference elements consistent across J2EE deployment descriptors.

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="env-entry"

type="j2ee:env-entryType"

minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="ejb-ref"

type="j2ee:ejb-refType"

minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="ejb-local-ref"

type="j2ee:ejb-local-refType"

minOccurs="0" maxOccurs="unbounded"/>

<xsd:group ref="j2ee:service-refGroup"/>

<xsd:element name="resource-ref"

type="j2ee:resource-refType"

minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="resource-env-ref"

type="j2ee:resource-env-refType"

minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="message-destination-ref"

type="j2ee:message-destination-refType"

minOccurs="0" maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:group>

<!-- **************************************************** -->

<xsd:complexType name="listenerType">

<xsd:annotation>

<xsd:documentation>

The listenerType indicates the deployment properties for a web

application listener bean.

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

153

154

APPLICATION ASSEMBLY AND DEPLOYMENT

<xsd:group ref="j2ee:descriptionGroup"/>

<xsd:element name="listener-class"

type="j2ee:fully-qualified-classType">

<xsd:annotation>

<xsd:documentation>

The listener-class element declares a class in the

application must be registered as a web

application listener bean. The value is the fully

qualified classname of the listener class.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="local-homeType">

<xsd:annotation>

<xsd:documentation>

The local-homeType defines the fully-qualified

name of an enterprise bean’s local home interface.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:fully-qualified-classType"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="localType">

<xsd:annotation>

<xsd:documentation>

The localType defines the fully-qualified name of an

enterprise bean’s local interface.

Common J2EE XML Schema Definitions

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:fully-qualified-classType"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="message-destination-linkType">

<xsd:annotation>

<xsd:documentation>

The message-destination-linkType is used to link a message

destination reference or message-driven bean to a message

destination.

The Assembler sets the value to reflect the flow of messages

between producers and consumers in the application.

The value must be the message-destination-name of a message

destination in the same Deployment File or in another

Deployment File in the same J2EE application unit.

Alternatively, the value may be composed of a path name

specifying a Deployment File containing the referenced

message destination with the message-destination-name of the

destination appended and separated from the path name by

"#". The path name is relative to the Deployment File

containing Deployment Component that is referencing the

message destination. This allows multiple message

destinations with the same name to be uniquely identified.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="message-destination-refType">

155

156

APPLICATION ASSEMBLY AND DEPLOYMENT

<xsd:annotation>

<xsd:documentation>

The message-destination-ref element contains a declaration of Deployment Component’s reference to a message destination

associated with a resource in Deployment Component’s

environment. It consists of:

- an optional description

- the message destination reference name

- the message destination type

- a specification as to whether the

destination is used for

consuming or producing messages, or both

- a link to the message destination

Examples:

<message-destination-ref>

<message-destination-ref-name>jms/StockQueue

</message-destination-ref-name>

<message-destination-type>javax.jms.Queue

</message-destination-type>

<message-destination-usage>Consumes

</message-destination-usage>

<message-destination-link>CorporateStocks

</message-destination-link>

</message-destination-ref>

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="description"

type="j2ee:descriptionType"

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="message-destination-ref-name"

type="j2ee:jndi-nameType">

<xsd:annotation>

<xsd:documentation>

The message-destination-ref-name element specifies

the name of a message destination reference; its

Common J2EE XML Schema Definitions

value is the environment entry name used in

Deployment Component code. The name is a JNDI name

relative to the java:comp/env context and must be

unique within an ejb-jar (for enterprise beans) or a

Deployment File (for others).

</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element name="message-destination-type"

type="j2ee:message-destination-typeType"/>

<xsd:element name="message-destination-usage"

type="j2ee:message-destination-usageType"/>

<xsd:element name="message-destination-link"

type="j2ee:message-destination-linkType"

minOccurs="0"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="message-destination-typeType">

<xsd:annotation>

<xsd:documentation>

The message-destination-typeType specifies the type of the destination. The type is specified by the Java interface

expected to be implemented by the destination.

Example:

<message-destination-type>javax.jms.Queue

</message-destination-type>

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:fully-qualified-classType"/>

</xsd:simpleContent>

</xsd:complexType>

157

158

APPLICATION ASSEMBLY AND DEPLOYMENT

<!-- **************************************************** -->

<xsd:complexType name="message-destination-usageType">

<xsd:annotation>

<xsd:documentation>

The message-destination-usageType specifies the use of the

message destination indicated by the reference. The value

indicates whether messages are consumed from the message

destination, produced for the destination, or both. The

Assembler makes use of this information in linking producers

of a destination with its consumers.

The value of the message-destination-usage element must be

one of the following:

Consumes

Produces

ConsumesProduces

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string">

<xsd:enumeration value="Consumes"/>

<xsd:enumeration value="Produces"/>

<xsd:enumeration value="ConsumesProduces"/>

</xsd:restriction>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="message-destinationType">

<xsd:annotation>

<xsd:documentation>

The message-destinationType specifies a message

destination. The logical destination described by this element is mapped to a physical destination by the Deployer.

The message destination element contains:

- an optional description

- an optional display-name

Common J2EE XML Schema Definitions

- an optional icon

- a message destination name which must be unique

among message destination names within the same

Deployment File.

Example:

<message-destination>

<message-destination-name>CorporateStocks

</message-destination-name>

</message-destination>

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:group ref="j2ee:descriptionGroup"/>

<xsd:element name="message-destination-name"

type="j2ee:string">

<xsd:annotation>

<xsd:documentation>

The message-destination-name element specifies a

name for a message destination. This name must be

unique among the names of message destinations

within the Deployment File.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="param-valueType">

<xsd:annotation>

<xsd:documentation>

This type is a general type that can be used to declare

parameter/value lists.

159

160

APPLICATION ASSEMBLY AND DEPLOYMENT

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="description"

type="j2ee:descriptionType"

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="param-name"

type="j2ee:string">

<xsd:annotation>

<xsd:documentation>

The param-name element contains the name of a

parameter.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element name="param-value"

type="j2ee:xsdStringType">

<xsd:annotation>

<xsd:documentation>

The param-value element contains the value of a

parameter.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="pathType">

<xsd:annotation>

<xsd:documentation>

The elements that use this type designate either a relative

Common J2EE XML Schema Definitions

path or an absolute path starting with a "/".

In elements that specify a pathname to a file within the

same Deployment File, relative filenames (i.e., those not

starting with "/") are considered relative to the root of

the Deployment File’s namespace. Absolute filenames (i.e.,

those starting with "/") also specify names in the root of

the Deployment File’s namespace. In general, relative names

are preferred. The exception is .war files where absolute

names are preferred for consistency with the Servlet API.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="remoteType">

<xsd:annotation>

<xsd:documentation>

The remote element contains the fully-qualified name

of the enterprise bean’s remote interface.

Example:

<remote>com.wombat.empl.EmployeeService</remote>

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:fully-qualified-classType"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="res-authType">

<xsd:annotation>

<xsd:documentation>

161

162

APPLICATION ASSEMBLY AND DEPLOYMENT

The res-authType specifies whether the Deployment Component

code signs on programmatically to the resource manager, or

whether the Container will sign on to the resource manager

on behalf of the Deployment Component. In the latter case,

the Container uses information that is supplied by the

Deployer.

The value must be one of the two following:

Application

Container

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string">

<xsd:enumeration value="Application"/>

<xsd:enumeration value="Container"/>

</xsd:restriction>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="res-sharing-scopeType">

<xsd:annotation>

<xsd:documentation>

The res-sharing-scope type specifies whether connections

obtained through the given resource manager connection

factory reference can be shared. The value, if specified,

must be one of the two following:

Shareable

Unshareable

The default value is Shareable.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string">

<xsd:enumeration value="Shareable"/>

Common J2EE XML Schema Definitions

<xsd:enumeration value="Unshareable"/>

</xsd:restriction>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="resource-env-refType">

<xsd:annotation>

<xsd:documentation>

The resource-env-refType is used to define

resource-env-type elements. It contains a declaration of a

Deployment Component’s reference to an administered object

associated with a resource in the Deployment Component’s

environment. It consists of an optional description, the

resource environment reference name, and an indication of

the resource environment reference type expected by the

Deployment Component code.

Example:

<resource-env-ref>

<resource-env-ref-name>jms/StockQueue

</resource-env-ref-name>

<resource-env-ref-type>javax.jms.Queue

</resource-env-ref-type>

</resource-env-ref>

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="description"

type="j2ee:descriptionType"

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="resource-env-ref-name"

type="j2ee:jndi-nameType">

<xsd:annotation>

<xsd:documentation>

The resource-env-ref-name element specifies the name

of a resource environment reference; its value is

163

164

APPLICATION ASSEMBLY AND DEPLOYMENT

the environment entry name used in

the Deployment Component code. The name is a JNDI

name relative to the java:comp/env context and must

be unique within a Deployment Component.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element name="resource-env-ref-type"

type="j2ee:fully-qualified-classType">

<xsd:annotation>

<xsd:documentation>

The resource-env-ref-type element specifies the type

of a resource environment reference. It is the

fully qualified name of a Java language class or

interface.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="resource-refType">

<xsd:annotation>

<xsd:documentation>

The resource-refType contains a declaration of a

Deployment Component’s reference to an external resource. It

consists of an optional description, the resource manager

connection factory reference name, the indication of the

resource manager connection factory type expected by the

Deployment Component code, the type of authentication

(Application or Container), and an optional specification of

the shareability of connections obtained from the resource

(Shareable or Unshareable).

Example:

Common J2EE XML Schema Definitions

<resource-ref>

<res-ref-name>jdbc/EmployeeAppDB</res-ref-name>

<res-type>javax.sql.DataSource</res-type>

<res-auth>Container</res-auth>

<res-sharing-scope>Shareable</res-sharing-scope>

</resource-ref>

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="description"

type="j2ee:descriptionType"

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="res-ref-name"

type="j2ee:jndi-nameType">

<xsd:annotation>

<xsd:documentation>

The res-ref-name element specifies the name of a

resource manager connection factory reference.

The name is a JNDI name relative to the

java:comp/env context.

The name must be unique within a Deployment File.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element name="res-type"

type="j2ee:fully-qualified-classType">

<xsd:annotation>

<xsd:documentation>

The res-type element specifies the type of the data

source. The type is specified by the fully qualified

Java language class or interface

expected to be implemented by the data source.

</xsd:documentation>

</xsd:annotation>

165

166

APPLICATION ASSEMBLY AND DEPLOYMENT

</xsd:element>

<xsd:element name="res-auth"

type="j2ee:res-authType"/>

<xsd:element name="res-sharing-scope"

type="j2ee:res-sharing-scopeType"

minOccurs="0"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="role-nameType">

<xsd:annotation>

<xsd:documentation>

The role-nameType designates the name of a security role.

The name must conform to the lexical rules for a token.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:restriction base="j2ee:string"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="run-asType">

<xsd:annotation>

<xsd:documentation>

The run-asType specifies the run-as identity to be

used for the execution of a component. It contains an

optional description, and the name of a security role.

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="description"

type="j2ee:descriptionType"

minOccurs="0"

Common J2EE XML Schema Definitions

maxOccurs="unbounded"/>

<xsd:element name="role-name"

type="j2ee:role-nameType"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="security-role-refType">

<xsd:annotation>

<xsd:documentation>

The security-role-refType contains the declaration of a

security role reference in a component’s or a

Deployment Component’s code. The declaration consists of an

optional description, the security role name used in the

code, and an optional link to a security role. If the

security role is not specified, the Deployer must choose an

appropriate security role.

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="description"

type="j2ee:descriptionType"

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="role-name"

type="j2ee:role-nameType">

<xsd:annotation>

<xsd:documentation>

The value of the role-name element must be the String used

as the parameter to the

EJBContext.isCallerInRole(String roleName) method or the

HttpServletRequest.isUserInRole(String role) method.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element name="role-link"

167

168

APPLICATION ASSEMBLY AND DEPLOYMENT

type="j2ee:role-nameType"

minOccurs="0">

<xsd:annotation>

<xsd:documentation>

The role-link element is a reference to a defined

security role. The role-link element must contain

the name of one of the security roles defined in the

security-role elements.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="security-roleType">

<xsd:annotation>

<xsd:documentation>

The security-roleType contains the definition of a security role. The definition consists of an optional description of the

security role, and the security role name.

Example:

<security-role>

<description>

This role includes all employees who are authorized

to access the employee service application.

</description>

<role-name>employee</role-name>

</security-role>

</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="description"

type="j2ee:descriptionType"

Common J2EE XML Schema Definitions

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="role-name"

type="j2ee:role-nameType"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="string">

<xsd:annotation>

<xsd:documentation>

This is a special string datatype that is defined by J2EE as

a base type for defining collapsed strings. When schemas

require trailing/leading space elimination as well as

collapsing the existing whitespace, this base type may be

used.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="xsd:token">

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="true-falseType">

<xsd:annotation>

<xsd:documentation>

This simple type designates a boolean with only two

permissible values

- true

- false

</xsd:documentation>

</xsd:annotation>

169

170

APPLICATION ASSEMBLY AND DEPLOYMENT

<xsd:simpleContent>

<xsd:restriction base="j2ee:xsdBooleanType">

<xsd:pattern value="(true|false)"/>

</xsd:restriction>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="url-patternType">

<xsd:annotation>

<xsd:documentation>

The url-patternType contains the url pattern of the mapping.

It must follow the rules specified in Section 11.2 of the

Servlet API Specification. This pattern is assumed to be in

URL-decoded form and must not contain CR(#xD) or LF(#xA).

If it contains those characters, the container must inform

the developer with a descriptive error message.

The container must preserve all characters including whitespaces.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="xsd:string"/>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="xsdAnyURIType">

<xsd:annotation>

<xsd:documentation>

This type adds an "id" attribute to xsd:anyURI.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="xsd:anyURI">

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:extension>

Common J2EE XML Schema Definitions

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="xsdBooleanType">

<xsd:annotation>

<xsd:documentation>

This type adds an "id" attribute to xsd:boolean.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="xsd:boolean">

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="xsdIntegerType">

<xsd:annotation>

<xsd:documentation>

This type adds an "id" attribute to xsd:integer.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="xsd:integer">

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="xsdNMTOKENType">

<xsd:annotation>

<xsd:documentation>

171

172

APPLICATION ASSEMBLY AND DEPLOYMENT

This type adds an "id" attribute to xsd:NMTOKEN.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="xsd:NMTOKEN">

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="xsdNonNegativeIntegerType">

<xsd:annotation>

<xsd:documentation>

This type adds an "id" attribute to xsd:nonNegativeInteger.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="xsd:nonNegativeInteger">

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="xsdPositiveIntegerType">

<xsd:annotation>

<xsd:documentation>

This type adds an "id" attribute to xsd:positiveInteger.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="xsd:positiveInteger">

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:extension>

Common J2EE XML Schema Definitions

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="xsdQNameType">

<xsd:annotation>

<xsd:documentation>

This type adds an "id" attribute to xsd:QName.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="xsd:QName">

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>

<!-- **************************************************** -->

<xsd:complexType name="xsdStringType">

<xsd:annotation>

<xsd:documentation>

This type adds an "id" attribute to xsd:string.

</xsd:documentation>

</xsd:annotation>

<xsd:simpleContent>

<xsd:extension base="xsd:string">

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>

</xsd:schema>

173

174

APPLICATION ASSEMBLY AND DEPLOYMENT

C H A P T E R

J2EE.9

Application Clients

This chapter describes application clients in the Java™ 2 Platform, Enterprise

Edition (J2EE).

J2EE.9.1

Overview

Application clients are first tier client programs that execute in their own Java™ virtual machines. Application clients follow the model for Java technology-based applications: they are invoked at their main method and run until the virtual machine is terminated. However, like other J2EE application components, application clients depend on a container to provide system services. The application client container may be very light-weight compared to other J2EE containers, providing only the security and deployment services described below

J2EE.9.2

Security

The J2EE authentication requirements for application clients are the same as for other J2EE components, and the same authentication techniques may be used as for other J2EE application components.

No authentication is necessary when accessing unprotected web resources.

When accessing protected web resources, the usual varieties of authentication may be used, namely HTTP Basic authentication, SSL client authentication, or

HTTP Login Form authentication. Lazy authentication may be used.

Authentication is required when accessing protected enterprise beans. The authentication mechanisms for enterprise beans include those required in the EJB specification for enterprise bean interoperability. Lazy authentication may be used.

175

176

APPLICATION CLIENTS

An application client makes use of an authentication service provided by the application client container for authenticating its users. The container’s service may be integrated with the native platform’s authentication system, so that a single signon capability is employed. The container may authenticate the user when the application is started, or it may use lazy authentication, authenticating the user when a protected resource is accessed. This specification does not describe the technique used to authenticate the user, although a later version may do so.

If the container interacts with the user to gather authentication data, the container must provide an appropriate user interface. In addition, an application client may provide a class that implements the javax.security.auth.callback.CallbackHandler

interface and specify the class

name in its deployment descriptor (see Section J2EE.9.7, “J2EE Application

Client XML Schema” for details). The Deployer may override the callback

handler specified by the application and use of the container’s default authentication user interface instead.

If a callback handler is configured by the Deployer, the application client container must instantiate an object of this class and use it for all authentication interactions with the user. The application’s callback handler must fully support

Callback

objects specified in the javax.security.auth.callback

package.

Note that when HTTP Login Form authentication is used, the authentication user interface provided by the server (in the form of an HTML page delivered in response to an HTTP request) must be displayed by the application client.

Application clients execute in an environment with a SecurityManager installed, and have similar security permission requirements as servlets. The

security permission requirements are described fully in Section J2EE.6.2, “Java 2

Platform, Standard Edition (J2SE) Requirements.”

J2EE.9.3

Transactions

Application clients are not required to have direct access to the transaction facilities of the J2EE platform. A J2EE product is not required to provide a JTA

UserTransaction

object for use by application clients. Application clients can invoke enterprise beans that start transactions, and they can use the transaction facilities of the JDBC API. If a JDBC API transaction is open when an application client invokes an enterprise bean, the transaction context is not required to be propagated to the EJB server.

Naming

J2EE.9.4

Naming

As with all J2EE components, application clients use JNDI to look up enterprise beans, get access to resource managers, reference configurable parameters set at deployment time, and so on. Application clients use the java:

JNDI namespace to

access these items (see Chapter J2EE.5, “Naming” for details).

177

J2EE.9.5

Application Programming Interfaces

Application clients have all the facilities of the Java

TM

2 Platform, Standard Edition

(subject to security restrictions), as well as various standard extensions, as described in Chapter J2EE.6 “Application Programming Interface.” Each application client executes in its own Java virtual machine. Application clients start execution at the main method of the class specified in the

Main-Class attribute in the manifest file of the application client’s JAR file (although note that application client container code will typically execute before the application client itself, in order to prepare the environment of the container, install a

SecurityManager

, initialize the name service client library, and so on).

J2EE.9.6

Packaging and Deployment

Application clients are packaged in JAR format files with a

.jar

extension and include a deployment descriptor similar to other J2EE application components. The deployment descriptor describes the enterprise beans and external resources referenced by the application. As with other J2EE application components, access to resources must be configured at deployment time, names assigned for enterprise beans and resources, and so on.

The tool used to deploy an application client, and the mechanism used to install the application client, is not specified. Very sophisticated J2EE products may allow the application client to be deployed on a J2EE server and automatically made available to some set of (usually intranet) clients. Other J2EE products may require the J2EE application bundle containing the application client to be manually deployed and installed on each client machine. And yet another approach would be for the deployment tool on the J2EE server to produce an installation package that could be used by each client to install the application client. There are many possibilities here and this specification doesn’t prescribe any one. It only defines the package format for the application client and the things that must be possible during the deployment process.

178

APPLICATION CLIENTS

How an application client is invoked by an end user is unspecified. Typically a

J2EE Product Provider will provide an application launcher that integrates with the application client machine’s native operating system, but the level of such integration is unspecified.

J2EE.9.7

J2EE Application Client XML Schema

The XML grammar for a J2EE application client deployment descriptor is defined by the J2EE application-client schema. The root element of the deployment descriptor for an application client is application-client

. The content of the XML elements is in general case sensitive. This means, for example, that

<resauth>Container</res-auth>

must be used, rather than

<res-auth>container</ res-auth>

.

All valid application-client

deployment descriptors must conform to the following XML Schema definition, or to a DTD definition from a previous version

of this specification. (See Appendix J2EE.A, “Previous Version DTDs.”) The

deployment descriptor must be named

META-INF/application-client.xml

in the application client’s

.jar

file. Note that this name is case-sensitive.

J2EE Application Client XML Schema

Figure J2EE.9-1 shows the structure of the J2EE application-client XML

Schema.

description* display-name+

icon*

small-icon?

large-icon?

env-entry* description* env-entry-name env-entry-type env-entry-value?

application-client

ejb-ref*

resource-ref*

resource-env-ref* description* ejb-ref-name ejb-ref-type home remote ejb-link?

description* res-ref-name res-type res-auth res-sharing-scope?

description* resource-env-ref-name resource-env-ref-type

message-destination-ref*

callback-handler?

message-destination* description*

message-destination-ref-name

message-destination-type

message-destination-usage

message-destination-link?

description* display-name+

icon*

message-destination-name

Figure J2EE.9-1

J2EE Application Client XML Schema Structure

179

180

APPLICATION CLIENTS

<?xml version="1.0" encoding="UTF-8"?>

<xsd:schema xmlns="http://www.w3.org/2001/XMLSchema"

targetNamespace="http://java.sun.com/xml/ns/j2ee"

xmlns:j2ee="http://java.sun.com/xml/ns/j2ee"

xmlns:xsd="http://www.w3.org/2001/XMLSchema"

elementFormDefault="qualified"

attributeFormDefault="unqualified"

version="1.4">

<xsd:annotation>

<xsd:documentation>

@(#)application-client_1_4.xsds 1.17 02/11/03

</xsd:documentation>

</xsd:annotation>

<xsd:annotation>

<xsd:documentation>

This is the XML Schema for the application client 1.4

deployment descriptor. The deployment descriptor must

be named "META-INF/application-client.xml" in the

application client’s jar file. All application client

deployment descriptors must indicate the application

client schema by using the J2EE namespace:

http://java.sun.com/xml/ns/j2ee

and indicate the version of the schema by

using the version element as shown below:

<application-client xmlns="http://java.sun.com/xml/ns/j2ee"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee

http://java.sun.com/xml/ns/j2ee/applicationclient_1_4.xsd"

version="1.4">

...

</application-client>

The instance documents may indicate the published version of

the schema using the xsi:schemaLocation attribute for J2EE

namespace with the following location:

J2EE Application Client XML Schema

http://java.sun.com/xml/ns/j2ee/application-client_1_4.xsd

</xsd:documentation>

</xsd:annotation>

<xsd:annotation>

<xsd:documentation>

The following conventions apply to all J2EE

deployment descriptor elements unless indicated otherwise.

- In elements that specify a pathname to a file within the

same JAR file, relative filenames (i.e., those not

starting with "/") are considered relative to the root of

the JAR file’s namespace. Absolute filenames (i.e., those

starting with "/") also specify names in the root of the

JAR file’s namespace. In general, relative names are

preferred. The exception is .war files where absolute

names are preferred for consistency with the Servlet API.

</xsd:documentation>

</xsd:annotation>

<xsd:include schemaLocation="j2ee_1_4.xsd"/>

<!-- **************************************************** -->

<xsd:element name="application-client" type="j2ee:applicationclientType">

<xsd:annotation>

<xsd:documentation>

The application-client element is the root element of an

application client deployment descriptor. The application

client deployment descriptor describes the EJB components

and external resources referenced by the application

client.

</xsd:documentation>

</xsd:annotation>

<xsd:unique name="env-entry-name-uniqueness">

<xsd:annotation>

<xsd:documentation>

181

182

APPLICATION CLIENTS

The env-entry-name element contains the name of an

application client’s environment entry. The name is a JNDI

name relative to the java:comp/env context. The name must

be unique within an application client.

</xsd:documentation>

</xsd:annotation>

<xsd:selector xpath="j2ee:env-entry"/>

<xsd:field xpath="j2ee:env-entry-name"/>

</xsd:unique>

<xsd:unique name="ejb-ref-name-uniqueness">

<xsd:annotation>

<xsd:documentation>

The ejb-ref-name element contains the name of an EJB

reference. The EJB reference is an entry in the application

client’s environment and is relative to the

java:comp/env context. The name must be unique within the

application client.

It is recommended that name is prefixed with "ejb/".

</xsd:documentation>

</xsd:annotation>

<xsd:selector xpath="j2ee:ejb-ref"/>

<xsd:field xpath="j2ee:ejb-ref-name"/>

</xsd:unique>

<xsd:unique name="res-ref-name-uniqueness">

<xsd:annotation>

<xsd:documentation>

The res-ref-name element specifies the name of a

resource manager connection factory reference.The name

is a JNDI name relative to the java:comp/env context.

The name must be unique within an application client.

</xsd:documentation>

</xsd:annotation>

<xsd:selector xpath="j2ee:resource-ref"/>

<xsd:field xpath="j2ee:res-ref-name"/>

J2EE Application Client XML Schema

</xsd:unique>

<xsd:unique name="resource-env-ref-uniqueness">

<xsd:annotation>

<xsd:documentation>

The resource-env-ref-name element specifies the name of

a resource environment reference; its value is the

environment entry name used in the application client

code. The name is a JNDI name relative to the

java:comp/env context and must be unique within an

application client.

</xsd:documentation>

</xsd:annotation>

<xsd:selector xpath="j2ee:resource-env-ref"/>

<xsd:field xpath="j2ee:resource-env-ref-name"/>

</xsd:unique>

<xsd:unique name="message-destination-ref-uniqueness">

<xsd:annotation>

<xsd:documentation>

The message-destination-ref-name element specifies the

name of a message destination reference; its value is

the message destination reference name used in the

application client code. The name is a JNDI name

relative to the java:comp/env context and must be unique

within an application client.

</xsd:documentation>

</xsd:annotation>

<xsd:selector xpath="j2ee:message-destination-ref"/>

<xsd:field xpath="j2ee:message-destination-ref-name"/>

</xsd:unique>

</xsd:element>

<!-- **************************************************** -->

<xsd:complexType name="application-clientType">

<xsd:sequence>

<xsd:group ref="j2ee:descriptionGroup"/>

<xsd:element name="env-entry"

type="j2ee:env-entryType"

183

184

APPLICATION CLIENTS

minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="ejb-ref"

type="j2ee:ejb-refType"

minOccurs="0" maxOccurs="unbounded"/>

<xsd:group ref="j2ee:service-refGroup"/>

<xsd:element name="resource-ref"

type="j2ee:resource-refType"

minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="resource-env-ref"

type="j2ee:resource-env-refType"

minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="message-destination-ref"

type="j2ee:message-destination-refType"

minOccurs="0"

maxOccurs="unbounded"/>

<xsd:element name="callback-handler"

type="j2ee:fully-qualified-classType"

minOccurs="0">

<xsd:annotation>

<xsd:documentation>

The callback-handler element names a class provided by

the application. The class must have a no args

constructor and must implement the

javax.security.auth.callback.CallbackHandler

interface. The class will be instantiated by the

application client container and used by the container

to collect authentication information from the user.

</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element name="message-destination"

type="j2ee:message-destinationType"

minOccurs="0"

maxOccurs="unbounded"/>

</xsd:sequence>

<xsd:attribute name="version"

type="j2ee:dewey-versionType"

fixed="1.4"

use="required">

J2EE Application Client XML Schema

<xsd:annotation>

<xsd:documentation>

The required value for the version is 1.4.

</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

</xsd:schema>

185

186

APPLICATION CLIENTS

C H A P T E R

J2EE.10

Service Provider Interface

The Java™ 2 Platform, Enterprise Edition (J2EE) includes the J2EE Connector

Architecture and the Java Authorization Service Provider Contract for Containers as its service provider interfaces. The Connector API defines how resource adapters are packaged and integrated with any J2EE product. All J2EE products must support the Connector APIs, as specified in the Connector specification. The JACC specification defines the contract between a J2EE container and an authorization policy provider.

The Connector specification is available at http://java.sun.com/j2ee/ connector

. The JACC specification is available at http://jcp.org/jsr/detail/

115.jsp

.

187

188

SERVICE PROVIDER INTERFACE

C H A P T E R

J2EE.11

Future Directions

This version of the Java™ 2 Platform, Enterprise Edition (J2EE) specification includes most of the facilities needed by enterprise applications. Still, there is always more to be done. This chapter briefly describes our plans for future versions of this specification. Please keep in mind that all of this is subject to change. Your feedback is encouraged.

The following sections describe additional facilities we would like to include in future versions of this specification. Many of the APIs included in the J2EE platform will continue to evolve on their own and we will include the latest version of each API.

J2EE.11.1

XML Data Binding API

As XML becomes more important in the industry, more and more enterprise applications will need to make use of XML. This specification requires basic XML

SAX and DOM support through the JAXP API, but many applications will benefit from the easier to use XML Data Binding technology. The XML Data Binding API is being defined through the Java Community Process as JSR-031.

XML Data Binding depends on schema languages to define the XML data.

The current widely used schema language is the DTD language. W3C has standardized a new XML Schema language. In addition, there are several other schema languages in use and proposed in the industry.

In order to support emerging schema language standards quickly, the XML

Data Binding API will need to evolve more quickly than the J2EE platform.

Inclusion of the XML Data Binding API as a required component of J2EE at this time would constrain its evolution. We expect that the next version of the J2EE platform will require support for XML Data Binding. In the mean time, we strongly encourage the use of this new technology by enterprise applications as it

189

190

FUTURE DIRECTIONS

becomes available. We expect the XML Data Binding technology to be portable to any J2EE product.

The XML Data Binding JSR is available at http://java.sun.com/ aboutJava/communityprocess/jsr/jsr_031_xmld.html

.

J2EE.11.2

JNLP (Java™ Web Start)

The Java Network Launch Protocol defines a mechanism for deploying Java applications on a server and launching them from a client. A future version of this specification may require that J2EE products be able to deploy application clients in a way that allows them to be launched by a JNLP client, and that application client containers be able to launch application clients deployed using the JNLP technology. Java™ Web Start is the reference implementation of a JNLP client.

More information on JNLP is available at http://java.sun.com/aboutJava/ communityprocess/jsr/jsr_056_jnlp.html

; more information on Java Web Start is available at http://java.sun.com/products/javawebstart

.

J2EE.11.3

J2EE SPI

Many of the APIs that make up the J2EE platform include an SPI layer that allows service providers or other system level components to be plugged in. This specification does not describe the execution environment for all such service providers, nor the packaging and deployment requirements for all service providers.

However, the J2EE Connector Architecture does define the requirements for certain types of service providers called resource adapters. Future versions of this specification will more fully define the J2EE SPI.

J2EE.11.4

JDBC RowSets

RowSets provide a standard way to send tabular data between the remote components of a distributed enterprise application. The JDBC API defines the

RowSet APIs, and in the future will contain RowSet implementations. Future versions of this specification will require that the JDBC RowSet implementations be supported. More information is available at http://java.sun.com/products/jdbc

.

Security APIs

J2EE.11.5

Security APIs

It is a goal of the J2EE platform to separate security from business logic, providing declarative security controls for application components. However, some applications need more control over security than can be provided by this approach.

A future version of this specification may expand the set of APIs available to control authentication and authorization, and to allow the integration of new security technologies.

191

J2EE.11.6

SQLJ Part 0

SQLJ Part 0 supports embedding SQL statements in programs written in the Java programming language. A compiler translates the program into a program that uses the SQLJ Part 0 runtime. The runtime supports access to a database using the JDBC

API while also allowing platform-dependent and database-specific optimizations of such access. The SQLJ Part 0 runtime classes can be packaged with a J2EE application that uses SQLJ Part 0, allowing that application to run on any J2EE platform. At the current time, customer demand for SQLJ Part 0 is not sufficient to include it as a part of the J2EE platform. If customer demand increases, a future version of this specification may require the platform to provide the SQLJ Part 0 runtime classes so that they do not need to be packaged with the application. For information on SQLJ, see http://www.sqlj.org

.

192

FUTURE DIRECTIONS

A P P E N D I X

J2EE.A

Previous Version DTDs

This appendix contains Document Type Definitions for Deployment Descriptors from previous versions of the J2EE specification. All J2EE products are required to support these DTDs as well as the DTDs specified in this version of the specification. This ensures that applications written to previous versions of this specification can be deployed on products supporting the current version of this specification. In addition, there are no restrictions on mixing versions of deployment descriptors in a single application; any combination of valid deployment descriptor versions must be supported.

J2EE.A.1

J2EE:application 1.3 XML DTD

This section provides the XML DTD for the J2EE 1.3 application deployment descriptor. The XML grammar for a J2EE application deployment descriptor is defined by the

J2EE:application

document type definition. The granularity of composition for J2EE application assembly is the J2EE module. A

J2EE:application

deployment descriptor contains a name and description for the application and the URI of a UI icon for the application, as well as a list of the J2EE modules that comprise the application. The content of the XML elements is in general case sensitive. This means, for example, that

<role-name>Manager</rolename>

is a different role than

<role-name>manager</role-name>

.

A valid J2EE application deployment descriptor may contain the following

DOCTYPE declaration:

<!DOCTYPE application PUBLIC "-//Sun Microsystems, Inc.//DTD J2EE

Application 1.3//EN" "http://java.sun.com/dtd/application_1_3.dtd">

193

194

The deployment descriptor must be named

META-INF/application.xml

in the

.ear

file.

Figure J2EE.A-1 shows a graphic representation of the structure of the

J2EE:application

XML DTD.

application icon display-name description?

module+ security-role* small-icon large-icon connector | ejb | java | web alt-dd?

description?

role-name web-uri context-root?

Figure J2EE.A-1

J2EE:application XML DTD Structure

The DTD that follows defines the XML grammar for a J2EE application deployment descriptor.

<!--

This is the XML DTD for the J2EE 1.3 application deployment descriptor. All J2EE 1.3 application deployment descriptors must include a DOCTYPE of the following form:

<!DOCTYPE application PUBLIC

"-//Sun Microsystems, Inc.//DTD J2EE Application 1.3//EN"

"http://java.sun.com/dtd/application_1_3.dtd">

-->

<!--

The following conventions apply to all J2EE deployment descriptor elements unless indicated otherwise.

- In elements that contain PCDATA, leading and trailing whitespace

in the data may be ignored.

- In elements whose value is an "enumerated type", the value is

case sensitive.

- In elements that specify a pathname to a file within the same

JAR file, relative filenames (i.e., those not starting with "/") are considered relative to the root of the JAR file’s namespace.

Absolute filenames (i.e., those starting with "/") also specify names in the root of the JAR file’s namespace. In general, relative

names are preferred.

The exception is .war files where absolute

names are preferred for consistency with the servlet API.

-->

<!--

The application element is the root element of a J2EE application deployment descriptor.

-->

<!ELEMENT application (icon?, display-name, description?, module+, security-role*)>

<!--

The alt-dd element specifies an optional URI to the post-assembly version of the deployment descriptor file for a particular J2EE module. The URI must specify the full pathname of the deployment descriptor file relative to the application’s root directory. If altdd is not specified, the deployer must read the deployment descriptor from the default location and file name required by the respective component specification.

Used in: module

-->

<!ELEMENT alt-dd (#PCDATA)>

<!--

The connector element specifies the URI of a resource adapter archive file, relative to the top level of the application package.

Used in: module

-->

<!ELEMENT connector (#PCDATA)>

<!--

The context-root element specifies the context root of a web application.

Used in: web

-->

<!ELEMENT context-root (#PCDATA)>

195

196

<!--

The description element is used to provide text describing the parent element. The description element should include any information that the application ear file producer wants to provide to the consumer of the application ear file (i.e., to the Deployer). Typically, the tools used by the application ear file consumer will display the description when processing the parent element that contains the description.

Used in: application, security-role

-->

<!ELEMENT description (#PCDATA)>

<!--

The display-name element contains a short name that is intended to be displayed by tools. The display name need not be unique.

Used in: application

Example:

<display-name>Employee Self Service</display-name>

-->

<!ELEMENT display-name (#PCDATA)>

<!--

The ejb element specifies the URI of an ejb-jar, relative to the top level of the application package.

Used in: module

-->

<!ELEMENT ejb (#PCDATA)>

<!--

The icon element contains small-icon and large-icon elements that specify the file names for small and a large GIF or JPEG icon images used to represent the parent element in a GUI tool.

Used in: application

-->

<!ELEMENT icon (small-icon?, large-icon?)>

<!--

The java element specifies the URI of a java application client module, relative to the top level of the application package.

Used in: module

-->

<!ELEMENT java (#PCDATA)>

<!--

The large-icon element contains the name of a file containing a large

(32 x 32) icon image. The file name is a relative path within the application’s ear file.

The image may be either in the JPEG or GIF format. The icon can be used by tools.

Used in: icon

Example:

<large-icon>employee-service-icon32x32.jpg</large-icon>

-->

<!ELEMENT large-icon (#PCDATA)>

<!--

The module element represents a single J2EE module and contains a connector, ejb, java, or web element, which indicates the module type and contains a path to the module file, and an optional alt-dd element, which specifies an optional URI to the post-assembly version of the deployment descriptor.

The application deployment descriptor must have one module element for each J2EE module in the application package.

Used in: application

-->

<!ELEMENT module ((connector | ejb | java | web), alt-dd?)>

<!--

The role-name element contains the name of a security role.

The name must conform to the lexical rules for an NMTOKEN.

Used in: security-role

-->

<!ELEMENT role-name (#PCDATA)>

<!--

The security-role element contains the definition of a security role.

The definition consists of an optional description of the security role, and the security role name.

Used in: application

Example:

<security-role>

<description>

This role includes all employees who are authorized

197

198

to access the employee service application.

</description>

<role-name>employee</role-name>

</security-role>

-->

<!ELEMENT security-role (description?, role-name)>

<!--

The small-icon element contains the name of a file containing a small

(16 x 16) icon image. The file name is a relative path within the application’s ear file.

The image may be either in the JPEG or GIF format. The icon can be used by tools.

Used in: icon

Example:

<small-icon>employee-service-icon16x16.jpg</small-icon>

-->

<!ELEMENT small-icon (#PCDATA)>

<!--

The web element contains the web-uri and context-root of a web application module.

Used in: module

-->

<!ELEMENT web (web-uri, context-root)>

<!--

The web-uri element specifies the URI of a web application file, relative to the top level of the application package.

Used in: web

-->

<!ELEMENT web-uri (#PCDATA)>

<!--

The ID mechanism is to allow tools that produce additional deployment information (i.e., information beyond the standard deployment descriptor information) to store the non-standard information in a separate file, and easily refer from these tool-specific files to the information in the standard deployment descriptor.

Tools are not allowed to add the non-standard information into the standard deployment descriptor.

-->

<!ATTLIST alt-dd id ID #IMPLIED>

<!ATTLIST application id ID #IMPLIED>

<!ATTLIST connector id ID #IMPLIED>

<!ATTLIST context-root id ID #IMPLIED>

<!ATTLIST description id ID #IMPLIED>

<!ATTLIST display-name id ID #IMPLIED>

<!ATTLIST ejb id ID #IMPLIED>

<!ATTLIST icon id ID #IMPLIED>

<!ATTLIST java id ID #IMPLIED>

<!ATTLIST large-icon id ID #IMPLIED>

<!ATTLIST module id ID #IMPLIED>

<!ATTLIST role-name id ID #IMPLIED>

<!ATTLIST security-role id ID #IMPLIED>

<!ATTLIST small-icon id ID #IMPLIED>

<!ATTLIST web id ID #IMPLIED>

<!ATTLIST web-uri id ID #IMPLIED>

199

J2EE.A.2

J2EE:application 1.2 XML DTD

This section provides the XML DTD for the J2EE 1.2 version of the application deployment descriptor. A valid J2EE application deployment descriptor may contain the following DOCTYPE declaration:

<!DOCTYPE application PUBLIC "-//Sun Microsystems, Inc.//DTD J2EE

Application 1.2//EN" "http://java.sun.com/j2ee/dtds/ application_1_2.dtd">

200

Figure J2EE.A-2 shows a graphic representation of the structure of the

J2EE:application

XML DTD.

application icon?

display-name description?

module+ security-role* small-icon?

large-icon?

ejb | java | web alt-dd?

description?

role-name web-uri context-root

Figure J2EE.A-2

J2EE:application XML DTD Structure

The DTD that follows defines the XML grammar for a J2EE application deployment descriptor.

<!--

The alt-dd element specifies an optional URI to the post-assembly version of the deployment descriptor file for a particular J2EE module.

The URI must specify the full pathname of the deployment descriptor file relative to the application’s root directory. If alt-dd is not specified, the deployer must read the deployment descriptor from the default location and file name required by the respective component specification.

-->

<!ELEMENT alt-dd (#PCDATA)>

<!--

The application element is the root element of a J2EE application deployment descriptor.

-->

<!ELEMENT application (icon?, display-name, description?, module+, security-role*)>

<!--

The context-root element specifies the context root of a web application

-->

<!ELEMENT context-root (#PCDATA)>

<!--

The description element provides a human readable description of the application.

The description element should include any information that the application assembler wants to provide the deployer.

-->

<!ELEMENT description (#PCDATA)>

<!--

The display-name element specifies an application name.

The application name is assigned to the application by the application assembler and is used to identify the application to the deployer at deployment time.

-->

<!ELEMENT display-name (#PCDATA)>

<!--

The ejb element specifies the URI of a ejb-jar, relative to the top level of the application package.

-->

<!ELEMENT ejb (#PCDATA)>

<!--

The icon element contains a small-icon and large-icon element which specify the URIs for a small and a large GIF or JPEG icon image to represent the application in a GUI.

-->

<!ELEMENT icon (small-icon?, large-icon?)>

201

202

<!--

The java element specifies the URI of a java application client module, relative to the top level of the application package.

-->

<!ELEMENT java (#PCDATA)>

<!--

The large-icon element specifies the URI for a large GIF or JPEG icon image to represent the application in a GUI.

-->

<!ELEMENT large-icon (#PCDATA)>

<!--

The module element represents a single J2EE module and contains an ejb, java, or web element, which indicates the module type and contains a path to the module file, and an optional alt-dd element, which specifies an optional URI to the post-assembly version of the deployment descriptor.

The application deployment descriptor must have one module element for each J2EE module in the application package.

-->

<!ELEMENT module ((ejb | java | web), alt-dd?)>

<!--

The role-name element contains the name of a security role.

-->

<!ELEMENT role-name (#PCDATA)>

<!--

The security-role element contains the definition of a security role which is global to the application.

The definition consists of a description of the security role, and the security role name.

The descriptions at this level override those in the component level security-role definitions and must be the descriptions tool display to the deployer.

-->

<!ELEMENT security-role (description?, role-name)>

<!--

The small-icon element specifies the URI for a small GIF or JPEG icon image to represent the application in a GUI.

-->

<!ELEMENT small-icon (#PCDATA)>

<!--

The web element contains the web-uri and context-root of a web application module.

-->

<!ELEMENT web (web-uri, context-root)>

<!--

The web-uri element specifies the URI of a web application file, relative to the top level of the application package.

-->

<!ELEMENT web-uri (#PCDATA)>

<!--

The ID mechanism is to allow tools to easily make tool-specific references to the elements of the deployment descriptor.

-->

<!ATTLIST alt-dd id ID #IMPLIED>

<!ATTLIST application id ID #IMPLIED>

<!ATTLIST context-root id ID #IMPLIED>

<!ATTLIST description id ID #IMPLIED>

<!ATTLIST display-name id ID #IMPLIED>

<!ATTLIST ejb id ID #IMPLIED>

<!ATTLIST icon id ID #IMPLIED>

<!ATTLIST java id ID #IMPLIED>

<!ATTLIST large-icon id ID #IMPLIED>

<!ATTLIST module id ID #IMPLIED>

<!ATTLIST role-name id ID #IMPLIED>

<!ATTLIST security-role id ID #IMPLIED>

<!ATTLIST small-icon id ID #IMPLIED>

<!ATTLIST web id ID #IMPLIED>

<!ATTLIST web-uri id ID #IMPLIED>

203

204

J2EE.A.3

J2EE:application-client 1.3 XML DTD

This section contains the XML DTD for the J2EE 1.3 version of the application client deployment descriptor. The XML grammar for a J2EE application client deployment descriptor is defined by the

J2EE:application-client

document type definition. The root element of the deployment descriptor for an application client is application-client

. The content of the XML elements is in general case sensitive.

This means, for example, that

<res-auth>Container</res-auth>

must be used, rather than

<res-auth>container</res-auth>

.

A valid application-client

deployment descriptor may contain the following DOCTYPE declaration:

<!DOCTYPE application-client PUBLIC "-//Sun Microsystems, Inc.//DTD

J2EE Application Client 1.3//EN" "http://java.sun.com/dtd/ application-client_1_3.dtd">

The deployment descriptor must be named

META-INF/application-client.xml

in the application client’s

.jar

file.

Figure J2EE.A-3 shows the structure of the

J2EE:application-client

XML

DTD.

application-client t icon display-nam e description

?

env-entry* ejb-ref* resource-ref* resource-env-ref* callback-handler

?

small-icon large-ico n description

?

env-entry-name env-entry-type env-entry-value?

description

?

ejb-ref-nam e ejb-ref-type hom e description

?

res-ref-name res-type remote res-aut h ejb-link

?

res-sharing-scope

?

description

?

resource-env-ref-name resource-env-ref-type

Figure J2EE.A-3

J2EE:application-client XML DTD Structure

<!--

This is the XML DTD for the J2EE 1.3 application client deployment descriptor. All J2EE 1.3 application client deployment descriptors must include a DOCTYPE of the following form:

<!DOCTYPE application-client PUBLIC

-->

"-//Sun Microsystems, Inc.//DTD J2EE Application Client 1.3//EN"

"http://java.sun.com/dtd/application-client_1_3.dtd">

<!--

The following conventions apply to all J2EE deployment descriptor elements unless indicated otherwise.

- In elements that contain PCDATA, leading and trailing whitespace

in the data may be ignored.

- In elements whose value is an "enumerated type", the value is

case sensitive.

- In elements that specify a pathname to a file within the same

JAR file, relative filenames (i.e., those not starting with "/") are considered relative to the root of the JAR file’s namespace.

Absolute filenames (i.e., those starting with "/") also specify names in the root of the JAR file’s namespace. In general, relative names are preferred.

The exception is .war files where absolute

names are preferred for consistency with the servlet API.

-->

<!--

The application-client element is the root element of an application client deployment descriptor. The application client deployment descriptor describes the EJB components and external resources referenced by the application client.

-->

<!ELEMENT application-client (icon?, display-name, description?, env-entry*, ejb-ref*, resource-ref*, resource-env-ref*, callback-handler?)>

<!--

The callback-handler element names a class provided by the application. The class must have a no args constructor and must implement the javax.security.auth.callback.CallbackHandler

interface. The class will be instantiated by the application client container and used by the container to collect authentication information from the user.

Used in: application-client

-->

<!ELEMENT callback-handler (#PCDATA)>

205

206

<!--

The description element is used to provide text describing the parent element. The description element should include any information that the application client jar file producer wants to provide to the consumer of the application client jar file (i.e., to the Deployer).

Typically, the tools used by the application client jar file consumer will display the description when processing the parent element that contains the description.

Used in: application-client, ejb-ref, env-entry, resource-env-ref, resource-ref

-->

<!ELEMENT description (#PCDATA)>

<!--

The display-name element contains a short name that is intended to be displayed by tools. The display name need not be unique.

Used in: application-client

Example:

<display-name>Employee Self Service</display-name>

-->

<!ELEMENT display-name (#PCDATA)>

<!--

The ejb-link element is used in the ejb-ref or ejb-local-ref elements to specify that an EJB reference is linked to another enterprise bean.

The name in the ejb-link element is composed of a path name specifying the ejb-jar containing the referenced enterprise bean with the ejb-name of the target bean appended and separated from the path name by "#".

The path name is relative to the jar file containing the application client that is referencing the enterprise bean. This allows multiple enterprise beans with the same ejb-name to be uniquely identified.

Used in: ejb-ref

Examples:

<ejb-link>EmployeeRecord</ejb-link>

<ejb-link>../products/product.jar#ProductEJB</ejb-link>

-->

<!ELEMENT ejb-link (#PCDATA)>

<!--

The ejb-ref element is used for the declaration of a reference to an enterprise bean’s home. The declaration consists of:

- an optional description

- the EJB reference name used in the code of the application client that’s referencing the enterprise bean

- the expected type of the referenced enterprise bean

- the expected home and remote interfaces of the referenced

enterprise bean

- optional ejb-link information, used to specify the referenced

enterprise bean

Used in: application-client

-->

<!ELEMENT ejb-ref (description?, ejb-ref-name, ejb-ref-type, home, remote, ejb-link?)>

<!--

The ejb-ref-name element contains the name of an EJB reference. The

EJB reference is an entry in the application client’s environment and is relative to the java:comp/env context. The name must be unique within the application client.

It is recommended that name is prefixed with "ejb/".

Used in: ejb-ref

Example:

<ejb-ref-name>ejb/Payroll</ejb-ref-name>

-->

<!ELEMENT ejb-ref-name (#PCDATA)>

<!--

The ejb-ref-type element contains the expected type of the referenced enterprise bean.

The ejb-ref-type element must be one of the following:

<ejb-ref-type>Entity</ejb-ref-type>

<ejb-ref-type>Session</ejb-ref-type>

Used in: ejb-ref

-->

<!ELEMENT ejb-ref-type (#PCDATA)>

207

208

<!--

The env-entry element contains the declaration of an application client’s environment entry. The declaration consists of an optional description, the name of the environment entry, and an optional value. If a value is not specified, one must be supplied during deployment.

Used in: application-client

-->

<!ELEMENT env-entry (description?, env-entry-name, env-entry-type, env-entry-value?)>

<!--

The env-entry-name element contains the name of an application client’s environment entry. The name is a JNDI name relative to the java:comp/env context. The name must be unique within an application client.

Used in: env-entry

Example:

<env-entry-name>minAmount</env-entry-name>

-->

<!ELEMENT env-entry-name (#PCDATA)>

<!--

The env-entry-type element contains the fully-qualified Java type of the environment entry value that is expected by the application client’s code.

The following are the legal values of env-entry-type: java.lang.Boolean

java.lang.Byte

java.lang.Character

java.lang.String

java.lang.Short

java.lang.Integer

java.lang.Long

java.lang.Float

java.lang.Double

Used in: env-entry

Example:

<env-entry-type>java.lang.Boolean</env-entry-type>

-->

<!ELEMENT env-entry-type (#PCDATA)>

<!--

The env-entry-value element contains the value of an application client’s environment entry. The value must be a String that is valid for the constructor of the specified type that takes a single String parameter, or for java.lang.Character, a single character.

Used in: env-entry

Example:

<env-entry-value>100.00</env-entry-value>

-->

<!ELEMENT env-entry-value (#PCDATA)>

<!--

The home element contains the fully-qualified name of the enterprise bean’s home interface.

Used in: ejb-ref

Example:

<home>com.aardvark.payroll.PayrollHome</home>

-->

<!ELEMENT home (#PCDATA)>

<!--

The icon element contains small-icon and large-icon elements that specify the file names for small and a large GIF or JPEG icon images used to represent the parent element in a GUI tool.

Used in: application-client

-->

<!ELEMENT icon (small-icon?, large-icon?)>

<!--

The large-icon element contains the name of a file containing a large

(32 x 32) icon image. The file name is a relative path within the application client’s jar file.

The image may be either in the JPEG or GIF format. The icon can be used by tools.

Used in: icon

Example:

<large-icon>employee-service-icon32x32.jpg</large-icon>

-->

<!ELEMENT large-icon (#PCDATA)>

209

210

<!--

The remote element contains the fully-qualified name of the enterprise bean’s remote interface.

Used in: ejb-ref

Example:

<remote>com.wombat.empl.EmployeeService</remote>

-->

<!ELEMENT remote (#PCDATA)>

<!--

The res-auth element specifies whether the application client code signs on programmatically to the resource manager, or whether the

Container will sign on to the resource manager on behalf of the application client. In the latter case, the Container uses information that is supplied by the Deployer.

The value of this element must be one of the two following:

<res-auth>Application</res-auth>

<res-auth>Container</res-auth>

Used in: resource-ref

-->

<!ELEMENT res-auth (#PCDATA)>

<!--

The res-ref-name element specifies the name of a resource manager connection factory reference.

The name is a JNDI name relative to the java:comp/env context. The name must be unique within an application client.

Used in: resource-ref

-->

<!ELEMENT res-ref-name (#PCDATA)>

<!--

The res-sharing-scope element specifies whether connections obtained through the given resource manager connection factory reference can be shared. The value of this element, if specified, must be one of the two following:

<res-sharing-scope>Shareable</res-sharing-scope>

<res-sharing-scope>Unshareable</res-sharing-scope>

The default value is Shareable.

Used in: resource-ref

-->

<!ELEMENT res-sharing-scope (#PCDATA)>

<!--

The res-type element specifies the type of the data source. The type is specified by the fully qualified Java language class or interface expected to be implemented by the data source.

Used in: resource-ref

-->

<!ELEMENT res-type (#PCDATA)>

<!--

The resource-env-ref element contains a declaration of an application client’s reference to an administered object associated with a resource in the application client’s environment. It consists of an optional description, the resource environment reference name, and an indication of the resource environment reference type expected by the application client code.

Used in: application-client

Example:

<resource-env-ref>

<resource-env-ref-name>jms/StockQueue</resource-env-ref-name>

<resource-env-ref-type>javax.jms.Queue</resource-env-ref-type>

</resource-env-ref>

-->

<!ELEMENT resource-env-ref (description?, resource-env-ref-name, resource-env-ref-type)>

<!--

The resource-env-ref-name element specifies the name of a resource environment reference; its value is the environment entry name used in the application client code. The name is a JNDI name relative to the java:comp/env context and must be unique within an application client.

Used in: resource-env-ref

-->

<!ELEMENT resource-env-ref-name (#PCDATA)>

<!--

The resource-env-ref-type element specifies the type of a resource environment reference. It is the fully qualified name of a Java language class or interface.

211

212

Used in: resource-env-ref

-->

<!ELEMENT resource-env-ref-type (#PCDATA)>

<!--

The resource-ref element contains a declaration of an application client’s reference to an external resource. It consists of an optional description, the resource manager connection factory reference name, the indication of the resource manager connection factory type expected by the application client code, the type of authentication (Application or Container), and an optional specification of the shareability of connections obtained from the resource (Shareable or Unshareable).

Used in: application-client

Example:

<resource-ref>

<res-ref-name>jdbc/EmployeeAppDB</res-ref-name>

<res-type>javax.sql.DataSource</res-type>

<res-auth>Container</res-auth>

-->

<res-sharing-scope>Shareable</res-sharing-scope> </resource-ref>

<!ELEMENT resource-ref (description?, res-ref-name, res-type, resauth, res-sharing-scope?)>

<!--

The small-icon element contains the name of a file containing a small

(16 x 16) icon image. The file name is a relative path within the application client’s jar file.

The image may be either in the JPEG or GIF format. The icon can be used by tools.

Used in: icon

Example:

<small-icon>employee-service-icon16x16.jpg</small-icon>

-->

<!ELEMENT small-icon (#PCDATA)>

<!--

The ID mechanism is to allow tools that produce additional deployment information (i.e., information beyond the standard deployment descriptor information) to store the non-standard information in a separate file, and easily refer from these tool-specific files to the information in the standard deployment descriptor.

Tools are not allowed to add the non-standard information into the standard deployment descriptor.

-->

<!ATTLIST application-client id ID #IMPLIED>

<!ATTLIST callback-handler id ID #IMPLIED>

<!ATTLIST description id ID #IMPLIED>

<!ATTLIST display-name id ID #IMPLIED>

<!ATTLIST ejb-link id ID #IMPLIED>

<!ATTLIST ejb-ref id ID #IMPLIED>

<!ATTLIST ejb-ref-name id ID #IMPLIED>

<!ATTLIST ejb-ref-type id ID #IMPLIED>

<!ATTLIST env-entry id ID #IMPLIED>

<!ATTLIST env-entry-name id ID #IMPLIED>

<!ATTLIST env-entry-type id ID #IMPLIED>

<!ATTLIST env-entry-value id ID #IMPLIED>

<!ATTLIST home id ID #IMPLIED>

<!ATTLIST icon id ID #IMPLIED>

<!ATTLIST large-icon id ID #IMPLIED>

<!ATTLIST remote id ID #IMPLIED>

<!ATTLIST res-auth id ID #IMPLIED>

<!ATTLIST res-ref-name id ID #IMPLIED>

<!ATTLIST res-sharing-scope id ID #IMPLIED>

<!ATTLIST res-type id ID #IMPLIED>

<!ATTLIST resource-env-ref id ID #IMPLIED>

<!ATTLIST resource-env-ref-name id ID #IMPLIED>

<!ATTLIST resource-env-ref-type id ID #IMPLIED>

<!ATTLIST resource-ref id ID #IMPLIED>

<!ATTLIST small-icon id ID #IMPLIED>

213

J2EE.A.4

J2EE:application-client 1.2 XML DTD

This section contains the XML DTD for the J2EE 1.2 version of the application client deployment descriptor. A valid application client deployment descriptor may contain the following DOCTYPE declaration:

<!DOCTYPE application-client PUBLIC "-//Sun Microsystems, Inc.//DTD

J2EE Application Client 1.2//EN" "http://java.sun.com/j2ee/dtds/application-client_1_2.dtd">

214

Figure J2EE.A-4 shows the structure of the

J2EE:application-client

XML

DTD.

application-client icon?

display-name description?

env-entry* ejb-ref* resource-ref* small-icon?

large-icon?

description?

env-entry-name env-entry-type env-entry-value?

description?

ejb-ref-name ejb-ref-type home remote ejb-link?

description?

res-ref-name res-type res-auth

Figure J2EE.A-4

J2EE:application-client XML DTD Structure

<!--

The application-client element is the root element of an application client deployment descriptor.

The application client deployment descriptor describes the EJB components and external resources referenced by the application client.

-->

<!ELEMENT application-client (icon?, display-name, description?, env-entry*, ejb-ref*, resource-ref*)>

<!--

The description element is used to provide text describing the parent element.

The description element should include any information that the application-client file producer wants to provide to the consumer of the application-client file (i.e., to the Deployer).

Typically, the tools used by the application-client file consumer will display the description when processing the parent element that contains the description.

-->

<!ELEMENT description (#PCDATA)>

<!--

The display-name element contains a short name that is intended to be displayed by tools.

-->

<!ELEMENT display-name (#PCDATA)>

<!--

The ejb-link element is used in the ejb-ref element to specify that an EJB reference is linked to an enterprise bean in the encompassing

J2EE Application package.

The value of the ejb-link element must be the ejb-name of an enterprise bean in the same J2EE Application package.

Used in: ejb-ref

Example: <ejb-link>EmployeeRecord</ejb-link>

-->

<!ELEMENT ejb-link (#PCDATA)>

<!--

The ejb-ref element is used for the declaration of a reference to an enterprise bean’s home.

The declaration consists of an optional description; the EJB reference name used in the code of the referencing application client; the expected type of the referenced enterprise bean; the expected home and remote interfaces of the referenced enterprise bean; and an optional ejb-link information.

The optional ejb-link element is used to specify the referenced enterprise bean.

-->

<!ELEMENT ejb-ref (description?, ejb-ref-name, ejb-ref-type, home, remote, ejb-link?)>

<!--

The ejb-ref-name element contains the name of an EJB reference.

The EJB reference is an entry in the application client’s environment.

215

216

It is recommended that name is prefixed with "ejb/".

Used in: ejb-ref

Example: <ejb-ref-name>ejb/Payroll</ejb-ref-name>

-->

<!ELEMENT ejb-ref-name (#PCDATA)>

<!--

The ejb-ref-type element contains the expected type of the referenced enterprise bean.

The ejb-ref-type element must be one of the following:

<ejb-ref-type>Entity</ejb-ref-type>

<ejb-ref-type>Session</ejb-ref-type>

Used in: ejb-ref

-->

<!ELEMENT ejb-ref-type (#PCDATA)>

<!--

The env-entry element contains the declaration of an application client’s environment entries.

The declaration consists of an optional description, the name of the environment entry, and an optional value.

-->

<!ELEMENT env-entry (description?, env-entry-name, env-entry-type, env-entry-value?)>

<!--

The env-entry-name element contains the name of an application client’s environment entry.

Used in: env-entry

Example: <env-entry-name>EmployeeAppDB</env-entry-name>

-->

<!ELEMENT env-entry-name (#PCDATA)>

<!--

The env-entry-type element contains the fully-qualified Java type of the environment entry value that is expected by the application client’s code.

The following are the legal values of env-entry-type: java.lang.Boolean, java.lang.String, java.lang.Integer, java.lang.Double, java.lang.Byte, java.lang.Short,java.lang.Long, and java.lang.Float.

Used in: env-entry

Example:

<env-entry-type>java.lang.Boolean</env-entry-type>

-->

<!ELEMENT env-entry-type (#PCDATA)>

<!--

The env-entry-value element contains the value of an application client’s environment entry. The value must be a String that is valid for the constructor of the specified type that takes a single String parameter.

Used in: env-entry

Example:

<env-entry-value>/datasources/MyDatabase</env-entry-value>

-->

<!ELEMENT env-entry-value (#PCDATA)>

<!--

The home element contains the fully-qualified name of the enterprise bean’s home interface.

Used in: ejb-ref Example: <home>com.aardvark.payroll.PayrollHome</ home>

-->

<!ELEMENT home (#PCDATA)>

<!--

The icon element contains a small-icon and large-icon element which specify the URIs for a small and a large GIF or JPEG icon image used to represent the application client in a GUI tool.

-->

<!ELEMENT icon (small-icon?, large-icon?)>

217

218

<!--

The large-icon element contains the name of a file containing a large

(32 x 32) icon image. The file name is a relative path within the application-client jar file. The image must be either in the JPEG or

GIF format, and the file name must end with the suffix ".jpg" or

".gif" respectively. The icon can be used by tools.

Example:

<large-icon>lib/images/employee-service-icon32x32.jpg</large-icon>

-->

<!ELEMENT large-icon (#PCDATA)>

<!--

The remote element contains the fully-qualified name of the enterprise bean’s remote interface.

Used in: ejb-ref

Example:

<remote>com.wombat.empl.EmployeeService</remote>

-->

<!ELEMENT remote (#PCDATA)>

<!--

The res-auth element specifies whether the enterprise bean code signs on programmatically to the resource manager, or whether the Container will sign on to the resource manager on behalf of the bean. In the latter case, the Container uses information that is supplied by the

Deployer.

The value of this element must be one of the two following:

<res-auth>Application</res-auth>

<res-auth>Container</res-auth>

-->

<!ELEMENT res-auth (#PCDATA)>

<!--

The res-ref-name element specifies the name of the resource factory reference name. The resource factory reference name is the name of the application client’s environment entry whose value contains the

JNDI name of the data source.

Used in: resource-ref

-->

<!ELEMENT res-ref-name (#PCDATA)>

<!--

The res-type element specifies the type of the data source. The type is specified by the Java interface (or class) expected to be implemented by the data source.

Used in: resource-ref

-->

<!ELEMENT res-type (#PCDATA)>

<!--

The resource-ref element contains a declaration of application clients’s reference to an external resource. It consists of an optional description, the resource factory reference name, the indication of the resource factory type expected by the application client’s code, and the type of authentication (bean or container).

Example:

<resource-ref>

<res-ref-name>EmployeeAppDB</res-ref-name>

<res-type>javax.sql.DataSource</res-type>

<res-auth>Container</res-auth>

</resource-ref>

-->

<!ELEMENT resource-ref (description?, res-ref-name, res-type, resauth)>

<!--

The small-icon element contains the name of a file containing a small

(16 x 16) icon image.

The file name is a relative path within the application-client jar file.

The image must be either in the JPEG or GIF format, and the file name must end with the suffix ".jpg" or ".gif" respectively.

The icon can be used by tools.

Example:

<small-icon>lib/images/employee-service-icon16x16.jpg</small-icon>

-->

<!ELEMENT small-icon (#PCDATA)>

<!--

The ID mechanism is to allow tools to easily make tool-specific references to the elements of the deployment descriptor.

-->

219

220

<!ATTLIST application-client id ID #IMPLIED>

<!ATTLIST description id ID #IMPLIED>

<!ATTLIST display-name id ID #IMPLIED>

<!ATTLIST ejb-link id ID #IMPLIED>

<!ATTLIST ejb-ref id ID #IMPLIED>

<!ATTLIST ejb-ref-name id ID #IMPLIED>

<!ATTLIST ejb-ref-type id ID #IMPLIED>

<!ATTLIST env-entry id ID #IMPLIED>

<!ATTLIST env-entry-name id ID #IMPLIED>

<!ATTLIST env-entry-type id ID #IMPLIED>

<!ATTLIST env-entry-value id ID #IMPLIED>

<!ATTLIST home id ID #IMPLIED>

<!ATTLIST icon id ID #IMPLIED>

<!ATTLIST large-icon id ID #IMPLIED>

<!ATTLIST remote id ID #IMPLIED>

<!ATTLIST res-auth id ID #IMPLIED>

<!ATTLIST res-ref-name id ID #IMPLIED>

<!ATTLIST res-type id ID #IMPLIED>

<!ATTLIST resource-ref id ID #IMPLIED>

<!ATTLIST small-icon id ID #IMPLIED>

A P P E N D I X

J2EE.B

Revision History

J2EE.B.1

Changes in Expert Draft 1

J2EE.B.1.1

Additional Requirements

• Updated entire specification to require J2SE 1.4, and to reflect that several optional packages are now part of J2SE

• Added requirements for many new APIs, see Chapter J2EE.6, “Application

Programming Interface” for details.

• Moved J2EE 1.3 DTDs to Appendix J2EE.A, “Previous Version DTDs.”

• J2EE 1.4 deployment descriptors will be described using XML Schema, left

TBD for now.

• Added support for non-bundled extensions and expanded support for bundled

extensions. See Chapter J2EE.8, “Application Assembly and Deployment.”

• Added support for the same set of cypher suites required by the EJB spec. See

Section J2EE.3.4.2.2, “SSL Mutual Authentication.”

• Required java:/comp/ORB

to be available in application client container. See

Section J2EE.6.2.4.4, “Java IDL.”

• Required support for access to local enterprise beans from web container. See

Section J2EE.6.4, “Servlet 2.4 Requirements.”

221

222

J2EE.B.1.2

Removed Requirements

• None.

J2EE.B.1.3

Editorial Changes

• Expanded warning in Section J2EE.3.3.4.2, “Programmatic Security” about

non-portability of principal names.

• Clarified that only the two argument version of the JDBC

LOCATE

command

need be supported. See Section J2EE.6.2.4.3, “JDBC™ API.”

J2EE.B.2

Changes in Expert Draft 2

J2EE.B.2.1

Additional Requirements

• Made explicit the assumed requirement that all J2EE containers must install a

security manager. See Section J2EE.6.2.1, “Programming Restrictions.”

• Required web containers to support access to local enterprise beans. See

Section J2EE.6.3, “Enterprise JavaBeans™ (EJB) 2.1 Requirements.”

• Restricted use of JMS message listeners to application clients. See

Section J2EE.6.6, “Java™ Message Service (JMS) 1.1 Requirements.”

• Required JNDI lookups in the java: namespace to return a new instance of

the object in most cases. See Section J2EE.5.2, “Java Naming and Directory

Interface™ (JNDI) Naming Context.”

• Added

MOD

as a required JDBC function in Section J2EE.6.2.4.3, “JDBC™

API.”

• Application components in the web and EJB containers may only create a sin-

gle JMS session per connection. See Section J2EE.6.6, “Java™ Message Service (JMS) 1.1 Requirements” for details.

• The application client container must support a limited subset of the Connector APIs, in order to enable JMS providers to be plugged into the application

client container. See Section J2EE.6.11, “J2EE™ Connector Architecture 1.5

Requirements.”

• Updated J2EE Deployment to version 1.1 to reflect anticipated maintenance update of API needed to synchronize with J2EE 1.4.

• Expanded JAX-RPC requirements in Section J2EE.6.13, “Java™ API for

XML-based RPC (JAX-RPC) 1.1 Requirements.”

• Further clarified restrictions on application usage of transactional resource ob-

jects in class instance fields in Section J2EE.4.2.3, “Transactions and

Threads.”

• Described new deployment descriptor extensibility architecture in

Section J2EE.8.5, “Deployment Descriptor Extensibility.”

• Upgraded HTTP requirement to version 1.1 in Section J2EE.7.2.1, “Internet and Web Protocols.”

• Described use of the Logging API in Section J2EE.6.2.4.11, “Logging API

Requirements.”

• Described use of the Preferences API in Section J2EE.6.2.4.12, “Preferences

API Requirements.”

• Updated JavaMail requirement to version 1.3.

J2EE.B.2.2

Removed Requirements

• None.

J2EE.B.2.3

Editorial Changes

• Updated terminology from “resource manager driver” to “resource adapter” in

Section J2EE.2.4, “Resource Adapters.”

• Clarified two-phase commit requirements in new Section J2EE.4.7, “Two-

Phase Commit Support” and throughout Chapter J2EE.4, “Transaction Management.”

• Moved section on dependencies to a higher level, now Section J2EE.8.2, “Optional Package Support,” to make it more prominent and visible. Also clarified

requirements in this section.

223

224

J2EE.B.3

Changes in Community Draft

J2EE.B.3.1

Additional Requirements

• EJB local objects and homes can be stored in an

HttpSession in a distributable

web application, see Section J2EE.6.4, “Servlet 2.4 Requirements.”

• Simplified and corrected JDBC requirements to synchronize with JDBC 3.0,

in Section J2EE.6.2.4.3, “JDBC™ API.”

• Clarified deployment ordering requirements in Section J2EE.8.4, “Deployment.”

J2EE.B.3.2

Removed Requirements

• None.

J2EE.B.3.3

Editorial Changes

• None.

J2EE.B.4

Changes in Public Draft

J2EE.B.4.1

Additional Requirements

• Added SAAJ 1.1 API, used by JAX-RPC. See Section J2EE.6.14, “SOAP with

Attachments API for Java™ (SAAJ) 1.2.”

• Updated Section J2EE.4.5, “Connection Sharing,” to indicate that connection

sharing is required in certain situations, as defined in the Connector specification.

J2EE.B.4.2

Removed Requirements

• Removed requirement to support access to ebXML registries through JAXR,

in Section J2EE.6.15, “Java™ API for XML Registries (JAXR) 1.0 Requirements.

J2EE.B.4.3

Editorial Changes

• Changed JSP version number to 2.0 to synchronize with JSP specification change.

• Clarified that resources in referenced JAR files must also be accessible. See

Section J2EE.8.2, “Optional Package Support.”

• Clarified the required support for objects in distributable

HttpSession objects.

See Section J2EE.6.4, “Servlet 2.4 Requirements.”

• Updated all deployment descriptors.

J2EE.B.5

Changes in Proposed Final Draft

J2EE.B.5.1

Additional Requirements

• Clarified relationship of J2EE deployment tool requirements with JSR-88 re-

quirements. See Section J2EE.8.4, “Deployment.”

• Required Web Services for J2EE version 1.1, the version that synchronizes

with J2EE 1.4. See Section J2EE.6.12, “Web Services for J2EE 1.1 Requirements.”

• Clarified JACC requirements on J2SE access control context. See

Section J2EE.3.5.4, “Run As Identities.”

• Added requirement that a J2EE product must include a registry implementation, as well as a JAXR level 0 provider that can access that registry. See

Section J2EE.6.15, “Java™ API for XML Registries (JAXR) 1.0 Requirements.”

225

226

J2EE.B.5.2

Removed Requirements

• Removed requirement to support Connector API in the application client con-

tainer. See Section J2EE.6.11, “J2EE™ Connector Architecture 1.5 Requirements.”

J2EE.B.5.3

Editorial Changes

• Updated all deployment descriptors..

J2EE.B.6

Changes in Proposed Final Draft 2

J2EE.B.6.1

Additional Requirements

• Updated JMX requirement to version 1.2. See Section J2EE.6.17, “Java™

Management Extensions (JMX) 1.2 Requirements.”

• JavaMail and JAF are required by JAX-RPC, and so must be present in the ap-

plication client container. See Table J2EE.6-1.

J2EE.B.6.2

Removed Requirements

• None.

J2EE.B.6.3

Editorial Changes

• Updated all deployment descriptors.

• Added sections to Chapter J2EE.2, “Platform Overview” summarizing the

changes in J2EE 1.3 and J2EE 1.4.

• Minor editorial changes throughout the document.

J2EE.B.7

Changes in Proposed Final Draft 3

J2EE.B.7.1

Additional Requirements

• Allowed use of javax.jms.ConnectionFactory

in Section J2EE.5.4.1.3,

“Standard Resource Manager Connection Factory Types.”.

• Added requirement for WS-I Basic Profile 1.0 support, resulting in updates to

the JAX-RPC and SAAJ specifications. See Section J2EE.6.13, “Java™ API

for XML-based RPC (JAX-RPC) 1.1 Requirements,” Section J2EE.6.14,

“SOAP with Attachments API for Java™ (SAAJ) 1.2,” and

Section J2EE.7.2.1, “Internet and Web Protocols.”

J2EE.B.7.2

Removed Requirements

• Removed all support for deployment descriptor extensibility.

• Removed requirement for J2EE products to include a JSR-88 deployment tool.

See Section J2EE.6.18, “Java™ 2 Platform, Enterprise Edition Deployment

API 1.1 Requirements” and Section J2EE.8.4, “Deployment.”

J2EE.B.7.3

Editorial Changes

• Updated all deployment descriptors.

J2EE.B.8

Changes in Final Release

J2EE.B.8.1

Additional Requirements

• None.

J2EE.B.8.2

Removed Requirements

• None.

J2EE.B.8.3

Editorial Changes

• Updated all deployment descriptors.

• Clarified namespace isolation requirements in Section J2EE.8.4, “Deploy-

227

228

ment.”

A P P E N D I X

J2EE.C

Related Documents

This specification refers to the following documents. The terms used to refer to the documents in this specification are included in parentheses.

Java™ 2 Platform, Enterprise Edition Specification Version 1.4 (this specification). Available at http://java.sun.com/j2ee/docs.html

.

Java™ 2 Platform, Enterprise Edition Technical Overview (J2EE

Overview). Available at http://java.sun.com/j2ee/white.html

.

Java™ 2 Platform, Standard Edition, v1.4 API Specification (J2SE specification). Available at http://java.sun.com/j2se/1.4/docs/api/ index.html

.

Enterprise JavaBeans™ Specification, Version 2.1 (EJB specification).

Available at http://java.sun.com/products/ejb

.

JavaServer Pages™ Specification, Version 2.0 (JSP specification).

Available at http://java.sun.com/products/jsp

.

Java™ Servlet Specification, Version 2.4 (servlet specification). Available at http://java.sun.com/products/servlet

.

JDBC™ 3.0 API (JDBC specification). Available at http://java.sun.com/ products/jdbc

.

Java™ Naming and Directory Interface 1.2 Specification (JNDI specification). Available at http://java.sun.com/products/jndi

.

Java™ Message Service, Version 1.1 (JMS specification). Available at http://java.sun.com/products/jms

.

Java™ Transaction API, Version 1.0.1B (JTA specification). Available at http://java.sun.com/products/jta

.

229

230

Java™ Transaction Service, Version 1.0 (JTS specification). Available at http://java.sun.com/products/jts

.

JavaMail™ API Specification Version 1.2 (JavaMail specification).

Available at http://java.sun.com/products/javamail

.

JavaBeans™ Activation Framework Specification Version 1.0 (JAF specification). Available at http://java.sun.com/beans/glasgow/ jaf.html

.

J2EE™ Connector Architecture 1.5 (Connector specification). Available at http://java.sun.com/j2ee/connector

.

Java™ API for XML Processing, Version 1.2 (JAXP specification).

Available at http://java.sun.com/xml

.

Web Services for J2EE 1.1 (Web Services specification). Available at http://jcp.org/en/jsr/detail?id=921

.

Java™ API for XML-based RPC 1.1 (JAX-RPC specification). Available at http://java.sun.com/xml/jaxrpc

.

SOAP with Attachments API for Java™ 1.2 (SAAJ specification). Available at http://java.sun.com/xml/saaj

.

Java™ API for XML Registries 1.0 (JAXR specification). Available at http://java.sun.com/xml/jaxr

.

Java™ 2 Platform, Enterprise Edition Management Specification 1.0

(J2EE Management specification). Available at http://jcp.org/jsr/ detail/77.jsp

.

Java™ 2 Platform, Enterprise Edition Deployment Specification 1.0 (J2EE

Deployment specification). Available at http://jcp.org/jsr/detail/

78.jsp

.

Java™ Management Extensions 1.2 (JMX specification). Available at http://java.sun.com/products/JavaManagement/

.

Java™ Authorization Service Provider Contract for Containers 1.0 (JACC specification). Available at http://jcp.org/jsr/detail/115.jsp

.

Java™ Authentication and Authorization Service (JAAS) 1.0 (JAAS specification). Available at http://java.sun.com/products/jaas

.

Extension Mechanism Architecture, Available at http://java.sun.com/ j2se/1.4/docs/guide/extensions

.

Optional Package Versioning, Available at http://java.sun.com/j2se/

1.4/docs/guide/extensions

.

JAR File Specification, Available at http://java.sun.com/j2se/1.4/docs/ guide/jar/jar.html

.

The Common Object Request Broker: Architecture and Specification

(CORBA 2.3.1 specification), Available at http://www.omg.org/cgibin/doc?formal/99-10-07

.

CORBA 2.6 - Chapter 26 - Secure Interoperability, Available at http:// www.omg.org/cgi-bin/doc?formal/01-12-30

.

IDL To Java™ Language Mapping Specification, Available at http:// www.omg.org/cgi-bin/doc?ptc/2000-01-08

.

Java™ Language To IDL Mapping Specification, Available at http:// www.omg.org/cgi-bin/doc?ptc/2000-01-06

.

Interoperable Naming Service, Available at http://www.omg.org/cgi-bin/ doc?ptc/00-08-07

.

Transaction Service Specification (OTS specification), Available at http:// www.omg.org/cgi-bin/doc?formal/2001-11-03

.

Designing Enterprise Applications with the Java™ 2 Platform, Enterprise

Edition, Available at http://java.sun.com/j2ee/blueprints

.

The SSL Protocol, Version 3.0. Available at http://home.netscape.com/ eng/ssl3

.

231
