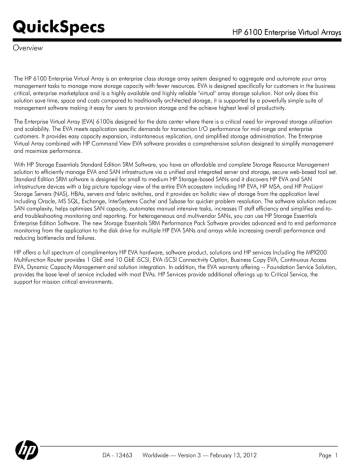

HP 6100 Enterprise Virtual Arrays

HP 6100 Enterprise Virtual Arrays
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Overview
The HP 6100 Enterprise Virtual Array is an enterprise class storage array system designed to aggregate and automate your array
management tasks to manage more storage capacity with fewer resources. EVA is designed specifically for customers in the business
critical, enterprise marketplace and is a highly available and highly reliable "virtual" array storage solution. Not only does this
solution save time, space and costs compared to traditionally architected storage, it is supported by a powerfully simple suite of
management software making it easy for users to provision storage and the achieve highest level of productivity.
The Enterprise Virtual Array (EVA) 6100is designed for the data center where there is a critical need for improved storage utilization
and scalability. The EVA meets application specific demands for transaction I/O performance for mid-range and enterprise
customers. It provides easy capacity expansion, instantaneous replication, and simplified storage administration. The Enterprise
Virtual Array combined with HP Command View EVA software provides a comprehensive solution designed to simplify management
and maximize performance.
With HP Storage Essentials Standard Edition SRM Software, you have an affordable and complete Storage Resource Management
solution to efficiently manage EVA and SAN infrastructure via a unified and integrated server and storage, secure web-based tool set.
Standard Edition SRM software is designed for small to medium HP Storage-based SANs and it discovers HP EVA and SAN
infrastructure devices with a big picture topology view of the entire EVA ecosystem including HP EVA, HP MSA, and HP ProLiant
Storage Servers (NAS), HBAs, servers and fabric switches, and it provides an holistic view of storage from the application level
including Oracle, MS SQL, Exchange, InterSystems Cache' and Sybase for quicker problem resolution. The software solution reduces
SAN complexity, helps optimizes SAN capacity, automates manual intensive tasks, increases IT staff efficiency and simplifies end-toend troubleshooting monitoring and reporting. For heterogeneous and multivendor SANs, you can use HP Storage Essentials
Enterprise Edition Software. The new Storage Essentials SRM Performance Pack Software provides advanced end to end performance
monitoring from the application to the disk drive for multiple HP EVA SANs and arrays while increasing overall performance and
reducing bottlenecks and failures.
HP offers a full spectrum of complimentary HP EVA hardware, software product, solutions and HP services Including the MPX200
Multifunction Router provides 1 GbE and 10 GbE iSCSI, EVA iSCSI Connectivity Option, Business Copy EVA, Continuous Access
EVA, Dynamic Capacity Management and solution integration. In addition, the EVA warranty offering -- Foundation Service Solution,
provides the base level of service included with most EVAs. HP Services provide additional offerings up to Critical Service, the
support for mission critical environments.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 1
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Overview
EVA6100 2C4D
EVA6100 File Services
(EVA4100 & EVA8100 File
Services also available)
*These drawings are informational only and represent a storage centric configuration. If a customer has a specific racking
requirement they should use the Factory Express option to define the configuration.
What's New
The new EVA 4100/6100/8100 arrays support:
Support for the new 600 GB15K RPM Fibre Channel hard disk available later in 2009
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 2
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
Application Environment
Local Data Replication -- HP Business Copy EVA
Remote Data Replication -- HP Continuous Access EVA
Easy array management and configuration -- HP Command
View EVA
Application block and file storage
RAID supported
Number of controllers
Cache
(per controller pair)
Host Connectivity
Number of Host Supported
(Single Path/Dual Path)
Host Ports,
(per controller pair)
Host Port Speed
Device Ports
(per controller pair)
Device Path Aggregate Bandwidth
Back-end switch
(per array)
Switched device shelves
Drives per enclosure
Drive types
(mixed in enclosure)
Supported disks, min-max
Capacity
I/O Requests per Second (IOPs)
Maximum throughput (MB/s)**
EVA6100
Mid/High
yes
yes
up to 16 EVAs
yes
Vraid0, Vraid1, Vraid 0+1, Vraid5, Vraid 0+5 & Cross Vraid
Snaps
2
4GB
Fibre Channel, iSCSI and Direct Connect
512/256
4
2 or 4 Gb
4
8 Gb
2
4 to 8
14
High Performance Fibre Channel and Fibre Attached Technology
Adapted (FATA)
16 to 112
1.2 to 112TB
154,000
1380
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 3
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
EVA Capabilities
Excellent reliability and availability. HP's data shows that most customers are achieving 99.999%
availability with the EVA 4x00/6x00/8x00
Support for integrated application (block) and file storage solution, EVA File Services
Support for dual-ported 2/4 Gb/s FC disk drives and dual-ported Fibre Attached Technology
Adapted (FATA) drives
Support for Direct Attach connection to Windows storage servers without the need for SAN
switches. SAN support for integrated EVA iSCSI connectivity options with Windows and Linux,
Apple Mac OS X, Microsoft Windows, Sun Solaris, VMware. Management of up to 1024 virtual
disks (256 per HBA) ranging in size from 1GB to 2TB per Virtual disk, in 1GB increments.
Dynamic Capacity Management support to expand (in 1GB increments) and shrink LUNs.
NOTE: Requires Host Operating System Support.
Virtual disk data load leveling (non-disruptive background activity)
Distributed sparing of disk capacity.
Fully switched controller to disk path
Support for HP Continuous Access EVA remote replication (synchronous and asynchronous).
Support for remote replications between current and earlier EVA generations
Support for HP Business Copy EVA (Snapshot, and Vsnap (virtually capacity free shapshots),
Snapclone, MirrorClone and Cross Vraid snapshots and Snapclone).
Dual redundant controller operation for increased fault tolerance.
Multiple Bus Failover Support using industry popular multiple path software.
NOTE: Requires native OS multi-pathing support
Battery-Back-Up for controller cache memory
Asynchronous Disk Swap (hot swap)
Clustered Server Support
Mirrored Write-Back Cache Support
Read-Ahead and Adaptive Read Caching Support
Hardware based Virtual RAID (Vraid) provides improved RAID performance and the benefits of
virtualization to grow and shrink RAID volumes (Vraid0, Vraid1, Vraid 0+1, Vraid5, Vraid 0+5,
Vraid 6 & Cross Vraid Snaps)
Support for local replication between Vraid types using Vsnap or Snapclone within a disk group or
using Snapclone across disk groups (and Cross Vraid Snapshot and Snapclone)
Online XCS software upgrade capability
Online drive firmware upgrade capability
Supports connection of up to 256 hosts
Multi-Vendor Platform Support
Controller Password Protection for Configuration Control
Selective Storage Presentation and SAN-based Data Zoning (through switches).
HP Command View EVA GUI Interface for management and monitoring (manages up to 16 EVAs).
Monitor and control health, HP EVA end-to-end SAN performance and monitoring, storage
utilization and reporting for all key HP EVA and SAN infrastructure including servers, storage, HP
MSA, HP EML E-series tape, HP ProLiant Storage Servers (NAS), HBAs, switches, applications and
monitor the entire backup from a single interface with HP Storage Essentials SRM Standard Edition
Software
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 4
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
Enterprise Virtual Array
Product Packaging
The EVA6100 packaging consists of a 4U FC dual HSV200-B controller assembly, 2 FC Loop Switches
and four 14-bay Model M5314C FC Drive Enclosures. The EVA6100 is designed to address moderate
capacity needs ranging (from 1 - 112TB) as well as high performance options in commercial
environments.
The EVA6100 configurations allow a wide range of configuration options. The bundled models offer
flexible factory rack-mounting options in either a standard 42U cabinet (based on the HP 10000 G2
Series Rack- or a choice of 42U extended 36U and 22U heights). The new factory racking options allow
the EVA6100 to be factory integrated into cabinets with a wide variety of other HP offerings such as
servers and tape back-up offerings.
The EVA4100/6100 is also available as a Controller Pair Assembly, individual M5314C Drive
Enclosures, and Optional FC Dual Loop Switches to accommodate adding EVA4100/6100 subsystems
to existing EVA configurations, other supported HP field racking choices and to support qualifying
customer-supplied racks. The 5642 (42U) Rack Cabinet System is supported for field installation.
NOTE: Addition of FC Loop Switches to an EVA4100 (1 to 4 M5314C FC Drive Enclosures) creates an
EVA6100 and requires purchase or upgrade of Command View, Business Copy and Continuous Access
EVA licenses.
Multi-Vendor Platform
The EVAEVA6100 provide support for industry-leading Operating System platforms including: HP-UX, HP
OpenVMS, HP Tru64 UNIX, Windows 2000 Server & Advanced Server, Windows 2003 Professional,
Windows 2003 Standard/Enterprise (32/64-bit) and Extended (32/64-bit), /DataCenter (64-bit), Sun
Solaris, Linux, IBM AIX, VMware and Apple Mac OS X.
NOTE: See Operating System, Cluster and High Availability Compatibility matrix for Operating System
version detail.
Designed for No-SinglePoint-of-Failure
The EVA family's redundant architecture and value added software is designed to eliminate single-pointsof-failure from server to storage in clustered or single server configurations with multi-pathing.
HP 12000 Virtual Library Expanding the power of the HP Enterprise Virtual Array (EVA), the HP 12000 Virtual Library System EVA
System EVA Gateway
Gateway accelerates backup performance in complex SAN environments while improving overall
reliability. Integrating seamlessly into existing backup applications and processes by emulating popular
tape libraries and tape drives, the HP VLS 12000 EVA Gateway matches the existing data protection
environment, removing the need to change backup software or monitoring policies. Additionally,
because the VLS EVA Gateway uses HP EVAs as the storage pool, ease of use is maintained throughout
the system. By emulating multiple tape drives simultaneously, more backup jobs can be done in parallel
resulting in reduced backup times and, because the data resides on disk, single file restores are
exceptionally fast.
The HP Virtual Library System EVA Gateway simplifies your SAN environment by providing more virtual
devices and leveraging existing switches and HP EVA infrastructure. The result is the ability to vastly
increase scale yet reduce the complexity of shared storage while maintaining the manageability of the
system. As your environment changes, the HP Virtual Library System EVA Gateway adapts to it - host
masking and mapping ensure that only the appropriate hosts have access to the HP Virtual Library
System.
http://h18006.www1.hp.com/storage/disk_storage/disk_to_disk/vls/index.html
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 5
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
Remote Replication
Solutions
(Software options)
HP Continuous Access provides disaster tolerant replication across a Fibre Channel SAN. Continuous
Access EVA performs real-time replication between HP Enterprise Virtual Arrays of the current and earlier
generations. Continuous Access EVA provides the highest level of FC SAN data protection to customers
in order to meet disaster tolerant business continuity implementation goals. Through the use of
MAN/WAN Fibre Channel SAN extensions, Continuous Access EVA provides 24x7 protections against
disaster like scenarios, in campus, metro or continental networks. Thus, enabling business protection
against unforeseen events.
HP Disaster Tolerant Solution for mySAP Business Suite on EVA offers a business continuance solution for
SAP environments, where data integrity and value added functionality are high priorities. Information on
implementing remote mirroring of an SAP database as part of an overall data protection strategy with
SAP applications can be found at: http://h71028.www7.hp.com/erc/downloads/4aa1-5683Enw.pdf
The HP IP Distance Gateway provides SAN over WAN connectivity for protecting and replicating data
between EVA systems. By connecting islands of SANs over WANs, the IP Distance Gateway enables CA
replication (Asynchronous and Synchronous), SAN device sharing, data migration and other long
distance data services. At the core of providing long distance data services is the ability to copy, move
and replicate data locally and over long distances. However, SANs have limited distance capabilities
(10km) and IT managers need to share, protect and move data over greater distances than 10km,
routers and switches that link SANs over IP WANs is the weapon of choice for most IT managers. The IP
Distance Gateway uses the FCIP (Fibre Channel Internet Protocol) standard to extend SAN connectivity
over the WAN.
Low Cost SAN over WAN Connectivity
High Performance with data compression and load balancing
Support for FCIP for SAN extension
Bridges SANs for all FC Fabrics
Supports two Ethernet and two Fibre Channel ports
Concurrent FC and IP traffic in High Availability mode
Integrated management with HP mpx Manager
Supports High Availability Options
Fabric and Direct Attach support
http://h18006.www1.hp.com/storage/disk_storage/index.html
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 6
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
Disaster Tolerant Solutions HP Metrocluster with Continuous Access EVA and Continentalclusters are integrated solutions that offer
(Software options)
minimal downtime by rapid site recovery with automatic failover of application services (via Serviceguard)
and automatic data consistency checking and read/write enabling of remotely mirrored storage in the
event of a fault, failure, or disaster
http://h71028.www7.hp.com/enterprise/cache/4171-0-0-0-121.html
HP Cluster Extension EVA software is a full-site disaster tolerance solution designed for mid-range
storage array implementation. A disaster tolerant solution for Windows 2003 and now Linux
environments, Cluster Extension EVA integrates, automates, and synchronizes server cluster failover
operations with the remote replication management capabilities of HP Continuous Access EVA for a
disaster tolerant solution for EVA arrays whether used as primary storage or in a tiered-storage
configuration.
http://www.hp.com/go/clxeva
HP Disaster Tolerant Solution for mySAP Business Suite on EVA offers a business continuance solution for
SAP environments, where data integrity and value added functionality are high priorities. Best practices
for implementing remote mirroring of an SAP database as part of an overall data protection strategy with
SAP applications can be found at: http://h71028.www7.hp.com/ERC/downloads/4AA1-5683ENW.pdf
Local Replication Solutions The HP Business Copy is a local replication application for the EVA family. It incorporates Virtually
(Software options)
Capacity-free Snapshot (Vsnaps), standard snapshots and Snapclone capabilities with an improved user
interface to assist the storage administrator. This product is indispensable for critical data center
operations such as non-disruptive backups, frequent snapshots of high value databases, and data
mining. The bottom line benefits include improved disk capacity utilization and increased business
continuity, data availability, and productivity savings.
HP OpenView Storage Volume Growth provides the ability to easily expand basic disk volumes on
Windows 2000 or Windows Storage Server 2003 systems without disrupting the application environment
or impact the user's data. This host based product supplements the volume expansion capabilities of the
Enterprise Virtual Array providing a complete end-to-end solution.
HP EVA Dynamic Capacity HP EVA Dynamic Capacity Management Software is a comprehensive software solution that automates
Management Software
storage provisioning and improves capacity utilization on the HP Enterprise Virtual Array (EVA) family.
Designed for the enterprise market, EVA Dynamic Capacity Management Software uses advanced
automation to automatically "right-size" the file system and storage volumes to ensure the highest levels
of capacity utilization are achieved while reducing ongoing storage administration needs.
For more information, visit:
http://h18006.www1.hp.com/products/storage/software/eva_dcm/index.html.
EVA with HP Storage
Essentials Storage
Resource Management
Software Family
HP Storage Essentials SRM Enterprise Suite and HP Storage Essentials SRM Standard Edition Software
integrates with HP Systems Insight Manager to provide advanced server and storage management
capabilities. HP Storage Essentials Suite Software features a base management console and an
expanding portfolio of value-add plug-ins to assist in managing EVA across the enterprise.
HP Storage Essentials Suite delivers integrated heterogeneous and multivendor functionality for network
(Arrays, DAS, SAN, NAS, HBAs, switches) management, storage resource management, reporting,
capacity metering, provisioning and application infrastructure monitoring.
http://h18006.www1.hp.com/products/storage/software/e-suite/index.html
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 7
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
EVA with HP Storage
Essentials SRM
Performance Pack
Software
New, HP Storage Essentials SRM Performance Pack Software combined with Storage Essentials SRM
Enterprise Edition Software monitors end to end performance along the complete path of business
applications through underlying storage area networks (SAN) components, including host server, host
bus adapter (HBA), fabric switch and Enterprise Virtual Array. A unified and simplified interface, helps HP
EVA administrators increase efficiency, troubleshoot performance bottlenecks faster, and quickly visualize
the big performance picture of their EVA storage, hosts and SAN infrastructure with real-time monitoring,
historical trend analysis and trend extrapolation.
http://h18006.www1.hp.com/products/storage/software/e-suite/performance_pack.html
Application Recovery
Manager (AppRM)
Application Recovery Manager (AppRM) automates restoration of application databases such as
Exchange and Microsoft SQL Server. In the event of failure or corruption, it restores your business
application database to the moment before an outage. Application Recovery Manager delivers a stand
alone solution to augment your existing backup software strategy.
http://www.hp.com/go/apprm
HP Storage Essentials
Standard Edition SRM
Software
HP Storage Essentials Standard Edition Storage Resource Management Software and Systems Insite
Manager with Command View EVA software provides a total solution that allows midsize businesses with
limited IT staff to see the big picture thereby reducing SAN complexity. It supports Windows and Linux
servers with small to medium HP storage based SANs including HP EVA, HP MSA, HP NAS, HP EML
Tape, HBAs and fabric devices. HP Standard Edition SRM Software unified server and storage tool-set
automates complex and manual storage process and tasks with auto discovery, visualization and
topology mapping for quick device identification. HP Standard Edition SRM Software solution integrates
with a rich assortment of HP software including Systems Insight Manager, and HP Essentials software.
With the new Storage Essentials SRM Performance Pack you can monitor end-to-end performance of up
to 2 EVA as part of the licensing for Storage Essentials SRM Standard Edition Software.
For more information on HP Storage Essentials Software visit:
http://h18006.www1.hp.com/products/storage/software/std-suite/index.html
EVA iSCSI Connectivity
EVA iSCSI support is available through the HP MPX200 Multifunction Router and the EVA iSCSI
Connectivity Option. These powerful solution provides iSCSI connectivity to an EVA utilizing the EVA's
existing Fibre Channel infrastructure.
The HP MPX200 Multifunction Router extends the FC SAN investment with integrated multi-protocol
support, allowing customers to incorporate iSCSI servers without requiring additional storage arrays or
management costs. The MPX200 offers simultaneous iSCSI and Fibre Channel support with 10GbE and
8Gb/s FC technology, providing modular multi-protocol SAN designs with increased scalability, stability,
ROI and simpler to manage, secure storage solution for virtualized server environments. MPX 200's
enterprise-class high-availability design provides dual hot-plug power supplies and router blades for no
single point of failure. MPX200, integrated in same rack, allows customers to connect up to 4 EVA's to a
single MPX200,reducing the complexity and cost of iSCSI connectivity to EVA storage arrays
The HP MPX200 Multifunction Router provides 1 GbE and 10 GbE iSCSI connectivity to the EVA and
enables modular multi-protocol SAN designs with increased scalability, stability, and ROI on storage
infrastructure.
The MPX200 Multifunction Router enables organizations to integrate low-cost Ethernet connected servers
with an EVA storage system by bridging the iSCSI protocol to the Fibre Channel protocol. This capability
allows iSCSI servers to leverage shared SAN resources, improving asset utilization and enabling new
applications. This integration greatly reduces the cost of connecting servers to centrally managed storage
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 8
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
and helps provide a cost-effective solution to introduce utility computing into the enterprise.
An EVA with multi-protocol support also provides network storage at reduced infrastructure costs. Small
and medium businesses now have a lower entry point to take advantage of SAN benefits. Large
enterprises may also deploy multi-protocol SANs in departments and remote offices.
Key Benefits:
Delivering SAN-like benefits over the Ethernet IP network, the HP MPX200 Multifunction Router
enables access to block storage across up to 4 EVA storage systems from an Ethernet IP network.
Provides customers a flexible and cost effective way to connect stranded servers to existing Fibre
Channel storage, increasing return on investment.
Enterprise-class high availability design provides dual hot-plug power supplies and router blades
for no single point of failure.
Modular software and hardware design enables easy upgrades to enable additional protocols or
to add more ports.
Unmatched performance: 8 Gbps Fibre Channel, 1 GbE and 10 GbE iSCSI ports deliver best in
class performance.
Advanced installation and configuration wizards allow set up in less than 25 minutes.
Power efficient: typically dissipates 200W for a dual blade configuration.
Extend access to FC SANs across Ethernet networks with the virtues of an FC SAN including:
Consolidated storage
Improved disk utilization
Improved IT efficiency
The HP EVA iSCSI Connectivity Option extends the advantages of Fibre Channel SANs into smaller
departments and remote locations. This EVA option allows customers to incorporate iSCSI servers within
SANs without requiring additional storage arrays or management costs. Use the EVA's Command View
software to manage the iSCSI connectivity to the array and mount the iSCSI device in the same rack as
the array.
For more information and operating system support:
http://h18006.www1.hp.com/products/storageworks/evaiscsiconnect/index.html
The EVA also supports select ProLiant Storage Servers (i.e. NAS) connected as file/print/iSCSI gateways.
The ProLiant DL380 G5 x64 SAN Storage Server and DL585 G2 Storage Server each feature Microsoft's
Windows Unified Data Storage Server 2003 operating system that includes Microsoft iSCSI Software
Target standard, while other DL380 G5 Storage Server models offer optional support for Microsoft iSCSI
Software Target. Microsoft iSCSI Software Target leverages existing management expertise and
inexpensive Ethernet infrastructure to deliver IP-based block access to an EVA or Fibre Channel SAN. So
ProLiant Storage Servers with iSCSI target functionality not only add file and print services to your EVA
investment, but they help you save even more by enabling tiered (Fibre Channel and iSCSI) block access
for application servers.
In addition, any ProLiant DL380 G5 Storage Server or DL585 G2 Storage Server is a perfect platform
from which to run Command View EVA. You stretch your investment even further when you host EVA
management, file and print services, and iSCSI connectivity all from the same ProLiant Storage Server
gateway solution.
For more information:
http://h18006.www1.hp.com/storage/nas.html
http://www.hp.com/go/storageservers
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 9
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
EVA File Services
HP Enterprise Virtual Array File Services (EVA-File Services) is an integrated application (block) and file
storage solution. It can serve both block and file data concurrently with high availability and scalable
performance. The EVA-File Services is supported by a powerfully simple suite of management software
making it easy for users to achieve high levels of productivity.
The EVA-File Services is designed for mid-range and enterprise customers wanting a single storage
solution for their block and file data, improved storage utilization, scalable throughput performance to
meet application specific demands for consistent high transaction I/O, easy capacity expansion,
instantaneous replication, simplified storage administration and high availability. Because the EVA- File
Services can serve both block and file data concurrently with high availability and scalable performance,
customers can use the EVA- File Services to consolidate their individual silos of storage to gain flexibility,
reduce IT costs and complexity as compared to traditionally architected storage solutions.
The EVA- File Services supports both CIFS (windows) and NFS file serving. EVA- File Services is available
factory integrated into the HP EVA6100 arrays. The EVA- File Services is delivered as an easy to install,
easy to manage and easy to support solutions that helps customers lower their TCO and minimize the
complexity of their storage environment.
The EVS- File Services includes redundant HP 4/8 Base SAN Switches, 1 HP ProCurve Ethernet switch, 16
HP 4Gb Short Wave Transceivers, Ethernet interconnect cables between the internal modules, FC
interconnect cables between the internal modules, power cords for all modules, and mounting hardware
for all modules, installation and startup.
NOTE: EVA File Services are factory integrated and requires the purchase of an EVA6100.
The EVA- File Services integrates and simplifies providing a single storage solution for application
(block) and file data delivering high utilization and lower TCO
The EVA- File Services uses a single set of management tools that can be invoked from anywhere,
anytime, resulting in a very operationally efficient environment to manage.
Combining state-of-the-art application (block) data performance and file serving performance,
that can scale as needs dictate, the EVA- File Services offers customer's aggregate performance
levels far in excess of traditional file servers and NAS appliances.
With the EVA- File Services you never "run out of space" because additional capacity can be added
quickly and easily with any combination of high performance Fibre Channel and/or low cost FATA
drives.
EVA File Services uses state-of-the-art virtualization which improves performance, disk usage and
TCO while the single, shared pool of storage allows for easy dynamic expansion, which
automatically distributes data to avoid potential hot spots.
With fully redundant components such as SAN switches, array controllers, and file serving nodes
built into every unit, the EVA- File Services is perfect for demanding mid-range and enterprise
storage applications.
For more information:
http://h18000.www1.hp.com/products/quickspecs/12667_div/12667_div.html
http://h18006.www1.hp.com/products/storageworks
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 10
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
EVA with HP Systems
Enclosed as an accessory with all arrays is HP Systems Insight Manager (SIM). HP SIM is the foundation
Insight Manager Software for HP's unified server-storage strategy -- it is packaged as a no-cost, customer installable management
application and is derived from the heritage of Compaq Insight Manager, HP Toptools, and HP
Servicecontrol. HP SIM runs on HP Windows, Linux, and HP-UX and provides discovery and
identification, fault management, security administration, asset reporting, and centralized configuration
management across heterogeneous servers, storage and infrastructure. HP SIM is easily extensible,
integrating other HP management products and value-add plug-ins such as the ProLiant Essentials,
Integrity Essentials, and Server Essentials.
HP SIM relies on industry standards like SMI-S, SNMP, SSH, WBEM, and WMI to detect and report
heterogeneous device attributes. HP SIM may also be configured to launch array specific applications for
configuration, reporting and replication. For more information on HP Systems Insight Manager see:
http://www.docs.hp.com/en/netsys.html
Clustered Server and High Dual and multi-node cluster support is provided for host level fault tolerance and high system availability.
Availability System
See the Operating System, Cluster and High Availability Compatibility table for operating system specific
Support
support.
Multi-Server Shared
Support for Storage
Consolidation
Heterogeneous and homogeneous host support provides the ability to share storage between multiple
servers. The EVA provides storage access control (i.e. Selective Storage Presentation or LUN masking)
assuring that a host cannot access data belonging to a different host. SAN-based zoning is also
supported.
Single-pathing (Single
HBA per host)
Single-pathing (or single HBA per host) support is provided for all supported operating systems (but may
be version dependent). Use of single-pathing, which does not offer a redundant path option, should be
used with care. Failure of the single HBA will result in loss of access for that host until the HBA is
replaced.
Enclosure Capacity
The EVA provides one of the highest density disk storage solutions in the industry. The EVA6100 in the
42U HP 10000 G2 Series Rack supports up to eight 3U 14-bay M5314C FC disk enclosures for a
maximum capacity of 112 disk drives and a maximum storage capacity of 112 TB of disk capacity. An
expansion cabinet allows users to expand EVA8100 with another six enclosures for a total of up to
eighteen disk enclosures, up to 240 disks, and up to 240TB.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 11
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
Utility Pricing solutions for HP offers a spectrum of offerings allowing customers to align their payments according to the usage of
EVA
storage capacity.
For customers requiring assistance in managing their storage infrastructure, Managed Storage
Solution (MSS) meets that need while providing the option to acquire storage on a utility model.
Customers have the ability to choose other options like Backup/Restore, Data Availability, Local
Copy and Remote Copy services. All these capabilities are offered at a $/GB/Month fee.
For customers that want to build and manage their own storage utility, Utility Ready Storage (URS)
provides customers with storage that never runs out; priced as the customer uses it; and is easy to
procure. URS pricing is based on $/GB/Month of average allocated capacity over the customer's
minimum commitment. URS provides a unique opportunity to allow customers access to storage
when they need it, permitting them to adapt to their changing business needs.
For customers whose need is best described by predictable growth, Pay per forecast (PPF), offered
from HP Financial Services, is an ideal fit. It is a step lease based solution where the payments are
structured upfront according to the customer's forecasted growth.
For even further demanding financial needs of customers, HP Financial Services are ready to craft
a customized solution for them.
Please contact your local HP representative for further information
10K rpm Drive Support
The EVA supports 300/450/600 GB 10K rpm dual-ported 2/4 Gb/s FC disk. The EVA4100 supports up
to 56 disk drives. The EVA6100 will support up to 112 disk drives. An EVA8100 supports up to 240 disk
drives. The EVA arrays will support single or mixed drive capacities and types (high performance and
FATA) within an enclosure. HP recommends using the same drive type (the same capacity) within a disk
group because virtualization allocates space proportionate to the highest capacity drive within the group.
15K rpm Drive Support
The EVA also supports 146 GB, 300GB, 450GB and 600 GB* 15K rpm dual-ported 2/4 Gb/s FC disk
drives. The EVA arrays will support single or mixed drive capacities and types (high performance and
FATA) within an enclosure. HP recommends using the same drive type (the same capacity) within a disk
group because virtualization allocates space proportionate to the highest capacity drive within the group.
*HP 600 GB 15K HDD available later in 2009.
FATA Drive Support
The EVA supports 1TB dual ported 2 Gb/s Fibre Attached Technology Adapted (FATA) disk. An EVA will
support a full configuration of FATA disk drives up to the virtual device mapping limit. The
EVA4100/6100/8100 can be configured with any combination of FATA and high performance disk
drives; total raw capacity will vary based upon the redundancy (Vraid) selected. A minimum of eight
FATA drives are required in a configuration.
FATA drives are designed for lower duty cycle applications such as near on-line data replication for
back-up. These drives should not be used as a replacement for EVA's high performance, standard duty
cycle, Fibre Channel drives. Doing so could shorten the life of the drive.
Please see the following URL for more information on FATA drives, their uses and their benefits:
http://h71028.www7.hp.com/ERC/downloads/5982-7353EN.pdf
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 12
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
Fibre Channel Technology The EVA6100takes advantage of the benefits of Fibre Channel (FC) in distance, performance and
connectivity. The use of optical Fibre cabling allows distances between connected segments of a SAN to
be up to 500 meters @ 1 Gb/s; 300 meters @ 2 Gb/s using short wave multi-mode cable and up to 10
kilometers (6.21 miles) @ 1 Gb/s when using long wave cable. The EVA4100/EVA6100/EVA 8100 are
4 Gb/s enabled on each FC path, but will also support 2 Gb/s FC paths for backwards compatibility.
Storage Area Networks (SANs) can be constructed using FC switches/directors for fabric connectivity
(currently up to a maximum of 20 FC switches supported).
Fibre Channel
Switch/Director Support
Support for up to twenty FC switches operating at 2 Gb/s and FC switches operating at 4 Gb/s allow the
full benefits of a storage area network (SAN), providing exceptional connectivity while increasing the
effective bandwidth of the network. Supported SAN features include Zoning for communication isolation
and Inter-Switch Links (hops) up to 10 km. The EVA4100/6100/8100 supports 4 Gb/s FC enabled.
For more information on specific support specifications see the following Switch URL:
http://h18006.www1.hp.com/storage/saninfrastructure/switches.html
Transfer Speeds
The EVA6100 has two FC host interfaces per HSV200-B controller; four for a controller pair. Each
controller-to-host interface is 4 Gb/s. The controllers are also compatible with 2 Gb/s and 4 Gb/s FC
switches, HBAs, servers and other storage solutions.
Each EVA controller pair interfaces with M5314C drive enclosures either directly or through fibre channel
loop switches. With 2 (for EVA4100/6100) and 4 (for EVA8100) device ports per controller and dual FC
I/O modules per drive enclosure, each controller can connect to each FC drive A and B port. So each
controller has a redundant path to each drive.
Easy Installation
The EVA6100 predefined models ship from the factory fully configured. After unpacking, they can be
plugged into power sources, connected to the FC SAN, enabled and configured using Command View
EVA and they are ready for use.
Installation and start-up services are part of the EVA Foundation Service Solution warranty and are
available on the EVA6100 offerings.
Fault Recovery -- HP
Continuous Access EVA
for Disaster Tolerance
Applications
HP Continuous Access EVA remote copy functionality is available for use with the EVA4100/6100/8100
arrays. For additional information about Continuous Access EVA visit:
http://h18006.www1.hp.com/storage/software.html
Continuous Access EVA is a controller-based application that performs real-time replication between HP
Enterprise Virtual Arrays. The solution is enhanced to perform remote replication, and deliver high data
availability and performance to users on Fibre Channel based campus, metro or continental Storage
Area Networks (SANs).
HP Disaster Tolerant Solution for mySAP Business Suite on EVA offers a business continuance solution for
SAP environments, where data integrity and value added functionality are high priorities. Best practices
for implementing remote mirroring of an SAP database as part of an overall data protection strategy with
SAP applications can be found at: http://h71028.www7.hp.com/ERC/downloads/4AA1-5683ENW.pdf
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 13
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
High Availability/ Fault
Tolerance/
Hot pluggable support
All EVA are configured with dual HSV controllers that operate in a redundant mode. Each controller has
redundant Fibre Channel (FC) host ports (2 for the EVA6100). Each EVA6100 controller has two FC
device ports. For the EVA6100in the event of a path failure, the alternate paths to the controller can be
utilized with the use of multi-path software in the Operating System or in Secure Path software.
On the EVA6100 each port connects to a FC loop switch which in turn connects to one FC I/O module
on up to eight drive enclosures and to one port of up to 112 disk drives. .
The HSV controllers also have dual redundant hot plug power supplies and dual redundant hot plug
blowers. Each controller has hot plug cache batteries to maintain cache contents for up to 96 hours in
case of a total power failure.
The M5314C FC drive enclosure has dual redundant hot plug FC I/O modules that allow the controllers
to distribute I/Os between the two modules and provides redundant paths should either FC I/O module
become unavailable. The enclosure also has dual redundant hot plug power supplies and dual hot plug
blowers. The enclosure also has a hot plug Environmental Monitoring Unit (EMU) to monitor and report
the condition of the power supplies and fans. The EMU can be replaced without affecting I/O operations.
The FC and FATA disk drives have dual FC ports which can be redundantly accessed by each controller.
The drives are hot plug. The EVA, as a virtualized array, always provides striping of the drives across the
entire disk group. The drives can then be arranged, using redundant Vraid1 or Vraid5 protection, so that
a drive failure will not cause loss of data. Optional distributed sparing (virtual sparing) can be configured
so that a drive failure will trigger an automatic rebuild of the Vraid1 or Vraid5 data set into spare space.
The EVA sparing protection will utilize available disk space in the disk group and when that is exhausted,
the established virtual spare space. This methodology of using unused capacity can give customers the
ability to have many disk worth of spare space for maximum data availability protection and peace of
mind.
All EVAs have dual redundant power distribution. Two independent power cords distribute power through
two Power Distribution Units (PDUs) to each side of the EVA cabinets and to each power supply of the
controllers and to each power supply of the drive enclosures and to each of the FC loop switches. Each
cabinet power cord can be connected to independent power sources. For maximum availability, a
customer should provide redundant power from independent power circuit breakers, independent power
lines from the power company and even independent power companies.
Integration
HP EVA6100/ models are 4Gb/s FC Switched Fabric "enabled" and can operate on 4Gb/s or 2Gb/s FC
Switched Fabric SANs. They can co-exist in the same FC SAN with other EVA FC storage solutions and
many other SAN devices.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 14
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
EVA Manageability
HP Command View EVA provides the capability to manage the EVA Array family in a SAN or direct
connect Fibre Channel host attach configuration. HP Command View EVA software runs on a variety of
server configurations; ProLiant DL380 G5 and DL585 G2 Storage Servers are the perfect platforms from
which to run Command View EVA. ProLiant Storage Server gateway models (including the DL380 G5
x64 SAN Storage Server and DL585 G2 Storage Server) allow you to stretch your investment by
combining EVA management, file and print services, and iSCSI connectivity all on the same platform.
The powerful Command View EVA provides an easy mechanism to manage up to 16 EVA units in a SAN
configuration. Industry leading security enhancements in Command View now allows administrators to
take advantage of Windows domains and local groups. Command View integrates with Windows Active
Directory to authorize and authenticate users. In addition, all user actions and events that change system
state are logged. Administrators can now use the audit logging capabilities to see who did what and
when.
The Command View EVA media kits and license are required with all EVA models. HP Command View
EVA requires a License to use (LTUs) equal to, or greater than the total raw capacity of each array.
Performance
Fibre Channel host connections provide up to 200MB/s bandwidth for each path. Dual mirrored port
write caching capability, with battery backed cache, maintains optimal availability while assuring data
integrity in the event of a failure.
Each HSV200-B controller (for EVA6100 configurations) has two Fibre Channel host ports (four ports in
a redundant pair of controllers) assuring the availability of bandwidth for the most demanding
applications. In addition, up to 4GB of cache per controller pair ensures high performance.
Scalability
A storage management server can manage up to 16 EVA controller pairs (EVA 3000s, EVA5000s, ,
EVA4x00s, EVA6x00s and/or EVA8x00s) in any one fabric. An EVA controller pair will support up to 256
host connections (up to 1024 HBAs).
The EVA6100 will scale up to 112 disks (112TB using 1TB FATA disk drives, and 67.2TB using 600 GB
high performance disk drives).
Configure to Order (CTO) options and the HP 10000 G2 Series Racks allow even greater server and
device integration, flexibility and scalability for the EVA6100. Data center managers can customize
server, storage and back-up configurations as well as using the residual cabinet U space to mount
Storage Management servers, switches and have the peace of mind that it is built with HP factory
precision manufacturing.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 15
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
EVA as Virtualized Storage HP EVA6100 disk arrays can be connected as external storage devices behind HP XP disk arrays.
behind the XP
The XP24000/XP20000 simplifies the management of heterogeneous SAN environments through its
ability to support up to 247 PB/ 96 PB respectively of external storage-all configured 'behind' a single XP.
XP External Storage software uses advanced virtualization technology to allow storage administrators to
host XP Disk Array LUNs on externally attached disk arrays. Any Fibre Channel port from any CHA pair
installed in any slot can be used to connect to external storage EVA4100/6100/8100.
With external EVA storage, XP presents multiple tiers of storage to a wide range of host systems. Instead
of seeing a confusing collection of arrays, host systems perceive all the data to be stored inside the XP
disk array. In effect, the XP disk array becomes the storage controller for a flexible, multi-tiered collection
of EVAs with a range of cost and performance capabilities. By configuring EVA storage arrays behind a
single XP24000/XP20000, data can be moved back and forth dynamically across tiers, all of which is
invisible to the applications.
The XP12000's virtualization feature also reduces the total cost of storage ownership by:
Exploiting common storage management across multiple vendors' systems
Easily deploying a dual-vendor policy
Facilitating simpler and lower cost data migrations
Increasing storage utilization
Extending the life of legacy storage
For more information please refer to the HP XP External Storage Software web page at:
http://h18006.www1.hp.com/products/storage/software/extstxp/index.html.
Servers Supported –
Single and Clustered
HP servers (HP-UX, ProLiant, AlphaServers)
X86 servers
Dell servers
Sun servers
IBM servers
Apple XsApple Servers (PowerPC and Intel)
Fujitsu Siemen & Primergy Servers (Bx6x0, Rx and Tx)
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 16
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
EVA Required Software
HP EVA6100 ships with XCS factory installed on new EVAs. XCS V6.3xx supports all 2 and 4Gb
EVA4000/6000/8000 and EVA4100/6100/8100models The base XCS License to use for the EVA is
contained in the hardware shipment.
HP EVA4x00/6x00/8x00 XCS controller media download is available from HP.com. These downloads
are available for upgrades of existing 2 and 4Gb EVA4x00/6x00/8x00s. The EVA Release Notes and
Upgrading Product software Guide are also available from the same location.
NOTE: Review the Release Notes and Upgrading Product Software documentation and compatibility
requirements of all installed Array Integrated Software completely before upgrading. Downgrading an
EVA XCS version is not recommended without HP Service support. Contact HP Services if you have any
questions.
XCS is available for download at the "software & drivers" link:
http://h18006.www1.hp.com/products/storageworks/eva/index.html
HP Command View EVA is required software for all EVA models. HP Command View EVA requires a
License to use (LTUs) equal to, or greater than the total raw capacity of each array.
NOTE: The minimum supported version of XCS on the EVA4100/6100/8100 is XCS V6.110
HP Storage Management The HP Management Pack for Systems Center Operations Manager provides seamless integration with
Pack for Microsoft System Microsoft Systems Center Operations Manager and now System Center Essentials by integrating
Center
predefined discovery and state monitoring policies, event processing rules and tasks, and diagram and
topology views for the storage system.
For more information:
http://h18000.www1.hp.com/products/quickspecs/14249_div/14249_div.html
HP Storage Management Pack can be downloaded free from the following website:
http://h18006.www1.hp.com/storage/SCOM_managementpack.html
HP EVA Software Selector The following matrix will assist in identifying some of the complimentary HP software products can be
used along with the EVA to support various business applications. Please see your Sales Representative,
or go to http://www.hp.com/ for more information on these valuable HP software products.
Just click on the product name and you will be linked to the product specification URL.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 17
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
EVA Device
and
Configuration
Management
Backup
Solutions
Business
Continuity/
Local
Mirroring
X
Disaster
Recovery/
Remote
Mirroring
HP Business Copy EVA
X
X
HP Continuous Access
EVA
X
Dynamic Capacity
Manager
http://h18006.www1.hp.com/products/storage/software/eva_dcm/index.html
End to end
X
HP Storage Essentials
SRM Suite
discovery,
Backup
(Heterogeneous,
monitoring, monitoring/
multivendor)
provisioning,
reporting
Chargeback,
File analysis,
reporting
X
HP Storage Essentials
SRM Standard Edition
Backup
Software (Small to
monitoring/
medium HP Storagereporting
based SANs)
HP Storage Essentials
SRM Performance Pack
Software
HP Data Protector
HP Systems Insight
Manager
HP Command View EVA
Application Recovery
Manager (AppRM)
HP Cluster Extension
EVA
HP Metrocluster/
Continentalcluster with
Continuous Access EVA
HP Storage Mirroring
HP Storage
Management Pack for
Microsoft System Center
Storage Resource
Management
Unified
Application
Server and Integration
Storage
Management
X
X
Yes with HP
SIM
X
X
X
(Oracle,
Exchange,
Sybase, MS
SQL,
InterSystems
Cache' DB)
X
(Oracle,
Exchange,
Sybase, MS
SQL,
InterSystems
Cache' DB)
End to end
performance
monitoring/analysis
for EVA or multiple
EVAs
X
X
X
X (Included
with EVA)
X (Required)
X
X
X
X
X
X
X
EVA and Value-added Software Compatibility
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 18
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
Model
XCS Software
HP Command
View EVA*
EVA
EVA4000/6000/8000
EVA4000/6000/8000
v5.1 (XCS V5.1)
EVA4000/6000/8000
v6.0 (XCS V6.0)
EVA4x00/6x00/8x00
v6.110 (XCS
V6.11010)
EVA4x00/6x00/8x00
v6.110 (XCS V6.2xx)
Command View
EVA v5.0
Command View
EVA v6.0x
Command View
EVA v7.0 & v8.0
EVA4000/6000/8000
EVA4x00/6x00/8x00
EVA4x00/6x00/8x00
HP Continuous
Access EVA**
EVA
HP Business Copy HP Replication
EVA**
Solution Manager
EVA
(RSM)
Continuous Access Business Copy EVA Replication Solution
EVA v2.3
v3.2
Manager v 2.0
Continuous Access Business Copy EVA Replication Solution
EVA V3.0
v4.0
Manager v 2.1
Continuous Access Business Copy EVA Replication Solution
EVA
Manager v 3.0
Command View
Continuous Access Business Copy EVA Replication Solution
EVA v8.0, 9.0 &
EVA
Manager v 3.0
9.1
EVA4x00/6x00/8x00
EVA4x00/6x00/8x00 Command View
Continuous Access Business Copy EVA Replication Solution
v6.3 (XCS V6.3xx)
EVA v8.0, 9.0 &
EVA
Manager v 3.0
9.1
*HP Command View EVA is required software for all EVA models. HP Command View EVA requires a License to use (LTUs) equal to,
or greater than the total raw capacity of each array. If the EVA does not have the proper licensed capacity it will be in violation of
the End User License Agreement (EULA).
**HP Continuous Access EVA and HP Business Copy EVA requires a License to use (LTUs) equal to, or greater than the total usable
amount of data being replicated on each array. If the EVA does not have the proper licensed capacity it will be in violation of the
End User License Agreement (EULA).
Operating Systems, Cluster and High Availability Compatibility EVA6100 Models
Operating System
Versions Supported
Microsoft Windows Professional 2
XP 32-bit*****
32-bit
Microsoft Windows Standard
2003/32-bit***
Enterprise
2003/32-bit
SP2
Microsoft Windows Standard
2003/x64***
Enterprise
2003/x64
SP1, R2
SP1, R2
Microsoft Windows Enterprise
2003/IA64***
DataCenter
2003/IA64
SP1, SP2
SP1, SP2
Microsoft Windows Standard
2008 32-bit, x64*
Enterprise
x64
Server Core
Microsoft Windows Enterprise
2008 IA64*
DataCenter
IA64
Microsoft Windows Standard
Server 2008 Hyper- Enterprise
V, x64
11i v1 (PA-RISC)
HP-UX
SP2, R2
SP2, R2
R2
Cluster Server or
High Availability
Software
Not supported
HA Versions
Supported
Failover Software
N/A
Not supported
Microsoft Cluster
Server
(MSCS)
Windows Server
2003
Enterprise Edition
Windows 2003
DataCenter Edition*
(64-bit)
Full featured MPIO,
v3.02.00 available
from HP (2003,
2008) and Microsoft
DSM from Microsoft
(2008)
Veritas Foundation
Suite/HA
4.3, 5.0, 5.1
(Windows
2003)
5.1 (Windows 2008)
Veritas MPIO DSM
R2
R2
DA - 13463
HP ServiceGuard
11.14 (11i v1)
Worldwide — Version 3 — February 13, 2012
PV-Links, HP
Page 19
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
11i v2 (PA-RISC & Integrity)
11i v3 (PA-RISC & Integrity)
Linux
Apple Mac OS X
HP Tru64 UNIX
HP OpenVMS
Sun Solaris
IBM AIX
VMware
Xen
(Metro or
Continental clusters)*
Veritas Foundation
Suite/HA
11.15
11.16
11.17
3.5 (11i v1 & 11i v2)
4.1 (11i.v2 & 11iv3)
5.0 (11iv2)
5.0 (11iv3 )***
MirrorDisk UX,
Native in OS
Secure Path V3.0F
SP1, SP 2 for HP-UX
Veritas DMP 3.5 (11i
v1& 11i v2)
Veritas DMP 4.1 (11i
v2)
Red Hat EL Advanced Server 3.0 (IA32,
HP ServiceGuard for 11.16
Qlogic Multipath
IA64 & x86_64)- U8, U9****
Linux
driver 7.xx.xx for Red
Red Hat EL Advanced Server 4.0 (IA32,
VERITAS Foundation 4.1 (SLES9& REL4
Hat 3.0 and United
IA64 & x86_64)- U5, U6****
Suite/HA for Linux
only)
Linux 1.0 (SLES 8)
RedHat Enterprise Linux 5 (IA64 & EM64UT
4.6.2 (REL 3)
Qlogic Failover
Fujitsu Siemen & Primergy Bx6x0, Rx, Tx)
Steeleye Lifekeeper
driver 8.0x.xx for Red
United Linux 1.0/SLES8 SP4 (IA32, IA64 & Cluster Service
5.0 (SLES9& REL4
Hat EL AS 4.0 and
x86_64)
only, x86_64)(RHEL5 SUSE/SLES9
Red Hat Cluster Suite U1)
SUSE/SLES9 (IA32, IA64 & x86_64)Device Mapper V3.0
Prime Cluster
SP3****
PCL 4.2.A00 (Fujitsu- Device Mapper
SUSE/SLES10 (IA32, IA64 & x86_64)- ****
Siemen)
4.0***
SAN Surfer
Simple SAN
Connection Mgr.
1.0.0
EMULEX Multipluse
2.2.29
HBA Anyware
3.2a16
Tiger - 10.4.7minimum
N/A
N/A
ATTO Multipath
Leopard - 10.5,10.5.1
driver
v5.1b-4
HP TruClusters
5.1b
Native in OS
v5.1b-5
Alpha: 7.3-2, 8.2, 8.3
HP OpenVMS
7.3-2
Native in OS
Integrity: 8.2-1, 8.3, 8.3-1H1
Clusters
8.2
8.2-1
8.3
8.3-1
8
SunCluster
3.1, 3.2
MPxIO for Solaris,
9
VERITAS Foundation
Native in OS
10 (x86/64) (32-bit/64-bit)
Suite/HA
4.1 MP1, 5.0
Veritas DMP 4.1
11 (x86/64) (32-bit/64-bit)
5.2
HACMP (does not
5.2, 5.3, 5.4
MPIO for IBM AIX,
5.3
support 6.1)
5.0(AIX 5.3)
Native in OS
6.1
VERITAS Foundation
Suite/HA
ESX Server 2.5.3, 2.5.4, 3.0.1, 3.5x and
-MSCS Clustering** Windows Server
MPIO for VMware,
vSphere 4 (ESX4.0, ESXi)
2003
Native in OS
Integrated Citrix XenServer HP Enterprise
Service Guard for
Native Device
Citrix
Linux
Mapper MPIO
Guest Operating Systems Supported:
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 20
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Product Highlights
Red Hat 5.1
SuSE 10 SP1
Windows 2003 x64
*Follows initial release, check posted Operating Specific Release Notes or software documentation
**Some versions of MSCS are not supported, for more detailed information on Cluster Server Support see the VMware Release Notes
http://h18006.www1.hp.com/products/storageworks/eva8000/index.html
***For Disaster Tolerance configurations in the EVA/Windows 2003 environment, please refer to the HP Cluster Extension EVA
QuickSpecs: http://www.hp.com/go/clxeva
****For Disaster Tolerance configurations in the EVA/RedHat EL 4 or SUSE/SLES 9 or 10 environments, please refer to the HP
Cluster Extension EVA QuickSpecs: http://www.hp.com/go/clxeva
*****Support
on EVA4000/4100 only. For information on the specific Microsoft Windows XP configuration support see the SAN
*****
Design Guide:
http://h20000.www2.hp.com/bizsupport/TechSupport/DocumentIndex.jsp?contentType=SupportManual&lang=en&cc
=us&docIndexId=179111&taskId=101&prodTypeId=12169&prodSeriesId=470490
Cabinet Density
A single 42U EVA6100 cabinet can house up to 112TB of raw capacity (using 1TB FATA disks).
NOTE: Maximum cabinet capacity will vary based available upon U space. The total number of
controllers, enclosures supported and other devices.
Racking Guidelines and
Power Distribution
Distribution Units (PDUs) according to the voltage used in the country the solution is ordered. These
PDUs provide redundant power and are located in the bottom and back of the cabinet for power cable
entrance by the floor. The PDUs are 220/240V. The 220/240V PDUs are 0U high with a total of two AC
power cords extending outside the cabinet.
For the EVA6100 a variety of HP 10000 G2 Series Rack offerings and integration options are available.
The EVA configurator tools utilize a 42U HP 10000 G2 Series Rack as the standard recommendation
and will provide a 220/240V PDU and country specific power cords. The EVA6100configurations can be
customized to meet a wide variety of customer needs. Both the height and types of rack and PDUs can be
modified based upon the specific customer need. If other devices, such as servers, switches or back-up
devices, are to be installed with the EVA; this can be specified and the cabinets and PDUs can be
modified to support the configuration.
For more information on configuration and PDU support for the 10000 G2 Series Rack please see the
following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/10000g2series.html
The EVA also supports the 5642 (42U) Rack Cabinet System as a field installed option.
NOTE: When adding additional devices to existing racks ensure that the installed PDUs will support the
new power requirements.
Total Cost of Ownership The unique virtual architecture allows up to twice the normal effective capacity utilization of traditionally
architected storage offerings. And with Virtually Capacity-Free Snapshot (Vsnap), significant duplicate
capacity requirements can be eliminated resulting in fewer/smaller storage acquisitions.
The EVA has one of the highest density disk storage solutions in the industry. Additionally, the unique
virtual architecture allows up to twice the normal effective capacity utilization of traditionally architected
storage offerings. And with the virtually Capacity-Free Snapshot (Vsnap), FATA disk drives and the ability
to change Vraid types, significant amount of duplicate capacity requirements can be eliminated, resulting
in fewer/smaller storage acquisitions.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 21
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
HP Care Pack Services
HP Care Pack Services offer upgraded service levels to extend and expand your standard product
warranty with easy to buy, easy to use support packages that help you make the most of your hardware
and software investments. They let you choose the support levels that meet your business requirements,
from basic to mission-critical. They help you contain total cost of ownership.
HP Care Pack warranty extensions can be purchased along with HP products to cost-effectively upgrade
or extend your warranty. For many products, post-warranty HP Care Pack Services are available when
your original warranty has expired.
Why purchase an HP Care Pack service?
Your standard warranty protects against product defects. HP Care Pack Services help you guard against
unplanned downtime, which can reduce your productivity and profitability. These convenient service
packages:
Protect your investment in HP products
Provide consistent, predictable levels of support across your entire department or business
Ease budget planning with fixed-cost support that includes parts and labor
Give you direct access to proven technical and problem-solving expertise
Offer a choice of response-time and repair-time commitments
Deliver prompt, measurable results
Are available whenever and wherever you do business
HP Care Pack availability may vary by country and product.
Supporting your Adaptive Enterprise journey
HP Services helps you make the Adaptive Enterprise real for your organization. The breadth, depth, and
quality of HP hardware and software support services can help you improve the performance of your IT
support processes and resolve the complex software and hardware problems that tax user productivity.
HP Care Pack services help you increase IT environment stability,
stability efficiency, and agility from the desktop
to the data center, and improve the productivity of your employees.
Warranty and Services
The EVA6100 Foundation Service Support factory warranty (for most models as called out in the product
Included with the Product description) includes Array Installation and Startup Service, 2-year hardware support, with 4-hour remote
response on a 24x7 basis as well as 2-year, 24x7 XCS phone-in support and updates.
HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days
from delivery.
HP EVA Warranty includes support for Customer Self Repair. For EVAs with a warranty entitlement start
date of 2/12/2007 or later the hard disk drives with drive firmware code load, bezels, and the controller
enclosure's cache batteries, power supplies, fan, and optical control panel replacement are mandatory
CSR. Customers may ask HP Services to replace these replaceable units (RUs) or do a firmware upgrade
of the disk drives for an additional charge. Other EVA RUs available for optional customer self repair
include cables, transceivers, and the disk shelf power supplies and fans.
Customers who purchase an HP EVA Support Agreement have the option to perform Customer Self
Repair or receive on site support.
Please refer to HP's Limited Warranty Statement for further details:
http://h18006.www1.hp.com/products/storageworks/warranty.html
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 22
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
For more information about HP's Global Limited Warranty and Technical Support, visit
ftp://ftp.compaq.com/pub/products/storageworks/warranty/EN_321708-008.pdf
HP warrants the HP 10000 G2 Series Rack according to the standard rack product warranty.
Please refer to product specification for further details:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/index.html
Recommended
Services
HP SAN Solution Service
HP Critical Services
HP Proactive 24
HP Support Plus 24
HP Software Maintenance
Service
DA - 13463
Quickly realize the benefit of your SAN investment while reducing
overall cost of ownership
Fast, expert implementation that guards against unexpected
compatibility issues, minimizes disruption to your business and
optimizes performance
Provides a fully installed, configured and documented SAN with
scalability that allows for additional capacity as your business grows
Boost business productivity through increased server, storage,
networking, and applications availability
Minimize business losses caused by IT downtime
Reduce risk and improve efficiency by proactively managing changes
across your IT environment
Resolve complex problems quickly through direct access to HP Services
expertise and hands-on assistance
Rapidly access single-source support from a team familiar with your
business and technology infrastructure
Free your IT staff to focus on strategic business issues
Enhanced operational effectiveness and availability with proactive
problem identification and solutions recommendations
Partner with technical experts who help coordinate support, provide
hands-on assistance, and share industry best practices and HP knowhow with your staff
Rapidly access single-source support spanning your environment from
servers to storage to networking
Obtain personalized services tailored to your business environment
and objectives
Anticipate necessary change - and execute it correctly the first time
Efficiently manage infrastructure resources to meet your performance
objectives
24x7 4-hr. onsite hardware support
Material and parts included
Work to completion for hardware support
24x7 2-hr response XCS phone-in assistance
Remote problem diagnosis & support
Escalation management
Software product and documentation updates
License to use and copy software product updates
Software electronic support
Improve the productivity of system managers and operators
Improve system performance and reduce downtime due to software
defects
Expedite problem resolution through expert-level technical resources
Enjoy consistent service coverage across geographically dispersed sites
Update HP and selected third-party software at a predictable cost
Worldwide — Version 3 — February 13, 2012
Page 23
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
Take advantage of subscription savings on software updates
Keep your license compliancy up-to-date
Available HP Care Pack
Services
Extend your product warranty with a wide choice of cost-saving support packages.
HP Care Pack Services are sold by HP and HP authorized enterprise and commercial resellers. Services
for customers purchasing via direct and enterprise resellers are quoted using HP order configuration
tools. Additional information about HP Care Pack Service features and benefits is available at
http://www.hp.com/hps/carepack/services/.
Key for HP Care Pack Service availability in the table below:
E = Service available for customers purchasing direct and via enterprise resellers
C = Service available for customers purchasing via commercial resellers
N/A = Service not applicable
HP Care Pack Services
Deployment and Per Event Services
HP Installation
HP Installation & Startup
HP Implementation
Service Available
N/A
Included with: EVA6100/8100
E for: EVA6100/8100
For more information about Deployment and Per Event Services for HP Storage, visit
http://www.hp.com/hps/storage/.
HP Care Pack Services
Availability Services
HP 4 Hr, 24x7 Hardware
Support
HP Software Support
HP Software Support 24x7
HP Support Plus
HP Support Plus 24
HP Proactive Essentials 24x7
Unlimited
HP Proactive 24 Service
HP Critical Service
1 yr
3 yr
4 yr
5 yr
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E
E
E
E
E
E
E
E
To find HP Care Pack Services available via HP authorized commercial resellers, visit
http://h30125.www3.hp.com/csn/salesmktg/elfpack/elf_nonlkup_ctrylang.asp?code=ELNL
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 24
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
Deployment and Per
Availability Assessment for SANs
Event Service Descriptions
Recommendations for reducing or eliminating risks to the availability of your SAN infrastructure.
SAN Solution Service
You get a powerful network storage solution up-and-running quickly and efficiently with minimum
disruption and rapid returns on your SAN investment.
Data Migration
Transfers your critical information to a new or reconfigured storage array in an open systems
environment - across a data center or around the world.
Data Replication Solution Service
Ensures a timely, cost-effective deployment of your data replication solution cuts risk and shortens
your time-to-results.
Data Sanitation Service
Provides a method for removing data from rotational hard disk media preventing sensitive
information from being retrieved or re-created. It recommended to remove data during asset
retirement, leasing returns, hardware upgrades, or redeployment of storage devices.
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit http://www.hp.com/support
Instant Support Enterprise Edition (ISEE)
HP Instant Support Enterprise Edition (ISEE) provides a single remote monitoring and support solution for
your IT data center. ISEE uses continuous hardware event monitoring and automated notification to
identify and prevent potential critical problems.
ISEE is a no charge feature of the EVA Foundation Service Solution warranty. Notification and status
information can be sent to a HP Service Center or provided for customer monitoring.
For more information or to download ISEE, visit http://www.hp.com/go/instantsupport
ISEE can be used to facilitate customer replacement of certain EVA replaceable units (RUs) . (See the
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 25
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
Warranty and Services Included with the Product section of this document for the RU list.) A failing or
failed device would be reported to HP Services via (ISEE)/Proactive Replacement Service (PRS). The
customer would be contacted and arrangement made to either utilize mandatory or optional customer
self repair or arrange for the repairs via warranty, CarePack, or time and materials as applicable.
Operator control panel (OCP) failure is the only device not addressed by ISEE. If, for example, the panel
display or a button appears broken, customers need to call HP to initiate repair.
Customer self repair instructions, in seven local languages, are available in the component spare kits
(RUs) and the business support center at www.hp.com. Video based instructions are available under
"Customer self repair steps" and printable replacement instructions are listed under "Manuals" at the
following location:
http://h20000.www2.hp.com/bizsupport/TechSupport/Home.jsp?&lang=en&cc=
us&prodTypeId=12169&prodSeriesId=470490&submit.y=9&submit.x=7&lang=en&cc=us
HP Education Services
Training for the Enterprise Virtual Array is now offered as part of HP comprehensive curriculum of HP
Storage, Storage Management, and IT Service Management courses. These courses will provide the
training required to realize the full potential of your HP EVA Virtual Array storage solutions, optimize your
systems and SAN for highest efficiency, and achieve better return on your IT investments.
For more information about HP Education Services for Storage and SAN, visit
http://education.hp.com/curr-storsan.htm
Awards
J.D. Power Gives HP a Seal of Approval 27-Nov-2005
Good service is a key factor in deciding which computer or printer to buy these days, and HewlettPackard hopes a customer service endorsement from J.D. Power and Associates will help boost sales of
HP products. HP said this week it is the first company to receive the J.D. Power and Associates Certified
Technology Service and Support certification "for providing an outstanding customer service
experience."
Consumers will soon see the J.D. Power and Associates service mark on product boxes, web sites and
advertising for everything from HP PCs and all-in-one devices to HP cameras and fee-based services. To
earn the certification, HP performed within the top 20 percent of technology support organizations on a
variety of customer service criteria. J.D. Power and Associates found that HP has met or exceeded this
new standard for customer satisfaction in supporting its North American customers.
http://www.hp.com/hpinfo/newsroom/press/2005/051116a.html
HP Receives Two Service and Support Industry Awards; Inducted into Association Hall of Fame 14Apr-2006
HP has received two STAR Awards for Best Practices from the Service & Support Professionals Association
(SSPA) and was consequently inducted into the SSPA Hall of Fame for winning its fifth award. The STAR
Awards are the only service and support industry award from a professional association dedicated to
serving industry professionals. http://www.hp.com/hpinfo/newsroom/press/2006/060414a.html
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 26
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
Additional Services
Information
For more information about Deployment, Per Event, Consulting and Education services for HP Storage,
visit: http://www.hp.com/hps/storage/
For more information about HP Care Pack Services for Storage, visit:
http://www.hp.com/hps/carepack/storage/cp_networked.html
For more information about HP Storage Software, services and updates, visit:
http://h18006.www1.hp.com/storage/software.html
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP" http://www.hp.com
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 27
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Family Information
Model
Drive Interface
Controller Software
Cache per controller pair
RAID Support
Host ports
Device bandwidth
Device FC-AL switches
Maximum Drives per
model
Redundant Controllers
Drive Capacities
EVA4100
EVA8100
With expansion cabinet
Dual ported
Dual ported
Dual ported
Dual ported
2 Gb/s FC-AL
2/4 Gb/s FC-AL
2/4 Gb/s FC-AL
2/4 Gb/s FC-AL
XCS v6.110
XCS v6.110
XCS v6.110
XCS v6.110
4GB
4GB
8GB
8GB
Vraid0, Vraid1, Vraid
Vraid0, Vraid1, Vraid
Vraid0, Vraid1, Vraid
Vraid0, Vraid1, Vraid
0+1, Vraid5, Vraid 0+5 0+1, Vraid5, Vraid 0+5 0+1, Vraid5, Vraid 0+5 0+1, Vraid5, Vraid 0+5
& Cross Vraid Snaps
& Cross Vraid Snaps
& Cross Vraid Snaps
& Cross Vraid Snaps
Four 4Gb/s FC
Four 4Gb/s FC
Eight 4Gb/s FC
Eight 4Gb/s FC
8 Gb/s
8 Gb/s
8 Gb/s
16 Gb/s
FC-AL
FC-AL
FC-AL
FC-AL
0
2
4
4
56
112
168
240
Yes
300GB 10K rpm
450GB 10K rpm
600GB 10K rpm
146GB 15K rpm
300GB 15K rpm
450GB 15K rpm
600GB 15K rpm*
1TB FATA
* HP 600 GB 15K HDD available later in 2009.
DA - 13463
EVA6100
EVA8100
Yes
300GB 10K rpm
450GB 10K rpm
600GB 10K rpm
146GB 15K rpm
300GB 15K rpm
450GB 15K rpm
600GB 15K rpm*
1TB FATA
Yes
300GB 10K rpm
450GB 10K rpm
600GB 10K rpm
146GB 15K rpm
300GB 15K rpm
450GB 15K rpm
600GB 15K rpm*
1TB FATA
Worldwide — Version 3 — February 13, 2012
Yes
300GB 10K rpm
450GB 10K rpm
600GB 10K rpm
146GB 15K rpm
300GB 15K rpm
450GB 15K rpm
600GB 15K rpm*
1TB FATA
Page 28
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
Step 1 - Choose an EVA Model
Base and Factory-Integration Information
Models
Enterprise Virtual Array
6100 Independent
Bundles
EVA6100 2C4D
Model Independent
Bundle
Enterprise Virtual Array
Field Installation
The following models are available worldwide - each includes HW, varied storage
capability, and Foundation Service Solution Warranty of 2 years 24 x 7 4-hour remote
response, Installation and Startup service, 2 years of Virtual Controller Software (XCS)
phone-in support and updates, and automated event notification and remote problem
intervention. Factory Integration is required for all factory built models.
The EVA6100 Models are modular and scalable storage solutions designed to have
no-single-point-of-failure, which provide disaster tolerance and business continuance
support for storage consolidation on heterogeneous SANs.
Includes one 4U Controller assembly with two HSV200-B controllers, four M5314C
3U 14-bay disk drive enclosures, a dual loop switch option, cables, and appropriate
mounting hardware.
NOTE: A rack must be ordered with this selection.
Additional M5314C disk drive enclosures may be added to a maximum of four disk
drive enclosures (up to a 2C8D).
Multiple EVA6100s can be configured in a single cabinet.
AD556C
Please refer to the Expansion options (Step 8) - listed in the Configuration Information and Configuration
Rules - for details on components available for field installation. These components are useful for adding
EVA components to existing EVA storage configurations or into on-site customer-supplied racks.
Step 2 - Choose File Services and EVA Connectivity Options
The EVA File Services and EVA iSCSI connectivity options provides superior storage consolidation, management and total cost of
ownership. The EVA File Services support both block and file data concurrently with high availability and scalable performance. The
EVA iSCSI connectivity options extends the FC SAN investment with integrated multi-protocol support, allowing customers to
incorporate iSCSI servers without requiring additional storage arrays or management costs
Ordering an EVA-File Server or iSCSI connectivity options is easy. The EVA File Services and iSCSI connectivity options will be factory
integrated into the EVA6100 or EVA8100 configurations.
The EVA File Services Option is available in two file serving protocols, NFS (Linux) or CIFS (Windows).
AG686A
HP EVA for Windows File Includes, two HP DL380G5-WSS Clustered Gateway nodes, one J4900BZ HP
Services Factory
ProCurve Ethernet 2626 switch, two A7984A HP 4/8 Base SAN switches, sixteen
Integration
A7446B HP 4Gb Short Wave Transceivers, Ethernet interconnect cables between the
internal modules, FC interconnect cables between the internal modules, power cords
for all modules, and mounting hardware for all modules. Factory Integrated
hardware, Installation and Startup.
NOTE: Requires the purchase of an EVA4100/6100/8100 on the same order. One
EVA- File Services can support multiple EVA arrays.
NSF File Services
HP EVA for Linux File
Services
Includes, two HP DL380G5-SL Clustered Gateway nodes, one J4900BZ HP ProCurve
Ethernet 2626 switch, two A7984A HP 4/8 Base SAN switches, sixteen A7446B HP
4Gb Short Wave Transceivers, Ethernet interconnect cables between the internal
modules, FC interconnect cables between the internal modules, power cords for all
modules, and mounting hardware for all modules. Factory Integrated hardware,
Installation and Startup.
DA - 13463
Worldwide — Version 3 — February 13, 2012
AG687A
Page 29
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
NOTE: Requires the purchase of an EVA4100/6100/8100 on the same order. One
EVA- File Services can support multiple EVA arrays.
The EVA iSCSI connectivity options supports Windows and Linux environments.
The EVA file services and EVA iSCSI offerings provide superior storage consolidation, management and total cost of ownership. The
EVA file services offerings support both block and file data concurrently with high availability and scalable performance. The HP
MPX200 Multifunction Router and EVA iSCSI Connectivity Option extends the FC SAN investment with integrated multi-protocol
support, allowing customers to incorporate iSCSI servers without requiring additional storage arrays or management costs
For information on ordering file services components see:
http://h18000.www1.hp.com/products/quickspecs/12667_div/12667_div.html
http://h18006.www1.hp.com/products/storageworks
HP MPX200 Multifunction Router 1 GbE Base Chassis
HP
MPX200 Multifunction
Includes:
Router
(1) chassis,
(1) 1 GbE blade,
rail kit,
accessory kit and
documentation.
Includes redundant power supplies.
HP Storage Works MPX200 Multifunction Router 1 GbE Upgrade Blade.
Includes:
AP771A
AP772A
(1) 1 GbE blade
accessory kit
documentation
For multi-path (redundant blade for high availability) order both part numbers. The
second hardware blade installs into the chassis that is included with AP771A or
AP773A.
NOTE: HP recommends use of the same blade option type (1 GbE or 10 - 1GbE) in
a common chassis to ensure balanced performance in a redundant configuration.
HP MPX200 Multifunction Router 10 - 1 GbE Base Chassis
Includes:
(1) chassis
(1) 10 - 1 GbE blade
rail kit
accessory kit
documentation.
Includes redundant power supplies.
HP Storage Works MPX200 Multifunction Router 10 - 1 GbE Upgrade Blade.
Includes:
AP773A
AP774A
(1) 10 - 1 GbE blade
accessory kit
documentation
For multi-path (redundant blade for high availability) order both part numbers. The
second hardware blade installs into the chassis that is included with AP773A or
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 30
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
HP iSCSI Connectivity
Option
AP771A.
NOTE: HP recommends use of the same blade option type (1 GbE or 10 - 1GbE) in
a common chassis to ensure balanced performance in a redundant configuration.
HP EVA iSCSI Connectivity Option
AE324A
Order this part for all new installations. Includes One unit, shelf, brackets, copper FC
cables and documentation.
Includes one unit to mount in existing shelf and documentation
HP EVA iSCSI Connectivity Upgrade Option
AE325A
For multi-path (dual unit high availability) order both part numbers. (The second
hardware unit installs into the shelf that ships with AE324A.)
NOTE: For more information on the iSCSI Connectivity Options:
http://h18006.www1.hp.com/products/storageworks/evaiscsiconnect/index.html
HP IP Distance Gateway HP IP Distance Gateway
SAN over WAN
Order this part for all new installations. Includes One unit, shelf, brackets and
connectivity, enables EVA documentation.
Continuous Access
HP IP Distance Gateway
replication over WAN
Includes One unit to mount in existing shelf and documentation
(Asynchronous and
For multi-path (dual unit high availability) order both part numbers. This second
Synchronous)
hardware unit installs into the shelf that ships with AG680A.
NOTE: For more information on the IP Distance Gateway:
http://h18006.www1.hp.com/storage/disk_storage/index.html
AG680A
AG681A
Step 3 - Choose a Rack - Base and Factory Integration Information
Factory Integration
Primary Configuration
Rules
Start your order by choosing a rack to house your EVA6100 based on the HP 10000
G2 Series Rack.
NOTE: The 10000 G2 Series Rack is the only series supported for factory
configuration.
NOTE: When choosing an EVA configuration, start with an EVA configuration "equal
to" or "closest but smaller" than the desired final configuration. Factory configuration
rules will not allow a unit to be built up past the starting point for another standard
configuration. (For example for an EVA6100 2C6D choose an EVA6100 2C4D plus
2 M5314COrders that do not follow these conventions will be unable to be
processed.
Use of the EVA Factory Integration part number is required for component integration.
If other products such as servers or back-up products are included in the cab a
different PDU will be added (if required) or can be chosen from a list of appropriate
offerings shown in the configuration tool.
EVA6100bundleand drive enclosures may be ordered for multiple subsystem
integration at the factory. Additional cabs are required to house configurations
beyond the U-space of the initial cabinet. Ballast and stabilizers will be offered
through the configurator tools for use when required.
The EVA4100/6100 controller pair assemblies are only available for field installation
and should be chosen when field installation is required. HP Global Services will
perform the on-site installation when an EVA4100/6100 controller pair assembly is
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 31
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
ordered.
The 5642 (42U) Rack Cabinet System is supported for field installation. This racks
may be purchased along with EVA component pieces for assembly in the field. The HP
5642 rack system is an entry level rack with sufficient features for easy access and
ease of use.
When calculating available U-space, assume that no space will be placed between
the mounted components. For redundancy, order PDUs in quantities of two. Refer to
the Configuration and User Guide in the Information Library at the Rack Solutions
webpage.
HP 10000 Series G2
NOTE: The number of subsystems varies and is determined by the interior U-space of
Racks
the cab.
HP Rack 10642 G2 Shock (42U)
HP Rack 10642 G2 w/Extn Shock (42U)
HP Rack 10636 G2 Shock (36U)
HP Rack 10636 G2 w/Extn Shock (36U)
HP Rack 10622 G2 Shock (22U)
HP Rack 10636 G2 Modular Cooling System (MCS) Shock (42U)
For PDUs and cabinet accessories see:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/
10000g2series.html
HP Rack 5642 System for 5642 (42U) Rack Cabinet System
Field Installation only
For additional cabinet accessories see:
http://h18004.www1.hp.com/products/quickspecs/12074_div/12074_div.html
Field Installation
Please refer to the Expansion options (Step 8) - listed in the Configuration Information
and Configuration Rules - for details on components available for field installation.
These components are useful for adding EVA6x00 to existing EVA4x00/6x00/8x00
storage configurations or into on-site customer-supplied racks.
Non-HP rack and power For detailed information on determining compatibility of a non-HP rack, please review
requirements
the information included in the EVA User Guide which can be found at
http://www.hp.com/go/eva.
NOTE: Also refer to Step 8 for ordering instructions and components that
accommodate on-site installation of EVA6100 subsystems into customer-supplied
racks.
HP ProLiant Storage
Select HP ProLiant Storage Servers (plus a Fibre Channel HBA) add file and print
Servers and supported
services to an EVA or Fibre Channel SAN. ProLiant DL380 G5 x64 SAN Storage
Server and DL585 G2 Storage Server gateways each feature Microsoft's Windows
Fibre Channel HBAs
Unified Data Storage Server 2003 operating system that also includes Microsoft iSCSI
Software Target and a cluster license standard (Microsoft iSCSI Software Target is
optional for other DL380 G5 Storage Server models). In addition, any ProLiant DL380
G5 Storage Server or DL585 G2 Storage Server is a perfect platform from which to
run Command View EVA. You stretch your investment even further when you host EVA
management, file and print services, and iSCSI connectivity all from the same ProLiant
Storage Server gateway solution.
HP ProLiant DL380 G5 Base Storage Server
NOTE: Microsoft Windows Storage Server 2003 R2 Standard x64 Edition O/S
HP ProLiant DL380 G5 1.16TB SAS Storage Server
NOTE: Microsoft Windows Storage Server 2003 R2 Standard x64 Edition O/S
DA - 13463
Worldwide — Version 3 — February 13, 2012
AE324A
AF002A
AF004A
AF012A
AF014A
AF021A
AF098A
358254-B21
AG815A
AG816A
Page 32
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
HP ProLiant DL380 G5 x64 SAN Storage Server
NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S
HP ProLiant DL585 G2 Storage Server
NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S
HP FC2142SR 4Gb PCIe HBA
HP FC2242SR Dual Channel 4 Gb PCIe HBA
HP FC1142SR 4Gb PCIe HBA
HP FC1242SR Dual Channel 4 Gb PCIe HBA
AG771A
AG630A
A8002A
A8003A
AE311A
AE312A
Step 4 - Firmware
Controller Firmware
HP EVA6100 is factory installed with XCS v6.2. Separate Media kits and licenses are
required to support HP Continuous Access EVA and HP Business Copy.
XCS V6.2xx supports all 2 and 4Gb EVA4x00/6x00/8x00 models.
HP EVA4x00/6x00/8x00 XCS v6.3 controller media download is available from
HP.com. These downloads are available for upgrades of existing 2 and 4Gb
EVA4000/6000/8000s and as archival media for the EVA4100/6100/8100. The
EVA Release Notes and Upgrading Product software Guide are also available from
the same location.
XCS is available for download at the "software & drivers" link:
http://h18006.www1.hp.com/products/storageworks/eva/index.html
An HP Command View License-to-Use (LTU) must be purchased for each EVA
controller pair. Each HP EVA must be licensed with the appropriate HP Command
View LTU(s) to be in compliance with the End User License Agreement (EULA) and the
Command View license monitoring function.
The Command View licensed capacity per EVA must be equal to, or greater than the
total raw capacity of each EVA. HP Command View EVA may be purchased in
increments of a 1TB LTU (one or multiple 1TB LTUs based upon the EVA's raw
capacity), or an HP Command View Unlimited Capacity LTU may be purchased which
will support up to the maximum raw storage capacity of the EVA.
OPTIONAL SOFTWARE: EVA4100/6100/8100 optional software can be found at
the following URL: http://h18006.www1.hp.com/storage/software.html
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 33
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
Step 5 - Hard Disk Drives
Drives are orderable two ways - either with the purchase of an array, or as add-on drives for arrays already installed. There are
different product numbers for Upgrade drives than Initial-installation drives
HP FC Drives - Factory
NOTE: Four (4) disk drives, either size/type, are required per disk
Not for use in
EMEA Only
installation
enclosure per system. A minimum of eight (8) disk drives are
EMEA
required per EVA4100/6100/8100.
300 GB 10K rpm dual-port 2 Gb/s FC-AL 1-inch (2.54 cm) drive
364622-B23*
364622-B22*
HP EVA 450 GB 10K Fibre Channel Hard Disk Drive
AP729B*
AP729A*
HP
FATA Drives Factory installation
HP EVA 600 GB 10K Fibre Channel Hard Disk Drive
146 GB 15K rpm dual-port 2/4 Gb/s FC-AL 1-inch (2.54 cm)
drive
300 GB 15K rpm dual-port 2/4 Gb/s FC-AL 1-inch (2.54 cm)
drive
450 GB 15K rpm dual-port 2/4 Gb/s FC-AL 1-inch (2.54 cm)
drive
600 GB 15K rpm dual-port 2/4 Gb/s FC-AL 1-inch (2.54 cm)
drive
1TB FATA disk dual-port 2 Gb FC Hybrid disk drive factory
integrated
*0D1 will appear after this part number on your sales order
indicating factory integration
**HP 600 GB 15K HDD available later in 2009.
NOTE: There is a minimum order requirement, with the first
installation of FATA add-on drives on an EVA, a minimum of 8
FATA drives are required to create the new NearOnline disk group.
AP730B*
364621-B23*
AP730A*
364621-B22*
AG425B*
AG425A*
AG804B*
AG804A*
AP751B**
AP751A**
AG883B*
AG883A*
Step 6 - Cables
FC cable - Copper SFP
4Gb Upgrade Cable Kit
FC Loop Switch Kits
The following cables are used with the M5314 and M5314A drive enclosure but are
not necessary for new installations. These cables are for use inside the cab between
the controllers and drive enclosures if replacement cables are required.
Cable FC Copper SFP .6m
Cable FC Copper SFP 2m
The following cable kit is for use in upgrading the cables between the switches and the
M5314B enclosures for older EVAs to the 4Gb EVA4000/6000/8000 and
EVA4100/6100/8100.
HP 4Gb Cable Kit
This option is mandatory when upgrading the EVA4x00 2C1D to
and EVA6x00 with 5 shelves or higher. Addition of loop switches to an EVA4000 or
EVA4100 creates an EVA6x00 and must be licensed as an EVA6x00.
HP EVA- Dual Loop Switch Option
Contains two FC loop switches, mounting hardware and cables.
NOTE: This kit is mandatory when upgrading the 4Gb EVA4000-A or EVA4100.
Addition of 5 shelves or more requires a Dual Loop Switch kit. Addition of the loop
switch to an EVA4000 or EVA4100 (1 or more shelves) creates an EVA6x00.
3U spare space is required to install the FC Loop Switch Kit.
DA - 13463
Worldwide — Version 3 — February 13, 2012
321624-B21
324394-B21
AG311A
AD557B
Page 34
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
2 Gb/s SFP
(Small Form- Factor
Profile) Transceiver
HP EVA Loopback
Connector
4 Gb/s SFP
(Small Form- Factor
Profile) Transceiver
FC cable - 1 Gb to 2
Gb/s (optional)
(LC to SC)
FC cable - 2Gb/s to
2Gb/s (optional)(LC to
LC)
The EVA8000-A or EVA8100 2C2D customers have the option to convert to a 2C6D or 2C12 with the installation, by trained Service Engineers, of the FC Loop Switch
Option. This option is mandatory when upgrading the 2C2D to 5 shelves or higher.
EVA8000-A FC Loop Switch Option
Contains four FC loop switches, mounting hardware and cables.
NOTE: This kit is mandatory when upgrading the 4Gb EVA8000-A or EVA 8100
2C2D to 5 shelves or higher.3U spare space is required to install the FC Loop Switch
Kit.
2 Gb/s SFP Fibre Channel Transceiver Kit
NOTE: Used on 2Gb switches with SFP Ports.
HP EVA Loopback Connector
Contains one Loopback connector. The loopback connector is used when an EVA host
port is not cabled to a switch or HBA (for direct connect).
NOTE: All EVA host ports must be filled with either a cable or loopback connector.
4 Gb/s SFP Fibre Channel Transceiver Kit
NOTE: Used on 4Gb switches with SFP Ports.
NOTE: Before selecting the FC cables to connect between the controllers and the
switches, check to see what kind of connectors are on the switches that will be
connected to the controllers. New switches utilize a Small Form-Factor Profile (SFP)
connector. The SFP connector can support 2Gb I/Os and/or 1Gb I/Os, but the device
connected to it may not currently be enabled for 2Gb. The SFP connector is also
referred to as an LC connector. The older large form factor 1Gb connector is also
referred to as an SC connecter.
NOTE: The 2Gb SFPs on the ports of the EVA4000 HSV100 and EVA6000 HSV200
controllers are a smaller form factor than 1Gb SFPs. One of these cables (either LC to
SC or LC to LC) is required per FC port of each HSV controller.
FC Short Wave 2-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 5-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 15-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 30-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 50-Meter Cable, LC/SC (1Gb to 2Gb)
NOTE: SFP - Small Form-Factor Profile on the ports of the EVA4x00/6x00/8x00. One
of these cables (LC to LC) is required per FC port of each HSV controller.
2-meter LC-LC Multi-Mode Fibre Cable
5-meter LC-LC Multi-Mode Fibre Cable
15-meter LC-LC Multi-Mode Fibre Cable
30-meter LC-LC Multi-Mode Fibre Cable
50-meter LC-LC Multi-Mode Fibre Cable
DA - 13463
Worldwide — Version 3 — February 13, 2012
AD553B
221470-B21
AJ706A
A7446B
221691-B21
221691-B22
221691-B23
221691-B26
221691-B27
221692-B21
221692-B22
221692-B23
221692-B26
221692-B27
Page 35
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
Step 7 - Management and High Availability Software
EVA Storage Management An HP Command View License-to-Use (LTU) must be purchased for each EVA controller pair. Each HP
/
EVA must be licensed with the appropriate HP Command View LTU(s) to be in compliance with the End
User Interface
User License Agreement (EULA). The licensed capacity per EVA must be equal to, or greater than the
total raw capacity of each EVA. HP Command View EVA may be purchased in increments of a 1TB LTU
(one or multiple 1TB LTUs based upon the raw capacity), or an HP Command View Unlimited Capacity
LTU may be purchased which will support up to the maximum raw storage capacity of the EVA.
See the HP Command View EVA QuickSpecs for detailed licensing, support and configuration
information: http://h18006.www1.hp.com/products/storage/software/cmdvieweva/index.html
Storage Management Appliance
The HP OpenView Storage Management Appliance is a combined hardware and software solution that
provides a centralized point for configuration, management and monitoring of storage elements,
including switches and storage devices, while simplifying management tasks and reducing cost. It offers a
comprehensive and cost-effective configuration, monitoring and storage management solution for the
multiple platform SAN. Designed to connect directly to a SAN fabric, the Storage Management
Appliance is a host-independent system that performs management functions without requiring host
computers.
Windows based management server
HP Command View EVA v6.0 and above supports installation on a server running Microsoft Windows.
High Availability Software Industry popular multiple path software is supported on the EVA4100/6100/8100. This software is used
to manage multiple paths between hosts and storage systems. It enables high availability through path
management and I/O load balancing. Multiple Path support is available for the following Operating
Systems:
HP-UX – HP Secure Path v3.0F SP1, pvlinks native in HP-UX and Veritas DMP
Windows – Full featured MPIO, available from HP
Linux – QLogic Failover driver, available from QLogic /HP
Tru64 – native in OS
OpenVMS – native in OS
AIX – MPIO native in OS
Solaris – MPxIO native in OS, Veritas DMP available from Veritas
NetWare – MPIO native in OS
VMware – MPIO native in OS
Apple Mac – OS X – ATTO Fibre Channel driver available from ATTO/HP
Refer to: http://h18006.www1.hp.com/products/storage/software/multipathoptions/index.html
Step 8 - Expansion Options
The EVA4100/6100 Controller Pair assembly is for on-site installation into existing EVA configurations (or qualified rack systems) by
HP Global Services. The physical configuration services for the EVA Controller Pair and up to four M5314C FC drive enclosures, as
well as installation and startup services, are included when you purchase the controller pair assembly component.
Optional Controllers and EVA4100/6100 Controller Pair assembly
AD525C
Accessories
Solution: One 4U Controller assembly with two HSV200-B controllers, mounting
hardware, cables, 2 years 24 x 7 4-hour remote response, controller mounting,
Installation and Startup service, 2 years of EVA4100/6100/8100 controller software
(XCS) phone-in support and updates, automated event notification and remote
problem intervention, included with this component.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 36
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
NOTE: Addition of a dual FC Loop Switch Kit to the EVA4100/6100 Controller
Assembly Pair creates an EVA6100.
M5314B FC Drive
Select M5314B drive enclosures to expand EVA configurations: Drive enclosures may
Enclosures & Accessories be:
AD542B*
1. Ordered for on-site capacity additions to existing
EVA3000/5000/4000/6000/8000 configurations.
2. Ordered for field installation of complete EVA4100/6100/8100configurations.,
3. EVA4100/6100 or EVA8100 controller pair assembly into the supported HP
cabinets and racks described in Step 8 or into qualified 3rd party rack systems
by HP Global Services.
Installed by HP manufacturing into EVA configurations by ordering the enclosure
with the factory integration part number.
Compatible with (EVA4100/6100/8100 arrays only. Without a loop switch pair, up to
four drive enclosures are supported with each pair of HSV200B controllers (EVA4100,
EVA4100/6100 Controller Assembly). An HSV200B controller with a loop switch pair
supports 1to 8 M5314C Drive Enclosures.
NOTE: Addition of the loop switch pair to an HSV200B controller pair (with 1 to 8
drive enclosures) creates an EVA6000.
Up to 18 drive enclosures are supported with each pair of HSV210B (EVA8100) with 4
loop switches.
M5314B FC Drive Enclosure
The M5314B is a 3U dual-redundant FC Loop 14-bay disk enclosure with mounting
hardware, and the necessary copper FC cables for connecting to an HSV200 or
HSV200-A Controller pair.
NOTE: Minimum of 8 disk drives, of any size, are required per Fibre Channel or FATA
drive types
M5314C FC Drive
Select M5314C drive enclosures to expand EVA4100/6100/8100 configurations:
Enclosures & Accessories Drive enclosures may be:
AD542C*
1. Ordered for on-site capacity additions to existing EVA4100/6100/8100
configurations.
2. Ordered for field installation of complete EVA4100/6100/8100 configurations
in conjunction with the EVA4100 Starter Kits (AP only), EVA4100/6100 or
EVA8100 controller pair assembly into the supported HP cabinets and racks
described in Step 8 or into qualified 3rd party rack systems by HP Global
Services.
3. Installed by HP manufacturing into EVA configurations by ordering the enclosure
with the factory integration part number.
Compatible with EVAs (EVA4100/6100/8100 arrays only). Without a loop switch pair,
up to four drive enclosures are supported with each pair of HSV200B controllers
(EVA4100, EVA4100 Starter Kits, EVA4100/6100 Controller Assembly). An HSV200B
controller with a loop switch pair supports 1to 8 M5314C Drive Enclosures.
NOTE: Addition of the loop switch pair to an HSV200B controller pair (with 1 to 8
drive enclosures) creates an EVA6100.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 37
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
Up to 18 drive enclosures are supported with each pair of HSV210B (EVA8000) with 4
loop switches.
Dual FC Loop
Switch Option
Enterprise Virtual Array
Racking for Expansion
M5314C FC Drive Enclosure
The M5314C is a 3U dual-redundant FC Loop 14-bay disk enclosure with mounting
hardware, and the necessary copper FC cables for connecting to an HSV200B and
HSV210B Controller pair.
NOTE: Minimum of 8 disk drives, of any size, are required per Fibre Channel or FATA
drive types
*0D1 will appear after this part number on your sales order when factory integration is
indicated.
The EVA Dual FC Loop Switch Option must be field installed to an EVA4x00 when
upgrading to an EVA6x00. The EVA8x00 FC Loop Switch Option is used when
upgrading and EVA8x00 2C2D beyond 4 disk enclosures
EVA Dual FC Loop Switch Option for EVA6x00
Contains two FC loop switches, mounting hardware and cables.
EVA8x00 FC Loop Switch Option
Contains 4 FC loop switches, mounting hardware and cables
The EVA customers have the option to mount supported devices in the rack used for
EVA8x00 expansion.
EVA 42U HP 10000 G2 Series Rack
Power requirements vary based on the equipment to be placed in the rack and the
country power supply. Options are:
HP PDU Pivot Kit
Used when expanding an existing EVA8x00 to 2C12D. It may also be used to reclaim
2U of space in a 10000 G2 Series Rack with other EVA configurations. EVA8000
2C12D configured in the factory include the PDU Pivot kit as part of the standard
configuration.
Modular PDU 24A Low Volt, NA/JPN
Modular PDU 24A HV, NA/JPN
Modular PDU 32A HV, INTL
NOTE: #0D2 feature code designates the PDU is mounted horizontally in the bottom
of the rack on real rail, above any UPS, and occupies 1U EIA space
Low voltage PDU 252663-D71 requires additional power distraction module
AF500A. (1) AF500A supports 2 PDUs
DA - 13463
Worldwide — Version 3 — February 13, 2012
AD557B*
AD553B*
AF002A
AG730A
252663-D71
#0D2
252663-D72
#0D2
252663-B31
#0D2
AF500A
Page 38
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
Enterprise Virtual Array Expansion Cabinet Example Configurations for EVA5000 and EVA8000
Expansion Cabinet
0C6D
0C12D
Description
Components
AF002A
1
1
EVA 42U HP 10000 G2 Series Rack
252663-xxx
2 (minimum)
2 (minimum)
Country/component requirement specific
336881-B21
1
2
Can bus to Can bus cable
AD542B
M5314B (for EVA5000/8000 and EVA8000) FC
6
12
Drive Enclosure
345580-B21
6
12
Cable Kit, Expansion Cab Drive Shelf
NOTE: The EVA Expansion cabinets examples defined above may be used with any existing EVA5000 or 2 or 4Gb EVA8000.
NOTE: Installation of an expansion cabinet must be done offline.
Enterprise Virtual Array Expansion Cabinet Example Configurations for EVA8100
Expansion Cabinet
0C6D
0C12D
Description
Components
AF002A
1
1
EVA 42U HP 10000 G2 Series Rack
252663-XXX
2 (minimum)
2 (minimum)
Country/component requirement specific
336881-B21
1
2
Can bus to Can bus cable
AD542C
6
12
M5314C FC Drive Enclosure
345580-B21
6
12
Cable Kit, Expansion Cab Drive Shelf
NOTE: The EVA Expansion cabinets examples defined above may be used with any EVA8100.
NOTE: Installation of an expansion cabinet must be done offline.
EVA4100 Upgrade
EVA6100
SKUs Required
1
EVA4100/6100 Controller Assembly Pair
No
EVA8100 Controller Assembly Pair
N/A
AD524C
EVA4000 to 6000-A FC loop Switches (kit contains 2 switches, mounting hardware and cables)
Yes
AD557B
2
EVA8000-A FC loop Switches (kit includes 4 switches, mounting hardware and cables)
N/A
AD553B
HP EVA4000/6000/8000 XCS v6.110 or higher
Yes
Download6
Command View EVA
Yes
See URL4
3
Command View Licenses
Yes
See URL4
Business Copy EVA
Yes
See URL4
Business Copy Upgrade license
Yes
See URL4
Continuous Access EVA
Yes
See URL4
Continuous Access EVA Upgrade license
Yes
See URL4
HP Services assessment and upgrade installation
Yes
See URL4
NOTES:
1Upgrading an EVA4100 to an EVA6100 does not require a controller replacement. 2 FC loop switches must be added creating an
EVA6100; which must then be licensed as an EVA6100. Command View EVA and array integrated software license (if previously
installed) for Business Copy EVA, Dynamic Capacity Manager and Continuous Access EVA upgrade licenses must be purchased.
3Proper Command View licensing requires a License To Use (LTUs) equal to, or greater than the total raw capacity of each array
and may be purchased in additive increments of 1TB or Unlimited LTUs). Correct licensing should be checked when expanding an
EVA4100.
4http://h18006.www1.hp.com/storage/software.html
5http://www.hp.com/hps/storage/
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 39
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
6http://h18006.www1.hp.com/products/storageworks/eva/
EVA3000/5000 Upgrade to EVA4100/6100/8100
EVA4100/6100 SKUs Required
EVA4100/6100 Controller Assembly Pair
Yes
AD525C
EVA4000 to 6000-A FC loop Switches (kit contains 2 switches, mounting hardware and cables)
Yes7
AD557B
EVA8000-A FC loop Switches (kit includes 4 switches, mounting hardware and cables)
N/A
AD553B
HP 4Gb Cable Kit (use with FC Loop Switches)
Yes1
AG311A
I/O Module A (1 per disk shelf enclosure)
Yes
AD623C
I/O Module B (1 per disk shelf enclosure)
Yes
AD624C
EMU
Yes2
AD625B
HP EVA4x00/6x00/8x00 XCS v6.110 or higher
Yes
Download6
Command View EVA
Yes
See URL4
Command View Licenses3
Yes
See URL4
Business Copy EVA
Yes
See URL4
Business Copy license
Yes
See URL4
Continuous Access EVA
Yes
See URL4
Continuous Access EVA license
Yes
See URL4
Replication Solutions Manager v3.0
Yes
See URL4
HP Services assessment and upgrade installation
Yes
See URL4
NOTES:
1AG311A cable kit is required when the loop switch is upgraded (not required if the drive enclosures are cabled with Molex cables,
check the switch-to-enclosure cables to determine). Purchase one AG311A for every two enclosure shelves. AG311A contains four
2-Meter cables. Two 2-Meter cables are required per enclosure.
2Check minimum hardware type on the EMUs...
Minimum...
EMU Hardware Type 1
3Proper Command View licensing requires a License To Use (LTUs) equal to, or greater than the total raw capacity of each array and
may be purchased in additive increments of 1Tb or Unlimited LTUs)
4http://h18006.www1.hp.com/storage/software.html
5http://www.hp.com/hps/storage/
6http://h18006.www1.hp.com/products/storageworks/eva/
7Upgrading an EVA3000 or EVA5000 to an EVA6100 requires a controller replacement, FC loop switches and cables (along with
other hardware requirements as shown above). The upgraded EVA which must be licensed appropriately. Command View EVA and
array integrated software license (if previously installed) for Business Copy EVA, Dynamic Capacity Manager and Continuous Access
EVA upgrade licenses must be purchased.
NOTE: HP Services required when upgrading the EVA hardware.
NOTE: Command View, Business Copy, Dynamic Capacity Manager, Continuous Access EVA software licenses must be upgraded
at the time of the hardware upgrade. Please see the appropriate product URL for upgrade license information.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 40
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
EVA4000/6000/8000 Upgrade to EVA4100/6100
EVA4100/6100
EVA4100/6100 Controller Assembly Pair
Yes
EVA4000 to 6000-A FC loop Switches (kit contains 2 switches, mounting hardware and cables)
Yes1
EVA8000-A FC loop Switches (kit includes 4 switches, mounting hardware and cables)
N/A
HP 4Gb Cable Kit (use with FC Loop Switches)
Yes1
I/O Modules
Yes
SKUs Required
AD525C
AD557B
AD553B
AG311A
AD623C &
AD624C
AD625B
Download5
EMU
Yes7
HP EVA4x00/6x00/8x00 VCX v6.110 or higher
Yes
Online upgrade-- see HP services for configuration requirements
Yes
Command View EVA
Yes
See URL3
2
Command View Licenses
Yes
See URL3
Business Copy EVA
Yes
See URL3
Business Copy license
Yes
See URL3
Continuous Access EVA
Yes
See URL3
Continuous Access EVA license
Yes
See URL3
HP Services assessment and upgrade installation
Yes
See URL4
NOTES:
1If required for that configuration. Minimum switch revision 30-10022-01 required. For information on visual identification without
removing the existing switch(s) see HP Enterprise Virtual Array User Guide. (Not required if the drive enclosures are cabled with
Molex cables, (check the switch-to-enclosure cables to determine). Purchase one AG311A for every two enclosure shelves. AG311A
contains four 2-Meter cables. Two 2-Meter cables are required per enclosure.
2Proper Command View licensing requires a License To Use (LTUs) equal to or greater than the total raw capacity of each array and
may be purchased in additive increments of 1TB or Unlimited LTUs). Business Copy EVA and Continuous Access EVA upgrade
licenses required if upgrading to a higher EVA model.
3http://h18006.www1.hp.com/storage/software.html
4http://www.hp.com/hps/storage/
6 http://h18006.www1.hp.com/products/storageworks/eva/
7Check minimum hardware type on the EMUs...
Minimum...
EMU Hardware Type 1 (not RoHS compliant)
EMU Hardware Type 2 (to maintain RoHS compliance on 4Gb/s EVA)
NOTE: RoHS Compliant EVA4000/6000/8000s
AD518B HP EVA8000 2C2D-A 60Hz 42U Cabinet
AD519B HP EVA8000 2C2D-A 50Hz 42U Cabinet
AD520B HP EVA8000 2C6D-A 60Hz 42U Cabinet
AD521B HP EVA8000 2C6D-A 50Hz 42U Cabinet
AD522B HP EVA8000 2C12D-A 60Hz 42U Cabinet
AD523B HP EVA8000 2C12D-A 50Hz 42U Cabinet
AD554B HP EVA4000-A 2C1D Array
AD556B HP EVA6000-A 2C4D Array
AD524B HP EVA8000-A Controller Pair
AD525B HP EVA4000/6000-A Controller Pair
NOTE: HP Services required when upgrading the EVA hardware.
NOTE: Command View EVA , Business Copy EVA, EVA Dynamic Capacity Manager, Continuous Access EVA software licenses must
be upgraded at the time of the hardware upgrade. Please see the appropriate product URL for upgrade license information.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 41
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
Step 9 - Optional Components and Software
Replication Management HP Business Copy EVA and HP Continuous Access EVA comes complete with HP Replication Solutions
Manager, a graphical user interface and scripting environment, that greatly simplifies storage
management by creating, running, and managing storage replication jobs using controller based
snapshots, clones and remote mirroring.
With HP Replication Solutions Manager users easily can manage both remote and local replication
across the full EVA product family. By virtually removing the complexity associated with both small and
large replication environments, point-in-time copies and remote replication are managed and configured
with just a few mouse clicks. To assist the user, Information on the replication environment is presented in
a variety of views, including an interactive topology manager that allows each user to select their viewing
preference. In addition, HP Replication Solutions manager provides a scripting interface for additional
flexibility.
Remote Replication
Software
Application Integration with Oracle
As an option to HP Business Copy EVA, the user can simply replicate an Oracle database. HP Replication
Solutions Manager will provide a graphical interface to view the components of the database to be
replicated, and allow selection of a specified database. The replication manager will automatically
suspend the Oracle application, and take a point in time copy (local or remote) of all associated array
virtual disks. The replication manager will provide the option to restart the original Oracle database after
the replicas have been initiated on the array. The user will be able to utilize the replication manager to
present the replica to another host.
HP Continuous Access EVA is a controller-based application that performs real-time replication between
HP enterprise virtual arrays. The solution is enhanced to perform remote replication, and deliver high
data availability and performance to users on Fibre Channel based campus, metro or continental metro
or continental Storage Area Networks (SANs).
Continuous Access EVA provides customers with the highest level of storage data protection capabilities
to meet their business continuity implementation goals. Customers can achieve a competitive advantage
by combining disaster-tolerant solutions and disaster-tolerant managed services into their planning and
daily routines, ensuring the data's security, availability and integrity.
Continuous Access EVA delivers local copy with Snapshot XCS Controller Software and virtualization
interoperability protect against disaster like scenarios, saving time and money while maintaining the flow
of information across the enterprise. Continuous Access EVA is an irreplaceable component for protecting
any business, yours especially.
Local Replication
Software
HP EVA Dynamic
Capacity Management
Software
Continuous Access EVA is sold by array type and utilized capacity. Please see the product URL for
ordering information and part numbers: http://h18006.www1.hp.com/storage/software.html
HP Business Copy EVA is a local replication software product for the EVA family providing Snapshot and
clone set-up and management. Business Copy EVA creates point-in-time copies of storage volumes,
called Business Continuance Volumes (BCVs) using the snapshot and cloning capabilities of the array
firmware and provides multi-array local mirror management. Additional features of the new product
include licensing based on replicated (not total raw) capacity and a new improved management
interface.
Business Copy EVA is sold by array type and utilized capacity. See the product URL for ordering
information and part numbers: http://h18000.www1.hp.com/storage/software.html
HP EVA Dynamic Capacity Management Software is a comprehensive software solution that automates
storage provisioning and improves capacity utilization on the HP Enterprise Virtual Array (EVA) family.
Designed for the enterprise market, EVA Dynamic Capacity Management Software uses advanced
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 42
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
automation to automatically "right-size" the file system and storage volumes to ensure the highest levels of
capacity utilization are achieved while reducing ongoing storage administration needs.
For more information, visit:
http://h18006.www1.hp.com/products/storage/software/eva_dcm/index.html
Storage Resource
HP Storage Essentials Standard Edition Storage Resource Management Software allows midsize
Management Software
businesses with limited IT staff to see the big picture thereby reducing SAN complexity. It supports
(HP Standard Edition SRM Windows and Linux servers with small to medium HP storage based SANs including HP EVA, HP MSA, HP
Software)
NAS, HP EML Tape, HBAs and fabric devices. HP Standard Edition SRM Software unified server and
storage tool-set automates complex and manual storage process and tasks with auto discovery,
visualization and topology mapping for quick device identification. HP Standard Edition SRM Software
solution integrates with a rich assortment of HP software including Systems Insight Manager, HP Essentials
software, and HP Storage Essentials Enterprise Edition SRM Software and advanced software plug-ins to
reduce the time and money associated with deploying and managing storage infrastructure.
HP Standard Edition SRM Software is an affordable solution that optimizes SAN capacity, increases IT
staff efficiency and simplifies end-to-end troubleshooting and reporting. From a single, Web-based,
secure enterprise console you can configure your storage environment and monitor file system utilization
to reclaim wasted space and facilitate file server availability. Now IT can obtain a holistic view of storage
from an application level with Oracle, SQL, Sybase, InterSystems Cache' and Microsoft Exchange for fast
problem resolution. Centralized event and end-to-end EVA performance management with historical and
future trending brings additional benefits too. With optional software plug-ins you can monitor status of
the entire backup process and you have one interface for SAN and NAS management. The Standard
Edition SRM Software solution simplifies ordering by including media, licensing and recommended HP
Installation and HP Start Up Service to ensure the best total customer experience.
Standard Edition SRM Media and License to Use (LTU)
HP Storage Essentials Standard Edition SRM Media Kit
T5314AA
HP Storage Essentials Standard Edition SRM LTU
T5315AA
Add on Storage Essentials Suite plug-in licensing available to Standard Edition
HP Storage Essentials NAS Manager 1 TB LTU
T4294AA
HP Storage Essentials File System Viewer 1 TB LTU
T4292AA
HP Storage Essentials Database Viewer 1 MAL LTU
T4289AA
HP Storage Essentials Exchange Viewer 1 MAL LTU
T4288AA
HP Storage Essentials Backup Manager 1 TB LTU
T4295AA
NOTES:
1. Refer to the HP Standard Edition SRM Software QuickSpec for product and licensing details.
2. Available on some EVA orders, HP Storage Essentials Standard Edition will automatically appear
on the order.
3. Standard Edition SRM LTU contains bundled licensing comprising of Enterprise Edition 150 MAPs,
and 4 TBs of File System Viewer and NAS Manager, and I MAL for either the Exchange Viewer or
the Database Viewer (customer choice), and can monitor up to 3 EVA with the Performance Pack
software.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 43
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
Optional Hardware Accessories
FC Drives - Upgrade
installation
300 GB 10K rpm dual-port 2 Gb/s FC-AL 1-inch (2.54 cm) drive
HP EVA 450 GB 10K Fibre Channel Add-On HDD
HP EVA 600 GB 10K Fibre Channel Add-On HDD
300 GB 15K rpm dual-port 2/4 Gb/s FC-AL 1-inch (2.54 cm) drive
146 GB 15K rpm dual-port 2/4 Gb/s FC-AL 1-inch (2.54 cm) drive
450 GB 15K rpm dual-port 2/4 Gb/s FC-AL 1-inch (2.54 cm) drive
600 GB 15K rpm dual-port 2/4 Gb/s FC-AL 1-inch (2.54 cm) drive
* HP 600 GB 15K HDD available later in 2009.
NOTE: These drives are for on-site install only. For Factory integration of drives see
Step 5.
HP FATA Drives 1TB FATA disk dual-port 2 Gb FC Hybrid disk drive factory integrated
Upgrade installation
NOTE: These drives are for on-site install only. For Factory integration of drives see
Step 5.
NOTE: XCS V6.2xx supports the 1TB FATA drive. XCS V6.2xx has virtual device
mapping (addressable capacity) limits of 120/120/300TB (EVA4000 &
EVA4100/EVA6000 & EVA6100/EV8000 & EVA8100 respectively) . Calculation of
virtual device capacity includes all created virtual disks plus the mapped capacity of all
snapshot, snapclone and mirrorclones on the array. The potential to reach the limits
vary with the usage of the array. When installing a significant number of the 1TB FATA
drives into an array contact your sales or service representative to discuss your
configuration requirements.
Non-HP Rack installation For racks other than those specifically stated within the EVA4100/6100/8100 product
set, please visit the EVA web page for details on rack and power specifications:
http://www.hp.com/go/eva
364622-B22
AP729A
AP730A
AG425A
364621-B22
AG804A
AP751A*
AG883A
SAN Components
The HP SAN integrates best-in-class storage networking components to deliver a complete connectivity platform for end-to-end
network storage solutions. HP's fabric portfolio includes: HBA's, directors, switches, SAN extenders, NAS heads, iSCSI routers, and
fabric software. HP SAN Infrastructure components deliver the network storage infrastructure for the Adaptive Enterprise.
For details on SAN infrastructure components and storage compatibility information, please visit: http://hp.com/go/san.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 44
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Technical Specifications
EVA6100
Controller Model
Controller Cache
Battery Backup for Cache
Virtual Controller
Software (VCS)
Host Interface
Host Ports per Controller
Drive Interface
RAID Levels
HSV200-B
4 GB per controller pair standard
Yes, up to 96 hours
HP EVA4x00/6x00/8x00 XCS v6.110
Maximum Disks
Supported
JBOD Support
(behind XP)
Fibre Channel Switches &
Directors
O/S Support
112 per Controller Pair
Sustained I/O and MB
Throughput
Redundant Blowers
Environmental Monitoring
Unit
Regulatory approvals
Management Software
Disk Drives, Interface
Disk Drives Enclosure
Operating Temperature
Shipping Temperature
Fibre Channel Switched Fabric
Dual 4Gb/s FC enabled (running at 2 or 4 Gb/s with 2 or 4 Gb/s switches and HBAs)
Two 2Gb/s FC-AL ports per controller in redundant pairs, two paths to each dual ported HDD
Vraid0, Vraid1, Vraid 0+1, Vraid5, Vraid 0+5 & Cross Vraid Snaps
Yes
Optical Switches and Directors: http://h18006.www1.hp.com/storage/saninfrastructure/switches.html
HP-UX
HP OpenVMS
HP Tru64 UNIX
Windows XP Professional
Windows 2000 Server & Advanced Server
Windows 2003 Standard/Enterprise (32/64-bit) and Extended/DataCenter (64-bit)
Sun Solaris
Linux
IBM AIX
VMware
Apple Mac OSX
Citrix Xen Enterprise
NOTE: See Operating System, Cluster and High Availability Compatibility matrix above for Operating
System version detail.
Greater than 154,000 and over 1380 MB/s
Yes
Yes. Monitors Power and Temperature
UL, CSA, TUV, FCC, CE MARK, CTICK, BSMI, VCCI
Command View EVA used with the Storage Management Appliance software v2.1 running on the HP
OpenView Storage Management Appliance (SMA) or with a server in the SAN running Microsoft
Windows.
Dual-port 2/4 Gb/s FC-AL
14 bay switched enclosure
EVA6100
50° to 95° F (10° to 35° C) - Reduce rating by 1° F for each 1000 ft altitude (1.8° C/1,000 m)
-40° to 150° F (-40° to 66° C)
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 45
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Technical Specifications
Humidity
Shipping Humidity
Altitude
Air Quality
10% to 90% non-condensing
5% to 90% non-condensing
Up to 8,000 ft (2,400 m)
Not to exceed 500,000 particles per cubic foot of air at a size of 0.5 micron or larger
Power Data (North America/Europe/Japan) maximum configuration
AC plug type
(quantity 2)
Number of phases
Rated current
Nominal Line Voltage
EVA6100
North America-3 wire NEMA No. L6-30P, 30 Amp (208 to 240V, 50-60Hz 30A)
Europe - 3 wire, 2 pole IEC 309, 30 amp, (220 to 240V 50Hz 32A)
Single
17A @ 200V-240V AC, 60Hz total, 4.25 A per power cord
North America - 208 or 230V
Europe - 230V
Japan - 206V
187 to 256V
North America 60Hz, Europe 50Hz, Japan 50 or 60 Hz
Range Line Voltage
Line Frequency
Enterprise Virtual Array 6100
NOTE: This data represents fully populated
208 Volts
230 Volts
drive shelves with 15K rpm disk drives. Other
2C4D 2C5D 2C6D 2C7D 2C8D 2C4D 2C5D 2C6D 2C7D 2C8D
drive types may vary slightly.
Typical*
Typical
Total System Wattage 1837 2214 2590 2967 3344 1837 2214 2590 2967 3344
6268 7553 8838 10124 11409 6268 7553 8838 10124 11409
Total System
BTU/hour
4.6
5.5
6.5
7.4
8.4
4.3
5.2
6.1
7.0
7.9
Input Current (A) Typical per system
220
250
280
321
363
244
272
311
357
403
In Rush Current (A)
7.8
9.4
11.0
12.6
14.2
7.3
8.8
10.0
11.9
13.3
Failover Mode
Input Current (A) Maximum per system
*NOTE:
NOTE: Typical is described as a system in normal steady state operation. (I.e., both PDUs operating normally, the array
reading/writing to disk drives in a production environment)
Enterprise Virtual Array EVA6100 Product Dimensions, Weight and Clearance
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 46
QuickSpecs
HP 6100 Enterprise Virtual Arrays
Technical Specifications
Physical Dimensions
Height
in/cm
EVA4100/8100 2C2D
78.75 (200.03)
(42U Graphite cab)
78.75 (200.03)
EVA6100/8100 2C6D
(42U Graphite cab)
78.75 (200.03)
EVA8100 2C12D
(42U Graphite cab)
7.0/17.78
EVA4100/6100/8100
Controller Assembly
5.25/13.34
M5314C Drive Enclosure
Width
in/cm
Depth
in/cm
Max Weight
lb/kg
23.7 (60.3)
40.2 (102.2)
537 (244.1)
Req. Front
Clearance
in/cm
30 (76.2)
Req. Rear
Clearance
in/cm
30 (76.2)
23.7 (60.3)
40.2 (102.2)
854 (387.37)
30 (76.2)
23.7 (60.3)
40.2 (102.2)
1290 (586.4)
30 (76.2)
30 (76.2)
17.6/44.70
27.5/69.85
120/54.55
N/A
N/A
19.0/42.26
20/50.8
71/32.21
N/A
N/A
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13463
Worldwide — Version 3 — February 13, 2012
Page 47
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
