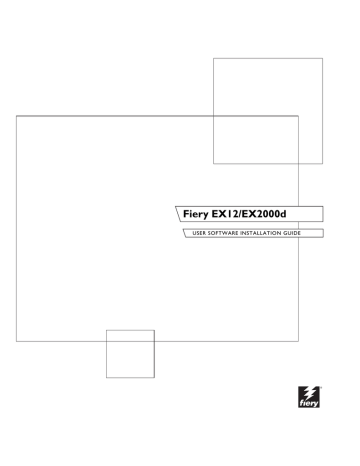

Fiery EX12/EX2000d
USER SOFTWARE INSTALLATION GUIDE
About the
Documentation
This manual is part of a set of Fiery® documentation that includes the following
manuals for users and system administrators:
• The Quick Start Guide summarizes the steps for configuring the Fiery and printing.
It also describes how to access the online documentation.
• The User Software Installation Guide describes how to install software from the
User Software CD to enable users to print to the Fiery, and also describes setting up
printing connections to the Fiery.
• The Configuration Guide explains basic configuration and administration of the
Fiery for the supported platforms and network environments. It also includes
guidelines for setting up UNIX, Windows NT 4.0, and Novell NetWare servers
to provide printing services to users.
• The Printing Guide describes the printing features of the Fiery for users who send
jobs from their computers.
• The Color Guide provides information on managing the color output of the Fiery.
It explains how to calibrate your Fiery and take advantage of the ColorWise®
color management system, as well as features in ColorWise Pro Tools™.
• The Fiery Color Reference addresses concepts and issues associated with managing
color output of the Fiery and outlines key workflow scenarios. In addition, it offers
information on printing color documents from popular Microsoft Windows and
Apple Mac OS applications.
• The Job Management Guide explains the functions of the Fiery client utilities,
including EFI Command WorkStation™ and Fiery DocBuilder Pro™, and how you
can use them to manage jobs and maintain color quality. This manual is intended
for an operator or administrator, or a user with the necessary access privileges, who
needs to monitor and manage job flow, perform color calibration, and troubleshoot
problems that may arise.
• Customer Release Notes provide last-minute product information and workarounds
for some of the problems you may encounter.
Copyright © 2002 Electronics For Imaging, Inc. All rights reserved.
This publication is protected by copyright, and all rights are reserved. No part of it may be reproduced or transmitted in any form or by any means for any purpose
without express prior written consent from Electronics For Imaging, Inc., except as expressly permitted herein. Information in this document is subject to change
without notice and does not represent a commitment on the part of Electronics For Imaging, Inc.
The software described in this publication is furnished under license and may only be used or copied in accordance with the terms of such license.
This product may be covered by one or more of the following U.S. Patents: 4,500,919, 4,837,722, 5,212,546, 5,343,311, 5,424,754, 5,467,446, 5,506,946,
5,517,334, 5,537,516, 5,543,940, 5,553,200, 5,615,314, 5,619,624, 5,625,712, 5,666,436, 5,760,913, 5,818,645, 5,835,788, 5,867,179, 5,959,867,
5,970,174, 5,982,937, 5,995,724, 6,002,795, 6,025,922, 6,041,200, 6,065,041, 6,112,665, 6,122,407, 6,134,018, 6,141,120, 6,166,821, 6,185,335,
6,201,614, 6,215,562, 6,219,659, 6,222,641, 6,224,048, 6,225,974, 6,226,419, 6,238,105, 6,239,895, 6,256,108, 6,269,190, 6,289,122, 6,292,270,
6,310,697, 6,327,047, 6,327,050, 6,327,052, RE36,947, D406,117, D416,550, D417,864, D419,185, D426,206, D439,851, D444,793
Trademarks
ColorWise, EDOX, EFI, Fiery, the Fiery logo, Fiery Driven and RIP-While-Print are registered trademarks of Electronics For Imaging, Inc. in the U.S. Patent
and Trademark Office and/or certain other foreign jurisdictions.
The eBeam logo, the Electronics For Imaging logo, the Fiery Driven logo, the Splash logo, AutoCal, ColorCal, Command WorkStation, DocBuilder, DocBuilder
Pro, DocStream, eBeam, EFI Color Profiler, EFI Production System, EFI ScanBuilder, Fiery X2, Fiery X2e, Fiery X2-W, Fiery X3e, Fiery X4, Fiery ZX, Fiery Z4,
Fiery Z5, Fiery Z9, Fiery Z16, Fiery Z18, Fiery Document WorkStation, Fiery Downloader, Fiery Driver, Fiery FreeForm, Fiery Link, Fiery Prints, Fiery Print
Calibrator, Fiery Production System, Fiery Scan, Fiery ScanBuilder, Fiery Spark, Fiery Spooler, Fiery WebInstaller, Fiery WebScan, Fiery WebSpooler, Fiery
WebStatus, Fiery WebTools, NetWise, RIPChips, Splash, Velocity, Velocity Balance, Velocity Build, Velocity Design, Velocity Estimate, Velocity Scan, and
VisualCal are trademarks of Electronics For Imaging, Inc.
All other terms and product names may be trademarks or registered trademarks of their respective owners, and are hereby acknowledged.
Legal Notices
APPLE COMPUTER, INC. (“APPLE”) MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE APPLE SOFTWARE.
APPLE DOES NOT WARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE
OF THE APPLE SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS, OR OTHERWISE. THE ENTIRE
RISK AS TO THE RESULTS AND PERFORMANCE OF THE APPLE SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED
WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.
IN NO EVENT WILL APPLE, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE TO YOU FOR ANY CONSEQUENTIAL,
INCIDENTAL OR INDIRECT DAMAGES (INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF
BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE APPLE SOFTWARE EVEN IF APPLE
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Apple’s liability to you for actual damages from any cause whatsoever, and regardless of the form of the action (whether in contract, tort [including negligence],
product liability or otherwise), will be limited to $50.
Restricted Rights Legends
For defense agencies: Restricted Rights Legend. Use, reproduction, or disclosure is subject to restrictions set forth in subparagraph (c)(1)(ii) of the Rights in
Technical Data and Computer Software clause at 252.227.7013.
For civilian agencies: Restricted Rights Legend. Use, reproduction, or disclosure is subject to restrictions set forth in subparagraph (a) through (d) of the
commercial Computer Software Restricted Rights clause at 52.227-19 and the limitations set forth in Electronics For Imaging’s standard commercial agreement
for this software. Unpublished rights reserved under the copyright laws of the United States.
Part Number: 45026392
FCC Information
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void
the user’s authority to operate this equipment.
Class B Declaration of Conformity
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded
cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the
approval of manufacturer could void the user’s authority to operate this equipment.
Industry Canada Class B Notice
This Class B digital apparatus complies with Canadian ICES-003.
Avis de Conformation Classe B de l’Industrie Canada
Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.
RFI Compliance Notice
This equipment has been tested concerning compliance with the relevant RFI protection requirements both individually and on system level (to simulate normal
operation conditions). However, it is possible that these RFI Requirements are not met under certain unfavorable conditions in other installations. It is the user
who is responsible for compliance of his particular installation.
Dieses Gerät wurde sowohl einzeln als auch in einer Anlage, die einen normalen Anwendungsfall nachbildet, auf die Einhaltung der Funkentstörbestimmungen
geprüft. Es ist jedoch möglich, dass die Funkentstörbestimmungen unter ungünstigen Umständen bei anderen Gerätekombinationen nicht eingehalten werden.
Für die Einhaltung der Funkentstörbestimmungen einer gesamten Anlage, in der dieses Gerät betrieben wird, ist der Betreiber verantwortlich.
Compliance with applicable regulations depends on the use of shielded cables. It is the user who is responsible for procuring the appropriate cables.
Die Einhaltung zutreffender Bestimmungen hängt davon ab, dass geschirmte Ausführungen benützt werden. Für die Beschaffung richtiger Ausführungen ist der
Betreiber verantwortlich.
Software License Agreement
YOU SHOULD CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS BEFORE USING THIS SOFTWARE. IF YOU DO NOT
AGREE TO THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT USE THE SOFTWARE. INSTALLING OR USING THE
SOFTWARE INDICATES THAT YOU AGREE TO AND ACCEPT THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO ACCEPT
THE TERMS OF THIS AGREEMENT YOU MAY RETURN THE UNUSED SOFTWARE FOR A FULL REFUND TO THE PLACE OF PURCHASE.
License
EFI grants you a non-exclusive license to use the software (“Software”) and accompanying documentation (“Documentation”) included with the Product. The
Software is licensed, not sold. You may use the Software solely for your own customary business or personal purposes. You may not rent, lease, sublicense or lend
the Software. You may, however, permanently transfer all of your rights under this Agreement to another person or legal entity provided that: (1) you transfer to
the person or entity all of the Software and Documentation (including all copies, updates, upgrades, prior versions, component parts, the media and printed
materials, and this Agreement); (2) you retain no copies of the Software and Documentation, including copies stored on a computer; and (3) the recipient agrees
to the terms and conditions of this Agreement.
You may not make or have made, or permit to be made, any copies of the Software or portions thereof, except as necessary for backup or archive purposes in
support of your use of the Software as permitted hereunder. You may not copy the Documentation. You may not attempt to alter, disassemble, decompiler, decrypt
or reverse engineer the Software.
Proprietary Rights
You acknowledge that the Software is proprietary to EFI and its suppliers and that title and other intellectual property rights therein remain with EFI and its
suppliers. Except as stated above, this Agreement does not grant you any right to patents, copyrights, trade secrets, trademarks (whether registered or unregistered),
or any other rights, franchises or licenses in respect of the Software. You may not adopt or use any trademark or trade name which is likely to be similar to or
confusing with that of EFI or any of its suppliers or take any other action which impairs or reduces the trademark rights of EFI or its suppliers.
Confidentiality
You agree to hold the Software in confidence, disclosing the Software only to authorized users having a need to use the Software as permitted by this Agreement
and to take all reasonable precautions to prevent disclosure to other parties.
Remedies and Termination
Unauthorized use, copying or disclosure of the Software, or any breach of this Agreement will result in automatic termination of this license and will make available
to EFI other legal remedies. In the event of termination, you must destroy all copies of the Software and all of its component parts. All provisions of this Agreement
relating to disclaimers of warranties, limitation of liability, remedies, damages, and EFI’s proprietary rights shall survive termination.
Limited Warranty and Disclaimer
EFI warrants to the original purchaser (“Customer”) for thirty (30) days from the date of original purchase from EFI or its authorized retailer that the Software
will perform in substantial conformance to the Documentation when the Product is used as authorized by EFI’s specifications. EFI warrants the media containing
the Software against failure during the above warranty period. EFI makes no warranty or representation that the Software will meet your specific requirements,
that the operation of the Software will be uninterrupted or error free, or that all defects in the Software will be corrected. EFI makes no warranty, implied or
otherwise, regarding the performance or reliability of any third party products (software or hardware) not provided by EFI. THE INSTALLATION OF ANY
THIRD PARTY PRODUCTS OTHER THAN AS AUTHORIZED BY EFI WILL VOID THIS WARRANTY. IN ADDITION, USE, MODIFICATION,
AND/OR REPAIR OF THE PRODUCT OTHER THAN AS AUTHORIZED BY EFI WILL VOID THIS WARRANTY.
EXCEPT FOR THE ABOVE EXPRESS LIMITED WARRANTY, EFI MAKES AND YOU RECEIVE NO WARRANTIES OR CONDITIONS ON THE
SOFTWARE, EXPRESS, IMPLIED, STATUTORY, OR IN ANY OTHER PROVISION OF THIS AGREEMENT OR COMMUNICATION WITH YOU,
AND EFI SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE OR NONINFRINGEMENT OF THIRD PARTY RIGHTS.
Limitation of Liability
TO THE MAXIMUM EXTENT PERMITTED BY LAW, EFI AND ITS SUPPLIERS SHALL NOT BE LIABLE FOR ANY DAMAGES, INCLUDING
LOSS OF DATA, LOST PROFITS, COST OF COVER OR OTHER SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES
ARISING FROM THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE OR FAILURE OF THE SOFTWARE, HOWEVER CAUSED
AND ON ANY THEORY OF LIABILITY. THIS LIMITATION WILL APPLY EVEN IF EFI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. YOU ACKNOWLEDGE THAT THE PRICE OF THE PRODUCT REFLECTS THIS ALLOCATION OF RISK. BECAUSE SOME
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES,
THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
Export Controls
You agree that you will not export or re-export the Software in any form in violation of any applicable laws or regulations of the United States or the country in
which you obtained them.
U.S. Government Restricted Rights:
The Software and Documentation are provided with RESTRICTED RIGHTS. Use, duplication, or disclosure by the United States Government is subject to
restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 or subparagraphs (c)(1)
and (2) of the Commercial Computer Software Restricted Rights at 48 CFR 52.227-19, as applicable.
General
The laws of the State of California govern this Agreement. You agree that this Agreement shall not be subject to the United Nations Convention on Contracts for
the International Sale of Goods (1980). This Agreement is the entire agreement held between us and supersedes any other communications or advertising with
respect to the Software. If any provision of this Agreement is held invalid, the remainder of this Agreement shall continue in full force and effect.
If you have any questions, please see EFI’s web site at www.efi.com.
Electronics For Imaging
303 Velocity Way
Foster City, CA 94404
Contents
About the Documentation
Introduction
About this manual
xi
Specifications
xii
User software
xiv
Fiery WebTools
xvi
System requirements
xvi
Chapter 1: Installing User Software on a Windows Computer
Setting up PostScript printing with Windows 9x/Me
1-1
Installing the PostScript printer driver for Windows 9x/Me
1-2
Configuring installed options
1-4
Configuring installed options manually
1-4
Configuring installed options and updating print options settings automatically
1-6
Completing the Windows 9x/Me printer connection
1-9
Setting up SMB printing with Windows 9x/Me
1-12
Setting up IPP printing with Windows 9x/Me
1-14
Setting up PostScript printing with Windows NT 4.0 or Windows 2000/XP
1-15
Configuring installed options
1-22
Configuring installed options manually
Configuring installed options and updating print options settings automatically
1-22
1-25
Completing the Windows NT 4.0 or Windows 2000/XP printer connection
1-27
Setting up SMB printing on Windows NT 4.0 or Windows 2000/XP
1-34
Setting up IPP printing with Windows 2000/XP
1-36
Installing e-mail service
1-38
Installing Fiery utilities
1-42
Adobe Acrobat
PitStop
1-43
1-44
viii
Contents
Using Fiery utilities for the first time
1-45
Configuring the connection for Command WorkStation
1-47
Configuring the connection for Fiery VDP Resource Manager
1-50
Configuring the connection for Fiery utilities
1-52
Installing color files from the User Software CD
1-54
Installing the ICM profiles on a Windows computer
1-55
Loading the monitor settings file
1-55
Loading the ICM copier device profile
1-57
Installing the printer description files for Windows
1-59
Chapter 2: Installing User Software on a Mac OS Computer
Setting up the Fiery as a PostScript printer
2-1
Setting up the Fiery in the Chooser
2-2
Installing Fiery software and fonts
2-5
Configuring a connection for ColorWise Pro Tools
2-6
Configuring a connection for Fiery Spooler
2-8
Configuring a connection for Fiery Downloader
Configuring the connection for Fiery VDP Resource Manager
Fonts
2-10
2-12
2-14
Installing color files from the User Software CD
2-15
Loading ICC profiles
2-16
Loading the monitor settings file
2-17
Loading the ICC copier profile
2-18
ix
Contents
Chapter 3: Downloading Installers with Fiery WebTools
Setting up Fiery WebTools
3-1
Using the Fiery WebTools Installer
3-2
Chapter 4: Troubleshooting
On a Windows computer
4-1
Setting up printing on Windows NT 4.0 or Windows 2000/XP computers
4-1
Reinstalling the Adobe PostScript Printer Driver on Windows 9x/Me
4-1
Problems with the Fiery utilities on Windows 9x/Me, NT 4.0, or Windows 2000/XP
4-2
On a Mac OS computer
4-2
Setting up the Fiery in the Chooser
4-2
Index
xi
Introduction
This manual describes how to install user software for the Fiery EX12/EX2000d
Color Server™, and how to set up printing from Microsoft Windows and Apple
Mac OS computers. For information about setting up network servers and clients
to use the Fiery EX12/EX2000d Color Server, see the Configuration Guide. For
general information on using the color copier, your computer, your application
software, or your network, see the manuals that accompany those products.
Introduction
N OTE : The term “Fiery” is used to refer to either the Fiery EX12/EX2000d Color
Server. The Fiery EX12 supports the DocuColor 12 copier. The Fiery EX2000d
supports the DocuColor 2000 copier. The name “Aero” is used in illustrations to
represent the Fiery. The term “Windows 9x/Me” is used to represent Windows 95,
Windows 98, and Windows Me.
EX12
This icon specifies information, features, or procedures that apply only to the
Fiery EX12.
EX2000d
This icon specifies information, features, or procedures that apply only to the
Fiery EX2000d.
The Fiery includes support for Fiery WebTools™ and software for Command
WorkStation, which enables an operator to manage all jobs sent to the Fiery.
Although it may not be the case at all sites, the documentation for this product
assumes the presence of an operator who controls and manages jobs sent by users
from remote workstations.
Additional connectivity or administrative features specific to the copier are described
in the accompanying documentation.
About this manual
This manual covers the following topics:
• Installing printer files on Windows and Mac OS computers
• Setting up printing connections on Windows and Mac OS computers
• Installing Fiery utilities/other user software on Windows and Mac OS computers
xii
Introduction
Specifications
EX12
For the Fiery EX12:
• 866MHz CPU
• 256MB RAM
• 40GB hard disk drive
• Supports DocBuilder Pro (available as an option)
• Supports EFI Densitometer™ ED-100 (available as an option)
• Supports Pageflex™ Persona™ Variable Data package (available as an option)
• Supports PrintShop Mail™ Variable Data package (available as an option)
• Fiery WebTools, including WebSetup™ (Windows only), WebDownloader™,
WebSpooler™, WebInstaller™, WebLink™, and WebScan™
• Fiery utilities, including Fiery Remote Scan, Fiery Delete Printer Utility, Fiery VDP
Resource Manager, Fiery Downloader™, and Fiery Spooler™ (Mac OS only)
EX2000d
For the Fiery EX2000d:
• 1GHz Dual Intel Pentium III CPU
• 512MB RAM
• 60GB hard disk drive
• Supports DocBuilder Pro
• Supports EFI Densitometer ED-100
• Supports Pageflex Persona Variable Data package
• Supports PrintShop Mail Variable Data package
• Fiery WebTools, including WebSetup, WebDownloader, WebSpooler, WebInstaller,
and WebLink
• Fiery utilities, including Fiery Printer Delete Utility, Fiery VDP Resource Manager,
Fiery Downloader, and Fiery Spooler (Mac OS only)
• Supports the Fiery Advanced Controller Interface kit, which includes a monitor, a
keyboard, and a mouse
xiii
Specifications
N OTE : Fiery utilities can be installed on the Fiery from the User Software CD if the
Fiery Advanced Controller Interface (FACI) kit is installed. Other applications are not
supported and may cause system problems.
For the Fiery EX12 and Fiery EX2000d:
• An internal CD-ROM drive
• A 250MB ZIP drive for removable media
• Supports AppleTalk, TCP/IP, and IPX/SPX protocols simultaneously
• Supports Port 9100
• Supports twisted pair (Fast Ethernet 100BaseTX or Ethernet 10BaseT)
• Supports Adobe PostScript 3
• Includes 136 fonts (117 Adobe Type 1 PostScript and 19 TrueType)
In addition, two Adobe Multiple Master fonts are included and are used for font
substitution in PDF files.
• Built-in ColorWise color management and NetWise™ networking management
• ColorWise Pro Tools
• Command WorkStation (Windows only) software
• Fiery Graphic Arts Package (available as an option)
• Supports Fiery FreeForm™
• Supports PowerForm™
• Supports Token Ring networking (available as an option)
See your copier representative for details.
• Supports Internet Printing Protocol (IPP) for Windows 98, Windows Me, and
Windows 2000/XP
• Supports E-mail printing
xiv
Introduction
User software
Fiery user software is provided on the User Software CD.
Adobe PostScript
Printer Driver
Enables you to print to the Fiery from
Windows 9x/Me, Windows NT 4.0, and Mac OS
computers; also supports Fiery and PostScript 3 features.
Windows 2000/XP users should use the Microsoft
PostScript Printer Driver provided with those
applications.
PostScript Printer
Description (PPD) file
For use with the PostScript printer driver that allows the
Fiery to appear in the Print and Page Setup dialog boxes
of popular applications. The Fiery PPDs provide
information about the Fiery and your particular copier
model to the application and printer driver you are using.
PostScript Fonts
(Mac OS only)
PostScript screen and printer fonts that correspond to the
136 PostScript printer fonts installed on the Fiery (126
Adobe Type 1 and 10 TrueType). For a complete list of
PostScript fonts installed on the Fiery, see Appendix B of
the Printing Guide.
Fiery Downloader
Enables you to print PostScript files, Encapsulated
PostScript (EPS) files, TIFF files, and Portable Document
Format (PDF) files directly to the Fiery without opening
the application in which they were created. You can also
use it to manage the printer fonts installed on the Fiery.
Fiery Spooler
(Mac OS only)
Enables you to view the order and priority of print jobs,
customize printer settings for jobs, delete jobs, and move
jobs between queues. You can also use it to view job
accounting information.
ColorWise Pro Tools
ICC-open color management and calibration tools;
enables you to edit and download ICC profiles.
Fiery Remote Scan
(Fiery EX12 only)
Plug-in modules for Photoshop that enable you to scan
images from the copier directly into Photoshop.
xv
User software
Fiery VDP Resource
Manager
Allows you to look for and delete global objects used in
variable printing.
Fiery Printer
Delete Utility
Finds Fiery printer drivers installed on your computer
and allows you to delete them.
Command WorkStation
(Windows only)
Enables the operator to control the Fiery functions from
Windows 9x/Me and Windows NT 4.0/2000/XP
computers. To use Command WorkStation, see the Job
Management Guide.
PitStop software
in the CStation folder
(Windows only)
The PitStop Acrobat plug-in is for use with the
Command WorkStation DocBuilder Pro feature. It offers
you enhanced PDF editing and preflighting functions.
Fiery Graphic Arts
Package (available
as an option)
Includes Hot Folders, TIFF-IT converter, Calibrator, and
Custom Halftones Calibration files.
Color management files
ICM (Windows) and ColorSync (Mac OS) color
management files that enable you to maintain consistent
color from your original artwork to the colors displayed
on your monitor and then to the printed output.
Color reference files
Reference pages that you can print to view the range of
colors available on your Fiery. For the most predictable
color results, refer to these pages when defining colors in
applications. For more information on color
management, see the Color Guide.
Calibration files
Includes measurement files and targets that you can use
with ColorWise Pro Tools.
MRJ (Mac OS only)
Mac OS Runtime for Java (MRJ) is required by all Javabased Fiery utilities. If MRJ is not detected when you
install these utilities, the MRJ installer is automatically
launched.
N OTE : You can install PostScript printer drivers and printer description files from
the User Software CD or from the Fiery with the Installer WebTool. For instructions,
see "Using the Fiery WebTools Installer" on page 32.
xvi
Introduction
Fiery WebTools
Fiery WebTools allow you to manage your Fiery remotely from the Internet or from
your company’s intranet. You access Fiery WebTools from the Fiery WebTools home
page.
N OTE : To confirm which WebTools are supported, see "Specifications" on page xii.
WebTool
Summary
For more information
Status
Shows you the jobs currently processing
and printing.
See the Printing Guide.
WebSpooler
Allows you to view, manipulate, reorder,
reprint, and delete jobs currently
spooling, processing, or printing on the
Fiery. It also allows you to view, print,
and delete the Job Log.
See the Job Management
Guide.
WebLink
Provides a link to another web page,
provided you have a valid Internet
connection.
See the Printing Guide and
the Configuration Guide.
Installer
Allows you to download the Fiery Link
installer and Fiery printer file installers
directly from the server.
See Chapter 3.
WebDownloader
Allows you to download PostScript,
EPS, and PDF files to the Fiery.
See the Printing Guide.
WebSetup
(Windows only)
Allows you to modify the Fiery
configuration (Setup) remotely. This
function requires the Administrator
password, if one has been set.
See the Configuration Guide.
WebScan
Allows you to view and print images that
have been scanned to the copier.
See the Printing Guide.
System requirements
System requirements are described in detail in the printed Quick Start Guide provided
in your media pack.
1
1-1
Chapter 1:
Installing
User Software
on a Windows
Computer
Setting up PostScript printing with Windows 9x/Me
This chapter describes the procedures for installing software and setting up printing
from a computer using a supported version of Windows. For Windows versions
supported, see the Quick Start Guide.
The general steps for installing the software are as follows:
• Install the PostScript printer driver and corresponding printer driver files, and set up
the printer driver to communicate with the Fiery.
• Install Fiery utilities.
EX12
EX2000d
For Fiery EX12: Fiery Graphic Arts Package (available as an option), EFI Fiery Mail
Port, Fiery Remote Scan, Fiery Downloader, ColorWise Pro Tools, Fiery Printer
Delete Utility, Fiery VDP Resource Manager, and Command WorkStation
For Fiery EX2000d: Fiery Graphic Arts Package (available as an option), EFI Fiery
Mail Port, Fiery Downloader, ColorWise Pro Tools, Fiery Printer Delete Utility,
Fiery VDP Resource Manager, and Command WorkStation
• Configure the connection for Fiery utilities.
• Install Adobe Acrobat 4.0 and PitStop software on the designated Windows
computer(s).
• Copy additional files from the User Software CD as required.
In addition to using the User Software CD, you can download printer drivers from the
Fiery with the Installer WebTool (if the administrator has enabled Internet access to
the Fiery). For instructions, see “Using the Fiery WebTools Installer” on page 3-2.
Once you download the printer files, the installation process is identical to installing
from the User Software CD.
Setting up PostScript printing with Windows 9x/Me
To set up the Fiery as a PostScript printer, you must install the PostScript printer driver
for Windows 9x/Me and the corresponding printer description files. You must also
configure either a parallel connection for printing directly or a network connection for
printing over the network.
1
1-2
Installing User Software on a Windows Computer
If you are printing using SMB (Server Message Block), you can connect to the Fiery
and install the printer drivers in a single procedure. For more information, see “Setting
up SMB printing with Windows 9x/Me” on page 1-12.
Installing the PostScript printer driver for Windows 9x/Me
The following procedure describes installing the printer driver from the User
Software CD or from the Installer WebTool. Subsequent procedures describe setting
up the print connection.
N OTE : The following procedures use Windows 98 illustrations; Windows 95 and
Windows Me differences are noted.
TO
INSTALL THE
P OST S CRIPT
PRINTER DRIVER FOR
W INDOWS 9 X /M E
1.
Click Start, choose Settings, and then choose Printers.
2.
In the Printers window, double-click the Add Printer icon and click Next.
3.
Specify printing using a Local printer and click Next.
This procedure describes the installation of a local printer. You can modify the
connection later, according to your network type.
4.
In the dialog box displaying lists of manufacturers and printers, click Have Disk.
The Install From Disk dialog box prompts you for the disk.
5.
If you are installing from the CD, type the name of the CD-ROM drive (for example,
D:\), and click Browse. Browse to English\Prntdrvr\Ps_drvr\Win_9x._ME.
If you are installing from the files you downloaded using the Installer WebTool,
browse to prntdrvr\Prntdrvr\Ps_drvr\Win_9x_ME.
6.
Make sure “Oemsetup.inf” is selected and click OK.
The path is copied to the Install From Disk dialog box.
1
1-3
Setting up PostScript printing with Windows 9x/Me
7.
Verify the path is correct and click OK.
8.
In the Printers box, select the Fiery as your printer and click Next.
Fiery EX12
Fiery EX2000d
1
1-4
9.
Installing User Software on a Windows Computer
Select the LPT1 port and click Next.
You will configure the port later, according to your network type.
10.
Enter a name for the Fiery in the Printer Name box.
11.
To make the Fiery the default printer, select Yes; if not, select No. Select OK
(Windows 95) or Next (Windows 98/Me).
12.
Select No to printing the test page and click Next (Windows 95) or Finish
(Windows 98/Me).
The necessary files are installed to your computer.
Configuring installed options
After you have completed the printer driver installation, you must configure the Fiery
for the options installed on the copier. This allows the Fiery to take advantage of the
copier options. You can configure the options manually; or for TCP/IP network
connections, you can use the Two-Way Communication feature to configure the
options automatically.
Configuring installed options manually
TO
CONFIGURE OPTIONS MANUALLY FOR
W INDOWS 9 X /M E
1.
Click Start, choose Settings, and then choose Printers.
2.
Click the Fiery icon and choose Properties from the File menu.
3.
For the Fiery EX12, select the Installable Options tab. For the Fiery EX2000d, select
the Configuration tab.
4.
Select an installed option from the Available Options list.
5.
Click Add to move the option to the Installed Options list.
1
1-5
Configuring installed options
Fiery EX12
Fiery Advanced Controller Interface Kit—Not Installed, Installed
Finisher—Not Installed, Installed
GA Features—Not Installed, Installed
Mailbox—Not Installed, Installed
Tray 6 (HCF)—Not Installed, Installed
1
1-6
Installing User Software on a Windows Computer
Fiery EX2000d
ByPass Tray—Not Installed, Installed
GA Features—Not Installed, Installed
High Capacity Feeder—Not Installed, Installed
High Capacity Stacker—Not Installed, Installed
High Capacity Stacker Stapler—Not Installed, Installed
6.
Click Apply.
Configuring installed options and updating print options
settings automatically
If you have a TCP/IP-enabled network, you can automatically update your printer
driver to reflect the options currently installed on the copier. When the printer driver is
first installed, the installable options have default settings that were set up in Fiery
Setup or ColorWise Pro Tools. When you update the printer driver with the
Two-Way Communication feature, you allow the Fiery to complete the actual setting.
1
1-7
Configuring installed options
The Two-Way Communication feature also updates Expert Color Settings options to
reflect the current color settings on the copier/printer. The Expert Color Settings
option is located in the ColorWise print option bar of the Fiery printing tab of your
printer driver. For more information, see the Color Guide.
TO
CONFIGURE INSTALLED OPTIONS AND UPDATE PRINT OPTIONS
SETTINGS AUTOMATICALLY FOR W INDOWS 9 X /M E
1.
Click Start, choose Settings, and then choose Printers.
2.
In the Printers window, select the icon for the Fiery PostScript printer driver.
3.
Choose Properties from the File menu.
4.
Select the Installable Options tab.
5.
Select Two-Way Communication.
Fiery EX12
1
1-8
Installing User Software on a Windows Computer
Fiery EX2000d
6.
Enter the Fiery IP address or DNS name.
7.
Select the Update Fiery Driver When Opened option to allow the printer driver to
display the printer’s current default settings when you open it.
8.
Click Update, and then click OK.
1
1-9
Completing the Windows 9x/Me printer connection
Completing the Windows 9x/Me printer connection
To print from Windows 9x/Me, you should already have set up network servers, if any,
and set up the Fiery to accept print jobs from your computer.
To complete the Windows 9x/Me connection, you must configure a connection on
each Windows computer for the network.
Completing the Windows 9x/Me IPX/SPX or IPX (Novell) connection
If you are printing through a Novell server, the Novell network and file server should
be set up before you begin. The file server should be configured with a print server and
print connection for the Fiery. For details, see your NetWare documentation and the
Configuration Guide.
To print from Windows 9x/Me computers over IPX (Novell), you must first set up
IPX/SPX protocols, and then configure the Fiery by choosing the IPX frame type and
entering the settings for the port you use.
T O SELECT A FRAME
W INDOWS 9 X /M E
TYPE FOR
IPX/SPX
PRINTING FOR
1.
Click Start, choose Settings, and then choose Control Panel.
2.
Double-click the Network icon.
Make sure that IPX/SPX-compatible Protocol is listed in the Installed Network
Components section.
For instructions, see your Windows 9x/Me documentation or contact Microsoft
Technical Support.
1
1-10
Installing User Software on a Windows Computer
3.
Double-click the IPX/SPX-compatible Protocol icon.
4.
Click the Advanced tab.
5.
Select Frame Type in the Property list.
6.
In the Value menu, select the Frame Type that corresponds to the one set in Fiery
Network Setup.
If necessary, print the Configuration page from the Fiery Control Panel to determine
which Frame Type(s) are configured.
1
1-11
Completing the Windows 9x/Me printer connection
N OTE : Do not select Auto. Doing so may not select the Frame Type specified on
the Fiery.
TO
7.
Click OK and close the Network Control Panel.
8.
When prompted to restart your computer, click Yes.
SET UP A PORT FOR
IPX (N OVELL )
PRINTING WITH
W INDOWS 9 X /M E
1.
Click Start, choose Settings, and then choose Printers.
2.
Click the Fiery printer icon and choose Properties from the File menu.
3.
Click the Details tab and click Add Port.
A list of connection options appears.
4.
In the Add Port dialog box, specify the network path, or click Browse for a display of
your network environment.
5.
If you are using a NetWare file server, double-click the icon for the NetWare file server
to use for printing to the Fiery.
1
1-12
Installing User Software on a Windows Computer
6.
Click the printer icon for the NetWare print queue you want to use, and click OK.
7.
In the Add Port dialog box, verify that the network path is updated and click OK.
Your print jobs are transmitted to the specified print queue on the Novell file server.
The Fiery polls the file server, and if jobs are present, they are transmitted to the Fiery.
8.
To confirm the connection, click the General tab, click Apply, and then click Print
Test Page.
If the test page prints successfully, you are ready to print from the computer.
Setting up SMB printing with Windows 9x/Me
SMB printing (also known as Windows or WINS printing) allows you to install the
PostScript printer driver and printer description files on your computer from the Fiery
using Point and Print, and print to a particular connection (Hold, Print, or Direct). To
set up SMB printing, you must have the TCP/IP protocol and Client for Microsoft
Networks installed.
Each connection (Hold, Print, or Direct) requires a new printer driver and printer
description file. Repeat the procedure “To set up SMB printing on Windows 9x/Me”
on page 1-12. If you install more than one printer, give each a descriptive name during
printer driver installation, such as Aero-Print or Aero-Hold, so you can easily identify
printers.
B EFORE
YOU BEGIN
•
Configure the Fiery for SMB printing in Network Setup > Service Setup >
Windows Setup.
SMB printing is referred to as Windows Printing in Setup, on the Control Panel Map,
and on the Configuration page.
TO
SET UP
SMB
PRINTING ON
W INDOWS 9 X /M E
1.
Double-click the Network Neighborhood icon to display your network environment.
2.
Browse for the printer you want to print to.
Browse for the name entered in Network Setup>Service Setup>Windows
Setup >Server Name. See the Configuration page for this information.
1
1-13
Completing the Windows 9x/Me printer connection
N OTE : You can also locate the printer using the Find feature on your Windows
computer. Click Start, choose Find, and then choose Computer. Enter the name of the
printer, and click Find Now.
If you are not able to locate your Fiery, see your network administrator.
3.
Double-click the name of the printer to display enabled print connections.
4.
Double-click the name of the connection you want to print to.
5.
Select Yes to install the PostScript printer driver and printer description file for
the selected connection.
N OTE : If the Point and Print Drivers option has been selected in Network Setup, the
PostScript printer driver and printer driver files are automatically installed.
The Add Printer Wizard appears.
6.
Specify whether you print from MS-DOS based programs, and then click Next.
If you choose Yes, you must capture a printer port before proceeding with the
installation. For details, see your Windows documentation.
7.
Enter a name for the Fiery in the Printer name box, and choose whether to make it the
default printer. Click Next.
8.
If you want to print a test page, choose Yes and click Finish.
The necessary files are installed to your computer.
If the test page prints successfully, you are ready to print from the computer.
1
1-14
Installing User Software on a Windows Computer
Setting up IPP printing with Windows 9x/Me
With Internet Printing Protocol (IPP), print jobs are sent to the Fiery over
the Internet.
IPP printing is supported on Windows 2000/XP but can be enabled on
Windows 9x/Me computers by installing the “wpnpins.exe” client file (available on the
Windows Me CD or the Windows 2000 Server CD). For more information about
obtaining and installing this client, contact the Microsoft Corporation or Microsoft
Technical Support.
N OTE : The IPP setup procedures are performed after installing the appropriate printer
drivers. See “To install the PostScript printer driver for Windows 9x/Me” on page 1-2.
N OTE : IPP printing is not supported on Windows 95.
B EFORE
YOU BEGIN
1.
Prepare the Fiery for TCP/IP printing.
2.
Make sure the Fiery is configured for IPP printing.
For more information, see the Configuration Guide.
3.
TO
SET UP
Specify the printing destination on your computer.
IPP
PRINTING WITH
W INDOWS 9 X /M E
1.
Click Start, choose Settings, and then choose Printers.
2.
In the Printers windows, right-click the icon for the Fiery PostScript printer driver and
select Properties.
3.
Select the Details tab and click Add Port.
The Add Port dialog box appears.
1
1-15
4.
Setting up PostScript printing with Windows NT 4.0 or Windows 2000/XP
Enter the network path for the printer.
The path for the printer is the IP address or the DNS name, followed by ipp, and then
by the Fiery connection you want to print to (print, hold, or direct). Insert slashes
between the elements, for example, http://10.10.10.150/ipp/print.
5.
Click OK.
Setting up PostScript printing with Windows NT 4.0 or
Windows 2000/XP
To set up the Fiery as a PostScript printer, you must install the PostScript printer driver
for Windows NT 4.0 or Windows 2000/XP and the corresponding printer description
files. You must also configure the print connection between the computer and the
Fiery. If you are printing over a network, you must configure a network connection.
The following procedures describe the installation of a local printer. Adding a printer
to a local system requires that you log in to your local Windows NT 4.0 computer
(not the network server domain) and that you are a member of the Administrators
group. The procedure for adding a network printer is similar to adding a port. See
“Completing the Windows NT 4.0 TCP/IP and LPR connection” on page 1-27.
If you are printing using SMB on Windows NT 4.0, you can connect to the Fiery and
install the printer drivers in a single procedure; see page 1-34.
1
1-16
Installing User Software on a Windows Computer
T O INSTALL THE P OST S CRIPT
W INDOWS NT 4.0
PRINTER DRIVER FOR
1.
If you are installing from the User Software CD, insert it into the CD-ROM drive.
2.
Click Start, choose Settings, and then choose Printers.
3.
Double-click Add Printer.
4.
To install a printer locally, select My Computer and click Next.
My Computer is available if you logged in to a computer on which you have
Administrator privileges. If it is not available, you can add a network printer.
The procedure is similar to adding a port (see page 1-28).
5.
Select LPT1: and click Next.
This is a general installation that works for the parallel port connection. You can add
a network port later, according to your network type.
6.
In the dialog box displaying lists of manufacturers and printers, click Have Disk.
The Install From Disk dialog box prompts you for the disk.
7.
If you are installing from the CD, type the name of the CD-ROM drive (for example,
D:\), and click Browse.
If you are installing from files you downloaded using the Installer WebTool, type the
name of your hard disk drive (for example, C:\), and click Browse.
1
1-17
8.
Setting up PostScript printing with Windows NT 4.0 or Windows 2000/XP
If you are installing from the CD, browse to the English\Prntdrvr\Ps_drvr\Win_NT4x
folder and click Open.
If you are installing from files you downloaded using the Installer WebTool, browse to
the prntdrvr\Prntdrvr\Ps_drvr\Win_NT4x folder and click Open.
Make sure “Oemsetup.inf ” or “Oemsetup” is selected.
The path is copied to the Install From Disk dialog box.
9.
10.
Verify that the path is correct and click OK.
In the Printers box, select the Fiery file and click Next.
Fiery EX12
1
1-18
Installing User Software on a Windows Computer
Fiery EX2000d
11.
Type a name for the Fiery in the Printer name field and indicate whether you want to
make it the default printer. Click Next.
12.
Indicate whether you want the printer installed as a shared printer, and click Next.
If you select Shared, enter a Share Name for the printer and select the operating
systems used by client computers. For information on shared printers, see the
Configuration Guide.
13.
Click No to postpone printing a test page and click Finish.
When installation is complete, the Printers window is displayed with an icon for the
newly installed printer.
TO
INSTALL THE
P OST S CRIPT
PRINTER DRIVER FOR
W INDOWS 2000/XP
N OTE : The procedures for installing PostScript printer drivers on Windows 2000 and
Windows XP are similar. Windows 2000 illustrations are used and differences noted in
the text.
1.
On Windows 2000, click Start, choose Settings, and then choose Printers to display the
Printers window.
On Windows XP, click Start and choose Printer and Faxes.
2.
Double-click the Add Printer icon and click Next.
1
1-19
3.
Setting up PostScript printing with Windows NT 4.0 or Windows 2000/XP
Specify printing using a Local printer and click Next.
This procedure describes the installation of a local printer. You can modify the
connection later, according to your network type.
4.
Select LPT1: and click Next.
5.
In the dialog box displaying lists of manufacturers and printers, click Have Disk.
The Install From Disk dialog box prompts you for the disk.
6.
Type the name of the CD-ROM drive (for example, D:\) and click Browse. Browse to the
English\Prntdrvr\Ps_drvr\Win_2000 or English\Prntdrvr\Ps_drvr\Win_XP folder.
If you are installing from the files you downloaded using the Installer, browse to
prntdrvr\Prntdrvr\Ps_drvr\Win_2000 or prntdrvr\Prntdrvr\Ps_drvr\Win_XP and
click Open.
Make sure “Oemsetup.inf ” or “Oemsetup” is selected and click Open.
1
1-20
7.
Installing User Software on a Windows Computer
Verify the path is correct and click OK.
The path is copied to the Install From Disk dialog box.
8.
In the Printers box, select the Fiery as your printer and click Next.
Fiery EX12
Fiery EX2000d
1
1-21
9.
Setting up PostScript printing with Windows NT 4.0 or Windows 2000/XP
Type a name for the Fiery in the Printer name field.
This name will be used in the Printers and queue windows.
10.
Follow the instructions in the remaining windows.
When asked whether to print a test page, choose No.
The necessary files are installed to your hard disk.
N OTE : The Digital Signature Not Found window indicates that the printer driver for
Windows 2000 does not have a Microsoft digital signature. However, printing to the
Fiery is processed correctly, so click Yes to continue with installation.
1
1-22
11.
Installing User Software on a Windows Computer
If this is the first printer driver you are installing on the computer, you may be
prompted to install files from the Windows 2000 CD. Insert the CD-ROM, browse to the
win2000\english\i386 folder, and then click OK.
When installation is complete, the Printers window appears with an icon for the newly
installed printer. You will now need to configure the options installed on your copier.
Configuring installed options
After you have completed the printer driver installation, you need to tell the Fiery
about the options installed on the copier. This allows the Fiery to take advantage of
the copier options. You can configure the options manually; or for TCP/IP network
connections, you can use the Two-Way Communication feature to configure the
options automatically.
Configuring installed options manually
TO
CONFIGURE INSTALLABLE OPTIONS ON THE F IERY FROM THE P OST S CRIPT
PRINTER DRIVER FOR W INDOWS NT 4.0 OR W INDOWS 2000/XP
N OTE : Configuring installable options for Windows NT 4.0 and Windows 2000/XP
is similar. The following procedure uses Windows NT 4.0 illustrations;
Windows 2000/XP differences are noted.
1.
On Windows 4.0/2000, click Start, choose Settings, and then choose Printers.
On Windows XP, click Start and choose Printers and Faxes.
2.
Click the Fiery icon and choose Properties from the File menu.
1
1-23
3.
Configuring installed options
Click the Device Settings tab and scroll to Installable Options.
Fiery EX12
Fiery EX2000d
1
1-24
Installing User Software on a Windows Computer
4.
Select an Installable Option and choose a setting.
N OTE : Windows 2000/XP systems display installable options as a menu. You must first
select the installable option to activate the menu.
EX12
For the Fiery EX12:
Mailbox—Not Installed, Installed
Tray 6 (HCF)—Not installed, Installed
GA Features—Not Installed, Installed
Finisher—Not Installed, Installed
EX2000d
For the Fiery EX2000d:
ByPass Tray—Not Installed, Installed
GA Features—Not Installed, Installed
High Capacity Feeder—Not installed, Installed
High Capacity Stacker—Not Installed, Installed
High Capacity Stacker Stapler—Not Installed, Installed
5.
Click OK to activate the current settings.
You are ready for the instructions to connect to your network type (see “Completing
the Windows NT 4.0 or Windows 2000/XP printer connection” on page 1-27).
1
1-25
Configuring installed options
Configuring installed options and updating print options
settings automatically
If you have a TCP/IP-enabled network, you can automatically update your printer
driver to reflect the options currently installed on the copier. When the printer driver
is first installed, the installable options have default settings that were set up in
Fiery Setup or ColorWise Pro Tools. When you update the printer driver with the
Two-Way Communication feature, you allow the Fiery to complete the actual setting.
The Two-Way Communication feature also updates Expert Color Settings options to
reflect the current color settings on the copier/printer. The Expert Color Settings
option is located in the ColorWise print option bar of the Fiery printing tab of your
printer driver. For more information, see the Color Guide.
N OTE : Two-way communication is not supported on Windows 2000/XP.
S ETTING U P T WO -W AY C OMMUNICATION FOR P OSTSCRIPT
P RINTER D RIVERS FOR W INDOWS NT 4.0
1.
Click Start, choose Settings, and then choose Printers.
2.
In the Printers window, select the icon for the Fiery PostScript printer driver.
3.
Choose Properties from the File menu.
4.
For the Fiery EX12, click the Installable Options tab. For the Fiery EX2000d, click the
Configuration tab.
1
1-26
5.
Installing User Software on a Windows Computer
Select Two-Way Communication.
Fiery EX12
Fiery EX2000d
6.
Enter the Fiery IP address or DNS name.
1
1-27
Completing the Windows NT 4.0 or Windows 2000/XP printer connection
7.
If you want your printer driver to display the current settings when opened, select the
Update Fiery Driver When Opened option.
8.
Click Update.
9.
Click OK.
Completing the Windows NT 4.0 or Windows 2000/XP
printer connection
To print from Windows NT 4.0 or Windows 2000/XP you must:
• Set up network servers, if any.
• Set up the Fiery to accept print jobs from your computer.
• Configure a port on each Windows NT 4.0 or Windows 2000/XP computer for the
network type.
To do this
See
Configure the TCP/IP (LPR port)
connection
“Completing the Windows NT 4.0 TCP/IP
and LPR connection” on page 1-27
Configure the IPX (Novell) connection
“Completing the Windows NT 4.0 or
Windows 2000/XP IPX (Novell) connection”
on page 1-32
N OTE : The procedures for completing the printer connection for Windows NT 4.0
and Windows 2000/XP are similar. Windows NT 4.0 illustrations are used, with
relevant Windows 2000/XP differences noted.
Completing the Windows NT 4.0 TCP/IP and LPR connection
After you have installed the PostScript printer driver and printer driver files, complete
the setup for the TCP/IP and LPR connection as follows:
• Prepare the Fiery to accept print jobs using TCP/IP and LPR protocols.
For details, see the Configuration Guide.
• Configure the computer for the TCP/IP connection.
1
1-28
Installing User Software on a Windows Computer
Before you continue, contact the system administrator for the IP address assigned to
the Fiery, as well as the subnet mask and the gateway address, if they are used.
The TCP/IP protocol should already be installed on the Windows NT computer.
TO
SET UP
TCP/IP
AND
LPR
PRINTING FOR
W INDOWS NT 4.0
1.
Open the Properties dialog box for the Fiery, and click the Ports tab.
2.
Click Add Port.
The available port types are displayed.
3.
Select LPR Port and click New Port.
If the LPR port is not listed, install the TCP/IP network protocol and
Microsoft TCP/IP printing software. See your Windows documentation.
4.
Enter the IP address of the Fiery.
If your network uses Domain Name Services (DNS), enter the DNS name assigned to
the Fiery instead of the IP address.
1
1-29
5.
Completing the Windows NT 4.0 or Windows 2000/XP printer connection
Press Tab and type one of the following names, depending on the Fiery connection you
want to print to.
print
hold
direct
N OTE : This name is case-sensitive; type it exactly as shown.
6.
Click OK.
The computer checks the address or DNS name you entered and notifies you if it
cannot resolve the address.
7.
Click Close in the Printer Ports dialog box.
The new port configuration is reflected in the Ports tab. You must now close the
Printer Properties dialog box to verify the connection.
8.
Click OK to close the Printer Properties dialog box.
9.
Reopen the Printer Properties dialog box.
10.
Click the General tab and click Print Test Page.
When you print, your PostScript files are transmitted over the LPR Port connection to
the Fiery.
11.
Click OK to close the Printer Properties dialog box.
Completing the Windows 2000/XP TCP/IP and LPR connection
Once you have installed the PostScript and printer driver files, complete the setup
for the TCP/IP and LPR connection as follows:
• Prepare the Fiery to accept print jobs using TCP/IP and LPR protocols.
For details, see the Configuration Guide.
• Enable LPD or Port 9100 from the Fiery Control Panel.
For details, see the Configuration Guide.
• Configure the computer for the TCP/IP connection.
Before you continue, contact the system administrator for the IP address assigned to
the Fiery, as well as the subnet mask and the gateway address, if they are used.
1
1-30
Installing User Software on a Windows Computer
The TCP/IP protocol should already be installed on the Windows 2000/XP
workstation.
N OTE : You can also set up the LPR connection by installing Print Services for UNIX,
which is supplied as an add-on Windows component with your Windows 2000 CD.
For more information, see your Windows documentation.
TO
SET UP
TCP/IP
AND
LPR
PRINTING FOR
W INDOWS 2000/XP
1.
Open the Properties dialog box for the Fiery and click the Ports tab.
2.
Click Add Port.
3.
Select Standard TCP/IP Port for Available port types and click New Port.
4.
Click Next.
The Add Standard TCP/IP Printer Port Wizard dialog box appears.
5.
Enter the IP address of the Fiery.
6.
Click Next.
The device will be detected automatically.
7.
Click Finish to close the Add Standard TCP/IP Printer Port Wizard dialog box, and click
Close in the Printer Ports dialog box.
1
1-31
8.
Completing the Windows NT 4.0 or Windows 2000/XP printer connection
Click Configure Port in the Properties dialog box.
The Configure Standard TCP/IP Port Monitor dialog box appears.
9.
If you have LPD printing enabled at the Fiery Control Panel, select LPR for Protocol
and LPR Byte Counting Enabled under LPR Settings.
N OTE : You can also proceed without selecting LPR Byte Counting Enabled under
LPR settings.
10.
If you have Port 9100 printing enabled at the Fiery Control Panel, select Raw.
The port number 9100 automatically appears under Raw Settings. You can print to the
printer connection selected for Port 9100 printing at the Fiery Control Panel.
11.
Enter the name of the print connection.
For LPR, use print, hold, or direct.
For Port 9100, manually enter the following port numbers for each print connection
under Raw Settings:
direct: 9100 (default) or 9101
print: 9102
hold: 9103
N OTE : Type the number exactly as shown.
12.
Click OK to close the Configure Standard TCP/IP Port Monitor dialog box.
1
1-32
Installing User Software on a Windows Computer
Completing the Windows NT 4.0 or Windows 2000/XP IPX (Novell) connection
Complete the setup for the IPX (Novell) connection as follows:
• Configure the Novell network and file server for handling Fiery print jobs. The file
server should be configured with a print server and print connection for the Fiery.
For details, see your NetWare documentation.
• Prepare the Fiery for IPX printing.
• Set up the IPX connection on the computer.
NetWare protocols (NWLink IPX/SPX Compatible Transport) and NetWare client
services should already be installed on the Windows NT 4.0 or Windows 2000/XP
computer.
T O SET UP IPX (N OVELL )
W INDOWS 2000/XP
PRINTING FOR
W INDOWS NT 4.0
OR
1.
Double-click Network Neighborhood (Windows NT 4.0) or My Network Places
(Windows 2000/XP).
2.
Double-click NetWare or Compatible Network.
A list of NetWare servers appears.
3.
Double-click the NetWare Tree or File Server on which the network administrator
defined a print connection for the Fiery.
You may have to log in to the file server to see the print connections.
4.
Double-click the print connection defined for the Fiery.
1
1-33
Completing the Windows NT 4.0 or Windows 2000/XP printer connection
5.
If the NetWare server does not have a suitable driver for the Fiery, you may be asked
if you want to set up the printer on your computer. Click Yes.
6.
Click OK to install the Fiery PostScript printer driver.
7.
Follow the procedure that starts with step 6 on page 1-16.
When installation is complete, a new printer window appears, with the name of the
print queue on the NetWare server.
8.
Choose Properties from the File menu and click the Ports tab.
Verify that the connection to the NetWare queue is listed and selected as a port for
the Fiery.
9.
10.
Click the General tab and click Print Test Page.
In the printer Job Notes window, enter user and job identification information and
click OK.
The Test Page remains listed in the queue window until it is printed.
The Fiery polls the NetWare server for print jobs in the print connection defined for
the Fiery. When you print, your PostScript files are spooled to that connection and
transmitted over the queue “port” to the Fiery.
1
1-34
Installing User Software on a Windows Computer
Setting up SMB printing on Windows NT 4.0 or Windows 2000/XP
SMB printing (also known as Windows printing) allows you to install the PostScript
printer driver and printer description files, and print from your computer to a
particular print connection (Hold, Print, or Direct) on the Fiery. These instructions
assume you have installed the TCP/IP protocol and Client for Microsoft Networks.
Each connection (Hold, Print, or Direct) requires a new printer driver and printer
description file. To set up printing to a second or third print connection, repeat the
procedure “To set up SMB printing on Windows NT 4.0 or Windows 2000/XP” on
page 1-35. If you install more than one printer, give each a descriptive name during
printer driver installation, such as Aero-Print or Aero-Hold, so you can easily identify
printers.
N OTE : To change printer defaults and configure installable options from Windows
NT 4.0, you must log on as Administrator and use the password specified in Fiery
Setup. If you log on as a User, you can install the printer driver through Point and
Print, but you can not modify printer defaults and configure installable options.
N OTE : With Windows 2000/XP, you cannot install the driver and configure the
printing connection to the Fiery in a single procedure. The printer driver must be
installed from the User Software CD.
B EFORE
YOU BEGIN
•
Configure the Fiery for SMB printing in Network Setup>Service Setup>
Windows Setup.
SMB printing is referred to as Windows Printing in Setup, on the Control Panel Map,
and on the Configuration page. For more information, see the Configuration Guide.
1
1-35
Completing the Windows NT 4.0 or Windows 2000/XP printer connection
T O SET UP SMB PRINTING
W INDOWS 2000/XP
ON
W INDOWS NT 4.0
OR
1.
Double-click Network Neighborhood.
2.
Browse for the printer you want to print to.
The printer name you are browsing for is the name entered in Network Setup>
Service Setup>Windows Setup > Server Name. See the Configuration page for this
information.
The amount of network traffic determines the amount of time required for the
Browse function.
N OTE : You can also locate the printer with the Find feature on your Windows
computer. Click Start, choose Find, and then choose Computer. Enter the name of the
printer, and click Find Now.
If you are not able to locate your Fiery, see your network administrator.
3.
Double-click the name of the Fiery to display enabled print connections.
1
1-36
4.
Installing User Software on a Windows Computer
Double-click the name of the connection you want to print to.
The Printers dialog box appears, asking whether you want to set up the printer.
5.
Select Yes to complete the installation for the selected connection.
Windows NT 4.0 downloads the printer driver and printer description files from the
Fiery to your computer and installation is complete.
Windows 2000 displays a dialog box telling you that the Fiery does not have the
correct printer driver installed and asks if you want to install the driver on your local
computer.
6.
On Windows 2000, select OK, and then follow the procedure for installing printer
drivers on page 1-18, starting with step 5.
Setting up IPP printing with Windows 2000/XP
With Internet Printing Protocol (IPP), print jobs are sent to the Fiery over the
Internet.
IPP printing is supported directly for Windows 2000/XP computers. IPP printing is
not supported on Windows NT 4.0.
N OTE : The IPP setup procedures are performed after installing the appropriate printer
drivers (see “To install the PostScript printer driver for Windows 2000/XP” on
page 1-18).
B EFORE
YOU BEGIN
1.
Prepare the Fiery for TCP/IP printing.
2.
Make sure the Fiery is configured for IPP printing in Network Setup > Service
Setup > IPP Setup.
3.
Specify the printing destination on your computer.
1
1-37
TO
SET UP
Completing the Windows NT 4.0 or Windows 2000/XP printer connection
IPP
PRINTING WITH
W INDOWS 2000/XP
1.
Click Start, choose Settings, and then choose Printers.
2.
Double-click the Add Printer icon and click Next.
3.
Select Network printer and click Next.
4.
Select “Connect to a printer on the Internet or on your intranet.” Enter an IP address
or computer name in the URL window.
The URL for the printer is the IP address, or DNS name, followed by “ipp” and the
connection you want to print to (print, hold, or direct). Insert a slash between the
elements.
5.
Click Next.
The Connect to Printer window appears.
6.
Click OK.
1
1-38
7.
Installing User Software on a Windows Computer
The Add Printer Wizard dialog box appears.
If you are installing the PostScript printer for Windows 2000/XP for the first time,
follow the procedure described on page 1-18.
If you have already installed the printer driver on your computer, choose Xerox for
Manufacturers and Fiery EX12 or EX2000 Color Server for Printers, and then
click OK.
8.
Indicate whether you want to make the Fiery the default printer and click Next.
9.
Click Finish.
Installing e-mail service
The e-mail service provides a method to print and control the Fiery remotely. Jobs are
sent to the Fiery in the form of e-mail attachments. You can set up e-mail printing on
Windows 9x/Me, Windows NT 4.0, or Windows 2000/XP by adding the EFI Fiery
Mail Port software as a printer port.
To set up the Fiery for e-mail printing, see the Configuration Guide. After Setup has
been performed, install the software from the User Software CD onto your Windows
computer, and then add a port.
N OTE : The following procedures are basically the same for all Windows platforms.
The illustrations shown are from Windows NT 4.0.
T O I NSTALL THE E - MAIL PORT M ONITOR ON W INDOWS 9 X /M E ,
W INDOWS NT 4.0, OR W INDOWS 2000/XP
1.
Open the EFI Fiery Mail Port folder on the User Software CD.
2.
Double-click the Setup icon and follow the instructions.
When installation is complete, you are ready to configure the connection for the e-mail
port monitor.
1
1-39
Installing e-mail service
TO CONFIGURE
THE CONNECTION FOR THE
EFI FIERY MAIL
PORT
1.
Click Start, choose Settings, and then choose Printers.
2.
In the Printers window, double-click the Add Printer icon, and click Next.
3.
Specify printing using a Local printer and click Next.
4.
In the window displaying a list of ports, click Add Port.
The Printer Ports dialog box is displayed, with the EFI Fiery Mail port listed as one of
the available ports.
5.
Select EFI Fiery Mail and click New Port.
The Add Port dialog box appears.
1
1-40
6.
Installing User Software on a Windows Computer
Enter the basic information required to set up the e-mail port.
Fiery’s E-mail Address—Enter the e-mail address of the Fiery.
Outgoing Mail Server—Enter the name or IP address of the SMTP server for the port
monitor to use.
7.
Click Advanced.
The E-Mail Port Configuration dialog box appears.
8.
Enter the following information.
For Fiery Server:
E-mail Address—The e-mail address of the Fiery.
Queue—The print connection on the Fiery that you want.
For Outgoing Mail Server (SMTP):
Server Name—The SMTP server to use.
From Address—The “from” address to insert in the e-mail.
1
1-41
Installing e-mail service
For Options:
Break email messages larger than—The maximum size of a single e-mail message
is displayed. If a job exceeds this size, it is split into multiple messages, each not
exceeding this size.
Status messages from Fiery—When enabled, the Status option requests the Fiery to
send status reports of the job via e-mail.
9.
Click OK.
The Add Printer Wizard dialog box appears.
10.
Click Next and follow the instructions for installing the printer driver for your
Windows computer.
1
1-42
Installing User Software on a Windows Computer
Installing Fiery utilities
From the User Software CD, you can install the following Fiery utilities:
• ColorWise Pro Tools
• Fiery Downloader
• Fiery Remote Scan
• Fiery Printer Delete Utility
• Fiery VDP Resource Manager
• Command WorkStation
Includes DocBuilder Pro and PitStop, a plug-in for Adobe Acrobat 4.0.
• Fiery Graphic Arts Package (available as an option)
The utilities must be separately installed on each user’s computer. The installation of
each utility is similar. Before you begin each installation, determine where you want to
install each item on your hard disk. Otherwise, the software is placed by default in
folders inside the Programs folder as described below:
• Command WorkStation, ColorWise Pro Tools, Fiery Graphic Arts Package—
Electronics For Imaging folder
If available, DocBuilder Pro is automatically installed with Command WorkStation.
The Command WorkStation installer also installs the Java files necessary to use Fiery
Setup from Command WorkStation. The Fiery Graphic Arts Package installer places
a shortcut for Hot Folder on your Desktop.
N OTE : ColorWise Profiler is installed from the ColorWise Profiler CD. To access
Profiler from ColorWise Pro Tools, install Profiler before installing ColorWise Pro
Tools.
• Fiery Downloader—Fiery folder
• Fiery VDP Resource Manager—Fiery folder
• Fiery Printer Delete Utility—Fiery folder
• Fiery Remote Scan—Photoshop Plug-ins folder
1
1-43
Installing Fiery utilities
The TWAIN Fiery Remote Scan Module installer automatically creates a folder
named Twain_32 in the Windows folder on your hard disk, and then installs the
Fiery Remote Scan plug-in module into the folder.
N OTE : Before installing the TWAIN Fiery Scan module, make sure the
TWAIN plug-ins (installed with Adobe Photoshop) are located in the correct
Photoshop\Plugins subfolder. If the TWAIN plug-ins have been deleted, you must
reinstall Adobe Photoshop in order to use Fiery Scan.
TO
INSTALL
F IERY
UTILITIES
1.
Open the appropriate folder for the software you want to install.
2.
Double-click the Setup.exe icon.
3.
Follow the instructions in the Setup dialog boxes to complete installation.
Adobe Acrobat
In Command WorkStation, the DocBuilder Pro feature and PitStop software plug-in
work with Adobe Acrobat. To use DocBuilder Pro, you must install Adobe Acrobat
4.0, the PitStop plug-in, and Command WorkStation.
N OTE : If Adobe Acrobat is installed after Command WorkStation, you may be required
to restart Command WorkStation in order to use DocBuilder Pro.
For more information about Adobe Acrobat for Windows, see the Readme.pdf file on
the Adobe Acrobat for DocBuilder Pro CD.
TO
INSTALL
A CROBAT
1.
Insert the Adobe Acrobat for DocBuilder Pro CD in the CD-ROM drive.
2.
Double-click the AutoPlay.exe icon on the CD and follow the instructions.
1
1-44
Installing User Software on a Windows Computer
PitStop
PitStop is a plug-in for Adobe Acrobat 4.0 for use with DocBuilder Pro. You must first
install Adobe Acrobat 4.0 as described in the previous section. PitStop software is
included in the CStation folder on the User Software CD.
T O I NSTALL P IT S TOP
1.
On the User Software CD, double-click to open the CStation folder.
2.
Double-click the PitStop folder, and double click the PitStop setup icon.
The Welcome to Enfocus PitStop Setup dialog box appears,
3.
Click Next and then click Yes to the license agreement.
The Information dialog box appears.
4.
Click Next.
The Choose Destination Location dialog box appears.
PitStop will automatically select the correct location for installation.
5.
Click Next.
Setup is complete.
6.
Click Finish.
For more information, see the PitStop documentation in Adobe Acrobat under
Help\Plug-in Help.
1
1-45
Installing Fiery utilities
Using Fiery utilities for the first time
Before you can use most Fiery utilities, you must properly configure the connection to
the Fiery. Configuration of the Fiery utilities is similar.
Fiery Printer Delete Utility is installed and used locally, so connection to the Fiery is
not required before using the software.
TO
USE
F IERY P RINTER D ELETE U TILITY
1.
Click Start, choose Programs, and then choose EFI.
2.
Click FieryPrinterDeleteUtility.
The Fiery Driver Uninstall Tool dialog box appears.
1
1-46
Installing User Software on a Windows Computer
If any Fiery printer drivers are found on your computer, they are displayed.
3.
To delete any of the displayed printers, select the printer name and click Delete.
A warning message appears.
4.
Click OK to delete the selected printer driver.
A dialog box recommending that you restart your system appears after the printer
driver is deleted.
5.
Click OK to restart, or, to delete another printer driver, click Cancel to return to the
Fiery Driver Uninstall Tool dialog box. Restart when you finish deleting printer drivers.
1
1-47
Installing Fiery utilities
Configuring the connection for Command WorkStation
The first time you start Command WorkStation, you are prompted to configure the
connection to the Fiery.
TO
CONFIGURE THE CONNECTION FOR
1.
C OMMAND W ORK S TATION
Print a Configuration page.
The information on this page helps you locate the Fiery if it is not on the same local
subnet as your computer.
2.
Start Command WorkStation.
The Available Servers dialog box appears. All servers found in the local subnet are
displayed.
1
1-48
Installing User Software on a Windows Computer
3.
If no Fiery servers were found, click the Manual tab to search by DNS name or IP
address. Click Add to add the server to the Available Servers list.
4.
Click the Auto Search tab and then click Advanced to search by either a range of
IP addresses or the IP address and subnet mask.
5.
Click Search.
All available servers appear in the Available Servers list.
1
1-49
6.
Installing Fiery utilities
Select the Fiery server you want to use and click Add.
The selected Fiery server appears in the Login Server dialog box.
7.
Click the server name.
The Log In dialog box appears.
1
1-50
8.
Installing User Software on a Windows Computer
Select Administrator, Operator, or Guest and click Log In.
Your computer is connected to the server.
To modify the connection to the Fiery, you must remove the server from the Login
Server list and follow the procedure for configuring the connection.
Configuring the connection for Fiery VDP Resource Manager
The Fiery VDP Resource Manager allows you to view and delete all global objects used
in variable data printing.
TO
CONFIGURE THE CONNECTION FOR
1.
F IERY VDP R ESOURCE M ANAGER
Click Start, choose Programs, and then click Fiery VDP Resource Manager in the
Electronics For Imaging folder.
All servers you connected to previously are displayed. If no servers are displayed, you
can locate and add them.
2.
Choose Connect from the Server menu.
The Available Servers dialog box appears with all Fiery servers found in the
subnet displayed.
1
1-51
Installing Fiery utilities
3.
Click the Manual tab to locate a Fiery server by its IP address. Enter the IP address and
click Add.
4.
Click the Auto Search tab and then click Advanced to search by either a range of IP
addresses or the IP address and subnet mask.
5.
Click Add and then click Search.
All VDP servers located will be displayed in the Available Servers dialog box.
6.
Select the servers you want and click Add.
The selected servers are displayed in the list of VDP servers in the Fiery Variable Data
Resource Manager dialog box.
1
1-52
Installing User Software on a Windows Computer
Configuring the connection for Fiery utilities
The first time you launch one of the Fiery utilities, you must configure the connection
to the Fiery. Similar configurations are used for all Fiery utilities (including Fiery
Remote Scan), so any change in one configuration affects all the other connections.
B EFORE
YOU BEGIN
•
Print the Configuration page from the Fiery Control Panel.
This page contains information you need when configuring the connection, such as
the IP address. For TCP/IP installations, you can use the DNS name of the Fiery
instead of the IP address. Make sure the Fiery is already registered in a Domain Name
Server (DNS) on your network. For more information, see your Windows system
documentation.
TO
CONFIGURE THE CONNECTION FOR
1.
F IERY
UTILITIES
Start the utility for which you want to configure a connection.
For Fiery Remote Scan, start Photoshop.
For details, see the Printing Guide.
2.
If the No Servers Configured dialog box appears, click OK.
If the Choose Printer Device dialog box appears, click Add.
3.
Enter the appropriate information for the Fiery.
Nickname—Enter a name for the Fiery. This name does not have to match the actual
Server Name of the Fiery.
N OTE : The nickname cannot contain any of the following seven characters:
[ ] _ " ' <space> <tab>
Protocol—Choose the type of network protocol you are using from the menu.
N OTE : Fiery utilities are not supported over IPX/SPX. Command WorkStation is
supported on Windows computers over TCP/IP.
Server Name—Enter the IP address (or DNS name) of the Fiery.
New Device—Enter the name of the device the Fiery is connected to: DC12 or DC2000.
1
1-53
Installing Fiery utilities
4.
When you have entered all the information, click Add.
5.
With the device name selected in the Devices list, click OK.
The Fiery appears in the list of available servers. The first line of the entry displays the
nickname you gave the server, followed by the protocol you chose. The second line
displays the device name.
Device name of the Fiery
6.
With the device name selected in the list of Available Servers, click OK to begin using
the utility.
Modifying the configuration
Edit the configuration whenever there is any change to your Fiery server or network,
such as a server name or IP address. If you change Fiery Setup information, do so
before reconfiguring the connection.
TO
MODIFY THE CONFIGURATION
1.
To edit information for a Fiery in the list of available servers, select the Fiery by its
nickname and click Modify.
2.
Make the necessary changes in the Modify Server Settings dialog box and click OK.
3.
To add a new Fiery to the list of available servers, click Add. Configure the Add New
Server dialog box as outlined in steps 3 through 5 in the previous procedure.
4.
To remove a Fiery, select the Fiery by its nickname and click Remove.
N OTE : The nickname cannot be modified.
1
1-54
Installing User Software on a Windows Computer
Installing color files from the User Software CD
You can copy additional color files from the User Software CD to your hard disk.
Many of the files are PostScript files that you can download and print using
Fiery Downloader.
Icm folder
ICM monitor settings file and a device profile specially designed
for use with the Fiery and particular copier models. For
instructions on installing, see “Installing the ICM profiles on a
Windows computer” on page 1-55.
Clrfiles folder
(inside the
English folder)
Cmyk.ps, an 11-page, letter-size PostScript file to use for
reference when defining CMYK colors in applications.
Pantone.ps, a 19-page, letter-size PostScript file that indicates the
closest equivalent of PANTONE coated colors that the Fiery and
your copier model can produce. The method used to print the
Pantone.ps file differs depending on the Spot Color Matching
setting. For more information, see the Printing Guide and the
Color Guide.
Rgb_01.doc, a file you can print from Microsoft Word 97 or
later to view available RGB colors.
Rgb_02.ppt, a file you can print from PowerPoint 6.0 or later to
view available RGB colors.
Calibrat folder
(inside the
English\Clrfiles
folder)
Four PostScript files of color patches for obtaining
measurements: Custom21.ps, Custom34.ps, Stand21.ps, and
Stand34.ps. The numbers in the file names refer to the number
of patches on the page. The Custom files allow you to download
measurement patches that incorporate the copier’s current
calibration set. The Standard files allow you to download
standard measurement patches that bypass the copier’s current
calibration set. For information on using these files, see the Color
Guide.
N OTE : These files are provided for expert users and should not be
used for day-to-day calibration.
1
1-55
Installing color files from the User Software CD
Installing the ICM profiles on a Windows computer
The ICM profiles included in the Icm folder on the User Software CD are for use
with ColorWise Pro Tools. You can also use the ICM profiles with applications that
support ICC standards, such as Photoshop. For most ICC-aware applications, the files
must be installed in a folder named Color in the System folder. For use with
ColorWise Pro Tools, you can copy the files to a folder of your choice.
You can upload additional ICC profiles with the Profile Manager in ColorWise
ProTools. For more information on uploading and using ICC profiles with ColorWise
Pro Tools, see the Color Guide.
TO
INSTALL THE
ICM
PROFILES ON A
W INDOWS
COMPUTER
1.
On the User Software CD, open the Icm folder.
2.
If you are using Windows 9x/Me, copy the profiles to the Windows\System\Color
folder on your hard disk.
If you are using Windows NT or Windows 2000/XP, copy the profiles to the
Winnt\System32\Color folder on your hard disk.
N OTE : If a folder named “Color” does not exist in the Sytem32 folder, create one and
install the profiles into it.
Loading the monitor settings file
The Efirgb.icm monitor settings file can be used in Photoshop, or other applications
that support ICM profiles, to define a source color space for printing to the Fiery.
These instructions assume you have installed the ICM profiles included on the
User Software CD. For more information, see the previous section.
N OTE : The internal name of an ICC profile may vary slightly from its file name.
N OTE : If you use Fiery Remote Scan, install the monitor settings profile.
1
1-56
TO
LOAD THE
Installing User Software on a Windows Computer
RGB W ORKING S PACE
PROFILE FOR
P HOTOSHOP 5. X
1.
Start Photoshop.
2.
Choose Color Settings from the File menu, and then choose RGB Setup from the Color
Settings submenu.
3.
In the RGB Setup dialog box, click Load.
4.
For Windows 9x/Me, browse to the Windows\System\Color folder, select Efirgb.icm and
click Load.
For Windows NT 4.0 or Windows 2000/XP, browse to the Winnt\System32\Color folder,
select Efirgb.icm, and click Load.
The Efirgb v1f file is displayed in the RGB menu of the RGB Setup dialog box.
5.
Click OK.
For more information about ICM profiles, see your PhotoShop documentation.
1
1-57
Installing color files from the User Software CD
Loading the ICM copier device profile
This ICM profile defines the target color space for printing to the copier.
These instructions assume you have installed the ICM profiles included on the
User Software CD. For more information, see “Installing the ICM profiles on a
Windows computer” on page 1-55.
N OTE : The internal name of an ICC profile may vary slightly from its file name.
TO
LOAD THE
ICM
COPIER DEVICE PROFILE IN
P HOTOSHOP 5. X
1.
Start Photoshop.
2.
Choose Color Settings from the File menu, and then choose CMYK Setup from the Color
Settings submenu.
3.
In the CMYK Setup dialog box, choose ICC as the CMYK color model.
4.
Select the profile that corresponds to the Fiery from the Profile menu.
N OTE : The following illustration shows a sample setting for Fiery EX12.
5.
Click OK.
For more information about ICC profiles, see your PhotoShop documentation.
1
1-58
Installing User Software on a Windows Computer
Loading monitor settings files and ICM device profiles in Photoshop 6.x
Once you have installed the Efirgb.icm monitor settings file and the ICM device
profile for the Fiery, they can be loaded at the same time in Photoshop 6.x.
TO
LOAD THE MONITOR SETTINGS FILE AND
ICM
DEVICE PROFILE IN
P HOTOSHOP 6. X
1.
Start Photoshop.
2.
Choose Color Settings from the Edit menu, and select Advanced Mode in the Color
Settings dialog box.
3.
Choose EFI RGB v1f from the RGB menu.
4.
Choose the profile that corresponds to the Fiery from the CMYK menu.
N OTE : The following illustration shows sample settings for Fiery EX2000d.
5.
Click OK.
1
1-59
Installing color files from the User Software CD
Installing the printer description files for Windows
The User Software CD contains printer description files for popular Windows
applications. Pagemaker 6.5 does not support automatic installation of printer
description files from the Printers Control Panel. To make the Fiery available in the
Print and Page Setup dialog boxes of this application, copy printer description files to
the appropriate location.
TO
COPY THE PRINTER DESCRIPTION FILES
1.
On the User Software CD, open theEnglish\Prntdrvr\Ps_drvr folder. Select the folder
that corresponds to the system you are using.
For Windows 9x/Me, select English\Prntdrvr\Ps_drvr\Win_9x_ME.
For Windows NT 4.0, select English\Prntdrvr\Ps_drvr\Win_NT4x.
For Windows 2000/XP, select English\Prntdrvr\Ps_drvr\Win_2000/XP.
2.
Copy the printer description file for your Fiery to the appropriate location.
If you use
PageMaker 5.0 or later
Copy this file
EF3X1011.ppd
(Fiery EX12)
Efnx4015.ppd
(Fiery EX2000d)
To this location
For PageMaker 5.0,
\ALDUS\USENGLSH\PPD4
For PageMaker 6.0,
\PM6\RSRC\USENGLSH\PPD4
For PageMaker 6.5,
\PM65\RSRC\USENGLSH\PPD4
2
2-1
Setting up the Fiery as a PostScript printer
The general steps for installing the Fiery user software and setting up printing on a
Mac OS computer are:
Chapter 2:
Installing
User Software
on a Mac OS
Computer
• Install the PostScript printer driver and printer description file.
• Set up the Fiery in the Chooser.
• Install the Fiery utilities.
EX12
For Fiery EX12: Fiery Remote Scan, ColorWise Pro Tools, Fiery Downloader, Fiery
VDP Resource Manager, and Fiery Spooler
EX2000d
For Fiery EX2000d: ColorWise Pro Tools, Fiery Downloader, Fiery VDP Resource
Manager, and Fiery Spooler
• Configure the connection for Fiery utilities.
• Install the printer and screen fonts.
• Install the ColorSync profiles.
• Install additional color reference and application-specific files.
In addition to using the User Software CD, you can download printer drivers from the
Fiery with the Installer WebTool (if the site administrator has enabled Internet access
to the Fiery). For instructions, see “Using the Fiery WebTools Installer” on page 3-2.
Once you download the printer files, the installation process is identical to installing
from the User Software CD.
Setting up the Fiery as a PostScript printer
To set up the Fiery as a PostScript printer, you must install the PostScript printer driver
and the printer description file that corresponds to your copier. The PostScript printer
driver and printer description files are provided on the User Software CD. Printer
drivers provide a way to communicate information on print jobs between your
applications, the Fiery, and any other PostScript printer connected to your computer.
When you install printer files from the User Software CD or printer files downloaded
using the Installer WebTool, use the following procedures.
2
2-2
Installing User Software on a Mac OS Computer
TO
INSTALL THE A DOBE PS PRINTER DRIVER AND PRINTER
DESCRIPTION FILE
1.
Quit all open applications.
After you have completed installation, restart your computer.
2.
On the User Software CD, open the English: Printer Driver folder.
If you are installing from files you downloaded using the Installer WebTool, open the
Printer Driver folder on your hard disk.
3.
Double-click the AdobePS Installer icon.
4.
Follow the on-screen instructions.
The AdobePS Installer installs the Adobe PostScript printer driver, and the printer
description file that corresponds to the Fiery.
N OTE : If you operate the Fiery in a copy shop, quick print shop, or service bureau,
provide your customers with copies of the printer driver, printer description file, or
ICC profiles you use for printing images, as well as any relevant documentation. This
ensures that jobs they create and print to files are properly formatted for printing to the
Fiery.
Setting up the Fiery in the Chooser
After you install the Adobe PostScript printer driver and printer description file (see
“Setting up the Fiery as a PostScript printer” on page 2-1), you must set up the Fiery in
the Chooser in order to take full advantage of its features. This section describes how to
set up the Fiery with the AdobePS printer driver.
TO
SET UP THE
1.
F IERY
IN THE
C HOOSER
Select Chooser from the Apple menu.
Make sure AppleTalk is set to Active.
2.
Select the correct AppleTalk Zone, if necessary.
2
2-3
3.
Setting up the Fiery as a PostScript printer
Click the AdobePS icon.
The Fiery appears in the Select a PostScript Printer list in the form of
<server name>_<device name>_<print connection>. The device name (DC12 or
DC2000) is the internal name of your copier.
N OTE : Only the print connections (Direct, Hold, and Print) that have been enabled
in Setup appear in the Chooser.
Device name is
DC12 or DC2000
4.
Select a Fiery connection from the “Select a PostScript Printer” list, and click Create.
The AdobePS printer driver automatically selects the correct printer description file for
your Fiery.
N OTE : You must set up each print connection separately. Repeat this step for all
enabled connections.
5.
Select the icon that appears next to the newly installed Fiery and click Setup.
6.
Click Configure in the dialog box that appears.
2
2-4
7.
Installing User Software on a Mac OS Computer
In the Installable Options dialog box, select the appropriate settings from the menus
and click OK.
Fiery EX12
Mailbox—Not Installed, Installed
Tray 6 (HCF)—Not installed, Installed
Finisher—Not installed, Installed
GA Features—Not Installed, Installed
Fiery EX2000d
High Capacity Feeder—Not installed, Installed
High Capacity Stacker—Not installed, Installed
High Capacity Stacker Stapler—Not Installed, Installed
ByPass Tray—Not installed, Installed
GA Features—Not Installed, Installed
8.
Close the Chooser.
2
2-5
Installing Fiery software and fonts
Installing Fiery software and fonts
The Mac OS installers function essentially the same for each type of software. Before
you begin each installation, determine where you want to install each item on your
hard disk. Otherwise, the software is placed by default as follows:
• ColorSync profiles—ColorSync Profiles folder.
If you are using ColorSync 2.5, install the profiles into the ColorSync Profiles folder
inside the System folder. If you are using an earlier version of ColorSync, install the
profiles to the ColorSync Profiles folder inside the System:Preferences folder. The
printer profile can be moved to a folder of your choice.
• Fiery Downloader, Fiery Spooler, ColorWise Profiler, and ColorWise Pro Tools—
“Fiery f ” folder
N OTE : ColorWise Profiler is installed separately from ColorWise Pro Tools. To access
Profiler from ColorWise Pro Tools, you must install Profiler first.
• Fiery VDP Resource Manager—Electronics For Imaging folder
• Fiery Remote Scan—Photoshop Plug-Ins folder
The installer also creates a folder named TWAIN in your System folder:Preferences
folder, and installs a Fiery Remote Scan module and Source Manager file into
that folder.
• Fonts—System folder:Fonts folder
For instructions on installing Fonts, see “Fonts” on page 2-14.
TO
INSTALL
M AC OS
SOFTWARE
1.
Insert the User Software CD in the CD drive and double-click the Installer icon of the
item you want to install, then follow the instructions in the installer dialog boxes.
2.
If prompted, click Quit to close the software installer.
In order to use ColorWise Pro Tools, Fiery Link, or Fiery Spooler, you must have
Mac OS Runtime for Java (MRJ) installed on your computer.
If you do not have the appropriate MRJ installed, the installer automatically initiates
the MRJ installation process.
3.
To Install MRJ, follow the instructions in the installer dialog boxes.
2
2-6
Installing User Software on a Mac OS Computer
Configuring a connection for ColorWise Pro Tools
The first time you use ColorWise Pro Tools, you are prompted to configure a
connection to the Fiery.
N OTE : ColorWise Pro Tools are supported only over TCP/IP networks.
B EFORE
YOU BEGIN
•
TO
Print the Configuration page from the Control Panel and note the IP address of
the Fiery.
CONFIGURE A CONNECTION FOR
1.
C OLOR W ISE P RO T OOLS
Start the utility by double-clicking its icon.
The Choose Printer Device dialog box appears.
2.
If you have previously configured a connection to the Fiery, you are ready to use
ColorWise Pro Tools. If you have not configured a connection, click Add.
2
2-7
3.
Installing Fiery software and fonts
Enter the appropriate information for the Fiery.
Nickname—Enter a name for the Fiery. It does not have to match the actual server
name of the Fiery.
N OTE : The nickname cannot contain any of the following seven characters:
[ ] _ " ' <space> <tab>
Protocol—TCP/IP is the only supported network protocol, so no selection is necessary.
Server Name—Enter the IP address (or DNS or hosts name) of the Fiery.
New Device—Enter the name of the device the Fiery is connected to: DC12 or DC2000.
This device name appears in the Printer Setup section of the Configuration page.
N OTE : The device name is case sensitive; enter it exactly as it appears here.
4.
When you have added all the information, click Add.
5.
With the device name selected in the Devices list, click OK.
The Fiery appears in the list of available servers. The first line of the entry displays the
nickname you gave the server, followed by the protocol. The second line displays the
device name.
6.
Device name of the Fiery
(DC12 or DC2000)
With the device name selected in the list of Available Servers, click Select to begin
using ColorWise Pro Tools.
2
2-8
Installing User Software on a Mac OS Computer
Modifying the configuration
Edit the configuration whenever there is any change in your original configuration,
such as a change of IP address. Change the specific Fiery Setup information before
using the following procedure to configure the connection.
TO
MODIFY THE CONFIGURATION
1.
To edit information for a Fiery in the list of available servers, select the Fiery by its
nickname and click Modify. Edit information in the Modify Server Settings dialog box
as necessary, and click OK.
2.
To add a new Fiery to the list of available servers, click Add. Configure the Add New
Server dialog box as outlined in steps 3 through 5 in the previous procedure.
3.
To remove a Fiery from the list of available servers, select the Fiery by its nickname
and click Remove.
Configuring a connection for Fiery Spooler
Before you begin, print a Configuration page from the Control Panel and note the
IP address of the Fiery.
TO
CONFIGURE THE CONNECTION FOR
1.
F IERY S POOLER
Start the utility by double-clicking its icon.
The Chooser dialog box appears.
2.
Click Option.
3.
Click Add.
4.
Enter the appropriate information for the Fiery.
Name—Enter the IP address (or DNS name) of the Fiery.
New Device—Enter the name of the device that the Fiery is connected to: DC12 or
DC2000. This device name appears in the Printer Setup section of the Configuration
page.
2
2-9
Installing Fiery software and fonts
5.
When you have entered all the information, click Add.
6.
With the device name selected, click OK.
The Fiery appears in a list of configured servers.
7.
Click OK in the Configure dialog box.
The Fiery appears in a list of available servers.
8.
With the Fiery selected in the list of available servers, click OK to begin using
Fiery Spooler.
2
2-10
Installing User Software on a Mac OS Computer
Modifying the configuration
Edit the configuration whenever there is any change to your Fiery or network, such as
an IP address or device change. Change the specific Fiery Setup information before
configuring the connection.
TO
MODIFY THE CONFIGURATION
1.
In the Chooser dialog box, click Option.
2.
To edit information for a Fiery, select the Fiery by its IP address or DNS name and click
Modify. Edit information in the Settings dialog box as necessary, and click OK.
3.
To add a new Fiery, click Add. Configure the Settings dialog box as outlined in steps 4
through 6 in the previous procedure.
4.
To remove a Fiery, select the Fiery by its IP address or DNS name, and click Remove.
The list of available servers reflects the modifications you have made.
Configuring a connection for Fiery Downloader
When you start Fiery Downloader, you must specify the connection to the Fiery.
B EFORE
YOU BEGIN
•
TO
SPECIFY A
Print the Configuration page from the Control Panel and note the AppleTalk zone of
the Fiery.
F IERY
CONNECTION
1.
Double-click the Fiery Downloader icon.
2.
Select the AppleTalk zone in which the Fiery is located from the AppleTalk Zones list.
The available servers appear in the Servers list.
2
2-11
Installing Fiery software and fonts
3.
Select the Fiery in the Servers list.
4.
Click Connect.
The Fiery Downloader dialog box appears.
For information on how to use Fiery Downloader, see the Printing Guide.
2
2-12
Installing User Software on a Mac OS Computer
Configuring the connection for Fiery VDP Resource Manager
The Fiery VDP Resource Manager allows you to view and delete all global objects used
in variable data printing.
TO
CONFIGURE THE CONNECTION FOR
1.
F IERY VDP R ESOURCE M ANAGER
Click Start, choose Programs, and then click Fiery VDP Resource Manager in the
Electronics For Imaging folder.
All servers you connected to previously are displayed. If no servers are displayed, you
can locate and add them.
2
2-13
2.
Installing Fiery software and fonts
Choose Connect from the Server menu.
The Available Servers dialog box appears with all Fiery servers located in the
subnet displayed.
3.
Click the Manual tab to locate a Fiery server by its IP address. Enter the IP address and
click Add.
2
2-14
Installing User Software on a Mac OS Computer
4.
Click the Auto Search tab and then click Advanced to search by either a range of IP
addresses or the IP address and subnet mask.
5.
Click Add and then click Search.
All VDP servers located appear in the Available Servers dialog box.
6.
Select the servers you want and click Add.
The selected servers appear in the list of VDP servers in the Fiery Variable Data
Resource Manager dialog box.
Fonts
The Fonts installer on the User Software CD includes screen and printer fonts that
correspond to the 136 built-in PostScript printer fonts on the Fiery. The Font installer
copies both kinds of fonts to the System:Fonts folder on your hard disk. To be
available to applications, the screen fonts must remain in the System:Fonts folder. You
can copy the printer fonts to a folder of your choice.
N OTE : In the System:Fonts folder, when displayed by Kind, screen fonts appear as type
“Font Suitcase” and PostScript printer fonts appear as type “PostScript font”.
TO
INSTALL SCREEN AND PRINTER FONTS
1.
On the User Software CD, double-click the Fonts icon to start the Fonts installer.
2.
Click Install.
By default, the fonts are installed to the System folder:Fonts folder on your hard disk.
If you have any applications open, you must quit and restart them before the newly
installed screen fonts are available.
2
2-15
Installing color files from the User Software CD
Installing color files from the User Software CD
You can copy additional color files from the User Software CD to your hard disk.
Many of the files are PostScript files you can download and print using
Fiery Downloader.
The User Software CD contains the following color files:
ColorSync files
(inside the
ColorSync
Folder)
If you are using ColorSync 2.5, install the profiles into the
ColorSync Profiles folder inside the System folder. If you are
using an earlier version of ColorSync, install the profiles to the
ColorSync Profiles folder inside the System:Preferences folder.
The printer profile can be moved to a folder of your choice.
Color Files
folder (inside
the English
folder)
CMYK Color Reference.ps, an 11-page, letter-size PostScript file
to use for reference when defining CMYK colors in applications.
PANTONE Book.ps, a 19-page, letter-size PostScript file that
indicates the closest equivalent of PANTONE coated colors that
the Fiery and your particular copier model can produce. The
method used to print the PANTONE Book.ps file differs
depending on the Spot Color Matching setting. For more
information, see the Printing Guide and the Color Guide.
RGB page 01, a file you can print from Microsoft Word 97 or
later to view available RGB colors.
RGB page 02, a file you can print from PowerPoint 6.0 or later
to view available RGB colors.
Calibration
folder
(inside Color
Files folder)
Four measurements files of color patches: custom21.ps,
custom34.ps, standard21.ps and standard34.ps. The numbers in
the file names refer to the number of patches on the page. The
Custom files are provided to enable you to download
measurement patches that override the copier’s current
calibration set. The Standard files are provided to enable you to
download standard measurement patches that bypass the
copier’s current calibration set. For information on using these
files, see the Color Guide.
These files are provided for expert users and should not be used
for day-to-day calibration.
2
2-16
Installing User Software on a Mac OS Computer
Loading ICC profiles
The ICC profiles installed are for use with ColorWise Pro Tools and applications that
support ICC standards.
These instructions assume that you have already installed the ICC profiles included on
the User Software CD. For more information, see “Installing color files from the
User Software CD” on page 2-15.
N OTE : The internal name of an ICC profile may vary slightly from its file name.
The following procedure describes installing the ICC profiles with ColorSync 4.0.
For more information about ColorSync, see your application’s documentation.
TO
SET THE
C OLOR S YNC
SYSTEM PROFILE
1.
Choose Control Panels:ColorSync from the Apple Menu.
2.
Select EFIRGB ICC v1f from the System Profile list.
When selected as the ColorSync system profile, EFIRGB ICC v1f sets the optimal
source color space for printing to the Fiery. The color space set by the EFIRGB ICC
v1f profile is the same as that set by the EFIRGB setting of the RGB Source Profile
print option.
N OTE : The RGB Source Profile print option setting overrides the ColorSync system
profile setting.
2
2-17
3.
Installing color files from the User Software CD
Close the ColorSync dialog box.
For more information about ICC profiles, see your PhotoShop documentation.
Loading the monitor settings file
The EFIRGB ICC monitor settings file can be used in Photoshop or other applications
that support ICC profiles to define a source color space for printing to the Fiery.
TO
LOAD THE MONITOR SETTINGS FILE IN
P HOTOSHOP 5. X
1.
Start Photoshop.
2.
Choose Color Settings from the File menu, and choose RGB Setup from the Color
Settings submenu.
3.
In the RGB Setup dialog box, click Load.
4.
Browse to the System: Preferences: ColorSync Profiles folder, select the EFIRGB ICC
file, and then click Open.
N OTE : If you are using ColorSync 2.5, the ColorSync profile is located in System
Folder:ColorSync Profiles.
The EFIRGB v1f file appears as the selection.
5.
Click OK.
2
2-18
Installing User Software on a Mac OS Computer
Loading the ICC copier profile
The ICC copier profile enables RGB-to-CMYK conversions that are specific to the
kind of copier you are using.
TO
LOAD THE
ICC
COPIER PROFILE IN
P HOTOSHOP 5. X
1.
Start Photoshop.
2.
Choose Color Settings from the File menu, and choose CMYK Setup from the Color
Settings submenu.
3.
In the CMYK Setup dialog box, choose ICC as the CMYK color model.
4.
Select the profile that corresponds to the Fiery from the Profile menu.
N OTE : The following illustration shows a setting for Fiery EX12.
5.
Click OK.
For more information about ICC profiles, see your PhotoShop documentation.
2
2-19
Installing color files from the User Software CD
Loading the monitor settings file and the ICC device profile in Photoshop 6.x
In Photoshop 6.x, you can load the monitor settings file and the ICC device profile at
the same time.
TO
LOAD THE MONITOR SETTINGS FILE AND THE
PROFILE IN P HOTOSHOP 6. X
ICC
DEVICE
1.
Start Photoshop.
2.
Choose Color Settings from the Edit menu and then choose Advanced Mode.
3.
Choose EFI RGB v1f from the RGB menu.
4.
Select the profile that corresponds to the Fiery from the CMYK menu.
N OTE : The following illustration shows a setting for Fiery EX12.
5.
Click OK.
For more information, see your PhotoShop documentation.
3
3-1
Setting up Fiery WebTools
Fiery WebTools allow you to manage your Fiery remotely from the Internet or from
your company’s intranet. The Fiery has its own home page, from which you can select
a variety of functions, including Status, WebSpooler, WebLink, Installer,
WebDownloader, WebSetup, and WebScan.
Chapter 3:
Downloading
Installers with
Fiery WebTools
For more information on using Fiery WebTools, see the Printing Guide.
Setting up Fiery WebTools
In order for network users to access and use Fiery WebTools, you must set specific
Fiery options in Network Setup and Printer Setup. You also must prepare each user’s
computer to communicate with the Fiery over the Internet or intranet.
For more information about Network Setup and Printer Setup, see the
Configuration Guide.
TO
SET UP CLIENT WORKSTATIONS TO USE
F IERY W EB T OOLS
1.
Enable TCP/IP networking.
2.
Make sure the workstation has a valid, unique IP address.
3.
Make sure a supported Internet browser is installed on the computer.
For more information on supported browsers, see the Quick Start Guide.
4.
Make sure Java is enabled in your Internet browser.
For more information on setting up the Fiery and the network, see the
Configuration Guide.
3
3-2
Downloading Installers with Fiery WebTools
Using the Fiery WebTools Installer
The Installer WebTool allows you to download installers for printer drivers, user
software, and user documentation directly from the Fiery to your computer.
TO
DOWNLOAD PRINTER FILES , USER SOFTWARE , AND USER
DOCUMENTATION WITH THE I NSTALLER W EB T OOL
1.
Start your Internet or intranet browser and enter the DNS name or IP address of
the Fiery.
2.
Select a login level, enter a password if required, and then click OK.
No password is required to log in as Guest. If the Administrator has configured Guest
access, any user has full access to the Installer WebTool while logged in as Guest.
3.
Click Installer.
4.
Under the name of your operating system, click the name of the item you want
to install.
5.
For installation of user software or user documentation, follow the instructions in
the dialog boxes.
3
3-3
6.
Setting up Fiery WebTools
For installation of printer drivers, continue with the following instructions.
A dialog box appears, prompting you to save the file to the location you choose.
For Windows computers, a dialog box appears, offering you the choice of running the
program across the Internet or intranet or saving it to disk.
For Mac OS computers, a folder named Printer Drive is downloaded to the desktop in
a BinHex-encoded, compressed format. If your Internet browser is equipped with an
expander utility, such as StuffIt Expander, the folder will decode and decompress
automatically.
7.
For Windows computers, browse to the location where you want to save the
Prntdrve.exe file and click Save.
For Mac OS computers, if the Printer Driver folder was not automatically decoded and
decompressed, start the utility that will perform that function.
8.
For Windows computers, double-click the Prntdrve.exe file, browse to the location
where you want to install the folder, and click Next.
The folder is installed to the location you specified.
9.
Install the appropriate printer driver for your operating system.
For instructions on installing
the printer driver for
See
Windows 9x/Me
“To install the PostScript printer driver for
Windows 9x/Me” on page 1-2
Windows NT 4.0
“To install the PostScript printer driver for
Windows NT 4.0” on page 1-16
Windows 2000/XP
“To install the PostScript printer driver for
Windows 2000/XP” on page 1-18
Mac OS
“Setting up the Fiery as a PostScript printer” on
page 2-1
4
4-1
Chapter 4:
Troubleshooting
On a Windows computer
This chapter provides troubleshooting tips.
On a Windows computer
Setting up printing on Windows NT 4.0 or Windows 2000/XP
computers
If you have problems installing the Fiery with Windows NT 4.0 or
Windows 2000/XP, try installing another PostScript printer (such as the Apple
LaserWriter IIg), and then install the Fiery. Installing another printer ensures that all
files are properly installed and available. For instructions, see your Windows
documentation.
For additional information about problems you may encounter using the PostScript
Printer Driver for Windows NT 4.0, see the Adobe README file (readmeNT.wri)
included in English\Prntdrvr\Ps_drvr\Win_NT4x on the User Software CD. For
Windows 2000/XP, see your Windows 2000/XP documentation.
Reinstalling the Adobe PostScript Printer Driver on
Windows 9x/Me
If you are reinstalling the Adobe PostScript Printer Driver, delete any previous versions
and related files before installation.
For additional information about problems you may encounter using the Adobe
Printer Driver for Windows 9x/Me, see the Adobe README file (readme9x.wri)
included in English\Prntdrvr\Ps_drvr\Win_9x on the User Software CD.
4
4-2
Troubleshooting
Problems with the Fiery utilities on Windows 9x/Me,
Windows NT 4.0, or Windows 2000/XP
If you are experiencing problems with connections for the Fiery utilities, try the
following:
1.
If you are using Windows 9x/Me, make sure the TCP/IP networking protocol
is enabled.
2.
If you are using Windows NT 4.0 or Windows 2000/XP, make sure the TCP/IP
networking protocol is enabled.
3.
Make sure the connection is configured correctly for your site.
To check the current configuration, start a Fiery utility and choose Open from the File
menu. Select the Fiery and click Modify to see current settings. If the settings are
incorrect, you can change them in this dialog box.
On a Mac OS computer
Setting up the Fiery in the Chooser
If Auto-setup does not work and you are prompted to select the printer description file,
select the appropriate Fiery file in your System:Extensions:Printer Descriptions folder,
either “Fiery EX12 Color Server PS 2.0” or “Fiery DocuColor 2000d v2.0.”
Installing screen fonts
If you experience problems installing the PostScript screen fonts from the User
Software CD to the System folder:Fonts folder, try the following:
1.
Quit all applications and close all windows.
2.
Create a new folder and name it “Uninstalled Fonts.”
This folder must be located outside of the System folder.
3.
Move fonts you are not using from the System folder:Fonts folder to the Uninstalled
Fonts folder.
4
4-3
On a Mac OS computer
4.
Install the fonts from the User Software CD to a folder called CD fonts. Copy the fonts
to the System folder:Fonts folder.
5.
Create aliases to the System folder:Fonts folder and the Uninstalled Fonts folder.
6.
Place both aliases on your desktop.
7.
When necessary, use the aliases to open both folders and move fonts between them.
If you have any applications running, you must quit and restart them in order to view
and use the newly installed fonts.
Alternatively, you can try combining fonts from multiple suitcases into a single
suitcase.
Index
A
Adobe Acrobat 1-43
installation 1-43
Adobe Acrobat for DocBuilder Pro CD 1-43
Adobe PageMaker for Windows see
PageMaker for Windows
Adobe PostScript 3 fonts xiii
Adobe PostScript printer driver, see PostScript
printer driver
Advanced Controller Interface kit xii
AppleTalk
connecting to Mac OS 2-2
C
cable, color server xiii
Calibrat folder, for Windows users 1-54
Calibration folder, for Macintosh users 2-15
Chooser
selecting the server in 2-2
setting up color server in 4-2
Clrfiles folder 1-54
CMYK Color Reference.ps 2-15
Cmyk_ref.ps 1-54
Color Files folder 2-15
Color Files folder, for Macintosh users 2-15
color management files xiii, xv
color reference files xv, 2-15
for Macintosh users 2-15
for Windows users 1-54
color server, specifications xii, xiii
ColorSync and ICM color management
files xv
ColorSync Profiles 2-5
ColorWise color management files xiii
ColorWise Pro Tools 1-42
configuring the connection to the Fiery
(Mac OS) 2-6
(Windows) 1-45
installing for Mac OS 2-5
installing for Windows 1-42
Command WorkStation xi
configuring the connection 1-47
installing for Windows 1-42
Configuration page 1-12, 1-35, 1-52
connecting
Windows 2000/XP with TCP/IP 1-29
Windows NT 4.0 with TCP/IP 1-27
connection on Windows, configuring 1-52
to 1-53
Custom21.ps (Mac OS) 2-15
Custom21.ps (Windows) 1-54
Custom34.ps (Mac OS) 2-15
Custom34.ps (Windows) 1-54
D
device name 1-53, 2-7, 2-8
Windows 2000/XP with TCP/IP 1-29
Windows NT 4.0 with TCP/IP 1-29
DNS name 1-28, 1-52, 2-8
DocBuilder Pro xii
Domain Name Server, see DNS
E
Efirgb.icc monitor settings file for
Mac OS 2-16
Efirgb.icm monitor settings file for
Windows 1-55
E-mail printing, installing 1-38
EPS files xiv
Ethernet 100BaseTX cable xiii
Ethernet, SNAP frame type xiii
F
Fast Ethernet 100BaseTX cable xiii
Fast Ethernet 10BaseT cable xiii
I-2
Index
Fiery Downloader 1-42
EPS files xiv
installing for Mac OS 2-5
installing for Windows 1-42
overview xiv
PDF files xiv
Fiery Scan
installer for Mac OS 2-5
installing (Mac OS) 2-5
Fiery Spooler xiv
configuring the connection on
Mac OS 2-8 to 2-9
modifying the configuration
(Mac OS) 2-10
overview xiv
Fiery TWAIN module
(Mac OS) 2-5
Fiery utilities
configuring the connection on
Windows 1-52 to 1-53
installing for Mac OS 2-5
installing for Windows 1-42
problems on Windows 9x/Me,
Windows NT, or Windows 2000/
XP 4-2
Fiery WebSpooler
overview xvi
Fiery WebTools
Installer xvi
Installer WebTool xv, 3-2 to 3-3
setting up 3-1
Status xvi
WebDownloader xvi
WebLink xvi
WebScan xvi
WebSetup xvi
WebSpooler xvi
fonts
Adobe PostScript 3 xiii
installer for Mac OS 2-14
installing 2-14, 4-2
Multiple Master xiii
printer fonts 2-14
screen fonts 2-14
substituting in PDF files xiii
TrueType xiii, xiv
Fonts folder 4-3
Frame Type option 1-10
I
ICC device profile 2-18
loading in Photoshop 4.0
(Mac OS) 2-18
ICC device profile, loading in Photoshop 6.x
(Mac OS) 2-19
ICC monitor settings profile, specifying in
Photoshop (Mac OS) 2-17
ICM and ColorSync color management
files xv
Icm folder (Windows) 1-54
Installable Options
specifying, from Mac OS printer
driver 2-4
specifying, from Windows 9x/Me printer
driver 1-4
specifying, from Windows NT printer
driver 1-23
Installer WebTool, see Fiery WebTools
installers
Mac OS 2-5
Windows 1-42
installing
Adobe PostScript printer,
Windows 2000/XP 1-18 to 1-24
Adobe PostScript printer, Windows 9x/
Me 1-2
Adobe PostScript printer,
Windows NT 4.0 1-16 to 1-18
Command WorkStation 1-42
Fiery Scan Plug-in (Mac OS) 2-5
Mac OS software 2-5
PostScript printer driver for Mac OS 2-2
I-3
Index
screen and printer fonts 2-14
software for Mac OS 2-5
software for Windows 1-42
TWAIN module (Mac OS) 2-5
internal name, for Windows NT 4.0 with
TCP/IP 1-29
IP address 1-53
IPP printing setup
on Windows 2000/XP 1-36 to 1-38
on Windows 98 1-14 to 1-15
on Windows Me 1-14 to 1-15
IPX
printing for Windows 2000/XP 1-33
printing for Windows NT 4.0 1-32 to
1-33
Windows NT 4.0 1-32
IPX/SPX
Windows NT 1-32
J
Java 1-42, 3-1
M
Mac OS
copying color files 2-15
fonts 2-14
Installer WebTool 2-1
installing Fiery utilities 2-1, 2-5
installing software 2-5
troubleshooting 4-2
monitor settings file, Mac OS 2-17
N
NetWare client setup
Windows 9x/Me 1-32
Windows NT 1-32
NetWare, network port with Windows 9x/
Me 1-11
O
Oemsetup.inf file 1-2, 1-17, 1-19
P
PageMaker for Windows 1-59
PANTONE Book.ps 2-15
PANTONE.ps 1-54
PDF files xiii, xiv
Photoshop 5.0
loading the ICC device settings profile
(Mac OS) 2-18
loading the ICC monitor settings file
(Mac OS) 2-17
loading the ICM device profile
(Windows) 1-57
loading the RGB working space profile
(Windows) 1-56
Photoshop 6.x
loading the ICC device settings profile
(Mac OS) 2-19
loading the ICC monitor settings file
(Mac OS) 2-19
loading the ICM device profile
(Windows) 1-58
loading the ICM monitor settings file
(Windows) 1-58
PostScript
printing with Windows 1-1, 1-15
screen fonts xiv
PostScript Level 3 xiii
PostScript printer
setting up color server as 2-1 to 2-14
PostScript Printer Description file, see PPD
PostScript printer driver
for Mac OS 2-2
installing using WebTools 3-2 to 3-3
Windows 2000/XP 1-18 to 1-24
Windows 9x/Me
PostScript printer driver 1-2
Windows NT 4.0 1-16 to 1-18
PostScript printing
Windows 9x/Me 1-1
PowerPoint, RGB color reference file 2-15
I-4
Index
PPD
copying files for Windows
applications 1-59
overview xiv
selecting the PPD in the Chooser 4-2
Windows 9x/Me 1-3
Windows 2000/XP 1-20
Windows NT 4.0 1-17
Printer Driver, installable options
Windows 9x/Me 1-4
printer drivers, seePostScript printer drivers
printing
Windows 2000/XP 1-27
Windows NT 4.0 1-27
see also PostScript printing
Prntdrve.exe file 3-3
R
RGB page 01 2-15
RGB page 02 2-15
Rgb_01.doc 1-54
Rgb_02.ppt 1-54
S
screen fonts 2-14, 4-2
SMB printing setup
on Windows 95/98/Me 1-12 to 1-13
on Windows NT 4.0 1-34 to 1-36
on Windows 2000 1-34 to 1-36
specifications, color server xii, xiii
Spooler, see Fiery Spooler
Stand21.ps (Mac OS) 2-15
Stand21.ps (Windows) 1-54
Stand34.ps (Mac OS) 2-15
Stand34.ps (Windows) 1-54
Status WebTool, see Fiery WebTools
T
thinnet cable xiii
Token Ring networking, option xiii
Token Ring, option xiii
troubleshooting
Mac OS computers 4-2
Windows computers 4-1
U
Uninstalled Fonts folder 4-2
unshielded twisted pair (UTP) cable xiii
User Software CD
contents (Mac OS) 2-1
contents (Windows) 1-42
installing from, for Mac OS 2-2, 2-15
troubleshooting fonts 4-2
W
WebDownloader WebTool, see Fiery
WebTools
WebScan xvi
WebSetup WebTool, see Fiery WebTools
Windows
copying color files 1-54
installing Fiery utilities 1-42
troubleshooting 4-1
Windows 9x/Me
setting up PostScript printing 1-1
SMB printing 1-12 to 1-13
troubleshooting 4-1
Windows 2000/XP
IPX 1-33
PostScript printer driver 1-18 to 1-24
printing requirements 1-27
troubleshooting 4-1
Windows NT 4.0
IPX 1-32 to 1-33
IPX/SPX 1-32
PostScript printer driver 1-16 to 1-18
printing requirements 1-27
setting up PostScript printing 1-15
troubleshooting 4-1
WINS Name Server 1-12, 1-35
Word, RGB color reference file 2-15
