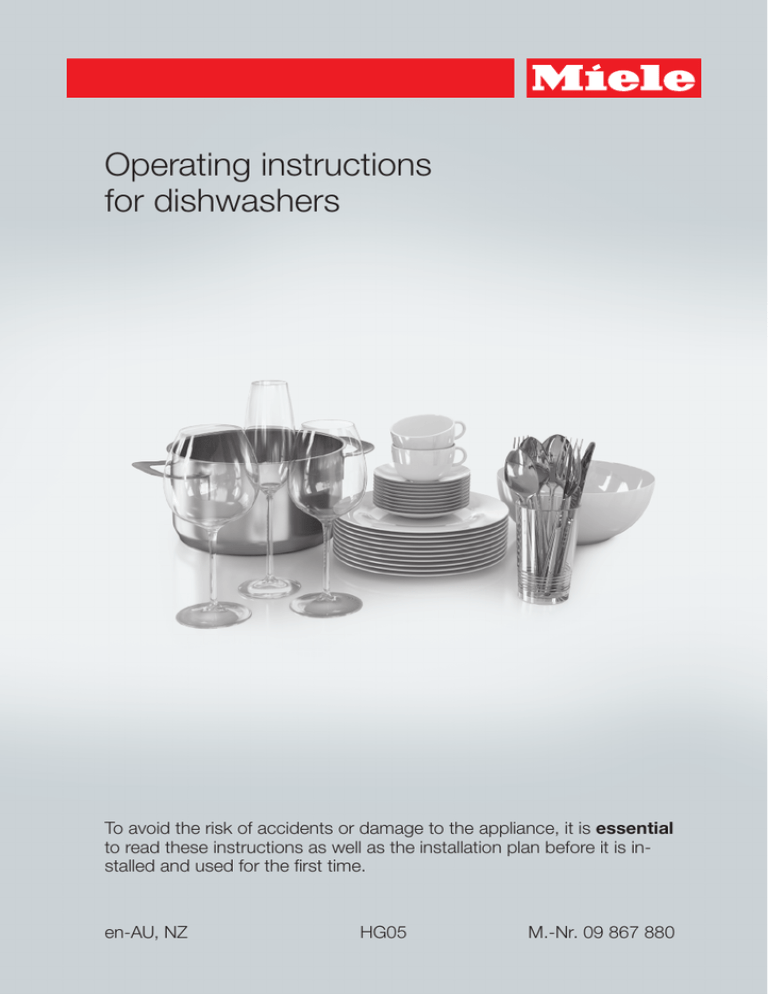

Operating instructions for dishwashers

Operating instructions for dishwashers
Operating instructions
for dishwashers
To avoid the risk of accidents or damage to the appliance, it is essential
to read these instructions as well as the installation plan before it is in‐
stalled and used for the first time.
en-AU, NZ
HG05
M.-Nr. 09 867 880
2
Contents
Guide to the appliance........................................................................................... 6
Guide to the appliance............................................................................................. 6
Control panel............................................................................................................ 7
Display ..................................................................................................................... 8
Warning and Safety instructions .......................................................................... 9
Caring for the environment ................................................................................. 18
Disposal of the packing material............................................................................ 18
Disposing of your old appliance ............................................................................ 18
Energy-saving dishwashing ................................................................................... 19
EcoFeedback consumption indicator .................................................................... 20
Before using for the first time............................................................................. 21
Opening the door ................................................................................................... 21
Closing the door .................................................................................................... 22
Safety lock ............................................................................................................. 22
Basic settings......................................................................................................... 23
Before using the appliance for the first time, you require: ..................................... 25
Dishwasher salt...................................................................................................... 25
Filling the salt reservoir ..................................................................................... 26
Add salt reminder.............................................................................................. 27
Rinse aid ................................................................................................................ 28
Adding rinse aid ................................................................................................ 28
Add rinse aid reminder...................................................................................... 29
Loading the dishwasher ...................................................................................... 30
Notes...................................................................................................................... 30
Upper basket ......................................................................................................... 32
Adjusting the upper basket............................................................................... 34
Lower basket ......................................................................................................... 35
Cutlery.................................................................................................................... 38
3D cutlery tray (depending on model)............................................................... 38
Loading examples.................................................................................................. 39
Dishwashers with cutlery tray ........................................................................... 39
Comparison tests................................................................................................. 41
Capacity ................................................................................................................. 42
Capacity ................................................................................................................. 45
Operation .............................................................................................................. 47
Detergent ............................................................................................................... 47
Adding detergent .............................................................................................. 49
Switching on .......................................................................................................... 50
3
Contents
Selecting a programme.......................................................................................... 50
Starting the programme ......................................................................................... 51
Display ................................................................................................................... 51
Energy management .............................................................................................. 52
At the end of the programme................................................................................. 52
Switching off .......................................................................................................... 53
Unloading the dishwasher ..................................................................................... 53
Interrupting a programme ...................................................................................... 54
Changing a programme ......................................................................................... 54
Programme options ............................................................................................. 55
Extras ..................................................................................................................... 55
DetergentAgent ...................................................................................................... 56
Delay start with EcoStart ....................................................................................... 57
Programme chart ................................................................................................. 60
Further programmes ............................................................................................. 64
Cleaning and care ................................................................................................ 65
Cleaning the wash cabinet..................................................................................... 65
Cleaning the door and the door seal ..................................................................... 65
Cleaning the door front .......................................................................................... 66
Checking the filters in the wash cabinet ................................................................ 67
Cleaning the filters ................................................................................................. 67
Cleaning the spray arms ........................................................................................ 69
Problem solving guide ......................................................................................... 70
Technical problems ................................................................................................ 70
Water inlet fault ...................................................................................................... 72
Water drainage fault............................................................................................... 73
General problems................................................................................................... 74
Noises .................................................................................................................... 76
Unsatisfactory washing result................................................................................ 77
Maintenance ......................................................................................................... 80
Cleaning the water inlet filter ................................................................................. 80
Cleaning the drain pump and non-return valve ..................................................... 81
After sales service ............................................................................................... 82
Repairs ................................................................................................................... 82
Warranty................................................................................................................. 82
Optional accessories ........................................................................................... 83
Electrical connection ........................................................................................... 85
4
Contents
Water connection................................................................................................. 86
The Miele Waterproof system ................................................................................ 86
Connection to the water supply............................................................................. 86
Drainage................................................................................................................. 88
Technical data ...................................................................................................... 89
Settings menu ...................................................................................................... 90
Opening the Settings menu ................................................................................... 90
Language ............................................................................................................ 90
Time of day ............................................................................................................ 91
Date........................................................................................................................ 91
Water hardness ...................................................................................................... 92
Rinse aid ................................................................................................................ 93
Consumption (EcoFeedback)................................................................................. 93
Sensor wash .......................................................................................................... 94
AutoOpen............................................................................................................... 94
BrilliantLight ........................................................................................................... 94
Check filters ........................................................................................................... 95
Change main menu................................................................................................ 95
Save extras ............................................................................................................ 95
System lock ........................................................................................................... 96
Temperature ........................................................................................................... 96
Brightness .............................................................................................................. 96
Volume ................................................................................................................... 97
Memory .................................................................................................................. 98
Version info ............................................................................................................ 98
EcoStart ................................................................................................................. 99
Showroom programme ........................................................................................ 101
Factory default settings........................................................................................ 101
Closing the Settings menu................................................................................... 101
5
Guide to the appliance
Guide to the appliance
a Upper spray arm (not visible)
g Filter combination
b Cutlery tray (depending on model)
h Data plate
c Upper basket
i Rinse aid reservoir
d Middle spray arm
j Dual compartment detergent dis‐
penser
e Air inlet for drying (depending on
model)
f Lower spray arm
6
k Salt reservoir
Guide to the appliance
Control panel
a On/Off sensor 
d Display
See "Display" for further information.
For switching the dishwasher on and
off.
e Back sensor 
b Information sensor 
For navigating back to the previous
menu or deleting values which have
For displaying additional information
been set previously.
about the option in the display.
f Start sensor
c Sensor controls
For starting the selected programme.
For selecting the option marked with
a dash listed next to the sensor.
For altering values displayed.
For navigating to other menu
screens.
The sensor controls light up when
active.
These operating instructions apply to several different dishwasher models with
different heights.
The specific dishwasher models are referred to as follows:
Standard = 80.5 cm high dishwashers (integrated)
and 84.5 cm high dishwashers (freestanding)
XXL = 84.5 cm high dishwashers (integrated)
7
Guide to the appliance
Display
General
The display is used to select or set the
following:
– the programme
– any Extras
– the Delay start function
– the Settings  menu
– information
The display can show the following:
– the programme name
– the stage the programme is at
– the current time of day and the date
– the estimated time left for the pro‐
gramme to run
– the energy and water consumption
(EcoFeedback)
– any relevant fault messages and in‐
formation
To save energy, the dishwasher
switches off after a few minutes if you
do not press any sensors during this
time.
To switch the dishwasher back on
again, press the  sensor.
8
A dash  in the display next to a sensor
indicates that a function can be selec‐
ted with that sensor. The relevant sen‐
sor lights up.
The scroll bar  on the right of the dis‐
play indicates that more options or
more text are available which can be
displayed by touching the relevant illu‐
minated sensor.
A dotted line will appear under the last
option available.
Touch the sensor next to OK to confirm
a message or setting and also to move
to the next menu or another menu level.
A tick  will appear beside the option
which is currently selected.
To exit a sub-menu, touch the  sen‐
sor.
If you do not press any of the sensors
for several seconds, the display will re‐
turn to the previous menu level. You
may need to enter your settings again.
The Settings  menu is used to alter
the dishwasher's electronics to suit
different requirements (see "Settings
menu").
Warning and Safety instructions
This dishwasher complies with current safety requirements. Inap‐
propriate use can, however, lead to personal injury and damage to
property.
To avoid the risk of accidents and damage to the dishwasher,
please read the installation plan and the operating instructions
carefully before it is installed and used for the first time. They con‐
tain important information on its installation, safety, use and main‐
tenance.
Keep the installation plan and the operating instructions in a safe
place and pass them on to any future owner.
Miele cannot be held liable for damage caused by non-compli‐
ance with this information.
9
Warning and Safety instructions
Correct application
 This appliance is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
 This dishwasher is not suitable for outdoor use.
 It must only be used as specified in these operating instructions
for cleaning domestic crockery and cutlery. Any other usage is not
supported by the manufacturer and could be dangerous.
 This appliance is not intended for use by persons (including chil‐
dren) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given supervi‐
sion or instruction concerning its use by a person responsible for
their safety, and are able to recognise the dangers of misuse.
10
Warning and Safety instructions
Safety with children
 Young children must not be allowed to use this appliance.
 Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely, rec‐
ognising the dangers of misuse.
 Cleaning work may only be carried out by older children under the
supervision of an adult.
 Children should be supervised to ensure that they do not play
with the appliance. Keep small children away from the appliance at
all times to avoid the risk of injury. There is the risk that children may
lock themselves in the dishwasher.
 Danger of suffocation! Children may be able to wrap themselves
in packing material or pull it over their heads with the risk of suffoca‐
tion. Keep children away from any packing material.
 Keep detergent and other household agents out of the reach of
children at all times. Dishwasher detergents contain irritants and
corrosive ingredients which can cause burning in the mouth, nose
and throat if swallowed, or inhibit breathing. Keep children away
from the dishwasher when the door is open. There could still be de‐
tergent residues in the cabinet. Seek medical advice immediately if
your child has swallowed or inhaled detergent, e.g. Poisons Informa‐
tion Centre (Australia) or National Poisons Centre (NZ).
11
Warning and Safety instructions
Technical safety
 Repairs and other work by unqualified persons could be danger‐
ous. Installation, maintenance work and repairs to electrical applian‐
ces must only be carried out by a Miele approved service technician.
 Before installation, check the dishwasher for visible signs of dam‐
age. Under no circumstances should you use a damaged dishwash‐
er. A damaged dishwasher could be dangerous.
 The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and regularly tested and, where there is any doubt, the elec‐
trical system in the house should be checked by a qualified electri‐
cian.
Miele cannot be held liable for the consequences of an inadequate
earthing system (e.g. electric shock).
 The dishwasher must only be plugged into the electricity supply
via a suitable switched socket. The electrical socket must be easily
accessible after the dishwasher is installed so that it can be discon‐
nected from the electricity supply at any time.
 There must be no electrical sockets behind the dishwasher. Dan‐
ger of overheating and fire risk if the dishwasher were to be pushed
up against a plug.
 The dishwasher must not be installed under a cooktop. The high
radiant temperatures which are sometimes generated by a cooktop
could damage the dishwasher. For the same reason, it should not be
installed next to open fires or other appliances which give off heat,
such as heaters etc.
 To avoid the risk of damage to the dishwasher, make sure that the
connection data on the data plate (fuse rating, voltage and frequen‐
cy) matches the mains electricity supply before connecting the dish‐
washer to the mains. Consult a qualified electrician if in any doubt.
12
Warning and Safety instructions
 Do not connect the dishwasher to the mains supply until it has
been fully installed and any adjustment has been made to the door
springs.
 Do not connect the appliance to the mains electricity supply by a
multi-socket adapter or an extension lead. These do not guarantee
the required safety of the appliance (e.g. danger of overheating).
 This appliance must not be installed and operated in mobile in‐
stallations (e.g. on a ship).
 Do not install the dishwasher in a room where there is a risk of
frost. Frozen hoses may burst or split. The reliability of the electronic
control unit may be impaired at temperatures below freezing point.
 The plastic housing of the water connection contains an electrical
valve. The housing must not be dipped in water.
 There are electrical wires in the water inlet hose. Do not cut the
water inlet hose, even if it is too long.
 The integrated Waterproof system offers protection from water
damage, provided the following conditions are met:
– The dishwasher is correctly installed and plumbed in.
– The dishwasher is properly maintained and parts are replaced
where it can be seen that this is necessary.
– The tap has been turned off when the appliance is not used for a
longer period of time (e.g. during holidays).
The Waterproof system will work even if the appliance is switched
off. However, the appliance must remain connected to the electricity
supply.
 The water pressure (flow pressure at the connection point) must
be between 30 and 1000 kPa (0.3 and 10 bar).
 A damaged appliance could be dangerous. If the dishwasher gets
damaged, switch it off at the mains and call Miele.
13
Warning and Safety instructions
 The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
 Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the appli‐
ance when Miele replacement parts are used.
 During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
 If the connection cable is damaged, it must be replaced with a
special cable of the same type (available from Miele) by a Miele au‐
thorised service technician only.
 In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the warranty.
Correct installation
 The dishwasher must be installed and connected in compliance
with the installation instructions.
 Be careful when installing the dishwasher. Wear protective
gloves to avoid injury on any sharp metal components.
 The dishwasher must be correctly aligned to ensure problem-free
operation.
 In order to ensure stability, built-under and integrated dishwash‐
ers must only be installed under a continuous worktop which is se‐
cured to adjacent cabinetry.
14
Warning and Safety instructions
 If you want to convert your freestanding dishwasher to a built-un‐
der ("U") model, you will need to order the appropriate conversion
kit. If you remove the existing plinth, you must replace it with a Umodel plinth. This is necessary to avoid the risk of injury caused by
protruding metal parts.
 The door springs on either side need to be evenly adjusted. They
are correctly adjusted if the half-opened door (approx. 45° door
opening angle) remains in this position when it is released. The door
must not fall down under its own weight.
The appliance may only be used with correctly adjusted door
springs.
Correct use
 Do not use solvents in the dishwasher. Danger of explosion!
 Do not inhale or ingest dishwasher detergent. Dishwasher deter‐
gents contain irritants or corrosive ingredients which can cause
burning in the nose, mouth and throat if swallowed, or inhibit breath‐
ing. Seek medical advice immediately if your child has swallowed or
inhaled detergent, e.g. Poisons Information Centre (Australia) or Na‐
tional Poisons Centre (NZ).
 Avoid leaving the door open unnecessarily as someone could trip
over it and be injured by it.
 Do not sit or lean on the opened door. This could cause the dish‐
washer to tip and be damaged, and you could get injured.
 Dishes can be very hot at the end of a programme. Allow them to
cool until they are comfortable enough to handle before unloading.
 Only use detergent and rinse aid formulated for domestic dish‐
washers. Do not use washing-up liquid.
 Do not use commercial or industrial detergents as these may
cause damage, and there is a risk of a severe explosive chemical re‐
action (such as an explosive oxyhydrogen gas reaction).
15
Warning and Safety instructions
 Do not fill the rinse aid reservoir with powder or liquid detergent.
This will cause serious damage to the reservoir.
 Inadvertently filling the salt reservoir with powder or liquid dish‐
washer detergent will damage the water softener. Make sure you
have picked up the correct packet of dishwasher salt before filling
the salt reservoir!
 Only use special coarse grained dishwasher salt for reactivation.
Do not use other salts such as cooking salt, agricultural grade or
gritting salt. These may contain insoluble additives which can impair
the functioning of the water softener.
 In an appliance with a cutlery basket (depending on model) cut‐
lery is cleaned and dried more efficiently if placed in the basket with
the handles downwards. However, to avoid the risk of injury, place
knives and forks etc. with the handles upwards.
 Plastic items which cannot withstand being washed in hot water,
such as disposable plastic containers, or plastic cutlery and crock‐
ery should not be cleaned in the dishwasher. The high temperatures
in the dishwasher may cause them to melt or lose shape.
 If you use the "FlexiTimer/Delay start" option (depending on mod‐
el), make sure that the dispenser is dry before adding detergent.
Wipe dry if necessary. Detergent will clog if poured into a damp dis‐
penser and may not be thoroughly dispersed.
 Please observe the information given in "Technical data" regard‐
ing the capacity of the dishwasher.
Accessories
 Use only genuine original Miele spare parts. If spare parts or ac‐
cessories from other manufacturers are used, the warranty will be in‐
validated, and Miele cannot accept liability.
16
Warning and Safety instructions
Disposal of your old dishwasher
 Make the door lock inoperative so that children cannot acciden‐
tally shut themselves in. Remove or destroy the locking bracket of
the door lock, and make appropriate arrangements for the disposal
of the appliance.
17
Caring for the environment
Disposal of the packing mate‐
rial
Disposing of your old appli‐
ance
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Electrical and electronic appliances of‐
ten contain materials which, if handled
or disposed of incorrectly, could be po‐
tentially hazardous to human health and
to the environment. They are, however,
essential for the correct functioning of
your appliance. Therefore, please do
not dispose of your old appliance with
your household waste.
The packaging consists of the following
materials:
Outer packaging:
– Corrugated cardboard made from up
to 100% recyclable material:
or: Polyethylene (PE) shrink wrap
– Polyproplylene (PP) strapping
Inner packaging:
– Chlorine and fluorine free expanded
polystyrene (EPS)
– Base, lid frame and support battens
made from untreated natural wood
from renewable forests
– Polyethylene (PE) protective wrap
Recycling the packaging reduces the
use of raw materials in the manufactur‐
ing process and also reduces the
amount of waste in landfill sites. Rather
than just throwing these materials
away, please ensure they are recycled.
 Ensure that any plastic wrap‐
pings, bags, etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger
of suffocation.
18
Please dispose of it at your local com‐
munity waste collection / recycling cen‐
tre.
Ensure that your old appliance presents
no danger to children while being stor‐
ed for disposal.
To enable sorting by type of plastic for
recycling, all plastic parts of the appli‐
ance are labelled with international
standard symbols.
Caring for the environment
Energy-saving dishwashing
This dishwasher is exceptionally eco‐
nomical in its use of water and electrici‐
ty.
You can make the most of your appli‐
ance by following these tips:
– For most economical dishwashing,
make full use of the baskets without
overloading the dishwasher.
– Choose the programme to suit the
type of crockery being washed and
the degree of soiling.
– Select the ECO programme for ener‐
gy-saving dishwashing. This pro‐
gramme is the most efficient in terms
of its combined energy and water
consumption at cleaning normally
soiled crockery.
– If your dishwasher is connected to a
hot water supply, select the SolarSave
programme for washing a lightly to
moderately soiled load. Because the
water is not heated in this pro‐
gramme, crockery may still be slightly
damper at the end of this programme
than it would be with other pro‐
grammes.
– Follow the detergent manufacturer's
recommendations on detergent dos‐
age.
– When using powder or liquid deter‐
gent you can use 1/3 less detergent if
baskets are only half full.
You can find further tips on energysaving dishwashing in "Miele's guide
to dishwashing".
19
Caring for the environment
EcoFeedback consumption in‐
dicator
The Consumption function is used for
calling up information about the energy
and water consumption of your dish‐
washer (see "Settings menu - Con‐
sumption").
Three different types of information can
be displayed:
– an estimate of the consumption be‐
fore the programme begins
– the actual consumption at the end of
the programme
– the total consumption of the dish‐
washer
2. Actual consumption
At the end of the programme you can
call up the actual amount of energy and
water used by the programme which
has just been run.
 To do this you first have to activate
the Display consumption option in the
"Settings - Consumption" menu.
 At the end of the programme select
the Consumption option and confirm
your choice with OK.
Switching the dishwasher off at the
end of the programme will delete the
actual consumption values for the
programme which has just been run.
1. Consumption estimate:
3. "Consumption" setting
The estimated energy and water con‐
sumption for a programme can be
shown in the display.
The Total consumption setting gives a to‐
tal of the energy and water which has
been used in all previous dishwasher
programmes (see "Settings menu Consumption").
 Select the programme you want.
 Select the Estimated consumption op‐
tion.
The estimated energy and water con‐
sumption will appear in the display.
The estimated consumption levels will
be displayed as a bar chart. The more
bars (  ) in the display, the more ener‐
gy or water will be used.
The values are influenced by the pro‐
gramme selected and any programme
options selected.
The consumption indicator is switched
on as standard. However, you can also
switch the indicator off (see "Settings
menu - Consumption").
20
Before using for the first time
Opening the door
At the end of programmes with a drying
phase (see "Programme chart"), the
door will open automatically a little in
order to help the drying process.
This function can be deactivated if pre‐
ferred (see "Settings menu AutoOpen").
 Water in the dishwasher may be
hot. Danger of scalding!
Only open the door during operation
if absolutely necessary and exercise
extreme caution when doing so.
 Keep the area around the door
free of obstructions.
 To open the door, reach under the
door grip and pull.
 Open the door fully to disengage the
locking mechanism.
The door locking pin then retracts.
If the door is opened during operation,
all functions are automatically interrup‐
ted.
21
Before using for the first time
Closing the door
Safety lock
 Push the baskets right in.
Use the safety lock to prevent children
opening the dishwasher door.
 Then raise the door upwards until the
catch engages.
The door will then close automatically.
 Danger of injury!
Do not put your hand inside the door
as it is closing.
 To lock the door, push the slide un‐
derneath the door grip to the right.
 To unlock the door, push the slide to
the left.
22
Before using for the first time
Basic settings
Time of day
 Switch the dishwasher on using the
 sensor.
The display will then change to the
screen for setting the time.
The welcome screen will appear when
the dishwasher is switched on for the
first time.
Language
The time of day needs to be set before
the Delay start programme option can
be used.
You can also show the current time of
day in the display.
The display will change automatically to
the screen for setting the language.
 Use +/- to set the hour and confirm
with OK.
 Select the language you want as well
as the country, if appropriate, and
confirm with OK.
 Then set the minutes and confirm
with OK.
To learn about the display, read the
section with the same name.
A tick  will appear next to the lan‐
guage that has been set.
Date
The display will change to the screen
for setting the date.
Time of day display
The display will then change to the
screen for setting the display for the
time of day.
 Select the display you require for the
time of day, and confirm this with OK.
 Confirm the message about energy
consumption with OK.
You can show the actual date and time
in the display.
 Set the year using +/- and confirm
with OK.
 Then set the month and the day and
confirm them with OK.
Keeping your finger on the relevant
sensor will increase or decrease the
time automatically.
23
Before using for the first time
Water hardness
The display will change to the screen
for setting the water hardness.
– The dishwasher must be program‐
med for the water hardness in your
area.
– Your local water authority will be able
to advise you of the water hardness
level in your area.
– Where the water hardness fluctuates
e.g. between 1.8 and 2.7 mmol/l (10 15 °d - German scale) always pro‐
gramme the dishwasher to the higher
value (2.7 mmol/l or 15 °d in this ex‐
ample).
In the event of a fault, it will help the
service technician if you know the hard‐
ness of your local water supply.
Enter the water hardness below:
____________°d
The dishwasher is programmed at the
factory for a water hardness level of 2.7
mmol/l (15 °d - German scale).
 Select the water hardness level for
your water supply and confirm with
OK.
See "Settings menu - Water hardness"
for more information.
24
The message Set up successfully completed will then appear in the display.
After confirming this with OK, the
prompts  Insufficient salt and  Insufficient rinse aid may appear.
 Add salt and rinse aid if necessary
(see "Before using for the first time Dishwasher salt" and "Rinse aid").
 Confirm the messages with OK.
The display will change to show the
main menu.
The prompt to set the dishwasher up
for first use will not appear again after
you have run the first complete pro‐
gramme.
Before using for the first time
Before using the appliance for
the first time, you require:
– approx. 1 kg dishwasher salt,
– domestic dishwasher detergent,
– rinse aid formulated for domestic
dishwashers.
Every dishwasher is tested at the fac‐
tory. There will be residual water in the
appliance from this test. It is not an in‐
dication that it has been used previ‐
ously.
Dishwasher salt
In order to achieve good cleaning re‐
sults, the dishwasher needs to operate
with soft water. Hard water results in a
build-up of calcium deposits on crock‐
ery and in the dishwasher.
Mains water with a hardness level high‐
er than 0.7 mmol/l (4 °d - German
scale) needs to be softened. This takes
place automatically in the integrated
water softener. The water softener in
the dishwasher is suitable for a water
hardness level of up to 12.6 mmol/l (70
°d - German scale).
If the water hardness in your area is
constantly lower than 0.9 mmol/l (5
°d), you do not need to add dish‐
washer salt. The prompt to add dish‐
washer salt will be switched off auto‐
matically. The water softener must,
however, still be programmed to cor‐
respond to the water hardness level in
your area.
 Dishwasher detergent will dam‐
age the water softener.
Do not fill the salt reservoir with
powder or liquid detergent.
 Only use special coarse grained
dishwasher salt for reactivation,
as other salts (e.g. cooking salt, agri‐
cultural grade or gritting salt) may
contain insoluble additives which
can impair the functioning of the wa‐
ter softener.
The water softener requires dishwasher
salt.
Depending on the water hardness level
(< 3.8 mmol/l, or 21 °d - German scale),
dishwasher salt is not required if combi‐
nation tablets are being used (see "Op‐
eration - Detergent").
25
Before using for the first time
Filling the salt reservoir
Do not fill the reservoir with water.
 When filling the salt reservoir only
open the door halfway to ensure
that all the salt gets into the reservoir.
 Press the button on the lid of the salt
reservoir in the direction of the arrow.
The flap will spring open.
 Add dishwasher salt only until the
reservoir is full or until water runs out
of the opening. The salt reservoir
holds approx. 1 kg of salt, depending
on the brand used.
Do not add any more than 1kg of
salt.
As the salt reservoir is filled, displaced
water may overflow.
 Clean any excess salt from around
the reservoir opening and then close
the flap.
 Immediately after filling the salt reser‐
voir, run the Quick wash programme
with the Short programme option se‐
lected and without any crockery in
the dishwasher, to remove any traces
of salt from the cabinet.
 Lift up the funnel.
26
Before using for the first time
Add salt reminder
 Fill the salt reservoir with dishwasher
salt for reactivation when  Insufficient salt appears in the display (If it
appears during a programme, wait
until the end of the programme).
 Confirm with OK.
The message will go out.
 Risk of corrosion!
Immediately after filling the salt res‐
ervoir, run the Quick wash programme
with the Short programme option se‐
lected and without any crockery in
the dishwasher to remove any traces
of salt from the cabinet.
If you only ever use multi-function
combination products in your dish‐
washer, you can switch off both refill
reminders for salt and rinse aid if you
wish (see "Settings menu - Switching
off the refill reminders").
If you switch to using detergent that
does not contain salt or rinse aid, it
is important to remember to add
dishwasher salt and rinse aid and to
switch the reminders back on.
After the salt reservoir has been filled,
the refill reminder may still appear in the
display if the salt concentration has not
yet reached the correct level. If this is
the case, confirm again with OK.
The refill reminder will be switched off if
you have programmed the dishwasher
for a water hardness below 0.9 mmol/l
(5°d - German scale).
27
Before using for the first time
Rinse aid
Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase and
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage res‐
ervoir and the amount set is dispensed
automatically.
If you only ever use combination
products containing rinse aid in your
dishwasher, you do not need to add
rinse aid.
Adding rinse aid
 Inadvertently filling the rinse aid
reservoir with powder or liquid deter‐
gent will damage the reservoir. Only
pour rinse aid formulated for domes‐
tic dishwashers into the reservoir.
Alternatively, it is possible to use
– household vinegar with a max. 5%
acid content
or
– liquid citric acid up to 10% acid con‐
tent
The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.
 Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid).
This would damage the dishwasher.
28
 Press the button on the lid of the
rinse aid reservoir in the direction of
the arrow until the flap springs open.
Before using for the first time
Add rinse aid reminder
When the  Insufficient rinse aid mes‐
sage appears in the display, the reser‐
voir contains sufficient rinse aid for 2 3 programmes only.
 Add rinse aid in plenty of time.
 Confirm with OK.
The message will go out.
 Add rinse aid only until it is visible in
the opening.
The rinse aid reservoir holds approx.
110 ml.
 Close the flap firmly so that it clicks
into place. Otherwise water can enter
the rinse aid reservoir during a pro‐
gramme.
If you only ever use multi-function
combination products in your dish‐
washer, you can switch off both refill
reminders for salt and rinse aid if you
wish (see "Settings menu - Switching
off the refill reminders").
If you switch to using detergent that
does not contain salt or rinse aid, it
is important to remember to add
dishwasher salt and rinse aid and to
switch the reminders back on.
 Wipe up any spilled rinse aid. This
prevents over-foaming occurring dur‐
ing the next programme.
You can adjust the rinse aid dosage
for best results (see "Settings menu Rinse aid").
29
Loading the dishwasher
Notes
Remove coarse food residues from
crockery.
There is no need to rinse items under
running water.
 Do not wash items soiled with
ash, sand, wax, lubricating grease or
paint in the dishwasher. Ash does
not dissolve and is distributed in the
wash cabinet. Wax, sand, lubricating
grease and paint cause damage to
the dishwasher.
Crockery can be loaded anywhere in
the baskets, but the following notes
should be observed:
– Do not place crockery and cutlery in‐
side other pieces where they may be
concealed.
– Load the crockery so that water can
access all surfaces. This ensures that
they get properly cleaned.
– Make sure that all items are securely
positioned.
– Hollow items such as cups, glasses,
pans, etc. must be inverted in the
basket.
– Tall, narrow, hollow items, e.g. cham‐
pagne glasses, should be placed in
the centre of the basket to ensure
better water coverage.
– Wide based items should be placed
at an angle so that water can run off
them freely.
30
– The spray arms must not be blocked
by items which are too tall or hang
through the baskets. If in doubt, test
for free movement by manually rotat‐
ing the spray arms.
– Make sure that small items cannot
fall through the holders in the bas‐
kets.
Small items, e.g. lids, should there‐
fore be placed in the cutlery tray or
cutlery basket (depending on model).
Some foodstuffs may contain natural
dyes, e.g. carrots, tomatoes or toma‐
to sauce. Plastic items in the dish‐
washer may discolour if large quanti‐
ties of these foodstuffs find their way
into the dishwasher on the crockery.
The stability of plastic items is not
affected by this discolouration.
Cleaning silver cutlery in the dish‐
washer may also cause plastic items
to discolour.
Loading the dishwasher
Items not suitable for dishwashers:
– Wooden cutlery and crockery or
items with wooden parts: these may
discolour and fade. The glue used in
these items is not dishwasher-proof
and wooden handles may come
loose after being washed in a dish‐
washer.
– Craft items, antiques, valuable vases
and decorative glassware are also
not suitable for dishwashers.
– Plastic items which are not heat-re‐
sistant: the high temperatures in the
dishwasher may cause them to melt
or lose shape.
– Copper, brass, tin and aluminium
items may discolour or become matt.
– Colours painted over a glaze may
fade after a number of washes.
– Delicate glassware and glassware
containing lead crystal: clouding may
occur over time.
Please note
Silverware previously cleaned with a
silver polish may still be damp or spot‐
ted at the end of a programme, where
water has not run off smoothly. It may
need to be rubbed dry with a soft cloth.
Silver which has been in contact with
foods containing sulphur can discolour.
These include egg yolk, onions, mayon‐
naise, mustard, pulses, fish, fish brine
and marinades.
 Aluminium components (e.g.
rangehood grease filters) must not
be cleaned with caustic alkaline
commercial or industrial cleaning
agents.
These may damage the material, or
in extreme cases, there is a risk of a
severe explosive chemical reaction
(such as an explosive oxyhydrogen
gas reaction).
Useful tip: When purchasing new
crockery and cutlery, make sure they
are dishwasher-proof.
Glass care
– Clouding may occur on glasses after
frequent washing. If delicate glass‐
ware is washed in the dishwasher,
ensure that only very low tempera‐
tures are used (see programme
chart), or a special glass-care pro‐
gramme is used (depending on mod‐
el). This will reduce the risk of cloud‐
ing.
– Purchase glassware which is dish‐
washer-safe (e.g. Riedel glassware).
– Use detergents with glass protective
additives (e.g. Miele CareCollection
tabs).
– Visit "http://www.mieleglass‐
care.com/international/en/glasscare/
english" for more information on
glass care.
31
Loading the dishwasher
Upper basket
See "Loading the dishwasher / Load‐
ing examples" for examples of how to
load crockery and cutlery.
 For safety reasons, do not oper‐
ate the dishwasher without the upper
and lower baskets in place (except
when running the Tall items pro‐
gramme, if available).
 Use the upper basket for small, light‐
weight and delicate items such as
cups, saucers, glasses, dessert
bowls, etc.
Shallow pans or casserole dishes can
also be placed in the upper basket.
Cup rack
 To make room for tall items, raise the
rack upwards.
Glasses can be arranged along the po‐
sitioning rail of the cup rack to give
them some support during the pro‐
gramme.
 Lower the cup rack and lean the
glasses against it.
Hinged spikes
The rows of spikes can be lowered to
make more room for larger items such
as casserole dishes.
 Long items such as soup ladles, mix‐
ing spoons and long knives should
be placed lying down across the front
of the upper basket.
 Press the yellow lever downwards 
and then lower the spikes .
32
Loading the dishwasher
Jumbo cup rack (depending on model)
The cup rack can be set at two different
widths so that it can also accommodate
large cups.
 You can also move one of the side in‐
serts of the cutlery tray to make more
room for tall glasses.
Adjusting the height
You can set the glass rail at two differ‐
ent heights.
 Pull the cup rack upwards and click it
back into position at the required
width.
Glass rail
 Pull the rail upwards and click it back
into position at the required height.
This rail is designed to hold glasses
with long stems securely.
Use the low setting for small glasses
and tumblers.
Use the high setting for tall glasses and
glasses with stems.
 Lower the rail and lean tall glasses
against it.
33
Loading the dishwasher
Adjusting the upper basket
In order to gain more space for taller
pieces of crockery in the bottom or up‐
per basket, the upper basket can be
adjusted on three levels with 2 cm be‐
tween each level.
The upper basket can also be set at an
angle with one side high and the other
side low. This can be useful to help pre‐
vent water being left in deep dishes etc.
Ensure, however, that the basket can
be inserted smoothly into the cabinet. It
is better to adjust the basket before
loading it.
 Pull out the upper basket.
Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.
Dishwashers with cutlery basket
(see data plate for model number)
Upper
basket
level
Plate  in cm
Upper basket
Lower
basket
Stand‐
ard
XXL
Top
20
24
31 (35*)
Middle
22
26
29
Bottom
24
28
27
Dishwashers with cutlery tray
(see data plate for model number)
Upper
basket
level
To raise the upper basket:
 Pull the basket up until it clicks into
place.
To lower the upper basket:
 Pull upwards on the levers at either
side of the upper basket.
 Adjust the basket to the desired
height and then push the levers se‐
curely back down into position.
34
Plate  in cm
Upper basket
Lower
basket
Stand‐
ard
XXL
Top
15
19
31 (35*)
Middle
17
21
29
Bottom
19
23
27
* When tilted, plates of up to 35 cm can be
accommodated (see "Lower basket").
Loading the dishwasher
Lower basket
See "Loading the dishwasher - Load‐
ing examples" for examples of how to
load crockery and cutlery.
 For larger and heavier items such as
plates, serving platters, saucepans,
bowls, etc.
Glasses, cups and small items such
as saucers can also be placed in the
lower basket. Do not place thin, deli‐
cate glassware in the lower basket.
 Place large platters and dishes in the
centre of the lower basket.
When tilted, plates up to 35 cm in di‐
ameter can be accommodated.
Removable MultiComfort insert
The rear section of the lower basket is
used for washing cups, glasses, plates,
pots and pans.
You can remove the MultiComfort insert
to make more room for larger items
such as casserole dishes.
Removing the insert
 Pull the yellow handle forwards and
remove the insert.
Refitting the insert
 Fit the insert into the lower basket
with the hooks going under the long
cross-piece  as illustrated.
 Press down on the insert until it clicks
into position .
35
Loading the dishwasher
Glass rack
Glass rail
 The glass rack can be raised to make
more room for tall items.
This rail is designed to hold glasses
with long stems securely.
 Stem glassware, e.g. wine glasses or
champagne flutes, can be leaned
against the glass rack or suspended
from it.
You can set the glass rack at two differ‐
ent heights.
 Lower the rail and lean tall glasses
against it.
 Slide the glass rack to the desired
height until the catches click into
place at the top.
36
Loading the dishwasher
Hinged spikes
Bottle holder
The spikes at the front are used for
washing plates, soup bowls, platters,
dessert bowls and saucers.
The bottle holder can be used to wash
narrow items, e.g. milk and baby bot‐
tles.
Both rows of spikes can be lowered to
make more room for large items, e.g.
pots, pans and dishes.
 If the bottle holder is not needed, lift
it up  and fold the sides down ,
as illustrated.
 Press the yellow lever downwards ,
and then lower the spikes .
37
Loading the dishwasher
Cutlery
3D cutlery tray (depending on model)
See "Loading the dishwasher / Load‐
ing examples" for examples of how to
load crockery and cutlery.
 Arrange the cutlery in the tray as
shown.
To make unloading much easier, cutlery
should be grouped in zones, one for
knives, one for forks, one for spoons,
etc.
Spoon heads should be placed in con‐
tact with at least one of the serrated re‐
tainers on the base of the cutlery tray to
ensure that water runs off them freely.
If spoon handles do not fit between the
holders, then lay them the other way
round.
The upper spray arm must not be
blocked by items which are too big
(e.g. cake slices).
The side sections of the tray can be
moved into the middle to accommodate
tall items of crockery in the upper bas‐
ket.
You can use the yellow slide to adjust
the height of the middle section of the
cutlery tray to make more room for
large items of cutlery, such as serving
spoons and ladles.
38
Loading the dishwasher
Loading examples
Dishwashers with cutlery tray
Upper basket
Lower basket
39
Loading the dishwasher
Cutlery tray
Heavily soiled items
40
Comparison tests
Test standard:
AS/NZS 2007.1:2005, AS/NZS 2007.2:2005;
AS/NZS 6400:2005
Standard programme for en‐
ergy label comparison tests:
ECO
Capacity:
 14 place settings
Detergent quantity:
32.5 g in compartment II
Rinse aid dispensing:
Setting 3
You can find information on adjusting the rinse aid dosage in the "Rinse aid"
section of this booklet.
Upper basket level:
Position:
Bottom
Jumbo cup rack
(if available):
Outer position
Loading examples
Pictures illustrating how to load the dishwasher are shown on the following pages.
Picture : Upper basket
Picture : Lower basket
Picture : Cutlery tray
Do not lower or remove the basket inserts.
Remove the bottle holder from the lower basket
(if available).
41
Comparison tests
Capacity
 14

42

Comparison tests

43
Comparison tests
Test standard:
AS/NZS 2007.1:2005, AS/NZS 2007.2:2005;
AS/NZS 6400:2005
Standard programme for en‐
ergy label comparison tests:
ECO
Capacity:
 15 place settings
Detergent quantity:
33.7 g in compartment II
Rinse aid dispensing:
Setting 3
You can find information on adjusting the rinse aid dosage in the "Rinse aid"
section of this booklet.
Upper basket level:
Position:
Bottom
Jumbo cup rack
(if available):
Outer position
Loading examples
Pictures illustrating how to load the dishwasher are shown on the following pages.
Picture : Upper basket
Picture : Lower basket
Picture : Cutlery tray
Do not lower or remove the basket inserts.
Remove the bottle holder from the lower basket
(if available).
44
Comparison tests
Capacity
 15


45
Comparison tests

46
Operation
Detergent
 Only use detergents formulated
for domestic dishwashers. Do not
use washing-up liquid.
Active ingredients
Modern detergents contain various ac‐
tive ingredients, the most important of
which are:
– Complexing agents to prevent calcifi‐
cation.
– Alkalis to aid the removal of dried on
soiling.
– Enzymes to break down starch and
loosen protein.
– Oxygen based bleaching agents to
remove coloured stains (e.g. tea, cof‐
fee, tomato sauce).
Most dishwasher detergents are mildly
alkaline and contain enzymes and oxy‐
gen based bleaching agents.
You can also buy combination products
(see "Programme options - Detergent‐
Agent", if applicable).
In addition to detergent, these products
contain rinse aid and salt substitutes.
They are available as "3 in 1" or when
they also contain other components
such as glass and stainless steel pro‐
tective additives and enhanced clean‐
ing power, as "5 in 1", "7 in 1", "All in 1"
etc.
Refer to the manufacturer's packaging
as to whether combination products are
suitable for the water hardness level in
your area.
Please note that the cleaning and dry‐
ing results of combination detergents
can vary greatly.
For optimum cleaning and drying re‐
sults, use Miele dishwasher detergent
and add Miele salt and Miele rinse aid
separately. See "Optional accesso‐
ries".
Types of detergent:
– Powder and liquid gel detergents.
These detergents allow you to adjust
the amount dispensed according to
the amount of load and level of soil‐
ing.
– Tab detergents. These are suitable
for most levels of soiling.
47
Operation
Detergent dosage
 Follow the dosage recommended by
the manufacturer on the packaging.
 Unless directed otherwise, use one
detergent tab or add 20 to 30 ml de‐
tergent to compartment II, depending
on the level of soiling. With very
heavy soiling you can also add a
small amount of detergent to com‐
partment l.
 Tabs may not dissolve completely
when the Quick wash programme (if
available) is used.
Failure to dispense the recommen‐
ded amount of detergent may impair
cleaning results.
48
 Dishwasher detergents contain
irritant or corrosive ingredients which
can cause burning in the nose,
mouth and throat if swallowed, or in‐
hibit breathing.
Avoid inhalation of powder deter‐
gents and do not ingest dishwasher
detergent. Seek medical advice im‐
mediately if detergent has been
swallowed or inhaled.
Keep detergent and other household
agents out of the reach of children at
all times. Keep children away from
the dishwasher when the door is
open. There could still be detergent
residues in the cabinet. To avoid the
danger of children coming into con‐
tact with the dishwasher detergent,
only add detergent just before start‐
ing the programme and close the
door, activating the safety lock (if
your dishwasher is fitted with one).
Operation
Adding detergent
 Press the opening catch on the de‐
tergent dispenser. The flap will spring
open.
The flap is always open at the end of a
programme.
 Add the required amount of detergent
and close the flap.
 Make sure that the detergent packag‐
ing is properly closed after use to
avoid it getting damp and becoming
lumpy.
For information
Compartment I holds max. 10 ml,
Compartment II holds max. 50 ml.
There are marks in Compartment II to
assist with dispensing: 20, 30. The
marks indicate a level of approx. 20 or
30 ml when the door is open in a hori‐
zontal position.
49
Operation
Switching on
Selecting a programme
 Make sure the spray arms are not ob‐
structed.
Choose your programme according to
the type of load and how dirty it is.
 Close the door.
The different programmes and their
uses are described in the Programme
chart later on in this booklet.
 Turn on the tap if it is turned off.
 Switch the dishwasher on using the
 sensor.
The main menu will appear in the dis‐
play.
Switch the Memory function on (see
"Settings menu - Memory") if you
want the last programme selected to
appear in the display instead of the
main menu.
 Use the selector sensors to select the
programme you want.
The display will change to show the
programme menu.
Touch the  sensor to call up more in‐
formation about the programme cur‐
rently selected.
You can now select Extras for your pro‐
gramme (see "Programme options").
To select a different programme, touch
the  sensor to return to the main
menu.
50
Operation
Starting the programme
Display
 Press the Start sensor.
The estimated duration of the pro‐
gramme selected appears in hours and
minutes in the display before the pro‐
gramme begins. During the programme,
the time left until the end of the pro‐
gramme is displayed.
The programme starts, and the prompt
appears in the
display.
As long as this prompt is showing,
crockery can be added without com‐
promising the wash results.
Crockery can be added
 Water in the dishwasher may be
hot. Danger of scalding from water in
the cabinet.
Make sure you open the door very
carefully.
A programme should only be cancel‐
led in the first few minutes, if at all.
Otherwise important programme
stages could be omitted.
Each programme stage is indicated by
a symbol:
 Pre-wash / Soak
 Main wash
 Interim rinse
 Final rinse
 Drying
 Finish
The programme duration displayed may
vary with the same programme. It is in‐
fluenced by, among other things, the
water temperature at each intake, the
reactivation process, the type of deter‐
gent, the amount of crockery and how
dirty it is.
When a programme is selected for the
first time, the display shows an average
time for a cold water intake.
The times shown in the Programme
chart refer to standard test loads and
temperatures.
Each time a programme is run, the
electronic unit takes the new conditions
into account, and calculates the time
required.
51
Operation
Energy management
At the end of the programme
To save energy, the dishwasher will
switch off automatically 10 minutes af‐
ter the last time a sensor has been
pressed or after the end of a pro‐
gramme.
The buzzer might sound at the end of
the programme.
 Press the  sensor to switch the
dishwasher back on.
The dishwasher will not switch off auto‐
matically if the time of day display has
been activated (see "Settings menu Time of day").
The dishwasher will not switch off
whilst a programme is running, during
the Delay start period or if there is a
fault.
The programme has finished when Prog.
finished appears in the display and the
door has opened slightly (if applicable).
If the Display consumption programmable
function is switched on, you can now
use the Consumption option to view the
actual energy and water consumption
of the programme which has just finish‐
ed (see "Settings - Consumption").
The drying fan may continue to run for
a few minutes at the end of the pro‐
gramme.
You can now empty the dishwasher.
 If you have deactivated the auto‐
matic door opening function (see
"Settings menu - AutoOpen"), but
would still like to open the door at
the end of the programme, then
make sure that you open the door
fully.
Otherwise steam from the dishwash‐
er could damage the edge of the
worktop because the fan is no longer
running.
52
Operation
Switching off
Unloading the dishwasher
At the end of a programme:
Dishes tend to break and chip more
easily when they are hot. Allow the
dishes to cool until they are comforta‐
ble enough to handle before unloading
them.
 The dishwasher can be switched off
at any time using the  sensor.
Switching the dishwasher off during a
programme stops the programme.
Switching the dishwasher off during the
run-up to a Delay start time will also
stop the process.
If the dishwasher is not going to be
used for a longer period of time, e.g.
whilst on holiday, the tap should be
turned off.
If you open the door fully after switch‐
ing off, the dishes will cool much faster.
First unload the lower basket, then the
upper basket and finally the cutlery tray
(depending on model).
This will prevent water drops from the
upper basket and cutlery tray from fall‐
ing onto the dishes in the lower basket.
53
Operation
Interrupting a programme
A programme is interrupted as soon as
the door is opened.
If the door is closed again, the pro‐
gramme will continue from the point it
was at before the door was opened.
 Water in the dishwasher may be
hot. Danger of scalding!
Only open the door if absolutely nec‐
essary and exercise extreme caution
when doing so. Before closing the
door again, leave it ajar for approx.
20 seconds. This will enable the tem‐
perature in the wash cabinet to set‐
tle. Then raise the door up and push
until the catch engages.
Changing a programme
If the detergent dispenser flap has
already opened, do not change the
programme.
If a programme has already started and
you wish to change it, proceed as fol‐
lows:
 Press the Back sensor .
 Confirm the message Cancel the programme? with Yes.
The programme will be cancelled.
 Select the Main menu option.
The display will revert to the main
menu.
 Select the programme you want, and
then start it.
54
Programme options
Extras
You can select Extras for the pro‐
gramme you have selected.
 Switch the dishwasher on using the
 sensor.
 Select a programme.
 Select the Extras option.
All available Extras will appear listed in
the display.
Those that can be used with the pro‐
gramme selected will be indicated by a
dash and an illuminated sensor.
When used in combination with the
Quick wash programme, the Short Extra
results in a wash programme without
drying or automatic opening of the door
(if available).
Energy save
The Energy save Extra reduces the ener‐
gy consumption of programmes in
which this option is available by up to
20%.
In order to achieve optimum cleaning
results, the programme duration is ex‐
tended with this option.
 Select the Extras you want.
Intensive lower basket
A tick  will appear beside the Extra to
show that it has been set.
The Intensive lower basket Extra intensi‐
fies cleaning performance in the lower
basket in programmes in which this op‐
tion is available.
 To cancel the selection of an Extra,
touch the appropriate sensor again.
 When you have finished selecting Ex‐
tras, confirm with OK.
The display will change back to the pro‐
gramme menu.
The number of Extras selected, e.g. 1 of
4, will appear in the programme menu.
Energy and water consumption are in‐
creased slightly due to the extended
wash duration in the lower basket.
You can save the selected Extras for
the respective programme (see "Set‐
tings menu - Save Extras").
Short
The Short Extra reduces the duration of
the programmes in which this option is
available by up to 30%.
In order to achieve optimum cleaning
results, energy consumption may in‐
crease slightly with this option.
55
Programme options
Extra dry
DetergentAgent
The Extra dry Extra improves the drying
performance in programmes in which
this option is available.
For optimum cleaning results, the dish‐
washer automatically adjusts the pro‐
gramme sequence to the type of deter‐
gent being used. Depending on the
programme, this can mean that the run‐
ning time and energy consumption vary
slightly.
Energy consumption is increased due
to an extended fan running time and an
increased final rinse temperature.
Soak
The Soak Extra is used for soaking
crockery with dried on soiling.
Energy and water consumption will in‐
crease with this Extra.
If you are using powder dishwasher de‐
tergent, add approx. 5 g to compart‐
ment I.
Pre-wash
The Pre-wash Extra can be used for re‐
moving easily soluble soiling from
crockery.
Adding a pre-wash will increase the
programme duration and increase ener‐
gy and water consumption levels.
56
If you only ever use multi-function com‐
bination products containing salt and
rinse aid in your dishwasher, you can
switch the reminders off if you wish
(see "Settings menu - Refill reminders").
The DetergentAgent function will not be
affected by this.
Ensure that you refill dishwasher salt
and rinse aid and switch on the refill
reminders again if you are not using
combination products.
Programme options
Delay start with EcoStart
The FlexiTimer gives you three ways of
starting the programme by means of
delaying the start. You can set the start
time or the finish time of a programme.
You also have the option of taking ad‐
vantage of time variable economy rates
of electricity using the EcoStart function.
When using the Delay start function,
make sure that the detergent com‐
partment is dry before adding deter‐
gent. Wipe dry with a cloth if neces‐
sary. If the compartment is wet,
powder detergent can become lum‐
py and stick to the dispenser, with
the result that it is not fully dis‐
pensed.
Do not use liquid detergent when se‐
lecting Delay start, as it can run into
the dishwasher before it is required.
 To prevent children coming into
contact with dishwasher detergent:
Add the detergent immediately be‐
fore starting the programme, i.e. be‐
fore activating Delay start with OK.
Then lock the door with the safety
lock.
 Switch the dishwasher on using the
 sensor.
 Select the programme you want from
the main menu.
 Select the Delay start option from the
programme menu for the selected
programme.
You then have a choice of Start at, Finish
at and EcoStart.
 Select the one you want.
Now enter the required time.
If, while you are setting the time, you do
not press any sensors for several sec‐
onds, the display will revert to the previ‐
ous menu. You will then have to enter
your settings again.
If you keep the + or - sensor pressed,
the value shown will automatically in‐
crease or decrease.
If the time of day display has been
switched off (see "Settings menu Time") the display will go out after a
period of 10 minutes.
To switch the display back on for a
few minutes, press the  sensor.
57
Programme options
Start at
Finish at
With the Start at function, you set the
exact time at which you want the pro‐
gramme to start.
With the Finish at function, you set the
time at which you wish the programme
to end.
 Use +/- to set the hour and confirm
with OK.
 Use +/- to set the hour and confirm
with OK.
The hour will be saved and the minute
number block will be highlighted.
The hour will be saved and the minute
number block will be highlighted.
 Use +/- to set the minutes and con‐
firm with OK.
 Use +/- to set the minutes and con‐
firm with OK.
The display will change to show the
programme menu.
The display will change to show the
programme menu.
 Select OK to start the programme.
 Select OK to start the programme.
The Start indicator will light up.
The programme name and the start
time will then appear in the display.
A message will appear in the display if
the programme cannot be completed
by the set finish time because it has too
long a running time.
When the set time is reached, the pro‐
gramme selected will begin automati‐
cally.
The Start indicator will light up.
The programme name and the estima‐
ted start time for the programme selec‐
ted will appear in the display.
The selected programme will start auto‐
matically when the estimated start time
is reached.
58
Programme options
EcoStart
Changing or deleting set times
The EcoStart function allows you to take
advantage of time variable economy
rates of electricity. Before you can use
this option, you must set up to three
electricity tariff time zones (see "Set‐
tings menu - EcoStart").
You then set the latest time at which the
programme selected should end.
The dishwasher will start automatically
in the cheapest tariff zone within the
time set.
You can change the set times or the
programme before the start time in the
display is reached.
 Use +/- to set the hour and confirm
with OK.
 Select the Reset option and confirm
with OK.
The hour will be saved and the minute
number block will be highlighted.
The display will change to show the
programme menu.
 Use +/- to set the minutes and con‐
firm with OK.
You can now select and start a pro‐
gramme.
 Select the Change option.
The display will revert to the selection
menu.
 Select the Delay start option.
 Select the Start at, Finish at or EcoStart
function.
The display will change to show the
programme menu.
 Select OK to start the programme.
The estimated start time for the pro‐
gramme selected will appear in the dis‐
play.
The Start indicator will light up to con‐
firm that the programme has started.
The selected programme will start auto‐
matically during the most cost effective
time zone. It will finish at the latest by
the set finish time.
59
Programme chart
Programme
Programme sequence
Pre-wash
Main wash
Interim rinse
°C
ECO
1)
X
Sensor wash
48
Final rinse
Drying
°C
X
47
X
Variable programme sequence, sensor-controlled
adjustment according to amount of crockery and soiling
If
required
47-65
If
required
57
X
Light soiling
55°C
X
55
X
60
X
Intensive 75°C
2X
75
X
60
X
Sensor wash
gentle 
X
44
X
57
X
Quick wash
40°C
40
X
45
X
Hygiene
69
2X
70
X
ExtraQuiet
46
X
64
X
SolarSave
2X
X
X
X
X
Pasta/Paella
X
74
X
60
X
Tall items 65°C
X
65
X
60
X
Glasses warm
34
X
54
X
Maintenance
programme
75
2X
70
X
1)
This programme is the most efficient in terms of its combined energy and water con‐
sumption for cleaning normally soiled crockery.
60
Programme chart
Consumption 2)
Electricity
2)
3)
Duration 2)
Water
Cold water
Hot water
kWh
kWh
0.73 3) / 0.76 4)
0.40 3) / 0.44 4)
0.70 5) -1.30 6)
Litres
Cold water
Hot water
h:min
h:min
11.3 3) / 11.0 4)
2:41
2:34
0.50 5) -0.85 6)
6.5 5) -16.0 6)
1:25-2:45
1:20-2:35
1.10
0.70
14.0
1:59
1:47
1.45
0.95
15.0
2:54
2:40
0.90
0.45
13.5
1:53
1:42
0.65
0.25
11.0
0:46
0:35
1.60
1.20
13.5
2:17
2:05
1.10
0.80
10.5
4:48
4:38
0.05
27.5
1.45
0.95
13.5
2:24
2:10
1.15
0.65
14.5
1:52
1:39
0.75
0.40
10.5
0:52
0:42
2.10
1.35
21.5
1:56
1:34
1:29
Values quoted are in accordance with EN 50242. In practice there may be variations to
these figures due to variable conditions and data recorded by the sensors. The durations
displayed in your dishwasher will reflect your household conditions.
Selecting programme options will also affect consumption levels and programme dura‐
tions (see "Programme options").
Standard height dishwashers
4)
XXL dishwashers
5)
Part load with light soiling
6)
Full load with heavy soiling
61
Programme chart
Crockery
Mixed,
everyday crockery
Food deposits
All fresh to dried-on
food deposits
Action required
Variable, sensor-controlled
programme sequence
Shorter duration
This needs a short programme
Heat-sensitive glasses and
plastic
Fresh, easily removed food
deposits
Shorter duration
This needs a gentle
programme with glass care
Shorter duration
Mixed crockery
Very quiet programme
Fresh food deposits which
have begun to dry on
This needs a water and energy
saving programme
Average programme values
Shorter duration
Pots, pans, everyday porcelain
and cutlery
Items such as baby bottles,
chopping boards etc, that
need to be hygienically clean
Burnt-on, stubborn, driedon food deposits containing
starch or protein 1)
Maximum cleaning power
Fresh food deposits which
have begun to dry on
Programme with special parameters for hygienic cleaning
Shorter duration
Food such as potatoes, pasta, rice or stews can leave starchy deposits. Deposits containing protein
can be left by food such as fried meat, fish or eggs and bakes.
1)
62
Programme chart
Programme
Detergent
Compartment I 2)
Compartment II 2)
-
25 ml
or
1 tab
-
20 ml
or
1 tab 3)
-
20 ml
or
1 tab
ExtraQuiet
-
25 ml
or
1 tab 3)
ECO
-
25 ml
or
1 tab
-
25 ml
or
1 tab
10 ml
25 ml
or
1 tab
-
25 ml
or
1 tab
Sensor wash
+short
Quick wash 40 °C
+short
Sensor wash gentle 
+short
Light soiling 55 °C
+short
Intensive 75 °C
+short
Hygiene
see "Detergent"
In some cases, tabs may not dissolve completely.
2)
3)
63
Programme chart
Further programmes
SolarSave
This programme does not heat the wa‐
ter. To use it, the water intake tempera‐
ture must be at least 45°C (see "Water
connection - Connection to the water
supply"). This programme is suitable for
mixed loads of crockery and glassware
with moderate, slightly dried on food
residues.
Pasta/Paella
Programme with long soak phases in‐
corporated for mixed loads of crockery,
pots and pans and robust porcelain.
This programme is particularly suitable
for removing soiling containing starch
left by pasta, rice and potatoes.
Tall items 65°C
Programme for very large heat-resistant
items, (e.g. very deep pans). In this pro‐
gramme the upper basket needs to be
removed to make space for large items
in the lower basket. This programme
has a medium action to remove fresh to
slightly dried on residues.
64
Glasses warm
This programme does not use rinse aid
and omits the drying phase. It is partic‐
ularly suitable for cleaning beer glasses
where a good head of froth is needed.
Maintenance programme
The wash cabinet is largely self-clean‐
ing. However, if residues or soiling build
up in the cabinet, they can be removed
by running the "Maintenance pro‐
gramme" without a load. This pro‐
gramme is designed for cleaning the
wash cabinet using care products such
as Miele's dishwasher cleaner or condi‐
tioner (see "Optional accessories Dishwasher care products). Please fol‐
low usage instructions on the packag‐
ing.
Cleaning and care
Check your dishwasher regularly (ap‐
prox. every 4-6 months). This way
faults and problems can be avoided.
 The external surfaces of this ap‐
pliance are all susceptible to
scratching.
Contact with unsuitable cleaning
agents can alter or discolour the ex‐
ternal surfaces.
Cleaning the wash cabinet
The wash cabinet is largely self-clean‐
ing, provided that the correct amount of
detergent is always used.
Cleaning the door and the door
seal
Mould could build up on the door seal
and the sides of the dishwasher door
as these surfaces are outside the wash
cabinet and are not accessed and
cleaned by the spray arm jets.
 Wipe the door seals regularly with a
damp cloth to remove food deposits.
 Wipe off any food or drink residues
which may have dripped onto the
sides of the dishwasher door before
closing it.
If, however, there are limescale or
grease deposits in the cabinet, these
can be removed with the Original Miele
dishwasher conditioning agent (availa‐
ble from Miele or at www.mieleshop.com, depending on country). Fol‐
low the dosage recommended by the
manufacturer on the packaging.
Using mainly low temperature pro‐
grammes (below 50°C), could cause
bacteria and unpleasant odours to build
up in the wash cabinet. To avoid this,
the dishwasher will increase the tem‐
perature in the final rinse of the selected
programme automatically after several
programmes using low temperatures
have been run.
 Clean the filters in the wash cabinet
regularly.
65
Cleaning and care
Cleaning the door front
 Soiling that is left too long might
become impossible to remove and
could cause external surfaces to al‐
ter or discolour.
Remove any soiling immediately.
 Clean the front with a solution of
warm water and a little washing-up
liquid applied with a soft sponge.
Wipe the surfaces dry using a soft
cloth.
For cleaning, you can also use a
clean, damp microfibre cloth, such as
the Original Miele all purpose microfi‐
bre cloth, without any cleaning agent.
To avoid damaging external surfaces,
do not use:
– cleaning agents containing soda,
ammonia, acids or chlorides,
– cleaning agents containing descaling
agents,
– abrasive cleaning agents, e.g. pow‐
der cleaners and cream cleaners,
– solvent-based cleaning agents,
– stainless steel cleaning agents,
– dishwasher cleaner,
– oven cleaner,
– glass cleaning agents,
– hard, abrasive brushes or sponges,
e.g. pot scourers, brushes or spong‐
es which have been previously used
with abrasive cleaning agents,
– dirt erasers,
– sharp metal scrapers,
– steel wool or metal scourers,
– steam cleaning appliances.
66
Cleaning and care
Checking the filters in the
wash cabinet
Cleaning the filters
 Switch the dishwasher off.
The filter combination in the base of the
wash cabinet retains coarse soil from
the suds solution, preventing it access‐
ing the circulation system and re-enter‐
ing the cabinet through the spray arms.
 This dishwasher must not be
used without all the filters in place.
Collection of coarse soil may cause the
filters to clog. The level of soiling and
time it takes before the filters need
cleaning will vary depending on use.
The message Check filters will appear in
the display after every 50 programme
cycles (factory default setting).
You can set the interval for this mes‐
sage to appear to between 30 and 60
programme cycles (see "Settings menu
- Check filters").
 Check the filter combination.
 Clean it if necessary.
 Then confirm the message with OK.
The message will disappear.
The display will change to show the
programme selection menu.
 Turn the handle anti-clockwise to re‐
lease the filter combination .
 Lift the filter combination out of the
dishwasher . Remove any coarse
particles and rinse the filter well un‐
der running water.
Use a nylon brush if necessary.
 During cleaning ensure that
course soil doesn't get into the cir‐
culation system and cause a block‐
age.
67
Cleaning and care
To clean the inside of the filter, the flap
must be opened:
 Press the catches  together in the
direction of the arrows as shown, and
open the filter .
 Rinse all the filters under running wa‐
ter.
 Then close the flap so that the catch
engages.
68
 Replace the filter combination so that
it lies flat in the base of the wash
cabinet.
 Then turn the handle clockwise until
both arrows point towards each oth‐
er. This will lock the filter combination
in place.
 Take care when you are fitting
the filter combination that it is se‐
cured in position correctly.
Otherwise coarse soil could get into
the circulation system and cause a
blockage.
Cleaning and care
Cleaning the spray arms
Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected and
cleaned regularly (approx. every 4 - 6
months).
 Switch the dishwasher off.
Remove the spray arms as follows:
 Take out the cutlery tray (if your dish‐
washer is fitted with one).
 Push the top spray arm upwards to
engage the inner ratchet. Then un‐
screw the spray arm.
 Push the middle spray arm upwards
 to engage the ratchet. Then un‐
screw the spray arm .
 Remove the lower basket.
 Pull the lower spray arm firmly up‐
wards to remove it.
 Use a pointed object to push food
particles into the spray arm jets.
 Rinse thoroughly under running wa‐
ter.
 Refit the spray arms and check that
they rotate freely.
69
Problem solving guide
With the help of the following guide, minor faults in the performance of the appli‐
ance, some of which may result from incorrect operation, can be put right without
contacting Miele. This will save time and money.
Please note that a call-out charge will be applied to unnecessary service visits
where the problem could have been rectified as described in these operating in‐
structions.
 Unauthorised or incorrect repairs could cause personal injury or damage to
the appliance.
Repair work to electrical appliances must only be carried out by a suitably
qualified and competent person in strict accordance with current local and na‐
tional safety regulations. The manufacturer cannot be held liable for unauthor‐
ised work.
Technical problems
Problem
Possible cause and remedy
The display remains
dark after the dish‐
washer has been
switched on with the 
sensor.
The appliance is not plugged in.
 Insert the plug and switch on at the socket.
The dishwasher stops
during a programme.
The mains fuse has tripped.
 Reset or replace the fuse (see data plate for mini‐
mum fuse rating).
 If the mains fuse trips again, call Miele.
70
The mains fuse has tripped.
 Reset or replace the fuse (see data plate for mini‐
mum fuse rating).
Problem solving guide
Problem
Possible cause and remedy
The buzzer sounds.
Before rectifying the problem, you must:
One of the following
 Switch the dishwasher off using the  sensor.
fault messages appears
in the display:
 Technical fault FXX
There may be a technical fault.
After a few seconds:
 Switch the dishwasher back on.
 Select the programme you want.
 Press the Start sensor.
If the fault message appears again, there is a techni‐
cal fault.
 Call Miele.
 Waterproof fault
The Waterproof system has reacted.
 Turn off the tap.
 Call Miele.
 Technical fault F78
A fault has occurred in the circulation pump.
 Switch the dishwasher off for at least 30 seconds
with the  sensor.
 Switch the dishwasher back on.
 Select the programme you want.
 Press the Start sensor.
If the fault message appears again, there is a techni‐
cal fault.
 Call Miele.
71
Problem solving guide
Water inlet fault
Problem
Possible cause and remedy
The buzzer sounds.
One of the following
fault messages appears
in the display:
 Water inlet fault
Please open the stopcock
 Water intake
The tap is turned off.
 Turn on the tap fully.
Before rectifying the problem, you must:
 Switch the dishwasher off using the  sensor.
Water intake is restricted.
 Turn on the tap fully and start the programme
again.
 Clean the water inlet filter (see "Maintenance").
 The water pressure at the intake is lower than 30
kPa (0.3 bar).
Seek professional advice.
The following message
appears in the display
during the SolarSave pro‐
gramme:
 Intake temp. too low
72
The intake water has not reached the required tem‐
perature of 45°C (see "Water connection - Connec‐
tion to the water supply").
 Start the programme again.
 If the fault message appears again, select a differ‐
ent programme.
Problem solving guide
Water drainage fault
Problem
Possible cause and remedy
The buzzer sounds.
The following fault mes‐
sage appears in the dis‐
play:
 Drain fault
Before rectifying the problem, you must:
 Switch the dishwasher off with the  sensor.
The water outlet is restricted.
There might be water in the wash cabinet.
 Clean the filter combination (see "Cleaning and
care - Cleaning the filters").
 Clean the drain pump (see "Maintenance").
 Clean the non-return valve (see "Maintenance").
 Remove any kink or loop in the drain hose.
73
Problem solving guide
General problems
Problem
Possible cause and remedy
The display is dark.
The dishwasher has switched off automatically to
save energy.
 Switch the dishwasher back on using the  sen‐
sor.
The interior lighting
The interior lighting has been switched off perma‐
doesn't switch on when nently.
the door is opened.
 Switch the lighting back on again (see "Settings
menu - BrilliantLight").
The following fault ap‐
pears in the display:
 Salt reservoir lid
During a programme
the warning buzzer will
also sound and the pro‐
gramme will be cancel‐
led.
The salt reservoir lid has not been closed properly.
 Close the salt reservoir lid.
If the salt reservoir lid has opened during a pro‐
gramme:
 Switch the dishwasher off and back on again with
the  sensor.
 Close the salt reservoir lid.
 Start the programme again.
Detergent residue is left The dispenser was still damp when detergent was
in the dispenser at the
added.
end of a programme.
 Make sure the dispenser is dry before adding de‐
tergent.
The detergent dispens‐
er lid cannot be closed
properly.
Clogged detergent residue is blocking the catch.
 Clean the detergent from the catch.
At the end of a pro‐
This is caused by the drying system and does not in‐
gramme there is a film
dicate a fault. The moisture will dissipate after a
of moisture on the in‐
while.
side of the door and the
interior walls.
74
Problem solving guide
Problem
Possible cause and remedy
Water remains in the
Before rectifying the problem, you must:
wash cabinet at the end  Switch the dishwasher off using the  sensor.
of a programme.
The filter combination in the wash cabinet is clogged.
 Clean the filter combination (see "Cleaning and
care - Cleaning the filters").
The drain pump or non-return valve may be blocked.
 Clean the drain pump or the non-return valve (see
"Maintenance").
The drain hose is kinked.
 Remove any kink from the drain hose.
75
Problem solving guide
Noises
Problem
Possible cause and remedy
Knocking noise in the
wash cabinet.
A spray arm is knocking against an item in a basket.
 Interrupt the programme, and rearrange the items
which are obstructing the spray arm.
Rattling noise in the
wash cabinet.
Items of crockery are insecure in the wash cabinet.
 Interrupt the programme, and rearrange the items
of crockery.
A foreign object (e.g. a cherry stone) has become
lodged in the drain pump.
 Remove the foreign object from the drain pump
(see "Maintenance - Cleaning the drain pump and
non-return valve").
Knocking noise in the
water pipes.
76
This may be caused by the on-site installation or the
cross-section of the piping.
 This has no influence on dishwasher function. If in
doubt, contact a suitably qualified plumber.
Problem solving guide
Unsatisfactory washing result
Problem
Possible cause and remedy
The dishes are not
clean.
The dishes were not loaded correctly.
 See notes in "Loading the dishwasher".
The programme was not powerful enough.
 Select a more intensive programme (see "Pro‐
gramme chart").
There is some stubborn soiling although most of the
crockery is only lightly soiled (e.g. with tea stains).
 Use the Sensor wash programme option (see "Set‐
tings menu - Sensor wash").
Not enough detergent was dispensed.
 Use more detergent, or change your detergent.
Items are blocking the path of the spray arms.
 Rearrange the items so that the spray arms can
rotate freely.
The filter combination in the base of the wash cabinet
is not clean or is not correctly fitted. This may cause
the spray arm jets to get blocked.
 Clean and/or fit the filter combination correctly.
 Clean the spray arm jets if necessary (see "Clean‐
ing and care - Cleaning the spray arms").
The non-return valve is open and blocked. Dirty water
has flowed back into the wash cabinet.
 Clean the drain pump and the non-return valve
(see "Maintenance").
Smearing appears on
The rinse aid dosage is set too high.
glassware and cutlery,  Reduce the dosage (see "Settings menu - Rinse
there is a bluish sheen
aid").
on the surface of glass‐
ware; film can be wiped
off.
77
Problem solving guide
Problem
Possible cause and remedy
Dishes, cutlery and
glasses are not dry or
are flecked.
The amount of rinse aid may be insufficient, or the
rinse aid reservoir is empty.
 Replenish the reservoir, increase the dosage or
change the brand of rinse aid (see "Before using
for the first time - Rinse aid").
Crockery was taken out of the cabinet too soon.
 Leave it in for longer (see "Operation").
Combination tabs have been used which have im‐
paired drying performance.
 Change your detergent, or replenish the rinse aid
(see "Before using for the first time - Rinse aid").
Glassware has a brown
or blue tinge, and film
cannot be wiped off.
This may be caused by the detergent.
 Change your detergent.
Glassware is dull and
The glassware is not dishwasher-proof. The surfaces
discoloured; film cannot are affected.
be wiped off.
 There is no remedy.
Purchase glassware which is dishwasher-proof.
Tea or lipstick stains
have not been com‐
pletely removed.
The wash temperature of the selected programme
was too low.
 Select a programme with a higher wash tempera‐
ture.
The bleaching effect of the detergent used is too low.
 Change your detergent.
Plastic items are discol‐ Natural dyes e.g. from carrots, tomatoes or tomato
oured.
sauce may be the cause. The amount of detergent
used or its bleaching effect was not sufficient to deal
with natural dyes.
 Use more detergent (see "Operation - Detergent").
Discolouration is irreversible.
78
Problem solving guide
Problem
Possible cause and remedy
White residue is visible Not enough rinse aid was used.
on cutlery and crock‐
 Increase the dosage (see "Settings menu - Rinse
ery, clouding occurs on
aid").
glassware; film can be
There is no salt in the salt reservoir.
wiped off.
 Fill the salt reservoir (see "Before using for the first
time - Dishwasher salt").
An unsuitable combination detergent has been used.
 Change your detergent. Use a standard liquid,
tablet or powder detergent, and fill the salt and
rinse aid reservoirs in the dishwasher.
The water softener is programmed to too low a water
hardness level.
 Programme the water softener to a higher water
hardness level (see "Settings menu - Water hard‐
ness").
There are rust stains on The affected items are not corrosion resistant.
cutlery.
 There is no remedy.
Purchase cutlery which is dishwasher-proof.
A programme was not run after dishwasher salt was
added. Traces of salt have got into the wash cycle.
 Always run the Quick wash programme with the
Short programme option selected and without any
crockery in the dishwasher after adding dishwash‐
er salt.
79
Maintenance
Cleaning the water inlet filter
A filter is incorporated in the screw con‐
nection of the valve on the water inlet
hose. The filter must be cleaned when
dirty, otherwise insufficient water flows
into the wash cabinet.
 The plastic housing of the water
connection contains an electrical
component.
The housing must not be dipped in
water.
Recommendation
If the mains water contains a large
amount of insoluble substances, we
recommend fitting a large-area filter in
the connection between the tap and the
water inlet hose threaded union. This
filter is available from Miele.
Cleaning the filter:
 Disconnect the dishwasher from the
mains supply.
Switch off at the mains socket and
withdraw the plug.
 Turn off the tap.
 Unscrew the inlet hose.
80
 Carefully remove the washer.
 Withdraw the filter using pointed pli‐
ers and rinse clean under running
water.
 Replace the filter and washer, making
sure they are sitting correctly.
 Reconnect the inlet hose to the tap,
making sure it goes on correctly and
is not cross-threaded.
 Turn on the tap.
If water leaks out, the inlet hose may
not be connected securely or it may
have been screwed on at an angle.
 Unscrew and reconnect the inlet
hose correctly.
Maintenance
Cleaning the drain pump and
non-return valve
If the water has not been pumped away
at the end of a programme, the drain
pump or the non-return valve might be
blocked. They are, however, easy to
clean.
 Disconnect the dishwasher from the
mains supply. Switch off at the mains
socket and withdraw the plug.
 Take the filter combination out of the
wash cabinet (see "Cleaning and care
- Cleaning the filters").
 Scoop the water out of the cabinet
using a suitable container or utensil.
The drain pump is situated under the
non-return valve (see arrow).
 Remove all foreign objects from the
drain pump (watch out for glass or
bone splinters which are particularly
difficult to detect and could cause in‐
jury). Turn the drain pump impeller by
hand to check that there are no more
obstructions. You will feel a little re‐
sistance when you turn the impeller.
 Carefully refit the non-return valve
and secure it with the catch.
 Ensure that the catch engages
correctly.
 Press the catch for the non-return
valve inwards .
 Lift out the non-return valve , and
rinse well under running water.
 Be careful not to damage any
delicate components when cleaning
the drain pump and the non-return
valve.
 Remove all foreign objects from the
non-return valve.
81
After sales service
Repairs
Warranty
In the event of any faults which you
cannot remedy yourself, please con‐
tact:
The manufacturer's warranty for this
appliance is 2 years.
– Miele
The contact details for Miele are giv‐
en at the back of these instructions.
When contacting Miele, please quote
the model and serial number of your
dishwasher, both of which are shown
on the data plate on the right-hand side
of the door.
82
For further information, please refer to
your warranty booklet.
Optional accessories
Dishwasher detergent and rinse aid, as
well as cleaning and care products, are
available as optional accessories.
All the products are designed for use
with Miele dishwashers.
These and many other useful products
can be ordered via the internet at
www.miele-shop.com (depending on
country) or from Miele (see end of this
booklet for contact details).
Detergent tabs
– sparkling results even with stubborn
food deposits
– combination product with other com‐
ponents such as rinse aid, salt and
glass protection additives
– phosphate-free - safe for the environ‐
ment
– water-soluble wrapping - no need to
unwrap
Powder detergent
Dishwasher detergent, rinse
aid and salt
When you decided to buy a Miele dish‐
washer, you chose excellent quality and
performance. However, ensuring that
your dishwasher always delivers the
best possible results will also depend
on your choice of dishwasher deter‐
gent, rinse aid and dishwasher salt, as
cleaning results can vary depending on
the brand used.
With Miele CareCollection products,
you can be sure of optimum results as
these products have been specially de‐
signed for Miele dishwashers.
– with active oxygen for thorough
cleaning
– with enzymes which are effective
even in low temperature programmes
– with glass protection against corro‐
sion
Rinse aid
– for gleaming glasses
– helps crockery to dry
– with glass protection against corro‐
sion
– specially designed cap for precise,
easy dispensing
Dishwasher salt
– prevents limescale on crockery and
in the appliance
– extra coarse-grained
83
Optional accessories
Dishwasher care products
Glass rail
Miele cleaning and care products pro‐
vide optimum care for your dishwasher.
This rail is designed to hold glasses
with stems securely in the lower basket.
Dishwasher cleaner
– cleans the dishwasher effectively and
thoroughly
– removes grease, bacteria and un‐
pleasant odours
– ensures excellent dishwashing re‐
sults
Dishwasher descaler
– removes heavy limescale deposits
– mild and gentle with natural citric
acid
Dishwasher conditioner
– removes odours, limescale and light
deposits
– maintains the elasticity and leak
tightness of the seals
Accessories
Some accessories may be supplied as
standard, depending on model.
Cappuccinatore insert
The Cappuccinatore insert can be used
for cleaning the individual parts of the
Miele Cappuccinatore in the dishwash‐
er.
Cutlery basket
The cutlery basket is placed in the low‐
er basket and can be used to wash ad‐
ditional items of cutlery.
84
Electrical connection
This dishwasher is supplied with a
mains cable and moulded plug ready
for connection to an AC single phase
supply, (230 - 240 V 50 Hz for NZ and
Australia) via a fused plug and suitable
switched socket.
 The electrical socket must be
easily accessible after the dishwash‐
er has been installed. Do not con‐
nect the dishwasher to the mains
electricity supply by an extension
lead. Extension leads do not guaran‐
tee the required safety of the appli‐
ance (e.g. danger of overheating).
 Before connecting the appliance,
check that the connection data on
the data plate (voltage, frequency,
rated load and fuse rating) matches
the mains electricity supply. If in any
doubt, consult a qualified electrician.
The data plate is located on the righthand side of the door.
 All electrical work must be car‐
ried out by a suitably qualified and
competent person in strict accord‐
ance with current local and national
safety regulations.
If the connection cable is damaged, it
must be replaced with a Miele cable of
the same type by a Miele approved
service technician only.
Do not connect the appliance to an in‐
verter such as those used with an au‐
tonomous energy source e.g. solar
power. When switched on, peak loads
in the system can cause the safety
switch-off mechanism to be triggered.
This can damage the electronic unit.
The machine must not be used with socalled energy-saving devices either.
These reduce the amount of energy
supplied to the machine, causing it to
overheat.
85
Water connection
The Miele Waterproof system
As long as your dishwasher has been
installed correctly, the Miele waterproof
anti-leak system will protect you from
water damage.
Connection to the water sup‐
ply
 Water in the dishwasher must
not be used as drinking water.
 IMPORTANT Australia and New
Zealand
This appliance must be installed ac‐
cording to AS/NZS 3500.1. Back
flow prevention is already integrated
in the appliance.
– The dishwasher may be connected to
a cold or hot water supply, max.
60°C.
We would only recommend connec‐
tion to a hot water supply if it is eco‐
nomical, e.g. a solar powered supply.
When connected to a hot water sup‐
ply, all programme stages which
would otherwise be carried out with
cold water will be carried out with hot
water.
– The SolarSave programme (if availa‐
ble) requires a hot water supply of
between 45°C (minimum) and 60°C
(maximum).
The higher the water intake tempera‐
ture, the better the cleaning and dry‐
ing results.
86
Water connection
– A tap with a 3/4 " male thread must
be provided on site.
– Connection to the mains water sup‐
ply should only be carried out by a
qualified and competent person in
strict accordance with national and
local safety regulations.
The tap should be easily accessible
once the appliance has been built in.
After connecting the dishwasher to
the water supply, check that all
plumbing connections are watertight.
 To avoid any damage to the ap‐
pliance, the dishwasher must only be
connected to a fully vented plumbing
system.
– The water pressure (flow pressure at
the take-off point) must be between
30 and 1000 kPa (0.3 and 10 bar). If
the water pressure is lower than this,
the fault message Water intake will
appear in the display (see "Problem
solving guide"). If the water pressure
is too high, a pressure reducing valve
must be fitted.
 The inlet hose must not be
shortened or damaged in any way as
it contains electrical components
(see illustration).
87
Water connection
Drainage
Venting the drainage system
– The appliance drainage system is fit‐
ted with a non-return valve which
prevents dirty water from flowing
back into the dishwasher via the
drain hose.
If the on-site drain connection is situ‐
ated lower than the guide path for the
bottom basket rollers in the open door,
the drainage system must be vented.
Otherwise a siphoning effect during a
programme can cause the appliance to
empty itself of water.
– The dishwasher is supplied with ap‐
prox. 1.5 m of flexible drain hose with
an internal diameter of 22 mm.
– The drain hose can be extended us‐
ing a connection piece to attach a
further length of hose. The drainage
length must not be longer than 4 m,
and the delivery head must not ex‐
ceed 1 m.
 To vent it: Open the dishwasher door
fully.
– If the hose is to be directly fitted to
the drainage outlet on site, use the
hose clip supplied (see installation di‐
agram).
– The hose can be directed to the left
or the right of the appliance.
– The on-site connector for the drain
hose can be adapted to different
widths of hose. If the connector pro‐
trudes too far into the drain hose, it
will need to be shortened. Otherwise
the drain hose may become blocked.
– The drain hose must not be short‐
ened.
 Make sure that there are no
kinks in the hose, and that it is not
squashed or stretched.
After commissioning the appliance,
ensure that the water outlet does not
leak.
88
 Pull the lower spray arm firmly up‐
wards to remove it.
 Cut off the top of the vent valve in the
wash cabinet.
Technical data
Dishwasher model
Standard
XXL
Height freestanding model
84.5 cm (adjustable +
3.5 cm)
-
Height built-in model
80.5 cm (adjustable +
6.5 cm)
84.5 cm (adjustable +
6.5 cm)
Height of building-in recess
Min. 80.5 cm (+ 6.5
cm)
Min. 84.5 cm (+ 6.5
cm)
Width
59.8 cm
59.8 cm
Width of building-in recess
60 cm
60 cm
Depth freestanding model
60 cm
-
Depth built-in model
57 cm
57 cm
Weight
Max. 64 kg
Max. 56 kg
Voltage
See data plate
Rated load
See data plate
Fuse rating
See data plate
Power consumption when
switched off
0.20 W
0.20 W
Power consumption when not
switched off
2.50 W
2.50 W
Test certificates awarded
See data plate
Water pressure (flow rate)
30 - 1000 kPa
(0.3 - 10 bar)
30 - 1000 kPa
(0.3 - 10 bar)
Hot water connection
Up to max. 60 °C
Up to max. 60 °C
Delivery head
Max. 1 m
Max. 1 m
Drainage length
Max. 4 m
Max. 4 m
Mains cable
Approx. 1.7 m
Approx. 1.7 m
Capacity
14 place settings*
15 place settings*
* Depending on model
89
Settings menu
Settings menu for changing
standard settings
Opening the Settings menu
 Switch the dishwasher on with the 
sensor if it is switched off.
The main menu will appear in the dis‐
play.
If the memory function is activated, the
programme menu for the programme
last selected will be displayed instead
(see "Settings menu - Memory"). If this
is the case, use the  sensor to get to
the main menu.
To learn about the display, read the
section with the same name.
 Select the Settings  option.
The display will change to show the
Settings  menu.
 Select the option you want to
change.
Touch the  sensor to call up more in‐
formation about the programme cur‐
rently selected.
90
Sub-menu options which have already
been selected will have a tick  be‐
side them.
 To exit a sub-menu again, use the 
sensor.
The display will revert to the menu
above.
Language 
The display can be set to appear in one
of several different languages.
You can change the language in the
display via the Language  sub-menu.
 Select the language you want and
confirm this with OK.
Some languages also have a country
option to select.
 If so, select the appropriate country
and confirm your selection with OK.
The flag after the word Language 
acts as a guide if a language which
you do not understand has already
been set.
If this is the case, keep selecting the
option which has a flag after it until
you reach the Language  sub-menu.
Settings menu
Time of day
Setting the time of day
The dishwasher is delivered with the
time of day (clock) display deactivated.
You can set the current time of day.
The current time of day must be set be‐
fore you can use the Delay start pro‐
gramme option.
To save energy, the dishwasher will
switch off automatically a few minutes
after the last time a button has been
pressed or after the end of a pro‐
gramme.
Setting the time of day (clock) dis‐
play
When the time of day (clock) display
has been activated, the current time of
day will appear in the display a few mi‐
nutes after the last time a button has
been pressed or after the end of a pro‐
gramme. This increases energy con‐
sumption.
 Select the Display option.
 Select the Set the time option.
 Set the hour with +/- and confrim
with OK.
Then set and confirm the minutes.
The time of day has now been saved.
Date
You can set the actual date and show it
in the display.
 Set the year with the +/- sensors and
confirm with OK.
Then set the month and the day and
confirm them both with OK.
 Select the setting you want and con‐
firm with OK.
If the Night dimming option is selected,
the time of day is automatically
switched off at night.
 If you have selected On or Night dimming, confirm the message about
higher energy consumption with OK.
Setting the clock format
You can select either a 24-hour or 12hour clock.
 Select the Clock format option.
 Select the setting you want and con‐
firm with OK.
91
Settings menu
Water hardness
°d
mmol/l
°f
Display
This appliance is fitted with a water
softener.
11
2.0
20
11
12
2.2
22
12
– The dishwasher must be program‐
med for the water hardness in your
area.
13
2.3
23
13
14
2.5
25
14
15
2.7
27
15
16
2.9
29
16
17
3.1
31
17
– Where the water hardness fluctuates,
e.g. between 1.8 and 2.7 mmol/l (10 15 °d - German scale), always pro‐
gramme the dishwasher to the higher
value (2.7 mmol/l or 15 °dH in this
example).
18
3.2
32
18
19
3.4
34
19
20
3.6
36
20
21
3.8
38
21
22
4.0
40
22
 Select the water hardness level for
your area and confirm your selection
with OK.
23
4.1
41
23
24
4.3
43
24
25
4.5
45
25
A tick  will appear beside the water
hardness which has been set.
26
4.7
47
26
27
4.9
49
27
– Your local water authority will be able
to advise you of the water hardness
level in your area.
92
°d
mmol/l
°f
Display
28
5.0
50
28
1
0.2
2
1
29
5.2
52
29
2
0.4
4
2
30
5.4
54
30
3
0.5
5
3
31
5.6
56
31
4
0.7
7
4
32
5.8
58
32
5
0.9
9
5
33
5.9
59
33
6.1
61
34
6
1.1
11
6
34
7
1.3
13
7
35
6.3
63
35
8
1.4
14
8
36
6.5
65
36
9
1.6
16
9
37-45
6.6-8.0
66-80
37-45
10
1.8
18
10
46-60
8.2-10.7
82-107
46-60
61-70
10.9-12.5
109-125
61-70
Settings menu
Rinse aid
Consumption (EcoFeedback)
You can adjust the rinse aid dosage for
best results.
The rinse aid dosage can be set from
approx. 0-6 ml.
The factory default setting is 3 ml.
You can programme the dishwasher so
that the energy and water consumption
of the currently selected programme
appears in the display. The estimated
consumption can be displayed before
the programme starts and the actual
consumption can be displayed after the
programme has finished.
In this menu you can also call up the to‐
tal energy and water used in all previ‐
ous dishwasher programmes (see "Car‐
ing for the environment - EcoFeedback
consumption indicator").
The dosage can turn out to be higher
than the set value due to the automatic
adjustment of the Sensor wash pro‐
gramme.
If spots appear on crockery and glass‐
ware:
– Increase the rinse aid dosage.
If clouding or smearing appears on
crockery and glassware:
Consumption indicator
– Decrease the rinse aid dosage.
 Select the setting you want and con‐
firm with OK.
 Use the +/- sensors to set the rinse
aid dosage and confirm with OK.
 Select the Display consumption option.
Total consumption
You can display the values for Energy
and Water.
 Select the Total consumption option.
You can also reset the values for the to‐
tal consumption to 0.
 Select the Reset option.
 Select the Yes option.
 Confirm the message with OK.
The values are now reset to 0.
93
Settings menu
Sensor wash
BrilliantLight
You can adjust the Sensor wash pro‐
gramme so that it will remove stubborn
soiling in a lightly soiled load.
This dishwasher has interior lighting.
When the door is open, the lighting will
switch off automatically after 15 mi‐
nutes.
 Select the setting you want and con‐
firm with OK.
AutoOpen
At the end of programmes with a drying
phase (except ExtraQuiet) the door will
open automatically a little in order to
help the drying process (see "Pro‐
gramme chart").
In the ECO programme the door will
open during the drying phase.
This function can be deactivated if
wished.
 Select the setting you want and con‐
firm with OK.
 If you have deactivated the auto‐
matic door opening function but
would still like to open the door at
the end of the programme, then
make sure that you open the door
fully. Otherwise steam from the dish‐
washer could damage the edge of
the worktop because the fan is no
longer running.
94
The interior lighting can be switched off
permanently.
 Select the setting you want and con‐
firm with OK.
Switching off the refill remind‐
ers
If you only ever use multi-function com‐
bination products containing salt and
rinse aid in your dishwasher, you can
switch the refill reminders for salt and
rinse aid off if you wish. Doing so will
not affect the DetergentAgent function
(see "Programme options - Detergent‐
Agent").
 Select the setting you want and con‐
firm with OK.
If you switch to using detergent that
does not contain salt or rinse aid, it
is important to remember to add
dishwasher salt and rinse aid and to
switch the reminders back on.
Settings menu
Check filters
Save extras
You can adjust the interval at which the
message to remind you to check the fil‐
ters appears.
You can set an interval of between 30
and 60 programme cycles.
Additional programme options can be
added to some programmes, e.g. Short
(see "Programme options - Extras").
The "Check filters" message is set at
the factory to appear after every 50 pro‐
gramme cycles.
You can use the Save extras option to
save settings you have chosen for a
particular programme so that they are
automatically selected when you run
the programme in the future.
 Select the interval you want and con‐
firm this with OK.
The dishwasher is delivered with this
function deactivated.
Change main menu
 Select the setting you want and con‐
firm with OK.
You can change the order of the pro‐
grammes in the programme selection
menu and also enter your favourite pro‐
grammes into the first four programme
places.
 Select the programmes you want to
place in the first to fourth position of
the programme selection menu.
 Confirm each position with OK.
The programmes you have selected will
then appear together in the display.
 If you are happy with the order in
which they are shown, confirm with
OK.
 To change the order in which they are
shown, select Change.
Enter the settings again.
95
Settings menu
System lock
Temperature
The system lock prevents your dish‐
washer being used without your knowl‐
edge.
The temperature can be displayed in
°C/Celsius or °F/Fahrenheit.
If an attempt is made to switch the
dishwasher on when the system lock is
activated, System lock  will appear in
the display.
The factory default setting is °C.
 Select the option you want and con‐
firm with OK.
Brightness
The lock must be deactivated before
the dishwasher can be used.
There are seven different display bright‐
ness settings.
The appliance will lock each time it is
switched on while the system lock is
activated.
 Select the brightness you want and
confirm this with OK.
The appliance is delivered with the sys‐
tem lock deactivated.
 Select the setting you want and con‐
firm with OK.
Deactivating the system lock
To unlock the dishwasher, proceed as
follows:
 Switch the dishwasher on using the
 sensor.
System lock 
will appear in the display.
 Confirm with OK, keeping the sensor
pressed for six seconds.
The dishwasher is now unlocked and
ready for use.
96
Settings menu
Volume
Night time
A sequence of audible tones will sound
at the end of the programme or if there
is a fault as long as the buzzer has
been activated.
You can select the times for night time
to begin and end.
Buzzer in the event of a fault
The buzzer in the event of a fault will
sound four times at intervals with a
short pause between each set of tones.
The buzzer which sounds when there
is a fault cannot be deactivated.
 Select the Start at option.
 Use +/- to set the time in hours and
minutes for the night time to begin
and confirm both with OK.
 Select the Finish at option.
 Use +/- to set the time in hours and
minutes for the night time to end and
confirm both with OK.
Buzzer at the end of a programme
Keypad tone
The buzzer at the end of a programme
will sound four times at intervals with a
short pause between each set of tones.
An audible tone sounds each time a
sensor is pressed.
Buzzer tones
The volume for the keypad tone can be
set in seven stages, or switched off.
The volume of the tone at the end of
the programme can be selected in sev‐
en stages or switched off.
 Select the volume you want using the
Quieter and Louder sensors, or switch
the keypad tone off.
 Select the volume you want using the
Quieter and Louder options, or switch
the buzzer off.
 Confirm with OK.
 Confirm with OK.
Night time buzzer tone
You can select a different volume for
the buzzer at night, or switch it off.
 Select the volume you want for the
night time buzzer using the Quieter
and Louder options, or switch the
night time buzzer off.
 Confirm with OK.
97
Settings menu
Memory
Version info
With the Memory function activated,
the dishwasher will save the last pro‐
gramme selected. When you switch the
dishwasher off and back on again, the
last programme selected will appear in
the display instead of the ECO pro‐
gramme.
You can call up the electronic software
version of your dishwasher for technical
support purposes.
 Select the setting you want and con‐
firm with OK.
98
 Confirm the display with OK.
Settings menu
EcoStart
Setting the electricity tariff times
In order to run your dishwasher in the
most economical way, you can use the
EcoStart option to take advantage of
your electricity supplier's time variable
tariffs (see "Programme options - Delay
start with EcoStart - EcoStart").
With this option selected, your dish‐
washer will start automatically at your
electricity supplier's cheapest tariff
times.
Before you can use the EcoStart option,
you must set at least one electricity tar‐
iff time.
To use this option, you must first set up
to three electricity tariff time zones in
which the dishwasher can start. You
can allocate different priorities to these
time zones. The time with the cheapest
electricity tariff will be given Priority 1.
Contact your electricity supplier to find
out the times of the cheapest electricity
tariffs.
Once the electricity tariff times have
been set, you can use the EcoStart op‐
tion to set the latest finish time required
for each programme.
The dishwasher will then start automati‐
cally in the cheapest electricity tariff
time and the programme will end at the
latest at the finish time set.
 Select an electricity tariff time from
T1-T3 to set.
The start of the electricity tariff time se‐
lected will appear in the display and the
hour number block will be highlighted.
 Use +/- to set the hours and minutes
for the start time and confirm both
with OK.
The end of the electricity tariff time se‐
lected will appear in the display and the
hours number block will be highlighted.
 Use +/- to set the hours and minutes
for the end time and confirm both
with OK.
The electricity tariff time will be saved
and its priority will appear in the dis‐
play.
 Select the priority you want and con‐
firm this with OK.
 Confirm the message with OK.
The electricity tariff time will be activa‐
ted.
99
Settings menu
Changing the electricity tariff times
Deleting the electricity tariff times
You can change the start, finish or pri‐
ority of an electricity tariff time.
 You can delete the settings for an
electricity tariff time and in doing so
deactivate the EcoStart option for this
time zone.
 Select an electricity tariff time from
T1-T3 to change.
 Select the setting you want to
change.
 Use +/- to change the setting and
confirm with OK.
The change will be saved.
 Select an electricity tariff time from
T1-T3 to delete.
 Select Delete.
 Confirm the query Delete tariff T1? with
Delete.
The settings for the electricity tariff time
selected will be reset.
 Confirm the message with OK.
The electricity tariff time has now been
deleted.
100
Settings menu
Showroom programme
For demonstration purposes only.
The dishwasher is fitted with various
demonstration programmes for show‐
room use.
–
–
Demo mode
Demonstration programme for show‐
rooms.
Demo with sound
This programme activates the circu‐
lation pump to demonstrate the
sound of the dishwasher.
–
Demo AutoOpen
–
BrilliantLight
The door will open automatically.
Factory default settings
You can reset all settings to the factory
default settings.
You will be given the choice of Appliance
settings reset or Main menu.
 Select the one you would like to re‐
set.
 Confirm the message Reset settings?
or Reset main menu? with Yes.
Closing the Settings menu
To close the Settings  menu, use the
 sensor. This will take you back to
the main menu.
The interior lighting is on constantly.
101
0LHOH$XVWUDOLD3W\/WG
!".
A]Y`Y7YbhYfUbX<YUXCZZ]WYAY`VcifbY.
'ILBERT0ARK$RIVE
+NOXFIELD6)#
A]Y`Y7YbhYfUbXCZZ]WYAY`VcifbY.
#OVENTRY3TREET
3OUTH-ELBOURNE6)#
A]Y`Y7YbhYfUbXCZZ]WYGmXbYm.
3KYLINE0LACE
&RENCHS&OREST.37
A]Y`Y7YbhYfUbXCZZ]WY6f]gVUbY.
(ARVEY3TREET.ORTH
%AGLE&ARM1,$
A]Y`Y7YbhYfUbXCZZ]WY5XY`U]XY.
3IR$ONALD"RADMAN$RIVE
(ILTON3!
A]Y`Y7YbhYfUbXCZZ]WYDYfh\.
3TIRLING(IGHWAY
#LAREMONT7!
0LHOH1HZ=HDODQG/LPLWHG
<YUXCZZ]WY.
5NIT,3YLVIA0ARK2OAD
-T7ELLINGTON!UCKLAND
A]Y`Y7YbhYf5iW_`UbX.
#OLLEGE(ILL
&REEMANS"AY!UCKLAND
4ELEPHONE
-)%,%
WWWMIELECONZ
ZZZPLHOHFRPDX
102
0LHOH*OREDO+HDGTXDUWHUV
*HUPDQ\
0LHOH&LH.*
#ARL-IELE3TRA”E
'àTERSLOH
&EDERAL2EPUBLICOF'ERMANY
G 6900 / G 6905

en-AU, NZ
M.-Nr. 09 867 880 / 02
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
