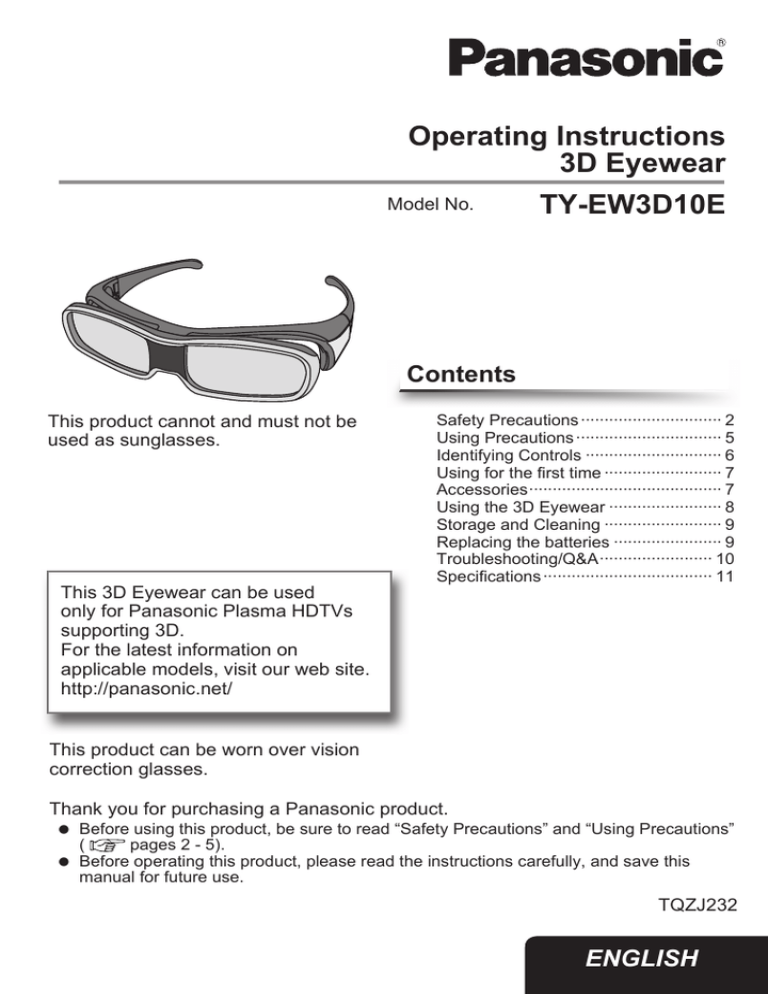

Operating Instructions
3D Eyewear
Model No.
TY-EW3D10E
Contents
This product cannot and must not be
used as sunglasses.
This 3D Eyewear can be used
only for Panasonic Plasma HDTVs
supporting 3D.
For the latest information on
applicable models, visit our web site.
http://panasonic.net/
Safety Precautions ······························ 2
Using Precautions ······························· 5
Identifying Controls ····························· 6
Using for the first time ························· 7
Accessories ········································· 7
Using the 3D Eyewear ························ 8
Storage and Cleaning ························· 9
Replacing the batteries ······················· 9
Troubleshooting/Q&A ························ 10
Specifications ···································· 11
This product can be worn over vision
correction glasses.
Thank you for purchasing a Panasonic product.
Before using this product, be sure to read “Safety Precautions” and “Using Precautions”
(
pages 2 - 5).
Before operating this product, please read the instructions carefully, and save this
manual for future use.
TQZJ232
ENGLISH
Safety Precautions
Warning
Small Parts
This product contains small parts (battery and specialised band and
„„
nose pad, etc.) and must be kept out of reach of small children to
avoid accidental ingestion.
Disassembly
Do not disassemble or modify the 3D Eyewear.
„„
About Lithium Battery
Batteries must not be exposed to excessive heat such as sunshine,
„„
fire or the like.
Caution
About 3D Eyewear
Do not drop, exert pressure on, or step on the 3D Eyewear.
„„
Always store the 3D Eyewear in the case provided when not in use.
„„
Be careful of the tips of the frame when putting on the 3D Eyewear.
„„
Be careful not to trap a finger in the hinge section of the 3D Eyewear.
„„
Pay special attention when children are using this product.
„„
2 - ENGLISH
Viewing 3D Content
Do not use the 3D Eyewear if you have a history of over-sensitivity to
„„
light, heart problems, or have any other existing medical conditions.
Stop using the 3D Eyewear immediately if you feel tired, discomfort,
„„
or any other uncomfortable sensation.
Take an appropriate break after viewing a 3D movie.
„„
Take a break of between 30 - 60 minutes after viewing 3D content on
„„
interactive devices such as 3D games or computers.
Be careful not to strike the television screen or other people
„„
unintentionally. When using the 3D Eyewear the distance between
the user and screen can be misjudged.
The 3D Eyewear must only be worn when viewing 3D content.
„„
Do not tilt your head and/or the 3D Eyewear while viewing 3D image.
„„
Keep your eyes and the 3D Eyewear are on a horizontal level to the
television.
If you suffer from any eyesight problems (short/far-sighted,
„„
astigmatism, eyesight differences in left and right), please ensure to
correct your vision before using the 3D Eyewear.
Stop using the 3D Eyewear if you can clearly see double images
„„
when viewing 3D content.
Do not use the 3D Eyewear at a distance less than the recommended
„„
distance.
The recommended viewing distance is 3 times of image height.
For a 50-inch television
For a 54-inch television
For a 58-inch television
For a 65-inch television
about 1,9 m
about 2,0 m
about 2,3 m
about 2,4 m
When the top and bottom area of the screen is blackened, such
„„
as movies, view the screen at a distance 3 times of the height of
the actual image. (That makes the distance closer than above
recommended figure.)
ENGLISH - 3
3D Eyewear Use
3D Eyewear should not be used by children younger than 5 - 6 years
„„
old, as a guideline.
All children must be fully supervised by parents or guardians who must
„„
ensure their safety and health throughout the using 3D Eyewear.
Before using the 3D Eyewear, ensure no breakable objects surrounding
„„
the user to avoid any accidental damage or injury.
Remove the 3D Eyewear before moving around to avoid falling or
„„
accidental injury.
Use the 3D Eyewear only for the intended purpose and nothing else.
„„
Do not use if the 3D Eyewear is physically damaged.
„„
Stop using the 3D Eyewear immediately if a malfunction or fault occurs.
„„
Stop using the 3D Eyewear immediately if you experience any redness,
„„
pain, or skin irritation around the nose or temples.
In rare cases, the materials used in the 3D Eyewear may cause an
„„
allergic reaction.
About Lithium Battery
Danger of explosion if battery is incorrectly replaced. Replace only with
„„
the same or equivalent type.
4 - ENGLISH
Using Precautions
Do not drop or bend the 3D Eyewear.
„„
Do not apply pressure to or scratch the surface of the liquid crystal
„„
shutter of the 3D Eyewear.
Do not soil the infra-red receiver section or attach stickers etc. to it.
„„
Do not use devices (such as mobile phones or personal transceivers)
„„
that emit strong electromagnetic waves near the 3D Eyewear as this
may cause the 3D Eyewear to malfunction.
Do not use 3D Eyewear outside the specified usage temperature
„„
range (
page 11).
If the room is lit by fluorescent lights (50 Hz) and light appears to
„„
flicker when using the 3D Eyewear, switch off the fluorescent light.
3D content will not be correctly visible if the 3D Eyewear is worn
„„
upside down or back-to-front.
Do not wear the 3D Eyewear when watching anything other than 3D
„„
images. Other kinds of displays (such as computer screens, digital
clocks, or calculators etc.) may be difficult to see while wearing the
3D Eyewear.
ENGLISH - 5
Identifying Controls
Battery case
„„
Fitting the battery (
page 9)
When using for the first time, remove the insulating sheet.
(
page 7)
Infra-red receiver
„„
Receives infra-red signals from the television.
The liquid crystal shutter open/close timing is controlled by
receiving infra-red signals from the television, which provide 3D
expression of the images.
If the eyewear stops receiving infra-red signal from the television,
the power automatically switches off after 5 minutes.
Nose pad installation section
„„
(3D Eyewear inner section)
(
page 7)
Specialised band can be attached
here. (
page 7)
Liquid Crystal Shutter
„„
(lens)
Controls the images for 3D viewing.
The left and right liquid crystal
shutters are alternately opened
and closed in time with the left
side and right side images that
are alternately displayed on the
television to achieve the 3D effect.
Power button (bottom side of
„„
3D Eyewear)
Switches on the 3D Eyewear power.
Press and hold the power button for
approximately 1 second to switch the
power on, and the indicator lamp lights for
approximately 2 seconds.
(When the battery is low, the indicator lamp
flashes 5 times on switching on the power.)
To switch the power off, press and hold the
power button for approximately 1 second.
The indicator lamp flashes 3 times, then the
power switches off.
Indicator lamp
Power button
6 - ENGLISH
Using for the first time
Remove the insulating sheet
„„
Attach the specialised band
„„
If the 3D Eyewear slips out of place, use
the specialised band included to hold it in
place.
Specialised band
Attach the band to the
left and right tips of the
frame, and adjust the
length.
Insulating sheet
Attach the nose pad
„„
If required, use the included nose pad.
Nose pad A adjusts the attachment position
of the 3D Eyewear between 2 vertical levels.
(Slot 2 of the 3 protrusions on the 3D Eyewear
into the holes on nose pad A.)
When using nose pad B, ensure that all
3 protrusions on the 3D Eyewear are inserted
into the 3 holes on nose pad B.
Make sure that the nose pad is inserted all
the way and securely attached.
Nose pad A
Accessories
< > indicates the quantity.
„„ 3D Eyewear case························<1> „„ Specialised band·························<1>
„„ Nose pad A/B······························<1>
A
B
Select the nose pad that suit you from A
and B.
It is recommended to wear the 3D
glasses over correction glasses without
the nose pad.
When the end of the specialised band is
straightened, form a loop at the end of
the band, and fix the twisted part.
ENGLISH - 7
Using the 3D Eyewear
Using the television menu controls, set so that 3D images are
„„
shown.
1. (When 3D image signals are being received) press the MENU button on
the television remote control.
2. Select “Setup”, and press the OK button.
3. Select “3D settings”, and press the OK button.
4. Select “3D Picture Display”, and use
to select “3D” or “2D”.
The procedure above is only an example. For details, see the television operating
instructions.
Wearing the 3D Eyewear
„„
1. Press and hold the power button on the 3D Eyewear for approximately
1 second. (The indicator lamp lights for approximately 2 seconds.)
2. Put on the 3D Eyewear.
If the 3D Eyewear slips out of place, hold it in place using the specialised band, and
adjust the length of the band. (
page 7)
If the 3D images are not displayed correctly, adjust the 3D image-related settings.
For details, see the television operating instructions.
* The perceived three dimensional effects of the 3D Eyewear differ from person to
person.
After Use
„„
Press and hold the power button on the 3D Eyewear for approximately 1 second.
(The indicator lamp on the 3D Eyewear flashes 3 times, then the power switches off.)
After using the 3D Eyewear, store it in the case provided.
8 - ENGLISH
Storage and Cleaning
Clean using a soft, dry cloth.
Wiping the 3D Eyewear with a soft cloth that is covered in dust or dirt may scratch the
eyewear. Shake off any dust from the cloth before use.
Do not use benzene, thinner, or wax on the 3D Eyewear, as doing so may cause the
paint to peel off.
Do not dunk the 3D Eyewear in liquid such as water when cleaning.
Avoid storing the 3D Eyewear in hot or highly humid locations.
Replacing the batteries
When the battery is low, the indicator lamp flashes 5 times on switching on the
power. (Early battery replacement is recommended.)
1. Loosen the screw and
2. Replace the batteries, and then
remove the cover using the
replace the cover.
screwdriver (included with the
television).
32 H
CR20
Always tighten the screw to hold the
battery case cover in place.
NOTE:
Use the specified type of battery (coin-shaped lithium battery
CR2032).
Do not insert the battery with the polarity (plus
and minus )
backwards.
Dispose of the old batteries as non-burnable rubbish, or in line with the
waste disposal regulations in your local area.
ENGLISH - 9
Troubleshooting/Q&A
Images are not 3D.
Are the image settings switched to 3D images?
Some 3D image signals are not automatically
recognised as 3D images.
Set “3D Picture Display” to “3D”.
For details, see the television operating
instructions.
Is there a sticker or other such item blocking
the infra-red reception section on the
3D Eyewear?
If the eyewear stops receiving infra-red signal from
the television, the power automatically switches off
after 5 minutes.
Check that there are no objects blocking the path
between the television and 3D Eyewear.
Individual differences may occur in which the
3D images are difficult to see, or cannot be
seen, especially in users that have a different
level of eyesight between the left and right
eyes.
Take the necessary steps (wearing glasses etc.) to
correct your eyesight before use.
The power of the
3D Eyewear turns off
by itself.
Are there any objects between the eyewear and
television?
Is there a sticker or other such item blocking
the infra-red reception section on the
3D Eyewear?
If the eyewear stops receiving infra-red signal from
the television, the power automatically switches off
after 5 minutes.
Check that there are no objects blocking the path
between the television and 3D Eyewear.
There is something
wrong with the 3D
images.
Are the left and right sides of the 3D image
reversed?
Switch the left and right sides of the 3D image.
For details, see the television operating
instructions.
The indicator lamp
does not light when
switching on the power.
The battery is too low to operate the 3D
Eyewear.
The indicator lamp does not light when switching
on the power by pressing and hold the power
button for 1 second; that indicates the battery is
completely flat. Replace the battery with new one.
10 - ENGLISH
Specifications
Lens type
Liquid Crystal Shutter
Batteries
(duration)
Coin-shaped lithium battery CR2032
(approx. 75 hours in continuous use)
Dimensions
Width:
Height:
Overall length:
Power supply
DC 3 V
Materials
Main body: Resin
Lens section: Liquid crystal glass
Mass
(including batteries)
Approx. 63 g
Viewing range*1
Transmitter for 3D Eyewear
Within 3,2 m from front surface
(Within ± 35° horizontal, ± 20° vertical)
Usage temperature range
0 °C - 40 °C (32°F - 104°F)
177 mm
46 mm
174 mm
*1 Viewing range
The location of the 3D Eyewear transmitter differs depending on the model of
television.
There are differences in the viewing range of the 3D Eyewear among individuals.
The 3D Eyewear may not operate correctly at the outside of the viewing range.
Environment care information for users in China
This symbol is only valid in China.
ENGLISH - 11
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private
households)
This symbol on the products and/or accompanying documents means that
used electrical and electronic products should not be mixed with general
household waste.
Please dispose of this item only in designated national waste electronic
collection schemes, and not in the ordinary dust bin.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or
supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for
the correct method of disposal.
Pursuant to the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
Panasonic Corporation
Web Site : http://panasonic.net/
© Panasonic Corporation 2010
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
