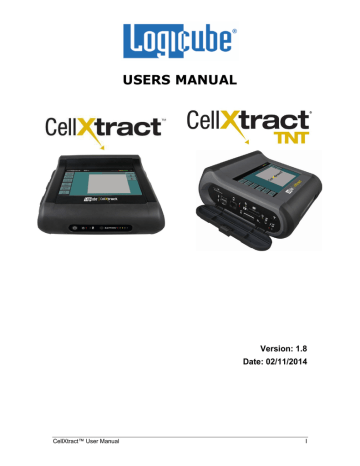

USERS MANUAL

Version: 1.8

Date: 02/11/2014

CellXtract™ User Manual

I

Limitation of Liability and Warranty Information

IMPORTANT NOTICE: PLEASE READ CAREFULLY

Use of the CellXtract device to gain unauthorized access to a computer, telephone or PDA may violate various United States federal and state criminal statutes including, without limitation, the

Computer Fraud and Abuse Act, Pub L. No. 98-473, 98 Stat. 2190, 18 U.S.C. §§1030, et seq., and other similar laws, regulations and other governmental requirements in effect in the country in which Customer resides.

By opening of the attached package, Customer represents and warrants that the CellXtract device will only be used in a lawful manner in accordance with all applicable laws. Customer will indemnify, defend and hold harmless Seller from all fees, costs, expenses, losses, liabilities and damages of every nature and character including, without limitation, legal fees resulting from a breach or violation of the representation and warranty contained in the preceding sentence.

Warranty

DISCLAIMER

IMPORTANT - PLEASE READ THE TERMS OF THIS AGREEMENT CAREFULLY. BY

INSTALLING OR USING LOGICUBE PRODUCTS, YOU AGREE TO BE BOUND BY THIS

AGREEMENT.

IN NO EVENT WILL LOGICUBE BE LIABLE (WHETHER UNDER THIS AGREEMENT,

RESULTING FROM THE PERFORMANCE OR USE OF LOGICUBE PRODUCTS, OR

OTHERWISE) FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OR

INACCURACY OF DATA, LOSS OR DELAYS OF BUSINESS, LOSS OF TIME, COSTS OF

PROCUREMENT OF SUBSTITUTE GOODS, SERVICES, OR TECHNOLOGY, PROPERTY

DAMAGE, OR INDIRECT, CONSEQUENTIAL, OR PUNITIVE DAMAGES OF A PURCHASER

OR USER OF LOGICUBE PRODUCTS OR ANY THIRD PARTY. LOGICUBE’S AGGREGATE

LIABILITY IN CONTRACT, TORT, OR OTHERWISE (WHETHER UNDER THIS AGREEMENT,

RESULTING FROM THE PERFORMANCE OR USE OF LOGICUBE PRODUCTS, OR

OTHERWISE) TO A PURCHASER OR USER OF LOGICUBE PRODUCTS SHALL BE LIMITED

TO THE AMOUNT PAID BY THE PURCHASER FOR THE LOGICUBE PRODUCT. THIS

LIMITATION OF LIABILITY WILL BE EFFECTIVE EVEN IF LOGICUBE HAS BEEN ADVISED

OF THE POSSIBILITY OF ANY SUCH DAMAGES.

LOGICUBE MAKES EVERY EFFORT TO ENSURE PROPER OPERATION OF ITS

PRODUCTS. HOWEVER, THE PURCHASER IS RESPONSIBLE FOR VERIFYING THAT THE

OUTPUT OF A LOGICUBE PRODUCT MEETS THE PURCHASER’S REQUIREMENTS. THE

CellXtract™ User Manual

I

TABLE OF CONTENTS

PURCHASER FURTHER ACKNOWLEDGES THAT IMPROPER OPERATION OF LOGICUBE

PRODUCTS CAN CAUSE LOSS OF DATA, DEFECTIVE FORMATTING, OR DEFECTIVE

DATA LOADING. LOGICUBE WILL MAKE EFFORTS TO SOLVE OR REPAIR ANY PROBLEMS

IDENTIFIED BY PURCHASER, EITHER UNDER THE WARRANTY SET FORTH BELOW OR

ON A TIME AND MATERIALS BASIS.

LIMITED WARRANTY

FOR ONE YEAR FROM THE DATE OF SALE (THE “WARRANTY PERIOD”) LOGICUBE

WARRANTS THAT THE PRODUCT (EXCLUDING CABLES, ADAPTERS, AND OTHER

“CONSUMABLE” ITEMS) IS FREE FROM MANUFACTURING DEFECTS IN MATERIAL AND

WORKMANSHIP. THIS LIMITED WARRANTY COVERS DEFECTS ENCOUNTERED IN THE

NORMAL USE OF THE PRODUCT DURING THE WARRANTY PERIOD AND DOES NOT

APPLY TO: PRODUCTS DAMAGED DUE TO PHYSICAL ABUSE, MISHANDLING, ACCIDENT,

NEGLIGENCE, OR FAILURE TO FOLLOW ALL OPERATING INSTRUCTIONS CONTAINED IN

THE OPERATING MANUAL; PRODUCTS WHICH ARE MODIFIED; PRODUCTS WHICH ARE

USED IN ANY MANNER OTHER THAN THE MANNER FOR WHICH THEY WERE INTENDED,

AS SET FORTH IN THE OPERATING MANUAL; PRODUCTS WHICH ARE DAMAGED OR

DEFECTS CAUSED BY THE USE OF UNAUTHORIZED PARTS OR BY UNAUTHORIZED

SERVICE; PRODUCTS DAMAGED DUE TO UNSUITABLE OPERATING OR PHYSICAL

CONDITIONS DIFFERING FROM THOSE RECOMMENDED IN THE OPERATING MANUAL OR

PRODUCT SPECIFICATIONS PROVIDED BY LOGICUBE; ANY PRODUCT WHICH HAS HAD

ANY OF ITS SERIAL NUMBERS ALTERED OR REMOVED; OR ANY PRODUCT DAMAGED

DUE TO IMPROPER PACKAGING OF THE WARRANTY RETURN TO LOGICUBE. AT

LOGICUBE’S OPTION, ANY PRODUCT PROVEN TO BE DEFECTIVE WITHIN THE

WARRANTY PERIOD WILL EITHER BE REPAIRED OR REPLACED USING NEW OR

REFURBISHED COMPONENTS AT NO COST. THIS WARRANTY IS THE SOLE AND

EXCLUSIVE REMEDY FOR DEFECTIVE PRODUCTS. IF A PRODUCT IS HAS BECOME

OBSOLETE OR IS NO LONGER SUPPORTED BY LOGICUBE THE PRODUCT MAY BE

REPLACED WITH AN EQUIVALENT OR SUCCESSOR PRODUCT AT LOGICUBE’S

DISCRETION. THIS WARRANTY EXTENDS ONLY TO THE END PURCHASER OF LOGICUBE

PRODUCTS. THIS WARRANTY DOES NOT APPLY TO, AND IS NOT FOR THE BENEFIT OF,

RESELLERS OR DISTRIBUTORS OF LOGICUBE PRODUCTS. UNLESS OTHERWISE

AGREED IN WRITING BY LOGICUBE, NO WARRANTY IS PROVIDED TO RESELLERS OR

DISTRIBUTORS OF LOGICUBE PRODUCTS.

IN ORDER TO RECEIVE WARRANTY SERVICES CONTACT LOGICUBE’S TECHNICAL

SUPPORT DEPARTMENT VIA PHONE OR E-MAIL. PRODUCTS RETURNED TO LOGICUBE

FOR REPAIR UNDER WARRANTY MUST REFERENCE A LOGICUBE RETURN MATERIAL

AUTHORIZATION NUMBER (“RMA”). ANY PRODUCT RECEIVED BY LOGICUBE WITHOUT

AN RMA# WILL BE REFUSED AND RETURNED TO PURCHASER. THE PURCHASER MUST

CONTACT LOGICUBE’S TECHNICAL SUPPORT DEPARTMENT VIA E-MAIL

([email protected]) OR VIA PHONE AT +1-818-700-8488 OPT. 3 TO OBTAIN A

VALID RMA#. THE PURCHASER MAY BE REQUIRED TO PERFORM CERTAIN DIAGNOSTIC

TESTS ON A PRODUCT PRIOR TO LOGICUBE ISSUING AN RMA#. THE PURCHASER MUST

PROVIDE THE PRODUCT MODEL, SERIAL NUMBER, PURCHASER NAME AND ADDRESS,

EMAIL ADDRESS AND A DESCRIPTION OF THE PROBLEM WITH AS MUCH DETAIL AS

POSSIBLE. REASONABLE TELEPHONE AND EMAIL SUPPORT ARE ALSO AVAILABLE FOR

THE LIFE OF THE PRODUCT AS DEFINED BY LOGICUBE.

EXCEPT AS OTHERWISE SPECIFICALLY PROVIDED IN THIS AGREEMENT, LOGICUBE

PRODUCTS ARE PROVIDED AS-IS AND AS-AVAILABLE, AND LOGICUBE DISCLAIMS ANY

AND ALL OTHER WARRANTIES (WHETHER EXPRESS, IMPLIED, OR STATUTORY)

INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY, FITNESS

FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT OF THIRD PARTY RIGHTS.

CellXtract™ User Manual

II

TABLE OF CONTENTS

SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO

YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE

OTHER RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION.

For further assistance please contact Logicube Technical Support at: +1-818-700-8488, or by email to [email protected] Phone support is available 7AM-5PM weekdays (excluding

US national holidays)

Logicube RoHS Compliance Statement

LOGICUBE PRODUCTS COMPLY WITH THE EUROPEAN UNION RESTRICTION OF THE

USE OF CERTAIN HAZARDOUS SUBSTANCES IN ELECTRONIC EQUIPMENT, ROHS

DIRECTIVE (2002/95/EC).

THE ROHS DIRECTIVE PROHIBITS THE SALE OF CERTAIN ELECTRONIC EQUIPMENT

CONTAINING SOME HAZARDOUS SUBSTANCES SUCH AS MERCURY, LEAD, CADMIUM,

HEXAVALENT CHROMIUM AND CERTAIN FLAME-RETARDANTS IN THE EUROPEAN

UNION. THIS DIRECTIVE APPLIES TO ELECTRONIC PRODUCTS PLACED ON THE EU

MARKET AFTER JULY 1, 2006.

End User License Agreement (EULA)

LOGICUBE, INC. OWNS THE CELLXTRACT SOFTWARE AND HEREBY GRANTS THE

LICENSEE A LIMITED, PERPETUAL, NON-EXCLUSIVE AND NON-TRANSFERABLE LICENSE

TO USE THE SOFTWARE SOLELY IN THE COURSE OF LAWFULLY OPERATING THE

DEVICE WITH WHICH THE SOFTWARE IS INTEGRATED, AND FOR NO OTHER PURPOSE.

A COPY OF THE LICENSE MAY BE VIEWED FROM WITHIN THE CELLXTRACT

APPLICATION AND THE END USER WILL BE PROMPTED TO ACCEPT THE TERMS OF THE

LICENSE PRIOR TO INITIAL USE OF THE DEVICE. A COPY OF THE LICENSE IS INCLUDED

IN THE USERS MANUAL OR YOU MAY CONTACT LOGICUBE, INC. FOR A COPY.

THE DEVICE ALSO CONTAINS AN EMBEDDED PC. THE END USER SOFTWARE LICENSE

AGREEMENT FOR SOFTWARE CONTAINED WITHIN THE EMBEDDED PC IS PROVIDED AS

A PAPER LICENSE ALONG WITH THE CELLXTRACT DEVICE IN THE ATTACHED

PACKAGE. BY USING THE SOFTWARE YOU AGREE TO BE BOUND BY THE TERMS OF

THE APPLICABLE LICENSE AGREEMENT. THIS LICENCE COVERS THE OPERATING

SYSTEM THAT SUPPORTS THE CELLXTRACT DEVICE SOFTWARE AND ANY OTHER

SOFTWARE CONTAINED ON THE EMBEDDED LAPTOP. PLEASE NOTE THE WARRANTY

RESTRICTIONS ON ACCESSING THE EMBEDDED PC. A COPY OF THIS LICENSE IS ALSO

AVAILABLE FROM LOGICUBE, INC.

NOTE: Opening the CellXtract faceplate to access the embedded PC will void the warranty.

NOTE:

“Hacking” the CellXtract application to access the embedded PC’s Operating System will also void the warranty. Logicube can reload the CellXtract application for a substantial fee.

CellXtract™ User Manual

III

TABLE OF CONTENTS

Table of Contents

LIMITATION OF LIABILITY AND WARRANTY INFORMATION .................................................. I

IMPORTANT NOTICE: PLEASE READ CAREFULLY ........................................................................ I

W

ARRANTY

.................................................................................................................................................. I

L

OGICUBE

R

O

HS C

OMPLIANCE

S

TATEMENT

...........................................................................................III

E

ND

U

SER

L

ICENSE

A

GREEMENT

(EULA) ...............................................................................................III

T

ABLE OF

C

ONTENTS

............................................................................................................................... IV

1. INTRODUCTION TO CELLXTRACT AND CELLXTRACT-TNT ................................................. 8

I

NTRODUCTION

........................................................................................................................................... 8

Recommended use of CellXtract/CellXtract-TNT ................................................................................... 9

Current Software Version of CellXtract and CellXtract-TNT ................................................................ 9

CellXtract/CellXtract-TNT Extraction Notes.......................................................................................... 9

Features .................................................................................................................................................10

Using this guide .....................................................................................................................................12

System description .................................................................................................................................12

2. GETTING STARTED .............................................................................................................................14

O

VERVIEW OF THE

C

ELL

X

TRACT

..............................................................................................................14

D

IFFERENCES BETWEEN

C

ELL

X

TRACT AND

C

ELL

X

TRACT

-TNT .............................................................16

S

ETTING

U

P

C

ELL

X

TRACT

........................................................................................................................16

Battery Status and Temp Level ..............................................................................................................16

Charging CellXtract ..............................................................................................................................17

Powering Up CellXtract ........................................................................................................................17

External Storage Location .....................................................................................................................18

S

TEP BY

S

TEP

D

EVICE

E

XTRACTION

.....................................................................................................20

Attaching an external storage location ..................................................................................................21

Selecting a handset ................................................................................................................................21

Selecting a connection type ...................................................................................................................21

Connecting the handset .........................................................................................................................21

Case Details screen ...............................................................................................................................22

Extracting Standard data.......................................................................................................................22

Extracting Extended data ......................................................................................................................22

Report Preview ......................................................................................................................................22

A

TTACHING AND

I

DENTIFYING

D

EVICES

....................................................................................................22

Attaching a Cellular Phone ...................................................................................................................23

List Models ........................................................................................................................................................ 23

View Models...................................................................................................................................................... 24

Refine List ......................................................................................................................................................... 24

Generic Extraction Module ................................................................................................................................ 26

SIM Card Extraction .............................................................................................................................27

SIM PIN and PUK Codes .................................................................................................................................. 28

Dual SIM Extracted Data ................................................................................................................................... 28

Attaching a Memory Flash Card ...........................................................................................................29

Imaging Flash Media ......................................................................................................................................... 30

Attaching a GPS Device ........................................................................................................................31

SIM Card ID Cloning Step-by-step (Create NIC) .................................................................................32

Create from Existing SIM .................................................................................................................................. 32

Manually enter NIC data.................................................................................................................................... 35

Create a test NIC ................................................................................................................................................ 38

C

ONNECTION

O

PTIONS

.............................................................................................................................40

Helper Icons ....................................................................................................................................................... 40

Cable Connection ..................................................................................................................................41

Infrared (IR) Connection .......................................................................................................................41

Bluetooth Connection ............................................................................................................................42

CellXtract™ User Manual

IV

TABLE OF CONTENTS

Custom Extraction .................................................................................................................................43

SIM Cards and Flash Memory Card Connection ..................................................................................44

M

AIN

C

ONNECTIVITY

I

CONS

......................................................................................................................44

O

THER CONNECTIVITY

I

CONS

...................................................................................................................45

N

ETWORK

I

SOLATION

(NIC) C

ARDS

.........................................................................................................45

E

XTRACTION WITHOUT A

SIM C

ARD

.........................................................................................................46

3. CAPTURING DATA ...............................................................................................................................48

C

ASE

D

ETAILS

...........................................................................................................................................48

Other Notes ............................................................................................................................................49

D

ATA

E

XTRACTION

....................................................................................................................................49

Searching for Drivers ............................................................................................................................49

Standard Data Extraction ......................................................................................................................49

SMS Attached Content ...........................................................................................................................50

Cancel Capture ......................................................................................................................................51

Extended Data Extraction .....................................................................................................................51

Support for Non-Latin Languages .........................................................................................................52

4. ANALYZING CAPTURED DATA .......................................................................................................53

D

ISPLAYING

E

XTRACTED

D

ATA

.................................................................................................................53

Keyword Search.....................................................................................................................................55

Viewing Extracted Data.........................................................................................................................57

Displaying Previous Extractions ...........................................................................................................58

T

HE

A

UDIT

T

RAIL

.......................................................................................................................................58

T

HE

E

XAMINATION

R

EPORT

......................................................................................................................58

5. OTHER FEATURES ..............................................................................................................................59

M

AIN

A

PPLICATION

S

CREEN

.....................................................................................................................59

S

OFTWARE

U

PDATE

I

NSTRUCTIONS

.........................................................................................................59

CellXtract & CellXtract-TNT Software Update Instructions .................................................................60

iTunes Update Instructions ....................................................................................................................61

S

YSTEM

S

ETUP

.........................................................................................................................................61

Logical Extraction .................................................................................................................................61

Physical Extraction ...............................................................................................................................62

Display...................................................................................................................................................63

Information ............................................................................................................................................63

Report ....................................................................................................................................................64

On Screen Report Settings ................................................................................................................................. 64

Output Report Settings ...................................................................................................................................... 65

Advanced Button ....................................................................................................................................65

S

HUTTING

D

OWN

C

ELL

X

TRACT

................................................................................................................65

6. REFERENCE ..........................................................................................................................................66

E

XTRACTION NOTES

...................................................................................................................................66

SQLite Viewer ........................................................................................................................................66

Android Devices ....................................................................................................................................67

Samsung Galaxy S3 ........................................................................................................................................... 68

Android Ad-hoc device rooting ......................................................................................................................... 69

Android Email ................................................................................................................................................... 70

Android App Data.............................................................................................................................................. 70

Android Location Information ........................................................................................................................... 71

Android files of Interest ..................................................................................................................................... 71

Apple iPhone Devices ............................................................................................................................72

iPhone Passcode Bypass .................................................................................................................................... 73 iPhone App Data ................................................................................................................................................ 74 iPhone files of Interest ....................................................................................................................................... 74

Apple Location Information .............................................................................................................................. 75

CellXtract™ User Manual

V

TABLE OF CONTENTS iPhone Support – User Application Notes ......................................................................................................... 75

BlackBerry Devices ...............................................................................................................................76

Unlocking a BlackBerry Device ........................................................................................................................ 76

BlackBerry Personal ID Numbers (PINs) .......................................................................................................... 77

Windows Mobile Devices.......................................................................................................................77

Various Windows Mobile Devices .................................................................................................................... 77

Symbian Devices ....................................................................................................................................77

Capture from Symbian UIQ 2 nd

& 3 rd

Edition OS ............................................................................................. 78

Symbian Event Logs .......................................................................................................................................... 78

Palm OS Devices ...................................................................................................................................79

Motorola Devices ..................................................................................................................................80

Time/Date Stamps from Motorola Phones ......................................................................................................... 80

Sony Ericsson Devices ...........................................................................................................................80

Data Capture from Sony Ericsson Phones ......................................................................................................... 80

Unlocking Sony Ericsson Handsets ................................................................................................................... 81

Siemens Devices ....................................................................................................................................81

Other Extraction Notes ..........................................................................................................................82

GPS Extraction Notes ............................................................................................................................82

Tom Tom Devices ............................................................................................................................................. 82

Garmin Devices ................................................................................................................................................. 83

HP Satellite Navigation Devices ........................................................................................................................ 83

Generic GPS Extraction ..................................................................................................................................... 83

GPS Track Logs ................................................................................................................................................. 84

Opening GPSData.gpx Output Files in Google Earth ........................................................................................ 85

Geo-Tag Data from Images ...................................................................................................................87

7. PHYSICAL EXTRACTION ..................................................................................................................89

I

NTRODUCTION

...........................................................................................................................................89

S

TEP BY

S

TEP

P

HYSICAL

E

XTRACTION

.................................................................................................89

Attaching an external storage location ..................................................................................................90

Selecting Physical Extraction and the handset ......................................................................................90

Connecting the Handset.........................................................................................................................90

Case Details Screen ...............................................................................................................................91

Performing the Extraction .....................................................................................................................91

Report Preview ......................................................................................................................................92

Android Disk Partition Settings .............................................................................................................93

8. CELLXTRACT-TNT ..............................................................................................................................94

I

NTRODUCTION

...........................................................................................................................................94

S

TEP BY

S

TEP

D

EVICE

E

XTRACTION FOR

C

ELL

X

TRACT

-TNT ..............................................................95

Attaching an external storage location ..................................................................................................95

Selecting a chipset .................................................................................................................................95

Connecting the power clamps to the phone power terminals ................................................................97

Identifying the data port on the phone and the correct Cable Tip .........................................................97

Connecting the data and power cables to the CellXtract-TNT ..............................................................98

Case Details screen ...............................................................................................................................98

Selecting the bootloader ........................................................................................................................99

Performing the extraction ......................................................................................................................99

Report Preview ....................................................................................................................................100

9. GLOSSARY AND TROUBLESHOOTING GUIDE .........................................................................101

G

LOSSARY

...............................................................................................................................................101

T

ROUBLESHOOTING

G

UIDE

.....................................................................................................................102

H

ELP

M

ESSAGES

.....................................................................................................................................105

8. SUPPORTED HANDSETS ..................................................................................................................107

S

UPPORT AND

V

ALIDATION

.....................................................................................................................107

CellXtract™ User Manual

VI

TABLE OF CONTENTS

H

ANDSETS

E

XPECTED

S

UPPORT

.........................................................................................................134

H

ANDSETS

O

THER

...............................................................................................................................143

GPS D

EVICE

V

ERIFIED

C

ELL

X

TRACT

S

UPPORT

.................................................................................144

9. INDEX ....................................................................................................................................................146

10. CELLXTRACT SOFTWARE LICENSE .........................................................................................148

C

ELL

X

TRACT

S

OFTWARE

L

ICENSE

EU ................................................................................................148

C

ELL

X

TRACT

S

OFTWARE

L

ICENSE

US ................................................................................................156

GNU G

ENERAL

P

UBLIC

L

ICENSE

............................................................................................................161

T

ECHNICAL

S

UPPORT

I

NFORMATION

......................................................................................................166

CellXtract™ User Manual

VII

Introduction

1. Introduction to CellXtract and CellXtract-TNT

Congratulations on your purchase of CellXtract or CellXtract-TNT. This manual covers the features and operation of both models. Information on the specific capabilities and operation of CellXtract-TNT for Chinese-chip mobile devices can be found in chapter 7.

CellXtract

CellXtract is a self-contained, rugged device that has been designed specifically for harsh field environments. The CellXtract is a comprehensive data extraction tool and is a standalone device with no external computer required to immediately view data extracted from mobile devices. CellXtract provides data extractions from cell phones, smartphones, Satellite Navigation Devices, PDAs, SIM cards and flash based media. Data can be extracted from devices using three connection methods; data cables, infrared ports or Bluetooth radio frequency communications. The target devices may connect to CellXtract by one, two or all three of these methods.

The CellXtract software also helps with easy identification of the target device and informs the user of available connection methods. The user can select the preferred connection method.

CellXtract-TNT

The CellXtract-TNT model delivers all of the features of CellXtract plus the ability to extract data from thousands of Chinese “knock-off” and legitimate brand mobile devices. The CellXtract-TNT provides a full physical extraction of the memory chips on Chinese-chip cell phones, a full physical image (binary file) of the memory chip

CellXtract® User Manual 8

INTRODUCTION is extracted. The binary file is decoded to show user information including passwords, SMS, contacts, call logs and deleted data. The CellXtract-TNT supports data extraction from the major chipset manufacturers including MediaTEK, Infineon,

Spreadtrum, MSTAR, and Cool Sand.

Recommended use of CellXtract/CellXtract-TNT

CellXtract/CellXtract-TNT is a forensically sound mobile device data extraction tool, able to obtain real time intelligence from a mobile device at a scene. It is designed to extract as much information as possible in a forensic manner and disclose any other information which might be present but has not been extracted. It is aimed at getting information immediately from the mobile device to help move forward an investigation. CellXtract and

CellXtract-TNT have been designed with a full audit trail allowing users to demonstrate when actions were taken. The examination is write-protected to ensure that information cannot be written to the handset or media card.

CellXtract and CellXtract-TNT have been tested on a large range of devices and its capabilities are displayed during the data extraction process. The tests have verified that CellXtract and CellXtract-TNT extracts data reliably. The User should consult this information to ensure that the captured data meets their needs

Users should consider using CellXtract and CellXtract-TNT in an appropriate environment to prevent any messages or calls being received which will change the data on the handset. This can also be considered as interception. The user should consult with their local authorities for recommendations on legal implication of intercepting data in the context of their examinations.

Current Software Version of CellXtract and CellXtract-TNT

Software updates are available by subscription only. Software updates ensure that your CellXtract/CellXtract-TNT provides compatibility with the latest mobile devices on the market. Please contact Logicube Sales or your CellXtract/CellXtract-TNT

Distributor to purchase a subscription.

New software features are listed in the CellXtract/CellXtract-TNT activity log every time it is started.

CellXtract/CellXtract-TNT Extraction Notes

There are several changes to handsets that will result from examination by CellXtract or CellXtract-TNT.

If an unread SMS is opened during the examination process, the unread SMS status will change to

“read” on the phone or SIM card.

However CellXtract and CellXtract-TNT will report the original status of the message.

CellXtract and CellXtract-TNT operation will remove the missed call message or symbol from the handset.

Bluetooth acquisitions will leave the extracting device name in the

“trusted devices” list in the handset Bluetooth menu.

CellXtract™ User Manual

9

CellXtract™ User Manual

INTRODUCTION

The extraction of SMS messages can be skipped thus preventing these changes to the data on the handset.

Features

Data extraction from mobile devices with no external computer required

– view data in real-time, on scene

Portable and light-weight with a rugged chassis specifically designed for the harshest field environments

Intuitive and easy to use even for non-technical personnel

Supports over 2,000 mobile devices including Apple iPhone,

Android, BlackBerry, Smart Phones, Palm, Symbian, Windows

Mobile and GPS devices. Apple and Android Tablets will be supported in an upcoming release.

Comprehensive data extraction includes the acquisition of missed calls, dialed calls, received calls, phonebook, SMS messages, deleted SMS messages from SIM, Multimedia (MMS) messages, calendar, memos, to-do lists, photos, video, audio and other files

Designed specifically for military organizations. The batterypowered CellXtract and CellXtract-TNT are light weight at 4 lbs, provide a ruggedized chassis, and small footprint (8”x8.5”x3”) making it ideal for harsh field environments. Meets IP54

(international Protection Code) specification for dust and splashing water and a subset of MIL-STD-810F specification for

Altitude/Temperature/Humidity/Rain/Sand/Dust/Shock/Vibration

A user-friendly color touch screen and interface make

CellXtract/CellXtract-TNT easy to navigate for novice users. Easy to read reports are available on demand. Report structure is specifically designed for forensic investigators. Provides reports in

SQLite3 and converted to HTML for easy viewing.

Search capture reports by entering an individual keyword using the touchscreen keyboard on the CellXtract/CellXtract-TNT or pre-load a list of search keywords.

Extracted data is unaltered using write protection, MD5 hash for data verification, and time-stamped audit trail

Bluetooth and IrDA capability

Built-in SIM Card/SD Card reader

SIM ID Cloning feature that allows you to extract phone data when the SIM Card is PIN locked or when the SIM is not available

Memory Card Reader is included to support extraction from other types of flash memory cards

NIC (Network Isolation Card) isolates the suspect phone from the cellular network making it impossible to receive SMS messages or calls

Physical Acquisition currently available for the CellXtract-TNT for phones with the Chinese chipsets (Infineon, Mediatek and

Spreadtrum, MSTAR, and Cool Sand.

An internal rechargeable battery is easily recharged using an AC power source or DC power (12v and optional 24v) connectivity.

These power options ensure that the CellXtract/CellXtract-TNT is

10

CellXtract™ User Manual

INTRODUCTION available for use anytime, anywhere, including in military vehicles such as Humvees

Supports all major network technologies including CDMA, GSM, iDEN, TDMA

Customized data downloads. Users can specify which parts of a phone’s memory are extracted

Phone cables included for all supported phones in a convenient carrying case

CellXtract/CellXtract-TNT will display Geo-Tag data for images that have been captured using a device with a GPS receiver

Device selection software allows users to quickly identify by brand, model, photo, and/or dimensions

Capture Skype call logs and contacts

Frequent software updates (subscription required) ensures compatibility with new phones as they are introduced

Optional physical extraction on Android based phones (Android 1.6

– 2.3.4) extracting, dumping, and decoding data from contacts, call logs, SMS, emails, and user files.

CellXtract-TNT only: Full physical extraction of the memory chips on Chinese-chip cell phones. A full physical image (binary file) of the memory chip is extracted

CellXtract-TNT only: Support for thousands of mobile devices that use Chinese-manufactured chipsets. The four supported chipsets,

Infineon, Spreadtrum, Mediatek and MSTAR, and Cool Sand represent over 97% of Chinese-chip phones on the market.

CellXtract-TNT only: Auto pin definition identifies data and power configurations

CellXtract-TNT only: Extracts, decodes and reports deleted data

CellXtract-TNT only: User Password extraction supported for all

Chinese chipsets

CellXtract-TNT only: Data decoding on Chinese chipset phones.

After acquisition of the memory chip’s physical image, the binary file is decoded to show user information including passwords,

SMS, contacts and call logs. Supports decoding various languages and character sets including Arabic and Chinese and Southeast

Asian languages and data storage formats

CellXtract-TNT only: Binary file export. Binary file can be saved to an external storage device and then imported to third-party tools for further manual or automatic decoding.

CellXtract-TNT only: Password extracted immediately and provided to examiner during extraction process.

CellXtract-TNT only: Extracts from MTK, SPD, INF features phones and MTK Android.

CellXtract-TNT only: Decodes file system, SMS, contacts call logs, pin codes and IMEIs.

CellXtract-TNT only: Decodes deleted data.

CellXtract-TNT only: File download support for MTK chipset.

11

CellXtract™ User Manual

INTRODUCTION

Using this guide

This user guide is made up of 10 sections:

Introduction

Getting Started

Capturing Data

Analyzing Captured Data

Other Features

CellXtract-TNT

Glossary and Troubleshooting Guide

Supported Handsets

Index

CellXtract Software License

System description

The CellXtract system is packed in a carrying case. Inside, you will find the following components:

AC Adapter

A complete set of adapters for all phones supported

Cable storage carrying bag

Memory card reader

A USB thumb drive

3 NICs (Network Isolation Cards) to be used for network isolation and SIM ID cloning

Two Micro SIM card adapters

One micro SD card with SD card adapter

One USB hub

One Velcro tie

A radio frequency foil shielding (Faraday) bag

12V car charger

CD with CellXtract software and user’s manual

NOTE: Opening the CellXtract to access the embedded PC will void the warranty.

“Hacking” the CellXtract application to access the embedded PC’s Operating

System will also void the warranty. Logicube can reload the CellXtract application for a substantial fee.

The CellXtract-TNT system is packed in a carrying case. Inside, you will find the following components:

Two cable storage bags with complete set of adapters for all phones supported as well as cables and “tips” for extraction from Chinese phones

Memory card reader

A USB thumb drive

3 NICs (Network Isolation Cards) to be used for network isolation and SIM ID Cloning

12

INTRODUCTION

12V car charger

CD with CellXtract™ software and a users’ manual

NOTE: Opening the CellXtract-TNT to access the embedded PC will void the warranty.

“Hacking” the CellXtract-TNT application to access the embedded PC’s

Operating System will also void the warranty. Logicube can reload the CellXtract-

TNT application for a substantial fee.

CellXtract™ User Manual

13

Overview of the CellXtract

2. Getting Started

CellXtract Overview

CellXtract® User Manual

CellXtract-TNT Left Panel Overview

14

GETTING STARTED

1. TOUCH SCREEN INTERFACE

– All of the CellXtract/CellXtract-TNT software and user input is controlled from here

2. LEFT PANEL

– The left panel contains the following ports:

Two USB Ports (For handset device cables, memory card reader and Bluetooth adapter)

SIM card reader with LED

SD card reader with LED

RJ-45 handset port with LED

Infrared panel

Data port (CellXtract-TNT only)

Power Port (CellXtract-TNT only)

3. RIGHT PANEL

– The right panel contains the following ports:

Two USB ports for external storage devices and input devices

Power socket

15-pin VGA port

PS/2 port for a keyboard

RS-232 (9-pin serial) port

RJ-45 network (LAN) port

4. USB Ports

– The left side USB ports are designed to have the phone cable and Bluetooth adapter attached. The right side USB ports are designed for USB an external storage location such as a USB flash drive

(or external USB drive where reports can be saved to) along with an input device (if desired) such as a mouse or keyboard.

5. SIM Card Reader

– Attach a SIM card, Micro SIM adapter, or a NIC/SIM

ID card into this slot to extract a SIM card, Micro SIM card, or create a

NIC or SIM ID card.

6. SIM Card Reader LED

– This LED blinks when reading a SIM card or creating a NIC/SIM ID card.

7. RJ-45 Handset Port

– This port used for the non-USB cables provided with CellXtract/CellXtract-TNT for extraction of various devices

8. RJ-45 Handset Port LED

– This LED is for the RJ-45 Handset Port.

9. INFRARED (IR) PANEL

– During an infrared capture, the wireless device’s IR port is pointed toward this panel.

10. POWER SOCKET

– Attach the included AC adapter to this power socket to charge the CellXtract/CellXtract-TNT battery and to operate the

CellXtract using external power.

11. 15-pin VGA Port

– This port can be used to attach an external monitor that has a VGA input.

12. PS/2 Port

– This port can be used to attach a keyboard.

13. RS-232 Port

– This port is used for some handsets with off-the-shelf cables not included with CellXtract/CellXtract-TNT.

14. RJ-45 Network (LAN) Port

– 10/100 Ethernet port currently reserved for future use.

15. 16-pin Data Port

– CellXtract-TNT only. Data port for the data cable included with CellXtract-TNT.

CellXtract™ User Manual

15

GETTING STARTED

16. 3.5mm Power Port

– CellXtract-TNT only. Power port for the power cables included with CellXtract-TNT.

NOTE: Other flash-based media cards (i.e. CompactFlash, Memory Stick, etc.) can be read in the memory card reader included with CellXtract. The memory card reader should be connected to one of the USB ports on the left panel.

Differences between CellXtract and CellXtract-TNT

The CellXtract-TNT has all the capabilities of the CellXtract plus the ability to extract data from major Chinese-manufactured chipsets: MediaTEK (MTK),

Infineon, and Spreadtrum, MSTAR, and Cool Sand.

Chapter 1 through 6 covers the set-up and operation of CellXtract. These instructions also apply to CellXtract-TNT when you are performing extractions from non-Chinese chipset handsets.

Specific instructions for using CellXtract-TNT to perform extractions from

Chinese-chip mobile devices can be found in Chapter 8.

Setting Up CellXtract

Battery Status and Temp Level

Before CellXtract is powered up for the very first time, it needs to have the battery charged. Attach the AC cable into the AC adapter and connect the other end to a wall outlet or power strip.

Allow CellXtract to charge for at least 2 ½ hours.

The CellXtract main application screen displays the battery life of the unit. When the battery has depleted to around 5%, CellXtract will alert the user to recharge the CellXtract. When the battery level drops below this state, CellXtract will shut down and will not restart correctly until the unit is charged. The temperature level is displayed in degrees Fahrenheit and shows the system temperature.

Temperature Notes:

CellXtract will warn the user when the system temperature exceeds 122 degrees Fahrenheit.

CellXtract will shut down if the temperature level reaches 131 degrees Fahrenheit.

CellXtract™ User Manual

16

Battery Recharge State

GETTING STARTED

Charging CellXtract

CellXtract may be charged with the included AC adapter. The AC adapter can be plugged into 110V or 220V AC power.

Normal charge time = 2 ½ Hours

– A full charge will give about 5 hours of usage.

CellXtract also comes with a 12V car charger which can be used to charge the CellXtract using an in-vehicle 12V power supply.

An optional 12V/24V cable that can be plugged into a military

BA-5590 battery is also available.

Powering Up CellXtract

To power up CellXtract follow this step-by-step procedure:

1. The power button is located in front of the CellXtract.

Locate the button with the following power symbol:

Power symbol

2. Press and release the power button. CellXtract will initialize and boot-up to the End User License

Agreement (EULA).

End User License Agreement

3. Tap the Accept button to continue. CellXtract will boot to the Main Application Menu.

CellXtract™ User Manual

17

GETTING STARTED

CellXtract Main Application Screen

.

External Storage Location

CellXtract saves all extraction reports and files to an external location. This is typically a USB flash drive or a USB external drive. The external storage location should always be placed on a USB port on the right side.

It is recommended that the USB flash drive used when extracting a device is larger in capacity than the total memory of the device

(including any removable memory cards).

If a storage location is unavailable or has not been set during an extraction of a device, the following message will appear:

External storage unavailable prompt

Attach an external storage device to one of the available USB ports on the right panel of the CellXtract then tap the Yes button.

CellXtract will display a list of attached drives.

CellXtract™ User Manual

18

GETTING STARTED

Drive selection screen

Tap the desired drive to highlight it then tap the Select button.

CellXtract will then ask if you would like to save this storage setting. The two choices are:

No this time only

– Select this if you do not want to save the storage setting.

Yes save setting

– Select this if you would like CellXtract to remember this storage setting.

Save storage confirmation screen

NOTE: If a previously used external storage device is attached,

CellXtract will display the following screen. The drive letter may be different from what is displayed on your screen.

CellXtract™ User Manual

19

GETTING STARTED

Existing external storage prompt

Select YES to capture to the selected external storage device.

Select Cancel to cancel the operation.

Select New location to select a different external storage device.

Step by Step

– Device Extraction

Logical handset extraction is composed of 8 sections:

Attaching an external storage location

Selecting a handset

Selecting a connection type (cable, Bluetooth, or infrared)

Connecting the handset

Case Details screen

Extracting Standard data (SMS, contacts, etc.)

Extracting Extended data (images, audio, video, etc.)

Report Preview

These sections are described in more detail in this manual.

NOTE: For physical extraction, please refer to Chapter 7

– Physical extraction.

The following instructions are an example of how to perform a handset extraction.

NOTE: The recommended direction for extraction is left to right. The phone cables and USB adapter should be connected to the USB ports on the left side while the external storage location should be connected to the USB

ports on the right side.

CellXtract™ User Manual

20

CellXtract™ User Manual

GETTING STARTED

Attaching an external storage location

Attach an external storage location such as a USB flash drive or

USB external drive to one of the available USB ports on the right panel. This will allow CellXtract to save extracted files and the report to the selected external storage location.

It is recommended that the USB flash drive used when extracting a device is larger in capacity than the total memory of the device

(including any removable memory cards).

Selecting a handset

1. From the main screen, tap Read New Device.

2. Select the device type (For example, Cell Phone. If Cell

Phone is selected, choose Logical Extraction).

3. Select the manufacturer or Operating System of the device (For example, Sony Ericsson).

4. Next, select the model either by List Models, View

Models or Refine List (For example, List Models).

5. A list of handsets will appear by model number. Scroll up or down to locate the model of the handset (For example, T610).

Selecting a connection type

When the handset is selected, the handset screen will appear which will show a picture of the handset (if available) along with the types of data that can be extracted. It will also show all the supported connection types (Cable, Infrared, and Bluetooth) for this handset.

1. Select the desired connection type. Depending on the model, you can choose between Cable, Infrared or

Bluetooth. Some handsets do not support all connection types.

NOTE: If a cable connection is available, it will be selected by default.

2. Tap Run Extraction.

Connecting the handset

CellXtract will now show instructions on how to connect the handset.

If cable was selected, CellXtract will let the user know what cable to attach, and when to attach the handset.

Some cables need to be connected to an available USB port while others will need to be connected to the RJ-45

Handset Port.

21

GETTING STARTED

NOTE: Some Nokia phones will require the back cover and battery to be removed. The cable will connect to the Nokia phone through the battery compartment (for example, cable 32).

If infrared was selected, CellXtract will give instructions on how to enable infrared on the handset.

If Bluetooth was selected, CellXtract will scan for visible

Bluetooth devices within range then give instructions on how to connect to the device.

Case Details screen

Once connected to the handset, CellXtract will show the Case

Details screen. The user can fill this screen at this time, or have the option to fill it out later, after the extraction has completed.

Extracting Standard data

CellXtract will then begin extracting Standard data. This includes handset information, contacts, SMS, call registers and organizer files.

Extracting Extended data

After Standard data has been extracted, CellXtract will begin extracting Extended data. This includes images, audio files, videos, and other files.

NOTE: If at any point the CellXtract hangs or freezes during an extraction, connect the included USB hub between the USB port (on the left panel) and the phone cable and perform the extraction again. If your

CellXtract did not come with a USB hub, please contact Logicube

Technical Support. Contact information can be found at the end of this document.

Report Preview

Once the Extended data extraction has completed, CellXtract will show the report preview on the screen. Users can view the report on the spot and see what data was extracted. From the

Report Preview screen, users can perform many different tasks such as searching for keywords. Printing the report, viewing the report, or disconnect the external storage location which will contain the report to be previewed on another computer.

Attaching and Identifying Devices

Handset devices can be difficult to identify. Many show the manufacturer or carrier’s name or logo, but not the model name or number. This information is usually displayed behind the battery of the target device. To view the label, power down the target device then remove the battery.

CellXtract™ User Manual

22

GETTING STARTED

On power-up a PIN or PUK number may be required to unlock the target device.

This number can be obtained from the device’s network service provider by authorized law enforcement personnel.

Identification of the target device is required to determine which connection methods are available (e.g. cable, infrared or Bluetooth) and for data cables, the specific cable connector.

Attaching a Cellular Phone

1. Attach an external storage device to one of the available

USB ports on the right panel.

2. Tap the Read New Device button on the Main Application

Screen. The Device Type Selection screen will appear.

3. Tap the Cell Phone button. The next screen prompts the user to choose Logical or Physical extraction.

4. Select Logical Extraction. The next screen prompts the user to choose the manufacturer.

5. Once the manufacturer is chosen, the Cell Phone Selection

Screen will appear. For a given manufacturer, CellXtract helps to identify the target cellular phone as follows:

Selection from a model list (List models)

Selection from model images (View Models)

Selection from a “short list” of model images based on entered dimensions (Refine List)

List Models

If the user knows the model of the cell phone, then the List Models option should be selected.

A list will come up of all known models. Scroll down the list and select the model number of the cell phone.

CellXtract™ User Manual

Cell Phone Model List

23

GETTING STARTED

View Models

If the model is unknown, images of all models for the chosen manufacturer are obtained by selecting View Models. Scroll down the list and choose the image that looks like the target cell phone.

CellXtract™ User Manual

Cell Phone Models

NOTE: Fully verified and supported handsets are indicated by green “check marks”. Handsets that are not supported but are expected to work are indicated by amber check marks.

Unverified handsets have no check mark. Treat extractions from these handsets as a minimum data extraction.

NOTE: Some handsets can use a Network Isolation card (NIC) during capture. This feature is further explained in the Network

Isolation (NIC) Cards and SIM Card ID Cloning section later in this chapter.

You may be faced with a large list of cell phones. To narrow down the search, tap the Back button and select Refine List.

Refine List

Refine List gives the user the option to apply two filters. The user can choose to apply either or both of these filters.

The first will narrow down the images shown using physical features of the phone (e.g. Does the phone have an antenna or camera and what type of phone is it?).

The second or Input Dimensions filter is used to enter the physical dimensions of the target device (length, width, depth) using mm or inches. CellXtract will display the models matching those dimensions or features.

Tap the Up and Down Arrows to change each filter. If the handset does not have one of the

24

GETTING STARTED features, such as a camera, set the filter to

“Ignore”.

When finished, tap the Display Phones button.

CellXtract will display models matching those features.

Tap the model number or image to highlight it, and then tap the Select button.

Refine list screen with features

CellXtract™ User Manual

Refine list screen with dimensions

NOTE: This screen will allow the user to enter the dimensions in mm, 1/8 inch or 1/16 inch increments.

6. The handset screen will appear which will show a picture of the handset (if available) along with the types of data that can be extracted. It will also show all the supported connection types (Cable, Infrared, Bluetooth) for this handset.

7. Select the desired connection type. Depending on the model, you can choose between Cable, Infrared or

Bluetooth. Some handsets do not support all connection types.

NOTE: If a cable connection is available, it will be selected by default.

8. Tap Run Extraction and follow the on-screen instructions to begin the extraction process. CellXtract will prompt you to

25

GETTING STARTED insert a cable, letting you know what cable number to connect and when to connect the handset.

9. The Case Details screen will appear. You can fill out the case details at this time then tap the OK icon or tap the

LATER button if you want to fill out the information later.

10. CellXtract will begin the extraction. When the process finishes, the Extraction Complete screen will appear.

NOTE: If Automatically extract ALL files from the

Extraction Settings screen is not checked, CellXtract will show a list of extended data (images, audio, video, etc.) that can be extracted. You may select all, some, or none of the files displayed.

11. Tap the OK icon to complete the process and preview the report.

Generic Extraction Module

If the Other Button is chosen on the Cell Phone extraction screen, the Generic Extraction

Module appears. This is used to extract from handsets that have not been identified or verified with CellXtract. This includes handsets where data could not be obtained from the known manufacturers as well as from unknown manufacturers.

The time taken for data extraction can take up to

30 minutes, depending on the amount of data.

The Generic Extraction Module only supports

Bluetooth and Infrared connections.

CellXtract™ User Manual

Generic extraction screen

NOTE: Users should be aware that data extracted with the Generic Extraction Module is NOT validated. It is recommended that any data extracted using this method is visually verified by the User to ensure that no data is missed or misrepresented.

26

CellXtract™ User Manual

GETTING STARTED

SIM Card Extraction

NOTE: CellXtract supports the ability to clone an existing

SIM card ID. This and other features using the Network

Isolation Card (NIC) are described in detail in the Network

Isolation (NIC) Cards section on p. 56.

SIM Card extraction supports SIM, Micro SIM and USIM cards.

1. Remove the SIM Card from the target cell phone. It is usually located underneath the battery. Follow the cell phone manufacturer’s instructions on how to remove the

SIM card.

2. Attach an external storage device to one of the available

USB ports on the right panel.

3. Tap the Read New Device button on the Main

Application Screen. The Device Type Selection screen will appear.

4. Tap the SIM Card button. At this point CellXtract will prompt you to insert an external storage location or verify where you want to capture the data to. Select the external storage location desired.

5. A screen will appear prompting you to insert the SIM card into the reader. Place the SIM card, gold connector side facing down, in the SIM card slot then tap the OK

icon. If the target phone uses a Micro SIM card (such as the iPhone 4 and 4S), place the Micro SIM card on the

Micro SIM adapter and place the adapter, gold connector facing down, in the SIM card slot then tap the

OK icon. The SIM card slot is located on the left side of the CellXtract.

6. As the card is read, the green LED to the left of the SIM card slot will blink for about 15-30 seconds. The Case

Details screen will appear. You can fill out the case details at this time then tap the OK icon or tap the

LATER button if you want to fill out the information later.

7. The CellXtract will read the SIM card and begin the extraction. When the process finishes, the Extraction

Complete screen will appear.

8. Tap the OK icon to complete the process and preview the report.

Network Isolation Card Note:

If “Create Network Isolation

Card after SIM extraction

” is selected (checked) in the

‘Extraction’ settings screen, CellXtract will prompt the user to insert a NIC. CellXtract will then create a Network Isolation

Card that can be used in place of the SIM card to isolate the handset from the network.

NOTE: Refer to Chapter 4. Analyzing Captured Data for more information regarding the extracted data.

27

CellXtract™ User Manual

GETTING STARTED

SIM PIN and PUK Codes

CellXtract enables an investigator to unlock SIM cards via the PIN code and the PUK code, if they are known.

When CellXtract is used to unlock a SIM card via the PIN code it does not relock the card afterwards.

When unlocking the SIM card via the PUK code

CellXtract will reset the PIN number to “0000”.

To enable the feature to enter the PUK code, the

PIN code needs to be entered incorrectly several times. The PIN-input screen displays the number of attempts remaining before the PUK code is required.

Dual SIM Extracted Data

Dual SIM handsets can contain two SIM cards; however the handsets are fully operational with only one SIM. Dual SIM handsets will have the following data:

These handsets make use of two SIM card slots and are referred to as Slot 1 and Slot

2. Either slot can be used if only one SIM card is present.

There are a number of ways the user can switch between SIM cards including a software menu option or a hardware button.

The handsets also have the functionality to set which SIM card is initially used on startup irrespective of the Slot it is in. Therefore the SIM card in Slot 2 can be set to be used before that in Slot 1.

The SIM cards will be referred to as Primary

SIM and Secondary SIM, where the Primary

SIM is the one set to be used first.

The following data has been tested and can be extracted from these handsets:

IMEI

– Each Dual SIM handset has two IMEI numbers, one for each SIM card Slot. The IMEI numbers are associated to the SIM card slots on the handset NOT the SIM Cards. CellXtract will only extract the IMEI number of Slot 1 regardless of how many SIM cards are present or which card is set as the Primary SIM.

IMSI

– Each Dual SIM handset can have up to two IMSI numbers, one for each SIM card inserted. CellXtract will only extract the IMSI of

28

CellXtract™ User Manual

GETTING STARTED the Primary SIM card, regardless of which slot it is inserted into.

SIM Contacts

Dual SIM handsets can store contacts to either SIM card. CellXtract can retrieve contacts from both SIM cards and identify which card they were stored on.

Contacts stored on the Primary SIM will be labeled “[Primary SIM]”. Contacts stored on the

Secondary SIM will be labe led “[Secondary

SIM]”.

SMS Messages

– Dual SIM handsets can store

SMS messages on either SIM card. CellXtract will only extract messages stored on the Primary

SIM card, regardless of which slot it is inserted into. CellXtract will extract all handset SMS messages but cannot determine which SIM card they were sent to/from, this can be determined by viewing the SMS on the handset.

Call Logs

– Dual SIM handsets store all call logs on the handset and can be dialled or received from either SIM card. CellXtract will extract all call log entries but cannot determine which SIM card was used to dial or receive the call, this can be determined by viewing the call logs on the handset. Any LDN’s stored on the

SIM cards will not be extracted, a separate SIM card extraction will obtain this data.

NIC Functionality

– Where NIC (Network

Isolation Card) support is verified, a NIC will need to be created for each SIM card used in a

Dual SIM handset. The NIC will need to be returned to the same Slot from which the SIM card taken from. Placing a NIC in the wrong slot will result in a loss of data.

NOTE: A separate extraction should always be performed on all SIM cards.

Attaching a Memory Flash Card

A memory card reader is included with CellXtract. The memory card reader supports several different formats:

CompactFlash (CF)

Secure Digital (SD, SDXC)

MultiMediaCard (MMC)

Memory Stick (MS)

Memory Stick Micro (M2)

29

CellXtract™ User Manual

GETTING STARTED

Micro SD

X-Card

The CellXtract software application does not allow data to be written to the Memory Card Reader slots.

NOTE: Do not insert the flash memory card (target card) at this time. CellXtract will prompt when to insert the target card.

1. Attach an external storage device to one of the available

USB ports on the right panel.

2. Tap the Read New Device button on the Main

Application Screen. The Device Type Selection screen will appear.

3. Tap the Flash Memory button.

NOTE: If prompted for an external storage location, please refer to External Storage Location in the

CellXtract Operation section of this manual.

4. A screen will appear with the message:

“Please ensure that the target card/drive is NOT inserted at this moment.

Tap the OK icon to continue.

5. A screen will a ppear with the message: “Insert target card now”. Attach the included memory card reader to one of the USB ports then attach the memory flash card you want to extract. Tap the OK icon when the white and blue LEDs on the memory card reader lights up.

6. The Case Details screen will appear. You can fill out the case details at this time then tap the OK icon or tap the

LATER button if you want to fill out the information later.

7. The CellXtract will read the flash memory card and begin the extraction. When the process finishes, the

Extraction Complete screen will appear.

8. Tap the OK icon to complete the process and preview the report.

NOTE: Refer to Chapter 4. Analyzing Captured Data for more information regarding the extracted data.

Imaging Flash Media

After capturing data, CellXtract will ask the user if it should perform a complete image capture of the flash memory card. If the user chooses to do this, CellXtract will run the following procedure:

1. CellXtract will make a sector-by-sector copy of the entire flash media drive.

30

CellXtract™ User Manual

GETTING STARTED

2. The copy will be stored as an image file in the “_resource” folder of the extraction directory.

3. CellXtract will then scan the image file for the following types of JPEG files:

- Extant JPEG: Normal, readable

JPEG files.

- Deleted JPEG

- Embedded JPEG: JPEG files embedded in emails or other files.

4. Any found JPEG files will be displayed by CellXtract in the Extended Data screen.

5. The image file can be copied to a thumb drive and investigated further with hexediting or forensic software.

NOTE: CellXtract cannot distinguish between

Extant, deleted or embedded JPEG files. The image file should be further investigated to determine the status of any found files, and whether similar files exist in other formats.

Attaching a GPS Device

CellXtract can extract data from a number of GPS devices.

NOTE: For device specific extraction notes, please see

Chapter 6: Reference

.

1. Attach an external storage device to one of the available

USB ports on the right panel.

2. Tap the Read New Device button on the Main

Application Screen. The Device Type Selection screen will appear.

3. Tap the GPS Device button.

4. The next screen prompts the user to choose the type of

GPS. Select the GPS to be extracted and tap the OK

icon.

NOTE: If prompted for an external storage location, please refer to External Storage Location in the

CellXtract Operation section of this manual.

5. Follow the on screen instructions to connect the GPS device. Once connected, the Case Details screen will appear. You can fill out the case details at this time then tap the OK icon or tap the LATER button if you want to fill out the information later.

6. The CellXtract will read the GPS device and begin the extraction. When the process finishes, the Extraction

Complete screen will appear.

31

GETTING STARTED

7. Tap the OK icon to complete the process and preview the report.

NOTE: Refer to Chapter 4. Analyzing Captured Data for more information regarding the extracted data.

SIM Card ID Cloning Step-by-step (Create NIC)

SIM Card ID cloning is available with CellXtract. You have three choices allowing different types of SIM Card ID cloning depending on the situation at hand.

Create from Existing SIM

Manually enter NIC data

Create Test NIC

An explanation and summary for each method is included in the step-by-step instructions below.

Create from Existing SIM

CellXtract will clone the original SIM card ID. It will copy the ICCID and IMSI from original SIM card onto a NIC (SIM ID Card). The ICCID and

IMSI on NIC must be identical to original SIM.

NIC (SIM ID Card) ICCID and IMSI values can be checked by performing a SIM Card Extraction of NIC.

This method is useful when the original SIM card is available.

1. Tap Read New Device from the main menu. The device type selection screen will appear

CellXtract™ User Manual

32

Device Type screen

2. From the NIC Operation screen, tap

Create from Existing SIM.

GETTING STARTED

NIC/SIM ID Operation screen

3. Place the SIM card into the SIM card adapter then insert the adapter into the reader. Tap OK.

Insert SIM card screen

4. CellXtract will read the inserted SIM card. After this process, the following screen will appear:

CellXtract™ User Manual

33

Remove master SIM

5. Remove the SIM card from the adapter and place the NIC (SIM ID Card) into the same adapter. Insert the adapter into the reader then tap OK. CellXtract will create the NIC (SIMID Card). When this process finishes, the screen below will appear. Tap OK.

GETTING STARTED

Successful NIC creation

6. CellXtract will prompt whether a phone is compatible with Network Isolation

Cards. Selecting No will finish the process and bring the user back to the

CellXtract main screen. Selecting YES to the screen below will prompt the user to identify the phone to be used with the

NIC (SIM ID Card).

NIC compatibility screen

7. After selecting the phone, one of the following two screens will appear. Tap

OK to finish he process and go back to the CellXtract main screen.

CellXtract™ User Manual

34

Supported NIC

GETTING STARTED

CellXtract™ User Manual

Phone untested with NIC

Manually enter NIC data

CellXtract will create a NIC (SIM ID Card) by writing valid ICCID and IMSI values entered by the user.

This method is useful when the original SIM card is not available. To find out the correct ICCID or

IMSI numbers, please contact the handset’s network provider.

Valid ICCID numbers are 19 or 20 digits long and include the following:

The first 2 digits represent the Major

Industry Identifier (89 for telecommunications)

1-3 digit Country Code

1-4 digit Issuer ID

Variable length individual Account ID

Valid IMSI numbers are 15 digits long and include the following:

The first 3 digits represent the Mobile

Country Code (MCC)

The next 2 or 3 digits represent the

Mobile Network Code (MNC).

The next digits represent the mobile station identification number. Normally there will be 10 digits but would be fewer in the case of a 3-digit MNC or if national regulations indicate that the total length of the IMSI should be less than 15 digits.

NIC (SIM ID Card) ICCID and IMSI values can be checked by performing a SIM Card Extraction of NIC.

35

GETTING STARTED

1. Tap Read New Device from the main menu. The device type selection screen will appear

Device type screen

2. From the NIC Operation screen, tap

Manually enter NIC data.

NIC/SIM ID Operation screen

3. The following screen will appear. Use the virtual keyboard (or an attached keyboard) and enter the ICCID and IMSI values. When finished, tap OK.

CellXtract™ User Manual

36

NIC/SIM ID data entry screen

4. Place the NIC (SIM ID Card) into the adapter and insert the adapter into the reader. Tap OK.

GETTING STARTED

Insert NIC/SIM ID

5. CellXtract will create the NIC (SIM ID

Card). When this process finishes, the screen below will appear. Tap OK.

Successful NIC creation

6. CellXtract will prompt whether a phone is compatible with Network Isolation

Cards. Selecting No will finish the process and bring the user back to the

CellXtract main screen. Selecting YES to the screen below will prompt the user to identify the phone to be used with the

NIC (SIM ID Card).

CellXtract™ User Manual

37

NIC compatibility screen

GETTING STARTED

7. After selecting the phone, one of the following two screens will appear. Tap

OK to finish he process and go back to the CellXtract main screen.

Supported NIC

CellXtract™ User Manual

Phone untested with NIC

Create a test NIC

CellXtract will attempt to write default ICCID and

IMSI onto a NIC (SIM ID Card). The default values are:

ICCID = 894900050701001429

IMSI = 001010123456789

A warning will appear after creating a test NIC:

“A Test NIC can be used to access handset data but should only be used as a last resort.

Inserting into a handset may cause data to be lost or changed”

NIC ICCID and IMSI values can be checked by performing a SIM Card Extraction of NIC.

This method should be used as a last resort if none of the previous methods work. It is important to understand that incorrect ICCID or

38

GETTING STARTED

IMSI data may cause data on the handset to be lost or changed.

1. Tap Read New Device from the main menu. The device type selection screen will appear

Device type screen

2. From the NIC Operation screen, tap

Create Test NIC.

NIC/SIM ID Operation screen

3. Place the NIC into the adapter and insert the adapter into the reader. Tap

OK

CellXtract™ User Manual

Insert NIC/SIM ID

4. CellXtract will create the NIC (SIM ID

Card). When this process finishes, the

39

GETTING STARTED screen below will appear. Tap OK to finish the process.

Successful Test NIC creation

Connection Options

Once the correct target device has been chosen, the next screen will show the different connection options that are available. The three different methods of connection are Cable, Infrared or Bluetooth.

The Connectivity Option screen also shows the type of data that can be extracted from the target device. This information is shown as a series of icons that are listed at the end of this chapter. Any data types that cannot be extracted have a red “X” through the icon.

The Connectivity option Screen will also alert the user if the target device supports memory cards.

NOTE: The Connectivity Option screen will show items that can be downloaded from the SIM card if the chosen handset is a GSM phone.

CellXtract™ User Manual

Connectivity Option Screen

Helper Icons

The Connectivity Option Screen also has three

“Helper Icons” that indicate the location of the

40

GETTING STARTED handset’s On/Off switch, Cable Port and IR Port

(if available).

Cable Connection

1. Select Cable from the Connectivity Option Screen.

2.

Tap the “Run Extraction” button.

3. Attach the appropriate cable to one of the USB ports on the left panel.

NOTE: DO NOT attach the cell phone until prompted by

CellXtract.

Infrared (IR) Connection

Some cell phones and PDAs have a built-in infrared (IR) port, which can be used to transfer data from the target device.

1. Select Infrared from the Connectivity Option Screen and tap the “Run Extraction” button.

2. A prompt will appear on the screen asking the user to set the target device to infrared. If the device is a recognized cell phone, CellXtract will display instructions to set it to infrared mode.

CellXtract™ User Manual

Instructions for Infrared Mode

3. Once the device is in infrared mode, place it across the

Infrared emitter on the left side of the CellXtract. Make sure that the device’s IR port is facing the CellXtract’s emitter located on the left panel.

4. When an infrared connection is made, the Case Details screen will appear.

41

GETTING STARTED

Bluetooth Connection

Many Cell Phones have Bluetooth capability, which can be used to transfer data from the target device. CellXtract has a range of

60 feet for Bluetooth connectivity.

Bluetooth extraction is a wireless communication link. On initiation, CellXtract will produce a list of all Bluetooth enabled devices. Caution is therefore required when selecting the correct device name list, particularly if two devices in the area have the same name. Any connection will require confirmation/acceptance on the handset in question before the extraction process can commence. This prevents accidental connection to other devices.

Bluetooth capability can only extract data once the handset has been 'paired' with the CellXtract unit. Pairing is when you enter a

4-digit code into the phone/handset to accept the connection. If the 4-digit code is incorrectly entered you cannot access any data from the device. Data can only be extracted over Bluetooth if the device is PAIRED FIRST.

1. Attach the included Bluetooth Adapter to any one of the available USB ports on the left panel.

NOTE: Do not attach the Bluetooth adapter to the

USB ports on the right side of the CellXtract.

Only the Bluetooth Adapter supplied by

Logicube is supported.

2. Select Bluetooth from the Connectivity Option Screen and tap the “Run Extraction” button. If the device is a recognized cell phone, CellXtract will display instructions to set it to Bluetooth mode.

3. A prompt will appear asking the User to select

“Discover devices” to begin.

CellXtract™ User Manual

Discover Device List Screen

4. Once the target device has Bluetooth enabled and is discoverable

, tap the “Discover devices” button.

42

GETTING STARTED

5. A Bluetooth Activity screen will appear as CellXtract searches for Bluetooth devices.

6. After 20-30 seconds, CellXtract will display a list of found devices. Select the name of the target device and tap the Select button.

NOTE: If the target device does not appear in the list, tap the “Discover devices” button again. It may take more than one attempt to access the device.

7. Once connected, the Target device will prompt the user to allow connection. When requested, enter the 4-digit code as 1234 on the target device. Once the pairing process is complete, data extraction will begin automatically.

NOTE: The target device screen must be monitored during this stage of the process. Some target devices require confirmation at various stages to continue extracting.

After data extraction, a reminder will appear for the user to remove the CellXtract from the Device’s

Bluetooth History list.

Custom Extraction

Pressing the

“Custom Extraction” instead of the “Run Extraction” button allows the user to decide what data is downloaded from a handset. This is handy when the user only needs the call log from a handset, for example.

CellXtract™ User Manual

Custom Extraction Screen

Tap the radio buttons to download or skip different data types.

Press OK when finished.

Any data not read will appear in the capture report as “User chose not to extract ___________”.

NOTE:

“Extract Files” refers to all image, movie, sound and other files found in the Extended Data portion of a capture.

43

GETTING STARTED

SIM Cards and Flash Memory Card Connection

SIM Cards and Flash Memory Cards require no special

Connection procedures. Once the card is connected, data will begin to extract as outlined in Chapter 3

– Capturing Data.

Main Connectivity Icons

ICON

The Connectivity Option Screen uses distinct icons to show what data can be pulled from supported phones with different connection options.

DESCRIPTION ICON DESCRIPTION

Sent SMS Message IMEI Number

Time Saved SMS Message

Date Calendar Entries

Contact List (ADN) Tasks

Dialed Calls Audio Files

Received Calls

Missed Calls

Read SMS Message

Unread SMS Message

Image Files

Video Files

Other Files

NOTE: Presence of this symbol next to the icon denotes that the data is extracted with relevant timestamps.

CellXtract™ User Manual

44

Multimedia Message

– SMS messages that can include attachments.

Other Files

Connectivity Icon Table

GETTING STARTED

Other connectivity Icons

The Connectivity Option Screen also tells whether a handset supports extraction through a NIC or if the handset can be accessed without its SIM card.

Network Isolation (NIC) Cards

Some handsets require a SIM card to turn on and allow access to the handset and its data. The Network Isolation Card (NIC) allows the user to have access to the handset and its data without having to connect to the handset’s mobile network. CellXtract has the ability to isolate many handsets from the mobile network by using a NIC. NICs are placed in the SIM card slot of the handset.

There are three categories of support for this feature.

Handsets that support this feature are displayed with a blue NIC icon.

Handsets that do not support this feature are displayed with a blue NIC icon crossed with a red line.

Handsets that are untested for this feature are displayed with no NIC icon.

Phone Model Selection Screen

CellXtract™ User Manual

45

GETTING STARTED

Connectivity Option Screen

To set the CellXtract to create a NIC after a SIM card extraction, follow these steps:

1. From the main menu, tap the System Setup button.

2. Tap the Extraction button.

3. Place a check mark on the Create Network Isolation Card after SIM

extraction.

4. Tap the Apply button.

5. Tap the OK icon.

6. CellXtract will prompt and ask if you want to make these settings permanent or use them this time only. The changes will remain until CellXtract is restarted.

Select one of the following choices: a. No this time only b. Yes save settings

7. At this time you may perform a SIM card extraction. After the SIM card extraction,

CellXtract will prompt you to insert the NIC in the reader slot and proceed to create the Network Isolation Card.

Extraction without a SIM Card

CellXtract can extract data from many handsets with the SIM card removed. If a handset’s SIM is PIN locked this feature allows an extraction of the handset with the SIM removed. If supported, this feature is displayed in the Connectivity Screen.

CellXtract™ User Manual

46

GETTING STARTED

SIMless extraction

CellXtract™ User Manual

47

3. Capturing Data

Case Details

Once the target device has been successfully connected, the Case Details input form appears:

Case details screen

If the report will be filled out later, tap the Later button to continue on to data extraction.

If the report is to be filled out now, tap the first line that needs to be filled out. Use the virtual keyboard (or an attached keyboard) to fill out the case details.

NOTE: The keyboard is also accessible from any screen that displays the button to the left.

The virtual keyboard below will appear.

Virtual Keyboard

NOTE: Alternatively, a PS2 or USB Keyboard can be attached to the CellXtract through the

PS2 port or one of the available USB ports on the right panel.

CellXtract® User Manual 48

CAPTURING DATA

Tap the OK icon once all of the information is filled out. The fields entered will be built into the final report, which is generated on completion of the extraction.

Data Extraction

Other Notes

Certain fields will show users a list of previous entries. These entries can be dropped into the field without retyping them. The Case Details form will remember the last 20 entries for the following fields:

Case Reference Number

CellXtract Operator

Investigating Officer

Exhibit ID

Service Provider

The Case Details Form can be opened and edited for previous extractions.

Searching for Drivers

Sometimes, CellXtract may need to load new drivers for a handset that has never been attached before. A progress bar will appear briefly that indicates drivers are being loaded. The capture session will continue once the drivers are loaded.

Note: Allow sufficient time for the driver to load.

Standard Data Extraction

Once a target device has been identified and connected, the CellXtract software will prompt the user to continue. Doing so starts the extraction process for “standard data”.

Standard data includes such information as Contacts, Call Logs, SMS Text

Messages and Organizer data.

As the data is being extracted, CellXtract will show the progress in the

Activity Log on the screen:

CellXtract™ User Manual

49

Activity Log

CAPTURING DATA

SMS Attached Content

SMS Messages can contain extra content other than standard text.

CellXtract notifies the user when any extra content appears within an SMS

Message.

NOTE: This feature is currently only supported for SMS extracted through handsets supporting AT commands. Reporting of attached content functionality is not supported for BlackBerry, Symbian or Windows Mobile handsets.

Notifications appear within the body part of the message and describe the type of attached content.

Notifications appear in the following form:

[CONTAINS CLIPART REFER TO HANDSET]

SMS Messages may contain more than one type of attached content.

CellXtract will display a notification for each piece of attached content within the message.

VCard and VCalendar Content

VCards and VCalendars are used to exchange information between application.

VCards store address book entries while VCalendars store organiser entries.

VCards and VCalendars can be attached to SMS Messages. CellXtract will display the raw data of attached VCards and VCalendars within the body of the SMS Message.

VCard and VCalendar data will appear between the tags

[ATTACHEMENT: CONTACT DATA]

Or

[ATTACHMENT: CALENDAR DATA]

And will end with

[END ATTACHMENT]

As SMS Messages have a limited size VCards and VCalendars may span several messages.

In this case each part of the VCard or VCalendar will start with the tag to indicate the content follows from a previous message.

[ATTACHMENT CONT..]

Each message part will also end with the tag below to indicate that more content will follow in the next message:

[…]

CellXtract™ User Manual

50

CAPTURING DATA

NOTE: VCard and VCalendar content is displayed in its raw format. Where

VCards and VCalendars span more than one SMS Message, each part will need to be manually put together to form a valid VCard or VCalendar entry.

More information on VCards and VCalendars can be found at www.imc.org/pdi/

Cancel Capture

The capture process can always be aborted by tapping the Cancel button during the capture operation. This button is located towards the top right of the main screen.

This will allow the user to skip the current capture operation (i.e. downloading contacts) or abandon the whole capture session. Pressing the

Cancel button will go back to the main screen.

Extended Data Extraction

“Extended Data” refers to such items as Image files, Video files, Audio files and any other files such as themes, screensavers, etc.

When the standard data has been extracted, the user is given the option to select and download other files from the target device.

1. Tap the Images Button at the bottom of the screen, CellXtract will display all supported Image files that were found in the target device

’s memory.

2. Select an Image file for download by tapping once on it. Tap a second time to deselect the file. Scroll through the list and tap any other files that are desired.

3. Repeat Steps 1

– 2 for the “Video”, “Audio” and “Other” buttons.

NOTE:

Select all files of a particular type by tapping the “Select all

<.ext> files” bar.

4. As files are selected, CellXtract shows the number and size of total files at the top of the screen.

5. Once all needed files have been selected, tap the Download button. The Download Manager will show progress as the files are downloaded to CellXtract.

6. At any time, press the Change Selection button to stop downloading and re-select the files to download.

7. As the files download, the Activity Log will indicate downloaded files in green, selected files not downloaded in gray and unselected files in white.

On completion of the download, a summary of all files, including listings for files not selected for download, will be displayed. The data received from the target device is written into an SQLite3 file, then stored in the case unique folder.

CellXtract™ User Manual

51

CAPTURING DATA

Support for Non-Latin Languages

All handsets supported by CellXtract have had full validation of each feature carried out for the full range of Latin character sets (ASCII programming language).

CellXtract has also been further developed to extract information from

Unicode languages that provide non-Latin character sets such as Greek and Arabic characters.

These extractions have not been verified although tests indicate the following:

SIM cards (supported natively)

Windows (supported natively)

Nokia (supported natively)

Sony Ericsson (full support, Unicode development implemented: an option has been implemented to allow the user to extract in ASCII if required)

Samsung (partial validated Unicode support - for messages only)

Motorola (partial support, Unicode development implemented: an option has been implemented to allow the user to extract in ASCII if required)

Siemens (partial i.e. validated Unicode support for handsets contacts and notes)

If CellXtract does not extract a character; it will appear as a square on the screen.

CellXtract™ User Manual

52

4. Analyzing Captured Data

Displaying Extracted Data

Once the extraction for standard and extended data is complete, the data is displayed onscreen and will also generate the CellXtract report in HTML format. All data is individually hashed using the MD5 algorithm to ensure that the data can be verified as unchanged.

As of CellXtract software 1.5.x.x, the extracted data is viewable in a new on-screen report:

Preview screen

The on-screen report can have different icons showing depending on the type of device extracted. Each button will have a number showing how much data was extracted. Here is a list of all available icons:

--- Device information

– Shows information about the device including the

Manufacturer, Model, IMEI/ESN, SIM Card information (if a SIM card is included), etc.

--- Contacts

– This contains extracted contacts from the device.

--- Call Logs

– This contains extracted call logs from the device.

--- Messages

– This contains extracted messages from the device.

--- Calendars

– This contains extracted calendar entries from the device.

--- Tasks

– This contains extracted tasks from the device.

CellXtract® User Manual 53

ANALYZING CAPTURED DATA

--- Notes

– This contains extracted notes from the device.

--- URLs

– This contains extracted URLs from the device.

--- Dictionaries

– This contains extracted dictionaries from the device.

--- IM Contacts

– This contains extracted contacts from Instant Messengers.

--- IM Call Logs

– This contains extracted call logs from Instant Messengers.

--- IM Chat

– This contains extracted chat entries from Instant Messengers.

--- Event Logs

– This contains extracted event logs from the device.

--- Locations

– This contains extracted locations from the device.

--- GPS Data

– This contains extracted GPS data from GPS devices.

--- Image Files

– This contains extracted image files from the device.

--- Video Files

– This contains extracted video files from the device.

--- Audio Files

– This contains extracted audio files from the device.

--- Other Files

– This contains any other extracted files from the device.

NOTE: Depending on the device, you may only see some of the icons above. For example:

SIM Cards will only show the following buttons: Device Information, Contacts,

Call Logs and Message.

Memory Cards will only show the following buttons: Image Files, Audio Files,

Video Files, and Other Files.

Phones will show all buttons (except GPS)

GPS will show all buttons.

There are also three icons located at the bottom of the screen:

--- Case Details

– This button opens the Case Details Input Form. Data can be edited or added to the form. Please refer back to Chapter 3

– Capturing Data for more information about this form.

--- Preview Extraction

– This button allows you to view the Examination Report in. Please see the section ‘The Examination Report’ later in this chapter for more information on the Examination Report.

CellXtract™ User Manual

54

ANALYZING CAPTURED DATA

--- Keyword Search

Search for data from an imported keyword list stored on a

USB thumb drive in the following folder: E:\CellXtract\Report Searc h.txt, where “E:” is a

USB drive. Keywords can also be added to a custom list.

--- Finished

– This button closes the data View Screen and goes back to the

Main Application Menu.

Keyword Search

To perform a keyword search from the on-screen report, tap the Keyword

Search button. A keyword search window will appear.

Tap the Edit button to edit the keyword search. Using the on-screen keyboard or an attached keyboard, add keywords to the custom list. As you tap the Add button, the keyword entered should appear on the right side.

Tap the Done button when finished.

CellXtract™ User Manual

55

ANALYZING CAPTURED DATA

To use an imported keyword list, a keyword list file must first be created then saved on an external USB location (USB flash drive, USB external drive, etc.). Place a check mark on the Use Imported Keyword List box then tap the Done button.

To create the keyword list, on a computer, open Notepad or a similar text editor.

Type a simple list of words as shown in the next screen shot below. Words are not case sensitive so type in all lower-case.

Save the file as “Report Search.txt” (case sensitive) and copy it to a USB storage device in a folder called CellXtract (for example,

X:\CellXtract\Report Search.txt). Place this file on the same USB storage device that has your previous extractions or a USB storage device which will be used with CellXtract for future extractions.

After entering the keywords or selecting the imported keyword list, tap the

Search button. CellXtract will now search all extracted records for the chosen keywords and display the results. To view the each individual record, highlight the record then tap the Select button.

CellXtract™ User Manual

56

Viewing Extracted Data

ANALYZING CAPTURED DATA

To view the extracted data, tap one of the icons on the report screen.

CellXtract will display all the extracted data based on your selection.

Five buttons are available on each section viewed:

--- Tapping this icon scrolls up one page/entry.

--- Tapping this icon scrolls down one page/entry.

--- Tapping this icon scrolls up within the current page/entry.

--- Tapping this icon scrolls down within the current page/entry. section.

--- Brings you back to the previous screen to preview another

CellXtract™ User Manual

57

The Audit Trail

ANALYZING CAPTURED DATA

Displaying Previous Extractions

Previously extracted data files can be viewed by selecting “View Previous

Extrac tions” from the main CellXtract window. Previous extractions are organized by date. Additionally, the user can search for a particular extraction by one of these choices:

Case Reference Number

Exhibit ID

ICCID Number

IMEI Number

1. From the Main Application Screen, tap the View Device History button. A list of all previous capture sessions will appear.

2. Choose the desired search criteria from the View Detail list on the side of the screen.

3. Scroll to the desired capture session and tap it once to select.

4. Tap the Select button. The Standard and Extended Data Screens for that capture session will appear.

The audit trail is a set of two files that are generated along with the capture session.

Log.dat records all commands sent to and received from the target device.

This includes AT commands.

Audittrail.txt records all data received from the target device.

All three files are stored and moved with the extracted data. They can be accessed once the capture session has been backed up to a USB storage device. They cannot be accessed from within CellXtract

NOTE: Logicube Technical Support may ask the user to send a copy of

log.dat for troubleshooting purposes.

The Examination Report

The Examination Report is generated as an SQLite3 file. This SQLite3 file is then translated and converted to an HTML file for easy viewing.

NOTE: XML format is available and can be selected in the CellXtract setup screen. See the section ‘System Setup’ in Chapter 5: Other Features.

CellXtract™ User Manual

58

5. Other Features

Main Application Screen

This chapter discusses those features of the CellXtract Application that were not covered in previous chapters.

Main Application Screen

Software Update Instructions

Logicube will provide software updates that will provide compatibility with new mobile devices. Optional software subscriptions are tied to the serial number of your CellXtract device. The software will automatically verify that your subscription is active and valid.

Users will be notified when new software updates are available for download.

Requirements:

A computer with Internet access and a working USB port

A USB flash drive (the recommended format for the USB flash drive is the exFAT filesystem).

The CellXtract/CellXtract-TNT with the AC adapter.

CellXtract® User Manual 59

OTHER FEATURES

CellXtract & CellXtract-TNT Software Update Instructions

The instructions below describe how to update the software on the CellXtract and CellXtract-TNT:

1. Customers with an active software subscription will be notified via email when there is a new software update.

2. Enter the following URL into your browser: http://www.logicube.com/knowledge/cellxtract

3. You will find links to the following: a. CellXtract Software (for both CellXtract and CellXtract-TNT) b. CellXtract Release Notes c. Software Update Instructions d. Handset Compatibility List e. CellXtract/CellXtract-

TNT User’s Manual (in the Product

Documentation section)

4. Download CellXtract software and extract/unzip the files to the root of a

USB flash drive. When the files are extracted/unzipped, a folder called

“CellXtract Update” (case sensitive, without the quotes) should be found on the root of the USB storage device. This folder will contain the following files (not in any order): a. Update.exe b. CXTFiles.exe c. BuildDate.txt d. CellXtract_users_manual.pdf e. License.lic

5. Connect the AC adapter to the CellXtract and turn the CellXtract on.

Accept the End User License Agreement when it appears on the screen.

6. From the CellXtract Main Application Screen, tap the Upgrade

Software button.

7. You will be prompted to insert the USB storage device. Attach the USB storage device used in step 4 to an available USB port on the right panel. Wait 5 to 10 seconds then tap the OK button.

8. The software update files will automatically download from the USB storage device and the CellXtract will restart.

9. The software update will begin. When completed, the CellXtract will commit/save the changes then restart again.

NOTE: The USB flash drive must be connected during the entire upgrade process.

10. Validate the Software version by going to System Setup then

Information.

CellXtract™ User Manual

60

OTHER FEATURES

iTunes Update Instructions

Starting with software 1.5.x.x, iTunes will be automatically updated (if needed) during the CellXtract software update.

NOTE: If iTunes needs to be updated, the CellXtract software update can take up to 50 minutes to complete

System Setup

Tapping the System Setup button from the main screen brings up the CellXtract Setup

Menu:

CellXtract Setup menu

Logical Extraction

Tapping this button brings up the Logical Extraction Settings screen.

CellXtract™ User Manual

Logical Extraction Settings

61

OTHER FEATURES

Extract Files

– Checking this box will cause CellXtract to extract the target device

’s files

Automatically Extract All Files

– Checking this box will automatically download all Extended Data files without prompting the user. This includes all image, video, audio and other files.

Skip Messages During Extraction

– Checking this box gives the option to skip unread SMS messages during extraction. During a capture session, a window will appear allowing you to choose whether to skip message extraction or not. The prompt gives the user 15 seconds to skip or download unread SMS messages. If none of the buttons are pressed, then the messages are skipped.

Do extended SIM file acquisition

– This setting will pull all available data off of the SIM card and generate a SIMDAT file.

Create Network Isolation Card after SIM Capture

– Checking this box will allow some SIM data to be copied post SIM extraction to a target

Network Isolation Card (NIC). The newly created NIC installed in the handset and contains enough information to appear to be the original SIM card, but it will not have the necessary information to allow the handset to connect to the network. This effectively provides Network Isolation for the phone.

Extract ALL Android files

– This setting, when checked, will extract all

Android files in a logical extraction.

Export data as XML (as well as SQLite3)

– When checked, this will export the data to an XML file. The SQlite3 file will still be generated.

Physical Extraction

Tapping this will allow you to change settings involving the physical extraction of devices.

Logical Extraction Settings

Extract all Android partitions

– With this setting checked, all disk partitions on the Android handset will be extracted. Each partition will be extracted and can be seen on the external storage location in the User

Files folder.

CellXtract™ User Manual

62

OTHER FEATURES

Recover files from whole partition - This option attempts to recover files from the different partitions.

Export data as XML (as well as SQLite3)

– When checked, this will export the data to an XML file. The SQlite3 file will still be generated.

Display

Accessing this screen will allow you to increase or decrease the brightness of the screen.

Display Settings

Information

Tapping this button will bring up a screen that shows Logicube Technical

Support contact information. The top of the screen will contain the

CellXtract’s serial number (CellXtract Number), software subscription expiration date (license expiry), days remaining on the software subscription (Days Remaining), software and firmware versions. To ensure that you continue to receive software updates (for compatibility with new phones and new feature releases) contact Logicube sales or Technical

Support to renew your subscription prior to the expiration date. Software subscription expiration does not affect the operation of CellXtract.

CellXtract™ User Manual

Information screen

63

OTHER FEATURES

It also allows the user to insert his or her company logo into the printed reports.

1.

On the user’s PC, rename the logo to LOGO.jpg. Make sure that it is less than 1MB in size.

NOTE:

The logo’s name is case sensitive, so it needs to be saved exactly as LOGO.jpg.

2. Copy the logo to the root directory of a USB storage device.

3. In the screen above, tap the “Change Logo” button.

4. Insert the USB storage device to an available USB port on the right panel.

5. Tap the OK icon.

6. The logo will be automatically copied to CellXtract and overwrite any existing logo.

Report

Tapping this button brings up the Report Settings screen. Checked items are represented by a blue box.

CellXtract™ User Manual

Report Settings menu

On Screen Report Settings

Show Unread Messages

Un-checking this box prevents

CellXtract from showing any unread SMS messages on screen. This setting can be used for any phones that change extracted unread messages to read status.

Show Hashes

Checking this box will display the MD5

Hash Value for all extracted data files.

Show Error Descriptions

Checking this box will show detailed error descriptions for any failure to extract data. If unchecked, failure messages will read:

”An error occurred during the extraction of this section of data”.

Show Image Metadata

Checking this box will include metadata information with any downloaded images.

NOTE: All metadata may not be retrieved from every image extraction.

64

OTHER FEATURES

Show Non-downloaded Files

Un-checking this box replaces the list of non-downloaded files on the screen with a statement that the user has chosen not to show nondownloaded data.

Output Report Settings

Show Unread Messages

Un-checking this box prevents

CellXtract from showing any unread SMS messages on the report.

Show Hashes

Checking this box will display the MD5

Hash Value for all extracted data files.

Show Error Descriptions

Checking this box will show detailed error descriptions for any failure to extract data. If unchecked, failure messages will read:

”An error occurred during the extraction of this section of data”.

Show Image Metadata

Checking this box will include metadata information with any downloaded images on the report.

Show Image Thumb Nails

Checking this box will show thumb nail images of any downloaded image files on the report.

Show Non-downloaded Files

Un-checking this box replaces the list of non-downloaded files on the report with a statement that the user has chosen not to show nondownloaded data.

Advanced Button

This button is reserved for troubleshooting purposes only when directed by

Logicube Technical Support.

Shutting Down CellXtract

The system can be shut down directly from the Main Application Screen.

Tap the “Shut

Down” button and confirm the action. CellXtract will automatically power itself down.

CellXtract™ User Manual

Shut Down screen

65

6. Reference

Extraction notes

This section contains extraction information and notes regarding specific handsets, phone

Operating Systems, or devices.

SQLite Viewer

CellXtract now includes an SQLite Viewer which allows SQLite databases to be explored

– SQLite databases can be found in Apple, Android OS devices, BlackBerry and Symbian OS Series 60 smartphones. Apps such as Apple Safari and Opera store data in SQLite databases.

An SQLite database looks like the following screen when viewing extracted data.

Tap the link in the extracted data entry (in this example, tap “view file content as HEX/ASCII”. The following screen will appear:

Tap the SQLite Viewer button to open the SQLite Viewer.

CellXtract® User Manual 66

REFERENCE

Android Devices

CellXtract has the capacity to extract information from mobile devices that use Google’s Android operating system. Extracted data includes: Contact details, Call Logs, SMS messages,

Calendar/Tasks and Files. CellXtract supports extraction of contacts database on handsets running on Android 2.2 operating system.

For physical extraction of Android devices, please refer to Chapter 7

Physical extraction.

Before an extraction can be performed, users must:

1. Select

“Unknown Sources” and “USB debugging” in the target devices application settings.

2. Ensure the target device has a formatted SD Card inserted.

The Android extraction process requires the use of an application (Agent) which is automatically installed onto the target device and executed. The

Agent extracts data from the device and stores in a temporary file called

ANDDAT on the devices SD Card. (\sdcard\ANDDAT). At the end of the extraction, the ANDDAT file is deleted from the card and the Agent is automatically uninstalled.

Supports physical extraction and decoding of Android phones

Supports Android O/S 1.6 through 2.3.4

Supports Android file systems EXT3, EXT4 and RFS, and provides limited support for YAFFS2. YAFFS2 is expected to be fully supported in a future release

Supports dumping and decoding of contacts, call logs, SMS, emails and user files

Can extract deleted file items such as databases, images, video, audio and documents

CellXtract™ User Manual

67

REFERENCE

It is expected that most Android phones using the above mentioned

Android O/S and/or file systems will be supported.

Samsung Galaxy S3

The following Samsung Galaxy S3 devices can be rooted.

Not all Samsung Galaxy S3 models have been validated, if your handset model is missing from the Android model list, please select Android

Generic.

NOTE: Rooting Samsung Galaxy S3 requires permanently flashing a new insecure bootloader image onto the device.

The device will remain permanently rooted.

NOTE: 100% successful rooting is not guaranteed. In rare instances rooting can render the handset inoperable. Proceed with caution.

 SAMSUNG I9300 4.0.4 build IMM76D

 SAMSUNG I9300 4.0.4 build IMM76D

 SAMSUNG I9300 4.0.4 build IMM76D

 SAMSUNG I9300 4.1.1 build JRO03C

 SAMSUNG I9300 4.1.1 build JRO03C

 SAMSUNG I9300 4.1.2 build JZO54K

 SAMSUNG I9300T 4.1.2

 SAMSUNG I9305 4.1.1 build JRO03C

 SAMSUNG I9305 4.1.1 build JRO03C

 SAMSUNG I9305 4.1.1 build JRO03C

 SAMSUNG I9305 4.1.1 build JRO03C

 SAMSUNG I9305 4.1.2 build JZO54K

 SAMSUNG I9305 4.1.2 build JZO54K

 SAMSUNG I9305N 4.1.1 build JRO03C

 SAMSUNG I9305N 4.1.2

 SAMSUNG I9305T 4.1.2

 SAMSUNG SCH-I535 4.0.4 build IMM76D

 SAMSUNG SCH-I535 4.1.1 build JRO03C

 SAMSUNG SCH-I535 4.1.2

 SAMSUNG SCH-I939 4.1.2

 SAMSUNG SCH-R530 4.0.4 build IMM76D

 SAMSUNG SCH-R530 4.1.1 build JRO03C

 SAMSUNG SCH-R530 4.1.2

 SAMSUNG SCH-R530M 4.0.4 build IMM76D

 SAMSUNG SGH-I747 4.0.4 build IMM76D

 SAMSUNG SGH-I747 4.1.1 build JRO03C

 SAMSUNG SGH-I747 4.1.1 build JRO03L

 SAMSUNG SGH-I747M 4.0.4 build IMM76D

 SAMSUNG SGH-I747M 4.0.4 build IMM76D

CellXtract™ User Manual

68

REFERENCE

 SAMSUNG SGH-I747M 4.1.1 build JRO03C

 SAMSUNG SGH-I747M 4.1.2

 SAMSUNG SGH-T999 4.0.4 build IMM76D

 SAMSUNG SGH-T999 4.1.1 build JRO03C

 SAMSUNG SGH-T999 4.1.2

 SAMSUNG SGH-T999V 4.0.4 build IMM76D

 SAMSUNG SGH-T999V 4.1.1 build JRO03C

 SAMSUNG SPH-L710 4.0.4 build IMM76D

 SAMSUNG SPH-L710 4.1.1 build JRO03C

 SAMSUNG SPH-L710 4.1.2

Android Ad-hoc device rooting

CellXtract can attempt ad-hoc rooting of Android Devices.

This allows CellXtract to extract the complete file structure of the device. Ad-hoc rooting does not work with all

Android devices. Rooting is removed after the device is restarted. Please check with local laws governing rooting prior to using.

Android OS versions 1.6-2.3 are supported

Gives access to the whole file system. After rooting/data/data and/data/misc folders of Android device internal memory are available for analysis.

Without root permissions these folders are inaccessible.

100% successful rooting is not guaranteed

NOTE: 100% successful rooting is not guaranteed. In rare instances rooting can render the handset inoperable. Proceed with caution.

Ad-hoc rooting will provide the following features:

- Allows user to access the whole device file system

- Deleted data in database tables (deleted contacts, messages, etc.)

- Pre-installed and custom applications with user data

- Yahoo! Mail and Google Mail application data

- Google Maps, Google Talk and Google Calendar application data

- Dropbox application data

Ad-hoc device rooting is not required for the data extraction of Call Logs, Phonebook and Messages.

When performing an Android extraction, CellXtract will ask if you want to temporarily “Root” the Android device. If successful, the device will remain rooted until turned off.

CellXtract™ User Manual

69

CellXtract™ User Manual

REFERENCE

If the device is not rooted, only the following file locations will be extracted:

/sdcard/

If the device is rooted and the checkbox for ‘Extract ALL

Android files’ is not checked, only the following file locations will be extracted:

/sdcard/

/data/data/

/data/misc/

Android Email

CellXtract can extract data from the default email and Gmail databases.

Device must be temporarily rooted

Email attachments not supported

Email body preview only

Android App Data

The Android extraction can extract data from the following apps:

Dolphin Browser eBuddy Messenger

Facebook Messenger

Firefox Browser

Google Calendar, Google Hangouts, Google Mail, and Google Talk application data

Line

Skype

Skyfire Browser

Viber

WhatsApp Messenger

Yahoo Messenger

NOTE: The Android device must be rooted for the above data to be extracted. eBuddy Messenger, Facebook Messenger, Google

Hangouts, Google Talk, Line, Skype, Viber, WhatsApp

Messenger, and Yahoo Messenger are categorized as IM

Data and can be found in the following report sections: IM

Contacts, IM Calls and IM Chat.

Dolphin Browser, Firefox Browser, and Skyfire Browser data can be found in the URLs report section.

70

CellXtract™ User Manual

REFERENCE

Android Location Information

The Android extraction can extract Cell and WIFI connection location information which includes GPS coordinates and timestamps. This information is shown in the Location

Information section of the report. CellXtract also generates a

Google Earth .KML file called GPSData.kml which is created in the extracted data files folder. This file can be imported into Google Earth. Note: The device must be rooted to acquire location information.

Android files of Interest

The Android extraction can extract system files *. Some of these files may contain useful information. These files are described below: -

C:\data\data\com.google.android.location\files\cache.wifi

Contains cached WIFI connection details.

C:\data\data\com.google.android.location\files\cache.cell

Contains cached Cell connection details.

C:\data\data\com.android.providers.userdictionary\datab ases\user_dict.db

Containing cached user entered text

C:\data\data\com.google.android.gm\databases\gmail.db

C:\data\data\com.google.android.gm\databases\mailstor e.*.db

Contains Google email account and mailstore databases

C:\data\data\com.google.android.talk\shared_prefs\Budd yList.xml

Contains Google Talk contact details

C:\data\data\com.android.providers.calendar\databases\ calendar.db

Contains Google calendar details

C:\data\data\com.yahoo.mobile.client.android.mail\datab ases\mail.db

Contains Yahoo email details

NOTE: Device must be rooted to acquire some of these files.

71

REFERENCE

Apple iPhone Devices

Apple iOS 7 is supported with CellXtract software 1.7.x.x. iTunes will automatically be updated during the CellXtract 1.7.x.x software installation.

PList Viewer

CellXtract now includes a PList Viewer which allows Apple

Property List binary XML files to be viewed. Plist files may contain a lot of valuable forensic information such as browser history, Wi-Fi access points, speed dials,

Bluetooth settings, global applications settings, Apple

Store settings etc.

A PList database looks like the following screen when viewing extracted data.

Tap the link in the extracted data entry (in this example, tap “view file content as HEX/ASCII”. The following screen will appear:

Tap the PList Viewer button to open the PList Viewer.

CellXtract™ User Manual

72

REFERENCE

iPhone Passcode Bypass

CellXtract can extract data from a passcode locked iPhone if specific iTunes .plist files from a PC or Mac are available.

The iPhone’s passcode must have been enabled then synced with the PC or Mac after the passcode was enabled. The PList files will need to be copied from the PC or Mac to a specific folder/directory on a USB drive.

1. Locate iTunes .plist files from synced PC or Mac.

These can be found in the following locations:

Windows 98/ME/2000/XP iTunes Users:

C:\Documents and Settings\All Users\Application Data\Apple\Lockdown\

Windows Vista iTunes Users:

C:\Users\<User Name>\AppData\Roaming\Apple Computer\Lockdown\

Windows 7 iTunes Users:

C:\ProgramData\Apple\Lockdown\

NOTE: Windows file locations are hidden by the Operating

System by default. There are different ways of showing

CellXtract™ User Manual

73

CellXtract™ User Manual

REFERENCE hidden files depending on the Operating System. Please search the Internet or contact Microsoft support for instructions on how to show hidden files.

Mac OS X iTunes Users:

VolumeName\Users\<User

Name>\Library\Lockdown\

Or

/var/db/lockdown

2. Copy all iTunes .plist files to the following directory on a USB drive (It is recommended that the USB drive is formatted before creating

\CellXtract\Lockdown directory and copying .plist files):

:\CellXtract\Lockdown\

3. Insert USB drive into CellXtract unit and perform a regular iPhone extraction. CellXtract will then search the USB drives for any .plist files and import them if found.

iPhone App Data

The iPhone extraction can extract data from the following apps:

 Apple Maps (iOS 6 and above only)

 eBuddy Messenger

 FaceTime

 Line

 Skype

 Viber

 WhatsApp Messenger

 Yahoo Messenger

Apple maps report will contain GPS coordinates and Google

Maps hyperli nks (added to the “Locations” section of the report). Data is exported in KML format, which can be opened using Google Earth, Google Maps, and Google Maps for mobile. eBuddy Messenger, Line, Skype, Yahoo Messenger, Viber, and WhatsApp Messenger data is categorized as IM Data and can be found in the following report sections: IM Contacts, IM

Calls and IM Chat.

FaceTime data can be found in the Calls report section.

iPhone files of Interest

During the iPhone extraction process a number of ‘other’ files can be extracted. Some of these files may contain useful information.

74

CellXtract™ User Manual

REFERENCE

A selection of these files is shown below:

/library/cookies/cookies.plist

Contains web site cookies saved by the Safari browser.

/library/mail/accounts.plist

Contains details of the email server accounts that are configured on the device. Emails cannot be obtained by

CellXtract.

/media/webclips

Contains a list of web page shortcuts assigned to the device's main screen. Each webpage is stored in a separate directory that contains a property list called

Info.plist. This property list has details of the title and

URL of each page.

/library/maps/history.plist

Contains a ‘Google Maps’ history file which includes addresses, route directions and other useful data.

/library/safari/history.plist

Contains the Safari web browser history from when it was last cleared.

/library/keyboard/dynamic-text.dat

A keyboard cache containing text entered by the user.

/Library/preferences/com.apple.maps.plist

Contains the last longitude/latitude coordinates viewed in the ‘Google maps’ application.

/library/preferences/com.apple.mobilesafari.plist

Contains a list of recent searches performed using the

Safari browser

Note: The content of these files has not been verified.

Apple Location Information

The file GPSData.kml is created when extracting an iPhone. This file can be opened using Google Earth.

iPhone Support

– User Application Notes iTunes

Do not install versions of iTunes that is not supported by the CellXtract software release. The CellXtract software will automatically update iTunes if necessary.

iPhone 5

The iPhone 5 is expected to work, but at this time has not been fully validated by Logicube.

75

REFERENCE

Skype

CellXtract supports extraction of Skype data from Apple iPhones. Extracted data includes

Voice/Video calls

In the extraction report, Skype voice/video calls are shown under the Call Register section

Chat messages

In the extraction report, Skype chat messages are shown in the Messages section

User profiles

In the extraction report, Skype user profiles are shown in the Contacts section

BlackBerry Devices

BlackBerry devices can only connect via Cable. BlackBerry devices that are password-protected will need to be unlocked before data can be extracted.

Unlocking a BlackBerry Device

The CellXtract allows the user to input the PIN lock for a

BlackBerry device directly through the CellXtract interface rather than the device itself. The CellXtract will automatically detect if a PIN lock is enabled and bring up the Enter Password Prompt.

Enter Password Prompt

TIP:

Tap “Hide Password” to turn it on or off. If Hide

Password is on, the password will appear.

CellXtract™ User Manual

76

Hide Password Turned On

REFERENCE

NOTE: The password or the PIN of the BlackBerry device will need to be entered. CellXtract cannot unlock the device without it.

BlackBerry Personal ID Numbers (PINs)

Each BlackBerry device is assigned a unique personal identification number (PIN), which allows identification of each device.

The PIN number of other BlackBerry users is stored in the devices phonebook with their contact information and allows direct PIN-to-PIN emailing and messaging.

CellXtract extracts each contact PIN number from the phonebook as well as the PIN numbers associated with messages sent from other BlackBerry users.

Windows Mobile Devices

Windows Mobile devices need to have Active Sync enabled before they can be set to Infrared mode. Please refer to the “Connection Options” section in Chapter 2.

Windows mobile 7 phones will be supported in a future release.

Various Windows Mobile Devices

The following mobile GPS software has been verified and can be extracted from supported devices using CellXtract:

 Google Maps Mobile on Various Windows Mobile devices

Symbian Devices

CellXtract will extract information from mobile handsets that use the

Symbian operating system (Series 60 / Nokia Symbian OS V 8.1).

Extracted data includes Contact Details, Call Logs, SMS messages,

Calendar, Tasks and Files.

This data capture is possible with the following caveats:

No SIM data is extracted from Symbian handsets.

“Nicknames” are not extracted.

Cannot extract any SMS messages stored in 'My Folders' directory or other user created folders.

To extract data, it is necessary for CellXtract to write temporary .dat files to the target phone. These files are removed at the end of capture.

CellXtract™ User Manual

77

CellXtract™ User Manual

REFERENCE

Capture from Symbian UIQ 2 nd

& 3 rd

Edition OS

CellXtract will extract information from mobile handsets that use the Symbian UIQ 2 nd

and 3 rd

Edition OS. Extracted data includes Contact Details, Messages, Calendar, Tasks and Files.

Data capture requires a handset Agent and the use of a

CellXtract UIQ memory card. This is a specially prepared card by CellXtract to temporarily store and transfer data.

WARNING: Do not create the UIQ memory card from the card used inside the handset. Always use a separate blank, formatted card that is not write-protected.

Follow these steps to capture data:

1. User inserts spare memory card into the memory card reader.

2. CellXtract generates and formats a UIQ card and installs the Agent.

3. User then inserts the UIQ card into handset.

4. User locates the Agent installer on the UIQ card using the file browser application and then installs the agent onto the device.

5. User locates and runs the Agent application, then waits for the data extraction to complete. Extracted data is now

stored on the UIQ card.

6. User removes the UIQ card from the handset and inserts it back into the memory card reader.

7. CellXtract automatically copies and decodes all data from the UIQ card.

8. CellXtract formats the UIQ card.

9. CellXtract instructs the user to uninstall the agent from the handset.

10. CellXtract presents the results to the user.

This data capture is possible with the following caveats:

Extraction of Call Logs is not supported.

Extraction of SMS messages stored in user created folders is not supported.

Extraction of MMS / Email messages is not supported.

Memory cards within these phones need to be captured separately. (Please refer to “Attaching a Flash Memory

Card

” section in Chapter 2).

Symbian Event Logs

Symbian S60 2 nd

Edition and 3 rd

Edition handsets have the ability to record events which CellXtract will extract.

78

The following information can be extracted:

REFERENCE

Voice Call events

– ID, Number, Date, Time,

Direction and Duration

SMS events

– ID, Number, Date, Time, Direction,

Message Fragment and Status

MMS events

– ID, Name, Date, Time, Direction and Duration

These events are normally accessed by the handset’s Log

Viewer application. These events have a validity period set in the Log Viewer settings. Once this duration period has expired, events will no longer be accessible.

Points of Interest

Timestamps extracted by CellXtract are always reported in Greenwich Mean Time (GMT) whereas the timestamps shown in the handset’s Log Viewer application are set to the handset’s current time zone.

CellXtract is able to extract message fragments for

SMS events. These are not displayed by the Log

Viewer application. Only the first 64 characters of a message are reported any messages greater than

64 characters are truncated in the event log, including multipart messages where only the first

64 characters of the first message part are reported.

Incoming MMS messages are shown as 2 separate events, 1 incoming SMS event and 1 outgoing MMS event. CellXtract extracts both of these events. The SMS event has a body fragment of Data Message

The following Symbian S60 handsets are verified on

CellXtract:

NOKIA: 3230, 3250 5320XpressMusic, 5500 Sport, 5700,

6120, 6220 Classic, 6260, 6290, 6620, 6630, 7610, E50,

E51, E61, E63, E65, E66, E70, E71, N70, N71, N72, N73,

N76, N77, N79, N80, N81, N82, N85, N90, N91, N93,

N93i, N95, N95 8GB

SAMSUNG: I8510, SGH-D720, SGH-G810

Palm OS Devices

Palm OS devices are supported with the following caveats:

Extraction of SMS messages is currently not supported.

Extraction of user files is currently not supported.

CellXtract™ User Manual

79

REFERENCE

CellXtract is able to collect the following information from Palm devices: Contact Details, Call Logs (if available), Calendars,

Tasks, Notes and Palm Database (PDB) files. PDB files are where

Palm OS keeps data stored in RAM. The data is kept in database format. These files can contain user data.

Motorola Devices

The extraction of Unicode characters for all data sets has not been verified for Motorola devices.

Before an extraction begins with one of these devices the CellXtract will offer the user a choice:

1. Extract validated data set only. This means that some Unicode data will not be extracted.

2. Attempt to extract all Unicode data. Software will try to extract

Unicode characters for all data sets on the device. At this time the output in this case is not guaranteed by validation testing.

Time/Date Stamps from Motorola Phones

Users should note that Motorola timestamps / date stamps are not reported due to current limitations in how file

“modified” and file “created” timestamps are reported in the

Motorola OS.

Sony Ericsson Devices

The extraction of Unicode characters for all data sets has not been verified for Motorola devices.

Before an extraction begins with one of these devices the CellXtract will offer the user a choice:

1. Extract validated data set only. This means that some Unicode data will not be extracted.

2. Attempt to extract all Unicode data. Software will try to extract

Unicode characters for all data sets on the device. At this time the output in this case is not guaranteed by validation testing.

Data Capture from Sony Ericsson Phones

If the User runs into trouble capturing data from a Sony

Ericsson phone users should make sure that the “Default

Contacts” setting on the target handset is set to “Phone

Contact” before an extraction is performed.

This is done by navigating manually on the phone’s menus as follows:

Menu > Contacts > Options > Advanced > Default

Contact > Select “Phone Contact”.

Once this setting is enabled, users should have no trouble extracting data from the handset.

CellXtract™ User Manual

80

REFERENCE

Unlocking Sony Ericsson Handsets

CellXtract is able to deactivate Sony Ericsson handset lock codes of up to 8 digits.

Some handsets may not be able to establish a USB connection whilst the handset lock is active. In this case

CellXtract will first attempt to locate device drivers then ask the user to confirm the handset is locked.

If yes the user is instructed to restart the handset and reconnect it before the unlock code screen appears.

Tap OK to unlock the handset.

NOTE: Depending on the code that has been set

CellXtract may take some time to unlock the handset.

Below is a guide as to how long unlocking may take. To attempt to unlock:

All 4 digit codes up to 4 mins

All 5 digit codes up to 40 mins

All 6 digit codes up to 7 hours

All 7 digit codes up to 3 days

All 8 digit codes up to 30 days

The Activity log will show the progress of the unlocking process.

NOTE: The unlocking process can be cancelled at any time. However data extraction cannot be performed on a locked handset. If the process is cancelled without finding the unlock code, it will need to be started again to unlock the handset.

Once the handset has been unlocked data extraction will be performed automatically. The unlock code is displayed in the Device Information section of the report.

NOTE: CellXtract only unlocks the handset; it DOES NOT remove the handset lock. If the handset is restarted after the extraction the code will need to be re-entered.

NOTE: CellXtract cannot unlock handsets that do NOT contain a SIM card.

Siemens Devices

Occasionally, Siemens handsets have been known to return a NULL response when asked for data of a particular type (i.e. SMS messages). If this happens, the following error message will appear under the relevant data type:

Handset has been known to occasionally return a null response.

Please refer to handset and retry extraction.

CellXtract™ User Manual

81

REFERENCE

Users should check the affected field(s) on the handset and retry the extraction.

Other Extraction Notes

CellXtract can playback W4A files that have been extracted from devices.

W4A files are audio files that can be created on some mobile handsets.

GPS Extraction Notes

The following describe some extraction notes for specific GPS devices:

Tom Tom Devices

If a TomTom GO 720 is to be selected, choose “TomTom

GO 720”. After capture, you will get an opportunity to capture the memory card separately. If present, remove the memory card from the GPS device. This will be captured later.

WARNING: ALWAYS remove the Memory Card from a

TomTom device prior to capture.

NOTE: TomTom can store the same information in the device and on the Memory Card. For that reason, the device and card may contain different sets of the same type of data (i.e. application info, favorite destinations, etc.)

The following information can be extracted from the supported TomTom Devices:

Device information - Manufacturer, Model, Serial Number

Owner information -

Owner’s Name, Owner’s Street,

Owner’s Town, Owner’s City

GPS location information -

‘Home’ address with GPS coordinate, ‘Favorite’ addresses with GPS coordinates,

‘Destination’ addresses with GPS coordinates, ‘Recent’ addresses with GPS coordinate, ‘Miscellaneous’ addresses with GPS coordinates

Telecommunication information (only on supported

devices) - Telephone contact information stored on

TomTom, Telephone numbers called via the TomTom,

Telephone numbers of calls received via the TomTom,

SMS messages received via the TomTom, SMS messages sent via the TomTom

Files (only on supported devices) - MP3 files, JPEG files

CellXtract™ User Manual

82

REFERENCE

Garmin Devices

The following information can be extracted from Garmin devices: manufacturer, model, serial number, “favorite” addresses with GPS coordinates.

After the GPS

Device is extracted, press “Memory Card” on the screen that appears. Follow the directions for

Connecting a Memory Flash Card earlier in this chapter.

HP Satellite Navigation Devices

The following information can be extracted from HP satellite navigation devices:

GPS location information

– ‘Favorite’ addresses with

GPS coordinates,

Route ‘Waypoint’ addresses with GPS coordinates,

‘Search History’ addresses with GPS coordinates.

Telecommunication information - Contact information, call registers.

Files - User files can also be retrieved from the device by performing a separate Flash Media extraction.

Generic GPS Extraction

CellXtract can search certain devices for GPS data generated by any of the following GPS Software:

CoPilot 6

Garmin

Navman Smart ST

NavNGo

NDrive

TomTom

The data files generated by this software can be stored on devices without any GPS software installed. This data can still be extracted using CellXtract.

Devices which GPS Data can be extracted from are:

Sat-Nav GPS Devices

Windows Mobile Devices

Flash Media Cards

Mass Storage Devices

NOTE: GPS Devices can be used to store data generated from other devices. Therefore, care must be taken when linking data to a specific device.

The following GPS Data can be extracted:

‘Favorite Locations’ - These are a list of addresses and/or coordinates which a user has chosen to

CellXtract™ User Manual

83

CellXtract™ User Manual

REFERENCE store on the device. They can contain Home and

Work locations.

‘Recent Destinations’ – These are a list of previous destinations the owner has selected to navigate to.

‘Route Waypoint Data’ – These are a list of addresses and/or coordinates which form set locations along a route that the user has created.

‘History’ - This is a list of addresses and/or coordinates that the owner has previously searched for or viewed. This list may also contain

Favourite and Route Waypoint Locations. This list differs from Recent Destinations in that the owner may not have selected to navigate to the location.

NOTE: The presence of any of the above data on a device does not indicate that the owner has been to that location.

Only that the owner chose to view and/or save that location on the device.

CellXtract will also extract Telecommunications data from some Sat-Nav GPS Devices.

The following Telecommunications data can be extracted:

Contact information

Telephone numbers called via the GPS Device

Telephone numbers of calls received via the GPS

Device

SMS sent and received via the GPS device

This information is extracted from the data files created by the above software only. Mobile communication devices may have a separate store for this information.

NOTE: It is recommended that a separate PDA extraction be performed on all WinMobile devices to obtain

Telecommunication Data

GPS Track Logs

CellXtract can extract GPS track logs from devices manufactured by:

Garmin

Navman

HP

Track logs record the GPS coordinates of the device every

1-2 seconds giving an accurate description of where the device has been and when.

84

REFERENCE

The CellXtract report shows only the start point of each stored track log, as each track can potentially store thousands of points.

Track log data is best viewed by importing the

GPSData.gpx into Google Earth.

NOTE: Some devices start logging as soon as they are turned on, however other devices require the user to initiate logging to record track log data.

Opening GPSData.gpx Output Files in Google Earth

CellXtract generates an additional data file when extracting

GPS Data. This file contains GPS data and can be imported into Google Earth to display the data.

The data file GPSData.gpx is created within the extraction folder automatically when a GPS extraction is performed.

The data file stores all waypoints, routes and track log data in a format which can be used by Google Earth to display all of the GPS data in the report.

NOTE: Google Earth 5.0 will need to be installed on a PC to view the GPSData.gpx file. This can be downloaded from: http://earth.google.com

Open Google Earth and tap the File menu.

Google Earth (part 1)

Then select Open

CellXtract™ User Manual

Google Earth (part 2)

85

REFERENCE

Navigate to the location where the extracted data files are stored.

Opening GPSData files

In the Files of type drop down box select Gps (*.gpx *.loc

*.mps) and then select the GPSData file and tap open.

Alternatively you can drag the GPSData.gpx file into

Google Earth.

The GPS Data Import window appears allowing you to choose what types of data you want to import.

CellXtract™ User Manual

Google Earth data types

To display all GPS fixes along a saved track log make sure you check the Create clickable image for track and route points.

86

REFERENCE

Google Earth import options

The data is then displayed on the map and can be selected using the Places navigation panel.

Google Earth view

A full Google Earth User Guide can be viewed at: http://earth.google.com/intl/en/userguide/v5/

NOTE: Google Earth imports GPS coordinates, Time and

Date, Altitude and waypoint name data only. Any other information displayed in Google Earth has been inferred by the Google Earth software.

Geo-Tag Data from Images

CellXtract will display Geo-Tag data for images that have been captured using a device with a GPS receiver.

A Geo-Tag consists of latitude and longitude coordinates and adds geographical identification to an image.

CellXtract™ User Manual

87

REFERENCE

Geo-Tag information is automatically extracted and appears in the metadata section associated with an image.

Geo-Tag

NOTE: Geo-Tagging is only displayed if the image has been captured using a device that supports geo-tagging.

CellXtract™ User Manual

88

7. Physical Extraction

Introduction

Physical extraction is available on both CellXtract and CellXtract-TNT. This feature performs a physical extraction of Android phones. Android OS 1.6 through 2.3.4 are currently supported. The version of Android OS can be found on the handset by navigating to Settings, then About Phone.

Android physical extraction requires root access. If the phone is not already rooted, CellXtract will attempt to temporarily root the phone. This is not a permanent root and the device can be un-rooted by either turning the phone off then back on or by removing the phone battery.

CellXtract extracts a physical memory dump from each selected memory partition. For each memory dump CellXtract will: a. Attempt to reconstruct the file system and then search for contacts, call logs, SMS, emails and user files (audio, images, etc.) and b. Scan the dump for deleted and embedded data.

As well as the regular CellXtract report, the results from each extraction will include one or more memory dumps, one or more reconstructed file systems (stored in the User Files folder ) and deleted and embedded data (stored in the Recovered Files folder).

Step by Step

– Physical Extraction

The Physical Extraction process on the CellXtract or CellXtract-TNT is composed of the following steps:

Attaching an external storage location

Selecting Physical Extraction and the handset

Connecting the handset

Case Details screen

Performing the extraction

Report Preview

NOTES:

- Make sure the AC adapter is connected to the CellXtract when performing a physical extraction. The physical extraction process may take several hours.

- The storage capacity of the external storage location must be larger than the amount of memory on the phone itself (internal memory). This is not the capacity of the micro SD card. To find out the amount of memory on the phone, refer to the manufacturer’s website.

CellXtract® User Manual 89

PHYSICAL EXTRACTION

Attaching an external storage location

1. Attach an external storage location such as a USB flash drive or USB external drive to one of the available USB ports on the right panel. This will allow CellXtract to save extracted files and the report to the selected external storage location.

NOTE: Some handsets may contain flash images that exceed 4GB. If the external storage (USB flash drive or

USB external drive) is formatted to FAT32 the file size limitations (4GB) of the FAT32 format can cause unsuccessful extraction results. In these cases, the external storage media (USB flash drive or USB external drive) must be formatted to a file system which supports file sizes greater than 4GB such as NTFS.

Selecting Physical Extraction and the handset

2. From the main screen, tap Read New Device.

3. Select Cell Phone.

4. Select Physical Extraction.

5. Select By O/S.

6. Select either Android OS or Nokia 1100 then tap the

Select icon.

CellXtract™ User Manual

Connecting the Handset

7. For Android devices, follow the on-screen instructions to enable Unknown Sources and USB Debugging.

90

PHYSICAL EXTRACTION

8. Follow the on-screen instructions to connect the correct cable.

9. Follow any other on-screen instructions that may appear.

Case Details Screen

10. The Case details screen will appear. You can fill out the case details at this time then tap the OK icon or tap the

Later button if you want to fill out the information later.

Performing the Extraction

11. The extraction process will begin. This process may take several hours to finish.

CellXtract™ User Manual

12. When the extraction is finished, a window will appear stating the extraction is complete. At this point, you can

91

PHYSICAL EXTRACTION disconnect the phone and cables. Tap the OK icon to continue.

Report Preview

13. The report preview will appear. From this screen you can view the extracted data.

NOTE: The following data can be extracted from the phone and shown on the report:

Device Info

Contacts

Call Registers

Messages

Other (Calendar, Tasks and Notes)

Extended Data (Images, Audio, Video, and other files)

Recovered Data (Deleted, Embedded &

Extant files)

14. The external storage location will contain a copy of each of the phone’s partitions and is located in the User Files folder.

CellXtract™ User Manual

15. The external storage location will contain a copy of the deleted, embedded and extant files recovered from each of the phone’s partitions and is located in the Recovered Files folder.

92

PHYSICAL EXTRACTION

Android Disk Partition Settings

By default CellXtract will only extract the handsets data partition. To extract all partitions you must tick the

“ALL

Android disk partitions (physical)” in the Physical

Extraction Settings. Please note this may take a long time to complete the extraction.

CellXtract™ User Manual

93

8. CellXtract-TNT

Introduction

The CellXtract-TNT has all the capabilities of CellXtract plus the ability to extract data from major Chinese-manufactured chipsets: MediaTEK (MTK), Infineon, Spreadtrum, MSTAR, and Cool Sand chipsets.

It performs a physical extraction of the handset’s memory, which is saved in a binary file and provides a report that is simple and easy to read and review. The report can be viewed directly on the CellXtract-TNT or be taken to another computer to be viewed. In addition, for MTK chipset, there is a logical extraction option. If logical is selected, CellXtract-TNT will attempt to extract data by physical and logical methods and report all the data recovered in one report.

There are several different bootloaders available for each chipset type. If the Auto bootloader option in CellXtract-TNT fails, then you will need to try each of the bootloaders available for each chipset (listed below) until successful.

MediaTek

Boot 0

– Auto

Boot 1

– Boot A (6223/25/26)

Boot 2

– MTK_AllInOne_DA_V3.1004 (62xx)

Boot 3

– Boot D (Dedicated to the MT6235 invalid IMEI)

Boot 4 - MTK_AllInOne_DA_V3.1032 (62xx)

Boot 5 - MTK_AllInOne_DA_V3.1108 (62xx)

Boot 6 - MTK_AllInOne_DA_V2.1131(65xx Android)

Boot 7 - MTK_AllInOne_DA_V5.1148 (62xx)

Boot 8 - MTK_AllInOne_DA_V5.1205 (62xx)

Boot 9 - MTK_AllInOne_DA_V7.1216 (65xx Android)

Boot 10 - MTK_AllInOne_DA_V5.1232 (625A/62xx)

Boot 11 - MTK_AllInOne_DA_V7.1304 (65xx Android)

Boot 12

– MTK_6223 (Moto, Alcatel, TCL series)

Spreadtrum

Boot 0 - Auto

Boot 1

– Boot H (6600L/L2/L6/L7/USB/COM)

Boot 2

– Boot J (6610/20)

Boot 3

– Boot K (6800H)

Boot 4

– Boot A (6600M/E/D Normal Speed)

Boot 5

– Boot B (6600M/E/D High Speed)

Boot 6

– Boot C (6600R)

Boot 7

– Boot D (6600H/R2)

Boot 8

– Boot E (6800)

Boot 9

– Boot F (6600D – NOR)

Boot 10

– Boot G (6600M/I/E-HOR)

Boot 11

– Boot I (8800S/H/880xG)

Boot 12

– Boot L (6530)

Boot 13

– Boot M (6820/8810)

CellXtract® User Manual 94

CELLXTRACT-TNT

Infineon

Boot 0

– Boot A

Boot 1

– Boot B

MSTAR

Boot 0

– Boot A (8535/8538/8533 NOR_FLASH)

Boot 1

– Boot B (8528 NOR_FLASH)

Boot 2

– Boot C (8535/8538 NAND_FLASH)

Boot 3

– Boot D (8533C NOR_FLASH)

Boot 4

– Boot E (8533x_family NOR_FLASH)

Boot 5

– Boot F (8535N NAND_FLASH)

Boot 6

– Boot G (8533x_family NAND_FLASH)

Boot 7

– Boot H (Auto)

Cool Sand

Boot 0

– Boot A

Boot 1

– Boot B

Step by Step

– Device Extraction for CellXtract-TNT

The Chinese-manufactured chipset extraction process is more complex than for other types of device. The process is shown below:

Attaching an external storage location

Selecting a chipset type

Connecting the power clamps to the phone power terminals

Identifying the data port on the phone and the correct cable tip.

Connecting the data and power cables to the CellXtract-TNT

Case Details screen

Selecting the bootloader

Performing the extraction

Report Preview

Attaching an external storage location

1. Attach an external storage location such as a USB flash drive or USB external drive to one of the available USB ports on the right panel. This will allow CellXtract-TNT to save extracted files and the report to the selected external storage location.

Selecting a chipset

2. From the main screen, tap Read New Device.

3. Select Cell Phone

CellXtract™ User Manual

95

CELLXTRACT-TNT

4. Select Physical Extraction.

5. Select By Chipset.

6. A list of supported chipsets will appear. If you know the chipset on the phone, tap the proper chipset from the list then tap the Select icon. If you are unsure what the chipset is, tap Auto then tap the Select icon to let the CellXtract-

TNT attempt to identify the correct chipset.

7. A window will appear asking if you want to capture to the attached external storage location. Select Yes to continue.

If no external storage location is attached, you will be prompted to attach one.

CellXtract™ User Manual

96

CELLXTRACT-TNT

Connecting the power clamps to the phone power terminals

8. The screen above will appear. Remove the battery from the handset. From the battery, note which power pins are positive (+) and negative (-). Connect the power clamps to the phone power terminals. It is not necessary to match polarity (the red and black clamps can connect to either positive or negative terminals).

NOTE: If you do not have the battery, try connecting to the outer power terminals first.

9. Tap the OK icon to continue.

Identifying the data port on the phone and the correct Cable Tip

CellXtract™ User Manual

10. The screen above will appear. Identify the data port on the phone. This should be on the top, bottom, or sides of the phone. Try to recognize the shape and the number of pins in the port.

11. Find the correct cable tip in the case i.e. locate the cable tip that matches the phone data port.

NOTES:

It may be difficult to match the correct cable tip with the phone's data port. Some cable tips may appear to fit the same data port, so care

97

CELLXTRACT-TNT must be taken. Comparing the pin configuration in the phone's data port with the cable tip can help with the selection.

Each Cable Tip is marked to with the number of pins on the Cable Tip. For example, P-5B is a micro-USB sized Cable Tip with 5 pins while

P-7A is a micro-USB sized Cable Tip with 7 pins.

12. Plug in the appropriate cable tip into the phone’s data port and connect the main data cable to the cable tip.

13. Tap the OK icon to continue.

Connecting the data and power cables to the CellXtract-TNT

14. Connect the data and power cables to CellXtract-TNT.

15. Tap the OK icon to continue.

Case Details screen

16. The Case details screen will appear. You can fill out the case details at this time then tap the OK icon or tap the

Later button if you want to fill out the information later.

CellXtract™ User Manual

98

Selecting the bootloader

CELLXTRACT-TNT

17. The Tarantula popup dialog will appear. The left drop-down selection will show the previously selected chipset (or Auto if it was selected). Choose a bootloader from the right drop-down selection or leave as Automatic (0) if you are unsure. Tap the Connect icon to continue.

NOTES:

You can change the selected chipset on this screen.

For MTK chipset, tap Include logical if you want to perform a logical extraction as well as physical extraction. The CellXtract-TNT will perform a logical extraction immediately after the physical extraction. Results from both physical and logical extractions will be shown in the final report. Note: there may be duplicate data contained in the final report.

Performing the extraction

CellXtract™ User Manual

18. CellXtract-TNT will perform the extraction. Watch the screen carefully as some extractions will require you to press and hold the power button on the phone. The yellow section above shows any messages and instructions for the user.

99

Report Preview

CELLXTRACT-TNT

NOTES:

If asked to press the handset power button, you may need to do this multiple times.

If the screen shows “Scan failed” or

“Connection failed”, check both the power and data connections between the CellXtract-TNT and the phone or try a different cable tip and then press Retry.

If the screen shows “Physical extraction failed”, try selecting a different chipset / bootloader combination and then press Retry.

19. When the extraction is finished, a window will appear stating the extraction is complete. At this point, you can disconnect the phone and cables. Tap the OK icon to continue.

20. The report preview will appear. From this screen you can view the extracted data.

NOTE: See Chapter 4 for more information on viewing extracted data.

CellXtract™ User Manual

100

9. Glossary and Troubleshooting Guide

Glossary

SIM (Subscriber Identity Module) - Essentially a small computer on a card that sits within the mobile phone and controls various functions of call making. It also has enough memory to hold information such as ADN and SMS.

ADN (Abbreviated Dialing Numbers) - more commonly known as the phonebook or contacts.

SMS (Short Message Service)

SMS is a form of textual conversation permitted by a network carrier. The service allows a user to send and receive textual messages direct to their handsets.

The storage capacity depends on the handset and SIM. The date and time of received messages is generated by the network, all other date and time stamps are generated from the handset time. The maximum character length is 160 per SMS. Some handsets allow longer messages to be compiled and therefore are split into relevant parts when sent, these messages are known as concatenated.

Deleted SMS (Short Message Service) - These are text messages that have been deleted from the SIM card by the cellphone user. However, most mobile phones do not remove the message, but mark the message to be overwritten by incoming messages from the network.

MMS (Multimedia Messaging Service)

A service which allows Multimedia messages to be sent from one mobile to another via one or more call centers or network providers. A Multimedia message is stored on the handset and can contain a combination of text, video clips, images and sound clips.

ICCID (Integrated Circuit Card Identifier) - The serial number of the SIM card stored electronically within the SIM. A similar number or shortened version is often found printed on the SIM card.

IMEI (International Mobile Equipment Identifier) - This is a unique number given to each handset. This is usually printed somewhere on the handset, (typically in the battery compartment) and stored electronically in the phone handset memory. It can be viewed typing *#06# on the keypad.

PIN (Personal Identification Number) - The SIM card has been locked against unauthorized access using the PIN number. When PIN security is activated, the correct PIN number must be entered in order to use any of the features of the handset (make calls, access ADN etc.) The only calls that can be made without a PIN are calls to the emergency services.

PUK (Personnel Unblocking Key) - If the PIN is unknown the PUK is used to unblock the SIM card and enable a new PIN code to be entered.

MSISDN (Mobile Station ISDN Number) - This number is the standard international number used to identify a given subscriber. However, the number stored in the MSISDN location on a SIM Card can be changed without affecting the actual telephone number. Therefore, the MSISDN number downloaded from the SIM card can only be used as an indicator.

IMSI (International Mobile Subscriber Identity)

This is a unique number allocated to each mobile phone subscriber, stored electronically within the SIM Card. It is used by the network to look up the telephone number associated to the SIM Card.

CellXtract® User Manual 101

GLOSSARY AND TROUBLESHOOTING GUIDE

GSM (Global System for Mobile Communications) - a digital mobile telephone system that is widely used in Europe and other parts of the world. GSM uses a variation of time division multiple access (TDMA) and is the most widely used of the three digital wireless telephone technologies

(TDMA, GSM, and CDMA).

CDMA (Code Division Multiple Access) - refers to any of several protocols used in so-called second-generation (2G) and third-generation (3G) wireless communications. As the term implies,

CDMA is a form of multiplexing, which allows numerous signals to occupy a single transmission channel, optimizing the use of available bandwidth. The technology is used in ultra-high-frequency

(UHF) cellular telephone systems in the 800-MHz and 1.9-GHz bands.

TDMA (Time Division Multiple Access) - is a technology used in digital cellular telephone communication that divides each cellular channel into three time slots in order to increase the amount of data that can be carried.

Cluster The smallest block of memory in a drive that can be written to individually by the file system.

Allocation table Table that keeps track of the contents of each cluster on the drive. The allocation table is used to combine clusters in the correct order to construct the files in the file system.

Allocated space Any cluster that is being used to store a file and has a written entry in the allocation table

Unallocated Space Any clusters that have an empty entry in the allocation table (i.e. are not assigned to any file) and are marked as being available for over writing by the file system.

Extant File A files that is still active in the file system and has appropriate entries in the allocation table to be reconstructed.

Contiguous File A file stored using clusters that are located next to each other in the dri ve’s memory.

Troubleshooting Guide

CellXtract fails to power up

CellXtract hangs or freezes during an extraction

Dimensions entered do not display correct phone

Mobile device not listed or no image can be found.

The CellXtract battery may be discharged.

Try connecting the AC adapter.

Connect the included USB hub between the USB port (on the left panel) and the phone cable and perform the extraction again. If your CellXtract did not come with a USB hub, please contact

Logicube Technical Support. Contact information can be found at the end of this document.

Re-measure and re-enter dimensions by adjusting them slightly.

NOTE: The phone may not yet be included in the identification module

Mobile device may not yet be supported by the identification module. Select a similar device from the listing and use IR or Bluetooth ONLY. Damage to the handset can occur by selecting the wrong cable for a device and is not recommended.

CellXtract™ User Manual

102

GLOSSARY AND TROUBLESHOOTING GUIDE

Infrared discovery failed

Bluetooth extraction failed

Connector not recognized or detected

No cable connection method offered

Battery is not charging

CellXtract application freezes continuously

SIM card read fail

‘SIM PIN required’ message

NOTE: The device make and model reported is obtained from the phone not based on the device selected from the identification module.

Ensure infrared is active on target device and IR window is aligned with the CellXtract’s pickup sensor.

Ensure Bluetooth adapter is inserted in one of the

USB ports on the left panel. On the target device, ensure Bluetooth is active and is in discoverable mode. Also, target device may be asking for a 4digit code number or file acceptance on screen during the extraction.

Ensure cable is replaced correctly and retry then reboot the CellXtract if problem persists.

A small number of handsets only offer Bluetooth or

Infrared connectivity.

Discharge the battery completely then attach the

AC adapter and charge the battery for 2.5 hours.

Reboot the CellXtract and try a different phone to test along with a different external storage location.

Ensure SIM is correctly inserted and in the correct orientation.

Enter PIN code. If entered incorrectly 3 times PUK will be required.

‘SIM PUK required’ message

Contact carrier/provider to obtain PUK code.

CellXtract fails to read memory card

SIM Card LED goes out

Ensure card is inserted correctly. Reboot

CellXtract. Try a different USB port.

Try a different SIM card for testing purposes. If problems persist, press and hold the power button for 7 seconds to force the CellXtract to shut down.

Press and hold the power button for 7 seconds to force the CellXtract to shut down

CellXtract unit freezes or crashes

Validated phones: Testing and QA.

When a new software update for CellXtract is created the current market phones are added to the device listing in the software to enable the CellXtract operator to attempt an extraction on 'new market release' phones. These phones are added on the CellXtract's identification module as soon as we are aware of them and sometimes before we have been able to purchase and validate them on the software. This gives the CellXtract operator the added advantage of being able to read phones new to the market, as soon as they are released. Many of which will work in the same way as devices already validated and can then be used as intelligence in an investigation.

Validated phones, on the other hand, have been tested following Logicube quality assurance procedures and any phones that are identified by the operator that have a green tick next to the picture on CellXtract or show the extractable data icons to the right of the large image, show that the extraction is reliable and is repeatable.

CellXtract™ User Manual

103

GLOSSARY AND TROUBLESHOOTING GUIDE

CellXtract Start-up Problems

Logon details

The default username is ‘CellXtract’ and the password is not set. Note: the username and password are case sensitive.

Connected peripherals

Ensure all external peripherals are disconnected from the CellXtract on start-up particularly external screens or monitors.

Screen Freeze or System ‘Crash’ (Blank Screen)

System hardware reset

Press the power switch to perform a full system reset. The CellXtract should be rebooted normally following a full system reset.

The 'cannot find drivers' message

There are a few possible reasons for this message being displayed:

Untested handset

The device is not validated and does not use one of the standard device drivers. We have been unable to ensure that the correct driver is used because, at the time of this writing, we do not own a test phone of this type.

Connection error

The cable is not connected to the phone properly. Check the phone connection port and connector terminals for debris. If possible, confirm that there is no damage to the cable by running a test phone.

USB hub fault on pc

Windows cannot communicate with any USB devices due to a system fault within the PC - the system should be reset by shutting down and restarting CellXtract.

Mass storage mode

The phone is set as a mass storage device on connection. For the extraction to be successful it must appear as a data modem on connection. The setting will need to be changed in the connection settings menu on the phone.

Phone battery low

If the phone battery is very low then some of the circuitry inside the phone fails to switch on, even though the phone has powered up. Ensure that the phone has adequate charge before attempting an extraction on CellXtract.

Android USB Connection

Some Android handsets automatically connect to an unsupported USB mode. In this case, you must change the default USB connection mode to “Charge Only” or “Modem Mode”. To do this, connect the phone to CellXtract via the USB cable, then pull down the Android notification bar

(press the very top of the screen and pull down) and select USB Connection, then select “Charge

Only” or “Modem Mode”, and press OK.

Bluetooth Pairing problems

Discoverable mode

CellXtract™ User Manual

104

GLOSSARY AND TROUBLESHOOTING GUIDE

If the device is not present in the device list following a Bluetooth discovery check that the phone has Bluetooth switched on and it is in discoverable mode. Some devices can be in a hidden state even though the Bluetooth is switched on.

NOTE: Be sure that you know the correct identification name for a device before selecting it for pairing.

Pairing failure

Ensure that the correct pass code (‘1234’) was entered during the pairing process.

Win Mobile devices are not supported over a Bluetooth connection. This is because the connection has to be initiated by the handset only. The CellXtract cannot be discovered on Bluetooth by other devices.

Report Logo or Search file Upload problems

Fails to Upload Report Logo

The report logo has to be named ‘LOGO.jpg’ (in capital letters only) and stored on the root directory of a USB pen.

NOTE: .jpeg extensions are not supported.

USB hub fault on PC

If windows cannot communicate with any USB devices due to a system fault within the PC- the system should be reset by shutting down and restarting CellXtract.

Setting the System Time/Date

The system time and date must be set in the system BIOS.

Network Isolation Card problems

Missing SIM information

The NIC has been designed for network isolation purposes only. It is not an exact copy of the original SIM and only stores a subset of SIM data, including just the first 34 Abbreviated Dialed

Numbers (ADNs) and 25 SMS messages. As a result not all SIM data will be visible, or reported after performing a Cell phone extraction, on a handset with a NIC inserted.

Failed to create NIC

There was a problem with the NIC creation process. CellXtract was unable to read or copy mandatory SIM data onto the NIC. If this message appears, then the NIC should not be inserted into the target handset as data including call registers may be lost.

Help Messages

Help messages can be seen by tapping the Help Icon (a question mark on the upper-left of the screen) on some windows. This will bring up a description of the error and possible solutions.

CellXtract™ User Manual

105

GLOSSARY AND TROUBLESHOOTING GUIDE

Help Icon Location

CellXtract™ User Manual

106

8. Supported Handsets

Support and Validation

Physical Extraction from Chinese Chipset Phones

CellXtract-TNT

A full physical image (binary file) of the memory chip is extracted

Extracts, decodes and reports deleted data on Chinese chipset phones

(Coolsand decoding is currently not supported)

User password extraction is supported on Chinese chipset phones

Supports data extraction from the following Chinese-manufactured chipsets:

MediaTEK (MTK)

Spreadtrum

Infineon

MSTAR

Cool Sand

It is expected that most phones built with the above chipsets will be supported.

Physical Extraction from Android Phones

CellXtract* and CellXtract-TNT

A physical extraction from Android Operating Systems 1.6 through 2.3.4, and file systems EXT3,

EXT4 and RFS is supported. Limited support of the YAFFS2 file system is available at this time, but is expected to be fully supported in a future release. It is expected that most Android phones using the above O/S and/or file systems will be supported.

Supports dumping and decoding of contacts, call logs, MS, emails and user files

Will extract deleted file items such as databases, images, video, audio and documents

*You must have the Physical Extraction feature activated on your CellXtract. All units shipped after 6/11/12 included Physical Extraction. If you are not sure whether your CellXtract has this feature please contact our technical support team at [email protected]

to verify.

CellXtract® User Manual 107

SUPPORTED HANDSETS

CellXtract and CellXtract-TNT

Logical Extraction

– Supported Handsets

The following handsets have been tested and the results verified on CellXtract and CellXtract-TNT using the standard validation procedures of Logicube. The results below display the data sets that can be extracted from CellXtract and CellXtract-TNT for the specific handset. There may be additional data sets available from handsets and these will require further examination. These handsets are assigned a green tick next to their image on CellXtract and CellXtract-TNT.

Key:

Phone ID

Phone ID w timestamp

Contacts

Call Logs

Call Logs w timestamp



SMS





SMS w timestamp





MMS

MMS



Files





Organizer



Handsets that appear with no cable number assigned are supported via Infrared or

Bluetooth methods.

No. Manufacturer

1

2

3

4

5

10

11

12

13

6

7

8

9

ACER

ACER

ACER

ACER

ALCATEL

AMOI

ANDROID

APPLE

APPLE

APPLE

APPLE

APPLE

BENQ

Model

beTouch E101

F900 n50

X960

OT-C707

WP-S1

G1 iPhone iPhone 3G iPhone 4 iPhone 5 iPad

E72

    



GSM 2 10-Jan

    



GSM 2 10-Jan

  



GSM 6-Jul

    



GSM 2 9-Oct

    

GSM 8-Apr

   



GSM 2 9-Apr

    



GSM 2 8-Jul

    



GSM 3 8-Oct

    



GSM 3 9-Oct

      GSM

3 11-May

      GSM

Mfg Apr-13

  

N/A 3 Sep-12

    



GSM 2 9-Jan

CellXtract™ User Manual

108

14 BENQ

15 BENQ SIEMENS

16 BENQ SIEMENS

17 BENQ SIEMENS

18 BLACKBERRY

19 BLACKBERRY

20 BLACKBERRY

21 BLACKBERRY

22 BLACKBERRY

23 BLACKBERRY

24 BLACKBERRY

25 BLACKBERRY

26 BLACKBERRY

27 BLACKBERRY

28 BLACKBERRY

29 BLACKBERRY

30 BLACKBERRY

31 BLACKBERRY

32 BLACKBERRY

33 BLACKBERRY

34 BLACKBERRY

35 BLACKBERRY

36 BLACKBERRY

37 BLACKBERRY

38 BLACKBERRY

39 BLACKBERRY

40 BLACKBERRY

41 BLACKBERRY

42 BLACKBERRY

43 BLACKBERRY

44 BLACKBERRY

45 BLACKBERRY

46 BLACKBERRY

47 BLACKBERRY

48 DELL

49

50

51

E-TEN

GLOFIISH

GLOFIISH

CellXtract™ User Manual

7100t

7100v

7100x

8700f

8700g

8700v

8707g

8707v

8800

8820

8830

8900

9000

9500

9530

9700

8120

8300

8310

8320

8330

8520

8800

P50

EF81

S68

S88

7230

7250

7290

8100

9780

9800

9650

AXIM X51v

P300B

M810

X600

109

SUPPORTED HANDSETS

    



GSM 2 6-Jul

  

GSM 7-Apr

    



GSM 6-Jul

   

  

GSM 7-Jul



GSM 2 8-Apr

  

   



GSM 2 7-Jul



GSM 2 7-Jan

   

    



GSM 2 7-Jul



GSM 2 9-Jan

    



GSM 2 9-Jan

   



GSM 2 8-Jul

   



GSM 2 8-Apr

    



CDMA 2 9-Jan

    



GSM 1 10-Jan

   

    



GSM 2 10-Jan



GSM 2 8-Oct

   



GSM 2 8-Apr

   

    



CDMA 2 8-Oct



GSM 1 9-Jul

    



GSM 2 9-Jan

    



GSM 1 9-Jul

    



GSM 1 9-Jul

   

  



GSM 1 10-Sep



GSM 2 6-Apr

  

  

  

  



GSM 2 6-Apr



GSM 2 6-Apr



GSM 2 7-Jan



GSM 2 7-Jan

  

   

   



GSM 2 7-Oct



GSM 2 9-Oct



GSM 2 7-Jul

     GSM

1 11-Dec

     GSM

1 11-Dec

    GSM

1 11-Dec

  



GSM 6-Oct

   



GSM 7-Oct

    



GSM 2 9-Oct

    



GSM 2 8-Oct

63

69

70

71

72

73

74

75

64

65

66

67

68

76

77

78

79

80

81

82

83

84

85

86

87

88

89

52

53

54

55

56

57

58

59

60

61

62

CellXtract™ User Manual

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HUAWEI

HUAWEI

HUAWEI

HUAWEI

HP

HP

HP

HP

HP

HTC

HTC

HTC

HTC

HTC

HTC

SUPPORTED HANDSETS

iPAQ 514 iPAQ H5550 iPAQ HW6915 iPAQ rx1950 iPAQ rz1710

Desire

EVO 4G

Hero

Incredible

Kaizer

Magic

   



GSM 2 7-Oct

  



GSM 6-Jul

    



GSM 6-Oct

  



GSM 7-Jul

  



GSM 6-Jul

    

GSM 1 11-May

    

CDMA 1 11-May

   



GSM 2 9-Oct

      CDMA

1 11-May

   



GSM 2 8-Jan

   

GSM 2 9-Oct

NEXUS ONE

P3300

P3450

P3470

P5500

S310

S620

S710

S740

   

GSM 1 10-Dec

   



GSM 2 7-Oct

   



GSM 2 9-Jul

   



GSM 2 8-Oct

    



GSM 2 8-Oct

    



GSM 2 7-Jul

    



GSM 2 8-Oct

    



GSM 2 8-Jul

    



GSM 2 9-Jul

S743

Shadow

SMT5800

Snap

      GSM

8 10-Dec

    



GSM 2 8-Oct

    



CDMA 2 10-Sep

    



GSM 2 9-Oct

Tattoo

   

GSM 2 10-Jan

Tornado

Touch

   



GSM 2 8-Jan

   



GSM 2 7-Oct

TOUCH CRUISE

    



GSM 2 9-Apr

TOUCH DIMOND

    



GSM 2 9-Jul

Inspire

ThunderBolt

Sensation

Amaze 4G

Status

U8150

M735

U8800

M860

   

GSM 1 11-Dec

    

CDMA 1 11-Dec

    

GSM 1 Apr-12

    

    

    

GSM

    

GSM 1 11-Dec

     CDMA

1 11-Dec

GSM

1 Apr-12

1 Apr-12

  

GSM



CDMA

1 Apr-12

1 Sep-12

110

KYOCERA

KYOCERA

KYOCERA

KYOCERA

KYOCERA

KYOCERA

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

KYOCERA

KYOCERA

KYOCERA

KYOCERA

KYOCERA

KYOCERA

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

90

91

92

93

94

95

96

97

98

99

100

101

102

103

CellXtract™ User Manual

KX5

KX9a

S1300

S4000

SE47

M1400

A7110

AX380

C1300i

C1500

C2000

C2500

CE500

CG225

CG300

F2500

F9100

F9200

G4020

G4050

GD900

GS170

GT365

GT950 (Arena)

JAM

JAMin

JASJAR

K-JAM

PDA2K

SP3i

SP5

SPL

K323

K342

K404

K9

KX1

KX160

SUPPORTED HANDSETS

   



GSM 2 6-Jul

   



GSM 2 6-Jul

    



GSM 2 6-Oct

   



GSM 2 6-Jul

    



GSM 8-Jul

    



GSM 2 6-Jul

    



GSM 2 6-Jul

    



GSM 2 7-Jul

   

CDMA 9-Jan

   

CDMA 9-Jan

   

 

CDMA 22 6-Jul

 

CDMA 22 9-Jan

 

 

 

CDMA 22 9-Jan

 

CDMA 22 9-Jan

   

CDMA 9-Jan

 

 

 

 

CDMA 22 9-Jan

 



CDMA 1 10-Sep

 



CDMA 1 10-Sep

   

CDMA 21 6-Jul

    CDMA

1 Dec-11

  



GSM 12 6-Jul

    

CDMA 5 9-Jul

  

  

  



GSM 21 7-Jan



GSM 21 7-Jan



GSM 21 7-Jan

  

GSM 2 10-Jul

  

GSM 12 6-Jul

  

  

 



GSM 21 7-Jan



GSM 21 7-Jan

 



GSM 8-Apr

  

  

  

  



GSM 21 7-Jan



GSM 21 7-Jan



GSM 21 8-Apr



GSM 21 7-Jan

   



GSM 1 10-Jan

  

GSM 1 10-Dec

 







GSM 5 10-Sep

 

GSM 1 11-May

111

151

152

153

154

155

156

157

144

145

146

147

148

149

150

158

159

160

161

162

163

164

165

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

CellXtract™ User Manual

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

KG320

KG800

KG810

KG920

KM710

KM900

KP170

KP500

KU990

L1150

L1200

L1400i

LG6190

LX150

LX160

LX550

LX5550

MM535

MN240 (Imprint)

MT310

P7200

PM225

GW300

GW520

GW820 (Expo)

KC550

KC780

KC910

KE500

KE770

KE800

KE820

KE850

KE970

KF510

KF600

KG200

KG300

SUPPORTED HANDSETS

   



GSM 1 10-Jan

   



GSM 1 10-Jan

      GSM

1 11-May

 

 

 



GSM 5 8-Oct

 



GSM 5 9-Oct

   



GSM 5 9-Apr

   



GSM 5 8-Oct

   



GSM 5 8-Apr

 

 

 



GSM 5 8-Apr

 



GSM 5 8-Apr

 

 

 

 

 



GSM 5 8-Apr

 



GSM 5 8-Apr

 



GSM 5 9-Jan

 



GSM 5 9-Jan

   

GSM 2 10-Sep

   

GSM 2 10-Sep

 

 

 



GSM 5 7-Jul

 



GSM 5 6-Oct

  

   



GSM 5 8-Apr



GSM 12 6-Oct

  



GSM 5 8-Oct

   



GSM 10-Jan

   



GSM 5 10-Jan

   



GSM 5 9-Apr

   



GSM 5 9-Apr

  

  

  



GSM 21 8-Apr



GSM 21 7-Jan



GSM 21 7-Jan

    



CDMA 19 10-Sep

   

   



CDMA 5 8-Apr



CDMA 5 8-Apr

    



CDMA 19 8-Apr

    



CDMA 12 7-Oct

    



CDMA 19 6-Apr

      CDMA

1 11-May

      CDMA

1 10-Dec

   



GSM 12 6-Apr

    



CDMA 19 6-Apr

112

183

184

185

186

187

188

189

190

191

175

176

177

178

179

180

181

182

166

167

168

169

170

171

172

173

174

192

193

194

195

196

197

198

199

200

201

202

203

CellXtract™ User Manual

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

UX260

UX300

UX355

UX390

UX4750

UX5000

VI125

VX10000

VX4500

VX4600

VX4700

VX5200

VX5300

VX5400

VX5500

VX5600

VX6000

PM325

S5200

U8110

U8120

U8130

U8138

U8360

U8380

UN430

VX6100

VX6190

VX7000

VX8000

VX8100

VX8300

VX8350

VX8500

VX8575

VX8610

VX8700

VX8800

SUPPORTED HANDSETS

    



CDMA 19 6-Apr

   



GSM 12 6-Apr

  

   



GSM 12 9-Apr



GSM 12 9-Apr

  

  



GSM 12 9-Apr



GSM 12 9-Apr

   



GSM 12 9-Apr

  



GSM 12 9-Apr

   

CDMA 1 10-Dec

    



CDMA 5 9-Oct

      CDMA

1 10-Dec

    



CDMA 19 7-Jul

    



CDMA 19 7-Jul

    



CDMA 19 8-Jan

    



CDMA 19 8-Jan

    



CDMA 19 6-Apr

    



CDMA 5 9-Jan

    



CDMA 21 6-Jul

    



CDMA 21 6-Jul

    



CDMA 19 6-Apr

    



CDMA 19 6-Apr

    



GSM 20 6-Oct

    



CDMA 5 9-Jan

    



CDMA 1 10-Sep

      CDMA

1 10-Dec

    



CDMA 12 6-Jul

    



CDMA 19 6-Apr

    



CDMA 19 10-Sep

    



CDMA 19 6-Jul

    



CDMA 19 6-Jul

    



CDMA 19 6-Apr

    



CDMA 20 6-Oct

    



CDMA 5 8-Apr

    



CDMA 5 8-Oct

    



CDMA 1 10-Sep

    



CDMA 1 9-Oct

    



CDMA 5 9-Jan

    



CDMA 5 9-Jan

113

LG

LG

LG

LG

LG

LG

LG

LG

LG

LOBSTER

MIO

MIO

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

LG

LG

LG

LG

LG

LG

LG

LG

LG

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

221

222

223

224

225

226

227

228

229

213

214

215

216

217

218

219

220

204

205

206

207

208

209

210

211

212

237

238

239

240

241

230

231

232

233

234

235

236

SUPPORTED HANDSETS

VX9100

VX9200

VX9400

VX9700

VX9800

VX9900

P509

KS20

VS750

    



CDMA 1 9-Jan

      CDMA

1 10-Dec

    



CDMA 5 8-Apr

      CDMA

1 10-Dec

    



CDMA 19 7-Jan

    



CDMA 5 8-Oct

    

GSM 1 11-Dec

      GSM

5 11-Dec

      CDMA

1 11-Dec

UX310

MT375

VN530

P505

C729

LG670

AX145

     CDMA

1 11-Dec

      CDMA

1 11-Dec

     CDMA

1 11-Dec

    

GSM 1 Apr-12

    

GSM 1 Apr-12

    

CDMA 1 Apr-12

 



CDMA 21 Apr-12

    

GSM 1 Apr-12 P925

P930

700TV

A501

A701

    

GSM 1 Apr-12

   



GSM 2 8-Jan

    



GSM 2 9-Jul

    



GSM 2 7-Apr

MB810 (DROID X)

    

CDMA 1 11-May

A555 (Devour)

A835

A855

C332

C343

C350

C385

C390

C550

C650

C975

E1

E1000

E1070

E398

E8

    

CDMA 1 11-May

    



GSM 9 5-Dec

   



CDMA 1 10-Sep

   

   

   

   



GSM 2 7-Jul



CDMA 9 6-Apr



GSM 2 6-Apr



GSM 2 5-Dec

    



GSM 2 5-Dec

   

    



GSM 2 5-Dec



GSM 2 5-Dec

    



GSM 9 5-Dec

    



GSM 9 6-Apr

    



CDMA 9 6-Oct

    



GSM 2 7-Jan

    



GSM 9 5-Dec

   

GSM 10-Jan

CellXtract™ User Manual

114

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

260

261

262

263

264

265

251

252

253

254

255

256

257

258

259

242

243

244

245

246

247

248

249

250

272

273

274

275

276

277

278

279

266

267

268

269

270

271

CellXtract™ User Manual

MPX220

Q

Q9h

QA1

T280i

T300p

U6

V1050

V120c

V180

V188

V190

V195

V220

V235

E815

K1

K1m

K3

L2

L6

L7 maxx Ve

MPX200

V3c

V3i

V3m

V3x

V3xx

V400

V500

V525

V260

V265

V3

V300

V360

V3a

SUPPORTED HANDSETS

   

    



CDMA 6-Oct



GSM 2 7-Oct

    



CDMA 7-Apr

   



GSM 2 7-Jul

   

    



GSM 2 6-Oct



GSM 2 6-Apr

    



GSM 2 6-Apr

   

    



CDMA 10-Jan



GSM 2 6-Jul

    



GSM 9 6-Jul

   



GSM 2 8-Jan

   



GSM 1 8-Apr

    

GSM 1 10-Sep

   



GSM 6-Oct

   

    



CDMA 9 5-Dec



GSM 2 6-Apr

    



GSM 9 6-Oct

   

CDMA 9 6-Apr

    



GSM 2 5-Dec

    



GSM 2 6-Apr

   



GSM 2 7-Jul

   

    



GSM 2 6-Oct



GSM 2 6-Apr

    

GSM 2 7-Jan

   

   



CDMA 9 8-Jan



CDMA 9 8-Apr

    



GSM 2 5-Dec

    



GSM 9 5-Dec

    



GSM 2 6-Apr

      CDMA

2 11-May

    



CDMA 10-Jan

    



GSM 2 6-Apr

   

    



CDMA 8-Apr



GSM 2 6-Jul

    



GSM 2 9-Oct

   

   



GSM 9 8-Jan



GSM 9 8-Jul

    



GSM 9 5-Dec

115

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

NDRIVE

297

298

299

300

301

302

303

304

305

306

307

308

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

309

310

311

312

313

314

315

316

317

SUPPORTED HANDSETS

V540

V550

V551

V6

V600

V60p

V60v

V620

V635

V65p

V66i

V70

V710

V8

V80

V860 (Barrage)

V9

V950

V975

V980

V9m

VE240

W385

W450

W510

   

    



GSM 9 7-Jul



GSM 9 6-Apr

    



GSM 9 6-Apr

   



GSM 2 7-Jul

    



GSM 5-Dec

   



CDMA 9 5-Dec

   

    



CDMA 9 7-Jul



GSM 9 6-Apr

    



GSM 9 5-Dec

   

   



CDMA 9 8-Apr



GSM 9 5-Dec

   

  



GSM 9 5-Dec



CDMA 9 6-Apr

   

GSM 10-Jan

    



GSM 9 5-Dec

      CDMA

1 11-May

    



GSM 1 8-Apr

   

    



CDMA 10-Jan



GSM 9 8-Jul

    



GSM 9 5-Dec

    



CDMA 8-Apr

      CDMA

2 11-May

    



CDMA 8-Apr

   



GSM 9-Oct

    

GSM 2 8-Jan

W755

    

CDMA 10-Jan

W840 (Quantico)

      CDMA

1 11-May

Z3

Z6

Z6m

    



GSM 2 7-Apr

 

 

 

GSM 10-Jan

 



CDMA 8-Apr

Z6tv

Z8

    

CDMA 10-Sep

  



GSM 8-Jul

Z9

ZN4

MB860

XT610

    

GSM 1 9-Apr

    

CDMA 10-Jan

    

GSM 1 Dec-11

    

CDMA 1 Dec-11

MB865

S300

    

GSM 1 Sep-12

    



GSM 2 9-Apr

CellXtract™ User Manual

116

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NEO

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

339

340

341

342

343

344

345

346

347

334

335

336

337

338

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

348

349

350

351

352

353

354

CellXtract™ User Manual

2630

2650

2652

2680

2760

3100

3109

3110

3120

3200

3210

3220

3230

3250

808i

1100

1101

1110

1112

1200

1208

1209

1600

2100

2285

2300

2310

2600

2610

2626

3310

3330

3410

3510

3555

5000

5070

117

SUPPORTED HANDSETS

   

   

   

   

   

   

   

   

   

GSM 9-Jan



GSM 28 7-Oct



GSM 28 7-Oct



GSM 25 7-Oct



GSM 25 7-Oct



GSM 28 8-Jan



GSM 28 8-Jan



GSM 28 9-Apr



GSM 25 7-Oct

  

   

GSM 29 7-Oct

  



CDMA 24 6-Oct

   



GSM 28 7-Oct



GSM 25 7-Oct

    

GSM 8-Jul

  

GSM 25 7-Oct

  

GSM 25 7-Oct

    

GSM 8-Apr

    



GSM 31 7-Oct

    



GSM 31 7-Oct

    

GSM 9-Jan

    

GSM 8-Jan

    

GSM 24 6-Oct

    

GSM 2 7-Oct

    

GSM 2 7-Jul

    



GSM 24 8-Jul

   



GSM 24 6-Apr

  

GSM 34 7-Oct

    

GSM 24 7-Apr

    



GSM 7 7-Apr

    

GSM 7 7-Apr

  

GSM 32 7-Oct

 

GSM 32 8-Jan

  

   

GSM 32 7-Oct



GSM 30 8-Jan

    

CDMA 1 8-Oct

    

GSM 8-Oct

    

GSM 24 7-Jul

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

355

356

357

358

359

360

361

362

370

371

372

373

374

375

376

377

363

364

365

366

367

368

369

378

379

380

381

382

383

384

385

386

387

388

389

390

391

CellXtract™ User Manual

5100

5110

5140

5200

5210

5220

5230

5300

6020

6021

6030

6060

6061

6070

6080

6085

5310

5320

5500

5610

5700

5800

6010

6086

6100

6101

6103

6108

6111

6120

6125

6130

6131

6136

6150

6151

6170

118

SUPPORTED HANDSETS

    



GSM 24 5-Dec

   

GSM 33 7-Oct

    

GSM 24 8-Jul

    

GSM 2 7-Apr

   

GSM 7-Apr

    

GSM 1 8-Oct

    



GSM 1 10-Sep

    

GSM 2 7-Apr

    

GSM 1 8-Jan

    



GSM 1 9-Jan

    



GSM 7 7-Apr

    

GSM 1 8-Apr

    

GSM 2 7-Jul

    



GSM 1 9-Jul

   



GSM 30 7-Oct

    

GSM 24 5-Dec

    

GSM 24 6-Apr

   

   



GSM 25 7-Oct



GSM 25 7-Oct

   

   

GSM 25 8-Apr



GSM 24 6-Oct

   

GSM 24 7-Jan

    

GSM 7 7-Jul

    

GSM 7 8-Apr

    



GSM 24 5-Dec

    

GSM 24 5-Dec

    



GSM 24 6-Oct

    



GSM 24 7-Oct

    

GSM 7 6-Apr

    



GSM 2 8-Jan

    



GSM 7 6-Oct

   

GSM 33 7-Oct

    

GSM 7 6-Jul

    

GSM 7 7-Jan

   

GSM 33 7-Oct

    

GSM 7 6-Oct

    

GSM 7 5-Dec

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

402

403

404

405

406

407

408

392

393

394

395

396

397

398

399

400

401

414

415

416

417

418

419

420

421

409

410

411

412

413

422

423

424

425

426

427

428

CellXtract™ User Manual

6267

6270

6280

6282

6288

6290

6300

6200

6210

6210

6220

6225

6230

6233

6234

6260

6263

6301

6310

6360

6510

6555

6610

6620

6630

6650

6670

6680

6790

6800

6810

6820

6822

7020

7110

7200

7210

119

SUPPORTED HANDSETS

    



GSM 24 7-Jul

    



GSM 1 9-Jul

   



GSM 33 7-Oct

    

GSM 24 5-Dec

    



CDMA 24 7-Jul

    

GSM 7 6-Apr

    



GSM 7 6-Oct

    

GSM 7 7-Jul

    



GSM 7 7-Jan

    

CDMA 2 8-Oct

    

GSM 2 8-Jan

    

GSM 7 6-Jul

    

GSM 7 6-Apr

    

GSM 7 7-Jul

    

GSM 7 7-Jul

    

GSM 2 7-Oct

    

GSM 2 7-Jul

    

GSM 2 9-Jan

   

  

   



GSM 6-Apr



CDMA 33 7-Oct



GSM 7-Apr

    

GSM 1 8-Jan

   

    



GSM 24 6-Apr



GSM 7 7-Apr

    



GSM 8-Jan

    



GSM 1 9-Jul

    



GSM 7 7-Jan

    



GSM 7 7-Jan

    



GSM 1 10-Sep

    

GSM 24 7-Oct

    

GSM 24 7-Jul

    

GSM 24 6-Apr

    

GSM 24 5-Dec

    

   

GSM 1 10-Dec



GSM 33 7-Oct

    

GSM 24 6-Oct

    

GSM 1 9-Jan

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

CellXtract™ User Manual

SUPPORTED HANDSETS

7210

7260

7270

7280

7360

7370

7373

7380

7390

7500

7510

7600

7610

7900

8210

8310

8800

8850

8910

1110i

2323 Classic

    



GSM 24 5-Dec

    

GSM 24 6-Apr

    

GSM 7 5-Dec

    

GSM 5-Dec

    

GSM 24 6-Apr

    

GSM 7 6-Apr

    

GSM 7 7-Apr

    

GSM 6-Apr

    

GSM 2 7-Apr

    

GSM 2 8-Jan

    

GSM 1 9-Jul

    



GSM 7 5-Dec

    



GSM 7 7-Jan

    

GSM 1 8-Apr

   

   

GSM 29 7-Apr



GSM 7-Apr

    

GSM 5-Dec

   

   

   

GSM 7-Apr



GSM 5-Dec



GSM 25 7-Oct

    

GSM 9-Oct

2330 Classic

2700 Classic

2720 Fold

2730 Classic

    

GSM 9-Oct

    

GSM 1 9-Oct

    

GSM 10-Jan

    

GSM 1 10-Jan

2865i

3120 Classic

3155i

3500 classic

3510i

3600 Slide

3720 Classic

    

CDMA 7 8-Jan

    

GSM 1 9-Apr

    

CDMA 7 8-Apr

    

GSM 2 8-Jan

   



GSM 30 7-Oct

    

GSM 1 8-Oct

    

GSM 1 10-Jan

5130 Xpress Music

    

GSM 1 9-Oct

5140i

   

GSM 24 5-Dec

5530 Xpress Music

    



GSM 1 9-Oct

5630 Xpress Music

    



GSM 1 9-Oct

5730 Xpress Music

    



GSM 1 9-Oct

120

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

CellXtract™ User Manual

6015i

6030b

6110 Navigator

6124c

6155i

6165i

6208 Classic

6212 Classic

6220 Classic

6230i

6235i

6255i

6260 Slide

6265i

6275i

6303 Classic

6310i

6500 classic

6500 Slide

6600 fold

6600 slide

6600i Slide

6610i

6700 Classic

6720 Classic

6730 Classic

6760 Slide

7100 Supernova

7250i

7310 Supernova

7610 Supernova

8600 Luna

8910i

E50

E51

E55

E60

SUPPORTED HANDSETS

    



CDMA 24 6-Oct

   

GSM 25 10-Jan

    

GSM 2 7-Oct

    



GSM 2 9-Jan

    

CDMA 7 8-Apr

    

CDMA 7 7-Jan

    

GSM 1 9-Oct

    

GSM 1 9-Oct

    



GSM 1 9-Apr

   

  

GSM 7 6-Apr



CDMA 7 6-Apr

   

CDMA 7 6-Apr

    

GSM 1 9-Oct

    

CDMA 7 8-Jan

    

GSM 7 8-Apr

    

GSM 1 9-Oct

   



GSM 7-Apr

    

GSM 1 8-Jan

    

GSM 1 8-Apr

    

GSM 1 9-Jan

    

GSM 1 9-Jan

    

GSM 1 10-Jan

    



GSM 24 5-Dec

    

GSM 1 10-Jan

    



GSM 1 9-Oct

    



GSM 1 9-Oct

    



GSM 1 10-Jan

    

GSM 9-Apr

    



GSM 24 5-Dec

    

GSM 1 8-Oct

    

GSM 1 8-Oct

    

GSM 1 8-Oct

   



GSM 5-Dec

    

GSM 7 7-Apr

    

GSM 2 8-Apr

    



GSM 1 10-Jan

    



GSM 7 7-Apr

121

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

O2

O2

O2

ORANGE

ORANGE

ORANGE

PALM

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

503

504

505

506

530

531

532

533

534

535

536

537

538

539

540

523

524

525

526

527

528

529

518

519

520

521

522

512

513

514

515

516

517

507

508

509

510

511

CellXtract™ User Manual

E61

E63

E65

E66

X3

X6

6350

X2-01

ICE

XDA

XDA IIi

SPV C500

SPV C550

SPV C600

700P

N81 8GB

N82

N85

N90

N91

N93

N93i

N95

N95 8GB

N96

N97

N97 mini

N72

N73

N76

N77

N79

N80

E70

E71

E75

N70

N71

SUPPORTED HANDSETS

    

GSM 7 7-Apr

    



GSM 1 9-Apr

    



GSM 7 7-Apr

    

GSM 1 8-Oct

    

GSM 7 7-Apr

    



GSM 1 8-Oct

    



GSM 1 9-Jul

    



GSM 7 7-Jan

    

GSM 7 7-Jul

    



GSM 7 7-Jan

    



GSM 7 7-Apr

    



GSM 2 7-Jul

    



GSM 7 8-Oct

    



GSM 1 9-Jan

    

GSM 7 7-Apr

    



GSM 1 8-Apr

    



GSM 1 8-Jul

    



GSM 1 9-Apr

    



GSM 7 7-Jan

    



GSM 2 7-Apr

    



GSM 7 8-Apr

    



GSM 7 7-Jul

    



GSM 2 8-Jan

    



GSM 2 8-Jul

    



GSM 1 8-Oct

    



GSM 1 9-Oct

    



GSM 1 10-Sep

    

GSM 1 10-Dec

      GSM

    

GSM

1 11-May

1 Dec-11

    

GSM 1 Dec-11

   



GSM 12 7-Oct

   



GSM 6-Jul

   



GSM 6-Jul

   



GSM 2 6-Jul

   



GSM 2 6-Jul

    



GSM 2 6-Jul

  



CDMA 23 10-Jan

122

PALM

PALM

PALM

PALM

PALM

PANTECH

SAGEM

SAGEM

SAGEM

SAGEM

SAGEM

SAGEM

SAGEM

SAGEM

SAGEM

SAGEM

SAGEM

SAGEM

SAGEM

SAGEM

SAGEM

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

558

559

560

561

562

563

564

565

566

550

551

552

553

554

555

556

557

541

542

543

544

545

546

547

548

549

567

568

569

570

571

572

573

574

575

576

577

578

CellXtract™ User Manual

Centro

Treo 500

Treo 680

Treo 750

Treo Pro

P8000 my302X my401C my401V my401X my411C my411Cv my411X my501C my511X my600v my700X myV-55 myV-65 myX5-2 myX-6

B2100

B2700

B3310

B5702

B7300

C3050

C6625

E1360

E2210

I8000 i8510

M3200

M7500

M7600

M8800

S3030

S3100

SUPPORTED HANDSETS

 



GSM 23 9-Jan

    



GSM 2 9-Jan

 

  



GSM 23 8-Apr





GSM 7-Jul

    



GSM 2 9-Jan

    

GSM 1 Apr-12

    



GSM 7-Apr

    



GSM 8-Jan

    



GSM 7-Apr

    



GSM 7-Apr

   

   



GSM 8-Jan



GSM 8-Jan

    



GSM 8-Jan

   

   



GSM 7-Apr



GSM 8-Jan

   

    



GSM 7-Jul



GSM 7-Apr

   

   



GSM 8-Jan



GSM 8-Jan

   

    



GSM 8-Jan



GSM 8-Jan

    



GSM 4 9-Jul

 

 

 



GSM 4 9-Apr

 



GSM 1 9-Oct

    



GSM 4 9-Oct

    



GSM 1 10-Jan

   



GSM 4 9-Jul

    



GSM 4 9-Oct

    



GSM 9-Oct

    



GSM 9-Oct

    



GSM 1 10-Jan

    



GSM 9-Apr

    



GSM 4 10-Jan

   



GSM 1 9-Jul

 

 

 

 



GSM 1 9-Jul

 



GSM 4 9-Apr

 



GSM 4 9-Oct

    



GSM 4 10-Jan

123

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

603

604

605

606

607

608

609

610

596

597

598

599

600

601

602

611

612

613

614

615

616

588

589

590

591

592

593

594

595

579

580

581

582

583

584

585

586

587

CellXtract™ User Manual

SCH-A850

SCH-A870

SCH-A930

SCH-A950

SCH-A990

SCH-i220

SCH-i600

SCH-i730

SCH-i760

SCH-i920

SCH-R450

SCH-U340

SCH-U350

SCH-U410

SCH-U650

SCH-U740

SCH-U820

SCH-U940

SGH-A177

SGH-A300

SGH-A517

S3500

S3600

S3650

S5050

S5230

S5600

S7220

S7330

S8000

S8300

SCH-A310

SCH-A530

SCH-A570

SCH-A630

SCH-A650

SCH-A670

SCH-A795

SUPPORTED HANDSETS

   



GSM 4 9-Apr

    



GSM 10-Jan

   



GSM 4 10-Jan

    



GSM 4 9-Oct

 

 

 



GSM 4 9-Oct

 



GSM 1 9-Oct

 

 

 

 

 

 

 



GSM 1 9-Jul

 



GSM 4 9-Apr

 



GSM 1 9-Oct

 



GSM 1 9-Jul

  

  





  



CDMA 11 6-Apr



CDMA 11 6-Apr



CDMA 11 6-Oct



CDMA 10 6-Oct



CDMA 11 6-Apr

  

CDMA 11 6-Apr

   

    



CDMA 10 8-Apr



CDMA 10 8-Apr

   

    



CDMA 10 8-Apr



CDMA 10 8-Apr

    



CDMA 10 8-Apr

    



CDMA 10 8-Apr

      CDMA

1 11-May

  



GSM 6-Jul

    



CDMA 6-Jul

    



GSM 18 8-Jul

      CDMA

1 10-Dec

   

    



CDMA 4 9-Jul



CDMA 10 9-Jul

      CDMA

4 10-Dec

    



CDMA 10 8-Apr

   

    



CDMA 4 9-Jul



CDMA 6 10-Jan

    

CDMA 1 10-Dec

   

    



CDMA 4 9-Jul



GSM 4 10-Jan

  



GSM 16 5-Dec

    



GSM 4 8-Apr

124

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

634

635

636

637

638

639

640

641

642

626

627

628

629

630

631

632

633

617

618

619

620

621

622

623

624

625

643

644

645

646

647

648

649

650

651

652

653

654

CellXtract™ User Manual

SGH-A687

SGH-A707

SGH-A717

SGH-A727

SGH-A737

SGH-A747

SGH-A767

SGH-A777

SGH-A827

SGH-A837

SGH-A877

SGH-A887

SGH-C100

SGH-C207

SGH-C225

SGH-C300

SGH-D307

SGH-D357

SGH-D407

SGH-D410

SGH-D500

SGH-D520

SGH-D600

SGH-D720

SGH-D780

SGH-D800

SGH-D807

SGH-D820

SGH-D830

SGH-D840

SGH-D880

SGH-D900

SGH-D900i

SGH-D980

SGH-E105

SGH-E210

SGH-E250

SGH-E330

SUPPORTED HANDSETS

     GSM

4 10-Dec

 

  

 





GSM 6 8-Jan





GSM 6 8-Jan

   



GSM 6 8-Jan

   



GSM 4 8-Oct

 



GSM 4 8-Oct

 

 

 



GSM 4 9-Jul

   GSM

4 10-Dec

 

 

 

 



GSM 4 8-Oct

 



GSM 4 9-Jul

   GSM

4 10-Dec

     GSM

   

   

   

4 10-Dec



GSM 16 5-Dec



GSM 16 6-Jul



GSM 16 5-Dec

   

   



GSM 16 8-Jan



GSM 11 6-Jul

    



GSM 11 7-Jul

    



GSM 7-Oct

   

    



GSM 16 5-Dec



GSM 11 5-Dec

    



GSM 6 7-Apr

    



GSM 11 6-Apr

    



GSM 12 7-Jul

    



GSM 4 9-Jan

    



GSM 6 6-Oct

    



GSM 6 8-Apr

    



GSM 6 6-Oct

    



GSM 6 7-Apr

    



GSM 6 7-Jul

    



GSM 4 8-Jul

    



GSM 6 7-Apr

    



GSM 6 7-Oct

   

   



GSM 4 9-Apr



GSM 16 6-Apr

   



GSM 8-Jan

    



GSM 6 7-Apr

    



GSM 17 6-Oct

125

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

660

661

662

663

664

665

666

667

668

669

670

671

672

673

674

675

676

677

685

686

687

688

689

690

691

692

678

679

680

681

682

683

684

655

656

657

658

659

CellXtract™ User Manual

SGH-E335

SGH-E350

SGH-E370

SGH-E390

SGH-E530

SGH-E570

SGH-E590

SGH-E600

SGH-E630

SGH-E700

SGH-E715

SGH-E720

SGH-E730

SGH-E740

SGH-E760

SGH-E770

SGH-E800

SGH-E830

SGH-E840

SGH-E870

SGH-E880

SGH-E900

SGH-E950

SGH-F110

SGH-F210

SGH-F250

SGH-F300

SGH-F330

SGH-F400

SGH-F480

SGH-F490

SGH-F500

SGH-F700

SGH-G400

SGH-G600

SGH-G800

SGH-G810

SGH-i200

SUPPORTED HANDSETS

    



GSM 17 6-Oct

    



GSM 11 5-Dec

    



GSM 11 7-Jan

    



GSM 6 7-Apr

    

GSM 5-Dec

    

GSM 6 7-Apr

    



GSM 6 7-Oct

   

    



GSM 16 7-Jul



GSM 17 6-Apr

    



GSM 17 5-Dec

   

    



GSM 16 6-Oct



GSM 12 5-Dec

    



GSM 11 5-Dec

    



GSM 6 8-Jan

    



GSM 11 5-Dec

    



GSM 11 6-Apr

    



GSM 17 5-Dec

    



GSM 6 8-Apr

    



GSM 6 7-Oct

    



GSM 6 6-Oct

    

GSM 7-Jul

    



GSM 6 7-Jan

    



GSM 6 8-Jan

   

    



GSM 4 8-Oct



GSM 8-Jan

    



GSM 4 9-Jan

    



GSM 6 7-Jul

    



GSM 4 8-Jul

    



GSM 4 8-Jul

   



GSM 4 9-Jan

    



GSM 4 8-Jul

    



GSM 6 7-Oct

   



GSM 4 9-Apr

   



GSM 4 9-Apr

    



GSM 8-Jan

    



GSM 4 8-Jul

    



GSM 1 9-Apr

    



GSM 4 9-Jan

126

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

710

711

712

713

714

715

702

703

704

705

706

707

708

709

693

694

695

696

697

698

699

700

701

716

717

718

719

720

721

722

723

724

725

726

727

728

729

730

CellXtract™ User Manual

SGH-i300

SGH-i320

SGH-i325

SGH-i600

SGH-i607

SGH-i617

SGH-i620

SGH-i710

SGH-i780

SGH-i900

SGH-J600

SGH-J610

SGH-J700

SGH-L700

SGH-L760

SGH-L770

SGH-M150

SGH-M610

SGH-P207

SGH-P300

SGH-P310

SGH-P400

SGH-P510

SGH-P520

SGH-P735

SGH-P777

SGH-P850

SGH-S300M

SGH-S307

SGH-S400i

SGH-S401i

SGH-T301

SGH-T309

SGH-T349

SGH-T369

SGH-T429

SGH-T439

SGH-T469

SUPPORTED HANDSETS

    



GSM 12 7-Oct

    



GSM 7-Jan

    



GSM 4 9-Jan

    



CDMA 2 7-Oct

    



GSM 6 7-Jul

    



GSM 4 8-Oct

    



GSM 6 9-Jan

    



GSM 6 7-Oct

    



GSM 4 9-Jul

    



GSM 4 9-Jan

 

 

 



GSM 6 8-Jan

 



GSM 4 8-Oct

    



GSM 4 8-Jul

   

GSM 4 10-Jan

   



GSM 4 8-Oct

   



GSM 9-Jan

    



GSM 4 8-Oct

   

   



GSM 4 8-Oct



GSM 11 6-Oct

  

    

GSM 6 6-Apr



GSM 6 7-Apr

   

   



GSM 16 5-Dec



GSM 5-Dec

    



GSM 4 8-Apr

    



GSM 12 5-Dec

   

    



GSM 6-Jul



GSM 11 6-Oct

   



GSM 16 6-Oct

   



GSM 16 5-Dec

    

GSM 11 7-Apr

    

GSM 11 7-Apr

    



GSM 4 10-Jan

    



GSM 11 6-Jul

    



GSM 10-Jan

      GSM

1 11-May

    



GSM 4 8-Jul

    



GSM 4 8-Oct

   



GSM 10-Sep

127

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

748

749

750

751

752

753

740

741

742

743

744

745

746

747

754

755

756

757

758

759

731

732

733

734

735

736

737

738

739

760

761

762

763

764

765

766

767

768

CellXtract™ User Manual

SGH-T509

SGH-T539

SGH-T609

SGH-T639

SGH-T719

SGH-T729

SGH-T739

SGH-T749

SGH-T809

SGH-T819

SGH-T919

SGH-U100

SGH-U600

SGH-U700

SGH-U800

SGH-U900

SGH-X100

SGH-X427m

SGH-X450

SGH-X460

SGH-X475

SGH-X495

SGH-X497

SGH-X500

SGH-X507

SGH-X530

SGH-X600

SGH-X640

SGH-X650

SGH-X660

SGH-X680

SGH-X700

SGH-X820

SGH-X830

SGH-Z240

SGH-Z320i

SGH-Z510

SGH-Z720

SUPPORTED HANDSETS

    



GSM 6 7-Jan

    



GSM 4 8-Apr

    



GSM 11 7-Jan

   



GSM 4 8-Oct

    



GSM 11 7-Jan

    



GSM 4 8-Apr

    



GSM 4 8-Oct

     GSM

4 10-Dec

    



GSM 6 6-Jul

   



GSM 4 8-Oct

   



GSM 4 9-Jul

    



GSM 7-Jul

    



GSM 6 7-Jul

    



GSM 6 8-Jan

   



GSM 4 9-Jan

    



GSM 4 8-Jul

    



GSM 17 7-Oct

   

   



GSM 16 6-Apr



GSM 16 5-Dec

    



GSM 17 7-Apr

   

    



GSM 17 6-Oct



GSM 17 8-Jul

    



GSM 17 8-Jul

    

GSM 11 8-Apr

    



GSM 11 7-Apr

   

    



GSM 16 7-Apr



GSM 17 6-Oct

    



GSM 17 6-Oct

    



GSM 17 7-Jul

    

GSM 11 7-Apr

    

GSM 11 8-Jul

    



GSM 7-Oct

    



GSM 6 6-Oct

    



GSM 6 7-Apr

   



GSM 6 8-Jul

    



GSM 18 9-Apr

   

  



GSM 6 6-Jul



GSM 6 8-Jul

128

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SHARP

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

785

786

787

788

789

790

791

792

793

794

795

796

797

798

799

778

779

780

781

782

783

784

800

801

802

803

804

769

770

771

772

773

774

775

776

777

805

806

CellXtract™ User Manual

SPH-A513

SPH-A580

SPH-A600

SPH-A620

SPH-A640

SPH-A660

SPH-A680

SPH-A740

SPH-A760

SPH-A820

SPH-A840

SPH-A900

SPH-A920

SPH-A960

SPH-M500

SPH-M540

SPH-M610

SGH-T959V

SGH-T249

SCH-i400

SPH-D700

SGH-T589

SPH-M910

SCH-R350

SGH-i727

SGH-i897

SGH-i997

SGH-T499

SCH-i515

GT-I9100

FX PLUS

A60

A65

A75

C35

C35i

C55

C60

SUPPORTED HANDSETS

   

  

  



CDMA 4 9-Jul



CDMA 11 7-Jan



CDMA 11 7-Jul

 

  

CDMA 11 6-Oct



CDMA 11 7-Jul

  

  

CDMA 11 6-Apr



CDMA 11 7-Jul

  

CDMA 11 6-Apr

  

  

  

   

   

   

   

CDMA 11 6-Apr



CDMA 11 7-Apr



CDMA 11 6-Apr



CDMA 11 8-Jul



CDMA 11 8-Jul



CDMA 11 8-Jul



CDMA 11 8-Jul

   

CDMA 1 9-Jul

      CDMA

6 10-Dec

    

GSM 1 Dec-11

      GSM

1 Dec-11

    

CDMA 1 Apr-12

    

CDMA 1 Apr-12

    

GSM 1 Apr-12

    

CDMA 1 Apr-12

   



CDMA 1 Apr-12

    

GSM 1 Apr-12

    

    

GSM

GSM

1 Apr-12

1 Apr-12

    

GSM 1 Apr-12

    

CDMA 1 Sep-12

    

    

GSM

GSM

1 Sep-12

1 Apr-12

    

GSM 13 8-Jul

   

GSM 13 5-Dec

    

GSM 13 6-Apr

   



GSM 14 5-Dec

   

GSM 14 6-Oct





 

GSM 13 6-Apr

  

GSM 13 6-Apr

129

807

808

809

810

811

812

813

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

821

822

823

824

825

826

827

828

829

814

815

816

817

818

819

820

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

SIEMENS

830 SONIM

831 SONY ERICSSON

832 SONY ERICSSON

833 SONY ERICSSON

834 SONY ERICSSON

835 SONY ERICSSON

836 SONY ERICSSON

837 SONY ERICSSON

838 SONY ERICSSON

839 SONY ERICSSON

840 SONY ERICSSON

841 SONY ERICSSON

842 SONY ERICSSON

843 SONY ERICSSON

844 SONY ERICSSON

CellXtract™ User Manual

XP3

C510

C702

C901

C902

C903

C905

D750i

F305

F500i

G502

ME75

S55

S65

S75

SF65

SK65

SL55

SL65

SP65

CT66

CX65

M55

M65

M75

MC60

ME45

G700

G705

G900

J105i

C61

C62

C65

C72

CF110

CF75

CL75

130

SUPPORTED HANDSETS

    

GSM 13 6-Apr

   

GSM 13 5-Dec

    



GSM 13 5-Dec

    



GSM 13 6-Jul

    



GSM 13 6-Apr

    



GSM 13 6-Apr

   

GSM 13 6-Apr

    



GSM 13 6-Apr

    



GSM 13 5-Dec

    



GSM 13 6-Jul

    



GSM 13 5-Dec

    



GSM 13 6-Apr

   

   



GSM 13 5-Dec



GSM 14 8-Jul

    



GSM 13 6-Apr

    



GSM 13 6-Apr

    



GSM 13 5-Dec

    



GSM 13 6-Apr

    



GSM 6-Jul

    



GSM 13 5-Dec

    



GSM 13 5-Dec

    



GSM 13 5-Dec

   

    



GSM 9-Jul



GSM 9-Oct

    



GSM 8 9-Apr

    



GSM 8-Oct

    



GSM 8 9-Oct

    



GSM 8-Oct

    



GSM 8 9-Oct

    



GSM 8 9-Apr

    



GSM 8 6-Apr

    

GSM 9-Oct

    



GSM 15 5-Dec

    



GSM 8 8-Oct

   

GSM 8 9-Jan

    



GSM 8 9-Apr

   

GSM 8 9-Jan

    



GSM 8 10-Sep

845 SONY ERICSSON

846 SONY ERICSSON

847 SONY ERICSSON

848 SONY ERICSSON

849 SONY ERICSSON

850 SONY ERICSSON

851 SONY ERICSSON

852 SONY ERICSSON

853 SONY ERICSSON

854 SONY ERICSSON

855 SONY ERICSSON

856 SONY ERICSSON

857 SONY ERICSSON

858 SONY ERICSSON

859 SONY ERICSSON

860 SONY ERICSSON

861 SONY ERICSSON

862 SONY ERICSSON

863 SONY ERICSSON

864 SONY ERICSSON

865 SONY ERICSSON

866 SONY ERICSSON

867 SONY ERICSSON

868 SONY ERICSSON

869 SONY ERICSSON

870 SONY ERICSSON

871 SONY ERICSSON

872 SONY ERICSSON

873 SONY ERICSSON

874 SONY ERICSSON

875 SONY ERICSSON

876 SONY ERICSSON

877 SONY ERICSSON

878 SONY ERICSSON

879 SONY ERICSSON

880 SONY ERICSSON

881 SONY ERICSSON

882 SONY ERICSSON

CellXtract™ User Manual

S312

S500i

S700i

S710a

T230

T290i

T300

T310

T610

T630

T650i

T68

K600i

K608i

K610i

K630i

K660i

K700i

K750i

K770i

K800i

K810i

K850i

J300i

K300i

K310i

K320i

K500i

K510i

K530i

K550i

K550im

M600

P1i

P800

P900i

P990i

S302

131

SUPPORTED HANDSETS

    



GSM 15 5-Dec

    



GSM 15 5-Dec

    



GSM 8 6-Oct

    



GSM 8 9-Jan

    



GSM 15 5-Dec

    



GSM 8 7-Jan

    



GSM 8 8-Jan

    



GSM 8 7-Jul

    



GSM 8 7-Jul

    



GSM 15 5-Dec

    



GSM 15 6-Oct

    



GSM 8 6-Oct

    



GSM 8 8-Jul

    



GSM 8 8-Jul

    



GSM 15 5-Dec

    



GSM 8 5-Dec

    



GSM 8 8-Jan

    



GSM 8 6-Jul

    



GSM 8 7-Jul

    



GSM 8 8-Jan

   

GSM 8 9-Jan

   

  

  

   

GSM 8 9-Jan



GSM 8-Apr



GSM 8-Jul

GSM 8 9-Jan

    

GSM 9-Oct

    

GSM 10-Jan

    



GSM 8 7-Oct

    



GSM 15 5-Dec

    



GSM 15 6-Apr

   

GSM 15 7-Jul

   

GSM 15 5-Dec

   

   

GSM 15 5-Dec

   

GSM 15 5-Dec

    



GSM 15 5-Dec

    



GSM 15 5-Dec

    



GSM 8 8-Jan

GSM 15 5-Dec

883 SONY ERICSSON

884 SONY ERICSSON

885 SONY ERICSSON

886 SONY ERICSSON

887 SONY ERICSSON

888 SONY ERICSSON

889 SONY ERICSSON

890 SONY ERICSSON

891 SONY ERICSSON

892 SONY ERICSSON

893 SONY ERICSSON

894 SONY ERICSSON

895 SONY ERICSSON

896 SONY ERICSSON

897 SONY ERICSSON

898 SONY ERICSSON

899 SONY ERICSSON

900 SONY ERICSSON

901 SONY ERICSSON

902 SONY ERICSSON

903 SONY ERICSSON

904 SONY ERICSSON

905 SONY ERICSSON

906 SONY ERICSSON

907 SONY ERICSSON

908 SONY ERICSSON

909 SONY ERICSSON

910 SONY ERICSSON

911 SONY ERICSSON

912 SONY ERICSSON

913 SONY ERICSSON

914 SONY ERICSSON

915 SONY ERICSSON

916 SONY ERICSSON

917 SONY ERICSSON

918 SONY ERICSSON

919 SONY ERICSSON

920 SONY ERICSSON

W300i

W302

W350

W380i

W395

W508

W518A

W550i

W580i

W595

W610i

W660i

W705

W710i

W760

W800i

W810i

W850i

W880i

W890i

W900i

W902

W910i

W950i

T68i

T700

T707

T715

TM506

U100i Yari

U10i Aino

U1i Satio

U5i (Vivaz)

V600i

V630i

V640i

V800

W200i

SUPPORTED HANDSETS

   

    



GSM 15 6-Oct



GSM 8 9-Jan

    



GSM 8 9-Oct

    

GSM 8 10-Jan

      GSM

8 10-Dec

    

GSM 8 10-Jan

    

GSM 8 10-Jan

   

GSM 10-Jan

    

GSM 1 11-May

    



GSM 15 6-Apr

    



GSM 8 7-Jul

    



GSM 8 8-Jul

    



GSM 15 5-Dec

    



GSM 8 7-Jul

    



GSM 6-Jul

    

GSM 9-Oct

    



GSM 8 8-Oct

    



GSM 8 8-Jul

    

GSM 9-Oct

    



GSM 8 9-Oct

      GSM

8 10-Dec

    



GSM 8 5-Dec

    



GSM 8 7-Oct

    



GSM 8 9-Jan

    



GSM 8 7-Jul

    



GSM 8 8-Jan

    



GSM 8 9-Apr

    



GSM 8 6-Oct

    



GSM 8-Oct

    



GSM 8 5-Dec

    



GSM 8 6-Jul

    



GSM 8 6-Oct

    



GSM 8 7-Apr

    



GSM 8 8-Jul

    



GSM 8 6-Apr

    



GSM 8 9-Apr

    



GSM 8 8-Jan

   

GSM 8 9-Jan

CellXtract™ User Manual

132

945

946

947

948

949

950

951

952

953

954

921 SONY ERICSSON

922 SONY ERICSSON

923 SONY ERICSSON

924 SONY ERICSSON

925 SONY ERICSSON

926 SONY ERICSSON

927 SONY ERICSSON

928 SONY ERICSSON

929 SONY ERICSSON

930 SONY ERICSSON

931 SONY ERICSSON

932 SONY ERICSSON

933 SONY ERICSSON

934 SONY ERICSSON

935 SONY ERICSSON

936 SONY ERICSSON

937 SONY ERICSSON

938 SONY ERICSSON

939 T-MOBILE

940

941

TOSHIBA

TOSHIBA

942

943

944

TOSHIBA

TOSHIBA

UBiQUiO

UBiQUiO

VERIZON

VISOA

VODAFONE

VODAFONE

VODAFONE

VODAFONE

VODAFONE

VODAFONE

ZTE

W960

W980

W995

X1

X10

Z1010

Z310i

Z500a

Z520a

Z520i

Z530i

Z550i

Z555i

Z600

Z610i

Z710i

Z770

Z800i

MDA Vario II

G810

G910

Portege G500

Portege G710

401

501

XV6700

Spiderphone

527

533

710

725

810

830

C78

SUPPORTED HANDSETS

   

GSM 8 9-Jan

    



GSM 8 9-Jan

    



GSM 8 9-Oct

    



GSM 2 9-Jan

    

GSM 1 11-May

    



GSM 15 7-Jul

    



GSM 8 7-Jul

    



GSM 15 6-Apr

    



GSM 8 6-Oct

    



GSM 8 5-Dec

    



GSM 8 6-Jul

    



GSM 8 6-Oct

    



GSM 8 8-Jul

    



GSM 15 5-Dec

    



GSM 8 7-Apr

    



GSM 8 7-Apr

    



GSM 8-Oct

    



GSM 15 5-Dec

   



GSM 2 8-Jul

    



GSM 2 9-Jul

    



GSM 2 9-Jul

    



GSM 2 7-Jul

    



GSM 2 9-Apr

    



GSM 2 7-Jul

    



GSM 2 7-Jul

   



GSM 2 7-Oct

   

GSM 10-Jan

   



GSM 9-Jul

   

   



GSM 9-Jul



GSM 7-Oct

   



GSM 9-Jul

   



GSM 8-Jul

   



GSM 9-Jul

   



CDMA 10-Sep

CellXtract™ User Manual

133

SUPPORTED HANDSETS

Handsets

– Expected Support

ACER

ACER

ACER

ACER

ACER

ACER

ACER

ACER

ACER

ACER

ACER

ACER

ACER

The following handsets have not been verified on CellXtract however their appearance or technology indicates that data extraction will be possible as shown by the icons on CellXtract.

These handsets are assigned an amber tick. It is recommended that all data is treated as a minimum extraction as there may be additional data sets available that require further examination.

Data can be extracted from these handsets as normal by selecting the device from the

Manufacturers list and extracting over Bluetooth, Infrared or Cable as required.

All Windows Mobile devices can be extracted using the PDA option and selecting Windows. All

Windows Mobile devices are supported by Infrared and/or Cable.

MFG MFG MODEL

MFG

MODEL

ACER

ACER

ACER

ACER

ACER

AIRIS

AIRIS

AIRO

AMOI

MODEL

beTouch

E100 beTouch

E200 c510 c530 c531

DX650

DX900

Liquid

M900 n10 n30 n35 n300 n310 n311 n320 n321 neoTouch

T610

T620

A25

E72

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

ASUS

H502

M530W

M356

M930

Mars II

Mypal A626

MyPal A632

MyPal A636

MyPal A636N

MyPal A639

MyPal A686

P305

P320

P505

P525

P526

P527

P535

P550

P552

P560

P565

AT&T

AT&T

AT&T

AT&T

AT&T

AT&T

AT&T

2125

3125

5700

8125

8500

8525

SX56

AT&T

AUDIOVOX

AUDIOVOX

AUDIOVOX

SX66

5050

5600

6601

AUDIOVOX

AUDIOVOX

BENQ-

SIEMENS

BLACKBERR

Y

BLACKBERR

Y

BLACKBERR

Y

BLACKBERR

Y

BLACKBERR

Y

BLACKBERR

Y

BLACKBERR

Y

XV6600

XV6700

P51

8110

8130 (Pearl)

8220

8230 (Pearl)

Pearl 3G

9100

9105 (Pearl

3G)

Curve 3G

9300

BLACKBERR 9520

CellXtract™ User Manual

134

AMOI

AMOI

AMOI

E75

E76

E78

ASUS

ASUS

ASUS

AMOI E850 ASUS

AMOI

AnexTEK

AnexTEK

AnexTEK

E860 moboDA

3160 moboDA

3360 moboDA

3380

AnexTEK SP310

Apple

Apple iPod Touch iPhone 5

ASUS

ASUS

ASUS

AT Mobile

AT Mobile

AT Mobile

AT Mobile

ASUS

ASUS

CINGULA

R iPAQ

COMPAQ iPAQ

COMPAQ iPAQ

COMPAQ iPAQ

COMPAQ iPAQ

COMPAQ iPAQ

COMPAQ iPAQ

COMPAQ iPAQ

COMPAQ iPAQ

COMPAQ iPAQ

COMPAQ iPAQ

COMPAQ iPAQ

A696

J501 h6325

3800

3830

3835

3850

3870

3875

3900

3950

3955

3970

3975

DAXIAN

DELL

DELL

DELL

CU928

AT Mobile

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

E-PLUS

E-PLUS

ETEN

ETEN

AXIM

Pocket DJ

20GB

ETEN

ETEN

Pocket DJ ETEN

P800W

S300

U1000

PDA III

PDA IV

600

600e

DX900

E500

E900

CHT 9100

D600

D802

D8110

M700

P100

P735

P750

P835

V88i

Z801

Z810

ZX1

AT Bear

AT Cobra

AT Eagle

AT Falcon

AT Pelican

CellXtract™ User Manual

135

SUPPORTED HANDSETS

Y

BLACKBERR

Y

BLACKBERR

Y

BLACKBERR

Y

BLACKBERR

Y

BLACKBERR

Y

BLACKBERR

Y

9550

9630

9650 (Bold)

9670 (Style)

Torch 9800

9900

CINGULAR

CINGULAR

CINGULAR

CINGULAR

CINGULAR

CINGULAR iPAQ

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

GARMIN-

ASUS

GIGABYTE

2125

3125

8100

8125

SX66 h6320

C550

N100

N110

N500

N520

N520c

N520e

N520p

N560

N560c

N560e

T810

T830

V70

Garminfone g-Smart

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DOPOD

DELL

DELL

DELL

DELL

30GB

X3

X3i

X30

X5

DELL

DELL

X50

X50v

DELL X51

DOCOMO htc Z

310

515

535

565

566

575

585

586

595

686

696

699

700

710

818

830

838

900

577W

586W

696i

818 Pro

828+

838 Pro

C500

C720W

C730

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

M810

N100

P100

P100w

ETEN

ETEN

ETEN

P120

P300

P600

ETEN P603

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

ETEN

EVEREX

X610

X650

X800

NEON

FITH MEDIA A308

FLY

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

IQ-110

410

420

600

710

P610

P700

P700i

T470

T500

V900

X500

X500+

X600

G500

G500+

M500

M550

M600

M600+

M700

M800

CellXtract™ User Manual

136

SUPPORTED HANDSETS

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GIGABYTE

GOOGLE

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ g-Smart i g-Smart

MS804 g-Smart

MS808 g-Smart

MS820 g-Smart

MW700 g-Smart

MW702 g-Smart

MW998 g-Smart i+ g-Smart i120 g-Smart i128 g-Smart i300 g-Smart i350 g-Smart

MS800 g-Smart

MS802 g-Smart q60 g-Smart

S1200 g-Smart t600

NEXUS 7

114

214

500

510

512

610c

614

614c

9120c

Glisten h1900 h1910 h1915 h1920 h1930 h1935 h1937

DOPOD

DOPOD

DOPOD

HP iPAQ h2210

HP iPAQ h2215

HP iPAQ h3630

HP iPAQ h3670

HP iPAQ h3800

HP iPAQ h3830

HP iPAQ h3835

HP iPAQ h3850

HP iPAQ h3870

HP iPAQ h3875

HP iPAQ h3900

HP iPAQ h3950

HP iPAQ h3955

HP iPAQ h3970

HP iPAQ h3975

HP iPAQ h4140

HP iPAQ h4150

HP iPAQ h4155

HP iPAQ h4350

HP iPAQ h4355

HP iPAQ h5100

HP iPAQ h5150

HP iPAQ h5155

HP iPAQ h5400

HP iPAQ h5450

HP iPAQ h5455

HP iPAQ h5500

HP iPAQ h5555

HP iPAQ h6310

HP iPAQ h6315

C800

C858

CHT 9000

FUJITSU

SIEMENS

FUJITSU

SIEMENS

FUJITSU

SIEMENS

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ

HP iPAQ h6320

HP iPAQ h5325

HP iPAQ h6340

HP iPAQ h6365

HP iPAQ h6500

HP iPAQ hw6510

HP iPAQ hw6515

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HP iPAQ h6515a

HP iPAQ h6710

HP iPAQ h6715

HTC

HTC

HTC

718

720

610BT rx1955 rx3100 rx3110 rx3115 rx3400 rx3415 rx3417 rx3700 rx3710 rx3715 rx4240 rx5700 rx5900 rz1700 rz1715

Advantage

X7500

Advantage

X7501

Advantage

A7510

Alphine

Amadeus

Apache

Aria hx2490 hx2495 hx2700 hx2750 hx2790 hx2795 hx4700 hx4705 hx4710

K3 Obsidian rw6815 rw6818 rw6828 rx1700 rx1950

Artemis

Athena

Atlas

SUPPORTED HANDSETS

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HP iPAQ

HP iPAQ

HP iPAQ

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC h1940 h1945 h2200

MTeoR

Nike

Oxygen

Ozone

P3350

P3400

P3600

P4000

P4350

P4450

P4500

P6300

P6500

Panda

Polaris

Galaxy

Gene

Harrier

HD2

Herald

Hermes

Himalaya

Hurricane

Imagio

Inspire 4G

Libra

Love

Magician

MAX 4G

Monet

Prophet

Pure

Robbie

S320

S630

S720

S730

Sensation

4G

Shadow

Hotspot

Shift

CellXtract™ User Manual

137

HP iPAQ hw6900

HP iPAQ hw6910

HP iPAQ hw6920

HP iPAQ hw6925

HP iPAQ h6940

HP iPAQ hw6945

HP iPAQ h6965

HP iPAQ hx2000

HP iPAQ hx2090

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

Blue Angel

Breeze

Canary

Cavalier

Charmer

Dash 3G

Dream

Elf

EVO View 4G

(Tablet)

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

IMATE

IMATE

IMATE

IMATE

HP iPAQ nx2110

HP iPAQ hx2190

HP iPAQ hx2400

HP iPAQ hx2410

HP iPAQ hx2415

HTC

HTC

HTC

HTC

HTC

Excalibur

Falcon

Faraday

Feeler

Flyer (tablet)

Touch Viva IZENMOBILE KRMA KSMT

Tilt

Trinity

KINPO

KINPO iDO S601

IDO S630

Typhoon

TyTN

Universal

Volans

KINPO

KINPO

KINPO

KROME

SP70

SP70R

SP90

Intellekt iQ200

Vox

Voyager

Wallaby

Wizard

KROME

KROME

KROME

KROME

XV6900 KYOCERA

JAM Black LENOVO

JAMA

JAMA101

LENOVO

LENOVO

JAMA 201 LG

Intellekt iQ700

Mega M900i

Navigator F1

Spy

E1100

ET960

ET980 i921

Incite

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

JAQ

JAQ3

JAQ4

LG

LG

LG

JASJAM

PDA-2

EDVO

PDAL

LG

LG

LG

LG

PDA-N

Phone

Edition

LG

LG

Pocket PC LG

Smartflip

Smartphon e

Smartphon e2

SP2

SP3

LG

LG

LG

LG

LG

AX145

KB770

KC1

KE990

KF300

KF310

KF350

KF700

KF750

KF755

KF770

KF900

KP100

KP501

KS20

SUPPORTED HANDSETS

HTC

HTC

HTC

HTC

HTC

HTC

HTC

HTC

Sirius

Sonata

Star Trek

Surround

Tanager

Thunderbolt

Tilt2

Touch2

HTC

HTC

HTC

HTC

HTC

HTC

Touch 3G

Touch

Cruise 09

Touch Dual

Touch HD

Touch Pro

Touch Pro 2

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITSUBISHI

P560

Trium

Mondo

MOTOROLA A845

MOTOROLA A3100

MOTOROLA C250

MOTOROLA C343a

MOTOROLA C353

MOTOROLA C353t

MOTOROLA C380

8380

8390

8870

168RS

336BT

338 Plus

A201

A501

A700

A701

A702

P3400

P350

P550

OP550m

MOTOROLA E550

MOTOROLA i275

MOTOROLA i720

MOTOROLA i733

MOTOROLA i740

MOTOROLA i920

MOTOROLA i920

CellXtract™ User Manual

138

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

IMATE

INTERME

C

INTERME

C

INTERME

C

INTERME

C

INTERME

C

INTERME

C

INTERME

C

INTERME

C

INTERME

C i-teq i-teq i-teq

MOTORO

LA

MOTORO

LA

MOTORO

LA

MOTORO

LA

MOTORO

LA

MOTORO

LA

MOTORO

LA

V60t

V60x

V66

Z10

Backflip

Bravo

Charmer

MOTORO Cliq 2

SP4m

SP5m

SPJAS

Ultimate

5150

Ultimate

6150

Ultimate

7150

Ultimate

8150

Ultimate

8502

Ultimate

9150

Ultimate

9502

810-F

730

730B

741B

751B

761B

CN2B

CN3

CN30

Mercury

Bond

Laser

X-Bond

MIO

MIO

MIO

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

MITAC

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

O2

O2

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

LG

MIO

CellXtract™ User Manual

SUPPORTED HANDSETS

N8

N75

N78

N81

N92

X5

Cosmo

Pocket PC

169

180

336

338

339

558

728

A702

P3600

P560

168

KT610

KU380

MOTOROLA

MOTOROLA i930

MC35

Optimus GT540 MOTOROLA MPx

P509 (Optimus

T) MOTOROLA MPx100

U8100 MOTOROLA T720i

U8150

U8180

U8210

U8290

U8300

Quantum

A502

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

V1150

V120e

V120t

V120x

V186

V191

V330

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA

MOTOROLA V60c

MOTOROLA V60g

MOTOROLA V60i

MOTOROLA V60s

ORANGE

ORANGE

ORANGE

ORANGE

ORANGE

ORANGE

ORANGE

ORANGE

V505

V535

V545

V547

V555

V557

V60

SPV C220

SPV C700

SPV Classic

SPV E100

SPV E200

SPV E600

SPV E610

SPV E650

139

SUPPORTED HANDSETS

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

Defy

Flipout

Flipside

Atom Life

Atom V

Zinc II

N1

N1m

N2

S160

XP40

2320

Classic

2605

2705

Shade

3205

3606

3711

5030

5250

6012

6102

6121

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

LA

MOTORO

LA

MOTORO

LA

MOTORO

LA

MWG

MWG

MWG

NEONOD

E

NEONOD

E

NEONOD

E

NEXIO

NEXIO

NOKIA

NOKIA

6126

6205

6350

6560

6590

6600

6681

6682

6710

Navigator

6750

7205

7250

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

OKWAP

OKWAP

CellXtract™ User Manual

140

XDA Exec

XDA Flame

XDA Graphite

XDA Guide

XDA Ignito

XDA II

XDA ii mini

XDA iis

XDA mini S

XDA NEO

XDA Nova

XDA Orbit

XDA Orbit II

SDA Orion

XDA Phone

XDA Stealth

XDA Serra

XDA Stellar

XDA Terra

XDA Trion

XDA Zest

XDA Zinc

Xphone

Xphone ii

Xphone iim

K728

K868

XDA Argon

XDA Atom

ORANGE

ORANGE

XDA Atom Exec ORANGE

XDA Atom Life ORANGE

XDA Atom Pure ORANGE

XDA Comet ORANGE

XDA Cosmo ORANGE

SPV F600

SPV M1000

SPV M2000

SPV M2500

SPV M3000

SPV M3100

SPV M500

ORANGE

ORANGE

ORANGE

ORANGE

ORANGE

ORSiO

SPV M5000

SPV M600

SPV M650

SPV M700

SPV

Smartphone

G735

ORSiO

ORSiO

ORSiO

PALM

PALM

PALM

GN725

N725 GPS

P745

Treo 700w

Treo 700wx

Treo 750V

PALM

PALM

PALM

PALM

Treo 755p

Treo 800w

Tungsten

E2

Tungsten

T5

PANASONIC X700

PANASONIC X800

PANTECH

PARAGON

WIRELESS

PN820

PHAROS

HIPI-2200

600 GPS

Phone

Traveller

PHAROS

POCKET

GPS 525

NAVIGATOR PN-3550

POCKET

NAVIGATOR PN-3560

POCKET

NAVIGATOR PN-P201

POCKET

NAVIGATOR PN-P550 A

POCKET

NAVIGATOR PN-P550 A

8600

9000

9090

9100

9600

2020i

G100

S100

8080

8100

8200

8300

8310

8500

S110

S200

S310

Pocket

PC6700

C6

E5

8801

8890

6236i

C5

C6

E5

E52

E61i

E62

E66

E72

E90

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

QUEST

ROVER

PC

ROVER

PC

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

NOKIA

OKWAP

OKWAP

OKWAP

OPTICON

OPTICON

OPTICON

OPTICON

OPTICON

OPTICON

OPTICON

ORANGE

ORANGE

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SUPPORTED HANDSETS

K860

K871

S868

H-16B

H-19A

H-19-B

PHL-5400

PHL-7111

PHL-7114

PHL-7142

SPV C100

SPV C200

S5230W

S5233

S5600v Blade

S5603

S7350

SCH-i830

SCH-M400

SGH-A257

SGH-A877

SGH-A887

SGH-D300

SGH-

D730(Symbian)

SGH-E808

SGH-i250

SGH-i300x

SGHi400(Symbian)

SGHi450(Symbian)

SGH-i718

SGH-i750

SGH-i760

PSION

TEKLOGIX

PSION

TEKLOGIX

Workabout

PRO

Workabout

PRO G2

QOOL LABS QDA Icon

QOOL LABS QDA Lite

QOOL LABS Twins 178

QTEK 1010

QTEK

QTEK

QTEK

QTEK

QTEK

QTEK

2020

2060

7070

8010

8020

8060

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

K610im

K700c

K750c

K758c

K790a

K790c

K790i

M608i

S700c

T226

T237

T290a

T616

T637

W300c

W550c

W600

W600c

W710c

W715a

CellXtract™ User Manual

141

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

ROVER

PC

ROVER

PC

ROVER

PC

ROVER

PC

ROVER

PC

ROVER

PC

ROVER

PC

SAMSUN

G

ROVER

PC

ROVER

PC

ROVER

PC

ROVER

PC

ROVER

PC

ROVER

PC

ROVER

PC

G5

G6

M5

N6

N7

P6

P745

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

Q5

Q6

R5

S5

SAMSUNG

SAMSUNG

SAMSUNG

SAMSUNG

S6

S7

SAMSUNG

SHARP

W5

GALAXY

S3

GALAXY

S4

SIEMENS

SIEMENS

SIEMENS

B7320 SIEMENS

B7330,

OmniaPRO SIEMENS

B7610

OmniaPRO SIEMENS

C6620 SIEMENS

C3010 SIEMENS

C3110

E1310 i520(Symbi an) i550(Symbi an) i560(Symbi an) i640 i7110(Symb ian)

SIEMENS

SOCKET

MOBILE

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SUPPORTED HANDSETS

SGH-i770

SGH-i897

SGH-P730

SGH-T959

SGH-Z600

W-ZERO3

A62

C6620

L56

S56

S66

SGH-i917 i9000 (Galaxy S

4G) i9100 (Galaxy S

2)

SGH-

L870(Symbian)

SGH-T929

SGH-T589

(Gravity Smart)

SGH-T759

(Exhibit 4G)

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

W800c

W810c

W830

W880c

W888c

W900c

Xperia X10

Xperia X10 mini

Xperia X8

Z502a

Z520c

Z525a

Z525i

Z530c

Z550a

Z550c

Z710c

Z712a

SX45

SX45i

SPRINT

SPRINT

Ace

PPC-6600

SX56

SX66

SoMo 650

C901

GreenHeart

G900

J300a

J300c

K300a

SPRINT

SPRINT

SPRINT

SPRINT

TDS

TDS

TDS

TDS

PPC-6601

PPC-6700

PPC-6800

XV6600

Nomad

800B

Nomad

800L

Nomad

800LC

Nomad

800LE

CellXtract™ User Manual

142

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G

SAMSUN

G i7500(Andr oid) i8910 i907

M7610

Propel Pro

S3110

S3310

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

SONY

ERICSSON

K300c

K310a

K310c

K500c

K506c

K510a

K510c

T-MOBILE MDA

MDA

T-MOBILE Compact

MDA

T-MOBILE

T-MOBILE

T-MOBILE

TOSHIBA

Compact II TOSHIBA

MDA

Compact III UBIQUIO h6315

G900

TG01

T-MOBILE

T-MOBILE

T-MOBILE

T-MOBILE MDA Pro

MDA

T-MOBILE Pocket PC

T-MOBILE

MDA II

MDA III

MDA Mail

MDA Touch

UBIQUIO

VELOCITY

MOBILE

VELOCITY

MOBILE

VERIZON

WIRELESS

VERIZON

WIRELESS

VERIZON

WIRELESS

601

503G

103

111

PN-820

XV6600

XV6800

T-MOBILE MDA Vario VODAFONE v1210

MDA Vario

T-MOBILE III VODAFONE v1240

T-MOBILE

T-MOBILE myTouch

3G slide myTouch

4G

VODAFONE

VODAFONE v1415 v1605

T-MOBILE SDA

T-MOBILE SDA II

VODAFONE v1620

VODAFONE v1640

T-MOBILE SDA Music VODAFONE VDA

VDA Compact

T-MOBILE Shadow 2 VODAFONE GPS

T-MOBILE Sidekick 4G VODAFONE

VDA Compact

IV

T-MOBILE Wing VODAFONE VDA II

Handsets

– Other

SUPPORTED HANDSETS

TDS

TDS

T-MOBILE

Ranger

300X

Ranger

500X

Ameo

T-MOBILE

T-MOBILE

Comet

Dash

T-MOBILE G2

T-MOBILE G2x

VODAFONE VDA V

VPA

VODAFONE Compact

VPA II

VODAFONE Compact

VODAFONE VPA III

VOXTEL W210

VOXTEL

VOXTEL

VOXTEL

W420

W520

W740

CellXtract™ User Manual

143

SUPPORTED HANDSETS

Other handsets can be tested on CellXtract, however the amount of data extracted has not been assessed and all information should be treated as a minimum data extraction.

GPS Device

– Verified CellXtract Support

The following GPS Devices have been tested on CellXtract using the standard verification procedures of Logicube. The results below display the data sets that can be extracted from

CellXtract for the specific handset. There may be additional data sets available from handsets and these will require further examination.

Key:

Phone ID

Contacts

Call Logs

Call Logs w timestamp

SMS

SMS w timestamp



Home





Favourites





Recent Destinations





Location History







Routes

Routes with

Waypoints

Track Logs

Track Logs with

Waypoints









Manufactur er

1 ACER

2 GARMIN

3 GARMIN

Model

P610 nuvi

250W

 

 

 nuvi 300

   

4 GARMIN

5 HP

6 NAVIGON

7 NAVMAN

8 NAVMAN

9 NAVMAN nuvi 760

    iPAQ

314

   

7210

   

S50 3D

  

S70

   

S70 3D

  

  

 

  

 

  

  

 

  



 

  

 

  



 

  



 

  



 

Apr

2009

Oct

2008

Oct

2008

Apr

2009

Jan

2009

Jul

2009

Jul

2009

Jul

2009

Jul

2009

CellXtract™ User Manual

144

1

0 NDRIVE

1

1 TOMTOM

1

2 TOMTOM

1

3 TOMTOM

1

4

VIAMICHEL

IN

S300

   

G0 720

 







ONE

X970

 

ONE XL

   

 

    





    

SUPPORTED HANDSETS

   

   

  

Apr

2009

Jul

2008

Jul

2008

Jan

2010

Jan

2010

GPS Device

– Expected Support

The following GPS Devices have not been verified on CellXtract however their appearance or technology indicates that data extraction will be possible. It is recommended that all data is treated as a minimum extraction as there may be additional data sets available that require further examination.

Data can be extracted from these handsets as normal by selecting either Mass

Storage Device or Windows PDA from the GPS Device list.

GARMIN nuvi: 200, 200W, 205, 205W, 250, 255W, 260, 260W, 265T, 265WT,

270, 275T, 350, 360, 370, 500, 550, 600, 610, 650, 660, 670, 680, 750, 755T,

765T, 770, 775T, 780, 785T, 850, 855, 855T, 880, 885T, 1200, 1250, 1260T,

1300, 1350T, 1370T, 1390T, 1490T, 5000

NAVIGON: 1200, 1210, 2100 max, 2110 max, 2150 max, 2200, 2310, 3300 max,

3310 max, 4310 max, 4350 max, 7310, 8110, 8310

NAVMAN: S30, S30 3D, S50, S80, S90i

NDRIVE: G280R, G280S, G400, G800R, S400, Touch, Touch XL

TOMTOM: GO, GO 300, GO 500, GO 510, GO 520, GO 530, GO 540 LIVE, GO

700, GO 710, GO 730, GO 740 LIVE, GO 910, GO 920, GO 940 LIVE, XL

CellXtract™ User Manual

145

9. Index

12V car charger, 17

Alphanumeric Keypad, 47

Android

Google, 66

Rooting, 67, 68

Audit Trail, 9, 57

Battery, 16, 22, 26, 99, 100

Blackberry, 73, 74

Bluetooth, 8, 9, 10, 15, 20, 21, 22, 25, 26, 40, 41, 42,

43, 100, 101, 102, 103, 106, 138

Button, OK, 63

Button, Read New Device, 22, 26, 29, 31

Card, Flash Memory, 8, 16, 29, 30, 43, 76, 80

Card, SIM, 8, 9, 26, 27, 40, 43, 44, 45, 46, 51, 61, 75, 99,

101

CellXtract, 17

CellXtract-TNT, 92

CellXtract™, 8, 12, 13, 14, 16

Charging Battery, 17

Chinese-manufactured chipsets, 92 chipset, 9, 11, 16, 93, 94, 97, 98

Control Panel, 27, 41

Custom Extraction, 43

Data, Extended, 30, 43, 50, 52, 57, 61

Data, Standard, 48, 50, 56

Disclaimer, Liability Limitation, I

Dual SIM, 27

Emitter, Infrared, 15, 41

Extended data, 21

External Storage, 18

Files, Audio, 44, 50

Files, Image, 30, 44, 50, 64

Files, Other, 30, 43, 44, 50, 61

Files, Video, 44, 50

Garmin, 80

Generic Extraction Module, 25, 26

Global Positioning System, GPS, 31, 80

GNU, 159, 164, 166, 167

GPS,Generic, 81

Handset Extraction, 20, 87, 93

Hash, MD5, 52, 63, 64

Indicator Light, 27, 101

Infrared (IR), 8, 15, 22, 26, 40, 41, 74, 75, 100, 101, 106,

138 iPhone

Apple, 71, 72

CellXtract® User Manual 146 iPhone, Apple, 82

JPEG, Deleted, 30

JPEG, Embedded, 30

JPEG, Extant, 30

Metadata, 63, 64

MMS Message, 76, 99, 106

Motorola, 51, 77, 78

Network Isolation Card, 23, 44, 45, 61

NIC, 61

Nokia, 51, 75

Non-Latin Language, 51

OPERATING SYSTEM (OS), III, 12, 13, 75, 164, 166, 167

Palm, 77

Password, 73, 74

PC, Examination, 47

Personal Data Assistant (PDA), 8, 31, 41, 138, 152

Phone, Cellular, 22

Physical extraction, 20, 22, 66, 98

Physical Extraction, 87

PIN Number, 22, 27, 42, 46, 74, 99, 101

Port, USB, 47, 63

Power, AC, 16, 17

Power, DC, 15

Reader, SIM Card, 27

Report Preview, 22

RJ-45, 15

Samsung, 51

Screen, Activity Log, 9, 48, 50

Screen, Case Details Input Form, 47, 53

Screen, Cell Phone Selection, 22

Screen, Connectivity Option, 40, 41, 42, 44, 46

Screen, Device Type Selection, 22, 26, 29, 31

Screen, Discover Devices, 42

Screen, Main Application, 16, 18, 22, 26, 29, 31, 50, 57,

58, 64

Screen, Standard Data View, 56

Siemens, 51, 79

SIM Card ID Cloning, 31

SIM Card Reader, 15

Skype, 73

SMS Message, 9, 10, 44, 48, 61, 63, 64, 75, 76, 77, 79,

80, 99, 106

Software License, 151, 159, 161

Software Update, 9

Sony Ericsson, 51, 78

Standard data, 21

Symbian, 75

Target Device, 8, 22, 24, 40, 41, 42, 47, 48, 50, 57, 61,

101

Technical Support, Logicube, III, 57, 62, 169

Temperature, 16

TomTom, 80

USB Ports, 15

USB Storage Device, 55, 57, 63

Warranty, Parts and Labor, I, III

Windows, 51, 75, 138

Write Protect, 9, 75

Write-Protected, 15

CellXtract™ User Manual

147

10. CellXtract Software License

CellXtract Software License - EU

EU CUSTOMER LICENCE

BETWEEN LOGICUBE, INC. (the

“Licensor”); and the End User (“You”).

RECITAL

(A)

(B)

The Licensor is engaged in creating and is the owner of the Software (as hereinafter defined).

The Licensor has agreed to grant You a non-exclusive licence to use the Software (as hereinafter defined) upon the terms and conditions of this Agreement.

(C) The Licensor has provided You with a copy of the End User Software License (as hereinafter defined) which grants You a license to use the Microsoft and related software contained within the PC embedded in the CellXtract device.

OPERATIVE PROVISIONS

1

1.1

DEFINITIONS AND INTERPRETATION

In this Agreement including the Schedule hereto the following words shall have the following meanings:

“Agreement”

means this agreement, including its Schedule;

“Business Day”

means any day other than Saturdays, Sundays or public holidays in

England;

“Commencement Date”

means the date of the Contract;

“Contract”

means the contract between the Parties for the purchase of the Goods in which the Software is embedded;

“Customer”

means a third party who is licensed by the Licensor to use the Software when it is installed into the Goods;

“End User License”

means the paper license provided with the CellXtract device for software within the embedded PC;

“Executable Code”

means the fully compiled version of a software programme that can be executed by a computer and used by a Customer without further compilation;

“Force Majeure”

means the following:

(a) Acts of God;

(b) outbreak of hostilities, riot, civil disturbance, acts of terrorism;

(c) an act of any government or authority (including refusal or revocation of any licence or consent);

CellXtract® User Manual 148

1.2

CELLXTRACT SOFTWARE LICENSE

(d) fire, explosion, flood, fog or bad weather;

(e) power failure, failure of telecommunication lines, failure or breakdown of plant, machinery or vehicles;

(f) default of suppliers or sub-contractors;

(g) theft, malicious damage, strike, lock-out or industrial action of any kind; and

(h) any cause or circumstance whatsoever beyond the reasonable control of a Party;

“Goods”

means CellXtract mobile phone and PDA data extraction kit;

“Intellectual Property Rights”

means all inventions (whether patentable or not), patents, utility models, designs (both registered and unregistered and including rights in semiconductor topographies), copyright, database rights, trade and service marks (both registered and unregistered) together with all applications for, right to the grant of and extensions of the same, and all other intellectual and industrial property including but not limited to all similar or analogous rights throughout the world, in each case for the full term of the relevant right;

“Licensed Software Materials” means the Software, the Software Documentation, the Periodic New

Releases, any Releases and any fixes created and which are provided to You pursuant to the Contract;

“Periodic New Releases”

means a release of the Software that is made available to all Customers and that corrects errors or changes or improves the Software’s utility, efficiency or capability and associated cable upgrade specifications and which is provided to You pursuant to the Contract;

“Party”

means each of the persons identified as parties to this Agreement and jointly “the Parties”;

“Release”

means the most recent standard version of the Software made available to all Customers and which is provided to You pursuant to the

Contract;

“Software”

means the software programs in Executable Code only and which are listed in the Schedule;

“Software Documentation” means the instruction manuals, user guides and other information and any modifications or additions thereto to be made available by the

Licensor at its discretion to You in either printed or machine readable form;

“Software Specifications” means the technical specifications from time to time published by the

Licensor in respect of the Software; and

“Use” means the copying or transmission of the Software or (where in machine readable form) the Software Documentation for use in accordance with the instructions contained in the Software or (as the case may be) the

Software Documentation.

In this Agreement unless the context requires otherwise:

1.2.1 the singular includes the plural and vice versa and any gender includes any other gender;

1.2.2 references to Clauses and Schedules are to Clauses of, and schedules to, this Agreement;

CellXtract™ User Manual

149

CELLXTRACT SOFTWARE LICENSE

1.2.3 any reference to an enactment, order, regulation or other similar instrument includes a reference to that enactment, order, regulation or instrument as from time to time amended, extended or re-enacted;

1.2.4 references to persons include bodies corporate, unincorporated associations and partnerships, and any reference to the Parties include their respective successors, permitted assigns and personal

1.3 representatives; and

1.2.5 any reference to “company”, “subsidiary” and “holding company” shall be as defined in section 736 of the Companies Act 1985.

The headings of this Agreement are for ease of reference only and shall not affect its interpretation or construction.

1.4 In the event of a conflict between any of the terms of this Agreement including its Schedules and appendices, the conflict shall be resolved according to the following order of priority:

2

2.1

1.4.1

1.4.2 the Clauses of this Agreement; the Schedules of this Agreement; and

1.4.3 the Recitals.

GRANT OF LICENCE

The Licensor hereby grants to You a non-exclusive non-transferable licence to Use the Software (and where appropriate the

Software Documentation, any Periodic New Releases and any Releases) and to possess and refer to the Software Documentation (the “Licence”)

2.2 in accordance with and subject to the terms and conditions of this

Agreement.

The Licensor has provided a copy of the the End User License to You. By using the

Software You are granted a license to the software in PC embedded in the CellXtract device and You agree to be bound by the terms of the End User License agreement.

3

TERM

This Agreement shall commence on the Commencement Date and shall continue in force unless or until terminated by either Party in accordance with the provisions of Clause 10.

4

PROPERTY AND CONFIDENTIALITY IN THE LICENSED SOFTWARE

MATERIALS

4.1 The Licensed Software Materials contain Confidential Information (as defined in Clause 9.1 below) of the Licensor and all Intellectual Property Rights in the Licensed Software Materials are the exclusive property of or are licensed to the Licensor.

4.2 You shall not:

4.2.1 save as provided in Clause 5 below copy the whole or any part of the Licensed Software Materials;

4.3

4.2.2 save as required to be permitted by law modify, merge or combine the whole or any part of the Licensed Software Materials with any other software or documentation;

4.2.3 remove or tamper with any proprietary notice contained in the

Licensed Software Materials;

4.2.4 assign, license, transfer, sell, lease, rent, charge or otherwise deal in or encumber the Licensed Software Materials nor use on behalf of or make available the same to any third party; or

4.2.5 save as required to be permitted by law reverse compile the whole or any part of the Licensed Software Materials from object code into source code.

You shall:

4.3.1 keep confidential the Licensed Software Materials and limit access to the same to those of its employees, agents and sub-contractors who either have a need to know or who are engaged in the Use of the

Software (including where appropriate the Software Documentation);

4.3.2 reproduce on any copy of the Software or Licensed Software

CellXtract™ User Manual

150

CELLXTRACT SOFTWARE LICENSE

Materials the Licensor’s copyright and trade mark notices;

4.3.3 maintain an up-to-date record of the number of copies of the

Licensed Software Materials and their location and upon request forthwith produce such record to the Licensor;

4.3.4 only use the Software in accordance with the number of copies licensed to You (and as set out in the Schedule);

4.3.5 without prejudice to the foregoing take all such other steps as shall from time to time be necessary to protect the Confidential

Information (as defined in Clause 9.1 below) and Intellectual Property

Rights of the Licensor in the Licensed Software Materials;

4.3.6 in its Use of the Licensed Software Materials comply with all present and future statutes, laws, ordinances, regulations and/or guidelines of any applicable jurisdiction or agency;

4.3.7 ensure that its personnel are, at all times, educated and trained in the proper Use and operation of the Licensed Software Materials;

4.3.8 ensure that the Licensed Software Materials are used in accordance with any and all applicable Software Documentations; and

4.3.9 indemnify and hold harmless the Licensor from and against all claims, damages, losses, judgments, fees, expenses and costs, including legal costs, arising out of or resulting from Your acts, negligence or failure to comply with this Clause 4 or any other provision of this

Agreement.

4.4 You shall inform all relevant employees, agents and sub-contractors that the Licensed Software Materials constitute Confidential

Information (as defined below) of the Licensor and that all Intellectual Property

Rights therein are the property of or are licensed to the Licensor and the

You shall take all such steps as shall be necessary to ensure compliance by its employees agents and sub-contractors with the provisions of this Clause 4.

5

5.1

COPYING OF THE LICENSED SOFTWARE MATERIALS

You shall be entitled to make one back-up copy of the

Software. Any such copy shall in all respects be subject to the terms and conditions of this Agreement and shall be deemed to form part of the Software.

5.2 You shall not be entitled to copy in whole or in part the

Software Documentation.

6 WARRANTY

6.1 Subject to the exceptions set out in Clause 6.3 below and the limitations upon its liability in Clause 7 below the Licensor warrants that:

6.1.1 it has the right, power and authority to license the Licensed

Software Materials upon the terms and conditions of this Agreement; and

6.1.2 the Software will for a period of twelve (12) months from the date it is delivered to You conform to the Software Specifications.

6.2 You shall give notice to the Licensor as soon as it is reasonably able upon becoming aware of a breach of warranty. If no such notice is given within 30 days of You becoming aware of a breach of warranty, the

Licensor shall not be liable for such breach of warranty.

6.3 The Licensor shall have no liability to remedy a breach of warranty where such breach arises:

6.3.1 in respect of Software that is not properly licensed pursuant to Clause 2 of this Agreement;

6.3.2 in circumstances where You is not in conformity with the minimum technical requirements and prerequisites set out in the

Software Specifications; or

6.3.3 as a result of: a) the improper use, operation or neglect of either the

Software or the Goods upon which the Software is installed or used;

CellXtract™ User Manual

151

CELLXTRACT SOFTWARE LICENSE b) the modification of the Software or its merger (in whole or in part) with any other software; c) the failure by You to implement recommendations in respect of or solutions to faults previously advised by the Licensor; d) any repair, adjustment. alteration or modification of the Software by any person other than the Licensor without the Licensor's prior consent; e) failure by You adequately to back-up the

Software; f) any breach by You of any of its obligations under any maintenance agreement in respect of the

Goods upon which the Software is installed or used; g) any failure, accident, neglect or misuse of equipment, software or media not supplied by the Licensor; h) Your failure to install and Use in substitution for the previous release any New Release of the Software within ninety (90) days of receipt of the same; or i) the use of the Software for a purpose for which they were not designed.

Without prejudice to the foregoing the Licensor does not warrant that the 6.4

Use of the Software will meet Your requirements or that the operation of the Software (including where in machine-readable form the Software

Documentation) will be uninterrupted or error free.

6.5 Nothing in this Agreement shall obligate the Licensor to improve or otherwise support the Licensed Software Materials.

6.6 Subject to the foregoing all conditions, warranties, terms, representations

(unless fraudulent) and undertakings express or implied, statutory or otherwise in respect of the Licensed Software Materials are hereby excluded to the fullest extent permissible by law.

7 LIMITATION OF LIABILITY

7.1 Where any sustainable claim is made by You in respect of any breach of the warranties given by the Licensor pursuant to clause 6 above, the

Licensor shall be entitled at its option either to replace or repair the Software free of charge. This shall be Your sole and exclusive remedy and the

Licensor shall have no further liability to You for breach of such warranties.

7.2 Subject to Clause 7.1 above and without prejudice to Clause 7.4, and except as otherwise provided in this Agreement, the total liability of the Licensor in contract, tort (including negligence or breach of statutory duty) or otherwise arising by reason of or in connection with this Agreement shall be limited in aggregate to the total price paid and payable by You for the Goods under the Contract.

7.3 Without prejudice to Clause 7.4, in no event shall the Licensor be liable to You for loss of revenue, loss of anticipated savings, loss of profits, loss of data, damage to goodwill, loss of reputation or for any type of indirect, economic or consequential loss or damage whatsoever or howsoever caused.

7.4 Neither party excludes or limits liability to the other for death or personal injury caused by its negligence or for fraud.

7.5 Save as expressly stated in this Agreement, all conditions, warranties and representations (unless fraudulent) expressed or implied by statute, common law or otherwise in relation to the Licensed Software Materials are hereby excluded to the fullest extent permissible by law.

8 RISK IN THE LICENSED SOFTWARE MATERIALS

Risk in the Licensed Software Materials will pass to You upon

CellXtract™ User Manual

152

CELLXTRACT SOFTWARE LICENSE the date of delivery of the Licensed Software Materials to You.

If subsequently the Licensed Software Materials are (in whole or in part) destroyed, damaged or lost the Licensor will upon written request replace the same subject to You paying its then prevailing charges.

CONFIDENTIALITY 9

9.1 Neither Party shall use, copy, adapt, alter, disclose or part with possession of any information or data of the other Party which is disclosed or otherwise comes into its possession directly or indirectly as a result of this

Agreement and which is of a confidential nature (“Confidential Information”) without the prior written consent of the disclosing Party except as strictly necessary to perform its obligations or exercise its rights under this Agreement.

9.2 The receiving Party undertakes not to disclose any Confidential

Information of the disclosing Party to any third party other than employees, professional advisors and approved sub-contractors of the receiving Party on a

“need to know” basis only and to whom disclosure is necessary for the proper performance of their duties under this Agreement.

9.3 The foregoing obligations shall not apply to Confidential Information that:

9.3.1 was known to the receiving Party prior to receipt from the disclosing Party; or

9.3.2 is received from a third party without breach of any other confidentiality arrangements; or

9.3.3 is or becomes public knowledge other than by breach of this

Clause or is independently developed by or for the receiving Party; or

9.3.4 is required to be disclosed by any applicable law or by order of any Court of competent jurisdiction or any government body, agency or regulatory body, provided that the receiving Party shall use all reasonable endeavours to give the other Party not less than two business days’ written notice of the disclosure.

The Parties shall ensure that their respective employees, agents and 9.4 sub-contractors comply with the provisions of this Clause and are bound by terms and conditions of use and non-disclosure at least as onerous as those contained in this Clause.

9.5 The obligations in this Clause shall continue in force notwithstanding termination of this Agreement for any reason.

9.6 If this Agreement is terminated, the receiving Party shall return or destroy at the request of the disclosing Party all Confidential Information of the disclosing Party.

10 TERMINATION

10.1 This Agreement may be terminated:

10.1.1 by either Party upon giving not less than sixty (60) days written notice to the other;

10.1.2 forthwith by either Party upon giving written notice to the other if the other commits any material breach of this Agreement and which (in the case of a breach capable of remedy) shall not have been remedied within thirty (30) days of a written request to remedy the same (and non-payments of sums when due to the Licensor shall be a material breach);

10.1.3 forthwith by either Party upon giving written notice to the other

Party if the other Party makes or proposes to make any arrangement or composition with its creditors or has a receiver, administrative receiver, administrator, liquidator, manager or similar officer appointed in respect of all or any part of its assets or passes a resolution for winding-up

(otherwise than for the purpose of a solvent amalgamation or reconstruction where the resulting entity assumes all of the obligations of the relevant party under this Agreement), or (in the case of an individual)

CellXtract™ User Manual

153

CELLXTRACT SOFTWARE LICENSE commits any act of bankruptcy or dies, or (in the case of a partnership) is dissolved, or undergoes or suffers any analogous acts or proceedings under any foreign law;

10.1.4 if the other Party shall commit any act of bankruptcy, shall have a receiving order made against it, shall make or negotiate for any composition or arrangement with or assignment for the benefit of its creditors or if the other party being a body corporate, shall present a petition or have a petition presented by a creditor for its winding up or shall enter into any liquidation (other than for the purpose of reconstruction or amalgamation), shall call any meeting of its creditors, shall have a receiver of all or any of its undertakings or assets appointed, shall be deemed by virtue of section 123 of the Insolvency

Act 1986 to be unable to pay its debts, or shall cease to carry on business; or

10.1.5 forthwith by either Party upon giving written notice to the other if the other shall cease to carry on its business or substantially the whole of its business.

10.2 Any termination of this Agreement (however occasioned) shall not operate so as to affect any accrued rights or liabilities of either Party.

10.3 Within fourteen (14) days of the termination of this Agreement

(howsoever and by whomsoever occasioned) You shall return or destroy (as the Licensor shall instruct) all copies of the Licensed Software

Materials in its possession and a duly authorised officer of You shall certify in writing to the Licensor that You has complied with such obligation.

11 FORCE MAJEURE

11.1 Neither Party shall be liable to the other Party for any delay or non-performance of its obligations under this Agreement to the extent that its performance is interrupted or prevented by Force Majeure.

11.2 Such delay or failure shall not constitute a breach of this Agreement and the time for performance shall be extended by a period equivalent to that during which performance is so prevented provided that if such delay or failure persists for sixty (60) days or more, the Party not affected may, at its option and if it is reasonable for it to do so, terminate this Agreement by giving fourteen (14) days written notice to the other Party.

12 WAIVER

Any failure or delay on the part of either Party to exercise any power or right under this Agreement shall not operate as a waiver of it, nor shall any single or partial exercise of any such right or power preclude any other or further exercise of the right or power. Any of the rights and remedies of either Party under this Agreement may at any time be enforced separately or concurrently with any other rights and remedies, whether under this Agreement or arising by operation of law with the effect that the rights and remedies are cumulative and not exclusive of each other.

NOTICES 13

13.1 Any notices required to be given under this Agreement shall be in writing and delivered personally or by first class post or transmitted by facsimile to the

Parties as set out below:

13.1.1 The Licensor:

Address:

For attention of:

Logicube, Inc.

19755 Nordhoff Place

Chatsworth, CA 91311 USA

COO

CellXtract™ User Manual

154

CELLXTRACT SOFTWARE LICENSE

13.1.2 You: to the address or facsimile number that You provided for Your purchase of the

Software.

13.2 Any notice served by:

13.2.1 delivery; personal delivery, shall be deemed served at the time of

13.2.2 first class post, shall be deemed served at the start of the fifth business day after posting; and

13.2.3 facsimile, shall be deemed served on the day of transmission (or the next following business day if transmitted outside the Party’s normal working hours) provided that the sender shall have received a transmission report indicating that all the pages of the notice have been transmitted to the correct facsimile number.

13.3 Any Party may change any details of its address or facsimile number by notice in the manner described above.

14 SEVERABILITY

If any term or provision of this Agreement or its application to any Party or circumstances shall, to any extent, be invalid or unenforceable, the remainder of this Agreement or the application of the term or provision to any other Party or circumstances, other than those as to which it is already invalid or unenforceable, shall not be affected, and each term and provision of this Agreement shall be valid and enforceable to the

15 fullest extent permitted by law. The Parties shall negotiate in good faith to replace any invalid or unenforceable provisions by substitute provisions.

ENTIRE AGREEMENT

15.1 This Agreement and the Contract constitute the entire agreement between the Parties with respect to the subject matter hereof and supersede and invalidate all prior oral or written communications, understandings, representations or warranties relating to the subject matter hereof.

15.2 Each Party warrants to the other that it has not relied on any such communications, understandings, representations or warranties in entering into this Agreement.

15.3 Notwithstanding anything contained herein to the contrary, the provisions of Clauses 4, 7, 9 and any other Clauses which are intended to survive termination shall survive termination of the Agreement and shall continue in full force and effect thereafter.

16 ASSIGNMENT/SUB-CONTRACTING/AGENCY

16.1 You shall not be entitled to assign, sub-contract or otherwise transfer your rights or obligations under this Agreement whether in whole or in part without the Licensor’s prior written consent.

16.2 The Licensor shall be entitled to assign its rights hereunder (in whole or in part) to any person, partnership or company.

16.3 This Agreement shall be binding upon and inure for the benefit of the

Parties and their respective permitted successors and assigns.

17 THIRD PARTY RIGHTS

18

A person who is not a Party to this Agreement has no rights under the

Contracts (Rights of Third Parties) Act 1999 to enforce any term of this

Agreement but this does not affect any right or remedy of a third party which exists or is available apart from that Act.

PUBLICITY

The Parties agree to keep confidential the terms of this Agreement, and neither Party shall make any announcement in relation to this Agreement or otherwise publicise its existence or its contents or use or refer to the name, trade mark or trade name of the other Party in any disclosure without the prior written consent of the other Party such consent not to

CellXtract™ User Manual

155

CELLXTRACT SOFTWARE LICENSE

19 be unreasonably withheld or delayed. A Party shall be entitled to withhold such consent and shall be under no obligation to provide any explanation for such action.

AMENDMENTS

No amendment to this Agreement whether oral or written shall be binding on either Party unless in writing and signed on behalf of the Parties.

GOVERNING LAW AND JURISDICTION 20

20.1 This Agreement shall be governed by and construed in accordance with

English law.

20.2 It is irrevocably agreed that the English courts shall have non-exclusive jurisdiction as regards any claim or matter arising out of or in connection with this Agreement.

21 NO PARTNERSHIP/AGENCY

Nothing in this Agreement is intended to or shall operate to create a partnership or joint venture of any kind between the Parties, or to authorise either Party to act as agent for the other.

22 THIRD PARTY SOFTWARE

22.1 CellXtract software uses libraries and other components from the LibUSB-Win32 project.

The library is distributed under the terms of the GNU Lesser General Public License

(LGPL).

The other components are distributed under the terms of the GNU General Public License

(GPL).

These licenses are available to read at the LibUSB-Win32 project home-page www.libusbwin32.sourceforge.net

.

22.2.1 The End User License is provided as a paper license along with the CellXtract device. By using the Software You agree to be bound by the terms of the End User Liclense

Agreement.

Additional copies of this license are also available from Logicube.

CellXtract Software License - US

THIS AGREEMENT shall be binding on installation of the Software and is by and between

LOGICUBE, INC.

(“Licensor”) and the End User (“You”).

1. Grant of License. So long as You shall be in compliance with the terms hereof, You shall have a limited, perpetual, non-exclusive and nontransferable license (“License”) to use the Software solely in the course of lawfully operating the device with which the Software is integrated, and for no other purpose. You are also granted a license to use the Microsoft and related software contained within the PC embedded in the CellXtract device and by using such software You agree to be bound by the terms of the End User License agreement, a copy of which is provided to You with the device.

Additional copies of the End User License are also available from Logicube.

2. Title. No title or ownership in the Software is transferred to You. Title to all applicable rights in patents, copyrights, trademarks and trade secrets in the Software shall remain in

Licensor. Software licensed hereunder is property of Licensor, and You shall be bound by and observe such nature thereof as herein provided. You shall take appropriate action by instruction to and agreement with its employees, agents, consultants or any other end users who are permitted access to the Software to fulfill its obligations hereunder. Without limiting the foregoing, You shall ensure that any end user license agreement provided with the

Software is brought to the reasonable attention of all such end users. You shall not provide, or otherwise make available, the Software or copies thereof to any third party. All ownership rights to any developments or improvements to the Software made by You shall belong solely to Licensor.

CellXtract™ User Manual

156

CELLXTRACT SOFTWARE LICENSE

3. Copying.

(a) You shall be entitled to make one copy the Software for back-up and archival purposes.

You shall include in each such copy the

Licensor’s copyright notice(s) and trademark(s).

(b) In no event shall You be entitled to remove or tamper with any such proprietary notices contained in the Software.

(c) Software shall not be reverse compiled, disassembled, reverse assembled, or otherwise reverse engineered. All rights in or to the Software not expressly granted to You under this Agreement are retained by Licensor.

4. Warranty.

(a) Subsection 4(b) hereof provides Licensor’s twelve month limited warranty for the Software.

(b) Licensor warrants that for a period of twelve (12) months from installation of the Software, the Software will perform in accordance with the Software documentation. In the event the

Software does not perform in accordance with such documentation, then during such twelve month period, Licensor shall at its option: (i) correct any variance between the Software performance and its documentation; or (ii) replace the Software media. The foregoing shall be Your sole and exclusive remedy with respect to the Software or otherwise hereunder.

EXCEPT AS WARRANTED BY THE PRECEDING THREE SENTENCES, THE SOFTWARE

IS LICENSED AS IS, AND NO WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR

STATUTORY, WHETHER IN RELATION TO MERCHANTABILITY, HIDDEN DEFECTS,

FITNESS FOR PARTICULAR PURPOSE, COURSE OF PERFORMANCE, COURSE OF

DEALING, USAGE OF TRADE, NONINFRINGEMENT, THAT THE SOFTWARE’S

OPERATION SHALL BE ERROR FREE OR UNINTERRUPTED, OR OTHERWISE IS GIVEN

BY LICENSOR TO YOU OR ANY OTHER PARTY. LICENSOR SHALL NOT UNDER ANY

CIRCUMSTANCES BE RESPONSIBLE FOR ANY LOSSES OR DAMAGES, DIRECT,

INDIRECT, SPECIAL, ORDINARY, EXEMPLARY, CONSEQUENTIAL OR OTHERWISE

(INCLUDING, BUT NOT LIMITED TO, LOSS OF DATA, LOSS OF REVENUE, PROFIT OR

USE OR COST OF CAPITAL OR OF SUBSTITUTE USE OF PERFORMANCE), ARISING

OUT OF OR RELATED IN ANY WAY TO THE TRANSACTIONS CONTEMPLATED

HEREUNDER, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. UNDER

NO CIRCUMSTANCES SHALL LICENSOR’S TOTAL LIABILITY OF ALL KINDS ARISING

OUT OF OR RELATED TO THIS AGREEMENT (INCLUDING BUT NOT LIMITED TO ANY

WARRANTY OR SUPPORT-RELATED CLAIMS HEREUNDER), REGARDLESS OF

WHETHER ANY ACTION OR CLAIM IS BASED ON CONTRACT, STRICT LIABILITY, TORT

OR OTHERWISE, EXCEED THE TOTAL AMOUNT PAID BY YOU FOR THE DEVICE WITH

WHICH THE SOFTWARE IS PROVIDED (DETERMINED AS OF THE DATE OF ANY FINAL

CellXtract™ User Manual

157

CELLXTRACT SOFTWARE LICENSE

JUDGMENT IN SUCH ACTION).

(c) This limited warranty shall be valid and remain in effect only if: (i) the Software is used and maintained by You as directed by all applicable documentation; (ii) You promptly notify Licensor in writing of the claim and is able to reproduce it; (iv) the Software has not in any way been modified and You have not installed any other hardware or software affecting the Software; (v) the claim is unrelated to the failure by You to follow the most current instructions issued by Licensor or its authorized reseller; (vi) the claim is unrelated to the negligence, accident or act of You or any third party; (vii) You provide reasonable access to the Software; (viii) there has been no operation of the Software under conditions more severe than those for which the Software was designed; (ix) the claim is unrelated to force majeure; (x) the claim is unrelated to operator error or to any software, firmware, peripheral or communication device; and (xi) where authorized Licensor updates are provided to You, the Software incorporates all such updates within ninety (90) days of each update being provided or otherwise made available. In the event it is determined that any warranty claim reported by You falls within any of the foregoing exceptions, You shall pay for services at then current rates and charges.

(d) Nothing herein shall obligate Licensor or its authorized reseller to improve or otherwise support any Software licensed hereunder. Without prejudice to the foregoing, all support, enhancements, modifications and upgrades delivered to You, if any, shall be subject to the same protections, restrictions, limited warranty, and limitations on copying and tampering as set forth elsewhere herein.

5. Component Items. In the event that Licensor or its authorized reseller shall deliver to

You any individual components apart from the Software specifically licensed hereunder,

You shall not use or attempt to use any such component outside or independent of the parameter of this License, and each such component shall be subject to the same rules and restrictions binding on You to which the Software is subject, whether under this

Agreement or otherwise.

6. Breach. In the event that either party hereto should breach any of the material terms and conditions of this Agreement, the aggrieved party shall notify the other party. The offending party shall thereafter have 30 days to correct the identified deficiency. In the event such deficiency is not rectified to the satisfaction of the aggrieved party, then the aggrieved party shall be entitled to declare this Agreement null, void and of no further force and effect, and all rights hereunder, including the License granted hereunder, shall be cancelled. In the event of the expiration or termination hereof for any reason (a) You shall continue to observe the limitations and restrictions set forth in Sections 3(b) and (c), 4, 5-7 and 11 hereof, and (b) immediately return or destroy the Software and all copies thereof as directed by Licensor or its authorized reseller and, if requested by Licensor or its authorized reseller, certify in writing as to the destruction or return of the Software and all copies thereof.

7. Confidentiality. You acknowledge and understand that the Software involves highly confidential and trade secret information that belongs to Lic ensor (“Confidential Information”).

The Confidential Information shall be maintained in absolute confidence by You, not be used other than for the purposes hereof and not be disclosed by You, except as may be permitted under this Agreement, to anyone, without the prior written permission of Licensor.

All Confidential Information coming into Your possession shall be marked by

You as such.

8. Use. (a) You shall be solely responsible for the design, repair and configuration of

Your equipment, machinery, systems and/or products, except where specified in another agreement between the parties hereto. You assume all rights and liability for results obtained by the use or implementation of the Software, whether such results are used singly or in combination with other software or products. You agree that Licensor shall have no liability to You or to any third party for any ordinary, special, indirect, consequential or other damages or losses that might arise directly or indirectly by reason of Your use of

CellXtract™ User Manual

158

CELLXTRACT SOFTWARE LICENSE the Software. You shall be responsible for use of all hardware, including but not limited to operating procedures, audit controls, accuracy and security of input and output data, restart and recovery routines and other procedures necessary for Your intended use of hardware.

You shall maintain back-up data necessary to replace Your critical data in the event of loss of or damage to such data from any cause. Regardless of the cause of loss of Your data, Licensor shall not in any way be liable therefor.

(b) In Your use of the Software You shall comply with all present and future statutes, laws, ordinances, regulations and/or guidelines of any applicable jurisdiction or agency. You shall ensure that its personnel are, at all times, educated and trained in the proper use and operation of the Software and that the Software is used in accordance with any and all applicable manuals, documentation, and instructions. You shall indemnify and hold

Licensor harmless from and against all claims, damages, losses, judgments, fees, expenses and costs, including attorneys’ fees, arising out of or resulting from Your acts, negligence or failure to comply with this or any other provision of this Agreement.

9. Delay in Performance. Neither party shall be liable for failure or delay in the performance of any of its obligations under this Agreement, except obligations for the payment of money, if such delay or failure is caused by circumstances of force majeure that are beyond the control of the party affected. Notwithstanding the foregoing, in the event that any delay or failure identified in this Section 9 continues for sixty (60) consecutive days, the party adversely affected by such delay may cancel this Agreement and the License granted hereunder upon written notice to the other party.

10. Term. This Agreement, unless terminated pursuant to other applicable provisions hereof, shall commence on the date the Software is purchased and shall be perpetual, unless terminated in accordance with this Agreement.

11. Miscellaneous.

(a) This Agreement shall be governed by and interpreted in accordance with the substantive

(and not conflicts) laws of California. Other than for collection and equitable actions against

You, to the extent legal actions are commenced by or name Licensor, each party hereto:

(i) submits to the exclusive general jurisdiction of the State and Federal Courts in the State of Ohio, and any appellate courts from any decision thereof, in any legal action or proceeding relating to this Agreement; (ii) consents that any such action or proceeding may be brought in such courts; and (iii) waives any objection that he, she or it may have to the venue of any such action or proceeding in any such court or that such action or proceeding was brought in an inconvenient court and agrees not to plead or claim the same. Any action arising hereunder or related in any way hereto against Licensor shall be brought within one

(1) year after the occurrence giving rise to the claim or be barred forever. If any provision or portion of this Agreement is held by a court of competent jurisdiction to be invalid, void, or unenforceable, the remaining provisions or portions of this Agreement shall remain in full force and effect and shall in no way be affected, impaired or invalidated. IT IS EXPRESSLY

UNDERSTOOD AND AGREED THAT EACH AND EVERY PROVISION OF THIS

AGREEMENT THAT PROVIDES FOR A LIMITATION OF LIABILITY, DISCLAIMER OF

WARRANTIES OR EXCLUSION OF DAMAGES, IS INTENDED BY THE PARTIES TO BE

SEVERABLE AND INDEPENDENT OF ANY OTHER PROVISION AND TO BE ENFORCED

AS SUCH. You hereby waive any governmental immunity, if applicable, to any and all causes of action arising hereunder or related hereto. All notices required to be given hereunder shall be in writing. Notices shall be considered delivered and effective upon receipt when sent by registered or certified mail, postage pre-paid, return receipt requested, addressed to the parties as set forth above or by telecopy with proof of transmission. Either party, upon written notice to the other, many change the address to which future notices shall be sent.(b) It is expressly declared that this Agreement and the relationship between the parties hereby established do not constitute a partnership, joint venture or agency arrangement between them.

CellXtract™ User Manual

159

CELLXTRACT SOFTWARE LICENSE

All amounts payable hereunder are exclusive of all freight, insurance and all federal, state,

local, municipal or other excise, sales, use, property or similar taxes, duties, import charges and fees, now in force or enacted in the future, and all such amounts shall be paid by You, unless You provides a certificate of exemption or similar document exempting a payment from an applicable tax.

(c) If You attempt to use, copy, disclose, or transfer any portion of the Software or any modification thereof or Confidential Information in a manner contrary to the terms of this

Agreement or in derogation of Licensor’s rights, whether those rights are explicitly stated, determined by law, or otherwise, Licensor shall have the right, in addition to any other legal remedies available, to injunctive relief enjoining such acts without the posting of bond, it being acknowledged by You that all other remedies are inadequate.

(d) This Agreement contains the entire agreement of the parties with respect to the subject matter hereof, and supersedes and terminates any and all correspondence, proposals, RFPs,

Your purchase order, terms or agreements or contracts, written or oral, entered into between the parties relating to the subject matter hereof, and any representation, promise, or condition in connection herewith not in writing shall not be binding upon either party. Neither the title of this Agreement nor the Section headings shall have any bearing whatsoever on any interpretation hereof. None of the provisions of this Agreement shall be deemed to have been waived by any act of or acquiescence on the part of Licensor, its agents, or employees, but only by an instrument in writing signed by an authorized representative of Licensor. No waiver by Licensor of any provisions of this Agreement shall constitute a waiver of any other provision or of the same provision on another occasion. This Agreement may be amended only in writing signed by each of the parties hereto. This Agreement is personal to You, and You may not assign or sublicense its rights or obligations under this Agreement in any way to any third party. This Agreement shall be binding upon and inure to the benefit of the parties hereto and their respective permitted successors and assigns.

CellXtract™ User Manual

160

GNU General Public License

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc.,

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies

of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public

License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This

General Public License applies to most of the Free Software

Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights.

These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and

(2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND

MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the

Program (independent of having been made by running the Program).

Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's

CellXtract® User Manual 161 source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices

stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in

whole or in part contains or is derived from the Program or any

part thereof, to be licensed as a whole at no charge to all third

parties under the terms of this License.

c) If the modified program normally reads commands interactively

when run, you must cause it, when started running for such

interactive use in the most ordinary way, to print or display an

announcement including an appropriate copyright notice and a

notice that there is no warranty (or else, saying that you provide

a warranty) and that users may redistribute the program under

these conditions, and telling the user how to view a copy of this

License. (Exception: if the Program itself is interactive but

does not normally print such an announcement, your work based on

the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of

Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable

source code, which must be distributed under the terms of Sections

1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three

years, to give any third party, for a charge no more than your

cost of physically performing source distribution, a complete

machine-readable copy of the corresponding source code, to be

distributed under the terms of Sections 1 and 2 above on a medium

customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer

to distribute corresponding source code. (This alternative is

allowed only for noncommercial distribution and only if you

received the program in object code or executable form with such

an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License.

However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the

Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the

Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein.

You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this

License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

GNU-GENERAL PUBLIC LICENSE

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free

Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free

Software

Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free

Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,

THERE IS NO WARRANTY

FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE

LAW. EXCEPT WHEN

OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS

AND/OR OTHER PARTIES

PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESSED

OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

THE ENTIRE RISK AS

TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH

YOU. SHOULD THE

PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL

NECESSARY SERVICING,

REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR

AGREED TO IN WRITING

WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY

MODIFY AND/OR

REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO

YOU FOR DAMAGES,

INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING

OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING

BUT NOT LIMITED

TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR

LOSSES SUSTAINED BY

YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO

OPERATE WITH ANY OTHER

PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITION

CellXtract® User Manual

162

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc.

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies

of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts

as the successor of the GNU Library Public License, version 2, hence

the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public

Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the

Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser

General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary

General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General

Public License permits more lax criteria for linking other code with the library.

We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General

Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be

CellXtract® User Manual

GNU-GENERAL PUBLIC LICENSE

163 allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of theusers' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a"work based on the library" and a "work that uses the library".

Theformer contains code derived from the library, whereas the latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION

AND MODIFICATION

0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License").

Each licensee is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs

(which use some of those functions and data) to form executables.

The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work based on the

Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification".)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the

Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.

b) You must cause the files modified to carry prominent notices

stating that you changed the files and the date of any change.

c) You must cause the whole of the work to be licensed at no

charge to all third parties under the terms of this License.

d) If a facility in the modified Library refers to a function or a

table of data to be supplied by an application program that uses

the facility, other than as an argument passed when the facility

is invoked, then you must make a good faith effort to ensure that,

in the event an application does not supply such function or

table, the facility still operates, and performs whatever part of

its purpose remains meaningful.

(For example, a function in a library to compute square roots has

a purpose that is entirely well-defined independent of the

application. Therefore, Subsection 2d requires that any

application-supplied function or table used by this function must

be optional: if the application does not supply it, the square

root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may opt to apply the terms of the ordinary GNU General Public

License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

5. A program that contains no derivative of any portion of the

Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License.

Section 6 states terms for distribution of such executables.

When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not.

Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the

Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6.

Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

6. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse

CellXtract® User Manual

GNU-GENERAL PUBLIC LICENSE

164 engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the

Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things: a) Accompany the work with the complete corresponding

machine-readable source code for the Library including whatever

changes were used in the work (which must be distributed under

Sections 1 and 2 above); and, if the work is an executable linked

with the Library, with the complete machine-readable "work that

uses the Library", as object code and/or source code, so that the

user can modify the Library and then relink to produce a modified

executable containing the modified Library. (It is understood

that the user who changes the contents of definitions files in the

Library will not necessarily be able to recompile the application

to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the

Library. A suitable mechanism is one that (1) uses at run time a

copy of the library already present on the user's computer system,

rather than copying library functions into the executable, and (2)

will operate properly with a modified version of the library, if

the user installs one, as long as the modified version is

interface-compatible with the version that the work was made with.

c) Accompany the work with a written offer, valid for at

least three years, to give the same user the materials

specified in Subsection 6a, above, for a charge no more

than the cost of performing this distribution.

d) If distribution of the work is made by offering access to copy

from a designated place, offer equivalent access to copy the above

specified materials from the same place.

e) Verify that the user has already received a copy of these

materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the

Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

7. You may place library facilities that are a work based on the

Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work

based on the Library, uncombined with any other library

facilities. This must be distributed under the terms of the

Sections above.

b) Give prominent notice with the combined library of the fact

that part of it is a work based on the Library, and explaining

where to find the accompanying uncombined form of the same work.

8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the

Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

10. Each time you redistribute the Library (or any work based on the

Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further

restrictions on the recipients' exercise of the rights granted herein.

You are not responsible for enforcing compliance by third parties with this License.

11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this

License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time.

Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and

"any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published bythe

Free Software Foundation.

AND CONDITIONS

Software attribution Information: PhotRec (http://www.cgsecurity.org/wiki/PhotoRec)

GNU-GENERAL PUBLIC LICENSE

14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free

Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE

IS NO

WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY

APPLICABLE LAW.

EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT

HOLDERS AND/OR

OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT

WARRANTY OF ANY

KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR

PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND

PERFORMANCE OF THE

LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE,

YOU ASSUME

THE COST OF ALL NECESSARY SERVICING, REPAIR OR

CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR

AGREED TO IN

WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY

WHO MAY MODIFY

AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE

LIABLE TO YOU

FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL

OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY

TO USE THE

LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA

BEING

RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD

PARTIES OR A

FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER

SOFTWARE), EVEN IF

SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH

DAMAGES.

END OF TERMS

CellXtract® User Manual

165

MADE OR MANUFACTURED IN USA

19755 Nordhoff Pl., Chatsworth, CA 91311 USA, Tel: 818 700 8488, Fax: 818 700 8466, www.logicube.com

Technical Support Information

For further assistance please contact

Logicube Technical Support at: +1 818 700 8488, Monday-Friday,

7am-5pm PST (excluding US legal holidays)

or by email to [email protected].

CellXtract® User Manual 166
