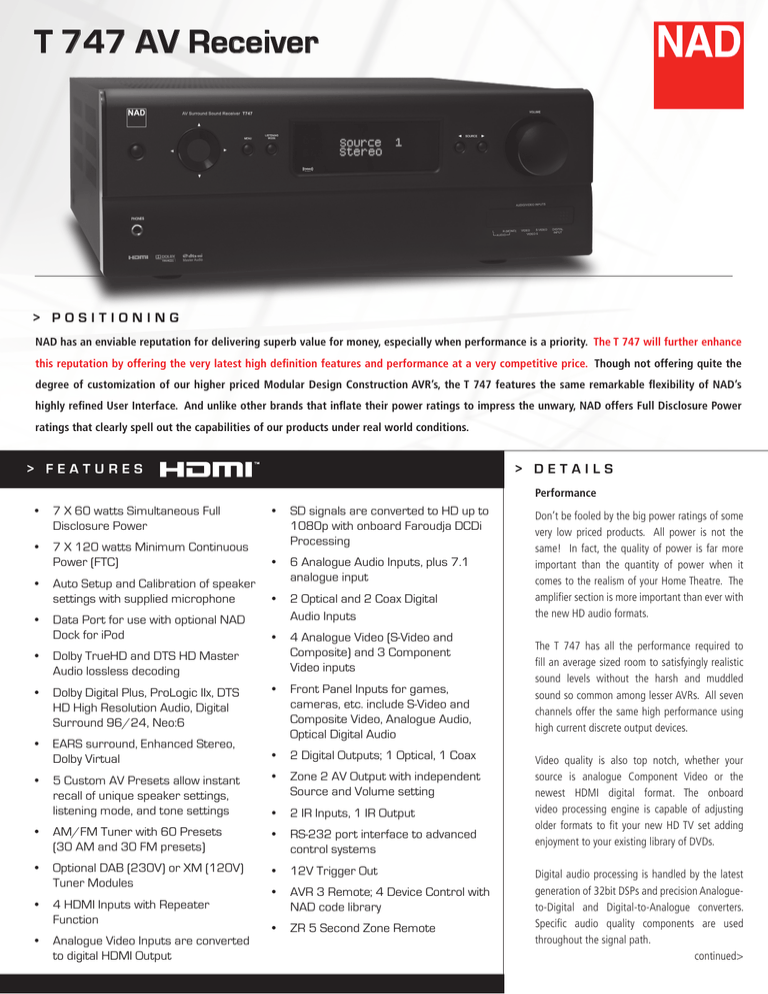

T 747 AV Receiver

T 747 AV Receiver
T 747 AV Receiver
> POSITIONING
NAD has an enviable reputation for delivering superb value for money, especially when performance is a priority. The T 747 will further enhance
this reputation by offering the very latest high definition features and performance at a very competitive price. Though not offering quite the
degree of customization of our higher priced Modular Design Construction AVR’s, the T 747 features the same remarkable flexibility of NAD’s
highly refined User Interface. And unlike other brands that inflate their power ratings to impress the unwary, NAD offers Full Disclosure Power
ratings that clearly spell out the capabilities of our products under real world conditions.
> FEATURES
> DETAILS
Performance
• 7 X 60 watts Simultaneous Full
Disclosure Power
• 7 X 120 watts Minimum Continuous
Power (FTC)
• Auto Setup and Calibration of speaker
settings with supplied microphone
• Data Port for use with optional NAD
Dock for iPod
• Dolby TrueHD and DTS HD Master
Audio lossless decoding
• Dolby Digital Plus, ProLogic IIx, DTS
HD High Resolution Audio, Digital
Surround 96/24, Neo:6
• EARS surround, Enhanced Stereo,
Dolby Virtual
• SD signals are converted to HD up to
1080p with onboard Faroudja DCDi
Processing
• 6 Analogue Audio Inputs, plus 7.1
analogue input
• 2 Optical and 2 Coax Digital Audio Inputs
• 4 Analogue Video (S-Video and
Composite) and 3 Component Video inputs
• Front Panel Inputs for games,
cameras, etc. include S-Video and
Composite Video, Analogue Audio,
Optical Digital Audio
• 2 Digital Outputs; 1 Optical, 1 Coax
• 5 Custom AV Presets allow instant
recall of unique speaker settings,
listening mode, and tone settings
• Zone 2 AV Output with independent
Source and Volume setting
• AM/FM Tuner with 60 Presets
(30 AM and 30 FM presets)
• RS-232 port interface to advanced
control systems
• Optional DAB (230V) or XM (120V)
Tuner Modules
• 12V Trigger Out
• 4 HDMI Inputs with Repeater
Function
• Analogue Video Inputs are converted
to digital HDMI Output
• 2 IR Inputs, 1 IR Output
• AVR 3 Remote; 4 Device Control with
NAD code library
• ZR 5 Second Zone Remote
Don’t be fooled by the big power ratings of some
very low priced products. All power is not the
same! In fact, the quality of power is far more
important than the quantity of power when it
comes to the realism of your Home Theatre. The
amplifier section is more important than ever with
the new HD audio formats.
The T 747 has all the performance required to
fill an average sized room to satisfyingly realistic
sound levels without the harsh and muddled
sound so common among lesser AVRs. All seven
channels offer the same high performance using
high current discrete output devices.
Video quality is also top notch, whether your
source is analogue Component Video or the
newest HDMI digital format. The onboard
video processing engine is capable of adjusting
older formats to fit your new HD TV set adding
enjoyment to your existing library of DVDs.
Digital audio processing is handled by the latest
generation of 32bit DSPs and precision Analogueto-Digital and Digital-to-Analogue converters.
Specific audio quality components are used
throughout the signal path.
continued>
T 747 AV Receiver
> DETAILS
Features
The T 747 has everything needed to form the
centrepiece of your HD Home Theatre. Featuring
HDMI repeating (this is where the audio is stripped
off the HDMI signal and the video is automatically
passed along or repeated to the TV) with full support
for up to 1080p signals from HD set top boxes and
Blu-ray Players. Older analogue video formats are
not forgotten and can even be ‘upscaled’ to HD
format utilizing award winning Faroudja DCDi
technology and then sent on to your HDMI equipped
HDTV. All setup is done via the comprehensive On
Screen Display.
The newest lossless audio CODECs from Dolby and
DTS are also decoded on board the T 747 when
sent via HDMI from your Blu-ray player. Even discs
that do not offer a TrueHD soundtrack will benefit
from the higher bit rates and discrete 7.1 channels
supported by Dolby Digital Plus. Speaker setup is
highly accurate yet easy using the Auto Calibration
function. This uses a special microphone that is
placed in the viewing/listening area of the room to
> REAR LINE DRAWING
‘listen’ to a special test tone that adjusts your system
for perfectly balanced surround sound performance.
High quality AM and FM tuners are included and
offer up to 30 AM and 30 FM station presets.
Additionally, the T 747 offers XM Ready (120V)
or DAB Ready (230V) sockets that allow a clear
upgrade path to these new digital broadcast
offerings.
Just add the NAD DB 1 adaptor (or XM adaptor)
and the T 747 uses its display, remote, and its
superb digital processing to get the most from these
exciting new formats.
iPod enthusiasts will also be happy to find support
for NAD’s optional IPD 1 and IPD 2 Docks for
iPod. This allows audio, video and pictures stored
on your iPod to be played directly on your NAD
Home Theatre.
A second independent AV zone is offered along
with all the necessary connections for integrating
the T 747 with advanced control systems. There are
even 2 remotes, one for the primary listening zone
and one for the remote zone. The main remote
also controls other NAD components for simplified
system control.
In keeping with NAD’s latest green initiative, there
are no heavy metals or hazardous chemicals used in
the manufacture of the T 747.
Value
When you see the superb build quality and note the
advanced feature list and performance specifications
of the T 747, you will immediately see why we are
so proud of our accomplishment. Costing no more
than ‘ordinary’ AV Receivers, the NAD T 747 is a
clear step up in performance and value. Experience
one at your NAD Dealer today!
T 747 AV Receiver
> SPECIFICATIONS
Amplifier Section
FM BAND
Power output, Stereo Mode
2 x 110W (ref. 0.08% THD, 8Ω)
Tuning range
87.5MHz – 108MHz
IHF dynamic power
2 x 140W
Usable sensitivity, Mono
10dBµ
8Ω
4Ω
Power output Surround Mode
2 x 200W
Signal/noise ratio, Mono
70dB
7 x 60W
Signal/noise ratio, Stereo
65dB
Total harmonic distortion
Total Harmonic Distortion,
at rated power
0.08%
Mono0.3%
IM distortion at rated power
0.08%
Total Harmonic Distortion,
Damping factor,
>60
Stereo0.5%
8Ω
Channel Separation
40dB
RDS decode sensitivity
0.2%
Input sensitivity
and impedance
300mV
/ 47kΩ
Frequency response
±0.5dB (ref. 20Hz - 20kHz)
Power Consumption
Idle power
Signal/noise ratio,
A-weighted
>100dB (ref. rated power 8Ω)
>90dB (ref. 1W 8Ω)
60W
Physical Specifications
Dimensions (W x H x D)
Tuner Section
AM Band
Gross
435 x 167 x 394mm
17 1/8” x 6 9/16” x 15 1/2”
Shipping
555 x 266 x 465mm
Tuning range
522kHz - 1620kHz (9kHz steps,
21 7/8” x 10 1/2” x 18”
230V version only)
530kHz - 1710kHz (10kHz steps,
120V version only)
Net weight 13.3 kg (29.32 lbs)
Usable sensitivity
60dBµ
Signal/noise ratio
40dB
Total Harmonic Distortion
1.5%
Shipping weight
16.2 kg (35.7 lbs)
* Gross dimensions include volume knob / speaker terminals / connectors /
feet. Note: Installers should allow a minimum clearance of 2- 4 inches for
wire/cable management.
NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD Electronics
International. All rights reserved. No part of this publication may be reproduced, stored, or transmitted in any form whatsoever without the written
permission of NAD Electronics International. © 02/13 NAD Electronics International.
www.NADelectronics.com
