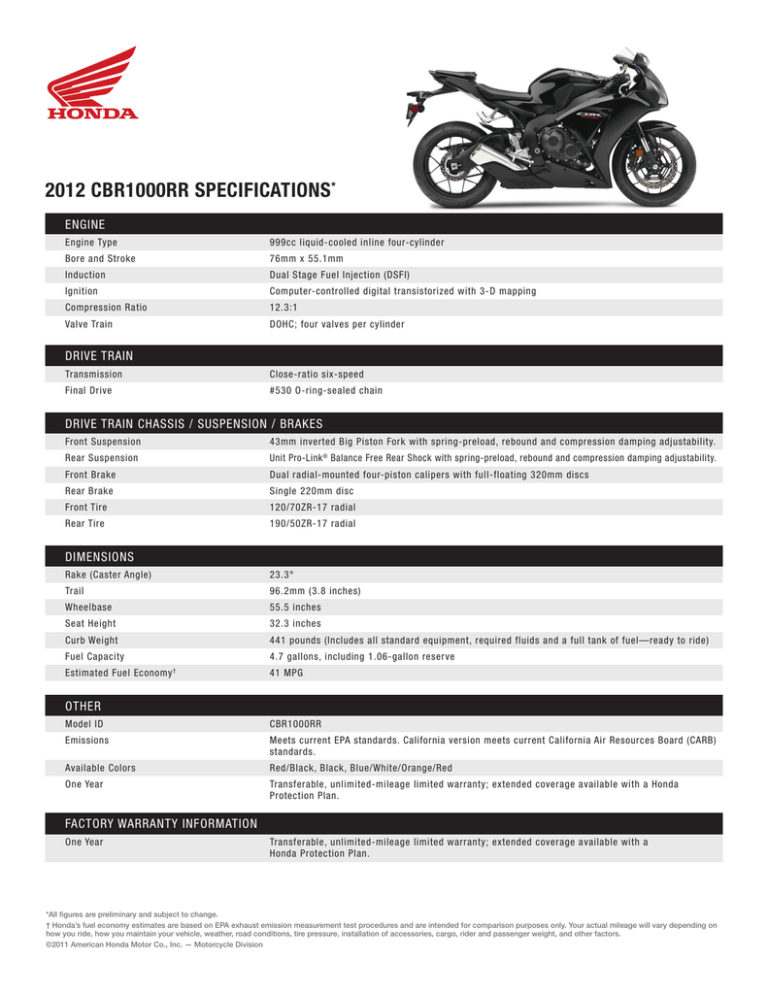

2012 CBR1000RR SPECIFICATIONS*
ENGINE
Engine Type
999cc liquid-cooled inline four-cylinder
Bore and Stroke
76mm x 55.1mm
Induction
Dual Stage Fuel Injection (DSFI)
Ignition
Computer-controlled digital transistorized with 3-D mapping
Compression Ratio
12.3:1
Valve Train
DOHC; four valves per cylinder
DRIVE TRAIN
Transmission
Close-ratio six-speed
Final Drive
#530 O-ring-sealed chain
DRIVE TRAIN CHASSIS / SUSPENSION / BRAKES
Front Suspension43mm inverted Big Piston Fork with spring-preload, rebound and compression damping adjustability.
Rear SuspensionUnit Pro-Link ® Balance Free Rear Shock with spring-preload, rebound and compression damping adjustability.
Front Brake
Dual radial-mounted four-piston calipers with full-floating 320mm discs
Rear Brake
Single 220mm disc
Front Tire
120/70ZR-17 radial
Rear Tire
190/50ZR-17 radial
DIMENSIONS
Rake (Caster Angle)
23.3°
Trail
96.2mm (3.8 inches)
Wheelbase
55.5 inches
Seat Height
32.3 inches
Curb Weight
441 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity
4.7 gallons, including 1.06-gallon reserve
Estimated Fuel Economy † 41 MPG
OTHER
Model ID
CBR1000RR
EmissionsMeets current EPA standards. California version meets current California Air Resources Board (CARB) standards.
Available Colors
Red/Black, Black, Blue/White/Orange/Red
One YearTransferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
FACTORY WARRANTY INFORMATION
One YearTransferable, unlimited-mileage limited warranty; extended coverage available with a
Honda Protection Plan.
*All figures are preliminary and subject to change.
† Honda’s fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on
how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
©2011 American Honda Motor Co., Inc. — Motorcycle Division
