2013 cb1000r specifications

2013 cb1000r specifications

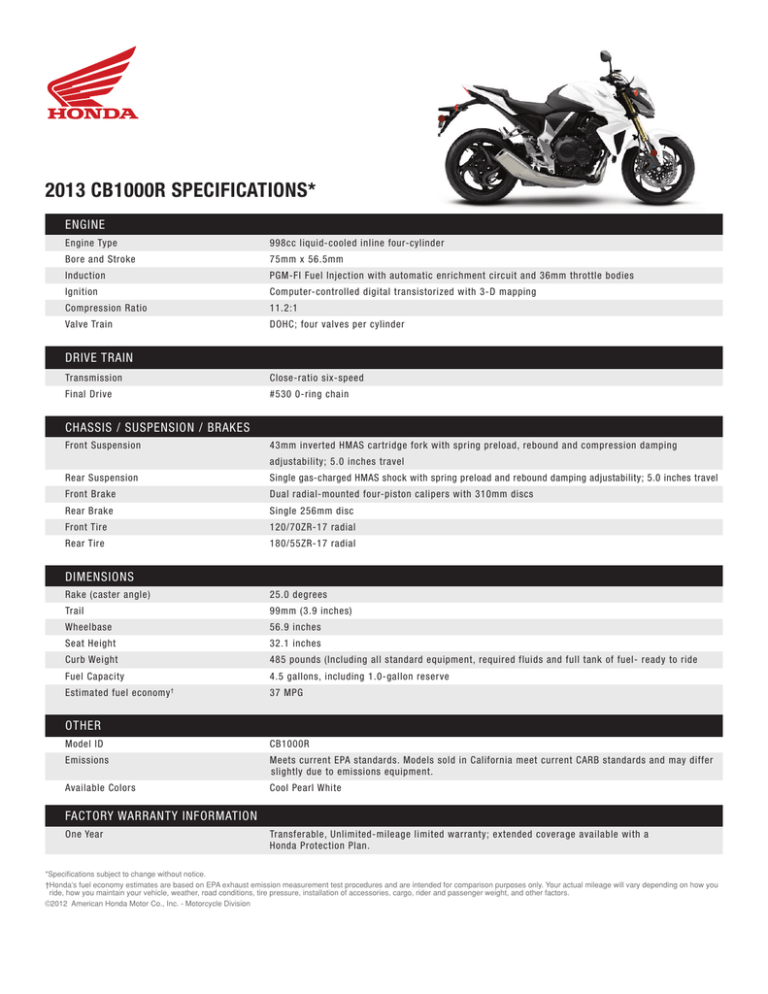

2013 CB1000R SPECIFICATIONS*
ENGINE
Engine Type
998cc liquid-cooled inline four-cylinder
Bore and Stroke
75mm x 56.5mm
Induction
PGM-FI Fuel Injection with automatic enrichment circuit and 36mm throttle bodies
Ignition
Computer-controlled digital transistorized with 3-D mapping
Compression Ratio
11.2:1
Valve Train
DOHC; four valves per cylinder
DRIVE TRAIN
Transmission
Close-ratio six-speed
Final Drive
#530 0-ring chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension
43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping
adjustability; 5.0 inches travel
Rear Suspension
Single gas-charged HMAS shock with spring preload and rebound damping adjustability; 5.0 inches travel
Front Brake
Dual radial-mounted four-piston calipers with 310mm discs
Rear Brake
Single 256mm disc
Front Tire
120/70ZR-17 radial
Rear Tire
180/55ZR-17 radial
DIMENSIONS
Rake (caster angle)
25.0 degrees
Trail
99mm (3.9 inches)
Wheelbase
56.9 inches
Seat Height
32.1 inches
Curb Weight
485 pounds (Including all standard equipment, required fluids and full tank of fuel- ready to ride
Fuel Capacity
4.5 gallons, including 1.0-gallon reserve
Estimated fuel economy †
37 MPG
OTHER
Model ID
CB1000R
Emissions
Meets current EPA standards. Models sold in California meet current CARB standards and may differ
slightly due to emissions equipment.
Available Colors
Cool Pearl White
FACTORY WARRANTY INFORMATION
One Year
Transferable, Unlimited-mileage limited warranty; extended coverage available with a
Honda Protection Plan.
*Specifications subject to change without notice.
†Honda’s fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you
ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
©2012 American Honda Motor Co., Inc. - Motorcycle Division
