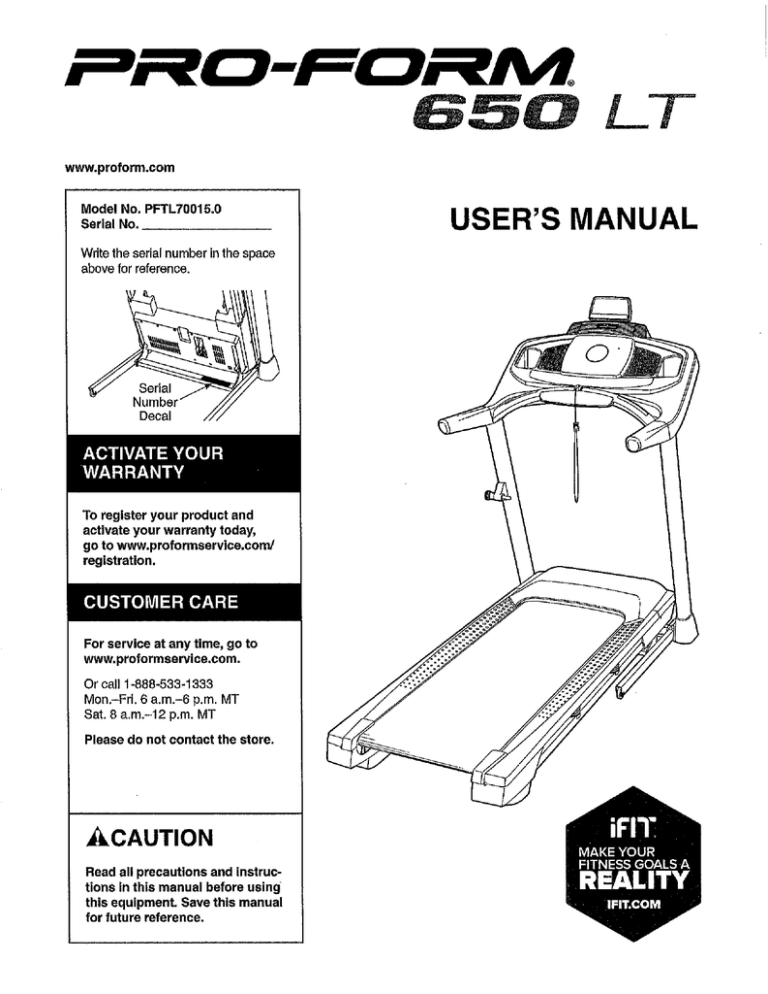

User manual | Page 1 www.proform.com Model ND. PFT|.70015,0 Serial No. Write

 PRO-FORM
www.proform.com
Serial Nov USER'S MANUAL
Write the serial number in the space
above for reference.
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
CUSTOMER CARE
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.—Fri, 6 a.m.—6 p.m. MT
Sat. 8 a.m.-12 p.m. MT
Please do not contact the store.
ACAUTION A
NONE
Read alí precautions and instruc- ppm Y
tions in this manual before using 7. TY
this equipment. Save this manual “e
for future reference. E
TABLE OF CONTENTS
WARNING DECAL PLACEMENT LL. i i i iii is 4 4 0 ae a ae ea aa aa 1 AU A AU CD A 000 2
IMPORTANT PRECAUTIONS. «Lie ss ies reas iene 3
BEFORE YOU BEGIN. LL. ei tite a ee ea ae 6
PART IDENTIFICATION CHART. i i a a ee a attain tenia aan A0 00 7
ASSEMBLY | Lee ete asa aaa 8
HOW TO USE THE TREADMILL oi i 8 a aa a ue 4 8 a a ue 4 ua ea Sea 111101 000 17
FOC INFORMATION «Li i et i te aa risa stant se sans isan caesarean 0 24
HOW TO FOLD AND MOVE THE TREADMILL . oo ie ce ea 25
MAINTENANCE AND TROUBLESHOOTING. . . o.oo i i i isc i seas eae a 26
EXERCISE GUIDELINES «Lr it A A6 4 4 a ee 4 a a a ea ea a 0 ee ea aaa 28
a PPP 30
EXPLODED DRAWING. i i i ieee ee ae aa aaa aaa 32
ORDERING REPLACEMENT PARTS. ........r.ererrarenrionornercore rev evacorer renace Back Cover
LIMITED WARRANTY. .....enrrediaiaerarnarereveonrecarereiecasooovecaseerirerdaneraoo Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call the
telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decals may not be shown at actual size.
( AWARNING:
Protect yourself and
others from risk of serlous
injury, Road the user's
manual, and:
+ Sud baby van the
side mil when
skating or sloppitg
tradi,
1 Chango sport small intrementa
+ Hold handratia to prevont fnleng,
and abyeys wear The safety vip
while oporaling Ihe track IL,
+ Блеф d yoo foo) fall, dizzy, ar
Shoat of breath,
* Fully engage th bisrage haleh
bela tha bgadmil| Is move
ar stored,
* Jucfino hold be 364 ly rem
before folding ia keadmin Ebo
a storage presión,
. = Mevor alow chlidren
р >. de oF roland the
a ire,
A *" v Remove tho safely
Meo kay when lead
\№ fol Ik ug,
Magen, and halt
bvroy front move
paris,
" blever 1ry to оби!
gr fix ha bei whlke
It be тн
« Aways wear silalio
shoot vide operating
Usa Lead,
ACAUTION
KEEP HANDS AND FEET AWAY
FROM THIS AREAWHILE THE
| TREADMILL IS IN OPERATION. ;
PROFORM is a registered trademark of ICON Health & Fitness, Inc. IFIT is à registered trademark of ICON
Health & Fitness, Inc. App store is a trademark of Apple Inc, registered in the U.S. and other countries. Android
and Google Play are trademarks of Google Inc. The BLUETOOTH® word mark and logos are registered
trademarks of Bluetooth SIG, Inc. and are used under license, IOS is a trademark or registered trademark
of Cisco in the U.S. and other countries and is used under license.
2
IMPORTANT PRECAUTIONS
A WARN | NG = To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal i injury or property damage sus-
tained by or through the use of this product.
1.
It is the responsibility of the owner to ensure
- that all users of this treadmill are adequately
informed of all warnings and precautions.
Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
| their safety.
10.
11.
. Use the treadmill only as described in this
manual.
The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of ciearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
Keep children under age 13 and pets away
from the treadmill at all times.
The treadmill should be used only by per-
sons weighing 300 Ibs. (136 kg) or less.
Never allow more than one person on the
treadmill at a time.
12
13.
. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
Plug the power cord into a surge suppressor
(not included), and plug the surge suppres-
sor into an appropriate outlet (see page
17). To avoid overloading the circuit, do
not plug other electrical devices, except for
low-power devices such as cell phone char-
gers, into the surge suppressor or intoan
outlet on the same circuit.
14.
15.
16.
17.
18.
Use only a surge suppressor that meets all
of the specifications described on page 17.
To purchase a surge suppressor, see your
local PROFORM dealer, call the telephone
number on the front cover of this manual, or
see your local electronics store.
Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
Keep the power cord and the surge suppres-
sor away from heated surfaces.
Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 26 if the treadmill is not working
properly.)
Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 19). Always wear the clip while using
the treadmill.
19.
Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
20.
21,
22,
23.
24.
handrails while using the treadmill.
When a person is walking on the treadmill,
the noise level of the treadmill will increase.
Keep fingers, hair, and clothing away from
the moving walking belt.
The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
The heart rate monitor is not a medical
device. Various factors, including the user's
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
Never leave the treadmill unattended while it
is running. Always remove the key, press the
power switch into the off position (see the
drawing on page 6 for the location ofthe
25.
power switch), and unplug the power cord
when the treadmill is not in use.
Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on -
page 8 and HOW TO FOLD AND MOVE
THE TREADMILL on page 25.) You must be
able to safely lift 45 Ibs. (20 kg) to move the
treadmill.
26.
27,
28,
29.
30.
„31.
When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
Do not change the incline of the treadmill by
placing objects under the treadmill.
Never insert any object into any. opening on
the treadmill.
Inspect and properly tighten all parts each
time the treadmill is used.
DA NGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
Over exercising may result in serious injury.
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS
PROTECT
YOUR FITNESS EQUIPMENT
WITH AN EXTENDED SERVICE PLAN
As the leading provider of manufacturer's extended service plans,
Your new fithess equipment is not an ordinary purchase; itis an
Investment in your health and well being for years to come,
ICON strives to protect your equipment and your future.
Please review the following service plans and find one that best fits your needs.
PREVENTIVE MAINTENANCE SERVICE PLANS
To protect your fitness equipment today, please
1-800-677-3838.
call Customer Care at
Or, visit us oniine at
www. .utserv.com.
Equipment Price 3-Year Plan © 5YearPlan Features:
Ш | | » Includes an annual preventive
$0.00 10 $1000.00 $199.99 | $289.99 maintenance and performance
- " check at your convenience
>1001.00 to 1500.00 5259.99 ‚| $379.99 + Unlimited in-home repairs;
— no shipping required
$1501.00 to $2500.00 $339.99 $489.99 » Covers parts and labor on all
Bikes/S onl —_— manufacturer's defects, as well as
| $0.00 ао 00 у) $139.99 NA wear and tear on parts
© | + Up to 5 years of coverage available
STANDARD SERVICE PLANS
Equipment Price | 1YearPlan | 2¥earPlan | 3-YearPlan Features:
$0.00 to O + Unlimited in-home repairs;
$300 00 $29.99 539,99 559.99 no shipping reguired
$301.00 to | | Covers parts and labor on all
$1000.00 $89.99 3119.99 | $149.29 manufacturer's defects, as
$1001.00 ¢ | — well as wear and tear on parts
00 to | pw
$2000.00 2109.99 5139.99 | 51 79.99 . » Up to 3 years of coverage
$2001.00 to = available
$3000.00 $179.99 $209.99 3239.99
UTSÚ
UNIVERSAL TECHNICAL SERYICES
BEFORE YOU BEGIN
Thank you for selecting the new PROFORM® manual. To help us assist you, note the product model
650 LT treadmill. The 650 LT treadmill provides an number and serial number before contacting us. The
impressive selection of features designed to make your model number and the location of the serial number
workouts at home more effective and enjoyable. decal are shown on the front cover of this manual.
For your benefit, read this manual carefully before Before reading further, please familiarize yourseif with
you use the treadmill. If you have questions after the parts that are labeled in the drawing below.
reading this manual, pleass see the front cover of this
Length: 6 ft. 1 in. (185 cm) Tablet Holder
Width: 3 ft. (91 cm) Fan
Console
Heart Rate Monitor
Handrail
Key/Clip
latch Assembly
Motor Hood
Power Switch
Walking Belt
Foot Rail
Power Cord
Wheel
Platform Cushions
Idler Roller
Adjustment Screws
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses
below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
о о О
#10 Star 1/4" Star 5/16" Star 3/8" Star
Screw (63)—2
Washer (5)-4 Washer (26)-6 Washer (11)-4 Washer {13)--8
«a «MD CO)
#8 x 3/8" #8 x 1/2" Silver #8 x 1/2" #10 x 3/4" #8 x 5/8"
Screw (105-8 Screw (10) Screw (1)--19 Screw (9)-4 Screw (8)-4
3/8" x 1 1/4" 3/8" x 1 3/4" Screw (62)-2
8/8" x 2 1/4" Screw (7)-4 5/16" x 2 1/2" Screw (28)-4
1/4" x 4 1/2" Scrow (6)-2
ASSEMBLY
* To hire a service technician to assemble this
product in your home, cail 1-800-445-2480.
* Assembly requires two persons,
+ Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
+ After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal, If
there is an olly substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner,
* Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
+ To identify small parts, see page 7.
* Assembly requires the following tools:
the included hex keys enn
one Phillips screwdriver EE
one crescent wrench Oo €
To avoid damaging parts, do not use power tools.
1. Goto www.proformservice.com/
registration on your computer and register
your product.
+ activates your warranty
* saves you time if you ever need to contact
Customer Care
+ allows us to notify you of upgrades and offers
Note: if you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (81) to
the front of the Base (94).
Next, identify the Right Upright (90). Have a
second person hold the Right Upright near the
Base (94).
See the inset drawing. Tie the wire tie (A) in
the Right Upright (90) securely around the end
of the Upright Wire (81). Then, insert the Upright
Wire into the lower end of the Right Upright as
you puli the other end of the wire tie through the
Right Upright.
3. Lay the Right Upright (20) near the Base (94).
Press the Grommet (77) into the square hole (B)
in the Right Upright. Make sure not to pinch
the ground wire (C).
Next, remove and discard the indicated screw (D).
Then, attach the ground wire to the Right
Upright (90) with a #8 x 1/2" Silver Screw (10).
4. Hold the Right Upright (90) against the
Base (94). Make sure not to pinch the Upright
Wire (81).
Attach the Right Upright (20) with two 3/8" x
2 1/4" Screws (7), a 3/8" x 1 1/4" Screw (63),
a 3/8" x 1 3/4" Screw (62), and four 3/8" Star
Washers (13) as shown; do not fully tighten
the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
5. Identify the Left and Right Base Covers (82, 83).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (89, 90) as shown.
10
6. Attach a Handrail (84) to the Right Upright (90)
with a 5/16" x 2 1/2" Screw (28) and a 5/16" Star
Washer (11) in the location shown. Make sure
not to pinch the Upright Wire (81). Do not
fully tighten the Screw yet.
Attach the other Handrail (hot shown) to the
Left Upright (89) in the same way. Note: There
are no wires on the left side.
Then, remove and discard the two indicated
screws (E) from each Handrail (84) (only one
Handrail is shown).
7. IMPORTANT: To avoid damaging the Pulse
Crossbar (93), do not use power tools and do 28
not overtighten the #10 x 3/4" Screws (9). FT
Orient the Pulse Crossbar (93) as shown. Attach
the Pulse Crossbar to the Handrails (84) with
four #10 x 3/4" Screws (9) and four #10 Star
Washers (5); start ail four Screws, and then
tighten them. Make sure not to pinch the
Upright Wire (81).
Tighten two 5/16" x 2 1/2" Screws (28) with
two 5/16" Star Washers (11) into the Pulse
Crossbar (93) as shown.
Next, firmly tighten the four 5/16" x 2 1/2"
Screws (28).
Then, remove the wire tie (A) from the Upright
Wire (81).
11
8. Set the Console Base (64) face down on a soft
surface to avoid scratching the Console Base. 9 105
Remove and save the four 1/4" x 1/2"
Screws (2).
27 105
Identify the Left Tray (36). Attach the Left Tray J
with four #8 x 3/8" Screws (105). Zw” 64 AN
36
Next, attach the Right Tray (27) with four
#8 X 3/8" Screws (105).
9. With the help of a second person, hold the con-
sole assembly (F) near the right Handrail (84)
and the Left Handrail (not shown),
See the inset drawing. Connect the Upright
Wire (81) to the console wire (G). The connec
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER. Then, remove the wire tie (A)
from the Upright Wire.
12
10. Set the console assembly (F) on the
H.
Handrails (84). Make sure that no wires are
pinched. Insert the excess Upright Wire (81)
Into the Right Upright (20).
Attach the console assembly (F) to the brackets
on the Handralls (84) with the four 1/4" x 1/2"
Screws (2) that you removed in step 8 and
four 1/4" Star Washers (26); firmly tighten the
Screws.
Identify the Right Handrail Cover (31). Set the
Right Handrail Cover on the right Handrail (84).
Tighten three #8 x 1/2" Screws (1) into the bot-
tom of the Right Handrail Cover; do not fully
tighten the Screws.
Next, slide the Right Handrail Cover (31) forward
until it slides under the console assembly (F).
Then, tighten the three #8 x 1/2" Screws (1); do
not overtighten the Screws.
Attach the Left Handrail Cover (87) in the
same way.
13
12. Slide the Right and Left Handrail Grips (74, 79)
over the Right and Left Handrail Covers (not
shown) and against the console assembly (F).
Attach the Handrail Grips (74, 79) with two
#8 x 1/2" Screws (1); do not overtighten the
Screws,
13. Hold the Pulse Bar (85) near the console
assembly (F). Connect the two pulse wires (G)
and the Console Ground Wire (58).
Attach the Pulse Bar (85) to the Pulse Crossbar
(93) with eleven #8 x 1/2" Screws {1); start all
eleven Screws, and then tighten them. Make
sure that no wires are pinched.
14
14. Orient the Latch Assembly (52) as shown.
15.
Attach the Latch Assembly to the Left
Upright (89) with two 1/4" x 4 1/2" Screws (6)
and two 1/4" Star Washers (26); do not over-
tighten the Screws,
Firmly tighten the four 3/8" x 2 1/4"
Screws (7), the two 3/8" x 1 3/4" Screws (62),
and the two 3/8" x 1 1/4" Screws (63).
Next, set the Left Inner Base Cover (100) onto
the lower end of the Left Upright (89). Then, slide
the Left Base Cover (82) downward and press it
onto the Left Inner Base Cover.
Then, set the Right Inner Base Cover (101) onto
the lower end of the Right Upright (90). Then,
slide the Right Base Cover (83) downward and
press it onto the Right inner Base Cover.
15
16. Attach the Tablet Holder (25) to the console
17.
assembly (F) with four 48 x 5/8" Machine
Screws (8). Note: Start the two top Machine
Screws first, and then start the two bottom
Machine Screws. Be careful not to over-
tighten the Machine Screws.
IMPORTANT: The Tablet Holder (25) is
designed for use with most full-size tablets.
Do not place any other electronic device or
object in the Tablet Holder.
16
25
Start First sé
Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the fioor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight, Keep the included hex key in a secure
place; the hex key is used to adjust the walking belt (see page 27). Note: Extra hardware may be included,
16
HOW TO USE THE TREADMILL
HOW TO CONNECT THE POWER CORD
Use a Surge Suppressor
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your home's
power. Voltage surges, spikes, and noise interfer-
ence can result from weather conditions or from other
appliances being turned on or off. To decrease the
risk of damaging the treadmill, always use a surge
suppressor with the treadmill. To purchase a surge
suppressor, see precaution 14 on page 3.
Use only a surge suppressor that is UL 1449 listed as a
transient voltage surge suppressor (TVSS), The surge
suppressor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dissipation of
450 joules. The surge suppressor must also be electri-
cally rated for 120 volts AC and 15 amps. There must
be a monitoring light on the surge suppressor to indi-
cate whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill
and serious injury to users.
Plug in the Power Cord
The treadmill must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. The treadmill power cord has a piug with a
grounding pin {see drawing 1 on this page).
A DANGER: Improper connection
of the power cord increases the risk of elec-
tric shock. Do not modify the plug-—if it will
not fit an outlet, have a proper outlet installed
by a qualified electrician, If you are unsure
whether the treadmill is properly grounded,
contact a qualified electrician.
Plug the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet that is
property installed and grounded in accordance with all
local codes and ordinances. The outlet must be on a
nominal 120-volt circuit capable of carrying 15 or
more amps. To avoid overloading the circuit, do
not plug other electrical devices, except for low-
power devices such as cell phone chargers, into
the surge suppressor or into an outlet on the same
circuit. IMPORTANT: If the treadmill is connected to
an AFCl-equipped outlet and your circuit breaker
trips repeatedly when the treadmill is used, see the
front cover of this manual to purchase an arc filter.
Grounded Outlet
Grounding Pin
A temporary
adapter may ев ol
be used to poie Heceptac
connect the Adapter
surge sup-
pressor to SC
a 2-pole C0
receptacle g X S
fa properly Metal <
grounded = Sam
outlet is not
available. 7 |
The lug or wire extending from the adapter must
be connecied with a metal screw to a permanent
ground such as a properly grounded outlet box cover,
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet box
cover is grounded. The temporary adapter should
be used only until a properly grounded outlet can
be installed by a qualified electrician.
17
CONSOLE DIAGRAM
O
O
CA
O
O
СВО
ORO
FEATURES OF THE CONSOLE
The treadmill console offers a selection of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode, you can change the
speed and Incline of the treadmill with the touch of a
button. As you exercise, the console will display instant
exercise feedback. You can even measure your heart
rate using the handgrip heart rate monitor or a compat-
ible heart rate monitor. See page 23 for information
about purchasing an optional chest heart rate moni-
tor.
In addition, the console features a selection of on-
board workouts. Each workout automatically controls
the speed and incline of the treadmill as it guides you
through an effective exercise session.
You can also connect your smart device to the console
and use an iFit® app to record and track your workout
information.
You can even listen to your favorite workout music or
audio books with the console’s sound system while you
exercise,
18
To turn on the power, see page 19. To use the man-
ual mode, see page 19. To use an onboard workout,
see page 21. To use an interval training workout,
see page 22, To connect your smart device to the
console, see page 22. To connect your heart rate
monitor to the console, see page 23. To use the
sound system, see page 23. To use the information
mode, see page 24. To use the tablet holder, see
page 24.
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of mea-
surement is selected, see THE INFORMATION MODE
on page 24. For simplicity, all instructions in this sec-
tion refer to miles.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill, The first time you use
the treadmill, observe the alignment of the walking
helt, and center the walking belt if necessary (see
page 27).
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to 1.
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components. | 2.
Plug in the power cord (see
page 17). Next, locate the
power switch on the tread-
mill frame near the power
cord, Press the power
switch into the reset
position.
Next, stand on the
foot rails of the
treadmill. Find the
clip attached to the
key and slide the
clip onto the waist-
hand of your clothes.
Then, insert the key
into the console.
After a moment, the
displays will light.
IMPORTANT: In an emergency, the key can be
pulted from the console, causing the walking belt
to siow to a stop. Test the clip by carefully taking
a few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
IMPORTANT: Before you use the treadmill, take
the following steps to ensure that the console
shows the correct incline level of the treadmill:
First, press the Incline increase button once. Next,
press either the Incline decrease button or the low-
est Quick incline button to set the treadmill to its
lowest setting. When the frame stops moving, the
treadmill is ready for use.
19
HOW TO USE THE MANUAL MODE
Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
Select the manual mode.
Press the Manual Control button to select the
manual mode.
Enter your weight,
Press the Wt increase or decrease button to enter
your weight. This information will improve the accu-
racy of the power ring. Note: Press and hoid the Wt
increase or decrease button to enter your weight
more quickly.
Start the walking belt.
To start the waiking belt, press the Run button or
one of the Quick speed buttons.
If you press the Run button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed
increase and decrease buttons. Each time you
press one of the buttons, the speed setting will
change by 0.1 mph; if you hold down the button,
the speed setting will change in increments of 0.5
mph. Note: After you press the button, it may take
a moment for the walking belt to reach the selected
speed setting.
If you press one of the Quick speed buttons, the
walking belt will gradually change speed until it
reaches the selected speed setting. To select a
speed setting that includes a decimal—such as 3.5
mph—press two numbered buttons in succession.
For example, to select a speed setting of 3.5 mph,
press the 3 button and then immediately press the
5 button, Note: This option wilt not function if the
console is set to metric units.
To stop the walking belt, press the Stop button.
The time will begin to flash in the display. To restart
the walking belt, press the Run button.
5. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase and decrease buttons or one of the
Quick incline buttons. Each time you press one of
the buttons, the treadmill wili gradually adjust to the
selected incline setting.
Follow your progress with the display.
As you walk or run on the treadmill, the display can
show the following workout information:
+ The incline level of the treadmill
* Your heart rate (see step 7)
* Your power level in waits
+ The speed of the walking belt
* The elapsed time
* Your pace
* The approximate number of calories you have
burned
+ The distance that you have walked or run
Press the Display button to view the desired infor-
mation in the display.
As you exercise, the power ring will indicate
the approximate intensity level of your exercise,
To adjust the intensity level, press the Watts/Kg
increase or decrease button, The speed and/or
Incline settings of the treadmill wii automatically
increase or decrease to reach the desired intensity
level.
To reset the display, press the Stop button repeat-
adly, or remove the key and then reinsert the key.
20
7.
Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip heart rate monitor or a compatible heart
rate monitor, For information about purchasing
an optional chest heart rate monitor, see page
23.
The console Is compatible with ail BLUETOOTH®
Smart heart rate monitors. To connect your heart
rate monitor to the console, see page 23.
Note: If you use both heart rate monitors at the
same time, the BLUETOOTH Smart heart rate
monitor will have priority.
Before using
the hand-
grip heart
rate monitor,
remove the
sheets of plas-
tic from the
metal contacts
on the pulse
bar, In addi-
tion, make
sure that your
hands are
clean.
\ Contacts
To measure your heart rate, stand on the foot
rails and hold the pulse bar with your palms on
the metal contacts; avoid moving your hands.
When your pulse is detected, your heart rate will be
shown. For the most accurate heart rate read-
ing, continue to hold the contacts for about 15
seconds.
8.
9.
Turn on the fan if desired.
The fan features several speed
settings. Press the fan butions
repeatedly to select a fan speed
or to turn on or turn off the fan.
When you are finished exercising, remove the
key from the console,
Step onto the foot rails, press the Stop button
repeatedly, and adjust the incline of the treadmiil
to zero. The incline must be at zero or you may
damage the treadmill when you fold it to the
storage position. Next, remove the key from the
console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmill’s electrical components may
wear prematurely.
HOW TO USE AN ONBOARD WORKOUT
1.
Insert the key into the console,
See HOW TO TURN ON THE POWER on page 19.
Enter your weight.
See step 3 on page 19.
Select an onhoard workout.
To select an onboard workout, press the Tempo
Apps bution or the Interval Apps button repeatedly
until the desired workout appears in the display.
21
Start the workout.
Press the Run button to start the workout. A
moment after you press the button, the treadmill
will automatically adjust to the first speed and
incline settings of the workout. Hold the handrails
and begin walking.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting and/
or incline setting may be programmed for consecu-
tive segments.
If the speed or incline setting is too high or too low
at any time during the workout, you can manu-
ally override the setting by pressing the Speed or
Incline buttons; however, when the next segment
of the workout begins, the treadmill will auto-
matically adjust to the speed and incline set-
tings for the next segment.
To stop the workout at any time, press the Stop
button. To resume the workout, press the Run but-
ton. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.
Follow your progress with the display.
See step 6 on page 20. The display wiil show the
time remaining instead of the elapsed time.
Measure your heart rate if desired.
See step 7 on page 20.
. Turn onthe fan if desired.
See step 8 at the left.
. When you are finished exercising, remove the
key from the console.
See step 9 at the left.
HOW TO USE AN INTERVAL TRAINING WORKOQUT
During an interval training workout, you will repeatedly
alternate between intervals of low-intensity “recovery”
exercise and intervals of high-intensity “work” exercise.
1.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 19.
Enter your weight.
See step 3 on page 19.
Select settings for the recovery intervals.
Press the Speed and Incline buttons to select the
desired speed setting and the desired incline set-
ting for the recovery intervals. Then, press and hold
the Recovery button until the console beeps twice.
Select settings for the work intervals.
Press the Speed and Incline buttons to select the
desired speed setting and the desired incline set-
ting for the work intervals. Then, press and hold the
Work button until the console beeps twice.
Alternate between recovery intervals and work
intervals.
As you exercise, press the Recovery button to
select the speed and Incline settings that you
selected for recovery intervals, Press the Work but-
ton to select the speed and incline settings that you
selected for work intervals, Alternate between the
settings as many times as desired.
To change the settings at any time, repeat steps 3
and 4.
22
Follow your progress with the displays.
See step 6 on page 20. The display will show the
time remaining instad of the elapsed time,
Measure your heart rate if desired.
See siep 7 on page 20,
Turn on the fan if desired.
See step 8 on page 21.
When you are finished exercising, remove the
key from the console.
See step 9 on page 21.
HOW TO CONNECT YOUR SMART DEVICE TO THE
CONSOLE
The console supports BLUETOOTH connections to
smart devices via the iFit app and to compatible heart
rate monitors. Note: Other BLUETOOTH connections
are not supported.
1.
2.
Download and install the iFit app on your smart
device,
On your 10S® or Android™ smart device, open the
App Store*M or the Google Play™ store, search for
the free ¡Fit app, and then install the app on your
smart device. Make sure that the BLE option is
enabled on your smart device.
Then, open the ¡Fit app and follow the instructions
to set up an ¡Fit account and customize settings.
Connect your smart device to the console.
Follow the instructions in the ¡Fit app to connect
your smart device to the console.
When a connection is established, the LED on the
console will flash blue. Press the Bluetooth button
on the console to confirm the connection; the LED
on the console will then turn solid blue.
Record and track your workout information,
Follow the instructions In the ¡Fit app to record and
track your workout information.
Diconnect your smart device from the console
if desired.
To disconnect your smart device from the console,
press and hold the Bluetooth button on the console
for 5 seconds; the LED on the console will turn off.
Note: All BLUETOOTH connections between the
console and other devices (including any smart
devices, heart rate monitors, and so forth) will be
disconnected.
THE OPTIONAL CHEST HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during
your workouts. The optional chest heart rate monitor
will enable you to continuously monitor your heart rate
while you exercise, helping you to reach your personal
fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
Note: The console is compatible with all BLUETOOTH
Smart heart rate monitors.
23
HOW TO CONNECT YOUR HEART RATE MONITOR
TO THE CONSOLE
The console is compatible with all BLUETOOTH Smatt
heart rate monitors.
To connect your BLUETOOTH Smart heart rate moni-
tor to the console, press the Bluetooth button on the
console. When a connection is established, the LED on
the console will flash twice, Note: This may take up to
15 seconds,
Note: If there is more than one compatible heart rate
monitor near the console, the console will connect to
the heart rate monitor with the strongest signal.
To disconnect your heart rate monitor from the console,
press and hold the Bluetooth button on the console for
5 seconds; after the LED lights, release the button,
Note: All BLUETOOTH connections between the
console and other devices (including any smart
devices, heart rate monitors, and so forth) will be
disconnected.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the jack
on the console and into a jack on your MP3 player,
CD player, or other personal audio player; make sure
that the audio cable is fully plugged in. Note: To
purchase an audio cable, see your local electronics
store.
Next, press the play button on
your personal audio player. Adjust
the volume level using the volume
increase and decrease buttons on
the console or the volume control on
your personal audio player.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat
surface instead of on the console.
THE INFORMATION MODE
The console features an information mode that keeps
track of treadmill usage information and allows you to
select a unit of measurement for the console.
To select the information mode, insert the key into the
console while holding down the Stop button. Then,
release the Stop button. Note: If a workout has been
selected, you may have to press the Stop button
repeatedly to exit the workout before you can access
the information mode.
When the information mode is selected, the foliowing
information wiil be shown:
The display will show the software version of the con-
sole,
An “E” for English miles or an “M” for metric kilometers
will appear in the display. Press the Speed increase
button to change the unit of measurement, if desired.
To exit the information mode, remove the key from the
console, or press the Stop button repeatedly,
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder is designed for use
with most full-size tablets. Do not place any other
electronic device or object in the tablet holder.
To insert a tablet into the tablet holder, set the bottom
edge of the tablet in the tray, Then, pull the clip over
the top edge of the tablet. Make sure that the tablet
is firmly secured in the tablet holder. Reverse these
actions to remove the tablet from the tablet holder,
FCC INFORMATION
This console has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfuf interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in à particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
+ Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and the receiver,
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
+ Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate this equipment.
IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the console
must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or
transmitter.
Note: The console contains either FCC ID: OMCBBICON14 or FCC ID: OMCBMDT.
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
to zero before you fold the treadmill. Then, remove
the key and unplug the power cord. CAUTION: You
must be able to safely lift 45 Ibs. (20 kg) to raise,
lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown
by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Bend your legs
and keep your back straight as you raise the
frame about halfway to the vertical position.
2. Hold the frame firmly with your right hand. Pull the
latch knob to the left and hold it. Raise the frame
until the latch plate Is past the latch pin. Then,
slowly release the latch knob; make sure that the
latch plate is resting against the latch pin.
Engaged
Latch Plate
U
To protect the floor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight. Do
not leave the treadmill in the storage position in tem-
peratures above 85° F (30° С).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the latch knob is
in the storage position. Moving the treadmill may
require two people.
1. Hold the frame and one of the handrails, and place
one foot against a wheel.
2. Pull back on the handrail until the treadmill wii roll
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the tread-
milf without tipping it back, do not pull on the
frame, and do not move the treadmill over an
uneven surface.
3. Place one foot against a wheel, and carefully lower
the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2. Hold the upper end of the treadmill
with your right hand. Pull the latch knob to the left
and hold it. Next, lower the frame until it is past the
lateh pin. Make sure that the latch pin does not hit
against the foot rail. Then, release the latch knob.
2. See drawing 1 at the left. Hold the metal frame
firmly with both hands, and lower it to the floor.
CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Bend your
legs and keep your back straight.
25
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Regular maintenance is important for optimal per-
formance and to reduce wear. Inspect and properly
tighten all parts each time the treadmill is used,
Regularly clean the treadmill and kesp the walking belt
clean and dry. First, press the power switch into the
off position and unplug the power cord. Wipe exte-
rior parts of the treadmill with a damp cloth and a small
amount of mild soap. IMPORTANT: Do not spray
liquids directly onto the treadmill. To avoid damage
to the console, keep liquids away from the console.
Then, thoroughly dry the treadmili with a soft towel.
TROUBLESHOOTING
SYMPTOM: The power does not turn on
a. Make sure that the power cord is plugged into a
surge suppressor and that the surge suppressor is
plugged into a properly grounded outlet (see page
17). Use only a surge suppressor that meets
all of the specifications described on page 17.
IMPORTANT: If the treadmill is connected to an
AFCl-equipped outlet and your circuit breaker
trips repeatedly when the treadmill is used, see
the front cover of this manual to purchase an
arc filter,
b. After the power cord has been piugged in, make
sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
power switch, wait for five minutes and then press
the switch back in.
SYMPTOM: The power turns off during use
a. Check the power switch (see the drawing above).
If the switch has tripped, wait for five minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord Is plugged in, unplug it, wait for five
minutes, and then plug It back in.
с. Remove the key from the console, and then
reinsert it.
d. Hf the treadmill still will not run, please see the front
cover of this manual.
SYMPTOM: The incline of the treadmill does not
change correctly
a. Hold down the Stop button and the Speed increase
button, insert the key into the console, and then
release the Stop button and the Speed increase
button. Next, press the Stop button, and then
press the Incline increase or decrease button. The
treadmill will automatically rise to the maximum
incline level and then return to the minimum level.
This will recalibrate the incline system. If the incline
system does not begin calibrating, press the Stop
button again, and then press the Incline increase or
decrease button again. When the incline system is
calibrated, remove the key from the console.
26
SYMPTOM: The walking belt slows when walked on SYMPTOM: The walking belt is off-center or slips
when walked on
a. Use only a surge suppressor that meets all of the
specifications described on page 17. a. If the walking belt is off-center, first remove the
key and UNPLUG THE POWER CORD. If the
b. If the walking belt is overtightened, treadmill per- walking belt has shifted to the left, use the hex
formance may decrease and the walking belt may key to turn the left idler roller screw clockwise 1/2
become damaged. Remove the key and UNPLUG of a turn; If the walking belt has shifted to the
THE POWER CORD. Using the hex key, turn both right, turn the left idler roller screw counterclock-
idler roller screws counterclockwise, 1/4 of a turn. wise 1/2 of a turn. Be careful not to overtighten the
When the walking belt is properly tightened, you walking belt. Then, plug in the power cord, insert
should be able to lift each edge of the walking belt the key, and run the treadmili for a few minutes.
2 to 3 in. (5 to 7 cm) off the walking platform, Be . Repeat until the walking belt is centered.
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walk-
ing belt is properly tightened,
b, If the walking belt slips when walked on, first
remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idier roller
screws clockwise, 1/4 of a turn. When the walk-
ing belt is correctly tightened, you should be able
to lift each edge of the walking belt 2to 3 in. (5 to
7 cm) off the walking platform. Be careful to keep
c. Your treadmill features a walking belt coated with the walking belt centered. Then, plug in the power
high-performance lubricant, IMPORTANT: Never cord, insert the key, and carefully walk on the
apply silicone spray or other substances to treadmill for a few minutes. Repeat until the walk-
the walking belt or the walking platform unless ing belt is properly tightened.
instructed to do so by an authorized service
representative. Such substances may deteriorate
the walking belt and cause excessive wear. If you b E EZ
suspect that the walking belt needs more lubricant, 7 =
see the front cover of this manual.
и 2 п во
d. If the walking belt still slows when walked on, see Ze И
the front cover of this manual. 2] e
27
EXERCISE GUIDELINES
A WARNING « Before beginning this
or any exercise program, consult your physi-
cian, This is especially important for persons
over age 35 or persons with pre-existing
- health problems. В |
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
— intended only as an exercise aid in determin-
ing heart rate trends in general. |
These guidelines wili help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity Is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
165 155 145 140 130 125 115 W
145 138 130 125 118 110 103 ®
125 120 115 110 105 95 90 “
20 30 40 50 60 70 80
To find the proper intensity level, find your age at the
bottom of the chart {ages are rounded off to the near-
est ten years), The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middie number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
28
Burning Fat-—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number In your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise —If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up-—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise- Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down— Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
clse, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch--~never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your
hips. Allow your back and shoulders to relax as you reach down toward
your toes as far as possible. Hold for 15 counts, then relax, Repeat 3
times. Stretches: Hamstrings, back of knees and back,
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended ieg. Reach
toward your toes as far as possible, Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands
against a wall. Keep your back leg straight and your back foot flat on
the floor. Bend your front leg, lean forward and move your hips toward
the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To
cause further stretching of the achilies tendons, bend your back leg as
well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand, Bring your heel as close to your buttocks as
possible. Hold for 15 counts, then relax. Repeat 3 times for each leg.
Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
29
PART LIST
Key No. Qty.
I DOUONOGUAON —
25
BspHLIGUDVANOHSSONHRHCHASOHNANNDNA<NDNHOSOSS_BAANAGNDA
Description
#8 x 1/2" Screw
1/4" x 1/2" Screw
Base Pad
#8 x 3/4" Screw
#10 Star Washer
1/4" x 4 1/2" Screw
3/8" x 2 1/4" Screw
#8 x 5/8" Machine Screw
#10 x 3/4" Screw
#8 x 1/2" Silver Screw
5/16" Star Washer
#8 x 1" Tek Screw
3/8" Star Washer
#8 x 3/4" Truss Head Screw
1/4" x 2 1/2" Screw
3/8" x 1 1/2" Bolt
3/8" x 1 1/2" Wheel Bolt
Console Frame
#8 x 7116" Screw
1/4" x 3/8" Screw
3/8" Pin
3/8" x 1 1/8" Bolt
5/16" x 1 3/4" Shoulder Bolt
#8 Star Washer
Tablet Holder
1/4" Star Washer
Right Tray
5/16" x 2 1/2" Screw
3/8" x 1 3/4" Hex Head Bolt
5/16" Flat Washer
Right Handrail Cover
Incline Motor Spacer
3/8" Jam Nut
5/16" Nut
1/4" x 1 1/4" Screw
Left Tray
#8 x 5/8" Screw
Wheel
isolator
Rear Foot
Latch Plate
Left Foot Rall
Caution Decal
Walking Platform
Walking Belt
Beit Guide
Right Rear Foot
Cable Tie
30
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
Key No. Qty.
DI md oh BPR) =k ek eh E 1D Ll ld A ПО = =® СЛОВО $6 =® a ON Bd AN =O
Model No. PFTL70015.0 R1215A
Description
Drive Holier/Pulley
Base Pad Spacer
9/32" Plastic Bushing
Lateh Assembly
1/4" x 1 1/4" Screw
Drive Motor
Motor Belt
. Frame
Left Rear Foot
Console Ground Wire
Rubber Cushion
Right Foot Rail
idier Roller
3/8" x 1 3/4" Screw
3/8" x 1 1/4" Screw
Console Base
Motor Hood
Cushion Bottom
Incline Frame Spacer
Hood Ciip
Incline Motor
Incline Frame
Frame Spacer
Controller
Controller Plate
Right Handrail Grip
Power Switch
Power Cord
Grommet
Beily Pan
Left Handrail Grip
Console
Upright Wire
Left Base Cover
Right Base Cover
Handrail
Pulse Bar
Cable Tie
Left Handrail Cover
Key/Clip
Left Upright
Right Upright
Warning Decal
Console Clamp
Pulse Crossbar
Dase
#8 x 1/2" Machine Screw
3/8" Washer
Key No. Qty. Description Key No. Qty. Description
97 8 M5 Washer 104 1 Power Cord Grommet
98 1 1/4" Nut 105 8 48 x 3/8" Screw
99 1 Controller Clamp 106 4 #8 x 3/8" Fan Screw
100 1 Left Inner Base Cover 107 1 Fan
101 1 Right Inner Base Cover 108 1 Fan Grill
102 4 3/8" Plastic Bushing * = User's Manual
103 2 Roller Spacer
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
31
EXPLODED DRAWING A Model No. PFTL70015.0 R1215A
32
Model No. PFTL70015.0 R1215A
EXPLODED DRAWING B
4
A—4
æ-—4
65
33
Model No. PFTL70015.0 R1215A
EXPLODED DRAWING C
34
EXPLODED DRAWING D Model No. PFTL70015.0 R1215A
ORDERING REPLACEMENT PARTS
To order replacement paris, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
« the modei number and serial number of the product (see the front cover of this manual)
+ the name of the product (see the front cover of this manual)
+ the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 5.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for the lifetime of the original
purchaser {customer}. The motor Is warranted for twenty-five (25) years from the date of purchase. Parts
and labor are warranted for one (1) year from the date of purchase.
This warranty extends only to the customer. ICON’s obligation under this warranty is limited to repairing or
replacing, at ICON’s option, the product through one of its authorized service centers. All repairs for which
warranty claims are made must be preauthorized by ICON. If the product is shipped to a service center,
freight charges to and from the service center will be the customer's responsibility. If replacement parts
are shipped while the product is under warranty, the customer will be responsible for a minimal handiing
charge. For in-nome service, the customer will be responsible for a minimal trip charge. This warranty
does not extend to freight damage to the product. This warranty will automatically be voided if the product
is used as a store display model, if the product is purchased or transported outside the USA, if alt instruc-
tions in this manual are not followed, if the product is abused or improperly or abnormally used, or if the
product is used for commercial or rental purposes. No other warranty beyond that specifically set forth
above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specific legal rights; the customer may have other rights that vary from state to
state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 375356 R1215A Printed in China © 2015 ICON Health & Fitness, Inc.
