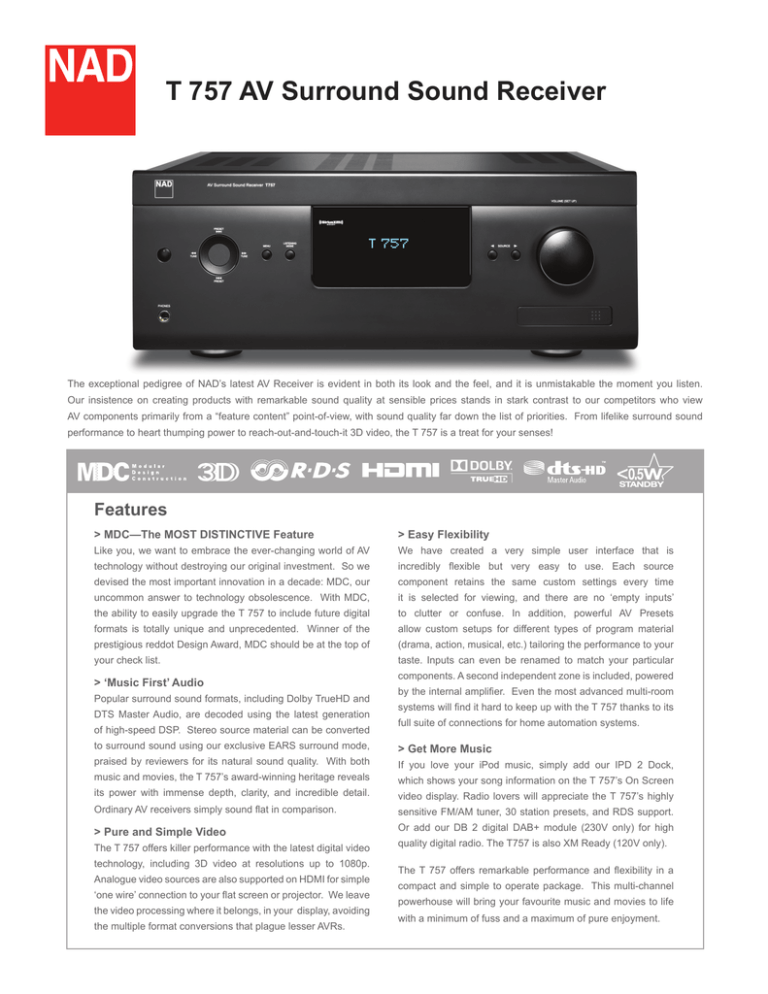

T 757 AV Surround Sound Receiver
The exceptional pedigree of NAD’s latest AV Receiver is evident in both its look and the feel, and it is unmistakable the moment you listen.
Our insistence on creating products with remarkable sound quality at sensible prices stands in stark contrast to our competitors who view
AV components primarily from a “feature content” point-of-view, with sound quality far down the list of priorities. From lifelike surround sound
performance to heart thumping power to reach-out-and-touch-it 3D video, the T 757 is a treat for your senses!
Features
> MDC—The MOST DISTINCTIVE Feature
> Easy Flexibility
Like you, we want to embrace the ever-changing world of AV
We have created a very simple user interface that is
technology without destroying our original investment. So we
incredibly flexible but very easy to use. Each source
devised the most important innovation in a decade: MDC, our
component retains the same custom settings every time
uncommon answer to technology obsolescence. With MDC,
it is selected for viewing, and there are no ‘empty inputs’
the ability to easily upgrade the T 757 to include future digital
to clutter or confuse. In addition, powerful AV Presets
formats is totally unique and unprecedented. Winner of the
allow custom setups for different types of program material
prestigious reddot Design Award, MDC should be at the top of
(drama, action, musical, etc.) tailoring the performance to your
your check list.
taste. Inputs can even be renamed to match your particular
> ‘Music First’ Audio
Popular surround sound formats, including Dolby TrueHD and
DTS Master Audio, are decoded using the latest generation
of high-speed DSP. Stereo source material can be converted
to surround sound using our exclusive EARS surround mode,
praised by reviewers for its natural sound quality. With both
music and movies, the T 757’s award-winning heritage reveals
its power with immense depth, clarity, and incredible detail.
Ordinary AV receivers simply sound flat in comparison.
> Pure and Simple Video
The T 757 offers killer performance with the latest digital video
technology, including 3D video at resolutions up to 1080p.
Analogue video sources are also supported on HDMI for simple
‘one wire’ connection to your flat screen or projector. We leave
the video processing where it belongs, in your display, avoiding
the multiple format conversions that plague lesser AVRs.
components. A second independent zone is included, powered
by the internal amplifier. Even the most advanced multi-room
systems will find it hard to keep up with the T 757 thanks to its
full suite of connections for home automation systems.
> Get More Music
If you love your iPod music, simply add our IPD 2 Dock,
which shows your song information on the T 757’s On Screen
video display. Radio lovers will appreciate the T 757’s highly
sensitive FM/AM tuner, 30 station presets, and RDS support.
Or add our DB 2 digital DAB+ module (230V only) for high
quality digital radio. The T757 is also XM Ready (120V only).
The T 757 offers remarkable performance and flexibility in a
compact and simple to operate package. This multi-channel
powerhouse will bring your favourite music and movies to life
with a minimum of fuss and a maximum of pure enjoyment.
Total Depth 397mm
Total Width 435mm
Total Height
172mm
Specifications
AMPLIFIER SECTION
FTC
Full Disclosure Power (all channels driven simultaneously)
IHF Dynamic Power
8 ohms
4 ohms
Total Harmonic Distortion at rated power
IM distortion at rated power
Damping Factor, 8 ohms
Input Sensitivity and Impedance
Frequency Response
Signal/Noise Ratio
TUNER SECTION
AM SECTION
Tuning Range
Usable Sensitivity
Signal/Noise Ratio
Total Harmonic Distortion
Loop Sensitivity 20dB S/N
FM SECTION
Tuning range
Usable Sensitivity
Signal/Noise Ratio
Total Harmonic Distortion
Channel Separation
RDS Decode Sensitivity
GENERAL
Idle Power
Standby power
Unit Dimension (WxHxD) - Gross **
(includes feet, knobs and terminals)
Net weight
Shipping weight
T 757
7 x 110W
7 x 60W (0.05% THD, 20-20kHz)
137W
243W
<0.08%
<0.08%
>60
250mV/50kohms
±0.8dB (ref. 1kHz, 20Hz-20kHz)
>100dB (ref. rated power at 8 ohms, A-WTD)
>90dB (ref. 1W at 8ohms, A-WTD)
530kHz - 1710kHz (120V version, 10kHz steps)
531kHz - 1620kHz (230V version, 9kHz steps)
30dBμV
38dB
<3%
66dBμV
Mono
Mono
Stereo
Mono
Stereo
87.50MHz - 108.50MHz
<15dBμV
60dB
55dB
0.25%
0.5%
40dB
28dBμV
53W
<0.5W
435 x 172 x 397mm
17 1/8 x 6 13/16 x 15 11/16”
15.4kg (33.9lb)
18.0kg (39.6lb)
** Non-metric measurements are approximate.
Note: Installers should allow a minimum clearance of 55mm for wire/cable management.
NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD
Electronics International. All rights reserved. No part of this publication may be reproduced, stored, or transmitted in any form whatsoever
without the written permission of NAD Electronics International. © 12/11 11-027 NAD Electronics International.
