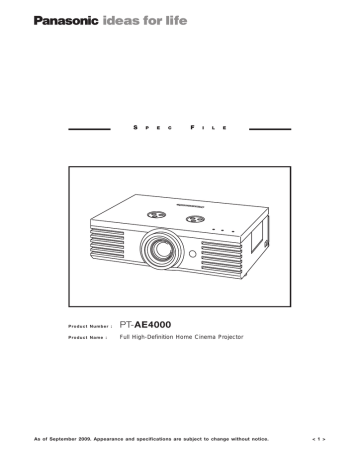

PT-AE4000 Spec File
S
P
E
C
F
I
L
E
P ro d u c t N u m b e r :
PT-AE4000
P ro d u c t N a m e :
Full High-Definition Home Cinema Projector
As of September 2009. Appearance and specifications are subject to change without notice.
< 1 >
S
P
E
C
F
I
L
E
Full High-Definition Home Cinema Projector
PT-AE4000
Specifications
Main Unit
Power supply
100 – 240 V AC, 50/60 Hz
Power consumption
240 W (0.08 W* 1 in standby mode with fan stopped)
LCD* 2 panel
Panel size
0.74˝ diagonal (16:9 aspect ratio)
Display method
Transparent LCD panel (x 3, R/G/B)
Drive method
Active matrix
Pixels
2,073,600 (1,920 x 1,080) x 3, total of 6,220,800 pixels
Lamp* 3
170 W UHM lamp
Lens
Powered zoom/focus lens (1:1–1:2), F 1.9 – 3.2, f 22.4 – 44.8 mm
Screen size
40 – 300 inches
Throw distance
1.2 –18.0 m (3´9˝– 59´3˝) (16:9 aspect ratio)
Colors
Full colour (1,073,741,824 colors)
Brightness*
1,600 lumens* 5
4
Center-to-corner uniformity ratio* 3
85 %
Contrast*
100,000:1* 5 (full on/full off)
4
Resolution
Scanning frequency
1,920 x 1,080 pixels
RGB
fH 30–70 kHz, fV 50 – 87 Hz,
Dot clock: Less than 150 MHz
YPBPR (YCBCR)
480i (525i): fH 15.75 kHz; fV 60 Hz,
576i (625i): fH 15.63 kHz; fV 50 Hz,
480p (525p): fH 31.5 kHz; fV 60 Hz,
576p (625p): fH 31.25 kHz; fV 50 Hz,
720/50p (750/50p): fH 37.5 kHz; fV 50 Hz,
720/60p (750/60p): fH 45 kHz; fV 60 Hz,
1080/50i (1125/50i): fH 28.125 kHz; fV 50 Hz,
1080/60i (1125/60i): fH 33.75 kHz; fV 60 Hz,
1080/24p (1125/24p): fH 27 kHz; fV 24 Hz,
1080/50p (1125/50p): fH 56.3 kHz; fV 50 Hz,
1080/60p (1125/60p): fH 67.5 kHz; fV 60 Hz
S-Video/Video
fH 15.75 kHz fV 60 Hz (NTSC, NTSC4.43, PAL-M, PAL60)
fH 15.63 kHz fV 50 Hz (PAL, PAL-N, SECAM)
Optical axis shift* 6
Horizontal: ±40%, vertical: ±100%
Keystone correction range
Vertical: approx. ±30°
Installation
Ceiling/floor, front/rear (menu selection)
OSD languages
English, French, German, Spanish, Italian, Chinese, Korean, Russian,
Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese,
Thai, Japanese
Terminals
HDMI IN
HDMI connector x 3, HDMI™ (Deep Color, x.v.Color™ * 7 , CEC* 8 ),
HDCP compliant, supports HDAVI Control Version 4
COMPUTER (RGB) IN
RGB signal
D-sub HD 15-pin (female) x 1
R, G, B: 0.7 V [p-p] (1.0 Vp-p for Sync on G), 75 ohms
HD/SYNC, VD: TTL (positive/negative polarity compatible)
YPBPR signal
Y: 1.0 V [p-p] (including sync signal), 75 ohms,
PB, PR: 0.7 V [p-p], 75 ohms
As of September 2009
< 2 >
S
P
E
F
C
I
L
E
Full High-Definition Home Cinema Projector
COMPONENT IN
RCA pin (Y, PB/CB, PR/CR) x 3
Y
1.0 [p-p], 75 ohms
PB/CB, PR/CR
0.7 V [p-p], 75 ohms
TRIGGER IN/OUT
PT-AE4000
M3 x 2, 12 V, max. 100 mA (input/output selectable using on-screen
menu)
VIDEO IN
RCA pin x 1, 1.0 V [p-p], 75 ohms
S-VIDEO IN
Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 V [p-p], 75 ohms
SERIAL IN
D-sub 9-pin (RS-232C) x 1, for external control
Power cord length
3 m (9´10˝)
Cabinet material
Molded (PC+ABS)
Dimensions (W x H x D)
460 x 130 x 300 mm (18-3/32˝ x 5-3/32˝ x 11-25/32˝) * 9
Weight* 10
Approx. 7.3 kg (16.09 lbs.)
Operating temperature
0°–40°C (32°–104°F)
Operating humidity
20%–80% (no condensation)
Remote Control Unit
Power supply
Operation range*
3 V DC (R6/LR6/AA type battery x 2)
11
Approx. 7 m when operated from directly in front of the signal receptor
Dimensions (W x H x D)
48 x 138 x 28.35 mm (1-7/8˝ x 5-7/16˝ x 1-1/8˝)
Weight
125 g (4.4 oz.)
Supplied Accessories
Power cord
Wireless remote control unit
Batteries for remote control (R6/LR6/AA type x 2)
Optional Accessories
Replacement lamp: ET-LAE4000
Ceiling mount bracket for high ceilings: ET-PKE2000
Ceiling mount bracket for low ceilings: ET-PKE1000S
Cable cover: ET-PCE2000
*1:
*2:
Up to 220 V.
The projector uses a type of liquid crystal panel that typically consists of millions of pixels. This panel is built with very high-precision technology to provide the finest possible image. Occasionally, a few pixels may remain turned on (bright) or turned off (dark). Please note that this
is an intrinsic characteristic of the manufacturing technology that affects all products using LCD technology.
*3:
The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to
illuminate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending
on individual lamp characteristics and usage conditions.
*4:
Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*5:
In dynamic mode, with dynamic iris on.
*6:
Shift range is limited during simultaneous horizontal and vertical shifting.
*7:
Effective in Color 1 image mode.
*8:
CEC is an abbreviation for Consumer Electronics Control. Operation may not be possible with some connected equipment or settings.
*9:
Lens and legs not included.
*10: Average value. May differ depending on models.
*11: Operation range differs depending on environments.
Weights and dimensions shown are approximate.
Specifications are subject to change without notice.
This product may be subject to export control regulations.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
x.v.Color is a trademark of Sony Corporation.
All other trademarks are the property of their respective trademark owners.
As of September 2009
< 3 >
S
P
E
F
C
I
L
E
PT-AE4000
Full High-Definition Home Cinema Projector
300 (11-23/32)
Dimensions
230 (9-1/32)
130
(5-1/8)
116
(4-9/16)
60 (2-5/16)
147 (5-25/32)
15 (19/6)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
17 (21/32)
460 (18-3/32)
Terminals
1
2
3
4
5
6
7
8
10
9
1
HDMI 1 input
2
HDMI 2 input
3
HDMI 3 input
4
Computer input
5
Component (YP B P R /YC B C R ) input
6
S-Video input
7
Video input
8
Trigger 1 input/output
9
Trigger 2 input/output
10 Serial input
COMPUTER IN connector pin assignment
6
11
1
15
5
10
D-sub HD 15-pin, female
As of September 2009
no.
signal
no.
signal
no.
signal
1
R, P R /C R
6
GND
11
GND
2
G, Y
7
GND
12
NC
3
B, P R /C R
8
GND
13
HD/SYNC
4
GND
9
NC
14
VD
5
GND
10
GND
15
NC
< 4 >
S
P
E
F
C
I
L
E
PT-AE4000
Full High Definition Home Cinema Projector
Standard setting-up positions
Upper edge of projected image
150
H
L
(5-29/32˝)
unit : mm (inch)
181
(7-1/8˝)
Projected image
NOTE:
Illustrations show the projector installed
using optional ceiling bracket ET-PKE1000S.
L
H
*1
This illustration is not drawn to scale.
Lower edge of projected image
Values shown are approximate.
W
65
(2-9/16˝)
70 (2-3/4˝)
L
Projected image
Projection distance for screen aspect ratio of 16:9
Projection size (16:9)
Diagonal length
1.02
1.27
1.52
1.78
2.03
2.29
2.54
3.05
3.81
5.08
6.35
7.62
m
m
m
m
m
m
m
m
m
m
m
m
/
/
/
/
/
/
/
/
/
/
/
/
40˝
50˝
60˝
70˝
80˝
90˝
100˝
120˝
150˝
200˝
250˝
300˝
Projection distance (L)
Min (Wide)
1.2
1.5
1.8
2.1
2.4
2.7
3.0
3.6
4.5
6.0
7.6
9.1
m
m
m
m
m
m
m
m
m
m
m
m
/ 3´11˝
/ 4´10˝
/ 5´10˝
/ 6´10˝
/ 7´10˝
/ 8´10˝
/ 9´10˝
/ 11´10˝
/ 14´9˝
/ 19´9˝
/ 24´8˝
/ 29´8˝
Max (Telephoto)
2.3
2.9
3.5
4.1
4.7
5.3
5.9
7.1
9.0
12.0
15.0
18.0
m
m
m
m
m
m
m
m
m
m
m
m
/
/
/
/
/
/
/
/
/
/
/
/
7´9˝
9´8˝
11´8˝
13´8˝
15´8˝
17´8˝
19´7˝
23´7˝
29´6˝
39´5˝
49´4˝
59´3˝
Height from the edge of screen
to center of lens
(H)
-0.25
-0.31
-0.37
-0.44
-0.50
-0.56
-0.62
-0.75
-0.93
-1.24
-1.56
-1.87
m
m
m
m
m
m
m
m
m
m
m
m
– 0.75
– 0.93
– 1.12
– 1.31
– 1.49
– 1.68
– 1.87
– 2.24
– 2.80
– 3.74
– 4.67
– 5.60
m
m
m
m
m
m
m
m
m
m
m
m
/ -10˝
/ -1´1˝
/ -1´3˝
/ -1´6˝
/ -1´8˝
/ -1´11˝
/ -2´1˝
/ -2´6˝
/ -3´1˝
/ -4´2˝
/ -5´2˝
/ -6´2˝
– 2´5˝
–
3´
– 3´8˝
– 4´3˝
– 4´10˝
– 5´6˝
– 6´1˝
– 7´4˝
– 9´2˝
– 12´2˝
– 15´3˝
– 18´4˝
Width from the right edge of screen
to center of lens
(W)
0.09
0.11
0.13
0.15
0.18
0.20
0.22
0.27
0.33
0.44
0.55
0.66
m
m
m
m
m
m
m
m
m
m
m
m
– 0.80
– 0.99
– 1.20
– 1.39
– 1.59
– 1.79
– 1.99
– 2.39
– 2.99
– 3.98
– 4.98
– 5.98
m
m
m
m
m
m
m
m
m
m
m
m
/
4˝
/
5˝
/
6˝
/
7˝
/
7˝
/
8˝
/
9˝
/ 11˝
/ 1´2˝
/ 1´6˝
/ 1´10˝
/ 2´3˝
–
–
–
–
–
–
–
–
–
–
–
–
2´7˝
3´3˝
3´11˝
4´6˝
5´2˝
5´10˝
6´6˝
7´10˝
9´9˝
13´
16´4˝
19´7˝
Projection distance for screen aspect ratio of 2.35:1
(When projecting both 2.35:1 and 16:9 images onto a 2.35:1 screen using the Lens Memory function.)
Projection size (2.35:1)
Diagonal length
1.02
1.27
1.52
1.78
2.03
2.29
2.54
3.05
3.81
5.08
6.35
7.62
m
m
m
m
m
m
m
m
m
m
m
m
/
/
/
/
/
/
/
/
/
/
/
/
40˝
50˝
60˝
70˝
80˝
90˝
100˝
120˝
150˝
200˝
250˝
300˝
Projection distance (L)
Min (Wide)
1.3
1.6
1.9
2.2
2.6
2.9
3.2
3.8
4.8
6.4
8.0
9.6
m
m
m
m
m
m
m
m
m
m
m
m
/ 4´1˝
/ 5´2˝
/ 6´2˝
/ 7´3˝
/ 8´3˝
/ 9´4˝
/ 10´5˝
/ 12´6˝
/ 15´7˝
/ 20´10˝
/ 26´1˝
/ 31´4˝
Max (Telephoto)
Height from the edge of screen
to center of lens
(H)
Width from the right edge of screen
to center of lens
(W)
–
2.3 m
2.8 m
3.3 m
3.8 m
4.2 m
4.7 m
5.7 m
7.1 m
9.5 m
12.0 m
14.4 m
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.07
0.09
0.11
0.12
0.14
0.16
0.18
0.21
0.27
0.35
0.44
0.53
/
–
/ 7´8˝
/ 9´3˝
/ 10´10˝
/ 12´5˝
/ 14´
/ 15´7˝
/ 18´9˝
/ 23´6˝
/ 31´5˝
/ 39´4˝
/ 47´3˝
m
m
m
m
m
m
m
m
m
m
m
m
– 0.40
– 0.49
– 0.60
– 0.69
– 0.80
– 0.90
– 0.99
– 1.19
– 1.49
– 1.99
– 2.49
– 2.98
m
m
m
m
m
m
m
m
m
m
m
m
/
/
/
/
/
/
/
/
/
/
/
/
0˝
0˝
0˝
0˝
0˝
0˝
0˝
0˝
0˝
0˝
0˝
0˝
– 1´3˝
– 1´7˝
– 1´11˝
– 2´3˝
– 2´7˝
– 2´11˝
– 3´3˝
– 3´11˝
– 4´10˝
– 6´6˝
– 8´1˝
– 9´9˝
m
m
m
m
m
m
m
m
m
m
m
m
– 0.64
– 0.80
– 0.96
– 1.11
– 1.27
– 1.43
– 1.59
– 1.91
– 2.39
– 3.18
– 3.98
– 4.77
m
m
m
m
m
m
m
m
m
m
m
m
/
/
/
/
/
/
/
/
/
/
/
/
3˝
4˝
5˝
5˝
6˝
7˝
7˝
9˝
11˝
1´2˝
1´6˝
1´9˝
– 2´1˝
– 2´7˝
– 3´1˝
– 3´7˝
– 4´2˝
– 4´8˝
– 5´2˝
– 6´3˝
– 7´9˝
– 10´5˝
– 13´
– 15´7˝
NOTE: The values of L shown above vary due to characteristics of the zoom lens. Images may slightly distort due to characteristics of the zoom
lens when the zoom lens is set to the minimum throw distance.
Calculation of the projection distance
For a screen size different from the above, use the equation below to calculate the projection distance.
16:9
minimum
maximum
L (m) = (diagonal screen size in inches) x 0.0302 - 0.04
L (m) = (diagonal screen size in inches) x 0.0604 - 0.05
2 . 3 5 : 1 ( W h e n p ro j e c t i n g b o t h 2 . 3 5 : 1 a n d 1 6 : 9 i m a g e s o n t o a 2 . 3 5 : 1 s c re e n u s i n g t h e L e n s M e m o r y f u n c t i o n . )
minimum
L (m) = (diagonal screen size in inches) x 0.0319 - 0.04
maximum
L (m) = (diagonal screen size in inches) x 0.0482 - 0.05
NOTE: The accuracy of calculated value by the formula shown above is ±5%.
As of September 2009
< 5 >
S
P
E
F
C
I
L
E
PT-AE4000
Full High-Definition Home Cinema Projector
Shift range
Optical axis shift function allows to shift the position of a projected image as shown below.
H
(Width of
projected image)
0.4H
Standard position
of projected image
1.0V
V
(Height of
projected image)
1.0V
0.4H
Installable angle
Install the projector at an angle within the range shown below.
• Vertical direction
The projector may be installed at a vertical angle of ±30°.
+30°
-30°
• Horizontal direction
The projector may be installed at a vertical angle of ±10°.
+10°
–10°
As of September 2009
< 6 >
S
P
E
F
C
I
L
E
PT-AE4000
Full High-Definition Home Cinema Projector
Computer data compatibility
This projector accepts up to 70 kHz horizontal scanning frequency and 150 MHz dot clock.
NOTE:
The display resolution of this projector is 1920 x 1080 pixels. If the display resolution indicated in the above data does not match
this resolution, the input signal will be converted to 1920 x 1080 pixels.
List of Compatible Signals
Display mode
Scanning frequency Dot clock
H
V
frequency
(kHz)
(kHz)
(MHz)
quality2
Format
NTSC/NTSC4.43/PAL-M/PAL60
720 x 480i
15.7
59.9
-
A
VIDEO/S-VIDEO
PAL/PAL-N/SECAM
720 x 576i
15.6
50.0
-
A
VIDEO/S-VIDEO
480i (525i)
720 x 480i
15.7
59.9
13.5
A
COMPONENT
576i (625i)
720 x 576i
15.6
50.0
13.5
A
COMPONENT
480p (525p)
720 x 483
31.5
59.9
27.0
A
COMPONENT/HDMI
576p (625p)
720 x 576
31.3
50.0
27.0
A
COMPONENT/HDMI
720 (750)/60p
1,280 x 720
45.0
60.0
74.3
AA
COMPONENT/HDMI
720 (750)/50p
1,280 x 720
37.5
50.0
74.3
AA
COMPONENT/HDMI
1080 (1125)/60i
1,920 x 1,080i
33.8
60.0
74.3
AA
COMPONENT/PC/HDMI
1080 (1125)/50i
1,920 x 1,080i
28.1
50.0
74.3
AA
COMPONENT/PC/HDMI
1080 (1125)/24p
1,920 x 1,080
27.0
24.0
74.3
AA
COMPONENT/HDMI
1080 (1125)/60p
1,920 x 1,080
67.5
60.0
148.5
AA
COMPONENT/PC/HDMI
1080 (1125)/50p
1,920 x 1,080
56.3
50.0
148.5
AA
COMPONENT/PC/HDMI
640 x 480
31.5
59.9
25.2
A
PC/HDMI
640 x 480
37.5
75.0
31.5
A
PC
640 x 480
43.3
85.0
36.0
A
PC
640 x 480
72.1
138.0
62.3
A
PC
WIDE480
856 x 480
30.1
60.1
31.5
A
PC
SVGA
800 x 600
35.2
56.3
36.0
A
PC
800 x 600
37.9
60.3
40.0
A
PC
800 x 600
48.1
72.2
50.0
A
PC
800 x 600
46.9
75.0
49.5
A
PC
800 x 600
53.7
85.1
56.3
A
PC
WIDE600
1,072 x 600
37.2
59.9
51.4
A
PC
WIDE720
1,280 x 720
45.1
60.1
76.5
AA
PC
XGA
1,024 x 768
48.4
60.0
65.0
A
PC
1,024 x 768
56.5
70.1
75.0
A
PC
1,024 x 768
60.0
75.0
78.8
A
PC
1,024 x 768
68.7
85.0
94.5
A
PC
1,024 x 768
72.1
89.0
99.2
A
PC
WIDE768
1,280 x 768
45.3
56.5
76.2
A
PC
MXGA
1,152 x 864
64.0
71.2
94.2
A
PC
1,152 x 864
67.5
74.9
108.0
A
PC
1,280 x 1,024
64.0
60.0
108.0
A
PC
1,360 x 768
48.8
59.8
74.3
A
PC
SXGA60+
1,400 x 1,050
65.1
59.9
122.4
A
PC
WIDE800
1,280 x 800
49.7
59.8
83.5
A
PC
WIDE900
1,440 x 900
55.9
59.8
106.5
A
PC
WIDE 1080/60
1,920 x1,080
66.5
59.9
138.5
AA
PC
WIDE 1080/50
1,920 x1,080
55.6
49.9
141.5
AA
PC
VGA480
SXGA
WIDE768-2
1.
2.
Display
resolution
1
(dots)
The “i” appearing after the resolution indicates an interlaced signal.
The following symbols are used to indicate picture quality.
AA
Maximum picture quality can be obtained.
A
Signals are converted by the image processing circuit before picture is projected.
As of September 2009
< 7 >
S
P
E
C
F
I
L
E
PT-AE4000
Full High-Definition Home Cinema Projector
Serial connector
The serial connector complies with RS-232C. To control the projector from a personal computer, commands must be input through communication software, based on the format and satisfying the communication conditions shown below.
Pin assignments and signal names
D-sub 9-pin
No. Signal name
Description
No. Signal name
Description
1
–
NC
6
–
NC
2
TXD
Send data
7
RTS
Connected internally
3
RXD
Receive data
8
CTS
Connected internally
4
–
NC
9
–
NC
5
GND
Ground
Communication conditions (factory setting)
Signal level
RS-232C-compliant
Synchronization method
Start-stop synchronization
Baud rate
9,600 bps
Parity
None
Character length
8 bits
Stop bit
1 bit
X parameter
None
S parameter
None
Basic format
Transmission from the computer begins with STX, then the ID, command, parameter, and ETX are sent
in this order. Add parameters according to the details of control.
STX
C1 C2 C3
Start
(1 byte)
:
P1 P2 P3 P4
ETX
Colon
Parameter
Command
(1 byte)
(1-4 bytes)
(3 bytes)
(Control and/or query commands)
End
(1 byte)
CAUTIION
When sending multiple commands, be sure to send the next command after receiving a response from the projector.
Cable specifications
Projector
1
PC (DTE)
NC
NC
3
3
4
NC
NC
DSR
NC
6
7
7
8
8
9
As of September 2009
4
5
5
6
1
2
2
NC
NC
9
< 8 >
S
P
E
C
F
I
L
E
PT-AE4000
Full High-Definition Home Cinema Projector
Control commands
Command
Function
Parameter
P ON 1
P OF 1
I IS
O MN
O EN
O BK
O CU
O CD
O CL
O CR
O LE
O ST
O FZ
F C1
O SH 2
O VM
O WM
V S1
V PM
O OT
O MM
D PA
D CM
O VL
O SM
Power on (standby mode on)
Power off (standby mode off)
Input signal selection
Menu
Enter
Return
Cursor up
Cursor down
Cursor left
Cursor right
The same function as “LENS” button
Default
Freeze
The same function as “FUNCTION” button
Blank on/off
Picture mode switch
Waveform monitor activate/off
Aspect switch
Picture mode
Off timer
The same function as “MEMORY LOAD” button
The same function as “PICTURE ADJUSTMENT” button
Color management menu
The same function as “VIERA Link” button
The same function as “SUB MENU” button
–
–
CP1, SVD, VID,
–
–
–
–
–
–
–
–
–
0, 1
–
–
–
0, 1, 2, 3, 4,
–
NOR, DYN, CL1,
0, 1, 2, 3, 4,
–
–
–
–
–
Option Menu Command
VXX
Lens memory
Gamma output level
Gamma output level
Gamma output level
Gamma output level
Gamma input level
Trigger 1 output
Trigger 2 output
(Y)
(R)
(G)
(B)
HD1, HD2, HD3, RG1
5, 6, 7, 8
CL2, CN1, CN2, CN3
5, 6, 7
LMLI0=+00000 – LMLI0=+00005
AGOS0=010000 – AGOS0=090255
AGOS1=010000 – AGOS1=090255
AGOS2=010000 – AGOS2=090255
AGOS3=010000 – AGOS3=090255
AGIS0=01000 – AGOS0=09100
TROI0=+00000 – TROI0=+00001
TROI1=+00000 – TROI1=+00001
1 PON is the only command that is effective in standby mode; all other commands are invalid. The PON command is not accepted during lamp on control.
After the lamp has been turned off and while the cooling fan is still operating, lamp on control will not be activated for about 85 seconds in order to protect the lamp.
2 Do not send OSH commands continuously in a short period of time. Doing so may burst the lamp or shorten the lamp replacement cycle.
Control command parameters
Command
Size (Byte)
IIS
3
OFZ
OWM
1
1
VPM
3
OOT
QVX:LMLI0
1
6
AGOS0
6
AGOS1
6
AGOS2
6
AGOS3
6
AGIS0
5
TROI0
TROI1
6
6
As of September 2009
Parameter
C P 1 = c o m p o n e nt, SVD = S-video, VID = video,
H D 1 = H D M I 1 , HD2 = HDMI2, HD3 = HDMI3, RG1 = computer
0 = o f f , 1 = on
0 = o f f , 1 = full scan (Y), 2 = full scan (R), 3 = full scan (G) ,
4 = f u l l s c a n (B), 5 = single line (Y), 6 = single line (R),
7 = s i n g l e l i ne (G), 8 = single line (B)
N O R = n o r m a l , DYN = dynamic, CL1 = color 1, CL2 = color 2,
C N 1 = c i n e m a 1, CN2 = cinema 2, CN3 = cinema 3
4 = 1 5 0 m i n , 5 = 180 min, 6 = 210 min, 7 = 240 min
L M L I 0 = + 0 0 0 0 0 = lens memory 1, LMLI0=+00000 = lens memory 2,
L M L I 0 = + 0 0 0 0 0 = lens memory 3, LMLI0=+00000 = lens memory 4,
L M L I 0 = + 0 0 0 0 0 = lens memory 5, LMLI0=+00000 = lens memory 6
A G O S 0 = p 1 p 2 d 1 d 2d3d4
p 1 p 2 = p o i n t number: 01 – 09, d1d2d3d4 = output: 0000 – 0255
A G O S 1 = p 1 p 2 d 1 d 2d3d4
p 1 p 2 = p o i n t number: 01 – 09, d1d2d3d4 = output: 0000 – 0255
A G O S 2 = p 1 p 2 d 1 d 2d3d4
p 1 p 2 = p o i n t number: 01 – 09, d1d2d3d4 = output: 0000 – 0255
A G O S 3 = p 1 p 2 d 1 d 2d3d4
p 1 p 2 = p o i n t number: 01 – 09, d1d2d3d4 = output: 0000 – 0255
A G I S 0 = p 1 p 2 d 1 d 2d3
p 1 p 2 = p o i n t number: 01 – 09, d1d2d3 = output: 000 – 100
T R O I 0 = + 0 0 0 0 0 = low, TROI0=+00000 = high
T R O I 1 = + 0 0 0 0 0 = low, TROI1=+00000 = high
< 9 >
S
P
E
C
F
I
L
E
Full High-Definition Home Cinema Projector
PT-AE4000
Status asking commands
Command
Description
Parameter
Q PW
Q IN
Standby power status
Input signal status
Q PM
Picture mode status
Q SH
Q FZ
Q OT
Blank function status
Freeze function status
Off timer status
Q WM
Waveform monitor statusutton
000
CP1
HD1
RG1
NOR
CL2
CN3
0 =
0 =
0 =
4 =
7 =
0 =
3 =
5 =
7 =
Option Menu Command
QVX
Gamma output level (Y)
= off, 001 = on
= component, SVD = S-video, VID = video,
= HDMI1, HD2 = HDMI2, HD3 = HDMI3,
= computer
= normal, DYN = dynamic, CL1 = color 1,
= color 2, CN1 = cinema 1, CN2 = cinema 2,
= cinema 3
off, 1 = on
off, 1 = on
off, 1 = 60 min, 2 = 90 min, 3 = 120 min,
150 min, 5 = 180 min, 6 = 210 min,
240 min
off, 1 = full scan (Y), 2 = full scan (R),
full scan (G), 4 = full scan (B),
single line (Y), 6 = single line (R),
single line (G), 8 = single line (B)
AGOS0=p1p2d1d2d3d4
p1p2 = point number: 01 – 09
d1d2d3d4 = output: 0000 – 0255
AGOS1=p1p2d1d2d3d4
p1p2 = point number: 01 – 09
d1d2d3d4 = output: 0000 – 0255
AGOS2=p1p2d1d2d3d4
p1p2 = point number: 01 – 09
d1d2d3d4 = output: 0000 – 0255
AGOS3=p1p2d1d2d3d4
p1p2 = point number: 01 – 09
d1d2d3d4 = output: 0000 – 0255
AGIS0=p1p2d1d2d3
p1p2 = point number: 01 – 09
d1d2d3 = output: 000 – 100
Gamma output level (R)
Gamma output level (G)
Gamma output level (B)
Gamma input level
NOTE: If a wrong command is received, the projector will send an ER401 command to the computer.
Command example
To set the volume to +30, send the command as shown below.
STX
Start
AVL
:
Command
30
ETX
Parameter
End
NOTE: When sending commands without parameters, a colon (:) is not necessary.
As of September 2009
< 10 >
S
P
E
C
F
I
L
E
PT-AE4000
Full High-Definition Home Cinema Projector
Notes on projector placement and operation
The projector uses a high-wattage lamp that becomes very hot during operation. Please observe the
following precautions.
1.
Never place objects on top of the projector while it is operating.
2.
Make sure there is an unobstructed space of 100 mm (3-15/16˝) or more around the projector’s air
intake openings.
3.
If the projector is placed in a box or enclosure, ensure the temperature of the air surrounding the
projector is between 0°C/32°F and 35°C/95°F. Also make sure the projector’s intake and exhaust
openings are not blocked. Take particular care to ensure that hot air from the exhaust openings is
not sucked into the intake openings.
100 mm (3-15/16˝)
or more
100 mm (3-15/16˝)
or more
100 mm (3-15/16˝)
or more
Direction of air intake and exhaust
Intake
Exhaust
Operating the projector continuously
1.
If the projector is to be operated continuously 10 hours or more, lamp replacement cycle duration
becomes shorter.
2.
The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short
periods.
As of September 2009
< 11 >
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
