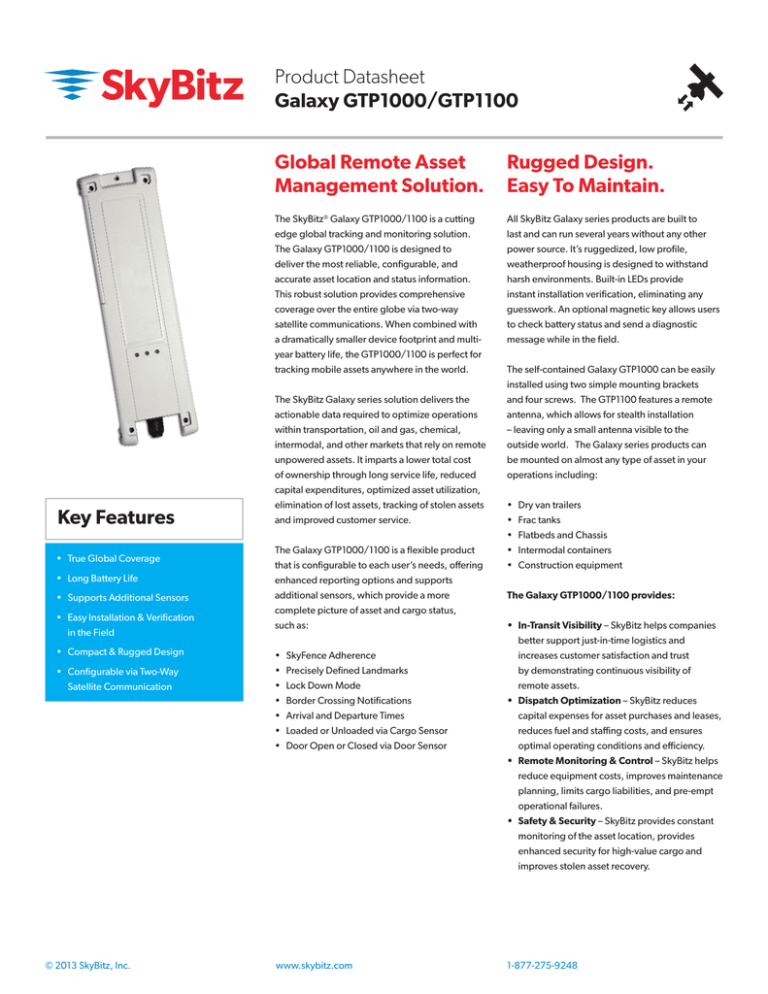

User manual | Product Datasheet Galaxy GTP1000/GTP1100 Global

Product Datasheet
Galaxy GTP1000/GTP1100
Key Features
• True Global Coverage
• Long Battery Life
• Supports Additional Sensors
• Easy Installation & Verification
in the Field
• Compact & Rugged Design
• Configurable via Two-Way
Satellite Communication
© 2013 SkyBitz, Inc.
Global Remote Asset
Management Solution.
Rugged Design.
Easy To Maintain.
The SkyBitz® Galaxy GTP1000/1100 is a cutting
edge global tracking and monitoring solution.
The Galaxy GTP1000/1100 is designed to
deliver the most reliable, configurable, and
accurate asset location and status information.
This robust solution provides comprehensive
coverage over the entire globe via two-way
satellite communications. When combined with
a dramatically smaller device footprint and multiyear battery life, the GTP1000/1100 is perfect for
tracking mobile assets anywhere in the world.
All SkyBitz Galaxy series products are built to
last and can run several years without any other
power source. It’s ruggedized, low profile,
weatherproof housing is designed to withstand
harsh environments. Built-in LEDs provide
instant installation verification, eliminating any
guesswork. An optional magnetic key allows users
to check battery status and send a diagnostic
message while in the field.
The SkyBitz Galaxy series solution delivers the
actionable data required to optimize operations
within transportation, oil and gas, chemical,
intermodal, and other markets that rely on remote
unpowered assets. It imparts a lower total cost
of ownership through long service life, reduced
capital expenditures, optimized asset utilization,
elimination of lost assets, tracking of stolen assets
and improved customer service.
The Galaxy GTP1000/1100 is a flexible product
that is configurable to each user’s needs, offering
enhanced reporting options and supports
additional sensors, which provide a more
complete picture of asset and cargo status,
such as:
•
•
•
•
•
•
•
SkyFence Adherence
Precisely Defined Landmarks
Lock Down Mode
Border Crossing Notifications
Arrival and Departure Times
Loaded or Unloaded via Cargo Sensor
Door Open or Closed via Door Sensor
www.skybitz.com
The self-contained Galaxy GTP1000 can be easily
installed using two simple mounting brackets
and four screws. The GTP1100 features a remote
antenna, which allows for stealth installation
– leaving only a small antenna visible to the
outside world. The Galaxy series products can
be mounted on almost any type of asset in your
operations including:
•
•
•
•
•
Dry van trailers
Frac tanks
Flatbeds and Chassis
Intermodal containers
Construction equipment
The Galaxy GTP1000/1100 provides:
• In-Transit Visibility – SkyBitz helps companies
better support just-in-time logistics and
increases customer satisfaction and trust
by demonstrating continuous visibility of
remote assets.
• Dispatch Optimization – SkyBitz reduces
capital expenses for asset purchases and leases,
reduces fuel and staffing costs, and ensures
optimal operating conditions and efficiency.
• Remote Monitoring & Control – SkyBitz helps
reduce equipment costs, improves maintenance
planning, limits cargo liabilities, and pre-empt
operational failures.
• Safety & Security – SkyBitz provides constant
monitoring of the asset location, provides
enhanced security for high-value cargo and
improves stolen asset recovery.
1-877-275-9248
Product Datasheet
Galaxy GTP1000/GTP1100
Actionable
Data Through
SkyBitz InSight
KEY FEATURES
The Galaxy GTP1000/1100 can be
managed through the best-in-class
SkyBitz InSight web application. Through
InSight users can track, monitor and
manage a broad range of assets. SkyBitz
InSight uses exception based reporting
to deliver insightful information that
allows management to make quick,
data-based decisions to more effectively
control their assets.
Hardware Specifications
PHYSICAL
Dimensions (L x W x H): 12.45 in x 3.56 in x 1 in (316.2 mm x 90.4 mm x 25.4 mm)
Housing Material: LEXAN 943 Polycarbonate Plastic
Weight: 1.21 lb (550 g) with batteries (no mounting brackets)
ENVIRONMENTAL
Operating temperature:
-40°C to 70°C
Storage: -55°C to 85°C (excluding batteries)
Vibration: Random vibration from 10 to 500 Hz per MIL-STD-810F
Figure 514.5C-1
“U.S. Highway Truck Vibration Exposure”
Humidity: MIL-STD-810F, Method 5.4 for six full cycles
as described in Figure 507.4-1
Shock: MIL-STD-810F, Method 516.5 Procedure I using an impact
having a shock response spectrum equal to that labeled
“Functional Test for Ground Equipment” in Figure 516.5-8
of MIL-STD-810F
Drop: MIL-STD-810F, Method 516.5, Procedure IV
Impact: ASTM D5628
Salt Fog: MIL-STD-810F, Method 509.4
Water Spray and Steam Cleaning: SAE J1455 Section 4.5
Dust and Sand Bombardment:
MIL-STD-810F, Method 510.4
Solar Load and UV Exposure: MIL-STD-810F, Method 505.4 Procedure I, Cycle A1 and
fifty-six 24-hour cycles per Procedure II
Dust/WaterIngress Protection: IP67
Power: 6 AA Lithium Iron Disulfide batteries 4.5 V, 6 Ampere-hours
RADIO PERFORMANCE
Frequency (MHz): 1575.42 MHz GLS Receive 1616.0 to 1626.5 MHz
L Band Transmit/Receive
Transmit power EIRP: 2.74 W peak
INTERFACES
I/O Connector: 18 Pin Connector
Sensor Interface:
RS485
Inputs/Outputs:
2 open/closed switch connections,
2 open/closed control lines
Smart Sensor Tracking (SST): Accelerometer
Remote Antenna (GTP1100 only):
SMA-Female
CERTIFICATIONS
FCC Part 25, CE, Industry Canada RSS-170, Pb-Free, RoHS Compliant
REMOTE ANTENNA (GTP1100 Only)
© 2013 SkyBitz, Inc.
Dimensions (L x W x H):
2.80 in x 2.80 in x 0.92 in (71.1 mm x 71.1 mm x 23.4 mm)
Housing Material: EXL 9330 or LEXAN 943 Polycarbonate Plastic
Weight: 0.69 lb (310 g)
Operating temperature:
-40°C to 70°C
Storage: -55°C to 85°C
Dust/Water Ingress Protection:
IP67
Coaxial cable: RG-223/U, 10 foot length, bottom egress,
SMA-Male, VHB mount (Optional cable side exit is available)
www.skybitz.com
