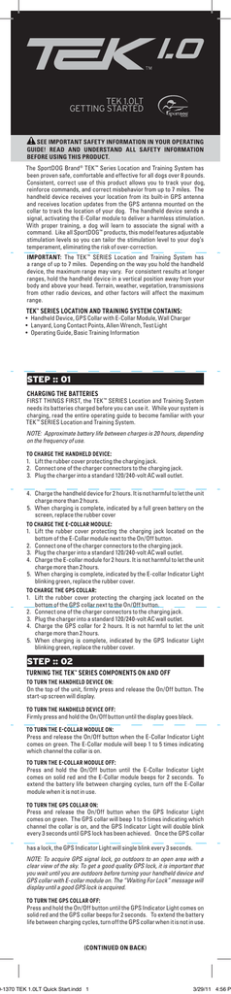

TEK 1.0LT
Getting Started
See Important Safety INformation in your operating
guide! Read and understand all safety information
before using this product.
The SportDOG Brand® TEK ™ Series Location and Training System has
been proven safe, comfortable and effective for all dogs over 8 pounds.
Consistent, correct use of this product allows you to track your dog,
reinforce commands, and correct misbehavior from up to 7 miles. The
handheld device receives your location from its built-in GPS antenna
and receives location updates from the GPS antenna mounted on the
collar to track the location of your dog. The handheld device sends a
signal, activating the E-Collar module to deliver a harmless stimulation.
With proper training, a dog will learn to associate the signal with a
command. Like all SportDOG™ products, this model features adjustable
stimulation levels so you can tailor the stimulation level to your dog’s
temperament, eliminating the risk of over-correction.
IMPORTANT: The TEK ™ SERIES Location and Training System has
a range of up to 7 miles. Depending on the way you hold the handheld
device, the maximum range may vary. For consistent results at longer
ranges, hold the handheld device in a vertical position away from your
body and above your head. Terrain, weather, vegetation, transmissions
from other radio devices, and other factors will affect the maximum
range.
TEK™ SERIES Location and Training System contains:
• Handheld Device, GPS Collar with E-Collar Module, Wall Charger
• Lanyard, Long Contact Points, Allen Wrench, Test Light
• Operating Guide, Basic Training Information
STEP :: 01
Charging the Batteries
FIRST THINGS FIRST, the TEK ™ SERIES Location and Training System
needs its batteries charged before you can use it. While your system is
charging, read the entire operating guide to become familiar with your
TEK ™ SERIES Location and Training System.
NOTE: Approximate battery life between charges is 20 hours, depending
on the frequency of use.
To charge the handheld device:
1. Lift the rubber cover protecting the charging jack.
2. Connect one of the charger connectors to the charging jack.
3. Plug the charger into a standard 120/240-volt AC wall outlet.
4. Charge the handheld device for 2 hours. It is not harmful to let the unit
charge more than 2 hours.
5. When charging is complete, indicated by a full green battery on the
screen, replace the rubber cover
To charge the E-Collar module:
1. Lift the rubber cover protecting the charging jack located on the
bottom of the E-Collar module next to the On/Off button.
2. Connect one of the charger connectors to the charging jack.
3. Plug the charger into a standard 120/240-volt AC wall outlet.
4. Charge the E-collar module for 2 hours. It is not harmful to let the unit
charge more than 2 hours.
5. When charging is complete, indicated by the E-collar Indicator Light
blinking green, replace the rubber cover.
To charge the GPS collar:
1. Lift the rubber cover protecting the charging jack located on the
bottom of the GPS collar next to the On/Off button.
2. Connect one of the charger connectors to the charging jack.
3. Plug the charger into a standard 120/240-volt AC wall outlet.
4. Charge the GPS collar for 2 hours. It is not harmful to let the unit
charge more than 2 hours.
5. When charging is complete, indicated by the GPS Indicator Light
blinking green, replace the rubber cover.
STEP :: 02
Turning the TEK™ SERIES Components ON and OFF
To turn the handheld device on:
On the top of the unit, firmly press and release the On/Off button. The
start-up screen will display.
To turn the handheld device off:
Firmly press and hold the On/Off button until the display goes black.
To turn the E-Collar module on:
Press and release the On/Off button when the E-Collar Indicator Light
comes on green. The E-Collar module will beep 1 to 5 times indicating
which channel the collar is on.
To turn the E-Collar module off:
Press and hold the On/Off button until the E-Collar Indicator Light
comes on solid red and the E-Collar module beeps for 2 seconds. To
extend the battery life between charging cycles, turn off the E-Collar
module when it is not in use.
To turn the GPS collar on:
Press and release the On/Off button when the GPS Indicator Light
comes on green. The GPS collar will beep 1 to 5 times indicating which
channel the collar is on, and the GPS Indicator Light will double blink
every 3 seconds until GPS lock has been achieved. Once the GPS collar
has a lock, the GPS Indicator Light will single blink every 3 seconds.
NOTE: To acquire GPS signal lock, go outdoors to an open area with a
clear view of the sky. To get a good quality GPS lock, it is important that
you wait until you are outdoors before turning your handheld device and
GPS collar with E-collar module on. The “Waiting For Lock” message will
display until a good GPS lock is acquired.
To turn the GPS collar off:
Press and hold the On/Off button until the GPS Indicator Light comes on
solid red and the GPS collar beeps for 2 seconds. To extend the battery
life between charging cycles, turn off the GPS collar when it is not in use.
(Continued on back)
0-1370 TEK 1.0LT Quick Start.indd 1
3/29/11 4:56 P
STEP :: 03
Calibrating the Compass
NOTE: Always calibrate the compass outdoors. Hold the compass level
and away from objects that may generate magnetic fields, such as cars
or buildings.
1. From the main menu, select COMPASS > CALIBRATE. The compass
screen appears.
2. Rotate the handheld device 2-3 times in all three dimensions as
shown below. Rotate until the black indicators are as close as
possible to the center of the green zone. If successful, your handheld
device will beep and vibrate, as well as, display a message that says
your “CALABRATION DATA HAS BEEN UPDATED SUCCESSFULLY.”
NOTE: If you are unable to get the compass to automatically
update your calibration data, follow the remaining steps.
3. Rotate until the black indicators are as close as possible to the green
zone and press the Menu Selection Pad to continue.
4. At the prompt “DO YOU WANT TO SAVE THE NEW CALIBRATION
DATA?” press the arrow keys to select YES.
5. Press BACK (top-right button on the handheld) to return to the main
menu.
NOTE: To set your magnetic declination angle to avoid inaccurate
compass readings, refer to your operating guide.
STEP :: 04
Pairing the GPS Collar With E-Collar Module to the
handheld device
Your system will already be paired when you get it, but in the event you
need to pair the handheld device to the GPS collar with E-collar module,
follow the steps outlined in Step 4 of your operating guide.
GENERAL
9:40 AM
Time
Brightness
STEP :: 05
Add Your Dog
Battery Gauge
The TEK ™ SERIES Location and Training System allows you to track and
train up to 12 dogs wearing GPS collars with E-Collar modules. After the
collars have been paired to the handheld device, you must add the dogs
Up / Down Indicators
to the system. You must repeat this procedure for each dog that you
want to work with the system.
More
/ Select
1. From the main menu, select Settings
> My
Dogs > Add A Dog.
A screen labeled DOG n appears where n is the next available
number of the dog.
BackNAME. A text entry screen
2. To enter the dog’s name, select CHANGE
displays. Select Clr and press ENTER (bottom-right button on
handheld) to clear the name. Use the arrow keys to select letters to
Text Enter
to complete
the new name.
enter a new name. Select
3. Assign a collar to this dog by selecting COLLAR. Use the arrow keys
TRAINING
to select the color matching the desired collar from the previously
paired collars.
4. Once a collar is assigned to the new dog,
you are ready
to track and
Continuous
Stimulation
C
train this dog. Press BACK (top-right button on handheld) to return
to the main menu.
Vibration
V
T
Tone
My Dog
STEP :: 06
Fit the GPS collar with E-Collar Module
Put the collar around your dog’s neck and adjust to find the proper fit,
making sure the GPS antenna is at the back of your dog’s neck for best
reception. Fasten the collar so the fit is snug; yet loose enough to allow
one finger to fit between the strap and the dog’s neck. Fit is important
because a loose collar may cause inconsistent performance.
©2011 Radio Systems® Corporation
10427 Electric Avenue • Knoxville, TN 37932 • 1-800-732-0144
sportdog.com/TEK
0-1370 TEK 1.0LT Quick Start.indd 2
400-1370
Congratulations!
At this point, your TEK ™ SERIES Location and Training System is ready
for field use.
3/29/11 4:56 P
