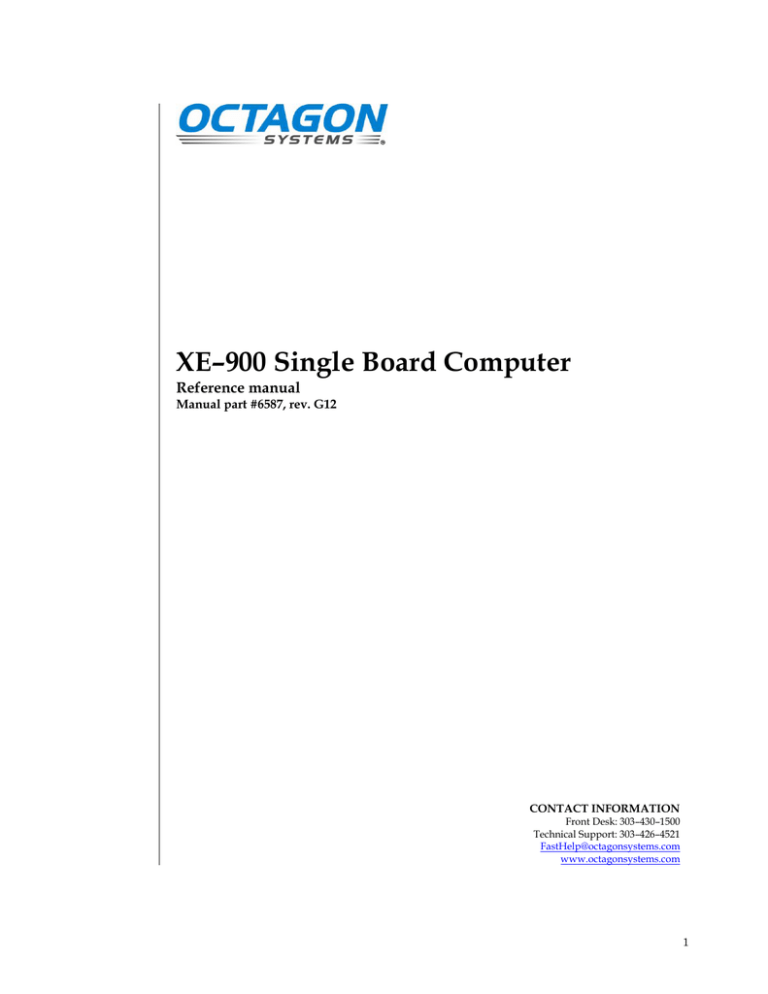

XE–900 Single Board Computer

Reference manual

Manual part #6587, rev. G12

CONTACT INFORMATION

Front Desk: 303–430–1500

Technical Support: 303–426–4521

[email protected]

www.octagonsystems.com

1

2

Copyright

OS Embedder™ is a trademark, and Octagon Systems Corporation®, and the

Octagon logo are registered trademarks of Octagon Systems Corporation. ROM–

DOS™ is a trademark of Datalight. QNX® is a registered trademark of QNX

Software Systems Ltd. Windows 2000®, Windows NT®, Windows XP® and

Windows CE.net® are registered trademarks of Microsoft Corporation.

HyperTerminal ™ is a copyright of Hilgraeve, Inc. CompactFlash™ is a trademark of San Disk Corporation. Ethernet® is a registered trademark of Xerox

Corporation.

Disclaimer

Copyright 2005, 2006, 2007—Octagon Systems Corporation. All rights reserved.

However, any part of this document may be reproduced, provided that Octagon

Systems Corporation is cited as the source. The contents of this manual and the specifications herein may change without notice.

The information contained in this manual is believed to be correct. However,

Octagon assumes no responsibility for any of the circuits described herein, conveys no license under any patent or other right, and makes no representations that the circuits are free from patent infringement. Octagon makes no representation or warranty that such applications will be suitable for the use specified without further testing or modification.

Octagon Systems Corporation general policy does not recommend the use of its products in life support applications where the failure or malfunction of a component may directly threaten life or injury. It is a Condition of Sale that the user of Octagon products in life support applications assumes all the risk of such use and indemnifies Octagon against all damage.

Technical Support

Carefully recheck your system before calling Technical Support. Run as many tests as possible; the more information you can provide, the easier it will be for Technical

Support staff to help you solve the problem. For additional technical assistance, try the following:

Technical Support telephone: 303–426–4521

E-mail Technical Support: [email protected]

Applications Notes (via web): www.octagonsystems.com

Revision History

Revision Reason for Change

A05 Initial Production Release

B05

C05

Updated connection table, clarified PC/104-Plus table

Added Integrated Conductive Cooling System, updated

SDRAM support to 512 MB, clarified IDE

D06

E07

F11

G12

Corrected transposed COM5 and COM6 in Table A-3, updated to remove reference to CD

Added caution on -12V for PC/104-Plus

Removed unsupported features

Updated specifications for temperature de-rating of new product

Date

02 / 05

06 / 05

11 / 05

07 / 06

11 / 07

01/11

05/12

3

4

IMPORTANT!

Please read the following section before installing your product:

Octagon’s products are designed to be high in performance while consuming very little power. In order to maintain this advantage, CMOS circuitry is used.

CMOS chips have specific needs and some special requirements that the user must be aware of. Read the following to help avoid damage to your card from the use of

CMOS chips.

Using CMOS circuitry in industrial control

Industrial computers originally used LSTTL circuits. Because many PC components are used in laptop computers, IC manufacturers are exclusively using

CMOS technology. Both TTL and CMOS have failure mechanisms, but they are different. Described below are some of the failures that are common to all manufacturers of CMOS equipment.

The most common failures on CPU control cards are over voltage of the power supply, static discharge, and damage to the serial and parallel ports. On expansion cards, the most common failures are static discharge, over voltage of inputs, over current of outputs, and misuse of the CMOS circuitry with regards to power supply sequencing. In the case of the video cards, the most common failure is to miswire the card to the flat panel display. Miswiring can damage both the card and an expensive display.

Multiple component failures: The chance of a random component failure is very rare since the average MTBF of an Octagon card is greater than 11 years.

In a 7 year study, Octagon has never found a single case where multiple IC failures were not caused by misuse or accident. It is very probable that multiple component failures indicate that they were user-induced.

Testing “dead” cards: For a card that is “completely nonfunctional”, there is a simple test to determine accidental over voltage, reverse voltage or other

“forced” current situations. Unplug the card from the bus and remove all cables. Using an ordinary digital ohmmeter on the 2,000 ohm scale, measure the resistance between power and ground. Record this number. Reverse the ohmmeter leads and measure the resistance again. If the ratio of the resistances is 2:1 or greater, fault conditions most likely have occurred. A common cause is miswiring the power supply.

Improper power causes catastrophic failure: If a card has had reverse polarity or high voltage applied, replacing a failed component is not an adequate fix. Other components probably have been partially damaged or a failure mechanism has been induced. Therefore, a failure will probably occur in the future. For such cards, Octagon highly recommends that these cards be replaced.

Other over-voltage symptoms: In over-voltage situations, the programmable logic devices, EPROMs and CPU chips, usually fail in this order.

The failed device may be hot to the touch. It is usually the case that only one IC will be overheated at a time.

Power sequencing: The major failure of I/O chips is caused by the external application of input voltage while the power is off. If you apply 5V to the input of a TTL chip with the power off, nothing will happen. Applying a 5V input to a

CMOS card will cause the current to flow through the input and out the 5V power pin. This current attempts to power up the card. Most inputs are rated at 25 mA maximum. When this is exceeded, the chip may be damaged.

Failure on power-up: Even when there is not enough current to destroy an input described above, the chip may be destroyed when the power to the card is applied. This is due to the fact that the input current biases the IC so that it acts as a forward biased diode on power-up. This type of failure is typical on serial interface chips but can apply to any IC on the card.

Under-rated power supply: The board may fail to boot due to an underrated power supply. It is important that a quality power supply be used with the XE–900 SBC that has sufficient current capacity, line and load regulation, hold up time, current limiting, and minimum ripple. The power supply for the

XE–900 must meet the startup risetime requirements specified in the ATX

Power Design Guide, version 1.1, section 3.3.5. This assures that all the circuitry on the CPU control card sequences properly and avoids system lockup.

Excessive signal lead lengths: Another source of failure that was identified years ago at Octagon was excessive lead lengths on digital inputs. Long leads act as an antenna to pick up noise. They can also act as unterminated transmission lines. When 5V is switched onto a line, it creates a transient waveform. Octagon has seen sub-microsecond pulses of 8V or more. The solution is to place a capacitor, for example 0.1 µF, across the switch contact.

This will also eliminate radio frequency and other high frequency pickup.

Avoiding damage to the heatsink or CPU

WARNING!

When handling any Octagon Single Board Computer, extreme care must be taken not to strike the heatsink (if installed) against another object, such as a table edge. Also, be careful not to drop the Single

Board Computer, since this may cause damage to the heatsink or

CPU as well.

Note Any physical damage to the single board computer card is not covered under warranty.

Excessive Thermal Stress

This card is guaranteed to operate over the published temperature ranges and relevant conditions. However, sustained operation near the maximum temperature specification is not recommended by Octagon or the CPU chip manufacturer due to well known, thermal related, failure mechanisms. These failure mechanisms, common to all silicon devices, can reduce the MTBF of the cards. Extended operation at the lower limits of the temperature ranges has no limitations.

5

Table of Contents

Copyright ........................................................................................................................................................... 2

Disclaimer .......................................................................................................................................................... 2

Technical Support ............................................................................................................................................. 2

Revision History ................................................................................................................................................ 3

Using CMOS circuitry in industrial control ........................................................................................................ 4

Avoiding damage to the heatsink or CPU............................................................................................................ 5

Excessive Thermal Stress ................................................................................................................................. 5

Table of Contents .................................................................................................................................................. 6

List of Figures ...................................................................................................................................................... 10

List of Tables ........................................................................................................................................................ 11

Overview: Section 1 – Installation ................................................................................................................. 12

Chapter 1: Overview .......................................................................................................................................... 13

Description .......................................................................................................................................................... 13

XE–900 SBC major hardware features .............................................................................................................. 13

CPU .................................................................................................................................................................. 13

Cooling ............................................................................................................................................................. 13

SDRAM ............................................................................................................................................................ 13

On-board flash ................................................................................................................................................. 13

CompactFlash socket ...................................................................................................................................... 13

Hard disk and IDE port .................................................................................................................................. 14

USB ports ........................................................................................................................................................ 14

LPT and floppy ................................................................................................................................................ 14

Digital I/O ........................................................................................................................................................ 14

Ethernet ........................................................................................................................................................... 14

Serial ports protected against ESD ................................................................................................................ 14

PC/104 and PC/104-Plus interface ................................................................................................................. 14

Video ................................................................................................................................................................ 15

Keyboard, mouse, and speaker ports .............................................................................................................. 15

Real time calendar/clock with battery backup ............................................................................................... 15

Setup information stored in Flash for high reliability .................................................................................. 15

User-available EEPROM ................................................................................................................................ 15

Watchdog timer added for safety .................................................................................................................... 15

Hardware reset ................................................................................................................................................ 16

5 Volt only operation lowers system cost ....................................................................................................... 16

Rugged environmental operation ................................................................................................................... 16

Size ................................................................................................................................................................... 16

XE–900 SBC major software features................................................................................................................ 17

Diagnostic software verifies system integrity automatically ........................................................................ 17

General Software BIOS ................................................................................................................................... 17

Octagon BIOS extensions................................................................................................................................ 17

Boot sequence .................................................................................................................................................. 17

Chapter 2: Quick start ...................................................................................................................................... 18

Component diagrams, connectors, switches and cables .................................................................................... 18

XE–900 SBC connectors and jumpers ............................................................................................................ 22

Custom cables .................................................................................................................................................. 23

Mounting the XE–900 ......................................................................................................................................... 24

Equipment required ........................................................................................................................................ 24

Hardware mounting ........................................................................................................................................ 25

XE–900 SBC power supply requirements ...................................................................................................... 26

Connecting a monitor and keyboard .................................................................................................................. 27

Monitor ............................................................................................................................................................ 27

Keyboard and mouse ....................................................................................................................................... 27

Installing an operating system ........................................................................................................................... 28

OS on CD-ROM onto a hard drive or CompactFlash ........................................................................................ 28

Chapter 3: Setup programs .............................................................................................................................. 31

Setup .................................................................................................................................................................... 31

6

System BIOS Utility menu ............................................................................................................................. 32

Information Browser menu ............................................................................................................................. 32

Basic CMOS Configuration menu .................................................................................................................. 33

Features Configuration menu ......................................................................................................................... 35

Custom Configuration menu ........................................................................................................................... 36

Plug-n-Play Configuration menu .................................................................................................................... 37

Shadow/Cache Configuration menu ............................................................................................................... 37

Writing to CMOS and exiting ......................................................................................................................... 39

Overview: Section 2 – Hardware .................................................................................................................... 40

Chapter 4: Serial ports ...................................................................................................................................... 41

Description .......................................................................................................................................................... 41

Mating receptacles .......................................................................................................................................... 41

Serial port configurations ................................................................................................................................... 41

Function and use of serial ports ......................................................................................................................... 45

COM1 as serial console device ........................................................................................................................ 45

COM2 through COM5 as RS–232 I/O ............................................................................................................ 45

COM5/6 as TTL interface ................................................................................................................................ 45

COM5/6 as RS–422 and RS–485 networks .................................................................................................... 46

RS–422 ............................................................................................................................................................. 46

RS–485 ............................................................................................................................................................. 46

Chapter 5: Console devices .............................................................................................................................. 48

Description .......................................................................................................................................................... 48

Selecting console devices .................................................................................................................................... 48

Monitor and keyboard console ........................................................................................................................ 48

Serial console ................................................................................................................................................... 49

Hot key access to serial console ...................................................................................................................... 50

Chapter 6: CompactFlash, SDRAM, and battery backup ........................................................................... 52

Description .......................................................................................................................................................... 52

CompactFlash ..................................................................................................................................................... 52

Setup configurations for CompactFlash ......................................................................................................... 52

Creating a bootable CompactFlash ................................................................................................................ 52

SDRAM ................................................................................................................................................................ 53

Battery backup for real time calendar clock ...................................................................................................... 54

Installing an AT battery ................................................................................................................................. 54

Chapter 7: External drives ............................................................................................................................... 55

Description .......................................................................................................................................................... 55

Setup configurations for hard drives ................................................................................................................. 55

Hard disk controller ............................................................................................................................................ 55

Master/slave designation for IDE devices ...................................................................................................... 55

Installing a hard drive ........................................................................................................................................ 57

Chapter 8: Bit-programmable digital I/O ...................................................................................................... 58

Description .......................................................................................................................................................... 58

Interfacing to switches and other devices .......................................................................................................... 61

Opto-module rack interface ............................................................................................................................ 61

Organization of banks ......................................................................................................................................... 63

Port addressing................................................................................................................................................ 63

I/O lines pulled low .......................................................................................................................................... 63

Configuring and programming the I/O port ...................................................................................................... 64

Programming the I/O ...................................................................................................................................... 64

Configuring the I/O ......................................................................................................................................... 64

Writing and reading from I/O ......................................................................................................................... 65

I/O output program examples ......................................................................................................................... 65

I/O input program examples ........................................................................................................................... 66

Enhanced INT 17h function definitions ............................................................................................................. 66

Initialize I/O .................................................................................................................................................... 66

Write I/O .......................................................................................................................................................... 67

Read I/O ........................................................................................................................................................... 68

Chapter 9: CRTs and LVDS flat panels ......................................................................................................... 69

Description .......................................................................................................................................................... 69

7

Video features ..................................................................................................................................................... 69

Connecting a monitor.......................................................................................................................................... 69

Connecting an LVDS flat panel display ............................................................................................................. 71

Connecting the LVDS flat panel to the XE–900 SBC .................................................................................... 71

Chapter 10: Ethernet ......................................................................................................................................... 73

Description .......................................................................................................................................................... 73

Chapter 11: PC/104 and PC/104-Plus expansion .......................................................................................... 74

Description .......................................................................................................................................................... 74

–12V PC/104-Plus devices ............................................................................................................................... 74

Chapter 12: USB ................................................................................................................................................. 76

Description .......................................................................................................................................................... 76

Overview: Section 3 – System management ................................................................................................. 77

Chapter 13: Watchdog timer and hardware reset ...................................................................................... 78

Description .......................................................................................................................................................... 78

Booting, power down, and strobing the watchdog timer ............................................................................... 78

Watchdog function definitions using enhanced INT 17h handler .................................................................... 79

Enable watchdog ............................................................................................................................................. 79

Strobe watchdog .............................................................................................................................................. 80

Disable watchdog ............................................................................................................................................. 80

Hardware reset ................................................................................................................................................... 81

Chapter 14: Serial EEPROM ............................................................................................................................ 82

Description .......................................................................................................................................................... 82

Enhanced INT 17h function definitions ............................................................................................................. 82

Serial EEPROM .................................................................................................................................................. 82

Read a single word from the serial EEPROM ................................................................................................ 82

Write a single word to the serial EEPROM ................................................................................................... 83

Read multiple words from the serial EEPROM ............................................................................................. 83

Write multiple words to the serial EEPROM ................................................................................................ 84

Return serial EEPROM size ........................................................................................................................... 85

Chapter 15: System switches, user switches, BIOS update, system functions, CPU fan, Integrated

Conductive Cooling System (ICCS), temperature sensors, power management and LEDs .............. 86

System switches .................................................................................................................................................. 86

System switch .................................................................................................................................................. 86

Video switch ..................................................................................................................................................... 86

User switches ................................................................................................................................................... 87

INT17 calls to read user switches ...................................................................................................................... 87

BIOS programming using REFLASH.EXE ....................................................................................................... 87

INT17 calls to read BIOS version ................................................................................................................... 88

System functions ................................................................................................................................................. 88

Return CPU Type ............................................................................................................................................ 89

CPU fan ............................................................................................................................................................... 89

Integrated Conductive Cooling System (ICCS) ................................................................................................. 90

Temperature sensors .......................................................................................................................................... 92

Power management ............................................................................................................................................ 92

ACPI 2.0 ........................................................................................................................................................... 92

PCI power management .................................................................................................................................. 92

LEDs .................................................................................................................................................................... 92

Chapter 16: Troubleshooting ........................................................................................................................... 93

No system LED activity ...................................................................................................................................... 93

No CRT or flat panel video ................................................................................................................................. 93

Video is present but is distorted ......................................................................................................................... 93

No serial console activity .................................................................................................................................... 94

Garbled serial console screen activity ................................................................................................................ 94

System generates a BIOS message but locks up when booting ........................................................................ 95

System will not boot from CompactFlash .......................................................................................................... 95

System locks up on power-up; may or may not respond to reset switch .......................................................... 95

System locks up after power-down/power-up .................................................................................................... 95

LED signaling of “beep” counts .......................................................................................................................... 95

Technical assistance ......................................................................................................................................... 100

8

Overview: Section 4 – Appendices ................................................................................................................ 101

Appendix A: XE–900 SBC technical data .................................................................................................... 102

Technical specifications .................................................................................................................................... 102

CPU ................................................................................................................................................................ 102

Front Side Bus ............................................................................................................................................... 102

PCI bus clock ................................................................................................................................................. 102

ISA bus clock ................................................................................................................................................. 102

BIOS ............................................................................................................................................................... 102

SDRAM .......................................................................................................................................................... 102

On-board flash ............................................................................................................................................... 102

Hard drive ...................................................................................................................................................... 102

CompactFlash socket .................................................................................................................................... 102

USB ................................................................................................................................................................ 102

Serial I/O ........................................................................................................................................................ 102

Digital I/O ...................................................................................................................................................... 102

Keyboard and mouse ports............................................................................................................................ 102

Ethernet ......................................................................................................................................................... 102

Video .............................................................................................................................................................. 103

Watchdog timer ............................................................................................................................................. 103

Real time clock............................................................................................................................................... 103

Expansion ...................................................................................................................................................... 103

Operating systems ......................................................................................................................................... 103

PCI bus mastering ......................................................................................................................................... 103

Power requirements ...................................................................................................................................... 103

Environmental specifications ....................................................................................................................... 103

Size ................................................................................................................................................................. 103

Weight ............................................................................................................................................................ 103

Excessive Thermal Stress ............................................................................................................................. 103

Mating connectors ............................................................................................................................................. 104

Maps .................................................................................................................................................................. 104

Switch settings .................................................................................................................................................. 107

Connector pin–outs ........................................................................................................................................... 109

Appendix B: Software utilities ...................................................................................................................... 118

Introduction....................................................................................................................................................... 118

Support commands ........................................................................................................................................ 118

XE900I17.EXE .................................................................................................................................................. 119

REFLASH.EXE ................................................................................................................................................. 119

RESET.COM ..................................................................................................................................................... 119

Appendix C: Accessories .................................................................................................................................. 120

Warranty ............................................................................................................................................................. 121

Limitations on warranty ................................................................................................................................... 121

Service policy ..................................................................................................................................................... 121

Returning a product for repair ......................................................................................................................... 121

Returns .............................................................................................................................................................. 122

Governing law ................................................................................................................................................... 122

9

List of Figures

Figure 2–1 XE–900 SBC component diagram (top) .......................................................................... 19

Figure 2–2 XE–900 SBC component diagram (bottom) .................................................................... 20

Figure 2–3 XE–900 SBC dimensions (without Integrated Conductive Cooling System) ................ 21

Figure 2–4 Power connector, J8 ......................................................................................................... 25

Figure 2–5 Connecting a monitor and keyboard ............................................................................... 27

Figure 2–6 Installing an operating system ........................................................................................ 30

Figure 4–1 COM ports ........................................................................................................................ 42

Figure 4–2 VTC-20F cable and null modem adapter ........................................................................ 42

Figure 4–3 Typical RS–422 four-wire interface circuit ..................................................................... 46

Figure 4–4 Typical RS–485 two–wire half duplex interface circuit ................................................. 47

Figure 5–1 Monitor and keyboard as console .................................................................................... 49

Figure 5–2 The XE–900 SBC and a serial console ............................................................................ 51

Figure 7–1 XE–900 SBC with IDE device ......................................................................................... 56

Figure 8–1 Typical digital I/O configuration ..................................................................................... 60

Figure 8–2 Organization of banks ...................................................................................................... 63

Figure 9–1 The XE–900 SBC and a VGA monitor ............................................................................ 70

Figure 9–2 The XE–900 SBC and a flat panel display...................................................................... 72

Figure 11–1 Typical PC/104 module stack .......................................................................................... 75

Figure 15–1 Integrated Conductive Cooling System .......................................................................... 90

Figure 15–2 Dimensions for the Integrated Conductive Cooling System .......................................... 91

10

List of Tables

Table 2–1

Table 2–2

Table 2–3

Table 4–1

Table 4–2

Table 4–3

Table 4–4

Table 4–5 cable

Table 4–6

Table 4–7

Table 6–1

Table 8–1

Table 8–2

Table 8–3

Table 8–4

Table 9–1

XE–900 SBC connector functions .................................................................................... 22

XE–900 SBC switch functions ......................................................................................... 22

Power connector: J8 ......................................................................................................... 26

Serial port configurations ................................................................................................ 43

COM1 and COM2 connector pin-outs (J13 connector) ................................................... 43

COM3 and COM4 connector pin-outs (J15 connector) ................................................... 44

COM5 RS–232 connector pin-out (J16 connector) .......................................................... 44

COM5 and COM6 RS–422/485 connector pin-outs and pin-out for 0.100-inch RS–422/485

44

COM5 and COM6 TTL connector pin-out (J12 connector)............................................. 45

COM5/6 switches, Switch 4 ............................................................................................. 45

Battery connector ............................................................................................................. 54

J6 arranged by function – digital I/O connector ............................................................. 58

J6 arranged by pins – digital I/O connector.................................................................... 59

Digital I/O opto-rack interface ........................................................................................ 62

I/O port byte ..................................................................................................................... 64

Table 9–2

Table 9–3

J1 – CRT connector .......................................................................................................... 70

LVDS flat panel switch, Switch 3 ................................................................................... 71

LVDS flat panel connector: J2 ......................................................................................... 72

Table 10–1 Ethernet LEDs ................................................................................................................. 73

Table 15 1 System configuration switches, Switch 2 ........................................................................ 86

Table 15–2 J9 – CPU fan connector ................................................................................................... 90

Table 16–1 POST port 80 codes .......................................................................................................... 96

Table 16–2 BIOS beep counts ............................................................................................................. 99

Table A–1

Table A–2

Table A–3

Table A–4

Table A–5

Table A 6

Table A–7

Table A–8

XE–900 SBC mating connectors ................................................................................... 104

XE–900 SBC DMA map ................................................................................................. 104

XE–900 SBC I/O map .................................................................................................... 105

XE–900 SBC interrupt map .......................................................................................... 106

XE–900 SBC memory map ............................................................................................ 107

System configuration switches, Switch 2 ...................................................................... 107

LVDS flat panel switch, Switch 3 ................................................................................. 108

COM5/6 switches, Switch 4 ........................................................................................... 108

Table A–9 J1 – CRT connector ........................................................................................................ 109

Table A–10 J2 – LVDS flat panel connector ..................................................................................... 109

Table A–11 J3 – PC/104-Plus connector .......................................................................................... 110

Table A–12 J4 – EIDE ....................................................................................................................... 111

Table A–13 PC/104 connector ........................................................................................................... 112

Table A–14 J6 – Digital I/O connector .............................................................................................. 113

Table A–15 J7 – Ethernet connector ................................................................................................. 113

Table A–16 J8 – Power connector ..................................................................................................... 113

Table A–17 J9 – CPU fan connector ................................................................................................. 114

Table A–18 J10 and J11 – COM5 and COM6 RS–422/485 connector ............................................. 114

Table A–19 J12 – COM5 and COM6 TTL connector ........................................................................ 114

Table A–20 J13 – COM1 and COM2 connector ................................................................................ 115

Table A–21 J14 – PS/2 keyboard mouse ........................................................................................... 115

Table A–22 J15 – COM3 and COM4 connector ................................................................................ 115

Table A–23 J16 – COM5 RS–232 connector ..................................................................................... 116

Table A–24 J17 – Battery connector ................................................................................................. 116

Table A–25 J18 – Speaker connector ................................................................................................ 116

Table A–26 J19 – USB connector ...................................................................................................... 116

Table A–27 J500 – CompactFlash .................................................................................................... 117

Table C–1

Table C–2

Cables and accessories ................................................................................................... 120

Digital I/O accessories ................................................................................................... 120

11

Overview: Section 1

– Installation

Section 1 provides installation and programming instructions, startup options, and system configuration program examples. The following chapters are included:

Chapter 1: Overview

Chapter 2: Quick start

Chapter 3: Setup programs

12

Chapter 1: Overview

Description

The XE–900 is a Single Board Computer (SBC) in the EPIC™ form factor. It is intended for higher-performance, low-power embedded control applications. The

XE–900 SBC integrates serial communications, Ethernet, IDE hard disk port,

CompactFlash socket, digital I/O, two USB ports, PS/2 keyboard and mouse port, speaker port, and video. The XE–900 SBC can be used in a stand-alone mode or expanded through a PC/104 or PC/104-Plus interface.

The XE–900 SBC comes with a BIOS loaded on a flash device for easy updates. It is fully compatible with most popular operating systems.

XE

–900 SBC major hardware features

CPU

The XE–900 SBC can be ordered in several configurations. The CPUs available are high-performance, low-power VIA EDEN processors (Model 9) with a clock speed of either 733 MHz or 1 GHz, or a 400 MHz Model 7 version.

The XE–900 uses the VIA VT8606 north bridge and the VIA VT82C686B south bridge for some of the peripherals. The XE–900 SBC has a Front Side Bus speed of

133 MHz, an ISA bus speed of 8.33 MHz and a PCI bus speed of 33 MHz.

Cooling

The XE–900 733 MHz and 1 GHz versions come standard with either a forced air fan or an Integrated Conductive Cooling System.

SDRAM

The XE–900 supports PC-100 or PC-133 SO–DIMM modules up to 256 MB. Some low-power 512 MB SO–DIMM modules are also supported. Contact Octagon

Systems for compatibility before using 512 MB modules. Use of incorrect 512 MB

SO–DIMM modules may cause improper operation or damage to the XE–900.

On-board flash

On board is a socketed 512 KB boot flash that contains the BIOS.

CompactFlash socket

The CompactFlash socket accepts a Type I or Type II 3V CompactFlash card. The

CompactFlash appears as an IDE device to the system. It is implemented with an

ATA-4 compliant IDE controller, and appears in Setup as the Primary IDE device.

13

14

Hard disk and IDE port

The XE–900 has two ATA-4 compliant IDE controllers. The primary channel is dedicated to the CompactFlash. The secondary channel supports two additional

IDE devices through a 2 mm, 44-pin connector. This connector supplies power to the devices. Octagon Systems has a 44-pin to 40-pin Hard Drive Adapter cable

(part #4080 or #6246) to connect IDE devices with a 40-pin interface.

USB ports

The XE–900 provides two USB 1.1 channels, accessed through a 10-pin header.

USB 1.1 provides speeds up to 12 Mbps. The Octagon two-port USB cable (part

#6288) provides a direct connection from the 10-pin connector to two USB devices.

USB is available when using an operating system that supports USB. DOS legacy

USB is supported.

Both channels are Universal HCI compliant.

Note that USB devices are hot-swappable when a device is plugged into a standard

USB connector; the pins on the connectors determine the order in which they make contact. Devices are not hot-swappable when connected to a non-standard header.

You can hot swap a device through the USB connector on the two-port USB cable, or through another USB connector wired to the 10-pin header, but you cannot hot swap at the 10-pin header itself.

LPT and floppy

The XE–900 does not provide connectors for LPT parallel port or floppy disk drive.

These functions, if required, can be obtained through USB devices, or PC/104 or

PC/104-Plus devices.

Digital I/O

The 24 digital I/O lines will interface with logic devices, switch inputs, LEDs and industry standard opto module racks. The I/O lines are 0–5V logic compatible. Each line can sink or source 15mA. The lines can be individually programmed as inputs or outputs.

Ethernet

The XE–900 provides one 10/100BaseT Ethernet port and supports the IEEE 802.3

Ethernet standard.

Serial ports protected against ESD

The XE–900 SBC has six serial ports. These ports provide one 8-wire and four 4wire RS–232C ports, and two ports of RS–422, RS–485 or TTL. COM5 can be configured as RS–232C, RS–422, RS–485 or TTL, while COM6 can be configured as

RS–422, RS–485 or TTL.

PC/104 and PC/104-Plus interface

The PC/104 interface accepts an 8- or 16-bit PC/104 expansion board. The PC/104-

Plus accepts industry-standard PC/104-Plus boards. PC/104 expansion boards are available from several manufacturers. PC/104 or PC/104-Plus expansion boards may be stacked on the XE–900 SBC to form a fully-integrated system.

If your PC/104-Plus board requires –12V, review the information on page 74 before

installing your card.

Video

The XE–900 SBC supports CRT monitors up to 1920 x 1440 x 24 bpp (bits per pixel) resolution, and LVDS-compatible flat panel displays with up to 1600 x 1200 x

18 bpp resolution.

Keyboard, mouse, and speaker ports

The keyboard controller accepts an AT style keyboard and has a PS/2 connector.

The mouse port is combined with the keyboard port and is accessed with a “Y” cable. Note that with some “Y” cables you may have to plug the mouse into the keyboard icon, and the keyboard into the mouse icon; if the mouse and keyboard do not function at power up, try switching them. A keyboard connects directly to the

XE–900 while a mouse requires the “Y” cable. Most operating systems do not require a keyboard or a mouse; however, some operating systems do require both to be connected for proper booting.

A separate connector provides for a PC-compatible speaker.

Real time calendar/clock with battery backup

The real time clock is fully AT compatible. An optional off-card battery powers the real time clock when the 5 volt supply is removed.

Setup information stored in Flash for high reliability

Loss of Setup data is serious in industrial applications. Most PCs store Setup information in battery-backed CMOS RAM. If the battery fails or is replaced during routine maintenance, this information is lost. Without a keyboard and monitor in embedded applications, time consuming re-initialization is required.

The XE–900 SBC stores the Setup information in Flash.

User-available EEPROM

An EEPROM has 1024 bytes available to the user. Software routines to use this available memory come with the XE–900 SBC.

Watchdog timer added for safety

The watchdog timer resets the system if the program stops unexpectedly. The watchdog is enabled, disabled and strobed under software control; it can also be enabled or disabled in Setup. The time-out period is programmable for 1, 10 or 60 seconds.

15

16

Hardware reset

A hardware reset ensures complete reset of the system and all attached peripherals. A hardware reset can be done by any of the following methods:

An expired watchdog timer cycle

Depressing the reset switch

Cycling power

Power supervisor reset

5 Volt only operation lowers system cost

5V ±5%

±12V supplied to PC/104 connector from the power connector; not required for

XE–900 SBC operation

+3.3V and +12V supplied to PC/104-Plus connector from the power connector; not required for XE–900 SBC operation

Rugged environmental operation

Operating temperature –40° to +60°C @ 400 MHz

–40° to +60°C @ 733 MHz, with forced air flow

–40° to +60°C @ 1 GHz, with forced air flow

These operating specifications also apply to units with the Integrated

Conductive Cooling System.

Nonoperating temperature –55° to 85°C, nonoperating

Relative humidity 5% to 95% noncondensing

Shock 40g, 3 axis

Vibration 5g, 3 axis

Size

115 mm x 165 mm x 29.5 mm, EPIC™ form factor (board)

171.45 mm x 184.15 mm x 38.96 mm (with Integrated Conductive Cooling System)

XE

–900 SBC major software features

Diagnostic software verifies system integrity automatically

The XE–900 SBC has built-in diagnostic software that can be used to verify on-card

I/O and memory functions. On power-up, a series of tests is performed. If a problem occurs, the failed test can be identified by a flashing LED or a beep code. The test is performed automatically every time the system is reset or powered up. Memory verification does not require software, test equipment, monitor, keyboard, disks, or test fixtures. See the “Troubleshooting” chapter for a listing of tests and failures and their descriptions.

General Software BIOS

The XE–900 SBC has a General Software BIOS with Octagon BIOS extensions.

The BIOS extensions support the INT17 functions.

Octagon BIOS extensions

BIOS extensions provided by a DOS TSR allow easy access to watchdog timer functions, serial EEPROM, digital I/O, etc.

Boot sequence

An XE–900 SBC can be configured to boot from CompactFlash, a hard disk, or a

CD–ROM. Refer to the appropriate chapters on these devices for specific configuration requirements.

17

Chapter 2: Quick start

This chapter covers the basics of setting up an XE–900 SBC system. The following topics are discussed:

Component diagrams, connectors, switches and cables

Mounting the XE–900 SBC

Connecting a monitor and keyboard

Installing an operating system

Component diagrams, connectors, switches and cables

Figures 2–1 and 2–2 show the connectors and switches and their locations on the

XE–900 SBC. Figure 2–3 shows the dimensions of the XE–900 SBC in inches and millimeters (without the Integrated Conductive Cooling System). For dimensions and mounting diagrams with the Integrated Conductive Cooling System see page

91. The sections immediately following those figures describe the connectors and

switches, and some cables that you might require.

WARNING!

The XE–900 SBC contains static-sensitive CMOS components. To avoid damaging your card and its components:

Ground yourself before handling the card

Disconnect power before removing or inserting a PC/104 or PC/104-

Plus expansion board.

18

Figure 2–1 XE–900 SBC component diagram (top)

19

Figure 2–2 XE–900 SBC component diagram (bottom)

20

Figure 2–3 XE–900 SBC dimensions (without Integrated Conductive Cooling System)

21

XE

–900 SBC connectors and jumpers

Table 2–1 lists the connector reference designators and function for each of the connectors. Table 2–2 lists the DIP switch reference designators and functions for each of the switches. To view the physical location of each connector and switch

block refer to the illustration on page 19. For information on mating connectors see

page 103. For information on custom cables see the following section.

Table 2–1 XE–900 SBC connector functions

J8

J9

J10

J11

J12

J13

J14

J15

J4

J5

J6

J7

Connector Function

J1 VGA video

J2

J3

LVDS video

PC/104-Plus

Hard drive

PC/104

Digital I/O

Ethernet

Power

CPU fan

COM6 RS–422/485

COM5 RS–422/485

COM5/6 TTL

COM1/2

PS/2 Keyboard / Mouse

COM3/4

J16

J17

J18

J19

J500

XU500

COM5 RS–232

PC battery

Speaker

USB1/2

CompactFlash

SO-DIMM

Table 2–2 XE–900 SBC switch functions

Function

Reset

System selections

LVDS flat panel resolution

COM5/6 termination

Switch

SW1

SW2

SW3

SW4

22

Custom cables

To conserve board real estate a few connectors on the XE–900 are non-standard or provide alternate interfaces. The cables listed below connect to the XE–900 SBC

and provide industry-standard interfaces. For ordering information see page 120.

COM PORT VTC-20F Cable. This cable connects to the 20-pin COM1/2 or

COM3/4 ports and provides two DB-9 female connectors. A VTC-20M provides two DB-9 male connectors.

COM PORT VTC-9F Cable. This cable connects to the 10-pin COM5 port and provides a DB-9 female connector. A VTC-9M provides a DB-9 male connector.

0.100-inch RS-422/485 Cable. This cable connects to the 5-pin header for RS-

422/485 on COM5 or COM6 and provides a standard DB-9 interface.

CMA-26 Ribbon Cable. Connects the 26-pin digital I/O port to an STB-26

Termination Board to provide access for field wiring

2 mm VGA-12 Cable. Provides a standard 15-pin VGA interface.

LVDS-18 Video Cable. Connects to the LVDS connector and provides 18-inch flying leads

44-pin to 40-pin IDE Cable. Converts the 44-pin IDE header to a 40-pin IDE header.

Keyboard/Mouse “Y” Cable. Connects to the PS/2 keyboard/mouse port to provide keyboard and mouse interfaces. A keyboard will plug directly into the

XE–900 port. Available at most computer supply stores.

ATX Power Cable. Connects to the 10-pin ATX power connector and provides a standard 20-pin ATX connector.

Two-port USB Cable. Converts the 10-pin header for USB1,2 into two standard USB connectors.

Caution

USB devices are hot-swappable when a device is plugged into a standard USB connector, as pins on the connectors determine the order in which they make contact. Devices are not hot-swappable when connected to a non-standard header. You can hot swap a device through the USB connector on the two port USB cable, or through another USB connector wired to the 10-pin header, but you cannot hot swap at the 10-pin header itself.

23

24

Mounting the XE

–900

WARNING!

The XE–900 contains static-sensitive CMOS components. To avoid damaging your card and its components:

Ground yourself before handling the card and observe proper ESD precautions

Disconnect power before removing or inserting a PC/104 or PC/104-

Plus expansion board

Equipment required

To install the XE–900 SBC you will need the following equipment (or equivalent):

XE–900 SBC

+5V power supply – see the XE–900 SBC power supply requirements section.

You might also need an ATX power cable, part #6537.

A device with an operating system. The device could be a CompactFlash, hard disk, or CD ROM. The operating system can be Windows NT, Windows CE.net,

Linux, QNX, or DOS.

PS/2 style keyboard

VGA monitor

2 mm VGA-12 Cable, part #6392

VTC-20F Cable, part #4866 (for serial console)

Null modem adapter, #2740 (for serial console)

Windows HyperTerminal or equivalent terminal emulation software (for serial console)

Your PC (for serial console)

Hardware components required to mount the XE–900 SBC (included):

9 threaded hex standoffs (4–40 x 3/4”)

9 screws (4–40 x 3/16”)

9 internal star lock washers (#4)

9 nuts (4–40)

Refer to the XE–900 SBC component diagram, figure 2–1 on page 19, for the

location of various connectors, and to the mounting hole diagram, figure 2–3 on

page 21, for mounting the XE–900 SBC system.

With the Integrated Conductive Cooling System use 4 #10-32 screws (not included).

See page 91.

Hardware mounting

1. Use the standoffs, washers, and screws and place them in the nine holes on the

XE–900 SBC board. Refer to Figure 2–3 for the center-to-center mounting hole dimensions and for the location of the designated holes used for mounting the hardware.

WARNING!

All nine standoffs, screws and washers must be used to secure the

XE–900 SBC. The standoffs ensure full support of the board.

WARNING!

Verify that the washers and standoffs do not touch any of the component pads adjacent to the mounting holes. Damage will occur at power-up.

2. Connect a 5V power source to the XE–900 SBC. Refer to the Power Supply

Requirements section, page 26. The power supply connector is located at J8.

Refer to Figure 2–4 and Table 2–3.

Note The +12V and +3V signals are routed to the PC/104 and PC/104-Plus bus only.

WARNING!

Make sure the power supply is OFF when connecting the power cable to the XE–900 SBC board. Damage to the XE–900 SBC may occur if the power is ON when connecting the power cable.

WARNING!

Accidentally crossing the wires, i.e., plugging +5V wires into the ground connector or the ground wires into the +5V connector will damage the XE–900 SBC.

Figure 2–4 Power connector, J8

5

10

1 6

J8

25

Table 2–3 Power connector: J8

Pin Function Function Pin

1 nc nc 6

2

3

GND

GND

+5v

+5v

7

8

4

5

+12V

+3V

–12V

GND

9

10

XE

–900 SBC power supply requirements

The XE–900 SBC is designed to operate from a single +5 VDC supply, connected at

J8. If you are using the PC/104 or PC/104-Plus interface, you may also require ±12

VDC and/or +3V. The connector is a 10-pin ATX PC power supply connector, and connects to a 10-pin ATX power supply, or with an adapter cable, to a standard 20pin ATX power supply. The typical current requirement for the XE–900 SBC is listed in the Technical Data appendix. For the XE–900 SBC the power supply must be able to meet the 10A inrush current.

The user should consider factors such as the power cable conductor gauge, number and length of conductors, mating connectors, and the power requirements of external devices such as hard drives, floppy drives, displays, mouse, and keyboard.

It is important that a quality power supply be used with the XE–900 SBC that has sufficient current capacity, line and load regulation, hold up time, current limiting, and minimum ripple. The power supply for the XE–900 must meet the startup risetime requirements specified in the ATX Power Design Guide, version 1.1, section 3.3.5. This assures that all the circuitry on the CPU control card sequences properly and avoids system lockup.

Also, select a power supply that discharges quickly. If large power supply output capacitors are used, powering the system down and then up may lock up the XE–

900 SBC. If the power supply does not drain below 0.7V, the CMOS components on the XE–900 SBC will act like diodes and forward bias, potentially damaging the

XE–900 SBC circuitry.

The proper selection of a quality power supply ensures reliability and proper functioning of the XE–900 SBC.

26

Connecting a monitor and keyboard

Figure 2–5 shows the XE–900 SBC with a monitor and keyboard. The following sections describe how to connect these items.

WARNING!

The video connector on the XE–900 is keyed, but some cables are not keyed and can be plugged in incorrectly. Ensure that pin 1 of the cable is connected to pin 1 of the connector (indicated by the dot).

Incorrect connection could damage your equipment.

Figure 2–5 Connecting a monitor and keyboard

P

C

S

VGA Monitor

PS/2 Keyboard

6 2

Monitor

2 mm VGA-12 cable

Dot indicates pin 1

XE–900

.

The XE–900 SBC interfaces to a standard VGA monitor through the J1 connector

0

Note The video switch, SW2 position3, must be ON to use a monitor. This is the default configuration.

Keyboard and mouse

The XE–900 SBC accepts an AT style keyboard and has a PS/2 type connector, located at J9. The mouse port shares the keyboard connector.

27

28

To use a keyboard, plug the keyboard directly into J14. To connect a mouse, use a laptop-style “Y” connector, available at computer stores, that splits the signals into keyboard and mouse connectors.

Note

With some “Y” cables you may have to plug the mouse into the keyboard icon, and the keyboard into the mouse icon; if the mouse and keyboard do

not function at power up, try switching them.

Installing an operating system

The XE–900 SBC does not come with an installed operating system. You can install an operating system onto a hard drive or CompactFlash. Octagon Systems has OS

Embedder™ kits available for several operating systems. These kits directly support the unique features of Octagon products, such as digital I/O, watchdog timer, etc., eliminating the need to write special drivers. Other software kits may also be available. Contact Octagon Systems for information concerning the software development kits.

To install an operating system you will need:

2 mm VGA-12 video cable, #6392

PS/2 style keyboard

VGA monitor

CD-ROM drive

Operating system media

Hard drive or CompactFlash to install the operating system on to

If installing onto a hard drive, an IDE cable with master and slave connectors

OS on CD-ROM onto a hard drive or CompactFlash

Refer to Figure 2–6 on page 30 for the following:

1. Attach the 2 mm VGA-12 video cable to J1.

2. Connect the PS/2 keyboard to J14, a VGA monitor to the VGA-12 video cable, and a CD-ROM drive to J4. Configure the CD-ROM drive as a master.

3. If using a hard drive, configure it as a slave device and install it on the IDE cable connected to J4.

Note IDE devices have a jumper or a switch that designates whether the device is a master or a slave device. If only one device is connected to a port, it must be configured as a master. If two devices are connected, one must be configured as a master and one as a slave. The XE–900 does not use the CS signal (Cable Select) to designate master or slave on a multi-connector cable. You can use BIOS Setup to designate either the master or the slave as a boot device.

4. If using a CompactFlash, install it into the CompactFlash socket.

5. Apply power to the XE–900 SBC system. A logon message similar to the one below will appear on your PC monitor:

General Software P6 Class Embedded BIOS(R) 2000 Revision 5.3 Copyright (C)

2004 General Software, Inc. All rights reserved. Octagon Systems XE900

00000589K Low Memory Passed

00117632K Ext Memory Passed

Wait.....

6. Enter Setup by pressing the Del key or Ctrl-C during BIOS POST sequence

(this occurs between the memory test and bootup).

System BIOS Setup - Utility v5.3

(C) 2004 General Software, Inc. All rights reserved

>Information Browser

Basic CMOS Configuration

Features Configuration

Custom Configuration

PnP Configuration

Shadow Configuration

Reset CMOS to last known values

Reset CMOS to factory defaults

Write to CMOS and Exit

Exit without changing CMOS

↑/↓/←/→/CR/<Tab> to select. <Esc> to continue (no save) www.gensw.com

Note Your display message may be slightly different

7. Configure the CD–ROM as a master device in BIOS Setup, and change the boot sequence to CD-ROM drive first. Designate the hard drive or CompactFlash as drive c:.

8. Insert the operating system media into the CD-ROM drive.

9. Reboot the system. The system should boot to the CD-ROM.

10. Follow the on-screen dialog to load the operating system. Refer to the OS documentation for further information.

29

Figure 2–6 Installing an operating system

VGA Monitor

2 mm VGA-12 cable

P

PS/2 Keyboard

C

S

Power Supply

Dot indicates pin 1

.

XE–900

6 2

IDE ribbon cable for two devices, or one device directly into J4

0

CD-ROM and / or

Hard Drive

30

Chapter 3: Setup programs

This chapter discusses running the Setup configuration program on the XE–900

SBC. Setup configures devices set up by the BIOS such as serial ports, floppy drives, etc.

Setup

Setup can be entered by pressing the “Delete” key on the system keyboard or Ctrl-C when POST I/O has been redirected to a serial console during the BIOS POST sequence (this occurs between the memory test and boot).

Also, by setting the “S” switch Off (Switch 2 position 1), you will force the Setup to revert to the factory-programmed defaults shown in the following menus. This allows you to boot with a known set of parameters. If you want to use the default settings for future boots, you must enter Setup and “Save” for the default values to be stored in CMOS.

Note The Setup defaults might vary slightly from those shown in the following menus depending on the BIOS revision on your card.

The system will display the XE–900 General Software System BIOS Setup Utility menu. Select the submenu by using the up/down arrows, then press <ENTER>

(when using a monitor connected to the XE–900 SBC). For a serial console configuration, Ctrl + E is up and Ctrl + X is down.

31

32

System BIOS Utility menu

The Utility menu allows you to select the appropriate menus for configuration. The menus shown below are described on the following pages. Default values are shown in the menus.

System BIOS Setup - Utility v5.3

(C) 2004 General Software, Inc. All rights reserved

>Information Browser

Basic CMOS Configuration

Features Configuration

Custom Configuration

PnP Configuration

Shadow Configuration

Reset CMOS to last known values

Reset CMOS to factory defaults

Write to CMOS and Exit

Exit without changing CMOS

↑/↓/←/→/CR/<Tab> to select. <Esc> to continue (no save) www.gensw.com

Information Browser menu

The Information Browser provides information specific to the XE–900, as well as contact information for Technical Support.

Basic CMOS Configuration menu

Default values are shown in the menu.

System BIOS Setup - Basic CMOS Configuration

(C) 2004 General Software, Inc. All rights reserved

DRIVE ASSIGNMENT ORDER

Drive A: (None)

Drive B: (None)

Drive C: Ide 0/CF socket

Drive D: (None)

Date:

Time:

Numlock: Disabled

Typematic Delay : 250 ms

Typematic Rate : 30 cps

Seek at Boot : None

Show “Hit Del” : Enabled

Config Box : Enabled

Drive E: (None)

Drive F: (None)

Drive G: (None)

Drive H: (None)

Drive I: (None)

Drive J: (None)

Drive K: (None)

Boot Method: Boot Sector

FLOPPY DRIVE TYPES:

Floppy 0: Not installed

Floppy 1: Not installed

BOOT ORDER

Boot 1st: Drive C:

Boot 2nd: Browser

Boot 3rd: None

Boot 4th: None

Boot 5th: None

Boot 6th: None

Ide 1: Not installed

F1 Error Wait : Enabled

Parity Checking : (Unused)

Memory Test Tick : Enabled

Debug Breakpoints : (Unused)

Debugger Hex Case : Upper

Memory Test : StdLo FastHi

ATA DRV ASSIGNMENT: Sect Hds Cyls

Ide 0: 3 = AUTOCONFIG, LBA

Ide 2: 3 = AUTOCONFIG, LBA

Ide 3: 3 = AUTOCONFIG, LBA

Memory

Base:

632KB

Ext:

251MB

↑/↓/←/→/CR/<Tab> to select or <PgUp>/<PgDn>/+/- to modify

<Esc> to return to main menu

DRIVE ASSIGNMENT ORDER: These selections allow you to assign the various drives installed to a designated alphabetic drive.

Note If using a floppy drive, assign a drive to A before assigning a drive to B (do not assign a drive to Drive B, but not Drive A). Do not skip drive C if using flash / hard drives (the first flash / hard drive should be drive C). If using a

CD-ROM, DO NOT assign a drive letter to its IDE port; the operating system will automatically assign a drive letter to CD-ROMs.

Do not assign the same file system to more than one drive without considering the consequences (such as assigning IDE0 to Drive C and Drive

D). This is allowed to enable aliasing of drives; however this may cause corruption of operating system cache and state unless the OS is configured for this as well. Many desktop operating systems cannot be so configured.

Drive A/B:

Drive C/D:

Selections are None, Floppy 0, Floppy 1. See note above.

Selections are None, Floppy 0, Floppy 1, Ide 0/CF socket, Ide 2/Ext Master,

Ide 3/Ext Slave. See note above, particularly if using a CD-ROM.

Drive E/F/G/H/I/J/K: Selections are None, Ide 0/CF socket, Ide 2/Ext Master, Ide 3/Ext Slave. See note above, particularly if using a CD-ROM.

Boot Method:

Selections are Windows CE or Boot Sector. For normal boot, select Boot

Sector. Windows CE users may be able to load their Windows CE environment without a DOS or other bootable environment by selecting the

Windows CE option. This will cause the BIOS to attempt to find the

Windows CE system file (NK.BIN) on boot disks.

FLOPPY DRIVE TYPES:

These selections allow you to specify the type of floppy device for

Floppy 0 and Floppy 1. The XE–900 supports USB floppies and PC/104 or

PC/104-Plus floppies. The selections are 360 KB, 5.25”; 1.2 MB, 5.25”; 720

33

System Date:

System Time:

NumLock:

BOOT ORDER:

Note

KB, 3.5”; 1.44 MB, 3.5”; 2.88 MB, 3.5”; Not installed. Note that the XE–900 does not support a floppy drive directly. This feature should be left Not

Installed if you are not using a floppy drive; for USB floppies this should also be left as Not Installed. This frees up INT6 for other applications.

Sets the date for the system clock.

Sets the time for the system clock.

Enables or disables NumLock.

These selections specify the order of the devices or events which will be used to boot the XE–900. The selections are Drive A, Drive B, Drive C,

Drive D, Reboot, CDROM, or None.

The first None stops the boot sequence; any subsequent settings in boot order after None will have no effect. The Reboot option will cause the system to attempt to reboot if the previous boot selections fail. This option requires System Management Mode to be enabled (see Features

Configuration screen.)

ATA DRIVE ASSIGNMENT: These selections allow you to specify the type of devices for IDE 0,

1, 2, and 3. IDE 0 is hardwired to the CompactFlash socket; Ide1 is unavailable. Note that the XE–900 SBC only supports three IDE devices total (CompactFlash and two Secondary devices.) The available options are

Not Installed; User Type; AUTOCONFIG, PHYSICAL; AUTOCONFIG,

LBA; AUTOCONFIG, PHOENIX, and IDE CDROM. User Type allows you to set parameters for Sectors (63 max.), Heads (255 max.) and Cylinders

(1023 max.).

Note The AUTOCONFIG, PHYSICAL; AUTOCONFIG, LBA; and

AUTOCONFIG, PHOENIX options refer to the BIOS of the system which was used to format the hard drive or CompactFlash. If you have formatted a hard drive or a CompactFlash on another system than the XE–900, you might have to change this setting for the XE–900 to recognize the drive.

Typematic Delay: Sets the time before a character will repeat when a key is continuously depressed. Selections are Disabled, 250 ms, 500 ms, 750 ms, and 1000 ms.

Typematic Rate: Sets the rate at which a character will repeat when a key is continuously depressed. Selections are 30 cps, 24 cps, 20 cps, 15 cps, 12 cps, 10 cps, 8 cps, and 6 cps.

Seek at Boot: Selections are None, Floppy, Ide, Both. For faster boot, the default setting

(None) does not perform floppy or IDE seek operations during POST. In rare cases, some drives may not properly initialize without this seek operation. For this reason, users may select to seek Floppy drives, IDE drives, or both during POST if desired.

Show “Hit Del”:

Config Box:

F1 Error Wait:

Enabled or Disabled. When enabled, the “Hit Del to access Setup” message is displayed during boot.

Enabled or Disabled. When enabled, the blue Configuration box will appear on screen during boot.

Enabled or Disabled. When enabled, the system will pause at a boot error until the F1 key is pressed.

Parity Checking: This function is not used.

Memory Test Tick: Enabled or Disabled. When enabled the system produces an audible tick during the memory test at boot.

34

Debug Breakpoints: This function is not used.

Debugger Hex Case: Upper or Lower. Selects the case for debugger output.

Memory Test: This item allows you set the test speed for both the base memory (Lo) and the extended memory (Hi). The options are Fast, Standard, or Full.

Displays the amount of system memory on the card. System Memory:

Extended Memory: Displays the amount of extended memory on the card.

Features Configuration menu

The Features Configuration menu allows you to set some of the system features.

Default values are shown in the menu.

System BIOS Setup - Feature Configuration

(C) 2004 General Software, Inc. All rights reserved

ACPI 2.0 :>Enabled

Graphical/Audio POST : Enabled

System Management Bus : Disabled

Primary IDE UDMA : Disabled

System Management Mode : Enabled

System Management BIOS : Enabled

Console Redirection : Auto

Secondary IDE UDMA : Disabled

↑/↓/←/→/CR/<Tab> to select or <PgUp>/<PgDn>/+/- to modify

<Esc> to return to main menu

ACPI 2.0: Enabled, disabled. When enabled, the BIOS supports the Advanced

Control Program Interface, level 2.0. ACPI combines the resource assignment capabilities of PnP and the power management functionality similar to APM.

Graphical/Audio POST: Enabled, disabled. When enabled, the graphical splash screen is shown during POST, along with a short sound played through the

PC Speaker. If disabled, the text POST screen is displayed. This feature is not available with a serial console.

System Management Bus: Enabled, disabled. When enabled, the BIOS supports the SMBus

BIOS interface to allow the operating system to interact with devices on the System Management Bus.

Primary IDE UDMA: Enabled, disabled. When enabled, UDMA is available on the primary IDE interface. Note: CompactFlash devices do not support

UDMA.

System Management Mode: Enabled, disabled. When enabled, the BIOS’s System Management

Mode environment is enabled. This allows use of Legacy USB devices, including keyboards or mice without OS drivers.

System Management BIOS: Enabled, disabled. When enabled, the BIOS supports the industry standard System Management BIOS (formerly known as the

Desktop Management Interface, or DMI).

Console Redirection: Auto, redirect. When set to Auto, the console will be redirected to the serial port COM1 in the event that no video controller is found

(V switch is OFF) or if a carriage return is received on COM1 during POST. When set to Redirect the console is forced to redirect to COM1 even if a video console is available.

Secondary IDE UDMA: Enabled, disabled. When enabled , UDMA is available on the

35

secondary IDE interface.

Note UltraDMA modes are not supported directly by the XE–900. These modes require an 80-pin connector, and there is no adapter available for the 44-pin, 2mm IDE connector used on the XE–900.

Custom Configuration menu

The Custom Configuration menu allows you to set parameters for COM3-6, digital

I/O, watchdog timer, video, and DMA channel reserved for system use. Default values are shown in the menu.

System BIOS Setup - Custom Configuration

(C) 2004 General Software, Inc. All rights reserved

COM3-6 Enable (See doc.) :>Normal

COM5 Mode : RS232/422

COM6 Mode : RS232/422

RAM Reserved for Video : 8 MB

AGP Aperture Size : 128

CRT Analog Output : Enabled

DMA Channel to Disable : DMA2 Digital I/I Base Address : 0x120

Watchdog Timer : Disabled

↑/↓/←/→/CR/<Tab> to select or <PgUp>/<PgDn>/+/- to modify

<Esc> to return to main menu

COM3-6 Enable: Normal, Disabled, Alternate. This item enables or disables COM3-6 for serial operation. COM3 through COM6 share IRQ9. The

Disabled option disables I/O to COM3 through COM6. Normal and

Alternate select the base address of COM3 through COM6 as shown below; only COM5 and COM6 are changed.

Port

COM3

COM4

Normal Base Address

0x3E8

0x2E8

Alternate Base Address

0x3E8

0x2E8

COM5

COM6

0x1A8

0x1A0

0x1C8

0x1C0

COM5 Mode:

COM6 Mode:

Note: COM1 is always enabled at base address 0x3F8, using IRQ 4;

COM2 is always enabled at base address 0x2F8, using IRQ 3. IRQ9 is always used by COM3-6 even if disabled. IRQ9 is NOT available

for PC/104 devices.

RS232/422, RS485. This item selects two-wire RS485, or four-wire operation (RS232/422 or TTL) for COM5.

RS232/422, RS485. This item selects two-wire RS485, or four-wire operation (RS232/422 or TTL) for COM6.

Digital I/O base Address: 0x120h, 0x320h, or disabled. Sets the base address for digital I/O.

Watchdog: Enabled, Disabled. Enables watchdog timer.

RAM reserved for Video: Disabled, 8MB, 16MB, 32MB. Specifies the amount of RAM reserved for video.

API Aperture Size: 2, 4, 8, 16, 32, 64, or 128. Sets the size for the API aperture.

36

CRT Analog Output: Enabled, disabled. When using a flat panel this must be disabled.

DMA Channel to Disable: DMA0, 1, 2, 3. The system requires one DMA channel for internal use. Whichever channel is selected will not be available on the ISA bus.

Plug-n-Play Configuration menu

The Plug-n-Play Configuration menu allows you to select IRQs and DMA channels for use by plug-n-play devices. Default values are shown in the menu.

System BIOS Setup - Plug-n-Play Configuration

(C) 2004 General Software, Inc. All rights reserved

Enable PnP Support :>Enabled

Assign IRQ0 to PnP :Disabled

Assign IRQ1 to PnP :Disabled

Enabled PnP O/S :Enabled

Assign IRQ8 to PnP :Disabled

Assign IRQ9 to PnP :Enabled

Assign IRQ2 to PnP :Disabled

Assign IRQ3 to PnP :Enabled

Assign IRQ4 to PnP :Enabled

Assign IRQ5 to PnP :Disabled

Assign IRQ6 to PnP :Enabled

Assign IRQ7 to PnP :Enabled

Assign IRQ10 to PnP :Enabled

Assign IRQ11 to PnP :Enabled

Assign IRQ12 to PnP :Disabled

Assign IRQ13 to PnP :Enabled

Assign IRQ14 to PnP :Disabled

Assign IRQ15 to PnP :Disabled

Assign DMA0 to PnP :Disabled

Assign DMA1 to PnP :Disabled

Assign DMA2 to PnP :Disabled

Assign DMA3 to PnP :Enabled

Assign DMA4 to PnP :Enabled

Assign DMA5 to PnP :Enabled

Assign DMA6 to PnP :Enabled

Assign DMA7 to PnP :Enabled

↑/↓/←/→/CR/<Tab> to select or <PgUp>/<PgDn>/+/- to modify

<Esc> to return to main menu

Shadow/Cache Configuration menu

The Shadow/Cache Configuration menu enables shadowing and selects the address where it will be stored. Shadowing is disabled by selecting None under Shadowing.

Default values are shown in the menu.

System BIOS Setup - Shadow/Cache Configuration

(C) 2004 General Software, Inc. All rights reserved

Shadowing :>Chipset

Shadow 16KB ROM at C400 :Enabled

Shadow 16KB ROM at CC00 :Disabled

Shadow 16KB ROM at D400 :Disabled

Shadow 16KB ROM at DC00 :Disabled

Shadow 16KB ROM at E400 :Enabled

Shadow 16KB ROM at EC00 :Enabled

Shadow 16KB ROM at C000 :Enabled

Shadow 16KB ROM at C800 :Disabled

Shadow 16KB ROM at D000 :Disabled

Shadow 16KB ROM at D800 :Disabled

Shadow 16KB ROM at E000 :Enabled

Shadow 16KB ROM at E800 :Enabled

Shadow 16KB ROM at F000 :Enabled

↑/↓/←/→/CR/<Tab> to select or <PgUp>/<PgDn>/+/- to modify

<Esc> to return to main menu

37

38

Writing to CMOS and exiting

The last four items in the Utility menu give you a Yes or No option when you select them. Selecting Yes will implement the item. Selecting No will return you to the

Utility menu. Those four selections are:

Reset CMOS to last known values

This item restores the values that were in CMOS at boot, without exiting

Setup.

Reset CMOS to factory defaults

Write to CMOS and Exit

Exit without changing CMOS

39

Overview: Section 2

– Hardware

Section 2 discusses usage, functions, and system configurations of the

XE–900 SBC major hardware features. The following chapters are included:

Chapter 4: Serial ports

Chapter 5: Console devices

Chapter 6: CompactFlash, SDRAM, and battery backup

Chapter 7: External drives

Chapter 8: Bit-programmable digital I/O

Chapter 9: CRTs and LVDS flat panels

Chapter 10: Ethernet

Chapter 11: PC/104 and PC/104-Plus expansion

Chapter 12: USB

40

Chapter 4: Serial ports

Description

The XE–900 SBC has six serial ports, COM1 through COM6. COM1 is a dedicated

8-wire RS–232C. COM2, COM3, and COM4 are dedicated 4-wire RS–232C. COM5 can be 4-wire RS–232C, RS–422, RS–485, or TTL. COM6 can be 4-wire RS–422,

RS–485, or TTL.

COM1 and COM2 are accessed at the 20-pin connector at J13. COM3 and COM4 are accessed at the 20-pin connector at J15. COM5 and COM6 have separate

connectors for the supported interfaces. Refer to the table on page 22 for which

connector to use for the various interfaces. Refer to the Custom Cables section on

page 23 for a description of cables that mate with these connectors.

These serial ports interface to serial device. All ports support 5-, 6-, 7-, or 8-bit word lengths, 1, 1.5, or 2 stop bits, and baud rates up to 115.2K.

The serial ports have the following specifications:

16C550 compatible

16-byte FIFO buffers

IEC 1000, level 3, ESD protection

— Contact discharge ±6 kV

— Air–gap discharge ±8 kV

Backdrive protection

Up to 115.2k baud operation

Mating receptacles

Use a VTC–20F or VTC–20M cable to connect the 20-pin COM ports to external serial equipment. The P2 and P3 connectors on these cables are DB–9 female

(VTC–20F) or DB–9 male (VTC–20M) connectors which plug directly into a 9-pin serial cable. Use a VTC–9F or VTC–9M to connect the 10-pin COM5 RS–232C port to external serial equipment For RS-422 or RS-485 on COM5 or COM6, use a 0.100 inch RS422/485 Cable (part #6683).

Figure 4–1 (following page) shows serial devices connected to the XE–900 SBC. It also shows the schematic for connecting RS–422, RS–485 and TTL devices. Note that you cannot use COM5 or COM6 for two different interfaces at the same time.

Figure 4–2 shows a null modem adapter connected to the COM1 port of a VTC–

20F. A null modem adapter is required when connecting a serial console.

Serial port configurations

COM1 and COM2 are always enabled. COM3-6 can be configured in Setup in the

Custom Configuration menu. The selections are Normal, Alternate, and Disabled.

Normal and Alternate select different addresses for COM5 and COM6. See Table

4–1 on page 43. You must also select the Mode for COM5 and COM6. For RS–232C,

RS–422 or TTL select RS232/422. For RS–485 select RS485. For additional

41

information on Setup menus see page 36.

If COM5 or COM6 are used for RS–422 or RS–485, and the XE–900 is at the end of the network, these ports will have to be terminated. Switch 4 terminates the network. The default setting is terminated. If the XE–900 is not at the end of the network the switch must be set to unterminated.

COM3 through COM6 all share interrupt 9. Even when these ports are disabled interrupt 9 is not available for PC/104 devices.

The COM ports configurations are shown in table 4–1. Tables 4–2 through 4–6 show the COM pin-outs for the COM ports, and table 4–7 shows the switch settings.

Figure 4–1 COM ports

Serial Device on COM2

Serial Device on COM1

RS–422 or RS–485

Device on COM6

TTL Device on COM5

COM2

COM1

VTC-20F cable

0.100-inch RS–422/485 cable

XE–900

COM3/4 RS–232

COM5 RS–232

COM5 RS–422/485

COM5/6 TTL

Up to six serial devices total; four or five

RS–232, one or two RS–422, RS–485, or TTL.

Figure 4–2 VTC-20F cable and null modem adapter

P3

P2

Null Modem Adapter, required for serial console

VTC-20F Cable

42

Table 4–1 Serial port configurations

COM Port Address IRQ

COM1

COM2

COM3

COM4

COM5

COM5

COM5

3F8h

2F8h

3E8h

2E8h

1A8*

1C8

1A8*

1C8

1A8*

1C8

IRQ4

IRQ3

IRQ9

IRQ9

IRQ9

Interface

RS–232 – 8 wire

RS–232 – 4 wire

RS–232 – 4 wire

RS–232 – 4 wire

IRQ9 RS–232 – 4 wire

(COM5 Mode RS232)

IRQ9 RS–422 – 4 wire

(COM5 Mode RS232)

RS–485 – 2 wire

(COM5 Mode RS485)

BIOS

Setup

NA

NA

Normal

Normal

Normal*

Alternate

Normal*

Alternate

Normal*

Alternate

Connector

J13

J13

J15

J15

J16

J11

J11

COM5

COM6

COM6

COM6

1A8*

1C8

1A0*

1C0

1A0*

1C0

1A0*

1C0

IRQ9

IRQ9

IRQ9

IRQ9

TTL

(COM5 Mode RS232)

RS–422 – 4 wire

(COM6 Mode RS232)

RS–485 – 2 wire

(COM6 Mode RS485)

TTL

(COM6 Mode RS232)

Normal*

Alternate

Normal*

Alternate

Normal*

Alternate

Normal*

Alternate

J12

J10

J10

J12

* This address is used when Normal is selected in Setup. The other address is used when Alternate is selected.

Table 4–2 COM1 and COM2 connector pin-outs (J13 connector)

17

18

19

20

12

13

14

15

16

COM2

Pin# RS–232 signal

11 nc nc

RxD

RTS

TxD

CTS nc nc

GND nc

4

5

2

3

1

DB–9 Pinout

DB–9 pin#

DB–9 pin#

6

7

8

9

7

8

9

10

2

3

4

5

6

COM1

Pin# RS–232 signal

1 DCD

DSR

RxD

RTS

TxD

CTS

DTR

RI

GND nc

43

Table 4–3 COM3 and COM4 connector pin-outs (J15 connector)

COM4

Pin# RS–232 signal

11

12

13

14

15

16

17

18

19

20 nc nc

RxD

RTS

TxD

CTS nc nc

GND nc

3

4

1

2

5

DB–9 Pinout

DB–9 pin#

DB–9 pin#

7

8

9

6

COM3

Pin# RS–232 signal

4

5

6

7

8

1

2

3

9

10 nc nc

RxD

RTS

TxD

CTS nc nc

GND nc

Table 4–4 COM5 RS–232 connector pin-out (J16 connector)

6

7

8

9

2

3

4

5

10

COM5 RS–232

Pin# RS–232 signal

1 nc nc

RxD

RTS

TxD

CTS nc nc

GND nc

4

5

2

3

DB–9 Pinout

DB–9 pin#

1

DB–9 pin#

6

7

8

9

Table 4–5 COM5 and COM6 RS–422/485 connector pin-outs and pin-out for 0.100-inch

RS–422/485 cable

J11 COM5

connector

J10 COM6

connector

DB–9 connector

Pin # Signal Pin # Signal Pin # Pin #

1

2

TXD+

TXD–

1

2

TXD+

TXD–

1

6 nc nc nc nc nc nc nc nc

2

3

7

8

4

5

RXD+

RXD–

4

5

RXD+ 4

RXD–

3* GND 3 GND 5

*Note that pin 3 is not listed in numerical order.

9

44

Table 4–6 COM5 and COM6 TTL connector pin-out (J12 connector)

2

3

4

5

6

J12 COM5/6

TTL connector

Pin # Signal

1 TX5

RX5

GND

TX6

RX6

GND

Table 4–7 COM5/6 switches, Switch 4

Switch 4 – COM5/6 termination

COM Port Interface Switch 4 Settings

COM5

RS–422/RS–485 no termination

RS–422/RS–485 with termination

Position 1 Off

Position 2 Off

Position 1 On*

Position 2 On*

COM6

RS–422/RS–485 no termination

Position 3 Off

Position 4 Off

RS–422/RS–485 with termination

Position 3 On*

Position 4 On*

* Default. These switches terminate the network. If the XE–900 SBC is not at an end of the network, set these switches to Off .

Function and use of serial ports

COM1 as serial console device

You can use COM1 as a console device to communicate with another PC. For COM1 to be a serial console, the “V” video switch (Switch 2 position 3) must be set to Off.

You can also redirect the video output to a serial console on COM1 by hitting the carriage return (Enter) on the host keyboard during boot. See the Console devices chapter for more information.

Note When interfacing the XE–900 SBC to your desktop PC, you must use a null modem adapter.

COM2 through COM5 as RS

–232 I/O

COM1 is an 8-wire RS–232 interface. COM2 through COM4 are dedicated 4-wire

RS–232 interfaces. COM5 can also be configured through Setup as a 4-wire RS–232 interface. You can connect up to five RS–232 serial I/O devices.

COM5/6 as TTL interface

COM5 and COM6 can be used as a TTL interface. The configuration for COM5 and

45

COM6 is selected in Setup under COM5 Mode and COM6 Mode. For TTL, select

RS232/422.

One use of a TTL interface is for a TTL-level GPS module. AN RTCM SC-104 differential GPS module uses both COM ports. Some GPS modules only require one port, in which case the other port could be configured for other serial interfaces.

COM5/6 as RS

–422 and RS–485 networks

COM5 and COM6 can also be used as RS–422 or RS–485. RS–422 and RS–485 use differential signaling to communicate between the devices on a network.

Differential signal reduces the effect of environmental noise, allowing communication over distances up to 1200 meters.

The RS–422 and RS–485 receivers provide an active high (space) condition for shorted, open, or inactive lines. Note that RTS is used differently by RS–422 and

RS–485. Review the information in the following sections regarding RTS.

RS–422 is a point-to-point configuration. RS–485 is a multi-node configuration that allows up to 32 nodes on a network. COM5 and COM6 can be configured in BIOS

Setup for RS–422 or RS–485. Refer to table 4–7 on page 45 for switch settings for

terminating an RS–422/485 network.

RS

–422

RS–422 is typically point to point configuration. RS–422 is also specified for multidrop (party-line) applications where only one driver is connected to, and transmits on, a “bus” of up to 10 receivers. The device at the end of an RS–422 network must be terminated. The XE–900 SBC optionally terminates with a 100 ohm resistor.

Refer to table 4–7. Figure 4–3 shows a typical RS–422 four-wire interface circuit.

The RTS* signal is used to control the transmitter and receiver in RS–422 mode.

The RTS* signal is controlled by the Modem Control Register bit 1 (MCR[1], which is offset 0x04 from the UART base address). Writing MCR[1] to 0 (default state) sets RTS* to an inactive state (RTS* = logic high) which ENABLES both the RS–

422 Transmitter and Receiver. Writing MCR[1] to 1 sets RTS* to an active state

(RTS* = logic low) which DISABLES both the RS–422 Transmitter and Receiver.

Figure 4–3 Typical RS–422 four-wire interface circuit

TX +

Xmitter

TX –

RX +

Receiver

RX –

100

100

Gnd

RS

–485

RX +

100

RX –

Receiver

TX +

Xmitter

TX –

100

An application may implement a node as either the “host” node or as a “remote”

46

node in an RS–485 network. There can be as many as 32 nodes without any bus repeaters in the network. A host is referred to as the node that initiates communication; a remote is referred to as a node that is addressed by the host.

In any given communication sequence in an RS–485 network, there can only be one host. The host is responsible for initiating communication, maintaining network registration, and providing housekeeping tasks with other nodes. Remotes, however, cannot initiate a communication. They can only respond to messages that are addressed to them from the host.

The devices at each end of an RS–485 network must be terminated. Any node located between the end points should not be terminated. The XE–900 SBC

optionally terminates with a 100 ohm resistor. Refer to table 4–7 on page 45.

Figure 4–4 shows a typical RS–485 network. Note that for 2-wire RS–485 networks the transmit and receive pairs must be connected together external to the XE–900

(TXD+ tied to RXD+, TXD– tied to RXD–).

The RTS* signal is used to control the transmitter and receiver in RS–485 mode.

The RTS* signal is controlled by the Modem Control Register bit 1 (MCR[1], which is offset 0x04 from the UART base address). Writing MCR[1] to 0 (default state) sets RTS* to an inactive state (RTS* = logic high) and DISABLES the RS–485

Transmitter and ENABLES the Receiver. Writing MCR[1] to 1 sets RTS* to an active state (RTS* = logic low), and ENABLES the RS–485 Transmitter and

DISABLES the RS–485 Receiver.

Figure 4–4 Typical RS–485 two–wire half duplex interface circuit

DE

DI

RE

RO

TX +

Xmitter

TX –

Receiver RX +

100

100

RX – Receive r

Receiver

TX +

Xmitter

RX +

Receiver

RX –

Xmitter

Xmitter

DE

DI

RE

DE DI RE RO DE DI RE RO

47

Chapter 5: Console devices

Description

The XE–900 SBC has three options for console devices. You can use a monitor and a keyboard as your console. You can use COM1 as the console, or you can run the system without a console device.

Selecting console devices

The following represent the options on the XE–900 SBC for console devices:

A standard VGA/SVGA monitor and a keyboard.

Serial console from COM1. A serial cable/null modem adapter plugged into a host PC running HyperTerminal (or equivalent) provides both input and output. The local keyboard also allows input but is not required.

No console device means no video output, either from a monitor or the serial console. A local keyboard allows input but is not required.

Monitor and keyboard console

To use a monitor and keyboard as the console, you will need the following equipment (or equivalent):

XE–900 SBC

2 mm VGA-12 video cable, #6392

PS/2 style keyboard

VGA monitor

WARNING!

The video connector is keyed, but some connectors are not keyed and can be plugged in incorrectly. Ensure that pin 1 of the cable is connected to pin 1 of the connector (indicated by the dot). Incorrect connection could damage your equipment.

To connect a monitor and keyboard:

1. Refer to Figure 2–1 on page 19 for the location of various connectors and

switches before installing the XE–900 SBC.

2. Make sure that the “V” video switch, Switch 2 position 3, is set to On.

3. Connect the VGA-12 video cable into J1.

4. Connect a VGA monitor to the VGA-12 cable, and a PS/2 style keyboard to J14.

5. If you want a mouse, use a “Y” style PS/2 adapter in J14. This allows both a mouse and a keyboard to be connected. Note that with some “Y” cables you may

48

have to plug the mouse into the keyboard icon, and the keyboard into the mouse icon; if the mouse and keyboard do not function at power up, try switching them.

Figure 5–1 Monitor and keyboard as console

P

C

S

VGA Monitor

PS/2 Keyboard

2 mm VGA-12 cable

6 2

Power Supply

Dot indicates pin 1

.

XE–900

Serial console

0

Configuration menu is set to Redirect. COM1 will also be configured as a console device if a host computer is connected to COM1 and the host keyboard sends a carriage return (Enter) during the boot process.

Note that you cannot use a serial console for a GUI interface due to the large volume of data. It can only be used with a text-based OS such as DOS.

To use COM1 as the console, you will need the following equipment (or equivalent):

XE–900 SBC

VTC-20F cable, #4866

Null modem adapter, #2470 (9–pin to 9–pin)

Host computer running HyperTerminal (or equivalent)

Serial cable to connect XE–900 SBC COM1 to host computer serial port

PS/2 style keyboard (optional)

49

50

Refer to Figure 2–1 on page 19 for the location of various connectors and switches

before installing the XE–900 SBC.

1. Set the “V” video switch, Switch 2 position 3, to Off. An alternative way to redirect the video to a serial console is to hit the carriage return (Enter) key on the host keyboard. This will redirect the video regardless of switch settings or

BIOS settings.

2. Connect a VTC-20F cable to J13 of the XE–900.

3. Connect the null modem adapter to P2 (COM1 side) of the VTC-20F cable.

4. Connect the serial cable between the null modem adapter and the serial port of the host computer.

Follow these steps to use the serial console:

5. For communication using HyperTerminal (or equivalent), the following settings must be used:

Connect using:

Direct to COM1, COM2, COM3, or COM4

(select the port the serial cable is connected to)

115200

Baud rate:

Communications parameters:

Flow control:

Terminal support:

ANSI terminal option–

Wrap lines that exceed terminal width:

no parity, 8 data bits, 1 stop bit none

ANSI

Yes (uncheck box)

6. Start HyperTerminal. You are now ready to establish communications between the host PC and the XE–900 SBC.

7. Power on the XE–900 SBC. Console data will be redirected to COM1 and will be displayed on the host computer.

8. If you do not get the proper logon message check the HyperTerminal serial parameters of the host PC to make sure they match the settings in step 5. You might also try setting the “S” switch, Switch 2 position1, to Off to force the XE–

900 SBC card to the system defaults, which includes 115200 baud rate.

Note Function keys entered on the host computer do not transmit across a serial console.

Hot key access to serial console

In some instances you might want to redirect the video to a serial console without having reconfigured Setup or setting the V switch to Off. If you have connected a serial console to COM1, pressing the Enter key on the host keyboard during the boot process will redirect video to the serial console.

Figure 5–2 The XE–900 SBC and a serial console

HyperTerm or other terminal emulator

VTC-20F cable

COM2

COM1

XE–900

Desktop PC

Keyboard

COM1 and Null

Modem Adapter

51

Chapter 6: CompactFlash, SDRAM, and battery backup

Description

The XE–900 SBC is shipped with a 512 KB socketed flash. This flash contains the

BIOS.

The memory socket can accept up to 512 MB capacity PC-133 SO-DIMM modules.

Refer to the SDRAM section in this chapter before installing SDRAM.

A battery backup connector is provided at J17 for an AT battery to back up the real time clock.

CompactFlash

The CompactFlash socket supports 3.3 V devices. The CompactFlash appears to the system as an IDE device. It should be automatically detected and configured as a hard drive during bootup (see “Setup configurations for CompactFlash” below.) To configure the XE–900 SBC to boot from a CompactFlash, refer to the following section “Creating a Bootable CompactFlash.”

The CompactFlash socket is connected to the Primary IDE channel. This channel is configured for a Master device only. Therefore, if a CompactFlash device is installed, it will show up as a Master on the Primary IDE channel. Any additional

IDE devices will show up as Secondary IDE devices.

Note Octagon Systems only recommends Industrial Grade CompactFlash (NAND technology) that implements ECC error code correction, and wear level technology.

Setup configurations for CompactFlash

Setup offers several configurations for a CompactFlash installed in IDE 0. The applicable selections are Physical, LBA, and Phoenix.

A CompactFlash that is formatted on an XE–900 SBC will be recognized at boot; however, a CompactFlash that is formatted on a host machine might not be recognized, depending on the BIOS of the host machine. If the XE–900 will not boot from a CompactFlash, change the configuration to Physical or Phoenix and reboot.

Creating a bootable CompactFlash

A CompactFlash as shipped from the factory may or may not be formatted; even if formatted, it may or may not be bootable. The following sequence shows how to create a bootable CompactFlash, and how to configure the XE–900 SBC to boot from the CompactFlash.

CAUTION

You must use an external drive such as a hard drive or CD to sys the

CompactFlash. See step 5.

1. Create a bootable external device.

52

Note Octagon offers OS Embedders that include a CD boot disk for a variety of operating systems. Contact your Octagon representative for additional information.

2. Change the boot sequence in BIOS Setup so the XE–900 SBC boots from the external drive first. Designate the CompactFlash as drive C:. Reboot from the external device.

3. Use the appropriate commands/utility to create partitions on the

CompactFlash. Refer to your operating system manual for the appropriate parameters. You might also have to refresh the MBR (Master Boot Record).

4. Reboot, using the external device.

5. Format the CompactFlash. Follow the on-screen instructions for your operating system to format the CompactFlash.

6. Copy your operating system from the external device to the CompactFlash.

7. Change the boot sequence in Setup so that the CompactFlash (hard drive) is first. Power off the XE–900 SBC and remove the external device.

8. Reboot.

SDRAM

The memory socket can accept up to 256 MB capacity SO-DIMM modules using

PC100 or PC133 memory sticks. Some low-power 512 MB SO–DIMM modules are also supported. Contact Octagon Systems for compatibility before using 512 MB modules. Use of incorrect 512 MB SO–DIMM modules may cause improper operation or damage to the XE–900.

53

Battery backup for real time calendar clock

An AT battery can be installed to back up the CMOS real time clock. The battery can be installed J17.

Installing an AT battery

1. Power off the XE–900 SBC.

2. Install the 3.6V AT clock battery at J17.

Table 6–1 Battery connector

J17 – battery connector

Pin # Pin Name

1

2

3

4

Battery +

Key nc

Battery –

Note See Appendix A: Mating connectors for mating information on the battery connector.

54

Chapter 7: External drives

Description

The XE–900 SBC is compatible with any standard IDE hard drive that has a 16-bit

IDE interface. This includes CD-ROMs, CompactFlashes, and other IDEcompatible drives. The BIOS supports all IDE devices so no additional software is needed.

UltraDMA modes are not supported directly by the XE–900. These modes require an 80-pin connector, and there is no adapter available for the 44-pin, 2mm IDE connector used on the XE–900.

Note The BIOS supports three IDE devices (which includes a CompactFlash).

Setup configurations for hard drives

Setup offers several configurations for a hard drive. The applicable selections are

Physical, LBA, and Phoenix.

A hard drive that is formatted on an XE–900 SBC will be recognized at boot; however, a hard drive that is formatted on a host machine might not be recognized, depending on the BIOS of the host machine. If the XE–900 will not boot from a hard drive, change the configuration to Physical or Phoenix and reboot.

A hard drive that will be used as a boot device should be designated as drive C:, both when it is loaded with an OS and when it is used to boot.

Hard disk controller

The XE–900 SBC supports three 16-bit IDE devices. Since the CompactFlash is connected to the primary IDE channel with a dedicated IDE controller, additional

IDE devices connected through J4 will be secondary IDE devices (master and slave).

Standard IDE devices such as hard drives and CD-ROM drives are interfaced via a

44-pin connector at J4. For those IDE devices that use a 40-pin interface, use the

Octagon Systems IDE cable, #4080 or #6246.

IDE combinations:

2 hard drives

1 hard drive and 1 CD-ROM drive

CompactFlash and either of the above combinations

Master/slave designation for IDE devices

IDE devices have a jumper or a switch that designates whether the device is a master or a slave device. If only one device is connected to a channel, it must be configured as a master. If two devices are connected, one must be configured as a

55

master and one as a slave. The XE–900 does not use the CS signal (Cable Select) to designate master or slave on a multi-connector cable. You can use BIOS Setup to designate either the master or the slave as a boot device.

Figure 7–1 XE–900 SBC with IDE device

VGA Monitor

2 mm VGA-12 cable

Power Supply

Dot indicates pin 1

.

P

PS/2 Keyboard

C

XE–900

S

6 2

IDE ribbon cable for two devices, or one device directly into J4

0

CD-ROM and / or

Hard Drive

56

Installing a hard drive

1. Disconnect power to the XE–900 SBC.

2. Insert one end of the hard drive cable into the back of the hard drive. Make sure pin 1 on the cable is connected to pin 1 of the drive.

3. Insert the other end of the cable into J4.

4. If you are connecting two IDE devices, ensure that one of them is configured as

a master and one is configured as a slave (see page 120). If connecting one IDE

device, ensure that it is configured as a master. The BIOS will not be able to detect an IDE device that is configured as a slave unless a master device is also installed.

5. Execute the BIOS Setup program to configure your system for a hard drive.

You can execute this program by pressing “Delete” during system bootup. The system steps you through the configuration. Also, refer to the Setup programs chapter for more information on the BIOS Setup program.

6. If you want to boot the system from the hard drive, you need to format the drive accordingly, and change the boot order in Setup. You will also need to designate it as drive C:, both while you are loading the OS onto it and when you are using it to boot.

57

Chapter 8: Bit-programmable digital I/O

Description

The bit-programmable digital I/O lines can be used to sense switch closures, turn on lamps and LEDs, and interface with other devices that have TTL input or output such as printers and scales. The digital I/O lines drive the Octagon MPB series opto-isolation module racks directly, controlling AC and DC loads to 240V at

3A. Tables 8–1 and 8–2 show the pinout for the digital I/O connector, arranged by function and by pin number. Figure 8–1 shows typical I/O configurations.

The I/O lines have the following specifications:

Each I/O chip has 24 I/O lines, grouped into 3 ports of 8 bits

Each bit is programmable as either 5V input or 5V output

Read back state of each pin

Easy-to-program

Each line can sink and source 15 mA

Table 8–1 J6 arranged by function – digital I/O connector

Pin # Port A

19

21

20

18

23

25

24

22

Bit 0

Bit 1

Bit 2

Bit 3

Bit 4

Bit 5

Bit 6

Bit 7

Pin # Port B

10

8

4

6

1

3

5

7

J6 Digital I/O

Bit 0

Bit 1

Bit 2

Bit 3

Bit 4

Bit 5

Bit 6

Bit 7

Pin # Port C

13

16

15

17

14

11

12

9

2

26

Bit 0

Bit 1

Bit 2

Bit 3

Bit 4

Bit 5

Bit 6

Bit 7

+5V safe*

Gnd

* +5V safe is fused through a 750 mA automatic, resetting fuse

Note See the Accessories appendix for connector information for the digital I/O connector.

58

Table 8–2 J6 arranged by pins – digital I/O connector

Pin # Pin Name

1

3

5

7

9

11

13

15

17

19

21

23

25

Port B, bit 4

Port B, bit 5

Port B, bit 6

Port B, bit 7

Port C, bit 7

Port C, bit 5

Port C, bit 0

Port C, bit 2

Port C, bit 3

Port A, bit 0

Port A, bit 1

Port A, bit 2

Port A, bit 3

J6 Digital I/O

Pin Name

Vcc (+5V)*

Port B, bit 2

Port B, bit 3

Port B, bit 1

Port B, bit 0

Port C, bit 6

Port C, bit 4

Port C, bit 1

Port A, bit 7

Port A, bit 6

Port A, bit 5

Port A, bit 4

Gnd

Pin #

2

4

6

8

10

12

14

16

18

20

22

24

26

* +5V safe is fused through a 750 mA automatic, resetting fuse

59

Figure 8–1 Typical digital I/O configuration

XE–900

XE–900

XE–900

CMA-26

Ribbon Cable

CMA-26

Ribbon Cable

CMA-26

Ribbon Cable

MPB-8, -16, or -24 Opto Rack

STB-26

MPB-8, -16, or -24 Opto Rack

STB-26

60

Interfacing to switches and other devices

The STB-26 terminal board provides a convenient way of interfacing switches or other digital I/O devices to the I/O ports. I/O lines at the connector can be connected to an STB-26 with a CMA-26 cable. Parallel I/O devices are then

connected to the screw terminals on the STB-26. The illustration on page 60 shows

an STB-26 terminal board connected to the digital I/O. Refer to the STB-26 product sheet for more information.

Opto-module rack interface

You can interface digital I/O lines to an 8-, 16-, or 24-position opto-module rack.

One end of the CMA-26 cable plugs into the I/O connector and the other plugs into an MPB–8, MPB–16, or an MPB–24 opto rack. Refer to the MPB opto racks data

sheet for more information.

You can also use a CMA–26 cable to connect the I/O port to an STB–26 terminal board and then to the opto rack. The STB–26 has two 26-pin connectors, one of which connects to the I/O port, the other which connects to the opto rack. The

illustration on page 60 shows both of these configurations.

For either configuration, run a separate power line to +5V and ground on the optorack.

Use the following table to determine the corresponding opto-channel position for ports A, B, and C.

61

Table 8–3 Digital I/O opto-rack interface

Digital I/O opto-rack interface

MPB opto rack

Opto-module position

I/O port

Port C

Connector pin

0 Bit 0 13

5

6

7

1

2

3 MPB-08

4

8

Bit 1

Bit 2

Bit 3

Bit 4

Bit 5

Bit 6

Bit 7

Port A

Bit 0

16

15

17

14

11

12

9

19

9

10

11 MPB-16

12

13

14

15

16

17

18

19 MPB-24

20

21

22

23

Bit 1

Bit 2

Bit 3

Bit 4

Bit 5

Bit 6

Bit 7

Port B

Bit 0

Bit 1

Bit 2

Bit 3

Bit 4

Bit 5

Bit 6

Bit 7

21

23

25

24

22

20

18

10

8

4

6

1

3

5

7

62

Organization of banks

The I/O digital bank has a total of 24 I/O lines connected to a 26-pin header. The lines are configured into three groups: ports A, B and C, each group consisting of 8 bits. Any of the lines at ports A, B or C can be configured individually as inputs or outputs.

Figure 8–2 Organization of banks

Base

120h* or

320h

Base + 1

121h* or

321h

Port A

Port B

Base + 2

122h* or

322h

Base + 3

123h* or

323h

* default

Port C

Control

Register

8

8

8

J6, Digital I/O

Port addressing

Ports A, B, C and the control register are addressable. The base I/O address is selectable in Setup as either 120h or 320h (120h default). Ports A, B, C and the control register are addressable, with reference to the base address.

I/O lines pulled low

The I/O lines at ports A, B, and C are always pulled low. This allows a known state upon powerup. 10K ohm resistor networks are used to configure the I/O lines as low.

63

Configuring and programming the I/O port

The I/O chip has three ports with eight parallel I/O lines (bits) per port. All lines can be programmed as all inputs, all outputs or individually as inputs or outputs.

You can alter which bits are inputs or outputs by writing a control command to the control register of the I/O bank. When a line is configured as an output, it can sink a maximum of 15 mA at 0.4V or can source 15 mA at 2.4V. On powerup and software or hardware reset, all digital I/O lines are reset as inputs.

Programming the I/O

Follow these steps to program the I/O chip:

1. Configure the I/O port bit directions, either as inputs or outputs.

2. Write to port A, B, or C with the desired level or read the bit level from the desired port.

Configuring the I/O

Follow these steps to configure the I/O chip.

Note In the following examples, “base” for I/O always refers to the base address as 120h.

For a base of 320h change the numbers accordingly.

1. Write a “2” to the control register (base address + 3). This places the I/O chip in

“direction” mode: (base address = 120h)

OUT 123h, 2 (control register, direction mode)

2. Set the direction of each bit. A “0” written to the corresponding line indicates an input and a “1” bit indicates an output. Each bit corresponds to the equivalent I/O line.

Table 8–4 I/O port byte

Bit

7

X

Bit

6

X

Bit

5

X

X

Bit

4

X

Bit

3

X

Bit

2

X

Bit

1

X

Bit

0

4

3

2

1

0

Port I/O

Line

7

6

5

For example, writing 00011100 to port C (base address + 2) will configure port C

I/O lines 0, 1, 5, 6, and 7 to be inputs and lines 2, 3, and 4 to be outputs:

OUT 122h, 1Ch (00011100 binary = 1C hexadecimal)

3. Write a “1” to the control register (base register + 3). This places the I/O chip into “preset” mode:

64

OUT 123h, 1 (control register, preset mode)

4. Write a bit pattern to appear at the outputs of the desired I/O port when the

I/O chip is put in “operation” mode; all input bits are unaffected.

5. Write a “3” to the control register (base register + 3). This places the I/O chip back into “operation” mode:

OUT 123h, 3 (control register)

Writing and reading from I/O

Writing to or reading from the desired I/O port is accomplished with single program statements:

1. To write a bit pattern to the desired I/O port:

OUT 122h, FFh

All output bits of port C go high; all input bits are unaffected.

2. To read a bit pattern from the desired I/O port:

PORTC = INP(122h)

The byte read from port C is assigned to variable PORTC.

I/O output program examples

To configure ports A, B, and C as all outputs, issue the commands:

OUT 123h, 2 ‘Direction’ Mode

OUT 120h, FFh ‘PortA’

OUT 121h, FFh ‘PortB’

OUT 122h, FFh ‘PortC’

OUT 123h, 3 ‘Operation’ Mode

Ports A, B, and C will now output all “1”s after issuing the following commands:

OUT 120h, FFh (portA)

OUT 121h, FFh (portB)

OUT 122h, FFh (portC) or all “0”s after:

OUT 120h, 0 (portA)

OUT 121h, 0 (portB)

OUT 122h, 0 (portC)

65

66

I/O input program examples

To configure ports A and C as inputs and port B as outputs, issue the following commands:

OUT 123h, 2 ‘Direction Mode’

OUT 120h, 0

OUT 121h, FF

OUT 122h, 0

OUT 123h, 3 ‘Operation Mode’

To read ports A and C, issue the following commands:

PORTA = INP(120h) (port A)

PORTC = INP(122h) (port C)

Enhanced INT 17h function definitions

This section provides definitions for the following functions using the INT17 handler, XE900I17.EXE: Initialize I/O, Write I/O, and Read I/O.

XE900I17.EXE is a TSR program that is an XE–900 SBC BIOS extension. Once executed, the TSR is active, but it must be executed each time the system is rebooted. Copy the XE900I17.EXE utility to your boot device and add it to your

AUTOEXEC.BAT.

Note The INT17 functions can only be used with DOS operating systems. If you use a different operating system, the INT17 functionality can still be used by your application but must be integrated into your software.

Initialize I/O

Function: efh

Subfunction:

Purpose:

00h

To set the directions and to program the initial values of an I/O port.

Calling registers: Ah efh

AL

DI

BX

CX

00h

Port A configuration

Initial Data Direction Mask

xxxxxxxx xxxxxxxxB direction: 1=output, 0=input

Port B configuration

Initial Data Direction Mask

xxxxxxxx xxxxxxxxB direction: 1=output, 0=input 0->input

Port C configuration

Initial Data Direction Mask xxxxxxxx xxxxxxxxB direction: 1=output, 0=input

DX ffffh

Return registers: Carry flag cleared if successful

Comments:

Programming example:

Carry flag set if error

AL Error code

This function is used to initialize the

I/O before normal use.

/* Inline assembly code for Borland C++ 3.1 */ asm { mov ax,0ef00h mov di,00ffh /*port A all outputs, init data=all 0’s */ mov bx,55ffh /*port B all outputs, init data=55h*/ mov cx,0000h /*port C all inputs* mov dx,0ffffh int 17h

}

Write I/O

Function:

Subfunction:

Purpose: efh

01h

To write a value to an I/O port.

Calling registers: AH

AL

DI efh

01h

Port A mask and data

Mask Data

BX

CX xxxxxxxx xxxxxxxxB

Mask: 1=bit to be changed

Port B mask and data

Mask

Mask

Data

xxxxxxxx xxxxxxxxB

Mask: 1=bit to be changed

Port C mask and data

Data

xxxxxxxx xxxxxxxxB

Mask: 1=bit to be changed

DX ffffh

Return registers: Carry flag cleared if successful

Carry flag set if error

Comments:

AL Error code

This function is used to initialize the

I/O.

Programming example:

/* Inline assembly code for Borland C++ 3.1 */ asm { mov ax,0ef01h mov di,00ffh /*port A: no change */ mov bx,8000h /*port B: bit 7 set to 0*/ mov cx,0202h /*port C: bit 1 set to 0*/ mov dx,0ffffh

67

int 17h

}

Read I/O

Function:

Subfunction: efh

02h

Purpose: To read from an I/O port.

Calling registers: AH efh

AL 02h

DX

Return registers: AL

Ah

Comments:

Programming example: ffffh

Port A data

Port B data

BL Port C data

Carry flag cleared if successful

Carry flag set if error

AL Error code

This function is used to read from the

I/O.

/* Inline assembly code for Borland C++ 3.1 */ asm { mov ax,0efoch mov dx,0ffffh int 17h mov aData,al mov bData,ah mov cData,bl

}

68

Chapter 9: CRTs and LVDS flat panels

Description

The video system on the XE–900 SBC is implemented with the VT8606 North

Bridge. It supports CRTs and LVDS flat panel displays. Displays from CGA through XVGA are supported. The XE–900 SBC supports 3V and 5V LVDS flat panel displays through the connector.

Standard VGA monitors with analog inputs are connected using a 2 mm VGA–12 cable (p/n 6392) connected to J1. LVDS flat panel displays are connected using a

20-pin connector. Octagon has a custom cable for LVDS, with a connector and 20 flying leads (Octagon #6772.)

Note EL panels, and some quarter VGA panels are not supported. Call Technical

Support for information.

Video features

Below is a list of standard video features installed on the XE–900 SBC:

CRT support with resolutions to 1920 x 1440 x 24

LVDS flat panel support with the programmable resolutions

Connecting a monitor

To use a monitor, the Video switch, Switch 2 position 3 must be set to On, and CRT

Analog Output (in the Custom Configuration menu) must be enabled. These are the default configurations. The 10-pin connector at J1 supports all analog CRT color or monochrome monitors. The 2 mm VGA–12 cable connects to J1 and provides a DB–

15 video mating connector for a CRT. Refer to figure 9–1 for a diagram of connecting a CRT, and table 9–1 for the pinout for J1.

Note Switch 3, position 2 enables and disables LVDS output. If LVDS is enabled, the software will not be able to change the resolution of a CRT. The default position for

LVDS is disabled.

To connect a monitor you will need the following equipment (or equivalent):

XE–900 SBC

2 mm VGA-12 cable, p/n 6392

VGA monitor

To connect a monitor:

1. Ensure that the Video switch, Switch 2 position 3 is set to On, and that CRT

Analog Output (in the Custom Configuration menu) is enabled. If you have previously disabled CRT Analog Output, you can set the S switch, Switch 2 position 1, to Off and restore Setup defaults.

69

2. Plug the VGA–12 adapter cable into J1 on the XE–900 SBC.

3. Plug the DB–15 end of the VGA–12 cable into the VGA cable of the monitor.

Refer to Figure 9–1.

Table 9–1 J1 – CRT connector

3

5

7

J1, CRT Connector

Pin # Pin Name Pin Name

1 RD GR

9

BL

+5V

DDC SCL

GND

GND

HSYNCOUT DDC SDA

VSYNCOUT

Pin #

2

4

6

8

10

Figure 9–1 The XE–900 SBC and a VGA monitor

VGA Monitor

P

PS/2 Keyboard

C

S

2 mm VGA-12 cable

Power Supply

Dot indicates pin 1

.

XE–900

6 2

0

70

Table 9–2

Connecting an LVDS flat panel display

Switch 3 selects the drivers for the supported LVDS flat panel resolutions. Table 9–

2 shows the switch settings for the supported panels. Position 1 must remain On.

Position 2 enables or disables the LVDS support. If you are not using an LVDS flat panel leave this switch in the On position (disabled) to free up system resources.

Also, if LVDS is enabled and you are using a CRT, the software will not be able to change the resolution of the CRT.

LVDS flat panel switch, Switch 3

On

On

On

On

On

Off

Off

Off

Switch 3 - LVDS Flat Panels

Position 1 - On (Factory use only) This switch must remain On*

Position 2 - On

Position 2 - Off

LVDS flat panel disabled*

LVDS flat panel enabled

Position3 Position 4 Position 5 Position 6

On On On On Reserved*

On

On

On

On

On

Off

Off

On

640 x 480 x 18

Reserved

On

Off

Off

Off

Off

On

On

On

Off

On

On

Off

Off

On

On

Off

Off

On

Off

On

Off

On

Off

On

1280 x 1024 x 18

Reserved

Reserved

1600 x 1200 x 18 (2 pixels/clock)

Reserved

800 x 600 x 18

Reserved

Reserved

Off

Off

Off

Off

On

Off

Off

Off

Off

On

On

Off

Off

On

Off

On

Reserved

Reserved

Reserved

1024 x 768 x 18

Off Off Off Off Reserved

*default. Note position 2 must be set to Off to enable.

Connecting the LVDS flat panel to the XE

–900 SBC

Octagon has a custom cable for LVDS, with a connector and 20 flying leads

(Octagon #6772.) Table 9–3 shows the pinout for the flat panel connector. Construct a custom cable that routes the signals to the appropriate pins for your LVDS flat panel. To connect a flat panel:

1. Ensure that the Video switch, Switch 2 position 3 is set to On, and that CRT

Analog Output (in the Custom Configuration menu) is disabled.

2. Ensure that the LVDS switches, Switch 3 positions 2 through 6, are properly set for your resolution.

3. Connect your custom cable from the flat panel to the flat panel connector. Refer to Figure 9–2.

71

Table 9–3

Warning

Improper wiring or connection from the flat panel to the XE–900 SBC can damage the XE–900 SBC and the flat panel. Verify the flat panel cable connections before connecting the cable to the XE–900 SBC and applying power to the system.

LVDS flat panel connector: J2

9

11

13

15

17

19

1

3

5

7

J2 – LVDS flat panel connector

Pin # Pin Name Pin Name

3V

GND

Y0M

Y1M

5V

GND

Y0P

Y1P

Y2M

YCM

Z0M

Z1M

Z2M

ZCM

Y2P

YCP

Z0P

Z1P

Z2P

ZCP

10

12

14

16

18

20

4

6

8

Pin #

2

Figure 9–2 The XE–900 SBC and a flat panel display

XE–900

LVDS Flat Panel Display

72

Chapter 10: Ethernet

Description

The XE–900 SBC provides a 10/100BaseT Ethernet port and supports the IEEE

802.3 Ethernet standard. The XE–900 SBC uses the Intel 82551ER Ethernet chip.

This chip is fully Plug-N-Play compatible.

The Ethernet controller IC chip provides the following:

8K x 16 SRAM buffer

Integrated 10/100 BaseT transceiver interface

Two LEDs for link and traffic status integrated into connector

The XE–900 SBC Ethernet uses twisted–pair wiring cable. The interface terminates at the standard, 8–position, RJ–45 latching jack.

CAUTION

Use a strain relief loop when connecting to the XE–900 SBC Ethernet connector to avoid damaging the connector.

The Ethernet port uses IRQ11.

For more information on programming the Ethernet port, see the README file in

the Ethernet directory of the XE–900 utilities. See page 118 for downloading the

utilities.

Table 10–1 Ethernet LEDs

Function

Ethernet LEDs

Color Description

Activity LED Amber Activated by access to I/O space

Link LED Green Activated by network link

73

Chapter 11: PC/104 and PC/104-Plus expansion

Description

The PC/104 and PC/104-Plus connectors allow you to interface expansion modules such as A/D converters, CardBus, digital I/O, serial ports, etc. Modules can be stacked to form a highly integrated control system. The PC/104-Plus expansion bus supports mastering devices.

Note The actual maximum number of modules in a stack is limited primarily to the capacitive loading on the bus and the electrical noise environment. This is especially true when wide temperature operation is required. Good design practice dictates that the modules present only one load to each bus signal. Unfortunately, there are modules on the market that violate this practice by loading the bus more heavily. Typically, it is the IOW*, IOR*, MEMW*, and RSTDRV* lines. For example, if the IOW* line is routed to four ICs on the module without a buffer, then the loading is equivalent to four PC/104 modules. Stacks with three or more expansion modules should be carefully tested under all environmental conditions.

If possible, query the manufacture of the expansion module regarding loading. All

Octagon products present one load.

The situation is even more critical for the PC/104-Plus connector since the bus speed is four times faster. The PC/104-Plus connector and the PC/104-Plus module represent one load each. Adding more than one PC/104-Plus module (two loads) should trigger the same testing as discussed in the previous paragraph.

–12V PC/104-Plus devices

The XE–900 does not provide –12V to the PC/104-Plus connector. If your PC/104-

Plus board requires –12V, you must power it from a source other than the PC/104-

Plus connector. If your power supply provides –12V, then you can power your

PC/104-Plus card from J8 pin 9. READ THE FOLLOWING CAUTION BEFORE

INSTALLING YOUR CARD.

CAUTION

On the XE–900 PC/104-Plus J3 connector, the –12V pin (A30) is tied to

ground (see table on page 110). If you do use a –12V PC/104-Plus card and

provide external power, you must clip pin A30 on your PC/104-Plus card before you connect it to the XE–900. Otherwise, the –12V will be shorted to ground and you will destroy your cards.

74

Figure 11–1 Typical PC/104 module stack

PC/104 or PC/104-

Plus expansion

Standoff

PC/104 Connectors PC/104-Plus XE–900

Standoff

WARNING!

When installing any PC/104 or PC/104-Plus module, avoid excessively flexing the XE–900 SBC. Mate pins correctly and use the required mounting hardware.

Note See Appendix A - Connectors for mating information.

75

Chapter 12: USB

Description

Universal Serial Bus (USB) is a hardware interface for peripherals such as the keyboard, mouse, joystick, scanner, printer, and telephony devices. USB 1.1 has a maximum transfer rate of 12 Mbits/sec. Peripherals can be plugged in and unplugged while power is applied to the system (see Caution below). The XE–900

SBC contains two USB 1.1 compliant ports.

The USB ports are accessed via a 10-pin, 0.1” pitch connector at J19 (USB 1 and 2).

Octagon provides a cable that routes the J19 signals to standard USB connectors

(Octagon p/n 6288). This cable consists of two five-pin connectors that mate with the J19 connector on one end, and two USB connectors at the other end. Ensure that the arrow on the five-pin connectors is matched to the pin 1 end of J19. Any

USB device can then plug into either USB interface on the USB adapter cable, or into a multi-port hub that then plugs into the USB adapter cable.

An operating system capable of utilizing the USB ports and USB devices is required for USB operation.

Caution

USB devices are hot-swappable when a device is plugged into a standard USB connector, as pins on the connectors determine the order in which they make contact. Devices are not hot-swappable when connected to a non-standard header (J19). You can hot swap a device through the USB Adapter cable connected to J19, or through another USB connector wired to the 10-pin header, but you cannot hot swap at the 10-pin header itself.

76

Overview: Section 3

– System management

Section 3 provides information on managing the XE–900 SBC in the areas of internal control and troubleshooting. The following chapters are included:

Chapter 13: Watchdog timer and hardware reset

Chapter 14: Serial EEPROM

Chapter 15: System switches, user switches, BIOS update, system functions,

CPU fan, Integrated Conductive Cooling System (ICCS), temperature sensors, power management and LEDs

Chapter 16: Troubleshooting

77

Chapter 13: Watchdog timer and hardware reset

Description

The watchdog timer is a fail-safe against program crashes or processor lockups. It has programmable timeout periods of 1, 10 and 60 seconds. The watchdog timer can be enabled or disabled in Setup. INT17 software calls (a DOS TSR) or an operating system driver can be used to enable and set the timeout, strobe, and disable the watchdog timer from your application. If the timer expires, it performs a hardware reset.

Booting, power down, and strobing the watchdog timer

When the watchdog is enabled in Setup, it sets the timeout period for 60 seconds.

The BIOS will strobe the watchdog during the boot process and once more just before booting is finished. The user’s application must then begin strobing. The watchdog will continue until it is disabled or power down occurs.

If the watchdog is enabled in Setup and your operating system cannot load up before the timer expires, your system could reset. Also, if you do not disable the watchdog and your strobing application ends before power down you could again reset. If these watchdog situations should occur, set the “S” switch, Switch1 position 1, to Off and reboot. This causes the XE–900 SBC to boot using Setup defaults (watchdog disabled). Enter Setup, then change and save the watchdog settings in Setup.

78

Watchdog function definitions using enhanced INT 17h handler

This section provides definitions for the watchdog functions using the INT17 handler, XE900I17.EXE. XE900I17.EXE is a TSR program. Once executed it is active, but it must be executed each time the system is rebooted. Copy the

XE900I17.EXE utility to your hard drive and add it to your AUTOEXEC.BAT.

The INT17 handler is designed for DOS based applications. If you use a different operating system and the watchdog functions are required for your application, you must supply drivers to access the watchdog. OS Development Kits are available from Octagon for Linux, QNX, and Windows CE.net that have watchdog drivers for these operating systems. Contact Octagon Systems for more information.

Enable watchdog

Function:

Subfunction:

Purpose:

Calling registers: fdh

01h

To enable the watchdog.

AH

AL

BX

DX

Return registers: None fdh

01h timeout (0=1 second, 1=10 seconds, 2=60 seconds) ffffh

Comments: This function enables the watchdog. Once the watchdog is enabled, it has to be strobed at a period greater than the timeout period specified or until the watchdog is disabled.

Otherwise, a system reset will occur.

Programming example:

/* Inline assembly code for Borland C++ 3.1 */

/* set watchdog to 10 second timeout */

asm { mov ax,0fd01h mov bx,1 mov dx,0ffffh int 17h

}

79

80

Strobe watchdog

Function:

Subfunction: fdh

02h

Purpose: To strobe the watchdog.

Calling registers: AH fdh

AL

DX

Return registers: None

02h ffffh

Comments: This function strobes the watchdog. Once the watchdog is enabled, it has to be strobed at a period greater than the timeout period or until the watchdog is disabled. Otherwise, a system reset will occur.

Programming example:

/* Inline assembly code for Borland C++ 3.1 */

asm { mov ax,0fd02h mov dx,0ffffh int 17h

}

Disable watchdog

Function:

Subfunction:

Purpose:

Calling registers: fdh

03h

To disable the watchdog.

AH

AL

DX

Return registers: None fdh

03h ffffh

Comments: This function disables the watchdog. Once the watchdog is enabled, it has to be strobed at a period greater than the timeout period or until the watchdog is disabled. Otherwise, a system reset will occur.

Programming example:

/* Inline assembly code for Borland C++ 3.1 */

asm { mov ax,0fd03h mov dx,0ffffh int 17h

}

Hardware reset

The reset switch (Switch SW1) allows you to reset the system without turning off the power. This provides a more complete reset than the <CTRL><ALT><DEL> method. Depressing this button pulls the circuit to ground and resets the system.

The RESET command accomplishes the same thing as the reset button. Refer to the component diagram in the Quick start chapter for the location of the reset switch, and to Appendix B, Software utilities, for information on the Reset utility.

WARNING!

When using COM1 as the console, the <CTRL><ALT> <DEL> commands on the host system keyboard only reset the host system.

Use the RESET command to issue a hardware reset on the XE–900

SBC.

81

Chapter 14: Serial EEPROM

Description

A 1024-byte serial EEPROM is available to the user. The serial EEPROM does not require battery backup to maintain the data when the system power is off. The serial EEPROM is easily accessible via software interrupts by most programming languages.

Enhanced INT 17h function definitions

The serial EEPROM definitions include the following functions: Read a single word from serial EEPROM, Write a single word to serial EEPROM, Read multiple words from serial EEPROM, Write multiple words to serial EEPROM, and Return serial

EEPROM size.

The XE900I17 program must be loaded to access the serial EEPROM. When

XE900I17 is loaded, the following functions can be used.

Serial EEPROM

Read a single word from the serial EEPROM

Function:

Subfunction:

Purpose: fch

00h

To read a single word from the on–board serial

EEPROM.

Calling registers: AH

AL

BX fch

00h

Word address (zero based)

DX ffffh (User area relative address)

Return registers: Carry flag cleared if successful

AX Word read

Carry flag set if error

AL Error code

Error code

Meaning

ffh Unknown error

Comments:

01h Function not implemented

02h Defective serial EEPROM

03h Illegal access

This function reads a word from the user area of the serial EEPROM.

Programming example:

/* Read word 2*/ unsigned int seeData;

/* Inline assembly code for Borland C++ 3.1*/ asm { mov ax,0fc00h mov bx,02h /* Read word 2*/

82

mov dx,0ffffh int 17h mov seeData,ax /* store data in c environment */

}

Write a single word to the serial EEPROM

Function:

Subfunction:

Purpose: fch

01h

To write a single word to the on–board serial

EEPROM.

Calling registers: AH

AL fch

01h

BX

CX

DX

Word address (zero based)

Data word to write ffffh (User area relative address)

Return registers: Carry flag cleared if successful

Carry flag set if error

AL Error code

Error code

Meaning

ffh

01h

Unknown error

Function not implemented

Comments:

02h Defective serial EEPROM

03h Illegal access

This function writes a word to the user area of the serial EEPROM.

Programming example:

/* Write 0x1234 to word 3*/ unsigned int seeData = 0x1234;

/* Inline assembly code for Borland C++ 3.1*/ asm {

mov ax,0fc01h

mov bx,03h /* Write word 3*/

mov cx,seeData /* Get write data from c environment */

mov dx,0ffffh

int 17h

}

Read multiple words from the serial EEPROM

Function:

Subfunction: fch

02h

Purpose: To read multiple words from the on–board serial

EEPROM.

Calling registers: AH fch

AL

BX

CX

02h

Word address (zero based)

Word count

DX ffffh (User area relative address)

ES:DI Destination pointer

Return registers: Carry flag cleared if successful

AX Word read

Carry flag set if error

AL Error code

83

84

Error Code

Meaning

ffh Unknown error

01h

02h

03h

Function not implemented

Defective serial EEPROM

Illegal access

Comments:

Programming example:

This function reads multiple words from the user area of the serial EEPROM.

/* Read 10 words starting at word 5*/ unsigned int far*seeDataPtr = new unsigned int[10];

/* Allocate storage /

/ Inline assembly code for Borland C++ 3.1*/ asm {

mov ax,0fc02h

mov bx,05h /* Read starts at word 5*/

mov cx,10 /* Read 10 words */

mov dx,0ffffh

les di,seeDataPtr

int 17h

}

Write multiple words to the serial EEPROM

Function:

Subfunction:

Purpose: fch

03h

To write multiple words to the on–board serial

EEPROM.

Calling registers: AH

AL

BX fch

03h

Word address (zero based)

CX

DX

Word count ffffh

DS:SI Source pointer

Return registers: Carry flag cleared if successful

Carry flag set if error

AL Error code

Error Code

Meaning

Comments:

Programming example: ffh

01h

02h

Unknown error

Function not implemented

Defective serial EEPROM

03h Illegal access

This function writes multiple words to the user area of the serial EEPROM.

/* Write 8 words starting at word 6*/ unsigned int far*seeDataPtr = new unsigned int[8];

/* Allocate storage /

unsigned int far tmpPtr = seeDataPtr;

for(int I=0;I<8;I++)

seeDataPtr = I; / initialize data /

/ Inline assembly code for Borland C++ 3.1*/

asm {

push ds

mov ax,0fc03h

mov bx,06h /* Write starts at

word 6*/

mov cx,8 /* Write 8 words */

mov dx,0ffffh

lds si,seeDataPtr

int 17h

pop ds

}

Return serial EEPROM size

Function:

Subfunction:

Purpose: fch

04h

To obtain the size (bytes) of the on–board serial EEPROM.

Calling registers: AH

AL

DX fch

04h ffffh

Return registers: Carry flag cleared if successful

AX Size of the serial EEPROM (1536 + 512)

BX Size available to user (512 bytes)

Carry flag set if error

AL Error code

Error code Meaning ffh Unknown error

Comments:

01h Function not implemented

02h Defective serial EEPROM

03h Illegal access

This function returns the size (in bytes) of the serial EEPROM. Since the user cannot access all of the serial EEPROM, this function determines how much space is available to the user. This avoids the user from accessing unavailable addresses.

Programming example:

unsigned int seeUserSize;

/* Inline assembly code for Borland C++ 3.1*/

asm { mov ax,0fc04h mov dx,0ffffh int 17h mov seeUserSize,bx

}

85

Chapter 15: System switches, user switches, BIOS update, system functions, CPU fan, Integrated Conductive Cooling

System (ICCS), temperature sensors, power management and LEDs

System switches

Various system function options are selected with Switch 2.

The “S” switch selects whether the card boots from user defined parameters

(defined in the Setup Programs chapter), or the BIOS defaults. Setting this switch

Off allows the user to return to factory programmed defaults.

The “X” switch is reserved for future use.

The “V” switch enables or disables the on-card video, allowing an external video card, or the serial console to be used.

The “U” switches are user defined and can be used for program control.

Table 15 1 System configuration switches, Switch 2

Switch 2 – System Configuration

Label Description

S

X

V

System parameters option switch:

On = enable User Setup options*

Off = enable BIOS Setup default reserved for future use

Video switch:

On = enable on-card video*

Off = disable on-card video

U1

U2

* = default

User switch 1, default On*

User switch 2, default On*

Position

1

2

3

4

5

System switch

The system switch is position 1. When this switch is On the system boots using the parameters stored in Setup. When this switch is Off the system boots using the factory defaults for all parameters in Setup. Note that if you must set the system switch Off to recover your system, the user-defined parameters in Setup will not be changed unless you enter Setup, make the changes, and exit saving changes.

Video switch

The video switch is position 3. When this switch is On the on-card video is enabled.

To use a serial console, or an extension-card video only without using the onboard video controller (such as a PC/104), set this switch Off.

86

User switches

The user switches are positions 4 and 5 and are associated with GPI 2 (user switch

1) and GPI 23 (user switch 2.) The INT17 functions provide an easy method to implement software routines according to whether or not a switch is On. Refer to

the INT17 calls to read user switch on page 87.

INT17 calls to read user switches

The INT17 functions provide an easy method to implement software routines according to whether or not a user switch is On.

Function:

Sub-Function:

0fbh

0bh

Purpose: To read user jumper

Calling Registers: AH

AL

0fbh

0bh

DX 0ffffh

Return Registers: Carry flag cleared if successful

AL

Carry flag set if error

Comments:

AL

Jumper data bit 0 user jumper 1. 1=on, 0=off bit 1 user jumper 2. 1=on, 0=off

Error code

This function shall be used to read the user switches

Programming example:

/* Inline assembly code for Borland C++ 3.1 */ unsigned char aData; asm {

MOV AX, 0fb0bh

MOV DX, 0ffffh

INT 17h

MOV aData, AL

} if (aData & 1) printf(“U1 switch is ON\n”);

BIOS programming using REFLASH.EXE

The BIOS on the XE–900 SBC can be updated using the REFLASH.EXE utility.

This utility can be found in the \XE900\EXTBIOS subdirectory of the utilities (see

page 118 to download utilities). To update the BIOS the following steps must be

taken:

1. Copy REFLASH.EXE, REFLASH.CMD, and BIOS.ROM from the

\XE900\EXTBIOS subdirectory to the root of a bootable CompactFlash disk.

2. Boot the XE–900 SBC from the CompactFlash disk with a CRT monitor or flat panel connected to the system.

87

88

3. At the DOS prompt for the “C” drive type REFLASH <enter>.

The utility will display a progress screen and tell you when the process is done. You may need to push the reset button or cycle the power on the system to boot from the updated BIOS.

INT17 calls to read BIOS version

The INT17 functions provide the version number of the currently-installed BIOS.

Function:

Sub-Function:

Purpose:

0fbh

00h

To obtain the version number of the INT 17 BIOS extension

Calling Registers: AH

AL

0fbh

00h

DX 0ffffh

Return Registers: Carry flag cleared if successful

AL

AH

BL

Major version number (e.g. Version 2.10 returns 2)

Minor version number (e.g. Version 2.10 returns 10)

Version letter (e.g. Version 2.10B returns

‘B’)

Carry flag set if error

AL Error code

Comments: This function returns the version number of the

BIOS extension

Programming example:

/* Inline assembly code for Borland C++ 3.1 */ unsigned char majorVersion; unsigned char minorVersion; unsigned char versionLetter;

/* Inline assembly code for Borland C++ 3.1 */ asm {

MOV AX, 0fb00h

MOV DX, 0ffffh

INT 17h

MOV majorVersion, AL

MOV minorVersion, AH

MOV versionLetter, BL

}

System functions

The XE–900 has two additional INT 17 functions; Return CPU Type and Get

Functions Implemented.

Return CPU Type

This function returns the CPU type and the system clock speed.

Function:

Sub-Function:

Purpose:

0fbh

01h

To obtain the CPU type and clock speed

Calling Registers: AH

AL

DX

0fbh

01h

0ffffh

Return Registers: Carry flag cleared if successful

AH E0 = VIA C3

BX

CX

Clock speed in Mhz ie.733 etc.

Speed Index found during INT 17 initialization

Comments:

DX

SI reserved.

Current Speed Index

Carry flag set if error

AL Error code

This function returns the CPU type.

Programming example: unsigned char cpuMajor; unsigned char cpuMinor;

/* Inline assembly code for Borland C++ 3.1 */ asm {

MOV AX, 0fb01h

MOV DX, 0ffffh

INT 17h

MOV cpuType, AH

} if (cpuType == 0xE0 printf(“CPU type is VIA EDEN\n”);

CPU fan

The XE–900 733 MHz and 1 GHz versions come with a either a cooling fan on the

CPU or an Integrated Conductive Cooling System (see next section). The fan runs continuously when power is applied to the card. A tachometer feedback sends information back to the Southbridge.

Accessing CPU fan speed and temperature sensor registers is accomplished through operating system drivers. Contact Octagon Systems for driver availability and/or a Board Support Package for your Operating System (OS).

89

Table 15–2 J9 – CPU fan connector

J9 – CPU fan connector

Pin # Pin Name

1

2

3

GND

+5V tachometer control

Integrated Conductive Cooling System (ICCS)

The Integrated Conductive Cooling System provides a rugged passive cooling enclosure for the XE–900. The heat sink dissipates heat from the CPU throughout the all-aluminum assembly, ensuring that the temperature of the microprocessor stays close to that of the system environment. For best results, mount the system to a heat-conductive surface, using conductive fasteners.

The Integrated Conductive Cooling System is a factory-installed configuration for the XE–900. When it is ordered you must specify whether you want 256 or 512 MB

SDRAM, as these modules cannot be installed once the unit is assembled.

Do not disassemble the Integrated Conductive Cooling System. Disassembling the unit will void the warranty.

Figure 15–1 shows an orthogonal view of the assembled unit. Figure 15–2 shows the dimensions and mounting positions of the assembled unit.

Figure 15–1 Integrated Conductive Cooling System

90

Figure 15–2 Dimensions for the Integrated Conductive Cooling System

91

92

Temperature sensors

The XE–900 has two onboard temperature sensors. One is located in the middle of the board and measures the ambient temperature of the board. The other is located next to the CPU and monitors the CPU temperature.

Accessing CPU fan speed and temperature sensor registers is accomplished through operating system drivers. Contact Octagon Systems for driver availability and/or a Board Support Package for your Operating System (OS).

Power management

The XE–900 supports ACPI 2.0 and PCI Power Management Specification 1.2.

Refer to the specifications for information on how to use these functions.

ACPI 2.0

The XE–900 system hardware and BIOS support ACPI 2.0 for resource allocation, and power management states S0 and S1. This function is enabled in BIOS Setup.

PCI power management

The XE–900 supports PCI Power Management Specification 1.2. States B0 and B1 are always available. State B2 is not available when a PC/104-Plus (PCI) expansion card is used. State B2 cannot be used with PC/104-Plus specification 1.2, as necessary signals are not supported on the physical connector. This state will be automatically disabled by the system BIOS when a PC/104-Plus expansion card is detected by the PCI BIOS; no user adjustment is required.

LEDs

The XE–900 has three on-board LEDs, in addition to the LEDs on the Ethernet

connector. See page 19 for the location of the LEDs.

CR1 contains an amber and a green LED. The amber is an activity indicator for the

CompactFlash. The green is an activity indicator for the secondary IDE drive devices (hard drive, CD ROM, etc.)

CR2 is a power on LED. This indicates the system is powered.

CR6 is a bicolor User LED. The amber LED is connected to GPO22, and the green

LED is connected to GPO23. CR6 is also used by the BIOS during booting to

indicate the status of the boot process (see page 95).

Chapter 16: Troubleshooting

If your system is not working properly, check the following items.

No system LED activity

If there is no LED activity, check the following:

Make sure all PC/104 or PC/104-Plus expansion cards are removed from the

XE–900 SBC. This ensures that other cards are not interacting with the XE–

900 SBC.

Turn the “S” switch Off.

Check all power connections to the XE–900 SBC card.

Measure the supply voltage at the J8 power connector and verify that the voltage at the XE–900 SBC card is +5V (+/–0.25V).

Make sure your power module provides +5V (+/–0.25V) and at least 10A of current (to meet inrush requirement).

No CRT or flat panel video

If the LEDs appear to be functioning properly, but there is no video activity, check the following:

Make sure all PC/104 or PC/104-Plus expansion cards are removed from the

XE–900 SBC. This ensures that other cards are not interacting with the XE–

900 SBC.

Turn the “S” switch Off.

If using a CRT monitor, check the cable and connections going from the J1 connector to the monitor.

If using a flat panel display, check the following:

Check the power and cables going to the flat panel display.

Make sure that the power module has enough current capacity to power both the XE–900 SBC card and the flat panel.

If an analog monitor is not present or is not displaying the video data correctly, the system can be booted via the serial console by doing the following:

1. Turn the “S” switch Off and the “V” switch On.

2. Connect the COM port of a host computer running HyperTerminal or some other terminal software to COM1 on the XE–900 SBC using a serial console

(see page 49.) The serial port settings on the host computer should be

115.2K baud, 8, N, and none.

3. Power up the XE–900 SBC; it will boot using the serial console interface.

Video is present but is distorted

93

94

If video is present but is distorted, check the following:

Make sure all PC/104 or PC/104-Plus expansion cards are removed from the

XE–900 SBC. This ensures that other cards are not interacting with the XE–

900 SBC.

Turn the “S” switch Off.

If using a CRT monitor, check the cable and connections going from the J1 connector to the monitor.

If using a flat panel display, check the following:

1. Cable and connections going from the XE–900 SBC to the flat panel display.

2. Power cable going to the flat panel display.

3. Power module for the flat panel. Make sure that the power module has enough current capacity to power both the XE–900 SBC and the flat panel.

No serial console activity

If the serial console does not appear to be functioning correctly, check the following:

Make sure all PC/104 or PC/104-Plus expansion cards are removed from the

XE–900 SBC. This ensures that other cards are not interacting with the XE–

900 SBC.

Turn the “S” switch Off.

Make sure the COM1/2 connector on the XE–900 SBC is used.

Make sure a null modem adapter is installed between COM1 of the VTC-20F cable and the serial port of your PC.

Make sure that your terminal emulator (such as HyperTerminal) on your PC is set up properly. Refer to the Console devices chapter. Refer to the

HyperTerminal manual for information on setting up communication parameters.

After verifying the above conditions, you can monitor voltage levels by connecting an oscilloscope between the TxD* line on COM1 and ground. After power-up, you should see a burst of activity on the oscilloscope screen. The voltage level should switch between +/–8V.

Garbled serial console screen activity

If you do get activity on your console screen but the message is garbled, check the following:

Turn the “S” switch Off to ensure the default settings for COM1. The default baud rate is 115200.

Make sure that your terminal emulator (such as HyperTerminal) on your PC is set up properly. Refer to the Console devices chapter. Refer to the

HyperTerminal manual for information on setting up communication

parameters.

System generates a BIOS message but locks up when booting

Turn the “S” switch Off and reboot.

Verify that all the necessary boot files exist on the boot device. Copy any missing files to the boot device.

If no files are missing, overwrite any files which may have become corrupted.

In addition, you may want to format the boot device.

System will not boot from CompactFlash

Many CompactFlash devices as shipped from the factory are not bootable devices.

Refer to the CompactFlash, SDRAM, and battery backup chapter to make your

CompactFlash bootable. Also, try changing the IDE 0 parameters in Setup to

Phoenix or Physical, and ensure that the CompactFlash is designated as drive C:.

System locks up on power-up; may or may not respond to reset switch

A common cause is using a non-Octagon power supply such as a PC desktop supply.

Most of these PC supplies are rated at 5V at 20A or more. Switching supplies usually requires a 20% load to operate properly, that is, 4A or more. Since a typical

Octagon system takes less than 2A, the supply does not regulate properly. Output drift up to 6–7V and/or 7–8 voltage spikes have been reported. If the power supply comes up slowly, the sequencing of ICs on the board may be out of sync, thus, causing the system to lock up.

System locks up after power-down/power-up

If the power supply does not drain below 0.7V, the CMOS components on the card will act like diodes and forward bias. This is typically caused by using power supplies that have large output capacitors. Either use a different power supply that discharges faster, leave the power off until the supply has adequate time to discharge or place a 100 ohm, large wattage resistor across the output capacitor.

LED signaling of “beep” counts

Description

The XE–900 performs a complete series of tests during power on self test (POST).

The progress is recorded in port 80. Table 16–1 shows the port 80 codes.

The XE–900 SBC has a bicolor LED that is used by the BIOS to indicate the BIOS processing state. Immediately after the XE–900 SBC powers on, the LED is on and the green LED is off. Once the card boots, the amber LED turns off and the green

LED is on.

If the BIOS finds an error during POST the amber LED is flashed in a count indicating the POST code failure. The visual beep counts are defined in Table 16–2.

95

Count the number of flashes; the resulting number matches the POST error found in the Table 16–2. For example, five flashes indicates the CPU test failed.

The POST codes are listed in numerical order. This is not the sequence in which the actions are executed.

Table 16–1 POST port 80 codes

13h

14h

15h

16h

17h

18h

19h

1Ah

1Bh

1Ch

0Bh

0Ch

0Dh

OEh

0Fh

10h

11h

12h

Port 80

Code

00h

01h

02h

03h

04h

05h

06h

07h

08h

09h

0Ah

20h

21h

22h

23h

24h

25h

26h

27h

28h

29h

2Ah

2Bh

2Ch

POST Routine Description

Start POST (BIOS is executing)

Start CPU register test

Start power-on delay

Power-on delay finished

Keyboard BAT finished

Disable shadowing and cache

Compute ROM CRC, wait for KBC

CRC okay, KBC ready

Verifying BAT command to KB

Start KBC command

Start KBC data

Start pin 23, 24 blocking and unblocking

Start KBC NOP command

Test CMOS RAM shutdown register

Check CMOS checksum

Initialize CMOC contents

Initialize CMOS status for date/time

Disable DMA, PICs

Disable Port B, video display

Initialize board, start memory detection

Start timer tests

Test 8254 T2, for speaker, Port B

Test 8254 T1, for refresh

Test 8254 T0, for 18.2 Hz

Start memory refresh

Test memory refresh

Test 15 sec ON/OFF time

Test base 64KB memory

Test data lines

Test address lines

Test parity (toggling)

Test Base 64KB memory

Prepare system for IVT initialization

Initialize vector table

Read 8042 for turbo switch setting

Initialize turbo data

Modification of IVT

Video in monochrome verified

Video in color mode verified

Toggle parity before video ROM test

Initialize before video ROM test

Passing control to video ROM

96

49h

4Ah

4Bh

4Ch

4Dh

4Eh

4Fh

50h

51h

40h

41h

42h

43h

44h

45h

46h

47h

48h

33h

34h

35h

36h

37h

38h

39h

3Ah

2Dh

2Eh

2Fh

30h

31h

32h

61h

62h

63h

64h

65h

66h

67h

80h

81h

52h

53h

54h

55h

56h

57h

58h

59h

60h

Control returned from video ROM

Check for EGA/VGA adapter

No EGA/VGA found, test video memory

Scan for video retrace signal

Primary retrace failed

Alternate found

Verify video switches

Establish display mode

Initialize ROM BIOS data area

Set cursor for power-on msg

Display power-on message

Save cursor position

Display BIOS identification string

Display “Hit <DEL> to...” message

Prepare protected mode test

Prepare descriptor tables

Enter virtual mode for memory test

Enable interrupts for diagnostics mode

Initialize data for memory wrap test

Test for wrap, find total memory size

Write extended memory test patterns

Write conventional memory test patterns

Find low memory size from patterns

Find high memory size from patterns

Verify ROM BIOS data area again

Check for <DEL> pressed

Clear extended memory for soft reset

Save memory size

Cold boot: Display 1 st 64KB memtest

Cold boot: Test all of low memory

Adjust memory size for EBDA usage

Cold boot: Test high memory

Prepare for shutdown to real mode

Return to real mode

Shutdown successful

Disable A20 line

Check ROM BIOS data area again

Check ROM BIOS data area again

Clear “Hit <DEL>” message

Test DMA page register file

Verify from display memory

Test DMA0 base register

Test DMA1 base register

Checking ROM BIOS data area again

Checking ROM BIOS data area again

Program DMA controllers

Initialize PICs

Start keyboard test

Issue KB reset command

Check for stuck keys

97

98

99h

9Ah

9Bh

9Ch

9Dh

9Eh

9Fh

0A0h

0A1h

90h

91h

92h

93h

94h

95h

96h

97h

98h

88h

89h

8Ah

8Bh

8Ch

8Dh

8Eh

8Fh

82h

83h

84h

85h

86h

87h

00h

0B1h

0B2h

0B3h

0B4h

0B5h

0B6h

0B7h

0B8h

0A2h

0A3h

0A4h

0A5h

0A6h

0A7h

0A8h

0A9h

0B0h

Initialize circular buffer

Check for locked keys

Check for memory size mismatch

Check for password of bypass setup

Pwd checked. Do programming before setup

Entering setup system

Setup system exited

Display power-onscreen message

Display “Wait...” message

Shadow system and video BIOS

Load standard setup values from CMOS

Test and initialize mouse

Test floppy disks

Configure floppy drives

Test hard drives

Configure IDE drives

Checking ROM BIOS data area

Checking ROM BIOS data area

Set base and extended memory sizes

Adjust low memory size for EBDA

Initialize before calling C800h ROM

Call ROM BIOS extension at C800h

ROM C800h extension returned

Configure timer/printer data

Configure serial port base addresses

Prepare to initialize coprocessor

Initialize numeric coprocessor

Numeric coprocessor initialized

Check KB settings

Issue keyboard ID command

KB ID flag reset

Test cache memory

Display soft errors

Set keyboard typomatic rate

Program memory wait states

Clear screen

Enable parity and NMIs

Initialize before calling ROM atE000h

Call ROM BIOS extension at E000h

ROM extension returned

Display system configuration box

Call INT 19h bootstrap loader

Test low memory exhaustively

Test extended memory exhaustively

Enumerate PCI busses

Initialize address manager

Preboot address manager callout

Test huge memory exhaustively

Initialize SMBIOS structure table

About to signal Firmbase

0B9h

0BAh

0BBh

About to initialize low small memory mgr

About to initialize driver manager

About to start multiprocessor init

Table 16–2 BIOS beep counts

Mnemonic Code

POST_BEEP_REFRESH

POST_BEEP_PARITY

POST_BEEP_BASE64K

POST_BEEP_TIMER

POST_BEEP_CPU

POST_BEEP_GATEA20

POST_BEEP_DMA

POST_BEEP_VIDEO

POST_BEEP_KEYBOARD

POST_BEEP_SHUTDOWN

POST_BEEP_CACHE

POST_BEEP_BOARD

POST_BEEP_LOWMEM

POST_BEEP_EXTMEM

POST_BEEP_CMOS

POST_BEEP_ADDRESS_LINE

POST_BEEP_DATA_LINE

POST_BEEP_INTERRUPT

POST_BEEP_PASSWORD

POST_BEEP_HUGEMEM

POST_BEEP_EBDA_LOC

POST_BEEP_ADDR_MGR

POST_BEEP_ADSYNCH

POST_BEEP_LOMEMMGR

POST_BEEP_POST_FAIL

POST_BEEP_PMM

19

20

21

22

23

24

25

15

16

17

18

1

11

12

13

14

Beep

Count

1

7

8

9

10

2

3

4

5

6

Description of Problem

Memory refresh is not working

Parity error found in 1 st 64KB of memory

Memory test of 1 st 64KB failed

T1 timer test failed

CPU test failed

Gate A20 test failed

DMA page/base register test failed

Video controller test failed

Keyboard test failed

CMOS shutdown register test failed

External cache test failed

General board initialization failed

Exhaustive low memory test failed

Exhaustive extended memory test failed

CMOS restart byte test failed

Address line test failed

Data line test failed

Interrupt controller test failed

Incorrect password used to access SETUP

Exhaustive huge memory test failed

Address manager failed to reloc EBDA

Address manager failed to initialize

Address mgr failed to synch legacy mem parameters

Low memory manager failed to initialize

POST driver failed

PMM failed to initialize

99

100

Technical assistance

Carefully recheck your system before calling Technical Support. Run as many tests as possible; the more information you can provide, the easier it will be for Technical

Support staff to help you solve the problem. For additional technical assistance, try the following:

Technical Support telephone: 303–426–4521

E-mail Technical Support: [email protected]

Applications Notes (via web): http://octagonsystems.com

Overview: Section 4

– Appendices

Section 4 contains a series of appendices which provides additional information about the XE–900 SBC.

Appendix A: Technical data

Appendix B: Software utilities

Appendix C: Accessories

101

Appendix A: XE

–900 SBC technical data

Technical specifications

CPU

VIA Eden ESP, 400 MHz, 733 MHz or 1 GHz

Front Side Bus

133 MHz

PCI bus clock

33 MHz

ISA bus clock

8.33 MHz

BIOS

AT compatible with industrial extensions

SDRAM

0 MB SDRAM supplied. SO-DIMM socket can be populated with up to 256 MB

SDRAM using PC100 or PC133 memory sticks. Some low-power 512 MB SO–

DIMM modules are also supported. Contact Octagon Systems for compatibility before using 512 MB modules.

On-board flash

512 KB socketed flash, contains system BIOS

Hard drive

EIDE hard drive support with on-card hard drive controller and BIOS. Accessed via 44-pin connector. Supports up to three EIDE devices. CompactFlash appears as the primary EIDE device.

CompactFlash socket

Supports Type I and Type II 3V CompactFlash devices.

USB

2 ports USB 1.1 compatible

Serial I/O

Six ports with RS–232, RS–422, RS–485, or TTL interfaces

IEC1000, level 3, ESD protection specification

— Contact discharge ±6 kV

— Air–gap discharge ±8 kV

Backdrive protection

16C550 compatible

Up to 115.2K baud

16-byte FIFO buffers

Switch-selectable terminations for RS–422/485 on COM5/6

Digital I/O

24 I/O lines, sink/source 15mA per line

Keyboard and mouse ports

PS/2 compatible

Ethernet

One 10/100BaseT port supporting IEEE 802.3

102

Video

Supports CRTs displays with resolutions up to 1920 x 1440 x 24 bpp, and LVDS flat panel displays with resolutions up to 1600 x 1200 x 18 bpp.

Watchdog timer

Time-out is 1 second, 10 seconds or 60 seconds. Strobed through built–in, enhanced

INT 17h function calls.

Real time clock

AT compatible with external battery backup.

Expansion

PC/104 and PC/104-Plus.

Operating systems

Compatible with Windows XPe, Windows CE.net, Linux, QNX, and DOS.

PCI bus mastering

Bus mastering devices are supported on the PC/104-Plus connector.

Power requirements

5V ±0.25V; 3.3A @ 400 or 733 MHz, 3.4A @ 1 GHz, 10A inrush current

Note The power supply for the XE–900 must meet the startup risetime requirements specified in the ATX Power Design Guide, version 1.1, section 3.3.5. This ensures that all the circuitry on the XE–900 SBC sequences properly and avoids system lockup.

Environmental specifications

Operating temperature –40° to +60°C @ 400 MHz

–40° to +60°C @ 733 MHz, with forced air flow

–40° to +60°C @ 1 GHz, with forced air flow

These operating specification also apply to units with the Integrated Conductive Cooling System.

Nonoperating temperature –55° to 85°C, nonoperating

Relative humidity 5% to 95% noncondensing

Shock 40g, 3 axis

Vibration 5g, 3 axis

Size

115 mm x 165mm x 29.5 mm, EPIC™ form factor

Weight

8 oz.

Excessive Thermal Stress

This card is guaranteed to operate over the published temperature ranges and relevant conditions. However, sustained operation near the maximum temperature specification is not recommended by Octagon or the CPU chip manufacturer due to well known, thermal related, failure mechanisms. These failure mechanisms, common to all silicon devices, can reduce the MTBF of the cards. Extended operation at the lower limits of the temperature ranges has no limitations.

103

Mating connectors

Table A–1 XE–900 SBC mating connectors

J8

J9

J10

J11

J12

J13

J14

J15

J16

J17

J4

J5

J6

J7

Connector Function

J1 VGA video

J2

J3

LVDS video

PC/104-Plus

Hard drive

PC/104

Digital I/O

Ethernet

J18

J19

J500

XU500

Power

CPU fan

COM6 RS–422/485

COM5 RS–422/485

COM5/6 TTL

COM1/2

Speaker

USB1/2

CompactFlash

SO-DIMM

Mating Connector

Molex 87568-1073

Octagon #6772

Teka 2MR430-A7WD-368-0

Amp 1-111626-0

Comm Conn 50711C-104G

Amp 746288-6

RJ45

Molex #39-01-2100

Molex 22-01-3037

Molex 22-01-3057

Molex 22-01-3057

Berg 65039-031

Amp 746288-4

PS/2 Keyboard / Mouse PS/2

COM3/4 Amp 746288-4

COM5 RS–232

PC battery

Amp 746288-1

Berg 65039-033

Berg 65039-033

Octagon #6288 cable

CompactFlash device

N/A

Maps

Table A–2 XE–900 SBC DMA map

Channel

Channel 0

Channel 1

Channel 2

Channel 3

Channel 4

Channel 5

Description

XE–900 SBC DMA map

available * available * available * available *

Slave available

* One of the lower DMA channels (0 through 3) must be disabled (reserved by the system) and will be unavailable to the expansion bus. By default, DMA Channel 2 will be disabled. The user may use Setup to change this selection to any other low DMA channel.

Channel 6 available

Channel 7 available

104

Table A–3 XE–900 SBC I/O map

03ff

044f

040b

0415

044F

0cff ef4b efaf fbff

01cf

01f7

02ef

02ff

0323

03df

03ef

00a1

00df

00ff

0123

0177

01a7

01af

01c7

End Addr

(Hex)

001f

0021

005f

006f

008f

XE–900 SBC I/O map

Function

DMA controller 1

PIC 1

Timer

Keyboard Controller

DMA Page register

PIC 2

DMA controller 2

FPU

Digital I/O (Optional, Default Location)

Secondary IDE

COM 6 (Optional, Default Location)

COM 5 (Optional, Default Location)

COM 6 (Optional, Alternate Location)

COM 5 (Optional, Alternate Location)

Primary IDE

COM 4

COM 2

Digital I/O (Optional, Alternate Location)

Reserved (Secondary IDE control)

VGA

COM 3

Reserved (Primary IDE control)

COM 1

PMIO (see subfunctions below)

ACPI timer

ACPI CPU throttle

GPIO (Watchdog, Switches, LEDs, etc)

PCI Config

Hardware Monitoring

SMBUS

PCI Assignable

03f6

03f8

0400

0408

0410

0448

0cf8 ef00 efa0 f000

01c8

01f0

02e8

02f8

0320

0376

03c0

03e8

00a0

00c0

00f0

0120

0170

01a0

01a8

01c0

Start Addr

(Hex)

0000

0020

0040

0060

0080

105

Table A–4 XE–900 SBC interrupt map

IRQ

XE–900 SBC interrupt map

Default Device Alternate

IRQ0 System Timer

IRQ1 Keyboard not available not available

IRQ2 Cascade to IRQ9 not available

IRQ3 COM2 not available

IRQ4 COM1 not available

IRQ5 SMM PC/104 when SMM and

ACPI are disabled

IRQ6 unused PC/104 or PCI

IRQ7 available for PCI PC/104

IRQ8 RTC Alarm

IRQ9 COM3-6

IRQ10 available for PCI

IRQ11 available for PCI not available not available

IRQ12 Aux Port (mouse) PC/104 or PCI

IRQ13 Reserved for FPU not available

IRQ14 IDE Primary

(CompactFlash)

PC/104 or PCI

IRQ15 IDE Secondary PC/104 or PCI

106

Table A–5 XE–900 SBC memory map

XE–900 SBC memory map

Start Addr (Hex) End Addr (Hex) Function

00000000

0009e000

0009dfff

0009ffff

System Ram

Reserved

000a0000

000c0000

000ce000

000E0000

00100000 (1MB)

Top of SDRAM – following, size varies

Top of SDRAM –

Video RAM size

(set in setup)

000bffff

000cdfff

000dffff

000fffff

Top of SDRAM – following

Top of SDRAM – following

Top of SDRAM

Video RAM area

Video ROM (virtual / shadow)

Unused / Available

BIOS ROM area (shadow)

System RAM

ACPI Tables & Storage structures

Reserved for onboard VGA use

Top of SDRAM

04000000 (1GB)

03ffffff

09ffffff

0a000000 (2.5GB) ffefffff fff00000 ffffffff

Unused

Assignable to PCI, Prefetchable memory

Assignable to PCI, Non-Prefetchable memory

Flash ROM (BOIS & Resources)

Switch settings

Table A 6 System configuration switches, Switch 2

Switch 2 – System Configuration

Label Description

S System parameters option switch:

On = enable User Setup options*

X

V

Off = enable BIOS Setup default reserved for future use

Video switch:

On = enable on-card video*

Off = disable on-card video

U1

U2

* = default

User switch 1, default On

User switch 2, default On

Position

1

2

3

4

5

107

Table A–7 LVDS flat panel switch, Switch 3

On

On

Off

Off

Off

Off

Off

Off

Off

Off

*default

Switch 3 - LVDS Flat Panels

Position 1 - On (Factory use only) This switch must remain On*

Position 2 - On

Position 2 - Off

LVDS flat panel disabled*

LVDS flat panel enabled

Position3 Position 4 Position 5 Position 6

On On On On Reserved*

On

On

On

On

On

Off

Off

On

640 x 480 x 18

Reserved

On

On

On

On

Off

Off

Off

On

On

Off

On

Off

1280 x 1024 x 18

Reserved

Reserved

Off

Off

On

On

On

On

Off

Off

Off

Off

Off

Off

On

On

Off

Off

On

On

Off

Off

On

Off

On

Off

On

Off

On

Off

On

Off

1600 x 1200 x 18 (2 pixels/clock)

Reserved

800 x 600 x 18

Reserved

Reserved

Reserved

Reserved

Reserved

1024 x 768 x 18

Reserved

Table A–8 COM5/6 switches, Switch 4

Switch 4 – COM5/6 termination

COM Port Interface Switch 4 Settings

COM5

RS–422/RS–485 no termination

RS–422/RS–485 with termination

Position 1 Off

Position 2 Off

Position 1 On*

Position 2 On*

COM6

RS–422/RS–485 no termination

RS–422/RS–485 with termination

Position 3 Off

Position 4 Off

Position 3 On*

Position 4 On*

* Default. These switches terminate the network. If the XE–900 SBC is not at an end of the network, set these switches to Off.

108

Connector pin

–outs

The following tables show the pin–outs for the connectors on the XE–900 SBC.

Table A–9 J1 – CRT connector

5

7

1

3

J1, CRT Connector

Pin # Pin Name Pin Name

9

RD

BL

+5V

HSYNCOUT

DDC SCL

GR

GND

GND

DDC SDA

VSYNCOUT

Pin #

2

4

6

8

10

Table A–10 J2 – LVDS flat panel connector

7

9

11

13

15

17

19

1

3

5

J2 – LVDS flat panel connector

Pin # Pin Name Pin Name

3V

GND

Y0M

5V

GND

Y0P

Y1M

Y2M

YCM

Z0M

Z1M

Z2M

ZCM

Y1P

Y2P

YCP

Z0P

Z1P

Z2P

ZCP

12

14

16

18

20

Pin #

2

4

6

8

10

109

Table A–11 J3 – PC/104-Plus connector

Some signals and/or signal names on the XE–900 do not match the PC/104-Plus specification. In those instances, the signals are shown below in gray boxes. The

PC/104-Plus specified signal is listed first, and the XE–900 signal follows.

20

21

22

23

16

17

18

19

24

25

26

27

28

29

30

* active low

12

13

14

15

8

9

10

11

4

5

6

7

Pin

1

2

3

AD21

+3.3V

IDSEL0

AD24

GND

AD29

+5V

REQ0*

GND

GNT1*

+5V

CLK2

GND

+12V

-12V/GND

A

GND

VI/O

AD05

C/BE0*

GND

AD11

AD14

+3.3V

SERR*

GND

STOP*

+3.3V

FRAME*

GND

AD18

J3 – PC/104-Plus connector

B C

Reserved

AD02

+5

AD01

GND

AD07

AD09

VI/O

AD04

GND

AD08

AD10

AD13

C/BE1*

GND

PERR*

+3.3V

TRDY*

GND

AD16

GND

AD15

Reserved

+3.3V

LOCK*

GND

IRDY*

+3.3V

+3.3V

AD20

AD23

GND

C/BE3*

AD26

+5V

AD30

GND

REQ2*

VI/O

CLK0

+5V

INTD*

INTA*

REQ3/not used

AD17

GND

AD22

IDSEL1

VI/O

AD25

AD28

GND

REQ1*

+5V

GNT2*

GND

CLK3

+5V

INTB*

GRNT3/not used

AD19

+3.3V

IDSEL2

IDSEL3

GND

AD27

AD31

VI/O

GNT0*

GND

CLK1

GND

RST*

INTC*

GND

D

AD00

+5V

AD03

AD06

GND

M66EN/GND

AD12

+3.3V

PAR

Reserved

GND

DEVSEL*

+3.3V

C/BE2*

GND

110

Table A–12 J4 – EIDE

J4 – EIDE

Pin # Pin Name Pin Name

44 VCC5 NC

Pin #

43

30

28

26

24

22

20

18

42

40

38

36

34

32

VCC5

Gnd

IDESCSI* IDESCS0*

IDESA(2) IDESA(0)

NC

NC

Gnd

NC

Gnd

Gnd

Gnd

KEY

VCC5

IDES.LED

IDESA(1)

IDESINTR

IDESDRO

Gnd

IDEDS(15) IDEDS(0)

6

4

2

16

14

12

10

8

IDEDS(14) IDEDS(1)

IDEDS(13) IDEDS(2)

IDEDS(12) IDEDS(3)

IDEDS(11) IDEDS(4)

IDEDS(10) IDEDS(5)

IDEDS(9)

IDEDS(8)

Gnd

* = active low

IDEDS(6)

IDEDS(7)

IDESRST*

41

39

37

35

33

31

IDESDACK* 29

IDESIORDY 27

IDESTOR* 25

IDESTOW* 23

21

19

17

5

3

1

15

13

11

9

7

111

Pin

12

13

14

15

8

9

10

11

16

17

18

19

4

5

6

7

0

1

2

3

Table A–13 PC/104 connector

GND

MEMCS16*

IOCS16*

IRQ10

IRQ11

IRQ12

IRQ15

IRQ14

DACK0*

DRQ0

DACK5*

DRQ5

DACK6*

DRQ6

DACK7*

DRQ7

+5V

MASTER*

GND

GND

PC/104 Connector

D C

GND

SBHE*

LA23

LA22

LS21

LS20

LS19

LA18

LA17

MEMR*

MEMW*

SD8

SD9

SD10

SD11

SD12

SD13

SD14

SD15

GND/KEY

21

22

23

24

17

18

19

20

25

26

27

28

13

14

15

16

9

10

11

12

29

30

31

32

Pin

1

2

3

4

5

6

7

8

D0

IOCHRDY

AEN

A19

A18

A17

A16

A15

A14

A13

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

A0

GND

PC/104 Connector

A

IOCHCK*

D7

D6

D5

D4

D3

D2

D1

B

GND

RSTDRV

+5V

IRQ9

-5V

DRQ2

-12V

ENDXFR*

+12V

GND/KEY

SMEMW*

SMEMR*

IOW*

IOR*

DACK3*

DRQ3

DACK1*

DRQ1

REFRESH*

SYSCLK

IRQ7

IRQ6

IRQ5

IRQ4

IRQ3

DACK2*

TC

BALE

+5V

OSC

GND

GND

112

Table A–14 J6 – Digital I/O connector

Pin #

1

3

5

7

9

Pin Name

Port B, bit 4

Port B, bit 5

Port B, bit 6

Port B, bit 7

Port C, bit 7

J6 Digital I/O

Pin Name

11

13

15

17

19

21

23

25

Port C, bit 5

Port C, bit 0

Port C, bit 2

Port C, bit 3

Port A, bit 0

Port A, bit 1

Port A, bit 2

Port A, bit 3

Vcc (+5V)*

Port B, bit 2

Port B, bit 3

Port B, bit 1

Port B, bit 0

Port C, bit 6

Port C, bit 4

Port C, bit 1

Port A, bit 7

Port A, bit 6

Port A, bit 5

Port A, bit 4

Gnd

* +5V safe is fused through a 750 mA automatic, resetting fuse

12

14

16

18

20

22

24

26

Pin #

2

4

6

8

10

Table A–15 J7 – Ethernet connector

6

7

1

2

3

4

J7 – Ethernet connector

RJ pin Pin Name

TxD +

TxD –

RxD +

5 comm. mode term. comm. mode term.

RxD – comm. mode term.

8 comm. mode term.

Table A–16 J8 – Power connector

Pin Function Function Pin

1 nc nc 6

2

3

GND

GND

+5v

+5v

7

8

4

5

+12V

+3V

–12V

GND

9

10

113

Table A–17 J9 – CPU fan connector

J9 – CPU fan connector

Pin # Pin Name

1

2

3

GND

+5V tachometer control

Table A–18 J10 and J11 – COM5 and COM6 RS–422/485 connector

2

3

4

5

J11 COM5

connector

J10 COM6

connector

Pin # Signal Pin # Signal

1 TXD+ 1 TXD+

TXD–

GND

RXD+

RXD–

2

3

4

5

TXD–

GND

RXD+

RXD–

Table A–19 J12 – COM5 and COM6 TTL connector

2

3

4

5

6

J12 COM5/6

TTL connector

Pin # Signal

1 TX5

RX5

GND

TX6

RX6

GND

114

Table A–20 J13 – COM1 and COM2 connector

COM2

Pin# RS–232 signal

11

12

13

14

15

16

17

18

19

20 nc nc

RxD

RTS

TxD

CTS nc nc

GND nc

COM1

Pin# RS–232 signal

4

5

6

7

8

1

2

3

9

10

DCD

DSR

RxD

RTS

TxD

CTS

DTR

RI

GND nc

Table A–21 J14 – PS/2 keyboard mouse

5

6

3

4

J14 – PS/2 Keyboard Mouse

Pin # Pin Name

1 KDATA

2 MDATA

GND

+5V

KCLK

MCLK

Table A–22 J15 – COM3 and COM4 connector

COM4

Pin# RS–232 signal

11

12

13

14

15

16

17

18

19

20 nc nc

RxD

RTS

TxD

CTS nc nc

GND nc

1

2

3

4

5

6

COM3

Pin# RS–232 signal

7

8

9

10 nc nc

RxD

RTS

TxD

CTS nc nc

GND nc

115

Table A–23 J16 – COM5 RS–232 connector

COM5 RS–232

Pin# RS–232 signal

4

5

6

7

8

1

2

3

9

10 nc nc

RxD

RTS

TxD

CTS nc nc

GND nc

Table A–24 J17 – Battery connector

J17 – battery connector

Pin # Pin Name

1

2

3

4

Battery +

Key nc

Battery –

Table A–25 J18 – Speaker connector

J18 – speaker connector

Pin # Pin Name

1

2

3

4

VCC5 nc nc

SPKR

Table A–26 J19 – USB connector

Pin #

5

7

1

3

9

J19 – USB connector

Pin Name Pin Name

USB1 power

USB1 –

USB1 +

Gnd

Gnd

USB2 power

USB2 –

USB2 +

Gnd

Gnd

Pin #

6

8

2

4

10

116

Table A–27 J500 – CompactFlash

5

7

9

11

J500 – CompactFlash connector

Pin# Signal Signal Pin#

1

3

GND

DD4

DD3

DD5

2

4

13

15

17

DD6

HDCS0* GND

GND

GND

+5V

GND

GND

DD7

GND

GND

GND

GND

A2

6

8

10

12

14

16

18

27

29

31

33

19

21

21

25

A1

DD0

DD2

NC

DD11

DD13

DD15

NC

A0

DD1

NC

NC

DD12

DD14

HDCS1*

IOR*

43

45

47

49

35

37

39

41

IOW

IRQ14

M/S select NC

RST* IORDY

NC

DD8

DD10

51 NC

*active low

+5V

+5V

+5V

ACTLED PDIAG

DD9

GND

NC

44

46

48

50

52

36

38

40

42

28

30

32

34

20

22

24

26

117

Appendix B: Software utilities

Introduction

This chapter describes the utilities listed below. The drivers and utilities are in a self-extracting zip file, located at the Octagon Systems web site on the XE–900 product page. Download this file to a separate directory on your hard drive, then double click on it to extract the files.

Support commands

XE900I17.EXE

REFLASH.EXE

RESET.COM

118

XE900I17.EXE

Purpose

This support command must be used to allow the system to use the INT 17h functions.

Syntax

XE900I17

REFLASH.EXE

Purpose

This support command will program a BIOS image from bios image file to the 512K flash EPROM.

Syntax

REFLASH

Remarks

Reflash.exe must have two files that are located the same directory as the reflash.exe file. These files are BIOS.BIN, a 512K BIOS image, and

REFLASH.CMD, a support file that controls the programming sequence. These

files are located in the XE–900 utilities (see page 118).

RESET.COM

Purpose

This support command enables the watchdog timer and allows time–out to expire, thus restarting the system.

Syntax

RESET

Remarks

The RESET command also restarts all the expansion I/O cards on the bus. This differs from a <CTRL><ALT><DEL> reboot of the system which only restarts the system but not the expansion cards. The RESET button on the XE–900 SBC also accomplishes the same thing as the RESET command.

119

Appendix C: Accessories

Table C–1 Cables and accessories

Product

KYBD

COM Port VTC-20F Cable

COM Port VTC-20M Cable

COM Port VTC-9F Cable

COM Port VTC-9M Cable

0.100 in RS-422/485 Cable

USB Cable

LVDS-18 Video Cable

IDE Cable

Description

Keyboard/mouse Y adapter cable

Dual serial cable (female)

Dual serial cable (male)

Serial cable (female)

Serial cable (male)

Serial cable for RS-422/485

Two-port USB cable

LVDS cable with flying leads

44-pin to multi-connector cable: one 40-pin and one 44-pin two 40-pin and one 44-pin

2 mm VGA-12, Cable, Ribbon, 12” VGA video cable

Null Modem Adapter, 9 Pin 9-pin to 9-pin

AT battery

ATX Power Cable

Calendar/clock battery backup

10-pin to 20-pin ATX cable

Table C–2 Digital I/O accessories

Product

Cables

CMA-10-24

CMA-26-12

CMA-26-24

Terminal Boards

STB-26

STB-20

STB-10

TBD-100

Description

Terminal board, 26-position

Terminal board, 20-position

Terminal board, 10-position

Terminal board with LED indicators

Octagon p/n

24” cable for I/O port, 10-pin 1743

12” cable for digital IO port, 26-pin 2776

24” cable for digital IO port, 26-pin 1257

2905

2904

2901

1183

Octagon p/n

4186186

4866

4989

2746

2472

6683

6288

6772

4080

6246

6392

2470

3186

6537

Opto Modules and Racks

G4-IAC5

G4-IAC5A

G4-IDC5

G4-IDC5B

G4-IDC5D

G4-OAC5

G4-OAC5A

G4-ODC5

G4-ODC5A

MPB-08

MPB-16

MPB-24

Input module, 90-140 VAC

Input module, 180-280 VAC

Input module, 15-32 VDC

Input module, 4-16 VDC

Input module, 2.5-28 VDC

Output module, 12-140 VAC

Output module, 24-280 VAC

Output module, 5-60 VDC

Output module, 5-200 VDC

Opto Rack, 8-position

Opto Rack, 16-position

Opto Rack, 24-position

2395

2396

2397

2511

2529

2398

2399

2400

2503

2512

2513

2514

120
