QuickSpecs
QuickSpecs

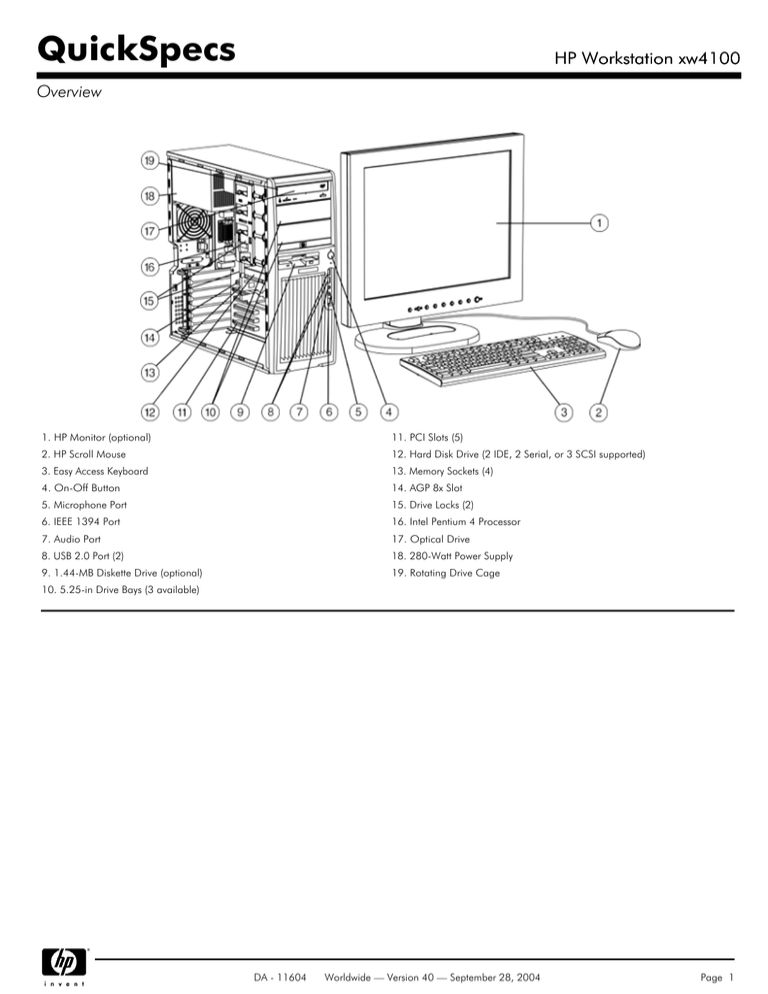

HP Workstation xw4100
Overview
1. HP Monitor (optional)
11. PCI Slots (5)
2. HP Scroll Mouse
12. Hard Disk Drive (2 IDE, 2 Serial, or 3 SCSI supported)
3. Easy Access Keyboard
13. Memory Sockets (4)
4. On-Off Button
14. AGP 8x Slot
5. Microphone Port
15. Drive Locks (2)
6. IEEE 1394 Port
16. Intel Pentium 4 Processor
7. Audio Port
17. Optical Drive
8. USB 2.0 Port (2)
18. 280-Watt Power Supply
9. 1.44-MB Diskette Drive (optional)
19. Rotating Drive Cage
10. 5.25-in Drive Bays (3 available)
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 1
QuickSpecs
HP Workstation xw4100
Overview
At A Glance
Choice of operating systems:
Microsoft Windows XP Professional
HP Installer Kit for Linux (see http://www.hp.com/workstations/software/linux/ for details)
Red Hat Linux 7.3 or Red Hat Enterprise WS 3
Supports Intel® Pentium® 4 processor, 2.4 GHz to 3.2 GHz
Next generation convertible mini-tower chassis
Up to 2MB onboard L2 cache
Intel 875P chipset with 800 MHz front side bus
Intel Hyper-Threading Technology
Intel Performance Acceleration Technology (PAT)
Dual-channel PC3200 DDR-400* or PC2700 DDR-333 memory, expandable to 4 GB
Ultra320 SCSI hard drives (10,000 or 15,000 rpm), Ultra ATA/100 hard drives (7200 rpm), or Serial ATA hard drives (10,000 or 7200 rpm)
Ultra ATA/100 controller, SATA/150 controller, and optional Ultra160 SCSI, Ultra320 SCSI, Ultra320 RAID or SATA RAID controller
Up to 500 GB of high-performance internal storage
Choice of leadership graphics:
NVIDIA Quadro NVS 280 (AGP or PCI),
NVIDIA Quadro NVS 400,
NVIDIA Quadro4 380 XGL,
ATI FireGL T2-128,
NVIDIA Quadro FX1100,
NVIDIA Quadro FX3000
Integrated Gbit (10/100/1000Mb) Ethernet adapter
AGP 8X Graphics Interface
Five available PCI slots
Six bays (four external and two internal)
CD-ROM, DVD-ROM, CD-RW, DVD+RW
Full Independent Software Vendor (ISV) certification and support for leading technical applications
Protected by HP services, including a three-year limited warranty in many countries. Certain restrictions and exclusions apply. Three-year onsite labor
not available in all countries.
* When DDR-400 memory is used with 533 MHz FSB processors, memory slows down to 333 MHz.
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 2
QuickSpecs
HP Workstation xw4100
Standard Features
Processor
Intel Pentium 4 processor:
2.4 GHz (533 MHz front side bus**, 512K L2 cache)*
2.8A GHz (533 MHz front side bus**, 1MB L2 cache)*
2.8E GHz (800 MHz front side bus, 1MB L2 cache)
3.0E GHz (800 MHz front side bus, 1MB L2 cache)
* No Hyper-Threading Technology support. Hyper-Threading Technology requires a computer system with an Intel Pentium
4 processor supporting HT Technology and a Hyper-Threading Technology enabled chipset, BIOS and operating system.
Performance will vary depending on the specific hardware and software you use. See
http://www.intel.com/info/hyperthreading/ for more information including details on which processors support HT
Technology. HT available on all 800 MHz FSB systems.
Operating System
Microsoft Windows XP Professional SP1
HP Installer Kit for Linux (supports custom installations of Red Hat 7.2, 7.3, 8.0, 9.0 and Enterprise Workstation Edition
3.0)
Red Hat Enterprise Linux WS 3 (update 2)
Cache Memory
512 KB integrated, full speed Level 2 cache
1 MB integrated, full speed Level 2 cache (available on 2.8E, 3.0E, and 3.2E GHz models only)
Memory
Maximum
4 GB of dual-channel PC3200 DDR-400
NOTE: DDR-400 memory only runs at 333MHz when ordered with 533 MHz FSB
processors.
Expansion Slots
I/O (Total)
6 total available
PCI - 32-bit/33 MHz
5 slots available
AGP 8X
1 slot available
(Total/Available)
6 total/3 available
External 3.5 inch
1 bays/0 available (floppy optional)
Internal 3.5 inch
2 bays/1 available
External 5.25 inch
3 bays/1 available (1 can be used as floppy drive bay or additional HD bay with mounting
kit)
Diskette Drive
1.44 MB
Removable Media
CD-ROM, CD-RW, DVD-ROM, CD-RW/DVD-ROM Combo, DVD+RW, or no optical
disk
Hard Drive
40, 80, 160 or 250 GB Ultra ATA (7200 rpm)
80, 160 or 250 GB Serial ATA (7200 rpm)
36 or 74 GB Serial ATA (10K rpm)
36, 73 or 146 GB Ultra320 SCSI (10K rpm)
36 or 73 GB Ultra320 SCSI (15K rpm)
Expansion Bays
Storage
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 3
QuickSpecs
HP Workstation xw4100
Standard Features
Interfaces
Parallel
One 25-pin port (rear)
USB
6 USB 2.0 ports (2 front, 4 rear)
Serial
Two 9-pin connectors (rear)
Ultra160 SCSI (optional)
Internal and external (rear) connectors
Ultra320 SCSI (optional)
Internal and external (rear) connectors
Ultra ATA/100
2 connectors (internal)
Serial ATA/150
2 connectors (internal)
Keyboard
1 PS/2 keyboard port (rear)
Pointing Device
1 PS/2 mouse port (rear)
Network interface
1 RJ-45 connector (rear)
Microphone Jack
1 (front)
Headphone Jack
1 (front)
Line-In Jack
1 (rear)
Line-Out Jack
1 (rear)
IEEE 1394/Firewire (optional)
3 connectors (1 front, 2 rear)
Graphics
One of the following:
NVIDIA Quadro NVS 280 (64MB, Dual Display, AGP or PCI)
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
Audio
AC97/16-bit stereo full-duplex
Manageability
System Software Manager
Insight Management Agent
Altiris Express
Asset Control
Alert on LAN (AoL)
Wake on LAN (WoL)
Fault Management
Security Management
Pre-Failure Warranty (hard drives and memory)
Remote Management
Remote Wakeup
Remote ROM Flash
Remote Security
Remote Shut Down
Bios Features
Advanced Configuration and Power Interface (ACPI) 1.0b
Desktop Management Interface (DMI) 2.1
System Management (SM) Bios 2.3.1
Wired for Management (WFM) 2.0
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 4
QuickSpecs
HP Workstation xw4100
Standard Features
Security
Diskette write and boot control
Flash ROM lock
Keyboard password
Network server mode
Parallel interface control
Power-on password
Serial interface control
Setup password
Cable lock provision
Solenoid Hood Lock/Sensor (optional)
Power Supply
280 watts
Service and Support
Protected by HP Services including a three-year, limited warranty with three-year parts coverage, three year, on-site service,
and three-year labor (in many countries); 7 x 24 hardware technical phone support and on-line support through the
Internet; Pre-Failure Warranty coverage of hard drives, memory, and processors.
NOTE: Certain restrictions and exclusions apply. Consult the customer support center for details. Three-year, onsite and
labor not available in all countries.
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 5
QuickSpecs
HP Workstation xw4100
Standard Features Pre-Configured Global Models
xw4100X/PD3.00/
A80/D512/XvF/s
Processor
Intel Pentium 4 processor 3.0E GHz with 800 MHz front side bus
OS
Microsoft Windows XP Professional
Cache Memory
1 MB
Memory
512 MB (2 x 256 MB) dual-channel ECC PC3200 DDR-400; 6.4 GB/sec throughput
Optical Drive
48X Combo Drive DVD-ROM/CD-RW
Hard Drive
80 GB ATA/100
Graphics
Not included in base configuration - Please Choose a graphics card option below:
NVIDIA Quadro NVS 280 (AGP or PCI)
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone accessories section.
Mouse
HP scroll mouse (PS/2)
Other
Includes Floppy Drive and HP Easy Access Keyboard
xw4100X/PD3.00/A80/D512/XvF/s Country Code Key
N. America
DY791AW#ABA
Switzerland
DY791AW#AR8
Fr. Canadian
DY791AW#ABC
Dutch
DY791AW#ACE
L. America
DY791AW#ABM
Asia/Pacific (English)
DY791AW#AB4
Japan (English)
DY791AW#ABF
Korea
DY791AW#AB1
Japan (Japanese)
DY791AW#ABJ
China
DY791AW#AB2
UK
DY791AW#ABU
Taiwan
DY791AW#AB0
Germany
DY791AW#ABD
India
DY791AW#ACJ
France
DY791AW#ABF
Australia
DY791AW#ABG
Italy
DY791AW#ABZ
Thailand
DY791AW#AKL
Spain
DY791AW#ABE
Switzerland (Eng, It)
DY791AW#ACN
Europe
DY791AW#AK6
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 6
QuickSpecs
HP Workstation xw4100
Standard Features Pre-Configured Global Models
xw4100X/PD3.00/
S36a/D512/XdF/s
Processor
Intel Pentium 4 processor 3.0E GHz with 800 MHz front side bus
OS
Microsoft Windows XP Professional
Cache Memory
1 MB
Memory
512 MB (2 x 256 MB) dual-channel ECC PC3200 DDR-400; 6.4 GB/sec throughput
Optical Drive
16x DVD-ROM
Hard Drive
36 GB Ultra320 SCSI (15,000 rpm)
Graphics
Not included in base configuration - Please Choose a graphics card option below:
NVIDIA Quadro NVS 280 (AGP or PCI)
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone accessories section.
Mouse
HP scroll mouse (PS/2)
Other
Includes Floppy Drive and HP Easy Access Keyboard
xw4100X/PD3.00/S36a/D512/XdF/s Country Code Key
N. America
DY792AW#ABA
Switzerland
DY792AW#AR8
Fr. Canadian
DY792AW#ABC
Dutch
DY792AW#ACE
L. America
DY792AW#ABM
Asia/Pacific (English)
DY792AW#AB4
Japan (English)
DY792AW#ABF
Korea
DY792AW#AB1
Japan (Japanese)
DY792AW#ABJ
China
DY792AW#AB2
UK
DY792AW#ABU
Taiwan
DY792AW#AB0
Germany
DY792AW#ABD
India
DY792AW#ACJ
France
DY792AW#ABF
Australia
DY792AW#ABG
Italy
DY792AW#ABZ
Thailand
DY792AW#AKL
Spain
DY792AW#ABE
Switzerland (Eng, It)
DY792AW#ACN
Europe
DY792AW#AK6
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 7
QuickSpecs
HP Workstation xw4100
Standard Features Pre-Configured Global Models
xw4100X/PD3.20/
A80/D512/XvF/s
Processor
Intel Pentium 4 processor 3.2 GHz with 800 MHz front side bus
OS
Microsoft Windows XP Professional
Cache Memory
1 MB
Memory
512 MB (2 x 256 MB) dual-channel ECC PC3200 DDR-400; 6.4 GB/sec throughput
Optical Drive
48X Combo Drive DVD-ROM/CD-RW
Hard Drive
80 GB ATA/100
Graphics
Not included in base configuration - Please Choose a graphics card option below:
NVIDIA Quadro NVS 280 (AGP or PCI)
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone accessories section.
Mouse
HP scroll mouse (PS/2)
Other
Includes Floppy Drive and HP Easy Access Keyboard
xw4100X/PD3.20/A80/D512/XvF/s Country Code Key
N. America
DY793AW#ABA
Switzerland
DY793AW#AR8
Fr. Canadian
DY793AW#ABC
Dutch
DY793AW#ACE
L. America
DY793AW#ABM
Asia/Pacific (English)
DY793AW#AB4
Japan (English)
DY793AW#ABF
Korea
DY793AW#AB1
Japan (Japanese)
DY793AW#ABJ
China
DY793AW#AB2
UK
DY793AW#ABU
Taiwan
DY793AW#AB0
Germany
DY793AW#ABD
India
DY793AW#ACJ
France
DY793AW#ABF
Australia
DY793AW#ABG
Italy
DY793AW#ABZ
Thailand
DY793AW#AKL
Spain
DY793AW#ABE
Switzerland (Eng, It)
DY793AW#ACN
Europe
DY793AW#AK6
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 8
QuickSpecs
HP Workstation xw4100
Configure to order options
HP workstation xw4100
Base System
When buying a basic system, you have many configuration options. The basic system includes: Convertible Mini-tower
Chassis, System Board, Cables, etc.
Operating System
Microsoft Windows XP Professional SP1 preloaded; including Win XP recovery CD
HP Installer Kit for Linux (supports custom installations of Red Hat 7.2, 7.3, 8.0, 9.0 and Red Hat Enterprise Linux WS
Edition 3.0 (update 2))
Processor
Intel Pentium 4 processor 2.4 GHz, 512-KB cache, 533 MHz front side bus**
Intel Pentium 4 processor 2.8E GHz, 1-MB cache, 800 MHz front side bus (Hyper-Threading** support)
Intel Pentium 4 processor 3.0E GHz, 1-MB cache, 800 MHz front side bus (Hyper-Threading** support)
* When DDR-400 memory is used with 533 MHz FSB processors, memory slows down to 333 MHz.
* * Hyper-Threading Technology requires a computer system with an Intel Pentium 4 processor supporting HT Technology
and a Hyper-Threading Technology enabled chipset, BIOS and operating system. Performance will vary depending on the
specific hardware and software you use. See http://www.intel.com/info/hyperthreading/ for more information including
details on which processors support HT Technology.
Graphic Card
(Video Card)
No Video Card
NVIDIA Quadro NVS 280 (64MB, Dual Display, AGP or PCI)
NVIDIA Quadro NVS 400 (64 MB, Quad Display, PCI)
NVIDIA Quadro4 380 XGL (64 MB, Dual Display, AGP)
ATI FireGL T2-128 (128MB, Dual Display AGP)
NVIDIA Quadro FX1100 (128MB, Dual Display AGP)
NVIDIA Quadro FX3000 (256MB, Dual Display AGP)
Memory (dual-channel, DDR, 128 MB (1x128 MB) PC3200 DDR-400 ECC*
unbuffered)
256 MB (2x128 MB) PC3200 DDR-400 ECC*
512 MB (2x256 MB) PC3200 DDR-400 ECC*
1 GB (2x512 MB) PC3200 DDR-400 ECC*
1.5 GB (2x512,2x256) PC3200 DDR-400 ECC*
2 GB (4x512 MB) PC3200 DDR-400 ECC*
2 GB (2x1024) PC3200 DDR-400 ECC*
3 GB (4 DIMM) PC3200 DDR-400 ECC*
4 GB (4x1024) PC3200 DDR-400 ECC*
NOTE: DDR-400 memory will run at 333MHz when used with Pentium 4 processors with 533MHz front side bus.
Monitors
HP L2335 23-inch TFT Widescreen Flat Panel Display
HP L2035 20-inch TFT Flat Panel Display
HP L1925 19-inch TFT Flat Panel Display – Analog/Digital
HP p1230 22-inch (20.0-inch vis) Performance Natural-flat CRT Monitor
NOTE: AssetControl monitor. AssetControl features are accessible with HP workstations featuring Intelligent
Manageability.
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 9
QuickSpecs
HP Workstation xw4100
Configure to order options
Primary Hard Disks
40 GB Ultra ATA/100 EIDE (7,200 rpm)
80 GB Ultra ATA/100 EIDE (7,200 rpm)
160 GB Ultra ATA/100 EIDE (7,200 rpm)
250 GB Ultra ATA/100 EIDE (7,200 rpm)
36 GB Serial ATA (10,000 rpm)
74 GB Serial ATA (10,000 rpm)
80 GB Serial ATA (7,200 rpm)
160 GB Serial ATA (7,200 rpm)
250 GB Serial ATA (7,200 rpm)
36 GB Ultra320 SCSI (10,000 rpm)
73 GB Ultra320 SCSI (10,000 rpm)
146 GB Ultra320 SCSI (10,000 rpm)
36 GB Ultra320 SCSI (15,000 rpm)
73 GB Ultra320 SCSI (15,000 rpm)
Secondary hard disks
40 GB Ultra ATA/100 EIDE (7,200 rpm)
80 GB Ultra ATA/100 EIDE (7,200 rpm)
160 GB Ultra ATA/100 EIDE (7,200 rpm)
250 GB Ultra ATA/100 EIDE (7,200 rpm)
36 GB Serial ATA (10,000 rpm)
74 GB Serial ATA (10,000 rpm)
80 GB Serial ATA (7,200 rpm)
160 GB Serial ATA (7,200 rpm)
250 GB Serial ATA (7,200 rpm)
36 GB Ultra320 SCSI (10,000 rpm)
73 GB Ultra320 SCSI (10,000 rpm)
146 GB Ultra320 SCSI (10,000 rpm)
36 GB Ultra320 SCSI (15,000 rpm)
73 GB Ultra320 SCSI (15,000 rpm)
Controller Card
Ultra160 SCSI Controller PCI Card
Ultra320 SCSI Controller PCI Card
Primary removable media HP 48X CD-ROM
HP 48X CD-RW
HP 16X DVD-ROM
HP 48X CDRW/DVD Combo
HP DVD 8X writer 400i (DVD+RW/CD-RW Combo)
Secondary removable
media
HP 48X CR-RW
HP 16X DVD-ROM
HP 48X CDRW/DVD Combo
HP DVD 8X writer 400i (DVD+RW/CD-RW Combo)
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 10
QuickSpecs
HP Workstation xw4100
Configure to order options
Removable storage
128 MB HP Drive Key (USB 2.0)
256 MB HP Drive Key (USB 2.0)
Keyboard
HP Easy Access Keyboard (PS/2)
No Keyboard Kit
Input devices
HP 3-Button Mouse (PS/2)
HP Scroll Mouse (PS/2)
HP Optical Scroll Mouse (USB)
No Mouse Option
I/O Cards and Other
IEEE 1394/Firewire PCI card
Sound Blaster Audigy 2 ZS PCI card
Solenoid Hood Lock and Sensor
Broadcom 5782 10/100/1000 PCI card
Lucent V90 56K Modem PCI card
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 11
QuickSpecs
HP Workstation xw4100
After market options/Standalone accessories
Part #:
Operating Systems
Red Hat Linux Enterprise Workstation Edition 3.0 (32-bit Update 2)
PD862A
Memory (dual-channel, DDR, 128 MB (1x128 MB) PC2700 DDR-333 ECC
unbuffered, ECC)
256 MB (1x256 MB) PC2700 DDR-333 ECC
DE769A
256 MB (1x256 MB) PC3200 DDR-400 ECC
DE773A
512 MB (1x512 MB) PC3200 DDR-400 ECC
DE774A
1 GB (1x1GB) PC2700 DDR333 ECC
DE772A
1 GB (1x1GB) PC3200 DDR-400 ECC
DG152A
DE770A
NOTE: DDR-400 memory runs at 333MHz when used with Pentium 4 processors with a 533MHz FSB.
Monitors
HP L2335 23-inch TFT Widescreen Flat Panel Display
HP L2035 20-inch TFT Flat Panel Display
HP L1925 19-inch TFT Flat Panel Display – Analog/Digital
HP p1230 22-inch (20.0-inch vis) Performance Natural-flat CRT Monitor
P9615A
P9614A#xxx
P9626A
P9613A#ABA
(NA only)
NOTE: AssetControl features are accessible with HP workstations featuring Intelligent Manageability.
Graphics
Hard Drives
NVIDIA Quadro NVS 280 (64MB, Dual Display, AGP)
AA931A
NVIDIA Quadro NVS 280 (64MB, Dual Display, PCI)
AA932A
DMS-59 to Dual DVI Cable for NVS cards
DL139A
NVIDIA Quadro NVS 400 (64 MB, Quad Display, PCI)
AA605A
NVIDIA Quadro 400 NVS DVI Cables
AA606A
NVIDIA Quadro4 380 XGL (64 MB, Dual Display, AGP)
AA653A
ATI FireGL T2-128 (128MB, Dual Display AGP)
AA929A
NVIDIA Quadro FX1100 (128MB, Dual Display, AGP)
DL489A
NVIDIA Quadro FX3000 (256MB, Dual Display AGP)
DL488B
Ultra320 SCSI Drives
36 GB Ultra320 SCSI 10,000 rpm
AA612A
73 GB Ultra320 SCSI, 10,000 rpm
AA613A
146 GB Ultra320 SCSI, 10,000 rpm
AA614A
36 GB Ultra320 SCSI 15,000 rpm
AA616A
73 GB Ultra320 SCSI, 15,000 rpm
AA617A
Serial ATA Drives
36 GB Serial ATA (10,000 rpm)
DU962A
74 GB Serial ATA (10,000 rpm)
DX760A
80 GB Serial ATA (7,200 rpm)
DE705A
160 GB Serial ATA (7,200 rpm)
DE706A
250 GB Serial ATA/150 (7,200 rpm)
DS702A
Ultra ATA/100 Drives
40 GB Ultra ATA/100, 7,200 rpm
DC180A
80 GB Ultra ATA/100, 7,200 rpm
DC181A
160 GB Ultra ATA/100 EIDE (7,200 rpm)
DC189A
250 GB Ultra ATA/100, 7,200 rpm
DC516A
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 12
QuickSpecs
HP Workstation xw4100
After market options/Standalone accessories
Storage Controllers
Backup Devices
Multimedia
Removable Storage
LSI Logic Ultra160 single channel SCSI controller (cable sold separately)
AA601A
Adaptec Ultra320 single channel SCSI controller (cable sold separately)
DE775A
Adaptec Ultra320 single channel RAID controller
AA850A
Cable, 3 part SCSI
AA832A
4-channel SATA RAID PCI controller (cable sold separately)
DM294A
Cable, SATA power (Required for 3rd drive.)
DN733A
Exabyte 33/66 GB VXA-1 IDE Tape Drive
237109-B22
Exabyte 33/66 GB VXA-1 SCSI Tape Drive
237108-B22
TR5 10/20 GB iTape Drive (IDE, carbon)
294243-B22
Iomega ZIP 250 MB (internal, IDE, carbon)
294416-B22
HP DAT24i Internal DDS3 tape drive
C1555D
HP DAT24e External DDS3 tape drive
C1556D
HP DAT40i Internal DDS4 tape drive
C5686B
HP DAT40e External DDS4 tape drive
C5687C
HP DAT72i Internal DAT72 tape drive
Q1522A
HP DAT72e External DAT72 tape drive
Q1523A
HP 48X CD-ROM Drive
DC143B
HP 48X/24X CD-RW Drive
DE205A
HP 16X DVD-ROM Drive
AA620A
HP 48X DVD/CD-RW Combo
DE206A
HP 400i DVD+RW (Windows version)
DS703A
HP 400i DVD+RW (Linux version)
DT839A
128 MB HP Drive Key (USB 2.0)
DQ819B
256 MB HP Drive Key (USB 2.0)
DL973B
I/O cards
IEEE1394/Firewire PCI card
AA638A
Communications
HP Gbit by Broadcom PCI Card
DC194A
Intel Pro/1000 MT Gbit PCI Card
DC193A
V90 56K PCI Modem
DC131B
Speakers
Labtec Spin-22 Carbon Speakers
Input devices
HP Easy Access Keyboard (PS/2)
246637-001
DC167B
HP Three Button Mouse (PS/2)
AA778A
HP Scroll Mouse (PS/2)
DD440B
HP Optical Scroll Mouse (USB)
DC172B
HP Spaceball 5000
DE934A
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 13
QuickSpecs
HP Workstation xw4100
After market options/Standalone accessories
Other
Solenoid Hood Lock and Sensor
DE618A
Sound Blaster Audigy 2 ZS
DV440A
3rd HDD Bracket (5.25" to 3.5")
AA833A
PCI Long Card Guide (to support oversized PCI cards)
Security
Rack kits
DT473A
Remote Workstation Sender Software Module
DM497A
Remote Workstation Receiver Software Module
DM498A
USB Fingerprint Identification
240238-B21
USB SmartCard Keyboard
267147-008
Corvadis USB Enhanced SmartCard Reader
240154-B21
Fixed Shelf Kit
253449-B21
Sliding Shelf Kit
234672-B21
Depth Adjustable Rails
332558-B21
StorageWorks Enclosure 4314R
190209-001
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 14
QuickSpecs
HP Workstation xw4100
Memory
Standard Memory
This system supports both PC3200 DDR-400 and PC2700 DDR-333 ECC memory. When using DDR-400 memory with 533 MHz FSB processor, the memory
actually slows the processor down to 333 MHz. The mainboard is based on the Intel 875P chipset and has 4 DIMM slots (6.4 GB/s and 5.4 GB/s throughput
respectively). It can support a maximum of 4 GB of RAM when optional memory upgrades are included.
Important:
Important Memory Modules must be installed in like Pairs. Individual Kits do not contain pairs of memory modules, rather they contain single memory
modules. Modules must be ordered and installed in like pairs to insure proper function.
Following are memory options available from HP:
Part #:
128 MB (1x128 MB) PC2700 DDR-333 ECC
DE769A
256 MB (1x256 MB) PC2700 DDR-333 ECC
DE770A
256 MB (1x256 MB) PC3200 DDR-400 ECC
DE773A
512 MB (1x512 MB) PC3200 DDR-400 ECC
DE774A
1 GB (1x1GB) PC2700 DDR333 ECC
DE772A
1 GB (1x1GB) PC3200 DDR-400 ECC
DG152A
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 15
QuickSpecs
HP Workstation xw4100
Storage
Drive Bay Locations
Drive Support
Quantity
Supported
Position
Supported
Controller
Floppy Drive
Up to 1
4
Integrated
CD-ROM Drive
Up to 1
1, 2
Integrated EIDE
DVD-ROM Drive
Up to 1
1, 2
Integrated EIDE
CD-RW Drive
Up to 1
1, 2
Integrated EIDE
DVD/CD-RW Combo Drive
Up to 1
1,2
Integrated EIDE
DVD+R/RW Drive
Up to 1
1, 2
Integrated EIDE
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 16
QuickSpecs
HP Workstation xw4100
Storage
Hard Drives
Ultra320 SCSI Drives
1-inch
Up to 3
3, 5, 6
Optional Ultra160 SCSI Controller
Optional Ultra320 SCSI Controller
Up to 2
5, 6
Integrated EIDE Controller
Up to 2
5, 6
Integrated 2-channel Controller or 4-channel SATA RAID PCI controller (AMO)
36-GB Ultra320 SCSI (10K
rpm)
72-GB Ultra320 SCSI (10K
rpm)
146-GB Ultra320 SCSI (10K
rpm)
36-GB Ultra320 SCSI (15K
rpm)
73-GB Ultra320 SCSI (15K
rpm)
Ultra ATA Drives
1-inch
40-GB (7200 rpm)
80-GB (7200 rpm)
160-GB (7200 rpm)
250-GB (7200 rpm)
Serial ATA Drives
36-GB (10,000 rpm)
74-GB (10,000 rpm)
80-GB (7200 rpm)
160-GB (7200 rpm)
250-GB (7200 rpm)
Maximum Storage Capacity
Internal
438 GB SCSI
500 GB Ultra ATA
500 GB Serial ATA
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 17
QuickSpecs
HP Workstation xw4100
Technical Specifications
Base Workstation
System Characteristics
Expansion Options
Processor
Intel Pentium 4
CPU Bus Speed Supported
533 MHz front side bus or 800 MHz front side bus with
Hyper-Threading depending on the processor speed
Standard Cache
512 KB integrated, full speed Level 2
1 MB integrated, full speed Level 2 cache with "E" model
processors only
Not upgradeable – Integrated into Processor
System board with Intel 875P
Chipset
Yes
Memory Expansion Slots
4 DIMMs
Memory Type Supported
DDR-333 or DDR-400 ECC Memory
Maximum Memory
4 GB
Expansion Slots
(6 total available)
PCI slots available
5 (32-bit/33MHz)
AGP slots available
1 (8x)
Internal
3.5 inch – 2 total/1
available
External
3.5 inch – 1 total/0
available
5.25 inch – 3 total/1
available
Expansion Bays
(6 total/3 available)
Interfaces
System Unit
Parallel
One 25-pin port (rear)
USB
6 USB 2.0 ports (2 front, 4 rear)
Serial
Two 9-pin connectors (rear)
Ultra160 SCSI (optional)
Internal and external (rear) connectors
Ultra320 SCSI (optional)
Internal and external (rear) connectors
Ultra ATA/100
2 connectors (internal)
Serial ATA/150
2 connectors (internal)
Keyboard
1 PS/2 keyboard port (rear)
Pointing Device
1 PS/2 mouse port (rear)
Network interface
1 RJ-45 connector (rear)
Microphone Jack
1 (front)
Headphone Jack
1 (front)
Line-In Jack
1 (rear)
Line-Out Jack
1 (rear)
IEEE 1394/Firewire (optional)
3 connectors (1 front, 2 rear)
Weight (standard
configuration)
35 lb (16 kg)
Power Supply
Input current
3.6A @ 115 VAC
1.8A @ 230 VAC
Line Frequency
50 Hz to 60 Hz
Maximum Rated Power
412 W input, 280 W output
Operating
50° to 95° F
(10° to 35° C)
Non-operating
-22° to 140° F
(-30° to 60° C)
Humidity
(non-condensing)
(Values are subject to change)
Operating
15% to 80%
Non-operating
10% to 90%
Maximum Altitude
(nonpressurized)
Operating
10,000 ft (3,048 m)
Non-operating
15,000 ft (4,572 m)
Temperature
(Values are subject to change)
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 18
QuickSpecs
HP Workstation xw4100
Technical Specifications
HP Easy Access Keyboard
Dimensions (HxWxD)
18.3 x 6.3 x 1.4 in (46.48 x 16.0 x 3.56 cm)
Weight
Approximately 2 lb (0.9 kg)
Input Specifications
Operating Voltage
+5VDC ± 5%
Power Consumption
50 mA maximum (with 3 LEDs on)
System Interface
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC'99
Functionally compliant
Languages
30+ available
Keycaps
Low-profile design
Switch Actuation
55 g nominal peak force with tactile feedback
Switch Life
20 million keystrokes (using Hasco modified tester)
Switch Type
Contamination resistant membrane
Key Leveling Mechanism
For all double wide and greater length keys
Cable Length
6 ft (1.8 m)
PC'99
Mechanically compliant
Acoustics
50 dBA maximum sound pressure level
Operating Temperature
50° F to 122° F (10° C to 50° C)
Non-operating Temperature
-22° F to 140° F (-30° C to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-operating Humidity
20% to 80% (non condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-operating Vibration
4 g peak acceleration
Mechanical
Environmental
Regulatory approvals
DA - 11604
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick
Worldwide — Version 40 — September 28, 2004
Page 19
QuickSpecs
HP Workstation xw4100
Technical Specifications
HP PS/2 3-Button Mouse
Dimensions
Environmental
Electrical
Mechanical
Regulatory Approvals
DA - 11604
Height
1.4 x 2.9 x 4.2 in (3.6 x 7.4 x 10.7 cm)
Weight
5.3 oz (150 g)
Operating Temperature
32° to 104° F (0° to 40° C)
Non-operating Temperature
-4° to 140° F (-20° to 60°C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-Operating Humidity
10% to 90% (non-condensing at ambient)
Operating Voltage
+5 VDC ± 10%
Power Consumption
10 mA maximum
Interface
PS/2 six-pin mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Tracking acceleration
100 in/sec/sec (2.5 m/sec/sec)
Tracking Mechanism Life
Exceeds 300 miles (483 km) at an average speed of 10
in/sec with no operational degradation
Switch Type
Electronically debounced micro-switch
Switch Activation
Approximately 60 g
Switch Life
1,000,000 operations with no operational degradation
Cable Length
7 ft (2.14m)
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick
Worldwide — Version 40 — September 28, 2004
Page 20
QuickSpecs
HP Workstation xw4100
Technical Specifications
HP PS/2 2-Button Scroll
Mouse
Dimensions
Scroll Wheel
Environmental
Electrical
Mechanical
Height
1.5 x 2.5 x 4.6 in (3.8 x 6.3 x 11.6 cm)
Weight
4.4 oz (126 g)
Width
31 in (0.79 cm)
Diameter
0.99 in (2.51 cm)
Operating Temperature
50° F to 122° F (10° C to 50° C)
Non-operating Temperature
-22° F to 140° F (-30° C to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-Operating Humidity
10% to 90% (non-condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-Operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-Operating Vibration
4 g peak acceleration
Operating Voltage
+5 VDC ± 10%
Power Consumption
15 mA
Interface
PS/2 six-pin mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC99 - 2001
Functionally compliant
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Tracking Acceleration
100 in/sec/sec (2.5 m/sec/sec)
Left and Right Switch Type
Low force micro-switch
Left and Right Switch Actuation 65 g nominal peak force
Regulatory Approvals
DA - 11604
Left and Right Switch Life
1,000,000 operations (using Hasco modified tester)
Scroll Wheel Life
Minimum 200,000 revolutions
Scroll Switch Type
Light force micro-switch
Scroll Switch Life
1,000,000 operations
Tracking Mechanism Life
155 mi (250 km) at average speed of 10 in/sec (25.4
cm/sec)
Cable Length
6 ft (1.8 m)
PC99 - 2001
Mechanically compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Worldwide — Version 40 — September 28, 2004
Page 21
QuickSpecs
HP Workstation xw4100
Technical Specifications
HP USB 2-Button Optical Dimensions
Scroll Mouse
Scroll Wheel
Environmental
Electrical
Mechanical
Height
1.5 x 2.5 x 4.6 in (3.8 x 6.3 x 11.6 cm)
Weight
4.37 oz (124 g)
Width
31 in (0.79 cm)
Diameter
0.99 in (2.51 cm)
Operating Temperature
50° to 122° F (10° to 50° C)
Non-operating Temperature
-22° to 140° F (-30° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-Operating Humidity
10% to 90% (non-condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-Operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-Operating Vibration
4 g peak acceleration
Operating Voltage
4.4 to 5.25 VDC
Power Consumption
100 mA maximum
Interface
USB, Specification Rev. 1.1
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC99 - 2001
Functionally compliant
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Tracking Acceleration
100 in/sec/sec (2.5 m/sec/sec)
Left and Right Switch Type
Electronically debounced micro-switch
Left and Right Switch Actuation 80 g nominal peak force
Regulatory Approvals
DA - 11604
Left and Right Switch Life
3,000,000 operations with no operational degradation
Scroll Switch Type
Light force micro-switch
Scroll Switch Activation
224 g nominal peak force
Scroll Switch Life
1,000,000 operations with no operational degradation
Tracking Mechanism Life
100,000 hours with no operational degradation
Tracking Mechanism Light
Sensitivity
50,000 lux with no performance degradation
Cable Length
6 ft (1.85 m)
PC99 - 2001
Mechanically compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI
Worldwide — Version 40 — September 28, 2004
Page 22
QuickSpecs
HP Workstation xw4100
Technical Specifications
SpaceBall 5000
Dimensions
3.0 x 6.0 x 8.4 in (7.6 x 15.2 x 21.3 cm)
Ball Diameter
2.2 in (5.6 cm)
Weight
2.1 lb (9.94 kg)
Features
Six degrees of freedom motion control through the X, Y, Z axis
(pitch, roll, yaw)
Certified for leading CAD and DCC applications
Environmental
Mechanical
Operating Temperature
50° to 104° F (10° to 40° C)
Non-operating Temperature
43° to 140° F (6° to 60° C)
Operating Humidity
8% to 80% (non-condensing at ambient)
Non-operating Humidity
5% to 80% (non-condensing at ambient)
Buttons
12 programmable (unshifted)
23 programmable (shifted)
Serial Specifications
1.44 Diskette Drive
(optional)
Ball Force range
0.5 - 8.2N (1.8 – 29.5 oz)
Ball Torque range
0.085 - 0.33 oz-in. (6.91 Nmm)
Resolution
10 bits
Connector
9-pin D-subminiature receptacle (DB9S)
Cable Length
12.8 ft (3.9 m)
Data rate
9600 bps
Flow control
Xon/Xoff
Regulatory Approvals
Compliant
UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV,
CISPR 22, EN 50082, IEC 1000 4-2, IEC 1000-4-3,
AS/NZS, VCCI, BSMI, C-Tick
Diskette Size
3.5 in (8.89 cm)
LED Indicators
(front panel)
Green
Read/Write Capacity per
Diskette (high/low)
1.44 MB/720 KB
Drive Height
1.0 in (2.54 cm)
Drive Rotation
300 rpm
Transfer Rate (high/low)
500/250 Kb/s
Bytes/Sector
512
Sectors/Track (high/low)
18/9
Tracks/Side (high/low)
80/80
Access Times
Track-to-Track (high/low)
3/3 ms
Average (high/low)
94/94 ms
Settling Time
15 ms
Latency Average
100 ms
Cylinders (high/low)
80/80
Read/Write Heads
Two
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 23
QuickSpecs
HP Workstation xw4100
Technical Specifications
Ultra320 SCSI Hard
Drives
146 GB, 10K rpm
Nominal Capacity
146.8 GB
Dimensions (HxWxD)
1 x 4 x 5.75 in (2.54 x 10.16 x 14.61 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.35 ms
Average
4.7 ms
Full-stroke
10.0 ms
Average rotational latency 2.99 ms
73 GB, 15K rpm
Rotational speed
10,000 rpm
Logical blocks
289,749,488
Operating temperature
41° to 131° F (5° to 55° C)
Nominal Capacity
73.4 GB
Dimensions (HxWxD)
1 x 4 x 5.75 in (2.54 x 10.16 x 14.61 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.30 ms
Average
3.6 ms
Full-stroke
8.0 ms
Average rotational latency 2.00 ms
73 GB, 10K rpm
Rotational speed
15,000 rpm
Logical blocks
143,374,738
Operating temperature
41° to 131° F (5° to 55° C)
Nominal Capacity
73.4 GB
Dimensions (HxWxD)
1 x 4 x 5.75 in (2.54 x 10.16 x 14.61 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.35 ms
Average
4.7 ms
Full-stroke
10.0 ms
Average rotational latency 2.99 ms
36 GB, 15K rpm
Rotational speed
10,000 rpm
Logical blocks
143,374,738
Operating temperature
41° to 131° F (5° to 55° C)
Nominal Capacity
36.4 GB
Dimensions (HxWxD)
1 x 4 x 5.75 in (2.54 x 10.16 x 14.61 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.30 ms
Average
3.6 ms
Full-stroke
8.0 ms
Average rotational latency 2.00 ms
Rotational speed
DA - 11604
15,000 rpm
Worldwide — Version 40 — September 28, 2004
Page 24
QuickSpecs
HP Workstation xw4100
Technical Specifications
36 GB, 10K rpm
Logical blocks
71,132,960
Operating temperature
41° to 131° F (5° to 55° C)
Nominal Capacity
36.4 GB
Dimensions (HxWxD)
1 x 4 x 5.75 in (2.54 x 10.16 x 14.61 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.30 ms
Average
4.7ms
Full-stroke
10.0 ms
Average rotational latency 2.99 ms
Serial ATA Hard Drives
250 GB
Rotational speed
10,000 rpm
Logical blocks
71,132,960
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
250,000,000,000 bytes
Height
1 in (2.6 cm)
Width
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA
Synchronous Transfer Rate 150 MB/s
(Maximum)
160 GB
Buffer
8 MB
Seek time
(typical reads, includes
controller overhead, including
settling)
Single track
0.8 ms
Average
<9.0 ms
Full-stroke
<17.0 ms
Rotational speed
7,200 rpm
Logical blocks
490,234,752
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
171,798,691,840 bytes
Height
1 in (2.6 cm)
Width
4 in (10.2 cm)
Interface
SATA
Synchronous Transfer Rate 150 MB/s
(Maximum)
80 GB
DA - 11604
Buffer
8 MB
Seek time
(typical reads, includes
controller overhead, including
settling)
Single track
0.9 ms
Average
9.3 ms
Full-stroke
20 ms
Rotational speed
7,200 rpm
Logical blocks
320,173,056
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
85,899,345,920 bytes
Height
1 in (2.6 cm)
Width
4 in (10.2 cm)
Worldwide — Version 40 — September 28, 2004
Page 25
QuickSpecs
HP Workstation xw4100
Technical Specifications
Interface
SATA
Synchronous Transfer Rate 150 MB/s
(Maximum)
74 GB, 10K rpm
Buffer
8 MB
Seek time
(typical reads, including
settling)
Single Track
0.9 ms
Average
9.3 ms
Full-stroke
20 ms
Rotational speed
7,200 rpm
Logical blocks
160,086,528
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
74,355,769,344 bytes
Height
1.028 in (2.54 mm)
Width
Media diameter: 3.3 in (84mm)
Physical size: 4 in (10.2 cm)
Interface
ESATA
Synchronous Transfer Rate 150 MB/s
(Maximum)
36 GB, 10K rpm
Buffer
8 MB
Seek time
(typical reads, including
settling)
Single Track
0.3 ms
Average
4.5 ms
Full-Stroke
10.2 ms
Rotational speed
10,000 rpm
Logical blocks
145,226,112
Operating temperature
41° to 131° F (5 to 55° C)
Capacity
37,019,566,080 bytes
Height
1.028 in (2.54 mm)
Width
Media diameter: 3.3 in (84 mm)
Physical size: 4 in (10.2 cm)
Interface
ESATA
Synchronous Transfer Rate 150 MB/s
(Maximum)
DA - 11604
Buffer
8 MB
Seek Time (typical reads,
includes controller overhead,
including settling)
Single Track
0.3 ms
Average
5.2 ms
Full-Stroke
9.5 ms
Rotational Speed
10,000 rpm
Logical Blocks
72,303,840
Operating Temperature
41° to 131° F (5° to 55° C)
Worldwide — Version 40 — September 28, 2004
Page 26
QuickSpecs
HP Workstation xw4100
Technical Specifications
Ultra ATA Hard Drives
250 GB
Nominal Capacity
250 GB
Dimensions (HxW)
1.0 x 3.5 in (2.5 x 8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
Seek time
(typical reads, including
settling)
Single track
0.8 ms
Average
9.0 ms
Full-stroke
17.0 ms
Average rotational latency 4.2 ms
160 GB
Rotational speed
7,200 rpm
Logical blocks
488,397,168
Operating temperature
41° to 131° F (5° to 55° C)
Nominal Capacity
160 MB
Height
1 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
80 GB
Seek time
(typical reads, including
settling)
Single track
0.8 ms
Average
< 9.1 ms
Full-stroke
17.0 ms
Rotational speed
7200 rpm
Logical blocks
320,173,056
Operating temperature
41° to 131° F (5° to 55° C)
Nominal Capacity
80 GB
Dimensions (HxWxD)
1 x 4 x 5.75 in (2.61 x 10.16 x 14.6 cm)
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
Seek time
(typical reads, including
settling)
Single track
2.0 ms
Average
12.0 ms
Full-stroke
22.0 ms
Average rotational latency 4.2 ms
40 GB
Rotational speed
7,200 rpm
Logical blocks
150,301,488
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
40 GB
Dimensions (HxWxD)
1 x 4 x 5.75 in (2.61 x 10.16 x 14.6 cm)
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
Seek time
(typical reads, including
settling)
Single track
2.0 ms
Average
12.0 ms
Full-stroke
22.0 ms
Average rotational latency 4.2 ms
Rotational speed
DA - 11604
7,200 rpm
Worldwide — Version 40 — September 28, 2004
Page 27
QuickSpecs
HP Workstation xw4100
Technical Specifications
LSI Logic Ultra160 Single Bus architecture
Channel SCSI Controller Number of supported
devices
Logical blocks
78,165,360
Operating temperature
41° to 131° F (5° to 55° C)
32-bit, 33 MHz PCI
15
Interface protocol
Supports Fast, Ultra, Ultra2, and Ultra160
Host Bus Transfer Rate
Up to 160 MB/s
SCSI Data Transfer Rate
Up to 160 MB/s
Bus width
32-bit
Internal SCSI connectors
One 68-pin high density - supports 16-bit SE or LVD
External SCSI connector
One 68-pin VHDCI - 16-bit SE or LVD
Total connectors
2
Plug and Play Support
Yes
Software included
SureLINK domain validation,
Various OS drivers
Dimensions (H x L)
11.9 x 6.3 cm (4.7 x 2.5 in)
Approvals/environmental
FCC, CE, UL
Operating system support Microsoft Windows XP, Microsoft Windows 2000, Red Hat Linux 7.3
4-Channel SATA RAID
Controller
Kit contents
One 5-position Ultra320 SCSI LVD cable with terminator
Dimensions (H x D)
2.375 x 5.5 in (6 x 14 cm)
RAID level
RAID 0+1 striping/mirroring; RAID 1 mirroring; RAID 0 striping
Data Transfer Rate
Up to 266MB/sec (66 MHz PCI); Up to 133MB/sec (33 MHz PCI)
Cache Memory
64 MB (onboard)
Device Support
Up to (4) Serial ATA/150 Drives
Bus Type
32-bit 33/66MHz PCI bus; PCI 2.3 compliant
BIOS
Optimizes drive performance by drive type; flashable for future upgrades; supports multiple
arrays; boots system from any array; BBS compliant; setup menus for custom array creation
48-bit LBA Support
Recognizes drive capacities exceeding 137GB each
Data Protection Features
Mirrors data to second drive or drive pair for RAID 1 and RAID 0+1; offers hot spare
support for instant rebuild of failed drive in 2-drive RAID 1
Advanced Data Features
Bus mastering offloads data I/O handling from host CPU; CRC error-checking of Serial
ATA and Ultra ATA drives for data reliability during transfers; tagged command queuing
and elevator seek for optimized data handling
ACPI Support
S1, S3, & S4
Internal Connectors
4 standard 7-pin SATA connectors
External Connectors
None
System Requirements
Intel PC or equivalent with available PCI slot
Operating Temperature
32° to 131° F (0° to 55° C)
Power Requirements
4 amps @ +5V
Operating System Support Windows 2000 Professional, Windows XP Professional and RedHat Linux
Other
Optimized disk utilization
Monitors status of arrays, hard drives, and controller via TCP/IP
Synchronizes data in fault-tolerant arrays
Email notification for specified array events
S.M.A.R.T. support
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 28
QuickSpecs
HP Workstation xw4100
Technical Specifications
HP 400i DVD+RW
(8X/4X/12X/24X/10X/40X
DVD+R/+RW)
Capacity
4.7 GB 5.25-inch,
Orientation
Either horizontal or vertical
Interface Type
ATAPI
Dimensions (W x H x D)
8.0 x 5.9 x 1.7 in (20.3 x 15.0 x 4.4 cm) half-height, tray-load
Track Pitch
1.6 um (CD), 0.74 um (DVD)
Reference Scanning
Velocity
1.2 m/s (CD); 3.49 m/s (DVD SL); 3.84 m/s (DVD DL)
Recording Method
Disc-at-once, Track-at-once, and Session-at-once; Variable Packet and Fixed Packet
Write Support
DVD+R, DVD+RW, CD-R, CD-RW
Read Support
DVD-ROM (single- and dual-layer), DVD+R, DVD+RW, DVD-R, DVD-RW, CD-ROM
Mode 1, CD-ROM XA (Mode 2, forms 1 and 2), CD TEXT, Photo CD single- and multisession), CD-DA (Audio CD), CD-Extra, CD-R, CD-RW (supports AM2)
Write Speed
DVD+R
8X CLV (10800 KB/s)
DVD+RW
4X CLV (5400 KB/s)
CD-R
24X CLV (3600 KB/s)
CD-RW
10X CLV (1500 KB/s)
DVD-ROM
12X CAV (6750 - 16200 KB/s)
DVD+R, DVD+RW,
DVD-R, DVD-RW
8X CAV (5400 - 10800 KB/s)
CD-ROM, CD-R,
CD-RW,CD-Audio
40X CAV (2550 to 6000 KB/s)
Read
2 MB
Write
2 MB
Random DVD
< 140 ms (typical)
Random CD
< 125 ms, (typical)
Full Stroke DVD
< 250 ms (seek)
Full Stroke CD
< 210 ms (seek)
Read Speed
Date Buffer
Access Time
(typical reads, including
settling)
Operating Systems
Support
Microsoft® Windows® XP Professional
Power Requirement
5 V, +12 V (1.6A, 1.4A)
Front Panel Features
Disc loading tray, forced eject hole read/write indicator, eject button
Rear Panel Features
ATAPI interface, digital audio output 1, analog audio output, device configuration
jumper, DC input
DC Power Connector, 4 pin; Line Out Connector, 4 pin; IDE Bus Connector, 40 pin;
Configuration Jumper Pins; Label to identify each connec
Regulatory Approvals
UL, CSA, CB Report, FIMKO, SEMKO, FCC Class B, FDA, CE Marking, C-Tick, CISPR229, Korean EMC, Taiwan EMC
Option Kit contents
DVD+R/+RW Drive, InterVideo WinDVD, InterVideo WinDVD Creator, Roxio Easy CD
Creator, Dantz Retrospect Express Backup Software and DVD+R media.
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 29
QuickSpecs
HP Workstation xw4100
Technical Specifications
48X CD-ROM Drive
Capacity
700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.83 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
1.76 lb (0.8 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates Read
Digital audio extraction (minimum) -1,200 KB/s (8X)
CD read - up to 7,200 KB/s (48X)
Media and Formats Read
Formats:
Formats CD-DA, CD-ROM (Mode 1 and 2), CD-XA Ready, Photo CD (Single and
Multi-session), Mixed Mode (Audio and Data combined), CD-I (FMV), CD Plus, CD-Extra;
Media:
Media stamped, CD-R, CD-RW
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 0 (16.7
MB/s); UltraDMA Mode 2 (33.3 MB/s)
Access Times (typical)
Random
< 75 ms @ 48x
Full-Stroke
< 150 ms
Start-up Time (typical)
< 7 s (single session)
< 30 s (multisession)
Stop Time (typical)
<4s
Read Buffer size
128 KB (minimum)
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
80 dB
Channel Separation
65 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 122° F (5° to 50° C)
Humidity
10% to 80%
Approvals/
Environmental
UL 1950 (US and Canada), CSA, SEMKO, TUV; CE, FDA, FCC, IC, C-TICK
Operating Systems
Supported
Microsoft Windows 2000 and Microsoft Windows XP
Supplied Software
None
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 30
QuickSpecs
HP Workstation xw4100
Technical Specifications
40+16X DVD-ROM Drive Capacity
with +R Read Support
Dimensions (HxWxD)
4.7 and 9.4 GB DVD disc/700 MB CD disc
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
1.72 lb (0.78 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) -2,700 KB/s (18X)
CD read - up to 6,000 KB/s (40X)
DVD read - up to 21,600 KB/s (16X)
Media and Formats Read
CD formats:
formats CD-DA, CD-ROM (Modes 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
CD-Extra, CD-Text, CD-I (Mode 2, Form 1 and 2), PhotoCD (single and multi-session),
CD-I FMV, Video CD;
CD media:
media stamped, CD-R, CD-RW
DVD formats:
formats DVD-ROM, DVD-R (version 1.0 and 2.0), DVD-R multi-border, DVD-RW
(version 1.0 and 1.1), DVD-RAM, DVD-Video (with application support);
DVD media:
media stamped (single or dual layer, single sided), DVD+RW, DVD+R, DVD-R,
DVD-RW
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
DVD-ROM Single Layer
Random
120 ms
CD-ROM Mode 1
100 ms
Full Stroke DVD (seek)
180 ms
Full Stroke CD (seek)
160 ms
Start-up Time (typical)
9s
Read Buffer Size
256 Kbytes (minimum)
Stop Time (typical)
4s
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
75 dB
Channel Separation
65 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 122° F (5° to 50° C)
Humidity
10% to 70% (non-condensing)
Approvals/
Environmental
UL 1695 (US and Canada), CSA, TUV, SEMKO, IC, CE, FDA, FCC, C-TICK, CB, EMC
(Taiwan, Korea)
Operating Systems
Supported
Microsoft Windows 2000 and Microsoft Windows XP
Supplied Software
Intervideo WinDVD 4.0: Play DVD movies
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 31
QuickSpecs
HP Workstation xw4100
Technical Specifications
48/24/48+16X Combo
CD-RW/DVD-ROM
Capacity
4.7 and 9.4 GB DVD disc/700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
2.0 lb (0.9 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) -1,200 KB/s (8X)
CD read - up to 7,200 KB/s (48X)
DVD read - up to 21,600 KB/s (16X)
Media and Formats Read
CD Formats:
Formats CD-DA, CD-ROM (Modes 1 and 2), CD-ROM XA (Mode 2, Form 1 and
2), Mixed mode, CD-Extra, CD-I FMV, Video CD, Photo CD (single and multi-session),
CD-Text, CD-Plus;
CD Media:
Media stamped, CD-R, CD-RW;
DVD Formats:
Formats DVD-ROM, DVD-Video (with application support), DVD-R (version 1.0
and 2.0), DVD-RW (version 1.0 and 1.1), DVD-R multi-border;
DVD Media:
Media stamped (single or dual layer, single sided), DVD+RW, DVD+R, DVD-R,
DVD-RW
Data Transfer Rates Write
CD-R write - 600 KB/s (4X)
CD-R write - 1200 KB/s (8X)
CD-R write - 1800 KB/s (12X)
CD-R write - 2400 KB/s (16X)
CD-R write - 3600 KB/s (24X)
CD-R write - 4800 KB/s (32X)
CD-R write - 6000 KB/s (40X)
CD-R write - 7200 KB/s (48X)
CD-RW write - 600 KB/s (4X)
CD-RW write -1500 KB/s (10X)
CD-RW write - 2400 KB/s (16X)
CD-RW write -3600 KB/s (24X)
Media and Formats Write
Formats:
Formats CD-DA, CD-ROM (Mode 1), CD-ROM XA (Mode 2, Form 1 and 2), Mixed
mode, CD-Extra, CD-I FMV, Video CD, CD-Plus;
Media:
Media CD-R, CD-RW
Write Methods
Disc-at-once, session-at-once,, track-at-once, incremental fixed and variable packet,
multisession
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
DVD-ROM Single Layer
Random
100 ms
CD-ROM Mode 1
110 ms
Full Stroke DVD
210 ms
Full Stroke CD
160 ms
Start-up Time (typical)
<4 seconds (single session), <30 seconds (multisession)
Stop Time (typical)
4s
Write Buffer Size
2 MB
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
74 dB
Channel Separation
65 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 122° F (5° to 50° C)
Humidity
10% to 80%
Approvals/
Environmental
MPC-3 compliant, multi-read requirements, UL 1950, ACA AS/NZS 3548, ANSI C63.41992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA C22.2 No.
950-1995, C.I.S.P.R. Pub 22, DHHS/FDA, EMKO-TSE 07/94, TUV, EN60825-1
Operating Systems
Supported
Microsoft Windows 2000, Windows XP
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 32
QuickSpecs
HP Workstation xw4100
Technical Specifications
Supplied software
DA - 11604
Intervideo WinDVD 4.0: Play DVD movies;
Roxio Easy CD Creator 5.3.4: Create or copy CDs and DVDs, including music and data
CDs, and data DVDs;
Dantz Retrospect Express 6.0: Back up systems to CD, DVD, or tape media
Worldwide — Version 40 — September 28, 2004
Page 33
QuickSpecs
HP Workstation xw4100
Technical Specifications
48/24/48X CD-RW
Capacity
700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
2.0 lb (0.9 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,800 KB/s (12X)
CD read — up to 7,200 KB/s (48X)
DVD read — up to 21,600 KB/s (16X)
Media and Formats Read
Formats:
Formats CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text, Photo CD (single and
multisession);
Media:
Media stamped, CD-R, CD-RW
Data Transfer Rates Write
CD-R write — 1200 KB/s (8X)
CD-R write — 1800 KB/s (12X)
CD-R write — 2400 KB/s (16X)
CD-R write — 3000 KB/s (20X) to 6000 KB/s (40X)
CD-R write — 7200 KB/s (48X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
CD-RW write — 2400 KB/s (16X)
CD-RW write —3600 KB/s (24X)
Media and Formats Write
Formats:
Formats CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text;
Media:
Media CD-R, CD-RW (including ultra-speed)
Write Methods
Disc-at-once, session-at-once,, track-at-once, incremental fixed and variable packet,
multisession
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
CD-ROM Mode 1
100 ms
Full Stroke CD
160 ms (seek)
Start-up Time (typical)
<4 s (single session), <30 s (multisession)
Stop Time (typical)
<3 s
Write Buffer Size
2 MB
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
80 dB
Channel Separation
70 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 113° F ( 5° to 45° C)
Humidity
10% to 80%
Approvals/
Environmental
MPC-3 compliant, multi-read requirements, UL 1950, ACA AS/NZS 3548, ANSI
C63.4–1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA C22.2
No. 950-1995, C.I.S.P.R. Pub 22, DHHS/FDA, EMKO-TSE 07/94, TUV, EN60825-1
Operating Systems
Supported
Microsoft Windows 2000, Windows XP
Supplied software
Roxio Easy CD Creator 5.3.4: Create or copy CDs and DVDs, including music and data
CDs, and data DVDs;
Dantz Retrospect Express 6.0: Back up systems to CD, DVD, or tape media.
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 34
QuickSpecs
HP Workstation xw4100
Technical Specifications
HP Broadcom NetXtreme
Gigabit Ethernet
Dimensions
6.4 x 4.8 x 0.8 in (16.3 x 12.1 x 1.9 cm)
Connector
RJ-45
Controller
Broadcom 5782 PCI LAN Controller
Memory
Integrated 96Kb frame buffer memory
Data rates supported
10/100/1000 Mbps
Compliance
IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
Bus architecture
PCI 2.2
Data path width
32-bit, 33/66 MHz bus interface
Data transfer mode
Bus-master DMA
Hardware certifications
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for European
Union
Power requirement
1.48 watts @ +3.3V AUX supply with 5V tolerance
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
Operating system driver
support
Operating temperature
32° to 131°F (0° to 55° C)
Operating humidity
85% at 131° F (55° C)
Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft XP, Linux
2.2, Linux 2.4
Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility
Alerting
ASF 1.0
Kit contents
Broadcom 5782, CD containing hp Gigabit Ethernet controller based 10/100/1000
Management Gb Adapter NIC drivers, quick install guide, product warranty statement
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 35
QuickSpecs
HP Workstation xw4100
Technical Specifications
Intel Pro 1000 MT
Dimensions
6.4 x 4.8 x 0.8 in (16.3 x 12.1 x 1.9 cm)
Connector
RJ-45
Controller
Intel 82540EM Gigabit Controller
Memory
Integrated 96 Kb frame buffer memory
Data rates supported
10/100/1000 Mbps
Compliance
IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
Bus architecture
PCI 2.2
Data path width
32-bit, 33/66 MHz bus interface
Data transfer mode
Bus-master DMA
Hardware certifications
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for European
Union
Power requirement
1.48 watts @ +3.3V AUX supply with 5V tolerance
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (full-duplex) 200 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
Operating temperature
32° to 131°F (0° to 55° C)
Operating humidity
85% at 131° F (55° C)
Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Intel PROset II utility
Kit contents
The Intel Pro 1000 MT NIC, CD containing Intel PROset II NIC drivers, quick install guide,
product warranty statement
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 36
QuickSpecs
HP Workstation xw4100
Technical Specifications
Lucent V90 56K PIC Win
Modem
Dimensions (LxH)
Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm), supports highand low-profile brackets
Data Transmission
V90/K56flex technology speeds: 56,000 Kbps maximum downstream data, controllerless
NOTE: 56 Kbps technology refers to download speeds only and requires compatible
modems at server sites. Other conditions may limit modem speed. FCC limitations allow
a maximum of 53 Kbps during download transmissions.
Data Speeds
(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/16,800/
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300
Data Standards
ITU V90, ITU-T, V.34bis, V.22bis, V.22bis, V.21, V.23, Bell 212A, and Bell 103
Fax Speeds
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
Fax Mode Capabilities
Group3 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2, Class 1
Error Correction and Data V.44 (software upgradeable), 4.2bis, V.42 and MNP2-5
Compression
Power Management
APM and ACPI states D0, D1, D2, and D3; meets PCI 2.2 requirements and PC'99
requirements
Upgradeability
Software driver upgradeable for v90 and future enhancements
Video
ITU-T V.80 video ready interface
Other
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a UARTcompatible interface
Operating Temperature
32° to 158° F (0° to 70° C)
Operating Humidity
20% to 90%, non-condensing
Power
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one electrical load
Chipset
Agere Systems 1648C (Mars 3.2)-Integrated PCI interface with 5-V tolerant buffers and
CardBus support
Connection
Dual, parallel RJ-11 support with auxiliary Tip/Ring connector
Other Features
Digital line protection, call progress monitoring via on-board piezo device, transformerbased DAA design, support for high profile and low profile brackets, PnP ID supports via
external EEPROM
Safety
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV, NEMKO,
DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO, SEMKO, CE mark
EMC
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN 61000-4-6, EN
61000-4-8
Telecom
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Health
Bare PCB material compliant to 94V-0 or better (marked as such), Microsoft Windows Me
health compliant
Other
PC'99 compliant, PCI version 2.2, WHQL approved; support for ACPI revision 1.1
Kit contents
Lucent V90 56-K PCI Win Modem, brackets/screws, Compaq installation guide
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 37
QuickSpecs
HP Workstation xw4100
Technical Specifications
NVIDIA Quadro NVS 280 2D controller
Graphics Card
VGA controller
Integrated Quadro 280 2-D graphics processor unit (GPU)
Integrated into the Quadro GPU
Bus type
AGP 8X or PCI
RAMDAC
Dual 350 MHz
Memory speed and type
200 MHz 8M x16 DDR
Memory amount
64 MB
Texture Memory
Unified with frame buffer
Form Factor
ATX
Controller clock speed
275 MHz
Color planes
32-bit color buffer
Overlay planes
1 16-bit Video overlay plane
Maximum vertical refresh
rate
120 Hz
Maximum pixel clock
350 MHz
Dual Screen support
Yes
Single DVI Support
Yes
Dual DVI Support
Yes
Operating systems
Microsoft Windows 2000: Full native Dual View mode, Span or Big Desktop mode, and
Clone mode
Microsoft Windows XP: Full native Dual View mode, Span or Big Desktop mode, and
Clone mode
NVIDIA Quadro NVS 280
Graphics Card display
resolutions & refresh rates
Physical dimensions
2.586 x 6.6 in (6.57 x 16.76 cm)
High-definition Video
Processor (HDVP)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Analog Resolution
Maximum Colors Supported
Maximum Refresh Rate
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1920 x 1080
1920 x 1200
1920 x 1440
2048 x 1536
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
240 Hz
240 Hz
200 Hz
170 Hz
150 Hz
100 Hz
85 Hz
85 Hz
75 Hz
60 Hz
Digital Resolution Maximum
Colors Supported Maximum
Refresh Rate
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
75 Hz
75 Hz
75 Hz
60 Hz
60 Hz
60 Hz (primary only)
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 38
QuickSpecs
HP Workstation xw4100
Technical Specifications
NVIDIA Quadro NVS 400 Form Factor
Graphics Card
Graphics Controller
ATX
Integrated Quadro4 2D/3D 128-bit graphics processor unit (GPU)
Bus Type
PCI
RAMDAC
Dual 350 MHz
Memory
64 MB 220 MHz, 4mx 32 DDR per GPU, 32 MB per GPU unified frame buffer
Connectors
Dual LFH-60
Dimensions
Low-profile form factor
Multi-monitor support
1 to 4 displays with nView – with two cards (1 PCI per card), up to 8 monitors can be
driven
nView Hardware
Architecture
32-bit color
2048x1536 @ 75Hz maximum resolution
Dual 350MHz RAMDACs
Integrated TMDS
Digital Vibrance Control (DVC)
High-performance 2D rendering engine
Optimized for 32-, 24-, 16-, 15- and 8-bpp modes
High-definition video
processor (HDVP)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT Motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Supported graphics APIs
Fully compliant with OpenGL 1.3 and DirectX 8.1
Available graphics drivers Microsoft Windows XP and Microsoft Windows 2000, Linux
See: http://www.hp.com/support/workstation_drivers
NVIDIA Quadro NVS 400
Graphics Card display
resolutions & refresh rates
Single CRT display
Resolution
Maximum Refresh Rate
Bits per Pixel
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1600 x 1200
1920 x 1080
1920 x 1080
1920 x 1200
1920 x 1200
1920 x 1440
1920 x 1440
2048 x 1536
120 Hz
120 Hz
120 Hz
120 Hz
120 Hz
100 Hz
85 Hz
100 Hz
75 Hz
85 Hz
70 Hz
75Hz
60Hz
60Hz
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 39
QuickSpecs
HP Workstation xw4100
Technical Specifications
NVIDIA Quadro4 380
XGL Graphics Card
Form Factor
ATX
Graphics Controller
NVIDIA NV18GL GPU
Bus Type
AGP 8x Version 3.0 compliant AGP 4x/2x Version 2.0 compliant
RAMDAC
Dual 350MHz integrated
Memory
64MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
VGA DB-15 and DVI-I analog/digital monitor outputs,
4-pin mini DIN providing TV output
Dimensions
AGP full height ATX card. 4.25 x 6.875 in (10.795 x 17.463 cm)
Multi-monitor support
Dual monitor
Additional product
features
Supported graphics APIs
AGP 8X Version 3.0 compliant and 2x/4x Version 2.0 compliant including:
o Sideband Addressing
o AGP Texturing (Execute Mode)
o Fast writes support
64 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
NV18GL GPU featuring:
o 275 MHz engine clock rate
o 250 MHz memory clock rate
o 128-bit memory interface
o VGA controller
o Dual integrated display controllers supporting up to 1920x1440 @ 85Hz and
2048x1536 @ 75Hz on both displays
o 4 parallel pixel pipelines
o 2 parallel geometry engines
o nfiniteFX II programmable vertex shader technology and NVIDIA
o OpenGL extensions
o Full hardware support for NVIDIA Cg shader programming language
o Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
TV Output
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support for Windows 2000 and Windows XP
ACPI Version 1.0b Power Management support (all modes)
OpenGL 1.3 (and OpenGL 2.0 when available) ICD with immediate mode support for all
OGL primitive types
DirectX 8 and above
Available graphics drivers HP-tested Windows 2000, HP-tested Windows XP, HP-tested Linux (1st Calendar Quarter
2003)
HP qualified drivers may be preloaded or available from the HP support Web site:
http://www.hp.com/support/workstation_drivers
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 40
QuickSpecs
HP Workstation xw4100
Technical Specifications
NVIDIA Quadro4 380 XGL
Graphics Card display
resolutions & refresh rates
Monitor 1, 2 Analog/Digital
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
240Hz/240Hz
8, 16, 24, 32
800x600
240Hz/200Hz
8, 16, 24, 32
1024x768
170Hz/140Hz
8, 16, 24, 32
1152x864
170Hz/100Hz
8, 16, 24, 32
1280x720
150Hz/120Hz
8, 16, 24, 32
1280x960
150Hz/85Hz
8, 16, 24, 32
1280x1024
150Hz/75Hz
8, 16, 24, 32
1600x900
120Hz/75Hz/
No Digital Display Support (unbold)
8, 16, 24, 32
1600x1024
100Hz/72Hz/
No Digital Display Support
8, 16, 24, 32
1600x1200
120Hz/60Hz/
No Digital Display Support
8, 16
1600x1200
100Hz/60Hz/
No Digital Display Support
24, 32
1920x1080
100Hz/
No Digital Display Support
8, 16
1920x1080
85Hz/
No Digital Display Support
24, 32
1920x1200
100Hz/
NoDigitalDisplaySupport
8, 16
1920x1200
85Hz/
No Digital Display Support
24, 32
1920x1440
85Hz/
No Digital Display Support
8, 16
1920x1440
75Hz/
No Digital Display Support
24, 32
2048x1536
75Hz/
No Digital Display Support
8, 16
2048x1536
60Hz/
No Digital Display Support
24
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 41
QuickSpecs
HP Workstation xw4100
Technical Specifications
ATI FireGL T2-128
Graphics Card
Form Factor
ATX
Graphics Controller
ATI FGL 9600 VPU
Bus Type
AGP-8x/4x compliant
DAC
Dual 400MHz/16-bit
Memory
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
DVI-I and VGA monitor outputs
Dimensions
Single AGP/ATX card. 230.28mm x 107.96mm
Multi-monitor support
DVI-I and VGA connectors support dual display, maximum resolution of 2048x1536
analog, 1600x1200 digital
Additional product
features
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
64-KB BIOS Serial Flash ROM, reprogrammable by SW, 3.3V only, no Jumpers
2D and 3D acceleration provided for 16-bit and 32-bit RGB? modes
Hardware cursor with full color alpha channel
32-bit (24+8-bit stencil) Z buffer
Bus mastering support for 2D/3D display lists and local memory vertex list execution
Hardware lighting support for 8 light sources
Bilinear, Trilinear and Anisotropic texturing
Cubic Environment and Perturbation Bump Mapping
Projective Texture, 3D Texture and Video Texture support
Full Scene Anti-Aliasing (FSAA) support with up to 6 subsamples
Video Engine supports YCrCb (4:2:2, 4:1:0, 4:2:0) to RGB conversion
Video scaling and up to 4x4 tap filtering supported for all YUV and
RGB16/32 formats
Per pixel quad buffering on all screen resolutions
VESA compliant Stereoscopic Interface on MiniDin Connector
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP4x/8x Version 3.0
compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
AGP Read and AGP Write Support
8X Fast write support
FGL 9600 GPU featuring
VGA controller supporting full standard feature set
2D Engine with 128-bit datapath processing multiple pixels per clock
PIXEL TAPESTRY III, 3D rendering engine utilizing 2 parallel pipelines with two texture
blending units each capable, of handling up to 8 texels in a single pass, delivering 2.4
Gigatexels/s fill rate
CHARISMA ENGINE III, geometry unit utilizing 4 vertex processing engines, capable of
executing two instructions per clock cycle each, thus yielding up to 200 million
transformed, clipped and lit triangles per second.
VIDEO IMMERSION III, industry leading video technology supporting MPEG 2
encode/decode
Dual independent display controllers with 4K x 4K address space each
128-bit external frame buffer interface
Supported graphics APIs
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 9.0
Processor requirements
Intel Pentium 4, or Xeon processor
Available graphics drivers Windows 2000 with SP1 (or higher)
Windows XP
Linux
HP qualified drivers may be preloaded or available from the HP support Web site:
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 42
QuickSpecs
HP Workstation xw4100
Technical Specifications
http://www.hp.com/support/workstation_drivers
ATI FireGL T2-128
Graphics Card display
resolutions & refresh rates
ANALOG and DIGITAL Display WITH 15-PIN VGA CONNECTOR
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1152x864
1280x960
1280x1024
1600x1000
1600x1024
1600x1200
1792x1344
1920x1080
1920x1200
2048x1536
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
85Hz
85Hz
75Hz
75Hz
75Hz
60Hz
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
DIGITAL MONITOR WITH DVI CONNECTOR
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1152x864
1280x1024
1600x1000
1600x1024
1600x1200
75Hz
75Hz
75Hz
75Hz
75Hz
60Hz
60Hz
60Hz
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 43
QuickSpecs
HP Workstation xw4100
Technical Specifications
NVIDIA Quadro FX1100
Graphics Card
Form Factor
ATX
Graphics Controller
NVIDIA NV36GL GPU
Bus Type
AGP 8X Version 3.0 compliant
RAMDAC
Dual 400 MHz integrated
Memory
128 MB 650MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Multi-monitor support
Dual integrated analog display controllers supporting up to 2048 x1536 @ 85Hz on both
displays
Dual external digital display controllers supporting up to 1600 x 1200 @ 60Hz on both
displays
Additional product
features
128 MB DDR2 SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Compliant with Microsoft®/Intel® PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP1x/2x/4x/8x Version
3.0 compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast writes support
NV35GL GPU featuring
425 MHz engine clock rate
325 MHz memory clock rate
128-bit memory interface
VGA controller
128-bit precision throughout the graphics pipeline
12 bit sub-pixel precision
nfiniteFX II programmable vertex and pixel shader technology
Supported graphics APIs
OpenGL 2.0 ICD with immediate mode support for all OGL primitive types
DirectX 8,9
Available graphics drivers Microsoft: Windows® XP, Windows 2000
HP qualified drivers may be preloaded or available from the HP support Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 44
QuickSpecs
HP Workstation xw4100
Technical Specifications
NVIDIA Quadro FX 1100
Graphics Card display
resolutions & refresh rates
Monitor 1, 2 Analog/Digital
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
240Hz/240Hz
8, 16, 32
800x600
240Hz/200Hz
8, 16, 32
1024x768
200Hz/140Hz
8, 16, 32
1152x864
170Hz/100Hz
8, 16, 32
1280x720
150Hz/120Hz
8, 16, 32
1280x960
150Hz/85Hz
8, 16, 32
1280x1024
150Hz/85Hz
8, 16, 32
1600x900
120Hz/75Hz
8, 16, 32
1600x1024
100Hz/72Hz
8, 16, 32
1600x1200
120Hz/60Hz
8, 16
1600x1200
100Hz/60Hz
32
1920x1080
100Hz/na
8, 16
1920x1080
85Hz/na
32
1920x1200
100Hz/na
8, 16
1920x1200
85Hz/na
32
1920x1440
85Hz/na
8,16, 32
2048x1536
85Hz/na
8, 16, 32
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 45
QuickSpecs
HP Workstation xw4100
Technical Specifications
NVIDIA Quadro FX3000
Graphics Card
Form Factor
ATX
Graphics Controller
NVIDIA NV35GL GPU
Bus Type
AGP 8X Version 3.0 compliant
RAMDAC
Dual 400MHz integrated
Memory
256 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Dimensions
AGP full height ATX card. 4.25 x 6.875 in (10.795 x 17.463 cm)
Multi-monitor support
Dual integrated display controllers supporting up to 2048x1536 @ 85Hz on both displays
Additional product
features
256 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
12-bit subpixel precision
128-bit precision graphics pipeline
Occlusion Culling
Dual Link DVI on one output enabling driving digital displays up to 2048x1536
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP8xVersion 3.0
compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast write support
NV35GL GPU featuring
400 MHz engine clock rate
425 MHz memory clock rate
250-bit memory interface
VGA controller
8 parallel pixel pipelines
3 parallel geometry engines
nfiniteFX II programmable dual Vertex Shader and Pixel Shader technology
Supported graphics APIs
OpenGL 1.5 ICD with immediate mode support for all OGL primitive types
DirectX 9
Available graphics drivers Windows 2000
Windows XP
HP-tested Linux
HP qualified drivers may be preloaded or available from the HP support Web site:
See: http://www.hp.com/support/workstation_drivers/
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 46
QuickSpecs
HP Workstation xw4100
Technical Specifications
NVIDIA Quadro FX3000
Graphics Card display
resolutions & refresh rates
MONITOR 1, 2 ANALOG/DIGITAL
Resolution
Maximum refresh rate
Bits per pixel
640x480
240Hz/240Hz
8, 16, 32
800x600
240Hz/200Hz
8, 16, 32
1024x768
200Hz/140Hz
8, 16, 32
1152x864
170Hz/100Hz
8, 16, 32
1280x720
150Hz/120Hz
8, 16, 32
1280x960
150Hz/85Hz
8, 16, 32
1280x1024
150Hz/85Hz
8, 16, 32
1600x900
120Hz/75Hz
8, 16, 32
1600x1024
100Hz/72Hz
8, 16, 32
1600x1200
120Hz/60Hz
8, 16
1600x1200
100Hz/60Hz
32
1920x1080
100Hz/60Hz in Dual Link Mode
8, 16
1920x1080
85Hz/60Hz in Dual Link Mode
32
1920x1200
100Hz/60Hz in Dual Link Mode
8, 16
1920x1200
85Hz/60Hz in Dual Link Mode
32
1920x1440
85Hz/60Hz in Dual Link Mode
8, 16, 32
2048x1536
85Hz/60Hz in Dual Link Mode
8, 16, 32
3840x1200
21Hz/24Hz
8, 16, 32
3840x2400
13Hz
8, 16, 32
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 47
QuickSpecs
HP Workstation xw4100
Technical Specifications
Sound Blaster Audigy 2 ZS Audio Quality
PCI card
Signal to Noise Ratio
(SNR)
Sound Blaster 24-bit ADVANCED HD Quality
108dB
Max. Audio Resolution
Playback
24-bit/192kHz in Stereo
Max. Recording/
Sampling Rate
24-bit/96kHz
DACs
24-bit/192kHz
Max. No. of 3D Voices
64
Max. Channels in
3D Positional Audio
7.1
EAX®
EAX and EAX®
EAX
ADVANCED HD™
HD
Yes including Hardware Acceleration of EAX and/or EAX ADVANCED HD
Connectors
PCI 2.1 or higher compliant slot
24-bit/96kHz in 5.1 DVD-Audio Quality
Analog Speakers Support for Headphone, 2.1, 4.1, 5.1, 6.1, 7.1
Digital Speakers Support for Headphone, 2.1, 4.1, 5.1 and 24-bit/96kHz speakers
One High Speed FireWire® port
Additional product
features
Music Playback/
Music Creation
Integrated Digital Music Player
Integrated Digital Music Ripping (in Player) - MP3 &
WMA
True Bit Accurate Recording w/o SRC
Advanced Resolution DVD-Audio Playback
EAX® Music Enhancements
EAX Effects
CMSS 3D Up mixing of Stereo to Multi-Channels
Audio Clean-up
Smart Volume Management (SVM)
Karaoke
Multi-Channel Graphic Equalizer
Bass Boost
Virtual Surround over 2 Channel or Headphones
Full Support for Windows® Media 9 24-bit/96kHz 5.1
content
ASIO Low Latency Multi-Track Recording Support (16bit/48kHz)
ASIO 2.0 Direct Monitoring
Movies
THX Certification
THX Setup Console
Dolby Digital 5.1 Playback
Dolby Digital EX 6.1 Playback
DTS-ES 6.1 Playback
Gaming
EAX
EAX ADVANCED HD
Hardware Acceleration of EAX &/or EAX ADVANCED HD
Up to 64 3D Voices
7.1 Max. Channels in 3D Positional Audio
Speaker Calibration for Optimal 3D Positional Audio
Minimum system
requirements
DA - 11604
System RAM
128MB
Hard disk
600MB free space
Additional 4GB free space (Disk Type: ATA-100,
Worldwide — Version 40 — September 28, 2004
Page 48
QuickSpecs
HP Workstation xw4100
Technical Specifications
7,200rpm) for DVD movies, games and internet radio.
Additional requirements
for DVD movies, games
and internet radio
DA - 11604
Operating System
Windows XP SP1
Graphics card
DirectX® 9 and OpenGL® compliant 3D accelerator
with at least 16MB of texture RAM
Soft-DVD player
Intervideo's WinDVD® 2000 or CyberLink's PowerDVD®
3.0 and above recommended
DVD drive
2nd generation 6X DVD-ROM drive or later with DMA
support for DVD Movie and Audio playback
Internet radio
56kbps modem or faster and an active Internet
connection
Worldwide — Version 40 — September 28, 2004
Page 49
QuickSpecs
HP Workstation xw4100
Technical Specifications
HP L1925 19-inch TFT
Flat Panel Monitor
Panel
Video Input
Signal Interface/
Performance
Type
Thin film transistor (TFT)
Viewable Image Area
(diagonal)
19 in (48.25 cm) maximum viewable
Screen Opening (WxH)
14.9 x 11.9 in (37.8 x 30.3 cm)
Viewing Angle (typical)
170 degrees horizontal/170 degrees vertical
(10:1 minimum contrast ratio)
Brightness (typical)
Up to 250 nits (cd/m2)
Contrast Ratio (typical)
Up to 500:1 (typical)
Response Rate (typical)
<20 ms (typical rise + fall)
Pixel Pitch
0.294 mm
Color Depth Support
16.7 million colors
Plug and Play
Yes (supports VESA DDC2B; PC2001 compliant)
Input Signal
Two connectors: one 15-pin mini D-sub analog VGA;
and one DVI-I (VGA analog or digital)
Input Impedance
75 ohms ± 2%
Sync Input
Separate sync (HSYNC/VSYNC); composite sync, Sync on
Green
Video Cable
VGA and DVI-D
Video Cable Length
78 in (2.0 m)
Horizontal Frequency
30 to 82 kHz
Vertical Frequency
56 to 75 Hz
Graphics Controller
Pixelworks 131
Native Resolution
[email protected] analog
1280x [email protected] digital
On Screen Display (OSD)
Controls
Maximum Resolution
(Analog)
[email protected] analog
Maximum Resolution
(Digital)
[email protected] analog
Preset VESA Graphic
Modes (non-interlaced)
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
Preset MAC Mode
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
DA - 11604
Preset VGA Mode
640 x 480 @ 60 Hz, 72 Hz
Preset SUN Mode
[email protected]
Fail Safe Mode
Yes (limits out of range signal messages)
Maximum Pixel Clock
Speed
140 MHz
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
AssetControl
Yes (accessible on HP/Compaq desktops featuring
Intelligent Manageability)
Default Color
Temperature
Yes (6500k, 9300k, Custom User)
Buttons or Switches
Power on/off; 4-button OSD; second level OSD buttons
include auto adjust and dual-input switch
Languages
English, Spanish, French, German, Dutch, Italian
User Controls
Size and Positioning
Worldwide — Version 40 — September 28, 2004
Page 50
QuickSpecs
HP Workstation xw4100
Technical Specifications
Contrast
Brightness
Clock, Clock Phase
Selectable Color Temperature
Input Selection
Factory Reset
Individual Color Contrast
Full-screen Resolution
Power
Mechanical
Power Supply
Auto-ranging, 90 to 265 VAC; internal power supply,
47.5-63 Hz
Input Power
100 ~ 240 VAC
Nominal Current
1.5 A maximum
Frequency
50 ~ 60 Hz
Average
33 watts when displaying standard office software
Maximum
< 40 watts
Power Saving
< 2 watts
Off Mode
< 1 watts (switch off)
Power Cable Length
70 in (1.8 m); non-captive
Dimensions
(H x W x D)
Unpacked w/ stand
minimum height
14.8 x 16.4 x 8.2 in
(39.8 x 41.6 x 20.8 cm)
Unpacked w/ stand
maximum height
20 x 16.4 x 8.2 in
(50.8 x 41.6 x 20.8 cm)
Base Area (Footprint
d x w)
8.2 x 12.2 in
(20.8 x 30.9 cm)
Panel only (w/o stand)
(h x w x d)
13.5 x 16.4 x 2.6 in
(34.2 x 41.6 x 6.6 cm)
Packaged
26.0 x 26.0 x 26.0 in
(66.0 x 66.0 x 66.0 cm)
Unpacked w/ stand
17.6 lb (8 kg)
Unpacked w/o stand
12 lb (5.5 kg)
Packaged
23.5 l (10.7 kg)
Weight
Environmental
Tilt Range
-5° to +20°
Swivel Range
± 45° horizontal swivel
Height Adjustable
Yes (4.3 in/110 mm adjustment range)
Pivot Rotation
Yes, 90 °
Base
Ships attached and is removable after installation
Temperature – Operating
41° to 95° F (5° to 35° C)
Temperature – Nonoperating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
20% to 80%
Humidity – Non-operating 5% to 95%
Altitude – Operating
0 to 13,000 ft (0 to 4,000 m)
Altitude – Non-operating 0 to 40,000 ft (0 to 12,192 m)
Options
PC Comm Station
Communication/audio hub that includes two stereo
speakers (8 PMPO each), integrated microphone/dual
function headset (phone and PC support), and USB port.
Optional, part number 304251-008 (US) or P8814A
(EMEA).
Other
Accessories Included
VGA cable, DVI-D cable, user CD-ROM with Portrait
software
User Guide Languages
English
Warranty Languages
English
Color
Carbon/Silver
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 51
QuickSpecs
HP Workstation xw4100
Technical Specifications
VESA Mounting
Yes (swing arm/ wall mount not included; base is shipped
attached and must be removed for mounting options)
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-ready
Yes
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant, FCC
Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT Guidelines, ISO
13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval, MIC
Requirements (New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,
Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan
BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI
Approvals, Windows Certification
Compatibility
VESA Video Signal Standard (VSIS) Compliant video cards have been tested and proven
compatible for use with the HP Flat Panel Monitor L1925. The HP L1925 has been tested
for use with all HP workstations.
NOTE: Features are subject to change without notice.
Service and Warranty
DA - 11604
Limited three-year parts and repair labor, service provider labor, and on-site service. Next
Business Day advanced exchange direct replacement service available during warranty
period. Certain restrictions and exclusions apply. For details, contact HP Customer Support
at 970-635-1000 (USA) or 905-206-4663 (Canada).
Worldwide — Version 40 — September 28, 2004
Page 52
QuickSpecs
HP Workstation xw4100
Technical Specifications
HP L2035 20-inch TFT
Flat Panel Monitor
Panel
Type
20-inch Active Matrix TFT (thin film transistor)
Viewable Image Area
(diagonal)
20.1 in (51 cm)
Screen Opening
(W x H)
16.2 x 12.17 in (41.1 x 30.9 cm)
Viewing Angle (typical)*
Up to 170° H/170° V (10:1 minimum contrast ratio)
Brightness (typical*
Up to 250 nits (cd/m2)
Contrast Ratio (typical)*
Up to 400:1
Response Rate (typical)*
16 ms (typical, rise + fall)
Pixel Pitch
0.255 mm
Color Depth Support
16.7 million colors
*All specifications are provided by the component manufacturers. Performance
specifications represent the highest specification of all HP's component manufacturers'
typical level specifications for performance. Actual performance may vary either higher or
lower.
On Screen Display
(OSD) Controls
Signal Interface/
Performance
Buttons or Switches
PiP (Picture in Picture), Input select, auto adjust, OSD up,
OSD down, OSD menu select, power
Languages
English, French, German, Spanish, Italian
User Controls
Brightness, contrast, positioning, color temperature,
individual color control, serial number display, full screen
resolutions, clock, clock phase, video picture-in-picture
(size and position), input selection (includes separate
direct access key for dedicated swap between inputs 1 and
2), factory reset
Horizontal Frequency
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input) (for
modes with pixel clock less than 157 MHz)
Vertical Frequency
48 to 85 Hz (VGA input); 30 to 92 KHz (DVI input) (for
modes with pixel clock less than 157 MHz)
Graphics Controller
Pixelworks PW171
Native Resolution
1600 x 1200 @ 60 Hz (recommended)
Preset VESA Graphic
Modes (non-interlaced)
1600 x 1200 @ 60 Hz, 75 Hz (VGA input)
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 85 Hz
640 x 480 @ 60 Hz, 75 Hz, 85 Hz
Video Input
DA - 11604
Text Mode
720 x 400 @ 70 Hz
Mac Mode
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
Sun Mode
1152 x 900 @ 66 Hz
Maximum Pixel Clock
Speed
202 MHz (VGA input); 162 MHz (DVI input)
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
Default Color
Temperature
6500 K
Plug and Play
Yes
Input Signal
Four connectors, including one 15-pin mini D-sub VGA,
one DVI-I (VGA analog and digital input), one composite
video, and one s-video
Worldwide — Version 40 — September 28, 2004
Page 53
QuickSpecs
HP Workstation xw4100
Technical Specifications
Power
Mechanical
Input Impedance
75 ohms ± 10%
Sync Input
Separate sync (HSYNC/VSYNC); composite sync, Sync on
Green
Video Cable
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
Video Cable Length
5.9 ft (1.8 m)
Input Power
Auto-Ranging, 90 to 132 VAC and 195 to 265 VAC;
internal power supply, 50 Hz/60 Hz
Frequency
47.5 to 63 Hz
Maximum
< 75 watts
Power Saving
< 5 watts
Power Cable Length
5.9 ft (1.8 m)
Dimensions (H x W x D)
Unpacked w/stand
17.36 to 20.9 x 17.8 x 8.27
in
(44.1 to 53.1 x 45.2 x 21.0
cm)
Unpacked w/o stand (head
only)
14.29 x 17.8 x 3.19 in
(36.3 x 45.2 x 8.1 cm)
Packaged
11.5 x 21.9 x 23.9 in
(29.2 x 55.6 x 60.6 cm)
Unpacked
With stand: 20.28 lb (9.2
kg);
Without stand: 12.35 lb (5.6
kg)
Packaged
26.9 lb (12.2 kg)
Weight
Environmental
Tilt Range
-5° to + 25° vertical
Swivel Range
-35° to + 35°
Height Adjustable
Yes, range 3.54 in (9.0 cm)
Pivot Rotation
Yes
Base
Attached
Temperature – Operating
46° to 95° F (10° to 35° C)
Temperature – Nonoperating
6° to 140° F (-10° to 60° C)
Humidity – Operating
20% to 80% non-condensing
Humidity – Non-operating 5% to 85%
Altitude – Operating
+12,000 ft
Altitude – Non-operating +40,000 ft
Options
HP Desktop Access Center Sold separately, the HP Desktop Access Center features
integrated microphone/headset jacks, dual function
headset for phone/PC support, a MultiBay slot for adding
an optical drive (sold separately), and four USB ports for
easy integration of third-party digital solutions; part
number DK985A. For more information, refer to the HP
Desktop Access Center QuickSpecs.
Other
Accessories Included
VGA to VGA cable – connects the graphic card's VGA
analog connector to the monitor's input #1 (VGA analog)
connector
VGA to DVI-I cable – connects the graphic card's VGA
connector to the monitor's input #2 (DVI-I analog)
connector
DVI-D to DVI-I cable – connects the graphic card's DVI-D
digital connector to the monitor's input #2 (DVI-I digital)
connector
User Guide Languages
English, B. Portuguese, French, LA Spanish, Korean, S.
Chinese, T. Chinese, Bahasa, Japanese, Danish, Finnish,
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 54
QuickSpecs
HP Workstation xw4100
Technical Specifications
German, Norwegian, Spanish, Swedish, Greek, Polish,
Russian, Slovenian, Turkish
HP L2335 23-inch TFT
Widescreen Flat Panel
Display
Warranty Languages
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish, French,
Italian, Dutch, Norwegian, Finnish, Swedish, Bahasa
Indonesian, Korean, T. Chinese, S. Chinese
Color
Carbonite/Silver
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant, FCC
Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT Guidelines, ISO
13406-2 Pixel Defect Guidelines, Mexican NOM Approval, MIC Requirements (New
Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko), PC2001
Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI Approval, TCO 03
(emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Windows
Certification (Microsoft® Windows® 98, Microsoft Windows 2000, and Microsoft
Windows XP)
Compatibility
Compatible with platforms using the VESA standard video modes and HP Compaq
Business Desktops d500, d300, and d200 Series, Compaq Evo Desktops, and HP Business
Desktops d300 series.
Service and Warranty
Limited three years parts, labor, and on-site service, including backlight. Availability varies
by region. Certain restrictions and exclusions apply. Consult HP Customer Service for
details.
Panel
Type
23-inch Active Matrix TFT (thin film transistor)
Viewable Image Area
(diagonal)
23 in (58.4 cm)
Screen Opening
(W x H)
19.53 x 12.24 in (49.6 x 31.1 cm)
Viewing Angle (typical)*
Up to 170° H/170° V (10:1 minimum contrast ratio)
Brightness (typical)*
Up to 250 nits (cd/m2)
Contrast Ratio (typical)*
Up to 350:1
Response Rate (typical)*
25 ms (typical, rise + fall)
Pixel Pitch
0.258 mm
Color Depth Support
16.7 million colors
* All specifications are provided by the component manufacturers. Performance
specifications represent the highest specification of all HP's component manufacturers'
typical level specifications for performance. Actual performance may vary either higher or
lower.
On Screen Display (OSD)
Controls
Signal Interface/
Performance
DA - 11604
Buttons or Switches
PiP (Picture in Picture), Input Select, Auto Adjust, OSD
Up, OSD Down, OSD Menu Select, Power
Languages
English, French, German, Spanish, Italian
User Controls
Brightness, contrast, positioning, color temperature,
individual color control, serial number display, full screen
resolutions, clock, clock phase, video picture-in-picture
(size and position), input selection (includes separate
direct access key for dedicated swap between inputs 1 and
2), factory reset
Horizontal Frequency
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input) (for
modes with pixel clock less than 157 MHz)
Vertical Frequency
48 to 85 Hz (VGA and DVI input)
Graphics Controller
Pixelworks PW172
Native Resolution
1920 x 1200 @ 60 Hz (recommended)
Worldwide — Version 40 — September 28, 2004
Page 55
QuickSpecs
HP Workstation xw4100
Technical Specifications
Preset VESA Graphic
Modes (non-interlaced)
1920 x 1200 @ 60Hz
1600 x 1200 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 75Hz
640 x 480 @ 60 Hz, 75 Hz
Video Input
Power
Mechanical
Text Mode
720 x 400 @ 70 Hz
Mac Mode
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
Sun Mode
1152 x 900 @ 66 Hz
Maximum Pixel Clock
Speed
202 MHz (VGA input); 162 MHz (DVI input)
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
Default Color
Temperature
6500 K
Plug and Play
Yes
Input Signal
Five connectors, including one 15-pin mini D-sub VGA,
one DVI-I (VGA analog and digital input), one composite
video, one s-video, component video
Input Impedance
75 ohms ± 10%
Sync Input
Separate sync (HSYNC/VSYNC); composite sync, Sync on
Green
Video Cable
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
Video Cable Length
5.9 ft (1.8 m)
Input Power
Auto-Ranging, 90 to 132 VAC and 195 to 265 VAC;
internal power supply, 50 Hz/60 Hz
Frequency
47.5 to 63 Hz
Maximum
< 100 watts
Power Saving
< 5 watts
Power Cable Length
5.9 ft (1.8 m)
Dimensions (H x W x D)
Unpacked
17.36 to 20.90 x 21.46 x
8.27 in
(44.1 to 53.1 x 54.5 x 21.0
cm)
Unpacked w/o stand
(head only)
14.57 x 21.46 x 3.35 in
(37.0 x 54.5 x 8.5 cm)
Unpacked
22.27 lb (10.1 kg)
Packaged
30.87 lb (14.0 kg)
Weight
Environmental
DA - 11604
Tilt Range
-5° to + 25° vertical
Swivel Range
-35° to + 35°
Height Adjustable
Yes, range 3.54 in (9.0 cm)
Pivot Rotation
Yes
Base
Attached
Temperature –
Operating
46° to 95° F (10° to 35° C)
Temperature –
Non-operating
6° to 140° F (-10° to 60° C)
Worldwide — Version 40 — September 28, 2004
Page 56
QuickSpecs
HP Workstation xw4100
Technical Specifications
Humidity – Operating
20% to 80% non-condensing
Humidity –
Non-operating
5% to 85%
Altitude – Operating
+12,000 ft
Altitude –
Non-operating
+40,000 ft
Options
HP Desktop Access Center Sold separately, the HP Desktop Access Center Features
integrated microphone/headset jacks, dual function
headset for phone/PC support, a MultiBay slot for adding
an optical drive (sold separately), and four USB ports for
easy integration of third-party digital solutions; part
number DK985A. For more information, refer to the HP
Desktop Access Center QuickSpecs.
Other
Accessories Included
VGA to VGA cable – connects the graphic card's VGA
analog connector to the monitor's input #1 (VGA analog)
connector
VGA to DVI-I cable – connects the graphic card's VGA
connector to the monitor's input #2 (DVI-I analog)
connector
DVI-D to DVI-I cable – connects the graphic card's DVI-D
digital connector to the monitor's input #2 (DVI-I digital)
connector
User Guide Languages
English, B. Portuguese, French, LA Spanish, Korean, S.
Chinese, T. Chinese, Bahasa, Japanese, Danish, Finnish,
German, Norwegian, Spanish, Swedish, Greek, Polish,
Russian, Slovenian, Turkish
Warranty Languages
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish, French,
Italian, Dutch, Norwegian, Finnish, Swedish, Bahasa
Indonesian, Korean, T. Chinese, S. Chinese
Color
Carbonite/silver
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant, FCC
Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT Guidelines, ISO
13406-2 Pixel Defect Guidelines, Mexican NOM Approval, MIC Requirements (New
Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko), PC2001
Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI Approval, TCO 03
(emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Windows
Certification (Microsoft® Windows® 98, Microsoft Windows 2000, and Microsoft
Windows XP).
Compatibility
Compatible with platforms using the VESA standard video modes and HP Compaq
Business Desktops d500, d300, and d200 Series, Compaq Evo Desktops, and HP Business
Desktops d300 series.
Service and Warranty
Limited three years parts, labor, and on-site service, including backlight. Availability varies
by region. Certain restrictions and exclusions apply. Consult HP Customer Service for
details.
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 57
QuickSpecs
HP Workstation xw4100
Technical Specifications
HP p1230 22-inch CRT
Monitor
Tube Type
Diamondtron NF Aperture Grille CRT
Picture Tube Size (diagonal) 22 in (55 cm)
Viewable Image Area
(diagonal)
20 in (51 cm)
Aperture Grille Pitch
0.24 mm
Screen Curvature
Flat
Horizontal Frequency (kHz) 30 to 140 kHz
Vertical Frequency (Hz)
50 to 160 Hz
Maximum Resolution
2048 x 1536 @ 85 Hz (GTF)
Recommended Resolution 1600 x 1200 @ 85 Hz or 1280 x 1024 @ 85 Hz
Preset VESA Graphic
Modes (non-interlaced)
1920 x 1440 @ 60 Hz, 75 Hz
1792 x 1344 @ 60 Hz, 75 Hz
1600 x 1200 @ 75 Hz, 85 Hz
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1024 x 768 @ 75 Hz, 85 Hz
800 x 600 @ 75 Hz, 85 Hz
640 x 480 @ 60 Hz, 85 Hz
Preset MAC Mode
1152 x 870 @ 75 Hz
Preset VGA Mode
640 x 480 @ 60 Hz and 720 x 400 @ 70 Hz
Maximum Pixel Clock
Speed
420 MHz
User Programmable
Modes
15 (10 preset modes and 5 additional modes)
Anti-Glare
Yes
Anti-Static
Yes
Asset Control
Yes
Default Color
Temperature
9300 K
Buttons or Switches
OSD menu, brigthness, contrast, Super Bright, dual input, power on/off
Languages
English, Spanish, French, German, Italian, Japanese
User Controls
Brightness, contrast, pincushion, pincushion balance, trapezoid, tilt (rotation), color
temperature, degauss, parallelogram, individual color control, zoom, moiré cancellation,
convergence, corner purity, image control, language, OSD control, factory reset
Plug and Play
Yes, DDC/CI compatible
Input Signal
Two 15-pin D-sub connections
Input Impedance
75 ohms
Sync Input
Separate sync (HSYNC/VSYNC)
Video Cable
Detachable 15-pin D-sub mini connector (included)
Video Cable Length
70 in (1.8 m); non-captive
Power Supply
Universal 100-120/220-240 VAC
Frequency
50/60 Hz
Maximum
135 watts
Power Saving
2 watts maximum
Off Mode
0 watts
Power Cable Length
70 in (1.8 m); non-captive
Dimensions (HxWxD)
Unpacked
(including pedestal)
19.1 x 19.5 x 18.8 in (48.6 x 49.5 x 47.7 cm)
Packaged
25.6 x 25.0 x 25.4 in (65.1 x 63.6 x 64.6 cm)
Unpacked
66.1 lb (30 kg)
Packaged
77.1 lb (35 kg)
Weight
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 58
QuickSpecs
HP Workstation xw4100
Technical Specifications
Tilt Range
10° upward and 5° downward
Swivel Range
90°either side of center
Temperature – Operating
41° to 90° F (5° to 35° C) Non-condensing
Temperature –
Non-operating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
10% to 90% non-condensing
Humidity –
Non-operating
10% to 90%
Altitude – Operating
0 to 7,200 ft (0 to 2,195 m)
Altitude –
Non-operating
0 to 30,000 ft (0 to 9,144 m)
Accessories Included
Power cable, video cable (D-sub to D-sub), documentation kit
User Guide Languages
English, French, German, Spanish, Italian, Dutch, Brazilian Portuguese, Danish, Finnish,
Greek, Japanese, Korean, Latin American Spanish, Norwegian, Polish, Russian, Slovenian,
Turkish, Swedish, Traditional Chinese, Simplified Chinese
Warranty Languages
English, French, Spanish, Brazilian Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish, Swedish, Bahasa Indonesian, Japanese,
Korean, T. Chinese, S. Chinese
Color
Carbon and silver
Certification and
Compliance
MPR-II (Low Emissions), TCO '03, Energy Star Compliant, UL Listing, ISO9241-3 VOT
Guidelines Approval, FCC Approval, CE Mark (including PFC), GS Mark
Compatibility
Compatible with platforms using the VESA standard video modes and HP Compaq
Business Desktops d500, d300, and d200 Series, Compaq Evo Desktops, HP workstations,
and HP Business Desktops d300 series.
Warranty
Limited three-year parts and repair labor, service provider labor, and on-site service. Next
business day advanced exchange direct replacement service available during warranty
period. Certain restrictions and exclusions apply.
© Copyright 2003-2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Hyper-Threading Technology requires a computer system with an Intel) Pentium) 4 processor supporting HT Technology and a Hyper-Threading Technology
enabled chipset, BIOS and operating system. Performance will vary depending on the specific hardware and software you use. See
http://www.intel.com/info/hyperthreading/ for more information including details on which processors support HT Technology.
Microsoft, Windows, and Windows NT are U.S. registered trademarks of Microsoft Corporation. Intel and Pentium are U.S. registered trademarks the Intel
Corporation. All other product names mentioned herein may be trademarks of their respective companies.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 11604
Worldwide — Version 40 — September 28, 2004
Page 59
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
