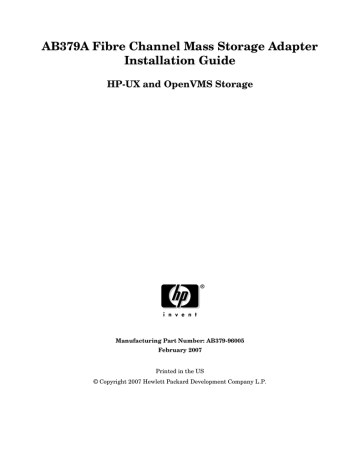

AB379A Fibre Channel Mass Storage Adapter
Installation Guide
HP-UX and OpenVMS Storage
Manufacturing Part Number: AB379-96005
February 2007
Printed in the US
© Copyright 2007 Hewlett Packard Development Company L.P.
Legal Notices
The information in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this manual, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be held
liable for errors contained herein or direct, indirect, special, incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
Warranty
A copy of the specific warranty terms applicable to your Hewlett-Packard product and replacement parts can
be obtained from your local Sales and Service Office.
U.S. Government License
Proprietary computer software. Valid license from HP required for possession, use or copying. Consistent
with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and
Technical Data for Commercial Items are licensed to the U.S. Government under vendor's standard
commercial license.
Trademark Notices
UNIX is a registered trademark in the United States and other countries, licensed exclusively through The
Open Group.
Localized Documentation
This Installation Guide has been translated to:
http://www.docs.hp.com/ja/index.html
2
Contents
1. Fibre Channel Adapter Installation for HP-UX
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Important Patches and Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing Driver Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing Adapter Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the Fibre Channel Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the Host Bus Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Attaching the Adapter to Other Fibre Channel Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Verifying the Fibre Channel Adapter Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
LED Interpretation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Obtaining Card Information after Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Verifying Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Interpreting Legacy Hardware Paths (HP-UX 11i v1 and 11i v2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Interpreting Lunpath Hardware Paths (HP-UX 11i v3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Components of Lunpath Hardware Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fibre Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2. Fibre Channel Adapter Installation for OpenVMS
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing Driver Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing Adapter Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Fibre Channel Adapter Offline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Host Bus Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attaching the Adapter to Other Fibre Channel Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Verifying the Fibre Channel Adapter Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additional Configuration Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LED Interpretation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
22
22
22
23
24
24
26
26
A. Technical Specifications and Regulatory Information
AB379A Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FCC Statement (For U.S.A.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EMI (Australia and New Zealand) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VCCI (Japan) (PCI Card Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EMI Statement (European Community) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Laser Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AB379A Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
28
28
28
29
29
29
31
3
Contents
4
1 Fibre Channel Adapter Installation for
HP-UX
This chapter contains installation prerequisites, guidelines, and procedures for the AB379A host bus adapter.
This chapter addresses the following topics:
“Prerequisites” on page 5
“Important Patches and Updates” on page 6
“Installing Driver Software” on page 7
“Installing Adapter Hardware” on page 8
“Attaching the Adapter to Other Fibre Channel Devices” on page 11
“Verifying the Fibre Channel Adapter Installation” on page 11
“LED Interpretation” on page 12
“Obtaining Card Information after Installation” on page 13
“Verifying Connectivity” on page 14
“Interpreting Legacy Hardware Paths (HP-UX 11i v1 and 11i v2)” on page 15
“Interpreting Lunpath Hardware Paths (HP-UX 11i v3)” on page 18
Thank you for purchasing HP I/O Cards
If you are installing an HP I/O card as an add-in device, please review this document before attempting
installation.
If this card was factory installed in your server, see “Verifying the Fibre Channel Adapter Installation” on
page 11.
HP welcomes your input. Please email us at:
[email protected]
with comments or suggestions on HP I/O Cards or related documentation.
All product documentation, including a comprehensive Support Guide, Installation Guide, Release Notes,
Support Matrix are available online at: http://docs.hp.com
1. Within the “Internet & Networking” category select “I/O Cards and Networking Software”
2. Select “Fibre Channel”
3. Click on the Fibre Channel documentation product.
Prerequisites
Before installing the adapter, follow these steps:
Step 1. Verify compliance with supported sonfigurations using the HP Fibre Channel Host Bus Adapter
Support Matrix at:
http://docs.hp.com/en/netcom.html#Fibre%20Channel
Step 2. Determine if the adapter is a Customer Replaceable Unit (CRU) using the HP Fibre Channel Host
Bus Adapter Support Matrix. If the adapter is not a CRU, contact your HP representative for
installation assistance.
Field Replaceable Units (FRUs) must be installed or replaced by qualified Hewlett-Packard service
representatives only. CRUs can be installed or replaced by customers or qualified Hewlett-Packard
service representatives.
Step 3. Check the following conditions:
•
Chapter 1
To verify that the /usr/bin, /usr/sbin, and /sbin directories are in the PATH, enter the
following command:
5
Fibre Channel Adapter Installation for HP-UX
Important Patches and Updates
echo $PATH
•
Verify that you have the following items:
— Grounding wrist strap
— Fibre Channel driver software media (included with the OS or application CD)
— Fibre Channel host bus adapter with an optical port protector attached (not included with
all adapters)
•
Verify that you have the following cabling items:
— Fiber optic cable terminated with a duplex LC connector.
— Cable map (optional)
Important Patches and Updates
Review the FibrChanl-01 (fcd) Fibre Channel Mass Storage Driver for HP-UX Release Notes located at
docs.hp.com for the latest patch and dependency requirements.
Install all driver software and dependency patches before you install the adapter.
NOTE
HP recommends that you sign-up for Subscriber’s Choice so you can automatically receive
email notices for the latest firmware updates. Make sure you register all your products to
receive the appropriate firmware update notices.
You can also go to the Business Support Center Web site at http://www.hp.com/go/bizsupport for
the latest HP-UX 11i firmware updates. The IT Resource Center (ITRC) Web site at
http://itrc.hp.com also provides a link to the Business Support Center.
The system firmware files, installation instructions, and release notes with detailed firmware
version information can be obtained by selecting "Download Drivers and Software" at
http://www.hp.com/bizsupport. This provides a searchable database for various products or you
can follow the "Server" link to select the latest firmware download for your specific server
product. Be sure to read the Release Notes for the firmware to ensure a successful update. In
general, HP recommends that you update to the latest firmware available before installing or
updating to HP-UX 11i v3.
For a matrix of minimum required system firmware for I/O adapters with HP-UX 11i v3 boot
support, as well as the minimum system firmware requirements for HP-UX 11i v3, refer to the
documents at http://docs.hp.com/en/hw.html#System%20Firmware
NOTE
6
Patches are available from http://www.software.hp.com
Chapter 1
Fibre Channel Adapter Installation for HP-UX
Installing Driver Software
Installing Driver Software
NOTE
Use the following instructions if the driver is provided on a CD-ROM. If the driver software is
downloaded, follow the instructions provided with that file. The driver software, FibrChanl-01,
may be downloaded from http://software.hp.com. The FibrChanl-01 bundle is also provided on
the Operating Environment media or Application Release media for HP-UX 11i v3 and HP-UX
11i v2.
Install all driver software and dependency patches before you install the adapter. See the FibrChanl-01 (fcd)
Fibre Channel Mass Storage Driver Release Notes available at: http://docs.hp.com for details.
To load the driver from a CD-ROM, do the following:
Step 1. Log in to the system as root.
Step 2. Insert the CD into the CD drive.
Step 3. Mount the CD using the following command:
mount /dev/dsk/<cd_rom_dev_file> /<tmp_mnt>
Step 4. Run swinstall to install the software. Enter the following command:
/usr/sbin/swinstall
The Software Selection window and the Specify Source window open.
Step 5. In the Specify Source window, change the Source Host Name if necessary. Enter the mount point of
the drive in the Source Depot Path field and click OK to return to the Software Selection window.
Click Help to get more information.
Step 6. Select the appropriate software bundle for your adapter.
Step 7. Select Mark for Install from the Actions menu.
Step 8. Select Install from the Actions menu. Installation begins and the Install Analysis window opens.
Step 9. Click OK in the Install Analysis window to confirm that you want to install the software. The
Install window opens.
View the Install window to read processing data while the software installs. When the Status
field indicates Ready, the Confirmation window opens.
Step 10. Click OK. A second Confirmation window opens.
Step 11. Click OK again. The Install window opens.
Step 12. Click Done. The Note window opens.
Step 13. Click OK in the Note window to reboot. The user interface disappears and the system reboots.
Step 14. Once the system comes back up, log in as root and open the following files to see any error or
warning messages that may have occurred during the installation:
/var/adm/sw/swagent.log
Chapter 1
7
Fibre Channel Adapter Installation for HP-UX
Installing Adapter Hardware
/var/adm/sw/swinstall.log
Step 15. Install OnlineDiag, which is available at http://www.software.hp.com. OnlineDiag is also available
from the HP Support PLUS CD. Installation instructions are available at:
http://docs.hp.com/hpux/onlinedocs/diag/st/st_inst.htm
Installing Adapter Hardware
The Online Addition and Replacement feature, OLAR for HP-UX 11i v1, or OL* for HP-UX 11i v2 and later
HP-UX releases, enables PCI host bus adapters to be added or replaced without shutting down and rebooting
the system, and without adversely affecting other system components. The system hardware uses slot-specific
power control, combined with HP-UX operating system support, to enable these features.
Confirm whether OLAR or OL* are supported on the system in wich you plan to install a Fibre Channel
adapter. See the HP Fibre Channel Host Bus Adapter Support Matrix, at:
http://docs.hp.com/en/netcom.html#Fibre%20Channel
For detailed instructions on using OLAR on HP-UX 11i v1, see Chapter 2 of Configuring HP-UX for
Peripherals, which can be accessed at:
http://docs.hp.com/en/hpux11i.html
For detailed instructions on using OL* on HP-UX 11i v2 and later HP-UX releases, see the Interface Card
OL* Support Guide and the Interface Card OL* Support Matrix at:
http://docs.hp.com/en/hpux11iv2.html
NOTE
HP rp54xx servers have slot restrictions for OLAR.
PCI slots 1 through 4 do not support OLAR. In these servers, use PCI slots 5 through 12 for
OLAR.
IMPORTANT Superdome systems are not intended to be maintained by customers. HP recommends that
Superdome systems only be opened by a qualified HP service engineer. Failure to observe this
recommendation can invalidate any support agreement or warranty to which you may be
entitled.
Installing the Fibre Channel Adapter
CAUTION
Observe all ESD safety precautions before attempting this procedure. Failure to follow ESD
safety precautions could result in damage to equipment.
NOTE
The optical port protector is used only to protect the adapter port when it is not in use. Do not
use the protector as a diagnostic tool.
Install OnlineDiag, which is available at:
http://www.software.hp.com
8
Chapter 1
Fibre Channel Adapter Installation for HP-UX
Installing Adapter Hardware
OnlineDiag is also available from the HP Support PLUS CD for HP/9000 systems or the IPFxxxx CD for
Itanium systems. Installation instructions are available at:
http://docs.hp.com/hpux/onlinedocs/diag/st/st_inst.htm
Install all driver software and dependent patches before you install the adapter. For more information, see the
FibrChanl-01 (fcd) Fibre Channel Mass Storage Driver Release Notes available at:
http://docs.hp.com/en/netcom.html#Fibre%20Channel
See the system documentation for information about how to safely shut down your system and
obtain access to expansion slots.
NOTE
To install the Fibre Channel adapter, follow these steps:
Step 1. Install all driver software and dependent patches.
Step 2. Shut down the system.
Step 3. Install the adapter in an available PCI-X slot.
Step 4. Attach fibre cabling to the adapter. All Fibre Channel host bus adapters that use the FCD driver
use a cable terminated with an LC connector.
Installing the Host Bus Adapter
Step 1. Access the system card bay
•
•
•
•
•
If the system is running, enter this command to shut it down:
# shutdown -h
Enter y when prompted to continue.
Wait for the system to shut down completely, and then power off the system by pressing the
system off button.
Ensure that the system is grounded.
Open the system to gain access to the PCI backplane.
Insert the card into the highest-performance PCI-X slot available.
Step 2. Install the card
•
•
Chapter 1
Slide the adapter edge-connector into the PCI-X slot until it is fully seated.
Secure the card and reassemble the system.
9
Fibre Channel Adapter Installation for HP-UX
Installing Adapter Hardware
Figure 1-1
10
AB379A Dual Port Fibre Channel Adapter
Chapter 1
Fibre Channel Adapter Installation for HP-UX
Attaching the Adapter to Other Fibre Channel Devices
Attaching the Adapter to Other Fibre Channel Devices
To attach the adapter to other Fibre Channel devices, follow these steps:
1. Remove the Fibre Channel host bus adapter’s optical port protector (if included).
2. Attach a connector cable to the Fibre Channel host bus adapter.
a. Align the slotted plug with the keyed connector.
b. Push the connector in until you hear it click.
3. Attach the free end of the cable to a compatible Fibre Channel device.
4. Reconnect the power cord, if necessary, and power on the system.
Table 1-1 lists the Fibre Channel cables that you can use when connecting devices to Fibre Channel host bus
adapters.
NOTE
Table 1-1
Be sure to use LC-LC or LC-SC cables for the Fibre Channel host bus adapters which use the
FCD driver.
Cable Products
LC-LC
221692-B21
Fibre Channel Cable 2m LC 50/125 duplex M/M
C7525A
Fibre Channel Cable 16m LC 50/125 duplex M/M
221692-B27
Fibre Channel Cable 50m LC 50/125 duplex M/M
LC-SC
221691-B21
Fibre Channel Cable 2m LC-SC 50/125 duplex M/M Optical
C7530A
Fibre Channel Cable 16m LC-SC 50/125 duplex M/M Optical
Verifying the Fibre Channel Adapter Installation
1. To verify the adapter installation, enter the command:
# ioscan -f
2. Verify that the following drivers appear for each installed adapter. If all drivers display, proceed to the
Verifying Connectivity section.
Chapter 1
11
Fibre Channel Adapter Installation for HP-UX
LED Interpretation
The ioscan output might look like the following. The third column represents the hardware path of the
slot in which the adapter is installed. This path will be different for each installed adapter port.
Table 1-2
Class
ioscan -f Output
I
H/W Path
Driver
S/W State
H/W Type
Description
fc
0 0/0/2/1/0
fcd
CLAIMED
INTERFACE
HP AB379-60001 4Gb Dual Port
PCI/PCI-X Fibre Channel
Adapter (FC Port 1)
fc
1 0/0/2/1/1
fcd
CLAIMED
INTERFACE
HP AB379-60001 4Gb Dual Port
PCI/PCI-X Fibre Channel
Adapter (FC Port 2)
3. If the ioscan output is similar to the following:
fc 0/0/2/1/0 UNCLAIMED UNKNOWN
HP-UX detected the adapter, but the drivers are not properly loaded.
4. If the correct driver is installed, but the adapter does not show in the ioscan output, the driver is not
recognizing the adapter. Contact HP for assistance.
LED Interpretation
Table 1-3
AB379A LED Interpretation Table
Yellow
LED
(4 Gbps)
Green
LED
(2 Gbps)
Amber
LED
(1 Gbps)
Power OFF
OFF
OFF
OFF
Card doesn’t have power
Power ON
ON
ON
ON
Card powered on and not initialized
Power ON
1 Flash/s
1 Flash/s
1 Flash/s
After firmware initialization AWAITING LINK-UP
All flashing at the same time
Firmware
Fault
2 Flash/s
2 Flash/s
2 Flash/s
All three LEDs flash in continuous sequence
1 Gbps Link
UP/ACT
OFF
OFF
ON
5 Flash/s
ONLINE
IO Activity
2 Gbps Link
UP/ACT
OFF
ON
5 Flash/s
OFF
ONLINE
IO Activity
4 Gbps Link
UP/ACT
ON
5 Flash/s
OFF
OFF
ONLINE
IO Activity
HBA State
12
Comments
Chapter 1
Fibre Channel Adapter Installation for HP-UX
Obtaining Card Information after Installation
Obtaining Card Information after Installation
Example of Card information after Installation
#fcmsutil /dev/fcd1
Vendor ID is = 0x001077
Device ID is = 0x002422
PCI Sub-system Vendor ID is = 0x00103c
PCI Sub-system ID is = 0x0012d7
PCI Mode = PCI-X 133 MHz
ISP Code version = 4.0.151
ISP Chip version = 2
Topology = PTTOPT_FABRIC
Link Speed = 4Gb
Local N_Port_id is = 0x610c13
Previous N_Port_id is = None
N_Port Node World Wide Name = 0x50060b00003b2257
N_Port Port World Wide Name = 0x50060b00003b2256
Switch Port World Wide Name = 0x200c080088605a6e
Switch Node World Wide Name = 0x1000080088605a6e
Driver state = ONLINE
Hardware Path is = 0/0/2/1/1
Maximum Frame Size = 2048
Driver-Firmware Dump Available = NO
Driver-Firmware Dump Timestamp = N/A
Driver Version = @(#) libfcd.a HP Fibre Channel ISP 23xx &
24xx Driver B.11.23.04 /ux/core/isu/FCD/kern/src/common/wsio/fcd_init.c:Oct 18
2005,08:19:50
This card is capable of running at higher bus speeds, up to 266Mhz. The speed of the server slot determines
the maximum speed. The actual speed is displayed as the PCI Mode.
Example of Vital Product Data (VPD) after installation
#fcmsutil /dev/fcd1 vpd
V I T A L
P R O D U C T
D A T A
---------
-------------
-------
Product Description
: HP PCI-X 2.0 Dual Port 4Gb Fibre Channel HBA
Part number
: AB379-60001
Chapter 1
13
Fibre Channel Adapter Installation for HP-UX
Verifying Connectivity
Engineering Date Code
: A-4602
Part Serial number
: US00016362
Misc. Information
: PW=15W;PCI=66MHZ;PCI-X=266MHZ
Mfd. Date
: 4602
Mfd. ID
: FC2410401-10 04
Check Sum
: 0xc5
EFI version
: 01.01
ROM Firmware version
: 04.00.70
BIOS version
: 01.06
FCODE version
: 01.12
Asset Tag
: NA
Example of ioscan entry after installation
fc
0 0/0/2/1/0
Channel Adapter (FC Port 1)
fcd
CLAIMED
INTERFACE
HP AB379-60001 4Gb Dual Port PCI/PCI-X Fibre
CLAIMED
INTERFACE
HP AB379-60001 4Gb Dual Port PCI/PCI-X Fibre
CLAIMED
INTERFACE
FCP Domain
/dev/fcd0
fc
1 0/0/2/1/1
Channel Adapter (FC Port 2)
fcd
/dev/fcd1
fcp
0
0/0/2/1/1.97
fcd_fcp
ext_bus
2
0/0/2/1/1.97.5.19.0
fcd_vbus
CLAIMED
INTERFACE
target
11
0/0/2/1/1.97.5.19.0.0
tgt
CLAIMED
DEVICE
disk
11
0/0/2/1/1.97.5.19.0.0.0
sdisk
CLAIMED
DEVICE
/dev/dsk/c2t0d0
disk
14
0/0/2/1/1.97.5.19.0.0.1
disk
18
0/0/2/1/1.97.5.19.0.0.2
sdisk
/dev/dsk/c2t0d1
sdisk
/dev/dsk/c2t0d2
disk
21
0/0/2/1/1.97.5.19.0.0.3
sdisk
/dev/dsk/c2t0d3
FCP Array Interface
HP
OPEN-9
HP
OPEN-9
HP
OPEN-9
HP
OPEN-9
/dev/rdsk/c2t0d0
CLAIMED
DEVICE
/dev/rdsk/c2t0d1
CLAIMED
DEVICE
/dev/rdsk/c2t0d2
CLAIMED
DEVICE
/dev/rdsk/c2t0d3
Verifying Connectivity
Once your HP Fibre Channel Mass Storage software and hardware is installed and running, follow these
steps to verify connectivity:
Step 1. Check the state of all Fibre Channel hardware and interfaces. Enter the ioscan command and
verify that the Hardware State and the HW-Interface State are CLAIMED.
If the Fibre Channel device file has not been created, enter the following commands:
# insf -e
# ioscan -f
14
Chapter 1
Fibre Channel Adapter Installation for HP-UX
Interpreting Legacy Hardware Paths (HP-UX 11i v1 and 11i v2)
Step 2. Verify that all devices you attached to the Fibre Channel adapter are listed in the ioscan output.
For example, if you have a direct attach Fibre Channel device attached to the system, the ioscan
output may look like the following:
8/12.8.0.255.0.1.0
sdisk
CLAIMED
DEVICE
DGC C3400WDR5
The example above is the hardware path of LUN0 of a directly attached Fibre Channel Mass
Storage device with Loop ID of 1.
If all attached devices are listed and appear as CLAIMED, HP Fibre Channel Mass Storage installation is
verified.
If all attached devices are not listed or appear as UNCLAIMED, see the Troubleshooting and Maintenance
chapter of the HP Fibre Channel Adapters Support Guide.
Verify that the link speed at both ends of any cable are auto-negotiated to the highest common speed.
Run the fcmsutil /dev/fcd# command to check the link speed.
•
If the AB379A is connected to a switch port that is set in ASN mode or set at 4Gb, Link Speed should
display 4Gb.
•
If the switch port is set at 2Gb, Link Speed should display 2Gb.
•
If the switch port is set at 1Gb, Link Speed should display 1Gb.
Interpreting Legacy Hardware Paths (HP-UX 11i v1 and 11i v2)
Example 1-1, Example 1-2 and Example 1-3 illustrate the Fibre Channel hardware path format:
Example 1-1
Hardware Path for a Public Loop Device
Adapter
Domain Area Port
Bus Target LUN
0/1/2/0.1.19.255.15.4.0
Example 1-2
Hardware Path for a Direct Fabric Attach Device
Adapter
Domain Area Port
Bus Target LUN
0/1/2/0.1.19.255.0.0.0
Example 1-3
Hardware Path for a Private Loop Device
Adapter
Domain Area Port
Bus Target LUN
0/1/2/0.8.0.255.0.1.0
Chapter 1
15
Fibre Channel Adapter Installation for HP-UX
Interpreting Legacy Hardware Paths (HP-UX 11i v1 and 11i v2)
Table 1-4 describes each field in the hardware path.
Table 1-4
Hardware Path Field Descriptions
Fibre Channel Topology of HBA
Field
Value
Fabric Topologies
Private Loop
Adapter
The hardware path of the Fibre Channel adapter through which the Logical Unit Number
(LUN) is seen. For multiport adapters, this field describes a specific port on the adapter.
Domain
Dependent on the
Fibre Channel
topology of the HBA.
Typically the Domain ID of the
switch to which the target device is
attached, taken from the most
significant byte of the N_Port ID of
the target device.
8
Depends on the
Fibre Channel
topology of the HBA.
Taken from the second byte of the
N_Port ID of the target device.
0
Area
HP-UX uses a Domain ID of 8 to
indicate private loops. Fibre
Channel switches seen by
HP-UX hosts cannot be
configured with domain ID of 8.
On some switches, the second byte of
the N_Port ID encodes the switch
port to which the device is
connected. The encoding method
depends on the switch. See your
switch manual to interpret this
field.
Port
Bus
Depends on the
Fibre Channel
topology of the HBA
and the target
device, and on the
LUN addressing
method used.
Depends on the
Fibre Channel
topology of the HBA
and the target
device, and on the
LUN addressing
method used.
For LUNs with Peripheral Device Addressing,
the value of this field is always 255.
For other LUN methods, the value of
this field is the least significant byte
of the N_Port ID of the target device.
For other LUN methods, the
value of this field is the Loop ID
of the target device.
For LUNs with Peripheral Device
Addressing, the value of this field is
the upper 4 bits of the least
significant byte of the N_Port ID of
the target device.
For LUNs with Peripheral Device
Addressing, the value of this field
is the upper 4-bits of the Loop
ID of the target device.
For LUNs with Logical Unit Addressing,
the value is the Bus Number field of the LUN.
For LUNs with Volume Set Addressing (Flat Space Addressing),
the value is bits 7 - 13 of the LUN.
16
Chapter 1
Fibre Channel Adapter Installation for HP-UX
Interpreting Legacy Hardware Paths (HP-UX 11i v1 and 11i v2)
Table 1-4
Hardware Path Field Descriptions (Continued)
Fibre Channel Topology of HBA
Field
Target
Value
Depends on the
Fibre Channel
topology and the
LUN addressing
method used.
Fabric Topologies
Private Loop
For LUNs with Peripheral Device
Addressing, the value of this field is
the lower 4-bits of the third byte of
the N_Port ID of the target device.
With Peripheral Device
Addressing, the value of this field
is the lower 4-bits of the Loop ID
of the target device.
This field usually corresponds to the
Arbitrated Loop Physical Address
(AL_PA) of the target device.
For LUNs with Logical Unit Addressing,
the value is the Target field of the LUN.
For LUNs with Volume Set Addressing (Flat Space Addressing),
the value is bits 3 - 6 of the LUN.
LUN
Depends only on the LUN addressing method used.
LUN Addressing Method
Value of LUN field in Fibre Channel hardwarePath.
Peripheral Device Addressing
The Target or LUN field of the Logical Unit Number.
Logical Unit Addressing
The LUN field of the Logical Unit Number.
Volume Set Addressing
(Flat Space Addressing)
Bits 0 - 2 of the Logical Unit Number.
For more information about the fields in the Logical Unit Number, please see the SCSI Architecture Model - 3
(SAM-3) standards document.
Fibre Channel devices can connect to a fabric using Direct Fabric Attach. Direct Fabric Attach devices do not
have an AL_PA and the least significant byte of their N_Port ID is usually 0. This is dependent on the switch
implementation. Not all switches adhere to this scheme.
Some switches enable devices in Private Loop mode to connect to a fabric. These switches typically translate
the Private Loop device as a Direct Fabric Attach device to the rest of the fabric. These switches also typically
translate the rest of the fabric as Private Loop devices to the Private Loop device.
Chapter 1
17
Fibre Channel Adapter Installation for HP-UX
Interpreting Lunpath Hardware Paths (HP-UX 11i v3)
Interpreting Lunpath Hardware Paths (HP-UX 11i v3)
Lunpath hardware paths are a new representation of hardware paths introduced on HP-UX 11i v3, as part of
the new agile representation of mass storage devices. For more details, please refer to the Next Generation
Mass Storage Stack HP-UX 11i v3 white paper at
http://docs.hp.com/en/netsys.html#Storage%20Area%20Management .
This section describes how to interpret address elements in lunpath hardware paths. It also shows how to
map between the legacy hardware path and lunpath hardware path formats.
Components of Lunpath Hardware Paths
The lunpath hardware path has three parts:
1. The HBA path is composed of a series of bus-nexus addresses, separated by a slash (/). It is identical to the
HBA portion of a legacy hardware path.
2. The target address is transport-specific. With Fibre Channel, it is a port identifier. When printed by I/O
commands like ioscan, the target address is separated from the HBA path by a period (.) and is printed in
hexadecimal notation.
3. The LUN address is a SCSI 64-bit LUN indentifier, built from the address method and the LUN number.
When printed by I/O commands, it is separated from the target address by a period (.) and is printed in
hexadecimal notation.
The following table provides four examples:
Table 1-5
HBA
path
Lunpath Hardware path
Target address
LUN address
0/5/1/0.0x50060e8004276e12.0x40000000000
00000
0/5/1/0
0x50060e8004276e12
0x4000000000000000
0/4/1/0.0x500805f300083899.0x40100000000
00000
0/4/1/0
0x500805f300083899
0x4010000000000000
Fibre Channel
The target address for a Fibre Channel device is the target port’s worldwide port name (WWPN). The
fcmsutil command with the get remote option displays the WWPN as the Target Port World Wide Name. In
this example, the WWPN is 0x500805f300083899:
# fcmsutil /dev/td0 get remote all
Target N_Port_id is = 0x010700
Target state = DVS_READY
Symbolic Name =
Port Type = N_PORT
SLER Capable (supports Retry & TRID) = NO
Target Port World Wide Name = 0x500805f300083899
18
Chapter 1
Fibre Channel Adapter Installation for HP-UX
Interpreting Lunpath Hardware Paths (HP-UX 11i v3)
Target Node World Wide Name = 0x500805f300083890
The LUN address for a Fibre Channel device is a 64-bit LUNid. The LUNid is composed of two bits
representing the addressing method, fourteen bits representing the LUN number of the device, and 48
reserved bits, as shown in the table:
Table 1-6
LUN
Number
(14 bits)
Addressing Method
(2 bits)
00 – Peripheral Device Addressing
0x00-0x3fff
Reserved
(48 bits)
0x00
01 – Volume Set Addressing (Flat Space Addressing)
10 – Logical Unit Addressing
Since the LUN address is printed in hexadecimal, the first hexadecimal digit contains both the addressing
method and the start of the LUN number. For example, the first 16 bits of the LUN address
0x400f000000000000 is binary 0100000000001111. The leading 01 is theaddressing method (Flat Space
Addressing ) and the remaining bits represent the LUN number (15). Thus, the LUN address
0x400f000000000000 represents LUN number 15, using the Flat Space Addressing method. You can easily
perform this decoding by using the scsimgr command to display the LUN’s lunid attribute. For example:
# scsimgr get_attr -H 0/2/1/0.0x500805f300083899.0x400f000000000000 -a lunid
SCSI ATTRIBUTES FOR LUN PATH : 0/2/1/0.0x500805f300083899.0x400f000000000000
name = lunid
current =0x400f000000000000 (LUN # 15, Flat Space Addressing)
default =
saved =
The legacy hardware path format for Fibre Channel disks encodes the target port identifier and LUN id as
virtual hardware elements. It has the following format:
HBA_path.domain.area.port.controller.target.lun
The domain represents the Fibre Channel switch, the area is the specific port on the Fibre Channel switch
into which the target is plugged. The domain, area, and port values are extracted from the target port
identifier as shown in the table:
Table 1-7
Domain
(8 bits)
0-255
Chapter 1
Area
(8 bits)
0-255
Port
(8 bits)
0-255
19
Fibre Channel Adapter Installation for HP-UX
Interpreting Lunpath Hardware Paths (HP-UX 11i v3)
The controller, target, and lun values are extracted from the LUN id as shown in the table:
Table 1-8
Controller
(7 bits)
Target
(4 bits)
0-63
0-15
LUN
(3 bits)
0-7
To convert a lunpath hardware path to a legacy hardware path, use the scsimgr get_info command on the
target’s hardware path to display the port_id, which contains the domain, area, and port values. Extract the
controller, target, and lun values from the LUN id.
The following example uses lunpath hardware path 0/2/1/0.0x500805f300083899.0x4011000000000000:
# scsimgr get_info -H 0/2/1/0.0x500805f300083899
STATUS INFORMATION FOR TARGET PATH : 0/2/1/0.0x500805f300083899
Generic Status Information
SCSI services internal state
= IDLE
Port id
= 0x10700
Protocol
= fibre_channel
Protocol revision
= 4.3
Port name
= 0x500805f300083899
Node name
= 0x500805f300083890
LUN paths registered (active/inactive)
= 12
A port_id of 0x10700 yields a domain value of 1, an area value of 7, and a port value of 0.
The LUN address of 0x4011000000000000, which represents LUN id 0x11, yields a controller value of 0, a
target value of 2 and a lun value of 1.
The resultant legacy hardware path is 0/2/1/0.1.7.0.0.2.1.
To confirm this mapping, use the ioscan –m hwpath command, as follows:
# ioscan -m hwpath -H 0/2/1/0.0x500805f300083899.0x4011000000000000
Lun H/W Path
Lunpath H/W Path
Legacy H/W Path
=============================================================================
64000/0xfa00/0x4
0/2/1/0.0x500805f300083899.0x4011000000000000 0/2/1/0.1.7.0.0.2.1
20
Chapter 1
2 Fibre Channel Adapter Installation for
OpenVMS
This chapter contains installation prerequisites, guidelines, and procedures for the AB379A host bus adapter.
This chapter addresses the following topics:
“Prerequisites” on page 21
“Installing Driver Software” on page 22
“Installing Adapter Hardware” on page 22
“Attaching the Adapter to Other Fibre Channel Devices” on page 24
“Verifying the Fibre Channel Adapter Installation” on page 24
“Additional Configuration Information” on page 26
“LED Interpretation” on page 26
Thank you for purchasing HP I/O Cards
If you are installing an HP I/O card as an add-in device, please review this document before attempting
installation.
If this card was factory installed in your server, see “Verifying the Fibre Channel Adapter Installation” on
page 24.
HP welcomes your input. Please email us at:
[email protected]
with comments or suggestions on HP I/O Cards or related documentation.
All product documentation, including a comprehensive Support Guide, Installation Guide, Release Notes,
Support Matrix are available online at: http://docs.hp.com
1. Within the “Internet & Networking” category select “I/O Cards and Networking Software”
2. Select “Fibre Channel”
3. Click on the Fibre Channel documentation product.
Prerequisites
Before installing the adapter, follow these steps:
Step 1. Verify compliance with supported sonfigurations using the HP Fibre Channel Host Bus Adapter
Support Matrix at:
http://docs.hp.com/en/netcom.html#Fibre%20Channel
Step 2. Determine if the adapter is a Customer Replaceable Unit (CRU) using the HP Fibre Channel Host
Bus Adapter Support Matrix. If the adapter is not a CRU, contact your HP representative for
installation assistance.
Field Replaceable Units (FRUs) must be installed or replaced by qualified Hewlett-Packard service
representatives only. CRUs can be installed or replaced by customers or qualified Hewlett-Packard
service representatives.
Step 3. Make sure that you have everything that you need to install the adapter.
•
Verify that you have the following items:
— Grounding wrist strap
— Fibre Channel driver software media (included with the OS or application CD)
— Fibre Channel host bus adapter with an optical port protector attached (not included with
all adapters)
Chapter 2
21
Fibre Channel Adapter Installation for OpenVMS
Installing Driver Software
•
Verify that you have the following cabling items:
— Fiber optic cable terminated with a duplex LC connector. Cable must be 50 or 62.5 micron
multimode cable.
— Cable map (optional)
Installing Driver Software
The driver for the AB379A Fibre Channel Host Bus Adapter is included in the installation of OpenVMS
Version 8.3 and later OpenVMS releases. To check for the latest software patches, search for OpenVMS at:
http://www.itrc.hp.com.
Installing Adapter Hardware
The Online Addition and Replacement feature is not supported in OpenVMS. See Installing the Fibre
Channel Adapter Offline for hardware installation instructions.
IMPORTANT Superdome systems are not intended to be maintained by customers. HP recommends that
Superdome systems only be opened by a qualified HP service engineer. Failure to observe this
recommendation can invalidate any support agreement or warranty to which you may be
entitled.
Installing the Fibre Channel Adapter Offline
CAUTION
Observe all ESD safety precautions before attempting this procedure. Failure to follow ESD
safety precautions could result in damage to equipment.
NOTE
The optical port protector is used only to protect the adapter port when it is not in use. Do not
use the protector as a diagnostic tool.
NOTE
See the system documentation for information about how to safely shut down your system and
obtain access to expansion slots.
22
Chapter 2
Fibre Channel Adapter Installation for OpenVMS
Installing Adapter Hardware
Installing the Host Bus Adapter
Step 1. Access the system card bay
•
•
•
•
•
If the system is running, enter this command to shut it down:
@SYS$SYSTEM:SHUTDOWN
Enter y when prompted to continue.
Wait for the system to shut down completely, and then power off the system by pressing the
system off button.
Ensure that the system is grounded.
Open the system to gain access to the PCI backplane.
Insert the card into the highest-performance PCI-X slot available.
Step 2. Install the card
•
•
Figure 2-1
Slide the adapter edge-connector into the PCI-X slot until it is fully seated.
Secure the card and reassemble the system.
AB379A Dual Port Fibre Channel Adapter
The N_Port Port World Wide Name (WWN) is printed on the bulkhead.
Chapter 2
23
Fibre Channel Adapter Installation for OpenVMS
Attaching the Adapter to Other Fibre Channel Devices
Attaching the Adapter to Other Fibre Channel Devices
To attach the adapter to other Fibre Channel devices, follow these steps:
1. Remove the Fibre Channel host bus adapter’s optical port protector (if included).
2. Attach a connector cable to the Fibre Channel host bus adapter.
a. Align the slotted plug with the keyed connector.
b. Push the connector in until you hear it click.
3. Attach the free end of the cable to a compatible Fibre Channel device.
4. Reconnect the power cord, if necessary, and power on the system.
Table 2-1 lists the Fibre Channel cables that you can use when connecting devices to Fibre Channel host bus
adapters.
Table 2-1
Product
Type
LC-LC
LC-SC
Multimode Fibre Channel Cables
Product
Number
Length
221692-B21
2M
C7525A
16M
221692-B27
50M
221691-B21
2M
C7530A
16M
Fibre Width
50uM/125uM
Duplexing
yes
Verifying the Fibre Channel Adapter Installation
1. Boot OpenVMS and log in to a privileged account.
2. Confirm that all of the AB379A Fibre Channel Adapter ports have been configured. A fibre channel port is
represented by devices named FGA0:, FGB0:, etc. There are two ports per adapter, and there should be
one device per port. The device type should be QLogic ISP24xx FibreChannel, as shown below.
3. To verify that the device is present, use the SHOW DEVICE /FULL DCL command. The SHOW DEVICE/FULL
output might look like the following:
$ SHOW DEVICE FG /FULL
Device FGA0:, device type QLogic ISP24xx FibreChannel, is online, shareable,
error logging is enabled.
Error count
0
Owner process
““
Owner process ID
00000000
Reference count
0
Current preferred CPU Id
2
Current Interrupt CPU Id
2
24
Operations completed
Owner UIC
Dev Prot
Default buffer size
Fastpath
2934
[SYSTEM]
S:RWPL,O:RWPL,G,W
0
1
Chapter 2
Fibre Channel Adapter Installation for OpenVMS
Verifying the Fibre Channel Adapter Installation
FC Port Name 5006-0B00-003B-48F4
FC Node Name
5006-0B00-003B-48F54.
Device FGB0:, device type QLogic ISP24xx FibreChannel, is online, shareable,
error logging is enabled.
Error count
0
Owner process
““
Owner process ID
00000000
Reference count
0
Current preferred CPU Id
1
Current Interrupt CPU Id
1
FC Port Name 5006-0B00-003B-48F6
Operations completed
Owner UIC
Dev Prot
Default buffer size
Fastpath
FC Node Name
2980
[SYSTEM]
S:RWPL,O:RWPL,G,W
0
1
5006-0B00-003B-48F7
4. Start the System Dump Analyzer and confirm that the Fibre Channel ports are usable by performing the
following commands for each device. A Link State value of 00000001 means the Fibre Channel port is
properly configured.
$ ANALYZE/SYSTEM
OpenVMS system analyzer
SDA> FC SET DEVICE FGA
SDA> FC SHOW PORT
Overview
-------Context ........
Device .........
Images .........
FibreChannel ...
Live from RATBRN (3.302), 13-SEP-2006 15:03:56.45
FGA0:, PCI device ID 2422
FW 4.00.22, SYS$PGQDRIVER X-36 linked 13-SEP-2006 10:43:38.13
Node WWID 5006.0B00.003B.48F5, Port WWID 5006.0B00.003B.48F4, Port ID 0C8B00
Structures
---------NVRAM ..............
FICB ...............
UCB ................
UCTX ...............
LSDB ...............
Previous LSDB ......
KDB ................
Kernel KCH .........
Static Counters ....
Dynamic Counters ...
SPDT ...............
SDA>
8268BF90
827172D0
8268CB00
8270D280
82717510
82717590
8270D2A8
82716C10
827137C0
82721950
8272B100
Counters
-------Errors/Missed .....
KCHs ..............
DIPL Interrupts ...
FIPL Interrupts ...
Asynch Events .....
Asynch IOCBs ......
Request IOCBs .....
Response IOCBs ....
Marker IOCBs ......
CTR Spare #1 ......
CTR Spare #2 ......
0000/000
00000002
0068E670
0068E670
0000149C
00000000
000E9101
006EB4EA
00000000
00000000
00000000
Resources
--------Pool (bytes) ....
Free DSDLs ......
Free MBDs .......
Free FCCDs ......
Free CRCTXs .....
Map Registers ...
PGQ_ERLs ........
Fabric FC-LAs ...
Loop FC-LAs .....
UCTX Spare #1 ...
UCTX Spare #2 ...
0029A900
00000000
00000000
00000000
00000000
00000BD0
00000000
00000039
00000000
8270D780
00000000
State
----Link State ......
Port State ......
Busy Flags ......
MBX Owner .......
MBX Waiters .....
Port Waiters ....
IOCB Waiters ....
Active FCCDs ....
Req Que In ......
Rsp Que Out .....
Markers Due .....
00000001
00000000
00000001
00000000
00000000
00000000
00000000
00000001
00000033
0000006A
00000000
5. Use the System Dump Analyzer to confirm the connectivity to the SCSI/FCP Targets which are visible
through the Fibre Channel ports. An STDT Stat value of 0001 means that the SCSI/FCP Target is
available to OpenVMS:
SDA> FC SHOW STDT
SYS$PGQDRIVER - QLogic ISP24xx - FGA0 - SPDT 8272B100 - STDTs
------------------------------------------------------------| STDT Cred
STDT
FC-LA Port Name
LID PortID | Stat I/Os
-------- ----- ------------------- --- ------ + ---- ---82B84BC0 00010 5000.1FE1.5001.A3EC 091 013200 | 0001 0000
82B88E80 00015 5000.1FE1.0015.2D08 097 020800 | 0001 0000
82B7CE00 00006 5000.1FE1.0015.2C58 087 011500 | 0001 0000
82B8AD00 00016 5000.1FE1.5001.40D8 098 011A00 | 0001 0000
82B7D5C0 00007 5000.1FE1.5004.E148 08C 030800 | 0001 0000
Port
I/Os
---0000
0000
0000
0000
0000
FP
I/Os
---0000
0000
0000
0000
0000
NP
I/Os
---0000
0000
0000
0000
0000
Appr | Act
I/Os | Sus
---- + --0000 | 000
0000 | 000
0000 | 000
0000 | 000
0000 | 000
Cmd
Sus
--000
000
000
000
000
Cnf
Pnd
--000
000
000
000
000
Cls | QF
Pau | Seen
--- + ---000 | 0000
000 | 0000
000 | 0000
000 | 0000
000 | 0000
Seq
TMOs
---0000
0000
0000
0000
000E
SDA>
Chapter 2
25
Fibre Channel Adapter Installation for OpenVMS
Additional Configuration Information
Additional Configuration Information
NOTE
OpenVMS only supports Fibre Channel connection via a Fibre Channel switch. Arbitrated loop
and point-to-point topologies are not supported.
Review the Guidelines for OpenVMS Cluster Configurations located at:
http://www.hp.com/go/openvms/doc
for additional information about configuring and booting Fibre Channel devices on OpenVMS.
LED Interpretation
Table 2-2
AB379A LED Interpretation Table
Yellow
LED
(4 Gbps)
Green
LED
(2 Gbps)
Amber
LED
(1 Gbps)
Power OFF
OFF
OFF
OFF
Card doesn’t have power
Power ON
ON
ON
ON
Card powered on and not initialized
Power ON
1 Flash/s
1 Flash/s
1 Flash/s
After firmware initialization AWAITING LINK-UP
All flashing at the same time
Firmware
Fault
2 Flash/s
2 Flash/s
2 Flash/s
All three LEDs flash in continuous sequence
1 Gbps Link
UP/ACT
OFF
OFF
ON
5 Flash/s
ONLINE
IO Activity
2 Gbps Link
UP/ACT
OFF
ON
5 Flash/s
OFF
ONLINE
IO Activity
4 Gbps Link
UP/ACT
ON
5 Flash/s
OFF
OFF
ONLINE
IO Activity
HBA State
26
Comments
Chapter 2
A Technical Specifications and Regulatory
Information
AB379A Technical Specifications
Table A-1
Performance Characteristics
Local bus mode and speed
PCI-X 266MHz, PCI-X 133MHz, PCI-X 66MHz, PCI 66MHz, PCI 33MHz
Connectivity
Dual port Fibre Channel, multi-mode short-wave optical link
Link Speed
4 Gbps / 2 Gbps / 1 Gbps
Link Distance
4Gbps : 150m; 2Gbps : 300m; 1Gbps : 500m
Over 50/125um multi-mode fiber optic cable
Connector
Two LC Duplex Connectors
Bus Slot
3.3V only, 64-bit PCI-X 266MHz, PCI-X 133MHz, PCI-X 66MHz, PCI
Physical
Length
168 mm (6.61 inches)
Width
64.5 mm (2.54 inches)
Height
9.8 mm (0.39 inches)
Weight
104 g (3.7 Oz)
Electrical
6.5 watts (nominal); 8.0watts (max)
Standards
Complies with ANSI standards (ANSI X3T11) for standard Fibre Channel,
PCI Local Bus specification Rev 2.3, PCI-X protocol addendum rev 2.0a, and
PCI-X Electrical/Mechanical spec 2.0a
Environmental
Temperature
+5 to +40 degrees C (+41 to +104 F) operating
-40 to +70 degrees C (-40 to +177 F) non operating
Relative Humidity
5% to 90% @ 65 degrees C (149 degrees F) non-condensing, non-operating
20% to 80% @ 40 degrees C (104 degrees F) non-condensing, operating
Altitude
4.5 km (15,000 ft)
Electromagnetic
USA
FCC Class A
Europe
CISPR-22 Class A
Germany
FTZ-1046 (VDE Level B)
Japan
VCCI Class I
Laser Safety
Appendix A
Class 1
27
Technical Specifications and Regulatory Information
FCC Statement (For U.S.A.)
FCC Statement (For U.S.A.)
Federal Communications Commission Radio Frequency Interference Statement
WARNING
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) this device must accept any interference received, including interference that
might cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy, and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at his own expense will be required to take whatever measures
may be required to correct the interference.
Hewlett-Packard’s system certification tests were conducted with HP-supported
peripheral devices and cables, such as those received with your system. Changes or
modifications to this equipment not expressly approved by Hewlett-Packard could
void the user’s authority to operate the equipment.
Canada
Warning: This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du règlement sur le matériel brouilleur du
Canada.
EMI (Australia and New Zealand)
This product meets the applicable requirements of the Australia and New Zealand EMC Framework.
28
Appendix A
Technical Specifications and Regulatory Information
VCCI (Japan) (PCI Card Only)
VCCI (Japan) (PCI Card Only)
This equipment complies with the Class A category for information technology equipment based on the rules
of Voluntary Control Council for Interference by Information Technology Equipment. When used in a
residential area, radio interference may be caused. In this case, the user may be required to take appropriate
corrective actions.
Figure A-1
VCCI Regulatory Statement
EMI Statement (European Community)
NOTE
This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case you may be required to take adequate measures.
Laser Safety Statements
Laser Safety Statements - U.S. FDA/CDRH - Optical (laser) Transceiver
CAUTION
The optical transceiver provided on the network interface card contains a laser system and is
classified as a “Class-I Laser Product” under a U.S. Department of Health and Human Services
(DHHS) Radiation Performance standard according to the Radiation Control for Health and
Safety Act of 1968. The Class I label and compliance statement are located on the optical
transceiver.
To ensure proper use of this product, please read this instruction manual carefully and retain for future
reference. Should the unit ever require maintenance, contact an authorized service location.
CAUTION
Use of controls, adjustments or the performance procedures other than those specified herein
may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not
try to open the enclosure.
Laser Safety - European Union - Optical Transceiver Only
Appendix A
29
Technical Specifications and Regulatory Information
Laser Safety Statements
CAUTION
The optical transceiver provided on the network interface card contains a laser system and is
classified as a “Class 1 Laser Product” per EN 60825-1, Safety of Laser products. Class 1 laser
products are considered safe and do not pose a biological hazard if used within the data sheet
limits and instructions.
To ensure proper use of this product, please read this instruction manual carefully and retain for future
reference. Should the unit ever require maintenance, contact an authorized service location.
CAUTION
Use of controls, adjustments or the performance procedures other than those specified herein
may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not
try to open the enclosure.
There are no user serviceable parts nor any maintenance required for the optical transceiver. All adjustments
are made at the factory before shipment to customers. Tampering with or any attempt to modify the optical
transceiver will result in voided product warranty. It may also result in improper operation of the network
card circuitry and possible overstress of the laser source. Device degradation or product failure may result.
30
Appendix A
Technical Specifications and Regulatory Information
AB379A Declaration of Conformity
AB379A Declaration of Conformity
Appendix A
31
Technical Specifications and Regulatory Information
AB379A Declaration of Conformity
32
Appendix A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
