KTI Networks KC-1300L-1D, KC-1300L-1A, KC-1300-1D, KC-1300-1A Instruction manual

KTI Networks KC-1300L-1D, KC-1300L-1A, KC-1300-1D, KC-1300-1A Instruction manual

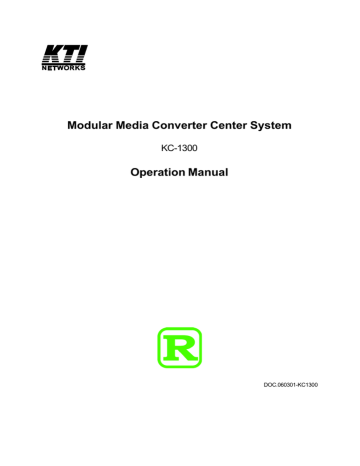

Modular Media Converter Center System
KC-1300
Operation Manual
DOC.060301-KC1300
-1-
(C) 2005 KTI Networks Inc. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make
any directive work (such as translation or transformation) without permission from KTI Networks Inc.
KTI Networks Inc. reserves the right to revise this documentation and to
make changes in content from time to time without obligation on the part
of KTI Networks Inc. to provide notification of such revision or change.
For more information, contact:
United States
International
KTI Networks Inc.
P.O. BOX 631008
Houston, Texas 77263-1008
Phone:
Fax:
E-mail:
URL:
713-2663891
713-2663893
[email protected]
http://www.ktinet.com/
Fax:
E-mail:
URL:
886-2-26983873
[email protected]
http://www.ktinet.com.tw/
-2-
The information contained in this document is subject to change without prior
notice. Copyright (C) KTI. All Rights Reserved.
TRADEMARKS
Ethernet is a registered trademark of Xerox Corp.
WARNING:
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and if not installed and used in accordance
with the instruction manual may cause harmful interference in which case the
user will be required to correct the interference at his own expense.
NOTICE:
(1) The changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment.
(2) Shielded interface cables and AC power cord, if any, must be used in order
to comply with the emission limits.
CISPR A COMPLIANCE:
This device complies with EMC directive of the European Community and meets
or exceeds the following technical standard.
EN 55022 - Limits and Methods of Measurement of Radio Interference Characteristics of Information Technology Equipment. This device complies with CISPR
Class A.
WARNING: This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate measures.
CE NOTICE
Marking by the symbol
indicates compliance of this equipment to the EMC
directive of the European Community. Such marking is indicative that this equipment meets or exceeds the following technical standards:
EN 55022: Limits and Methods of Measurement of Radio Interference characteristics of Information Technology Equipment.
EN 50082/1:Generic Immunity Standard -Part 1: Domestic Commercial and Light
Industry.
EN 60555-2: Disturbances in supply systems caused by household appliances
and similar electrical equipment - Part 2: Harmonics.
-3-
Table of Contents
1. Introduction ......................................................... 6
1.1 Features ........................................................................................ 7
1.2 Technical Specifications ............................................................... 8
2. Installation ......................................................... 12
2.1 Unpacking ....................................................................................
2.2 System Units ...............................................................................
2.2.2 Management Module ................................................................
2.2.3 Power Chassis Modules ..........................................................
2.3 Rack Mounting .............................................................................
12
12
14
16
22
3. Network Management ....................................... 23
3.1
3.2
3.3
3.4
Management Functions ...............................................................
Protocols Supported ...................................................................
Setup for Out-of-band (Console) Management ...........................
Setup for In-band Management ...................................................
23
24
25
27
4. Console and Telnet Operation ......................... 28
4.1 IP Menu ........................................................................................
4.2 SNMP Menu .................................................................................
4.3 View System Status .....................................................................
4.4 View Converter Slots Status ........................................................
4.5 Restore Default Values ................................................................
4.6 Security Manager .........................................................................
4.7 Update Firmware .........................................................................
4.8 Reboot System ............................................................................
32
33
34
35
37
38
39
40
5. SNMP Management .......................................... 41
5.1 Configuring SNMP Settings via Console Operation ................... 42
5.2 SNMP Private MIB ........................................................................ 43
5.3 SNMP Traps ................................................................................. 44
6. Web Management ............................................. 45
6.1 Start Browser Software and Making Connection .........................
6.2 Login to the System Unit .............................................................
6.3 Converter Status ..........................................................................
6.4 System Status .............................................................................
6.5 Administrator Menu ......................................................................
-4-
45
46
48
50
51
6.5.1 Basic .........................................................................................
6.5.2 Console Port Information .........................................................
6.5.3 Security Manager ......................................................................
6.5.4 Image Refresh Time ................................................................
6.5.5 Update Firmware ......................................................................
6.5.6 Reboot System .........................................................................
6.6 Slot Icon Operations ....................................................................
-5-
52
57
58
59
60
61
62
1. Introduction
The Modular Converter System KC-1300 is a managed media converter rack that
provides 16 slots and hosts 16 units of Media Converter (MC). A wide range of
media converters are available depending on your variety of network cabling
environment. These optional media converters include Gigabit and Fast Ethernet
copper to multimode or single mode fiber cable.
The rack unit provides a centered power supply to the converter modules and serves as a converter center and wiring concentrator.
For specifications of media converter KC-300D, KC-300DM, KGC-300
and KGC-310, refer to the associated installation guides respectively.
-6-
1.1 Features
Some of the key features include:
• Managed Media Converter Center Rack
• 19-inch rack-mountable 2U chassis
• Managed system accommodates up to 16 media converters
• Highly modularized chassis design with
- modular media converters
- modular management module
- two system power modules for power redundancy
• Provides high availability and maintainability
• Power backup feature with two power chassis
• Visible system status indication
• Supports in-band Telnet, SNMP and web-based management
• Supports out-of-band direct console management
• Management from anywhere and any platform using a web browser
• Easy-to-use point and click user interface
• Photographic quality interface to configure and monitor the system
• Supports in-band event SNMP trap report
• Photographic quality interface to configure and monitor the system
• TFTP Software Upgrade
-7-
1.2 Technical Specifications
System Model
Management support
Plug-in power modules
Input voltage
Power supply rating
Weight (no MC installed)
System Model
Management support
Plug-in power modules
Input voltage
Power supply rating
Weight (no MC installed)
KC-1300L/1A
KC-1300L/2A KC-1300/1A KC-1300/2A
Unmanaged
1 AC
90~264V
60W
5.5Kg
KC-1300L/1D
Managed
1 AC
90~264V
60W
5.5Kg
Managed
2 AC
90~264V
60W
6.2Kg
KC-1300L/2D KC-1300/1D KC-1300/2D
Unmanaged
1 DC
-48VDC
60W
5.5Kg
Common Specifications
19-inch rack mount
Number of MC slots
Number of power slots
Cooling
Dimension
Environmental
Operating temperature
Storage temperature
Operating humidity
Emission standard
Conducted emission
Radiated emission
Voltage harmonics
Voltage fluctuation & flicker
Susceptibility
Electrostatic discharge immunity
Radiated immunity
EFT/Burst immunity
Surge immunity
Continuous wave voltage immunity
PFMF immunity
Voltage DIP/Interrupt immunity
Certifications
FCC
CE
Unmanaged
2 AC
90~264V
60W
6.2Kg
Unmanaged
2 DC
-48VDC
60W
6.2Kg
Managed
1 DC
-48VDC
60W
5.5Kg
Managed
2 DC
-48VDC
60W
6.2Kg
Yes
16 slots
2
1 DC Fan
H 88mm (2U) x W 443mm x D 328mm
-5~40o C
-20~75 o C
10~90%RH
EN55022, CISPR 22
EN55022, CISPR 22
EN61000-3-2
EN61000-3-3
EN61000-4-2, IEC61000-4-2
EN61000-4-3, IEC61000-4-3
EN61000-4-4, IEC61000-4-4
EN61000-4-5, IEC61000-4-5
EN61000-4-6, IEC61000-4-6
EN61000-4-8, IEC61000-4-8
EN61000-4-11, IEC61000-4-11
Part 15, Class A
EMC Class A, EN50081-1,EN50082-1
-8-
AC Power Chassis Module Specifications
Dimension
194mm x 156.6mm x 40.3mm
Installation method
Plug in from system rear panel
Maintenance
Modular design for easy maintenance
AC power switch
System power on/off switch
AC power receptacle
IEC320 type receptacle
Power status indicator
Green LED
Electric
Input voltage rating
100 ~ 240VAC
Input voltage range
90 ~ 264VAC
Input frequency
47 ~ 63Hz
Input surge current
20A max. @115VAC
Efficiency
75% @115VAC full load
Output power
60W
Over current protection
All output with short circuit protection
Safety
UL/cUL, TUV EN60950
Insulation Resistance
>10M Ohm @DC500V
Dielectric withstands
1500VAC 10mA 1min.
DC Power Chassis Module Specifications
Dimension
194mm x 156.6mm x 40.3mm
Installation method
Plug in from system rear panel
Maintenance
Modular design for easy maintenance
DC power switch
System power on/off switch
DC power receptacle
Screw type terminal block
Power status indicator
Green LED
Electric
Input voltage rating
-48VDC
Input voltage range
-48VDC +/-10%
Efficiency
73% typ. at full load
Output power
60W
Protection
Over voltage, over power, short circuit
Safety
Meet UL1950
-9-
Management Module Specifications
Dimension
107mm x 24mm x 86.4mm
Slot position
Slot 0
CPU
RISC-based ARM7
RAM size
2M bytes
Flash size
512K bytes
System interface
Connector
FutureBus
Console interface
Interface
RS-232 DTE
Connector
9-pin male D-SUB connector
Baud rate
38400, N, 8, 1, 0
Flow control
Disabled
In-band interface
Interface
10/100M LAN port
Connector
Shielded RJ-45 MDI
Standard
IEEE 802.3 10BASE-T/100BASE-TX
Auto-negotiation
Support
LED Indicators
P1, P2
Green LED, power module status
DIAG
Green LED, CPU initialization
FAN
Green LED, Fan failure indication
CONSOLE
Green LED, Console RS-232 Rx activities
LNK/ACT.
Green LED, LAN port link and activities status
-10-
Management Specifications
Management interface
Telnet
Via direct RS-232 console connection
Telnet
Via TCP/IP Telnet software
SNMP agent
Via TCP/IP SNMP manager software
HTTP server Via web browser software
Protocols
IPv4
IP version4
RFC791
TCP
Transmission Control Protocol
RFC793
UDP
User Datagram Protocol
RFC768
ICMP
Internet Control Message Protocol RFC792
SNMP
SNMP agent v1
RFC1157
MIB-II
Standard MIB
RFC1213
TFTP
Trivial File Transfer Protocol
RFC1350
TELNET
Telnet protocol
RFC854
HTTP
HTTP server for web management RFC1945
Management Objects
Password for access control
Set and monitor
System status : CPU, memory, flash, software
Monitor
System power 1&2 status
Monitor
System fan status
Monitor
IP address of the system
Set and monitor
Subnet mask of the system
Set and monitor
Default gateway IP address
Set and monitor
SNMP name information
Set and monitor
SNMP location information
Set and monitor
SNMP contact information
Set and monitor
SNMP community names (up to 4)
Set and monitor
SNMP community access right (up to 4)
Set and monitor
SNMP trap host IP address (up to 3)
Set and monitor
Slot status : MC installed or not
Monitor
MC status : media type, speed, duplex
Monitor
MC link status of two ports
Monitor
Remote MC link status (two KC-300DMs link only) Monitor
SNMP Traps
Cold Start
System is powered on and completes initialization
Authentication failure
SNMP community authentication failure
Power status
The system power 1&2 failure and recovery
Fan failure
System fan failure and recovery
Slot # Port A link
Slot # MC Port A link down or up
Slot # Port B link
Slot # MC Port B link down or up
Slot # RTP link
Slot # Remote MC TP port link change
Update Firmware
Via TFTP protocol
Remote boot system
-11-
2. Installation
2.1 Unpacking
The product package contains:
• The system unit
• One power cord
• One 19-inch rack mounting kit
• Operation Manual
2.2 System Units
The figure below illustrates the front view of the KC-1300 system:
Depending on the model purchased, the type and numbers of the preinstalled media converters may be different. The figure shows a system
which is fully installed with media converters.
The following figures show the rear view of the KC-1300 system. The
main chassis provides two power chassis slots on the rear panel. Each
power chassis slot can be installed with one AC power chassis. Two
power slots design features the system a power redundant function.
-12-
The following figure shows the model equipped with two AC power chassis.
Main Chassis : provides insertion slots on front panel for CPU management module and optional add-on media converters. It also provides two
chassis slots on rear for mounting power chassis modules.
Management Module : serves as a management agent to monitor system
status and add-on converter modules for in-band and out-of-band management requests.
Power Chassis : provides full centered power supply for whole system
unit. It can receive commercial AC power with AC power chassis and 48VDC power with DC power chassis.
System Cooling Fan : provides forced air to cool down the temperature
for the system unit.
-13-
2.2.2 Management Module
The system unit comes with one pre-installed Management module. The
module facilitates the following functions:
• Direct out-of-band management via RS-232 console port
• SNMP agent to serve in-band management via SNMP protocol
• Telnet console in-band management via TCP/IP protocol
• HTTP host to serve web-based in-band management
• Monitoring all MCs status installed in the system
• Monitoring system power and fan status
See figure below for major components on the panel:
-14-
Console Port
This port is a 9-pin male D-sub connector. It serves as an RS-232 DTE port.
Refer to Chapter xx for the console operation. The pin definitions are:
Pin2
Pin 3
Pin 4
Pin 5
Pin 6
RXD
TXD
DTR
GND
DSR
UTP Port
This is an auto-negotiation 10/100BASE-TX LAN port and provides a
shielded RJ-45 jack with MDI definition. This port must connect to your
TCP/IP network for all in-band management operations.
LED Indicators
P1
P2
DIAG
Color
Green
Green
Green
FAN
Green
CONSOLE
LNK/ACT
Green
Green
Green
States
On
On
On
Off
On
Off
On
On
Blink
Interpretation
Power 1 module is ON
Power 2 module is ON
CPU initialization
Initialization complete
Fan failure detected
Fan in normal operation
Rx activities of console port
LAN port link is active
Tx/Rx activities of UTP port
-15-
2.2.3 Power Chassis Modules
The system power supply is assembled in a plug-in chassis module as
shown below:
Each single power module is capable to supply full power for system
operation with media converters fully installed.
AC Power Chassis Specifications (KC1300-AC)
AC power switch
System power on/off switch
AC power receptacle
IEC320 type receptacle
Input voltage range
90 ~ 264VAC
Input frequency
47 ~ 63Hz
Output power
60W
AC power cord
IEC320 type power cord
Power status display
Green LED
-16-
DC Power Chassis Specifications (KC1300-DC)
Input power switch
System power on/off switch
Input power receptacle
Terminal connector (screw type)
Input voltage rating
-48VDC
Input voltage range
-48VDC +/-10%
Output power
60W
Power status display
Green LED
-17-
Removal of System Power Chassis
The system power chassis is pre-installed in the system unit when system unit is shipped from factory. The chassis is designed for easy uninstallation from system unit in case of any inspection purpose. However, note that this removal only can be performed by a well-trained
technical person.
For safety reason before removing the power chassis, make sure:
• The power switch is turned off.
• The power cord is disconnected from the power chassis.
To remove the chassis, unscrew two chassis screws until they are released from system chassis, hold the handle and pull the chassis out
from the system chassis smoothly. See the following example figure:
-18-
Insertion of System Power Chassis
Before inserting the power chassis into system unit, make sure:
• The system power switch is turned off.
• The power cord is disconnected from the power chassis.
To insert the power chassis, hold the handle and push it into system unit
until it is seated in system chassis properly. Screw the chassis securely in
the system unit. See figure below:
The power chassis is designed to be hot plugged into or unplugged
from the system even when another power chassis is installed in
another power slot and in operation.
-19-
2.2.4 Media Converter Slots
The system chassis provides sixteen slots for installing optional slide-in
MCs.
A media converter can be inserted into an available slot or removed from
a slot anytime even when system unit is powered on. This hot-plug
design keeps all exiting connections on the other slots running with no
influence.
To insert an MC into a slot, the steps are:
1. Install a bracket, which is provided in the rack chassis package onto
the MC unit as shown below:
2. Remove slot cover first and insert the MC into slot slowly until it is
seated in slot properly.
3. Screw the bracket onto system chassis securely before making any
cable connection.
-20-
To remove an MC from slot, the steps are:
1. Disconnect all cable connections on the MC first.
2. Unscrew the MC bracket from system chassis.
3. Hold the bracket and pull it slowly out from the slot.
The media converters are designed with hot-plug feature, which allows
insertion and removal of the converters can be performed even when the
system is in operation.
-21-
2.3 Rack Mounting
One rack mounting kit is supplied in the product package. It includes two rack
mounting brackets and screws for installing the system unit into a 19-inch rack.
Mount both brackets onto the system unit as shown below:
Install the system unit into a 19-inch rack as shown below:
-22-
3. Network Management
3.1 Management Functions
The managed converter rack system series is featured with management
functions and can be managed by using the following methods:
•
•
•
•
Direct console connection over an RS-232 cable
Telnet software over TCP/IP network
SNMP manager software over TCP/IP network
Web browser software from Internet or Intranet over TCP/IP network
Management Interface
Console operation
Console operation
SNMP management
Web browser
RS-232 / Protocol
RS-232 console port
Telnet over TCP/IP
SNMP over TCP/IP
HTTP over TCP/IP
The following figure illustrates a management model diagram:
-23-
The system unit is equipped with one management module which serves
as a management agent to monitor the system status and all installed
media converter modules. The agent also responses to either in-band
management requests coming from network or out-of-band requests from
directly connected console.
3.2 Protocols Supported
Protocols
IPv4
TCP
UDP
ICMP
SNMP
MIB-II
TFTP
TELNET
HTTP
Name
IP version4
Transmission Control Protocol
User Datagram Protocol
Internet Control Message Protocol
SNMP agent v1
Standard MIB
Trivial File Transfer Protocol
Telnet protocol
HTTP server for web management
-24-
Reference
RFC791
RFC793
RFC768
RFC792
RFC1157
RFC1213
RFC1350
RFC854
RFC1945
3.3 Setup for Out-of-band (Console) Management
Before doing any in-band management, it is necessary to perform console operation for configuring IP and SNMP related settings for the first
time the system is received for installation. The console port is located
on the SNMP module.
Any PC running Windows can be used as a console via COM port.
Windows Hyper Terminal program is an ideal and the most popular software for such console terminal operations.
To setup console operation, the steps are:
1. Find a proper RS-232 cable for the connection to a console terminal.
If your are using PC as a terminal, make sure the cable pin assignments comply to the following requirement.
Console port
9-pin PC COM port
Pin2 RXD -------------------------------3
3 TXD -------------------------------2
4 DTR -------------------------------6
5 GND -------------------------------5
6 DSR -------------------------------4
-25-
2. Connect one end to the console port and connect the other end to
the PC COM port.
3. Configure your PC COM port setting to match the RS-232 settings of
the console port and start your terminal software.
Factory default settings of the Console port
Baud rate : 38400, N, 8, 1, 0
Flow control : disabled
4. Turn the system power on.
5. Press <Enter> key several times in your terminal software until a
login prompt comes up. It means the connection is proper.
The console port does not support modem connection.
Refer to Chapter 4 for more information about Console management.
-26-
3.4 Setup for In-band Management
To perform an in-band management, it is necessary to connect the system to your TCP/IP network. The steps are:
1. Configure IP and SNMP related settings to the system using direct
console management when you receive it first time for the installation.
2. Find a proper straight-through Category 5 UTP cable (maximal length
100 meters) for the connection.
3. Connect one end of the UTP cable to the UTP port on SNMP module
and connect the other end to the device, such as a switching hub, in
your TCP/IP network.
4. Start your in-band management operations. For different management methods, refer to:
• Chapter 4 for Telnet management
• Chapter 5 for SNMP management
• Chapter 6 for Web management
-27-
4. Console and Telnet Operation
Functions supported:
• Set and display IP parameters for the system.
• Set and display SNMP parameters for the SNMP agent function.
• Monitor system power status, power temperature status, system
fan status and other system information.
• Monitor installation status of each slots.
• Monitor the configuration and link status of each MC installed.
• Restore default settings for the system
• Change administrator password for access control.
• Update system software.
• Reboot (warm start) the system remotely.
Management Objects
Modify
Password for access control
Y
System : CPU, memory, flash, software version Power 1&2 status
System fan status
IP address of the system
Y
Subnet mask of the system
Y
Default gateway IP address
Y
SNMP name
Y
SNMP location
Y
SNMP contact
Y
SNMP community name (up to 4)
Y
SNMP community access right (up to 4)
Y
SNMP trap host IP address (up to 3)
Y
Slot status : module installed or not
MC status : media type, speed, duplex
MC link status of two ports
Remote MC TP link status *
-
-28-
Monitor
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
* Remote MC TP link status monitoring is available only when KC300DM in the rack is connected to a remote KC-300DM through fiber
link.
Cold Start
When the power to the system is turned on, the system start initialization
and self-test process. The self-test messages are displayed as follows if
a console connection is established successfully.:
Power-on Self-test
--------------------------------------------$$$ System LOADER Checksum O.K !!!
$$$ System IMAGE Checksum O.K !!!
$$$ System DATA Checksum O.K !!!
$$ Waiting Copy Rom to Sdram
$$$ System Power On Self Test....
$$$ ARM Reg R/W Test Success !!!
$$$ System EEPROM Checksum O.K !!
$$$ Get parameter O.K !!
My Mac Address is xxxxxxxxxxxx
---------------------------------------------
This chapter describes the detailed console operation. It can be applied
to either out-of-band console management or in-band Telnet management. Both are same in operation starting from login prompt.
-29-
Direct Console Management
When you can see the self-test messages shown on screen properly, you
can press <Enter> key to start console login operation. Go to Login
Prompt section in next page directly.
Telnet Management
Use Telnet software to perform the management operation. The most
convenient solution is using the built-in Telnet function in a Windows
95/98/ or NT PC. Enter into DOS window and invoke Telnet command :
>telnet xxx.xxx.xxx.xxx
to connect to the system unit. The specified xxx.xxx.xxx.xxx is the IP address of the system unit. A welcome message and login prompt are displayed if the connection is established properly.
Login Prompt
The following figure illustrates the login screen:
--------------------------------------------Welcome to Console
login:admin
password:***
---------------------------------------------
Username : admin
Factory default Password : 123
For security reason, the system supports a function to change the password in setup menu. It is recommended to change the default password
immediately after a successful login.
-30-
When login successfully, a Setup menu is shown as follows:
--------------------------------------------Setup Menu
TCP/IP stack for KC-1300 V1.xx
[0] Print this menu
[1] IP Menu
[2] SNMP Menu
[3] View System status
[4] View Converter Slots Status
[5] Restore Default Value
[6] Security Manager
[7] Update Firmware
[8] Reboot System
[9] Exit
Please Select (0-9 )....
Enter Esc to abort....
INET>
---------------------------------------------
After prompt, type a number followed by [Enter] key for selecting an
operation item to perform. See example below:
INET> n <Enter>
Select [0] to display main menu again. [Esc] key can be used to abort the
operation of any item and back to main menu.
The following sections describe the detailed operation of each item.
-31-
4.1 IP Menu
Select [1] from Setup menu to set IP related settings.
--------------------------------------------IP Menu
[0] Print this menu
[1] Set IP Address
[2] View IP Status
[3] Exit
Please Select (0-3)
---------------------------------------------
Set IP Address
---------------------------------------------------------------------Enter ESC to abort.
Please Input IP Address(xxx.xxx.xxx.xxx):192.168.0.23
replacing net[0] IP address nnn.nnn.nnn.nnn with 192.168.0.23
Please Input Subnet Mask(xxx.xxx.xxx.xxx):255.255.255.0
replacing subnet mask[0] IP address nnn.nnn.nnn.nnn with 255.255.255.0
Please Input Gateway IP(xxx.xxx.xxx.xxx):192.168.0.1
replacing gateway IP addr[0] nnn.nnn.nnn.nnn with 192.168.0.1
Do you want to Change IP setting ? (Y/N)Y
Please reboot system and use new IP to connection it !
-----------------------------------------------------------------------
IP Address : Unique IP address designated to this system
Subnet Mask : The subnet mask of the IP address specified above
Gateway
: The IP address of the default gateway (router)
Note that all current in-band network management connections on the
system will be killed if system IP address is changed. This change does
not affect the operation of the media converter modules in slots.
View IP Status
----------------------------------------------IP Addr: 192.168.0.23 Submask: 255.255.255.0 Gateway: 192.168.0.1
-----------------------------------------------32-
4.2 SNMP Menu
Select [2] from Setup menu to perform SNMP related settings. The following figure illustrates the SNMP menu:
--------------------------------------------Snmp Menu
[0] Print this menu
[1] View Snmp Setting
[2] Set Snmp Name
[3] Set Snmp Location
[4] Set Snmp Contact
[5] Set Snmp Community
[6] Set Snmp Trap Manager
[7] Exit
Please Select (0-7 )....
INET>
---------------------------------------------
SNMP related settings are:
Name
Location
Contact
Community
: Logic name for the system (127 characters)
: Location where the system is installed (127 characters)
: Contact person regarding the system (127 characters)
: SNMP communities to which the system belongs and
access right to the system ( R : read only, W : read/write)
Maximum of four communities are supported.
Trap manager: IP address of the trap host to which a trap is issued
and the trap community to which the system belongs.
Maximum of three trap hosts are supported.
[Esc] key can be used to abort unfinished setting.
-33-
4.3 View System Status
Select [3] from Setup menu to view system status. The system status are
shown as follows:
--------------------------------------------Power 1 Status: Good , Power 2 Status: Good
FAN status: Good
CPU status:
Cpu Type = ARM7, Flash Size = 512K, Sdram Size = 2M Bytes
Software version 1.xx
---------------------------------------------
Power status indicates the status of system power 1&2 chassis.
Power Status : Good, Bad
FAN status indicates the status of system cooling fan.
FAN Status : Good, Bad
CPU information and software version are static information for reference.
-34-
4.4 View Converter Slots Status
Select [4] from setup menu to view current status of all media converter
modules in the system. The slot status are shown as follows:
----------------------------------------------------------------------Slot Port Media Speed Duplex Link Slot Port Media Speed Duplex Link RTP
01
A
TX
100M
Full
Up
01
B
FX
100M
Full
Up
UP
02
A
TX
100M
Full
Up
02
B
FX
100M
Full
Up
UP
03
A
TX
100M
Full
Up
03
B
FX
100M
Full
Up
UP
04
A
TX
100M
Full
Up
04
B
FX
100M
Full
Up
UP
05
A
TX
100M
Full
Up
05
B
FX
100M
Full
Up
UP
06
A
TX
100M
Full
Up
06
B
FX
100M
Full
Up
N/A
07
A
TX
100M
Full
Up
07
B
FX
100M
Full
Up
N/A
08
A
TX
100M
Full
Up
08
B
FX
100M
Full
Up
N/A
09
A
TX
100M
Full
Up
09
B
FX
100M
Full
Up
N/A
10
A
TX
100M
Full
Up
10
B
FX
100M
Full
Up
N/A
11
A
TX
100M
Full
Up
11
B
FX
100M
Full
Up
N/A
12
A
TX
100M
Full
Up
12
B
FX
100M
Full
Up
-
13
A
TX
100M
Full
Up
13
B
FX
100M
Full
Up
-
14
A
TX
100M
Full
Up
14
B
FX
100M
Full
Up
-
15
A
TX
100M
Full
Up
15
B
FX
100M
Full
Up
-
16
A
TX
100M
Full
Up
16
B
FX
100M
Full
Up
-
-----------------------------------------------------------------------
-35-
The slot status definitions are:
Column
Slot
States
01-16
Interpretation
Slot position in the system
Slot #1 - slot #16 are for MC
Port
N/A
A
B
No module is installed in slot
Upper port of the module in slot
Lower port of the module in slot
Media
N/A
TX
T
FX
X
No MC is installed in slot.
10BASE-T, 10/100BASE-TX port type
1000BASE-T port type
100BASE-FX port type
1000BASE-X port type
Speed
N/A
10M
100M
1000M
No MC is installed in slot
10Mbps
100Mbps
1000Mbps
Duplex
N/A
Full
Half
No MC is installed in slot.
Full duplex
Half duplex
Link
N/A
Up
Down
No MC is installed in slot.
Link up
Link down
RTP *
N/A
Up
-
Status not available
Remote MC TP link up
MC in slot does not support RTP
* RTP : Remote MC TP link status monitoring is available only when
both the MC in the rack and the remote link partner support the
function through fiber link.
-36-
4.5 Restore Default Values
Select [5] from Setup menu to restore factory default settings.
Factory default settings are:
IP Address
192.168.0.2
Subnet Mask
255.255.255.0
Default Gateway
192.168.0.1
User Name
admin
Password
123
Name
(null)
Location
(null)
Contact
(null)
SNMP Communities:
No.1 Community name
public
No.1 Access right
Read only
No.2 Community name
(null)
No.2 Access right
(N/A)
No.3 Community name
(null)
No.3 Access right
(N/A)
No.4 Community name
(null)
No.4 Access right
(N/A)
SNMP Trap Managers:
No.1 Trap manager IP
(null)
No.1 Community name
(null)
No.2 Trap manager IP
(null)
No.2 Community name
(null)
No.3 Trap manager IP
(null)
No.3 Community name
(null)
-37-
4.6 Security Manager
Select [6] from Setup menu to change login user name and password.
The steps are:
Display current user name
--------------------------------------------Current username: admin
Current password: ********
Press Esc to abort ....
---------------------------------------------
Change user name and password
--------------------------------------------Change username [admin]: xxxxxx
Enter password(1-8): ********
Confirm password: ********
Password updating .......
Password updated.
INET>
---------------------------------------------
-38-
4.7 Update Firmware
Select [7] from Setup menu to perform firmware (system software) upgrade via TFTP protocol. Before doing TFTP operation, one TFTP server
is required and installed in the network to where this system connects
and new firmware file image.bin must be placed in the TFTP server.
The following information are required for TFTP operations:
TFTP Server IP Address:
IP address of the TFTP server where the
firmware image.bin is downloaded from.
-39-
The steps are:
Specify TFTP server IP address
--------------------------------------------Enter ESC to abort.
Please Input TFTP Server IP Address (xxx.xxx.xxx.xxx):192.168.0.88
TFTP Server: 192.168.0.88
---------------------------------------------
Confirm to start downloading
--------------------------------------------Do you want to start download new image ? (Y/N) Y
Download image and please wait........
---------------------------------------------
Confirm to update system flash memory
--------------------------------------------Download new image complete, do you want to update flash ? (Y/N) Y
Update flash and please wait ....
Update flash complete and please reboot system !
INET>
---------------------------------------------
4.8 Reboot System
Select [8] from Setup menu to reboot the system. This reboot function
allows you to perform a warm start to the system.
--------------------------------------------Do you want to reboot system ? (Y/N) Y
---------------------------------------------
-40-
5. SNMP Management
SNMP management are performed at a network management station running SNMP network management application manager software with
graphical user interface. The following figure illustrates an example model:
The system unit serves as an SNMP agent and provides the capabilities
that allows network administrators via SNMP protocol to set parameters
and view system status and media converter status defined in the standard MIB-II and private MIB.
-41-
5.1 Configuring SNMP Settings via Console Operation
Before performing SNMP operation, proper SNMP settings must be configured in the system unit. The SNMP related settings are:
Name
: Logic name to identify a specific system unit
Location
: Location where the system is installed
Contact
: Contact person regarding the system
Community
: SNMP communities to which the system belongs
and access right to the system ( read only or read/write)
Trap hosts
: IP addresses of trap hosts to which a trap is issued
and the trap community to which the system belongs.
Up to four SNMP communities and up to three trap hosts are supported
by the system SNMP agent.
These settings can be configured through console or telnet operation.
Refer to Chapter 4 for more information.
-42-
5.2 SNMP Private MIB
Use the SNMP management application software to compile the MIB file
first before performing any management operation. In addition to standard MIB-II (RFC1213), the system supports private MIB as below:
Private MIB Objects
ssPowerStatus(kti.30.1.1)
ssFanStatus(kti.30.1.2)
cputype(kti.30.2.1)
flashrom(kti.30.2.2)
memsize(kti.30.2.3)
softwarever(kti.30.2.4)
mibFileVer(kti.30.2.5)
portNumber(kti.30.3.1)
portTable(kti.30.3.2)
portEntry(1)
slotIndex(1)
slotIndexDescription(2)
slotModuleDescription(3)
slotModuleType(4)
sotModuleStatus_PortA_Media(5)
slotModuleStatus_PortA_LineSpeed(6)
slotModuleStatus_PortA_Duplex(7)
slotModuleStatus_PortA_LinkStatus(8)
slotModuleStatus_PortB_Media(9)
slotModuleStatus_PortB_LineSpeed(10)
slotModuleStatus_PortB_Duplex(11)
slotModuleStatus_PortB_LinkStatus(12)
slotModuleStatus_RTP_LinkStatus(13) *
Get
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Remark
Power 1&2 status
System fan status
ARM7
512KB
2MB
1.xx
1.xx
Total number of slots
Slot ID 1 - 16
Slot1 - Slot16
Port A media type
Port A line Speed
Port A duplex mode
Port A Link status
Port B media type
Port B line speed
Port B duplex mode
Port B link status
Remote MC link status
Note: Port A : the upper port of the MC, Port B : the lower port of the MC
Refer to MIB file, KC1300-Vx.xx.mib for the details. This file can be used
for MIB compiler.
-43-
5.3 SNMP Traps
The system also supports the following SNMP traps. When the trap
event occurs, the SNMP agent will generate a trap notification to SNMP
management station.
Trap Name
Cold Start
Authentication failure
Power status
Power status
Fan status
Fan status
Slot # Port A link
Slot # Port A link
Slot # Port B link
Slot # Port B link
Slot # RTP link
Event of Trap Generated
The system is powered on and complete
initialization
SNMP community authentication failure
Any power failure of Power1and Power2
Any power recovery of Power1 and Power2
Fan failure
Fan recovery
Slot # MC Port A link down or up
Slot # MC Port A link recovery
Slot # MC Port B link down or up
Slot # MC Port B link recovery
Slot # remote MC TP link change
The binding information together with a trap is :
Trap Name
Cold Start
Authentication failure
Power Status
Fan Status
Slot # Port A link
Slot # Port B link
Slot # RTP link
VarBind
sysDescr, ie KC-1300
sysDescr, ie, KC-1300
Power status for Power1 and Power2
Fan status
Slot description and Port A link status
Slot description and Port B link status
Slot description and remote MC TP link status
Remark:
1. The slot # can be slot 1 up to slot 16.
2. Port A : the upper port of the MC installed in slot.
3. Port B : the lower port of the MC installed in slot.
-44-
6. Web Management
The system features an http server which can serve the management
requests coming from any web browser software over internet or intranet
network.
Web Browser
Compatible web browser software with JAVA support
Microsoft Internet Explorer 4.0 or later
Netscape Communicator 4.x or later
Set IP Address for the System Unit
Before the system can be managed from a web browser software, make
sure a unique IP address is configured to the system. Refer to Chapter 4
for how to set IP address.
6.1 Start Browser Software and Making Connection
Start your browser software and enter the IP address of the system unit
to which you want to connect. The IP address is used as URL for the
browser software to search the device.
URL : http://xxx.xxx.xxx.xxx/
Factory default IP address : 192.168.0.2
-45-
6.2 Login to the System Unit
When browser software connects to the system unit successfully, a
Login screen is provided for you to login to the device as follows:
Login
Username : Admin
Factory default Password : 123
-46-
The following screen shows welcome screen when a successful login is
performed.
In addition to the device image, the screen supports the following functions on the right side:
1.
2.
3.
4.
Home : home page and device image
Converter Status : view all slot status
System Status : view system related status
Administrator : other management functions
-47-
6.3 Converter Status
Click [Converter Status] to view all slot status in a table list.
-48-
The information includes:
Column
Slot
States
1-16
Interpretation
Slot position in the system
Slot #1 - slot #16 are for MC installation
Port
A
B
Upper port of the MC in slot
Lower port of the MC in slot
Media
TX
T
FX
X
10/100BASE-TX copper port type
1000BASE-T copper port type
100BASE-FX Optic fiber port type
1000BASE-X Optic fiber port type
Link
Green
Red
Link up
Link down
Speed
10Mbps 10BASE-T
100Mbps 100BASE-TX or 100BASE-FX
1000Mbps 1000BASE-T or 1000BASE-SX/LX
Duplex
Full
Half
RTP link Green
Red
Full duplex
Half duplex
Remote MC TP link up
Remote MC TP link status not available
-49-
6.4 System Status
Click [System Status] to view system related status in a table list. The
information includes:
Power Status
FAN Status
CPU type
RAM size
Flash size
Software version
: system power 1&2 chassis condition
: system fan status
: CPU model equipped in management module
: Memory size equipped in management module
: Flash memory equipped in management module
: Software version built in management module
-50-
6.5 Administrator Menu
Click [Administrator] to show administrator menu. The menu includes
the following options:
1. Basic : Set / View IP and SNMP related settings
2. Console Port Information : View RS-232 console configuration
3. Security Manager : Change login user name and password
4. Image Refresh Time : Set refresh time interval of the image
5. Update Firmware : Update the software built in SNMP module
6. Reboot System : Reboot the system remotely
Refer to the following sections for the details.
-51-
6.5.1 Basic
Click [Basic] to perform IP setting and SNMP settings.
IP setting and SNMP setting are described in the following sections
respectively.
-52-
Click [IP Address] button to set IP settings.
IP settings include:
IP Address
Subnet Mask
Gateway
: Unique IP address designated to this system
: The subnet mask of the IP address specified above
: The IP address of the default gateway (router)
Click [Update Settings] to make new settings effective. However, a new
IP address change will make your current connection invalid. Restart
your web link with new IP address to connect the system.
-53-
Click [SNMP Entries] button to set SNMP settings.
SNMP Entries - System options
SNMP related settings are:
Name
Location
Contact
[Apply]
: Logic name for the system
: Location where the system is installed
: Contact person regarding the system
: Click button to make the settings effective
-54-
SNMP Entries - Community Strings
One community contains two settings:
Community name : SNMP communities to which the system belongs
Access right
: Access right associated with the community name
Click [Add] button to add one new community into the community list.
Click [Remove] button to remove one community from the community list.
Up to four entries are supported in the community list.
-55-
SNMP Entries - Trap Managers
One Trap Manager contains two settings:
IP Address : IP address of the trap host to which a trap is issued
Community : The trap community to which the system belongs
Enable Fan Trap: Enable trap for Fan failure events
Enable Power Trap: Enable trap for power failure events
Enable Link Change Trap: Enable trap for any link change events
Click [Add] to add one trap manager into the manager list.
Click [Remove] to remove one trap manager from the manager list.
-56-
6.5.2 Console Port Information
This screen displays configuration of RS-232 console port.
-57-
6.5.3 Security Manager
Security Manager allows you to change login user name and password.
Click [Apply] to make the changes effective.
-58-
6.5.4 Image Refresh Time
The system image is updated periodically to present the latest status.
The default time interval of refreshing the image is 20 seconds. It can be
changed by clicking any of the time buttons displayed. This is a run time
setting and not a permanent setting.
-59-
6.5.5 Update Firmware
[Update Firmware] allows you to perform firmware (system software)
upgrade via TFTP protocol. Before doing TFTP operation, one TFTP
server is required and installed in the network to where this system connects and new firmware file image.bin must be placed in the TFTP server.
Set IP address for the TFTP server from where the firmware image is to be
downloaded. Specify the file name as Image.bin.
Click [Apply] to start the file transfer operation.
-60-
6.5.6 Reboot System
[Reboot System] allows you to reboot the system unit remotely. Starting
this command will make your current http connection lost. You must
rebuild the connection to perform any management operation to the unit.
-61-
6.6 Slot Icon Operations
In addition to the menu supported, you may click the following image
icons to show specific status.
Click slot 0 on the system image shown on screen
Power Status
Fan Status
CPU type
RAM size
Flash size
Software version
: system power 1&2 condition
: system fan status
: CPU model equipped in management module
: Memory size equipped in management module
: Flash memory equipped in management module
: Software version built in management module
-62-
Click any one slot in slot 1 to slot 18 to view one specific slot status.
The following figure illustrates slot 9 status:
Refer to section 6.3 for status interpretation.
-63-
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
