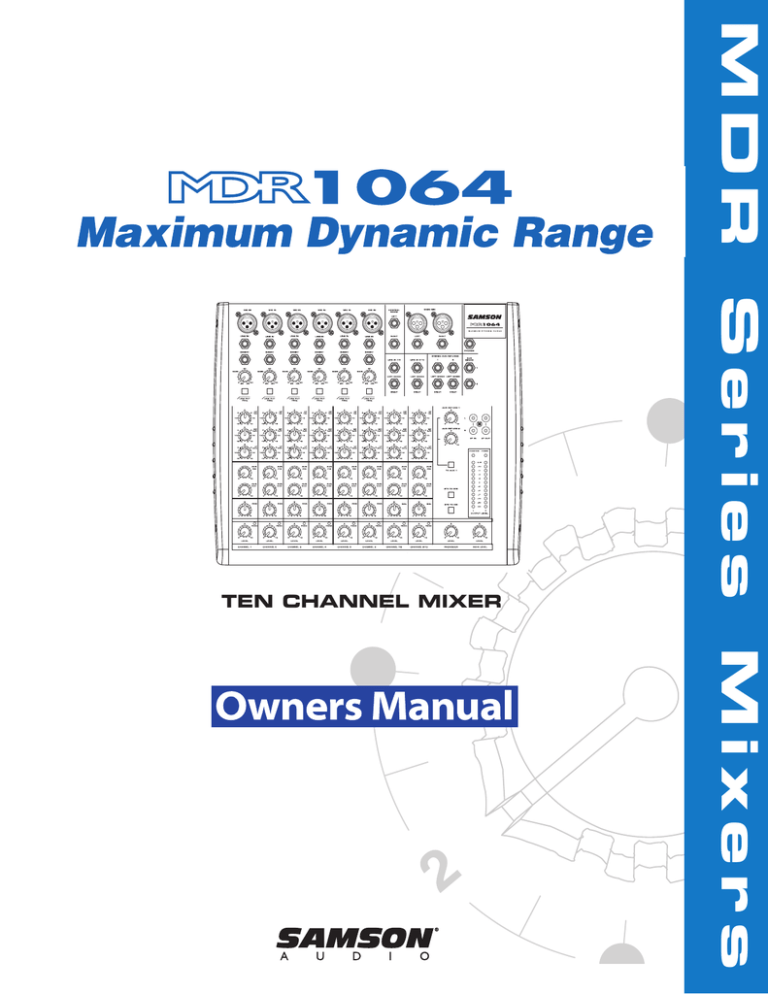

MDR Series Mixers
MDR Series Mixers
TEN CHANNEL MIXER
Introduction
Congratulations on your purchase of the Samson MDR1064 mixer! The MDR1064 is a ten-channel mixer, with six
low noise microphone pre-amps. The six Mic/line inputs and two stereo inputs each feature a 3-band equalizer
plus two Aux sends. The MDR1064’s master section includes two stereo Aux returns and a 2-tack Input and
Output for playing back stereo devices and for recording your mix. Clean, clear sound reproduction with sweet
equalization and signal flexible routing in a rugged enclosure, ensure reliable high quality sound from performance to performance. Optimized for recording, live sound reinforcement and commercial installations, the
MDR1064 is an ideal mixer solution offering big sound in a compact package.
In these pages, you’ll find a detailed description of the features of the MDR1064 mixer, as well a description of its
front and rear panels, step-by-step instructions for its setup and use, and full specifications. You’ll also find a warranty card enclosed—please don’t forget to fill it out and mail it in so that you can receive online technical support
and so we can send you updated information about these and other Samson products in the future.
With proper care and adequate air circulation, your MDR1064 will operate trouble free for many years. We recommend you record your serial number in the space provided below for future reference.
Serial number:
Date of purchase:
Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before shipping
your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON
(1-800-372-6766) for a Return Authorization number prior to shipping your unit. Please retain the original packing
materials and if possible, return the unit in the original carton and packing materials.
2
MDR1064 Features
The Samson MDR1064, ten-channel mixer is a comprehensive, all-in-one solution for live sound, recording, fixed
installation and post production applications. Here are some of its main features:
•
Eight Channels – Six Mic/Line plus two Stereo inputs with mic pre’s.
•
Flexible design topology ideal for live sound, recording and post production.
•
2 Track Input and Output allows you to connect a CD, DAT, Cassette, Mini Disk or Computer Sound
Card.
•
Three-band channel equalizer, +/-15dB at 80Hz, 2.5 KHz and 12KHz provides precise and musical
results in sound shaping.
•
Two Auxiliary Sends for built-in or external effects, on-stage monitor mix, or headphone mixing.
•
Twelve segment LED Meter with VU ballistics displays the main MIX output.
•
High quality, low noise, discrete microphone pre-amplifiers with 48-Volt phantom power, provide
Maximum Dynamic Range and transparent audio.
•
Advanced circuit design using discrete components and high quality, low noise op-amps carefully selected at each stage of the signal path.
•
Quality build and rugged construction ensure reliable performance from venue to venue and session to
session.
•
Three-year extended warranty.
3
Front and Rear Panel Layout
4
Front and Rear Panel Controls
20 AUX SEND 1 – Line level output from the Auxiliary 1
bus.
FRONT PANEL
1
MIC IN – Input connector for Low-Noise Microphone preamp.
2
LINE IN–Input connector for Line level inputs.
3
INSERT – 1/-4-inch TRS (TIP/RING/SLEEVE) connector
providing send and recieve channel patch point for outboard effects.
4
GAIN – Used to set the input level of the mic pre and line
input.
5
LOW CUT – Bass roll off switch at 75Hz used to eliminate
unwanted low end rumble and hum.
21 AUX SEND 2 – Line level output from the Auxiliary 2
bus.
22 AUX RETURN 2 – Left and right input jacks for connecting to the outputs of external line level sources
like those from effects processors.
23 AUX RETURN 1 – Left and right input jacks for connecting to the outputs of external line level sources
like those from effects processors.
24 2 TRACK OUTPUTS – Connect to the input of a DAT,
Cassette, Mini Disk or Hard Disk Recording system.
25 2 TRACK INPUTS – Connect the output from a DAT,
Cassette, Mini Disk or Hard Disk Recording system.
`6` HIGH FREQUENCY – Controls the high band of the
Channel Equalizer, +/- 15 dB at 12KHz.
7
8
9
26 POWER LED – Indicates the MDR1064 is powered up.
MID FREQUENCY – Controls the mid band of the Channel
Equalizer, +/- 15 dB at 2.5KHz.
27 PHANTOM LED – Indicates that the 48 Volt Phantom
Power is on.
LOW FREQUENCY – Controls the low band of the Channel
Equalizer, +/- 15 dB at 80Hz.
28 OUTPUT METER - Twelve segment LED display with
VU ballistics indicates main Mix level.
AUX 1 – Pre-fader auxiliary send that can be used with
an external effects processor, or to create a cue or monitor mix.
29 MAIN LEVEL – Used to control the overall volume of
the Left and Right main Mix outputs.
10 AUX 2 – Post-fader auxiliary send that can be used with
an external effects processor, or to create a cue or monitor mix.
30 PHONES/CR – Adjusts the volume of the control room
speakers or headphones.
11 PAN – Controls the channel’s position between left and
right in the stereo bus.
31 2 TRACK TO CR – Switches between the main Mix
and the 2 Track in the Control Room output.
12 PEAK – Red LED will illuminate indicating when the
GAIN has been adjusted too high.
32 2 TRACK TO MIX - Switch used to mix the 2 track
input with the mix from the channel inputs.
13 LEVEL – Audio taper fader provides smooth control over
level changes.
33 TO AUX 1 - Switch used to route aux return 2 into the
Aux 1 output so that effects can be heard in the monitor mix.
14 RIGHT LINE – 1/4-inch phone input connector for the right
line input for the stereo channels.
34 AUX RETURN 2 – Used to mix in level of the effects
return.
15 LEFT LINE - 1/4-inch phone input connector for the Left
Line input for the stereo channels.
35 AUX RETURN 1 – Used to mix in level of the effects
return.
16 CONTROL ROOM OUTPUT– Left and Right Control Room
output connectors for connecting a monitor system.
36 BALANCE – Controls the channel’s position between
left and right in the stereo inputs.
17 MAIN MIX OUTPUT (1/4-inch) – Left and Right Main Mix
balanced output 1/4-inch TRS connectors.
REAR PANEL
A POWER – Switches on the MDR1064’s main power.
18 MAIN MIX OUTPUT (XLR) – Left and Right Main Mix balanced output XLR connectors.
B PHANTOM – Engages the 48-Volt Phantom power
supply to microphone pre-amps.
19 PHONES JACK – Connect stereo headphones here.
C
5
AC ADAPTOR INLET – Connect External AC power
supply here.
Controls and Functions
MONO/STEREO INPUT CHANNEL SECTION
The following section details each part of the MDR1064’s MONO INPUT CHANNELS including the GAIN control, LOW CUT switch, 3-BAND EQ, AUX sends, PEAK LED, PAN and LEVEL controls. The input channels one
through six on the MDR1064 feature high quality, discrete transistor pre-amp providing transparency and
extended dynamic range.
1
GAIN
The MDR1064’s pre-amp stage has a variable GAIN control with a range of 5
to 60dB on the MIC input and –26 to +26dB on the LINE input.
2
LOW CUT FILTER
Each of the MDR1064’s first six channels include a LOW CUT (or high pass)
filter which rolls off the low frequencies from 75Hz and below at the rate of
18dB per octave. The LOW CUT filter allows you to remove the lower frequencies that you sometime just don’t want to pick up. For example, when you are
miking a high-hat you only want to capture the frequencies that the hi-hat is
producing. Therefore, by using the LOW CUT filter, you can reduce the
amount of pick-up from the low toms and bass drum that may leak into the hihat mic. You can use the same technique on other instruments like acoustic
guitar, violin, piano and even on vocals. In live sound applications, the LOW
CUT filter is especially useful for removing stage rumble.
3
1
2
CHANNEL EQUALIZER
The MDR1064 input channels feature a 3-band equalizer allowing you to
adjust the high, mid, and low frequencies independently on each channel. The
channel’s frequency response is flat when the knobs are in the "12:00" position. Rotating the knob towards the right will boost the corresponding frequency band by 15dB, and rotating it towards the left will cut the frequency by
15dB. The frequency centers, range of boost or cut, and equalizer type for
each band are as follows:
High: 12KHz +/- 15dB shelving type
Mid: 2.5KHz +/- 15dB peaking type
Low: 80Hz +/- 15dB shelving type
4
AUX 1
3
4
The MDR1064 has two auxiliary sends which can be used for sending signals
to external effects devices or for creating a monitor mix. The AUX1 section is
often used for a monitor mix in a live sound mixing, or for a headphone mix in
a recording application. Each input channel includes an AUX 1 send which
controls the amount of that channel’s signal that is sent to the AUX bus.
5
NOTE: The AUX1 controls are "PRE-FADER SENDS" which means they are
not affected by the FADER level settings of each channel. This allows you to
create a mix for the monitors that is independent of the main LEFT and RIGHT
MIX.
5
AUX 2
The channel’s AUX 2 knob controls the amount of signal that is sent to the AUX 2 bus. The AUX 2 signal
can be sent to an external effects device connected to the AUX 2 OUT jack located in the MASTER SECTION jack field.
6
Controls and Functions
(MONO/STEREO INPUT CHANNEL CONTINUED)
NOTE: The channel’s AUX 2 signal is sent to the AUX 2 bus from a location in the signal path after the
channel’s LEVEL control. This is commonly referred to as a POST FADER send. This means that the
amount of signal that is sent to the AUX 2 bus will be affected not only by the setting of the AUX 2 knob
control, but it will also be affected by the setting of the LEVEL control.
6
BALANCE (Stereo Inputs Only)
The MDR1064’s BALANCE control is used to place or position the
stereo signal into the main Left and Right MIX bus. You can move a
stereo signal’s image to the left or right by setting the BALANCE
control to the left or to the right.
7
6
PAN (Mono Inputs Only)
The MDR1064’s PAN control is used to place or position the mono
signal into the stereo main Left and Right MIX bus. You can create a
stereo image by panning some input signals to the left and others to
the right. The MDR1064’s PAN control is a Power-Pan circuit, which
includes a 3dB dip in the center position. This is desirable since
there’s a 3dB increase in gain when the mono input signal is heard
in both the Left and Right MIX bus.
8
PEAK LED
The MDR1064’s MIC/LINE pre-amp also includes a PEAK LED
which, when illuminated, indicates that the signal is peaking or overloading. To reduce distortion, lower the GAIN control to keep this
LED from staying on.
9
7
CHANNEL LEVEL
The MDR1064’s LEVEL control knobs are used to adjust the overall
channel volume.
8
9
7
Controls and Functions
MASTER SECTION
10 MAIN LEVEL
The master MAIN control is the overall volume control for the left and right mix bus. These line level signals
are output from the MAIN MIX jacks.
11 PHONES / CR
The PHONES / CR control is used to set the level sent to the
control room outputs, and also to the headphone jack.
14
2 TRACK INPUT AND OUTPUT
The MDR1064’s 2 Track section provides the connections for playback and recording for an external device such as a DAT, cassette
recorder, CD or Mini Disk.
12 2TK TO CR
The 2TR TO CR switch is used to assign the 2TR input to the
Control Room output. If you push down the 2TK TO CR button,
signal will be routed into the left and right Control Room output
and will be adjusted by the CR / PHONES control knob.
13 2TK TO MIX
The 2TR TO MIX switch is used to assign the 2TR input to the
MAIN mix bus. If you push the 2TR TO MIX button, the signal
present at the 2 TRACK IN will be routed to the left and right
MAIN output and the level will be controlled by the MAIN
LEVEL knob.
13
Auxiliary Returns
The MDR1064 has two stereo auxiliary returns, which can be
accessed via the two pairs of 1/4-inch phone jacks located on the
master section jack field. The auxiliary returns can be used to connect any stereo line level signal, but they are primarily used to connect the output of external effects processors.
14
12
AUX RET 1
This adjusts the amount of signal that is sent from the AUX 1
RET jacks to the MAIN bus.
11
8
10
Controls and Functions
MASTER SECTION (continued)
15
AUX RET 2
The AUX RETURN 2 adjusts the level of the signal present at the AUX 2 RET jacks. This signal is summed,
or mixed in to the main L/R MIX bus.
16
TO AUX 1
This routes the signal that is present on the AUX 2 RETURN
jacks to AUX 1 so that the effects can be heard in the monitor
mix.
17 POWER LED
The Power LED lights up to indicate that the main POWER
switch (located on the rear panel) is on.
18
15
18 Phantom Power LED
This LED illuminates indicating that the 48 volt phantom power
is applied to the microphone pre-amps enabling use with condenser microphones. The +48V LED will light up when the
Phantom Power switch (located on the rear panel) is switched
to the ON position.
16
19
19 Output Level Meter
The OUTPUT LEVEL METER allows you to monitor the level
of the signal which is being sent to the MIX OUT jacks.
NOTE: To avoid distortion, adjust the Main Level control so that the 0
indicator LED lights occasionally.
9
17
MDR1064 Input and Output Connections
CHANNEL 1 – 6 MIC and LINE INPUTS
The MDR1064’s channel 1 through 6 mono inputs each have a 1/4-inch connector for line level signals and XLR
connectors for the MIC signals. Channels 7/8 and 9/10 stereo inputs each have 1/4-inch connectors for line level
inputs. By using the GAIN control on channels 1 through 6, you can connect a variety of signal sources from
microphones to line level devices such as synthesizers, and drum machines. All the LINE and MIC inputs are
balanced. The MIC inputs are compatible with microphones with output impedances of 50-600 Ohms and the
LINE inputs are compatible with line level devices of 600 Ohms. Following below is a detailed description of the
MDR1064’s input and output connectors.
NOTE: It is not possible to simultaneously use both the LINE and MIC inputs on the same channel. Use only one
of the inputs for the appropriate source on each channel.
1 Microphone Input - Mono Input Channels
Use these inputs to connect Low Impedance microphones and low level signals from direct boxes. The MIC
inputs have a nominal operating level of –50dBu through
-20dBu. The MIC inputs also feature +48V phantom
power, allowing you to use condenser microphones. The
Phantom Power switch (located on the MDR1064’s rear
panel) enables phantom power on all the microphone
inputs when set to the ON position. XLR Connector pinout - Pin 1: Ground, Pin 2: Hot (+), Pin 3: Cold (-)
2 Line Level Input - Mono Input Channels
1
2
3
Use these inputs to connect synthesizers, drum
machines, effects processors or any line-level signal.
The LINE inputs have a nominal operating level of 40dBV through - 10dBV. TRS phone jacks Connector
pin-out - Sleeve: Ground, Tip: Hot (+), Ring: Cold (-)
3 Insert Point Jack - Mono Input Channels
The MDR1064’s mono input channels feature a 1/4-inch
TRS INSERT jack providing a patch point to connect an
external processor. You can use these connections to
interface an external signal processor like an equalizer,
compressor, noise gate, reverb and other audio devices.
For more information on the channel INSERT points, see
the section, “Using the Channel Insert Jacks” on page 13
of this manual.
4 Line Level Input - Stereo Input Channels
You can connect the outputs from stereo devices such as
synthesizers, drum machines, effects processors or any
stereo line-level signal. Use the LEFT input when connecting a mono input signal to the Stereo Input channels.
The LINE inputs have a nominal operating level of 40dBV through - 10dBV. TRS phone jacks Connector pinout - Sleeve: Ground, Tip: Hot (+), Ring: Cold (-)
4
MASTER SECTION INPUT AND OUTPUT JACKS
The MDR1064 features several output connectors allowing you to interface a variety of external devices. A
stereo recording device, such as a cassette recorder, can be connected to the 2 Track jacks, and power amplifiers or powered monitors can be connected to the CONTROL ROOM and MAIN output jacks.
10
MDR1064 Input and Output Connections
5
MAIN MIX LEFT/RIGHT XLR OUTPUTS
In a live sound application, the LEFT/ RIGHT MIX outputs are connected to a power amplifier or powered speakers. In a recording application, the LEFT/ RIGHT MIX outputs
are used to connect to the inputs of a stereo device such as
5
computer sound card, DAT, or cassette recorder.
6
7
MAIN MIX LEFT/RIGHT 1/4-INCH OUTPUTS
In a live sound application, the LEFT/ RIGHT MIX outputs are
connected to a power amplifier or powered speakers. In a
recording application, the LEFT/ RIGHT MIX outputs are used
to connect to the inputs of a stereo device such as computer
sound card, DAT, or cassette recorder.
7
6
8
CONTROL ROOM LEFT/RIGHT OUTPUT
9
The Control Room outputs are used to connect a studio monitor system. The Control Room outputs have the same output
as the L/R MIX, however, the level can be adjusted independently from the main mix using the C ROOM/HEADPHONES
control.
8
10
12
HEADPHONE OUTPUT
11
You can connect a standard pair of stereo headphones to the PHONES jack and depending on the position of
the 2T TO CR switch, you will hear either the 2-Track input or the MAIN mix.
9
AUX Send 1
The signal present at the AUX1 output is sent from the AUX1 bus, which is fed from the AUX 1 send on the input
channels. The AUX 1 output can be used as the EFFECTS SEND bus in a live sound situation by connecting the
output to a power amp an external effects device.
10
AUX Send 2
The signal present at the AUX 2 output is sent from the AUX 2 bus, which is fed from the AUX 2 send on the
input channels. The AUX 2 output can be used as the MONITOR MIX bus in a live sound situation by connecting
the output to a power amp and monitor speaker.
11
AUX RETURN 2 LEFT/RIGHT
The AUX RETURN 2 LEFT/RIGHT are stereo inputs that are generally used to connect the outputs of an effects
processor, but can also accept the signal from any line level source like a keyboard, recorder and even another
mixer. The signal connected to the AUX RETURN 2 LEFT/RIGHT will feed the main LEFT/RIGHT MIX bus. The
overall level is controlled by the AUX RET 2 knob located in the master section on the front panel. Use the
LEFT/MONO input when connecting a mono input signal to the AUX RETURN.
12
AUX RETURN 1 LEFT/RIGHT
The AUX RETURN 1 LEFT/RIGHT are stereo inputs that are generally used to connect the outputs of an effects
processor, but can also accept the signal from any line level source like a keyboard, recorder and even another
mixer. The signal connected to the AUX RETURN 1 LEFT/RIGHT will feed the main LEFT/RIGHT MIX bus. The
overall level is controlled by the AUX RET 1 knob located in the master section on the front panel. Use the
LEFT/MONO input when connecting a mono input signal to the AUX RETURN.
13
13
2TR INPUT
The MDR1064 features dual RCA connectors for the left and right 2-track input. You can
use these inputs to connect a CD, Cassette, Mini Disk, DAT or the output from a computer
sound card. To listen to the input connected to the 2T IN, be sure to check the position of
the 2T To Mix and 2T TO CR switches. For more information on using the 2 Track inputs, see
the section “PLAYING BACK A CD USING 2T TO MIX ” on page 14 of this manual.
14
2TR OUTPUT
If you want to record the mix from your MDR1064, you can use the 2-track OUT connectors. The dual RCA connectors can be connected to a CD, Cassette, Mini Disk, DAT or
even the input of a computer sound card for hard disk recording. For more information on
using the 2 Track outputs, see the section “RECORDING A MIX FROM THE MDR1064 ” on page 14 of this manual.
11
14
Operating the MDR1064
BASIC OPERATION
The following section explains the basic operation of the MDR1064.
CONNECTING MICROPHONES AND INSTRUMENTS
1. Before connecting mics or instruments, make sure that the power of all your systems components including the
MDR1064 is turned off. Also, make sure that the MAIN LEVEL and PHONES / CR controls are turned all the
way down.
2. Connect the cables to your microphones and instruments, and insert the other end of the cable firmly into the
appropriate input on the MDR1064.
NOTE: SETTING THE INPUT GAIN - When connecting a microphone to channels 1 through 6, it’s a good idea to
start with the Gain Control turned all the way down. Set the input fader to the "0" position and slowly raise the
GAIN control until you see the CLIP LED turn on. Now, back the GAIN control down so that the CLIP LED only
lights for a short time during the loudest input the channel will see.
3. Switch on the power of any peripheral
devices, and then power up the MDR1064.
NOTE: It is important to remember the
Golden Rule of audio … " LAST ON, FIRST
OFF". Translated, this means that when turning on your system, you should always turn
your power amplifiers or powered monitors
on LAST, and when turning your system off,
turn your power amps off FIRST. This helps
avoid any loud pops caused by rush current
at power up, or down, which can sometimes
damage loudspeakers.
4. Turn on your power amp or powered
monitors and raise the level control to the
manufacturers recommended operating
level.
5. Set the MAIN LEVEL control in the
MDR1064’s master section to the "5"
position.
6. While speaking into the mic (or playing
the instrument), adjust the channel
LEVEL control so that the "0" LED of the
MAIN section VU level meter lights occasionally.
7. You can shape the tone of each channel
by adjusting the equalizer controls as desired.
NOTE: You may need to adust the channel LEVEL control to compensate for the slight changes in level after
using the channel equalizer.
12
Operating the MDR1064
SENDING AN INDEPENDENT MIX TO THE MONITOR SPEAKERS
The MDR1064’s AUX1 auxiliary send can be used to feed a separate set of amplifiers and loudspeakers for stage
monitors. This lets you build one mono mix for the amplifiers and monitor speakers facing the musicians, and the
other stereo mix for the amplifiers and speakers facing the audience.
1. Raise the AUX1/MON controls for the channels that you wish to hear from the monitor speakers.
NOTE: The AUX1 controls are "PRE-FADER SENDS" which means they are not affected by the level
settings of each channel. This allows you to create a mix for the monitors that is independent of the main
LEFT and RIGHT MIX.
2. In order to get the most gain from your monitor mix, use an external graphic equalizer (like a Samson S curve
131) to cut out any frequencies that cause feedback.
0
10
0
10
0
10
0
10
0
10
0
10
0
10
0
10
USING THE CHANNEL INSERT JACKS
To further control your signal, channels 1-6 on the MDR1064 feature an insertion point, or “effects loop”, on one
1/4-inch phone jack, INSERT SEND and RETURN. An insertion point is a patch-point that interrupts the signal,
allowing you to bring that signal outside to
be processed by another device. You can
use these connections to interface an
external signal processor like an equalizer,
compressor, noise gate, reverb and other
audio devices. A common application for
the MDR1064’s insert point is using a compressor.
To send a signal to an external processor,
use a standard 1/4-inch “Y” insert cable to
connect the MDR1064 channel insert point.
Connect the TRS (TIP / RING / SLEEVE)
plug to the channel INSERT point, and
then, connect the 1/4-inch (TIP / SLEEVE),
INSERT SEND plug to the input of the
external processor. The signal is sent back
to the MDR1064, using the 1/4-inch (TIP /
SLEEVE), INSERT RETURN plug connecting to the output of the external processor.
The diagram below shows a typical application for using a compressor (in this
example a Samson C com opti) in the
MDR1064’s insertion point. Also below, is a
diagram showing the wire for the TRS ‘Y”
Insert cable.
13
Operating the MDR1064
USING AN EXTERNAL EFFECT
If you prefer to use an external device for effects processing, you can easily connect the unit using the MDR1064
AUX 2 bus. Follow the simple steps below to interface
your processor:
1. Connect the AUX 2 OUTPUT to the input of the external effect processor.
2. Connect the outputs of the effect processor to the
AUX 2 RETURN located on the MDR1064’s master
section.
3. Set the MAIN LEVEL control to the "5" position.
4. Raise the AUX 2 knobs for the channels to which you
want the external effect to be applied.
5. Set the input level of the external effect so that the
sound is not distorted and so that the effect’s input
meter does not indicate a clipped signal.
6. Use the AUX RETURN 2 control to adjust the level of the effects processed by the external effects device.
PLAYING BACK A CD USING 2T TO MIX
The MDR1064 has a dedicated input for playing back a stereo device such as a CD, Tape or Mini Disk. Below is
a description of how you can play back a CD, Tape or MD using the MDR1064’s 2 TRACK INPUT.
1. Turn the MAIN level control all the way down.
2. Press the 2TK TO MIX button down.
3. Adjust the MAIN LEVEL control in the master section
to the "5" position.
4. Start playback on the CD, Tape or MD player, and
use the MAIN LEVEL control to set the desired level.
RECORDING A MIX FROM THE MDR1064
You can record the audio from the MDR1064’s mixer
section including the MIC, LINE, 2T IN and AUX inputs to
a Cassette deck, MD, DAT or any other type of recorder
using the 2T OUT outputs. Simply connect the
MDR1064’s 2 TRACK OUT to the input jacks of the
recorder as shown in the diagram on the right and follow
the steps below.
1. Adjust the MAIN LEVEL control in the master section to the "5" position.
2. Set a clean signal using the recorder’s input level controls and meters.
3. Press RECORD.
4. Play back using as described in the previous section "PLAYING BACK A CD USING 2T TO MIX".
14
This system shows the
MDR1064 connected to a
pair of powered speakers
like the SAMSON
Expedition EX20. The AUX
SEND 1 output is connected to an external power
amp, which is driving 2
monitor speakers. For
inputs, two microphones
are connected to channels
1 and 2’s low-impedance
inputs, and the output of
the Bass Direct Box is also
connected to the lowimpedance input on channel 4. The Keyboards, as
well as the Lead and
Rhythm Guitar signal
processor's’ outputs, are
connected to the
MDR1064’s line inputs.
MDR1064’s AUX SEND 1
connected to an external
monitor amp.
MDR1064 System Set-Ups
MDR1064 LIVE SOUND SET-UP
15
This system shows the
MDR1064 in a recording set up
with the LEFT and RIGHT CONTROL ROOM output hooked up
to powered studio monitors
and the AUX 1 feed headphone
mix sent to a Samson S phone
headphone amp. For inputs,
two microphones are connected to channel 1 and 2’s lowimpedance inputs, and the
output of the Bass Direct Box is
also connected to the lowimpedance input on channel
4. The Keyboards, as well as
the Lead and Rhythm Guitar
signal processor's’ outputs, are
connected to the MDR1064’s
line inputs.
MDR1064 System Set-Ups
MDR1064 RECORDING SET-UP
16
MDR1064 Wiring Guide
CONNECTING THE MDR1064
The are several ways to interface the MDR1064 to support a variety of applications. The MDR1064 features balanced inputs and outputs, so connecting balanced and unbalanced signals is possible.
Unbalanced 1/4” Connector
Balanced TRS 1/4” Connector
XLR Balanced Wiring Guide
1/4-inch TRS “Y” Insert Cable Wiring Guide
17
MDR1064 Specifications
Mono input channels
Microphone input
electronically balanced, discrete input configuration
10Hz to 45kHz
(THD & N) 0.005% at 4dBu, 1kHz
0dB to +40dB (MIC)
105dB
electronically balanced
10Hz to 45kHz
0.005% at 4dBu, 1kHz +
-10dBu to +30dBu
Frequency response
Distortion
Gain range
SNR (Signal to Noise Ratio)
Line input
Frequency response
Distortion (THD & N)
Sensitivity range
Stereo input Channels
Line input
Frequency response
Distortion (THD & N)
Balanced
10Hz to 45kHz
0.005% at +4dBu, 1kHz
Impedances
Microphone input
Channel Insert return
All other inputs
Tape out
All other output
4.5k Ohm
2.5k Ohm
14.8k Ohm or greater
1k Ohm
120 Ohm
Hi shelving
Mid bell
Low shelving
Low Cut filter
+/- 15dB @12kHz
+/- 15dB @2.5kHz
+/- 15dB @80Hz
75Hz, 18dB/oct.
Noise (Bus noise)
Levels full down: -100dBr (ref.:+4dBu)
Level set to 0 dB: 90dBr (ref.:+4dBu)
+22dBu balanced XLR,
22dBu unbalanced, 1/4" jacks
∞ to +15dB
+22dBu
15W
Equalization
Main Mix Section
Max output
AUX Return gain range
AUX Sends max out
Power Consumption
Power supply (AC/AC Adaptor)
Main voltage
USA/Canada 108 - 132V, 60Hz
Europe 210 - 230V, 50Hz
U.K./Australia 240V, 50Hz
Physical
Net weight
Shipping weight
Dimension (W D H)
6.8 lb. (3.1Kg)
8.8 lb. (4.0Kg)
12.2” x 12.5” x 2.8” (310mm x 318mm x
70mm)
18
MDR1064 Block Diagram
19
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
