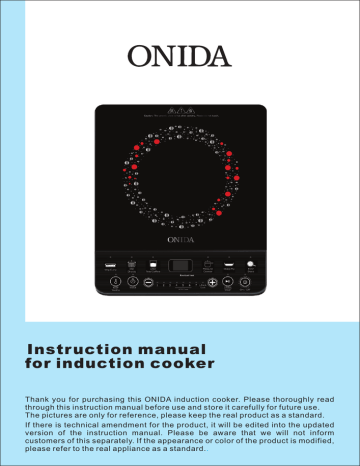

Instr uction manual for induction cooker

Thank you for purchasing this ONIDA induction cooker. Please thoroughly read through this instruction manual before use and store it carefully for future use.

The pictures are only for reference, please keep the real product as a standard.

If there is technical amendment for the product, it will be edited into the updated version of the instruction manual. Please be aware that we will not inform customers of this separately. If the appearance or color of the product is modified, please refer to the real appliance as a standard.

.

Table of contents

Safety instructions

… … … … … … … … … … … … … … … … … … … … (1)

Product introduction

… … … … … … … … … … … … … … … … … … … (5)

Preparation

… … … … … … … … … … … … … … … … … … … … … … … (5)

Instructions for use

… … … … … … … … … … … … … … … … … … … … (6)

Cleaning and maintenance

… … … … … … … … … … … … … … … (1 1)

Self-diagnosis for abnormalities

… … … … … … … … … … … … … (1 1)

Guarantee for repairs and service

… … … … … … … … … … … … (1 2)

Applicable model list

Model

OIC19K52B

Pulsated

Rated power

2

100W

Rated voltage

2

30V

~

Rated frequency

50Hz

Dimension

(mm)

280x355x62

Safety instructions

For safety reasons and to avoid damage to the appliance or injuries to people, please abide by all the safety instructions below.

Ignoring safety warnings may result in injuries.

This appliance does not take into consideration the following situations:

--- use by children or disabled people without supervision;

--- children treating it as a toy.

Symbols:

Forbidden Mandatory Warning Attention

Never heat foods in sealed containers, such as compressed products, cans, or coffee pots, to avoid explosion caused by heat expansion.

Do not directly rinse this induction cooker under water. Do not spill water or soup into the internal parts of the induction cooker.

To avoid affecting product performance and to prevent injury, do not heat empty pots. When in use, do not leave the appliance without supervision for a long t i m e . W h e n l e a v i n g t h e a p p l i a n c e without supervision, make sure there is enough water in the pot.

To avoid accidents, do not place the induction cooker, when in use, on a gas stove (the magnetic lines can heat the metal parts of the gas stove).

Do not heat iron items on the induction cooker heating plate to avoid danger caused by high temperatures.

The utensils provided for the induction cooker can only be used for cooking with it. These cooking utensils cannot be used on both induction cooker and gas stove.

1

Safety instructions

To avoid injuries such as scalding, do not let children operate the appliance alone.

Unplug the power cord from the outlet after use to avoid fire and/or damaging the electronic components, caused by prolonged electrical connection.

To avoid danger, do not insert any foreign object, such as iron wire, nor block the air ventilation opening or air entry port.

People with heart pacemakers should consult a doctor. Only use the appliance after confirming that it does not affect the pacemaker.

To avoid danger, do not place paper, aluminium foil, cloth or other unsuitable a r t i c l e s o n t o t h e i n d u c t i o n c o o k e r heating plate for indirect heating.

To avoid damage, avoid causing impacts on the heating plate. If damaged, please stop using it and take it to a maintenance and repair site to have it replaced.

When using the induction cooker, do not put it on any metal platform (such as iron, stainless steel, aluminium), or place a non-metal pad less than 10cm thick on the heating plate.

When using the induction cooker, place it horizontally and allow at least 10cm of free space between the sides and back of the induction cooker and the wall. Do not use the induction cooker in narrow spaces. To avoid hindering release of h e a t , d o n o t c o v e r t h e v e n t i l a t i o n opening.

>10cm

>10cm

2

Safety instructions

To avoid danger, if the power cord is damaged, have it replaced by agents of t h e m a n u f a c t u r e r, i t s m a i n t e n a n c e department or specialized personnel from a similar department.

Please use a dedicated and high quality power outlet, with high power rating, equal to or above 10A. Do not use poor quality outlets. Do not share the power outlet with electrical appliances with h i g h p o w e r r a t i n g s , s u c h a s a i r conditioners, electrical stoves etc to avoid fires caused by overburdening the outlet.

≥10A

Do not touch the cooker plate with sharp tools to avoid cracking or damaging the plate. If cracking is found on the cooker plate, turn off the appliance to avoid any electrical shock that might occur.

When using the induction cooker or after use, please keep it clean. Protect the induction cooker from bugs, dust and humidity. Avoid letting cockroaches etc f a l l i n t o t h e i n t e r n a l p a r t s o f t h e induction cooker and causing a short circuit of the electrical board. When not in use for a long period, please clean it and put it into a plastic bag to store it.

The cooker cannot be overloaded.

Overloading the plate may damage the plastic cover and cooker plate.

Metal objects, such as knives, forks, spoons and lids, should not be put on the surface of the cooking area, since they can become heated.

Do not use the induction cooker by putting it onto a carpet, tablecloth or thin paper to avoid blocking the air inlet opening or air outlet opening, which results in influencing heat emission.

Do not use the induction cooker near a gas stove, kerosene stove, gas cooker or in any space with an open fire or an environment with high temperature.

3

Safety instructions

Always clean the induction cooker to prevent mess from getting into the fan, w h i c h c o u l d i n f l u e n c e t h e n o r m a l operation of the appliance.

Danger of scalding

When operating the appliance or after moving the pot, the cooking area will remain hot for a period of time. Do not touch it, be careful of scalding caused by the high temperature.

Note:

1. The adult should supervise the children in order to make sure the children can not play with the appliance.

2. This appliance is not intended for use by persons (including children ) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. concerning use of the appliance by a person responsible for their safety.

3. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses;-by clients in hotels, motels and other residential type environments ; -bed and breakfast type environments.

4. Never have the induction hotplate to work without food inside, otherwise its operational performance may be affected and danger may happen.

5. We suggest that you should periodically check that there are no object (glass, paper, etc) that could obstruct the inlet under your induction hotplate.

6. Keep electrical appliance out of reach from children or inform person. Do not let them use the appliances without supervision.

4

Instructions for product use

Product summary

This induction cooker is designed for household use. Please refer to the instructions for detailed cooking methods.

Air outlet Power cord

Part list

Cooker plate

Cooking zone

Control panel

Air intake

Preparation

Before using, please first check if the power plug connects well with the power outlet.

Before placing the pot on the cooker plate, please clean up water stains, oil spots or any other adherent dirt from the outside surface of the pot and cooker plate.

Please put the pot to be heated on the central part of the induction cooker. Do not put an empty pot on the cooker plate to be heated.

5

Instructions for use

Connecting the power and switching on

After pressing the “On/Off” key, the induction cooker enters the working status.

After pressing the “On/Off” key, if there is no proper pot on the cooker plate, the induction cooker will not heat up and the alarm will sound to indicate that a pot is required.

One minute later, it will switch off automatically.

ON/OFF

Function selection

After switching on the appliance, press the corresponding function key to enter the desired cooking mode.

Please refer to “Functional cooking mode instructions” for the details of the corresponding heating process for each cooking mode.

Power adjustment

After selecting a mode, if needed, you can press power keys “+” or “-” to adjust the power.

For some modes, during the heating procedure, the induction cooker can automatically adjust the power according to the cooking effect.

For certain modes, the power is restricted complying with the cooking effect.

Note: LAVA COOK is the maximum temperature range cooking.

Switch off

When the operating time is over, the induction cooker switches off automatically.

If switch-off is needed in advance, press the “ON/OFF” key to turn the appliance off.

6

ON/OFF

Instructions for use

Pause

The pause function is designed for temporarily stopping heating during the normal operation process. You can switch to pause status in any cooking mode.

During operation, when pause is needed, please press the function key “Pause”. Now, the pause indicator lights

Pause/

Start up, the display and other function indicators stay in the previous status. The power indicator turns off and the induction cooker stops heating.

When the induction cooker is in pause, press the “Pause” key again or select any cooking mode to quit the pause status and return to the normal heating process.

After setting pause, the induction cooker stops heating. The default pause time interval is 10 minutes. After 10 minutes, if the pause mode is not cancelled, the induction cooker will sound an alarm. The alarm will last for several seconds, then the induction cooker will switch off automatically.

Timer adjustment

If timer operation is not needed or this function is not provided, the induction cooker will heat the ingredients for the default time duration (for the detailed time duration, refer to “Cooking mode instruction”).

If timer is needed, first press the “Timer” key. When the timer indicator lights up and the

Timer numbers blink on the display, press the key “+” or “-” to adjust the time duration.

When the adjustment is finished, the number on the display will be shown after blinking for several seconds. The induction cooker starts counting down.

When the counting down is over, the induction cooker automatically stops heating and switches off(in Veg Curry mode, the automatic keeping warm function starts) .

For particular modes, the timer function does not work. For

Milk\Tea\Coffe function, the timer uses a counting up method.

7

Instructions for use

Functional cooking mode instruction

User can select among the different cooking modes according to cooking purpose. For your convenience, we provide the following instruction:

The “Pressure cooker” individually fit to heating requirements, such as rice cooking and boiling water. In the heating procedure, the time and power can be adjusted at any time. If the water in the pot dries up or the temperature is abnormally high, the induction cooker automatically switches off or starts protection function.

The cooking modes of Deep-fry and Roti/Dosa fit to high temperature cooking. When the temperature of the ingredients reaches the temperature level provided by the selected mode (the highest temperature of various modes are different), the induction cooker will switch to interval heating or stops heating. After the temperature cools down, the induction cooker restarts heating.

For the cooking modes of Veg curry and Idli/Dhokla, the induction cooker can automatically control the power according to the time duration that has been set and the temperature of the ingredients. Under these modes, the power can be adjusted within the adjustable power range at any time. After this manual adjustment, the induction cooker will return to auto power control according to the cooking purpose two minutes later. Among these modes, when veg curry mode is selected, the induction cooker will start the auto two-hour keeping warm function after the operation is finished.

Pressure

cooker

Roti/Dosa

Deep fry

Idli/

Dhokla

Veg curry

8

Instructions for use

Functional cooking mode instruction

Milk\Tea\Coffee mode fits for boiling water.

Note:

1. It is recommended to put water that occupies 30% to 80% of the pot capacity when boiling water.

2. When boiling water, factors such as uneven pot bottom, scale or weather conditions could influence the boiling effect.

3. Please use the specific stock pot or water kettle when boiling water.

4. Under this mode, the power cannot be adjusted.

Keeping warm cooking mode fits for cooking that needs gentle heat to maintain warmth. Under this mode, the induction cooker heats the ingredients with gentle power to maintain a certain temperature inside the pot.

Note:

Under this mode, the power cannot be adjusted.

Milk

Tea

Coffee

Keep warm

Residual heat

When residual heat LED is lighting, It shows the glass plate is hot so don’t touch it by your hands to avoid scalding.

9

Instructions for use

Functional cooking mode instruction

The default time duration of heating for each mode is shown in the following table:

Mode pressure

cooker

R o t i

Dosa

V e g curry

Idli

Dhokla

Deep fry

Keep warm

Default time duration of heating (Minute)

120 60 120 60 120 120

Note: The table above provides the time duration of heating for general modes. The time duration for certain modes of some products is not included. Please refer to the real time duration as a standard.

Proper pots

a b

Iron stock pot Iron milk pot c d

Iron wok Iron water kettle e f

Iron frying pan Iron steamer pan

Please use the attached pots sold by ONIDA. Do not use other pots as replacements to avoid influencing the performance.

The maximum load for the frying pan is 4kg. When using it, do not let the weight of the ingredients exceed this weight to avoid danger.

If other pots are used, please comply with the following conditions:

1. Requirements for pot material: containing iron material.

2. Requirement of pot shape: with even bottom, the diameter is not less than 12cm and not more than 20cm.

Note: For optimum performance, please use the standard pots provided.

1 1

Cleaning and maintenance

Before cleaning, please switch off the appliance first and then disconnect the power plug from the power outlet. Wait till the cooker plate of the induction cooker is not hot and start cleaning.

After using the induction cooker for a long time, the opening of air inlet/air outlet will pile up with dust or other dirt, please wipe it with a soft dry cloth. Dust in the air inlet and outlet can be cleaned by using a soft brush or a mini vacuum cleaner.

Note: Please do not rinse it with water

For oil spots on the cooker plate, wipe the cooker plate by using a soft moist cloth with a little tooth paste or mild detergent. And then use a soft moist cloth to wipe it until no stain remains.

When not using it for a long time, please disconnect the power plug from the power outlet and protect the induction cooker from any dust or bugs.

Self-diagnosis for abnormalities

Abnormalities

After plugging in the power cord and pressing the “ON/OFF” key, the indicator and display do not light up.

Key checking points and trouble shooting

Is the power plug properly connected?

Is the switch, power outlet, fuse or power cord damaged?

The “ON/OFF” indicator lights up and the display works normally, but heating does not start.

Heating suddenly stops during the process.

Is the pot material proper?

Is the appliance in a “Preset” working status?

For other causes, please take the appliance to a repairing and maintenance site to be fixed.

Is the temperature of the oil too high when frying dishes?

Is the temperature of the surroundings very high?

Is the air inlet or air outlet of the induction cooker blocked?

Is the default heating time of the induction cooker over?

The self-safety protection of the induction cooker starts, wait for several minutes and connect power to use it.

1 1

Self-diagnosis for abnormalities

Protection for overhigh temperature

Protection for overhigh temperature of the cooker plate

The temperature inside the induction cooker is too high.

When the temperature lowers, press the “ON/OFF” key, the heating can start normally.

The temperature of the cooker plate is too high. When the temperature lowers, press the “On/Off” key, the heating can start normally.

Protection for overh i g h / o v e r - l o w voltage

When the voltage restores normally, the appliance can restart heating automatically.

P r o t e c t i o n f o r t h e inner sensor of the induction cooker

When using the induction cooker, if the temperature of the surroundings is too low, the auto protection function will start. With switching on the appliance again or switching after simple warm-up, the appliance can return to normal working status automatically.

Call the service number or the professional repair and maintenance site to make an inquiry.

Protection when using not applicable pot of cooker

Protection when effective heating area of pot is too small or pot deformation, only press “ON/OFF” key and change cooking cooker to resume heating.

The description above is for diagnosing and checking common issues. If the problems cannot be solved, please send the product to a repair and maintenance site or make an inquiry by calling service number.

Do not disassemble or repair the product by yourself to avoid product damage or personal injury.

Guarantee for repairs and service

If problems occur with the product, please contact our specific repair and maintenance site or service center.

One year warranty for the whole chassis of ONIDA induction cookers.

The starting warranty date refers to the invoice opening date of the product.

Any problem caused by the following items is not included in the warranty:

1. Damage caused by incorrect use, storing or maintenance by the customer.

2. Disassembling or repairing the appliance by a repair agent that is not appointed by our company, resulting in damage to the appliance.

3. The model number on the invoice is different from the one of the product to be repaired, or the model number on the invoice is modified.

4. No valid invoice.

5. Damage due to force majeure.

6. Putting the induction cooker to commercial use.

7. ONIDA is not responsible for accidents arising due to the use of ONIDA accessories not designed for utlilisation with this product.

8. Using the product in a non-household environment is not covered by the warranty scope.

9. Man-made issue or problems caused by incorrect use are not covered by the warranty scope.

For those products beyond the warranty, the customer service center of the company will still serve you warmly.

1 3
