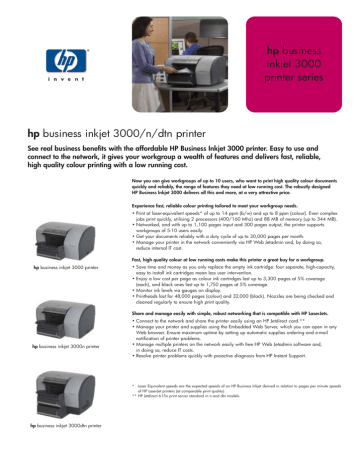

hp business inkjet 3000/n/dtn printer
See real business benefits with the affordable HP Business Inkjet 3000 printer. Easy to use and
connect to the network, it gives your workgroup a wealth of features and delivers fast, reliable,
high quality colour printing with a low running cost.
Now you can give workgroups of up to 10 users, who want to print high quality colour documents
quickly and reliably, the range of features they need at low running cost. The robustly designed
HP Business Inkjet 3000 delivers all this and more, at a very attractive price.
Experience fast, reliable colour printing tailored to meet your workgroup needs.
• Print at laser-equivalent speeds* of up to 14 ppm (b/w) and up to 8 ppm (colour). Even complex
jobs print quickly, utilising 2 processors (400/160 Mhz) and 88 MB of memory (up to 344 MB).
• Networked, and with up to 1,100 pages input and 300 pages output, the printer supports
workgroups of 5-10 users easily.
• Get your documents reliably with a duty cycle of up to 30,000 pages per month.
• Manage your printer in the network conveniently via HP Web Jetadmin and, by doing so,
reduce internal IT cost.
Fast, high quality colour at low running costs make this printer a great buy for a workgroup.
hp business inkjet 3000 printer
• Save time and money as you only replace the empty ink cartridge: four separate, high-capacity,
easy to install ink cartridges mean less user intervention.
• Enjoy a low cost per page as colour ink cartridges last up to 3,300 pages at 5% coverage
(each), and black ones last up to 1,750 pages at 5% coverage.
• Monitor ink levels via gauges on display.
• Printheads last for 48,000 pages (colour) and 32,000 (black). Nozzles are being checked and
cleaned regularly to ensure high print quality.
Share and manage easily with simple, robust networking that is compatible with HP LaserJets.
hp business inkjet 3000n printer
• Connect to the network and share the printer easily using an HP Jetdirect card.**
• Manage your printer and supplies using the Embedded Web Server, which you can open in any
Web browser. Ensure maximum uptime by setting up automatic supplies ordering and e-mail
notification of printer problems.
• Manage multiple printers on the network easily with free HP Web Jetadmin software and,
in doing so, reduce IT costs.
• Resolve printer problems quickly with proactive diagnosis from HP Instant Support.
* Laser Equivalent speeds are the expected speeds of an HP Business Inkjet derived in relation to pages per minute speeds
of HP LaserJet printers (at comparable print quality).
** HP Jetdirect 615n print server standard in n and dtn models.
hp business inkjet 3000dtn printer
ordering information
hp business inkjet 3000 printer,
power cord, reference guide (CD), getting
started guide, setup poster, regulatory
leaflet, support flyer, printer software
CD-ROM, four printheads and four ink
cartridges, printer drivers, installer and
administrative tools
c8117a hp business inkjet 3000n printer:
as base model plus hp jetdirect 615n
internal print server
hp business inkjet 3000dtn
printer: as base model plus hp jetdirect
615n internal print server, duplex unit,
additional 700-sheet input tray
hp business
inkjet 3000
printer series
technical specifications
print speed
(up to # pages per minute)
print technology
document type
Black text A4
Mixed text/colour graphics A4
Full page colour A4
*Approximate figures. Exact speed will vary depending on the system
and document complexity.
HP Thermal Inkjet
print head nozzles
524 per colour (2096 total)
print quality
2 processors: Motorola CF4 160 MHz, MIPS 5261 400 MHz.
Black: up to 1200 x 600 dpi
Colour: HP Photoret III colour layering technology (up to 2400 x 1200 dpi on photo paper) Colorsmart.
Supported: Microsoft® Windows® 98, Me, NT 4.0, 2000, XP, XP 64-bit; Macintosh® OS 8.6 and later;
Supported: Microsoft® Windows® 98, Me, NT 4.0, 2000, XP, XP 64-bit, Novell IntranetWare, NetWare 4.x,
5.x, 6, NDS and NDPS; HP-UX 10.20, 11.x; Solaris 2.5x, 2.6, 7, 8; IBM OS/2 Warp 4.x (from IBM.com);
AIX 3.2.5 and later; MPE-iX; Macintosh® OS 8.6 and later; RedHat Linux 6.x, 7.x ; SuSE Linux 6.x; Artisoft
LANtastic ; Microsoft Windows Terminal Server Edition 4.0, Windows 2000 Server Terminal Services with
Citrix Metaframe 1.8, XP.
Microsoft® Windows® 98: Pentium®-266, 32-MB RAM; Windows Me: Pentium-266, 32-MB RAM; Windows NT
4.0: Pentium-266, 64-MB RAM; Windows 2000: Pentium-266, 64-MB RAM; Windows XP: Pentium 300
MHz, 128 MB RAM; Macintosh®: OS 8.6, 32-MB RAM.
Standard: 88 MB. Memory slots: 3 DIMM slots (100-pin, SDRAM, PC100 and above; 2 slots for memory,
1 slot for 3rd party solutions). Maximum: 344 MB.
HP PCL 5C, HP PCL 6C, HP PostScript® Level 3™
Supported: ColorSync, ICC Profiles and Pantone® calibration colour standards
HP Standard 80
Up to 30,000 pages
Paper: 60 to 105 g/m2; card: 110 to 200 g/m2.
Standard: A4; custom: 89 x 140 mm to 216 x 356 mm.
Copier, bond, recycled, multipurpose, premium inkjet, premium inkjet heavy weight, premium transparency,
premium photo paper, photo paper, professional brochure (matt and glossy), labels, cards and envelopes.
A4: Top 5 mm, left 5 mm, right 5 mm, bottom 5 mm.
up to 1,100 pages
300 pages
up to 10 via optional multi-purpose tray
up to 120 sheets (50 via tray 2, 50 via tray 3,
20 via optional multi-purpose tray)
HP Business Inkjet 3000 printer: automatic (internal, optional).
HP Business Inkjet 3000n printer: automatic (internal, optional).
HP Business Inkjet 3000dtn printer: automatic (standard, internal).
Internal Worldwide Power Supply
2-line text based control panel
110 to 240 VAC, 50 to 60 Hz, Max current 6A.
700 watts maximum; less than 2 watts powersave; less than 30 watts standby.
Standard: HP Business Inkjet 3000 printer: IEEE 1284-compliant bi-directional parallel, USB 2.0 compliant
full speed, 2 open EIO slots, 3 dimm slots. HP Business Inkjet 3000n/dtn printer: IEEE 1284-compliant
bi-directional parallel, USB 2.0 compliant full speed, 2 EIO slots - HP Jetdirect 615n internal print server for
Fast Ethernet 10/100Base-TX in one EIO slot, 3 dimm slots.
Optional: HP Jetdirect (EIO) Internal Print Servers, HP Jetdirect External Print Servers, HP Wireless Print Server
802.11b, HP Print Server Appliance.
HP Business Inkjet 3000/n: 592 x 640 x 355 mm. HP Business Inkjet 3000dtn: 592 x 640 x 462 mm.
HP Business Inkjet 3000/n printer: 27.6 kg. HP Business Inkjet 3000dtn printer: 35.8 kg.
HP Web Jetadmin for multiple printer management, HP embedded Web server for 1 to 1 management.
Environmental ranges: Operating temperature: 5 to 40º C. Operating humidity: 15 to 80% RH. Recommended
operating humidity: 20 to 80% RH. Storage temperature: -40 to 60° C. Storage humidity: 20 to 90% RH.
Noise level per ISO 9296: Sound power LWAd: 62 dB(A). Sound pressure LpAM: 49 dB(A).
EMI certification: FCC Part 15B Class B, CTICK (Australia and New Zealand), CE (European Union) Class
B/A, MIC (Korea) Class A, Canada (statement on manual required). Regulatory standards: Safety
certification: TÜV-GS (Germany), CSA (Canada), PSB (Singapore), UL (USA), NOM-1-NYCE (Mexico),
K (Korea).
operating systems compatibility
network operating systems compatibility
recommended system requirements
printer languages
industry colour standard
duty cycle
recommended media weight
media sizes
media types
print margins
paper handling
duplex printing
power supply
control panel
power requirements
power consumption
interface and connectivity
dimensions (w x d x h)
printer management
operating environment
configuration, software program,
For more information, please call your local HP sales office or representative: Austria: 0810/006080 (local rate call), Algeria: (0)61 56 45 43,
Bahrain: 800 728, Belgium: (02) 778 34 00, Luxembourg: (+352) 263 160 34, Bulgaria: (+359) 2960 1940, Croatia and Slovenia: (+385 1) 60 60
200, Czech Republic: (00 420 2) 613 07 111(Prague), Denmark: 45991700 or 70101125, Egypt: 532 5222, Estonia: (+372) 6505 263, Finland:
(09) 88721, France: (1) 69 82 6060, Germany: 0180 532 6222 (12 Cent/min), Greece: (01) 678 96 00, Hungary: (+36) 1 382-1111, Iceland:
(354) 570 1000, Ireland: + 353 1 6158200, Israel: (972) 9 8304848, Italy: (02) 92121, Kazakhstan: +7 (3272) 980 824, Latvia: (371) 800 80 12,
Lithuania: (370) 2 787 333, Middle East: 00971 4 883 4427, Morocco (African Region): +212 22 40 47 47, Netherlands: (020) 5476666, Norway:
22 735600, Poland: infolinia 0-801 607 607 (0,29 zl + VAT/min), Portugal: (808) 206 001, Romania: (+401) 205 3300, RSA: (27)11 785 1000,
Russia: +7 (095) 797 35 00, Saudi Arabia: 800 124 4646, Slovakia: +421-2-50205611, Spain: (91) 6311600, Sweden: (08) 444 2000,
Switzerland: 0848 88 44 66, Tunisia: 71 891 222, Turkey: +90 (216) 579 71 71, UAE: 8004910, UK: 08705 474747, Ukraine: +380 44 490 61
20, Yugoslavia: +381 11 322 80 14.
700-sheet tray
multipurpose tray
4 MB Flash DIMM
hp EIO hard disk, 10 GB
hp jetdirect internal print servers
hp jetdirect 615n Fast Ethernet
(10/100Base-TX) internal print server
hp jetdirect 600n Ethernet
(10Base-T) internal print server
hp jetdirect 600n Ethernet
(10Base-T, 10Base2)/LocalTalk
internal print server
hp jetdirect 610n Token Ring
internal print server
hp jetdirect 680n 802.11b
wireless internal print server
hp print server appliance 4200
hp IEEE 1284-compliant
bidirectional parallel cable
(C-type connector), 3 m
hp LocalTalk cable kit, 2 m
hp serial printer cable, 2 m
hp no. 10 large black ink
cartridge (69 ml)
hp no. 12 cyan ink
cartridge (55 ml)
hp no. 12 magenta ink
cartridge (55 ml)
hp no. 12 yellow ink
cartridge (55 ml)
hp premium inkjet
transparency film, A4 (20/50 sheets)
hp premium plus inkjet
transparency film, A4 (20/50 sheets)
c6818a hp brochure and flyer paper, A4
(50 sheets)
c1853a hp premium heavyweight paper,
A4 (100 sheets)
hp premium paper, A4
(200 sheets)
hp premium inkjet paper, A4
(200 sheets)
hp no. 12 black printhead
hp no. 12 cyan printhead
hp no. 12 magenta printhead
hp no. 12 yellow printhead
service and support
hp supportpack - next business
day, repair or replacement,
3 years
hp supportpack - next
business day, repair or replacement,
1 year post warranty
The information contained in this
document is subject to change without
notice. ENERGY STAR is a U.S. registered
mark of the United States Environmental
Protection Agency. All other products
mentioned herein may be trademarks
of their respective companies.
Microsoft, Windows and MS Windows
are U.S. registered trademarks of
Microsoft Corporation.
© Copyright Hewlett-Packard 2002
Printed in the EU XX/02
