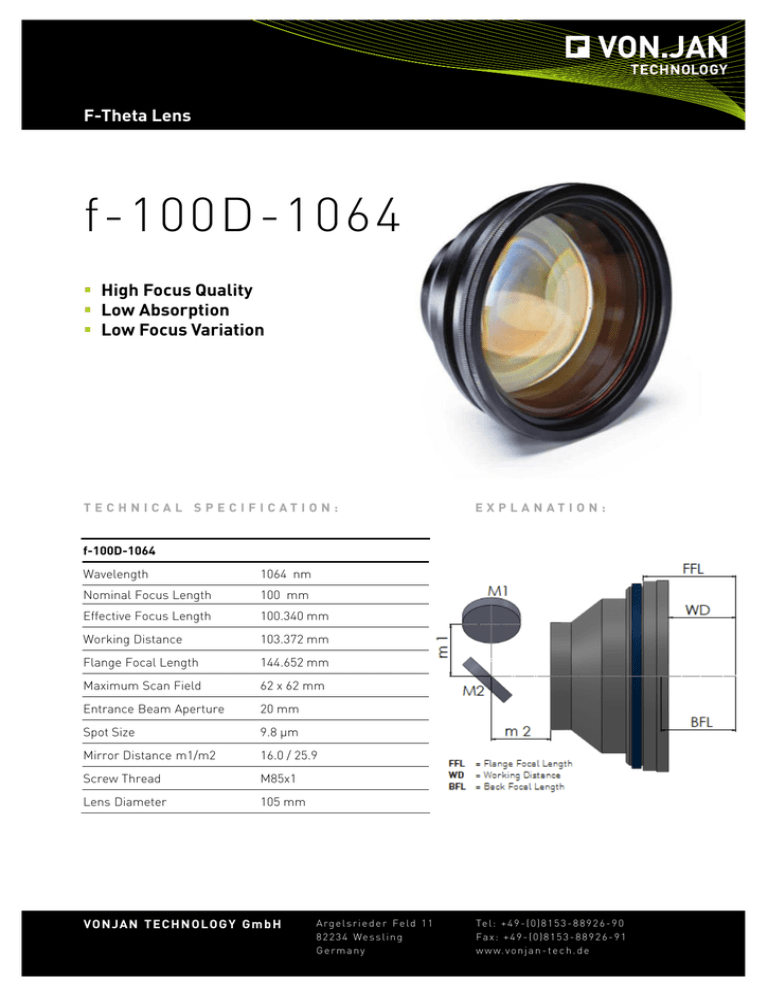

f-100D-1064 - VON.JAN Technology
F-Theta Lens
f-100D-1064
 High Focus Quality
 Low Absorption
 Low Focus Variation
TE CH N ICA L S P E CIF ICATION :
E X P L A N ATION :
f-100D-1064
Wavelength
1064 nm
Nominal Focus Length
100 mm
Effective Focus Length
100.340 mm
Working Distance
103.372 mm
Flange Focal Length
144.652 mm
Maximum Scan Field
62 x 62 mm
Entrance Beam Aperture
20 mm
Spot Size
9.8 µm
Mirror Distance m1/m2
16.0 / 25.9
Screw Thread
M85x1
Lens Diameter
105 mm
VONJAN TECHN OLOGY Gmb H
A rg e l s r i e d e r Fe ld 1 1
8 2 2 3 4 We s s l i n g
Germany
Te l : + 4 9 - ( 0 ) 8 1 5 3 - 8 8 9 2 6 - 9 0
Fa x : + 4 9 - ( 0 ) 8 1 5 3 - 8 8 9 2 6 - 9 1
w w w. v o n j a n - t e c h . d e
