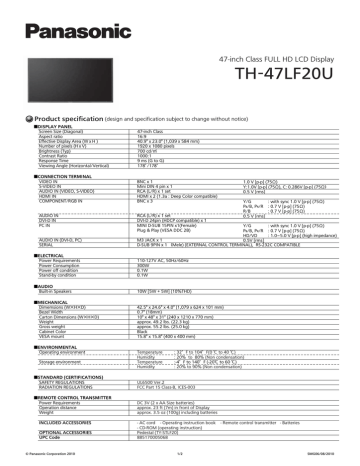

47-inch Class FULL HD LCD Display
TH-47LF20U
Product specification (design and specification subject to change without notice)
■DISPLAY PANEL
Screen Size (Diagonal)
Aspect ratio
Effective Display Area (WxH )
Number of pixels (HxV)
Brightness (Typ)
Contrast Ratio
Response Time
Viewing Angle (Horizontal/Vertical)
47-inch Class
16:9
40.9" x 23.0" (1,039 x 584 mm)
1920 x 1080 pixels
700 cd/㎡
1000:1
9 ms (G to G)
178°/178°
■CONNECTION TERMINAL
VIDEO IN
S-VIDEO IN
AUDIO IN (VIDEO, S-VIDEO)
HDMI IN
COMPONENT/RGB IN
BNC x 1
Mini DIN 4 pin x 1
RCA (L/R) x 1 set
HDMI x 2 (1.3a : Deep Color compatible)
BNC x 3
AUDIO IN
DVI-D IN
PC IN
AUDIO IN (DVI-D, PC)
SERIAL
1.0 V [p-p] (75Ω)
Y:1.0V [p-p] (75Ω), C: 0.286V [p-p] (75Ω)
0.5 V [rms]
Y/G
: with sync 1.0 V [p-p] (75Ω)
PB/B, PR/R : 0.7 V [p-p] (75Ω)
R/B
: 0.7 V [p-p] (75Ω)
0.5 V [rms]
RCA (L/R) x 1 set
DVI-D 24pin (HDCP compatible) x 1
MINI D-SUB 15PIN x1(Female)
Plug & Play (VESA DDC 2B)
Y/G
: with sync 1.0 V [p-p] (75Ω)
PB/B, PR/R : 0.7 V [p-p] (75Ω)
HD/VD
: 1.0~5.0 V [p-p] (high impedance)
M3 JACK x 1
0.5V [rms]
D-SUB 9PIN x 1 (Mele) (EXTERNAL CONTROL TERMINAL), RS-232C COMPATIBLE
■ELECTRICAL
Power Requirements
Power Consumption
Power off condition
Stand-by condition
110-127V AC, 50Hz/60Hz
300W
0.1W
0.1W
■AUDIO
Built-in Speakers
10W [5W + 5W] (10%THD)
■MECHANICAL
Dimemsions (W×H×D)
Bezel Width
Carton Dimensions (W×H×D)
Weight
Gross weight
Cabinet Color
VESA mount
42.5" x 24.6" x 4.0" (1,079 x 624 x 101 mm)
0.7" (18mm)
10" x 48" x 31" (240 x 1210 x 770 mm)
approx. 49.2 lbs. (22.3 kg)
approx. 55.2 lbs. (25.0 kg)
Black
15.8" x 15.8" (400 x 400 mm)
■ENVIRONMENTAL
Operating environment
Storage environment
Temperature
Humidity
Temperature
Humidity
: 32°F to 104°F(0 ℃ to 40 ℃)
: 20% to 80% (Non condensation)
:-4°F to 140°F (-20℃ to 60 ℃)
: 20% to 90% (Non condensation)
■STANDARD (CERTIFICATIONS)
SAFETY REGULATIONS
RADIATION REGULATIONS
UL6500 Ver.2
FCC Part 15 Class-B, ICES-003
■REMOTE CONTROL TRANSMITTER
Power Requirements
Operation distance
Weight
DC 3V (2 x AA Size batteries)
approx. 23 ft (7m) in front of Display
approx. 3.5 oz (100g) including batteries
INCLUDED ACCESSORIES
OPTIONAL ACCESSORIES
UPC Code
© Panasonic Corporation 2010
- AC cord - Operating instruction book
- CD-ROM (operating instruction)
Pedestal (TY-STLF20)
885170005068
1/2
- Remote control transmitter - Batteries
SMG06/08/2010
TH-47LF20U
47-inch Class FULL HD LCD Display
MAIN FEATURE
Multi-Screen System
Power-on Delay
Seam Hides Video Off Mode
Digital Zoom
1:1 Pixel mode
Automatic Picture Position
Screen Saver
Power Management
Power Save Mode
Auto Power Off
Standby Power Save Mode
Brightness sensor
Input lock
Button lock
Maximum volume level
Remote user level
ACCESSORIES
2 x 2, 3 x 3, 4 x 4, 5 x 5
n x m (max 5 x 5)
Yes
Yes
x2, x3, x4
Yes
Yes
Yes
DVI and PC input compatible
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Pedestal
TY-STLF20
DIMENSIONS
Cautions: This drawing is not a scale
Units : inches (mm)
CONNECTION TERMINAL
6(5,$/3257
$9,,1
$8',2,1
'9,'3&
+'0,,1
$8',2,1
&20321(17
© Panasonic Corporation 2010
'9,',1
3&,1
&20321(175*%,1
2/2
SMG06/08/2010
()(&7,9(',63/$<$5($
()(&7,9(',63/$<$5($
