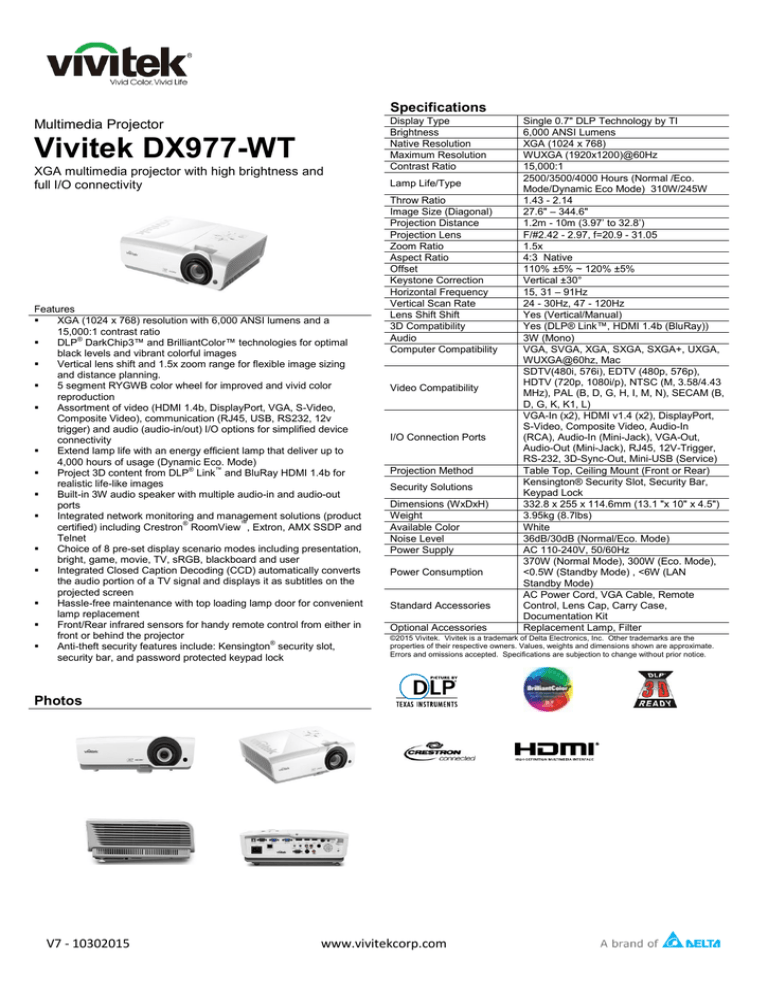

Vivitek DX977-WT
Specifications
Multimedia Projector
Vivitek DX977-WT
XGA multimedia projector with high brightness and
full I/O connectivity
Features

XGA (1024 x 768) resolution with 6,000 ANSI lumens and a
15,000:1 contrast ratio

DLP® DarkChip3™ and BrilliantColor™ technologies for optimal
black levels and vibrant colorful images

Vertical lens shift and 1.5x zoom range for flexible image sizing
and distance planning.

5 segment RYGWB color wheel for improved and vivid color
reproduction

Assortment of video (HDMI 1.4b, DisplayPort, VGA, S-Video,
Composite Video), communication (RJ45, USB, RS232, 12v
trigger) and audio (audio-in/out) I/O options for simplified device
connectivity

Extend lamp life with an energy efficient lamp that deliver up to
4,000 hours of usage (Dynamic Eco. Mode)

Project 3D content from DLP® Link™ and BluRay HDMI 1.4b for
realistic life-like images

Built-in 3W audio speaker with multiple audio-in and audio-out
ports

Integrated network monitoring and management solutions (product
certified) including Crestron® RoomView™, Extron, AMX SSDP and
Telnet

Choice of 8 pre-set display scenario modes including presentation,
bright, game, movie, TV, sRGB, blackboard and user

Integrated Closed Caption Decoding (CCD) automatically converts
the audio portion of a TV signal and displays it as subtitles on the
projected screen

Hassle-free maintenance with top loading lamp door for convenient
lamp replacement

Front/Rear infrared sensors for handy remote control from either in
front or behind the projector

Anti-theft security features include: Kensington® security slot,
security bar, and password protected keypad lock
Display Type
Brightness
Native Resolution
Maximum Resolution
Contrast Ratio
Lamp Life/Type
Throw Ratio
Image Size (Diagonal)
Projection Distance
Projection Lens
Zoom Ratio
Aspect Ratio
Offset
Keystone Correction
Horizontal Frequency
Vertical Scan Rate
Lens Shift Shift
3D Compatibility
Audio
Computer Compatibility
Video Compatibility
I/O Connection Ports
Projection Method
Security Solutions
Dimensions (WxDxH)
Weight
Available Color
Noise Level
Power Supply
Power Consumption
Standard Accessories
Optional Accessories
©2015 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Other trademarks are the
properties of their respective owners. Values, weights and dimensions shown are approximate.
Errors and omissions accepted. Specifications are subjection to change without prior notice.
Photos
V7 - 10302015
Single 0.7" DLP Technology by TI
6,000 ANSI Lumens
XGA (1024 x 768)
WUXGA (1920x1200)@60Hz
15,000:1
2500/3500/4000 Hours (Normal /Eco.
Mode/Dynamic Eco Mode) 310W/245W
1.43 - 2.14
27.6" – 344.6"
1.2m - 10m (3.97’ to 32.8’)
F/#2.42 - 2.97, f=20.9 - 31.05
1.5x
4:3 Native
110% ±5% ~ 120% ±5%
Vertical ±30°
15, 31 – 91Hz
24 - 30Hz, 47 - 120Hz
Yes (Vertical/Manual)
Yes (DLP® Link™, HDMI 1.4b (BluRay))
3W (Mono)
VGA, SVGA, XGA, SXGA, SXGA+, UXGA,
[email protected], Mac
SDTV(480i, 576i), EDTV (480p, 576p),
HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43
MHz), PAL (B, D, G, H, I, M, N), SECAM (B,
D, G, K, K1, L)
VGA-In (x2), HDMI v1.4 (x2), DisplayPort,
S-Video, Composite Video, Audio-In
(RCA), Audio-In (Mini-Jack), VGA-Out,
Audio-Out (Mini-Jack), RJ45, 12V-Trigger,
RS-232, 3D-Sync-Out, Mini-USB (Service)
Table Top, Ceiling Mount (Front or Rear)
Kensington® Security Slot, Security Bar,
Keypad Lock
332.8 x 255 x 114.6mm (13.1 "x 10" x 4.5")
3.95kg (8.7lbs)
White
36dB/30dB (Normal/Eco. Mode)
AC 110-240V, 50/60Hz
370W (Normal Mode), 300W (Eco. Mode),
<0.5W (Standby Mode) , <6W (LAN
Standby Mode)
AC Power Cord, VGA Cable, Remote
Control, Lens Cap, Carry Case,
Documentation Kit
Replacement Lamp, Filter
www.vivitekcorp.com
