Philips 46PFL5505D/F7, 55PFL5505D, 40PFL5505D/F7, 46PFL5505D, 55PFL5505D/F7 User manual

Philips 46PFL5505D/F7, 55PFL5505D, 40PFL5505D/F7, 46PFL5505D, 55PFL5505D/F7 User manual

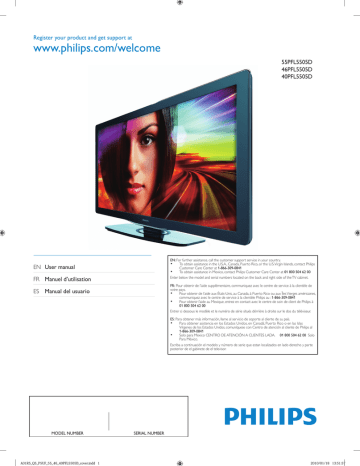

Register your product and get support at
www.philips.com/welcome
55PFL5505D
46PFL5505D
40PFL5505D
EN: For further assistance, call the customer support service in your country.
• To obtain assistance in the U.S.A., Canada, Puerto Rico, or the U.S.Virgin Islands, contact Philips
Customer Care Center at 1-866-309-0841
• To obtain assistance in Mexico, contact Philips Customer Care Center at 01 800 504 62 00
Enter below the model and serial numbers located on the back and right side of the TV cabinet.
EN User manual
FR Manuel d’utilisation
FR: Pour obtenir de l’aide supplémentaire, communiquez avec le centre de service à la clientèle de
votre pays.
• Pour obtenir de l’aide aux États-Unis, au Canada, à Puerto Rico ou aux Îles Vierges américaines,
communiquez avec le centre de service à la clientèle Philips au : 1-866-309-0841
• Pour obtenir l’aide au Mexique, entrez en contact avec le centre de soin de client de Philips à
01 800 504 62 00
Entrer ci dessous le modèle et le numéro de série situés dérrière à droite sur le dos du téléviseur.
ES Manual del usuario
ES: Para obtener más información, llame al servicio de soporte al cliente de su país.
Para obtener asistencia en los Estados Unidos, en Canadá, Puerto Rico o en las Islas
Vírgenes de los Estados Unidos, comuníquese con Centro de atención al cliente de Philips al
1-866-309-0841
• Solo para Mexico CENTRO DE ATENCIÓN A CLIENTES LADA. 01 800 504 62 00 Solo
Para México.
Escriba a continuación el modelo y número de serie que estan localizados en lado derecho y parte
posterior de el gabinete de el televisor.
•
MODEL NUMBER
A01R5_Q5_P5UF_55_46_40PFL5505D_cover.indd 1
SERIAL NUMBER
2010/01/18 13:51:57
1 Notice
4
2 Important
5
Screen care
Environmental care
Regulatory notices
3 Your TV
Side controls and indicators
Remote control
4 Get started
Supplied accessories
Mounting base onto TV for 40” and 46”
Positioning the TV
Adjusting the swivel angle
Installing the remote control batteries
Connecting the antenna or cable
Managing cables
Connecting the AC power cord
Switching on and set up the TV
5 Use your TV
Switching your TV on or to standby
Switching channels
Adjusting volume
Watching channels from a set-top box
Watching connected devices
Watching a Blu-ray Disc
6 Use more of your TV
Access TV menus
Changing picture and sound settings
Create and use lists of favorite channels
Setting the clock
Closed caption
Sleeptimer
Child and rating locks
Use the demo mode
Use Philips EasyLink
EasyLink
Set your location to home
View photos and play music on a USB storage device
7 Install channels
Selecting your menu language
Autoprogram
Weak channel installation
Installation mode
Uninstall channels
Return your settings to default values
8 Update your TV software
Checking your current software version
Preparing for the software update
Updating software
5
5
5
6
6
6
8
8
8
8
8
8
9
10
10
11
9 Connect devices
27
27
28
29
31
31
Connection overview
Selecting your connection quality
Connecting your devices
Add devices
Remove devices
10 Troubleshooting
32
32
32
Downloading an electronic copy
Contact us
11 Product information
33
12 Warranty
34
13 Index
35
12
12
12
13
13
13
13
14
14
15
17
18
18
19
19
22
22
22
23
23
25
25
25
25
25
25
25
26
26
26
26
EN
LC8(P&F)_master draft_EN_v1.indd 1
English
Contents
1
2010/01/18 17:35:40
Return your Product Registration Card or register online at
www.philips.com/welcome today to get the very most from your purchase.
Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out.
Complete and return your Product Registration Card at once, or register online at www.philips.com/welcome
to ensure:
*Proof of Purchase
*Product Safety
Notification
*Additional Benefits
Returning the enclosed card guarantees
that your date of purchase will be on file,
so no additional paperwork will be
required from you to obtain warranty
service.
By registering your product, you'll receive
notification - directly from the manufacturer - in the rare case of a product
recall or safety defect.
Registering your product guarantees that
you'll receive all of the privileges to
which you're entitled, including special
money-saving offers.
Know these
safety symbols
CAUTION
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner :
Thank you for your confidence in PHILIPS.You’ve selected one of
the best-built, best-backed products available today.We’ll do everything in our power to keep you happy with your purchase for many
years to come.
As a member of the PHILIPS “family,” you’re entitled to protection
by one of the most comprehensive warranties and outstanding
service networks in the industry.What’s more, your purchase guarantees you’ll receive all the information and special offers for which
you qualify, plus easy access to accessories from our convenient
home shopping network.
Most importantly, you can count on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome - and thanks for investing
in a PHILIPS product.
P.S. To get the most from your PHILIPS purchase, be
sure to complete and return your Product Registration
Card at once, or register online at:
www.philips.com/welcome
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This “bolt of lightning” indicates uninsulated material within your unit may
cause an electrical shock. For the safety of
everyone in your household, please do not
remove product covering.
The “exclamation point” calls attention
to features for which you should read
the enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects
filled with liquids, such as vases, should not
be placed on this apparatus.
CAUTION: To prevent electric shock,
match wide blade of plug to wide slot, fully
insert.
ATTENTION: Pour éviter les choc
électriques, introduire la lame la plus large
de la fiche dans la borne correspondante de
la prise et pousser jusqu’au fond.
For Customer Use
Enter below the model and serial numbers located
on the back and right side of the TV cabinet. Retain
this information for future reference.
Model No.________________________
Serial No. ________________________
Visit our World Wide Web Site at http://www.philips.com/welcome
2
EN
LC8(P&F)_master draft_EN_v1.indd 2
2010/01/18 17:35:41
1.
2.
3.
4.
5.
6.
7.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings. Install in accordance with
the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and third grounding prong. The wide
blade or third prong are provided for your safety. When the provided
plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.
Use only with a cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen
into apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15. This product
p
p
mayyy contain lead or mercuryyy. Disposal
pp
of these materials
may be regulated due to environmental considerations. For disposal or
recycling information, please contact your local authorities or the
Electronic Industries Alliance: www.eiae.org.
16. Damage Requiring Service - The appliance should be serviced by
qualified service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
English
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
17. Tilt/Stability - All televisions must comply with recommended
international global safety standards for tilt and stability properties of its
cabinets design.
• Do not compromise these design standards by applying excessive pull
force to the front, or top, of the cabinet which could ultimately
overturn the product.
• Also,do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the cabinet. Such items could
unsuspectingly fall from the top of the set and cause product damage
and/or personal injury.
18. Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.
19. Power Lines - An outdoor antenna should be located away from
power lines.
20. Outdoor Antenna Grounding - If an outside antenna is connected to
the receiver, be sure the antenna system is grounded so as to provide
some protection against voltage surges and built up static charges.
Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984,
provides information with respect to proper grounding of the mats and
supporting structure grounding of the lead-in wire to an antennadischarge unit, size of grounding connectors, location of antennadischarge unit, connection to grounding electrodes and requirements for
the grounding electrode. See Figure below.
21. Objects and Liquid Entry - Care should be taken so that objects do
not fall and liquids are not spilled into the enclosure through openings.
a) Warning: To reduce the risk of fire or electric shock, this apparatus
should not be exposed to rain or moisture and objects filled with
liquids, such as vases should not be placed on this apparatus.
22. Battery Usage CAUTION - To prevent battery leakage that may
result in bodily injury, property damage, or damage to the unit:
• Install all batteries correctly, with + and - alignment as marked on the
unit.
• Do not mix batteries (old and new or carbon and alkaline, etc.)
• Remove batteries when the unit is not used for a long time.
EXAMPLE OF ANTENNA
A GROUNDING AS PER
NATIONAL ELECTRICAL
L CODE (NEC)
GROUND CLAMP
ANTENNA
A LEAD IN WIRE
ANTEENNA DISCHARGE UNIT
(NEC SEECTION 810-20)
GR
ROUNDING CONDUCTORS
(NEEC SECTION 810-21)
GROUND CLAMPS
C
ELECTRIC SERVICE EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
ELECTROD
(NEC ART 250, PART H)
Note to the CATV system installer: this reminder is provided to call the CATV system installer’s attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of cable entry as practical.
EN
LC8(P&F)_master draft_EN_v1.indd 3
3
2010/01/18 17:35:42
1 Notice
2010 © Koninklijke Philips Electronics N.V. All rights reserved.
Specifications are subject to change without notice. Trademarks are
the property of Koninklijke Philips Electronics N.V. or their respective
owners. Philips reserves the right to change products at any time
without being obliged to adjust earlier supplies accordingly.
The material in this manual is believed adequate for the intended use of
the system. If the product, or its individual modules or procedures, are
used for purposes other than those specified herein, confirmation of
their validity and suitability must be obtained. Philips warrants that the
material itself does not infringe any United States patents. No further
warranty is expressed or implied.
Philips cannot be held responsible neither for any errors in the content
of this document nor for any problems as a result of the content in this
document. Errors reported to Philips will be adapted and published on
the Philips support website as soon as possible.
Pixel characteristics
This LCD product has a high number of color pixels. Although it has
effective pixels of 99.999% or more, black dots or bright points of light
(red, green or blue) may appear constantly on the screen. This is a
structural property of the display (within common industry standards)
and is not a malfunction.
Warranty
No components are user serviceable. Do not open or remove covers
to the inside of the product. Repairs may only be done by Philips
Service Centers and official repair shops. Failure to do so shall void any
warranty, stated or implied.
Any operation expressly prohibited in this manual, any adjustments, or
assembly procedures not recommended or authorized in this manual
shall void the warranty.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio or television technician
for help.
Declaration of Conformity
Trade Name :
PHILIPS
Responsible Party : P&F USA, Inc.
Model :
55PFL5505D, 46PFL5505D, 40PFL5505D
Address :
PO Box 430 Daleville, IN 47334-0430 U.S.A.
Telephone Number : 1-866-309-0841
Cables
Connections to this device must be made with shielded cables with
metallic RFI / EMI connector hoods to maintain compliance with FCC
Rules and Regulations.
Canadian notice
Standard Television Receiving Apparatus, Canada BETS-7 / NTMR-7.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Copyright
All other registered and unregistered trademarks are the property of
their respective owners.
R® is a joint program of the U.S.
Environmental Protection Agency and the U.S.
Department of Energy helping us all save money
and protect the environment through energy
efficient products and practices.
Consumer Notice:
This TV has been set to maximize energy efficiency while delivering the
best possible picture using the factory installed home mode settings.
Changing or enabling other features in this TV (e.g. brightened backlighting)
will possibly increase energy consumption beyond the original
ENERGY STAR
R® qualified limits.
SRS TruSurround HD™ creates an immersive,
feature-rich surround sound experience from
two speakers, complete with rich bass, high
frequency detail and clear dialog.
is a trademark of SRS Labs, Inc. TruSurround HD technology is
incorporated under license from SRS Labs, Inc.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
VESA, FDMI and the VESA Mounting
Compliant logo are trademarks of the Video
Electronics Standards Association.
® Kensington and Micro Saver are registered US
trademarks of ACCO World corporation with
issued registrations and pending applications in
other countries throughout the world.
Portions of this software are copyright © The FreeType Project
(www.freetype.org).
The American Academy of Pediatrics discourages television viewing for
children younger than two years of age.
Modifications
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by Philips Consumer
Electronics may void the user’s authority to operate the equipment.
4
EN
LC8(P&F)_master draft_EN_v1.indd 4
2010/01/18 17:35:43
Environmental care
English
2 Important
Registering your model with Philips makes you eligible for all of the
valuable benefits listed below, so don’t miss out.
Complete and return your Product Registration Card at once, or
register online at www.philips.com/welcome to ensure :
•
•
•
Proof of Purchase
Returning the enclosed card guarantees that your date of purchase
is on file, so no additional paperwork is required from you to
obtain warranty service.
Product Safety Notification
By registering your product you receive notification - directly from
the manufacturer - in the rare case of a product recall or safety
defect.
Additional Benefits of Product Ownership
Registering your product guarantees that you receive all of the
privileges to which you’re entitled, including special money-saving
offers.
The packaging of this product is intended to be recycled. Contact your
local authorities for information about how to recycle the packaging.
End of life directives
For further assistance
For further assistance, call the customer support service in your country.
• To obtain assistance in the U.S.A., Canada, Puerto Rico, or the U.S.Virgin
Islands, contact Philips Customer Care Center at 1-866-309-0841
Product information
This TV consumes minimal energy in standby mode to minimize
environmental impact. The active power consumption is given on the
type plate at the back of the TV. The model and serial numbers of your
TV can be found on the back and right side of the TV as well as on the
packaging.
Like all LCD products, this set contains a lamp with mercury; please
dispose of according to all local, state and federal laws.
Philips pays a lot of attention to produce environment-friendly products
in green focal areas. Your new TV contains materials which can be
recycled and reused. At the end of its life, specialized companies can
dismantle the discarded TV to concentrate the reusable materials and to
minimize the amount of materials to be disposed of. Please ensure you
dispose of your old TV according to local regulations.
Disposal of used batteries
Screen care
•
•
•
•
•
Avoid stationary images as much as possible. Stationary images
are images that remain on-screen for extended periods of time.
Examples include : on-screen menus, black bars and time displays.
If you must use stationary images, reduce screen contrast and
brightness to avoid screen damage.
Unplug the TV before cleaning.
Clean the TV screen and frame with a soft cloth. Never use
substances such as alcohol, chemicals or household cleaners on the
TV screen.
Risk of damage to the TV screen! Never touch, push, rub or strike
the screen with any object.
To avoid deformations and color fading, wipe off water drops as
soon as possible.
The batteries supplied do not contain the heavy metals mercury and
cadmium. Nevertheless, in many areas batteries may not be disposed
of with your household waste. Please ensure you dispose of batteries
according to local regulations.
Regulatory notices
Warning
To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or
moisture. Objects filled with liquids, such as vases, should not be placed on this apparatus.
Caution
To prevent electric shock, match the wide blade of the plug to the wide slot, fully inserted.
Do not place the unit on the furniture that is capable of being tilted by a
child and an adult leaning, pulling, standing or climbing on it.
A falling unit can cause serious injury or even death.
This apparatus should not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided.
Make sure to leave a space of 4 inches (10cm) or more around this
apparatus.
EN
LC8(P&F)_master draft_EN_v1.indd 5
5
2010/01/18 17:35:44
3 Your TV
Remote control
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome
Side controls and indicators
a
s
b
r
c
q
d
e
e
p
d
g
h
c
a
f
o
i
b
j
a Standby indicator / remote control sensor
n
b . POWER
Switches the TV on or off. The TV is not powered off completely
unless it is physically unplugged.
m
c CHANNEL + / −
Switches to the next or previous channel.
d SOURCE
Selects connected devices.
l
k
e VOLUME + / −
Increases or decreases volume.
6
EN
LC8(P&F)_master draft_EN_v1.indd 6
2010/01/18 17:35:45
r AUTO MODE
Cycles through the preset picture and sound setting
(see ‘Using auto mode’ on page 17).
b FAV
Displays a list of all channels marked as favorite.
(Includes subchannels)
s PIXEL PLUS
Displays the Active control menu.
English
a . (Standby-On)
Switches the TV on or off. The TV is not powered off completely
unless it is physically unplugged.
c SLEEP
Sets a delay after which the TV switches to standby.
d Color buttons (red / green / yellow / blue)
Selects tasks or options.
e SOURCE
Selects connected devices.
f OPTIONS
Press to access the most usable items extracted from the main
menu.
g OK
Activates a selection or accesses the menu.
h ÎïÍ Æ (Navigation buttons)
Navigates through the menus.
i INFO
Displays information about the TV channel or accessory device.
The quality and accuracy of the information depends on the
broadcaster. You might see a difference in broadcast time if the
broadcast is from a different time zone.
j EasyLink buttons
E (Backward)
Searches backward.
D (Forward)
Searches forward.
1 F (Play / Pause)
Starts, pauses or resumes playback.
I (Record)
Starts or stops video recording.
C (Stop)
Stops playback.
k CH + / −
Switches to the next or previous channel.
Number buttons
Select a channel, page, setting or input characters.
. (Dot)
Press the dot (.) for digital channels.
PREV. CH
Returns to the previously viewed channel.
l FORMAT
Selects a picture format (see ‘Changing picture format’ on page 16).
m VOL + / −
Increases or decreases volume.
n MUTE
Mutes or unmutes audio.
o BACK
Returns to a previous screen.
p MENU / EXIT
Toggles the home menu on or off.
q DEMO
Displays the demonstration menu.
EN
LC8(P&F)_master draft_EN_v1.indd 7
7
2010/01/18 17:35:46
4 Get started
Positioning the TV
Warning
Supplied accessories
• Do not insert the AC power cord into the power socket outlet before all the
connections are made.
•
•
•
•
•
•
•
Remote control
2 x AAA, 1.5V batteries
M5 x 20 double sems screw x 4 (available for 40” and 46” only)
AC Power cord
Cable management tie
User manual
Quick Start
Mounting base onto TV for 40” and 46”
Applicable to TVs without mounted bases.
1
• Large screen TVs are heavy. 2 people are required to carry and handle a large screen TV.
• Before you move the TV, disconnect the cables to prevent breakage.
In addition to reading and understanding the safety instructions,
consider the following before positioning your TV :
• Ensure that you always have easy access to the AC power cord or
plug to disconnect the TV from the power.
• If the TV is mounted on a swivel base, ensure that no strain is
placed on the AC power cord when the TV is swiveled. Strain on
the AC power cord can loosen connections.
• The ideal viewing distance for watching TV is three times its screen size.
• Position the TV where light does not fall on the screen.
• Connect your devices before you position the TV.
Using a Kensington lock
There is a Kensington security slot on the back of the TV. Prevent theft
by looping a Kensington lock between the slot and a permanent object,
such as a heavy table.
AC IN
Adjusting the swivel angle
2
You can adjust the viewing angle of your TV.
Top of the unit
approx.
15°
approx.
15°
approx.
o
15°
approx.
15°
Caution
• While adjusting the swivel angle of your TV, hold the base firmly to prevent the TV from
tipping over and falling down.
x4
Installing the remote control batteries
Note
• To wall mount the TV, refer to the addendum.
• If you lose the screws, please purchase M5×20 Philips head screws at your local store.
1
2
3
Slide the battery cover off the back of the remote control.
Insert the 2 supplied batteries (AAA, 1.5V). Be sure the + and −
ends of the batteries line up with the markings inside the case.
Slide the cover back into position.
Note
• Remove the batteries if not using the remote control for an extended period of time.
8
EN
LC8(P&F)_master draft_EN_v1.indd 8
2010/01/18 17:35:46
Connecting the antenna or cable
If you connect a set-top box through RF IN / OUT
English
If the TV is connected to a cable box or satellite set-top box via a
coaxial connection, set the TV to channel 3 or 4, or to the channel
specified by the service provider.
Cable
If you connect to an antenna
Any DTV programs that are broadcast in your area can be received for
free through an antenna connection.
If you connect a set-top box through HDMI
Contact your local content provider or your local electronics retailer if
you are unsure about what HDTV programs are available in your area.
If the TV is connected to a cable box or satellite set-top box via HDMI,
make sure you select the correct HDMI source by using SOURCE on this
unit's remote control.
Broadcasters are transitioning from analog to digital TV. This means that
a given broadcaster can have channels available either in analog or in
digital, or both analog and digital at the same time.
The TV produces stereo sound only if a stereo signal is broadcast.
If you connect to a cable
When your TV is connected to the cable socket, you might receive free
digital and high definition programs (depending on your cable provider).
The channel number for digital and high definition channels includes a
dot “.”. For example, 11.1, 46.30, 108.201. Contact your cable provider
for more information.
If you connect to a DBS (Direct Broadcast Satellite)
There are two main DBS systems : DirecTV and DishNetwork. These
systems require a separate, proprietary set-top box to decode signals
and send them to the TV. The set-top box contains a digital TV tuner for
receiving off-air digital broadcasts.
Contact your local DBS provider for more information about the
connections and the TV channels.
If you connect a set-top box through component video input
If you connect to a set-top box
If the TV is connected to a cable box or satellite set-top box via
component video input, make sure you select the correct component
video source by using SOURCE on this unit's remote control.
A cable box or satellite set-top box can be connected to the TV
through the following connections :
•
•
•
•
ANT
A/V (Composite Video and Audio)
YPbPr (Component Video Input)
HDMI
For information about how to connect a set-top box, see the Quick
Start provided.
EN
LC8(P&F)_master draft_EN_v1.indd 9
9
2010/01/18 17:35:52
Managing cables
Route your antenna cable and all other cables through the cable holder
at the back of the TV. The holder helps keep your cables tidy and easily
manageable.
Connecting the AC power cord
Warning
• Verify that your power voltage corresponds with the voltage printed at the back of the
TV. Do not insert the AC power cord if the voltage is different.
1
Attach the cable holder as illustrated below.
1
2
3
Locate the power connector at the back of the TV. The location of
the power connector varies according to TV model.
Insert the AC power cord fully into the power connector.
Connect the AC power cord plug to the power outlet. Ensure that
the cord is tightly secured at both ends.
SERVICE
ONLY
Keep the cable through this holder to avoid tangle them.
PC-IN
RGB
AC IN
Disconnect the TV from the power outlet
Caution
• Pull the AC power cord by the plug; do not pull on the AC power cord.
1
2
10
Unplug the AC power cord from the power outlet.
Unplug the AC power cord from the power connector at the back
of the TV.
EN
LC8(P&F)_master draft_EN_v1.indd 10
2010/01/18 17:35:54
Before you switch on the TV, check that the AC power cord is properly
connected. Press . POWER at the right side of the TV, or press
. (Standby-On) on the remote control. The TV normally takes 25-30
seconds to start up and the following screen appears the first time you
turn on the TV.
Select [Picture A] or [ Picture B] by pressing Í or Æ that is the most
pleasing to you, then press OK. You see 5 different pictures to be
completed.
Which side of the picture do you prefer?
Cancel
Picture A
Picture B
Press Í or Æ to select [Store], then press OK.
After you read a welcome screen, follow the on-screen instructions
to select your language and complete your TV setup. Installation takes
approximately 20 minutes.
Select your menu
language with the
Up/Down buttons on
your remote control,
press the OK button to
proceed.
English
Switching on and set up the TV
Store your preferences.
Cancel
Store
Press OK to finish [ Settings assistant].
English
g is
gl
ish
h
● EnEngl
● Français
● Español
The TV has learned your preferences.
Exit
Press Í or Æ to select [Finish], then press OK.
Finish the Setup.
Note
• If you are not receiving a signal from your cable service, contact the CATV provider.
• If you press . during autoprogram, an installation will be canceled except the language
selection.
• The initial autoprogram function can be executed for either [Antenna] or [Cable]
Press Î or ï to select the desired mode for energy saving, then press
OK.
Location Home is recommended
for normal home use. In the
Retail Store location all settings
are fixed.
only once. When you change the connection (Antenna / Cable), set autoprogram again.
(Refer to page 25.)
Retail store
Home
Select [Retail store] if you want backlight to be brighter.
Select [Home] to reduce the power consumption.
You must set [Home]. Otherwise, the settings of picture and sound
quality you adjusted will not be memorized after you turn off the unit.
•
•
Select [Retail store], the unit will be set up with predefined setting
for retail displays. In this setting, the power consumption may
possibly exceed the limited requirement of the ENERGY STAR®
qualification.
Select [Home], the unit is set to maximize the energy efficiency for
home setting and it can be adjusted through a choice of picture
and sound quality according to your preference.
[
], then press OK
Press Í or Æ to select [Start
K to begin [Settings assistant].
Settings assistant will allow you to customize your picture settings to
your personal preference. You will see a series of test pictures where
the right side and left side differ. Select the side that is most pleasing to
you with the Left/Right buttons.
Cancel
Start
EN
LC8(P&F)_master draft_EN_v1.indd 11
11
2010/01/18 17:35:56
5 Use your TV
Switching channels
This section helps you perform basic TV operations.
Switching your TV on or to standby
To switch on
• Press . POWER at the side of the TV or press . (Standby-On)
on the remote control.
To switch to standby
• Press . POWER at the side of the TV or press . (Standby-On)
on the remote control again.
Press CHANNEL + / − on the side of the TV. For digital channels, press
a number (1 to 999) followed by a dot “.” and then the corresponding
sub channel number (1 to 999). e.g. 108.30.
• Press CH + / − or enter a number on the remote control.
• Press PREV. CH to return to the previously viewed channel.
Note
• Energy consumption contributes to air and water pollution. When the AC power
cord is plugged in, your TV consumes energy. Your TV has a very low standby power
consumption.
12
EN
LC8(P&F)_master draft_EN_v1.indd 12
2010/01/18 17:36:01
Watching channels from a set-top box
To watch channels from a set-top box
1
Switch on the set-top box.
» The picture from your set-top box might appear automatically
on the TV screen.
English
Adjusting volume
2
Use the remote control of your set-top box to select channels.
If the picture does not appear
1
2
Press SOURCE repeatedly to select the set-top box and wait a
few seconds for the picture to appear.
Use the remote control of your set-top box to select channels.
Watching connected devices
To watch connected devices
1
To increase or decrease volume
• Press VOL + / − on the remote control or press VOLUME + / − on
the side of the TV.
To mute or unmute sound
• Press MUTE on the remote control to mute the sound.
• Press MUTE again or VOL + / − to recover the original sound.
Switch on the connected device.
» The picture from your connected device might appear
automatically on the TV screen.
2
Use the remote control of the device to select channels.
If the picture does not appear
1
2
Press SOURCE repeatedly to select the connected device and wait
a few seconds for the picture to appear.
Use the remote control of the device to select channels.
Watching a Blu-ray Disc
To watch a Blu-ray Disc
1
2
Insert a Blu-ray Disc into your player.
Press ►(play) on the remote control of the Blu-ray Disc player to
select channels.
» The Blu-ray Disc might automatically play on the TV.
If the picture does not appear
1
2
Press SOURCE repeatedly to select the Blu-ray Disc player and
wait a few seconds for the picture to appear.
Use the remote control of the Blu-ray Disc player to play the disc.
EN
LC8(P&F)_master draft_EN_v1.indd 13
13
2010/01/18 17:36:03
6 Use more of your TV
Lock or unlock your device from the home menu
This section describes how to lock or unlock specified device.
1
2
3
4
Access TV menus
Menus help you to install channels, change picture and sound settings
then access other features.
Access the home menu
5
The home menu gives you easy access to connected devices, picture
and sound settings as well as other useful features.
Press MENU on the remote control.
Use Î / ï / Í / Æ to select a device to lock or unlock.
Press OPTIONS on the remote control.
Use Î or ï to select [[Device lockk] or [[Device unlockk], then press OK.
• If device lock is unlocked, [Device lock]
k will be displayed.
If device lock is locked, [Device unlock]
k will be displayed.
• When device lock is locked,
will be displayed at the top right
of the device icons.
Enter your PIN (see ‘Setting your PIN’ on page 19).
• Once you have set PIN, PIN input menu does not appear after
the unit is turned on.
Enable or disable RC key forwarding from the home menu
This section describes how to RC key forwarding is enable or disable
specified device.
1
1
2
Press MENU on the remote control.
3
4
Watch TV
Browse USB
Add new devices
Setup
Press MENU on the remote control.
Use Î / ï /Í / Æ to select a device to enable or disable
RC key forwarding.
Press OPTIONS on the remote control.
Use Î or ï to select [Enable RC key forwarding] or [[Disable RC
key forwarding], then press OK.
• If RC key forwarding is set to off, [Enable RC key forwardingg] will
be displayed. If RC key forwarding is set to on, [ Disable RC
key forwarding] will be displayed.
• When you set RC key forwarding on, will be displayed at the
top left of the device icons.
Note
• This function is available only when your devices are connected to this unit through
2
3
4
HDMI cables and assigned them from HDMI1 to HDMI4 with [Add new devices] in
the home menu.
Use Î / ï / Í / Æ to select and navigate through one of the
following menus.
• [Watch TV] Switches back to the antenna source if another
source is selected.
• [Browse USB] Accesses USB menus.
• [Add new devices] Adds new devices to the home menu.
• [ Setup] Accesses menus that allow you to change picture,
sound and other TV settings.
Press OK to confirm your choice.
Press MENU to exit.
Tip
• After selecting [Add new devices], follow the on-screen instructions to select the
correct device and connector.
14
EN
LC8(P&F)_master draft_EN_v1.indd 14
2010/01/18 17:36:04
You must set [Home] in [ Location] (refer to page 23).
Otherwise, the settings you adjusted will not be memorized after you
turn off the unit.
Setting items
Active control
Description
Off
Sets Active control to off.
On with
Light
Sensor
Adjusts backlight for the best picture quality by
incoming the video signal and accordance with
lighting condition in the room.
English
Changing picture and sound settings
On without
Adjusts backlight for the best picture quality by
Light
incoming the video signal.
Sensor
Changing picture settings
Automatic
Super zoom
4:3
Picture format
Movie
expand 14:9 Refer to ‘Summary of picture formats’ on
page 16.
Movie
expand 16:9
1
2
Press MENU on the remote control.
Wide
screen
Use Î / ï / Í / Æ to select [Setup] > [ Picture].
Unscaled
Settings assistant
Start now
Mode selection
Contrast
Sound
Features
Installation
Software update
3
4
Color
Clock
Setting to stabilize the PC screen.
Tint
Phase
Setting to improve the clarity of the PC screen.
Sharpness
Horizontal shift
Adjusts the horizontal position of the picture
for PC screen.
Vertical shift
Adjusts the vertical position of the picture for
PC screen.
Color temperature
Cool
Dynamic contrast
Off
Description
Settings assistant
Use [Settings assistant] to guide you through
the best picture and sound settings.
Contrast
Adjusts the intensity of bright areas, keeping
dark areas unchanged.
Brightness
Adjusts the intensity and details of dark areas.
Color
Adjusts color intensity.
Tint
Adjusts the color balance in an image.
Sharpness
Noise
reduction
MPEG artifact
reduction
Color
enhancement
Configures HDTV for corrective respond on
this TV.
The horizontal / vertical position, clock and
phase of the PC screen are automatically
adjusted.
Setting items
Digital Natural
Motion
HDTV
Auto adjustment
Adjust the picture quality.
The following picture settings can be configured. Depending on
the format of the picture source, some picture settings are not
available.
Dynamic
contrast
Configures PC for corrective respond on this TV.
Brightness
Use Î / ï / Í / Æ to select one of the picture settings, and press OK
to enter the setting.
Color
temperature
PC
5
Press MENU to exit.
Note
• [Mode selection] will not be displayed when incoming signals are other than
720 x 480p @60Hz, 1280 x 720p @60Hz and 1920 x 1080p @24 / 30 / 60Hz.
Adjusts the level of sharpness in image details.
Cool
More blue tones.
Normal
Standard tones.
Warm
More orange tones.
Off
Sets Dynamic contrast to off.
On
Automatically enhances contrast in an image.
Off
Sets Digital Natural Motion to off.
Minimum
Makes an image smoother.
Maximum
Makes an image smoothest.
Off
Sets Noise reduction to off.
On
Reduces noise in an image.
Off
Sets MPEG artifact reduction to off.
On
Reduces a blockiness and a blurriness and
judder by digital filter.
Off
Sets Color enhancement to off.
On
Makes colors more vivid bright colors.
EN
LC8(P&F)_master draft_EN_v1.indd 15
15
2010/01/18 17:36:08
Changing picture format
1
2
For 4:3 (480i, 480p) video signal
Press FORMAT on the remote control.
[Automatic]
[Super zoom]
[Wide screen]
[4:3]
[Movie expand 16:9]
[Movie expand 14:9]
Use Î or ï to select a picture format and press OK to confirm
your choice.
Summary of picture formats
Display modes can be selected when the broadcasting station is sending
16:9 or 4:3 video signal. And 3 types of display modes can be selected
for PC input signal.
For 16:9 (480i, 480p, 720p) video signal / 4:3 (720p) video signal
[4:3]
[Automatic]
Automatic
Enlarges the picture automatically to best fit the screen. The
subtitles remain visible.
Super zoom
Display a 4:3 picture at a 16:9 size; the picture is stretched
horizontally and vertically and its left and right edges are enlarged.
This crops out the top and bottom of the picture.
[Wide screen]
Automatic
Enlarges the picture automatically to best fit the screen. The
subtitles remain visible.
4:3
Display a 16:9 picture at a 4:3 size; the picture is shortened
horizontally. Sidebars appear on both edges of the screen.
Wide screen
Display a picture that is stretched horizontally and vertically.
For 16:9 (1080i, 1080p) video signal / 4:3 (1080i, 1080p) video signal
4:3
Display a 4:3 picture at its original size. Sidebars appear on both
edges of the screen.
Movie expand 14:9
Display a 4:3 picture at a 14:9 size; the picture is stretched
horizontally and vertically. This crops out the top and bottom of the
picture. Sidebars appear on both edges of the screen.
Movie expand 16:9
Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally
and vertically.This crops out the top and bottom of the picture.
Wide screen
Display a picture that is stretched out of proportion to fill the screen.
For PC input signal
[Automatic]
[4:3]
[4:3]
[Unscaled]
[Wide screen]
Automatic
Enlarges the picture automatically to best fit the screen. The
subtitles remain visible.
4:3
Display a 16:9 picture at a 4:3 size; the picture is shortened
horizontally. Sidebars appear on both edges of the screen.
16
[Wide screen]
[Unscaled]
4:3
Display a proportionately stretched picture. Sidebars appear on
both edges of the screen.
Wide screen
Display a picture that is stretched horizontally and vertically.
Wide screen
Display a picture that is stretched out of proportion to fill the
screen.
Unscaled
Display a 16:9 picture at its original size.
Unscaled
Display a picture in its original size.
EN
LC8(P&F)_master draft_EN_v1.indd 16
2010/01/18 17:36:09
Setting items
Use a VGA connector to connect a PC to your TV. For sound, add an
audio cable with a stereo mini jack.
SRS
TruSurround HD On
Off
Caution
• Before you connect your PC, set the PC monitor refresh rate to 60Hz.
AVL (Auto
Volume Leveling) On
Supported screen resolutions
The following screen resolutions are supported in PC mode :
Resolution
Refresh rate
640×480
60Hz
800×600
60Hz
1024×768
60Hz
1280×768
60Hz
1360×768
60Hz
1440×900
60Hz
1280×1024
60Hz
1400×1050
60Hz
1680×1050
60Hz
1920×1080
60Hz
4
Equalizer
Features
Installation
Sets AVL to off.
Reduces sudden changes in volume, for example,
during commercials or when switching channels.
The sound will not be output from the unit's
speakers.
On
The sound will be output from the unit's
speakers.
Speakers
EasyLink
You can control audio output from your
connected EasyLink Compliant Devices with
VOL + / − by using this unit's remote control.
Navigate to that channel
or input device and
Too Loud set a negative delta
volume level as per your
If a channel
personal preferences.
or input
Navigate to that channel
device is:
or input device and
Too Soft set a positive delta
volume level as per your
personal preferences.
Press MENU to exit.
• [Master EasyLink]
k must be activated in the [Preferences] menu to make the
[TV Speakers] menu available when you select [On] or [Speakers EasyLink]
k.
Start now
Balance
Sound
Selects available modes for surround sound.
Note
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Sound].
TV speakers
Sets SRS TruSurround HD to off.
Off
Delta volume
Changing sound settings
1
Description
Off
English
Using your TV as a PC monitor
SRS TruSurround HD
Off
AVL
Off
TV speakers
On
Using auto mode
1
2
Delta volume
Press AUTO MODE to set your TV to a predefined picture and
sound setting.
Use Î or ï to select one of the following settings :
• [Personal] : The customized settings you defined by using
the [Picture] menu.
• [Sports] : Vivid picture settings and clear sound for high action.
• [Standard] : For normal TV viewing.
• [Movie] : Brilliant picture settings for a cinematic experience.
• [Game] : Optimized for PCs, games consoles and playstations.
• [Power Saver] : Eco TV settings for lower power consumption.
Software update
2
3
Use Î / ï / Í / Æ to highlight a sound setting and then press OK to
select the setting.
Create and use lists of favorite channels
Adjust the following items.
You can create lists of your preferred TV channels and radio stations so
that you can find those channels easily.
The following sound settings can be configured. Depending on the
sound source, some sound settings are not available.
Select a list of favorite channels
Setting items
Description
Equalizer
Adjust tone quality for each frequency.
Balance
Adjusts the balance of the right and left
speakers to best suit your listening position.
Digital audio language
Available for digital channels only, when
multiple languages are broadcast. Lists available
audio languages.
Main
Available for analog channels only when a main
and second audio program (SAP) is broadcast.
Select the main audio program.
SAP
Available for analog channels only when a main
and second audio program (SAP) is broadcast.
Select the second audio program.
Mono
Outputs mono-audio.
Stereo
Outputs stereo-audio.
Alternate audio
Mono / Stereo
1
Press FAV on the remote control.
» Your lists of favorite channels are displayed.
2
Use Î or ï to highlight a list, and then press OK to select the list.
EN
LC8(P&F)_master draft_EN_v1.indd 17
17
2010/01/18 17:36:11
Create or edit a list of favorite channels
Setting the time manually
1
1
2
3
4
5
6
Press FAV
V on the remote control to display your lists of favorite
channels.
Use Î or ï to highlight a list, and then press OK to select the list.
Press OPTIONS to enter edit mode.
» A list of channels is shown.
Use Î or ï to highlight a channel.
Press OK to select or deselect the highlighted channel.
» The channel is added to or removed from the list of favorite
channels.
Press MENU to exit.
Switch to one of the channels on a list
1
2
3
Press OK on the remote control to display the last list that you
selected.
Use Î or ï to highlight a channel.
Press OK to select the channel.
» The TV switches to that channel.
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Installation] > [Clock]
k > [Auto clock mode].
2
3
Select [Manual], and then press OK to confirm your choice.
Use Î or ï to select [Time] and then press OK to set the time.
[ ]/ [PM] for morning or afternoon.
Use the format HH:MM. Select [AM
4
5
6
7
8
Press BACK to confirm your choice.
Use Î or ï and then press OK to enter the menu for [Day].
Use Î or ï to select the day.
Press OK to confirm your choice.
Press MENU to exit.
Closed caption
Closed captioning is an assistive technology that allows persons with
hearing disabilities to access television programming. Closed captioning
displays the audio portion of programming as text superimposed over
the video.
Note
Tip
• Press CH + / - to select channels in a list or press the numeric keys to select channels
• Closed caption will not be displayed when you are using an HDMI connection.
• The captions do not always use correct spelling and grammar.
Not all TV programs and product commercials include closed caption information. Refer to
your area TV program listings for the TV channels and times of closed caption shows. The
captioned programs are usually noted in the TV listings with service marks such as [CC].
that are not in a list.
Setting the clock
Display captions
You can set the time on your TV.
1
Press MENU on the remote control and then use Î / ï / Í/ Æ to select
[Setup] > [Features] > [Caption settings] > [Closed captions].
Setting the time automatically
2
Some digital channels transmit the time. For these channels, you can set
the time automatically and choose which channel to read the time from.
Press Î or ï to select [On], [Off]
f or [On during mute], and press
OK to confirm your choice.
3
1
2
3
4
5
6
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Installation] > [Clock]
k > [Auto clock mode].
Select [Automatic] and then press OK to confirm your choice.
Select the channel from which the TV reads the time.
• Use Î or ï and then press OK to enter the menu for
[[Auto clock channel].
• Use Î or ï to highlight a channel.
• Press OK to confirm your choice.
DTV
Selecting DTV caption services
1
Press MENU to exit.
•
2
Press MENU to exit.
You can choose the size, font, color, background and other
characteristics of the caption text.
3
LC8(P&F)_master draft_EN_v1.indd 18
Select one of these before changing any other item
in [Caption settings] menu. Choose [CS-1] under
normal circumstances.
Selecting how captions are displayed
2
EN
Press MENU on the remote control and then use Î / ï / Í / Æ
to select [Setup] > [Features] > [Caption settings] > [Digital
caption service].
Use Î or ï to select one of the listed caption services, and
then press OK to confirm your choice.
CS-1 to CS-6
1
18
Select a caption service for digital channels :
•
(Optional) Select the time zone.
• Use Î or ï and then press OK to enter the menu for
[Time zone].
• Use Î or ï to highlight the time zone.
• Press OK to confirm your choice.
(Optional) Set daylight saving.
• Use Î or ï and then press OK to enter the menu for
[Daylight saving].
• Use Î or ï to highlight [Automatic] or [Off]
f.
• Press OK to confirm your choice.
Press MENU to exit.
4
Press MENU on the remote control and then use Î / ï / Í/ Æ to select
[Setup] > [Features] > [Caption settings] > [Digital caption options].
Use Î or ï to highlight an option for digital captions, and press
OK to select the option.
Use Î or ï to highlight a setting for the option, and press OK to
confirm your choice.
Press MENU to exit.
2010/01/18 17:36:12
•
•
•
If you have difficulties viewing closed captions on DTV programming, including
HDTV, received from your subscription television provider, you should :
•
•
•
consult any consumer information and manuals / guides on closed
captions for DTV programming provided by your subscription
television provider;
ensure that the captioning function on your set-top box, if
applicable, is turned on; and,
ensure that the captioning function on your DTV is turned on.
If you are still unable to view closed captions on DTV programming, you
should contact your subscription television provider for assistance.
TV
Selecting caption services
1
•
Press MENU on the remote control and then use Î / ï / Í / Æ
to select [Setup] > [Features] > [Caption settings] >
[Caption service].
Use Î or ï to select one of the listed caption services, and
press OK to confirm your choice.
Press MENU to exit.
Note
• Not all caption services are used by a TV channel during the transmission of a closed
caption program.
Summary of caption services
Service
Description
CC-1 and T-1;
are the primary caption and text services.
The captioning or text is displayed in the same
language as the program’s dialogue
(up to 4 lines of script on the TV screen, where it
does not obstruct relevant parts of the picture).
CC-3 and T-3;
serve as the preferred data channels.
The captioning or text is often a secondary language.
CC-2, CC-4, T-2 are rarely available and broadcasters use them only
in special conditions, such as when [CC-1] and
and T-4;
[CC-3] or [T-1] and [T-3] are not available.
• There are 3 display modes according to programs :
Paint-on mode :
Displays input characters on the TV screen
immediately.
Pop-on mode :
Once characters are stored in memory, they are
displayed all at once.
Roll-up mode :
Displays the characters continuously by scrolling
(max. 4 lines).
Sleeptimer
Sleeptimer switches the TV to standby after a pre-defined period of time.
You can always switch off your TV earlier or reset the sleeptimer during
the countdown.
1
2
Tip
To Cancel the Sleep Timer
• Press SLEEP or Í or Æ repeatedly until “0” is displayed on the TV screen.
Child and rating locks
You can prevent your children from watching certain programs or
certain channels by locking the TV controls and by using ratings.
Select a caption service for analog channels :
•
2
Each press of SLEEP or Æ will increase the time by 5 minutes.
Each press of Í will decrease the time by 5 minutes.
After setup, the sleep timer display can be called up for
checking by pressing SLEEP.
English
Difficulties viewing closed captions on DTV programming
Press SLEEP to set the sleeptimer.
(Also, you can set the sleeptimer in [Features] menu.)
Use SLEEP or Í or Æ repeatedly to change the amount of time
until shut off.
You can set your unit to turn off after a set period of time (from 0 to
180 minutes).
LC8(P&F)_master draft_EN_v1.indd 19
Setting your PIN
1
2
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Features] > [Child lock]
k.
Enter a 4-digit PIN on the Number buttons, of the remote control.
•
If you have not set up your PIN, enter [0 ], [ 0 ], [ 0], [ 0].
Changing your PIN
1
2
3
4
5
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Features] > [Change PIN].
Enter a 4-digit PIN on the Number buttons of the remote control.
• If you have a PIN, enter your current PIN.
• If you do not have a PIN, enter [ 0], [0 ], [0 ], [ 0].
• If you have forgotten your PIN, enter [0 ], [7 ], [1], [1].
Enter your new PIN.
Enter your PIN again to confirm.
Press MENU to exit.
Lock the TV
This section describes how to lock all channels on the TV. At the
specified time, screen is blanked out and the audio is muted.
1
2
3
4
5
6
7
8
Ensure that the clock is set with the current time (see ‘Setting the
clock’ on page 18).
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Features] > [Child lock]
k.
Enter your PIN (see ‘Setting your PIN’ on page 19).
Use Î or ï to select [Lock after], then press OK.
Press OK to select [Timer].
Use Î or ï to select [On] and activate the [Lock after] feature.
Select [Off]
f to deactivate the feature.
Press OK to confirm your choice.
Use Î or ï to select [Time] and then press OK
K to set the time.
Use the format HH:MM, and select [AM] / [PM] for morning or
afternoon.
9 Press BACK to confirm the time.
10 Press MENU to exit.
11 Turn the TV off and on again.
EN
19
2010/01/18 17:36:13
Locking a channel
Lock after
P All
All
Channel Lock
P None
TV ratings lock
P TV-Y
Enter your PIN (see ‘Setting your PIN’ on page 19).
Movie ratings lock
P TV-Y7
Use Î or ï to select [Channel Lock]
k , then press OK.
Canada English rati...
P TV-G
Canada French ratin...
P TV-PG
This section describes how to lock specified channels. The channels can
be selected but the screen is blanked out and the audio is muted.
1
2
3
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Features] > [Child lock]
k.
Caption settings
Lock
Lo
ck aft
aafter
fter
ft
er
Sleeptimer
Channel Lock
•
Select
Child lock
TV ratings lock
•
Select
Change PIN
Movie ratings lock
•
Select
Demo
Canada English ratings l... •
Select
Canada French ratings l...
Select
Timer
•
•
•
4
5
Use Î or ï and then press OK repeatedly to switch between
locked and not locked. Each rating has a box-graphic in front of it
to indicate whether it is locked:
•
•
A box with x indicates that the channel is locked.
An empty box indicates that the channel is not locked.
Press MENU to exit.
Using the TV ratings lock
Your TV is equipped with a V-chip that allows you to control access to
individual programs based on their age rating and content rating. The
program content advisory data are sent by the broadcaster or by the
program provider.
If you receive channels through a set-top box or cable box connected
by HDMI, you cannot use the TV ratings lock. Your set-top box or cable
box must be connected through RF or AV connectors.
1
2
3
4
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Features] > [Child lock]
k.
Enter your PIN (see ‘Setting your PIN’ on page 19).
Use Î or ï to select [TV ratings lock]
k , then press OK.
Use Î or ï or Í or Æ and then press OK repeatedly to switch
between locked and not locked.
Each rating has a box-graphic in front of it to indicate whether it is
locked:
• A box with x indicates that all items in the content ratings list
are locked.
• An empty box indicates that no items in the content ratings
list are locked.
• A box with / indicates that some items in the content ratings
are already locked and some items remain not locked.
P TV-14
P TV-MA
•
•
•
5
When you select [All], all items in the ratings list are locked.
When you select [None], programs with no rating and
programs with a rating of none are locked.
When you lock a rating, all ratings in the younger age
categories are automatically locked.
Press MENU to exit.
Summary of TV ratings
Age rating
Content rating
All
None
TV-Y:
None
None
None
Appropriate for children of all ages with
themes and elements suitable for children
aged 2-6.
TV-Y7: Programs designed for children age 7 and
older.
TV-G: Programs suitable for all ages. These
programs contain little or no violence, no
strong language and little or no sexual
dialog or situations.
TV-PG: Programs contain elements that some
parents may find unsuitable for younger
children and which may need parental
guidance. The program may contain
moderate violence, sexual dialog and / or
situations and some strong language.
TV-14: Programs contain elements that may not
be suitable for children under 14 years of
age. These programs include one or more
of the following : intense violence, intense
sexual situations, suggestive dialog and
strong language.
TV-MA: Programs are designed to be viewed by
adults and may be unsuitable for children
under the age of 17. These programs
may contain graphical violence, explicit
sexual activity and / or crude or indecent
language.
[Fantasy Violence]
None
[Dialog]
[Language]
[Sex]
[Violence]
[Dialog]
[Language]
[Sex]
[Violence]
[Language]
[Sex]
[Violence]
Note
• The V-Chip can block non rated programs as per "CEA-608-E sec. L.3". If the option to
block [None], [NR], [E] or [E] programs is used in [TV ratings lock]
k , [Movie ratings lock]
k,
[Canada English ratings lock]
k or [Canada French ratings lock]
k accordingly “unusual results
may occur, and the unit may not receive emergency bulletins or other types of
programming:” ∙ Emergency Bulletins (Such as EAS messages, weather warnings and others) ∙
Locally originated programming ∙ News ∙ Political ∙ Public Service Announcements ∙
Religious ∙ Sports ∙ Weather.
20
EN
LC8(P&F)_master draft_EN_v1.indd 20
2010/01/18 17:36:13
Summary of Canada English ratings lock
You can control viewing of movies based on their MPAA (Motion
Picture Association of America) rating.
Rating
Description
All
E
C
All items in the ratings list are locked.
Exempt program.
Programming suitable for children under the age of
8 years. No profanity or sexual content of any level
allowed. Minimal comedic violence.
Suitable for children ages 8 and over. Low intensity
violence and fantasy horror allowed.
Movies with a mild content, suitable for all ages.
Movies for which parental guidance is recommended.
They may contain a few racy or violent scenes or
maybe some bad language.
Programming intended for children ages 14 and over.
May contain intense scenes of violence, strong profanity,
and depictions of sexual activity within the context of
a story.
Programming intended for viewers ages 18 and over.
May contain strong violence, language, and sexual
activity.
1
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Features] > [Child lock]
k.
2
3
Enter your PIN (see ‘Setting your PIN’ on page 19).
Select one of the menus for movie ratings lock.
• In the USA, select [Movie ratings lock]
k.
• In Canada, select [Canada English ratings lock]
k or
[Canada French ratings lock]
k.
The following screen shows the ratings in [Movie ratings lock]
k.
Caption settings
Lock after
P All
All
Sleeptimer
Channel Lock
P NR
Child lock
TV ratings lock
PG
Change PIN
Movie ratings lock
P PG
Demo
Canada English ratings l... P PG-13
Canada French ratings l... P R
P NC-17
PX
4
5
Use Î or ï and then press OK repeatedly to switch between
locked and not locked. Each rating has a box-graphic in front of it
to indicate whether it is locked:
• A box with x indicates that all items in the rating are locked.
• An empty box indicates that no items in the rating are not locked.
• When you select [All], all items in the ratings list are locked.
G
PG
14+
18+
Summary of Canada French ratings lock
Rating
Description
All
E
G
All items in the ratings list are locked.
Exempt program.
Appropriate for all ages with little or no violence and
little to no sexual content.
Appropriate for children 8 and up which may contain
little violence, some foul language and / or little to no
sexual content.
Appropriate for children 13 and up, with moderate
violence, language, and some sexual situations. Persons
under 13 should be accompanied by an adult.
Appropriate for children 16 and up, with strong
violence, strong language, and strong sexual content.
Only to be viewed by adults and contains extreme
violence and graphic sexual content / pornography.
8ans+
13ans+
Press MENU to exit.
Summary of Movie ratings lock
Rating
Description
All
NR
G
PG
All items in the ratings list are locked.
Not rated.
Movies with a mild content, suitable for all ages.
Movies for which parental guidance is recommended.
They may contain a few racy or violent scenes or
maybe some bad language.
Movies for which parental guidance may be
recommended if under age 13.
Restricted. The movies usually contain offensive sex or
bad language and may be unsuitable for children under
the age of 17. Parental guidance or permission needed.
Even with parental permission, forbidden under age 17.
More offensive sex, violence or bad language.
Movies which generally focus on sex, violence and / or
bad language. Also known as pornography.
PG-13
R
NC-17
X
C8+
16ans+
18ans+
Note
• The V-Chip can block non rated programs as per "CEA-608-E sec. L.3". If the option to
block [None], [NR], [E] or [E] programs is used in [TV ratings lock]
k , [Movie ratings lock]
k,
[Canada English ratings lock]
k or [Canada French ratings lock]
k accordingly “unusual results
may occur, and the unit may not receive emergency bulletins or other types of
programming:” ∙ Emergency Bulletins (Such as EAS messages, weather warnings and others) ∙
Locally originated programming ∙ News ∙ Political ∙ Public Service Announcements ∙
Religious ∙ Sports ∙ Weather.
Use the region ratings lock
You can control access to digital programs based on downloaded region
ratings. Before you download a ratings table, ensure that regional ratings
are broadcast.
1
2
3
4
5
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Features] > [Child lock]
k.
Enter your PIN (see ‘Setting your PIN’ on page 19).
Use Î or ï to select [Region ratings lock]
k , then press OK.
Use Î or ï and then press OK repeatedly to switch between
locked and not locked. Each rating has a box-graphic in front of it
to indicate whether it is locked:
• A box with x indicates that the rating locked.
• An empty box indicates that the rating is not locked.
Press MENU to exit.
EN
LC8(P&F)_master draft_EN_v1.indd 21
English
Using the movie ratings lock
21
2010/01/18 17:36:14
Use the demo mode
EasyLink
You can use demonstrations to better understand the features of your TV.
This function allows you to operate the linked functions between our
brand devices with a EasyLink feature and this unit connecting through
an HDMI cable.
1
2
3
4
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [ Setup] > [ Features] > [ Demo]. Also, you can enter the
demo mode when you press DEMO .
1
Use Î or ï to highlight a demo, and press OK to start the demo.
Follow the on-screen instructions to enjoy the demo.
Press MENU to exit.
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Installation] > [Preferences] > [EasyLink]
k.
Location
Master
EasyLink
Mast
Ma
ster
st
er Eas
Eas
asyL
y in
yL
inkk
EasyLink
Auto TV On
•
On
RC Key forwarding
•
Select
Device List
•
Select
Use Philips EasyLink
Your TV supports Philips EasyLink, which enables one-touch play and
one-touch standby between EasyLink-compliant devices. Compliant
devices must be connected via an HDMI connector.
One-touch play
When you connect your TV to devices that support one-touch play,
you can control your TV and the devices with one remote control. For
example, when you press ►(play) on your DVD remote control, your
TV automatically switches to the correct channel to show the DVD
content.
One-touch standby
When you connect your TV to devices that support standby, you can
use your TV remote control to put your TV and all connected HDMI
devices in standby mode. You can perform one-touch standby using the
remote control from any of the connected HDMI devices.
•
•
•
•
2
3
Disable all EasyLink.
On
Select if you have connected an external device that
is compatible with the EasyLink function.
Use Î or ï to select the desired option, then press OK.
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [ Setup] > [ Installation] > [ Preferences] > [EasyLink]
k >
[ Master EasyLink]
k.
Off
The unit stays off even if you turn on your connected
EasyLink device.
On
The unit turns on automatically when you turn on
your connected EasyLink device.
[RC Key forwarding]
Use Î or ï to select the desired option, then press OK.
Select enable or disable RC key forwarding if this
HDMI1 to HDMI4 unit connected through HDMI1 to HDMI4 to your
EasyLink devices.
Use Î or ï to select [ On].
Note
[Device List]
This function lets you see the product name of connected devices.
Use Î or ï to select the desired HDMI device listed on the TV
screen, then press OK.
• Select [Off ] to disable this function.
• Philips does not guarantee 100% interoperability with all HDMI CEC devices.
• The EasyLink-compliant device must be switched on and selected as the source.
22
Off
[Auto TV On]
The unit will turn on detected by the power on signal sending from
your device.
Activate Master EasyLink
[Master EasyLink]
k must be activated in the [Preferences] menu to
make the [TV Speakers] menu available in the [Sound] menu.
Adjust the following items.
Use Î or ï to select the desired option, then press OK.
Remote control (RC) key forwarding
RC key forwarding allows you to control EasyLink-compliant devices
using your TV remote control.
2
Use Î or ï to highlight the desired setting and then press OK to
select the setting.
[Master EasyLink]
k
Set the EasyLink [On] or [Off]
f.
The following additional settings will disappear when you set to [Off]
f.
System audio control
When you connect your TV to HDMI CEC compliant devices, your
TV can switch automatically to play audio from the connected device.
To use one-touch audio, you must map the audio input from the
connected device to your TV.
You can use the remote control from the connected device to adjust
the volume.
1
On
4
Press MENU to exit.
EN
LC8(P&F)_master draft_EN_v1.indd 22
2010/01/18 17:36:15
You can set the location of your TV to [Home] or [Retail store].
Choosing [Home] gives you full flexibility to change predefined settings for
picture and sound.
1
2
3
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Installation] > [Preferences] > [Location].
Connect a USB storage device
1
2
3
Select [Home] and then press OK to confirm your choice.
Press MENU to exit.
Turn on the TV.
English
Set your location to home
Connect the USB storage device to the USB port on the side of
your TV.
Use Î / ï / Í / Æ to select [Browse USB].
• Press OPTIONS to display the optional menu, then press OK
to switch between [List] and [Thumbnails].
Pict
Pi
ctur
uree
Note
2009/09/08
2009/09/09
• You must set [Home]. Otherwise, the settings of picture and sound quality you adjusted
Music
will not be memorized after you turn off the unit.
2009/09/10
2009/09/11
View photos and play music on a USB storage device
Caution
• This unit accepts the USB flash memory only. The other storage devices such as external
HDD by USB bus power will not work.
• Philips is not responsible if the USB storage device is not supported nor is it responsible
for damage or loss of data from the device.
Your TV is fitted with a USB connection that enables you to view
photos or listen to music stored on a USB storage device.
Supported formats
MP3
JPEG
FAT / DOS-formatted memory
devices
Disconnect a USB storage device
Caution
Not-supported formats
File name exceeding 256 characters
Progressive JPEG files
File names containing a dot character
It is recommended that files to be played back in this unit are
recorded under the following specifications:
<MP3>
• Sampling frequency
: 32 kHz or 44.1 kHz or 48 kHz
• Constant bit rate
: 32 kbps - 320 kbps
<JPEG>
• Upper limit
: 16 Mpixel
To avoid damaging the USB storage device always exit the on-screen menu and wait 5
seconds before you remove the USB storage device.
1
2
Press MENU to exit the on-screen menu.
Wait 5 seconds then remove the USB storage device.
Note
• A maximum of 1,023 folders or files can be recognized.
• Philips can not be held responsible if your USB storage device is not supported, nor will
Philips accept any liability for damage or loss of stored data.
• The USB storage device is not supplied with the TV.
EN
LC8(P&F)_master draft_EN_v1.indd 23
23
2010/01/18 17:36:16
View your picture on a USB storage device
Listen to music on a USB storage device
1
2
1
2
In the USB content browser, use Î/ ï to select [Picture].
Press Î or ï to select a file or a folder on the USB storage device.
Pict
Pi
ctur
ct
ure0
ur
e001
e0
01.jjpg
In the USB content browser, use Î / ï to select [Music].
Press Î or ï to select a file or a folder on the USB storage device.
Track1.mp3
Trac
Tr
ack1
ac
k1.m
.mp3
mp3
p
Music
Track2.mp3
Music
02/02/2009 11:29 AM
2031 x 1434 pixels
3
Press OK or 1 F to start a slideshow of the files.
• Press OK or 1 F to pause the slide show.
» The F icon appears.
•
•
•
Press E or D to move between images.
Press BACK or C to stop the slide show.
Press OPTIONS to display the optional menu, then use Î or
ï to select the desired item.
Setting items
Slide time *
1
Transitions *
1
Description
Short
Switches to the next image in 5 seconds.
Medium
Switches to the next image in 10 seconds.
Long
Switches to the next image in 15 seconds.
None
No effect when switching images.
Dissolve
Overlaps a next image on a current image.
Wipe right
Pushes a current image out from left.
Wipe left
Pushes a current image out from right.
Wipe up
Pushes a current image out from bottom.
Wipe down Pushes a current image out from top.
Rotate *2
Zoom *2
Box in
A next image comes into the center from out.
Box out
A next image goes to the out from center.
0
Displays an image at its original direction.
90
Rotates an image clockwise by 90 degrees.
180
Rotates an image clockwise 180 degrees.
270
Rotates an image clockwise 270 degrees.
1x
Displays an image at its original size.
2x
Magnifies a current image as twice.
4x
Magnifies a current image as fourfold.
Title:
...
Artist:
...
Album:
...
Duration: 00:03:41
Year:
3
Press OK or 1 F to play the selected files.
• Press OK or 1 F to pause, press OK or 1 F again to resume.
• Press D to skip up the next file.
• Press E to skip down the previous file.
• Press C to stop playback.
• Press OPTIONS to display the optional menu, then use Î or
ï to select the desired item.
Setting items
Repeat
Shuffle
TV speakers
Description
Off
Sets repeat playback to off.
On
Sets repeat playback for all MP3 files in the
current folder.
Off
Sets shuffle playback to off.
On
Sets shuffle playback for all MP3 files in the
current folder.
Off
The sound will not be output from the unit's
speakers.
On
The sound will be output from the unit's
speakers.
Speakers
EasyLink
You can control audio output from your
connected EasyLink Compliant Devices with
VOL + / − by using this unit's remote control.
Note
• [Master EasyLink]
k must be activated in the [Preferences] menu to make the
[TV Speakers] menu available when you select [On] or [Speakers EasyLink]
k.
* You can set [Slide time] and [Transitions] when images are in Slide show.
*2 You can set [Rotate] and [Zoom] when Slide show is in pause mode.
1
24
EN
LC8(P&F)_master draft_EN_v1.indd 24
2010/01/18 17:36:18
7 Install channels
The first time you set up your TV, you are prompted to select a menu
language and to install TV and digital radio channels (if available). This
chapter provides instructions on how to reinstall and fine-tune channels.
1
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Installation] > [Language].
Sound
This function lets you add the channels that were not added by the
autoprogram due to the receptible condition at the initial setup.
1
2
3
4
Selecting your menu language
Language
Engl
En
g issh
gl
English
Channels
Français
Preferences
Español
5
Press MENU on the remote control and then use Î/ ï/ Í/ Æ to select
[Setup] > [Installation] > [Channels] > [[Weak channel Installation].
Use Í or Æ to select channel input box, then use Î or ï to select
a channel you want to memorize.
Use Í or Æ to select [Search], then press OK.
Display will be changed to [Store] from [Search] when the channel
is found, then press OK.
Press MENU to exit.
Note
• In most cases, digital channels are not broadcast on the RF channel on which they
appear on your TV. To add digital channels you need to know the RF channel on which
the digital channel is being broadcast. E.g. If there is a digital channel 9.1 which is being
broadcast on RF channel 25, you need to enter 25 while performing a weak channel
installation. To find out the RF channel on which a particular digital channel is being
broadcast, please contact your local service provider.
Installing digital channels using [Weak channel installation] might not work for direct
cable connections and if the digital signal is too weak for the TV to process.
Clock
Features
English
Weak channel installation
Reset AV settings
Installation
2
3
Software update
Installation mode
Select a language and then press OK to confirm your choice.
1
Press MENU to exit.
2
3
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Installation] > [Channels] > [Installation mode].
Use Î or ï to select, then press OK.
Press MENU to exit.
Autoprogram
If you switch wires (e.g., between antenna and CATV) or if you move
the unit to a different area after the initial setting, you will need to
perform autoprogram.
1
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Installation] > [Channels] > [Autoprogram] >
[Start now].
System searching. Please wait...
Digital channels found:
Analog channels found:
0
0
Auto programming may take more than
20 minutes to complete.
Stop
2
Press OK to start the installation.
Uninstall channels
Those channels can still be selected with the Number buttons.
1
2
3
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Installation] > [Uninstall channels].
Use Î or ï to select the channel you want to remove, then press OK.
• You will not be able to select the channel again using CH + / −.
• To reactivate a removed channel, use Î or ï and then press OK.
Press MENU to exit.
Return your settings to default values
When you return picture and sound settings to their default values the
channel installation settings are not affected.
1
2
3
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Installation] > [Reset AV settings] > [Start now].
Press OK to reset the picture and sound settings.
Press MENU to exit.
If you run [Autoprogram] when you have locked channels, a
message appears asking to enter your PIN . Enter your PIN in order
to complete the installation.
3
If you have forgotten your PIN, reset it as described in ‘Changing
your PIN’ on page 19.
• When autoprogramming is complete, the lowest memorized
channel will be displayed.
Follow the on-screen instructions to complete the installation.
EN
LC8(P&F)_master draft_EN_v1.indd 25
25
2010/01/18 17:36:20
8 Update your TV software
Updating software
You can update the software by using USB storage device.
Philips continuously tries to improve its products and we strongly
recommend that you update the TV software when updates are available.
New software can be downloaded from our website at
www.philips.com using the type number of your TV
(e.g. 55PFL5505D) to find information.
1
2
If the TV is on, press . POWER at the side of the TV to switch off
the TV.
Connect your USB storage device with the update file to the USB
port on the side of your TV.
Checking your current software version
1
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Software update] > [Current software info] >
[Select].
» The version and a description of the current software is displayed.
Current software info
XXXXX
Updates
Sound
Features
3
4
5
6
7
Installation
Switch on the TV.
Press MENU on the remote control and then use Î / ï / Í / Æ to
select [Setup] > [Software update] > [Updates] > [USB].
Use Î or ï to select the desired Update file.
Use Î or ï to select [Yes], then press OK.
Read the on-screen instructions and confirm that you want to
continue with the installation.
Software update is in progress. Please wait.
Do not remove the USB storage device or
turn the TV off while upgrade is in progress.
Software update
2
Press MENU to exit.
Update your TV with new software:
Preparing for the software update
You require the following equipment :
•
•
•
A PC with web browsing capability.
An archive utility that supports the ZIP-format
(e.g. WinZip for Windows or StuffIt for Mac OS).
A USB storage device.
Note
• Only FAT / DOS-formatted portable memory is supported.
• New software can be downloaded from www.philips.com
• Use only software updates that can be found on the Philips web site.
Warning
• When the software update is running, don’t press any buttons.
• Do not remove the USB storage device during the software update.
• If an error occurs during the update, retry the procedure or contact your dealer.
8
9
When the software update is complete, remove the USB storage
device.
Unplug the AC power cord for a few seconds from AC outlet and
plug it again.
10 Switch on the TV.
» The TV starts up with the new software.
•
The following messages are displayed without starting software
update when it doesn’t fulfill the update conditions.
Select a file
No valid software file on the USB. Chec
Downloading the software
1
2
3
4
26
On your PC, open a web browser and go to www.philips.com
Find information and software related to your TV and download
the latest software update file to your PC.
Decompress the ZIP-file.
Copy the update file to the root directory of the USB storage device.
Error
OK
EN
LC8(P&F)_master draft_EN_v1.indd 26
2010/01/18 17:36:21
English
9 Connect devices
This section describes how to connect various devices with different
connectors and supplements examples provided in the Quick Start.
Connection overview
e
f
g
SERVICE
ONLY
PC-IN
RGB
SERVICE
ONLY
PC-IN
RGB
h
*
a
i
AC IN
j
b
k
c
d
a PC input jack
VGA cable connection for PC.
h HDMI 2 input jack
Second HDMI in connector.
b digital audio output jack
Digital audio output to home theaters and other digital audio
systems.
i HDMI 1 input jack
First HDMI in connector.
c component 1 video and audio input jack
Video input from analog devices such as DVD, receiver, game
console, etc. This connector is used with audio input.
d antenna input jack
Signal input from an antenna, cable or satellite.
e USB terminal
Data input from USB storage devices only. Do not connect any
device to this terminal such as; digital camera, keyboard, mouse, etc.
f HDMI 4 input jack
Digital audio and video input from high definition digital devices
such as Blu-ray players.
g HDMI 3 input jack
Third HDMI in connector.
j audio input jack for HDMI 1 and PC
k component 2 video / composite video and audio input jack
Video input from analog devices such as DVD, receiver, game
console, etc. This connector is used with audio input.
*service only
For use by service personnel only.
Caution
• Disconnect the AC power cord before connecting devices.
Note
• Different types of connectors may be used to connect a device to your TV, depending
on availability and your needs.
EN
LC8(P&F)_master draft_EN_v1.indd 27
27
2010/01/18 17:36:23
Selecting your connection quality
HDMI - Highest quality
Supports high-definition signals and gives highest picture and sound
quality. Video and audio signals are combined in one cable. You must use
HDMI for full high-definition video and to enable Philips EasyLink.
Note
• Philips HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP is
a form of Digital Rights Management that protects high definition content in DVD or
Blu-ray Discs.
Component (Y Pb Pr) - High quality
Component video cable (red / green / blue) and
audio L/R cable (red / white)
Supports high-definition signals but gives lower picture quality than HDMI.
Component cables combine a red / green / blue video cable with a
red / white audio L/R cable. Match the cable colors when you connect
to the TV.
Composite - Basic quality
Composite video / audio cable (yellow / red / white)
For analog connections. Composite cables usually combine a yellow
video cable with a red / white audio L/R cable. Note that this unit's
composite video input jack is shared with a green one which is one of
component 2 video input jack, you must use it when you connect your
device via composite video cable (yellow jack goes to green jack). Other
than composite video cable, match the audio cable colors when you
connect to the TV.
28
EN
LC8(P&F)_master draft_EN_v1.indd 28
2010/01/18 17:36:24
Connecting your devices
English
Connecting a set-top box, DVD player / recorder via
component video connectors (YPbPr) and analog audio
This section describes how to connect a selection of devices with
different connectors. Different types of connectors can be used to
connect a device to your TV. The following sections describe examples
only, other configurations are possible.
Connecting a set-top box, Blu-ray Disc player and
HD game console via HDMI
OUT
Set-top box
orr
OUT
HDMI
Set-top box
IN
OUT
DVD player / recorder
IN
IN
HDMI
OUT
YPbPr
IN
Blu-ray Disc player
AUDIO L/R
IN
OUT
Note
HDMI
• When you connect cables, match the cable colors to the connectors on the TV.
HD game console
Connecting a set-top box, DVD recorder via composite
connectors and analog audio
Connecting a DVD player / recorder via HDMI-DVI and
analog audio
AUDIO L/R
+ VIDEO
OUT
IN
DVD recorder
IN
HDMI
DMI 1 IN only
only
AUDIO
IN
DVI OUT
DVD player / recorder
OUT
RF IN
CABLE
CABL
AUDIO
OUT
RF OUT
Set-top box
RF IN
Do not place your recorder too close to the screen because some
recorders can be susceptible to signals.
Note
• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to
stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.
• When you connect cables, match the cable colors to the connectors on the TV.
EN
LC8(P&F)_master draft_EN_v1.indd 29
29
2010/01/18 17:36:25
Connecting a set-top box via a composite connector and
analog audio
Connecting a PC
If you connect a PC with a VGA connector at the back.
AUDIO
IN
AUDIO
OUT
IN
AUDIO L/R + VIDEO
VGA
IN
PC
CABLE
CABL
RF IN
OUT
OUT
RF OUT
Set-top box
RF IN
If you connect a PC with a HDMI-DVI connector.
Note
• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to
stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.
• When you connect cables, match the cable colors to the connectors on the TV.
Connecting a digital home theater amplifier and
digital audio
H DM 1 IN
HDMI
N only
on
nly
DVI OUT
AUDIO
IN
AUDIO
OUT
PC
If you connect a PC with an HDMI connector.
OUT
DIGITAL AUDIO
IN
digital home theater amplifier
For legal reasons, the digital audio signal can be muted for
copy-protected PCM audio qualities on accessory devices connected
through HDMI.
30
IN
OUT
HDMI
PC
EN
LC8(P&F)_master draft_EN_v1.indd 30
2010/01/18 17:36:27
English
Add devices
After connecting devices, assign the device attached to each connector.
This allows you to easily identify devices connected to your TV.
1
2
3
4
5
Press MENU on the remote control and then use Î / ï /Í / Æ to
select [Add new devices].
Use Í or Æ to select [Start], then press OK.
Use Î or ï to select a device and press OK.
Use Î or ï to select the connector your device is connected to
and press OK.
If there is video and audio output, press OK.
Repeat the procedure until all devices are correctly assigned to connectors.
Remove devices
If a device is no longer connected to the TV, remove it from the home
menu.
1
2
3
4
5
Press MENU on the remote control.
Use Î / ï /Í / Æ to select a device to remove.
Press OPTIONS.
Use Î or ï to select [Remove device], then press OK.
Use Í or Æ to select [OK], then press OK.
EN
LC8(P&F)_master draft_EN_v1.indd 31
31
2010/01/18 17:36:30
10 Troubleshooting
Problem
Possible cause and solution
No power or
indicator light.
The TV is not connected to the power.
Press . POWER at the side of the TV or on the remote
control.
Ensure that the AC power cord is connected tightly to the
TV power connector and to the power socket outlet.
Remove the AC power cord from the power socket
outlet, wait 60 seconds and reconnect the AC power cord.
Connect the TV to a different power socket outlet.
No picture or
sound is detected
from the device
using HDMI 1-4
input jack.
No sound is
detected from the
PC using PC input
jack.
HDCP authentication fail.
Ensure that your HDMI cable is certified.
Press SOURCE on the remote control to switch to
another source and then switch back to the HDMI source.
Reset the accessory device and the TV.
Turn on the TV.
Select the HDMI channel.
Turn on the accessory device.
While the TV and the accessory device are powered on,
unplug either end of the HDMI cable and then reinsert
the cable.
An audio cable is not connected.
Connect an audio cable to the PC / HDMI 1 AUDIO IN
port on the TV.
Press SOURCE on the remote control, and select the PC
source.
No picture or
An incorrect HDMI port is connected or an audio cable is
sound is detected not connected.
from the PC using Connect a HDMI-DVI cable to the HDMI 1 port on the TV.
HDMI 1 input jack.
Connect an audio cable to the PC / HDMI 1 AUDIO IN
port on the TV.
Press SOURCE on the remote control, and select the
HDMI 1 source.
TV does not
respond to the
remote control.
Batteries are installed incorrectly, or low battery power.
Ensure that you are using the TV remote control.
Ensure that the batteries are inserted correctly and do not
need to be replaced.
Remove the AC power cord from the power socket
outlet, wait 60 seconds and reconnect the AC power cord.
The picture is
distorted, stretched
out, or has black
bars on the side
or top.
Broadcast video format.
Press FORMAT on the remote control to select the best
picture format.
For some accessory devices, the picture format must be
set in the accessory device.
The picture is
mostly red and
green, or the
picture misses red
when connected to
an accessory device
via component
cables.
Insecure / incorrect connection.
Ensure all the connections are made according to the
color code.
Push the component cables all the way into the YPbPr
sockets on the TV.
No picture or
sound.
No picture or sound - ensure you have selected the
correct channel.
Incomplete channel installation.
If the TV receives channels via an AV connection, set the
TV to the correct source input.
If the TV is connected directly to the wall via a coaxial
connection, perform the autoprogram again.
No sound on the
TV loudspeaker.
Volume level is set to zero - increase the volume.
Sound is muted - press MUTE on the remote control.
Audio cable is not connected - for AV connection, ensure
that the Audio L/R cable is connected as described in
Connecting your devices (see ‘Connecting your devices’
on page 29). If you use a component cable, ensure that you
have not crossed the red audio cable with the red video cable.
32
No sound on the
TV loudspeaker.
Audio output setting for the accessory device is incorrect.
For HDMI connections, some accessory devices have an
HDMI audio output setting that must be turned on for
HDMI to HDMI connections.
Check if [Sound] > [TV Speakers] > [Off]
f is set to [On].
No sound will be output when [TV Speakers] is set to [Off]
f.
Bad picture quality
with a coaxial
connection.
Standard definition channels are not as clear as high
definition channels - connect the devices via component
or HDMI cables.
Cannot control
your TV and
connected devices
with one remote
control.
Confirm that the connected devices are EasyLink
compliant and are connected to your TV via an HDMI
cable. Not all brands of devices such as Blu-ray Disc
players use the same system as Philips EasyLink. Other
brands might not work with Philips EasyLink.
Downloading an electronic copy
To obtain an electronic copy of this manual :
1
2
3
4
5
Point your browser to www.philips.com/support
Choose your country of location.
Enter the model number or a keyword in the “Find your product”
field. Alternatively, you can browse the catalogue.
Click the description or model.
Under Product support, click “User manuals”.
Contact us
If you cannot resolve your problem, refer to the FAQ for this TV at
www.philips.com/support
If the problem remains unresolved, contact the Customer Support
Center in your country.
Warning
• Do not attempt to repair the TV yourself. This may cause severe injury, irreparable
damage to your TV or void your warranty.
Note
• Please have available your TV model and serial number before contacting us. These
numbers are available on the back and side of your TV, as well as on the packaging.
EN
LC8(P&F)_master draft_EN_v1.indd 32
2010/01/18 17:36:30
Power
Power requirements :
English
11 Product information
120V~ AC +/− 10%, 60Hz +/− 0.5%
Note
• Product information is subject to change without prior notice.
Picture enhancement
Type :
1080p 120Hz
Aspect Ratio :
16:9
Viewing Angles :
178° (V) by 178° (H)
Built-in digital tuner :
ATSC / QAM
Sound enhancement
Mono / Stereo :
Mono, Stereo, SRS
Power output
(RMS Watts) :
20 W
Equalizer :
5 band
Ease of use
Video modes :
Automatic, 4:3, Movie Expand 14:9,
Movie Expand 16:9, Super Zoom,
Wide Screen, Unscaled
PC input :
via VGA, HDMI
Photo Slide Shown :
Yes (jpeg files only)
MP3 Playback :
Yes (mp3 files only)
Connections
Component video
input with audio L/R :
2, supporting video signals :
480i/p, 720p, [email protected], 1080p @24 / 30 / 60Hz
Composite (shared
terminal with Y of
components) video
input with audio L/R :
1
HDMI :
4
HDMI supporting video signals : 480i/p, 720p,
1080i @60Hz, 1080p @24 / 30 / 60Hz
PC input: up to 1920 x 1080 @60Hz
3.5mm stereo miniplug 1
shared use for HDMI 1
and PC input :
PC input :
1
up to 1920 x 1080 @60Hz
Digital audio output :
1, supporting Dolby Digital and PCM
USB :
1
EN
LC8(P&F)_master draft_EN_v1.indd 33
33
2010/01/18 17:36:31
12 Warranty
LIMITED WARRANTY
ONE (1) YEAR
WARRANTY COVERAGE:
This warranty obligation is limited to the terms as set forth
below.
WHO IS COVERED:
This product warranty is issued to the original purchaser or the
person receiving the product as a gift against defects in materials
and workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
This warranty covers new products if a defect in material or
workmanship occurs and a valid claim is received within the
Warranty Period. At its option, the company will either (1)
repair the product at no charge, using new or refurbished
replacement parts, or (2) exchange the product with a product
that is new or which has been manufactured from new, or serviceable used parts and is at least functionally equivalent or most
comparable to the original product in current inventory, or (3)
refund the original purchase price of the product.
Replacement products or parts provided under this warranty are
covered against defects in materials and workmanship from the
date of the replacement or repair for ninety (90) days or for the
remaining portion of the original product’s warranty, whichever
provides longer coverage for you. When a product or part is
exchanged, any replacement item becomes your property and the
replaced item becomes company property. When a refund is
given, your product becomes company property.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all requirements
can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:
This Limited Warranty applies only to new company manufactured products that can be identified by the trademark, trade
name, or logo affixed to it. This Limited Warranty does not apply
to any hardware product or any software, even if packaged or
sold with the product, as manufacturers, suppliers, or publishers
may provide a separate warranty for their own products packaged with the bundled product.
The company is not liable for any damage to or loss of any programs, data, or other information stored on any media contained
within the product, or other additional product or part not covered by this warranty. Recovery or reinstallation of programs,
data or other information is not covered under this Limited
Warranty.
or a part that has been modified without written company permission, or (d) if any serial number has been removed or defaced,
or (e) product, accessories or consumables sold “AS IS” without
warranty of any kind by including refurbished product sold “AS
IS” by some retailers.
This Limited Warranty does not cover:
• Shipping charges to return defective product.
• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or
repair of antenna/signal source systems outside of the product.
• Product repair and/or part replacement because of improper
installation or maintenance, connections to improper voltage
supply, power line surge, lightning damage, retained images or
screen markings resulting from viewing fixed stationary content for extended periods, product cosmetic appearance items
due to normal wear and tear, unauthorized repair or other
cause not within the control of the company.
• Damage or claims for products not being available for use, or
for lost data or lost software.
• Damage from mishandled shipments or transit accidents when
returning product.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for which
it was designed, manufactured, approved and/or authorized, or
repair of products damaged by these modifications.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Product lost in shipment and no signature verification receipt
can be provided.
• Failure to operate per Owner’s Manual.
TO OBTAIN ASSISTANCE…
Contact the Customer Care Center at:
1-866-309-0841
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ON THIS PRODUCT IS LIMITED IN DURATION TO THE
DURATION OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how long an
implied warranty lasts, so the above limitations or exclusions may
not apply to you.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, neglect, misapplication, or non-supplied product,
(b) to damage caused by service performed by anyone other than
company approved Authorized Service Location, (c) to a product
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
P&F USA, Inc. PO Box 430 Daleville, IN 47334-0430
061708
34
EN
LC8(P&F)_master draft_EN_v1.indd 34
2010/01/18 17:36:31
A
Antenna, connect
Audio
Audio Setting
Auto mode
Auto TV on
Auto volume leveling
P
9
17
17
17
22
17
C
Cables
component
composite
connection quality
HDMI
Manage cables
YPbPr
Channels
install
lockk
Child lock
Channel lock
PIN
ratings lockk
Clockk
Closed caption
Connection
Customer support service
D
Device List
Device lockk
E
EasyLinkk
ENERGY STAR®
Environmental care
Equalizerr
F
FAV
V
H
Home mode
L
Location (Retail or Home mode)
M
Master EasyLinkk
28
28
28
28
10
28
25
20
20
19
19, 20, 21
18
18, 19
9, 27, 29
5
22
14
22
4, 11
5
17
17, 18
11, 23
11, 23
PC
Picture format
Picture settings
Product information
R
Ratings
Remote control
insert batteries
overview
Retail store mode
RC key forwarding
S
Settings assistant
Side controls
Signal quality
Sleeptimerr
Software
update
version
Sound settings
Speakers EasyLinkk
Standby
Stand mount the TV
V
15
16
15
33
19, 20, 21
8
6, 7
11, 23
14, 22
11, 15
6
28
19
26
26
17
17, 24
6, 12
8
T
Troubleshooting
TV
as PC monitorr
connections
controls
menu
position
remote control
screen care
software
switch channels
switch on
TV Speakers
U
USB
32
16, 17, 30
9, 27, 29
6, 7
14
8
6, 7, 8
5
26
12
11, 12
17
23, 24
V
Volume
adjust
Auto Volume Leveling
mute
13
17
13
W
22
Warranty
34
Y
YPbPrr
28
EN
LC8(P&F)_master draft_EN_v1.indd 35
English
13 Index
35
2010/01/18 17:36:32
P&F USA, Inc.
PO Box 430 Daleville, IN 47334-0430
P&F Mexicana, S.A. de C.V.
Av. La Palma No. 6, Col. San Fernando La Herradura,
Huixquilucan Edo. de México
C.P. 52787
TELEVISOR A COLOR DE CRISTAL LIQUIDO (LCD)
MODELO
LCD
IMAGEN VISIBLE
ENERGIA
55PFL5505D/ F7
55”(139,70cm)
138,78cm
120V ~ 60Hz 305W
46PFL5505D/ F7
46”(116,84cm)
116,81cm
120V ~ 60Hz 262W
40PFL5505D/ F7
40”(101,60cm)
101,60cm
120V ~ 60Hz 205W
Comercializado por :
P&F MEXICANA, S.A. DE C.V.
IMPORTADOR :
SOJITZ MEXICANA, S.A. DE C.V.
Av. Paseo de las Palmas No. 239-302
Col. Lomas de Chapultepec, C.P. 11000
México, D.F. Tel. 52 (55) 5202 - 7222
EXPORTADOR :
FUNAI ELECTRIC CO. L.T.D.
ENSAMBLADO EN :
MEXICO
GARANTIA INCLUIDA EN EL INSTRUCTIVO DE USO
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
Philips and Philips Shield are used under license of
Koninklijke Philips Electronics NV.
Printed in USA
A01R5UF / A01Q5UF / A01P5UF
1EMN26019A ★★★★
