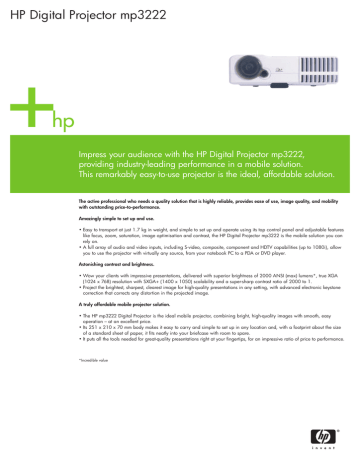

HP Digital Projector mp3222

HP Digital Projector mp3222
HP Digital Projector mp3222
Impress your audience with the HP Digital Projector mp3222,
providing industry-leading performance in a mobile solution.
This remarkably easy-to-use projector is the ideal, affordable solution.
The active professional who needs a quality solution that is highly reliable, provides ease of use, image quality, and mobility
with outstanding price-to-performance.
Amazingly simple to set up and use.
• Easy to transport at just 1.7 kg in weight, and simple to set up and operate using its top control panel and adjustable features
like focus, zoom, saturation, image optimisation and contrast, the HP Digital Projector mp3222 is the mobile solution you can
rely on.
• A full array of audio and video inputs, including S-video, composite, component and HDTV capabilities (up to 1080i), allow
you to use the projector with virtually any source, from your notebook PC to a PDA or DVD player.
Astonishing contrast and brightness.
• Wow your clients with impressive presentations, delivered with superior brightness of 2000 ANSI (max) lumens*, true XGA
(1024 x 768) resolution with SXGA+ (1400 x 1050) scalability and a super-sharp contrast ratio of 2000 to 1.
• Project the brightest, sharpest, clearest image for high-quality presentations in any setting, with advanced electronic keystone
correction that corrects any distortion in the projected image.
A truly affordable mobile projector solution.
• The HP mp3222 Digital Projector is the ideal mobile projector, combining bright, high-quality images with smooth, easy
operation – at an excellent price.
• Its 251 x 210 x 70 mm body makes it easy to carry and simple to set up in any location and, with a footprint about the size
of a standard sheet of paper, it fits neatly into your briefcase with room to spare.
• It puts all the tools needed for great-quality presentations right at your fingertips, for an impressive ratio of price to performance.
*Incredible value
Technical specifications
Ordering information
Brightness
2000 ANSI lumens (peak)
Display resolution
1024 x 768 True XGA
Resolutions supported through scaling
Native XGA (1024 x 768) – scales up from VGA (640 x 480) and scales down from SXGA+ (1400 x 1050)
Dimensions (w x d x h)
Out of package: 251 x 210 x 70 mm, packaged: 434 x 431 x 178 mm
Weight
Out of package: 1.7 kg, packaged: 6.35 kg
Images technology
DLP projection system (0.7 in 12° DDR DMD); DDP 2000 image processor (TI DLP); 5 segments colour wheel (RGBWY)
Image contrast
2000:1 full on/full off
Noise level
Normal operation: 37dB(A) under 25˚ C, 35 dB(A) in lamp saver mode, peak: 37 dB(A) peak under 25˚ C
Colour
24-Bits, 16.7 million colours
White point coordinates: 0.273 < x < 0.333; 0.311 < y < 0.371
Uniformity
Greater than 75% typical
Lens
Non-telecentric, 2.4~2.65; manual zoom; manual focus
Projection size
0.62 to 7.4 m (diagonal)
Throw distance
Approximately 1.2 to 12 m
Display scan frequency
Horizontal frequency: 15-100 kHz, vertical frequency: 43-85 Hz
Offset
115% of image above centre line
Keystoning
Vertical: ± 16° (32° total) typical
Advanced electronic keystone correction
Computer compatibility
SXGA+, SXGA, XGA+, XGA, SVGA, VGA, Mac, Mac LC 13 inch, Mac II 13 inch, Mac 16 inch, Mac 19 inch, Mac G4, iMac DV
User interface
Power, page up/down, mouse, menu, sync, source
Lamp out – red; temperature warning – red; power – blue
User-friendly multilingual On Screen Display (OSD)
8-button panel: power, enter/menu, up arrow, down arrow, left arrow, right arrow, Image optimisation select, LED indicators
Certifications
Safety certifications cULus, TUV-GS, CCC, EN60950, PSB, NOM, B-mark, GOST, FDA DHHS, SHOAN, EMI/EMC certifications,
FCC Part 15 Class B, EN55022: 1998, EN55024: 1998, VCCI, MIC, C-Tick
Adjustable features
Focus, Zoom, Image optimisation, Economy mode, Saturation, Brightness, Sharpness, Contrast, Source
Audio
1 watt mono internal speaker
Video compatibility
S-video, composite, component capability (HDTV – up to 1080i), analogue RGB
Power requirements
Universal 100 to 240 VAC, 50/60 Hz
Power consumption
250 watts maximum
Lamp
200-watt compact P-VIP projector bulb; 2000 hours life.
Operating environment
Environmental ranges: operating temperature: 5 to 35˚ C, recommended operating temperature: 5 to 35˚ C,
operating humidity: 80% RH (5 to 35° C, max, non-condensing), recommended operating humidity: 80% RH, (max) non-condensing,
storage temperature: -20 to 60° C, storage humidity: 80% RH (- 20 to 60˚ C, max, non-condensing)
Mounting capability
Ceiling, tripod mounting
Warranty
One-year pick-up and return for Europe, Middle East and Africa. 90 day standard bulb warranty.
L1742B
HP Digital Projector mp3222,
power cord (3 m), VGA cable,
USB cable, remote control, remote
control battery, carry case,
documentation kit, including Quick
Setup Card, CD-ROM with User’s
Guide, Important Safety Information
booklet, Worldwide Limited Warranty
and Technical Support booklet,
Program License Agreement
Cables
L1706A
HP USB Cable – 4.9 m
L1622A
Carry Case Deluxe
Combo mp3130
Cases
Digital Imaging Accessories
L1703A
HP Ceiling Mount
L1586A
Wireless (IR) Smart Remote
L1633A
Screen Mobile 60"
L1646A
Gyration RF Remote Control
L1671A
Screen Presenter 50"
L1720A
HP mp3222 Lamp Module
http://www.hp.com
For more information, please call your local HP sales office or representative: Austria: 0800 242 242, Algeria: (0)61 56 45 43, Bahrain: 800 728, Belgium: (078) 15 20 30 (0.0496 EUR/min), Bulgaria: (+359) 2960 1940,
Croatia: (+385 1) 60 60 200, Czech Republic: (00 420 2) 261 108 108 (Prague), Denmark: 48 12 10 00, Egypt: 532 5222, Estonia: (+372) 6813 823, Finland: (+358) 0205350 or 0205 350, France: (1) 69 82 6060,
Germany: 0180 532 6222 (12 Cent/min), Greece: (01) 678 96 00, Hungary: (+36) 1 382-1111, Iceland: (354) 570 1000, Ireland: + 353 1 6158200, Israel: (972) 9 8304848, Italy: (02) 92121, Kazakhstan:
+7 (3272) 980 824, Latvia: (371) 800 80 12, Lithuania: 8 800 10000 or 8 5 2103333, Luxembourg: (+352) 263 160 34, Middle East: 00971 4 883 4427, Morocco (African Region): +212 22 40 47 47,
Netherlands: (020) 5476666, Norway: 22 735600, Poland: infolinia: 0-800 122 622, Portugal: (808) 206 001, Romania: (+401) 205 3300, Russia: +7 (095) 797 35 00, Saudi Arabia: 800 124 4646,
Serbia/Montenegro: +381 11 201 99 00, Slovakia: +421-2-50222111, Slovenia: +3861 2307 420, South Africa: 0800 118 883, Spain: (91) 634 88 00, Sweden: (08) 444 2000, Switzerland: 0848 88 44 66,
Tunisia: 71 891 222, Turkey: +90 (216) 579 71 71, UAE: 8004910, UK: 08705 474747, Ukraine: +380 44 490 61 20.
©2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP Products and services
are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions contained herein.
Published in EMEA 08/04 5982-7318EEE
