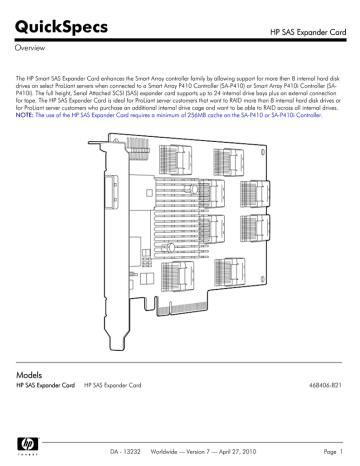

QuickSpecs
HP SAS Expander Card
Overview
The HP Smart SAS Expander Card enhances the Smart Array controller family by allowing support for more then 8 internal hard disk
drives on select ProLiant servers when connected to a Smart Array P410 Controller (SA-P410) or Smart Array P410i Controller (SAP410i). The full height, Serial Attached SCSI (SAS) expander card supports up to 24 internal drive bays plus an external connection
for tape. The HP SAS Expander Card is ideal for ProLiant server customers that want to RAID more than 8 internal hard disk drives or
for ProLiant server customers who purchase an additional internal drive cage and want to be able to RAID across all internal drives.
NOTE: The use of the HP SAS Expander Card requires a minimum of 256MB cache on the SA-P410 or SA-P410i Controller.
Models
HP SAS Expander Card
HP SAS Expander Card
DA - 13232
468406-B21
Worldwide — Version 7 — April 27, 2010
Page 1
QuickSpecs
HP SAS Expander Card
Standard Features
The Smart Array
Advantage
HP's innovative design and integration work of the Smart Array family of products, including the HP SAS
Expander Card connected to a SA-P410 or SA-P410i Controller creates customer value that is
unmatched in the industry. Use of Smart Array products across multiple applications results in a much
lower Total Cost of Ownership (TCO) than any other server storage RAID product. The HP Smart Array
family brings an unparalleled return on investment through:
Data Compatibility among all models of Smart Array controllers allows simple and easy upgrades any
time needs for higher performance, capacity, and availability increase. Even successive generations of
Smart Array controllers understand the data format of other Smart Array Controllers.
Consistent Configuration and Management Tools.
Tools All Smart Array products utilize a standard set of
management and utility software. These tools minimize Total Cost of Ownership (TCO) by reducing
training requirements and technical expertise necessary to install and maintain the HP server storage.
Universal Hard Drive form factor is for use across multiple HP servers, disk enclosures and storage
systems. With compatibility across many enterprise platforms, you are free to deploy and re-deploy these
drives to quickly deliver increased storage capacity, migrate data between systems, and easily manage
spare drives.
Pre-Failure Warranty means HP Insight Manager not only reports when a drive is going to fail but allows
replacement of failing drives prior to actual failure. For complete details, consult the HP Support Center
or refer to your HP Server documentation.
Smart Array Advanced Pack (SAAP) delivers value added software features with the Smart Array
Controller, which will further enhance performance, reliability, and availability of customer data.
NOTE: For more information on features and benefits of Smart Array Controllers please visit:
www.hp.com/products/smartarray
Key Features
6 Gb/s SAS technology delivers high performance and data bandwidth up to 600 MB/s per
physical link and contains full compatibility with 3.0Gb/s SAS technology and 1.5 and
3.0Gb/sSATA technology. Mix-and-match SAS and SATA hard drives, lets you deploy drive
technology as needed to fit your computing environment.
Supports up to 24 internal drive bays plus an external connection for tape (supports 3 drive
backplanes with each holding 8 drive bays)
Management Features
Upgradeable firmware via HP firmware CD or http://www.hp.com/cgi-bin/hpsupport/index.pl
Ports
24 internal drive bays plus external port for tape
8 Mini SAS 4i ports
2 Mini SAS 4i ports intended for attachment to the Smart Array controller (e.g. P410 or P410i)
6 Gb/s Gbps SAS bandwidth = 4800 MB/s
6 Mini SAS 4i ports intended for attachment to server drive backplanes
Supports up to 24 drive bays (3 drive backplanes with each holding 8 drive bays)
1 Mini SAS 4x port
Intended for attachment to a SAS tape drive, autoloader, or library
6Gb/s SAS bandwidth = 2400 MB/s
DA - 13232
Worldwide — Version 7 — April 27, 2010
Page 2
QuickSpecs
HP SAS Expander Card
Standard Features
Performance
HP's High Performance Architecture sets new boundaries of industry performance expectations!
6Gb/s SAS (600MB/s bandwidth per physical link) 3.0Gb/s SATA (300MB/s bandwidth per
physical link)
Capacity
Given the increasing need for high performance and rapid capacity expansion, the SAS Expander Card
and the SA-P410 or SAP410i Controller offers:
Up to 14TB of total storage with 14 x 1TB 3.5" SATA MDL HDD
Up to of 7.2 TB total storage with 24 x 300GB 6Gb/s SAS 10K SFF DP ENT HDD
Fault Recovery
The HP SAS Expander Card helps to minimize downtime.
Recovery ROM: This feature protects the user from a firmware image corruption by storing a
redundant copy of the firmware image. If the active firmware image becomes corrupt, the
controller will use the redundant firmware image and continue operating.
DA - 13232
Worldwide — Version 7 — April 27, 2010
Page 3
QuickSpecs
HP SAS Expander Card
Compatibility
Server Compatibility
ProLiant DL (rack-optimized):
(rack-optimized)
HP ProLiant DL370 G6
HP ProLiant DL380 G6
HP ProLiant DL380 G7
HP ProLiant DL385 G5p
HP ProLiant DL385 G6
HP ProLiant DL385 G7
HP ProLiant DL580 G5
HP ProLiant DL785 G5
HP ProLiant DL785 G6
ProLiant ML (expansion-optimized):
(expansion-optimized)
HP ProLiant ML350 G6
HP ProLiant ML370 G6
NOTE: Customer needs to order 8" Mini SAS to Mini SAS cables (496012-B21) when connecting the
Smart Array P410 Controller to a SAS Expander Card in a G6 server or ProLiant DL385 G5p. The 8"
Mini Sas To Mini SAS cables are not needed when connected the Smart Array P410i Controller to a SAS
Expander Card in a G6 server or ProLiant DL385 G5p.
Operating Systems
Microsoft Windows 2003 x64 Edition
Microsoft Windows 2003 x86 Edition
Microsoft Windows 2008 Server x64
Microsoft Windows 2008 Server x86
Microsoft Window Vista Enterprise
Novell Open Enterprise Server, NetWare 6.5
Oracle Enterprise Linux (OEL)
Red Hat Enterprise Linux 4, 5 (x64 & x86)
SUSE Linux Enterprise Server 9 (x64 & x86)
SUSE Linux Enterprise Server 10 (x64 & x86)
SUSE Linux Enterprise Server 11 (x64 & x86)
VMWare
UnixWare
NOTE: For more Linux OS support & certification information, please visit our the ProLiant &
BladeSystem Server Linux matrix: http://h71028.www7.hp.com/enterprise/cache/321146-0-0-0121.html
DA - 13232
Worldwide — Version 7 — April 27, 2010
Page 4
QuickSpecs
HP SAS Expander Card
Service and Support, HP Care Pack, and Warranty Information
Warranty
The warranty for this device is 3-years parts only.
Software Product Services Standalone telephone support
Rights to new license version
Media and documentation updates
Hardware Product
Services
Installation services
On-site maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
NOTE: For additional hardware installation and maintenance information, please refer to the URL:
http://www.hp.com/hps/hardware/
Warranty Upgrade
Options
Response - Upgrade on-site response from next business day to same day 4 hours
Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days
Duration - Select duration of coverage for a period of 1, 3, or 5 years
Warranty upgrade options can come in the form of Care Packs, which are sold at the HP System level
this product attaches too.
HP Care Pack Information HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific
duration and hours of coverage. Care Packs for this option is sold at the system level this option attaches
too.
HP Care Pack is not available for less than the product's warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but the
commencement date will be the same as the Warranty Start Date (delivery date to end user customer).
Proof of purchase may be required.
HP Care Pack services are prepaid.
NOTE: For additional HP Care Pack (hardware & software) information, as well as orderable part
numbers, please refer to the URL: http://www.hp.com/hps/carepack/
DA - 13232
Worldwide — Version 7 — April 27, 2010
Page 5
QuickSpecs
HP SAS Expander Card
Related Options
NOTE: This is a list of supported options. Some may be discontinued.
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller,
HP Hard Drives
firmware, and the server backplane) should operate at the same data transfer rate or
the system bandwidth will be negotiated down to an acceptable level for all
components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 300GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 3G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 6G SAS 15K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 3G SAS 15K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 3G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 3G SAS 10K SFF SP HDD
HP 72GB 6G SAS 15K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 72GB 3G SAS 15K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 72GB 3G SAS 15K SFF SP HDD
HP 72GB 3G SAS 10K SFF DP ENT HDD
HP 72GB 3G SAS 10K SFF SP HDD
HP 36GB 3G SAS 15K SFF DP ENT HDD
HP 36GB 3G SAS 15K SFF SP HDD
SAS Non-Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 300GB 6G SAS 10K SFF (2.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 146GB 6G SAS 10K SFF (2.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 72GB 6G SAS 15K SFF (2.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard Drive
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 450GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 450GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 400GB 3G SAS 10K 3.5" DP ENT HDD
HP 300GB 3G SAS 15K 3.5" SP HDD
HP 300GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 3G SAS 15K 3.5" SP HDD
HP 146GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 72GB 3G SAS 15K 3.5" SP HDD
HP 72GB 3G SAS 15K 3.5" DP ENT HDD
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
DA - 13232
Worldwide — Version 7 — April 27, 2010
507127-B21
492620-B21
512547-B21
504062-B21
507125-B21
418367-B21
431958-B21
512545-B21
418371-B21
431935-B21
384842-B21
375861-B21
418369-B21
431933-B21
537809-B21
537807-B21
537805-B21
516828-B21
516816-B21
454232-B21
459508-B21
431944-B21
516814-B21
416127-B21
375872-B21
384854-B21
375870-B21
384852-B21
Page 6
QuickSpecs
HP SAS Expander Card
Related Options
HP 600GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 450GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 450GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 400GB 3G SAS NHP 10K 3.5" DP ENT HDD
HP 300GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 300GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
516830-B21
HP 300GB 3G SAS 15K NHP 3.5" SP HDD
HP 146GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 146GB 3G SAS 15K NHP 3.5" SP HDD
HP 72GB 3G SAS 15K NHP 3.5" SP HDD
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 6G SAS 7.2K rpm SFF (2.5inch) Midline 1yr Warranty Hard Drive
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
HP 1TB 3G SAS 7.2K rpm LFF(3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
HP 750GB 3G SAS 7.2K rpm LFF(3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
SATA Non-Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard Drive
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard Drive
HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
431950-B21
417855-B21
DA - 13232
Worldwide — Version 7 — April 27, 2010
516826-B21
454234-B21
508232-B21
516824-B21
417950-B21
432093-B21
432095-B21
507610-B21
507616-B21
507614-B21
461137-B21
461135-B21
507750-B21
530888-B21
507753-B21
530891-B21
507632-B21
454146-B21
458930-B21
458928-B21
458926-B21
507774-B21
507772-B21
462595-B21
Page 7
QuickSpecs
HP SAS Expander Card
Related Options
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive
HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive
SATA Non-Hot Plug SFF (2.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Non-hot Plug Entry 1y Wty Hard Drive
HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Non-hot Plug Entry 1y Wty Hard
Drive
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1y Wty Hard Drive
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1y Wty Hard Drive
NOTE: Go to the HP Hard Drive Compatibility table for complete drive compatibility
information (http://www.hp.com/products/harddiskdrives). Using hard drives in
unsupported configurations will result in voiding the warranty and could result in
damage to the drive and/or loss of data.
NOTE: There is a known compatibility issue with some early 3.5" SATA HDD that will
make them unable to be used with the SA-P400 controller. Customers should verify
that they are not using hard drive part number 332649-002/003 (spare 353042001), 332650-002/003 (spare 353043-001), or 356536-002/003 (spare 353044001).
NOTE: SATA Drive Write Cache is disabled by default to minimize the risk of data loss
in case of power loss and cannot be enabled for SATA drives attached to all HP Smart
Array controllers and HP 8 Port internal SAS/SATA HBA with RAID.
HP Tape Storage
SAS Tape Drives
HP StorageWorks LTO-2 Ultrium 448 SAS External Tape Drive
HP StorageWorks LTO-3 Ultrium 920 SAS External Tape Drive
HP StorageWorks 1U SAS Rack-mount kit with one LTO-4 Ultrium 1760
HP StorageWorks LTO-4 Ultrium 1840 SAS External Tape Drive
Rack-mount Tape Drive Enclosures
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and
is compatible with the DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920
SAS and LTO-4 Ultrium 1760 SAS tape drives.
HP StorageWorks 3U SAS Rack-mount Kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape
drives and compatible with multiple SAS tape drives including DAT 160 SAS, LTO-2
Ultrium 448 SAS, LTO-3 Ultrium 920 SAS, LTO-4 Ultrium 1760 SAS and LTO-4
Ultrium 1840 SAS tape drives.
DA - 13232
Worldwide — Version 7 — April 27, 2010
458941-B21
458939-B21
460355-B21
458924-B21
460357-B21
459357-B21
571230-B21
458945-B21
571232-B21
458947-B21
DW086A
EH848A
EH946A
EH861A
AE459A
AG576A
Page 8
QuickSpecs
HP SAS Expander Card
Related Options
Tape Autoloaders
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Autoloader
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader
Tape Libraries
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL8096 2 LTO-3 Ultrium 920 SAS Drive Library
SAS Cables for Tape Drives and Automation
2 meter external Mini-SAS (SFF8088) to Mini-SAS (SFF8088) 1x SAS cable
NOTE: Use this cable to connect HP StorageWorks SAS external tape devices to HP
SAS controllers with external Mini-SAS (SFF8088) connectors.
4 meter external Mini-SAS (SFF8088) to Mini-SAS (SFF8088) 1x SAS cable
NOTE: Use this cable to connect HP StorageWorks SAS external tape devices to HP
SAS controllers with external Mini-SAS (SFF8088) connectors.
2 meter external mini-SAS (SFF8088), split to 4x mini-SAS (SFF8088) cable
NOTE: One cable is required for every four drives. Use this cable to connect HP
StorageWorks MSL SAS Tape Libraries to Mini-SAS (SFF8088) ports.
4 meter external mini-SAS (SFF8088), split to 4x mini-SAS (SFF8088) cable
NOTE: One cable is required for every four drives. Use this cable to connect HP
StorageWorks MSL SAS Tape Libraries to Mini-SAS (SFF8088) ports.
HP Cable Options
SAS to Mini SAS Cables
Mini-SAS to Mini-SAS, 8.00"
Mini-SAS to Mini-SAS, 25.50" & 28.00"
Mini-SAS to Mini-SAS, 33.00"
DA - 13232
Worldwide — Version 7 — April 27, 2010
AK377A
AH558A
AK378A
AH559A
AK380A
AH560A
AK382A
AH561A
AE470A
AE465A
AN975A
AN976A
496012-B21
496013-B21
496014-B21
Page 9
QuickSpecs
HP SAS Expander Card
Technical Specifications
Dimensions
PCIe full-height card
Not including bracket
6.6 in x 4.376 in (167.65 mm x 111.15 mm)
Including bracket
12.283 in x 4.376 in (312 mm x 111.15 mm)
Disk Drive Transfer rate 6Gb/s SAS (Serial Attached SCSI)
3.0Gb/s SATA (Serial ATA)
SAS Connectors
8 Mini SAS 4i connectors (2 connecting to controller and up to 6 connectors to attach 3 drive cages)
1 Mini SAS 4x connector (for tape attach)
SAS Speed
If attached via 2 cables to a Smart Array P410 Controller or Smart Array P410i Controller the total
available bandwidth is 4.8GB/s.
If attached via 1 cable to a Smart Array P410 Controller or Smart Array P410i Controller the total
available bandwidth is 2.4GB/s.
Logical Drives Supported Up to 64 logical drives when connected to a Smart Array P410 Controller or Smart Array P410i
Controller.
Maximum Logical Drive 14 TB using 14, 1TB SATA drives in RAID 0
Capacity
Upgradeable Firmware
NOTE: Via Smart Array P410 Controller or Smart Array P410i Controller.
Upgradeable Firmware via HP Firmware CD or http://www.hp.com/cgi-bin/hpsupport/index.pl
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2010 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or
trademarks of Microsoft Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13232
Worldwide — Version 7 — April 27, 2010
Page 10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
