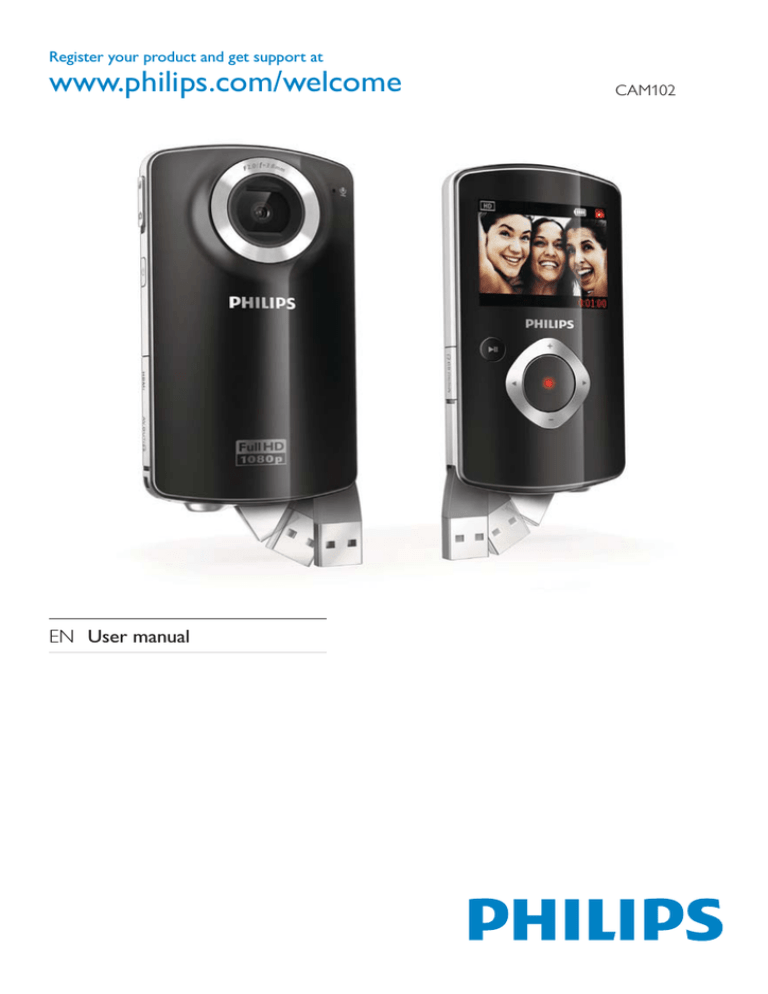

Register your product and get support at
www.philips.com/welcome
EN User manual
CAM102
Contents
1
2
3
4
5
Important
4
Safety
Notice
4
4
Your camcorder
5
Introduction
What’s in the box
Functional overview
5
5
6
Get started
8
Load the Micro SD card
Turn on
Set the date and time (for first-time users only)
Select a menu display language
Charge the built-in battery
8
8
8
9
9
Use your camcorder
10
Record video
Take pictures
Play
Options during video play
Adjust settings
10
10
10
10
11
Use more of your camcorder
12
View video or pictures on TV
Install and use the camcorder software
12
12
6
Technical specifications
14
7
Frequently asked questions (FAQ)
15
EN
3
1 Important
Notice
Safety
a Read these instructions.
b Keep these instructions.
This product complies with the radio
interference requirements of the European
Community.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
h Do not install near any heat sources
such as radiators, heat registers, stoves,
or other apparatus (including amplifiers)
that produce heat.
i Only use attachments/accessories
specified by the manufacturer.
j Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.
k Apparatus shall not be exposed to
dripping or splashing.
l Do not place any sources of danger on
the apparatus (e.g. liquid filled objects,
lighted candles).
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
4
EN
When this crossed-out wheeled bin symbol
is attached to a product it means that the
product is covered by the European Directive
2002/96/EC.
Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment
and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Always bring your product to a professional to
remove the built-in battery.
2 Your camcorder
Introduction
With this portable camcorder, you can:
• take full HD (1080P) or VGA movies
• take pictures
• play recorded movies or pictures either
directly or on the large screen of a
connected TV
• upload the recorded movies or pictures
to the Internet directly
What’s in the box
Make sure that the following items are packed
in the box:
• Camcorder
• Quick start guide
• Pouch
• Hand strap
EN
5
Functional overview
a
p
o
n
b
m
c
d
l
e
f
k
j
i
g
h
a Built-in speaker
b Display panel
c +/• In viewfinder mode, zoom in/out.
• Navigate up/down in a menu.
• Change a value in the settings menu.
6
EN
•
•
During video play, change the volume.
Perform the specific function as
shown on the display panel.
d Shutter button
• In viewfinder mode, take a picture or
start/stop video recording.
• In play mode, switch to viewfinder
mode.
e
•
In viewfinder mode, switch to play
mode.
In play mode, play a selected video
clip.
Confirm settings.
•
•
f MICRO SD
• Connect a Micro SD card.
g
/
•
•
•
•
Navigate left/right in a menu.
Select a menu option.
In play mode, turn to the previous/
next picture/video clip.
In viewfinder mode, switch to the
settings menu.
h USB connector
i
•
Eject the USB connector.
j Tripod socket
k Hand strap hole
l HDMI
• Connect to a TV through an HDMI
cable with a mini HDMI connector.
m
•
Turn on/off the camcorder.
n Lens
o Built-in microphone
p Mode switch button
• Switch between picture and video
recording modes.
EN
7
3 Get started
Tip
• To save energy, the camcorder turns off
automatically after being idle for 3 minutes.
Load the Micro SD card
Set the date and time
(for first-time users only)
When you turn on the camcorder for the
first time, a menu for date and time setting
appears.
1
Flap open the protective cover on the
Micro SD card socket.
2
Insert a Micro SD card (not supplied) into
the socket.
• Ensure that the the Micro SD card is
not write-protected.
• Ensure that the metal contact of the
card faces down.
3
Close the protective cover securely.
Turn on
•
Press .
» For first-time users, a menu for date
and time setting appears (See ‘’Get
started - Set the date and time).
» The camcorder switches to
viewfinder mode.
To turn off the camcorder:
• Press and hold .
» The backlight on the display panel
turns off.
8
EN
1
Press to highlight [Yes].
» A date setting menu appears.
2
Press / to select the day, month and
year fields successively.
3
Press
field.
4
Press
to confirm the date setting.
» A time setting menu appears.
5
Press / to select the hour and minute
fields successively.
6
Press
field.
7
Press
to confirm the time setting.
» The date and time setting is complete.
/
/
to change the value of each
to change the value of each
» The camcorder enters viewfinder
mode.
Select a menu display
language
1
In viewfinder mode, press .
» A settings menu appears.
2
3
4
5
Press
/
Press
/
Press
/
6
Press
to confirm the setting and
return to viewfinder mode.
You can also charge the camcorder via a USB
adaptor (not supplied) connected to mains
power. The charge time is about 2 hours.
to highlight [Language].
to select a language.
to highlight [Resolution].
Press / to select the resolution (HD,
full HD or standard).
Charge the built-in battery
1
Press
at the bottom of the camcorder
to eject the USB connector.
2
Connect the USB connector to a USB
socket on a PC.
» The status indicator on the shutter
button starts flashing in orange.
3
Wait until the status indicator stops
flashing and turns to green steadily.
» The built-in battery is fully charged.
Tip
• The camcorder is fully charged for first-time use.
• It takes about 3 hours to fully charge the built-in
battery via the PC.
EN
9
4 Use your
camcorder
Play
1
In viewfinder mode, press
to enter
play mode.
» The last recorded video clip is played
automatically.
2
Press / to select a picture or video
clip for play.
3
If the selected file is a video clip, press
to start play.
Record video
1
Switch the mode switch button to .
» The selected resolution and
remaining recording time appear on
the display panel.
2
Hold the camcorder steadily and aim the
lens as needed.
3
Press the shutter button to start
recording.
» A red time indicator appears on the
display panel.
Delete a file
1
2
3
» The status indicator on the shutter
button starts flashing in red.
4
Press the shutter button again to end
recording.
» [Recording saved!] appears briefly.
Switch the mode switch button to .
» The file size and remaining number of
pictures that can be taken appear on
the display panel.
2
Hold the camcorder steadily and aim the
lens as needed.
3
Press the shutter button to take a picture.
» [Picture saved!] appears briefly.
Press
/
to select a file.
to enter deletion mode.
Press to highlight [Yes] and confirm the
deletion operation.
» [Deleted!] appears briefly.
Preview
•
In play mode, press .
» The thumbnails of 6 files are displayed
on each page.
» To select a file, press
Take pictures
1
In play mode, press
/
/
Options during video play
Fast forward/reverse
•
During video play, press and hold / .
• To return to the normal speed,
release / .
Adjust volume level
•
10
EN
/ .
During video play, press
/
.
Adjust settings
1
In viewfinder mode, press .
» A settings menu appears.
2
3
4
Press
/
Press
/
to highlight an option.
to select a setting.
Press
to confirm the setting and
return to viewfinder mode.
Description
Select an automatic exposure
mode that matches your shot
for easy shooting.
[Effects]
Add a special effect to your
shooting.
[Resolution] Select a video resolution.
[Volume]
Change the keypad tone and
operation sound.
[Date]
Set the date.
[Time]
Set the time.
[Auto
Enable/disable automatic
power]
power-off mode.
[Capture
Turn on/off the capture sound.
sound]
[Language] Select your desired menu
language.
[PreEnable/disable 3-second prerecord]
record mode.
[TV system] Change this setting if the
output video does not appear
correctly on your TV.
[Format]
Clear contents from the micro
SD card or internal memory
(when no micro SD card is
inserted).
[Scene]
EN
11
5 Use more of
your camcorder
Install and use the camcorder
software
View video or pictures on TV
With the software (ArcSoft MediaImpression
HD Edition) available in the internal memory
of the camcorder, you can import, edit,
archive or upload your pictures/videos to the
Internet easily.
Note
• The software supplied only works on PCs that
•
operate Microsoft ® Windows ® XP, Vista and
Windows 7.
When you connect the camcorder to a Mac, use the
iMovie software to import and edit your pictures/
videos directly.
Install the camcorder software
1
Connect an HDMI cable (not supplied) to:
• the HDMI socket on the camcorder
(requiring a mini HDMI connector)
• the HDMI input socket on an HDTV
2
Select a file and start play.
12
EN
1
Connect the camcorder to a PC (see ‘Get
started’ > ‘Charge the built-in battery’).
2
If the software does not install
automatically, find and click the Setup
icon at My Computer\Removable Disk.
3
Follow the on-screen instructions to finish
installation of the software.
Install and use the camcorder
software
1
Transfer video/pictures to a PC/Mac
1
Connect the camcorder to a PC/Mac
(see ‘Get started’ > ‘Charge the built-in
battery’).
» It may take some time for the PC/Mac
to recognize the camcorder.
2
Find your video/pictures at
My Computer\Removable Disc\
DCIM\100MEDIA.
3
Copy any video/pictures you want to your
designated folder in the PC/Mac.
On your PC, click Start\(All) Programs\
ArcSoft MediaImpression HD Edition.
» The main screen of the software
appears.
Tip
• You can also import the video/picture files with the
camcorder software (for PC) or iMovie (for Mac).
2
Click an option to select the
corresponding operation.
3
Follow the on-screen instructions to
complete the operation.
EN
13
6 Technical
specifications
Product information is subject to change
without prior notice.
Image sensor
1/3.2” 2MP CMOS sensor
Operation modes Movie record, picture
record
Lens (focusing)
Fixed
Focus mode
Fixed
Focus range
0.7m to Infinity
Aperture
F2.8
Digital zoom
2X
Exposure control Auto
Exposure
-2.0~2.0EV
compensation
White balance
Auto
Auto power off
3 minutes
Memory
64MB (512Mbit) DDR2
+ 128MB SLC (96MB for
AP) + Micro-SD card Slot
Shutter type
Electronic
Shutter speed
1/2~1/4000 second
Picture file format JPEG
Video
*.MP4 (H.264 )
compression
format
Video resolution Full HD (1080p 30)
1440X1080 (30fps)
HD (720p 30)
1280X720 (30fps)
VGA (4:3)
640X480 (30fps)
14
EN
Audio file format
Battery
PC interface
System support
TV out
Weight
Dimensions
(W x H x D)
AAC
700mAh Li-ion (built-in)
Mini USB 2.0 port
Windows XP/Vista/
Windows 7, Mac
(mass storage only )
NTSC/PAL selectable,
Mini HDMI (type C)
0.06kg
55.3 x 99.4 x 17.3 mm
7 Frequently
asked questions
(FAQ)
How do I charge the camcorder?
•
You can charge the camcorder via the
USB pop-out connector. When you
connect it to your PC/laptop it will
automatically charge. You can also plug
the camcorder via the pop-out USB into
a USB charger.
Why is there no response when I use the
camcorder?
•
The camcorder is in power-off mode.
Turn on the camcorder (see ‘Get started’
> ‘Turn on’).
•
The built-in battery may be drained.
Charge the battery (see ‘Get started’ >
‘Charge the built-in battery’).
How long do I have to charge the camcorder?
•
The camcorder is fully charged for first
usage. The camcorder charge time when
connected to your PC/laptop is 3 hours.
When you charge it via USB adaptor, the
charge time is 2 hours.
Why is [Memory full!] displayed when I try
to record?
•
Ensure that the Micro SD card has been
inserted correctly (see ‘Get started’ >
‘Load the Micro SD card’).
•
The memory is used up. Save your
video/pictures to a computer (see ‘Use
more of your camcorder’ > ‘Transfer
video/pictures to a PC/Mac’). Then delete
files from your camcorder or clear the
memory.
Why do I have no access to folders on the
camcorder from my computer?
•
Ensure that the USB connection is
correct.
•
The camcorder turns off automatically
15 minutes after it is connected to a
computer. You can press
to turn it
on again.
Why do my video/pictures look blurry?
•
Hold the camcorder steady in your hands
during shooting.
•
During video capture, do not move the
camcorder too fast.
•
Use a tripod (not supplied) if necessary.
Why do my video/pictures look distorted on
a TV screen?
•
Select the correct TV system.
How do I fast-forward or rewind on the
camcorder?
•
You can fast-forward during play of a movie
by pressing the right-button for 2 seconds.
You can rewind during play of a movie by
pressing the left-button for 2 seconds.
Camcorder stopped responding?
•
In the unlikely event that your camcorder
stops responding, you can manually reset
it. The reset button is located under
the HDMI cover. There you see a small
opening above the HDMI connection.
Please use a small prying object (like
a pen) to insert and press gently for
resetting. After you have reset the
camcorder, please turn on the camcorder
again, and set-up will start again.
Why does the camcorder sometimes not
record the right color?
•
To record both indoors and outdoors,
and not having to change any settings,
the camcorder has an automatic whitebalance correction. This enables you
to record both indoors and outdoors
where the amount of light in the
environment changes. If you move fast
from outdoors to indoors, the camcorder
might need some time to correct that,
and in extreme cases the colors might
seem a bit unnatural. However, after
a few seconds this will be corrected
automatically by the camcorder.
EN
15
Can I connect the camcorder directly to TV,
DVD/Blu-ray player or Home Cinema set via
their USB-port?
•
The USB plug is designed to share your
videos/pictures to your PC or Laptop.
You can plug the CAM102 directly into
your TV, DVD/Blu-ray player or Home
cinema set (called the host from this
point on), and it will play the pictures that
are stored on the CAM102. To play the
videos from the CAM102, it depends if
your host supports the file format H.264
of the CAM102. Most Blu-ray enabled
players are able to play this format.
How do I connect it to a Windows PC/
laptop?
•
Connect the camcorder to your PC/
laptop via USB. The USB pop-out
connector is strong enough to support
the camcorder when it is plugged into
the PC’s USB port. For easy sharing and
editing, install the software program
(Media Impression HD) that comes with
the camcorder.
How do I connect it to a Mac?
•
The camcorder works with the Mac via
USB. The USB pop-out connector is
strong enough to support the camcorder
when it is plugged into the USB port.
The camcorder works great with the
iMovie software, which is part of the
iLife package that comes with your Mac.
To transfer videos using iMovie, simply
connect the camcorder to your Mac via
USB, launch iMovie and start importing
by clicking the camcorder icon. Select
‘Use original quality’ to ensure the best
quality, and to maintain file sizes at an
optimum.
What is HD?
•
HD stands for High Definition. The
camcorder captures videos in high
definition (720p), which is also the
resolution that HD TV programs are
broadcast in. “720” refers to the display
16
EN
resolution, in terms of the number of
horizontal lines onscreen. “p” stands
for progressive scan, or the sequential
appearance of the lines in each frame. HD
720p gives video quality that is superior
to that found in typical mobile phones
and digital cameras.
How do I play my videos on TV?
•
To play back on TV, please use an HDMI
connector (mini HDMI to standard
HDMI) if your TV accepts HDMI input, or
use the video-out cable provided.
Why is there no lens cover?
•
The camcorder comes without a lens
cover, keeping it simple to use and
fuss-free. It is made of robust material
that doesn’t scratch under normal
usage. A travel pouch and a lens cloth
are provided, allowing you to keep the
camcorder clean.
What format does the camcorder record in?
•
The camcorder uses the same video
format as Blu-ray players and discs –
H.264. This highly sophisticated format
delivers superb HD picture quality.
What does pre-record mean that is in the
setting?
•
The pre-record button is designed to
let you never miss a moment. When
you enable the pre-record function, the
camcorder will record video 3 seconds
before you have pressed the record
button. So when you play-back the
recorded film, you will automatically
see the first 3 seconds before you have
pressed the record button. This can
be useful when filming unexpected
moments. The pre-record function will
not drain battery life, it will operate as
normal.
Tips on video making
•
You can easily look back on fun moments
and relive them with the camcorder. To
enjoy these memories to the fullest, here
are some simple video tips:
• When capturing videos, hold your
camcorder steady in your hand
• Don’t move too fast when panning
(i.e. moving the camera horizontally)
as it will be hard to follow what is
captured when you review the video
• Try shooting from different angles
– for example, from the side, from
the front, or even from below. You
can easily join the different video
segments together with the PC
software included
EN
17
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
CAM102_10_UM_V1.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
