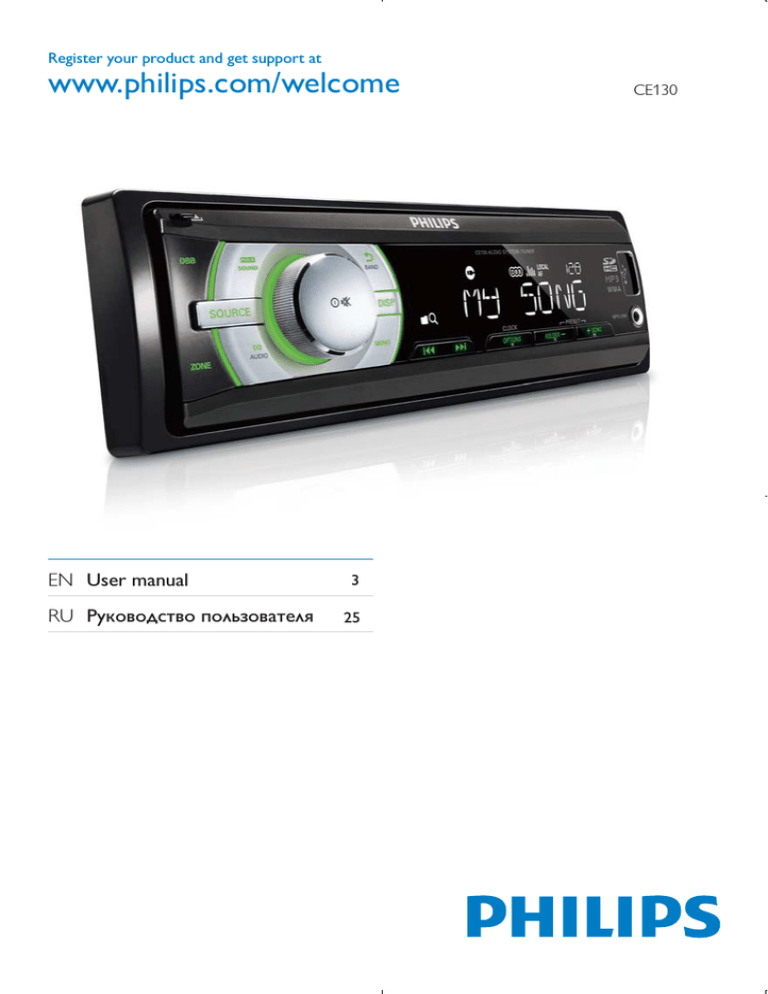

Register your product and get support at
www.philips.com/welcome
EN User manual
RU Руководство пользователя
3
25
CE130
English
Contents
1 Important
Safety
Notice
2 Your car audio system
Introduction
What’s in the box
Overview of the main unit
3 Get started
Install the car audio
Turn on
Set clock
4 Listen to radio
Tune to a radio station
Store radio stations in memory
Tune to a preset station
5 Play with RDS
Turn on RDS
Select program type
Select alternate frequencies
Receive traffic announcement
Set RDS clock
6 Play audio files
Play from USB
Insert a card
Play options
7 Adjust sound
Adjust volume
Mute
Tunr on/off Max Sound
Turn Dynamic Bass Boost (DBB)
on/off
Select preset equalizer
Switch music listening zone
Other sound settings
4
4
4
6
6
6
7
8
8
12
12
13
13
13
13
8 Adjust system settings
Turn beep sound on/off
Select blackout setting
Turn demo mode on/off
Reset
9 Additional information
19
19
19
19
19
Detach the front panel
Replace fuse
Remove the unit
20
20
20
20
10 Product information
21
11 Troubleshooting
22
12 Glossary
23
14
14
14
15
15
15
16
16
16
17
18
18
18
18
18
18
18
18
EN
3
1 Important
•
Do not place any sources of danger on
the apparatus (e.g. liquid filled objects,
lighted candles).
Safety
•
•
•
•
•
•
•
•
•
•
•
•
Read and understand all instructions
before you use your apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
This apparatus is designed for negative
ground (earth) 12 V DC operation only.
To ensure safe driving, adjust the volume
to a safe and comfortable level.
Improper fuses can cause damage or
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware
for a safe and secure installation.
To avoid short circuit, do not expose the
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation
slots or other openings on the apparatus.
Clean the apparatus and frame with a
soft, damp cloth. Never use substances
such as alcohol, chemicals or household
cleaners on the apparatus.
Never place any objects other than discs
into the apparatus.
Never use solvents such as benzene,
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Visible and invisible laser radiation when
open. Avoid exposure to beam.
Risk of damage to the apparatus screen!
Never touch, push, rub or strike the
screen with any object.
Caution
• Use of controls or adjustments or
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
•
The apparatus shall not be exposed to
dripping or splashing.
4
EN
Notice
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
This apparatus includes this label:
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
English
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
This product complies with the radio
interference requirements of the European
Community.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2011 © Koninklijke Philips Electronics N.V. All
rights reserved.
EN
5
2 Your car audio
system
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
What’s in the box
Check and identify the contents of your package:
a Main unit (with a sleeve)
b Carrying case (includes the front
panel)
c Trim plate
d ISO male connector
e Rubber cushion
Introduction
With the in-car audio system, you can enjoy
your drive while listening to:
• FM or AM (MW) radio
• Audio from USB devices
• Audio from SD/SDHC card
• Audio from other external devices
The unit supports the following media format:
f Screws x 4 pcs
g Disassembly tools x 2 pcs
h User manual
i Quick start guide
a
b
c
d
e
h
6
EN
f
g
i
a
b
o nml
c
k
ji
English
Overview of the main unit
d
g
h
q
f
e
p
d
a
•
b
Unlock the panel.
6281'
•
Turn on or off Maximizing volume.
c BAND/
• Select tuner band.
• Return to previous menu.
•
USB socket.
e MP3 LINK
• Connect external audio device.
f +SONG/FOLDER -/PRESET
• Select preset radio station.
• Search for track/folder.
EN
7
g OPTIONS/CLOCK
• Access option menu.
• View clock.
h
3 Get started
/
•
•
•
Tune for radio station.
Skip/search for track.
Fast forward/backward playback.
i DISP
• Display current status.
j MENU
• Access system menu.
k
/
•
•
•
•
Turn the unit on or off.
Confirm selection.
Mute or unmute sound.
Rotate to adjust settings.
l EQ AUDIO
• Select equalizer (EQ) setting.
• Access audio setting menu.
m SOURCE
• Select audio source.
n ZONE
• Switch the music listening zone.
o DBB
• Turn on/off Dynamic Bass Boost
(DBB) sound.
Caution
• Use the controls only as stated in this user
manual.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of your apparatus. The
model number and serial number are on the
bottom of your apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
• This unit is designed for negative ground
(earth) 12 V DC operation only.
p RESET
• Restore default settings.
• Always install this unit in the car dashboard.
q SD card slot
•
•
•
•
•
•
•
8
EN
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,
ensure that the ignition is off.
Ensure that you connect the yellow and red
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with
electrical tape.
Ensure that the leads do not get caught under
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to
a common ground (earth) point.
Use only the supplied mounting hardware for a
safe and secure installation.
Improper fuses can cause damage or fire.
When you need to change the fuse, consult a
professional.
a
a
Notes on speaker connection
• Never connect speaker wires to the
metal body or chassis of the car.
• Never connect speaker wires with stripes
to one another.
b
c
c
a
a
b
b
c
c
d
d
d
d
e
g
b
English
Note on the power supply lead (yellow)
• When you connect other devices to this
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.
f
h
Connect wires: ISO male connectors
Caution
• Ensure that all loose leads are insulated with
electrical tape.
1
2
3
4
e
Green/black strip
White/black strip
Gray/black strip
Purple/black strip
Red
f
Blue
g
h
Black
Yellow
Note
• Consult a professional to connect CE130 as
instructed below.
1
2
Connect the supplied male connector to
the unit.
Left speaker (Rear)
Left speaker (Front)
Right speaker (Front)
Right speaker (Rear)
Ignition key +12V DC
when ON/ACC
Motor/electric antenna
relay control lead/
Amplifier relay control
lead
Ground
To the +12V car
battery which is
energized at all times
Check the car’s wiring carefully and
connect them to the supplied male
connector.
Note
• Risk of danger! Please consult a professional to
perform the below steps!
EN
9
3
Connect the antenna and amplifier as
illustrated, if applicable.
2
Ensure that car dashboard opening is
within these measurements:
L
m
5m
Front
Rear
R
mm
53mm
183
Connector
ANTENNA
FRONT LINE OUT
R (Socket)
FRONT LINE OUT
L (Socket)
REAR LINE OUT R
(Socket)
REAR LINE OUT L
(Socket)
1
2
3
4
5
Connect to
Antenna
Front right
speaker
Front left
speaker
Rear right
speaker
Rear left
speaker
Tip
• The pin arrangement for the ISO connectors
depends on the type of vehicle you drive. Be
sure to make proper connections to prevent
damage to the unit.
Mount into the dashboard
1
If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
• If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
• If the car battery is not disconnected,
to avoid short-circuit, ensure that the
bare wires do not touch each other.
10
EN
3
Remove the mounting sleeve with the
supplied disassembly tools.
Install the sleeve into the dashboard and
bend the tabs outward to fix the sleeve.
6
Slide the unit into the dashboard until you
hear a click sound.
7
Reconnect the negative terminal of the
car battery.
Note
• If the unit is not fixed by sleeve but by the
supplied screws, skip this step.
3m
53.5 mm
18
5
m
Place the supplied rubber cushion over
the end of the mounting bolt.
EN
11
English
4
Attach the front panel
1
Set clock
Attach the trim plate.
1
2
3
4
5
6
Press MENU.
Press / repeatedly until the current
time is displayed.
Rotate
Press
clockwise to set hour.
to confirm.
Rotate
Press
counterclockwise to set minute.
to confirm.
View clock
1
2
Insert the right side of the panel in the
chassis until it is correctly engaged.
1
2
3
Press the left side of the panel until it is
locked into place.
Turn on
1
12
Press to turn on the unit.
• To turn off the unit, press
3 seconds.
EN
for over
Press and hold OPTIONS repeatedly
until the clock is displayed.
Store radio stations in
memory
Tune to a radio station
You can store up to 6 stations in each band.
1
Press SOURCE repeatedly to select radio
mode.
Store stations automatically
2
Press BAND/ to select band: [FM1],
[FM2], [FM3], [AW1] or [AW2] .
3
Press
or
to tune to a radio station
manually.
» The radio station is broadcast.
» To search for a radio station
automatically, press
or
for over
3 seconds.
Select tuner region
You can select suitable country/region of the
radio.
1
2
3
4
Press SOURCE to select Radio mode.
Press MENU.
Press /
displays.
repeatedly until [AREA]
1
Press OPTIONS repeatedly until
[AUTO-STORE] displays.
2
Press to confirm.
» The six strongest stations of the
selected band are saved in preset
channel automatically.
Store stations manually
1
Tune to a station that you want to store.
(see ‘Tune to a preset station’ on page 13)
2
Press and hold +/PRESET or -/RRESET to
enter storing mode.
» The preset number starts to blink..
3
Press +/PRESET or -/RRESET to select
radio channel.
4
Press to confirm.
» The station is saved in the selected
channel.
Rotate to select:
• [USA]
• [LATIN]
• [Europe]
• [OIRT]
Select tuner sensitivity
To receive more radio stations or only
stations with strong signal, you can adjust the
tuner sensitivity.
1
Press OPTIONS repeatedly to select
[LOCAL SEEK].
2
Rotate to select a setting:
• [LOCAL SEEK ON]: Only stations
with strong signal can be broadcast.
• [LOCAL SEEK OFF]: Stations with
strong and weak signals can be
broadcast.
English
4 Listen to radio
» The preset number on LCD screen
lights up and remains on.
Tune to a preset station
1
2
Press BAND/
to select band.
Press +/PRESET or -/RRESET to select
the preset station.
EN
13
5 Play with RDS
Item
1
2
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, an RDS icon and information about the
presenter, station or program is displayed.
3
4
5
6
Turn on RDS
7
Note
8
9
• The default setting for RDS is off.
1
Press MENU repeatedly until [RDS] is
displayed.
2
Rotate to select [RDS ON]:
» The RDS function is turned on.
10
11
12
13
14
15
Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1
Press OPTIONS repeatedly until [PTY] is
displayed.
2
Turn to select a type, then press
confirm.
14
EN
to
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Program type Description
NEWS
News services
AFFAIRS
Politics and current
affairs
INFO
Special information
programs
SPORT
Sports
EDUCATE
Education and
advanced training
DRAMA
Radio plays and
literature
CULTURE
Culture, religion and
society
SCIENCE
Science
VARIED
Entertainment
programs
POP M
Pop music
ROCK M
Rock music
EASY M
Light music
LIGHT M
Light classical music
CLASSICS
Classical music
OTHER M
Special music
programs
WEATHER
Weather
FINANCE
Finance
CHILDREN
Children’s programs
SOCIAL
Social Affairs
RELIGION
Religion
PHONE IN
Phone In
TRAVEL
Travel
LEISURE
Leisure
JAZZ
Jazz Music
COUNTRY
Country Music
NATION M
National Music
OLDIES
Oldies Music
FOLK M
Folk Music
DOCUMENT Documentary
TEST
Alarm Test
ALARM
Alarm
Set RDS clock
If the radio signal is poor, turn on AF (Alternate
Frequency) to search for another station with
stronger signal.
You can use time signal that is broadcast
together with the RDS signal to set the clock of
the unit automatically.
1
Press MENU or OPTIONS repeatedly
until [AF] is displayed.
1
Press MENU repeatedly until [CT] is
displayed.
2
Rotate to select a setting:
• [AF ON]: Turn on the AF mode.
• [AF OFF]: Turn off the AF mode.
2
Rotate to select a setting:
• [CT ON]: Turn on the RDS clock.
Time shown on the unit synchronizes
with that on the RDS station.
• [CT OFF]: Turn off the RDS clock.
Set region for AF tuning
You can define AF tuning region:
[REG
ON]
[REG
OFF]
Only stations in current region
can be tuned to automatically.
All stations can be tuned to
automatically.
1
Press MENU repeatedly until [REG]
(Regional Radio) is displayed.
2
Rotate
Tip
• The accuracy of the transmitted time depends
on the RDS station that transmits the time
signal.
to select a setting.
Receive traffic announcement
If you do not want to miss traffic
announcement when enjoying music, turn on
the TA (Traffic Announcement) function.
1
Press MENU or OPTIONS repeatedly
until [TA] is displayed.
2
Rotate to select a setting:
• [TA ON]: When there is traffic
announcement, the unit switches
to the tuner mode (regardless of
the current mode) and begins to
broadcast the traffic conditions.
When the traffic announcement
is over, it returns to the previous
mode.
• [TA OFF]: Traffic announcement
does not cut in.
EN
15
English
Select alternate frequencies
6 Play audio files
Insert a card
Note
Play from USB
Note
• Ensure that the USB device contains playable
• This unit supports SD and SDHC cards.
1
2
Press
3
Insert the card into the card slot.
» The unit starts playing from the card
automatically.
music.
Insert the USB device
1
Slide the USB socket cover marked
to the left.
2
Insert the USB device into the USB
socket.
» The unit starts to play from the USB
device automatically.
to release the panel.
Push the left side of the panel rightward,
then pull the panel towards you to
disengage it from the chassis.
Remove the card
Remove the USB device
1
2
Press
16
EN
to turn off the unit.
Remove the USB device.
1
2
Press
3
Remove the card.
to turn off the unit.
Press the card until you hear a click
sound.
» The card is now disengaged.
•
•
•
•
To pause, press .
To resume play, press again.
To skip to the previous/next track, press
/ .
To search backward/forward rapidly
within the current track, press
/
for
3 seconds.
Search for an MP3/WMA track
1
During play, press OPTIONS repeatedly
until [REPEAT] is displayed.
2
Rotate to select a setting.
[REPEAT ALL]: play all tracks repeatedly.
[REPEAT TRK]: play current track
repeatedly.
[REPEAT FLD]: play all tracks in the
current folder repeatedly.
•
•
•
Shuffle play
Search within the current folder
You can play the tracks in random order:
1
Press +SONG.
» The name of the current track is
displayed.
2
Rotate to select another track in current
folder.
1
During play, press OPTIONS repeatedly
until [RANDOM] is displayed.
2
Rotate to select a setting:
• [RANDOM OFF]: Turn off random
play.
• [RANDOM FLD]: start random play
for all tracks in the current folder.
• [RANDOM ALL]: start random play
for all tracks.
3
Press to confirm.
Search in other folder
1
Press FOLDER -.
» The name of the current folder is
displayed.
2
3
4
5
Rotate
Press
Rotate
Press
to navigate through all folders.
Intro play
You can play the first 10 seconds of each track.
to access the selected folder.
to select a track in the folder.
to start play.
1
During play, press OPTIONS repeatedly
until [INTRO] is displayed.
2
Rotate to select a setting:
• [INTRO OFF]: Cancel intro play and
start normal play.
• [INTRO FLD]: Start introl play in the
current folder.
• [INTRO ALL]: Play the first 10
seconds of each track.
Tip
• To go back to upper level of a folder, press
.
View play information
1
During playing, press DISP repeatedly to
view:
• Track number and elapsed play time
• Folder
• File
• Title
• Album
• Artist
Connect external sound source
1
Connect the external sound source to
MP3 LINK socket with a 3.5 mm cable.
2
Press SOURCE repeatedly until [MP3
LINK] is displayed.
3
Operate the external component (refer
to the instructions supplied with the
external component).
EN
17
English
Repeat play
Play options
7 Adjust sound
2
Adjust volume
1
Turn clockwise/counterclockwise to
increase/decrease volume.
Press EQ/Audio again to select a preset
EQ setting:
• [OPTIMAL] (optimal)
• [FLAT] (flat)
• [POP] (pop)
• [USER] (user)
• [TECHNO] (techno)
• [ROCK] (rock)
• [CLASSIC] (classic)
• [JAZZ] (jazz)
Mute
You can turn off the sound of your audio.
1
During play, press .
• To resume sound, press
again.
Tunr on/off Max Sound
1
Press 6281'.
» The current setting is displayed.
Switch music listening zone
Philips’ innovative Zone technology enables
driver or passengers to enjoy music with the
best speakers balance and experience more
vivid spacial effect as the artist is intended to
create. You can switch the music listening zone
from driver to passengers for the best speaker
sound settings in car.
1
Press ZONE.
» The current setting is displayed.
2
Rotate to select a setting:
• [ZONE ALL]
• [FRONT]
• [F. LEFT] (Front left)
• [F. RIGHT] (Front right)
Turn Dynamic Bass Boost
(DBB) on/off
3
Press OK to confirm the selection.
1
Other sound settings
» [MAX ON]: The maximum sound
(max sound) function is on.
» [MAX OFF]: The maximum sound
function is off.
Press DBB and the current setting is
displayed:
» [DBB ON] : The Dynamic Bass Boost
(DBB) function is on.
» [DBB OFF] : The DBB function is off.
2
Press DBB again to change the DBB
setting.
You can also adjust the preset EQ/Audio
settings.
1
2
Select preset equalizer
1
18
Press EQ/Audio.
» Current Equalizer setting is displayed.
EN
3
Press EQ/Audio for 3 seconds.
Press / repeatedly to select the item
to be adjusted:
• [BAS] (Bass) range: -7 to +7
• [TRE] (Treble) range: -7 to +7
• [BAL] (Balance) range: 12L to 12R.
(L= left speaker, R = right speaker)
• [FAD] (Fader) range: 12R to 12F. (R
= rear speaker, F = front speaker)
Rotate
to select a value/option.
Turn demo mode on/off
Turn beep sound on/off
3
1
2
Each time you press a button, the unit beeps.
You can turn on or off this beep sound.
1
2
3
Press MENU.
Press /
displays.
repeatedly until [BEEP]
Rotate to select a setting:
• [BEEP ON]: Turn on the beep
sound.
• [BEEP OFF]: Turn off the beep
sound.
Select blackout setting
You can set the screen to turn off automatically
after the unit is idle for 10 or 20 seconds.
1
2
3
English
8 Adjust system
settings
Press MENU.
Press /
displays.
repeatedly until [DEMO]
Rotate to select a setting:
• [DEMO ON] : Turn on the demo
mode. When the unit is idle for
more than 10 seconds, all functions
are displayed.
• [DEMO OFF] : Turn off the demo
mode.
Reset
You can reset the unit to its default setting.
1
2
Detach the front panel.
Press the reset button by using a ballpoint pen or a similar tool.
» Preset adjustments such as preset
channels and sound adjustments are
erased.
Press MENU.
Press /
displayed.
repeatedly until [BKO] is
Rotate to select a setting:
• [BKO 10 S] : Turn off the screen
automatically 10 seconds after last
operation.
• [BKO 20 S] : Turn off the screen
automatically 20 seconds after last
operation.
• [BKO OFF] : Never turn off the
screen.
RESET
EN
19
9 Additional
information
Detach the front panel
Replace fuse
If the fuse is damaged,
1
2
Check the electric connection.
3
Replace the fuse.
Buy a fuse that matches the voltage of the
damaged fuse.
You can detach the front panel to deter theft.
1
2
Press
to release the panel.
Push the left side of the panel rightward.
Note
• If the new fuse gets damaged again, there may
be an internal malfunction. Consult your Philips
dealer.
Remove the unit
You can remove the unit from the dashboard.
3
Pull the panel towards you to disengage it
from the chassis.
4
Store the panel in the supplied carry case
to protect it from dirt or damage.
20
EN
1
2
Detach the front panel and the trim plate.
Pull out the unit by using the disassembly
tools.
Note
• Product information is subject to change
without prior notice.
Power supply
Fuse
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Aux-in level
Dimensions
(W x H x D)
Weight
12 V DC (11 V - 16 V),
negative ground
15 A
4-8
45 W x 4 channels
22 W x 4 RMS
(4 10% T.H.D.)
2.5 V
500 mV
188 x 58 x 140 mm
0.8 kg
Radio
Frequency range
- FM
- ORIT
Frequency range
- AM (MW)
Usable sensitivity
- FM
Usable sensitivity
- AM(MW)
87.5 - 108.0 MHz
65 - 74 MHz
522 - 1620 KHz (9 kHz)
530 - 1710 kHz (10 kHz)
Compatible USB devices:
• USB flash memory: USB 1.1 host
with interface reading all speed
support (1.1, 2.0)
• USB flash players: USB 1.1 host with
interface reading all speed support
(1.1, 2.0)
• Memory cards (SD / SDHC)
Supported formats:
• USB or memory file format: FAT16,
FAT32 (maximum capacity of USB/
SD card is 16 GB)
• MP3 bit rate (data rate): 32-320 Kbps
and variable bit rate
• WMA V4, V7, V8, V9 (L1, L2)
• ISO9660, Joliet
• Maximum title number: 512
(depending on file name length)
• Maximum album number: 255
• Supported sampling frequencies: 2
kHz, 44.1 kHz, 48 kHz
• Supported Bit-rates: 2~256 (kbps),
variable bit rates
• Directory nesting up to a maximum
of 8 levels
• Number of albums/ folders: CD
maximum 99, USB maximum 199
• Number of tracks/titles: maximum 999
• ID3 tag v2.0 to v2.4
• File name in Unicode UTF8
(maximum length 64 bytes)
8 μV
30 μV
EN
21
English
10 Product
information
11 Troubleshooting
Caution
• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site
(www.philips.com/support). When you contact
Philips, ensure that your apparatus is nearby
and the model number and serial number are
available.
No power or no sound.
•
Car engine is not on. Turn the car engine
on.
•
Cable is not correctly connected. Check
connections.
•
Fuse is burnt. Replace fuse.
•
Volume is too low. Adjust volume.
•
If the above solutions cannot help, press
the RESET button.
•
Ensure that the track played is of a
compatible format.
Noise in broadcasts.
•
Signals are too weak. Select other
stations with stronger signals.
•
Check the connection of the car antenna.
•
Change broadcast from Stereo to mono.
Preset stations lost.
•
Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
Display show ERR-12
•
USB data error. Check the USB device.
Display show ERR-3
•
USB/SD data error.
22
EN
12 Glossary
M
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more
data than a regular CD.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
R
RDS (Radio Data System)
RDS tuners can automatically tune in stations
according to the types of music (or talk)
they broadcast. RDS also enables a receiver
to display text messages and even graphics
(usually call letters and format information)
that many FM stations include on a sub-carrier
signal within their normal broadcast signal.
Some RDS equipped tuners can even override
with traffic alerts or emergency broadcasts,
during playback of other media - CD MD, or
cassette. There are other useful features too,
many of which are offered by the growing
number of RDS stations.
S
SD
Secure Digital. A type of memory card with a
flash memory.
SDHC
Secure Digital High Capacity (SDHC) is a
type of flash memory card based on the SDA
2.00 specification. The SDA 2.00 specification
enables SD cards to reach higher capacities
from 4GB to 32GB, and growing.
23
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
CE130_51_UM_V2.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
