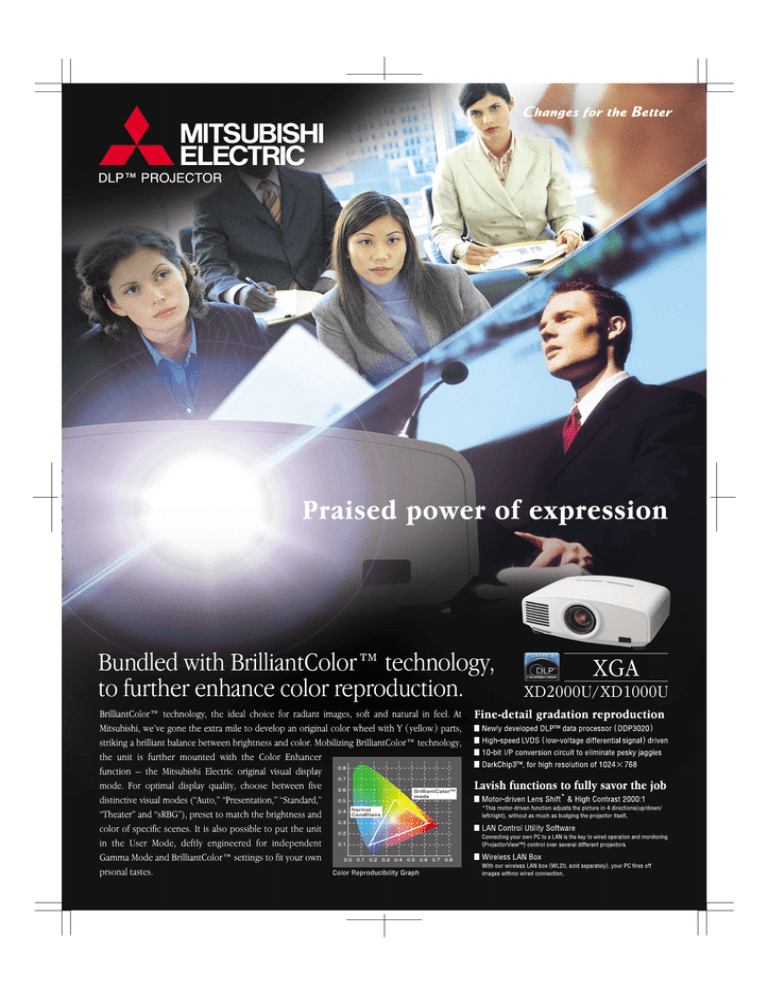

ion
MITSUBISHI
ELECTRIC
DLP™ PROJECTOR
Bundled with BrilliantColor * technology, T5;
to further enhance color reproduction.
BrilliantColor™ technology, the ideal choice for radiant images, soft and natural in feel. At
Mitsubishi, we've gone the extra mile to develop an original color wheel with Y (yellow) parts,
striking a brilliant balance between brightness and color. Mobilizing BrilliantColor™ technology,
the unit is further mounted with the Color Enhancer
function — the Mitsubishi Electric original visual display
mode. For optimal display quality, choose between five
distinctive visual modes (“Auto,” “Presentation,” “Standard,”
“Theater” and “sRBG”), preset to match the brightness and (TEN
color of specific scenes. It is also possible to put the unit
in the User Mode, deftly engineered for independent
Gamma Mode and BrilliantColor™ settings to fit your own 0.0 01 02 03 04 05 06 07 08
prsonal tastes. Color Reproducibility Graph
XD2000U/XD1000U
Fine-detail gradation reproduction
NM Newly developed DLP™ data processor (DDP3020)
NM High-speed LVDS (low-voltage differential signal) driven
NM 10-bit I/P conversion circuit to eliminate pesky jaggies
NM DarkChip3™, for high resolution of 1024 X 768
Lavish functions to fully savor the job
H Motor-driven Lens Shift” & High Contrast 2000:1
*This motor-driven function adjusts the picture in 4 directions(up/down/
left/right), without as much as budging the projector itself.
H LAN Control Utility Software
Connecting your own PC to a LAN is the key to wired operation and monitoring
(ProjectorView™) control over several different projectors.
H Wireless LAN Box
With our wireless LAN box (WL20, sold separately), your PC fires off
images withno wired connection.
XD2000U/XD1000U
PORTABLE XGA PROJECTOR
© LAN terminal @ Kensington Security Lock
Q COMPUTER / COMPONENT VIDEO Standard connector
DVI-D (HDCP) terminal (DVI-D 24-pin) © Main power switch O : Off 1: ON
@ COMPUTER / COMPONENT VIDEO O Power jack
IN-2 terminal © USB terminal
(R/Pr, G/Y,B/Ps, H/HV,V) (BNC) O SERIAL terminal (D-SUB 9-pin)
OQ COMPUTER / COMPONENT VIDEO © REMOTE IN / OUT jack
IN-1 terminal (Mini D-SUB 15-pin)
© AUDIO IN-1 terminal (Mini jack)
@ Power terminal for wireless LAN unit
(DC OUT 5V 1.5A MAX)
E AUDIO OUT terminal (Mini jack)
E AUDIO IN-2 terminal (Mini jack)
E VIDEO IN and AUDIO IN terminals
® MONITOR OUT terminal (Mini D-SUB 15-pin)
Specifications
Model
Display technology
Resolution
Brightness
Contrast ratio
Zoom / focus
Picture size
Source lamp
Computer compatibility
Video compatibility
Input terminals
Output terminals
Communication
terminals
Audio speaker
Dimensions (W*H*D)
Weight
Power supply
Fan noise
XD2000U XD1000U
0.7" 1-Chip DMD, 12deg. LVDS, DarkChip3™ with DDP3020
1024 X 768 (Total 786,432 pixels), 600 Video lines
3500 Im 3000 Im
2000:1 (on/off)
Motorized Focus & Zoom Lens
40"~300" (100"=3.5m)
240W (Shut Off Time 5000Hrs) with Low Mode, 300W (Shut Off Time 2000Hrs)
640 X 480 - 1280 X 1024, True:1024 Xx 768,Sync on Green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video ; 480i / p (525i / p), 576i / р (625i / p), 720p (750p 50 / 60Hz),
1080i (1125i 60Hz), 1080i (1125i 50Hz), 1080i (1250i 50Hz)
SCART (RGB + 1V sync)
RGB ; mini D-sub 15pin X 1, 5 BNC X 1, DVI-D (with HDCP) X 1
Audio ; Stereo mini jack (3.5mm) X 2
Video ; RCA X 1 or BNC X 1, S-VIDEO X 1 or BNC (Y, C) X 1
Audio ; RCA (L,R) x 2
RGB ; mini D-sub 15pin X 1 Audio ; Stereo mini jack (g3.5mm) X 1, DC power (5V)
LAN (RJ-45) X 1(Projector control), RS-232C ; D-sub 9pin X 1
Mouse ; USB X 1, Wired remote in / out
3 W Mono
430*166*330 mm (without foot and terminal-cover)
8.5 kg / 18.8 Ibs (without terminal-cover)
AC100-240V/+10%, 50 / 60Hz
27dBA (Lamp Low Mode)
*All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
*DLP (Digital Light Processing),BrilliantColor,DarkChip3 are trademarks of Texas Instruments.
Screen size and Projection distance
Refer to the following table to determine the screen size.
When the aspect ratio of the screen is 4:3
Front projection Front projection, ceiling mounting Screen size Projected distance (L) Lens movable range
N WI W Wi Wi, N Wi 4:3 Diagonal Size| — Width (W) Height (H) Max Min. (H1) (H2) width (W1)
= = inch cm inch cm inch cm inch m inch m inch cm inch cm inch cm
40 | 102 | 32 | 81 24 | 61 74 | 19 | 54 | 14 | 12 | 30 2 6 3 8
+ 60 | 152 | 48 | 122 | 36 | 91 | 112 | 28 | 82 | 21 18 | 46 3 9 5 12
XB10000 80 | 203 | 64 | 163 | 48 | 122 | 150 | 3.8 | 110 | 28 | 24 | 61 4 | 11 6 | 16
_ 100 | 254 | 80 | 203 | 60 | 152 | 189 | 48 | 138 | 35 | 30 | 76 6 14 8 20
7 = 150 | 381 | 120 | 305 | 90 | 229 | 284 | 72 | 208 | 53 | 45 | 114 | 8 21 12 | 30
L _ 200 | 508 | 160 | 406 | 120 | 305 | 380 | 9.7 | 279 | 7.1 | 60 | 152 | 11 | 28 | 16 | 41
250 | 635 | 200 | 508 | 150 | 381 | 476 | 121 | 349 | 89 | 75 | 191 | 14 | 36 | 20 | 51
300 | 762 | 240 | 610 | 180 | 457 | 571 | 145 | 419 | 106 | 90 | 229 | 17 | 43 | 24 | 61
The above figures are approximate and may be slightly different from the actual measurements.
The lens movable range shows distances from the factory default position.
2% MITSUBISHI ELECTRIC CORPORATION
HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
Tofind out more about XD2000U/XD 1 00OU and'our projectors visit us at
Global.MitsubishiElectric.com/projectors/
L-188-6-B7274-A KYO 0601 MDOC
New publication, effective Jan. 2006
Specifications subject to change without notice.
