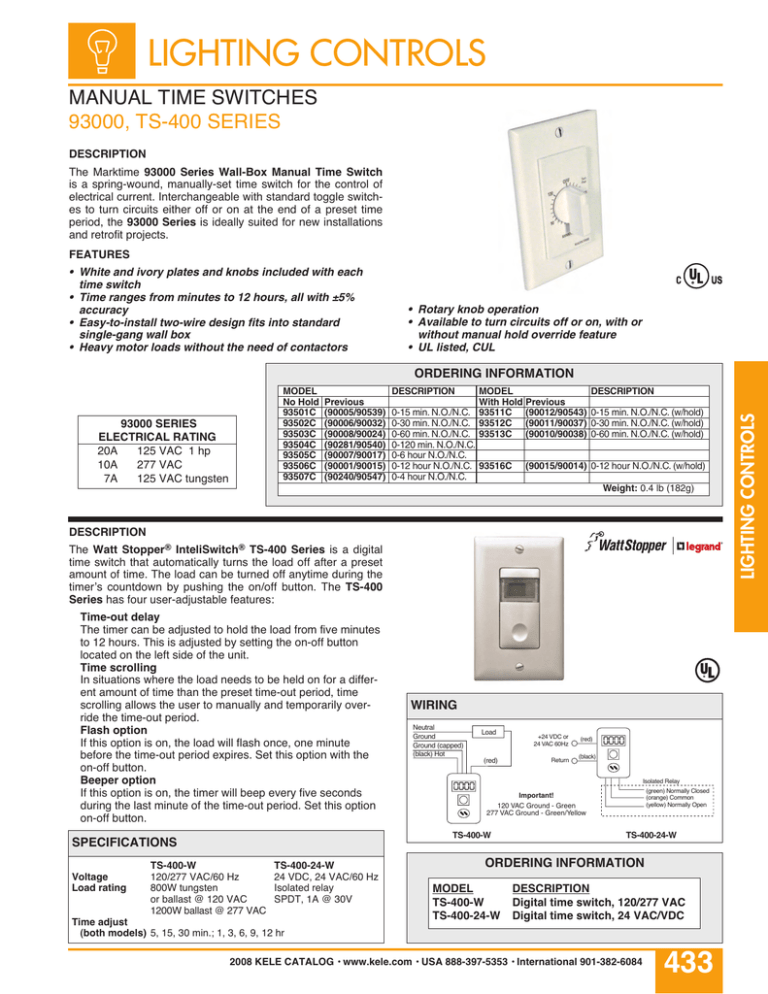

Catalog Page
LIGHTING CONTROLS
MANUAL TIME SWITCHES
93000, TS-400 SERIES
DESCRIPTION
The Marktime 93000 Series Wall-Box Manual Time Switch
is a spring-wound, manually-set time switch for the control of
electrical current. Interchangeable with standard toggle switches to turn circuits either off or on at the end of a preset time
period, the 93000 Series is ideally suited for new installations
and retrofit projects.
FEATURES
• White and ivory plates and knobs included with each
time switch
• Time ranges from minutes to 12 hours, all with ±5%
accuracy
• Easy-to-install two-wire design fits into standard
single-gang wall box
• Heavy motor loads without the need of contactors
• Rotary knob operation
• Available to turn circuits off or on, with or
without manual hold override feature
• UL listed, CUL
ORDERING INFORMATION
93000 SERIES
ELECTRICAL RATING
20A
125 VAC 1 hp
10A
277 VAC
7A
125 VAC tungsten
MODEL
With Hold Previous
0-15 min. N.O./N.C. 93511C (90012/90543)
0-30 min. N.O./N.C. 93512C (90011/90037)
0-60 min. N.O./N.C. 93513C (90010/90038)
0-120 min. N.O./N.C.
0-6 hour N.O./N.C.
0-12 hour N.O./N.C. 93516C (90015/90014)
0-4 hour N.O./N.C.
DESCRIPTION
Previous
(90005/90539)
(90006/90032)
(90008/90024)
(90281/90540)
(90007/90017)
(90001/90015)
(90240/90547)
DESCRIPTION
0-15 min. N.O./N.C. (w/hold)
0-30 min. N.O./N.C. (w/hold)
0-60 min. N.O./N.C. (w/hold)
0-12 hour N.O./N.C. (w/hold)
Weight: 0.4 lb (182g)
DESCRIPTION
The Watt Stopper® InteliSwitch® TS-400 Series is a digital
time switch that automatically turns the load off after a preset
amount of time. The load can be turned off anytime during the
timer’s countdown by pushing the on/off button. The TS-400
Series has four user-adjustable features:
Time-out delay
The timer can be adjusted to hold the load from five minutes
to 12 hours. This is adjusted by setting the on-off button
located on the left side of the unit.
Time scrolling
In situations where the load needs to be held on for a different amount of time than the preset time-out period, time
scrolling allows the user to manually and temporarily override the time-out period.
Flash option
If this option is on, the load will flash once, one minute
before the time-out period expires. Set this option with the
on-off button.
Beeper option
If this option is on, the timer will beep every five seconds
during the last minute of the time-out period. Set this option
on-off button.
Neutral
Ground
Ground (capped)
(black) Hot
Load
(red)
TS-400-W
120/277 VAC/60 Hz
800W tungsten
or ballast @ 120 VAC
1200W ballast @ 277 VAC
TS-400-24-W
24 VDC, 24 VAC/60 Hz
Isolated relay
SPDT, 1A @ 30V
Time adjust
(both models) 5, 15, 30 min.; 1, 3, 6, 9, 12 hr
+24 VDC or
24 VAC 60Hz
Return
(red)
(black)
Isolated Relay
(green) Normally Closed
(orange) Common
(yellow) Normally Open
Important!
120 VAC Ground - Green
277 VAC Ground - Green/Yellow
TS-400-W
SPECIFICATIONS
Voltage
Load rating
WIRING
TS-400-24-W
ORDERING INFORMATION
MODEL
TS-400-W
TS-400-24-W
DESCRIPTION
Digital time switch, 120/277 VAC
Digital time switch, 24 VAC/VDC
2008 KELE CATALOG • www.kele.com • USA 888-397-5353 • International 901-382-6084
433
LIGHTING CONTROLS
MODEL
No Hold
93501C
93502C
93503C
93504C
93505C
93506C
93507C
