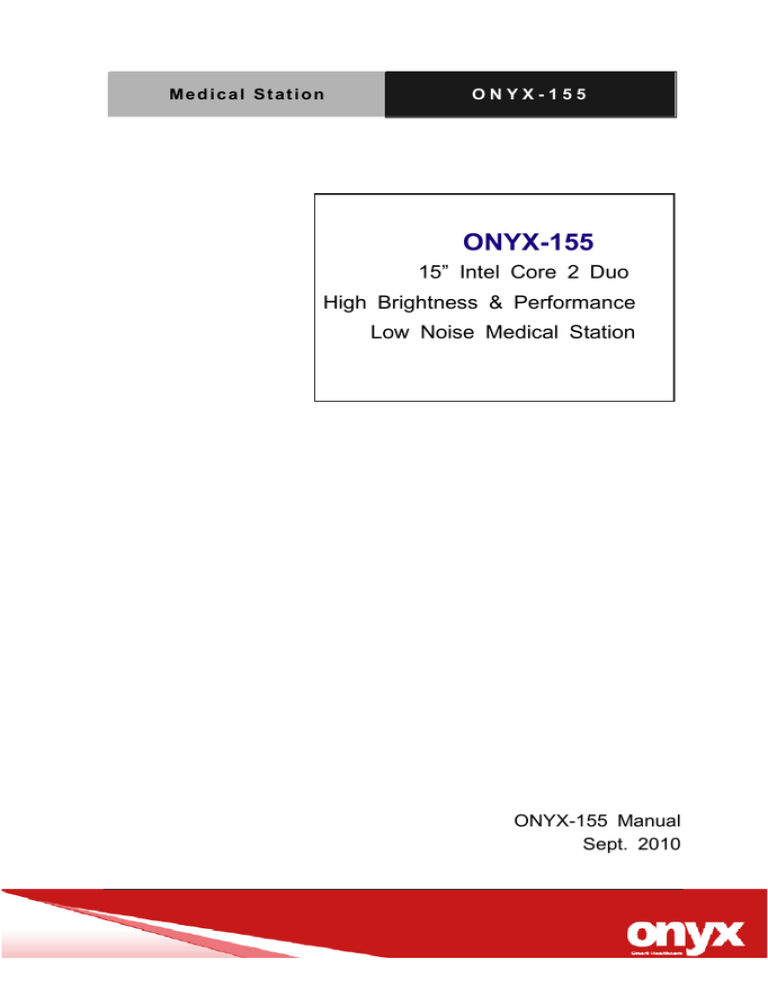

Medical Station
ONYX-155
ONYX-155
15” Intel Core 2 Duo
High Brightness & Performance
Low Noise Medical Station
ONYX-155 Manual
Sept. 2010
Medical Station
ONYX-155
Copyright Notice
This document is copyrighted, 2010. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor
for any infringements upon the rights of third parties, which may
result from its use.
The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, ONYX, assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
ONYX reserves the right to make changes in the product design
without notice to its users.
Medical Station
ONYX-155
Acknowledgments

Intel®, Core 2 Duo® and Pentium® are registered trademarks of
Intel® Corporation.

IBM, PC/AT, PS/2 are trademarks of International Business
Machines Corporation.

Microsoft® Windows is a registered trademark of Microsoft®
Corporation.

RTL is a trademark of Realtek Semi-Conductor Co., Ltd.

C&T is a trademark of Chips and Technologies, Inc.

UMC is a trademark of United Microelectronics Corporation.

ITE is a trademark of Integrated Technology Express, Inc.

SiS is a trademark of Silicon Integrated Systems Corp.

VIA is a trademark of VIA Technology, Inc.
All other product names or trademarks are properties of
their respective owners.
Medical Station
ONYX-155
Packing List
Before you begin installing your Medical Station, please
make sure that the following items have been shipped:

ONYX-155 Medical Station

HDD screws

Utility CD-ROM (Please insert the ONYX-155
CD-ROM into external CD-ROM drive.) which contains
User’s Manual (in PDF format), Drivers and Utilities
If any of these items are missing or damaged, you should contact
your distributor or sales representative immediately.
Headquarters
Onyx Healthcare Inc.
2F, No.135, Lane 235, Pao-Chiao Rd.,
Hsin-Tien City, Taipei 231, Taiwan, R.O.C.
TEL: +886-2-8919-2188
FAX: +886-2-8919-1699
E-mail: [email protected]
http://www.onyx-healthcare.com
Medical Station
ONYX-155
Worldwide Offices:
Onyx Healthcare, USA Inc.
2663 Saturn street, Brea, CA 92821, USA
Tel : +1-714-996-1800
Fax: +1-714-996-1811
Onyx Healthcare EUROPE B.V.
Ekkersrijt 4002, 5692 DA Son, The Netherlands
Tel : +31-(0)499-462020
Fax: +31-(0)499-462010
Onyx Healthcare Technology GmbH
An der Trift65d
63303 Dreieich , Germany
TEL: +49-(0)61033-7479-00
Fax : +49-(0)61033-7479-49
Onyx Healthcare (SU ZHOU) INC.
Room 12, 2F, Building B, No.5 Xing Han Street, Suzhou Industrial
Park, Jiang Su Province, China
Tel: +86-512-67625700
Fax: +86-512-67617337
Email: [email protected]
Medical Station
ONYX-155
Onyx Healthcare Singapore PTE LTD
57 Genting Lane, #07-00, Singapore 349564
Tel: +65-67498749
Fax +65-67461595
Email: [email protected]
Medical Station
ONYX-155
Safety & Warranty
1. Read these safety instructions carefully.
2. Keep this user's manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning.
Do not use liquid or spray detergents for cleaning. Use a damp
cloth.
4. For pluggable equipment, the power outlet must be installed
near the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation.
Dropping it or letting it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect
the equipment from overheating. DO NOT COVER THE
OPENINGS.
8. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from
the power source to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or
electrical shock.
13. Never open the equipment. For safety reasons, only qualified
Medical Station
ONYX-155
service personnel should open the equipment.
14. If any of the following situations arises, get the equipment
checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d.
The equipment does not work well, or you cannot get it
to work according to the users manual.
e. The equipment has been dropped and damaged.
f.
The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS
BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT MAY
DAMAGE THE EQUIPMENT.
16. External equipment intended for connection to signal
input/output or other connectors, shall comply with
relevant UL / IEC standard (e.g. UL 1950 for IT equipment
and UL 60601-1 / IEC 60601 series for systems – shall
comply with the standard IEC 60601-1-1, Safety
requirements for medical electrical systems. Equipment
not complying with UL 60601-1 shall be kept outside the
environment, as defined in the standard.
Caution:
It may cause the danger of explosion if battery is incorrectly
replaced. Replace only with same or equivalent type
recommended by the manufacturer.
Medical Station
ONYX-155
Classification
1. Degree of production against electric shock: No applied part
2. Degree of protection against the ingress of water: IPX0
3. Equipment not suitable for use in the presence of a flammable
anesthetic mixture with air or with oxygen or nitrous oxide.
4. Mode of operation: Continuous
5. Type of protection against electric shock: Class I equipment
Medical Station
ONYX-155
FCC Safety
This device complies with Part 15 FCC
Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received including interference that may
cause undesired operation.
Medical Station
ONYX-155
UL Module Description
Onyx-155 AC modules are developed to
suitable for the Classification Mark
requirement
Medical Station
ONYX-155
Safety Symbol Description
The following safety symbols are the further explanations for your
reference.
Medical equipment with respect to electric
shock, fire and mechanical hazards only in
accordance with UL 60601-1, and
CAN/CSA C22.2 NO. 601.1
Attention, consult ACCOMPANYING
DOCUMENTS.
Ground wire
Protective Ground wire.
Medical equipment with respect to electric
shock, fire and mechanical hazards only in
accordance with UL 60601-1, and
CAN/CSA C22.2 NO. 601.1
Medical Station
ONYX-155
Contents
Chapter 1 General Information
1.1 Introduction ....................................................................1-1
1.2 Feature ............................................................................1-3
1.3 Specification...................................................................1-4
1.4 Dimension.......................................................................1-9
Chapter 2 Hardware Installation
2.1 Safety Precautions.........................................................2-2
2.2 A Quick Tour of the ONYX-155 .....................................2-3
2.3 Removing the rear maintenance cover........................2-6
2.4 2.5” Hard Disk Drive (HDD) Installation .......................2-6
2.5 COM2 Ring / +5V / +12V Selection (JP3)…………..…...2-8
2.6 Clear CMOS (JP6)…………...……………………..………2-8
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization.......................................3-2
3.2 Award BIOS Setup. ........................................................3-3
3.3 Standard CMOS Features..............................................3-5
3.4 Advanced BIOS Features ..............................................3-5
3.5 Advanced Chipset Features..........................................3-5
3.6 Integrated Peripherals ...................................................3-5
3.7 Power Management Setup ............................................3-5
3.8 PnP/PCI Configuration...................................................3-6
3.9 PC Health Status ............................................................3-6
Medical Station
ONYX-155
3.10 Frequency/Voltage Control .........................................3-6
3.11 Load Fail-Safe Defaults ...............................................3-6
3.12 Load Optimized Defaults.............................................3-7
3.13 Set Supervisor/User Password...................................3-7
3.14 Save & Exit Setup.........................................................3-8
3.15 Exit without Saving ......................................................3-8
Chapter 4 Driver Installation
4.1 Installation ......................................................................4-3
4.2 Card Reader Driver Installation ....................................4-4
4.3 Touch Screen Driver Installation..................................4-4
Appendix A Miscellanea
A.1 General Cleaning Tips.................................................. A-2
A.2 Cleaning Tools.............................................................. A-3
A.3 Scrap Computer Recycling ........................................ A-5
Medical Station
ONYX-155
Chapter
1
General
Information
Medical Station
ONYX-155
1.1 Introduction
The ONYX-155 is the flagships of ONYX Healthcare’s medical
stations. The high brightness LCD, low noise solution, integrated
multimedia functions and extensive expansion options make them
the perfect platform upon which to build comprehensive lifestyle
computing applications.
The ONYX-155 includes all the features of a powerful computer into
a slim and attractive chassis. The ONYX-155 has a 15” 550 nits
TFT display with 1024 x 768 resolutions. Integrating with high
brightness LCD is easier to analyze DICOM image. This model
owns sidemount slim 8 in 1 card reader, slim DVD ROM, and smart
card reader to support vivid storage read/write and ID check by
smart card reader.
These two models designed with Core 2 Duo® CPU by higher 2MB
L2 cache to improve system effectiveness. It accommodates one
2.5” hard disk drive and one DDRII SODIMM up to 2GB DRAM.
The ONYX-155 is compact, selectable WLAN and Giga LAN
network compatible PC with full safety and medical approval and
features to control a dedicated system with a wide variety of
applications.
Common applications include point of care systems, healthcare
utility, interactive information displays, automation control systems,
general desktop use, multimedia recreation, and other medical
Chapter 1 General Information 1-1
Medical Station
ONYX-155
requirements. The ONYX-155 is definitely your perfect choices.
Chapter 1 General Information 1-2
Medical Station
ONYX-155
1.2 Feature

15"True color TFT LCD display

550 nits high brightness to X-ray films

Latex-free

Integrated RFID security (optional)

Integrated Smart Card Reader (optional)

Integrated Web-CAM (optional)

Mini capture card support Non-DICOM CAM to DICOM
(optional)

High performance low power system solution

Core 2 Duo® Processors® up to 2.0 GHz with FSB 533/667,
memory up to 4GB ( 2GB DDRII SODIMM x 2) (optional)

802.11a/b/g/n wireless antenna (optional)

Resistive touch screen (optional)

Plastic construction with medical outlook color
Chapter 1 General Information 1-3
Medical Station
ONYX-155
1.3 Specification
Hardware Specifications
Display
ONYX-155 ;15” XGA color TFT LCD
CPU Board Supports Socket 478-based Intel® Core 2 Duo®
Processor up to 2.0 GHz with FSB 533/667MHz
Disk Drive
Space
2.5” Hard Disk Drive (SATA)
Slim DVD-ROM (optional)
8 in 1 card reader
Expansion One Mini PCI slot; One PCI-E expansion
Button
Brightness: “+” / ”-“; Sound: “+” / ”-“; Power SW
I/O






2 x External Serial Port : 1x RS-232, 1 x
RS-232/422/485. 1 x Internal Serial Port reserve
for touch
8 x USB 2.0 ( 7 x external, 1 x internal reserve
for 8 in 1 card reader )
2 x PS/2 for keyboard/mouse.
1 x 10/100/1000 LAN RJ-45 connector (Intel®
82573L)
1 x Line in / Line out / Mic in
2 x 2W speaker on back side
Chapter 1 General Information 1-4
Medical Station
ONYX-155
LCD Specifications
Model Name
ONYX-155 series
Display Type
15” color TFT LCD
Max. Resolution
1024 x 768
Max. Colors
16.7M
Dot Size (mm)
0.297 x 0.297
Luminance (cd/m2)
550 (TYP)
Viewing Angle
170°(H)
170°(V)
Contrast Ratio
1000:1
Brightness Control
Yes
Back Light MTBF
50,000 Hrs
Note:
All ONYX Healthcare’s LCD products are manufactured with high
precision technology. However, there are a small number of
defective pixels in all LCD panels that are not able to change color.
This is a normal occurrence for all LCD displays from all
manufacturers and should not be noticeable or objectionable under
normal operation. ONYX Healthcare’s LCD panels are qualified for
industry standard conditions in the following: total 3 dead pixels on
a screen or if there are 3 within 1 inch square area of each other on
the display.
Chapter 1 General Information 1-5
Medical Station
ONYX-155
Mechanical Specifications
Architecture
Close-frame
Front Bezel
Plastic bezel with resistive touch screen
Color
Blue-white
Mounting / Holder VESA 75 only
Construction
3mm ABS + PC TYPE Plastic Housing
Dimension
398 x 330 x 92.5 mm (15.7”x13”x3.6”)
(W x H x D)
Carton Dimension 510x 213x 465mm (20.1”x 8.4”x 18.3”)
Net Weight
ONYX-155: 6.3 kg
Gross Weight
ONYX-155: 9.3 kg
Packing Filler
PE
Power Supply Specifications
Power
AC Model:
ONYX-155HT(T):180W
Input Voltage
AC Mod(input power rating)
100~240 V AC, 2A/1A max. @ 50 ~ 63 Hz
Output Voltages
AC Model:
+5 [email protected] A, +12 [email protected] A,
+3.3 [email protected] A, +5 [email protected] 2.0 A,-12 @0.8A
MTBF
100,000 hrs operation at 25˚C
Chapter 1 General Information 1-6
Medical Station
ONYX-155
Environmental Specifications
10~40°C (32°F ~ 104°F) (Operating) /
Temperature
-20°C~60°C (-4°F ~ 140°F) (Transport /
Storage)
30~75%(Operating) /
Humidity
10~90% (Transport / Storage)
850~1000hPa(Operating) /
Pressure
850~1000hPa(Transport / Storage)
Vibration
0.5G / 5 ~ 500Hz (Random) / operation
Shock
15G peak acceleration (11 msec.
duration) / operation
Drop
76cm (1 Corner, 3 Edge, 6 Surface)
EMI / Safety
CE / FCC Class B/UL 60601-1/EN
60601-1
IP
Front bezel, IP-65 compliant
Noise
35db
Input Power Rating
100~240V/47~63Hz, 2A/1A
Power Consumption
70W
Chapter 1 General Information 1-7
Medical Station
ONYX-155
Touch Screen (Optional)
Type
5-wire, Analog Resistive
Interface
RS-232 interface
Resolution
2048 x 2048
Light Transmission
> 80%
Life Time
35 million activations
Chapter 1 General Information 1-8
Medical Station
ONYX-155
1.4 Dimension
92.5
75
330
398
75
ONYX-155
UNIT : mm
KB
COM1
COM2
Line
Out
Line
In
MIC
In
USB 0/1
VIDEO IN
VGA
Printer
MS
Chapter 1 General Information 1-9
USB 2/3
USB 4/5
LAN
TV OUT
Medical Station
ONYX-155
Chapter
2
Hardware
Installation
Chapter 2 Hardware Installation 2-1
Medical Station
ONYX-155
2.1 Safety Precautions
Always completely disconnect the power cord from
your board whenever you are working on it. Do not
make connections while the power is on, because a
sudden rush of power can damage sensitive
electronic components.
Always ground yourself to remove any static charge
before touching the board. Modern electronic
devices are very sensitive to static electric charges.
Use a grounding wrist strap at all times. Place all
electronic components on a static-dissipative
surface or in a static-shielded bag when they are not
in the chassis
Chapter 2 Hardware Installation 2-2
Medical Station
ONYX-155
2.2 A Quick Tour of the ONYX-155
Before you start to set up the ONYX-155, take a moment to become
familiar with the locations and purposes of the controls, drives,
connections and ports, which are illustrated in the figures below.
When you place the ONYX-155 upright on the desktop, its front
panel appears as shown in Picture 2-1.
Picture 2.1: Front View of the Medical Station
When you turn the Medical Station around and look at its rear cover,
the sunken I/O section is at the bottom of the station, as shown in
Picture 2-2. (The I/O section includes various I/O ports, including
serial ports, VGA port, the Ethernet port, USB ports, the
microphone jack, PCI-E slot, and so on.) The S-video in option
function will need Mini PCI slot. Only assemble with the Mini PCI
Chapter 2 Hardware Installation 2-3
Medical Station
ONYX-155
capture card; the S-Video in function will work. The Medical Station
integrates with WLAN function by using Mini PCI.
Top USB2.0
WLAN
(optional)
Figure 2.2: Rear View of the Medical Station
4 x USB Ports
PS/2 Keyboard & Mouse
VGA Port
TV Out
2 COM Ports
Power Connector
Line out / Line in / Mic in
LAN / 2 x USB port
Chapter 2 Hardware Installation 2-4
Medical Station
ONYX-155
When you turn the Medical Station around and look at its left side,
all in one card reader and DVD ROM are on the left side of the
Medical Station as shown in Picture 2-3.
8-in-1 Card
Reader
Smart Card
Reader
Slim CD-ROM/
DVD-ROM
(Optional)
Figure 2.3: Left view of the Medical Station
Chapter 2 Hardware Installation 2-5
Medical Station
ONYX-155
2.3 Removing the rear maintenance cover
Pull USB cover; unscrew the attachment screws used to hold
the rear maintenance cover and remove rear cover.
2.4 2.5” Hard Disk Drive (HDD) Installation
1. Unscrew the rear cover screws.
2. Unscrew the rear screws.
3. Remove rear cover and unscrew the disk module screws.
Chapter 2 Hardware Installation 2-6
Medical Station
ONYX-155
4. Assemble 2.5” HDD into disk module.
5. Connect HDD cable to 2.5”HDD and SATA connector
Chapter 2 Hardware Installation 2-7
Medical Station
ONYX-155
2.5 COM2 Ring/+5V/+12V Selection (JP3)
JP3
Function
1-2
+12
2-3
+5V
5-6
Ring (Default)
2.6 Clear CMOS (JP6)
JP6
Function
1-2
Protected
2-3
Clear
Chapter 2 Hardware Installation 2-8
Medical Station
ONYX-155
Chapter
3
Award
BIOS Setup
Chapter3 Award BIOS Setup 3-1
Medical Station
ONYX-155
3.1 System Test and Initialization
These routines test and initialize board hardware. If the
routines encounter an error during the tests, you will either
hear a few short beeps or see an error message on the
screen. There are two kinds of errors: fatal and non-fatal. The
system can usually continue the boot up sequence with
non-fatal errors. Non-fatal error messages usually appear on
the screen along with the following instructions:
Press <F1> to RESUME
Write down the message and press the F1 key to continue
the boot up sequence.
System configuration verification
These routines check the current system configuration
against the values stored in the CMOS memory. If they do not
match, the program outputs an error message. You will then
need to run the BIOS setup program to set the configuration
information in memory.
There are three situations in which you will need to change
the CMOS settings:
1.
You are starting your system for the first time
2.
You have changed the hardware attached to your system
3.
The CMOS memory has lost power and the configuration
information has been erased.
The ONYX-155 CMOS memory has an integral lithium
battery backup for data retention. However, you will need to
replace the complete unit when it finally runs down.
Chapter3 Award BIOS Setup 3-2
Medical Station
ONYX-155
3.2 Award BIOS Setup
Awards BIOS ROM has a built-in Setup program that allows
users to modify the basic system configuration. This type of
information is stored in battery-backed CMOS RAM so that it
retains the Setup information when the power is turned off.
Entering setup
Power on the computer and press <Del> immediately. This
will allow you to enter Setup.
Standard CMOS Features
Use this menu for basic system configuration. (Date, time,
IDE, etc.)
Advanced BIOS Features
Use this menu to set the advanced features available on your
system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers
and optimize your system performance.
Integrated Peripherals
Use this menu to specify your settings for integrated
peripherals. (Primary slave, secondary slave, keyboard,
mouse etc.)
Power Management Setup
Use this menu to specify your settings for power
management. (HDD power down, power on by ring etc.)
Chapter3 Award BIOS Setup 3-3
Medical Station
ONYX-155
PnP/PCI Configurations
This entry appears if your system supports PnP/PCI.
PC Health Status
This menu shows you the status of PC.
Frequency / Voltage Control
This menu shows you the display of frequency / voltage
control.
Load Fail-Safe Defaults
Use this menu to load the BIOS default values for the
minimal/ stable performance for your system to operate.
Load Optimized Defaults
Use this menu to load the BIOS default values that are
factory settings for optimal performance system operations.
While AWARD has designated the custom BIOS to maximize
performance, the factory has the right to change these
defaults to meet their needs.
Set Supervisor/User Password
Use this menu to set Supervisor/User Passwords.
Save and Exit Setup
Save CMOS value changes to CMOS and exit setup.
Exit Without Saving
Abandon all CMOS value changes and exit setup.
Chapter3 Award BIOS Setup 3-4
Medical Station
ONYX-155
3.3 Standard CMOS Features
Choosing the Standard CMOS Features option from the
INITIAL SETUP SCREEN menu, and the standard Setup
Menu allows users to configure system components such as
date, time, hard disk drive, floppy drive and display. Once a
field is highlighted, on-line help information is displayed in the
right box of the Menu screen.
3.4 Advanced BIOS Features
Choosing the Advanced BIOS Features option from the
INITIAL SETUP SCREEN menu, and you will see this screen
contains the manufacturer’s default values for the ONYX-155.
3.5 Advanced Chipset Features
Choosing the Advanced Chipset Features option from the
INITIAL SETUP SCREEN menu, and you will see the screen
contains the manufacturer’s default values for the ONYX-155.
3.6 Integrated Peripherals
Choosing the Integrated Peripherals from the INITIAL SETUP
SCREEN menu, and you will see the screen contains the
manufacturer’s default values for the ONYX-155.
3.7 Power management Setup
Choosing the Power Management Setup from the INITIAL
SETUP SCREEN menu, and the screen contains the
manufacturer’s default values for the ONYX-155.
Chapter3 Award BIOS Setup 3-5
Medical Station
ONYX-155
3.8 PnP/PCI configuration
Choosing the PnP/PCI configurations from the Initial Setup
Screen menu, and you will see the screen contains the
manufacturer’s default values for the ONYX-155.
3.9 PC Health Status
Choosing the PC Health Status from the Initial Setup Screen
menu, and you will see the screen contains the
manufacturer’s default values for the ONYX-155.
3.10 Frequency/Voltage Control
Choosing the Frequency/Voltage Control from the Initial Setup
Screen menu, and you will see the screen contains the
manufacturer’s default values for the ONYX-155.
3.11 Load Fail-Safe Defaults
When you press <Enter> on this item you get a confirmation
dialog box with a message similar to:
Load Fail-Safe Default (Y/N)?
Pressing "Y" loads the BIOS default values for the most
stable, minimal performance system operations.
Chapter3 Award BIOS Setup 3-6
Medical Station
ONYX-155
3.12 Load Optimized Defaults
When you press <Enter> on this item you get a confirmation
dialog box with a message similar to:
Load Optimized Defaults (Y/N)?
Pressing "Y" loads the default values that are manufacturer’s
settings for optimal performance system operations.
3.13 Set Supervisor/User Password
You can set either SUPERVISOR or USER PASSWORD, or
both of them. The difference between the two is that the
supervisor password allows unrestricted access to enter and
change the options of the setup menus, while the user
password only allows entry to the program, but not modify
options.
To abort the process at any time, press Esc.
In the Security Option item in the BIOS Features Setup screen,
select System or Setup:
System
Enter a password each time the system boots and
whenever you enter Setup.
Setup
Enter a password whenever you enter Setup.
NOTE: To clear the password, simply press Enter when
asked to enter a password. Then the password function is
disabled.
Chapter3 Award BIOS Setup 3-7
Medical Station
ONYX-155
3.14 Save & Exit Setup
If you select this option and press <Enter>, the values entered
in the setup utilities will be recorded in the chipset’s CMOS
memory. The microprocessor will check this every time you
turn on your system and compare this to what it finds as it
checks the system. This record is required for the system to
operate.
3.15 Exit without Saving
Selecting this option and pressing <Enter> allows you to exit
the Setup program without recording any new value or
changing old one.
For more detailed information, you can refer to the ONYX
BIOS Item “Description.pdf” file in the CD for the meaning of
each setting in this chapter.
Chapter3 Award BIOS Setup 3-8
Medical Station
ONYX-155
Chapter
4
Driver
Installation
Chapter 4 Driver Installation 4-1
Medical Station
ONYX-155
There are several installation ways depending on the driver
package under different Operating System application.
Please follow the sequence below to install the drivers:
Step 1 – Install INF Driver
Step 2 – Install VGA Driver
Step 3 – Install Audio Driver
Step 4 – Install LAN Driver
Card Reader Driver Installation
Touch Screen Driver Installation
USB 2.0 Drivers are available for download using Windows Update
for both Windows XP and Windows 2000. For additional information
regarding USB 2.0 support in Windows XP and Windows 2000,
please visit www.microsoft.com/hwdev/usb/.
For installation procedures of each driver, you may see the details
in the following.
Chapter 4 Driver Installation 4-2
Medical Station
ONYX-155
4.1 Installation
Insert the ONYX-155 CD-ROM into the CD-ROM drive and install
the drivers from Step 1 to Step 4 in order. (Other drivers will be
optional).
Step 1 – Install INF Driver
1. Click on the Step 1- INF driver folder and double click on
infinst911_autol.exe
2. Follow the instructions that the window shows
3. The system will help you install the driver automatically
Step 2 – Install VGA Driver
1. Click on the Step 2 –VGA driver folder and select the
corresponding folder for your operating system and
double click on Setup.exe file
2. Follow the instructions that the window shows
3. The system will help you install the driver automatically
Step 3 – Install Audio Driver
1. Click on the Step 3 –AUDIO driver folder and select the
corresponding folder for your operating system and
double click on Setup.exe file
2. Follow the instructions that the window shows
Chapter 4 Driver Installation 4-3
Medical Station
ONYX-155
3. The system will help you install the driver automatically
Step 4 – Install Intel LAN Driver
1. Click on the Step 4 – LAN driver folder and select the
Winx32 folder and double click on .exe for x86 (32bit) OS;
if the OS is Windows 64bit OS, please select the Winx64
folder and double click on .exe file
2. Follow the instructions that the window shows
3. The system will help you install the driver automatically
4.2 Card Reader Driver Installation
1. Click on the Card Reader folder and then double click on
the Setup.exe
2. Follow the instructions that the window shows you
3. The system will help you install the driver automatically
4.3 Touch Screen Driver Installation
1. Click on the Touch driver folder and select the
corresponding folder for your operating system and double
click on Setup.exe file
2. Follow the instructions that the window shows you
3. The system will help you install the driver automatically
Chapter 4 Driver Installation 4-4
Medical Station
ONYX-175/195
Appendix
A
Miscellanea
Appendix A Miscellanea A-1
Medical Station
ONYX-155
A.1 General Cleaning Tips
You may need the following precautions before you begin to clean
the computer. When you clean any single part or component for the
computer, please read and understand the details below fully.
1. Never spray or squirt the liquids directly onto any computer
component. If you need to clean the device, please rub it
with a piece of dry cloth.
2. Be cautious of the tiny removable components when you
use a vacuum cleaner to absorb the dirt on the floor.
3. Turn the system off before you start to clean up the
component or computer.
4. Never drop the components inside the computer or get
circuit board damp or wet.
5. Be cautious of all kinds of cleaning solvents or chemicals
when you use it for the sake of cleaning. Some individuals
may be allergic to the ingredients.
6. Try not to put any food, drink or cigarette around the
computer.
Appendix A Miscellanea A-2
Medical Station
ONYX-155
A.2 Cleaning tools
Although many companies have created products to help improve
the process of cleaning your computer and peripherals users can
also use household items to clean their computers and peripherals.
Below is a listing of items you may need or want to use while
cleaning your computer or computer peripherals.
Keep in mind that some components in your computer may only be
able to be cleaned using a product designed for cleaning that
component, if this is the case it will be mentioned in the cleaning
tips.

Cloth - A piece of cloth is the best tool to use when rubbing
up a component. Although paper towels or tissues can be
used on most hardware as well, we still recommend you to
rub it with a piece of cloth.

Water or rubbing alcohol – You may moisten a piece of
cloth a bit with some water or rubbing alcohol and rub it on
the computer. Unknown solvents may be harmful to the
plastics parts.

Vacuum cleaner - Absorb the dust, dirt, hair, cigarette
particles, and other particles out of a computer can be one
of the best methods of cleaning a computer. Over time
these items can restrict the airflow in a computer and cause
circuitry to corrode.
Appendix A Miscellanea A-3
Medical Station

ONYX-155
Cotton swabs - Cotton swaps moistened with rubbing
alcohol or water are excellent tools for wiping hard to reach
areas in your keyboard, mouse, and other locations.

Foam swabs - Whenever possible it is better to use lint
free swabs such as foam swabs.
Note:
1. We strongly recommended that you should shut down the
system before you starts to clean any single components.
2. Please remember to clean up the equipment once a week.
Please follow the steps below.
1.
Close all application programs.
2.
Close operating software.
3.
Turn off power switch
4.
Remove all device
5.
Pull out power cable
Appendix A Miscellanea A-4
Medical Station
ONYX-155
A.3 Scrap Computer Recycling
If the computer equipments need the maintenance or are beyond
repair, we strongly recommended that you should inform us as
soon as possible for the suitable solution. For the computers that
are no longer useful or work well, please contact with worldwide
distributors for recycling.
The worldwide distributors show on the following website:
http://www.onyx-healthcare.com/Contact.php
Note:
Follow the national requirement to dispose unit
Appendix A Miscellanea A-5
