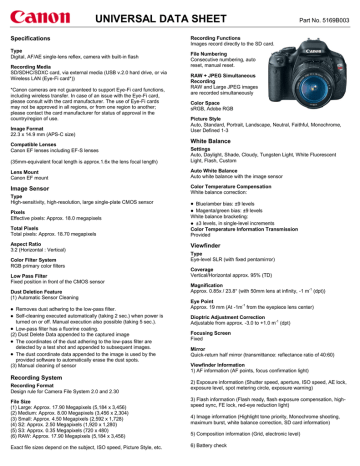

Digital, AF/AE single-lens reflex, camera with built-in flash
Recording Media
SD/SDHC/SDXC card, via external media (USB v.2.0 hard drive, or via
Wireless LAN (Eye-Fi card*))
*Canon cameras are not guaranteed to support Eye-Fi card functions,
including wireless transfer. In case of an issue with the Eye-Fi card,
please consult with the card manufacturer. The use of Eye-Fi cards
may not be approved in all regions, or from one region to another;
please contact the card manufacturer for status of approval in the
country/region of use.
Image Format
22.3 x 14.9 mm (APS-C size)
Compatible Lenses
Canon EF lenses including EF-S lenses
Part No. 5169B003
Recording Functions
Images record directly to the SD card.
File Numbering
Consecutive numbering, auto
reset, manual reset.
RAW + JPEG Simultaneous
RAW and Large JPEG images
are recorded simultaneously
Color Space
sRGB, Adobe RGB
Picture Style
Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome,
User Defined 1-3
White Balance
(35mm-equivalent focal length is approx.1.6x the lens focal length)
Auto, Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent
Light, Flash, Custom
Lens Mount
Canon EF mount
Auto White Balance
Auto white balance with the image sensor
Image Sensor
Color Temperature Compensation
White balance correction:
High-sensitivity, high-resolution, large single-plate CMOS sensor
Effective pixels: Approx. 18.0 megapixels
Total Pixels
Total pixels: Approx. 18.70 megapixels
Aspect Ratio
3:2 (Horizontal : Vertical)
Color Filter System
RGB primary color filters
Low Pass Filter
Fixed position in front of the CMOS sensor
Dust Deletion Feature
(1) Automatic Sensor Cleaning
Removes dust adhering to the low-pass filter.
Self-cleaning executed automatically (taking 2 sec.) when power is
turned on or off. Manual execution also possible (taking 5 sec.).
Low-pass filter has a fluorine coating.
(2) Dust Delete Data appended to the captured image
The coordinates of the dust adhering to the low-pass filter are
detected by a test shot and appended to subsequent images.
The dust coordinate data appended to the image is used by the
provided software to automatically erase the dust spots.
(3) Manual cleaning of sensor
Recording System
Recording Format
Design rule for Camera File System 2.0 and 2.30
Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels
White balance bracketing:
±3 levels, in single-level increments
Color Temperature Information Transmission
Eye-level SLR (with fixed pentamirror)
Vertical/Horizontal approx. 95% (TD)
Approx. 0.85x / 23.8° (with 50mm lens at infinity, -1 m-1 (dpt))
Eye Point
Approx. 19 mm (At -1m-1 from the eyepiece lens center)
Dioptric Adjustment Correction
Adjustable from approx. -3.0 to +1.0 m-1 (dpt)
Focusing Screen
Quick-return half mirror (transmittance: reflectance ratio of 40:60)
Viewfinder Information
1) AF information (AF points, focus confirmation light)
2) Exposure information (Shutter speed, aperture, ISO speed, AE lock,
exposure level, spot metering circle, exposure warning)
File Size
(1) Large: Approx. 17.90 Megapixels (5,184 x 3,456)
(2) Medium: Approx. 8.00 Megapixels (3,456 x 2,304)
(3) Small: Approx. 4.50 Megapixels (2,592 x 1,728)
(4) S2: Approx. 2.50 Megapixels (1,920 x 1,280)
(5) S3: Approx. 0.35 Megapixels (720 x 480)
(6) RAW: Approx. 17.90 Megapixels (5,184 x 3,456)
3) Flash information (Flash ready, flash exposure compensation, highspeed sync, FE lock, red-eye reduction light)
Exact file sizes depend on the subject, ISO speed, Picture Style, etc.
6) Battery check
4) Image information (Highlight tone priority, Monochrome shooting,
maximum burst, white balance correction, SD card information)
5) Composition information (Grid, electronic level)
Depth Of Field Preview
Enabled with depth-of-field preview button
Vertical-travel, mechanical, focal-plane shutter with all speeds
electronically controlled. 1/4000 to 1/60 sec., X-sync at 1/200 sec.
TTL-CT-SIR AF-dedicated CMOS sensor
1/4000 to 30 sec., Bulb (Total shutter speed range. Available range
varies by shooting mode.)
AF Points
9 points (Center AF point is cross-type, vertical-line sensitive at f/2.8.)
Settable in 1/3- or 1/2-stop increments.
Soft-touch electromagnetic release 10-sec. or 2-sec. delay (1) The EOS
Rebel T3i has a remote control terminal for Remote Switch RS-60E3.
AF Working Range
EV -0.5 - 18 (at 23°C/73°F and ISO 100, based on Canon's testing
Focusing Modes
(1) Autofocus
One-Shot AF
Predictive AI Servo AF
AI Focus AF
(2) Manual focus (MF)
AF Point Selection
(1) Manual selection
(2) Auto selection
* Automatically set (2) in Basic Zone modes and A-DEP mode.
Selected AF Point Display
Indicated by superimposed display in the viewfinder and on the LCD
AF Assist Beam
(1) Intermittent firing of built-in flash
(2) Effective range: Approx. 4 m/13.1 ft at center, approx. 3.5 m/11.5 ft
at periphery
* With an EOS-dedicated Speedlite attached, the Speedlite's AF-assist
beam is emitted instead.
* Compatible with assist-beam (intermittent firing) of 320EX, 270EX II
and 270EX flashes.
Exposure Control
Metering Modes
TTL maximum aperture metering with 63-zone metering sensor
Evaluative metering (linkable to all AF points)
Partial metering (center, approx. 9% of viewfinder at center)
Spot metering (center, approx. 4% of viewfinder at center)
Center-weighted average metering
Metering Range
EV 1.0 - EV 20.0 (at 73°F/23°C with EF50mm f/1.4 USM lens, ISO 100)
Exposure Control Systems
Program AE (Shiftable), Shutter-priority AE, Aperture-priority AE,
Manual exposure, Automatic depth-of-field, Scene Intelligent Auto,
Flash Off, Creative Auto, Programmed Image Control modes, E-TTL II
autoflash program AE
ISO Speed Range
Auto, ISO 100 - 6400 (in whole-stop increments), H: 12800
Exposure Compensation
Manual: ±5 stops in 1/3- or 1/2-stop increments (AEB ±2 stops)
* Indicated up to ±3 stops in the viewfinder.
AE Lock
Auto: Applied in One-Shot AF mode with evaluative metering when
focus is achieved
Manual: By AE lock button
(2) Compatible with Remote Controller RC-6, RC-1 and RC-5.
Vertical-travel, mechanical, focal-plane shutter with all speeds
electronically controlled.
Shutter Speeds
1/4000 to 1/60 sec., X-sync at 1/200 sec.
1/4000 to 30 sec., Bulb (Total shutter speed range. Available range
varies by shooting mode.)
Settable in 1/3- or 1/2-stop increments.
Shutter Release
Soft-touch electromagnetic release
Self Timer
10-sec. or 2-sec. delay
Remote Control
(1) The EOS Rebel T3i has a remote control terminal for Remote
Switch RS-60E3.
(2) Compatible with Remote Controller RC-6, RC-1 and RC-5.
Built in Flash
Auto pop-up, retractable, built-in flash in the pentaprism
Guide Number
Approx. 13/43 (at ISO 100 in meters/feet)
Recycling Time
Approx. 3 sec.
Flash Ready Indicator
Flash-ready icon lights in viewfinder
Flash Coverage
Up to 17mm focal length (equivalent to approx. 28mm in 135 format)
FE Lock
Flash Exposure Compensation
Up to ±2 stops in 1/3- or 1/2-stop increments
Flash exposure compensation for built-in flash and Speedlite can be
set with the camera.
External Speedlite
Flash Metering
E-TTL II autoflash
Flash Exposure Compensation
±2 stops in 1/3-stop or 1/2-stop increments
FE Lock
Drive System
Drive Modes
Single, Continuous, 10-sec. self-timer/Remote control, 2-sec. self-timer,
Continuous shooting after 10-sec. self-timer
Continuous Shooting Speed
Max. approx. 3.7 fps [TD] (with One-Shot AF or AI SERVO AF)
* Same as with Battery Grip BG-E8 loaded with size-AA/LR6 alkaline
Maximum Burst
JPEG (Large/Fine): approx. 34
RAW: approx. 6
RAW+JPEG (Large/Fine): approx. 3
* The number of possible shots and maximum burst apply to a 4GB
card based on Canon's testing standards.
* The image file size, number of possible shots, and maximum burst will
vary depending on the shooting conditions (3:2 aspect ratio, subject,
memory card brand, ISO speed, Picture Style, Custom Functions, etc.).
* "F" indicates that continuous shooting is possible until the card
becomes full.
Live View Functions
Shooting Modes
Still photo shooting and video shooting
(1) Autofocus (Same as focusing with Live View shooting)
Grid Display
Two grids provided (not displayed during movie shooting):
(1) Grid 1: Pair of vertical and horizontal lines
(2) Grid 2: 5 vertical and 3 horizontal lines
Exposure Simulation
Silent Shooting
Not provided
LCD Monitor
TFT color, liquid-crystal monitor
Monitor Size
3.0 in. (Screen aspect ratio of 3:2)
Approx. 1,040,000 dots
Approx. 100%
Viewing Angle: 170°
Brightness Control
Adjustable to one of seven brightness levels
Interface Languages
25 (English, German, French, Dutch, Danish, Portuguese, Finnish,
Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish,
Hungarian, Czech, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified
Chinese, Traditional Chinese, Korean and Japanese)
Before shooting a movie, 1, 2, and 3 below are possible.
AF during movie shooting is possible with [AF w/ shutter button during
video]. When this is set to [Enable], 1 and 2 below are possible:
Display Format
(1) Single image display
A. Live mode
Single image, basic information, detailed information, histogram
(2) Index display
4-image index and 9-image index.
(3) Jump display (Image jump w/ Main Dial)
1/10/100 images, shooting date, by folder, movies, stills, rating
Highlight Alert
On the detailed information and histogram displays, highlight areas with
no image data will blink.
B. Face detection Live mode
C. Quick mode
* If 3 has been set when you start shooting a movie, it will switch to 1
(2) Manual focusing
Image Protection and Erase
* Magnify the image by about 5x or 10x and focus manually.
* Magnified view not possible with digital zoom nor during movie
Erase protection can be applied/canceled for a single image, all images
in a folder, or all images in the card.
Metering Modes
(1) AF point-linked evaluative metering
Erase single image, erase selected images, erase all images on folder,
erase all images in a card, or erase only unprotected images.
* Used when the AF mode is Face detection Live mode and a face has
been detected.
Direct Printing
(2) Center-weighted average metering
* Used during manual focus, when the AF mode is Face detection Live
mode and a face has not been detected. Also used in the Live mode
and Quick mode.
* Metering range: EV 0 to EV 20 (At 23°C/73°F and ISO 100, with
50mm f/1.4 lens)
Metering Range
EV 0 to EV 20 (At 23°C/73°F and ISO 100, with 50mm f/1.4 lens)
Compatible Printers
PictBridge-compatible printers
Printable Images
JPEG images complying to Design rule for Camera File System
RAW images printable.
Movies cannot be printed.
DPOF: Digital Print Order Format
Version 1.1 compatible
Custom Functions
11 Custom Functions with 34 settings settable with the camera
Camera User Settings
Not provided
Power Source
Battery Pack LP-E8 x 1
* With the AC Adapter Kit ACK-E8, AC power is possible.
* With BG-E8, two battery packs (LP-E8) can be used. Or six size-AA/LR6 batteries can be used.
Battery Life
1) Camera body only:
Shooting Conditions
Shooting Method
AE 100%
AE 50%, FA 50%
At 73°F/23°C
Approx. 550
Approx. 440
At 32°F/0°C
Approx. 470
Approx. 400
At 73°F/23°C
Approx. 200
Approx. 180
At 32°F/0°C
Approx. 170
Approx. 150
Viewfinder Shooting
Live View Shooting
2) With Battery Grip BG-E8:
Shooting Conditions
Shooting Method
AE 100%
LP-E8 x 1
AE 50%, FA 50%
Same as (1)
At 73°F/23°C
Approx. 1100
Approx. 880
LP-E8 x 2
Viewfinder Shooting
alkaline batteries
At 32°F/0°C
Approx. 940
Approx. 800
At 73°F/23°C
Approx. 470
Approx. 270
At 32°F/0°C
Approx. 130
Approx. 80
LP-E8 x 1
Same as (1)
At 73°F/23°C
Approx. 400
Approx. 360
At 32°F/0°C
Approx. 340
Approx. 300
At 73°F/23°C
At 32°F/0°C
LP-E8 x 2
Live View Shooting
alkaline batteries
The figures above are based on CIPA (Camera & Imaging Products Association) testing standards
Battery Check
Automatic battery level check when power is turned ON.
Battery level indicated in one of four levels on LCD monitor.
Power Saving
Power turns off after the set time of non-operation elapses
* [Auto power off] settable to 30 sec., 1 min., 2 min., 4 min., 8 min., or
15 min.
Date/Time Battery
Built-in secondary battery. When fully-charged, the date/time can be
maintained for about three months.
Start-up Time
Approx. 0.1 sec. (Based on CIPA testing standards)
Dimensions and Weight
Dimensions (W x H x D)
Approx. 5.2 x 3.9 x 3.1 in./133.1 x 99.5 x 79.7mm
Approx. 18.2 oz. / 515g (body only)
Operating Environment
Working Temperature Range
Working Humidity Range
85% or less
Product Number: 6473A003
EF 75-300mm f/4-5.6 III Telephoto Zoom Lens
The optical system, construction, and exterior are the same as the EF 75-300 mm f/4-5.6 III USM’s. The difference is that it
uses a DC motor instead of a USM to drive the AF.
Focal Length & Maximum Aperture
75-300mm 1:4-5.6
Lens Construction
13 elements in 9 groups
Diagonal Angle of View
32° 11’ - 8° 15’
Focus Adjustment
Front group rotating extension system with Micromotor
Closest Focusing Distance
1.5m/4.9 ft.
Filter Size
Max. Diameter x Length, Weight
2.8" x 4.8", 16.8 oz. / 71mm x 122mm, 480g
Product Number: 9320A021
300DG Gadget Bag
If you love your digital SLR cameras and lenses, then make sure to add the Canon 300DG digital camera
gadget bag to your list. In addition to its attractive styling, this camera bag is specifically designed with
SLR cameras in mind. It's built with special compartments intended to hold up to two SLR camera bodies,
three lenses, and a host of accessories. Canon has also included several padded easy-access side
storage pockets so you can get at an extra memory card or lens cloth in a snap. The durable, waterrepellent nylon exterior and weather-flap lid help keep the elements out, while the double-clasp closures
keep your cameras safe and secure inside the bag.
 Designed to hold 1-2 SLR digital cameras
 Durable, water-repellent nylon exterior and weather-flap lid
 Hold up to two SLR camera bodies, two-three lenses, and accessories
 Inside dimensions measure 9.5 x 7 x 6 inches (W x H x D)
 Padded, easy-access side pockets for extra memory cards
8GB SDHC Memory Card
Dane-Elec DA-SD-1008G-C 8GB Secure Digital High
Capacity Memory Card has a sleek and rugged exterior
and offers you the kind of mobility you want and need
with your precious photo albums, music, video and more!
This SD card is great for use with a PDA, MP3 drivers,
mobile phones and also digital equipment such as
cameras and videos. The possibilities of data you can
store are limitless, and with a comfortable 8GB of storage
you will be glad you invested in this worthy little device.
Equip yourself with this handy SD Card for mobile
performance you can depend on.
Memory card with 8 gigabytes of secure digital memory
Store videos, pictures, music and more
Compatible with all portable devices that features an SD slot
Supports SD and SDI communication protocols
High capacity
Dimensions: .06” H x 1.19” D x .09” W
Weight: .07 lbs.
Warranty: 10 Years
Award-winning, industry-leading provider of software, music, books, computer and mobile/camera accessories
Photo Suite Deluxe Software
PC Treasures 50707-WS Photo Suite Deluxe
Software includes Adobe Photoshop
Elements 10, Page Plus Essentials Deluxe,
Craft Artist Greeting card and Web Plus
Essentials Deluxe. Adobe Photoshop
Elements 10 helps you turn everyday
memories into sensational photos you'll
cherish forever. This program lets you
easily edit photos and make photo
creations using automated options, share
photos with your social network, and find
and view all your photos and video clips.
With Web Plus Essentials Deluxe you can
design and publish websites quickly and
easily with no previous HTML knowledge.
Plus, you get high-quality, customizable
templates that get you started right away.
Adobe Photo Shop Elements 10
Page Plus Essentials Deluxe
Craft Artist Greeting Card
Web Plus Essentials Deluxe
Design and publish websites quickly and easily with no previous HTML knowledge
High-quality, customizable templates to help you get started
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
