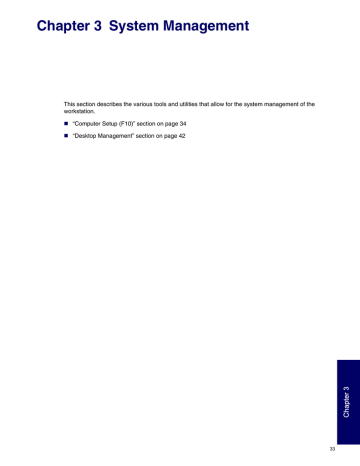

Chapter 3 System Management

Chapter 3 System Management

Chapter 3 System Management

This section describes the various tools and utilities that allow for the system management of the workstation.

„

“Computer Setup (F10)” section on page 34

„

“Desktop Management” section on page 42

33

Computer Setup (F10)

The Computer Setup (F10) utilities enable you to:

„

Change factory default settings and set or change the system configuration, which might be necessary when you add or remove hardware.

„

Determine if all of the devices installed on the workstation are recognized by the system and functioning properly.

„

Determine information about the operating environment of the workstation.

„

Solve system configuration errors detected but not automatically fixed during the Power-On Self-Test

(POST).

„

Establish and manage passwords and other security features.

„

Establish and manage energy-saving timeouts (not supported for Linux platforms).

„

Modify or restore factory default settings.

„

Set the system date and time.

„

Set, view, change, or verify the system configuration, including settings for processor, graphics, memory, audio, storage, communications, and input devices.

„

Modify the boot order of bootable devices, such as hard drives, diskette drives, optical drives, or LS-

120 drives.

„

Configure the boot priority of SATA, IDE (ATA), and SCSI hard drive controllers.

„

Enable Quick Boot, which is faster than Full Boot but does not run all of the diagnostic tests run during a Full Boot. You can set your system to:

„ always Quick Boot (default)

„ periodically Full Boot (from every 1 to 30 days)

„ always Full Boot

„

Enable or disable Network Server Mode, which enables the workstation to boot the operating system when the power-on password is enabled with or without a keyboard or mouse attached. When attached to the system, the keyboard and mouse remain locked until the power-on password is entered.

„

Select POST Messages Enabled or Disabled to change the display status of POST messages. POST

Messages Disabled suppresses most POST messages, such as memory count, product name, and other non-error text messages. If a POST error occurs, the error is displayed regardless of the mode selected. To manually switch to POST Messages Enabled during POST, press any key (except

F1 through

F12).

„

Establish an Ownership Tag, the text of which is displayed each time the system is turned on or restarted.

„

Enter the Asset Tag or property identification number assigned by your company to this workstation.

„

Enable power-on password prompting during system restarts (warm boots) as well as during poweron.

„

Secure the integrated I/O functionality, including the serial, USB, or parallel ports, audio, or embedded NIC, so that the I/O functionality cannot be used until they are unsecured.

„

Enable or disable Master Boot Record (MBR) Security.

34 SYSTEM MANAGEMENT

„

Enable or disable removable media boot ability.

„

Enable or disable removable media write ability (when supported by hardware).

„

Solve system configuration errors detected, but not automatically fixed, during the POST.

„

Replicate your system setup by saving system configuration information on diskette and restoring it on one or more workstations.

„

Execute self-tests on specified SATA and IDE (ATA) hard drives (when supported by the drive).

BIOS ROM

The Basic Input/Output System (BIOS) of the computer is a collection of machine language programs stored as firmware in read-only memory (ROM). The BIOS ROM includes such functions as POST, PCI device initialization, Plug 'n Play support, power management activities, and the Setup utility. The firmware contained in the BIOS ROM supports the following systems and specifications:

„

Microsoft WHQL

„

Alert-On-LAN (AOL) and Wake-On-LAN (WOL)

„

ACPI 1.0 and 2.0 and OnNow

„

SMBIOS 2.3.5

„

PC98/99/00 and NetPC

„

Intel PXE boot ROM for the integrated LAN controller

„

BIOS Boot Specification 1.01

„

Enhanced Disk Drive Specification 3.0

„

“El Torito” Bootable CD-ROM Format Specification 1.0

„

ATAPI Removable Media Device BIOS Specification 1.0

„

MPS Specification 1.4 (for booting Linux SMP)

The BIOS ROM is a 1-MB Intel Firmware Hub (or Firmware Hub-compatible) part. The runtime portion of the BIOS resides in a 128-K block from EA000h to FFFFFh (approximation).

Using Computer Setup (F10)

You can only open Computer Setup by turning on the workstation or restarting the system. To access the

Computer Setup Utilities menu:

1

Turn on or restart the workstation.

2

Press the

F10 key as soon as the monitor light turns green.

NOTE

If you do not press the

F10 key at the appropriate time, you must try again. Turn the workstation off, then on again, and press the

F10 key again to access the utility.

3

Select your language from the list and press

Enter. In the Computer Setup Utilities menu, four headings are displayed: File, Storage, Security, and Advanced.

4

Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and down) keys to select the option you want, then press

Enter.

COMPUTER SETUP (F10)

35

5

To apply and save changes, select File>Save Changes and Exit.

„ If you have made changes that you do not want applied, select Ignore Changes and Exit.

„ To reset to factory settings, select Set Defaults and Exit. This option restores the original factory system defaults.

CAUTION

Do NOT turn the workstation power OFF while the ROM is saving your Computer Setup F10 changes because the CMOS could become corrupted. After you exit the F10 Setup screen, it is safe to turn off all power to the workstation.

36 SYSTEM MANAGEMENT

Computer Setup Menu

NOTE

The following content is subject to change with new firmware releases, so your menu may be different than shown below.

Table 3-1

Computer Setup Menu Descriptions

Heading

File

Option

System

Information

Description

Lists product name, processor type/speed/stepping, cache size (L1/L2), system ROM family and version, installed memory size, chassis serial number, integrated MAC for enabled or embedded

NIC (if applicable), and asset tracking number.

Displays copyright information.

About

Set Time and

Date

Enables you to set system time and date.

Save to

Diskette

Saves system configuration, including CMOS, to a formatted, blank 1.44-MB diskette in the

CPQsetup.txt file. Save/Restore for is supported.

Restore from

Diskette

Restores system configuration from a diskette.

Set Defaults and Exit

Restores factory default settings, which includes clearing any established passwords.

Ignore

Changes and

Exit

Exits Computer Setup without applying or saving any changes.

Save Changes and Exit

Saves changes to system configuration and exits Computer Setup.

COMPUTER SETUP (F10)

37

Table 3-1

Computer Setup Menu Descriptions

Heading

Storage

Option Description

Device

Configuration

Lists all installed non-SCSI storage devices.

SCSI storage drives will not be listed in Computer Setup (F10).

When a device is selected, detailed information and options are displayed. The following options might be presented:

Hard Disk

Identifies the hard disk drives on the system.

CD-ROM

Identifies the hard disk drives on the system.

Diskette Type

(for legacy diskette drives only)

Identifies the highest capacity media type accepted by the diskette drive. Options are 3.5" 1.44

MB, 5.25" 1.2 MB, and Not Installed.

Default Values

Options

Multisector Transfers (IDE disks only)

Specifies how many sectors are transferred per multi-sector PIO operation. Options (subject to device capabilities) are Disabled, 8, and 16.

Transfer Mode

(IDE devices only)

Specifies the active data transfer mode. Options (subject to device capabilities) are PIO 0, Max

PIO, Enhanced DMA, Ultra DMA 0, and Max UDMA.

Translation Mode

(IDE disks only)

Lets you select the translation mode to be used for the device. This enables the BIOS to access disks partitioned and formatted on other systems and may be necessary for users of older versions of UNIX (for example, SCO UNIX version 3.2). Options are Bit-Shift, LBA Assisted, User, and None.

CAUTION: A new Automatic option has been added to allow for BIOS to automatically determine the translation mode used to configure a previously formatted IDE, SATA, or USB mass storage device. This prevents you from having to know how the mass storage device was previously formatted.

Ordinarily, the translation mode selected automatically by the BIOS should not be changed. If the selected translation mode is not compatible with the translation mode that was active when the disk was partitioned and formatted, the data on the disk will be inaccessible.

Removable Media Boot

Enables/disables ability to boot the system from removable media.

Removal Media Diskette Write

Enables/disables ability to write data to removable media.

BIOS DMA Data Transfers

Allows you to enable or disable the BIOS use of DMA for IDE data transfers.

SATA Configuration

Add as separate controller and replace separate controller.

Primary IDE Controller

Enables/disables primary IDE controller.

Secondary IDE Controller

Enables/disables secondary IDE controller.

38 SYSTEM MANAGEMENT

Table 3-1

Computer Setup Menu Descriptions

Heading Option

Security Setup

Password

Description

Boot Order

Allows you to configure the boot, diskette drive, and hard drive orders by physically reordering the menu entries. Each device on the list can be individually excluded from or included for consideration as a bootable operating system source.

NOTE: MS-DOS drive lettering assignments might not apply after a non-MS-DOS operating system has started.

Shortcut to Temporarily Override Boot Order

To boot one time from a device other than the default device specified in Boot Order, restart the workstation and press F9 when the F10=Setup message appears on the screen. After POST is completed, a list of bootable devices is displayed. Use the arrow keys to select the preferred bootable device and press Enter. The workstation then boots from the selected non-default device for this one time.

Controller Order

Allows you to specify the order of the attached hard drive controllers. The first hard drive controller in the order will have priority in the boot sequence and will be recognized as drive C (if any devices are attached).

NOTE: The selection will not appear if all hard drives are attached to the embedded IDE controllers.

Allows you to set and enable setup (administrator) password.

NOTE

If the setup password is set, it is required to change Computer Setup options, flash the

ROM, and make changes to certain plug and play settings under Windows.

Power-On

Password

Smart Cover

System IDs

Master Boot

Record

Security

Allows you to set and enable power-on password.

Allows you to disable cover removal sensor or to notify user if sensor has been activated.

Allows you to set:

„

Asset tag (16-byte identifier) and ownership tag (80-byte identifier displayed during POST).

„

Chassis serial number or Universal Unique Identifier (UUID) number. The UUID can only be updated if the current chassis serial number is invalid. (These ID numbers are normally set in the factory and are used to uniquely identify the system.)

„

Keyboard locale setting (for example, English or German) for System ID entry.

„

Monitor tracking

Enables you to enable or disable MBR Security.

When enabled, the BIOS rejects all requests to write to the MBR on the current bootable disk.

Each time the computer is powered on or rebooted, the BIOS compares the MBR of the current bootable disk to the previously saved MBR. If changes are detected, you are given the option of saving the MBR on the current bootable disk, restoring the previously saved MBR, or disabling

MBR Security. You must know the setup password, if one is set.

NOTE

Disable MBR Security before intentionally changing the formatting or partitioning of the current bootable disk. Several disk utilities (such as FDISK and FORMAT) attempt to update the

MBR. If MBR Security is enabled and disk accesses are being serviced by the BIOS, write requests to the MBR are rejected, causing the utilities to report errors. If MBR Security is enabled and disk accesses are being serviced by the operating system, any MBR change will be detected by the BIOS during the next reboot, and an MBR Security warning message will be displayed.

COMPUTER SETUP (F10)

39

Table 3-1

Computer Setup Menu Descriptions

Heading Option

Advanced** Boot

Description

Allows you to set:

„

POST mode (QuickBoot, FullBoot, or FullBoot every 1–30 days).

„

POST messages (enable/disable).

„

Safe POST (enable/disable). Enabling this features allows a watchdog timer to operate during

Option ROM execution. If an option ROM hangs and the user cycles the power on the system,

POST detects that an error occurred during the last boot, and displays a message. The offending option ROM code is skipped.

NOTE

This setting might need to be disabled if an option ROM takes a long time to execute. The watchdog timer might expire on a normally executing option ROM and skip it on the next boot.

„

F9 prompt (enable/disable). Enabling this feature will display the text F9=Boot Menu during

POST. Disabling this feature prevents the text from being displayed. However, pressing the

F9 key will still access the Shortcut Boot [Order] Menu screen.

„

F10 prompt (enable/disable). Enabling this feature displays the text F10=Setup during

POST. Disabling this feature prevents the text from being displayed but pressing F10 still accesses the Setup screen.

„

F12 prompt (enable/disable). Enabling this feature displays the text F12=Network Service

Boot

during POST. Disabling this feature prevents the text from being displayed but pressing

F12 still forces the system to attempt booting from the network.

„

Option ROM* prompt (enable/disable). Enabling this feature causes the system to display a message before loading options ROMs.

„

POST Delay (in seconds) (enable/disable). Enabling this feature adds a user-specified delay to the POST process. This delay is sometimes needed for hard disks on some PCI cards that spin up slowly—so slowly that they are not ready to boot by the time POST is finished. The

POST delay also gives you more time to select F10 to enter Computer Setup (F10).

„

Num Lock State at Power-On (enable/disable). Enabling this feature automatically turns on

Num Lock at startup.

Power/Sleep/

Wake

Options:

„

Remote Wakeup Boot Source

„

After Power Loss (on/off).

„

S5 wake on LAN (enable/disable).

„

Unique Sleep State Blink Rates (enable/disable). Allows you to choose an LED blink pattern that uniquely identifies each sleep state.

Processors Enable/disable processor cache, Hyper-Threading Technology, and power management features.

NOTE

Enabling Power Management turns on Demand-Based Switching, a feature which reduces processor frequency and voltage (thus, power) when usage is low (but the system is still in S0/ working state).

Chipset/

Memory

ECC support enables hardware-based error correction for ECC-capable memories.

„

Memory scrubbing (enable/disable)

„

Memory remapping (enable/disable)

„

PCI SERR# generation (enable/disable)

„

PCI VGA palette snooping (enable/disable), which sets the VGA palette snooping bit in PCI configuration space; only needed when more than one graphics controller is installed.

40 SYSTEM MANAGEMENT

Table 3-1

Computer Setup Menu Descriptions

Heading Option

Onboard

Devices

Description

Enables you to set resources for or disable onboard system devices (serial ports, parallel ports, diskette controllers, and so on).

Device Options Allows you to set the Printer Mode to EPP+ECP, Output-Only or Bi-directional.

NOTE

These settings are included for backward compatibility. Many older printers cannot use newer protocols like EPP+ECP.

Allows you to enable/disable:

„

Number Lock state at power-on or off during POST

„

PME Wakeup Events, such as a wake on LAN magic packet to bring the machine out of

Hibernate.

„

Processor Cache. Enabling this turns on the processors L1 and L2 cache and disabling turns off the processors L1 and L2 cache, which is one way to slow the processor down.

„

SATA RAID Option ROM

„

SCSI Option ROM

„

Network Controller Option

„

Standby wake events

NOTE

This setting might need to be disabled if older PCI cards do not use the PME signal correctly and keep turning on the system.

Slot 1 (PCI) Enables you to configure control, power management, option ROM, and interrupt.

Slot 2 (PCI

Express x 16)

Enables you to configure control, power management, option ROM, and interrupt.

Slot 3 (PCI) Enables you to configure control, option ROM, and latency timer.

Slot 4 (PCI

Express x 16)

Enables you to configure control, option ROM, and latency timer.

Slot 5 (PCI-X

133)

Enables you to configure control, speed, option ROM, and latency timer.

Slot 6 (PCI-X

133)

Enables you to configure control, speed, option ROM, and latency timer.

Slot 7 (PCI-X

133)

Enables you to configure control, speed, option ROM, and latency timer.

*Available on select models.

**These options should be used by advanced users only.

COMPUTER SETUP (F10)

41

Desktop Management

HP Client Management Solutions (available for download from http://www.hp.com/go/EasyDeploy

) provides standards-based solutions for managing and controlling workstations in a networked environment. This section summarizes the capabilities and features of the key components of desktop management:

„

Initial Configuration and Deployment

„

Remote System Installation

„

Software Updating and Management

„

ROM Flash

„

Asset Tracking and Security

„

Fault Notification and Recovery

NOTE

Support for specific features described in this guide might vary by model or software version.

Initial Configuration and Deployment

The workstation comes with a preinstalled system software image. After a brief software “unbundling” process, the workstation is ready to use.

You may prefer to replace the preinstalled software image with a customized set of system and application software. There are several methods for deploying a customized software image. They include:

„

Installing additional software applications after unbundling the preinstalled software image.

„

Using software deployment tools, such as Altiris Deployment Solutions™, to replace the preinstalled software with a customized software image.

„

Using a disk cloning process to copy the contents from one hard drive to another.

The best deployment method depends on your information technology environment and processes. The

PC Deployment section of the HP Lifecycle Solutions Web site ( http://whp-sp-orig.extweb.hp.com/ country/us/en/solutions.html

) provides information to help you select the best deployment method.

The

Restore Plus!

CD, ROM-based setup, and ACPI hardware provide further assistance with recovery of system software, configuration management and troubleshooting, and power management.

Remote System Installation

Remote System Installation lets you start and set up your system using the software and configuration information located on a network server. This feature is usually used as a system setup and configuration tool, and can be used for the following tasks:

„

Deploying a software image on one or more new PCs

„

Formatting a hard drive

„

Installing application software or drivers

„

Updating the operating system, application software, or drivers

42 SYSTEM MANAGEMENT

To initiate Remote System Installation, press F12 when the F12=Network Service Boot message appears in the lower-right corner of the HP logo screen. Follow the on-screen instructions to continue the process. The default boot order is a BIOS configuration setting that can be changed to always attempt to

PXE boot.

HP and Altiris have partnered to provide tools designed to make the task of corporate PC deployment and management easier and less time-consuming, ultimately lowering the total cost of ownership and making HP PCs the most manageable client PCs in the enterprise environment.

Software Updating and Management

HP provides several tools for managing and updating software on desktops and workstations—HP Client

Manager Software, Altiris Client Management Solutions, System Software Manager; Proactive Change

Notification; and Subscriber’s Choice.

HP Client Manager Software

HP Client Manager Software (HP CMS) assists HP customers in managing the hardware aspects of their client workstations with features that include:

„

Detailed views of hardware inventory for asset management

„

PC health check monitoring and diagnostics

„

Proactive notification of changes in the hardware environment

„

Web-accessible reporting of business critical details such as machines with thermal warnings, memory alerts, and more

„

Remote updating of system software such as device drivers and ROM BIOS

„

Remote changing of boot order

„

Configuring the system BIOS settings

For more information on the HP Client Manager, visit http://www.hp.com/go/im .

Altiris Client Management Solutions

HP and Altiris have partnered to provide comprehensive, tightly integrated systems management solutions to reduce the cost of owning HP client PCs. HP Client Manager Software is the foundation for additional Altiris Client Management Solutions that address:

„

Inventory and Asset Management

„ SW license compliance

„ PC tracking and reporting

„ Lease contract, fixing asset tracking

„

Deployment and Migration

„ Microsoft Windows XP Professional or Home Edition migration

„ System deployment

„ Personality migrations

„

Help Desk and Problem Resolution

„ Managing help desk tickets

DESKTOP MANAGEMENT

43

„ Remote troubleshooting

„ Remote problem resolution

„ Client disaster recovery

„

Software and Operations Management

„ Ongoing desktop management

„ HP system SW deployment

„ Application self-healing

For more information and details on how to download a fully-functional 30-day evaluation version of the

Altiris solutions, visit http://h18000.www1.hp.com/im/prodinfo.html#deploy .

For more information, visit http://www.hp.com/go/EasyDisplay .

System Software Manager

System Software Manager (SSM) is a utility that lets you update system-level software on multiple systems simultaneously. When executed on a PC client system, SSM detects both hardware and software versions, then updates the appropriate software from a central repository, also known as a file store. Driver versions that are supported by SSM are denoted with a special icon on the software, the driver download Web site, and on the Support Software CD. To download the utility or to obtain more information on SSM, visit http://www.hp.com/go/ssm .

Proactive Change Notification

The Proactive Change Notification program uses the Subscriber's Choice Web site in order to proactively and automatically:

„

Send you Proactive Change Notification (PCN) e-mails informing you of hardware and software changes to most commercial workstations and servers, up to 60 days in advance.

„

Send you e-mail containing Customer Bulletins, Customer Advisories, Customer Notes, Security

Bulletins, and Driver alerts for most commercial workstations and servers.

You create your own profile to ensure that you only receive the information relevant to a specific IT environment. To learn more about the Proactive Change Notification program and create a custom profile, visit http://www.hp.com/go/pcn .

Subscriber’s Choice

Subscriber’s Choice is a client-based service from HP. Based on your profile, HP will supply you with personalized product tips, feature articles, and/or driver and support alerts/notifications. Subscriber’s

Choice Driver and Support Alerts/Notifications will deliver e-mails notifying you that the information you subscribed to in your profile is available for review and retrieval. To learn more about Subscriber’s

Choice and create a custom profile, visit http://www.hp.com/go/pcn .

ROM Flash

The workstation comes with a programmable flash ROM (read only memory). By establishing a setup password in the Computer Setup (F10) Utility, you can protect the ROM from being unintentionally updated or overwritten. This is important to ensure the operating integrity of the workstation. Should you need or want to upgrade the ROM, you may:

„

Order an upgraded ROMPaq diskette from HP.

44 SYSTEM MANAGEMENT

„

Download the latest ROMPaq images from HP driver and support page, http://www.hp.com/support/ files.

CAUTION

For maximum ROM protection, be sure to establish a setup password. The setup password prevents unauthorized ROM upgrades. System Software Manager allows the system administrator to set the setup password on one or more PCs simultaneously. For more information, visit http://www.hp.com/ go/ssm .

Remote ROM Flash

Remote ROM Flash allows the system administrator to safely upgrade the ROM on remote HP workstations directly from the centralized network management console. Enabling the system administrator to perform this task remotely, on multiple workstations and personal computers, results in a consistent deployment of and greater control over HP PC ROM images over the network. It also results in greater productivity and lower total cost of ownership.

The workstation must be powered on, or turned on through Remote Wakeup, to take advantage of

Remote ROM Flash.

For more information on Remote ROM Flash, see the HP Client Manager Software or System Software

Manager at http://h18000.www1.hp.com/im/prodinfo.html

.

HPQFlash

The HPQFlash utility is used to locally update or restore the system ROM on individual PCs through a

Windows operating system.

For more information on HPQFlash, visit http://www.hp.com/support/files and enter the name of the workstation when prompted.

FailSafe Boot Block ROM

The FailSafe Boot Block ROM allows for system recovery in the unlikely event of a ROM flash failure, for example, if a power failure were to occur during a ROM upgrade. The Boot Block is a flash-protected section of the ROM that checks for a valid system ROM flash when power to the system is turned on.

„

If the system ROM is valid, the system starts normally.

„

If the system ROM fails the validation check, the FailSafe Boot Block ROM provides enough support to start the system from a ROMPaq diskette, which will program the system ROM with a valid image.

NOTE

Some models also support recovery from a ROMPaq CD. ISO ROMPaq images are included with selected models in the downloadable ROM softpaqs.

When the boot block detects an invalid system ROM, the System Power LED blinks RED 8 times, one every second, followed by a 2-second pause. Also, eight simultaneous beeps will be heard. A Boot Block recovery mode message is displayed on the screen (some models).

To recover the system after it enters Boot Block recovery mode:

1

If there is a diskette in the diskette drive or a CD in the CD drive, remove the diskette and CD and turn off the power.

2

Insert a ROMPaq diskette into the diskette drive or, if permitted on this workstation, a ROMPaq CD into the CD drive.

DESKTOP MANAGEMENT

45

3

Turn on the workstation.

If no ROMPaq diskette or ROMPaq CD is found, you will be prompted to insert one and restart the workstation.

If a setup password has been established, the Caps Lock light will turn on and you will be prompted to enter the password.

4

Enter the setup password.

If the system successfully starts from the diskette and successfully reprograms the ROM, then the three keyboard lights will turn on. A rising tone series of beeps also signals successful completion.

5

Remove the diskette or CD and turn the power off.

6

Turn the power on again to restart the workstation.

The following table lists the various keyboard light combinations used by the Boot Block ROM (when a

PS/2 keyboard is attached to the workstation), and explains the meaning and action associated with each combination.

Table 3-2

Keyboard Light Combinations Used by Boot Black ROM

FailSafe Boot

Block Mode

Num Lock

Caps Lock

Keyboard LED Activity

On

On

State/Message

ROMPaq diskette or ROMPaq CD not present, is bad, or drive not ready.

Enter password.

Num, Caps,

Scroll Lock

Num, Caps,

Scroll Lock

Blink On in sequence, one at a time–N,C, SL

On

Keyboard locked in network mode.

Boot Block ROM Flash successful. Turn power off, then on to reboot.

NOTE: Diagnostic lights do not flash on USB keyboards

Replicating the Setup

The following procedures give an administrator the ability to easily copy one setup configuration to other workstations of the same model. This allows for faster, more consistent configuration of multiple workstations.

NOTE

Both procedures require a diskette drive.

NOTE

To collect and replicate BIOS settings on multiple computers, use System Software Manager or

HP Client Manager Software. For more information, visit http://www.hp.com/go/easydeploy .

46 SYSTEM MANAGEMENT

COPYING TO A SINGLE WORKSTATION

CAUTION

A setup configuration is model-specific. File system corruption may result if source and target workstations are not the same model. For example, do not copy the setup configuration from a dc7100

Ultra-Slim Desktop to a dx6100 Slim Tower.

1

Select a setup configuration to copy. Turn off the workstation. If you are in Windows, click Start>Shut

Down>Shut Down.

2

Turn on the workstation.

3

As soon as the workstation is turned on, press and hold the F10 key until you enter Computer Setup.

Press Enter to bypass the title screen, if necessary.

NOTE

If you do not press the F10 key at the appropriate time, you must restart the workstation and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

4

If you are using a a diskette, insert it now.

5

Click File>Replicated Setup>Save to Removable Media. Follow the instructions on the screen to create the configuration diskette.

6

Turn off the workstation to be configured and insert the configuration diskette.This procedure gives an administrator the ability to easily copy one setup configuration to other workstations of the same model. This allows for faster, more consistent configuration of multiple workstations.

7

Turn on the workstation to be configured.

8

As soon as the workstation is turned on, press and hold the F10 key until you enter Computer Setup.

Press Enter to bypass the title screen, if necessary.

9

Click File>Replicated Setup>Retore from Removable Media, and follow the instructions on the screen.

10

Restart the workstation when the configuration is complete.

COPYING TO MULTIPLE WORKSTATIONS

CAUTION

A setup configuration is model-specific. File system corruption may result if source and target workstations are not the same model. For example, do not copy the setup configuration from a HP

Workstation xw4200 to HP Workstation xw8200.

This method takes a little longer to prepare the configuration diskette, but copying the configuration to target workstations is significantly faster.

DESKTOP MANAGEMENT

47

NOTE

A bootable diskette is required for this procedure. If Windows XP is not available to use to create a bootable diskette, use the method for copying to a single workstation instead (see “Copying to A Single

Workstation” section on page 47 ).

1

Create a bootable diskette.

2

Select a setup configuration to copy. Turn off the workstation. If you are in Windows, click Start>Shut

Down>Shut Down.

3

Turn on the workstation.

4

As soon as the workstation is turned on, press and hold the F10 key until you enter Computer Setup.

Press Enter to bypass the title screen, if necessary.

NOTE

If you do not press the F10 key at the appropriate time, you must restart the workstation and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

5

If you are using a a diskette, insert it now.

6

Click File>Replicated Setup>Save to Removable Media. Follow the instructions on the screen to create the configuration diskette.

7

Download a BIOS utility for replicating setup (repset.exe) and copy it onto the configuration diskette.

To obtain this utility, go to http://welcome.hp.com/support/files and enter the model number of the workstation.

8

On the configuration diskette, create an autoexec.bat file containing the following command:

repset.exe.

9

Turn off the workstation to be configured. Insert the configuration diskette and turn the workstation on. The configuration utility will run automatically.

10

Restart the workstation when the configuration is complete.

Dual-State Power Button

With Advanced Configuration and Power Interface (ACPI) enabled, the power button can function either as an on/off switch or as a hibernate button. The Hibernate feature does not completely turn off power, but instead causes the workstation to enter a low-power standby state. This allows you to power down quickly without closing applications and to return quickly to the same operational state without any data loss.

To change the power button configuration:

1

Left click on the Start button, then select Control Panel>Power Options.

2

In the Power Options Properties, select the Advanced tab.

3

In the Power Button section, select Hibernate. (Hibernate must be enabled in the Hibernate tab.)

After configuring the power button to function as a hibernate button, press the power button to put the system in a very low power state (Hibernate). Press the button again to quickly bring the system out of hibernate to full power status. To completely turn off all power to the system, press and hold the power button for four seconds.

48 SYSTEM MANAGEMENT

CAUTION

Do not use the power button to turn off the workstation unless the system is not responding; turning off the power without operating system interaction could cause damage to or loss of data on the hard drive.

World Wide Web Site

HP engineers rigorously test and debug software developed by HP and third-party suppliers, and develop operating system specific support software, to ensure performance, compatibility, and reliability for HP workstations.

When making the transition to new or revised operating systems, it is important to implement the support software designed for that operating system. If you plan to run a version of Microsoft Windows that is different from the version included with the workstation, you must install corresponding device drivers and utilities to ensure that all features are supported and functioning properly.

HP has made the task of locating, accessing, evaluating, and installing the latest support software easier. You can download the software from http://www.hp.com/support .

The Web site contains the latest device drivers, utilities, and flashable ROM images needed to run the latest Microsoft Windows operating system on the HP workstation.

Building Blocks and Partners

HP management solutions integrate with other systems management applications, and are based on industry standards, such as:

„

Web-Based Enterprise Management (WBEM)

„

Windows Management Interface (WMI)

„

Wake on LAN Technology

„

ACPI

„

SMBIOS

„

Pre-boot Execution (PXE) support

Asset Tracking and Security

Asset tracking features incorporated into the workstation provide key asset tracking data that can be managed using HP Systems Insight Manager, HP Client Manager Software or other system management applications. Seamless, automatic integration between asset tracking features and these products enables you to choose the management tool that is best suited to the environment and to leverage the investment in existing tools.

HP also offers several solutions for controlling access to valuable components and information.

ProtectTools Embedded Security, if installed, prevents unauthorized access to data and checks system integrity and authenticates third-party users attempting system access. Security features such as

ProtectTools and the Hood Sensor (SmartCover Sensor) help to prevent unauthorized access to the internal components of the workstation. By disabling parallel, serial, or USB ports, or by disabling removable media boot capability, you can protect valuable data assets. Memory Change and Hood

Sensor (SmartCover Sensor) alerts can be automatically forwarded to system management applications to deliver proactive notification of tampering with a workstation’s internal components.

DESKTOP MANAGEMENT

49

NOTE

ProtectTools, the Hood Sensor (SmartCover Sensor), and the Hood Solenoid Lock (SmartCover

Lock) are available as options on select systems.

Use the following utilities to manage security settings on the HP workstation:

„

Locally, using the Computer Setup Utilities.

„

Remotely, using HP Client Manager Software or System Software Manager. This software enables the secure, consistent deployment and control of security settings from a simple command-line utility.

The following table and sections refer to managing security features of the workstation locally through the Computer Setup (F10) Utilities.

Table 3-3

Security Features Overview

Feature Purpose How It Is Established

Removable Media Boot Control Prevents booting from the removable media drives.

From the Setup Utilities menu.

Serial, Parallel, USB, or Infrared

Interface Control

Prevents transfer of data through the integrated serial, parallel, USB, or infrared interface.

Power-On Password

From the Setup Utilities menu.

Prevents use of the workstation until the password is entered. This can apply to both initial system startup and restarts.

From the Setup Utilities menu.

Setup Password Prevents reconfiguration of the workstation

(use of the Setup Utilities) until the password is entered.

From the Setup Utilities menu.

Network Server Mode

DriveLock

Master Boot Record Security

Ownership Tag

Kensington Cable Lock

Provision

Padlock Loop

Access Panel Key Lock

(Standard)

Provides unique security features for workstations being used as servers.

From the Setup Utilities menu.

Prevents unauthorized access to the data on specific hard drives.

From the Setup Utilities menu.

Might prevent unintentional or malicious changes to the MBR of the current bootable disk and provides a means of recovering the “last known good” MBR.

From the Setup Utilities menu.

Displays ownership information, as defined by the system administrator, during system startup (protected by setup password).

From the Setup Utilities menu.

Prevents entire system theft only. Install a Kensington cable lock to secure the workstation to a fixed object.

Prevents access panel from being removed.

This loop can also be used to secure the unit to a fixed object.

Install a padlock.

Prevents removal of the access panel and all internal components including optical and floppy drives

Lock the access panel.

50 SYSTEM MANAGEMENT

Table 3-3

Security Features Overview (Continued)

Feature Purpose How It Is Established

Universal Chassis Clamp Lock

(Optional)

The version without a cable discourages access panel removal and prevents theft of IO devices. The version with a cable additionally prevents entire system theft and allows multiple systems to be secured with a single cable.

Install a chassis clamp lock.

Intrusion Sensor Notifies a local or remote user when the chassis access panel has been opened.

Install an intrusion sensor.

For more information about Computer Setup, refer to “Computer Setup Menu” section on page 37

.

Password Security

The power-on password prevents unauthorized use of the workstation by requiring entry of a password to access applications or data each time the workstation is turned on or restarted. The setup password specifically prevents unauthorized access to Computer Setup, and can also be used as an override to the power-on password. That is, when prompted for the power-on password, entering the setup password instead will allow access to the workstation.

A network-wide setup password can be established to enable the system administrator to log in to all network systems to perform maintenance without having to know the power-on password.

NOTE

System Software Manager and HP Client Manager Software allow remote management of Setup

Passwords and other BIOS settings in a networked environment. For more information, visit http:// www.hp.com/go/EasyDeploy .

ESTABLISHING A SETUP PASSWORD USING COMPUTER SETUP

Establishing a setup password through Computer Setup prevents reconfiguration of the workstation (use of the Computer Setup (F10) utility) until the password is entered.

To establish a setup password using workstation setup:

1

Turn on or restart the workstation. If you are in Windows, click Start>Turn off>Restart.

2

As soon as the computer is turned on, press and hold the F10 until you enter Computer Setup. Press

Enter to bypass the title screen, if necessary.

NOTE

If you do not press the F10 key at the appropriate time, you must restart the workstation and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3

Select Security>Setup Password and follow the on-screen instructions.

4

Before exiting, select File>Save Changes and Exit.

DESKTOP MANAGEMENT

51

ESTABLISHING A POWER-ON PASSWORD USING WORKSTATION SETUP

Establishing a power-on password through Computer Setup prevents access to the workstation when power is turned on, unless the password is entered. When a power-on password is set, Computer Setup presents Password Options under the Security menu. The password options include Network Server

Mode and Password Prompt on Warm Boot.

When Network Server Mode is disabled, the password must be entered each time the workstation is turned on when the key icon appears on the monitor. When Password Prompt on Warm Boot is enabled, the password must also be entered each time the workstation is rebooted. When Network Server Mode is enabled, the password prompt is not presented during POST, but any attached PS/2 keyboard will remain locked until the user enters the power-on password.

To establish a power-on password through workstation setup:

1

Turn on or restart the workstation. If you are in Windows, click Start>Shut Down>Restart.

2

As soon as the computer is turned on, press and hold the F10 until you enter Computer Setup. Press

Enter to bypass the title screen, if necessary.

NOTE

If you do not press the F10 key at the appropriate time, you must restart the workstation and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3

Select Security>Power-On Password and follow the on-screen instructions.

4

Before exiting, select File>Save Changes and Exit.

ENTERING A POWER-ON PASSWORD

To enter a power-on password:

1

Turn on or restart the workstation. If you are in Windows, click Start>Shut Down>Restart the

Computer.

2

When the key icon appears on the monitor, enter the current password, then press Enter.

NOTE

Type carefully. For security reasons, the characters you enter do not appear on the screen.

If you enter the password incorrectly, a broken key icon appears. Try again. After three unsuccessful tries, you must turn off the workstation, then turn it on again before you can continue.

ENTERING A SETUP PASSWORD

If a setup password has been established on the workstation, you will be prompted to enter it each time you run Computer Setup.

To enter a setup password:

1

Turn on or restart the workstation. If you are in Windows, click Start>Shut Down>Restart the

Computer.

2

As soon as the workstation is turned on, press and hold the F10 key until you enter Computer Setup.

Press Enter to bypass the title screen, if necessary.

52 SYSTEM MANAGEMENT

NOTE

If you do not press the F10 key at the appropriate time, you must restart the workstation and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3

When the key icon appears on the monitor, enter the setup password, then press Enter.

NOTE

Type carefully. For security reasons, the characters you enter do not appear on the screen.

If you enter the password incorrectly, a broken key icon appears. Try again. After three unsuccessful tries, you must turn off the workstation, then turn it on again before you can continue.

CHANGING A POWER-ON OR SETUP PASSWORD

To change a power-on or setup password:

1

Turn on or restart the workstation. If you are in Windows, click Start>Shut Down>Restart the

Computer. To change the setup password, run Computer Setup.

2

To change the Power-On password, go to step 3.

To change the Setup password, as soon as the workstation is turned on, press and hold the F10 key until you enter Computer Setup. Press Enter to bypass the title screen, if necessary.

NOTE

If you do not press the F10 key at the appropriate time, you must restart the workstation and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3

When the key icon appears, type the current password, a slash (/) or alternate delimiter character, your new password, another slash (/) or alternate delimiter character, and your new password again as shown: current password/new password/new password

NOTE

Type carefully. For security reasons, the characters you enter do not appear on the screen.

4

Press Enter.

The new password takes effect the next time you turn on the workstation.

NOTE

See the

“National Keyboard Delimiter Characters” section on page 54 for information about the

alternate delimiter characters. The power-on password and setup password can also be changed using the Security options in Computer Setup.

DESKTOP MANAGEMENT

53

Deleting a Power-On or Setup Password

To delete a power-on or setup password:

1

Turn on or restart the workstation. If you are in Windows, click Start>Shut Down>Restart the

Computer.

2

To delete the Power-On password, go to Step 3.

To delete the Setup Password, as soon as the workstation is turned on, press and hold the F10 key until you enter Computer Setup. Press Enter to bypass the title screen, if necessary.

NOTE

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

Use the appropriate operating system shutdown process. To delete the setup password, run Computer

Setup.

3

When the key icon appears, enter your current password followed by a slash (/) or alternate delimiter character as shown: current password/

4

Press Enter.

NOTE

See the

“National Keyboard Delimiter Characters” section on page 54 section for information

about the alternate delimiter characters. The power-on password and setup password can also be changed using the Security options in Computer Setup.

NATIONAL KEYBOARD DELIMITER CHARACTERS

Each keyboard is designed to meet country-specific requirements. The syntax and keys that you use for changing or deleting your password depend on the keyboard that came with your workstation.

Table 3-4

National Keyboard Delimiter Characters

Arabic

Belgian

BHCSY*

Brazilian

Chinese

Czech

Danish

French

French Canadian

German

!

-

/

-

é

-

/

-

/

=

Greek

Hebrew

Hungarian

Italian

Japanese

Korean

Latin American

Norwegian

Polish

Portuguese

-

-

/

/

-

-

-

-

.

Russian

Slovakian

Spanish

Swedish/Finnish

Swiss

Taiwanese

Thai

Turkish

U.K. English

U.S. English

.

/

/

-

/

/

-

/

/

-

54 SYSTEM MANAGEMENT

Table 3-4

National Keyboard Delimiter Characters

Arabic / Greek -

*For Bosnia-Herzegovina, Croatia, Slovenia, and Yugoslavia

Russian /

CLEARING PASSWORDS

If you forget your password, you cannot access the workstation. See Appendix H, “Additional Password

Security and Resetting CMOS” for instructions on clearing passwords.

DriveLock

DriveLock prevents unauthorized access to the data on MultiBay hard drives. DriveLock has been implemented as an extension to Computer Setup. It is only available when DriveLock-capable hard drives are detected.

DriveLock employs a two-password security scheme. One password is intended to be set and used by a system administrator while the other is typically set and used by the end-user. There is no “back-door” that can be used to unlock the drive if both passwords are lost. Therefore, DriveLock is most safely used when the data contained on the hard drive is replicated on a corporate information system or is regularly backed-up.

CAUTION

If both DriveLock passwords are lost, the hard drive is rendered unusable.

USING DRIVELOCK

The DriveLock option appears under the Security menu in Computer Setup. The user is presented with options to set the master password or to enable DriveLock. A user password must be provided to enable

DriveLock. Since the initial configuration of DriveLock is typically performed by a system administrator, a master password should be set first. HP encourages system administrators to set a master password whether they plan to enable DriveLock or keep it disabled. This will give the administrator the ability to modify DriveLock settings if the drive is locked in the future. Once the master password is set, the system administrator can enable DriveLock or choose to keep it disabled.

If a locked hard drive is present, POST will require a password to unlock the device. If a power-on password is set and it matches the user password of the device, POST will not prompt the user to reenter the password. Otherwise, the user will be prompted to enter a DriveLock password. Either the master or the user password can be used. Users will have two attempts to enter a correct password. If neither attempt succeeds, POST will continue but the data on the drive will remain inaccessible.

DRIVELOCK APPLICATIONS

The most practical use of the DriveLock security feature is in a corporate environment where a system administrator provides users with multibay hard drives for use in some desktop workstations. The system administrator would be responsible for configuring the MultiBay hard drive which would involve, among other things, setting the DriveLock master password. In the event that the user forgets the user password or the equipment is passed on to another employee, the master password can always be used to reset the user password and regain access to the hard drive.

HP recommends that corporate system administrators who choose to enable DriveLock also establish a corporate policy for setting and maintaining master passwords. This should be done to prevent a situation where an employee intentionally or unintentionally sets both DriveLock passwords before leaving the company. In such a scenario, the hard drive would be rendered unusable and require replacement. Likewise, by not setting a master password, system administrators might find themselves

DESKTOP MANAGEMENT

55

locked out of a hard drive and unable to perform routine checks for unauthorized software, other asset control functions and support.

For users with less stringent security requirements, HP does not recommend enabling DriveLock. Users in this category include personal users or users who do not maintain sensitive data on their hard drives as a common practice. For these users, the potential loss of a hard drive resulting from forgetting both passwords is much greater than the value of the data DriveLock has been designed to protect. Access to

Computer Setup and DriveLock can be restricted through the Setup password. By specifying a Setup password and not giving it to end users, system administrators are able to restrict users from enabling

DriveLock.

Hood Sensor (SmartCover Sensor)

The hood sensor is a combination of hardware and software technology that can alert you when the workstation side access panel has been removed. There are three levels of protection, as described in the following table.

Table 3-5

Hood Sensor Protection Levels

Level

Level 0

Setting

Disabled

Description

Side access panel sensor is disabled (default).

Level 1

Level 2

Notify User

Setup Password

NOTE: These settings can be changed using Computer Setup.

When the workstation is restarted, the screen displays a message indicating that the workstation side access panel has been removed.

When the workstation is restarted, the screen displays a message indicating that the workstation side access panel has been removed. You must enter the setup password to continue.

SETTING THE HOOD SENSOR PROTECTION LEVEL

To set the hood sensor protection level:

1

Turn on or restart the workstation. If you are in Windows, click Start>Shut Down>Restart.

2

As soon as the workstation is turned on, press and hold the F10 key until you enter Computer Setup.

Press Enter to bypass the title screen, if necessary.

NOTE

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3

Select Security>Smart Cover>Cover Removal Sensor, then side access panel, and follow the onscreen instructions.

4

Before exiting, click File>Save Changes and Exit.

56 SYSTEM MANAGEMENT

Master Boot Record Security

The MBR contains information needed to successfully boot from a disk and to access the data stored on the disk. Master Boot Record Security detects and reports unintentional or malicious changes to the

MBR, such as those caused by some workstation viruses or by the incorrect use of certain disk utilities. It also allows you to recover the “last known good” MBR, should changes to the MBR be detected when the system is restarted.

To enable MBR Security:

1

Turn on or restart the workstation. If you are in Windows, click Start>Shut Down>Restart.

2

As soon as the workstation is turned on, press and hold the F10 key until you enter Computer Setup.

Press Enter to bypass the title screen, if necessary.

NOTE

If you do not press the F10 key at the appropriate time, you must restart the workstation and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3

Select Security>Master Boot Record Security>Enabled.

4

Select Security>Save Master Boot Record.

5

Before exiting, click File>Save Changes and Exit.

When MBR Security is enabled, the BIOS prevents any changes being made to the MBR of the current bootable disk while in MS-DOS or Windows Safe Mode.

NOTE

Most operating systems control access to the MBR of the current bootable disk; the BIOS cannot prevent changes that might occur while the operating system is running.

Each time the workstation is turned on or restarted, the BIOS compares the MBR of the current bootable disk to the previously saved MBR. If changes are detected and if the current bootable disk is the same disk from which the MBR was previously saved, the following message is displayed:

1999 - Master Boot Record has changed.

Press any key to enter Setup to configure MBR Security.

Upon entering Computer Setup, you must perform one of the following tasks:

„

Save the MBR of the current bootable disk

„

Restore the previously saved MBR

„

Disable the MBR Security feature

You must know the setup password, if one exists.

If changes are detected and if the current bootable disk is not the same disk from which the MBR was previously saved, the following message is displayed:

2000 - Master Boot Record Hard Drive has changed.

Press any key to enter Setup to configure MBR Security.

Upon entering Computer Setup, you must perform one of the following tasks:

DESKTOP MANAGEMENT

57

„

Save the MBR of the current bootable disk

„

Disable the MBR Security feature

You must know the setup password, if one exists.

In the unlikely event that the previously saved MBR has been corrupted, the following message is displayed:

1998 - Master Boot Record has been lost.

Press any key to enter Setup to configure MBR Security.

Upon entering Computer Setup, you must perform one of the following tasks:

„

Save the MBR of the current bootable disk

„

Disable the MBR Security feature

You must know the setup password, if one exists.

Before You Partition or Format the Current Bootable Disk

Before you partition or format the current bootable disk, ensure that MBR Security is disabled before you change partitioning or formatting of the current bootable disk. Some disk utilities, such as FDISK and

FORMAT, attempt to update the MBR. If MBR Security is enabled when you change partitioning or formatting of the disk, you might receive error messages from the disk utility or a warning from MBR

Security the next time the workstation is turned on or restarted.

To disable MBR Security:

1

Turn on or restart the workstation. If you are in Windows, click Start>Shut Down>Restart the

Computer.

2

As soon as the workstation is turned on, press and hold the F10 key until you enter Computer Setup.

Press Enter to bypass the title screen, if necessary.

NOTE

If you do not press F10 key at the appropriate time, you must restart the workstation and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3

Select Security>Master Boot Record Security>Disabled.

4

Before exiting, click File>Save Changes and Exit.

Kensington Cable Lock Provision (Optional)

The rear panel of the chassis can accommodate a Kensington cable lock accessory that allows the workstation to be physically secured to a work area.

Padlock (Optional)

Prevents entire system theft and discourages access panel removal.

Universal Chassis Clamp Lock (Optional)

The version without a cable discourages access panel removal and prevents theft of IO devices. The version with a cable also prevents entire system theft and allows multiple systems to be secured with a single cable.

58 SYSTEM MANAGEMENT

Hood Sensor (SmartCover Sensor)

This sensor is set in the Computer Setup utility. You can set this to notify a user if the access panel has been removed.

Access Panel Key Lock

This lock prevents removal of the access panel and all internal components. The key is shipped on the rear of the workstation.

Fault Notification and Recovery

Fault Notification and Recovery features combine innovative hardware and software technology to prevent the loss of critical data and minimize unplanned downtime.

If the workstation is connected to a network managed by HP Client Manager Software, the computer sends a fault notice to the network management application. With HP Client Manager Software, you can also remotely schedule diagnostics to automatically run on all managed PCs and create a summary report of failed tests.

Drive Protection System

The DPS is a diagnostic tool built into the hard drives installed in select HP workstations. DPS is designed to help diagnose problems that might result in unwarranted hard drive replacement.

When HP workstations are built, each installed hard drive is tested using DPS, and a permanent record of key information is written onto the drive. Each time DPS is run, test results are written to the hard drive. Each time DPS is run, test results are written to the hard drive. The service provider can use this information to help diagnose conditions that caused you to run the DPS software.

Ultra ATA Integrity Monitoring

Ultra ATA Integrity Monitoring monitors the integrity of data as it is transferred between an Ultra ATA hard drive and the system’s core logic. If the workstation detects an abnormal number of transmission errors, the workstation displays a Local Alert message with recommended actions.

ECC Fault Prediction and Prefailure Warranty

When the workstation encounters an excessive number of error checking and correcting (ECC) memory errors, the workstation displays a Local Alert message. This message contains detailed information about the errant memory module, allowing you to take action before you experience non-correctable memory errors. The Prefailure Warranty for ECC memory modules allows you to replace these modules, free of charge, before the modules actually fail. ECC memory modules are optional on selected HP systems.

NOTE

To use this feature, you must replace the standard DIMMs with HP ECC DIMMs.

Surge-Tolerant Power Supply

An integrated surge-tolerant power supply provides greater reliability when the workstation is hit with an unpredictable power surge. This power supply is rated to withstand a power surge of up to 2000 V (Line to PE or Neutral to PE) and 1000 V (Line to Line) without any data loss or system downtime.

DESKTOP MANAGEMENT

59

Thermal Sensor

The thermal sensor is a hardware and software feature that tracks the internal temperature of the workstation. When combined with HP Client Manager Software, this features notifies the network administrator when the normal range is exceeded.

The thermal sensor monitors the processor temperature and if the temperature gets too hot, the processor clock automatically begins to throttle. If the temperature does not go down, then the system eventually shuts down.

60 SYSTEM MANAGEMENT

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
