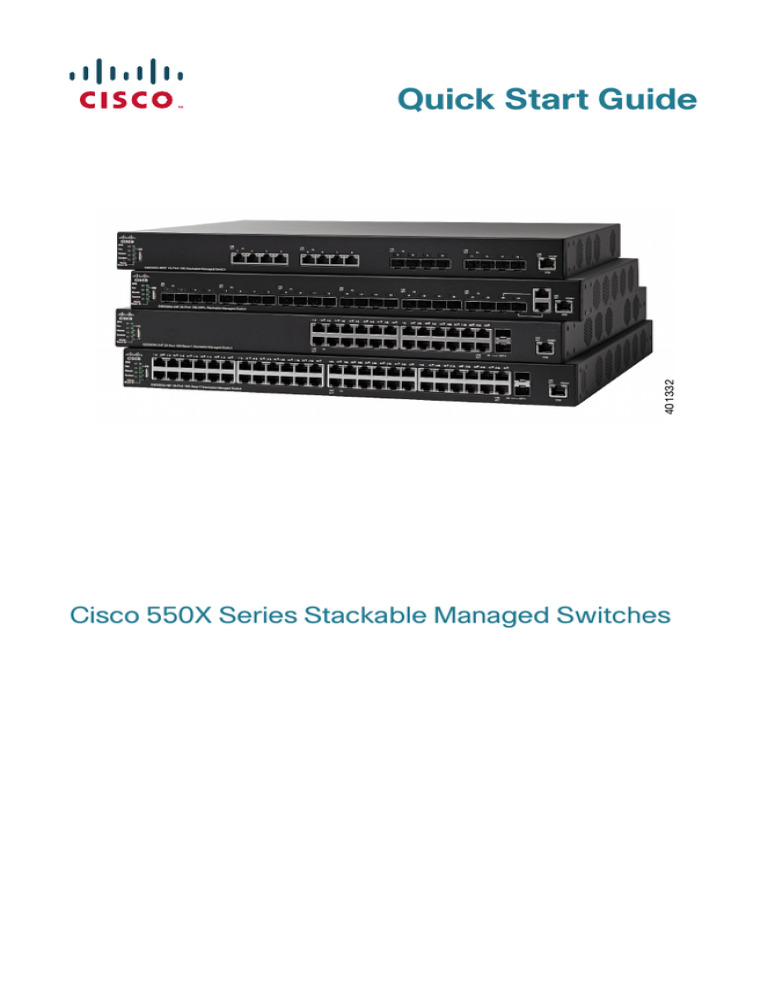

Quick Start Guide
Cisco 550X Series Stackable Managed Switches
2
Welcome
Thank you for choosing the Cisco 550X Series Stackable Managed Switch, a Cisco network communications device. This device is designed to be operational right out-of-the-box as a standard layer 2 and 3 switch. In the default configuration, it will forward packets between connecting devices after power up.
This guide familiarizes you with the layout of the switch and describes how to deploy the switch in your network. For additional information, see www.cisco.com/go/550xswitches .
Package Contents
• Cisco 550X Series Stackable Managed Switch
• Power Cord
• Rack-Mount Kit and Rubber Feet
• DB-9 to RJ45 Serial Cable
• Quick Start Guide
• Pointer Card with China RoHS
• Technical Support Contacts
• EU Directives 1999/5/EC Compliance Information (for EU SKU only)
1
Before You Begin
Before you begin the installation, make sure that you have the following:
• RJ-45 Ethernet cables for connecting network devices. A Category 6A or higher cable is required for 10G ports; a category 5e or higher cable is required for all other ports.
• Console cable for using the console port to manage your switch.
• Tools for installing the hardware. The rack-mount kit packed with the switch contains four rubber feet for desktop placement, and two brackets and twelve screws for rack-mounting.
• Computer with Internet Explorer (version 9.0, 10.0, or 11.0), Mozilla
Firefox (version 36.0, 37.0, or higher), or Google Chrome (version
40,41,42, or higher) for using the web-based interface or the console port to manage your switch.
Cisco 550X Series Stackable Managed Switches Quick Start Guide
2
Mounting the Cisco 550X Series Stackable
Managed Switches
There are two ways to physically install the switch:
• Place the switch on a flat surface. To place the switch on a desktop, install the four rubber feet (included) on the bottom of the switch.
• Mount the switch in a standard rack (1 rack unit high).
Placement Tips
Do not deploy the switch in a location where any of the following conditions exist:
• Ambient Temperature—To prevent the switch from overheating, do not operate it in an area that exceeds an ambient temperature of 122°F
(50°C).
• Air Flow—Be sure that there is adequate air flow around the switch.
• Mechanical Loading—Be sure that the switch is level and stable to avoid any hazardous conditions.
• Circuit Overloading—Adding the switch to the power outlet must not overload that circuit.
These switches must be supplied by power from the building in which they are used or from UL listed information technology (ITE) equipment. For assistance with obtaining a power supply, contact your Cisco
Representative.
Rack Mounting
You can mount the switch in any standard size, 19-inch (about 48 cm) wide rack. The switch requires 1 rack unit (RU) of space, which is 1.75 inches
(44.45 mm) high.
C
AUTION
For stability, load the rack from the bottom to the top, with the heaviest devices on the bottom. A top-heavy rack is likely to be unstable and might tip over.
Cisco 550X Series Stackable Managed Switches Quick Start Guide 3
To install the switch into a 19-inch standard chassis:
S
TEP
1
Place one of the supplied brackets on the side of the switch so the four holes of the brackets align to the screw holes, and then use the four supplied M4 screws to secure it.
S
TEP
2
Repeat the previous step to attach the other bracket to the opposite side of the switch.
S
TEP
3
After the brackets are securely attached, the switch is now ready to be installed into a standard 19-inch rack as shown here.
4
3
Connecting Network Devices
To connect the switch to the network:
S
TEP
1
Connect an Ethernet cable to the Ethernet port of a computer, printer, network storage, or other network devices.
S
TEP
2
Connect the other end of the Ethernet cable to one of the numbered Ethernet ports of the switch. The LED of the port lights if the device connected is active.
The Ethernet port light turns green when the connection is active.
Cisco 550X Series Stackable Managed Switches
for details about the different ports and LEDs on each switch.
S
TEP
3
Repeat
Step 1
and
Step 2
for each device that you want to connect to the switch.
Cisco 550X Series Stackable Managed Switches Quick Start Guide
N
OTE
A Category 6A or higher cable is required for 10G ports; a
Category 5e or higher cable is required for all other ports. When you connect your network devices, do not exceed the maximum cabling distance of 100 meters (328 feet). It can take up to one minute for attached devices or the LAN to be operational after it is connected. This is normal behavior.
Power over Ethernet Considerations
W
ARNING
The switch is to be connected only to PoE networks without routing to the outside plant.
If your switch is one of the Power over Ethernet (PoE) models, consider the following power requirement:
550X Series Stackable Managed Switches with PoE
Model Power
Dedicated to PoE
Number of Ports
Supporting PoE
PoE Standard
Supported
SF550X-24P
SF550X-24MP
195 Watts 1–24
*60-Watt PoE: port
1,2,3,4,13,14,15,16
382 Watts 1–24
*60-Watt PoE: port
1,2,3,4,13,14,15,16
802.3af/at
60-Watt PoE
802.3af/at
60-Watt PoE
SF550X-48P 802.3af/at
60-Watt PoE
SF550X-48MP
SG550X-24P
SG550X-24MP
382 Watts 1–48
*60-Watt PoE: port
1,2,3,4,5,6,7,8,25,26,
27,28,29,30,31,32
740 Watts 1–48
*60-Watt PoE: port
1,2,3,4,5,6,7,8,25,26,
27,28,29,30,31,32
195 Watts 1–24
*60-Watt PoE: port
1,2,3,4,13,14,15,16
382 Watts 1–24
*60-Watt PoE: port
1,2,3,4,13,14,15,16
802.3af/at
60-Watt PoE
802.3af/at
60-Watt PoE
802.3af/at
60-Watt PoE
Cisco 550X Series Stackable Managed Switches Quick Start Guide 5
SG550X-24MPP 740 Watts
SG550X-48P
1–24
*60-Watt PoE: port
1,2,3,4,13,14,15,16
382 Watts 1–48
*60-Watt PoE: port
1,2,3,4,5,6,7,8,25,26,
27,28,29,30,31,32
SG550X-48MP
740 Watts 1–48
*60-Watt PoE: port
1,2,3,4,5,6,7,8,25,26,
27,28,29,30,31,32
802.3af/at
60-Watt PoE
802.3af/at
60-Watt PoE
802.3af/at
60-Watt PoE
*60-Watt PoE extends the IEEE Power over Ethernet Plus standard to double the power per port to 60 watts.
6 Cisco 550X Series Stackable Managed Switches Quick Start Guide
C
AUTION
Consider the following when connecting switches capable of supplying PoE:
The PoE models of the switches are PSE (Power Sourcing
Equipment) that are capable of supplying DC power to attaching PD (Powered Devices). These devices include VoIP phones, IP cameras, and wireless access points. The PoE switches can detect and supply power to pre-standard legacy PoE Powered Devices. Due to the support of legacy
PoE, it is possible that a PoE switch acting as a PSE may mistakenly detect and supply power to an attaching PSE, including other PoE switches, as a legacy PD.
Even though PoE switches are PSE, and as such should be powered by AC, they could be powered up as a legacy PD by another PSE due to false detection. When this happens, the PoE switch may not operate properly and may not be able to properly supply power to its attaching PDs.
To prevent false detection, you should disable PoE on the ports on the PoE switches that are used to connect to PSEs.
You should also first power up a PSE device before connecting it to a PoE switch. When a device is being falsely detected as a PD, you should disconnect the device from the
PoE port and power recycle the device with AC power before reconnecting its PoE ports.
Configuring the Cisco 550X Series
Stackable Managed Switches
Before You Begin
The switch can be accessed and managed by two different methods; over your IP network using the web-based interface, or by using the switch’s command-line interface through the console port. Using the console port requires advanced user skills.
Cisco 550X Series Stackable Managed Switches Quick Start Guide 7
These are the default settings used when configuring your switch for the first time.
Parameter
Username
Password
LAN IP
Default Value cisco cisco
192.168.1.254
Configuring Your Switch Using the Web-based Interface
To access the switch with a web-based interface, you must know the IP address that the switch is using. The default configuration of the switch is to use its factory default IP address of 192.168.1.254 by default.
When the switch is using the factory default IP address, the System LED flashes continuously. When the switch is using a DHCP server-assigned IP address or an administrator has configured a static IP address, the System
LED is on solid (DHCP is enabled by default).
N
OTE
If you are managing the switch through a network connection and the switch IP address is changed, either by a DHCP server or manually, your access to the switch will be lost. You must enter the new IP address that the switch is using into your browser to use the web-based interface. If you are managing the switch through a console port connection, the link is retained.
To configure the switch using the web-based interface:
S
TEP
1
Power on the computer and your switch.
S
TEP
2
For Cisco 550XG switches, connect the computer to the OOB port found on the front panel. For Cisco 550X switches, connect the computer to any network port.
S
TEP
3
Set up the IP configuration on your computer.
a.
If the switch is using the default static IP address of
192.168.1.254, you must choose an IP address in the range of
192.168.1.2 to 192.168.1.253 that is not already in use. b. If the IP addresses will be assigned by DHCP, make sure that your DHCP server is running and can be reached from the switch and the computer. You may need to disconnect and reconnect the devices for them to discover their new IP addresses from the DHCP server.
N
OTE
Details on how to change the IP address on your computer depend upon the type of architecture and operating system that you are using. Use your computers local Help and
Support functionality and search for “IP Addressing.”
8 Cisco 550X Series Stackable Managed Switches Quick Start Guide
S
TEP
4
Open a web browser window. If you are prompted to install an
Active-X plug-in when connecting to the device, follow the prompts to accept the plug-in.
S
TEP
5
Enter the switch IP address in the address bar and press Enter. For example, http://192.168.1.254.
S
TEP
6
When the login page appears, choose the language that you prefer to use in the web-based interface and enter the username and password.
The default username is cisco. The default password is cisco.
Usernames and passwords are both case sensitive.
S
TEP
7
Click Log In.
If this is the first time that you have logged on with the default username and password, the Change Password page opens. The rules for constructing a new password are displayed on the page.
S
TEP
8
Enter a new password and confirm the password.
N
OTE
Password complexity is enabled by default. The password must comply with the default complexity rules or it can be disabled temporarily by checking Disable next to the Password Strength
Enforcement option.
S
TEP
9
Click Apply.
C
AUTION
Make sure that any configuration changes made are saved before exiting from the web-based interface by clicking on the Save icon. Exiting before you save your configuration will result in all changes being lost.
The Getting Started page opens. You are now ready to configure the switch. Refer to the Cisco 550X Series Stackable Managed
Switches Administration Guide or see the help pages for further information.
Configuring Your Switch Using the Console Port
To configure the switch using the console port:
S
TEP
1
Connect a computer to the switch console port using the supplied console cable.
S
TEP
2
Start a console port utility such as HyperTerminal on the computer.
S
TEP
3
Configure the utility with the following parameters:
Cisco 550X Series Stackable Managed Switches Quick Start Guide 9
•
115200 bits per second
•
8 data bits
•
no parity
•
1 stop bit
S
TEP
4
•
no flow control
Enter a username and password. The default username is cisco, and the default password is cisco. Usernames and passwords are both case sensitive.
S
TEP
5
If this is the first time that you have logged on with the default username and password, the following message appears:
Please change your password from the default settings. Please change the password for better protection of your network. Do you want to change the password (Y/N) [Y]?
Enter Y, and set a new administrator password.
N
OTE
Password complexity is enabled by default. The password must comply with the default complexity rules.
C
AUTION
Make sure that any configuration changes made are saved before exiting.
You are now ready to configure the switch. Refer to the Cisco
550X Series Stackable Managed Switches Command Line
Interface Reference Guide for further information.
N
OTE
If you are not using DHCP on your network, set the IP address type on the switch to Static and change the static IP address and subnet mask to match your network topology. Failure to do so may result in multiple switches using the same factory default IP address of
192.168.1.254.
10 Cisco 550X Series Stackable Managed Switches Quick Start Guide
Stacking the Cisco 550X Series Stackable Managed
Switches
Before configuring the switches as a stack, refer to the Cisco 550X Series
Stackable Managed Switches Administration Guide for additional details.
Refer to the front panel graphics in
to help with the stack port descriptions and
supported modules.
By default the ports on a switch function as regular Ethernet ports except if you configure them to do stacking. You cannot mix the stack speeds between the switches or ports.
W
ARNING
Stack ports must be either configured with the same port speed or have the same speed capability on the module or cable plug in. If the port speed is configured as auto, then the module plugged into these two ports will need to have the same speed capability, otherwise the switch will not be able to form as a stack with multiple units.
A stack can have up to eight Cisco 550X Series Stackable Managed
Switches in it. Any 10G port of the switch can be used for stacking. The switch can only be stacked with the Cisco 550X Series Stackable
Managed Switches without Mesh topology.
The switches in the same stack are connected together through their stack ports. Depending on the type of stack ports and the desired speed, you may need regular Cat6A or better Ethernet cables and/or Cisco approved modules or cables for the Cisco 550X Series Stackable Managed
Switches.
5
Cisco 550X Series Stackable Managed
Switches Features
This section describes the available product models and the exterior of the switch to help familiarize you with your switch.
Cisco 550X Series Stackable Managed Switches Quick Start Guide 11
Product Models
Model Description
SG550XG-24F 24-Port 10G SFP+ Stackable Managed Switch
SG550XG-8F8T 16-Port 10G Stackable Managed Switch
SG550XG-24T
SG550XG-48T
SG550X-24
SG550X-24P
24-Port 10GBase-T Stackable Managed Switch
48-Port 10GBase-T Stackable Managed Switch
24-Port Gigabit Stackable Managed Switch
24-Port Gigabit PoE Stackable Managed Switch
SG550X-24MP 24-Port Gigabit PoE Stackable Managed Switch
SG550X-24MPP 24-Port Gigabit PoE Stackable Managed Switch
SG550X-48
SG550X-48P
48-Port Gigabit Stackable Managed Switch
48-Port Gigabit PoE Stackable Managed Switch
SG550X-48MP
SF550X-24
SF550X-24P
SF550X-24MP
48-Port Gigabit PoE Stackable Managed Switch
24-Port 10/100 Stackable Managed Switch
24-Port 10/100 PoE Stackable Managed Switch
24-Port 10/100 PoE Stackable Managed Switch
SF550X-48
SF550X-48P
SF550X-48MP
48-Port 10/100 Stackable Managed Switch
48-Port 10/100 PoE Stackable Managed Switch
48-Port 10/100 PoE Stackable Managed Switch
Front Panel
The ports, LEDs, and Reset button are located on the front panel of the switch.
12 Cisco 550X Series Stackable Managed Switches Quick Start Guide
Front Panel Ports
USB—The USB port connects the switch to a USB device so that you can save and restore the configuration files, firmware images, and SYSLOG files through the connected USB device.
RJ-45 Ethernet Ports—The RJ-45 Ethernet ports connect network devices, such as computers, printers, and access points, to the switch.
60-Watt PoE Ports—Highlighted in yellow, the 60-Watt PoE ports double the PoE power to 60W.
SFP+ (if present)—The small form-factor pluggable plus (SFP+) are connection points for modules so that the switch can link to other switches.
• The SFP+ ports are compatible with Cisco modules MGBSX1, MGBLH1,
MGBT1, MGBLX1, MGBBX1, as well as other brands of modules.
• The Cisco SFP+ 10G optical modules that are supported in the Cisco
550X Series Stackable Managed Switches are: SFP-10G-SR and SFP-
10G-LR.
• The Cisco SFP+ Copper Cable modules for stacking that are supported in the Cisco 550X Series Stackable Managed Switches are: SFP-
H10GB-CU1M, SFP-H10GB-CU3M, and SFP-H10GB-CU5M.
• Some SFP+ ports are combination ports and are shared with an RJ-45 port. On these combination ports, when the SFP+ port is active, the adjacent RJ-45 port is disabled.
Cisco 550X Series Stackable Managed Switches Quick Start Guide 13
• For a combination port, the LEDs of the shared RJ-45 port light to respond to SFP+ port traffic.
OOB (if present)—If present, the Out of Band (OOB) port is a CPU's
Ethernet port that can be used only as a management interface. Bridging between the OOB port and the in-band Layer 2 interface is not supported.
Front Panel LEDs
RPS—(Green) Lights steady when the switch is ready and applicable for power backup through the Cisco Redundant Power System 2300
(RPS2300), blinking when the power backing up is in process. If the LED flashes Amber, the Cisco RPS2300 is used for other switch.
Fan—(Green) Lights steady when the cooling fan is operational. Flashes
Amber when both two fans have failures.
Master—(Green) Lights steady when the switch is a stack master.
System—(Green) Lights steady when the switch is powered on, and flashes when booting, performing self-tests, or acquiring an IP address. If the LED flashes Amber, the switch has detected a hardware failure, a firmware failure, and/or a configuration file error.
Stack ID—(Green) Lights steady when the switch is stacked and the corresponding number indicates its Stack ID. When a switch has a Stack ID greater than 4, a combination of the LEDs will light up to add up to the
Stack ID. For example, Stack ID #5 is LED#1 and LED#4, Stack ID #8 will show LED#1, LED#3 and LED#4.
LINK/ACT—(Green) Located on the left of each port. The light is steady when a link between the corresponding port and another device is detected. Flashes when the port is passing traffic.
XG—(Green) Located on the right of a 10G port. Lights steady when another device is connected to the port, is powered on, and a 10 Gbps link is established between the devices. When the LED is off, the connection speed is under 10 Gbps or nothing is cabled to the port.
Gigabit—(Green) Located on the right of a Gigabit port or the OOB port.
Lights steady when another device is connected to the port, is powered on, and a 1000 Mbps link is established between the devices. When the
LED is off, the connection speed is under 1000 Mbps or nothing is cabled to the port.
SFP+ (if present)—(Green) Located on the right of a 10G port. Lights steady when a connection is made through the shared port. Flashes when the port is passing traffic.
14 Cisco 550X Series Stackable Managed Switches Quick Start Guide
Reset Button
The switch can be reset by inserting a pin or paper clip into the Reset button opening on the front panel of the switch. See
550X Series Stackable Managed Switches to the Factory Default
for details.
Back Panel
The power port and console port are located on the back panel of the switch.
Power—Connects the switch to AC power.
RPS Port—Connects the switch to the Cisco RPS2300 module. The Cisco
RPS2300 can provide backup power to the switch when the main power supply has a failure.
Console—Connects a serial cable to a computer serial port so that it can be configured by using a terminal emulation program.
6
Returning the Cisco 550X Series
Stackable Managed Switches to the
Factory Default Settings
To use the Reset button to reboot or reset the switch, do the following:
• To reboot the switch, press and hold the Reset button for less than ten seconds.
• To restore the switch to its factory default settings:
– Disconnect the switch from the network or disable all DHCP servers on your network.
– With the power on, press and hold the Reset button for more than ten seconds.
Cisco 550X Series Stackable Managed Switches Quick Start Guide 15
Troubleshoot Your Connection
If you cannot access your switch from the web-based interface, the switch may not be reachable from your computer. You can test network connections by using ping on a computer running Windows:
S
TEP
1
Open a command window by selecting Start > Run and enter cmd.
S
TEP
2
At the Command window prompt, enter ping and the switch IP address. For example, ping 192.168.1.254 (the default static IP address of the switch).
If you can reach the switch, you should get a reply similar to the following:
Pinging 192.168.1.254 with 32 bytes of data:
Reply from 192.168.1.254:bytes=32 time<1ms TTL=128
If you cannot reach the switch, you should get a reply similar to the following:
Pinging 192.168.1.254 with 32 bytes of data:
Request timed out.
Possible Causes and Resolutions
No Power:
Power up the switch and your computer if they are turned off.
Bad Ethernet connection:
Check the LEDs for proper indications. Check the connectors of the
Ethernet cable to ensure that they are firmly plugged into the switch and your computer.
Bad Console port connection:
Check the console cable connectors to make sure that they are firmly plugged into the switch and your computer. Make sure that the console port utility is configured with the correct parameters.
Wrong IP address:
Make sure that you are using the correct IP address of the switch. You can determine the current IP address of the switch from the CLI through the console port, or from your network administrator. The
System LED provides an indication of where the switch received the IP address (See
Front Panel
for details.) Make sure that no other device is using the same IP address as the switch.
16 Cisco 550X Series Stackable Managed Switches Quick Start Guide
No IP route:
If the switch and your computer are in different IP subnets, you need one or more routers to route the packets between the two subnets.
Unusually long access time:
Due to the standard spanning tree loop detection logic, adding new connections may take 30 to 60 seconds for the affected interfaces and/or LAN to become operational.
Cisco 550X Series Stackable Managed Switches Quick Start Guide 17
7
Where to Go From Here
Support
Cisco Support Community www.cisco.com/go/smallbizsupport
Cisco Support and
Resources
Phone Support Contacts www.cisco.com/go/smallbizhelp www.cisco.com/en/US/support/ tsd_cisco_small_business
_support_center_contacts.html
Cisco Firmware Downloads www.cisco.com/go/smallbizfirmware
Select a link to download firmware for
Cisco Products. No login is required.
www.cisco.com/go/ smallbiz_opensource_request www.cisco.com/web/partners/sell/smb
Cisco Open Source
Requests
Cisco Partner Central
(Partner Login Required)
Product Documentation
Cisco 550X Series
Stackable Managed
Switches
Regulatory Compliance and Safety Information
Warranty Information www.cisco.com/go/550xswitches www.cisco.com/en/US/docs/switches/lan/ csb_switching_general/rcsi/
Switch_RCSI.pdf
www.cisco-warrantyfinder.com
W
ARNING
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
18 Cisco 550X Series Stackable Managed Switches Quick Start Guide
Americas Headquarters
Cisco Systems, Inc.
www.cisco.com
Cisco has more than 200 offices worldwide.
Addresses, phone numbers, and fax numbers are listed on the Cisco website at www.cisco.com/go/offices .
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
www.cisco.com/go/trademarks
. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)
© 2016 Cisco Systems, Inc. All rights reserved.
20 Cisco 550X Series Stackable Managed Switches Quick Start Guide

Public link updated
The public link to your chat has been updated.
Advertisement
Key features
- High-performance connectivity with Gigabit Ethernet and 10 Gigabit Ethernet ports
- Flexible configuration options to meet the needs of any network environment
- Easy to manage and configure with a variety of management options
- Support for advanced features such as VLANs, QoS, and security
- Compact and stackable design for easy deployment and expansion
- Limited lifetime warranty for peace of mind
