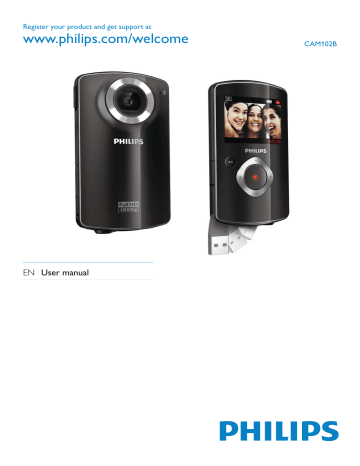

Register your product and get support at www.philips.com/welcome

CAM102B

EN

User manual

Contents

1 Important

Safety

Notice

2 Your

Introduction

What’s in the box

Functional overview

3 Get

Load the Micro SD card

Turn on

First-time setup

9

Charge the built-in battery

10

9

9

9

4 Use your camcorder

11

Record video

11

Take pictures

11

Play

11

Options during video play

11

Adjust settings

12

5 Use more of your camcorder

13

View video or pictures on TV

13

Install and use the camcorder software

13

15

6

6

6

7

4

4

4

7 Frequently asked questions (FAQ)

16

EN 3

1 Important

Safety

a

Read these instructions.

b

Keep these instructions.

c

Heed all warnings.

d

Follow all instructions.

e

Do not use this apparatus near water.

f

Clean only with dry cloth.

g

Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

h

Do not install near any heat sources such as radiators, heat registers, stoves, or produce heat. i

Only use attachments/accessories j personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

k

Apparatus shall not be exposed to dripping or splashing. l

Do not place any sources of danger on

!

lighted candles). device that are not expressly approved by

Philips Consumer Lifestyle may void the user’s authority to operate the equipment.

Notice

This product complies with the radio interference requirements of the European

Community.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Always bring your product to a professional to remove the built-in battery.

4 EN

EN 5

Introduction

With this portable camcorder, you can: take full HD (1080P) or VGA movies take pictures play recorded movies or pictures either directly or on the large screen of a connected TV upload the recorded movies or pictures to the Internet directly via your PC/Mac

What’s in the box

Make sure that the following items are packed in the box:

Camcorder

Quick start guide

Pouch

Hand strap

6 EN

a

Built-in speaker b c d e f g h b

Display panel c

+/-

!

Navigate up/down in a menu.

Change a value in the settings menu.

a

Functional overview

During video play, change the volume.

shown on the display panel.

d

Shutter button start/stop video recording.

EN 7 k j i p o n m l

e mode.

In play mode, play a selected video clip.

" f

MICRO SD

Connect a Micro SD card.

g

/

Navigate left/right in a menu.

Select a menu option.

In play mode, turn to the previous/ next picture/video clip.

settings menu.

h

USB connector i

Eject the USB connector.

j

Tripod socket k

Hand strap hole l

HDMI

Connect to a TV through an HDMI cable with a mini HDMI connector.

m n

Lens

Turn on/off the camcorder.

o

Built-in microphone p

Mode switch button

Switch between picture and video recording modes.

8 EN

Tip

To save energy, the camcorder turns off automatically after being idle for 3 minutes.

Load the Micro SD card

the socket.

1

Flap open the protective cover on the

Micro SD card socket.

2

Insert a Micro SD card (not supplied) into

Ensure that the the Micro SD card is not write-protected.

Ensure that the metal contact of the card faces down.

3

Close the protective cover securely.

Turn on

Press .

»

*' and time setting appears (See ‘’Get started - Set the date and time).

»

& mode.

To turn off the camcorder:

Press and hold .

»

The backlight on the display panel turns off.

First-time setup

# time, a menu for OSD language selection is displayed.

1

Press to select a language.

2

Press

»

$%

»

An inquiry box for date and time setting is displayed.

3

Press to highlight [Yes] .

»

A date setting menu is displayed.

4

Press / to select the day, month and

5

Press

6

Press

»

A time setting menu is displayed.

7

Press / to select the hour and minute

8

Press

9

Press

»

&'

»

& mode.

Tip

See ‘Use your camcorder - Adjust settings’ for more settings.

EN 9

10 EN

Select a special effect

1

to enter the window for scene selection.

2

Press to select a scene.

3

Press $

Or press to cancel and go back to

Charge the built-in battery

1

Press at the bottom of the camcorder to eject the USB connector.

2

Connect the USB connector to a USB socket on a PC.

»

The status indicator on the shutter

$%

3

Wait until the status indicator stops

%

»

The built-in battery is fully charged.

Tip

& '

It takes about 3 hours to fully charge the built-in battery via the PC.

You can also charge the camcorder via a USB adaptor (not supplied) connected to mains power. The charge time is about 2 hours.

camcorder

Record video

1

Switch the mode switch button to .

»

The selected resolution and remaining recording time are displayed on the display panel.

2

Hold the camcorder steadily and aim the lens as needed.

3

Press the shutter button to start recording.

»

A red time indicator is displayed on the display panel.

»

The status indicator on the shutter

$%

4

Press the shutter button again to end recording.

»

[Recording saved!] $%

Take pictures

1

Switch the mode switch button to .

»

& $ of pictures that can be taken are displayed on the display panel.

2

Hold the camcorder steadily and aim the lens as needed.

3

Press the shutter button down halfway to adjust the focus.

4

Press the shutter button down completely to take a picture.

»

[Picture saved!] $%

Play

1

to enter play mode.

»

The last recorded video clip is played automatically.

2

Press / to select a picture or video clip for play.

3 to start play.

"

1

In play mode, press /

2

Press to enter deletion mode.

3

Press to highlight [Yes] deletion operation.

»

[Deleted!] $%

Preview

In play mode, press .

»

&$+ on each page.

»

& +// / .

Options during video play

Fast forward/reverse

During video play, press and hold / .

To return to the normal speed, release / .

Adjust volume level

During video play, press +/.

EN 11

Adjust settings

1

.

»

A settings menu is displayed.

2

Press to highlight an option.

3

Press / to select a setting.

4

Press

Settings menu option

Description

[Flash] ;% < [On] ,

[Off] or [Auto] .

[Resolution] Select a video resolution: [Full

HD] (for best video quality),

[Sports HD] = moving objects), or [Standard]

=>

[Photo Size] ; be saved (the higher the photo

>

[Scene]

[F/S Detect] Enable/disable face smile detection.

[Dual recording]

Select an automatic exposure mode that matches your shot for easy shooting.

Record full HD and compressed QVGA videos at the same time.

[Autoplay] Start automatic play when the camcorder is connected to a

PC.

[Pre-record] Enable/disable 3-second prerecord mode.

[Capture sound]

Turn on/off the capture sound.

[Date] Set the date.

Settings menu Description option

[Time] Set the time.

[Language] Select your desired menu language.

[Format SD card]

Clear contents from the micro

SD card.

[TV system] Change this setting if the output video does not appear correctly on your TV.

12 EN

Note

The software supplied only works on PCs that operate

Microsoft ® Windows ® XP, Vista and Windows 7.

When you connect the camcorder to a Mac, use the iMovie software to import and edit your pictures/ videos directly.

5 Use more of your camcorder

View video or pictures on TV

1

Connect an HDMI cable (not supplied) to: the HDMI socket on the camcorder

(requiring a mini HDMI connector) the HDMI input socket on an HDTV

2

;

Install and use the camcorder software

Warning

If you remove the supplied software, you will not be able to get one from ArcSoft for free.

With the software (ArcSoft MediaImpression

HD Edition) available in the internal memory of the camcorder, you can import, edit, archive or upload your pictures/videos to the Internet easily.

Install the camcorder software

1

Connect the camcorder to a PC (see ‘Get started’ > ‘Charge the built-in battery’).

2

If the software does not install

Setup icon at My Computer\CAM102B .

3

*' installation of the software.

Install and use the camcorder software

1

On your PC, click Start\(All) Programs\

ArcSoft MediaImpression HD Edition .

»

The main screen of the software is displayed.

operation.

2

Click an option to select the corresponding

3

Follow the on-screen instructions to complete the operation.

EN 13

Transfer video/pictures to a PC/Mac

1

Connect the camcorder to a PC/Mac

(see ‘Get started’ > ‘Charge the built-in battery’).

»

It may take some time for the PC/Mac

2

Find your video/pictures at My

Computer\CAM102B\DCIM\100MEDIA or My Computer\CAM102B SD\

DCIM\100MEDIA .

3

Copy any video/pictures you want to your designated folder in the PC/Mac.

Tip

@!

camcorder software (for PC) or iMovie (for Mac).

14 EN

6 Technical specifications

Product information is subject to change without prior notice.

Image sensor 1/3.2” JMP CMOS sensor

Operation modes Movie record, picture record

Lens (focusing) Fixed

Focus mode Fixed

Focus range

Aperture

KZ

F2.8

[ 2X

Exposure control Auto

Exposure compensation

-2.0~2.0EV

White balance Auto

Auto power off 3 minutes

Memory 64MB (512Mbit) DDR2

+ 128MB SLC (96MB for

AP) + Micro-SD card Slot

Shutter type

Shutter speed

Electronic

1/2~1/4000 second

JPEG

Video compression format

*.MP4 (H.264 )

Video resolution Full HD (1080p 30)

1440X1080 (30fps)

HD (720p 30)

1280X720 (30fps)

VGA (4:3) 640X480

(30fps)

Battery

PC interface

TV out

AAC

700mAh Li-ion (built-in)

Mini USB 2.0 port

System support Windows XP/Vista/

Windows 7, Mac

(mass storage only )

NTSC/PAL selectable, Mini

HDMI (type C)

Weight

Dimensions

(W x H x D)

0.06kg

55.3 x 99.4 x 17.3 mm

EN 15

7 Frequently asked questions

(FAQ)

Why is there no response when I use the camcorder?

$ The camcorder is in power-off mode. Turn on the camcorder (see ‘Get started’ >

‘Turn on’).

$ The built-in battery may be drained.

Charge the battery (see ‘Get started’ >

‘Charge the built-in battery’).

Why is [Memory full!] displayed when I try to record?

$ Ensure that the Micro SD card has been inserted correctly (see ‘Get started’ >

‘Load the Micro SD card’).

$ The memory is used up. Save your video/ pictures to a computer (see ‘Use more of your camcorder’ > ‘Transfer video/pictures

"!_`>& camcorder or clear the memory.

How much memory is needed for 1 hour of

Full HD recording?

$ The camcorder uses 4GB on average for 1 hour of Full HD video. For a more complex video recording (e.g. with lots of motions in the video, or a lot of panning), the camcorder will use more memory. This is done to maintain the video quality, but will increase the usage of memory.

Why do I have no access to folders on the camcorder from my computer?

$ Ensure that the USB connection is correct.

$ The camcorder turns off automatically

15 minutes after it is connected to a computer. You can press to turn it on again.

Why do my video/pictures look blurry?

$ Hold the camcorder steady in your hands during shooting.

$ During video capture, do not move the camcorder too fast.

$ Use a tripod (not supplied) if necessary.

Why do my video/pictures look distorted on a

TV screen?

$ Select the correct TV system.

How do I charge the camcorder?

$ You can charge the camcorder via the USB pop-out connector. When you connect it to your PC/laptop it will automatically charge. You can also plug the camcorder via the pop-out USB into a USB charger.

How long do I have to charge the camcorder?

$ & usage. The camcorder charge time when connected to your PC/laptop is 3 hours.

When you charge it via USB adaptor, the charge time is 2 hours.

%&'*;<=>@ charge the battery?

CAM102B can be charged via regular USB adaptors, which are readily available in electronic stores. CAM102B is also compatible with iPhone adaptors.

How do I fast-forward or rewind on the camcorder?

$ You can fast-forward during play of a movie by pressing the right-button for 2 seconds.

You can rewind during play of a movie by pressing the left-button for 2 seconds.

Camcorder stopped responding?

$ In the unlikely event that your camcorder stops responding, you can manually reset it. The reset button is located under the

HDMI cover. There you see a small opening above the HDMI connection. Please use a small prying object (like a pen) to insert and press gently for resetting. After you have reset the camcorder, please turn on the camcorder again, and set-up will start again.

16 EN

Why does the camcorder sometimes not record the right color?

$ To record both indoors and outdoors, and not having to change any settings, the camcorder has an automatic whitebalance correction. This enables you to record both indoors and outdoors where the amount of light in the environment changes. If you move fast from outdoors to indoors, the camcorder might need some time to correct that, and in extreme cases the colors might seem a bit unnatural.

However, after a few seconds this will be corrected automatically by the camcorder.

Can I connect the camcorder directly to TV,

DVD/Blu-ray player or Home Cinema set via their USB-port?

$ The USB plug is designed to share your videos/pictures to your PC or Laptop. You can plug the CAM102B directly into your

TV, DVD/Blu-ray player or Home cinema set (called the host from this point on), and it will play the pictures that are stored on the CAM102B. To play the videos from the CAM102B, it depends if your host

|}+

CAM102B. Most Blu-ray enabled players are able to play this format.

How do I connect it to a Windows PC/laptop?

$ Connect the camcorder to your PC/laptop via USB. The USB pop-out connector is strong enough to support the camcorder when it is plugged into the PC’s USB port.

For easy sharing and editing, install the software program (Media Impression HD) that comes with the camcorder.

How do I connect it to a Mac?

$ The camcorder works with the Mac via USB. The USB pop-out connector is strong enough to support the camcorder when it is plugged into the USB port. The camcorder works great with the iMovie software, which is part of the iLife package that comes with your Mac. To transfer videos using iMovie, simply connect the camcorder to your Mac via USB, launch iMovie and start importing by clicking the camcorder icon. Select ‘Use original quality’ to ensure the best quality, and to maintain

How do I play my videos on TV?

$ To play back on TV, please use an HDMI connector (mini HDMI to standard HDMI) if your TV accepts HDMI input.

Why is there no lens cover?

$ The camcorder comes without a lens cover, keeping it simple to use and fussfree. It is made of robust material that doesn’t scratch under normal usage. A travel pouch and a lens cloth are provided, allowing you to keep the camcorder clean.

What format does the camcorder record in?

$ The camcorder uses the same video format as Blu-ray players and discs – H.264.

This highly sophisticated format delivers superb HD picture quality.

What does pre-record mean that is in the setting?

$ The pre-record button is designed to let you never miss a moment. When you enable the pre-record function, the camcorder will record video 3 seconds before you have pressed the record button. So when you play-back the z$ pressed the record button. This can be

{

The pre-record function will not drain battery life, it will operate as normal.

Tips on video making

$ You can easily look back on fun moments and relive them with the camcorder. To enjoy these memories to the fullest, here are some simple video tips:

When capturing videos, hold your camcorder steady in your hand

EN 17

18 EN

Don’t move too fast when panning

= > as it will be hard to follow what is captured when you review the video

Try shooting from different angles

– for example, from the side, from the front, or even from below. You can easily join the different video segments together with the PC software included

© 2011 Koninklijke Philips Electronics N.V.

All rights reserved.

CAM102B_12_UM_V1.0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
