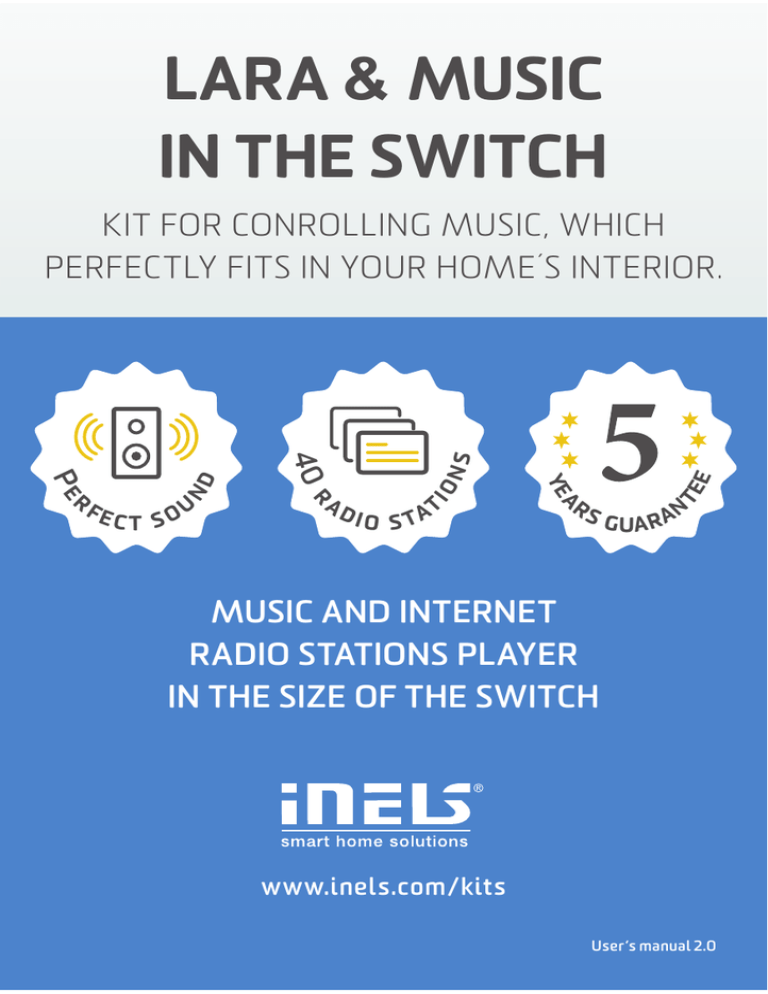

LARA & MUSIC

IN THE SWITCH

KIT FOR CONROLLING MUSIC, WHICH

PERFECTLY FITS IN YOUR HOME´S INTERIOR.

P

ER

FECT SOU

N

D

4

0

R

ADIO STAT

IO

N

S

YE

AR

S GUARAN

TE

E

MUSIC AND INTERNET

RADIO STATIONS PLAYER

IN THE SIZE OF THE SWITCH www.inels.com/kits

User‘s manual 2.0

EVEN YOUR HOUSE

CAN BE „HEARD“!

Would you like some help?

TECHNICAL SUPPORT

+420 800 100 671

[email protected]

RADIO & MUSIC

IN THE SWITCH

KIT FOR CONROLLING MUSIC, WHICH PERFECTLY FITS

IN YOUR HOME´S INTERIOR.

LARA is a music and internet radio player. We have registered 40 favorite Czech radios stations as presets stations, but you can easily change it using confi gurator. LARA plays the music stored in the NASA storage or in the external source (phone, MP3 player) connected through cable on the front panel of device.

Inbuilt amplifi er allows direct connection of speakers (in the same LOGUS 90 design) or allows connection of external in-wall or ceiling speakers.

This kit will open up new horizons for home automation. It can be extended any time you need and according to your wishes. Depends on you if you want to fi nd something new and upgrade your current installation.

Thank you for buying the kit RADIO & MUSIC IN THE SWITCH.

Another kits and additional units can be found on the last pages of the manual or at our webpage.

www.inels.com/lara

USER´S MANUAL CONTENT

2)

3)

4)

5)

1)

Kit content ...............................................................................................................................................................................................................................

5

Installation ................................................................................................................................................................................................................................

6

Control .........................................................................................................................................................................................................................................

8

Additional setup ...................................................................................................................................................................................................................

10

Lara Confi gurator.................................................................................................................................................................................................................

13

6)

7)

Setting up radio stations ..............................................................................................................................................................................................

14

Additional setup - Lara Confi gurator .................................................................................................................................................................

16

8)

9)

Device settings .....................................................................................................................................................................................................................

17

Additional setup ..................................................................................................................................................................................................................

18

10)

Remote controller ..............................................................................................................................................................................................................

19

11)

Technical parameters of LARA ...............................................................................................................................................................................

20

12)

Accessories .............................................................................................................................................................................................................................

21

13)

The overview of other kits ........................................................................................................................................................................................

14)

Virtual kits ...............................................................................................................................................................................................................................

24

27

4

LEGEND:

LARA-NAS application - application for controlling the music via a Smartphone

Network cable - LAN cable for connection LARA PoE adapter

LAN (Local Area Ethernet, computer network)

computer cables (UTP) distributed throughout the building and connected to the switch. It connects computers and other IP devices together that are connected to the network.

PoE (Power Over Ethernet, power supply through a network cable)

enables to supply terminal devices via the LAN cable. Through adapter (6191) connected to LAN cable or through switch which has an inbuilt PoE (6605).

Switch, router - a box which connects LAN cables together and provides communication between devices which are connected to the router; router allows you to share wireless Internet to LAN network

IP (Internet Protocol) - it is a device protocol operating in LAN networks; each device has its own unique IP address (e.g. 192.168.11)

WiFi (Wireless Fidelity) - wireless computer network (WLAN)

WiFi bridge - converter that allows you to convert wire LAN connection to WiFI (5210)

U S E R ´S M A N U A L 2 . 0

USER´S MANUAL CONTENT

MUSIC PLAYER IN THE SIZE OF THE SWITCH - LARA

3 frame - white

(90930 TBR)

Speakers 2“

(21581)

LARA Radio - white

(LARA-R/BR)

Speaker cover

(90710 TBR)

LARA Remote controller

(6508)

LARA PoE adapter

(6191)

LARA Speaker cable

(5209)

Network cable,

20 cm

(6702)

W W W. I N E L S . C O M / K I T S 5

THE EXAMPLE OF INSTALLATION

LARA - can be mounted inside your wall (installation box) or off ers a surface mounting option. You can use the installation boxes mentioned in the Section “Accessories”.

2

1

4

3

Surface mounting

Flush mounting

(adapted to be mounted inside the wall)

6

1

Ceiling speaker

2

In-wall speaker

3

Box for surface mounting

4

Installation box

U S E R ´S M A N U A L 2 . 0

INSTALLATION

1.

The description of installation

Fig. 1

SPEAKER

LARA

SPEAKER

Fig. 2

SPEAKER

CABLE

POE

ROUTER

NETWORK

CABLE

LAN

POWER

SUPPLY

230 V

POE

ADAPTER

Fig. 3

The back of LARA player is installed into an installation box (e.g. KU). We recommend a box which

allows you to mount devices with greater depth. Installation boxes can be found at eshop.elkoep.com.

To terminals OUT +/- OUT +/- you connect speakers cables (Fig.1). To terminals LINE OUT L, LINE OUT R,

GND you can connect input to the external amplifi er. Plug a network cable into connector RJ45 (on LARA).

Using screws fi x a device to the installation box (Fig. 2). The upper part of music player should be snapped

into the frame (LOGUS90 design) - (Fig. 3).

The upper part of the player with frame should be snapped to the bottom of the player. Be careful to avoid

damaging the connectors.

Connect the other end of the network cable via PoE adapter to Wi-Fi router switch (Fig. 1).

The system information will be displayed on the player screen once powered. After about 5 seconds, the

main screen of the player appears.

W W W. I N E L S . C O M / K I T S 7

8

CONTROL

IP address

LARA has a DHCP, what means that LARA automatically assigns itself an IP address from the range of your network settings. In the case of other network settings please contact our technical support or your Internet provider.

IP address of LARA can be changed - see page 10.

Long press

Short press

Multiple press

To return to the main screen please press repeatedly the icon.

Mute

OFF/ON

}

Pause / Play

Settings

Radio stations selection

(To choose a radio station please press PAUSE, then

} switch the radio station and

} press PLAY).

.2013 12:54

TAV ENY CA S:

IC E

OST :

STAV: :

VYPNUTO

}

Volume +

}

Volume -

U S E R ´S M A N U A L 2 . 0

CONTROL

There are 40 preset radio stations in LARA radio, the overview of radio station you can find on page 15.

Lock buttons:

By long press on the both arrow keys the touch screen will be locked. The locking is indicated by the symbol on the display.

In the same way the display is unlocked.

1.

Activating an external audio input

01.01.2013 12:54

Radio stations

01.01.2013 12:54

AUX input

01.01.2013 12:54

AUX input

100%

The AUX IN input serves to connect external music source (mobile phone, mp3 player) through cable.

In this mode, the player serves as audio amplifi er. If the input is activate, the volume gets set to 100%

External source

MP3, iPod, phone

W W W. I N E L S . C O M / K I T S 9

ADDITIONAL SETTINGS

1.

Language selection

01.01.2013 12:54

Radio stations

01.01.2013 12:54

Settings

01.01.2013 12:54

Language

01.01.2013 12:54

English

01.01.2013 12:54

English

01.01.2013 12:54

English

2.

The setting up a network

LARA has a DHCP, what means that LARA automatically assigns itself an IP address from the range of your network settings. In the case of other settings of your network, you can change

LARA parameters according to the procedure described below.

01.01.2013 12:54

01.01.2013 12:54

01.01.2013 12:54

Radio stations

Settings Language

10

01.01.2013 12:54

LAN

01.01.2013 12:54

IP ADRESA:

10.10.3.171

MASKA PODSITE:

255.255.255.0

BRANA:

10.10.3.254

PORT:

61695

01.01.2013 12:54

IP ADRESA:

10.10.3.171

MASKA PODSITE:

255.255.255.0

BRANA:

10.10.3.254

PORT:

61695

01.01.2013 12:54

Do you want to save changes?

<< NO >>

U S E R ´S M A N U A L 2 . 0

ADDITIONAL SETTINGS

3.

Audio Output Settings

PA output to the speakers connected to terminals OUT L, R OUT

Line output to terminals Line OUT L, Line OUT R intended for external amplifi er

PA+Line output to both terminals simultaneously

(The default audio output is PA)

01.01.2013 12:54 01.01.2013 12:54 01.01.2013 12:54

Radio station Settings Language

01.01.2013 12:54

Audio output

01.01.2013 12:54

PA

01.01.2013 12:54

PA+Line

4.

The display settings - Illumination time of the display

01.01.2013 12:54 01.01.2013 12:54 01.01.2013 12:54

Radio stations Settings Language

01.01.2013 12:54

Display

01.01.2013 12:54

SWITCH OFF DISPLAY:

2 minutes

<<

>>

W W W. I N E L S . C O M / K I T S

01.01.2013 12:54

SWITCH OFF DISPLAY:

5 minutes

<<

>>

It is an illuminating

(backlit) time of the display. After a period of inactivity, the display is turned off .

To activate, touch any button.

11

ADDITIONAL SETTINGS a)

5.

Device reset to the factory default setting

After resetting the player, the default IP address is set to 192.168.1.10 and all saved stations will be deleted. There are two ways of resetting:

01.01.2013 12:54 01.01.2013 12:54

01.01.2013 12:54

Radio stations Settings Language

01.01.2013 12:54

Factory reset

01.01.2013 12:54

Reset device?

<< NO >>

01.01.2013 12:54

Reset device?

<< YES >>

b)

Long press on the hidden button (>10 s)

Factory rst

5

Factory rst

0

12

6.

Restart

Used to restart without deleting all set data.

Short press on the hidden button (<10 s)

Init BUFFER...... OK

Init DTF............. OK

Load Settings... OK

Load Stations... OK

Load MAC.......... OK

Load Alarm........ OK

Init ETHERNET..

Jazyk

FW: 2.2.001

The same function has a disconnection

(connection) of LAN cable or PoE adapter.

U S E R ´S M A N U A L 2 . 0

PROGRAM LARA CONFIGURATOR

LARA Confi gurator can be downloaded from web page:

http://www.elkoep.com/download/software/

download here

LARA Confi gurator

Thanks to LARA Confi gurator you can:

set sign-in info

set parameters of network connection

set parameters for automatic time synchronisation

edit the Internet radio list

set iMM parameters of audiozone

fi rmware update of LARA Radio

remotely control LARA Radio

LARA Confi gurator can simply run without installing the operating systems Microsoft Windows XP,

Windows 7 and Windows 8. The condition that allows starting the program is support Microsoft. NET

Framework 4 or its installation (free download at www.microsoft.com).

W W W. I N E L S . C O M / K I T S 13

RADIO STATION EDITING

Run LARA Configurator on your PC, which is on the same network as LARA radio, then click on

LOAD SETTINGS.

Note: Adding a radio station requires an active Internet connection.

Boing

Box UK Radio

Dainem radio

Direct FM

40 from 40

 

14

Tab „Station List“ is used for the complete management of the list of Internet radio saved on your LARA

Radio.

EDIT THE STATION: In the Tab „Edit stations“ you can add a new radio station or modify existing stations in the list.

LIST OF RADIO STATIONS: It is possible to store up to 40 presets into the list for music network streams. The current version of LARA radio supports SHOUTcast streams, ICEcast streams with supported fi le formats MP3, AAC and OGG which are used for webcasting in most cases.

CONTROL TOOLS: After successful loading stations along with overall device settings, it is possible to view the list of radio stations and change their order. For sorting and removing items from the list, use the appropriate control tools on the right side of the list.

IMPORT/EXPORT THE LIST: These functions allow you to easily back up the list of preset radio stations by saving the fi le.

TO ADD A NEW RADIO STATION:

a) Click the button ADD b) Station name c) Check the box „automatic fi lling“ d) Insert a source link of selected radio from www.radiosure.com/stations to box no.

 e) Click OK, warning message warns you of a result of automatic processing. f) To save a new radio station in the list, use the button SAVE.

U S E R ´S M A N U A L 2 . 0

RADIO STATION EDITING

THE LIST OF THE PRESET STATIONS

1.FM AMERICAS

1.FM

1DANCE.FM

89.0 RTL

100HITZ

181.FM LITE

181.FM MIX

181.FM ROCK

181.FM

ABC 80s

ALL HITS STATION

BOING

BOX UK RADIO

DAINEM RADIO

DIRECT FM

DUBLINS KISS

GOT RADIO

HITS 80s

KALMAN RADIO

KISS HITS

KISSFM ROMANIA

LOLLIRADIO

MEGAHITRADIO

OLAFM

POLSKASTACJA

POLSKIE RADIO

RADIO CONTINU

RADIO FREJUS

RADIO FUNKY

RADIO INTERNATIVA

RADIO JUNIOR

RADIO LIVE ROMANIA

RADIO MIL80

RADIO SUNCHINE

RADIO TARAF

RADIOUP

REAL DANCE RADIO

RMN RADIO

TDI RADIO

THE MIX RADIO

BIT RATE

Quality Transmission

A bit rate is the number of bits that are conveyed or

processed per unit of time. The bit rate is quantifi ed

using the bits per second unit (symbol bit/s).

W W W. I N E L S . C O M / K I T S 15

ADDITIONAL SETTINGS - LARA CONFIGURATOR

Run LARA Confi gurator on your PC, which is on the same network as LARA radio, then click on

LOAD SETTINGS .

   

...

16

ADMIN LOGIN: In the dialog box, please enter the login information. The default setting is - admin:

„admin“ and password: „elkoep“. In the case of invalid data, it is unable to continue with loading the LARA

Radio settings.

LAN PARAMETERS: In the dialog box, it is necessary to enter the IP address of connected LARA RADIO.

You can obtain the IP address of connected device using function „Search a device“. Within a few seconds the function „Search a device“ will fi nd all LARA radio connected to a network. In the dialog box „Search a device“ there is a list of all devices. Mark the required device and press button „Select“ - then the Confi gurator is ready to load the device settings with chosen IP address.

THE DEVICE INFORMATION: The Tab „The device information“ displays the status of connection, login and FW version of LARA Radio. The status of connection does not depend on a successful login. If the device is properly connected to the network, the status „Connected“ appears. If all of your login information is correct, you‘re able to log in successfully.

THE DEVICE INFORMATION: Information about device and program including hyperlinks to the manual and the data sheet.

LOAD SETTINGS: Button „Load settings“ used to save settings to LARA Radio.

SAVE SETTINGS: The button „Save settings“ is used to store the full settings to the LARA Radio.

REMOTE CONTROL: Using „Remote Control“ in the app LARA Confi gurator, the function of a confi gured device can be verifi ed easily and quickly.

The function „SEARCH DEVICES“ will fi nd all LARA devices connected to network in a few seconds. In the dialogue box „Search for a device in the LAN network“ there is a list of all devices found on the network. By marking the required device and pressing the button „Select“ the confi gurator is ready for loading the settings of device with the chosen IP address.

U S E R ´S M A N U A L 2 . 0

THE DEVICE SETTINGS

ADMINISTRATOR LOGIN: To change your login information please enter your new login information in the text boxes. The password confi rmation is required.

LAN PARAMETERS:

To change connection parameters, please select the „DHCP“ (automatically assign IP address by DHCP server) or „Static IP address“.

When selecting a static IP address, please enter the required address, subnet mask and default gateway in the text boxes.

IP address: Enter a new IP address of the device in dotted decimal notation (default IP Address 192.168.1.10).

The default subnet mask: 255.255.255.0

Gateway: Setting the local network gateway.

DATE AND TIME:

IP address of the time server is preset from the factory.

SNTP server: If necessary, enter the IP address of another time server that supports SNTP protocol.

Time Zone: Select the time zone in the place of LARA Radio installation to display the correct times.

Winter / Summer clock changes can be done using the control tool „Summer time“.

W W W. I N E L S . C O M / K I T S 17

THE ADDITIONAL SETTINGS

1.

Functions

Functions of IMM audio zones:

Used for already installed iNELS system, where LARA radio serves as Audio zone player.

IMM audio zone: function „iMM audio zone“ can be activated/deactivated using the control tool.

IP server: enter a IP address of iMM server in dotted decimal notation.

Note: iMM server is used to connect almost all technologies at home with intelligent electro-installation iNELS BUS System.

2.

FW update

18

To update Lara Radio FW it is necessary to download the update fi le with the extension „* .lfw“ from the webpage http://www.elkoep.com/download/software/.

TO OPEN A FILE: Using the button „ open fi le fi le“ the dialog box to search and select the update fi le will appear on your screen. After a fi le is opened, the content checking is performed and user is informed about the results. If you choose the correct fi le, the FW version is displayed.

FW UPDATE: Pressing the „UPDATE FIRMWARE“ button causes the update to be started, the course is also graphically depicted. If you load a damaged or an invalid fi le, the update will fail and it is necessary to repeat it with the valid update fi le.

U S E R ´S M A N U A L 2 . 0

LARA TECHNICAL PARAMETERS

Supported fi le formats for data transfer:

Control/settings

Front panel:

Remore control:

Ethernet communication:

RESET button:

Ethernet interface

Communications Interface:

Connector:

Max. UTP cable length with PS*:

Display

Type:

Resolution:

Visible area:

Parameters of power supply:

Power supply:

Min. power:

Max. power:

Amplifi er parameters:

Amplifi er:

Max. power amplifi er:

Inputs / Outputs:

Amplifi er:

Audio input 1:

Audio input 2:

Connection:

Screw terminal:

Other information:

Operating temperature:

Overvoltage category:

Pollution degree:

Installation:

Dimension:

Frame - plastic:

Frame - metal, glass, wood, granite:

Weight:

Note: * Power supply

mp3, ogg, acc

Touch buttons

IR controller (included in the package) via PC setup and communication SW LARA confi gurator device reset / reset to factory settings

0/100 Mbps

RJ45

50 m color OLED

128 x 128 pixels

26 x 26 mm

POE 24V DC/1.25 A

1.4 W

26 W

The Class D stereo with digital output control

2 x10 W/8 

3.5 stereo jack terminals LINE OUT (use for external amplifi er) terminals out L/out R (speaker output of integrated amplifi ers)

0.5 - 1 mm 2 (audio outputs)

0 .. + 55 °C

IP 20

II. into an installation box

85 x 85 x 46 mm

94 x 94 x 46 mm

87 g (plastic frame)

W W W. I N E L S . C O M / K I T S 19

20

ACCESSORIES - SPEAKERS AND CABLES

PICTURE DEVICE DESCRIPTION

AUX CABLE LARA (LARA CINCH CABLE)

Used to connect LARA with exter. amplifi er. Reduction 4pin from

LARA LINE OUT to 2x CINCH plug into amplifi er, length 2x20 cm.

Used to connect LARA with external amplifi er. Reduction 4pin from LARA LINE OUT to 2x CINCH plug into amplifi er.

POWER SUPPLY (PSB-10-24)

Switching stabilized power supplies with fi xed output voltage, intended for mounting into an installation box (e.g.

KU-68). PSB-10-24 - stabilized power supply 24V/10 W.

ORDER CODE

5208

4378

AUX CABLE LARA (LARA AUDIO CABLE)

Used to connect LARA with external music source (smartphone, mp3 player). Length 20cm terminated with 2x stereo jack 3.5mm.

CEILING SPEAKER

Speaker is suitable for the installation in suspended ceilings and hollow walls. Mounting hole diameter 143 mm,

Power 15W, 32 speaker impedance.

SURFACE SPEAKER

Two-way speaker intended for mounting in a ceiling or on the walls: Power 15W, 32  speaker impedance, dimensions 270x183x37 mm. Color: White

NAS EXTERNAL STORAGE

Two-chamber NAS server with the function of hosting, sharing and data security.

6704

75023

CMF

75106

CBR

7 212

NETWORK CABLE, 0.2 M

Flat white LAN cable CAT5, length 20 cm, terminated with

2x RJ45 plugs.

NETWORK CABLE, 1 M

Flat white LAN cable CAT5, length 1 m, terminated with 2x

RJ45 plugs.

6702

6700

U S E R ´S M A N U A L 2 . 0

ACCESSORIES - INSTALLATION MATERIAL

PICTURE DEVICE DESCRIPTION

1-FRAME

2-FRAME

3-FRAME

4-FRAME

5-FRAME

SURFACE MOUNT BOX

INSTALLATION BOX 1-GANG (KP 67/2)

INSTALLATION BOX 2-GANG (KP 64/2)

INSTALLATION BOX 3-GANG (KP 64/3)

INSTALLATION BOX 4-GANG (KP 64/4)

INSTALLATION BOX 5-GANG (KP 64/5)

INSTALLATION BOX 1-GANG (KP 64/LD)

INSTALLATION BOX 2-GANG (KP 64/2L)

INSTALLATION BOX 3-GANG (KP 64/3L)

INSTALLATION BOX 4-GANG (KP 64/4L)

INSTALLATION BOX 5-GANG (KP 64/5L)

UNIVERSAL BOX 1068-02

UNIVERSAL BOX KUH 1/L NA

ORDER CODE

90910 TBR

90920 TBR

90930 TBR

90940 TBR

90950 TBR

10976 ABR

6705

6706

6707

6708

6709

6710

6711

6712

6713

6714

6716

6717

W W W. I N E L S . C O M / K I T S 21

ACCESSORIES - POWER SUPPLY AND NETWORK

DEVICE DESCRIPTION ORDER CODE

POWER SUPPLY POE + WIFI INTO A BOX

WiFi bridge with PoE and power supply into an installation box. Power supply 230V.

5224

POE SUPPLY

Power injector with plug-in adapter 230V.

52 25

22

PICTURE DEVICE DESCRIPTION

WIFI BRIDGE

Used for LARA wireless connection via WiFi network.

ORDER CODE

5210

U S E R ´S M A N U A L 2 . 0

ACCESSORIES - POWER SUPPLY AND NETWORK

DEVICE DESCRIPTION ORDER CODE

POWER SUPPLY POE INTO AN BOX

PoE injector with power supply intended for an installation box. Power supply 230 V.

52 26

POWER SUPPLY POE + WIFI

WiFi bridge with PoE plug in adapter 230 V.

52 27

PICTURE DEVICE DESCRIPTION

POE SWITCH

Provides LAN connectivity and PoE power supply for up to

5 x LARA. Max. distance between LARA and switch is 10 m at the power supply 12 V, and approximately 20 m at the power supply 24 V. Power supply AC 230 V.

ORDER CODE

6605

W W W. I N E L S . C O M / K I T S 2 3

THE OVERVIEW OF OTHER KITS

THE GAME OF LIGHTS ORDER CODE: 5453

RF SMART

BOX

COLOURED

WIRELESS

BULB

KIT TO CONTROL LIGHTS VIA SMARTPHONE

It has never been easier to set the appropriate ambience for reading a book, watching a movie or a party with friends. All you need is wireless bulbs and Smart RF box. Then you can control each device from the comfort of your smartphone, tablet or smart TV. You can control not just colored or white light bulbs, but other appliances too.

REMOTE HEATING ORDER CODE: 5456

1

×

RF SMART

BOX

3

×

WIRELESS

THERMOVALVES

24

KIT TO CONTROL HEATING VIA SMARTPHONE

Includes 3 wireless thermovalves that are installed instead the standard radiator valves. They measure the room temperature and send it to the Smart RF box. Smart RF box compares it with the temperature set along with the time schedule in App of your phone and sends a command to open or close the valve. You can always turn on the heating circuit via app, whether you‘re at home, or just going to visit your cottage and do not want to come to unheated place.

U S E R ´S M A N U A L 2 . 0

THE OVERVIEW OF OTHER KITS

HEATING WITH SAVINGS ORDER CODE: 5455

1

×

WIRELESS CONTROL

UNIT RF TOUCH

3

×

WIRELESS

THERMOVALVES

KIT TO CONTROL HEATING VIA WIRELESS RF TOUCH UNIT

Includes 3 wireless thermovalves that are installed instead the standard radiator valves.

They measures the room temperature and send it to the RF Touch control unit. RF Touch compares it with the temperature set along with time schedule and sends a command to open or close the valve. You can set heating programs in the weekly schedule, separately for each circuit (room).

EASY HEAT REGULATION ORDER CODE: 5458

1

×

TEMPERATURE

CONTROLLER

1

×

SWITCHING

SOCKET

KIT FOR WIRELESS TEMPERATURE REGULATION IN THE HOME

This kit enables convenient and quick control of heater, oil heater, panel heater or portable air conditioner. Just plug the controlled device into switching socket and appropriately place your controller RFTC-50G. The desired temperature is set on the controller, that compares it with the current record and it sends a command to turn the device ON.

W W W. I N E L S . C O M / K I T S 2 5

THE OVERVIEW OF OTHER KITS

ONE CONTROLLER FOR ALL ORDER CODE: 5457

1

×

SMART IR BOX

3

×

IR TRANSMITTER

KIT FOR CONTROLLING IR DEVICES VIA A SMARTPHONE

Thanks to Smart IR box, you can control home appliances via a Smartphone. Thus you no longer need a bunch of controllers, you do not have to look for them, and you do not need to replace the battery. You always stick your phone in your pocket, always at hand. Moreover, you can control devices which are placed in another room (e.g. you can turn off TV in the children room).

YOUR HOUSE UNDER „THE THUMB“ ORDER CODE: 5459

1

×

SMART RF

BOX

COLORED

WIRELESS

BULB

1

×

WIRELESS

SWITCHING

SOCKET

1

×

CAMERA

26

CONTROL YOUR HOUSE VIA A SMARTPHONE

The kit “House under the thumb” which you hold in your hands is the basic starter kit for all of you, who would like to make your home more comfortable. The starter kit consists of

2 x colored wireless bulbs, 1 x switching socket and 1 x camera, what allows you to try the basic units of iNELS RF Control – wireless solution. Everything is preset to ensure fast and easy installation.

U S E R ´S M A N U A L 2 . 0

VIRTUAL KITS

The virtual kit is a set of wireless units that are packed individually (as an individual product), but on the other hand they are preset together (they are meant to work together) to ensure simple installation. They are off ered at a discounted price and it is not possible to separate any unit from this price.

UNDERFLOOR HEATING - BY WATER

Any wireless temperature regulator measures the room temperature, it compares with set temperature and time program, then sends a command to switch on the units. Based on the command from temperature regulator, 6-channels switching unit is able to control up to 6 thermo-valves corresponding to heating circuits.

KIT CONSISTS OF:

Wireless temperature controller RFTC-50/G, wireless switch unit (6 outputs) RFSA-66M, thermodriver TELVA/230V.

UNDERFLOOR HEATING - BY ELECTRICITY

Temperature and switching unit (two in one) measures the fl oor temperature via external sensor

(inbuild). Then it sends data to wireless touch unit RF Touch, which compares it with the temperature set along with the time schedule and then sends a command back to switch on/switch off the heating circuits. It is possible to connect up to 4 temperature/switching units.

Advice 1) If just one reference temperature is enough for you, so then it can be measured by temperature sensor RFTI-10B and to switch up to 6 independent heating circuits you can use 6-channels switching actuator RFSA-66M.

Advice 2) The wireless unit RF Touch can be replaced by Smart RF box and all can be controlled via your smartphone. Both solution can be used together.

KIT CONSISTS OF:

Switching actuator with thermosensor RFSTI-11/G, Wireless touch unit RF Touch.

AGAINST THE FLOOD

A wireless sensor monitors the water leaks or fl ooding in the critical places (basement, pits, shafts, bathroom, laundry,...) and sends immediately a command to the switching unit to close the solenoid valve of the main water supply. You can be also informed of that accident through GSM gateway by sending

SMS text messages.

KIT CONSISTS OF:

Switch unit RFUS-61, wireless flood detector RFSF-1B,flood probe FP-1.

We recommend: solenoid valve: MPW SS 304 - 1/2 (3/4) 230V AC.

COLORED RGB LED STRIP

The app in your smartphone can send (through smart RF box) the commands to the dimming unit to which the RGB strip is connected. From your app it is possible to switch ON/OFF, to set the color or run the scene of automatic color blending.

Advice 1) The colored RGB strip can be controlled through RF Pilot, by controllers RFWB-20/40, RF key,...

Advice 2) If you do not want the colored RGB strip, we can replace it by monochromatic (warm white, cool white, red, ...). Then you can connect 8 m of monochromatic strip (power 7,2W/m) to RFDA-73M to each output.

KIT CONSISTS OF:

Smart RF box, dimmer RFDA-73M, 2 x 5m coloured RGB strip 7.2W/m, power supply 230V/

12V/100W.

W W W. I N E L S . C O M / K I T S 27

Manufacturer:

ELKO EP, Ltd. / Palackeho 493

Holešov - Všetuly 769 01 / Czech Republic

Phone: +420 800 100 671 / e-mail: [email protected]

www.elkoep.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
