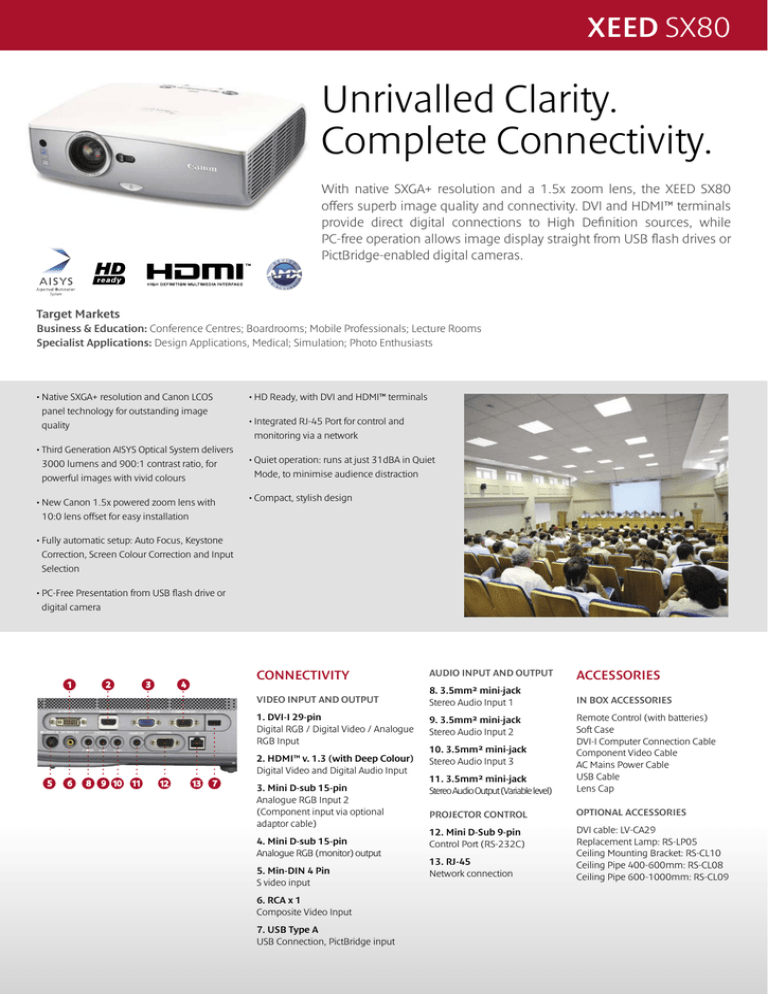

XEED SX80
Unrivalled Clarity.
Complete Connectivity.
With native SXGA+ resolution and a 1.5x zoom lens, the XEED SX80
offers superb image quality and connectivity. DVI and HDMI™ terminals
provide direct digital connections to High Definition sources, while
PC-free operation allows image display straight from USB flash drives or
PictBridge-enabled digital cameras.
Target Markets
Business & Education: Conference Centres; Boardrooms; Mobile Professionals; Lecture Rooms
Specialist Applications: Design Applications, Medical; Simulation; Photo Enthusiasts
• Native SXGA+ resolution and Canon LCOS
panel technology for outstanding image
quality
• Third Generation AISYS Optical System delivers
3000 lumens and 900:1 contrast ratio, for
powerful images with vivid colours
• New Canon 1.5x powered zoom lens with
10:0 lens offset for easy installation
• HD Ready, with DVI and HDMI™ terminals
• Integrated RJ-45 Port for control and
monitoring via a network
• Quiet operation: runs at just 31dBA in Quiet
Mode, to minimise audience distraction
• Compact, stylish design
• Fully automatic setup: Auto Focus, Keystone
Correction, Screen Colour Correction and Input
Selection
• PC-Free Presentation from USB flash drive or
digital camera
CONNECTIVITY
AUDIO INPUT AND OUTPUT
ACCESSORIES
VIDEO INPUT AND OUTPUT
8. 3.5mm² mini-jack
Stereo Audio Input 1
IN BOX ACCESSORIES
1. DVI-I 29-pin
Digital RGB / Digital Video / Analogue
RGB Input
9. 3.5mm² mini-jack
Stereo Audio Input 2
2. HDMI™ v. 1.3 (with Deep Colour)
Digital Video and Digital Audio Input
3. Mini D-sub 15-pin
Analogue RGB Input 2
(Component input via optional
adaptor cable)
4. Mini D-sub 15-pin
Analogue RGB (monitor) output
5. Min-DIN 4 Pin
S video input
6. RCA x 1
Composite Video Input
7. USB Type A
USB Connection, PictBridge input
11. 3.5mm² mini-jack
Stereo Audio Output (Variable level)
Remote Control (with batteries)
Soft Case
DVI-I Computer Connection Cable
Component Video Cable
AC Mains Power Cable
USB Cable
Lens Cap
PROJECTOR CONTROL
OPTIONAL ACCESSORIES
12. Mini D-Sub 9-pin
Control Port (RS-232C)
DVI cable: LV-CA29
Replacement Lamp: RS-LP05
Ceiling Mounting Bracket: RS-CL10
Ceiling Pipe 400-600mm: RS-CL08
Ceiling Pipe 600-1000mm: RS-CL09
10. 3.5mm² mini-jack
Stereo Audio Input 3
13. RJ-45
Network connection
Specifications
XEED WUX10
XEED SX7
XEED SX6
XEED SX80
Product Class XEED SX60
XEED X700
Ultra-Portable
LCD PANEL
Type
Size and Number
Aspect Ratio
Native Resolution
LCOS Reflective Display, TFT Active Matrix
0.7” diagonal (15.4mm x
9.6mm), 3 panels
0.7” diagonal (15mm x 11mm), 3 panels
0.55” diagonal (11.2mm x
8.4mm), 3 panels
16:10
0.7” diagonal (15mm x 11mm), 3 panels
4:3
1920 x 1200 (WUXGA),
2,304,000 pixels
1400 x 1050 (SXGA+), 1,470,000 pixels
1024 x 768 (XGA),
786,432 pixels
OPTICS
Lamp Type
275W NSH (AC)
270W NSH
Lens F Number and Focal
Length
F1.85 - F2.65; f=21.8 31.9mm
F1.85 – F2.5; f=21.7 – 35.8mm
Zoom Magnification and
Control
1.5x Motorised
1.7x Motorised
Focus Control
Lens Shift
230W NSH (AC)
180W NSH
275W NSH (AC)
F1.95 - F2.6; f=16.6 - 24.8mm
F1.85 – F2.5; f=21.7 – 35.8mm
1.5x Motorised
1.7x Motorised
Motorised Auto Focus
10:0, fixed
9:1, fixed
10:0, fixed
9:1, fixed
IMAGE AND AUDIO
Brightness
3200 lumens
4000 lumens
3500 lumens
Brightness Uniformity
Contrast Ratio
Projection Distance Coverage
3000 lumens
2500 lumens
4000 lumens
900:1 (full on / full off)
1000:1 (full on / full off),
2000:1 (full on / full off) in
Home Cinema Mode
1000:1 (full on / full off)
88%
1000:1 (full on / full off)
1.2m - 9.1m
(3.0 - 4.4m for 100” image)
1.2m – 9.0m (3.0m -4.9m for 100” image)
Screen Size
1.2m - 9.1m
(3.0 - 4.4m for 100” image)
1.2m – 9.0m (3.0m - 4.9m for 100” image)
40” – 300” (81 x 61cm - 610 x 457cm)
Digital Zoom Magnification
1x – 12x
Keystone Correction Range
Vertical: +/- 20° (Auto /
Manual), Horizontal: None
Digital RGB Compatibility
WUXGA / UXGA / WSXGA+
/ SXGA+ / WSXGA / SXGA /
WXGA / XGA / SVGA / VGA
SXGA+ / SXGA / WXGA / XGA / SVGA / VGA
XGA / SVGA / VGA
Analogue RGB Compatibility
WUXGA / UXGA / WSXGA+
/ SXGA+ / WSXGA / SXGA /
WXGA / XGA / SVGA / VGA
UXGA1 / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA
UXGA1 / SXGA+1 / SXGA1 /
WXGA1 / XGA / SVGA / VGA
Component Video Scan
Systems
Vertical: +/- 20° (Auto / Manual), Horizontal: +/- 20° (Manual)
1080p / 1080i / 1035i / 720p
/ 576p / 480p / 576i / 480i
Vertical: +/- 20° (Auto /
Manual), Horizontal: None
Vertical: +/- 20° (Auto / Manual), Horizontal: +/- 20° (Manual)
1080i / 1035i / 720p / 575p / 575i / 480p / 480i
Video / S-Video Colour
Systems
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
Scanning Frequency
Horizontal: 15-75kHz, Vertical:
50-85Hz, Clock: 170 MHz
Image Modes
Standard, Presentation, Movie,
sRGB
Horizontal: 15-100kHz, Vertical: 50-100Hz, Clock: 170MHz
Standard, Presentation, Movie
& Photo, Adobe RGB, sRGB
Horizontal: 15-75kHz, Vertical:
50-85Hz, Clock: 170MHz
Standard, Presentation, Movie
& Photo, Adobe RGB, sRGB
Image Enhancement
Standard, Presentation, Movie,
sRGB
Horizontal: 15-100kHz, Vertical: 50-100Hz, Clock: 170MHz
Standard, Presentation, Movie,
Home Cinema, sRGB
Standard, Presentation, Movie,
sRGB
-
-
12-bit Digital Gamma Correction, 6-axis Colour Adjust
Built-In Audio
1.0W RMS, Monaural
CONNECTORS
Digital RGB / Analogue RGB
Input 1
Digital Video / Digital Audio
Input
DVI-I 29-pin (HDCP compatible)
HDMI Version 1.3
(with Deep Colour)
-
-
HDMI Version 1.3
(with Deep Colour)
Analogue RGB Input 2
Analogue RGB Output
Mini D-Sub 15-pin
Shared with Analogue RGB
Input 2
Mini D-Sub 15-pin
Component Video Input
S-Video Input
Via 3x RCA adaptor cable (supplied)
-
Mini-DIN 4-pin
Composite Video Input
RCA x 1
Audio Input 1
3.5mm² stereo mini-jack
Audio Input 2
3.5mm² stereo mini-jack
3.5mm² stereo mini-jack
-
3.5mm² stereo mini-jack
-
3.5mm² stereo mini-jack
Audio Input 3
3.5mm² stereo mini-jack
-
3.5mm² stereo mini-jack
-
3.5mm² stereo mini-jack
Audio Output
3.5mm² stereo mini-jack (variable level)
-
3.5mm² stereo mini-jack
(variable level)
-
Mouse Control
Service Port / Projector Control
3.5mm² stereo mini-jack
(variable level)
-
USB Type B
USB Type A
(PictBridge enabled)
USB Type B
Mini D-Sub 9-pin
Mini-DIN 8-pin
Mini D-Sub 9-pin
Mini-DIN 8-pin
MECHANISMS
Front Elevation Mechanism
One-touch mechanical foot
Maximum Elevation Angle
10°
RATINGS
Dimensions (W x H x D)
Weight
284 x 114 x 336mm
266 x 114 x 336mm
4.9kg
4.8kg
Rated Supply Voltage
Power Consumption
332 x 121 x 340mm
4.7kg
266 x 114 x 336mm
5.2kg
4.6kg
4.8kg
Normal Mode: 330W / Quiet
Mode: 270W / Standby: 15W
Normal Mode: 250W / Quiet
Mode: 225W / Standby: 7W
Normal Mode: 360W / Quiet
Mode: 290W / Standby: 7W
Normal Mode: 30dBA /
Quiet Mode: 27dBA
Normal Mode: 35dBA /
Quiet Mode: 31dBA
100V – 240V AC, 50/60Hz
Normal Mode: 390W / Quiet
Mode: 320W / Standby: 15W
Normal Mode: 360W / Quiet
Mode: 290W / Standby: 7W
Noise Level
Normal Mode: 355W / Quiet
Mode: 290W / Standby: 7W
Normal Mode: 35dBA / Quiet Mode: 31dBA
Operating Environment
+5°C to +35°C
Storage Environment
-30°C to +60°C
Warranty
3 years
