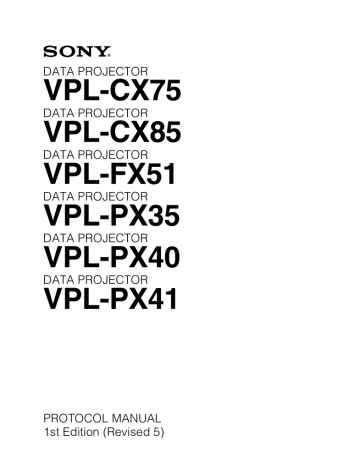

VPL-CX75/CX85/FX51/PX35/PX40/PX41 Protocol Manual

VPL-CX75/CX85/FX51/PX35/PX40/PX41 Protocol Manual
DATA PROJECTOR
VPL-CX75
VPL-CX85
VPL-FX51
VPL-PX35
VPL-PX40
VPL-PX41
DATA PROJECTOR
DATA PROJECTOR
DATA PROJECTOR
DATA PROJECTOR
DATA PROJECTOR
PROTOCOL MANUAL
1st Edition (Revised 5)
! WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
! WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
! AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
Table of Contents
1. Introduction .............................................................................................. 1
2. RS-232C (VPL-CX75 is excluded.)
2-1.
2-2.
2-3.
2-4.
2-5.
2-6.
2-7.
Communication Specifications ...................................................................... 1
Command Block Format ................................................................................ 2
Block Format .................................................................................................. 3
Connection ..................................................................................................... 4
Communication Procedure ............................................................................. 4
2-5-1. Outline of Communication ............................................................ 4
Communication Rules .................................................................................... 5
Approximate Return Waiting Times .............................................................. 5
3. NETWORK
3-1.
3-2.
3-3.
Introduction .................................................................................................... 6
3-1-1. Advertisement ............................................................................... 6
3-1-1-1. Function ..................................................................... 6
3-1-1-2. Setup Items ................................................................ 6
3-1-2. Remote Control ............................................................................. 7
3-1-2-1. Function ..................................................................... 7
3-1-2-2. Setup Items ................................................................ 7
SDAP Protocol ............................................................................................... 8
SDCP Protocol ............................................................................................... 9
3-3-1. Format ........................................................................................... 9
3-3-1-1. Header ........................................................................ 9
3-3-1-2. Community ................................................................ 9
3-3-1-3. Command ................................................................. 10
3-3-1-4. SET Request ............................................................ 11
3-3-1-5. GET Request ............................................................ 11
3-3-1-6. ERROR Response .................................................... 11
3-3-2. Items ............................................................................................ 12
3-3-2-1. Model Dependent Category ..................................... 12
3-3-2-2. Equipment Information Acquisition (80**h) .......... 12
3-3-2-3. Network Information Acquisition (90**h) .............. 13
3-3-3. Error Code ................................................................................... 14
3-3-3-1. Item Error ................................................................. 15
3-3-3-2. Community Error ..................................................... 15
3-3-3-3. Request Error ........................................................... 16
3-3-3-4. Network Error .......................................................... 16
3-3-3-5. Comm Error ............................................................. 17
3-3-3-6. NVRAM Error ......................................................... 17
VPL-CX75/CX85/FX51/PX35/PX40/PX41
1
Appendix A. Setup Method For VPL-PX35 and PX40
A-1.
A-2.
Command ..................................................................................................... 18
A-1-1. Setting ......................................................................................... 18
A-1-2. Display ........................................................................................ 19
Setting Command ......................................................................................... 20
Appendix B ..................................................................................................... 21
2
VPL-CX75/CX85/FX51/PX35/PX40/PX41
1. Introduction
This protocol manual describes the basic configuration and basic operations of various commands used
for projector. Projector can be controlled using the commands provided in “Appendix”. Using an external
CONTROLLER , etc., inputs can be switched and the power can also be turned on and off. In the following paragraphs, “CONTROLLER” means an external device such as a PC which controls projector using
these commands.
2. RS-232C (VPL-CX75 is excluded.)
2-1. Communication Specifications
<RS-232C Communication Signal>
.
.
.
.
Full duplex communication channels (Flow control not performed.)
Start-stop synchronism system
Baud rate: 38.4 kbps (bits per second)
The bit configuration is defined as follows.
1 START Bit + 8 DATA Bits + 1 PARITY Bit + 1 STOP Bit
START
D0
BIT
(LSB)
D1
D2
D3
D4
D5
D6
D7
PARITY STOP
(MSB) (EVEN)
BIT
EVEN Parity.....Total number of “1”s from D0 to D7 is an even number.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
1
2-2. Command Block Format
The code from B0 to B7 as described below are transmitted.
Transmission from
the Master side
Reception in
the Master side
B0
B1
B2
B3
B4
B5
Reception in the Master side
(With Data)
START CODE : 0 x A9
ITEM NUMBER
ACK / NAK
ITEM NUMBER
SET / GET
ACK
REPLY
DATA
DUMMY DATA
DATA
B6
CHECK SUM
B7
END CODE : 0 x 9A
B0 START CORD
Common in the all FORMAT
B6 CHECK SUM
B1 to B5 are calculated by OR;
<Example of Calculation>
0 x A9
1010
0 x A9
1010
Answer
1010
1001
1001
1001
0 x A9
0 x A9
0 x 9A
Answer
1010
1001
1011
1001
1010
1011
0 x BB
B7 END CODE
Common in the all FORMAT
2
VPL-CX75/CX85/FX51/PX35/PX40/PX41
2-3. Block Format
Transmission from the Master side
B0
B1
B2
B3
B4
B5
START CODE
ITEM NUMBER
SET / GET
DATA
B6
CHECK SUM
B7
END CODE
Reception in the Master side
B0
B1
B2
B3
B4
B5
ACK
DUMMY DATA
Reception in the Master side (With Data)
B4
B5
SET: Data to be set (Refer to the Appendix B Table 2)
GET: Unused. Set Dummy data [0 x 00, 0 x 00]
Check Sum
End of Command
Receive results of the data transmission from the Projector.
Results correspond with the data transmission
Refer to the Appendix B Table 3 for the data in detail.
END CODE
B3
SET: 0 x 00 (Set data)
GET: 0 x 01 (Get data)
ACK / NAK
CHECK SUM
B2
Set the Data Category Value desired.
Refer to the Appendix B Table 1 for details.
Start of Command
B7
B1
Start of Command
START CODE
B6
B0
Data transmission to the Projector
START CODE
ITEM NUMBER
REPLY
DATA
B6
CHECK SUM
B7
END CODE
VPL-CX75/CX85/FX51/PX35/PX40/PX41
[0 x 03]
Express Reply data either of ACK, or NAK
This data does not mean any senses.
Dummy Data [0 x 00, 0 x 00] is stored.
Check Sum
End of Command
Receive data from the Projector
Start of Command
Data to acquire
Refer to the Appendix B Table 1 in detail.
[0 x 02]
Express data to be Reply data
Received data
Refer to the Appendix B Table 2 in detail.
Check Sum
End of Command
3
2-4. Connection
<RS-232C Connection>
Communication is enabled by the use of a D-Sub 9 Pin cross (reverse) cable.
The pin assignment of D-Sub 9 Pin and D-Sub 25 Pin is as follows.
D-Sub 9 Pin
Shell = FG
3
2
7
8
6
5
1
4
9
D-Sub 25 Pin
1
2
3
4
5
6
7
8
20
22
FG
TxD
RxD
RTS
CTS
DSR
SG
DCD
DTR
RI
Name
Grounding for safety protection or cable shield
Transmission data
Reception data
Transmission request
Transmission permission
Data set ready
GND for signal
Data channel signal carrier detection
Data terminal ready
Calling display (Presence/absence of calling signal)
Pins indicated as D-Sub 25 Pin are not used.
Assured cable length: 15 m (However, assurance may not be applicable for some cables.)
The software for controlling the projector from a PC is intended for performing transmission and reception for only the TxD and RxD lines.
Therefore there is no handshake normally performed by RS-232C.
2-5. Communication Procedure
2-5-1. Outline of Communication
All communication between CONTROLLER (PC, etc.) and DEVICE (PROJECTOR) is performed by the
command block format. Communication is started by the issue of a command at CONTROLLER and
ended when the return Data is sent to CONTROLLER after DEVICE receives the command.
CONTROLLER is prohibited from sending several commands at one time. This means that after CONTROLLER sends one command, it cannot send other commands until DEVICE returns the return Data.
DEVICE sends the return Data after processing the command. The time from when CONTROLLER
sends the command until the return Data is returned differs according to the contents of the command.
n
When Sircs Direct Command is sent, return Data may not be returned in some cases.
4
VPL-CX75/CX85/FX51/PX35/PX40/PX41
2-6. Communication Rules
. When sending a command from CONTROLLER, the return Data from PROJECTOR should be
received first before sending the next command. Even if the next command is sent before receiving the
return Data, since PROJECTOR will not be able to receive that command, it does not return a response
to CONTROLLER. Consequently, no error code is also sent.
The following lists the approximate waiting times for PROJECTOR to return the return Data after
CONTROLLER sends the command.
. When a communication error occurs, PROJECTOR ignores the Data received until now, and set into
the reception standby state.
. For undefined commands or commends determined as invalid by PROJECTOR, PROJECTOR will
send the “NAK” return Data to CONTROLLER .
. Take note that when Data is written when the input signal of PROJECTOR is unstable, that Data
(value) will not be incorporated.
. When INDEX specified SIRCS direct command is transmitted, leave an interval of 45 msec until the
next transmission. (Do not return the return Data (ACK, NAK) when the SIRCS direct command is
received.)
2-7. Approximate Return Waiting Times
The await-return time is approx. 30 msec.
n
This is the case, unless the communications are interfered anyway.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
5
3.
NETWORK
3-1. Introduction
This section describes the specifications, performance and operations of the network service that is going
to be installed in the target projector.
3-1-1. Advertisement
The advertisement service is provided to facilitate development of a PC application that can automatically
detect a projector on the network. This function is achieved by broadcasting the equipment information
periodically to the network.
3-1-1-1. Function
The equipment information shown below is transmitted as the broadcast packet periodically (at certain
intervals).
Information
Description
Category
Category of the equipment
Equipment name
Name of the equipment
Serial number
Serial number of the equipment
Installation information
Installation location of the equipment
Community
Community name of the equipment
Power status
Power status of the equipment
m
. The category of projector is 0x0a.
. The power status sets ffffh if communication error occurs.
Protocol
The SDAP protocol is defined in order to provide this service.
Item
Description
Protocol name
SDAP (Simple Display Advertisement Protocol)
Transport
UDP
Port number
53862
BC interval
Once every 30 seconds (initial value)
3-1-1-2. Setup Items
The items that can be set for the advertisement service are described below.
6
Setup items
Description
Port
Port number
Interval
Broadcast interval
VPL-CX75/CX85/FX51/PX35/PX40/PX41
3-1-2. Remote Control
The remote control service is provided that can control the target equipment from remote location via
network. The SDCP protocol that serves to acquire the basic information such as equipment name and
serial numbers is installed in this projector.
3-1-2-1. Function
This responds to the control command and requests for acquiring the status and information supplied
from clients.
Control request
Enables the input to be selected and picture control to be adjusted.
SIRCS request
Enables remote control by sending the SIRCS code.
Status request
Enables equipment status information such as power status, error information and power-on time to be
acquired.
Information request
Enables equipment information such as equipment name, serial number and installation information to be
acquired.
Protocol
Item
Description
Protocol name
SDCP (Simple Display Control Protocol)
Transport
TCP
Port number
53484
TCP connection timeout
30 seconds
3-1-2-2. Setup Items
The items that can be set for the remote control service are described below.
Setup item
Description
Port
Port number
Timeout
TCP connection timeout time
VPL-CX75/CX85/FX51/PX35/PX40/PX41
7
3-2. SDAP Protocol
This section describes the SDAP packet structure.
Header
(4)
Community
(4)
Serial No. Power
Status
(4)
(2)
Product name
(12)
Location
(24)
Fig.1 Packet structure
1) Header
The header consists of ID (16 bit), version (8 bit) and category (8 bits).
0
0
1
2
3
1
4
5
6
7
8
9
0
1
2
2
3
4
5
6
7
“DA” (16)
8
9 0
(Bit position)
3
1
2
3
4
5
Version (8)
6
7
8
9
0
1
Category (8)
Fig. 2 Header
ID
It is fixed to “DA”.
Version
This indicates the version number of protocol.
It is fixed to 01h (version 1).
Category
Category number 0x0a of the projector is entered here.
2) Community
The community that is set in the display equipment is entered. Community consists of four alphanumeric characters (case sensitive). The display equipment has the default value “SONY” when shipped
from the factory.
0
0
1
2
3
1
4
5
6
7
8
9
0
1
2
2
3
4
5
6
7
8
9 0
(Bit position)
3
1
2
3
4
5
6
7
8
9
0
1
Community (32)
Fig. 3 Community
3) Equipment Information
Product Name
Name of equipment (Maximum twelve characters)
In case, less than twelve characters, 00h is entered in the blank space.
Serial No.
Serial number is entered.
Power Status.
Power supply status of the equipment is entered.
Location
Information of installation location (Maximum twenty four characters)
In case, less than twenty four characters, 00h is entered in the blank space.
8
VPL-CX75/CX85/FX51/PX35/PX40/PX41
3-3. SDCP Protocol
This section describes the packet structure of SDCP.
Header
(2)
Community
(4)
Command
(4)
Data (n)
Fig. 1 Packet structure
3-3-1. Format
3-3-1-1. Header
The header consists of Version (8 bits) and Category (8 bits).
0
0
1
2
3
(Bit position)
1
4
5
6
7
8
9
Version (8)
0
1
2
3
4
5
Category (8)
Fig. 2 Header structure
Version
This indicates the version number of protocol.
It is fixed to 02h (version 2).
Category
Category number 0x0a of the projector is entered here. Projector checks the category number. If a
different category number is entered, the request is ignored.
3-3-1-2. Community
When the community Data matches the community that is set in the display equipment, the request is
executed. Community consists of four alphanumeric characters (case sensitive). All display equipment
has the default value “SONY” when shipped from the factory.
0
0
1
2
3
1
4
5
6
7
8
9
0
1
2
2
3
4
5
6
7
8
9 0
(Bit position)
3
1
2
3
4
5
6
7
8
9
0
1
Community (32)
n
Community should be entered with four characters. Three characters or less are not accepted.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
9
3-3-1-3. Command
This section describes the format of the request command and the response command.
0
0
1
2
3
1
4
5
6
7
8
9
0
1
2
2
3
Request/Response (8)
4
5
6
7
8
9 0
(Bit position)
3
1
Item No (16)
2
3
4
5
6
7
8
9
0
1
Data Length (8)
(1) Request
This section describes the format of the request command that is issued from the host PC to the projector.
Community
This is the same alphanumeric characters as those of community that is set in the projector to which
request is going to be sent.
Request
There are only two types of request. One is the GET request to acquire the projector information and
status. The other is the SET request to modify the projector setup.
Request
Contents
SET (00h) Used to control turning the power on/off and to control the input selector, and to change the various setups.
SET (01h) Used to acquire the installation information, equipment status and various setup values.
Item No.
This is the item number of the request target.
Data Length
This is the length of the Data accompanying the request. The maximum length is 128 bytes. If there is no
Data, it is 0.
Data
This is the Data accompanying the request.
(2) Response
This section describes the format of the response command which is used to return a response to the host
PC from the projector.
Community
The same alphanumeric characters as those of the request is entered.
Response
The response returns the result of executing the request from the host PC.
Response
Contents
NG (00h)
Indicates that the request is illegal or cannot be executed.
OK (01h)
Indicates that the request was executed correctly.
Item No.
The same value as those of the request is entered.
Data Length
This is the length of the Data accompanying the response. The maximum length is 128 bytes. If there is
no Data, it is 0.
Data
This is the Data accompanying the response.
10
VPL-CX75/CX85/FX51/PX35/PX40/PX41
3-3-1-4. SET Request
The SET request is used to set a new value in the specified item. Details of the request and the response
are described below.
Request
Request
Item No.
Data
Length
00h
Item No.
n
Item No.
0
Data
Set Data (n byte)
Response
OK (01h)
3-3-1-5. GET Request
The GET request is used to acquire the value of the specified item. Details of the request and the response
are described below.
Request
Request
Item No.
Data
Length
01h
Item No.
0
Item No.
n
Response
OK (01h)
Get Data (n byte)
3-3-1-6. ERROR Response
When an error occurs in the contents of a request or in the result of execution, NG is returned as the
response.
NG (00h)
Item No.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
2
Error Code (16)
11
3-3-2. Items
Category
Contents
SET
GET
00**h
Used to control and to change the various setups.
O
O
01**h
Used to acquire the status.
03**h
Used to reset memory.
O
17**h
Sircs (15 bit category)
O
19**h
Sircs (20 bit category)
O
80**h
Used to acquire equipment information.
O
90**h
Used to acquire network setup information.
O
O
3-3-2-1. Model Dependent Category
The supported contents of 00**h, 01**h, 03**h, 17**h and 19**h change depending on the model.
Details are shown on Appendix.
3-3-2-2. Equipment Information Acquisition (80**h)
Used to acquire the equipment information.
Lower byte
Contents
SET
00h
Category Code
O
01h
Model name
O
02h
Serial number
O
03h
Installation location
O
GET
O
0x8000 Category code
1 byte
0x8001 Model name
Alphanumeric 12 characters
If the number of characters is less than 12, the remaining digits are filled with 00h.
0x8002 Serial number
4 bytes
n
The serial number is in the range of 00000000 to 99999999.
0x8003 Installation location
Alphanumeric 24 characters
If the number of characters is less than 24, the remaining digits are filled with 00h.
12
VPL-CX75/CX85/FX51/PX35/PX40/PX41
3-3-2-3. Network Information Acquisition (90**h)
Used to acquire the network setup information.
Lower bytes
Contents
SET
GET
00h
MAC Address
O
01h
IP Address
O
02h
Subnet Mask
O
03h
Default Gateway
O
04h
DHCP
O
0x9000 Mac Address
6 bytes
0x9001 IP Address
4 bytes
0x9002 Subnet Mask
4 bytes
0x9003 Default Mask
4 bytes
0x9004 DHCP
1 byte
DHCP invalid : 0
DHCP valid : 1
VPL-CX75/CX85/FX51/PX35/PX40/PX41
13
3-3-3. Error Code
The error code list is shown below with a detailed description of each.
Category
Error
Error Code
Item Error (01**h)
Invalid Item
01h
Invalid Item Request
02h
Invalid Length
03h
Invalid Data
04h
Short Data
11h
Not Applicable Item
80h
Community Error (02**h)
Different Community
01h
Request Error (10**h)
Invalid Version
01h
Invalid Category
02h
Invalid Request
03h
Short Header
11h
Short Community
12h
Short Command
13h
Network Error (20**h)
Timeout
01h
Comm Error (F0**h)
Timeout
01h
Check Sum Error
10h
NVRAM Error (F1**h)
14
Framing Error
20h
Parity Error
30h
Over Run Error
40h
Other Comm Error
50h
Unknown Response
F0h
Read Error
10h
Write Error
20h
VPL-CX75/CX85/FX51/PX35/PX40/PX41
3-3-3-1. Item Error
This error occurs when the Item No. of a request is illegal or its Data is illegal. The conditions for occurrence of the respective errors are shown below.
Invalid Item
An unsupported Item No. is specified.
Example 1: The unsupported category 0xA** is specified.
Example 2: The unsupported Item No. 0x8010 is specified.
Invalid Item Request
The Item No. is supported but an unsupported Request is issued.
Example: An attempt is made to set Data in the Model Name (0x8001).
Invalid Length
Data Length of the specified Item No. is too long.
Example: An attempt is made to set 25 byte Data in the installation location (0x8003).
Invalid Data
Data of the specified Item No. is outside the setting range.
Example: An attempt is made to set 101 in the Item when the setting range of the Item is 1 to 100.
Short Data
The length of Data is shorter than the value specified by the Data Length.
Example: The actual Data length is 9 bytes but Data Length is 10.
Not Applicable Item
An item that is not valid at present is specified.
Example: The item to switch the display is specified when the main power is off.
3-3-3-2. Community Error
This error occurs when community is different.
Example: “ABCD” is specified when “SONY” is set.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
15
3-3-3-3. Request Error
This error occurs when Header or Command is illegal. The conditions of occurrence of the respective
errors are shown below.
Invalid Version
The version of the Header is other than 2.
n
When another version is supported, an error occurs in all versions other than the supported version.
Invalid Category
The category does not match.
Example: 0x0B is specified in the device of Category = 0x0A.
Invalid Request
An unsupported request is specified.
Example: Request = 0x02 is specified.
Short Header
The received Data is 1 byte.
Short Community
The received Data is in the range of 2 to 5 bytes.
Short Command
The received Data is in the range of 6 to 9 bytes.
3-3-3-4. Network Error
This is an error that occurs in TCP/IP. The conditions of occurrence of the respective errors are shown
below.
Timeout
Communication was interrupted.
16
VPL-CX75/CX85/FX51/PX35/PX40/PX41
3-3-3-5. Comm Error
This is an error in communication with the main control microprocessor of the display.
Timeout
Reception Data is not returned after Data is sent.
Check Sum Error
A check sum error occurred in the main control microprocessor of the display.
Framing Error
A framing error occurred.
Parity Error
A parity error occurred.
Over Run Error
An overrun error occurred.
Other Comm Error
Another error occurred.
Unknown Response
The Data cannot be processed was received.
3-3-3-6. NVRAM Error
Read Error
Reading from NVRAM was failed.
Write Error
Writing to NVRAM was failed.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
17
Appendix A. Setup Method For VPL-PX35 and PX40
Establishing the network setup such as IP address can be implemented from the PC browser, and the
information such as installation location can be viewed on the PC browser.
A-1. Command
A-1-1. Setting
Enter the following command using the format shown below in a browser as URL, and then the simple
response is returned.
Format
http://IP address/Item?Value
IP address
Item
Value
The IP address that is assigned to the network block
Name of the setup item
Setting value
Response
The following HTML is returned that enables to confirm OK or NG simply.
<HTML>
<TITLE>
IP address
</TITLE>
<BODY>
&lt; Equipment name: Serial number&gt;<BR><BR>
Result [Item = Value]
</BODY>
</HTML>
IP address
Equipment name
Serial number
Result
Item
Value
18
The IP address that is assigned to the network block
Name of the equipment in which setup is implemented
Serial number of the equipment in which setup is implemented
Result (OK or NG) is displayed.
Name of the setup item
Setting value
VPL-CX75/CX85/FX51/PX35/PX40/PX41
A-1-2. Display
Enter the following command using the format shown below in a browser as URL, and then value of the
setting item is displayed.
Format
http://IP address/Item
IP address
Item
The IP address that is assigned to the network block
Name of the setup item
Response
The following HTML is returned.
<HTML>
<TITLE>
IP address
</TITLE>
<BODY>
&lt; Equipment name: Serial number&gt;<BR><BR>
Result [Item = Value]
</BODY>
</HTML>
IP address
Equipment name
Serial number
Result
Item
Value
The IP address that is assigned to the network block
Name of the equipment that has acquired the setup value
Serial number of the equipment that has acquired the setup value
Result (OK or NG) is displayed.
Name of the setup item
Setting value
VPL-CX75/CX85/FX51/PX35/PX40/PX41
19
A-2. Setting Command
Each setting item is described below.
Equipment information
Item
Description
Default
location
Sets location of the equipment installation. (Maximum 24 alphanumeric characters)
_
Community
Sets the equipment community. (Maximum 4 alphanumeric characters)
SONY
n
Location and community do not support Japanese character.
Network setup
Item
Description
Default
dhcp
Specifies method of setting IP address.
No
ipaddr
IP address
192.168.0.1
subnet
Subnet mask
255.255.0.0
gateway
Default gateway
0.0.0.0
restart
Restarts the network block to make the network setup effective.
m
. When the network setup is changed, execute restart to make the setup effective.
. For the setup of dhcp, set 1 to make DHCP effective and set 0 to make DHCP ineffective.
Service setup
Item
Description
Default
ad_port
Port number of the Advertisement service
53862
ad_interval
Broadcast interval of the Advertisement service (in units of second)
30 (seconds)
ad_ip
IP address of the Advertisement service
0.0.0.0
rc_port
Port number of the Remote Control service
53484
rc_timeout
TCP connection timeout time of the Remote Control service (in units of second)
30 (seconds)
m
. When network setup is changed, executing restart is required to make the network setup effective.
. When ad_Interval value is set to 0, the advertisement service is stopped.
. The ad_Interval can be set to 0 or a value in the range of 10 to 65535.
. The rc_timeout can be set to a value in the range of 0 to 65535.
20
VPL-CX75/CX85/FX51/PX35/PX40/PX41
Appendix B
(VPL-FX51)
<Table 1>
<Table 2>
Item Number
Item
INPUT
Upper byte
00h
Data
Lower byte
01h
Remarks
Data
Upper byte
Lower byte
VIDEO
00h
00h
S VIDEO
00h
01h
INPUT A
00h
02h
INPUT B
00h
03h
INPUT C
00h
04h
CONTRAST
00h
10h
Setting value (0 to 100)
00h
00h to 64h
BRIGHTNESS
00h
11h
Setting value (0 to 100)
00h
00h to 64h
COLOR
00h
12h
Setting value (0 to 100)
00h
00h to 64h
HUE
00h
13h
Setting value (0 to 100)
00h
00h to 64h
SHARPNESS
00h
14h
Setting value (0 to 100)
00h
00h to 64h
RGB ENHANCER
00h
15h
Setting value (0 to 100)
00h
00h to 64h
LOW
00h
00h
HIGH
00h
01h
COL TEMP
DDE
ASPECT
SCAN CONV
PICTURE MUTING
INPUT A
00h
00h
00h
00h
00h
00h
17h
18h
20h
21h
30h
32h
OFF
00h
00h
PROGRESSIVE
00h
01h
FILM
00h
02h
16 : 9
00h
00h
4:3
00h
01h
OFF
00h
00h
ON
00h
01h
OFF
00h
00h
ON
00h
01h
COMPUTER
00h
00h
COMPONENT
00h
01h
VIDEO GBR
00h
02h
HIGH
00h
00h
LAMP MODE
00h
40h
STANDARD
00h
01h
GAIN RED
00h
80h
Setting value (0 to 255)
00h
00h to FFh
GAIN GREEN
00h
81h
Setting value (0 to 255)
00h
00h to FFh
GAIN BLUE
00h
82h
Setting value (0 to 255)
00h
00h to FFh
BIAS RED
00h
83h
Setting value (0 to 255)
00h
00h to FFh
BIAS GREEN
00h
84h
Setting value (0 to 255)
00h
00h to FFh
BIAS BLUE
00h
85h
Setting value (0 to 255)
00h
00h to FFh
NO ERROR
00h
00h
STATUS ERROR
VPL-CX75/CX85/FX51/PX35/PX40/PX41
01h
01h
LAMP ERROR
00h
01h
FAN ERROR
00h
02h
COVER ERROR
00h
04h
TEMP ERROR
00h
08h
D5V ERROR
00h
10h
POWER ERROR
00h
20h
WARNING ERROR
00h
40h
Set/Get
Get only
21
(VPL-FX51)
<Table 1>
<Table 2>
Item Number
Item
Upper byte
STATUS POWER
Data
Lower byte
01h
CONTROL MODE SEL
Remarks
Data
Upper byte
Lower byte
STANBY
00h
00h
START UP
00h
01h
STARTUP LAMP
00h
02h
POWER ON
00h
03h
COOLING1
00h
04h
02h
COOLING2
00h
05h
SAVING COOLING1
00h
06h
SAVING COOLING2
00h
07h
SAVING STABY
00h
08h
USER
00h
00h
SERVICE
00h
01h
05h
LAMP TIMER
01h
13h
USE TIME
0000h-ffffh*1
ROM VERSION
01h
1Dh
MAIN ROM VERSION
*2
SC ROM VERSION
01h
1Eh
SC ROM VERSION
*2
Channel Memory Reset
01h
Status Memory Reset
02h
Set Memory Reset
04h
W/B Low Save
05h
W/B High Save
06h
01h
Set only
03h
03h
W/B All Save
Get only
00h
00h
Sircs (15bit category)
17h
Refer to table 4
_
00h
00h
Sircs (20bit category)
19h
Refer to table 5
_
00h
00h
Set only*3
*1 Example) In case the lamp timer indicates 1000H, return values are [03h] upper byte and [E8h] lower byte.
*2 Example) In case the software version is 1.03, return values are [01h] upper byte and [03h] lower byte.
*3 It is corresponded to single command only.
(VPL-FX51)
<Table 3>
Item Number
Item
ACK
Data
Data
Upper byte
Lower byte
_
00h
00h
Undefined Command
01h
Size Error
04h
Select Error
NAK
05h
Range Over
06h
Not Applicable
0Ah
Check Sum Error
10h
Framing Error
20h
Parity Error
22
01h
F0h
30h
Over Rub Error
40h
Other Comm Error
50h
Approximate Return Waiting Times
The await-return time is approx. 50 msec.
n
This is the case, unless the communications
are interfered anyway.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
(VPL-PX35, PX40, PX41)
<Table 1>
<Table 2>
Item Number
Data
Remarks
Item
Upper byte
Lower byte
Data
Upper byte
Lower byte
Input
00h
01h
Video
00h
00h
S-Video
00h
01h
Input-A
00h
02h
Input-B
00h
03h
Input-C
00h
04h
Input-D
00h
05h
Dynamic
00h
00h
Standard
00h
01h
00h
00h to 64h
Picture Mode
00h
02h
Contrast
00h
10h
Setting value (0-100)
Brightness
00h
11h
Setting value (0-100)
00h
00h to 64h
Color
00h
12h
Setting value (0-100)
00h
00h to 64h
Hue
00h
13h
Setting value (0-100)
00h
00h to 64h
Sharpness
00h
14h
Setting value (0-100)
00h
00h to 64h
RGB Enhancer
00h
15h
Setting value (0-100)
00h
00h to 64h
Volume
00h
16h
Setting value (0-100)
00h
00h to 64h
ColTemp
00h
17h
High
00h
00h
Low
00h
01h
Off
00h
00h
DDE
Wide Mode
00h
00h
18h
20h
Progressive
00h
01h
Film
00h
02h
Off
00h
00h
On
00h
01h
Scan Conv
00h
21h
Off
00h
00h
On
00h
01h
Picture Muting
00h
30h
Off
00h
00h
On
00h
01h
Audio Muting
00h
31h
Off
00h
00h
On
00h
01h
Input-D Signal Sel
00h
33h
Computer
00h
00h
Component
00h
01h
Video GBR
00h
02h
00h
Lamp Mode
00h
40h
High
00h
Standard
00h
01h
GAIN RED
00h
80h
Setting value (0-255)
00h
00h to FFh
GAIN GREEN
00h
81h
Setting value (0-255)
00h
00h to FFh
GAIN BLUE
00h
82h
Setting value (0-255)
00h
00h to FFh
BIAS RED
00h
83h
Setting value (0-255)
00h
00h to FFh
BIAS GREEN
00h
84h
Setting value (0-255)
00h
00h to FFh
BIAS BLUE
00h
85h
Setting value (0-255)
00h
00h to FFh
VPL-CX75/CX85/FX51/PX35/PX40/PX41
Set/Get
23
(VPL-PX35, PX40, PX41)
<Table 1>
<Table 2>
Item Number
Data
Item
Upper byte
Lower byte
STATUS ERROR
01h
01h
STATUS POWER
01h
CONTROL MODE SEL
Data
Remarks
Lower byte
NO ERROR
00h
00h
LAMP ERROR
00h
01h
02h
FAN ERROR
00h
COVER ERROR
00h
04h
TEMP ERROR
00h
08h
D5V ERROR
00h
10h
POWER ERROR
00h
20h
WARNING ERROR
00h
40h
STANBY
00h
00h
01h
02h
01h
Upper byte
START UP
00h
STARTUP LAMP
00h
02h
POWER ON
00h
03h
COOLING1
00h
04h
COOLING2
00h
05h
SAVING COOLING1
00h
06h
SAVING COOLING2
00h
07h
SAVING STABY
00h
08h
USER MODE
00h
00h
SERVICE MODE
00h
01h
05h
LAMP TIMER
01h
13h
LAMP USE TIME
ROM VERSION
01h
1Dh
MAIN ROM VERSION
*2
SC ROM VERSION
01h
1Eh
SC ROM VERSION
*2
STATUS SECURITY*3
01h
1Fh
Disable
Channel Memory Reset
03h
01h
Status Memory Reset
0000h-ffffh*1
00h
00h
Enable
00h
01h
_
00h
00h
Set only
Set only*4
02h
Set Memory Reset
03h
W/B All Save
04h
W/B High Save
05h
W/B Low Save
06h
Sircs (15 bit category)
17h
Refer to table 6
_
00h
00h
Sircs (20 bit category)
19h
Refer to table 7
_
00h
00h
(VPL-PX35, PX40, PX41)
<Table 3>
Item Number
Data
Item
Data
Upper byte
Lower byte
ACK
_
00h
00h
NAK
Undefined Command
01h
01h
Size Error
04h
Select Error
05h
Range Over
06h
Not Applicable
0Ah
Check Sum Error
24
Get only
F0h
10h
Framing Error
20h
Parity Error
30h
Over Rub Error
40h
Other Comm Error
50h
*1 Example) In case the lamp timer indicates
1000H, return values are [03h] upper byte and
[E8h] lower byte.
*2 Example) In case the software version is 1.03,
return values are [01h] upper byte and [03h]
lower byte.
*3 While the set is security locked, after power
switch is turned on, you can check that pass
sword input screen is indicated or not.
During pass word input screen indicating, return
values are [00h] upper byte and [01h] lower
byte.
*4 It is corresponded to single command only.
Approximate Return Waiting Times
The await-return time is approx. 50 msec.
n
This is the case, unless the communications are interfered anyway.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
(VPL-CX75)
<Table 1>
<Table 2>
Item Number
Data
Remarks
Item
Upper byte
Lower byte
Data
Upper byte
Input
00h
01h
Video
00h
00h
S-Video
00h
01h
Input-A
00h
02h
Input-B
00h
03h
Dynamic
00h
00h
Standard
00h
01h
Picture Mode
00h
02h
Lower byte
Contrast
00h
10h
Setting value (0 - 100)
00h
00h - 64h
Brightness
00h
11h
Setting value (0 - 100)
00h
00h - 64h
Color
00h
12h
Setting value (0 - 100)
00h
00h - 64h
Hue
00h
13h
Setting value (0 - 100)
00h
00h - 64h
Sharpness
00h
14h
High
00h
Middle
01h
Low
02h
Volume
00h
16h
Setting value (0 - 100)
00h
00h - 64h
ColTemp
00h
17h
High
00h
00h
Low
00h
01h
Off
00h
00h
On
00h
01h
Off
00h
00h
On
00h
01h
Off
00h
00h
On
00h
01h
Off
00h
00h
On
00h
01h
Computer
00h
00h
Compornent
00h
01h
Wide Mode
Scan Conv
00h
00h
20h
21h
PictureMuting
00h
30h
AudioMuting
00h
31h
Input-A Signal Sel
Input-B Select
00h
00h
32h
33h
Video GBR
00h
02h
Memory Stick
00h
03h
Air Shot
00h
04h
00h
00h
Lamp Mode
00h
40h
High
Standard
00h
01h
Gain Red
00h
80h
Setting value (0 - 255)
00h
00h - FFh
Gain Green
00h
81h
Setting value (0 - 255)
00h
00h - FFh
Gain Blue
00h
82h
Setting value (0 - 255)
00h
00h - FFh
Bias Red
00h
83h
Setting value (0 - 255)
00h
00h - FFh
Bias Green
00h
84h
Setting value (0 - 255)
00h
00h - FFh
Bias Blue
00h
85h
Setting value (0 - 255)
00h
00h - FFh
VPL-CX75/CX85/FX51/PX35/PX40/PX41
Set/Get
25
(VPL-CX75)
<Table 1>
<Table 2>
Item Number
Data
Upper byte
Lower byte
Data
Upper byte
Lower byte
Status Error
01h
01h
No Error
00h
00h
Status Power
01h
Control Mode Select
Lamp Error
00h
01h
Fan Error
00h
02h
Cover Error
00h
04h
Temp Error
00h
08h
D5V Error
00h
10h
POWER ERROR
00h
20h
Warning Error
00h
40h
02h
01h
Stanby
00h
00h
Start Up
00h
01h
Start Up Lamp
00h
02h
Power On
00h
03h
Cooling1
00h
04h
Cooling2
00h
05h
Saving Cooling1
00h
06h
Saving Cooling2
00h
07h
Saving Stanby
00h
08h
User Mode
00h
00h
Service Mode
00h
01h
05h
Get only
Lamp Timer
01h
13h
Lamp Use Time
0000h-FFFFh *1
ROM Version
01h
1Dh
MAIN ROM Version
*2
SC ROM Version
01h
1Eh
SC ROM Version
*2
Status Security
01h
1Fh
Disable
00h
00h
Enable
00h
01h
_
00h
00h
Set only
Set only*4
Channel Memory Reset
03h
01h
Status Memory Reset
02h
Set Memory Reset
03h
W/B All Save
04h
W/B Low Save
05h
W/B High Save
06h
Sircs(15bit category)
17h
Refer to table 8
_
00h
00h
Sircs(20bit category)
19h
Refer to table 9
_
00h
00h
(VPL-CX75)
<Table 3>
Item Number
Data
Item
Data
Upper byte
Lower byte
ACK
_
00h
00h
NAK
Undefined Command
01h
01h
Size Error
04h
Select Error
05h
Range Over
06h
Not Applicable
Check Sum Error
26
Remarks
Item
*1 Example) In case the lamp timer indicates 1000H,
return values are [03h] upper byte and [E8h] lower
byte.
*2 Example) In case the software version is 1.03,
return values are [01h] upper byte and [03h] lower
byte.
*3 While the set is security locked, after power
switch is turned on, you can check that pass
sword input screen is indicated or not.
During pass word input screen indicating, return
values are [00h] upper byte and [01h] lower byte.
*4 It is corresponded to single command only.
0Ah
F0h
10h
Framing Error
20h
Parity Error
30h
Over Rub Error
40h
Other Comm Error
50h
The await-return time of return value is
approx. 50 msec.
n
This is the case, unless the communications are interfered anyway.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
(VPL-CX85)
<Table 1>
<Table 2>
Item Number
Data
Remarks
Item
Upper byte
Lower byte
Data
Upper byte
Lower byte
Input
00h
01h
Video
00h
00h
S-Video
00h
01h
Input-A
00h
02h
Input-B
00h
03h
Picture Mode
00h
02h
Input-C
00h
04h
Dynamic
00h
00h
Standard
00h
01h
Contrast
00h
10h
Setting value (0-100)
00h
00h-64h
Brightness
00h
11h
Setting value (0-100)
00h
00h-64h
Color
00h
12h
Setting value (0-100)
00h
00h-64h
Hue
00h
13h
Setting value (0-100)
00h
00h-64h
Sharpness
00h
14h
High
00h
Middle
01h
Low
02h
Volume
00h
16h
Setting value (0-100)
00h
00h-64h
ColTemp
00h
17h
High
00h
00h
Low
00h
01h
00h
00h
Wide Mode
00h
20h
Off
On
00h
01h
Scan Conv
00h
21h
Off
00h
00h
On
00h
01h
Off
00h
00h
On
00h
01h
Off
00h
00h
On
00h
01h
Computer
00h
00h
Compornent
00h
01h
Picture Muting
Audio Muting
Input-A Signal Sel
Input-C Select
Lamp Mode
00h
00h
00h
00h
00h
30h
31h
32h
33h
40h
Video GBR
00h
02h
Memory Stick
00h
03h
Air Shot
00h
04h
High
00h
00h
Standard
00h
01h
Gain Red
00h
80h
Setting value (0-255)
00h
00h-FFh
Gain Green
00h
81h
Setting value (0-255)
00h
00h-FFh
Gain Blue
00h
82h
Setting value (0-255)
00h
00h-FFh
Bias Red
00h
83h
Setting value (0-255)
00h
00h-FFh
Bias Green
00h
84h
Setting value (0-255)
00h
00h-FFh
Bias Blue
00h
85h
Setting value (0-255)
00h
00h-FFh
VPL-CX75/CX85/FX51/PX35/PX40/PX41
Set/Get
27
(VPL-CX85)
<Table 1>
<Table 2>
Item Number
Data
Item
Upper byte
Lower byte
Status Error
01h
01h
Status Power
01h
Control Mode Select
Data
02h
01h
Remarks
Upper byte
Lower byte
No Error
00h
00h
Lamp Error
00h
01h
02h
Fan Error
00h
Cover Error
00h
04h
Temp Error
00h
08h
D5V Error
00h
10h
Power Error
00h
20h
Warning Error
00h
40h
Stanby
00h
00h
01h
Start Up
00h
Startup Lamp
00h
02h
Power On
00h
03h
Cooling1
00h
04h
Cooling2
00h
05h
Saving Cooling1
00h
06h
Saving Cooling2
00h
07h
Saving Stanby
00h
08h
User Mode
00h
00h
Service Mode
00h
01h
05h
Lamp Timer
01h
13h
Lamp Use Time
0000h-FFFFh*1
ROM Version
01h
1dh
MAIN ROM Version
*2
SC ROM Version
01h
1eh
SC ROM Version
Status Security*3
01h
1fh
Disable
Channel Memory Reset
03h
01h
Status Memory Reset
*2
00h
00h
Enable
00h
01h
_
00h
00h
Set only
Set only*4
02h
Set Memory Reset
03h
W/B All Save
04h
W/B High Save
05h
W/B Low Save
06h
Sircs (15 Bit Category)
17h
Refer to table 10
_
00h
00h
Sircs (20 Bit Category)
19h
Refer to table 11
_
00h
00h
(VPL-CX85)
<Table 3>
Item Number
Data
Item
Data
Upper byte
Lower byte
ACK
_
00h
00h
NAK
Undefined Command
01h
01h
Size Error
04h
Select Error
05h
Range Over
06h
Not Applicable
Check Sum Error
28
Get only
0Ah
F0h
10h
Framing Error
20h
Parity Error
30h
Over Rub Error
40h
Other Comm Error
50h
*1 Example) In case the lamp timer indicates 1000H,
return values are [03h] upper byte and [E8h] lower
byte.
*2 Example) In case the software version is 1.03, return
values are [01h] upper byte and [03h] lower byte.
*3 While the set is security locked, after power switch
is turned on, you can check that pass sword input
screen is indicated or not.
During pass word input screen indicating, return
values are [00h] upper byte and [01h] lower byte.
*4 It is corresponded to single command only.
The await-return time of return value is approx. 50 msec.
m
. This is the case, unless the communications are
interfered anyway.
. If standby mode is set as “low”, the main part of a
projector will go into power-saving mode in about 1
minute after standby.
A command is executed by resending, although “Not
Applicable” will return, if a command is sent into
power-saving mode.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
VPL-CX75/CX85/FX51/PX35/PX40/PX41
List of SIRCS CODE
(1) 15BIT Category (VPL-FX51 only)
<Table 4>
x0
x1
x2
x3
x4
x5
x6
x7
x8
x9
xA
xB
COLOR
+
HIGH
COLOR
_
LOW
VIDEO
INPUT A
xC
xD
xE
xF
0x
2x
HUE
HUE
SHARPNESS SHARPNESS
+
_
+
_
MUTING
PURPLISH GREENISH SHARP
SOFT
CURSOR
→
3x
4x
5x
CONTRAST CONTRAST
+
_
HIGH
LOW
POWER
ON/OF
1x
ADJ R
CURSOR
←
STATUS
ON
STATUS
OFF
CURSOR
↑
CURSOR
↓
MENU
ADJ G
ADJ B
RGB SIZE RGB SHIFT
W/B
GAIN
W/B
BIAS
INPUT
SELECT
BLANKING
ENTER
BRITNESS BRITNESS
+
_
BRIGHT
DARK
INPUT B
POWER
ON
POWER
OFF
MEMORY
S VIDEO
INPUT C
6x
7x
LENS
SHIFT ↑
LENS
SHIFT ↓
FOCUS F
FOCUS N
ZOOM L
ZOOM S
RESET
PATTERN
29
30
(2) 20BIT Category (VPL-FX51 only)
<Table 5>
x0
x1
x2
x3
x4
x5
x6
x7
x8
x9
xA
xB
0x
1x
2x
3x
KEYSTONE
4x
5x
6x
VPL-CX75/CX85/FX51/PX35/PX40/PX41
7x
APA
DOT
PHASE
LENS
ZOOM
LENS
SHIFT
LENS
FOCUS
DIGITAL
ZOOM +
FREEZE
LENS
TOGGLE
DIGITAL
ZOOM –
xC
xD
xE
xF
VPL-CX75/CX85/FX51/PX35/PX40/PX41
(3) 15BIT Category (VPL-PX35, PX40, PX41)
<Table 6>
x1
x2
x3
x4
x5
1x
VOLUME+
UP
VOLUMEDOWN
AUDIO
MUTING
POWER
ON/OF
2x
HUE
HUE
SHARPNESS SHARPNESS
+
_
+
_
MUTING
PURPLISH GREENISH SHARP
SOFT
STATUS
ON
STATUS
OFF
CURSOR
↑
CURSOR
↓
x0
x6
x7
x8
x9
xA
xB
COLOR
+
HIGH
COLOR
_
LOW
VIDEO
INPUT A
xC
xD
xE
xF
0x
CURSOR
→
3x
ADJ R
4x
5x
ADJ G
ADJ B
W/B
GAIN
W/B
BIAS
CURSOR
←
CONTRAST CONTRAST
+
_
HIGH
LOW
MENU
INPUT B
POWER
ON
POWER
OFF
MEMORY
S VIDEO
RGB SIZE RGB SHIFT
INPUT
SELECT
ENTER
INPUT C
6x
7x
BRITNESS BRITNESS
+
_
BRIGHT
DARK
INPUT D
RESET
31
32
(4) 20BIT Category (VPL-PX35, PX40, PX41)
<Table 7>
x0
x1
x2
x3
x4
x5
x6
x7
x8
x9
xA
xB
xC
0x
1x
2x
V
KEYSTONE
3x
DDE
TOGGLE
4x
5x
6x
VPL-CX75/CX85/FX51/PX35/PX40/PX41
7x
APA
DOT
PHASE
DIGITAL
ZOOM +
FREEZE
LENS
CONT
TOGGLE
DIGITAL
ZOOM –
xD
xE
xF
VPL-CX75/CX85/FX51/PX35/PX40/PX41
(5) 15BIT Category (VPL-CX75)
<Table 8>
x0
x1
x2
x3
x4
x5
AUDIO
MUTING
POWER
ON/OF
*1
MUTING
STATUS
ON
STATUS
OFF
CURSOR
←
CURSOR
↑
CURSOR
↓
x6
x7
x8
x9
xA
xB
COLOR
+
HIGH
COLOR
_
LOW
VIDEO
INPUT A
xC
xD
xE
xF
0x
VOLUME VOLUME
+
_
UP
DOWN
1x
2x
HUE
HUE
+
_
PURPLISH GREENISH
CURSOR
→
3x
4x
5x
ADJ R
CONTRAST CONTRAST
+
_
HIGH
LOW
MENU
ADJ G
ADJ B
RGB SIZE RGB SHIFT
W/B
GAIN
W/B
BIAS
INPUT
SELECT
ENTER
6x
7x
LENS
FOCUS F
LENS
FOCUS N
AUTO
FOCUS
LENS
ZOOM L
LENS
ZOOM S
RESET
BRITNESS BRITNESS
+
_
BRIGHT
DARK
INPUT B
POWER
ON
*1
POWER
OFF
MEMORY
S VIDEO
33
34
(6) 20BIT Category (VPL-CX75)
<Table 9>
x0
x1
x2
x3
x4
x5
x6
x7
x8
x9
xA
xB
xC
xD
xE
xF
0x
1x
2x
TILT/
KEYSTONE/
SIDE SHOT
3x
MS
PLAY
4x
5x
6x
VPL-CX75/CX85/FX51/PX35/PX40/PX41
7x
APA
DOT
PHASE
LENS
ZOOM
LENS
FOCUS
DIGITAL
ZOOM +
FREEZE
LENS
CONT
TOGGLE
DIGITAL
ZOOM –
AIR
SHOT
H
H
KEYSTONE KEYSTONE
+
_
VPL-CX75/CX85/FX51/PX35/PX40/PX41
(5) 15BIT Category (VPL-CX85)
<Table 10>
x0
x1
x2
x3
x4
x5
AUDIO
MUTING
POWER
ON/OF
*1
MUTING
STATUS
ON
STATUS
OFF
CURSOR
←
CURSOR
↑
CURSOR
↓
x6
x7
x8
x9
xA
xB
COLOR
+
HIGH
COLOR
_
LOW
VIDEO
INPUT A
xC
xD
xE
xF
0x
VOLUME VOLUME
+
_
UP
DOWN
1x
2x
HUE
HUE
+
_
PURPLISH GREENISH
CURSOR
→
3x
4x
5x
ADJ R
CONTRAST CONTRAST
+
_
HIGH
LOW
MENU
ADJ G
ADJ B
RGB SIZE RGB SHIFT
W/B
GAIN
W/B
BIAS
INPUT
SELECT
BRITNESS BRITNESS
+
_
BRIGHT
DARK
INPUT B
ENTER
POWER
OFF
MEMORY
S VIDEO
INPUT C
6x
7x
POWER
ON
*1
LENS
FOCUS F
LENS
FOCUS N
LENS
ZOOM L
LENS
ZOOM S
RESET
*1 If standby mode is set as “low”, the main part of a projector will go into power-saving mode in about 1 minute after standby.
A command is executed by resending, although “Not Applicable” will return, if a command is sent into power-saving mode.
35
36
(6) 20BIT Category (VPL-CX85)
<Table 11>
x0
x1
x2
x3
x4
x5
x6
x7
x8
x9
xA
xB
xC
xD
xE
xF
0x
1x
2x
TILT/
KEYSTONE/
SIDE SHOT
3x
MS
PLAY
4x
5x
6x
VPL-CX75/CX85/FX51/PX35/PX40/PX41
7x
APA
DOT
PHASE
LENS
ZOOM
LENS
FOCUS
DIGITAL
ZOOM +
FREEZE
LENS
CONT
TOGGLE
DIGITAL
ZOOM –
AIR
SHOT
H
H
KEYSTONE KEYSTONE
+
_
The material contained in this manual consists of
information that is the property of Sony Corporation.
Sony Corporation expressly prohibits the duplication of
any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens de
l’équipement à moins d’une permission écrite de Sony
Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck als
die Bedienung oder Wartung der in dieser Anleitung
beschriebenen
Ausrüstung
ohne
ausdrückliche
schriftliche Erlaubnis der Sony Corporation.
VPL-CX75/CX85/FX51/PX35/PX40/PX41
VPL-CX75 (SY)
VPL-CX85 (SY)
VPL-FX51 (SY)
VPL-PX35 (SY)
VPL-PX40 (SY)
VPL-PX41 (SY) E
9-870-346-66
Sony EMCS Corporation
Ichinomiya Tec
English
2005CR16-1
©2005. 3
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
