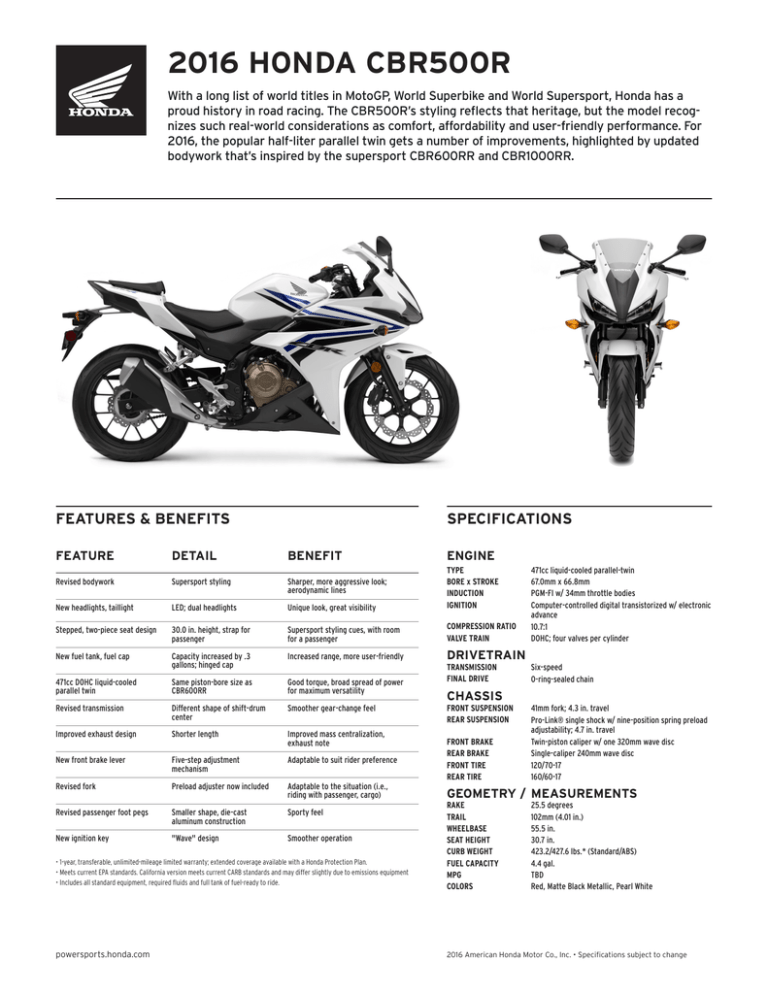

2016 HONDA CBR500R
With a long list of world titles in MotoGP, World Superbike and World Supersport, Honda has a
proud history in road racing. The CBR500R’s styling reflects that heritage, but the model recognizes such real-world considerations as comfort, affordability and user-friendly performance. For
2016, the popular half-liter parallel twin gets a number of improvements, highlighted by updated
bodywork that’s inspired by the supersport CBR600RR and CBR1000RR.
FEATURES & BENEFITS
SPECIFICATIONS
FEATURE
DETAIL
BENEFIT
ENGINE
Revised bodywork
Supersport styling
Sharper, more aggressive look;
aerodynamic lines
New headlights, taillight
LED; dual headlights
Unique look, great visibility
TYPE
BORE x STROKE
INDUCTION
IGNITION
Stepped, two-piece seat design
30.0 in. height, strap for
passenger
Supersport styling cues, with room
for a passenger
COMPRESSION RATIO
VALVE TRAIN
New fuel tank, fuel cap
Capacity increased by .3
gallons; hinged cap
Increased range, more user-friendly
DRIVETRAIN
471cc DOHC liquid-cooled
parallel twin
Same piston-bore size as
CBR600RR
Good torque, broad spread of power
for maximum versatility
Revised transmission
Different shape of shift-drum
center
Smoother gear-change feel
Improved exhaust design
Shorter length
Improved mass centralization,
exhaust note
New front brake lever
Five-step adjustment
mechanism
Adaptable to suit rider preference
Revised fork
Preload adjuster now included
Adaptable to the situation (i.e.,
riding with passenger, cargo)
Revised passenger foot pegs
Smaller shape, die-cast
aluminum construction
Sporty feel
New ignition key
"Wave" design
Smoother operation
• 1-year, transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
• Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment
• Includes all standard equipment, required fluids and full tank of fuel-ready to ride.
powersports.honda.com
TRANSMISSION
FINAL DRIVE
471cc liquid-cooled parallel-twin
67.0mm x 66.8mm
PGM-FI w/ 34mm throttle bodies
Computer-controlled digital transistorized w/ electronic
advance
10.7:1
DOHC; four valves per cylinder
Six-speed
O-ring-sealed chain
CHASSIS
FRONT SUSPENSION
REAR SUSPENSION
FRONT BRAKE
REAR BRAKE
FRONT TIRE
REAR TIRE
41mm fork; 4.3 in. travel
Pro-Link® single shock w/ nine-position spring preload
adjustability; 4.7 in. travel
Twin-piston caliper w/ one 320mm wave disc
Single-caliper 240mm wave disc
120/70-17
160/60-17
GEOMETRY / MEASUREMENTS
RAKE
TRAIL
WHEELBASE
SEAT HEIGHT
CURB WEIGHT
FUEL CAPACITY
MPG
COLORS
25.5 degrees
102mm (4.01 in.)
55.5 in.
30.7 in.
423.2/427.6 lbs.* (Standard/ABS)
4.4 gal.
TBD
Red, Matte Black Metallic, Pearl White
2016 American Honda Motor Co., Inc. • Specifications subject to change
