User manual | audio interfaces / software controllers / control surfaces

56

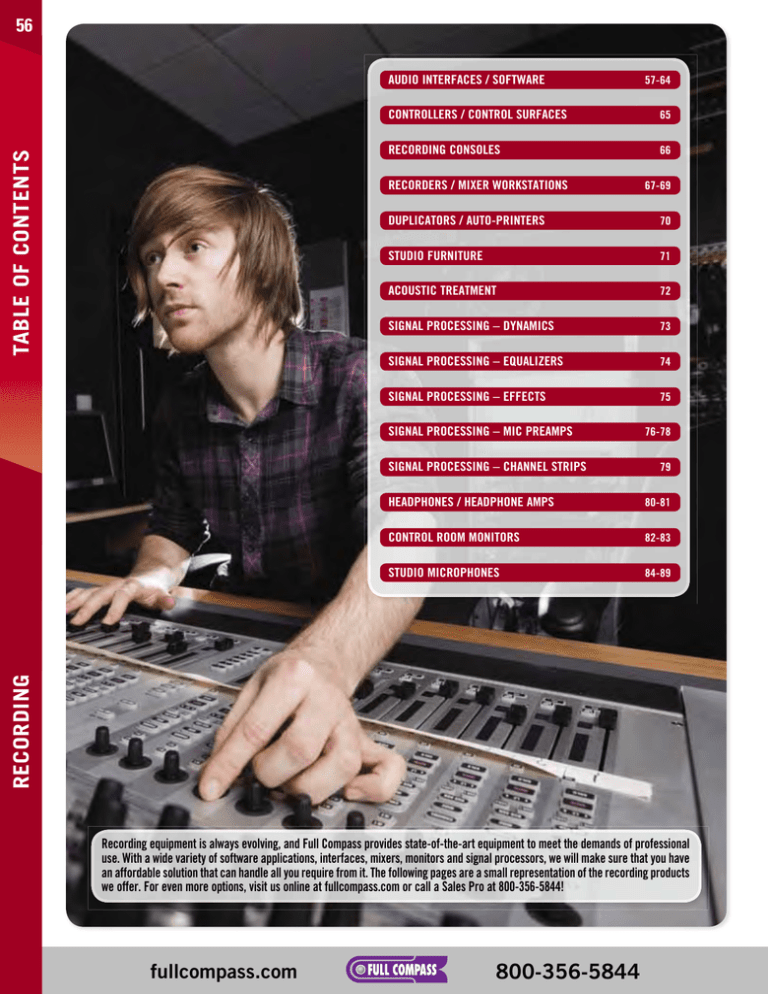

TABLE OF CONTENTS
AUDIO INTERFACES / SOFTWARE
57-64
CONTROLLERS / CONTROL SURFACES
65
RECORDING CONSOLES
66
RECORDERS / MIXER WORKSTATIONS
67-69
DUPLICATORS / AUTO-PRINTERS
70
STUDIO FURNITURE
71
ACOUSTIC TREATMENT
72
SIGNAL PROCESSING – DYNAMICS
73
SIGNAL PROCESSING – EQUALIZERS
74
SIGNAL PROCESSING – EFFECTS
75
SIGNAL PROCESSING – MIC PREAMPS
SIGNAL PROCESSING – CHANNEL STRIPS
76-78
79
80-81
CONTROL ROOM MONITORS
82-83
STUDIO MICROPHONES
84-89
RECORDING
HEADPHONES / HEADPHONE AMPS
Recording equipment is always evolving, and Full Compass provides state-of-the-art equipment to meet the demands of professional
use. With a wide variety of software applications, interfaces, mixers, monitors and signal processors, we will make sure that you have
an affordable solution that can handle all you require from it. The following pages are a small representation of the recording products
we offer. For even more options, visit us online at fullcompass.com or call a Sales Pro at 800-356-5844!
fullcompass.com
800-356-5844
57
APPLE LOGIC STUDIO
LOGIC-STUDIO-9 ............................DAW bundle (Mac) ...................................................................499.00
LOGIC-STUDIO9-UG-PRO ..............Upgrade from Logic Pro 6-8 ....................................................229.00
LOGIC-STUDIO9-UG-EXP...............Upgrade from Express .............................................................299.00
APOGEE DIGITAL ENSEMBLE
• 8 channels 24-bit 192K AD/DA conversion
• 4 digitally controlled 75db microphone preamps
• 2 fully balanced inserts on mic pre channels
• 4 Hi-Z instrument inputs
• 2 headphone outputs
• 2, 6 or 8-channel monitor outputs
• Optical ADAT, coaxial S/PDIF, and word clock I/O
• Soft Limit
• “UV22HR” for superior dither
• Dual-stage “Intelliclock”
• Complete integration & control w/ Logic Pro
• CoreAudio support
• Maestro software control and routing
AUDIO INTERFACES / SOFTWARE
With over 200 new features and enhancements, the new Logic Studio delivers everything musicians need to write, record, produce, and perform on a Mac. It includes Logic Pro 9, Apple’s
professional music application; a massive collection of instruments, effects, and audio loops;
MainStage 2 for performing live on the stage; and other applications and utilities that help
you create, personalize, and distribute your music.
ENSEMBLE ....... 18-in/18-out FW interface (Mac) ............................ 1995.00
APOGEE DUET 2
• Redesigned mic preamps and converters
• 24-bit/192kHz recording
• 2 analog line/mic combo inputs
• 4 x 1/4" TRS balanced outputs
• Independent speaker and headphone outs
• Full color OLED display
• Multi-function controller knob
• Configurable touch pads
• Maestro 2 software
• Soft Limit
DUET-2 ....2-in/4-out USB audio interface (Mac).......595.00
APOGEE GIO
GIO ......... USB guitar interface/controller (Mac).....................395.00
SPECTRASONICS
OMNISPHERE
NATIVE
INSTRUMENTS
KOMPLETE 7
BIAS
PEAK STUDIO
Power synth module plugin
Virtual instruments & effects bundle
Audio editing software
800-356-5844
IZOTOPE
RX
Audio restoration
software
fullcompass.com
RECORDING
• Unbalanced 1/4" high impedance instrument input
• 1/4" MIDI expression pedal input
• Line-level, 1/4" stereo output for headphones,
powered monitors or amp
• 44.1/48kHz, 24bit
• 5 Stompbox buttons, color coded to match software effects
• 5 Transport control buttons, dynamically lit when engaged
• 2 "Previous/Next" preset selection buttons
• Control built into Apple’s GarageBand, Logic Pro 9,
and MainStage 2 software
58
AUDIO INTERFACES / SOFTWARE
AVID PRO TOOLS 9
Pro Tools 9 redefines the world’s most popular, most advanced music and audio production platform with
an all-new, completely re-designed, open version of Pro Tools software, giving you what you asked for, and
so much more. Work with an audio interface or without. Create bigger, better-sounding mixes with more
tracks, Automatic Delay Compensation, and other pro features included as standard. With Pro Tools 9, you
can truly compose, record, sequence, edit, and mix the way you want, in more ways than ever.
PROTOOLS-9.................................Audio production software (Mac/PC)...............................................................599.00
PROTOOLS-9-UG-LE ....................Pro Tools LE to Pro Tools 9 upgrade (iLok not included) ..................................249.00
AVID MBOX MINI
•
•
•
•
•
•
•
•
•
2x2 simultaneous I/O
24-bit/48 kHz
1 XLR mic/line combo w/ phantom
2-in/2-out 1/4" TRS
1 x 1/4" headphones out
Dedicated monitor volume knob
Mix control for low-latency monitoring
USB-powered
Core Audio, ASIO, WDM, MME, and multi-client drivers
MBOX-MINI .............................2-in/2-out USB production system (Mac/PC) .......269.99
MBOX-MINI+PROTOOLS9......Same as above w/Pro Tools 9 ...............................629.99
AVID MBOX
A
• 4x4 simultaneous I/O
• 24-bit/96 kHz
• 2 XLR mic/line combo w/ phantom
• 2-in/2-out 1/4" TRS
• 1/4" headphone w/ volume control
• Stereo S/PDIF digital I/O, MIDI I/O
• Monitor control section w/ Mono and Dim controls
• Soft-clip limiter, built-in guitar tuner
• Flexible cue mixing & reverb effects w/ the onboard DSP
• Core Audio, ASIO, WDM, MME, and multi-client drivers
MBOX.... 4-in/4-out USB 2.0 production system (Mac/PC) ..449.99
MBOX+PROTOOLS9 . Same as above w/ Pro Tools 9...........819.99
RECORDING
AVID MBOX PRO
•
•
•
•
•
8x8 simultaneous I/O
4 mic inputs w/ phantom
High pass filters
4-in/6-out 1/4" TRS
2 unbalanced Alt line inputs
(2 RCA, 1 mini 1/8")
• Stereo S/PDIF digital I/O
• MIDI I/O
• 2 discrete 1/4" headphones
• Word clock I/O
• Mono, Mute, Dim, Alt Source,
e, and Speaker A/B/C switching monitor controls
MBOX-PRO..............................8-in/8-out FW production system (Mac/PC) .........719.99
MBOX-PRO+PROTOOLS9 ......Same as above w/ Pro Tools 9 ..............................999.99
SONY
SEMINAR SERIES
PACE
iLOK
USB hardware
description
goes herekey
TOONTRACK
EZ DRUMMER
AVID
COMPLETE
TOOLKIT 2
Complete production
description
goes here
toolkit
fullcompass.com
SNX BUNDLES
ANTARES
AUTO TUNE EVO
Pitch correction software
NOTHING FOR THIS
WAVES
ON ROADMAP
MERCURY
BUNDLE
Audio plug-ins for
mixing, mastering
& recording
800-356-5844
59
M-AUDIO PRO TOOLS MP9
PROTOOLS-MP9 ............Audio Production software (Mac/PC) .................................. 249.95
M-AUDIO PRO TOOLS MP + MOBILE PRE
•
•
•
•
•
•
•
•
•
2x2 simultaneous I/O
24-bit/48kHz
2 balanced XLR/TS combo inputs
2-in/2-out balanced 1/4"
1/4" headphones out
USB powered
Front/rear input select button
48V phantom power switch
4 top-panel knobs for adjusting I/O levels
& headphone volume
PROTOOLS-MP-MOBILPRE...Mobile Pre w/ Pro Tools MP 9 .......................329.95
MOBILE-PRE-2 ......................2-in/2-out USB interface (Mac/PC) .............149.00 • ASIO2, MME, CoreAudio/MIDI support
AUDIO INTERFACES / SOFTWARE
Pro Tools MP software improves upon the industry-leading features that made Pro
o
Tools M-Powered the top choice for music and audio production. Enjoy 48-track
k
mono or stereo audio recording, editing, and mixing at up to 24-bit/96 kHz fidelityy
(interface permitting). Shape sounds, compose parts, and add effects with the in-d
cluded instrument and effects plug-ins. Compose music easily with full MIDI and
score notation tools. Adjust pitch and time on the fly with Elastic Pitch and Elasticc
Time. Get great-sounding, phase-accurate mixes with Automatic Delay Compensa-tion. And easily collaborate with other Pro Tools users in professional and projectt
studios around the world.
M-AUDIO PRO TOOLS MP + FAST TRACK PRO
•
•
•
•
•
•
•
•
•
4x4 simultaneous I/O
24-bit/96kHz
2 XLR/TRS mic/line combo w/ phantom and 1/4" inserts
4-out unbalanced RCA
2-out balanced 1/4"
1/4" headphones out
Coaxial S/PDIF and MIDI I/O
USB powered
ASIO2, WDM, DirectX, CoreAudio support
PROTOOLS-MP-FSTK-PRO ....... Fast Track Pro w/ Pro Tools MP 9.............399.99
FAST-TRACK-PRO ...................... 4in/4out USB interface (Mac/PC) ...........199.00
PROTOOLS-MP-FSTK-ULT...Fast Track Ultra w/ Pro Tools MP 9 ................549.99
FAST-TRACK-ULTRA......8-in/8-out USB 2.0 audio interface (Mac/PC) ......349.00
CELEMONY
MELODYNE
Monophonic pitch
shifting/time
stretching software
STEVEN
SLATE
DRUMS
PLATINUM
WAVES CLA
SIGNATURE
COLLECTION
Signature drumkit
software package
Chris Lord-Alge
plug-in collection
800-356-5844
•
•
•
•
•
•
•
•
•
•
8x8 simultaneous I/O
24-bit/96kHz
4 preamps (M-Audio Octane technology)
4 XLR including 2 XLR/TRS mic/line combo w/ phantom
6-in/6-out balanced TRS
2 analog inserts
2 independent headphone outs
Coaxial S/PDIF and MIDI I/O
USB 2.0 bus power (limited channels) or external PSU
ASIO2, WDM, DirectX, CoreAudio support
IK MULTIMEDIA ARC
Room correction system
fullcompass.com
RECORDING
M-AUDIO PRO TOOLS MP
+ FAST TRACK ULTRA
60
AUDIO INTERFACES / SOFTWARE
MOTU DIGITAL PERFORMER
Digital Performer® lets you record, edit, arrange, mix, process and master audio and MIDI tracks side by side
for songwriting, studio production, live performance, film and television sound tracks, audio post production,
surround mixing and other professional audio production tasks. Features Up to 24-bit/192kHz audio recording,
track comping, direct audio CD burning, MasterWorks Leveler and ProVerb convolution plug-ins, Amp emulator, speaker/guitar pedal modeling, and inline EQ & multi-band dynamics in each mixing channel. Create/print
lead sheets w/ lyrics and transposable chord symbols. Works with OMF/AAF, SDII, ACID, REX files and supports
RTAS, Rewire & Pro Tools HD/Accel. Final Cut Pro integration with XML file support.
DIGITAL-PERFORMER7.0 ............DAW software for (Mac) .................................................................................... 499.00
DP-7.0-COMP-UPGRADE.............Competitor crossgrade to DP7 ......................................................................... 395.00
MOTU AUDIO EXPRESS
•
•
•
•
•
•
•
•
•
•
•
•
6x8 simultaneous I/O
24-bit/96kHz
2 XLR/TRS combo inputs w/phantom, 20 dB pad
2-in/2-out 1/4" balanced TRS
1/4" headphones out
Hybrid FireWire/USB 2.0 connectivity
Front panel LEDs and metering
FireWire bus powered or w/ included psu
Includes AudioDesk workstation for Mac
CueMix FX cross-platform mixing software
Sample-accurate MIDI I/O
Supports ASIO, WDM, Wave, Core Audio, and Core MIDI
AUDIO-EXPRESS ................6-in/8-out USB/Firewire audio interface (Mac/PC) . 395.00
MOTU ULTRALITE-MK3
•
•
•
•
•
•
•
•
•
•
10x14 @ 24-bit/96kHz I/O
Up to 24-bit/192kHz
2 XLR mic/line combo w/phantom
6-in/10-out balanced TRS, 1/4" headphones
Coaxial S/PDIF and MIDI I/O
USB2 and 6-pin FireWire port, bus powered or external PSU
On-board DSP effects including reverb w/ sends and returns
Standalone operation
Includes AudioDesk workstation for Mac
ASIO, WDM, Wave, GSIF, Core Audio, and Core MIDI
RECORDING
ULTRALITE-MK3-HYBRID .........10-in/14-out FireWire/USB2
interface (Mac/PC) ...................549.00
MOTU 828MK3
•
•
•
•
•
•
28x30 @ 24-bit/48kHz I/O
Up to 24-bit/192kHz
(2) XLR/TRS (mic/guitar) combo w/ phantom
XLR right/left main outputs
8-in/8-out unbalanced 1/4"
2 x 1/4" headphones
•
•
•
•
•
•
•
2 x FireWire type B ports, USB2.0
1/4" SMPTE I/O
2 x optical ADAT (SMUX), coaxial S/PDIF, word clock & MIDI I/O
1/4" footswitch, 2x 1/4" sends
CueMix FX digital mixer with built-in effects
Includes AudioDesk workstation software (Mac only)
ASIO2, WDM, Wave, GSIF 2, CoreAudio/ MIDI support
828MK3-HYBRID .. 28-in/30-out FireWire/USB2.0 interface (Mac/PC)... 749.00
MOTU
MACHFIVE
Sampling soft synth
MOTU
ETHNO 2
SPECTRASONICS
STYLUS-RMX
MOTU
ZBOX
World/ethnic
virtual instrument
Pickup impedance adapter
fullcompass.com
Realtime groove module
virtual instrument
800-356-5844
61
PRESONUS STUDIO ONE
STUDIO-ONE-PRO ..................64-bit DAW software for (Mac/PC) ......................................................................... 399.95
STUDIO-ONE-ARTIST..............32-bit DAW software for (Mac/PC) ......................................................................... 199.95
PRESONUS FIRESTUDIO MOBILE
•
•
•
•
•
•
•
•
•
•
10x6 simultaneous I/O
24-bit/96kHz
2 XMAX™ PreSonus preamplifiers w/ 48V phantom
8-in/2-out balanced 1/4" TRS
Stereo S/PDIF and MIDI I/O via DB9 breakout cable
Headphone output with gain control
2 x 6-pin bus-powered FireWire ports or external PSU
Software router/mixer
ASIO2, WDM, CoreAudio/MIDI support
Studio One Artist™ software included
FIRESTUDIO-MOBILE ....10-in/6-out FireWire interface (Mac/PC)..... 299.95
•
•
•
•
•
PRESONUS FIRESTUDIO PROJECT
•
•
•
•
•
•
10x10 simultaneous I/O
24-bit/96kHz
8-XLR/TRS mic/line combo w/ phantom
2-in/8-out balanced 1/4"
1/4" headphones out
2 x 1/4" sends and returns
Coaxial S/PDIF and MIDI I/O
2 x 6-pin FireWire ports
Zero-latency monitoring w/ DSP mixer/router
ASIO2, WDM, CoreAudio/MIDI support
Studio One Artist™ software included
FIRESTUDIO-PROJECT ..10-in/10-out FireWire interface (Mac/PC)... 499.95
RECORDING
PRESONUS AUDIO BOX STUDIO
Complete hardware/software recording kit, everything you need
ed
d for recording an
and
producing. Includes Studio One™ Artist software, AudioBoxx 2x2 USB audio inin
crophone,
ne, and HD7
HD
terface, M7 high-definition large-diaphragm condenser microphone,
professional monitoring headphones.
AUDIOBOX-STUDIO ......... Recording kit (Mac/PC) .............................. 249.955
NATIVE
INSTRUMENTS
GUITAR RIG 4
Professional guitar amp &
effects modeling software
TOONTRACK
SUPERIOR
DRUMMER 2.0
Drum sampling software
800-356-5844
AUDIO INTERFACES / SOFTWARE
Whether you just want to get tracks down with minimum hassle or want to do elaborate production and
mastering, Studio One meets your needs with two different versions. Studio One Artist single-window work
environment, and drag-and-drop functionality lets you work quickly and stay focused on your inspiration. It
features Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels. It has a content
browser, intuitive MIDI-mapping, real-time audio timestretching and resampling, automatic delay compensation, advanced automation, and includes 25 Native Effects 32-bit effects, virtual instrument plug-ins, 4+
GB of third-party software, loops, and instruments. Studio One Pro adds a serious mastering suite, 64-bit
audio, VST and AU support, more 64-bit Native Effects plug-ins, and more third-party resources.
ARTURIA
THE ONE
WAVEMACHINE
LABS
DRUMAGOG
Virtual instrument
software synthesizer
Drum replacement &
triggering software
WAVES
ONEKNOB
Plugin series
fullcompass.com
62
AUDIO INTERFACES / SOFTWARE
CAKEWALK BY ROLAND SONAR X1
SONAR X1 has everything needed to deliver the polished, “radio-ready” recordings that are expected in today’s music industry – all in one box.
g edge
g music creation tools plus an unparalleled collection of world-class instruments and effects.
Included are all of SONAR’s cutting
SONAR
ON
NAR X1
X ESSENTIAL
ESSEENTIALL
SONAR
NAR X1 STUDIO
SONAR
ONAR X1 PRODUCER
•
•
•
•
•
•
•
•
•
• Unlimited Audio Tracks/ MIDI Tracks
• AudioSnap 2.0
• Roland V-Vocal
• Surround Mixing
• T and S Series Effects
• Rapture LE Synth
• RGC Synth Suite
• IK Multimedia Amplitube X-Gear (32-bit)
• PLUS: Everything in SONAR X1 Essential
•
•
•
•
•
•
•
•
•
SONAR-X1-STUDIO........... PC only ......... 199.00
SONAR-X1-PRODUCER ....... PC only ...... 399.00
64 Audio Tracks
Unlimited MIDI Tracks
Streamlined User Interface
Matrix View
Step Sequencer 2.0
Essential Instruments
Essential Effects
IK Multimedia Amplitube X-Gear
Video Import/Export
SONAR-X1-ESSENTIAL ........ PC only ........ 99.00
Unlimited Audio Tracks/ MIDI Tracks
ProChannel
Dimension Pro
Mastering Effects
Channel Strip Effects
TruePianos Amber
Session Drummer 3
Guitar Rig 4 LE
PLUS: Everything in SONAR X1
Studio & Essential
ROLAND TRI-CAPTURE
•
•
•
•
•
•
•
•
•
3x2 simultaneous I/O
24-bit/96kHz
Mic input - XLR type, balanced, phantom power
Guitar input – 1/4" jack
Stereo AUX input (RCA phono type) w/ dedicated volume control
2 x 1/4" TRS balanced outputs
1/4" headphones out
USB bus-powered
Cakewalk SONAR X1 LE included (for Windows)
RECORDING
UA-33 ........3-in/2-out USB audio interface (Mac/PC) ..................... 129.00
ROLAND OCTA-CAPTURE
•
•
•
•
•
•
•
•
•
8 x 8 simultaneous I/O
24-bit/192kHz
8 XLR/TRS mic/line combo
Eight premium mic preamps built in (VS PREAMP)
8-out 1/4" TRS balanced outputs
Coaxial S/PDIF, MIDI I/O
1/4" headphones out
ASIO 2.0/WDM, Core Audio/MIDI compatibility
Bundled with Cakewalk Production Plus Pack
LEXICON
PCM NATIVE
REVERB
PLUG-IN
BUNDLE
IZOTOPE NECTAR
Native reverb plugin bundle
Complete vocal suite plugin
fullcompass.com
UA1010 ................8-in/8-out, USB 2.0 audio interface (Mac/PC) ........................................599.00
WAVES
JJP
SIGNATURE
COLLECTION
SPECTRASONICS
TRILIAN
Jack Joseph Puig signature
plugin collection
Bass module virtual
instrument software
STEVEN
SLATE
DRUMS
TRIGGER
Drum replacement software
800-356-5844
63
STEINBERG CUBASE 6
CUBASE-6 ............................ DAW software (Mac/PC) ....................................................................................................................499.99
CUBASE-ARTIST-6 ............... DAW software (Mac/PC) ....................................................................................................................249.99
STEINBERG NUENDO 5
Nuendo 5 is the newest incarnation of Steinberg's solution for demanding professionals working in audio, live
and post production. Nuendo 5 allows for an ADR-like workflow (including EDL support), comes with excellent
surround features, and also provides a unique automatable bus-destination routing system that lets you create
different mix versions in one go. A completely new video engine guarantees stable video playback in SD and HD,
and the ability to work with multi-mono files means industry openness. An array of additional enhancements and
64-bit technologies boost performance and enables Nuendo 5 to handle even the largest projects.
NUENDO-5 ........................... DAW software (Mac/PC) ......................................................................................................1800.00
STEINBERG CI1
•
•
•
•
•
•
2x2 Simultaneous I/O
Up to 24-bit/48kHz
2x mic/line inputs w/ XLR-combo jacks
+48V phantom power
Hi-Z switch on input 1
2 balanced line outputs with TRS
•
•
•
•
Latency-free hardware monitoring
Headphone output
USB-powered
Includes Sequel LE and Wavelab LE7 software
AUDIO INTERFACES / SOFTWARE
Cubase 6 is your go-to audio workstation for recording, editing, mixing and producing music of all types. Advanced
multitrack editing tools, a new take-comping system and the revolutionary VST Note Expression 2 form the centerpiece
of Cubase 6 novelties. Its refined new interface offers faster access and more intuitive control than ever before. An
outstanding range of effect processors and superior instruments like VST Amp Rack and LoopMash 2 fuel your creative
imagination. Cubase 6 is about making your music in the easiest, most effective way.
CI1...2-in/2-out USB audio interface (Mac/PC) .. 99.99
STEINBERG CI2
•
•
•
•
•
•
•
•
2x2 simultaneous I/O
24-bit/48kHz
2 XLR/TRS mic/line combo w/phantom
2-out 1/4" TRS
1/4" headphones out
Individual gain knobs and peak LEDs
Master volume knob
Transport controls
•
•
•
•
•
•
•
Mix knob (DAW playback & input signal)
Phones volume knob
A.I. knob controls all Cubase parameters
Includes Cubase AI 5
Latency-free hardware monitoring
Headphone output
USB-powered
CI2-PLUS ..... USB audio interface/controller (Mac/PC) .....229.99
16x16 simultaneous I/O
24-bit/96kHz
No latency, DSP-powered FX
Full Cubase Control Room support
Direct access from Cubase
8-XLR/TRS mic/line combo “D-Pre” preamps w/phantom
Digital ADAT and S/PDIF I/O
• Input routing to Cubase channels from the
hardware with the push of a button
• Up to 8 simultaneous onboard DSP-powered Channel
Strips with compressor, EQ & REV-X reverb
• Includes Cubase AI 5 software
MR816-CSX ...... 16-in/16-out FireWire interface w/built-in
DSP FX (Mac/PC) ...................................................... 999.99
MR816-X ........... 16-in/16-out FireWire interface (Mac/PC) ............... 699.99
STEINBERG
THE GRAND 3
WAVES
VOCAL RIDER
SOUND TOYS
NATIVE EFFECTS
Virtual piano software suite
Vocal mixing plugin
Native effects bundle
800-356-5844
UNIVERSAL AUDIO
UAD2 / UAD2
SATELLITE
DSP accelerator
package
fullcompass.com
UAD2
UAD2 SATELLITE
RECORDING
STEINBERG MR816 CSX & MR816 X
•
•
•
•
•
•
•
AUDIO INTERFACES / SOFTWARE
64
ABLETON
ON LIVE
LIVE IN
INTR
INTRO
RO
ABLETON
ETO
TON
N LIVE
VE 8
ABLETON SUITE 8
Ableton Live Intro gives you the essentials
of Ableton Live at a great price. If you're
just starting out, Live's fluid workflow, realtime audio manipulation and an impressive
7 GB audio content package provide a smart
step into the world of music production and
digital DJing. For established DJs and producers, Intro provides studio-quality sound
and an opportunity to plug Live's renowned
composition and performance features into
your current setup.
Ableton Live is about making music; for
composition, songwriting, recording, production, remixing and live performance.
Live's nonlinear, intuitive flow, alongside
powerful real-time editing and flexible performance options, make it a unique studio
tool and a favorite with live performers.
Includes a new groove engine, revamped
warping, live looping, new effects, crossfades in the Arrangement View and a reworked MIDI editor.
Suite 8 gives you all of the features in Live
8 plus a radically new Library packed with
beautiful new sounds and a wealth of useful
resources. Contains 11 Ableton instruments
and effects including synths, a sampler,
electric and acoustic drums, mallets, numerous sampled instruments, the new, reworked Operator and amp modeling effects.
Two completely new instruments, Collision
and Latin Percussion, round off the set.
LIVE-INTRO..Music Production Software (Mac/PC) .99.00
LIVE-8.............DAW software (Mac/PC) ........... 499.00
LIVE-8-SUITE . DAW w/ instruments (Mac/PC).. 799.00
AKAI
APC40
RECORDING
Ableton Live
performance
controller
IZOTOPE
STUTTER
EDIT
NATIVE
INSTRUMENTS
MASCHINE
NOVATION
LAUNCHPAD
Live remixing software
Groove production controller
Ableton Live controller
PROPELLERHEAD
ELLERHEAD RECOR
RECORD
PROPELLERHEAD
PELLERHEAD
AD R
REASON
REAS
PROPELLERHEAD
PELLERHEA
PELL
ERHEAD RECYC
RECYCLE
Propellerhead's brand new recording software gives you unlimited audio tracks, world
class effects and mixing gear, and a whole
new take on music recording. With an intuitive, straightforward interface and a handson approach to capturing performances,
Record was designed for musicians - not
audio engineers.
The Reason rack comes with all the gear
you could possibly need: samplers, analog
synths, graintable synth, vocoder, mixer,
drum machines, arpeggiator, compressors,
EQ and effects. With its generous sound
bank and intuitive flow, Reason helps you
along in your creative process, and never
gets in your way.
ReCycle 2.1 is the ultimate toolbox for
sampled grooves. Cut, create, convert and
compose with ReCycle. The ultimate toolkit for loop and groove fanatics. Everything
you need to make music is included in the
package: the ReCycle toolkit gives you ReCycle 2.1, Reason Adapted version 4 and
an hour-long tutorial from ASK Video to
help you get started in no-time.
RECORD ....... DAW software (Mac/PC)........ 249.00
REASON-5....Virtual synth bundle (Mac/PC) .. 299.00
RECYCLE-2.1.........Loop editor (Mac/PC)........ 199.00
PROPELLERHEAD
REASON RHYTHM
COMBO BUNDLE
Audio & effect
refills for Reason
ASK VIDEO
O
5
RECORD 1.5
TUTORIALL
PROPELLERHEAD
PIANO REFILL
EASTWEST
REASON
REFILLS
Audio & effect
refills for Reason
Refill sound
libraries for Reason
fullcompass.com
DVD tutoriall
ASK VIDEO
REASON 5
TUTORIAL
DVD tutorial
800-356-5844
65
Take
T
deep,
hands on control of your favorite audio and video applications
app
hands-on
with
the Artist Series from Avid. These compact control surfaces have
unmatched integration and programmability that acts and feels
like a physical extension of your software. Speed up and enhance
your workflow with functionality far beyond what a mouse and keyboard can provide, so you can focus on being creative.
MC-CONTROL-V2.........EuCon fader, touchscreen unit .................... 1499.00
MC-MIX ........................EuCon fader unit ......................................... 1259.00
MC-TRANSPORT ..........Compact media controller ............................. 399.00
MACKIE
O
MCU PRO
MCU Pro in-h
tegrates with
re
your software
ardware
like no other hardware
controller. The MCU Pro gives
ontrol of mix and plugyou intuitive control
in parameters, real-time visual feedback
and plug and play set-up — without any MIDI mapping whatsoever. It features Alps touch-sensitive faders, a full-sized backlit LCD
and V-Pots for fast tweaking. Expandable via optional 8-channel
MCU Extender Pro.
MCU-PRO ............................... Touch-sensitive control surface .......... 999.99
MACKIE-EXTENDER-PRO ...... 8-fader extension for MCU-PRO .......... 699.99
MIXE
MIXED
LO
LOGIC
M
M24
The Mixed
T
Lo
Logic
M24
c
dedicated remote control
surf
id ffamiliar
ili h
d on control
t l ffor th
face
provides
hands
the computer based
audio production environment. The M24 offers a traditional recording console style interface and features 24 motorized 100mm touchsensitive Alps faders, LCD display, rotary controls, LED switches, and
transport control with a jog/shuttle/data wheel. It has 3 MIDI ins/outs,
USB connectivity, and supports most major DAW applications.
M24 ...........................24-fader control surface (Mac/PC) ................ 2880.00
NOVATION
REMOTE SL
SERIES
Features Automap Pro 3
mode detecting which instru-ect and then logically maps the controls
ments you have in your project
to its front panel. The instrument information displays on two backlit
LCD screens. It includes 64 assignable knobs, buttons, and sliders,
plus 8 velocity sensitive trigger pads, and transport controls. The keys
themselves are semi-weighted with full velocity and aftertouch. Plug
and play with WinXP/Mac OSX with no drivers to install.
CONTROLLERS / CONTROL SURFACES
A
AVID
A
ARTIST
SERIES
REMOTE-25SL-MKII ....... 25-key USB MIDI controller ........................ 399.99
REMOTE-49SL-MKII ....... 49-key USB MIDI controller ........................ 499.99
REMOTE-61SL-MKII ....... 61-key USB MIDI controller ........................ 599.99
ZERO-SL-MKII ................ USB MIDI control surface only .................... 299.99
M
M-AUDIO
AXIOM
P
PRO SERIES
AXIOM-PRO-25 .......... 25-key USB MIDI controller ............................. 399.00
AXIOM-PRO-49 .......... 49-key USB MIDI controller ............................. 499.00
AXIOM-PRO-61 .......... 61-key USB MIDI controller ............................. 559.00
ON-S
ON-STAGE
STAGE STANDS
WS7500RB/WSR7500RB
Workstation desk and rack
MACKIE BIG KNOB
Control room monitor
switcher / level control
800-356-5844
M-AUDIO
KEYSTATION SERIES
Thi series
This
i offers
ff
everything
hi ffrom simple
i l iinput off MIDI messages
to versions that have hammerweighted keys and LCD displays.
The Keystation 61ES and 88ES are basic models that connect
to the computer via USB and require a native USB port or 9VDC
power supply (optional) for powering up. They have pitch bend
and modulation wheels, and a separate MIDI-out jack to route
signals from the PC or to control external devices.
KEYSTATION-61ES .... 61 semi-weighted keys USB MIDI controller .... 169.95
KEYSTATION-88ES .... 88 semi-weighted keys USB MIDI controller .... 219.95
4000-50349-00........ Power supply 9VDC for Keystation series........... 25.50
PRESONUS
FADER PORT
TC ELECTRONIC
LEVEL PILOT
Single motorized fader
& transport control
Analog volume control
for active monitors
fullcompass.com
RECORDING
T
This
series
adds
T
TruTouch™ action for
i keys
k
d HyperControl
H
C t l technology
t
more responsive
and
for automatic
MIDI mapping of the keyboard’s 65 controls. The graphic LCD
updates current values, provides intuitive programming and preset
creation, and prevents parameter jumps, even with closed plugins. Buttons can be mapped to send QWERTY commands and
ASCII keystroke support. Toggle between mixer and instrument
control modes quickly and save settings to 50 memory locations.
They also feature DAW transport controls, eight velocity-sensitive
trigger pads, and are USB bus-powered.
66
RECORDING CONSOLES
ALLEN & HEATH GS-R24
This mixer features 24 mic/line input pre-amps, 24 channels of
4-band EQ with fully parametric mids, 2 dual stereo inputs with EQ,
2 valve input channels, 6 auxes, 4 subgroups, Main Stereo + Mono
bus, PFL, AFL + Solo In Place, MIDI control, 5.1 surround monitoring, integral meterbridge, and separate linear power supply.
GS-R24
GS-R24............... 24-ch. studio recording console .................................CALL
GS-R24M............ Same as above with motorized faders ........................CALL
GS-R24-ANA-A .. 32-ch. analog I/O module w/MIDI ........................... 249.00
GS-R24-FIRE-A . 32-ch. FireWire/ADAT I/O module w/MIDI,
wordclock, 24 bit 44.1/48/96kHz sample rates ...... 699.00
ALLEN & HEATH ZED-R16
ZED-R16
This 16-channel mixer combines Firewire and ADAT I/O. It can handle up to 26 inputs and outputs simultaneously. Features two-stage
mic preamps, 4-band fully parametric EQ, 2 pre- and 2 post- AUX
sends, studio feeds, and MIDI software control.
ZED-R16 ...16-mic/line input recording console, 4-bus, w/USB ...... 2499.00
MACKIE
ONYX-I
SERIES
AUDIENT
UDIENT ZEN MODERN
M
ANALOG
Zen combines DAW I/O integration with moving fader automation,
transport control and a sonically pure signal path. Features 2 inputs
per channel, DAW record out per channel, L/R mix bus, 2 stereo buses,
2 mono buses, 4 aux sends, 2 cue sends, plus a stereo compressor.
ONYX-820I ..... 8-ch., 3 mic channels w/pres & 3-band EQ, 2 aux sends .. 399.99
ONYX-1220I ... 12-ch., 4 mic channels w/pres & 3-band EQ, 2 aux sends... 599.99
ONYX-1620I ... 16-ch., 8 mic channels w/pres & 4-band EQ, 4 aux sends... 899.99
ONYX-1640I ... 16-ch., 16 mic channels w/pres & 4-band EQ, 6 aux
sends, 4-bus for sub-grouping.................................... 1499.99
RECORDING
ZEN16MPMF .. 16-ch. console w/mic pres & moving faders automation ....CALL
ZEN-2AES....... 2-ch. AES & S/PDIF digital output option.................... 530.00
Features Onyx mic
c
preamps, British-style Perkins EQ, pre/
post assignable aux
ux sends,
eWire, built24-bit/96kHz FireWire,
in DI on the first 2 channels,
48V phantom power
wer switches on
all mic ins, and a talkback section with built-in mic.
XENYX
1204USB
XENYX
2442USB
BEHRINGER XENYX 1204USB/2442USB
YAMAHA DM2000
These low-noise, high headroom mixers feature XENYX mic preamps,
USB interfaces, “one knob” compressors on all mono channels,
3-band EQ, and recording/editing software for your computer.
This console has 32-bit/96kHz FX, 24-bit/96khz onboard AD/DA conversion, and full automation (100mm motorized faders) with 1/4-frame
accuracy. I/O features 24 balanced 24-bit/96kHz mic/line XLR/TRS
w/48V phantom power, switchable inserts, balanced analog outs, 2 analog 2-track inputs. Mixes & automation stored on Smart Media cards.
XENYX-1204USB ... 12-input, 2 USB out, 4 mic pres, 2/2 mix buses .. 163.99
XENYX-X2442USB . 24-input, 2 USB out, 10 mic pres, 4/2 mix
buses, built-in FX ............................................ 380.99
fullcompass.com
DM2000V2-VCM ................Digital mixer ........................................... CALL
800-356-5844
67
• Portable video & audio recorder
with 2.4" display
• Records to 32MB internal
memory or SD/SDHC cards
• 640x480 video at 25-30 fps
with ASF compression
• High quality stereo condenser
microphone set
• 1/8" headphone, composite video outputs, USB
• Included accessories: 2GB SD card, 2 x AA
rechargeable batteries, battery charger, USB cable
RECORDERS / MIXER WORKSTATIONS
ALESIS VIDEOTRACK
IKEY RM3
• Flash memory/USB audio recorder
• Records to SD/SDHC memory cards up to 32GB, or USB flash drive
• Records MP3 and WAV file formats
• (2) combo XLR-1/4" mic/line inputs, XLR outputs, 1/4" line
input, RCA outputs, 1/4" TRS headphone output
• Included accessories: AC adapter, USB cable, 1GB memory card
RM-3-RECORDER ............................................................................... 199.95
VIDEOTRACK ....................................................................................... 149.00
DNF450
JOECO BLACKBOX
DNF650R
DENON DNF450 / DNF650R
•
•
•
•
SD/SDHC/USB audio recorders
WAV (PCM) and MP3, at 48/44.1kHz & 32-320kbps
XLR inputs, RCA inputs, 1/4" TRS headphone output, RCA output
DNF650R adds SPDIF & AES/EBU, pitch control w/ tempo lock,
USB keyboard support, ability to record to USB flash drive
• Included accessories: audio cable, USB cable, AC adapter, rack
kit (DNF450R only), CD-ROM with DMP Mark Editor Software.
• 24-track analog "Blackbox Recorder" for live performance recording
• Records directly to a USB2 disk
• Records to Broadcast Wave format up to 96kHz
• (3) 25-Pin D-Sub connectors
• Zero latency, USB keyboard support, linkable, footswitch support,
Virtual Sound Check Facility
BBR1 ................................................................................................. 2495.00
DNF450R............................................................................................. 599.00
DNF650R............................................................................................. 799.00
KORG SOS
KORG MR2
• Portable multi-track
recorder with rhythms
and effects
• Records to micro
SD/SDHC
• PCM, WAV format
(44.1kHz/16-bit)
• Internal stereo micro
phone, built-in speaker
• 1/4" guitar in, 1/8" TRS
n
line in, 1/8" TRS mic in,
1/8" TRS headphone out
• Included Accessories: 2x AA
alkaline batteries, 2GB MicroSD card
• Portable stereo recorder
• Records to SD or
SDHC memory cards
• Captures audio in
SACD 1-bit DSD at
2.8224 MHz & multibit PCM formats up to
24-bit at 192kHz
• X-Y configuration stereo
electret condenser
mics, capable of rotating 210 degrees
• 1/8" TRS mic in, 1/8" TRS line in,
mini headphone out, USB mini out
• Powered via 2x AA batteries or USB bus
SOS .......................................................... 199.99
MR2 ......................................................... 699.00
KORG
KO
ORG MR1000
MR1000 ................................................ 1199.00
DIGISPEED
4 ULTRA
AA-RECHARGEABLES
SANDISK
MEMORY CARDS SDSDRH008GA11
800-356-5844
RYCOTE
0 41119
Portable recorder
suspension mount
fullcompass.com
ACCESSORIES
CHNICA
AUDIO-TECHNICA
ATR-6250
Stereo
condenser
video/recordingg
microphone
RECORDING
• Mobile professional stereo field recorder
• Records to 40GB internal hard drive
• Captures audio in DSDIFF, DSF, WSD:
2.8224 MHz @ 1-bit, 5.6448 MHz @
1-bit and several PCM formats
• XLR-1/4" combo ins, XLR & RCA outs,
and USB 2.0 out, 1/4" headphone out
• Included Accessories: AC Adapter,
Carrying Bag, Software CD-ROM
RECORDERS / MIXER WORKSTATIONS
68
MARANTZ PMD620
MARANTZ PMD660
•
•
•
•
•
Portable stereo recorder
Records to SD/SDHC memory cards
Records audio in MP3 or WAV format
Electret stereo condenser microphones
1/8" TRS mic in, 1/8" TRS line in, 1/8"
TRS line out, 1/8" headphone out, USB
2.0 output
• Powered via included AC adapter or
2x AA batteries
• Included Accessories: Audio cable, USB
cable, AC adapter, SD card, handy-strap,
tripod/belt-clip adapter
• Portable solid state recorder
• Records to Compact Flash (CF)
• MP3 or 16-bit linear PCM file
formats (44.1, 48kHz)
• Built-in stereo condenser mics
• (2) XLR microphone ins, 1/8" TRS line in,
1/8" line out, 1/8" headphone jack, USB
• Powered via 4 AA batteries or AC adapter
• Included Accessories: 64MB CF card,
AC adapter, USB cable, audio cable,
carry strap screws (ISO 3x10mm)
PMD620 .................................................. 399.00
PMD660 .................................................. 549.00
LS-11
LS-20
OLYMPUS LS-11
• Portable stereo recorder
• 8GB of internal memory
or SD/SDHC memory
• Linear PCM WAVE, MP3 or WMA file
formats (24bit/96kHz)
• Two condenser microphones in 90 degree
outward placement configuration
• 1/8" TRS mic in, 1/8" headphone jack,
USB output
• Powered via 2 AA alkaline batteries or
the included AC adapter
• Included Accessories: USB cable, audio
cable, wind screen, carrying case, strap,
and 2 x AA alkaline batteries
ROLAND
R05
ROLAND CD
CD-2I
2I
RECORDING
• Portable SD/CD recorder
• Records to Compact Discs
or SD memory cards
• Captures audio to WAV on SD cards
(44.1kHz, 16-bits), CD-R or CD-RW
• Built-in stereo microphones
• (2) 1/4" microphone ins, XLR mic in
with phantom power, RCA line/phono in,
RCA line out, 1/8" headphone out
• Powered via 6 AA alkaline or NiMH
rechargeable batteries, or AC adapter
• Included Accessories: Remote control,
AC adapter, SD memory card
• Portable stereo
recorder
• Records to SD/
SDHC memory
cards
• Captures audio to
MP3 or WAV
• Built-in stereo
microphones
• 1/8" TRS mic in,
1/8" TRS line in,
1/8" TRS headphone & USB 2.0
• Powered via 2 AA batteries (alkaline
or NiMH rechargeable) or AC adapter
• Included accessories: SD card,
2 AA batteries, USB cable, windscreen
LS-11....................................................... 299.99
OLYMPUS LS-20
• Portable HD video/stereo audio
recorder with 2" LCD screen
• Records to SD/SDHC memory cards
• Captures video in .MOV format at 1080p
• Built-in stereo microphones
• 1/8" TRS mic in, 1/8" TRS headphone
and USB 2.0
• Powered via rechargeable
Lithium-Ion battery or AC adapter
• Included accessories: 2GB SD card,
battery, USB cable
R05 ............................................................. CALL
LS-20....................................................... 299.99
ACCESSORIES
CD2I ........................................................... CALL
GATOR CASES
G-MICRO-PACK
Recorder bag
TRANSCEND
MEMORY
CARDS
fullcompass.com
BOSS
BR-80
ROLAND
CS10EM
Micro BR recorder
Binaural mic/earphones for R05
800-356-5844
69
SONY PCM-D50
• Records to 4GB of internal flash &
MicroSD/Memory Stick Micro cards
• MP3 or WAV file formats
• Built-in stereo electret condenser mics
• 1/8" TRS mic in, 1/8" TRS line out/headphone jack
• Included Accessories: Sound Forge Audio
Studio LE, AC Adapter, USB cable, hand strap,
2 AA alkaline batteries, wired remote control
• Records to 4GB internal flash memory &
Memory Stick Pro-HG Duo memory
• MP3 or WAV file formats
• Built-in adjustable stereo electret condenser micss
• 1/8" TRS line in, 1/8" TRS mic in, 1/8" TRS head
phone out, analog and optical line outs, USB out
• Included Accessories: Sound Forge Audio Studio
LE, AC adapter, USB cable 4 AA alkaline batteries
PCMM10/R............. Red....................................... CALL
PCMM10/B............. Black .................................... CALL
PCMD50 .................................................................CALL
TASCAM DR100
SOUND DEVICES 788T-SSD
Professional 8-track digital audio recorder
Records to 256GB SATA hard drive or Compact Flash
WAV (AES-31 format), 24-bit or 16-bit
AES inputs 1-8 on DE15 connector, AES out 1-4 on TA3
connector, AES out 5-6 on DE15 connector, USB and FireWire
• Powered via batteries or AC adapter
• Records to SD/SDHC memory
• MP3 and WAV (44.1k to 96k)
• (4) microphones, 2 cardioid and 2 omni condenser
• 2 XLR mic ins, 1/8" TRS line in, 1/8" TRS
line out/headphone jack
• Included Accessories: Wireless remote control,
windscreen and carrying case
788T-SSD ................................................................................................CALL
DR-100.............................................................329.99
ZOOM H1
ZOOM H2
• Records to MicroSD memory
• MP3 or Broadcast Wave
• Stereo X/Y microphone
• 1/8" TRS mic in, 1/8" TRS line out/headphone output, USB
B
• Auto record level, low cut filter, track marker function,
built-in speaker
• Included Accessories: 2GB MicroSD card & 1 AA battery
ry
•
•
•
•
•
•
•
•
H1 ...................................................................................... 99.00
APH-1 ......Accessory pack: windscreen, AC adapter,
USB cable, tripod stand, protective pouch,
mic clip adapter ............................................... 24.00
RECORDERS / MIXER WORKSTATIONS
SONY PCM-M10
Records to SD/SDHC memory
WAV, MP3 or (VBR) formats
4 Built-in mics
1/8" TRS mic in, 1/8" TRS line in, 1/8" TRS
line out/headphone jack, USB out
• Included Accessories: earbuds, 1/8" TRS to
RCA cable, mic clip adapter, tripod stand,
USB cable, AC adapter and a 1GB SD card
H2 ...................................................................... CALL
H2SJ .......Silicone jacket for Zoom H2................8.99
ZOOM Q3HD
ZOOM H4N
Portable 4-track recorder
Records to SD/SDHC memory
MP3 (48-320knbps) or WAV (24-bit/96kHz)
Integrated X/Y stereo condenser mics
XLR mic ins, Hi-Z 1/4" instrument ins, 1/8" TRS
mic in, 1/8" TRS line out/headphone jack, USB
• Included Accessories: 1GB SD card, windscreen,
mic clip adapter, AC adapter, USB cable,
protective case, Cubase LE
H4N.................................................................... 299.00
AD-14 .........Replacement AC adapter ................ 19.27
• Portable HD video recorder, 1080p, 4x digital zoom
• Records to SD/SDHC memory
• Captures video to MPEG-4, audio to WAV (PCM) or AAC
• Stereo condenser mics
• 1/8" TRS line in, 1/8" TRS line out/headphone jack,
1/8" TV out, HDMI out, USB
• Included Accessories: HandyShare software,
YouTube uploader software, Apple QuickTime,
2GB SD card, two AA batteries
Q3HD ........................................................................ 299.00
APQ-3HD ...... Accessory pack: padded soft-shell
case, windscreen, AC adapter, HDMI
cable, AV cable, Tripod ......................... 39.00
Waterproof case for
Zoom Q3/Q3HD
8GB Micro SDHC card
SKB
1
3I-0907-4B-01
SONY
ECMDS70P
Waterproof case for
Zoom H4N
Electret condenser
stereo microphone
800-356-5844
fullcompass.com
ACCESSORIES
SKB
3I-0907-4B-05
TRANSCEND TS8GUSDHC6
RECORDING
•
•
•
•
•
DUPLICATORS / AUTOPRINTERS
70
E
EPSON
P
PP100 / PP100AP
T PP-100AP is a dedicated
The
d
disc printer which can print
u
up to 95 discs per hour. The
P
PP-100 adds fully automated
C
CD/DVD reproduction, and
ccan publish 30 CDs or 15
D
DVDs per hour.
PP-100AP ....CD/DVD label printer, up to 95 discs per hour .......... 1950.00
PP-100 ........CD/DVD Duplicator/printer, publishes 30 CD's per hour...2695.00
MICROBOARDS QD SERIES
These DVD/CD duplicators
tors burn DVDs at
18x and CDs at 48x. They can be
used as a stand-alone device or
connected to a PC for easy
mastering over the USB
port with the included
recording software.
QD-DVD-123 ......DVD/CD Duplicator, 1 source to 3 targets ............ 399.00
QD-DVD-125 ......DVD/CD Duplicator, 1 source to 5 targets ............ 519.00
QD-DVD-127 ......DVD/CD Duplicator, 1 source to 7 targets ............ 599.00
MICROBOARDS COPYWRITER LIVE 6200
This recorder/duplicator will bring digital quality audio to your
church, school, studio or boardroom. This stand alone duplicator records CDs at 20x from nearly any source, including a live
feed from a microphone, a cassette deck, mixer or practically
any other source.
COPYWRITER-LIVE-6200 ... CD Recorder/Duplicator, 2 20x drives ... 699.00
GOLD SERIES
MEDIA MIRROR
EZ DUPE GOLD SERIES
These stand-alone DVD duplication systems burn DVDs at 8X
speed, with no cool down period between runs. They automatically perform a self-diagnostic test upon boot-up and support
DVD+R/RW, DVD-R/RW, DL DVD and most CD formats. Available
in 3, 5, 7, 9 and 11 target drive configurations.
RECORDING
GS3SOB ...........DVD/CD Duplicator, 3 target ................................... 429.00
GS5SOB ...........DVD/CD Duplicator, 5 target ................................... 579.00
GS7SOB ...........DVD/CD Duplicator, 7 target ................................... 719.00
EZ DUPE MEDIA MIRROR
Media Mirror will back up not only DVDs and CDs, but virtually
every type of media card and USB media. Multi-Session and DiscSpanning technology provide flexibility. Accepts MS, CF, SD &
MMC cards, USB drives and virtually all types of CD/DVD media.
MM01PIB .........Media duplicator, multi-format, 1 target................ 389.00
MM02PIB .........Media duplicator, multi-format, 2 target................ 459.00
MM03PIB .........Media duplicator, multi-format, 3 target................ 529.00
JVC
EDIA
CD/DVD MEDIA
RECORDEX
SJ50
BD/DVD/CD
PRINTER
Using inexpensive HP
ink, the StudioJet 50
mm
prints on any 120mm
sc.
inkjet printable disc.
Prints 30 to 90 discs
0% coverper hours with 100%
age. Holds 50 discs in the input
and output trays.
SJ50 .....BD/DVD/CD Printer, 4800dpi, 16.7 million colors ............... 1295.00
HHB
K IP
CDR80-BULK-IP
AMERICAN
RECORDABLE
MEDIA
50 pack spindle of inkjet printable CD-Rs
CD/DVD boxes & sleeves
fullcompass.com
MICROBOARDS
CX-1
50 DVD/CD/Blu Ray
printer/recorder
800-356-5844
71
ARGOSY
CONSOLESPECIFIC
SOLUTIONS
Features 4" casters, reversible doors, and a venti-lated bottom cover panel. Ships fully assembled..
Available in maple, black or mahogany – substi-tute a "B" or "H" for the "M" at end of product forr
black or mahogany finish respectively.
YF1F1228M .. 12RU F1 furniture rack, maple. 660.000
YF1F2028M .. 20RU F1 furniture rack, maple. 740.000
YF1F2828M .. 28RU F1 furniture rack, maple. 820.000
MIDDLE ATLANTIC S24D
STUDIO RACK & MDV LINE
The MDV series offers a variety of options suitithe
able for all types of post-production setups. The
dio
S24D studio rack is a standalone 24RU studio
ed
rack with a plexiglas front door and a gasketed
zes
solid rear door with fan and filter. Minimizes
computer and hard drive noise.
MDV-DL ........... 59" W desk w/rounded corners, overbridge................558.43
MDV-CNR1 ...... Corner desk w/32" W overbridge ................................558.43
MDV-CNR3 ...... Corner desk w/3-piece overbridge .............................647.90
MDV-DSK......... Straight desk w/overbridge ........................................376.40
S24D-PS ......... 24RU quiet studio rack w/pepperstone finish on top....1537.48
WS7500RB
WSR7500RB
ON-STA
STAGE
AGE WS7500 WORKSTATION SERIES
WS7500MG ..... Z-frame workstation desk.............................................174.99
WSC7500MG... 45° angled extension desk...........................................59.99
WSR7500MG... 12 RU rack stand .......................................................124.99
ON-STAGE RS7030
O
This table-top rack stand offers 12 RU of
T
sspace and has a weight capacity of 75 lbs.
sp
G
Great for studio or home use.
RS7030 ........................................................ 27.99
CHIEF
HIEF RAXXESS
ESS SYST
SYSTEM 3
This system comes in ebony fleck and maple finishes – for ebony
finish, substitute a "B" for the "M" at the end of each product. Shown
above with one center desk, 2 side wing racks, and one rack bridge.
SCD-36M......36" W straight center desk, maple finish ...................... 471.00
SSW-22MS ...14 RU side desk with steel sides & maple finished top ... 353.00
RB60M .........60" W rack bridge for center desk, maple finish ........... 244.00
RB-36M ........36" W rack bridge for side desk, maple finish............... 173.00
KBS-1M ........Optional keyboard tray, maple finish ............................. 173.00
SOUND CONSTRUCTION
S
IS
ISOBOX SOUNDPROOF RACKS
El
Eliminating
hard drive, fan, or spindle
no
noise, these racks allow you quick access
to your computer gear. The IsoBox Studio
& Flight Case racks offer heat elimination
as well as noise reduction, with the Flight
Ca being a road-ready version of the IsoCase
S
Box Studio.
The IsoBox Post offers 30dB of
noise reduction and a 4-fan exhaust system that can hadle up
to 3500W of heat.
ISOB16 ...................... 16 RU Studio IsoBox....................................... 1691.47
FL16 .......................... 16 RU Flight Case portable IsoBox ................ 1988.04
ISOBPOST18-38 ....... 18 RU Post-production IsoBox, 38" D ............ 2278.06
ISOBPOST18-45 ....... 18 RU Post-production IsoBox, 45" D ............ 2331.40
ULTIMATE JS-SRR100
S
JAM STANDS ROLLING RACKS
This rolling rack stand offers 11 RU on top
p
and 8 RU on the front. Top section is anglee
adjustable. Features 4 casters, 2 with locks.
JS-SRR100 ..........................................................99.99
More models available. Call or visit our website!
800-356-5844
fullcompass.com
RECORDING
This series of desks features a Z-frame workspace desk with
slide-out keyboard tray, a 12-space rack stand, and a 45° angled
extension to join the two units together in a 90° orientation.
Components are listed below in maple/gray finishes (-MG). Substitute "-RB" for "-MG" to order in rosewood/black finish.
STUDIO FURNITURE
Great for use with Digidesign, SSL, Toft, Mackie,
Tascam, and Yamaha consoles and control surfaces. Features powder-coated components, padded armrests and
trim options. Available in custom configurations for optimal integration of your equipment. Please call for more
information regarding configurations, options and pricing.
CHIEF RAXXESS F1 SERIES
FURNITURE RACKS
ACOUSTIC TREATMENT
72
AUR
AURALEX
UR
URAL
RALEX
EX
STUDIOFOAM
STUDIO
OFFOAM
O
M DS
DST
114
4
DST-114
These 1 ft. x 1 ft. panels complement
other Auralex Studiofoam products and
can be cut into 3" shingles. Best when
used with 1 Foamtak or 3 Tubetak tubes
when covering a 96 sq. ft. area. Comes in
packs of 24 or 96 panels, which create
24 or 96 sq. ft. respectively. Available in
charcoal gray, burgundy, or purple.
DST114-BURG-96 .................................. 349.00
DST114-CHGRY ........................................ 99.00
DST114-CHGRY-96 ................................ 349.00
DST114-PURP-96 .................................. 349.00
The wedge foam packs are great for treating small to medium sized areas like vocal
booths and control rooms. The pyramid
foam packs offer a wider range of installation options and better diffusion due to its
4-sided shape. Both styles are available in
charcoal, burgundy, or purple.
HALF-PACK-2-WEDGE ........................... 179.00
HALF-PACK-4-WEDGE ........................... 179.00
HALF-PACK-2-PYRAMIDS...................... 199.00
HALF-PACK-4-PYRAMIDS...................... 199.00
Kits include 2'x2'x2" Studiofoam Absorbent Wedge Panels that calm early reflections and kill ringy room sound, LENRD
bass traps, and Foamtak spray adhesive
for mounting the panels & traps. T-Fusor
Sound Diffusors come with the Pro & DLX
kits only.
ROOMINATORS-DLX-PLUS .................... 849.00
ROOMINATORS-PROJECT2..................... 599.00
ROOMINATORS-PRO-PLUS .................. 1199.00
CLEARSONIC
ISOPAC A
DRUM SHIELD KIT
PRIMACOUSTIC
LONDON 12
ROOM KITS
Comprised of ClearSonic
panels for sound reflection
& SORBER panels for sound
absorption. Available in light
or dark gray finishes. Kit contains a 7-section ClearSonic
panel, 3 rear and 7 SORBER
peed fan
baffles, a lid system, a 6", 2-speed
fan, and other components
components.
The London 12 kit is comprised
d
of modular panels that can be
configured to fit a variety off room
types, particularly those in the 120 sq. ft.
8"x2" and eight
range. Kit contains two 24"x48"x2"
12"x48"x2" beveled edge panels, twelve 12"x12"x1" square edge
panels, 28 surface impaler clips, and 8 corner impaler clips. Kit
is available with gray, beige, or black panels.
ISOPAC-A ..........7' W x 9' D 6.5' H, 50-60% sound reduction .......... 1914.50
LONDON-12..........Acoustical treatment kit for ~120 sq. ft. rooms.... 749.99
LONDON-12ARC ..LONDON-12 kit with IK Multimedia room correction
software & test/measurement mic........................ 999.99
CLEARSONIC ISOPAK G
VOCAL BOOTH KIT
RECORDING
Comprised of ClearSonic panels for
sound reflection & SORBER panels for
sound absorption. Available in light
or dark gray finishes. Kit contains a
4-section ClearSonic panel, a SORBER
baffle, a lid system, and a 6", 2-speed
fan, and other components.
ISOPAC-G ..........4' W x 4' D x 6.5' H, 50-60% sound reduction........ 1147.30
ACCESSORIES
AURALEX
AURAL
AURA
ALEX
X ROO
ROOMINATOR
OMINATOR
TOR KIT
KITS
TS
S
AURALEX HALF-PACKS
PRIMACOUSTIC
FLEXIBOOTH WALLMOUNT VOCAL BOOTH
This 48"x48" booth mounts to walls and
opens like a cupboard to provide a 16
cubic foot voice-over zone that eliminates room ambience. The "door" panels that swing open are 1" thick and the
panels touching the wall are 2" thick.
Doubles as a bass trap when closed.
FLEXI-BOOTH.......Wall-mount vocal booth/bass trap ........................ 449.99
AURALEX
U-BOATS
AURALEX
SHEET BLOCK
AURALEX
RC-8 RESILIENT CHANNEL
AURALEX
FOAMTAK &
TUBETAK
Acoustic foam
adhesive product
fullcompass.com
800-356-5844

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
