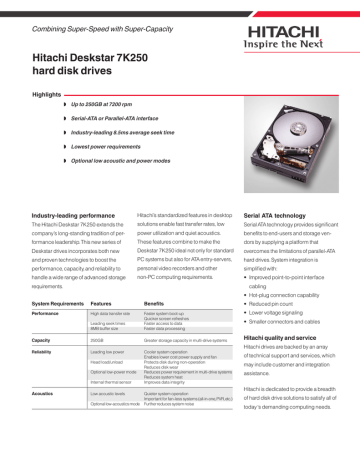

HGST Deskstar 7K250.indd
Combining Super-Speed with Super-Capacity
Hitachi Deskstar 7K250
hard disk drives
Highlights
Up to 250GB at 7200 rpm
Serial-ATA or Parallel-ATA interface
Industry-leading 8.5ms average seek time
Lowest power requirements
Optional low acoustic and power modes
Industry-leading performance
Hitachi’s standardized features in desktop
Serial ATA technology
The Hitachi Deskstar 7K250 extends the
solutions enable fast transfer rates, low
Serial ATA technology provides significant
company’s long-standing tradition of per-
power utilization and quiet acoustics.
benefits to end-users and storage ven-
formance leadership. This new series of
These features combine to make the
dors by supplying a platform that
Deskstar drives incorporates both new
Deskstar 7K250 ideal not only for standard
overcomes the limitations of parallel-ATA
and proven technologies to boost the
PC systems but also for ATA entry-servers,
hard drives. System integration is
performance, capacity, and reliability to
personal video recorders and other
simplified with:
handle a wide range of advanced storage
non-PC computing requirements.
• Improved point-to-point interface
requirements.
cabling
• Hot-plug connection capability
System Requirements
Features
Benefits
• Reduced pin count
Performance
High data transfer rate
• Lower voltage signaling
Leading seek times
8MB buffer size
Faster system boot-up
Quicker screen refreshes
Faster access to data
Faster data processing
Capacity
250GB
Greater storage capacity in multi-drive systems
Reliability
Leading low power
Cooler system operation
Enables lower cost power supply and fan
Protects disk during non-operation
Reduces disk wear
Reduces power requirement in multi-drive systems
Reduces system heat
Improves data integrity
Head load/unload
Optional low-power mode
Internal thermal sensor
Acoustics
Low acoustic levels
Optional low-acoustics mode
Quieter system operation
Important for fan-less systems (all-in-one, PVR, etc.)
Further reduces system noise
• Smaller connectors and cables
Hitachi quality and service
Hitachi drives are backed by an array
of technical support and services, which
may include customer and integration
assistance.
Hitachi is dedicated to provide a breadth
of hard disk drive solutions to satisfy all of
today ‘s demanding computing needs.
Hitachi Deskstar 7K250 Specifications
Product name
Deskstar 7K250
Deskstar 7K250
Model names
HDS722540VLAT20
HDS722580VLAT20
HDS722512VLAT20
HDS722512VLAT80
HDS722516VLAT20
HDS722516VLAT80
HDS722525VLAT80
HDS722580VLSA80
HDS722512VLSA80
HDS722516VLSA80
HDS722525VLSA80
Configuration
Parallel-ATA
Serial-ATA
• www.hgst.com
Interface
Capacity (GB)1
Sector size (bytes)
Recording zones
Data heads (physical)
Data disks
Max. areal density (Gbits/sq. inch)
Max. recording density (KBPI)
Track density (KTPI)
ATA Ultra-100
250/160/120/80/40
512
30
6/4/3/2/1
3/2/2/1/1
62
689
93.5 (3 disk)
90 (2/1 disk)
87(1 disk)
Serial ATA 1.5Gb/s
250/160/120/80
512
30
6/4/3/2
3/2/2/1
62
689
93.5 (3 disk)
90 (2/1 disk)
87 (1 disk)
• N. America: [email protected]
Hitachi Global Storage Technologies
For more information
Internet and e-mail:
• EMEA: [email protected]
• Asia Pacific: [email protected]
Hitachi hard drive product information:
• US: 1 888 426-5214
• For a complete list of worldwide phone
numbers, visit www.hgst.com/support
Performance
Data buffer2
Rotational speed (rpm)
Latency average (ms)
Media transfer rate (max. Mbits/sec)
Interface transfer rate (max. MB/sec)
Sustained data rate (MB/sec)
8 MB/2 MB
(3D-8M,2D-2M/8M,1D-2M)
7,200
4.17
757
100
61.4 -29.7 (zone 0-29)
8 MB
7,200
4.17
757
150
61.4 -29.7 (zone 0-29)
Seek time (read, typical)3
Average (ms)
Track to track (ms)
Full track (ms)
8.5/8.8 (1 disk)
1.1
15.1
8.5/8.8 (1 disk)
1.1
15.1
1 in 10E14
50K
1 in 10E14
50K
3.0 (3 disks)
2.8 (2 disks)
2.6 (1 disk)
3.0 (3 disks)
2.8 (2 disks)
2.6 (1 disk)
Reliability
Error rate (non-recoverable)
Start/stops (at 40° C)
How to read the HDD model number
Example:
HDS722516VLAT20 = 160GB / 2MB
H = Hitachi
D = Deskstar
S = Standard (vs A for Auto for example)
72 = 7200 rpm
25 = full capacity = 250GB
16 = model capacity = 160GB
V = generation code
L = 1-inch form factor
AT = ATA (or SA = SATA)
2 = 2 MB buffer (or 8 = 8 MB)
0 = Reserved
Acoustic
Idle (Bels)
Power
Requirement
Dissipation
Startup current (max. A)
Idle (W)
Height (mm)
Width (mm)
Depth (mm)
Weight (max. g)
+5 VDC (+/- 5%), +12 VDC (+10%/-8%) Same as Parallel-ATA
1.72 (+12V) & 068 (+5V)
7.0 (3 disks)
5.9 (2 disks)
5.0 (1 disk)
1.72 (+12V) & 068 (+5V)
7.6 (3 disks)
6.5 (2 disks)
5.6 (1 disk)
25.4
101.6
146
640
25.4
101.6
146
640
Environmental characteristics
Operating
Ambient temperature
Relative humidity (non-condensing)
Max. wet bulb (non-condensing)
Shock (half sine wave, 2ms)
Vibration (random (RMS))
Non-operating
Ambient temperature
Relative humidity (non-condensing)
Max. wet bulb (non-condensing)
Shock (half sine wave, 2ms)
Vibration (random (RMS))
© Copyright Hitachi Global Storage Technologies 2003
Hitachi Global Storage Technologies
5600 Cottle Road
San Jose, CA 95193
Produced in the United States
6/03
All rights reserved
DeskstarTM is a trademark of
Hitachi Global Storage Technologies.
References in this publication to Hitachi Global Storage
Technologies products, programs or services do not
imply that Hitachi Global Storage Technologies intends
to make these available in all countries in which Hitachi
Global Storage Technologies operates.
Product information is provided for information purposes only and does not constitute a warranty.
5° to 55° C
8% to 90%
29.4° C
55G
0.67G for horizontal, 0.56G for vertical
5° to 55° C
8% to 90%
29.4° C
55G
0.67G for horizontal, 0.56G for vertical
-40° to 65° C
5% to 95%
35° C
300G (3 disks)
350G (2/1 disks)
1.04G rms (XYZ)
-40° to 65° C
5% to 95%
35° C
300G (3 disks)
350G (2/1 disks)
1.04G rms (XYZ).
Information is true as of the date of publication and is
subject to change. Actual results may vary.
This publication is for general guidance only.
Photographs may show design models.
GB equals one billion bytes when referring to hard
drive capacity; accessible capacity may be less.
2
Buffer capacity includes 260 KB used for drive
firmware.
3
Includes command overhead.
1
